Sticky

Controlling the original GS-4 and DIY G-Seats with SimTools

Simtools 2.4 setup to prevent negative vales and movement

► simtools
To prevent negative vales and movement take @yobuddy's advice and use SimTools v2.4, then allocate a '0' for the min value in Sway and Roll.

This basically turns off the negative inputs for this DOF

We should be able to do this without modified plugins like this. :cheers
First Game Engine needs to be in "Expert" mode, this gives us separate Min/Max files for both (a) and (b) Axis Assignments.
Then setup you axis assignments like this.

Notice this is the - (a) Axis Assignments.
[​IMG]

Notice this is the - (b) Axis Assignments.
[​IMG]

Then in Tuning Center, make sure both sets of Min/Max settings for (a) & (b) Axis assignments are the same, except for sway.
For (a) Axis Assignment use a sway like this.
[​IMG]

And for (b) Axis Assignments use a sway like this.
[​IMG]

What you have essentially done here is turn off sway in one direction for each axis (the 0 turns them off in that direction.)
Now all you have to do is change your interface output.
Wherever you are using <Axis2a> Change it to <Axis2b>.

With this example above, all game plugins should be usable without modification.
If anything in the example needs more explaining, let me know!
Take care, :thumbs
yobuddy

►in your code:
We're sending 8 bits to Arduino as per interface settings, so that means values between 0 and 255. 0-127 is -ve and 128-255 is positive (heave/surge)

I can't do -ve DOF so I have this line that clips anything 0-127 and 128 is minimum

if (actuatorPosition[currentActuator]<128) actuatorPosition[currentActuator]=128;

So now the values are 128-255 and these are mapped to the values which go to the servo as per below. These numbers vary servo by servo and with ASMC/E you even need to tweak for individual servos depending on how the tiny pots might have been adjusted for sensitivity.

Using SimTools with SimExperience GS4 G-Seat

In SimTools Interface Settings just use these settings with the Serial Interface: https://www.xsimulator.net/community/threads/simtools-and-simxperience-gs-4.7050/#post-127901

* Interface_Profile *
BPS:115200
DataBits:8
Parity:None
StopBits:1
OutPutBits:7
OutPutType:Binary
StartupOutput:<241><64><0><67><241><64><1><68><241><64><2><69><241><64><3><70><241><64><4><71><241><64><5><72><241><64><6><73><241><64><7><74><241><64><8><75><241><64><9><76><241><64><10><77><241><64><11><78><241><64><12><79><241><64><13><80><241><64><14><81><241><64><15><82><241><22><63><122><63><122><63><122><63><122><64><5><63><122><64><5><63><122><63><122><63><122><63><122><63><122><64><5><63><122><64><63><122><0>
StartHW:10
InterfaceOutput:<241><22><Axis3><0><Axis4><0><Axis3><0><Axis4><0><Axis5><0><Axis6><0><Axis5><0><Axis6><0><Axis3><0><Axis4><0><Axis3><0><Axis4><0><Axis5><0><Axis6><0><Axis5><0><Axis6><0><0>
PacketRate:5
ShutdownOutput:<241><65><0><68><241><65><1><69><241><65><2><70><241><65><3><71><241><65><4><72><241><65><5><73><241><65><6><74><241><65><7><75><241><65><8><76><241><65><9><77><241><65><10><78><241><65><11><79><241><65><12><80><241><65><13><81><241><65><14><82><241><65><15><83>
StopHW:10

Arduino code for servo G-Seats

***** To prevent negative values and movement take @yobuddy's advice and use SimTools v2.4, then allocate a '0' for the min value in Sway and Roll.

***** Arduino code for G-Seats by @Spit40: https://www.xsimulator.net/community/threads/007-g-seat-ultra-compact-servo-based.10470/#post-139756

***** RC servo Code for Arduino UNO - 2DOF - Expandable 2.0: by eaorobbie
http://www.xsimulator.net/community/marketplace/rc-model-code-for-arduino-uno-2dof-expandable.89/
https://www.xsimulator.net/community/threads/rc-model-for-motion-simulation.4600/
interface setup - IMPORTANT - Assuming a 2DOF for SimTools 2 the Interface Output should be set like this R<Axis1a>~L<Axis2a>~

and for expanding code to use more servo http://www.xsimulator.net/community/threads/my-project-guide-me.5682/#post-59262
To add servos to my code , for example to include 4DOF with my code

Line 9 - How many Servos to use.
const int kActuatorCount = 4;

Line 13 - The Identifier used for Servo
const char kActuatorName[kActuatorCount] = { 'R', 'L' , 'F', 'B' };

Line 14 - Where is Servo is connected
const int kPins[kActuatorCount] = {3, 5, 6, 9};

Line 15 - 17 - Sets the scaleing in degrees of movement used , this is set for 180 deg if counting from 0
const int kActuatorScale[kActuatorCount][2] = { { 0, 179 } , // Right Actuator scaling
{ 179, 0 } , // Left side Actuator scaling
{ 179, 0 } , // Front side Actuator scaling
{ 179, 0 } }; // Back side Actuator scaling

Line 21 - Sets the Initial position of servo when in starts in Degree's
int actuatorPosition[kActuatorCount] = {90, 90, 90, 90};

Note in lines 15-17 if servo moves the wrong direction you can simply invert them by changing the scaling.

[​IMG]

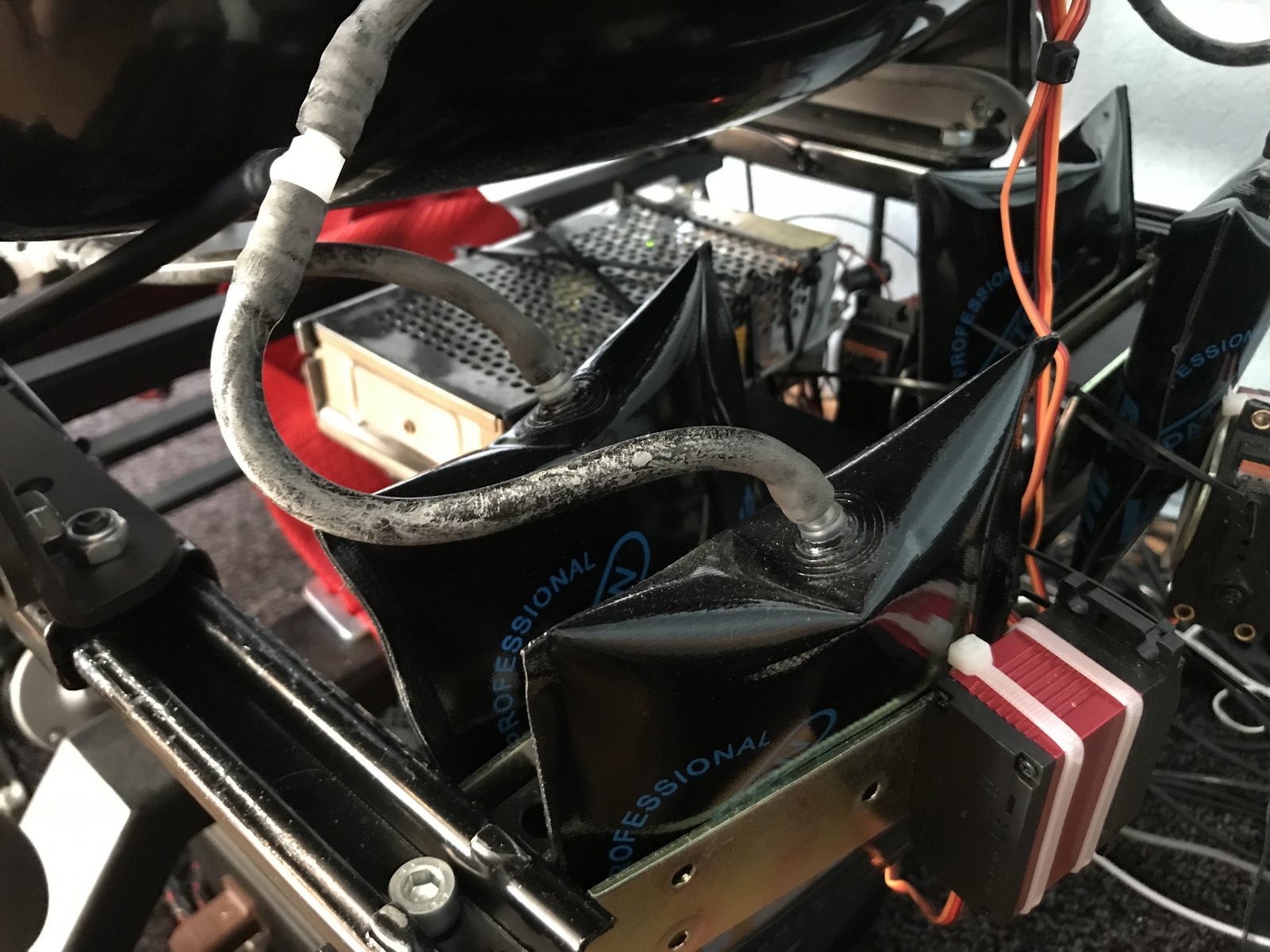

DIY pneumatic G-Seat by xxpelle

Check out @xxpelle's innovative servo driven pneumatic G-Seat: https://www.xsimulator.net/communit...imulator-dof-reality.8570/page-38#post-163816

Material list for a self-constructed pneumatic G-seat: https://www.xsimulator.net/communit...imulator-dof-reality.8570/page-39#post-163957

Settings: https://www.xsimulator.net/communit...imulator-dof-reality.8570/page-43#post-166682

RC Arduino code: https://www.xsimulator.net/community/threads/my-vr-simrig-h2-from-dof-reality.12519/#post-167010

4 x CYS-S8218 40 kg Metallgetriebe Digital High Torque HV Servo
"https://www.ebay.de/itm/CYS-S8218-4...728415?hash=item2ab0ac9b5f:g:wzgAAOSwjYdbYAYG"

1 x ARDUINO UNO R3 ATmega328P ATmega16U2 Development Board with USB Cable Pro
"https://www.ebay.de/itm/ARDUINO-UNO...622984?hash=item1a47cacdc8:g:~hEAAOSwbtVZUykL"

1 x DC 5V 30A 150W Power Supply
"https://www.ebay.de/itm/DC-5V-24V-2...hash=item33ec198822:m:m461IrkShu8mu025YOI1anA"

4 x Kistenband 150x35mm
"https://www.ebay.de/itm/Kistenband-...hash=item2cd73fd41f:m:mZQabYzC5rphaJmpWjIiVsg"

4 x Montagekissen 17x15cm
"https://www.ebay.de/itm/4x-Montagek...714612?hash=item3fa94386f4:g:TfgAAOSwDxZbfnF6"

4 x Montagekissen 27x13cm
"https://www.ebay.de/itm/PDR-Montage...798642?hash=item4d7be09932:g:MYcAAOSwImRYWkdX"

4 x T-piece hose connector plastic POM 5mm
"https://www.ebay.de/itm/T-Stuck-Sch...hash=item211651a386:m:moCJjtEYzBSTkw-jk65yIFA"

1 x Cable tie assortment
"https://www.ebay.de/itm/1000-Stuck-...956601?hash=item1a3138d039:g:fsQAAOSwv89ZeWls"

Fabric for the pillows "27x13cm"
"https://www.ebay.de/itm/Polsterstof...hash=item33f2d2d566:m:mRRG2fzUg92raAhRdqgpV3A"

Velcro fasteners to fix the pillows "27x13cm on the seat and 17x15cm on the pump"
"https://www.ebay.de/itm/Klettband-s...253293?hash=item33e222a4ad:g:mV8AAOSw6M9bsfZF"








[​IMG]

[​IMG]

[​IMG]

[​IMG]

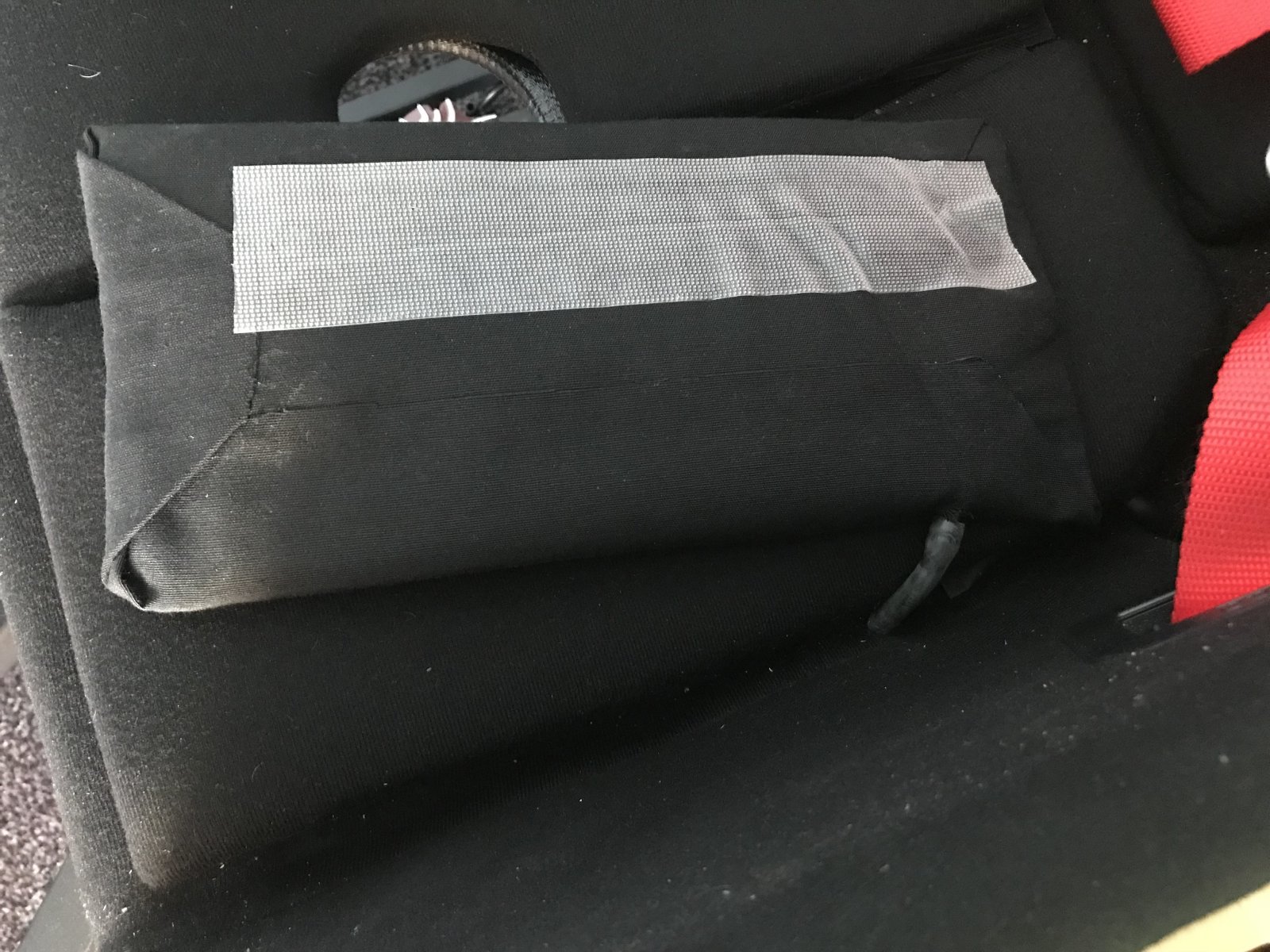

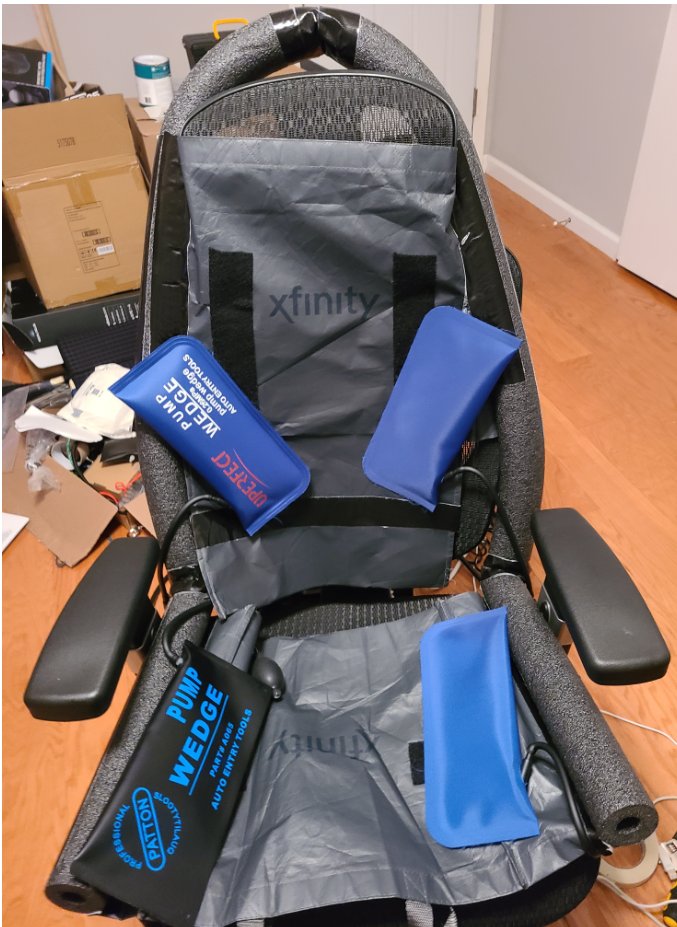

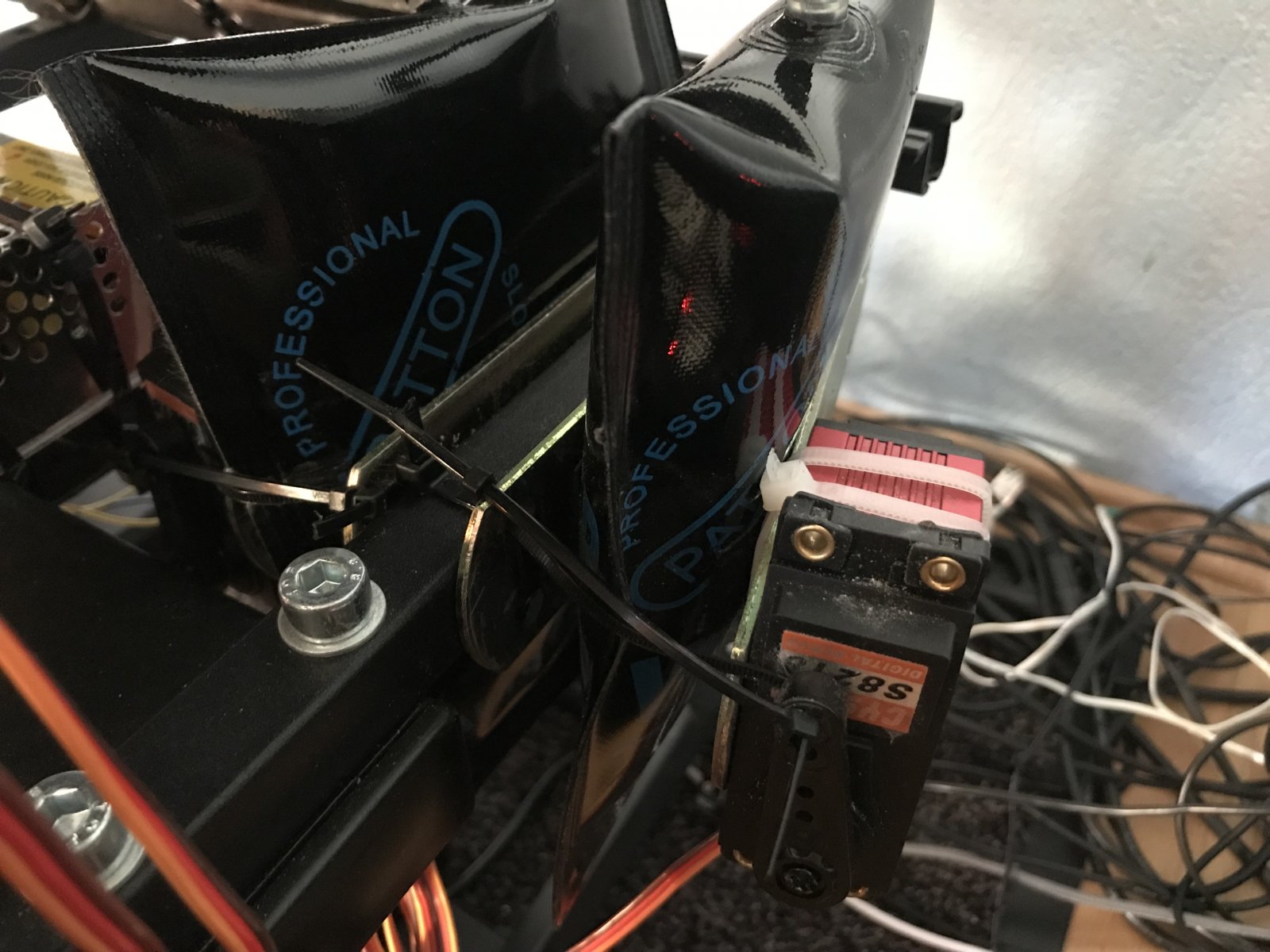

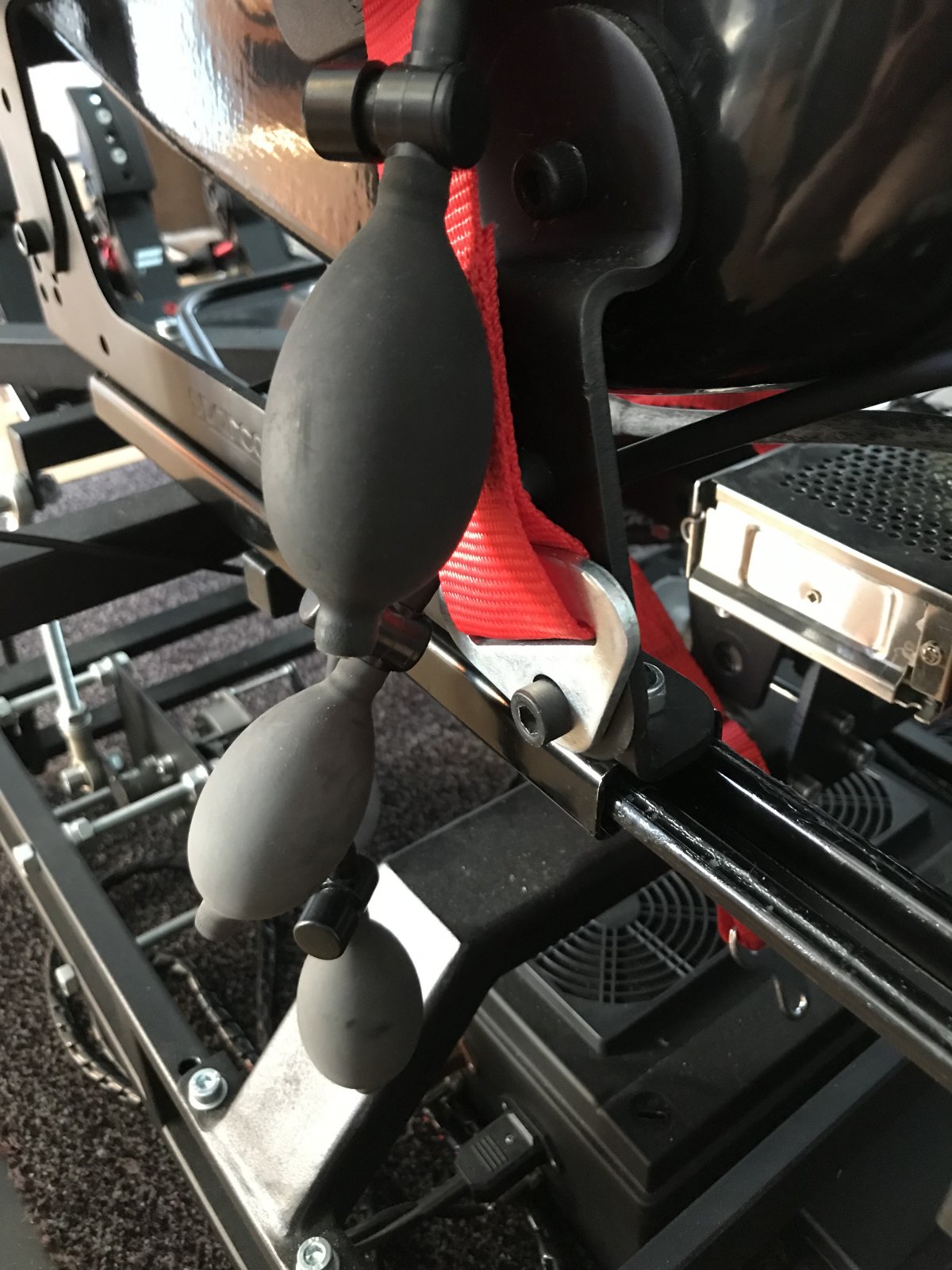

DIY pneumatic Gseat + Office chair traction loss by Jumping Coin

gHead gHelmet gSkull DIY systems

► here is a functionnal gHead bowden cable system made by sberns!:popcorn


► here a bladder gHead system by @Banfy
Having your head being moved by an external device feels really like having a helmet with G-Force.

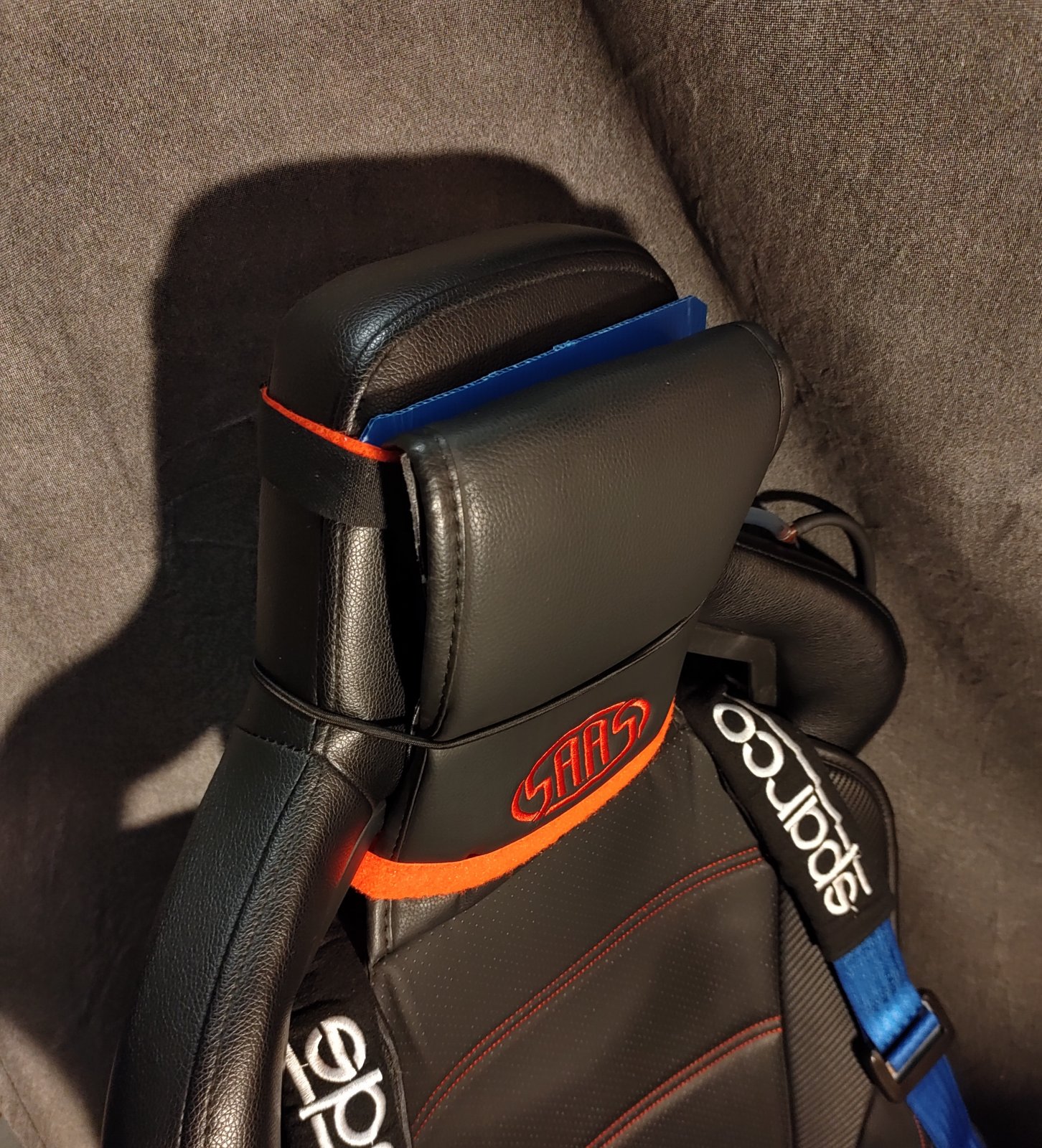

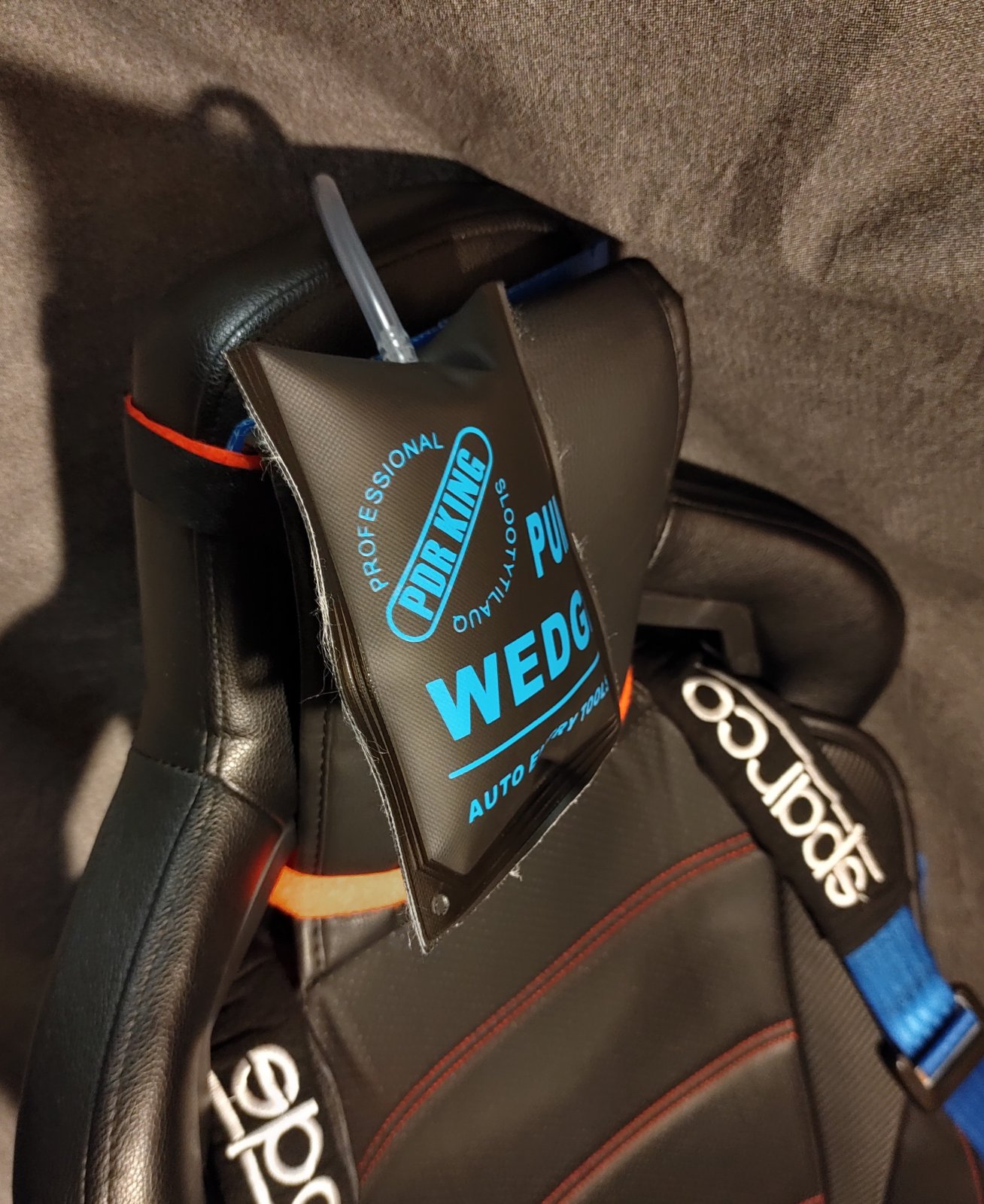

Finally i have just put a bladder behind my head, under the seat cover (red spot) and it give quite good results considering how simple it is to implement ;-)

I can set it either for breaking or accelerating. I prefer the acceleration mode (simulating the helmet being compressed to the seat)
[​IMG]
[​IMG]

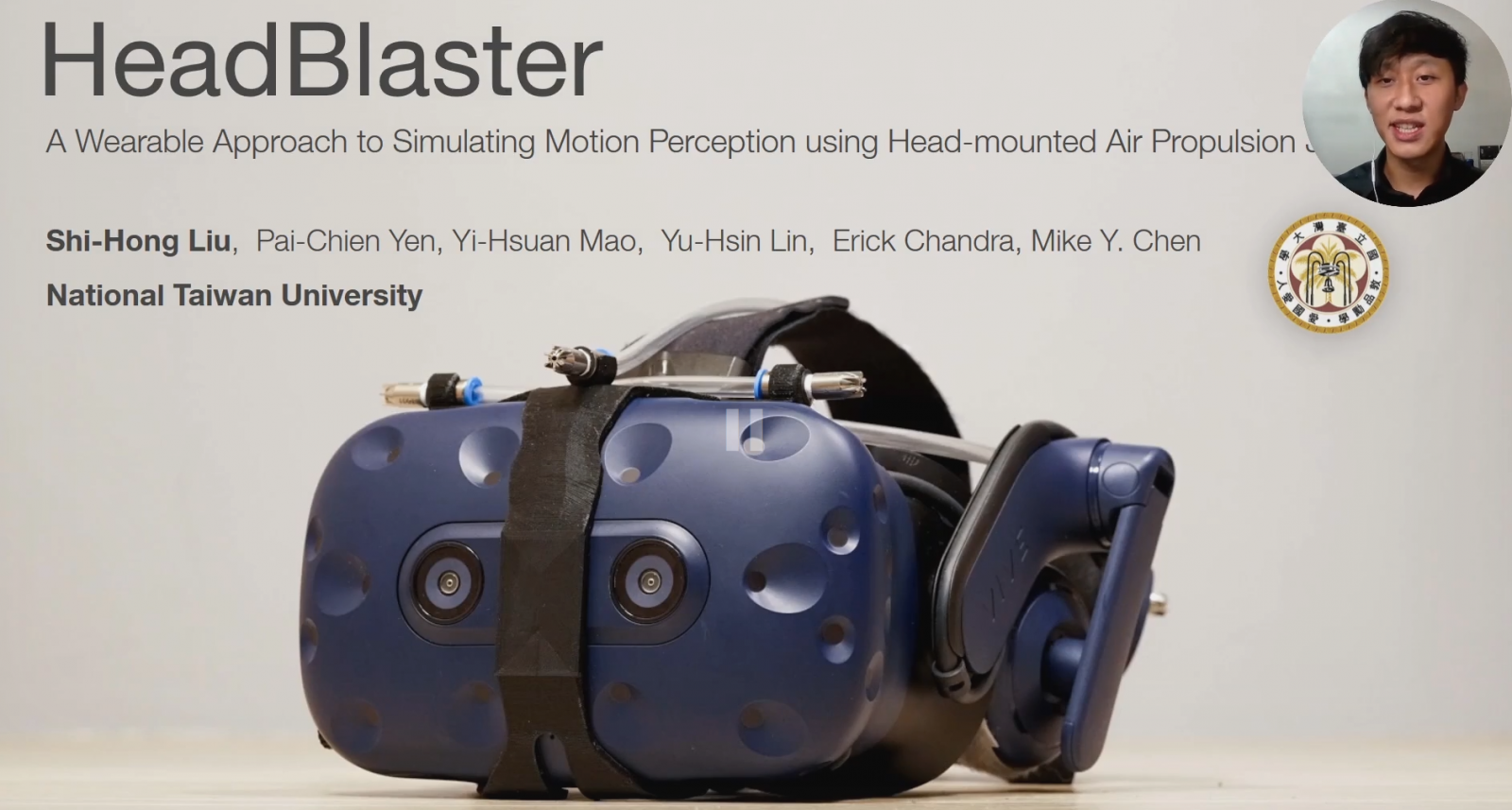

G Helmet by means of propulsive air jets
[​IMG]

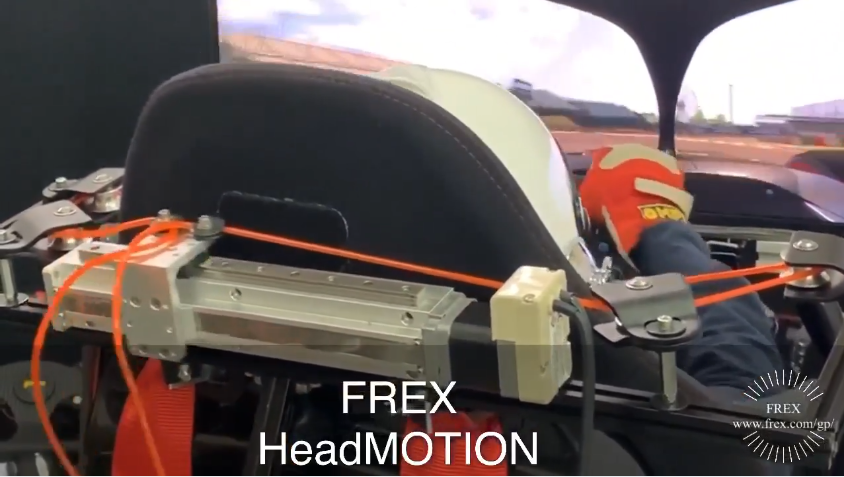

► Frex HeadMotion system
2013 system => https://www.xsimulator.net/community/threads/frex-motion-head-system.4991/
https://www.facebook.com/FrexGP/videos/frex-head-motion-system-prototype/738851742814563/

2020 system => https://www.facebook.com/FrexGP/videos/frex-head-motion-system-prototype/738851742814563/

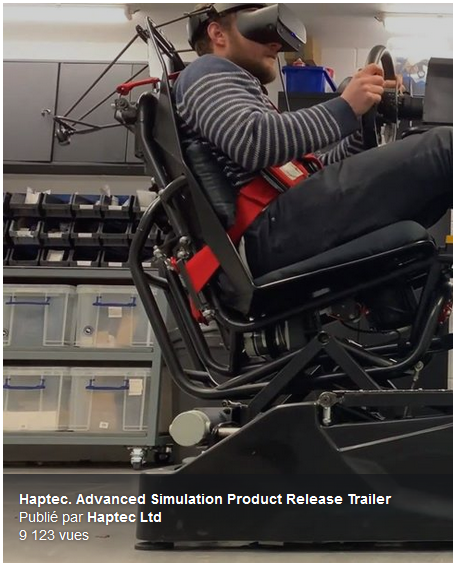

►video from Haptec

[​IMG]

► concept from @BlazinH
https://www.xsimulator.net/community/threads/jiffy-g-seat-and-g-skull.14052/
I use springs also but it appears for a different reason. I use torque only motor drivers therefore when a force ceases there is not a return to what would be considered neutral position because positional feedback is not present. In real life your head naturally snaps back to a position that feels natural and that's how my system works too. However there is some inherent resistance to movement in my actuators drivetrains so I use springs to provide just enough counterforce so your head doesn't feel a resistance when righting itself.

► an idea from @Trigen
https://www.xsimulator.net/communit...idea-phase-and-minor-hw-building.14526/page-2
