News Update Pneumatic G-Seat

Discussion in 'DIY Motion Simulator Projects' started by xxpelle, Feb 18, 2020.

  1. xxpelle

    xxpelle Discord "TPMax#9574" Gold Contributor

    Joined:
    Dec 24, 2017
    Messages:
    102
    Occupation:
    Discord "TPMax#9574"
    Location:
    Germany
    Balance:
    419Coins
    Ratings:
    +123 / 0 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    Hi

    Ich habe an meinem Pneumatic G-Seat weiter entwikelt.

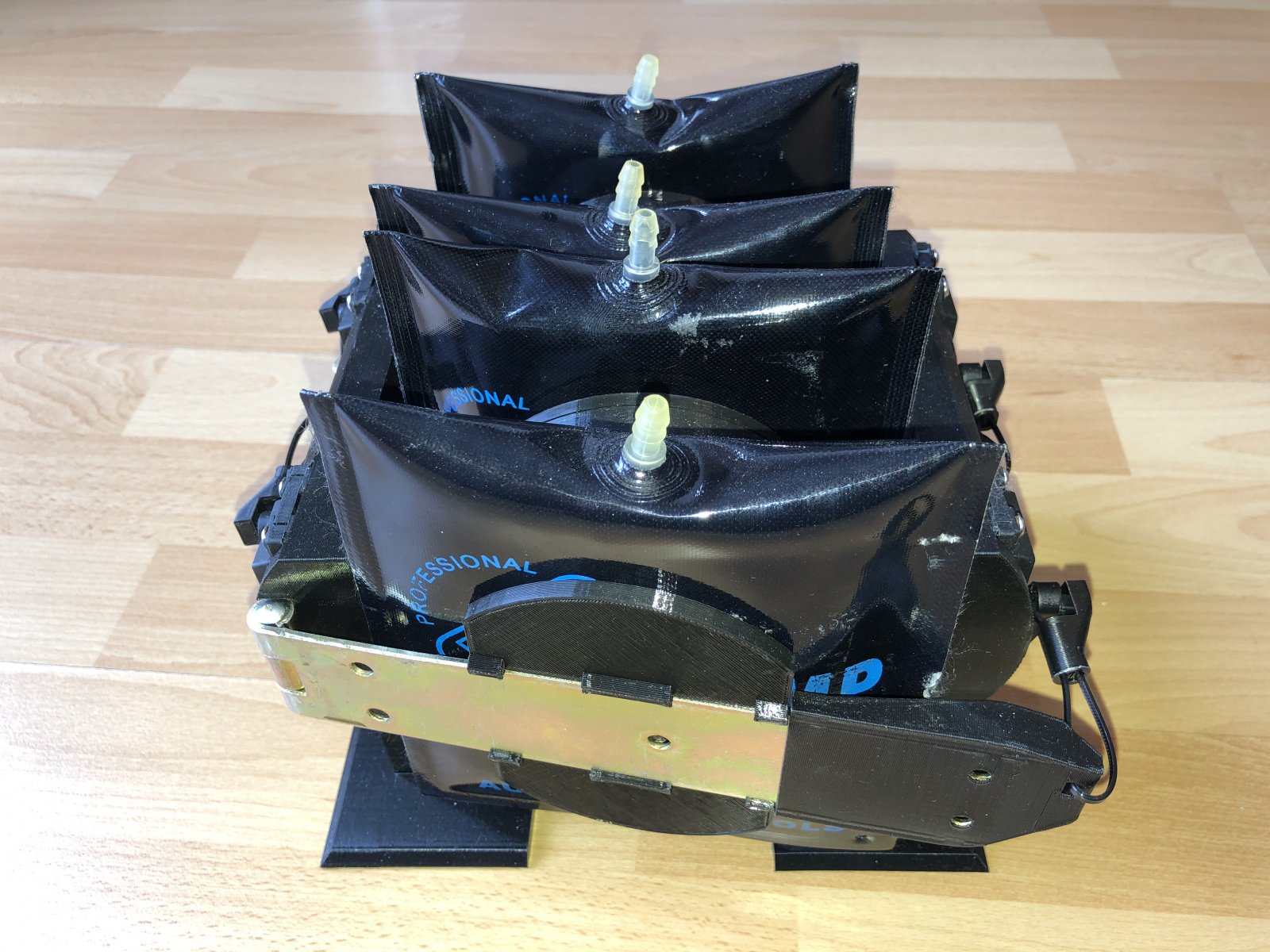

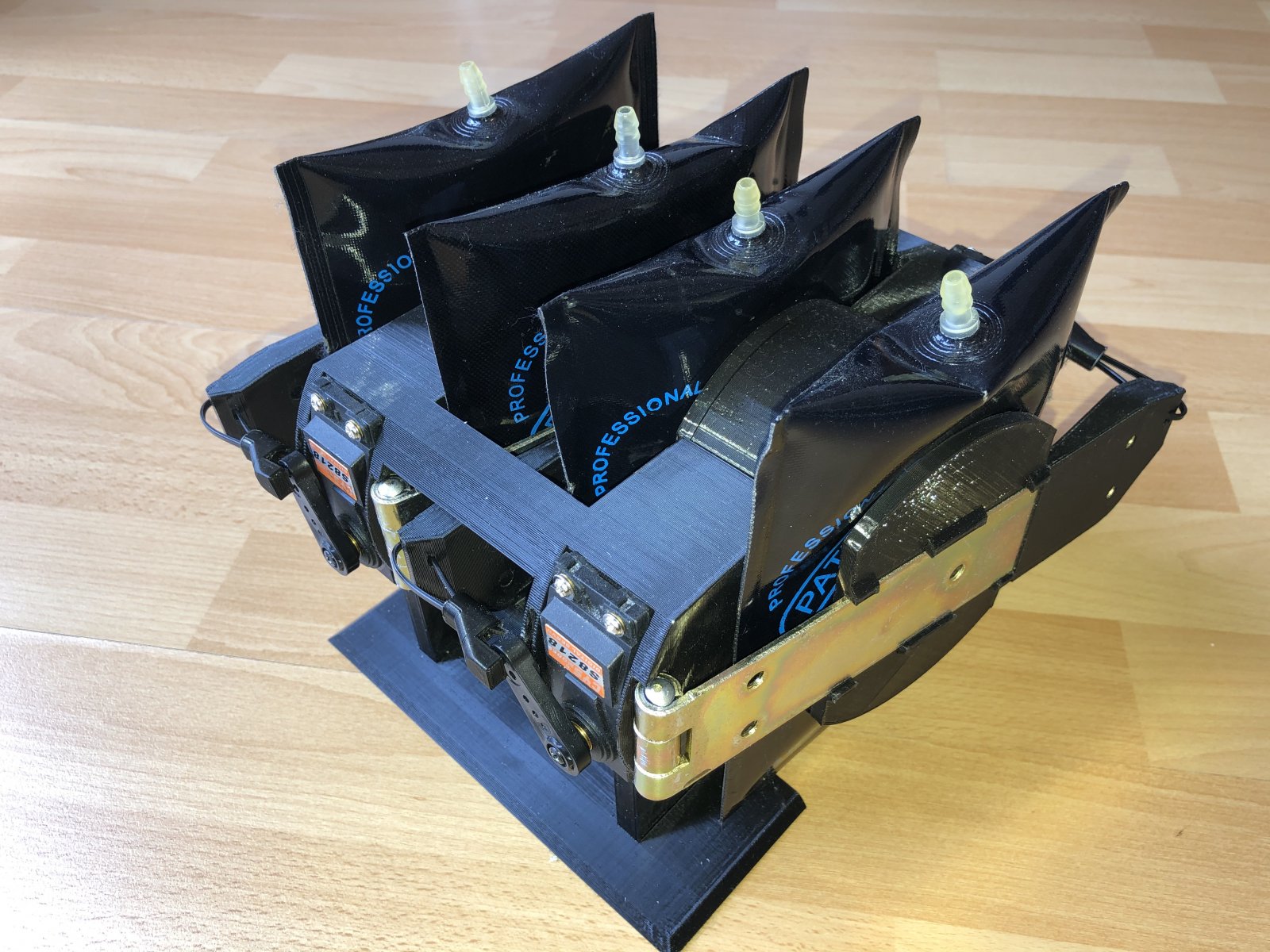

    I continued to develop my Pneumatic G-Seat.

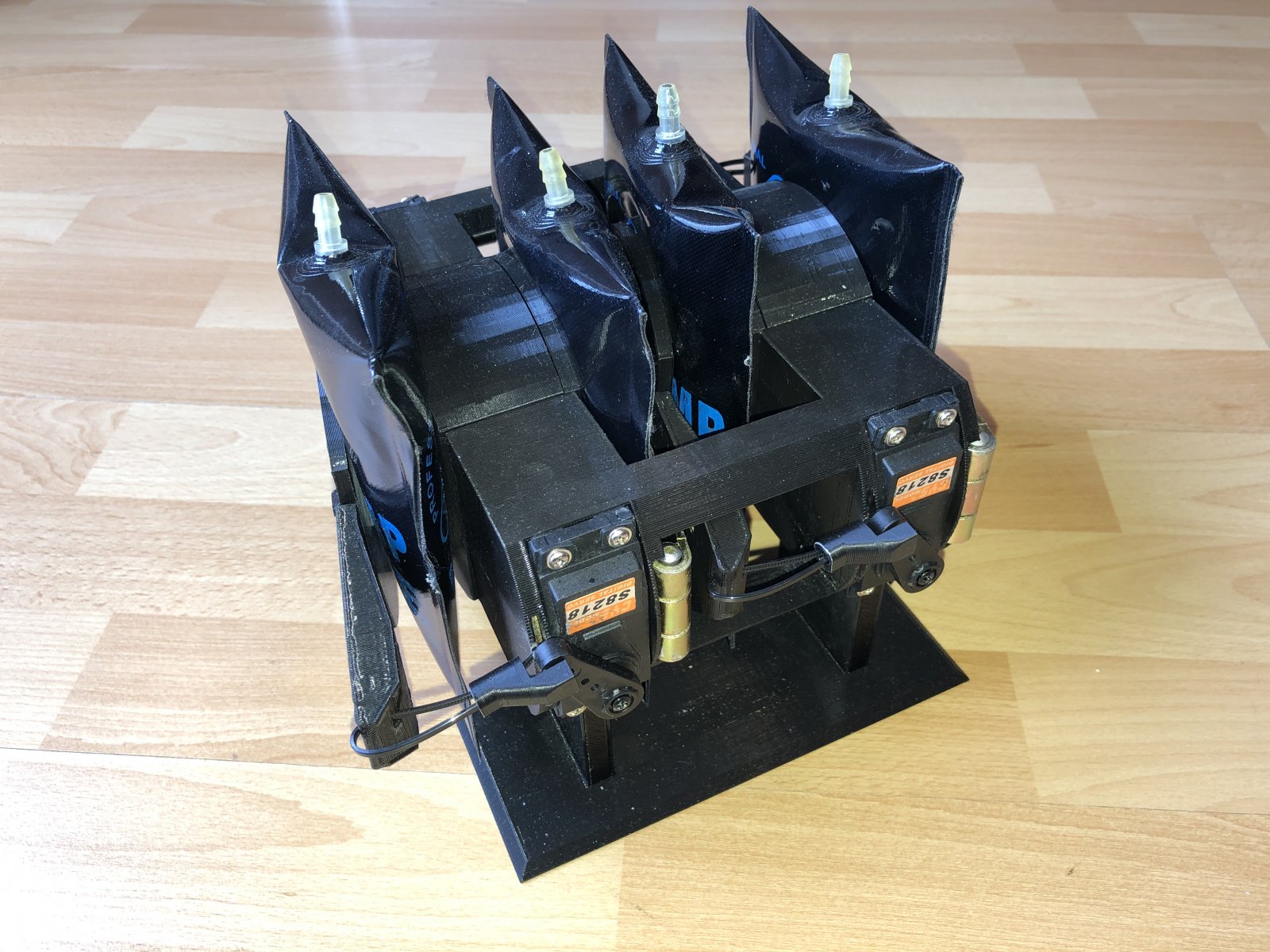

    Die Steuerung "Arduino" und Servos der Pneumatikeinheit sind jetzt sauber in einem Gerät für 4 Druckkissen untergebracht.

    The control "Arduino" and servos of the pneumatic unit are now neatly housed in a device for 4 pressure pads.

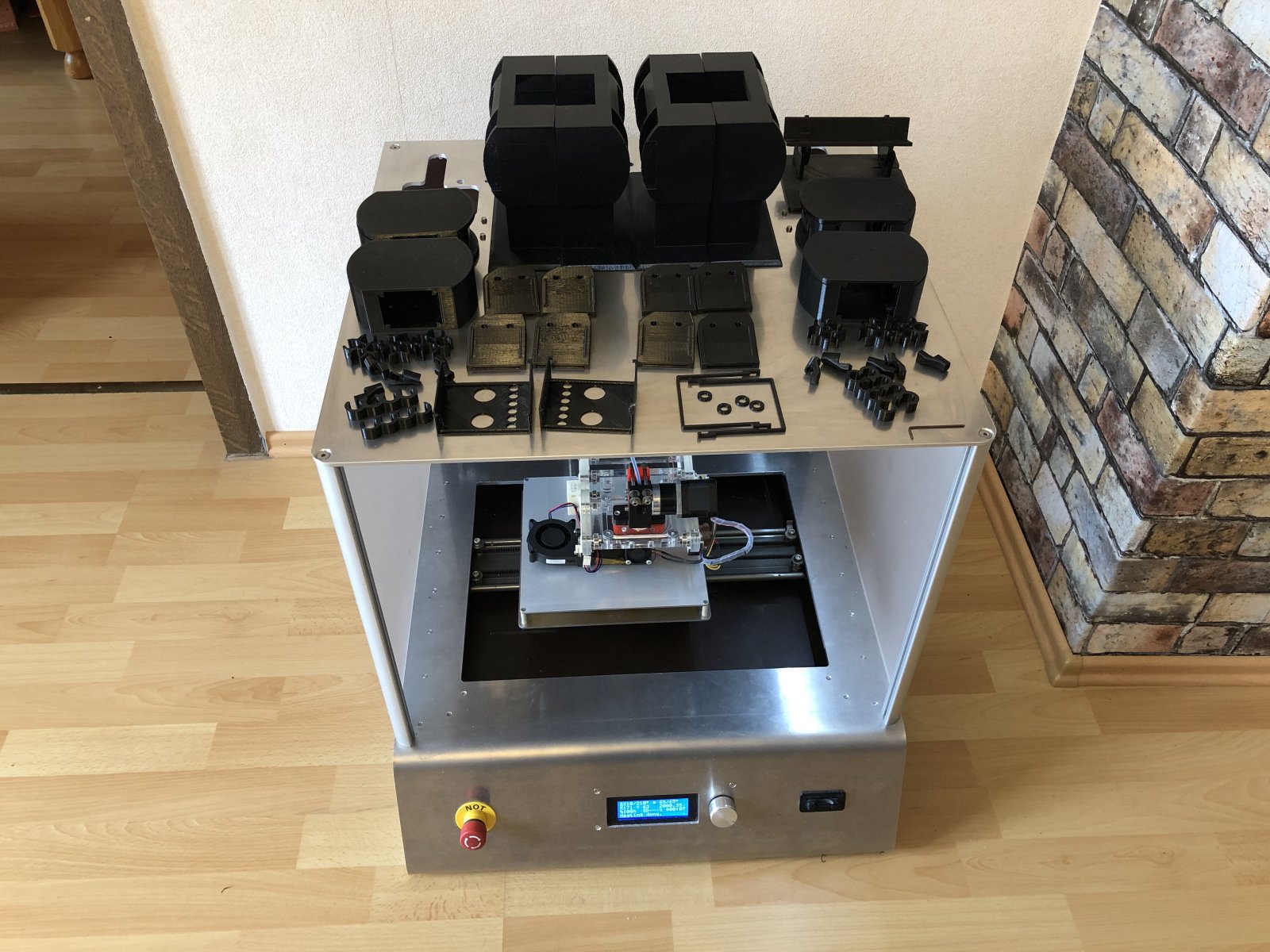

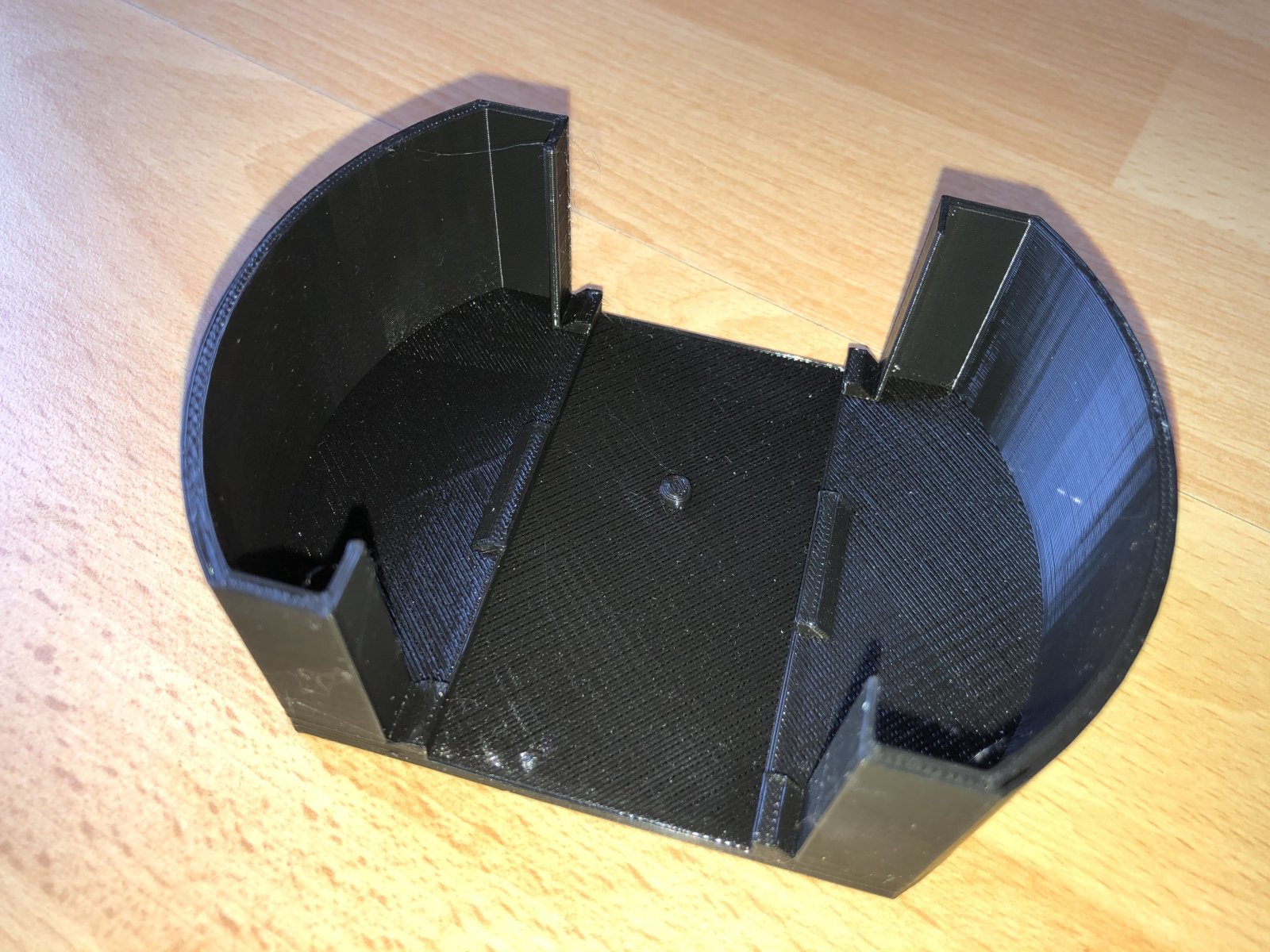

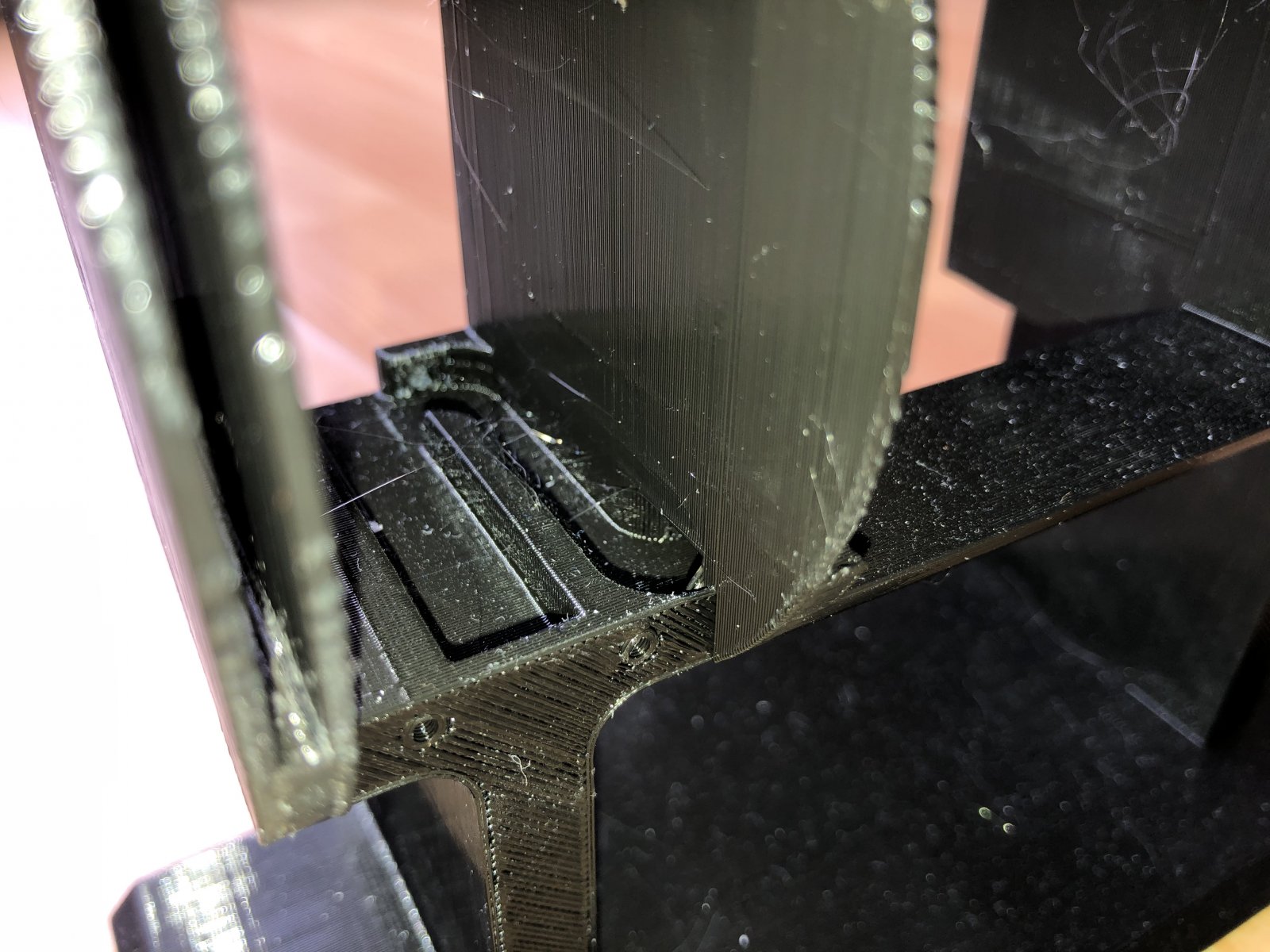

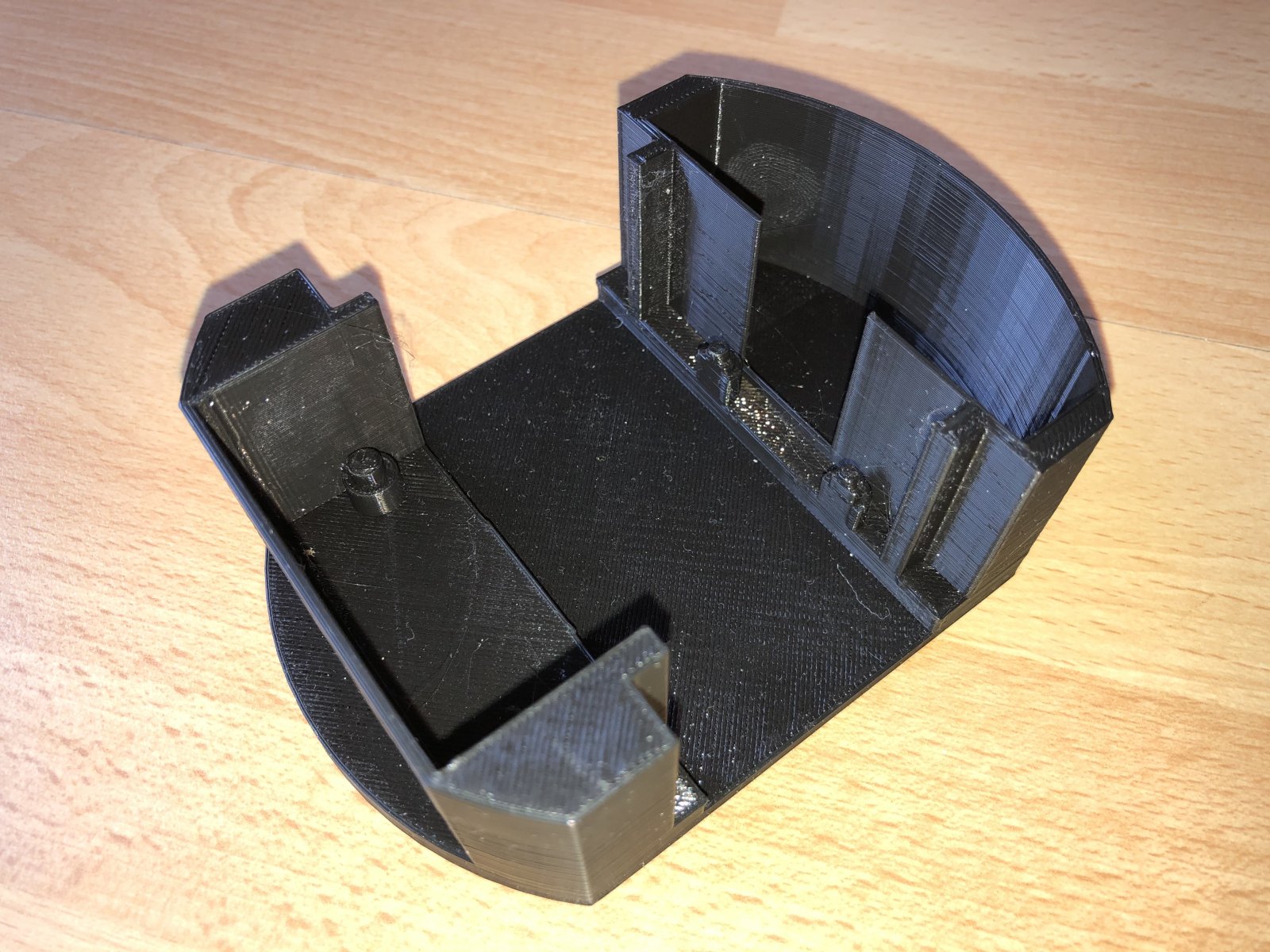

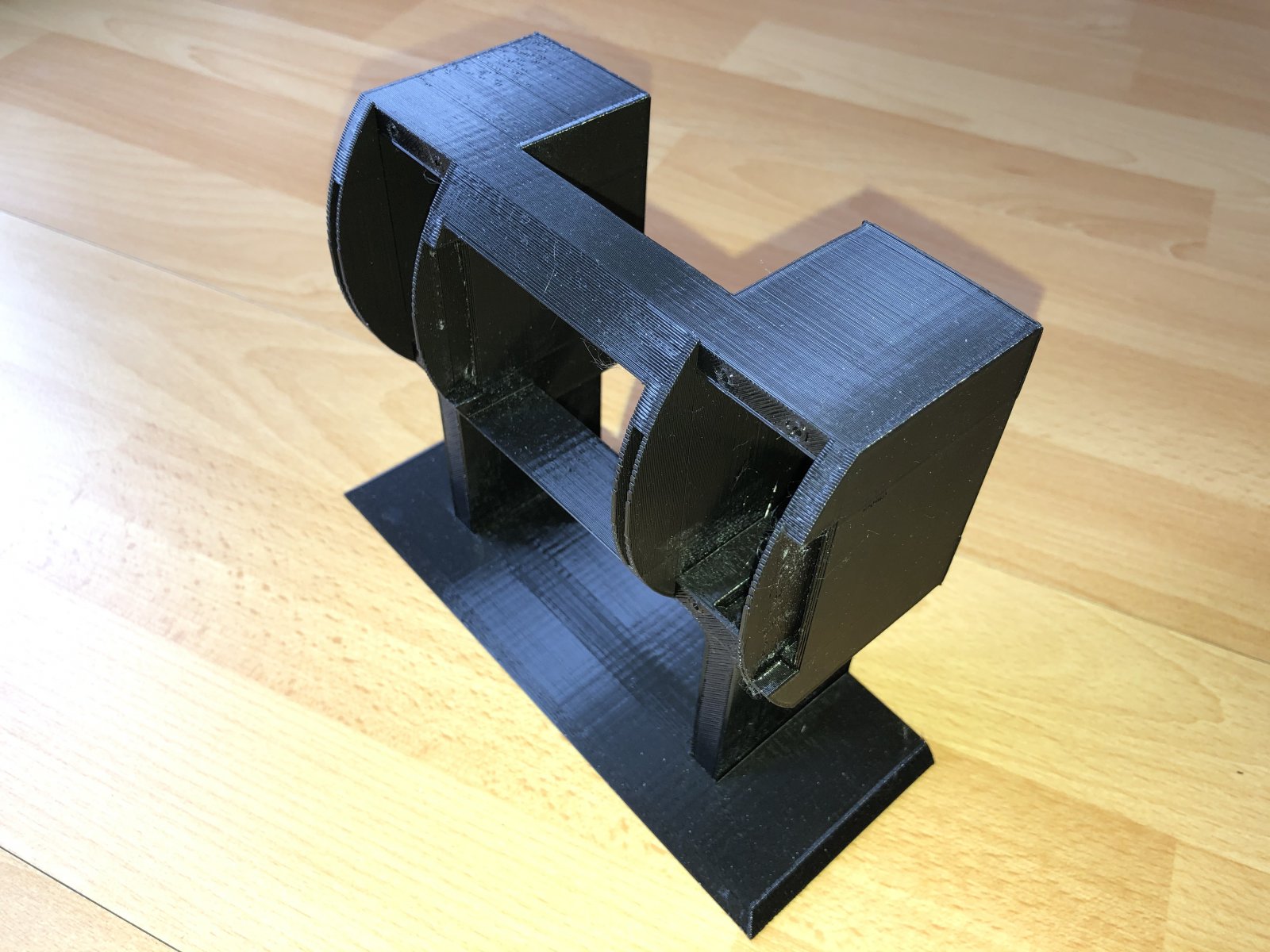

    Die Einzelteile hab ich mit einem 3D Drucker hergestellt

    I made the individual parts with a 3D printer

    Im einzelnen sind das.

    In detail, they are.

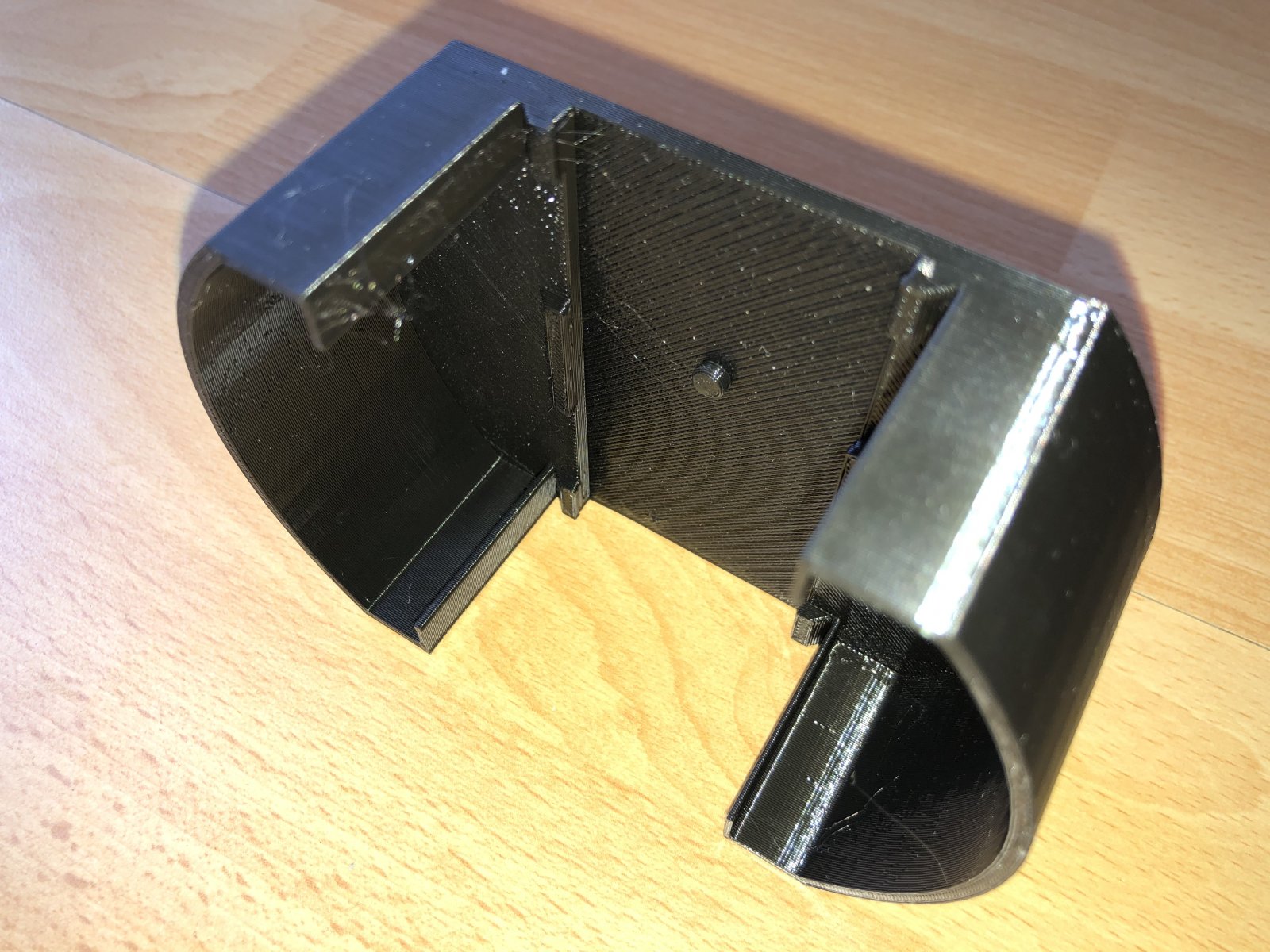

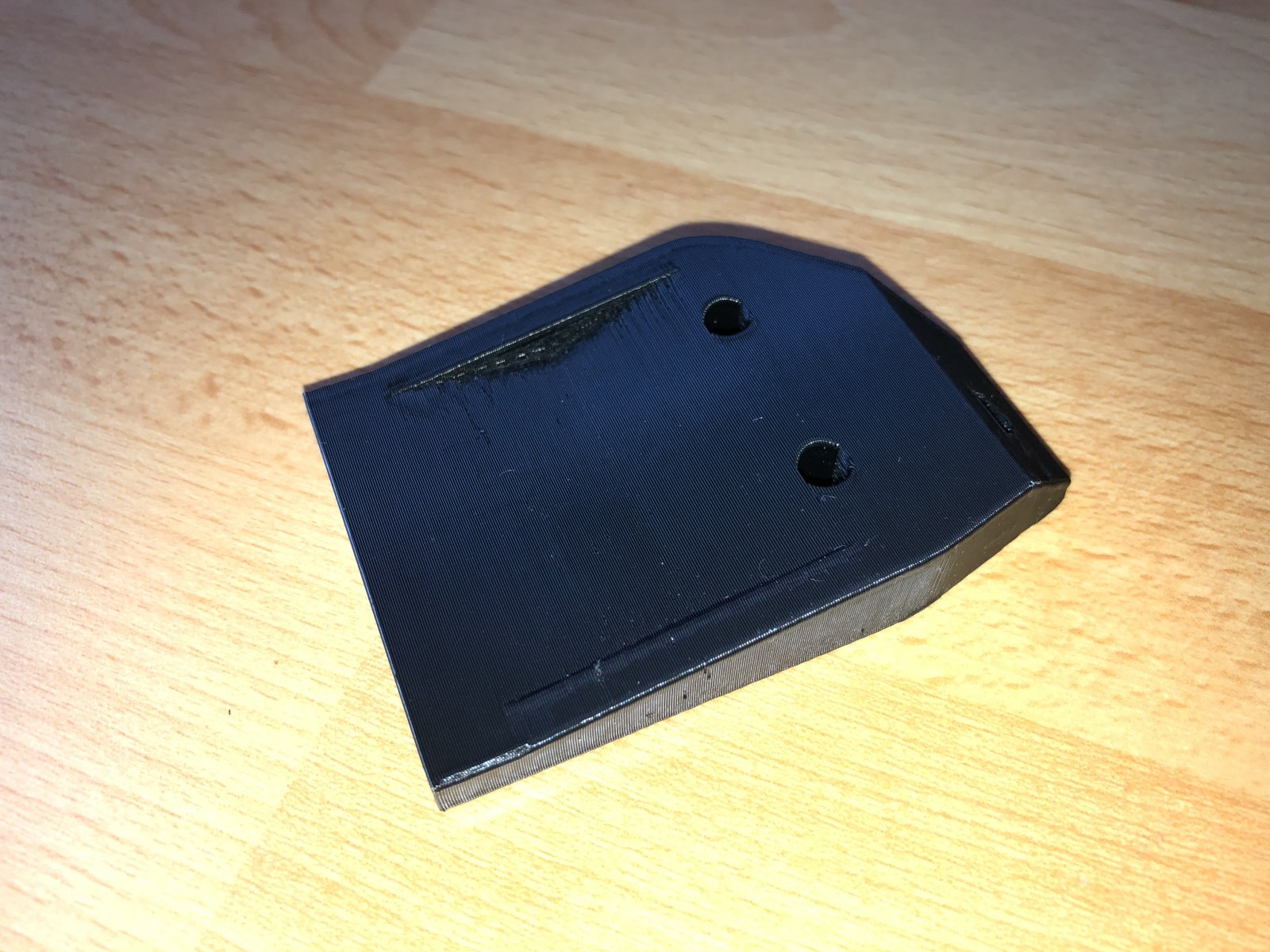

    4xHebelhalter

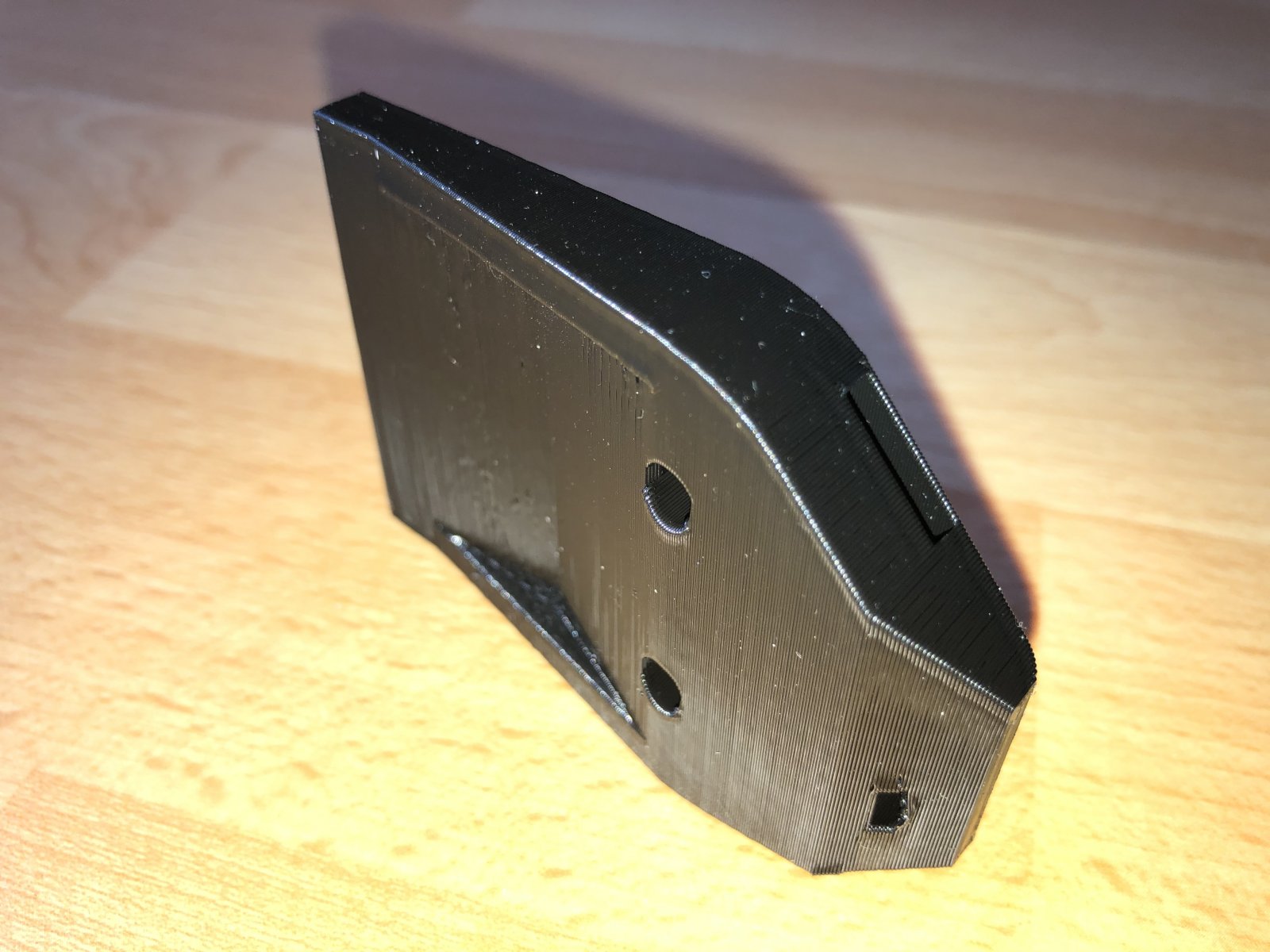

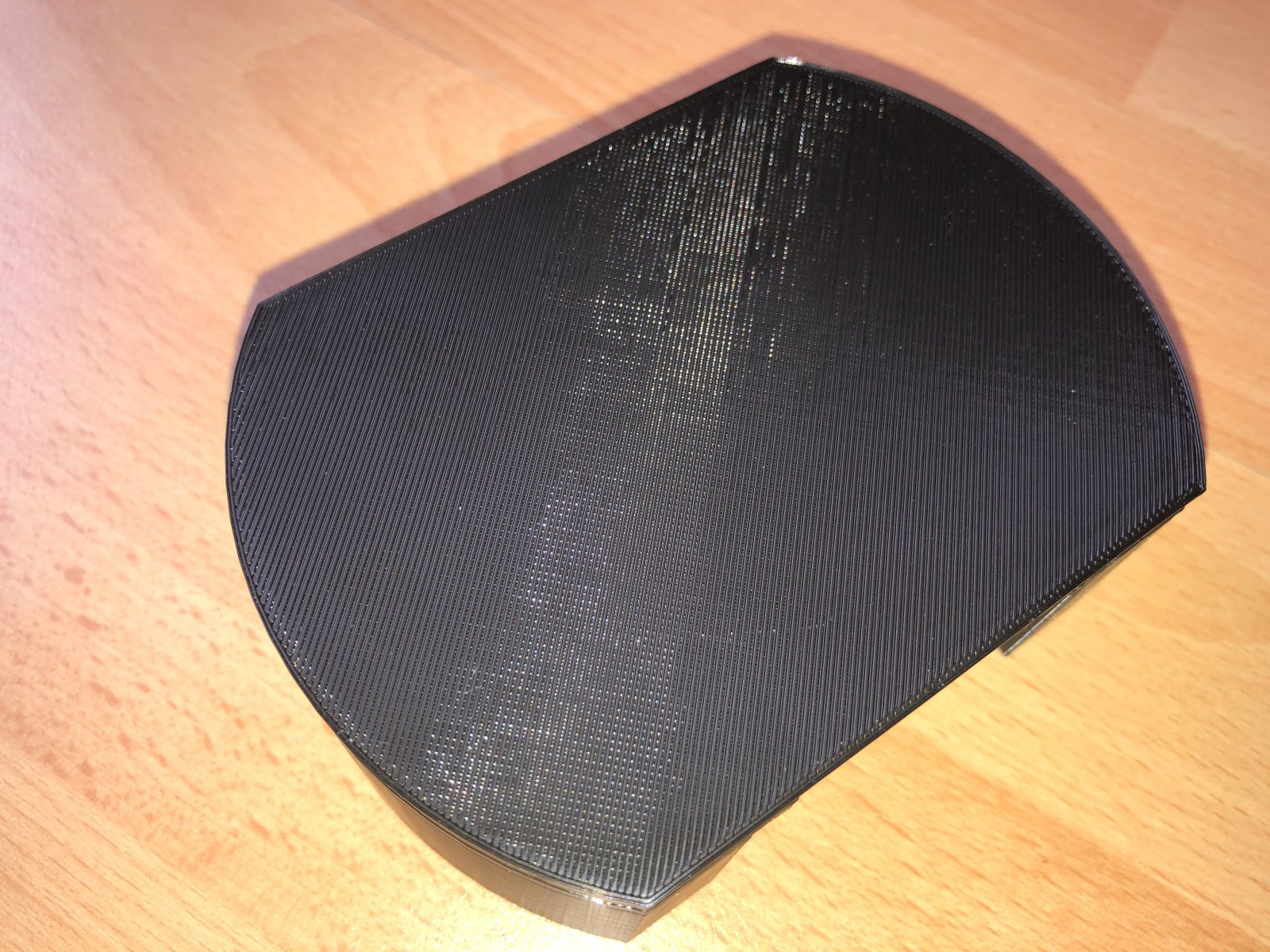

    2x Gehäuse Druckplatte

    2x housing pressure plate

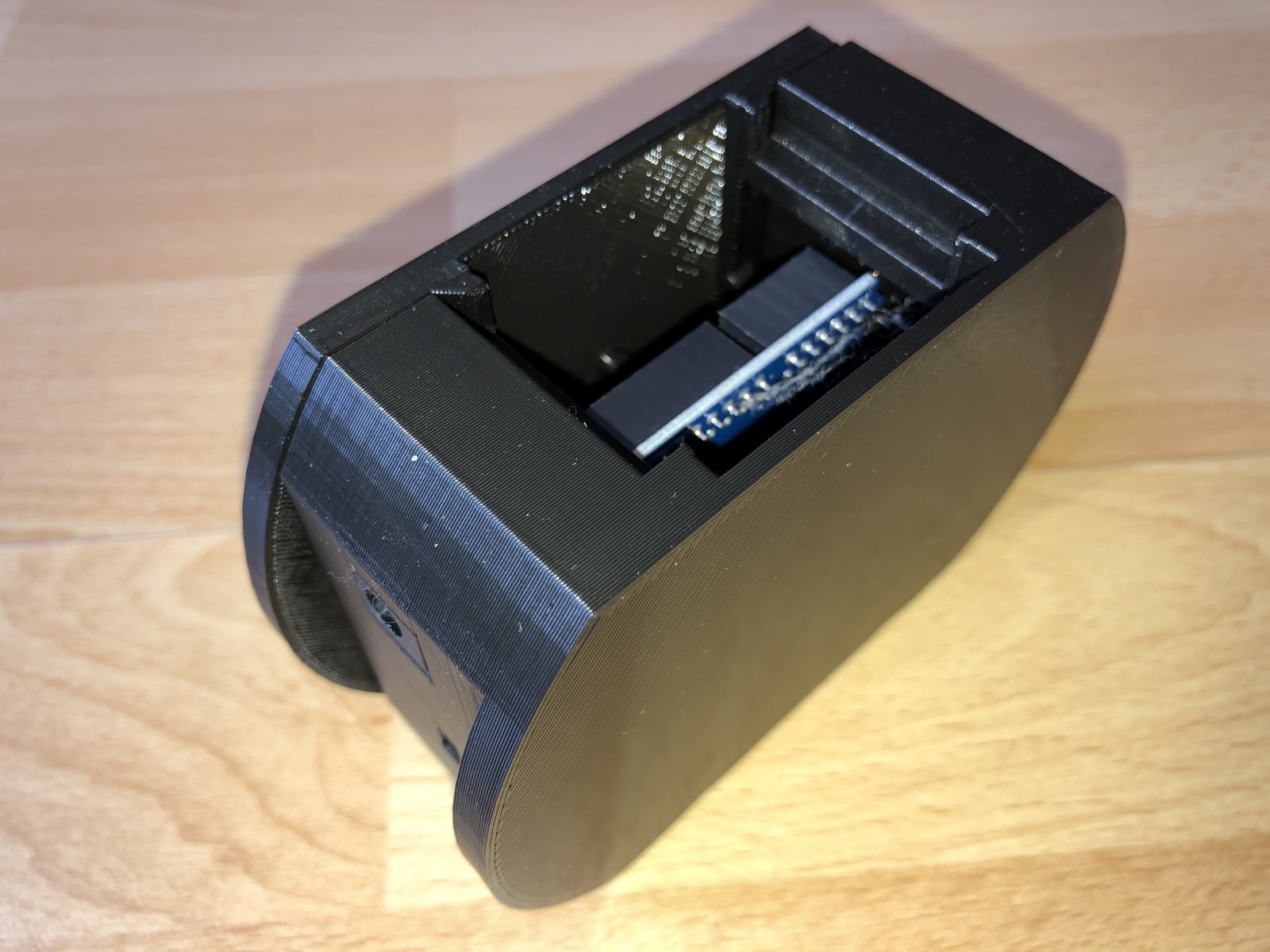

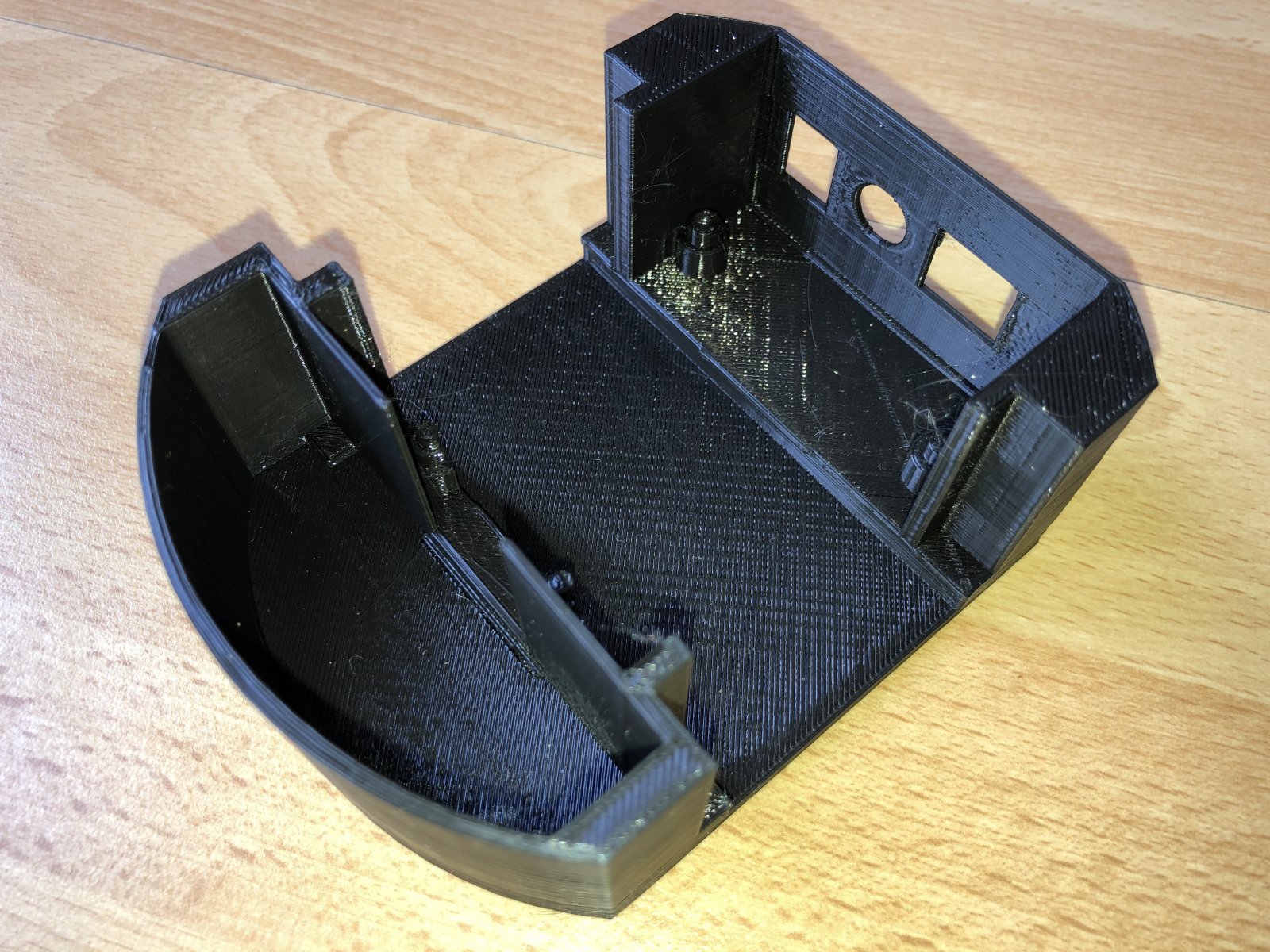

    1x Gehäuse ohne Arduino

    1x housing without Arduino

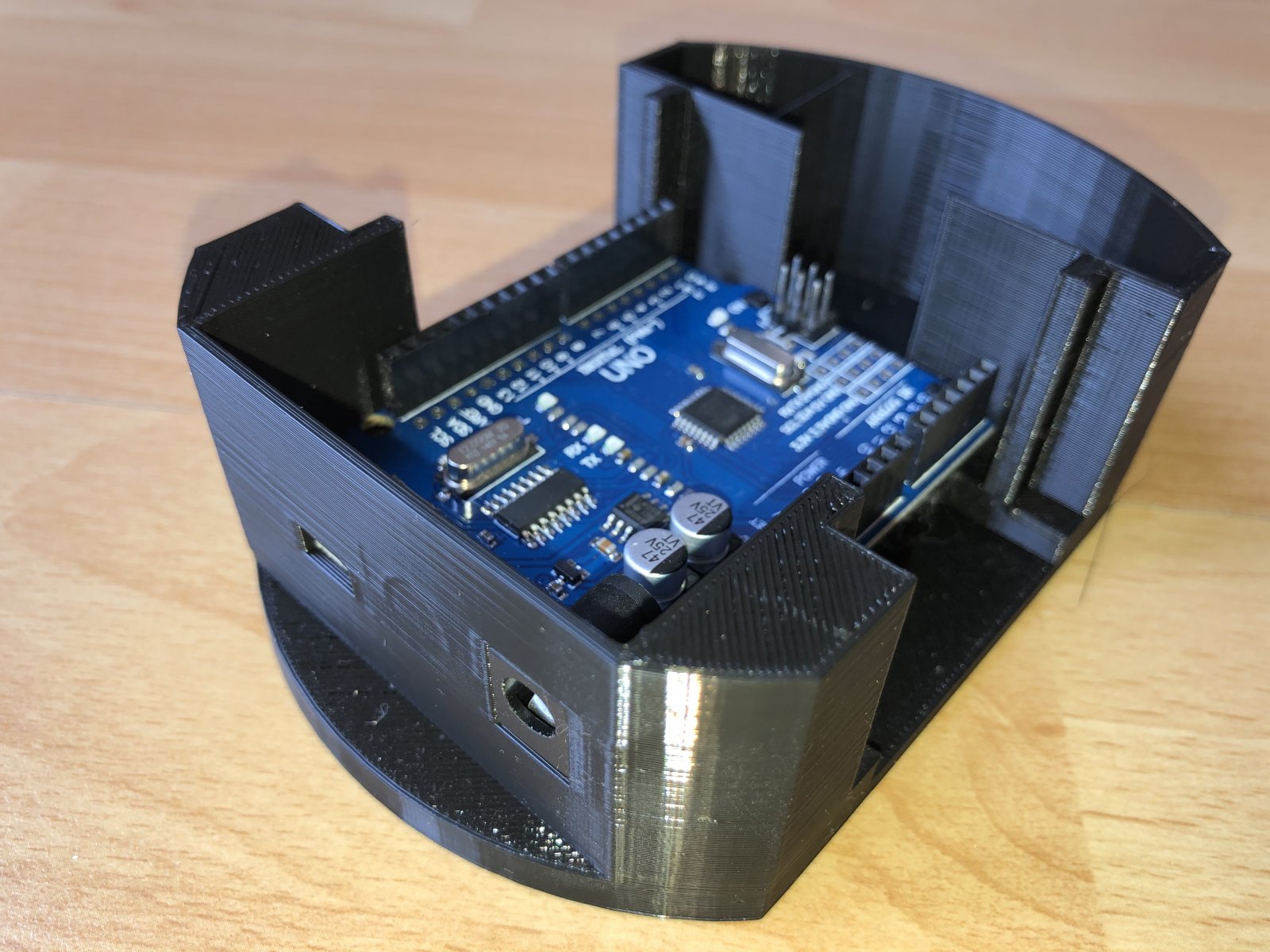

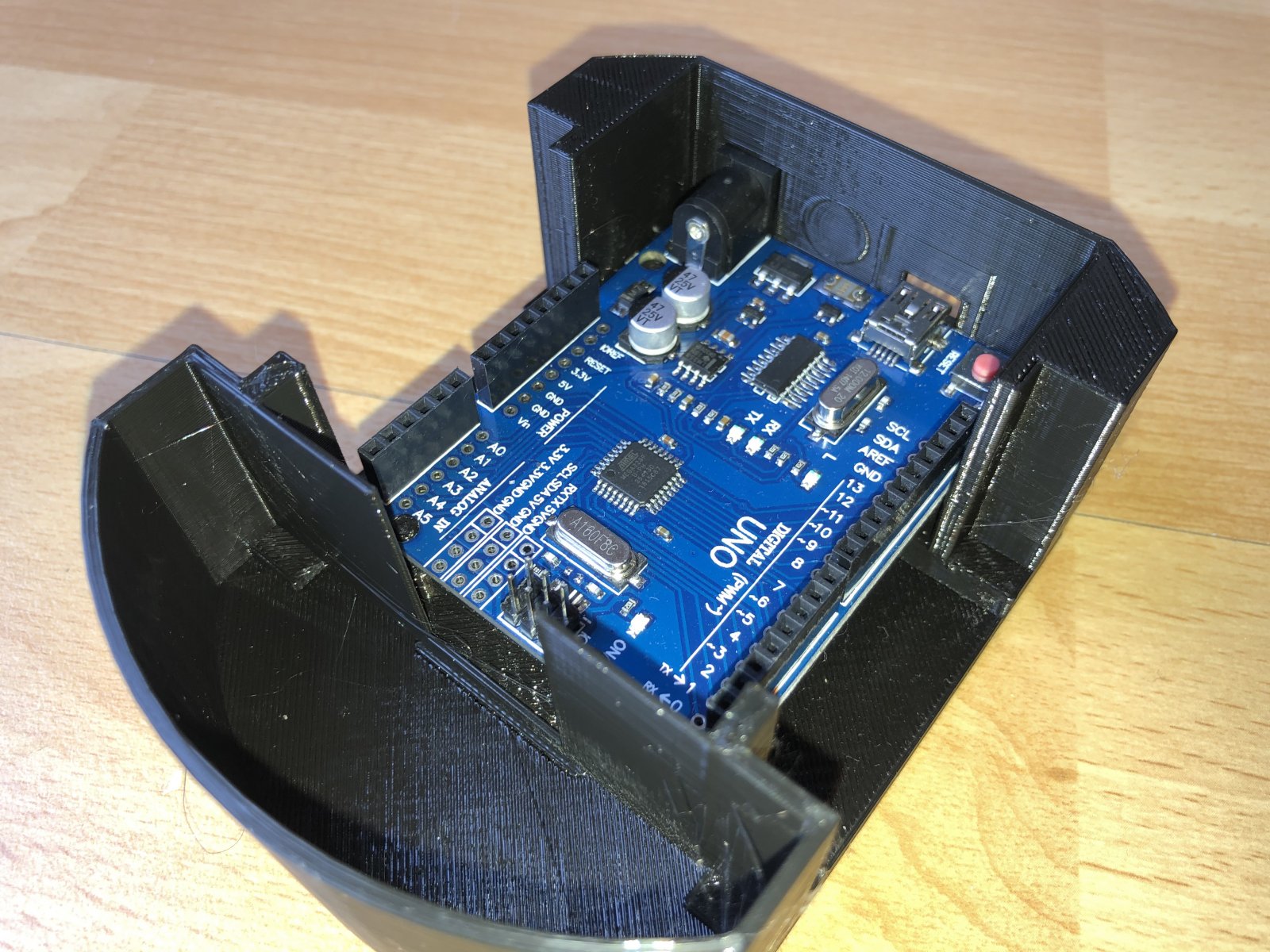

    1x Gehäuse mit Arduino befestigung

    1x housing with Arduino attachment








    Zusammen mit Arduino und Deckel

    Together with Arduino and lid

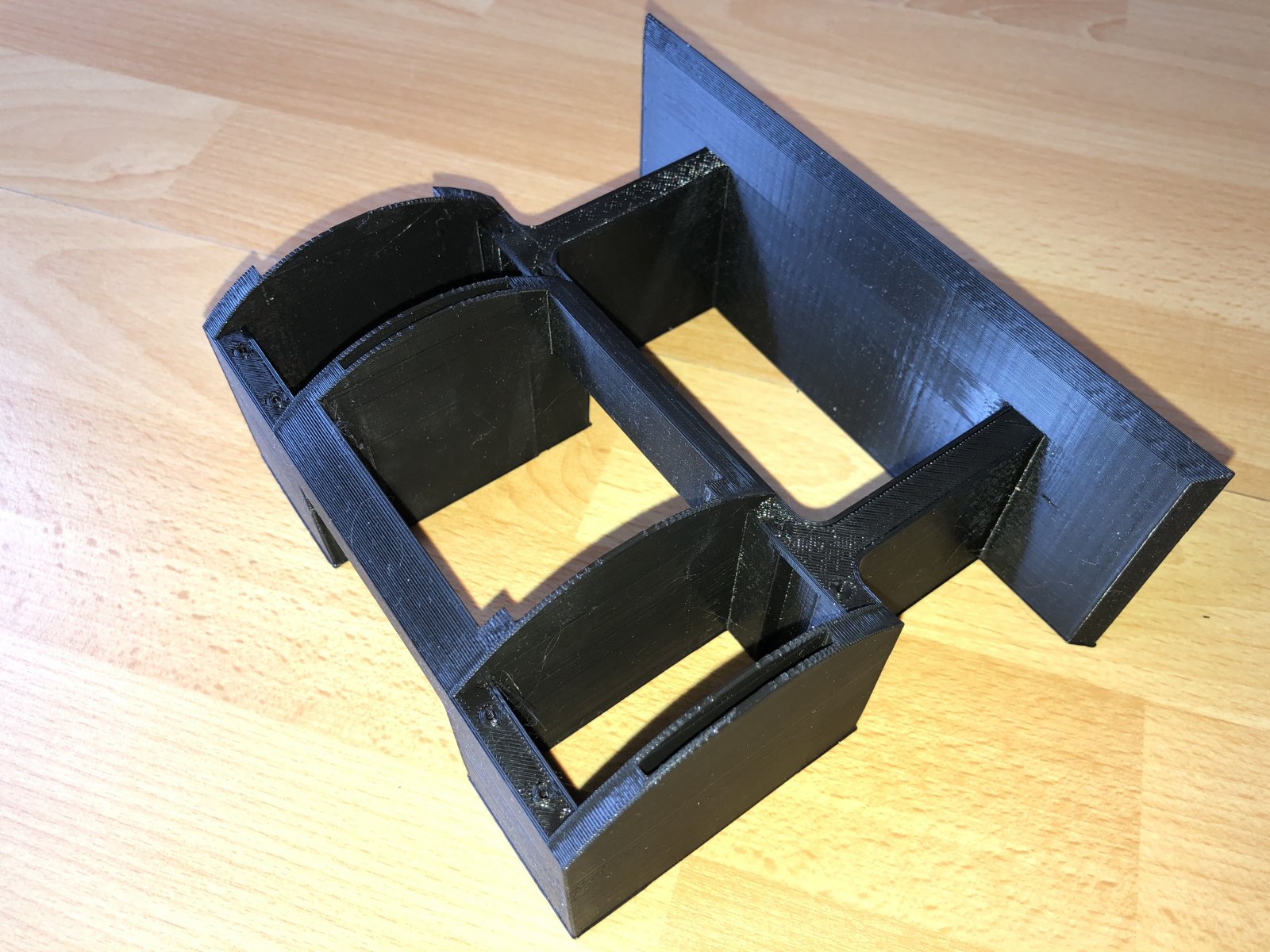

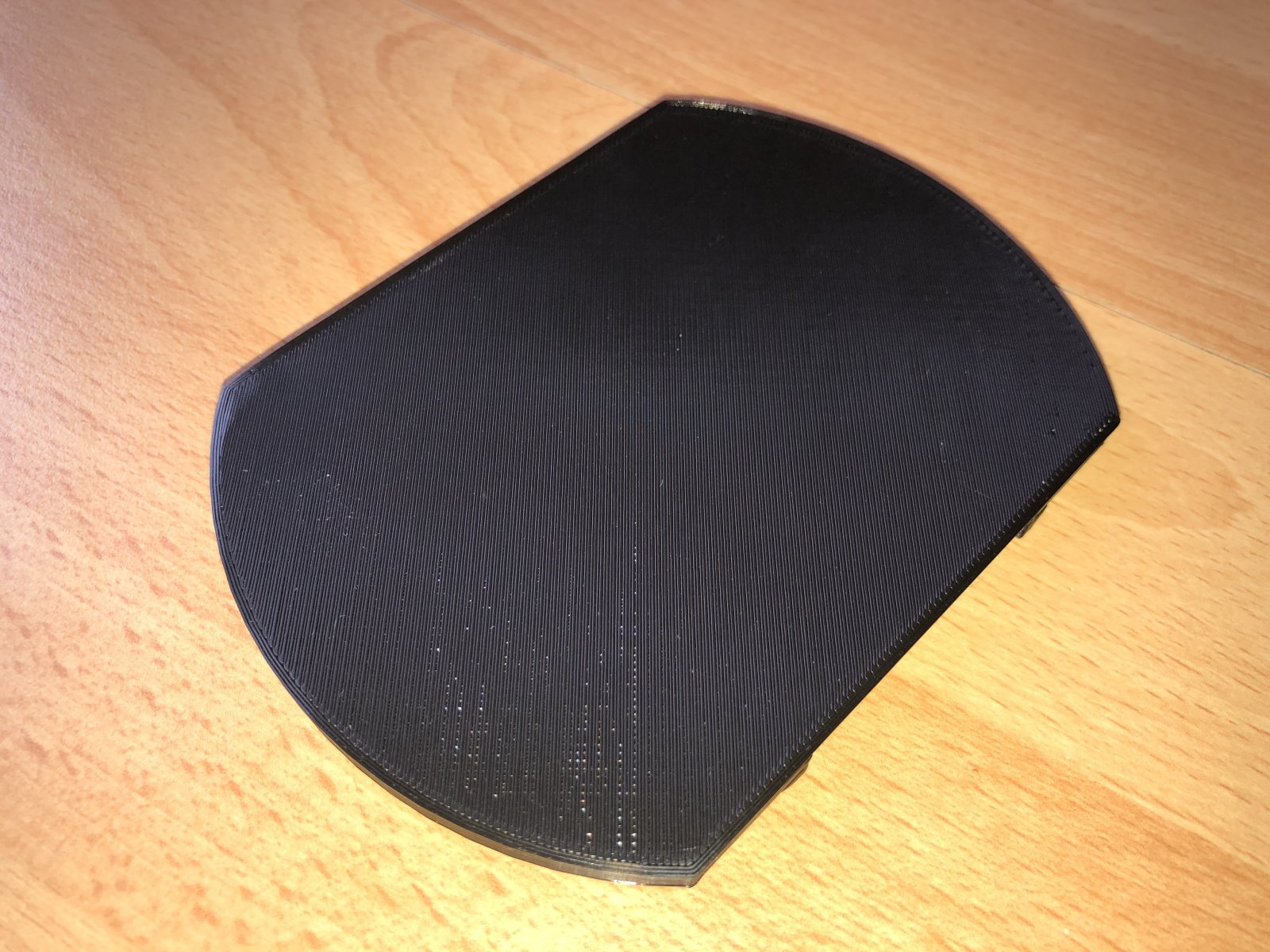

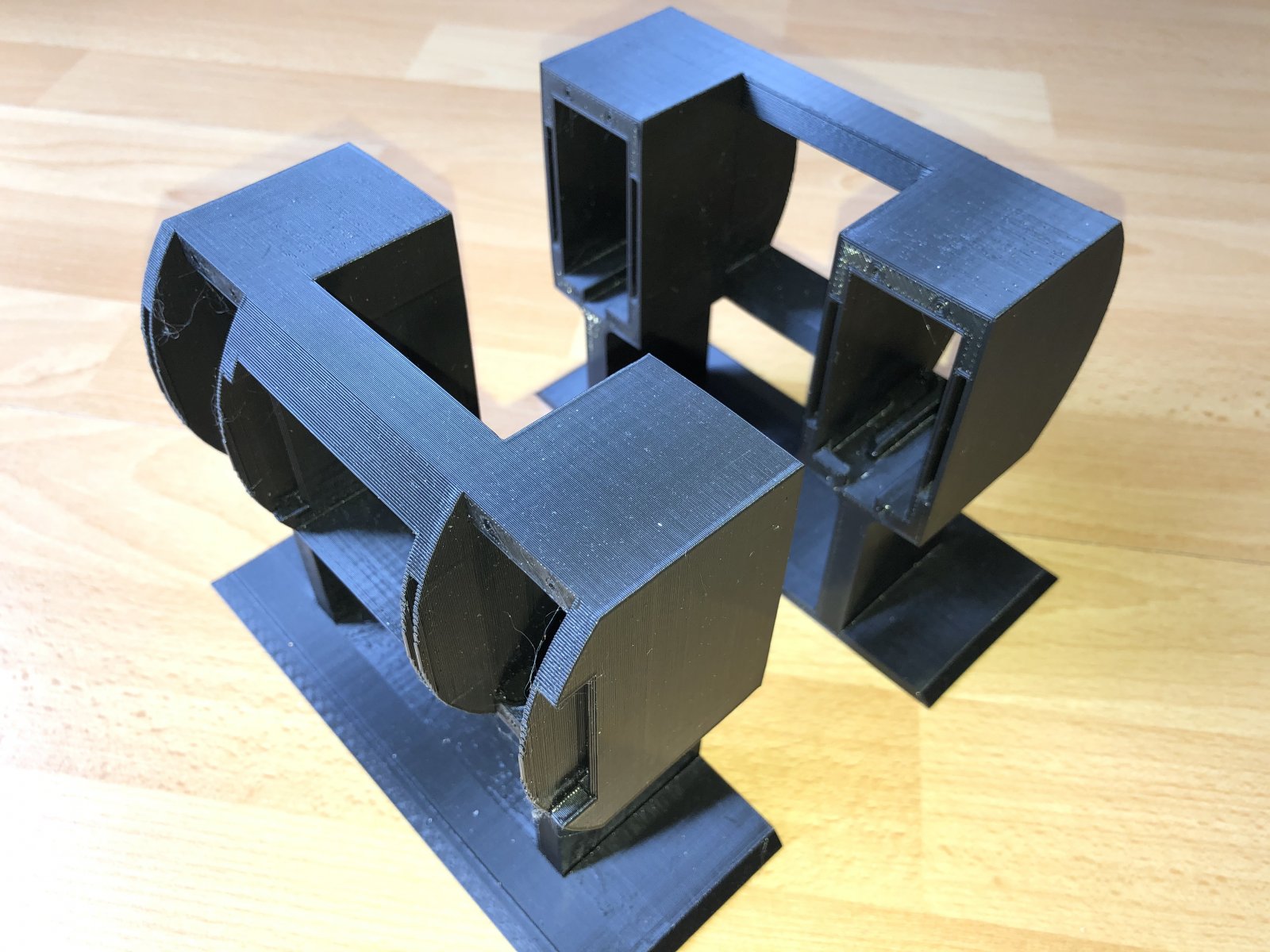

    2x Grundkörper

    2x basic body


    Für 4 Servos

    For 4 servos

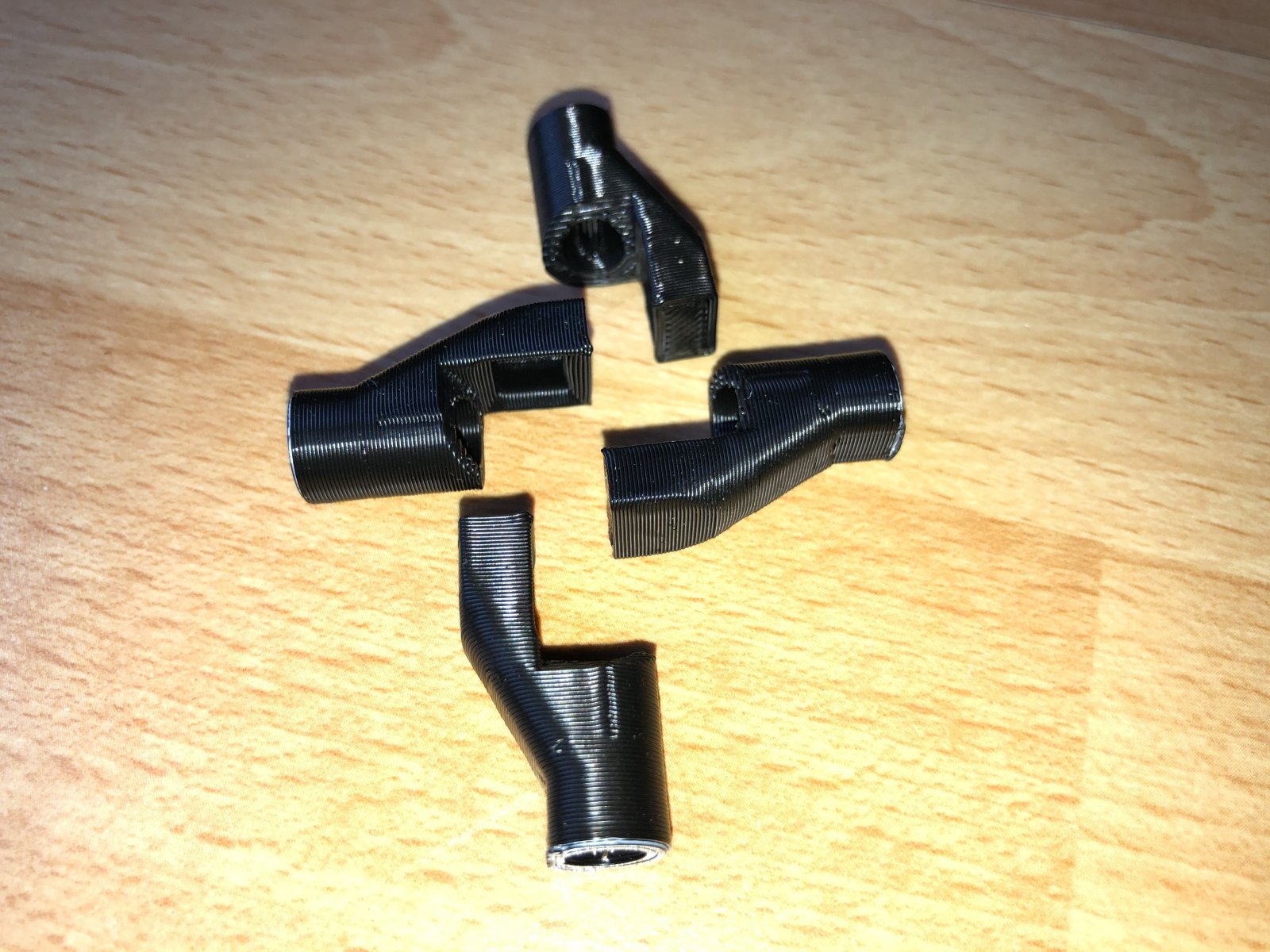

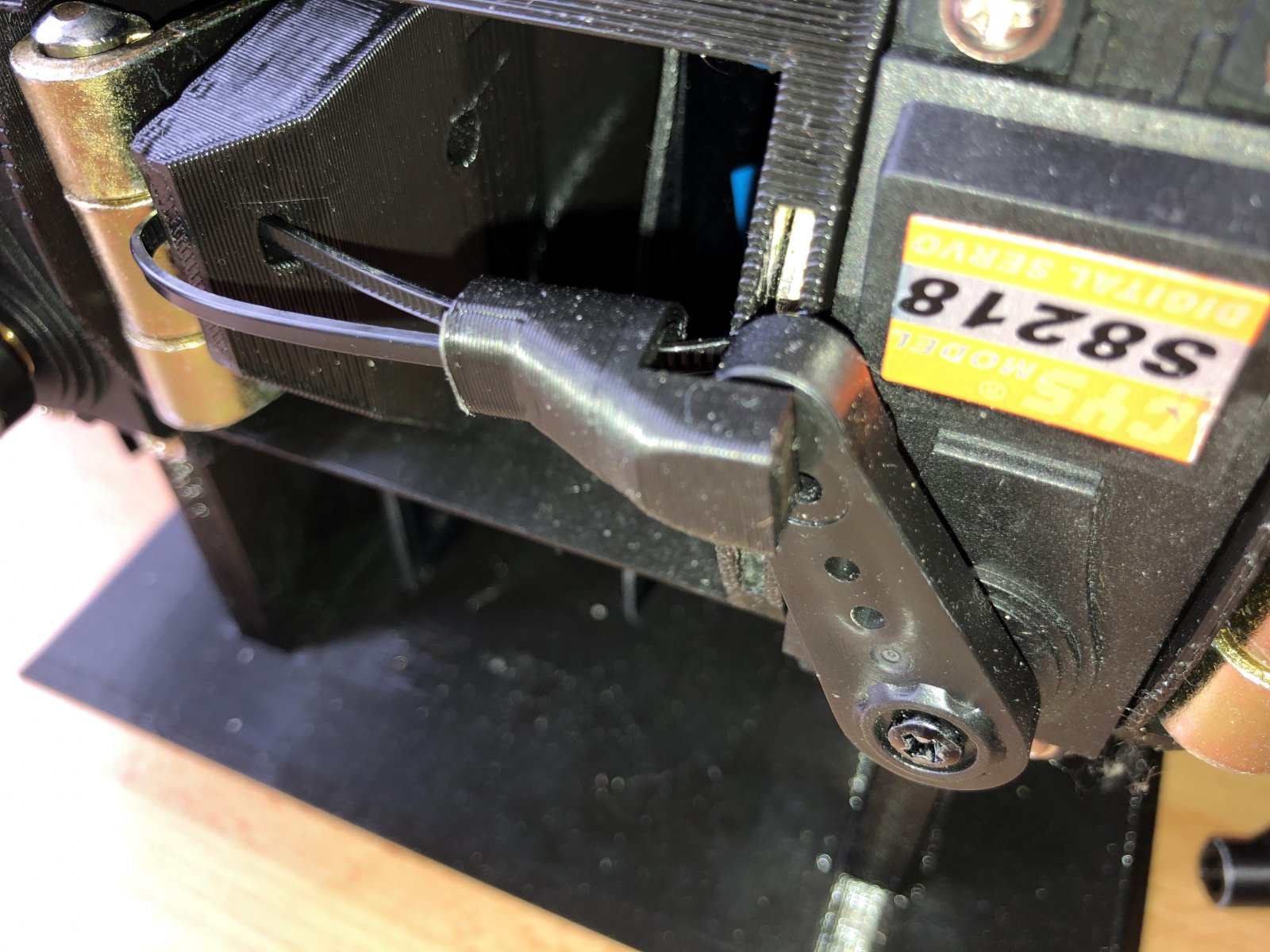

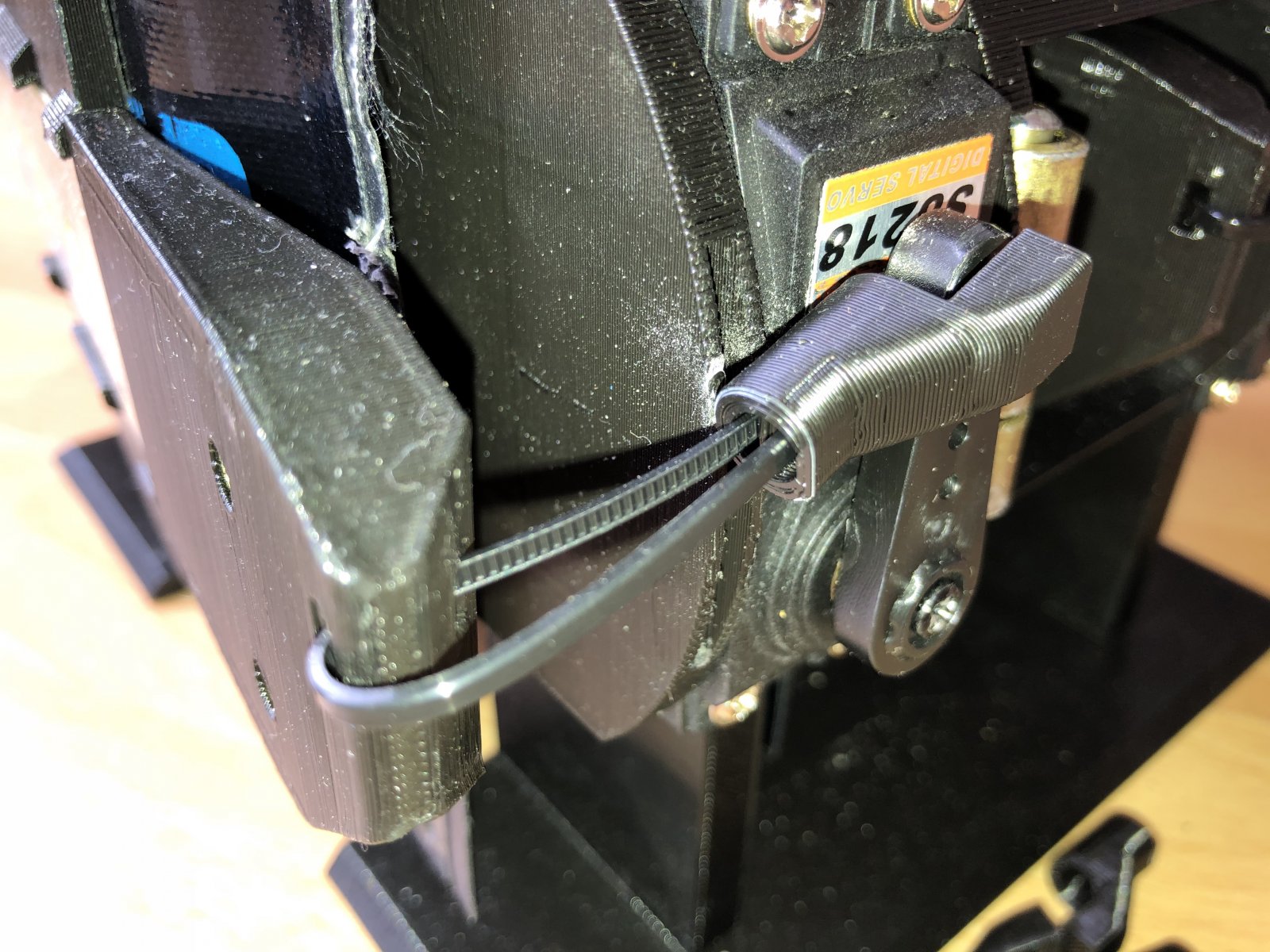

    4x Servohebel verbinder


    4x servo lever connector

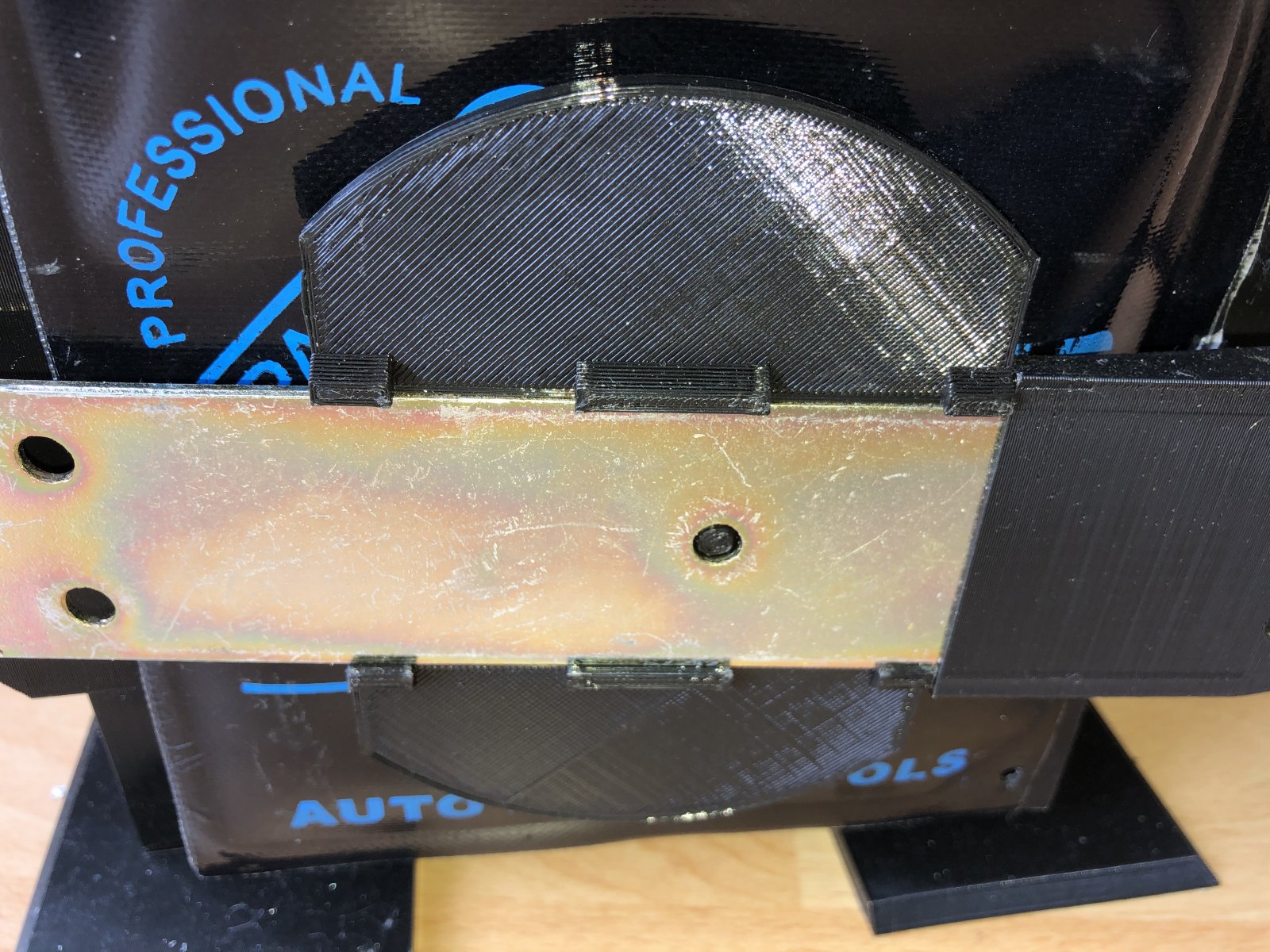

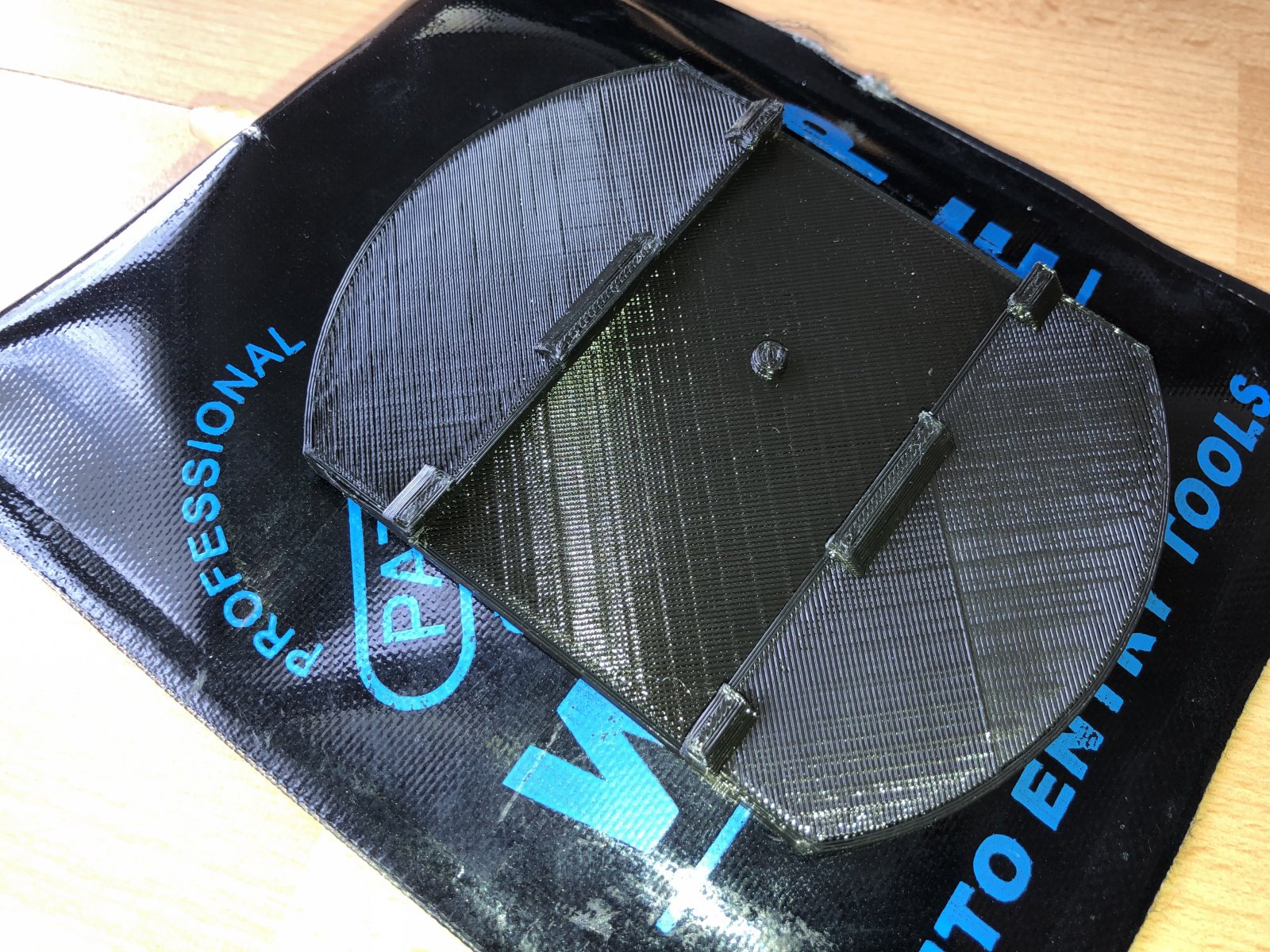

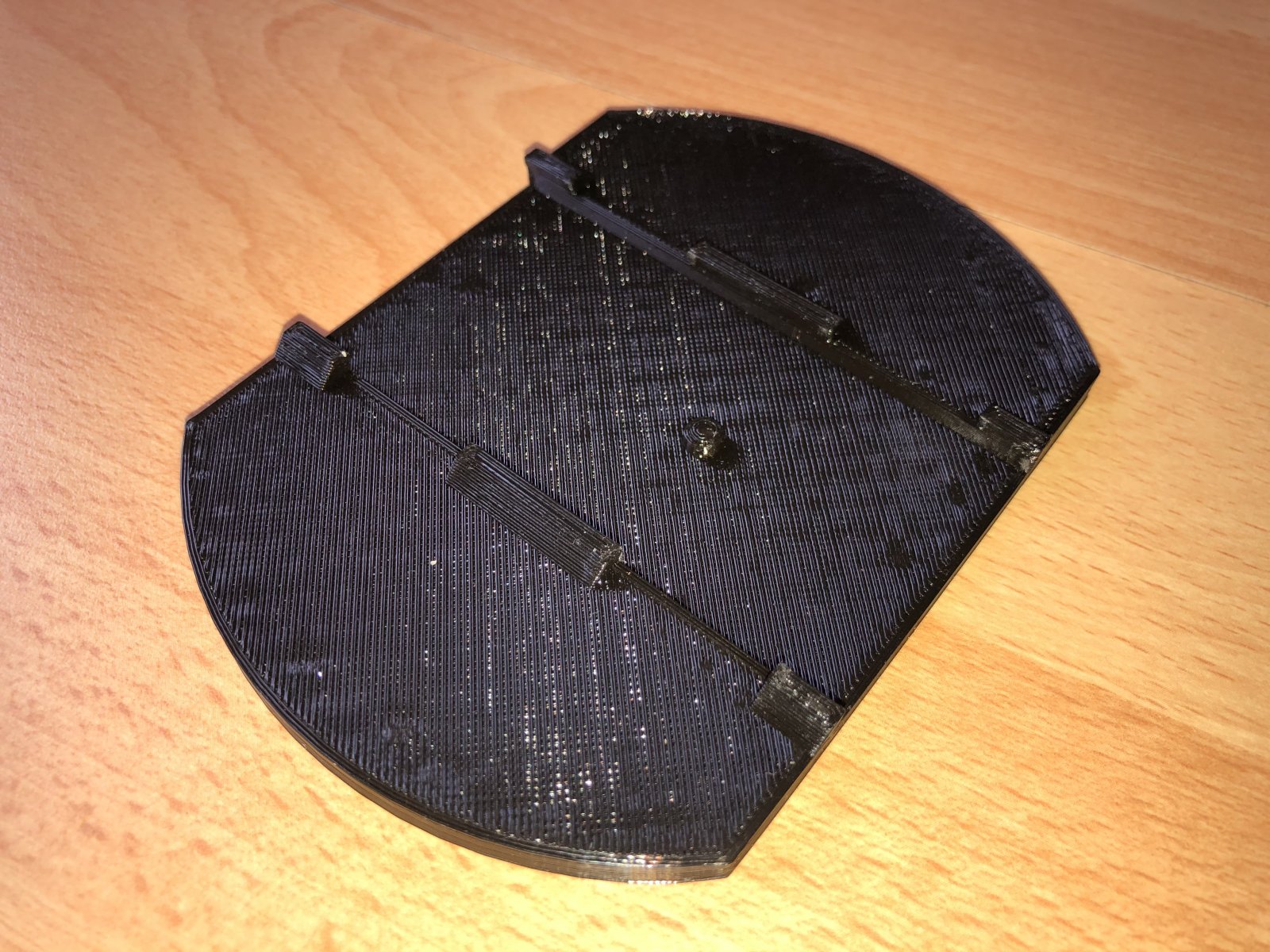

    Und 4 Gegenplatten

    And 4 counter plates






    Attached Files:

    • Winner Winner x 5
    • Like Like x 1
  2. Ads Master

    Ads Master

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
  3. xxpelle

    xxpelle Discord "TPMax#9574" Gold Contributor

    Joined:
    Dec 24, 2017
    Messages:
    102
    Occupation:
    Discord "TPMax#9574"
    Location:
    Germany
    Balance:
    419Coins
    Ratings:
    +123 / 0 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    ""
    • Like Like x 3
  4. RacingMat

    RacingMat Well-Known Member Gold Contributor

    Joined:
    Feb 22, 2013
    Messages:
    2,063
    Location:
    Marseille - FRANCE
    Balance:
    18,895Coins
    Ratings:
    +1,962 / 20 / -2
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Much more compact! very nice printing design :cool:
    • Agree Agree x 1
  5. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    15,551
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    113,997Coins
    Ratings:
    +9,133 / 46 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    A very neat and compact solution :thumbs

    By any chance will you be sharing the files?
  6. xxpelle

    xxpelle Discord "TPMax#9574" Gold Contributor

    Joined:
    Dec 24, 2017
    Messages:
    102
    Occupation:
    Discord "TPMax#9574"
    Location:
    Germany
    Balance:
    419Coins
    Ratings:
    +123 / 0 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF

    Das sind die .stl Dateien
    These are the .stl files

    Attached Files:

    • Like Like x 1
    • Winner Winner x 1
    • Friendly Friendly x 1
  7. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    15,551
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    113,997Coins
    Ratings:
    +9,133 / 46 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    • Like Like x 1
    Last edited: Jul 8, 2020
  8. Extremier

    Extremier New Member

    Joined:
    Jul 18, 2018
    Messages:
    10
    Balance:
    193Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    Motion platform
    Congratulations.!!! Very neat ...
    (maybe cause I,m old RC Car, Heli, Plane Pilot )... I love see solutions using Rc Servos !
    • Like Like x 1
  9. dedraro

    dedraro Member

    Joined:
    May 1, 2015
    Messages:
    96
    Location:
    Italy
    Balance:
    59Coins
    Ratings:
    +65 / 0 / -0
    This is another beautiful project for G-seat! congratulations, do you have a video of the seat moving?
  10. xxpelle

    xxpelle Discord "TPMax#9574" Gold Contributor

    Joined:
    Dec 24, 2017
    Messages:
    102
    Occupation:
    Discord "TPMax#9574"
    Location:
    Germany
    Balance:
    419Coins
    Ratings:
    +123 / 0 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    ""
    • Like Like x 2
  11. xxpelle

    xxpelle Discord "TPMax#9574" Gold Contributor

    Joined:
    Dec 24, 2017
    Messages:
    102
    Occupation:
    Discord "TPMax#9574"
    Location:
    Germany
    Balance:
    419Coins
    Ratings:
    +123 / 0 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    ""
  12. xxpelle

    xxpelle Discord "TPMax#9574" Gold Contributor

    Joined:
    Dec 24, 2017
    Messages:
    102
    Occupation:
    Discord "TPMax#9574"
    Location:
    Germany
    Balance:
    419Coins
    Ratings:
    +123 / 0 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
  13. dedraro

    dedraro Member

    Joined:
    May 1, 2015
    Messages:
    96
    Location:
    Italy
    Balance:
    59Coins
    Ratings:
    +65 / 0 / -0
    Ah perfect thank you very much, I will take a thorough look at everything, beautiful project!
    • Like Like x 1
  14. Matthew Bangerter

    Matthew Bangerter New Member

    Joined:
    Jun 27, 2014
    Messages:
    27
    Occupation:
    Mechanical Engineer
    Location:
    Dallas, TX
    Balance:
    84Coins
    Ratings:
    +26 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    This is fantastic. I totally had this idea a couple years ago and never got around to doing it haha... You win, perfectly executed!
    • Friendly Friendly x 1
  15. mars

    mars New Member Gold Contributor

    Joined:
    Jan 13, 2011
    Messages:
    25
    Occupation:
    Architect
    Location:
    Northern California
    Balance:
    199Coins
    Ratings:
    +23 / 0 / -0
    This is a fantastic implementation - compact and visually pleasing. I wish I had a 3D printer...

    And as @Extremier said, I love to see RC servo use - reminds me of my years building and flying RC planes and helis.

    Thanks for sharing,

    Mars
    • Friendly Friendly x 1
  16. xxpelle

    xxpelle Discord "TPMax#9574" Gold Contributor

    Joined:
    Dec 24, 2017
    Messages:
    102
    Occupation:
    Discord "TPMax#9574"
    Location:
    Germany
    Balance:
    419Coins
    Ratings:
    +123 / 0 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    I can send you the 3D printed parts
    • Friendly Friendly x 2
  17. Gadget999

    Gadget999 Well-Known Member

    Joined:
    Dec 27, 2015
    Messages:
    1,063
    Location:
    London
    Balance:
    7,671Coins
    Ratings:
    +240 / 6 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, 6DOF
    where did you get the air bags from ?
  18. xxpelle

    xxpelle Discord "TPMax#9574" Gold Contributor

    Joined:
    Dec 24, 2017
    Messages:
    102
    Occupation:
    Discord "TPMax#9574"
    Location:
    Germany
    Balance:
    419Coins
    Ratings:
    +123 / 0 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    • Informative Informative x 2
  19. Banfy

    Banfy FR/AU

    Joined:
    Jun 11, 2020
    Messages:
    49
    Location:
    Australia
    Balance:
    44Coins
    Ratings:
    +24 / 0 / -0
    My Motion Simulator:
    DC motor, Arduino
    Torsten
    Having 2 servos for the seat belts, does it improve the sensations over using just one?
    I am wondering if it is worth going from 1 to 2 at the moment
    thanks
  20. xxpelle

    xxpelle Discord "TPMax#9574" Gold Contributor

    Joined:
    Dec 24, 2017
    Messages:
    102
    Occupation:
    Discord "TPMax#9574"
    Location:
    Germany
    Balance:
    419Coins
    Ratings:
    +123 / 0 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF

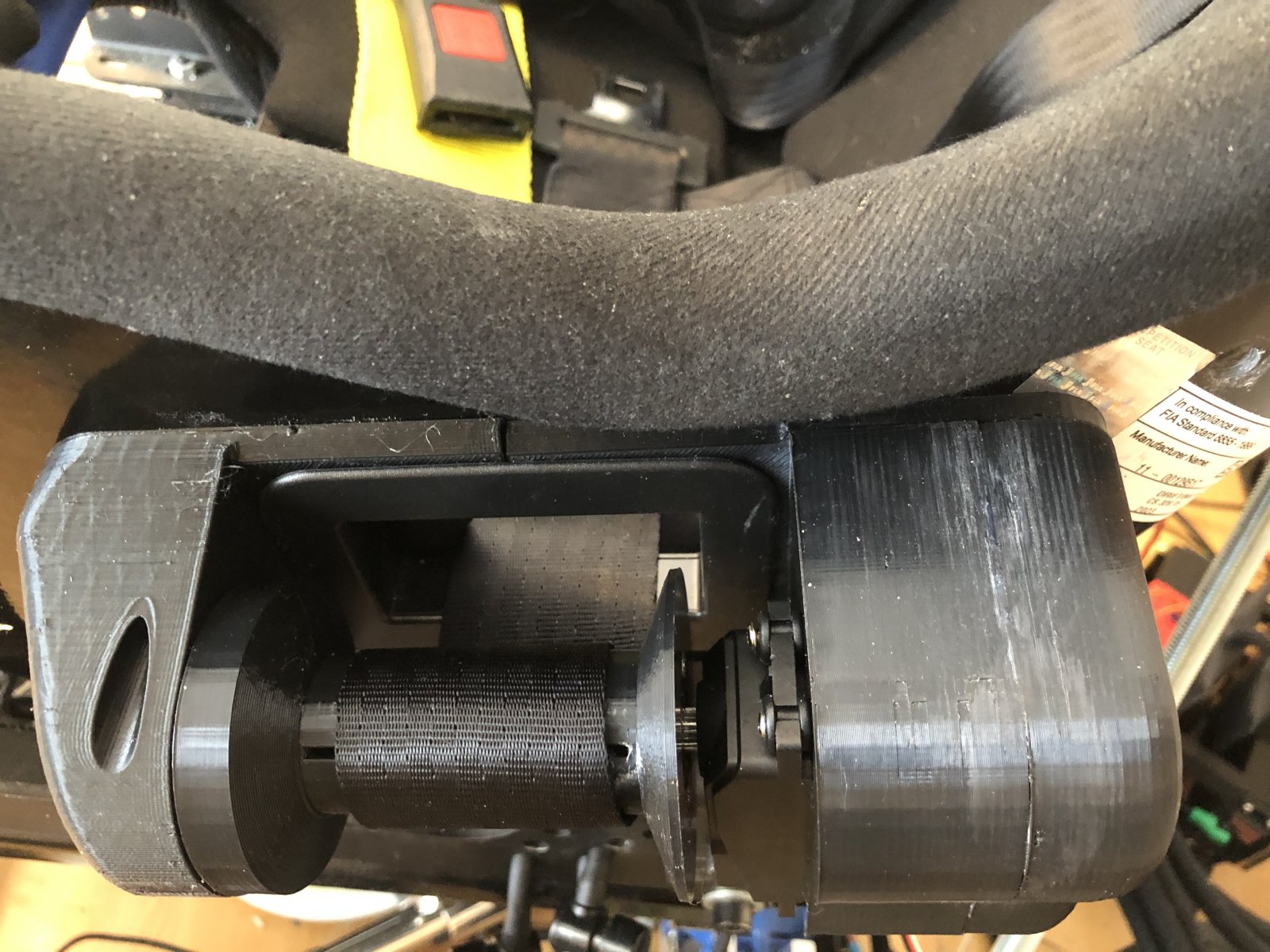

    I use 4 servos on the seat belts, 2 over the shoulder and 2 in the pelvis.
