Heim & Rose joint conical spacers

Category

When using heim and rose joints for connecting rods some sort of conical spacer is recommended to allow the full range of possible motion.

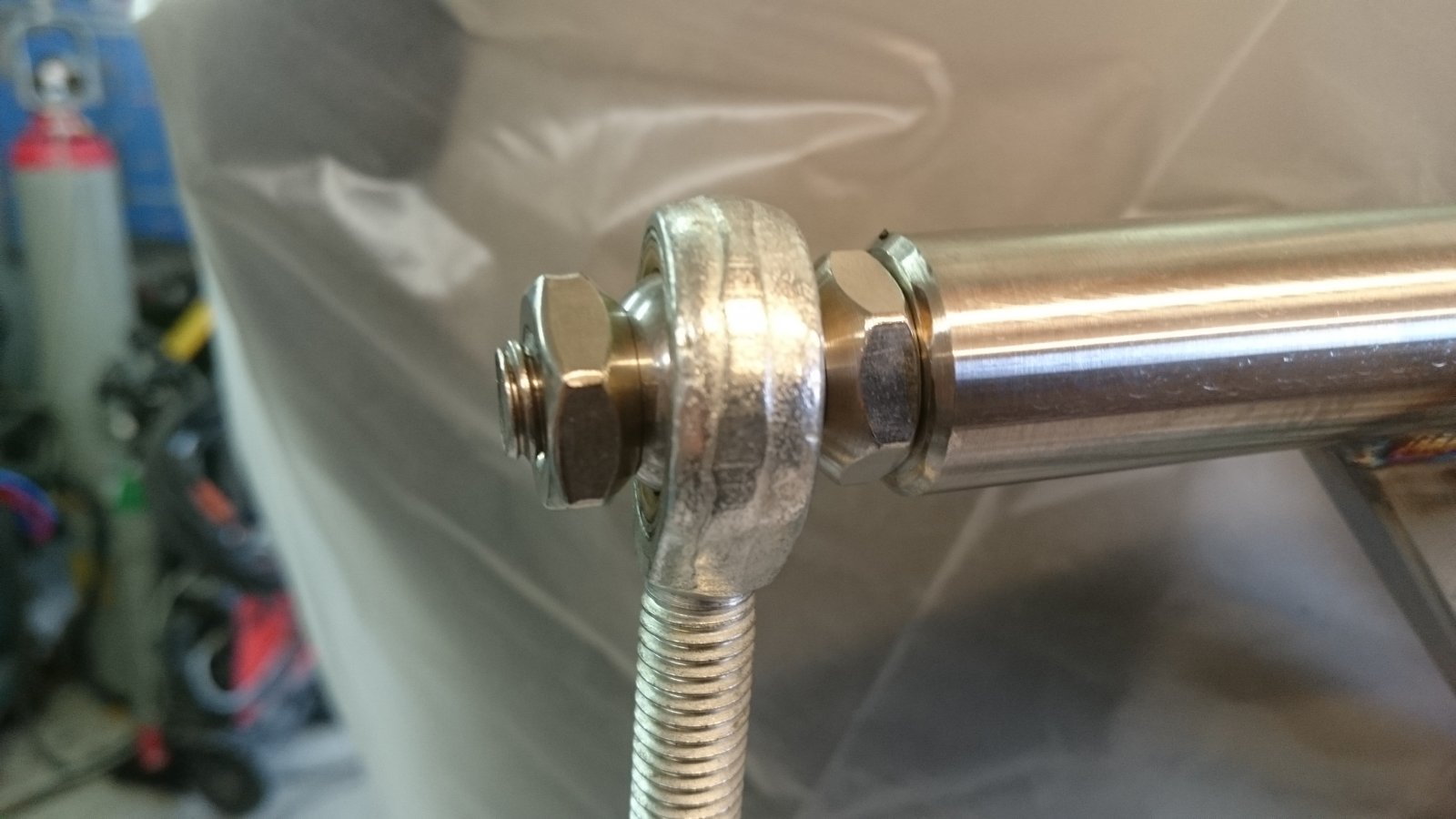

DIY conical nut by @Ken50: http://www.xsimulator.net/community/attachments/dsc_0025-jpg.20442/

Cone spacers by @cthiggin: http://www.xsimulator.net/community...wered-heim-or-rod-end-joints.5336/#post-52984

High misalignment spacers by @boosted-lt1: http://www.xsimulator.net/community...-spacers-increasing-ball-joint-rotation.6801/

Commercial conical spacers: http://www.ebay.com/sch/i.html?_from=R40&_trksid=p2047675.m570.l1313.TR0.TRC0.H0.TRS0&_nkw=STEEL CONE SPACER HEIM&_sacat=0

Metric: https://www.ebay.com/sch/i.html?_od...0mm.TRS0&_nkw=rose+joint+SPACER+10mm&_sacat=0

There is no need for spacers if traditional tie rod ends are used and for a set of 4 at a bargain price @Nick Moxley recommends these: http://www.aliexpress.com/item/4pcs...ight-hand-tie-rod-end-bearing/1559309095.html
