Tutorial DIY 3D Printed Racing Pedals (work in progress)

Discussion in 'DIY peripherals' started by Juandi, Jun 7, 2018.

  1. Juandi

    Juandi Member

    Joined:
    Nov 9, 2007
    Messages:
    34
    Occupation:
    Engineer
    Location:
    Mexico
    Balance:
    83Coins
    Ratings:
    +31 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino, JRK, Motion platform
    Hi all,

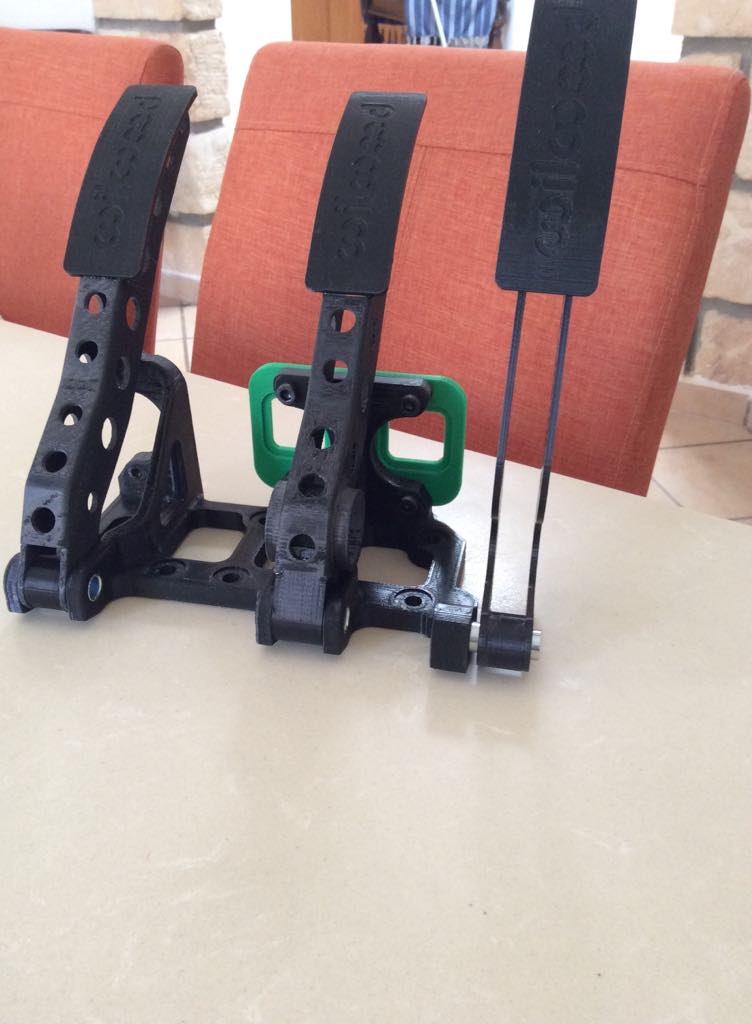

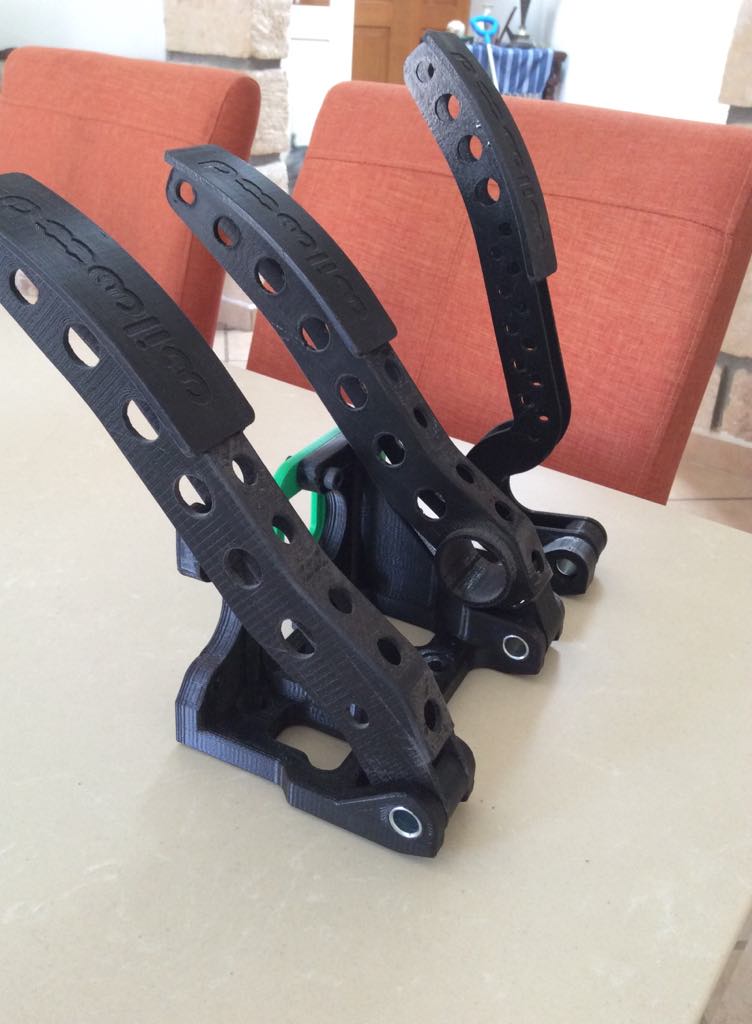

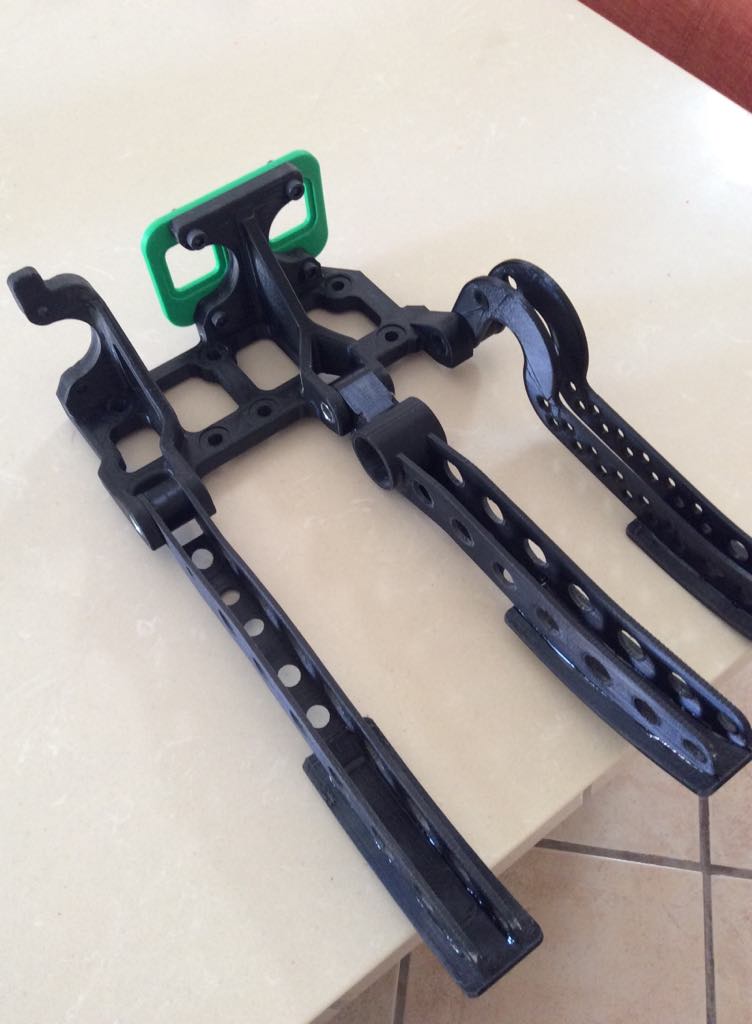

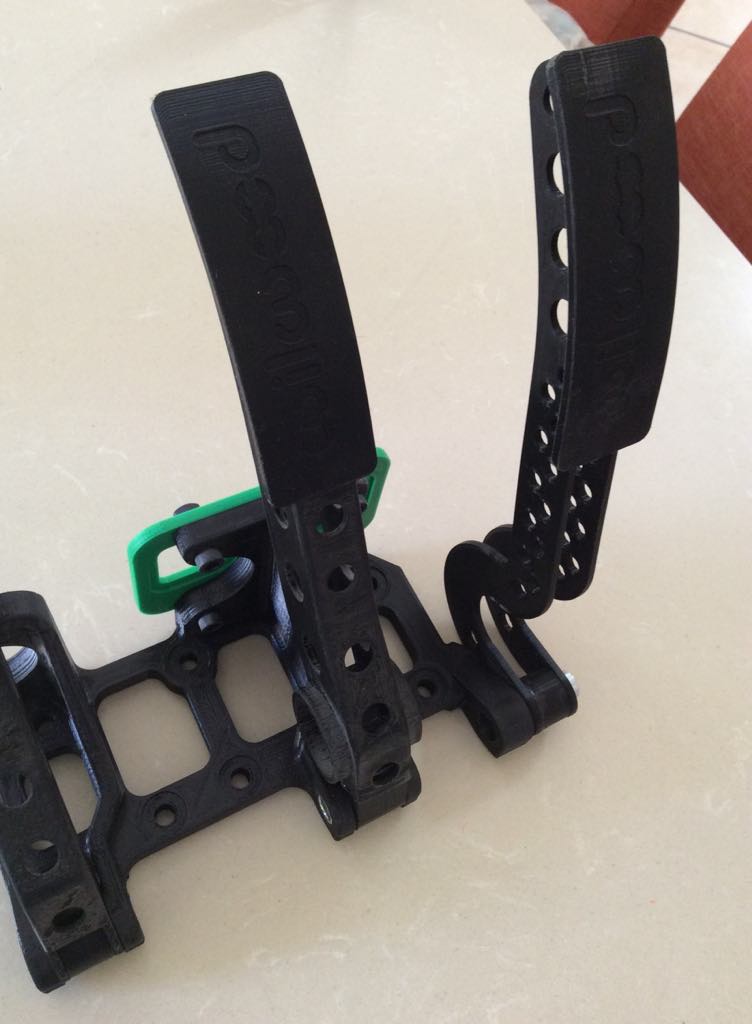

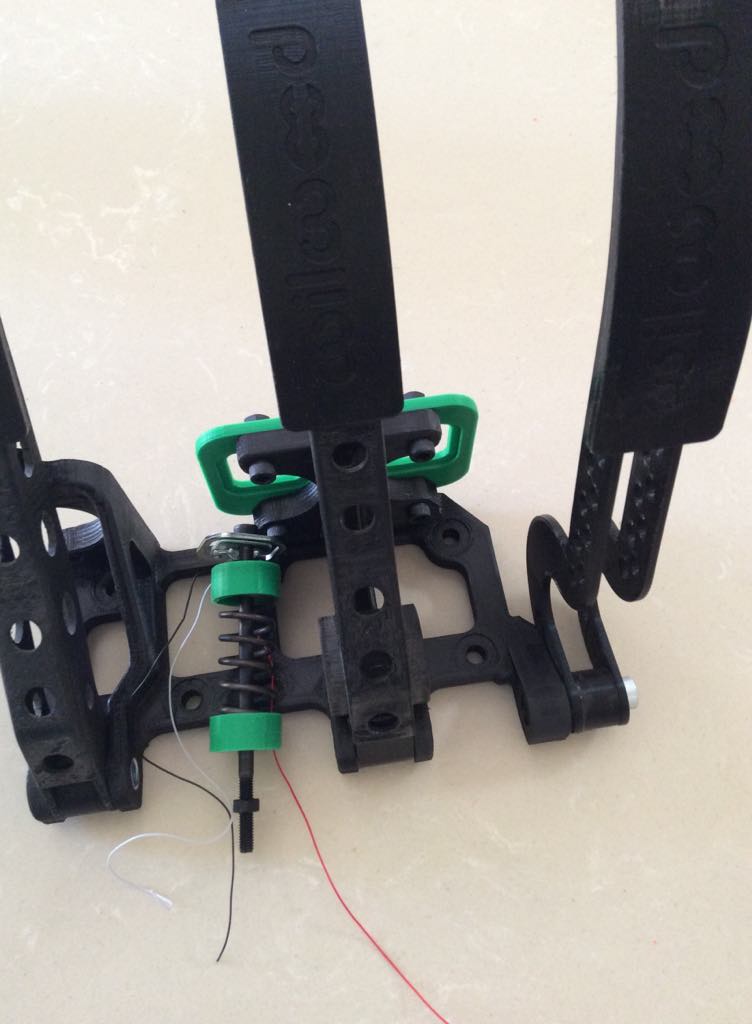

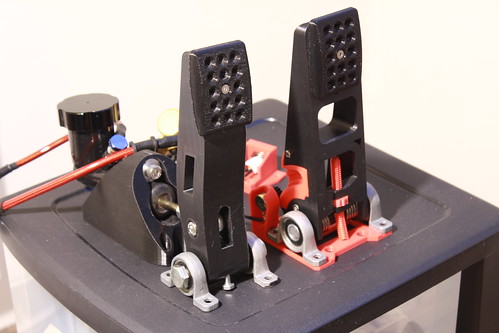

    Sharing here some photos of a 3d printed sim pedals that I am building. The printed parts are pretty much done. I was little concern about the strength, but seems that they are strong enough for the intended use. I tested the brake pedal with strong springs and feels really good.

    I am waiting now for ball joints to attach the spring mechanism and potentiometers for the throttle and clutch, the brake pedal is going to use load cell and I already have them.
    I am going to use a arm 32U micro controller to do the HID.

    I will share the g-code and the arduino firmware in case someone is interested in building.

    34688239_10157414788065130_3658495864772493312_n.jpg 34688239_10157414788065130_3658495864772493312_n.jpg 34688239_10157414788065130_3658495864772493312_n.jpg 34703334_10157414787835130_5456154585427083264_n.jpg 34723625_10157414788755130_7449267260448833536_n.jpg 34793159_10157414787890130_1747353821710909440_n.jpg 34745870_10157414787800130_3238809656520343552_n.jpg
    • Like Like x 7
    • Creative Creative x 2
    • Winner Winner x 1
    • Friendly Friendly x 1
  2. Jerry Atrick

    Jerry Atrick this is my sim Gold Contributor

    Joined:
    May 3, 2017
    Messages:
    138
    Occupation:
    Retired
    Location:
    Sydney Australia
    Balance:
    1,152Coins
    Ratings:
    +41 / 0 / -0
    My Motion Simulator:
    4DOF
    Hi. Juandi very nice job will look forward to see it finished.

    Just of note: how many spools of filament will you use?

    And what filament are you using carbon fibre?

    Jerry.
    • Like Like x 1
  3. dualclick76

    dualclick76 Active Member

    Joined:
    Mar 23, 2015
    Messages:
    159
    Location:
    italia
    Balance:
    23Coins
    Ratings:
    +39 / 0 / -2
    My Motion Simulator:
    2DOF, DC motor, Arduino
    I really like the work done, I'm curious to see them in action, congratulations.
    how much is the cost?
  4. ferslash

    ferslash Active Member

    Joined:
    Feb 8, 2011
    Messages:
    462
    Balance:
    4,506Coins
    Ratings:
    +164 / 2 / -0
    wow, well done, i really would like to see them working
    if you share the design do not share gcode, share the stl files (gcode works only with your 3d printer, stl files works with all the slicers)
    :D

    fer
  5. Juandi

    Juandi Member

    Joined:
    Nov 9, 2007
    Messages:
    34
    Occupation:
    Engineer
    Location:
    Mexico
    Balance:
    83Coins
    Ratings:
    +31 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino, JRK, Motion platform
    Hi y'all,

    @Jerry Atrick, I have use black PLA and more or less for the base and pedals has been around 550 grams, so I have consume half of 1Kg spool more or less. For the parts that I am printing now to mount the springs and pots it is going to be around 220 grs. So the total cost is going to be a very small fraction of the cost of the real ones... https://www.bsimracing.com/dsd-professional-grade-sim-racing-pedals/

    Obviously is not going to be the same, but I think that are going to be lot better than the G27 that I am using now.

    @dualclick76, I don't know yet, but 1Kg of PLA on amazon is about $30 USD and I have use less than that. Miscellaneous like bolts, nuts, springs, pots, arduino, load cells, etc are not expensive, so I think in total is going to be less than $60USD


    @ferslash Sure, I can share the g-code and the .stl files. I someone has a prusa stile 3d printer maybe its easier just to print the g-code. Anyways the base design is not mine creation, I downloaded it form grabcad. I am just modifying it to 3D print them and designing the brackets and mounting parts.

    https://grabcad.com/library/reverse-trike-project-an-pedals-1
    • Like Like x 1
    • Informative Informative x 1
  6. Juandi

    Juandi Member

    Joined:
    Nov 9, 2007
    Messages:
    34
    Occupation:
    Engineer
    Location:
    Mexico
    Balance:
    83Coins
    Ratings:
    +31 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino, JRK, Motion platform

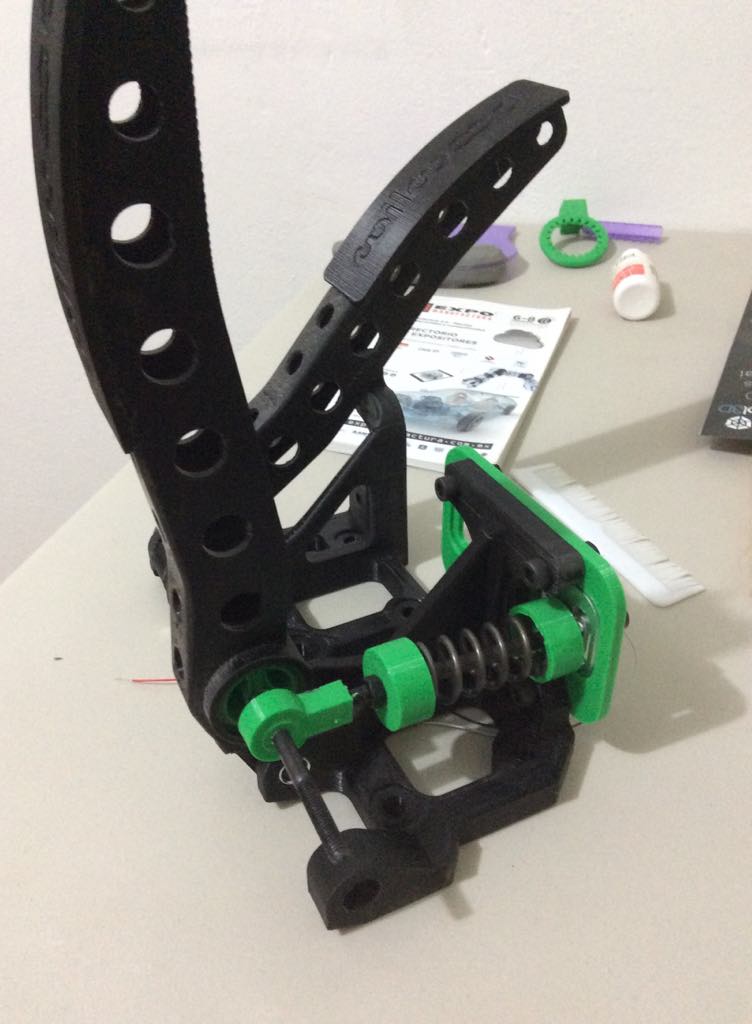

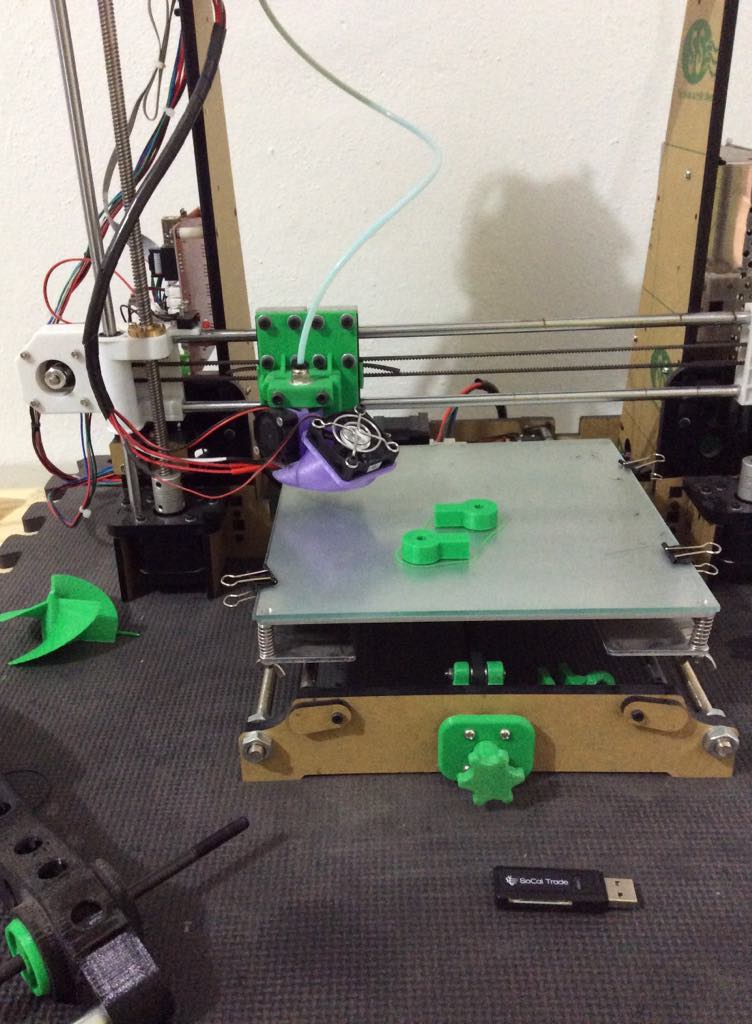

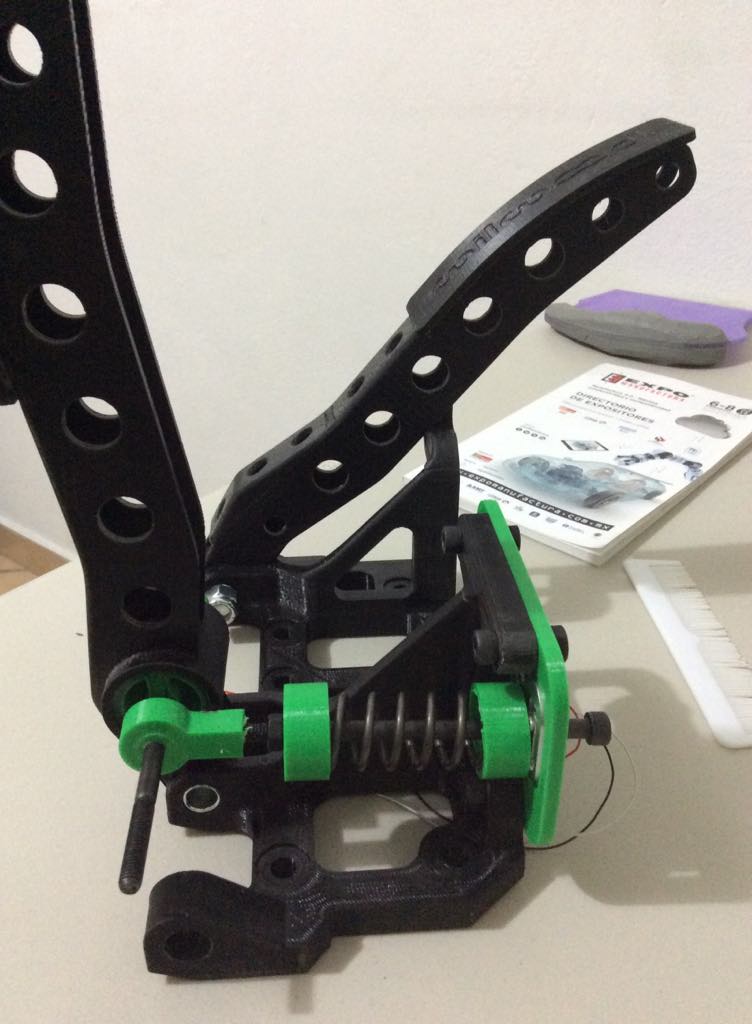

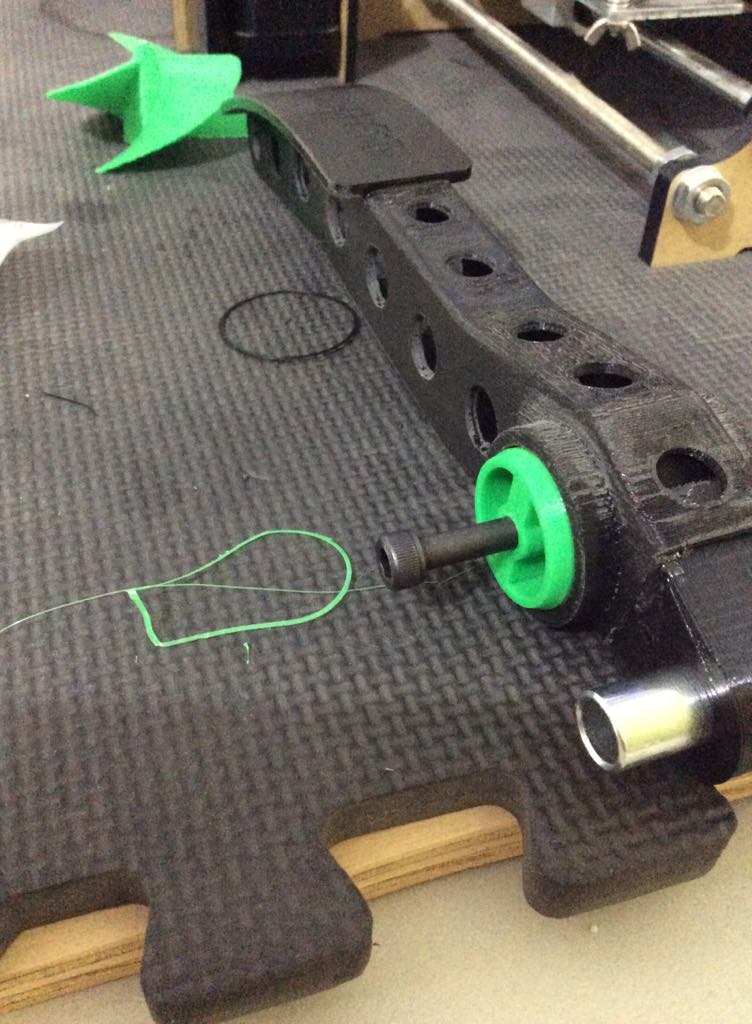

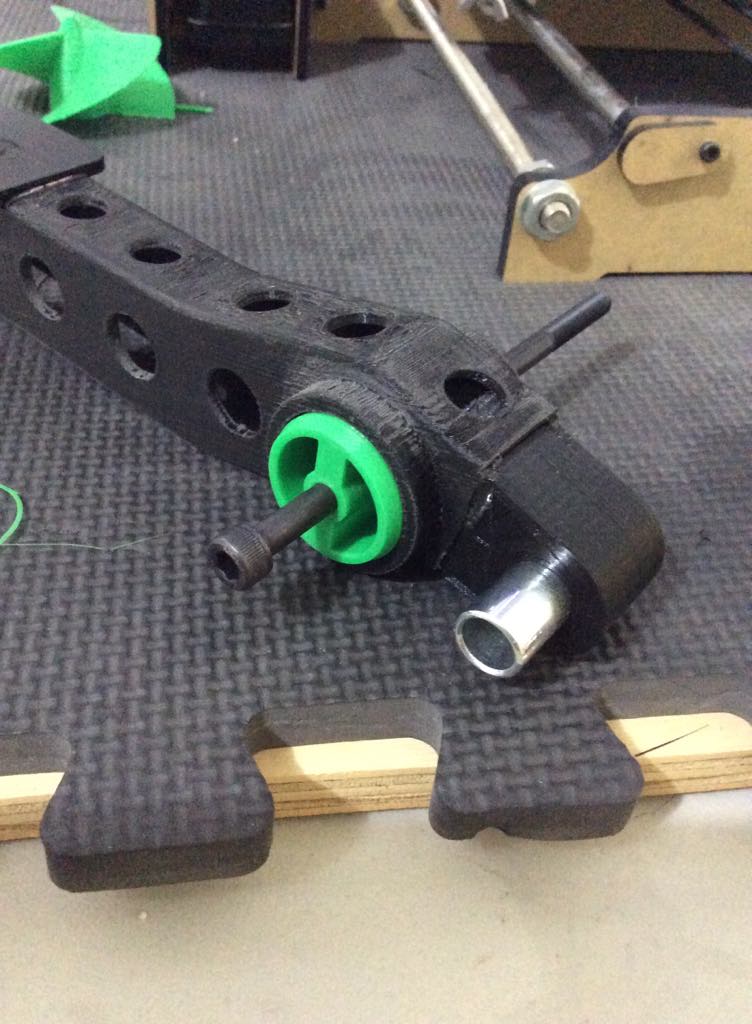

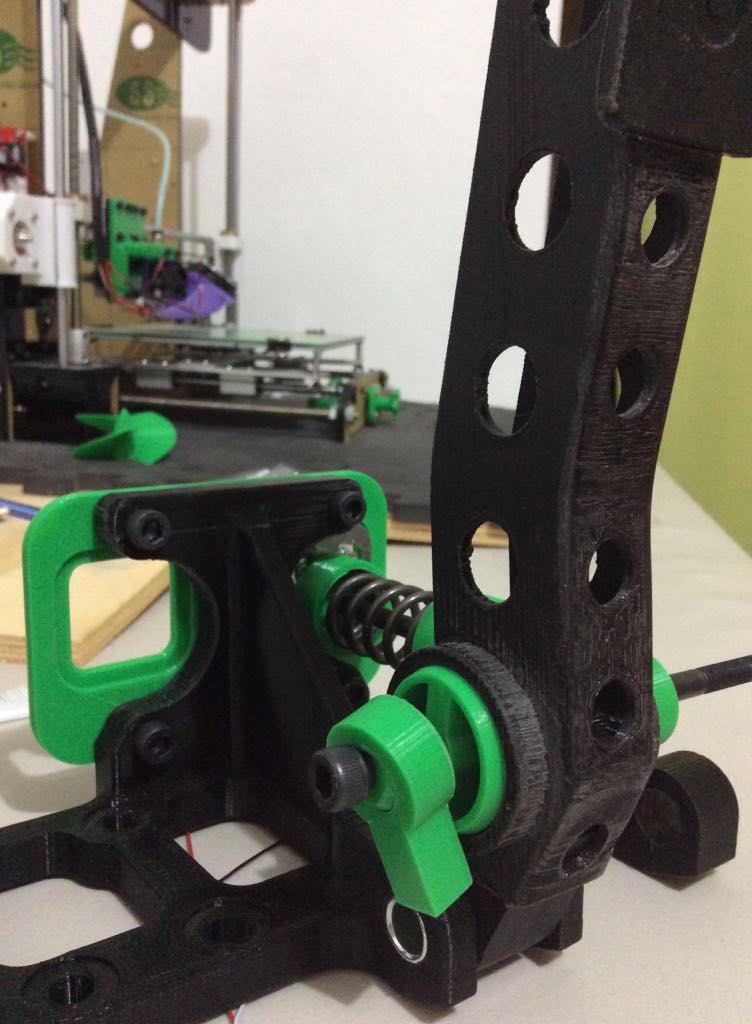

    Here some pics of what I have done so far.

    35058182_10157429010430130_6661602706840354816_n.jpg 35123735_10157429010065130_3669096363750064128_n.jpg 35147122_10157429010325130_4030317578793517056_n.jpg 35151359_10157429009925130_4435042427383840768_n.jpg 35223966_10157429010240130_6211313555229114368_n.jpg 35238481_10157429009880130_365632601722978304_n.jpg 35058182_10157429010430130_6661602706840354816_n.jpg 35123735_10157429010065130_3669096363750064128_n.jpg 35147122_10157429010325130_4030317578793517056_n.jpg 35151359_10157429009925130_4435042427383840768_n.jpg 35223966_10157429010240130_6211313555229114368_n.jpg 35238481_10157429009880130_365632601722978304_n.jpg
    • Like Like x 4
    • Winner Winner x 1
  7. .dumbass

    .dumbass New Member

    Joined:
    Jun 7, 2015
    Messages:
    2
    Balance:
    131Coins
    Ratings:
    +4 / 0 / -0
    Very nice!
    How about mechanical resistance? PLA is famous for brake down...
  8. Jerry Atrick

    Jerry Atrick this is my sim Gold Contributor

    Joined:
    May 3, 2017
    Messages:
    138
    Occupation:
    Retired
    Location:
    Sydney Australia
    Balance:
    1,152Coins
    Ratings:
    +41 / 0 / -0
    My Motion Simulator:
    4DOF
    Hi Juandi, these are looking great:thumbs

    keep us informed, we want to see them in action:)

    Jerry
  9. Nick Moxley

    Nick Moxley Well-Known Member SimTools 2.0 Beta Tester

    Joined:
    Dec 13, 2013
    Messages:
    2,741
    Occupation:
    Owner/Operator- Moxleys Rantals
    Location:
    Winnipeg Manitoba Canada
    Balance:
    19,832Coins
    Ratings:
    +2,450 / 29 / -2
    My Motion Simulator:
    2DOF, 3DOF, DC motor, JRK
    Good for design practice. Practical use, Not so much.

    Sorry if its harsh, but it is what it is.

    @Jerry Atrick Carbon fiber filaments are almost Never any stronger than its normal Counterpart.

    Regular PLA > CF PLA
    Regular PETG > CF PETG

    Its more of a visual/apperance thing with CF and the Matte Finish.
  10. Jerry Atrick

    Jerry Atrick this is my sim Gold Contributor

    Joined:
    May 3, 2017
    Messages:
    138
    Occupation:
    Retired
    Location:
    Sydney Australia
    Balance:
    1,152Coins
    Ratings:
    +41 / 0 / -0
    My Motion Simulator:
    4DOF
    Hi Nick, thanks for the information about Carbon fibre I will keep this in mind.

    Jerry.
    • Like Like x 1
  11. Juanjo1986

    Juanjo1986 Member

    Joined:
    Jan 6, 2016
    Messages:
    46
    Occupation:
    Comerciante.. Copiloto Rally...
    Location:
    Argentina
    Balance:
    375Coins
    Ratings:
    +11 / 1 / -0
    My Motion Simulator:
    3DOF
    Hello @Juandi Your work is very good, it is spectacular.
    later I would like to see if you can share the files to print, I am finishing up a Prusa i3.
    What type of load cells are you using, how many kg do they support?
    what are you going to control them with?
  12. Nick Moxley

    Nick Moxley Well-Known Member SimTools 2.0 Beta Tester

    Joined:
    Dec 13, 2013
    Messages:
    2,741
    Occupation:
    Owner/Operator- Moxleys Rantals
    Location:
    Winnipeg Manitoba Canada
    Balance:
    19,832Coins
    Ratings:
    +2,450 / 29 / -2
    My Motion Simulator:
    2DOF, 3DOF, DC motor, JRK

    How have the pedals been holding up ? was always curious how they would do over time.....
