News Application to compare axis, filters, etc.

Discussion in 'Miscellaneous' started by perdixero, Aug 9, 2017.

  1. perdixero

    perdixero Member

    Joined:
    May 30, 2017
    Messages:
    49
    Location:
    Argentina
    Balance:
    385Coins
    Ratings:
    +45 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Hi!

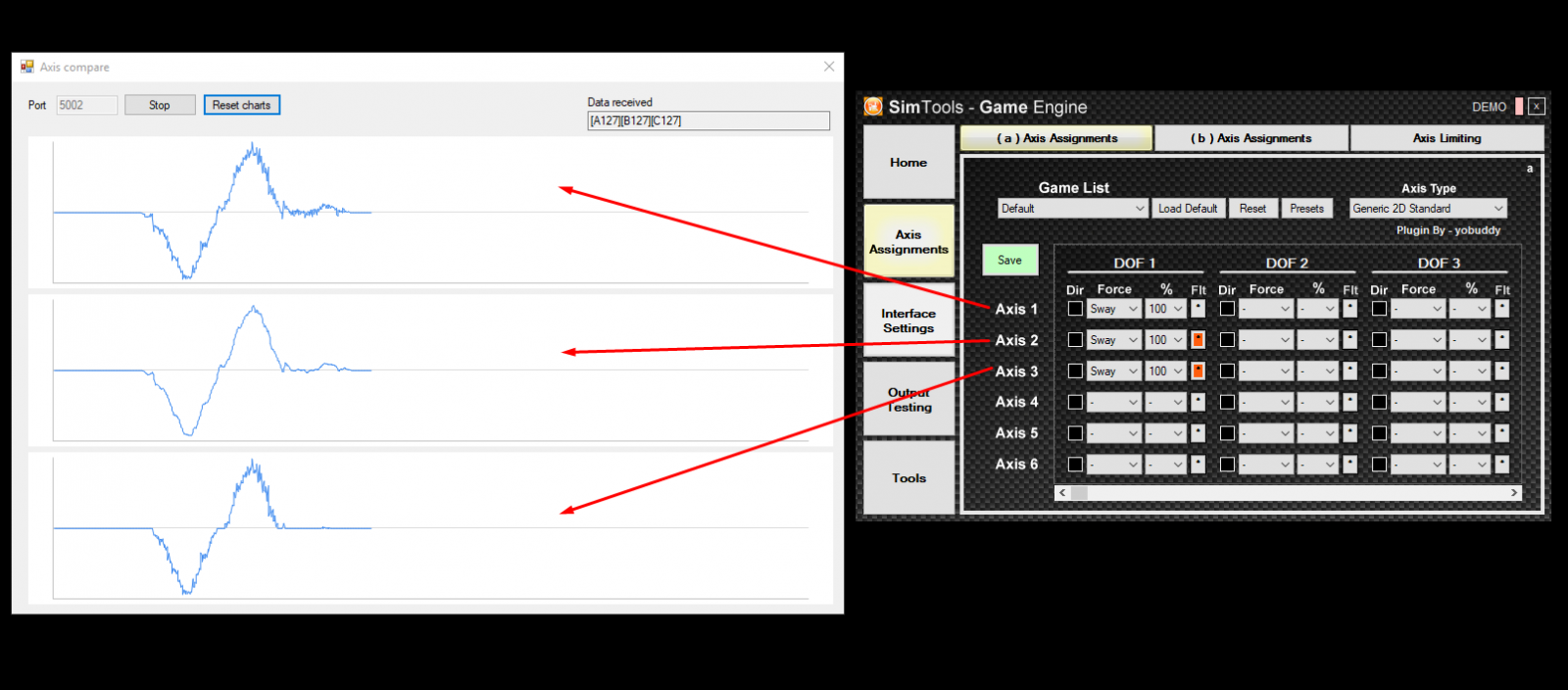

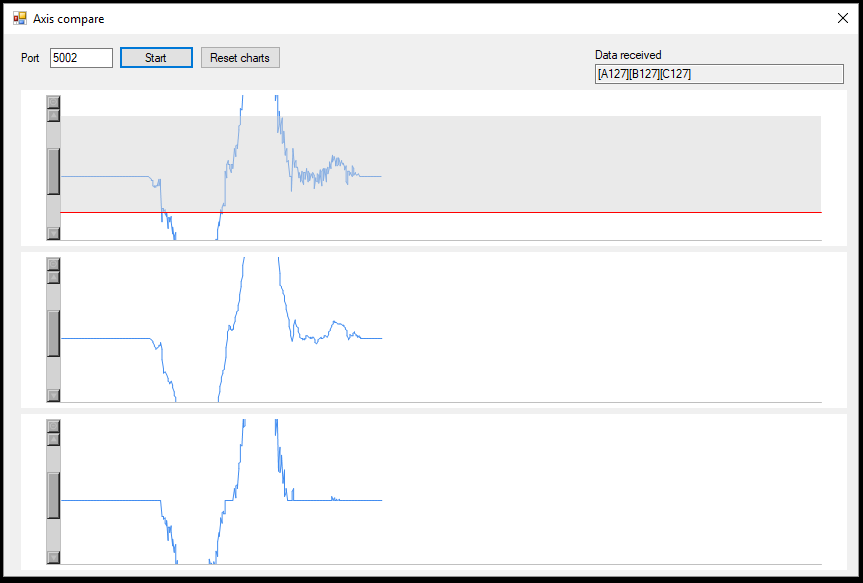

    I have developed a tool that allows compare axes and also allows you to see the difference when using filters.

    I use it for the fine tuning of the movement.

    Attached some screens and below is the .zip file

    App:

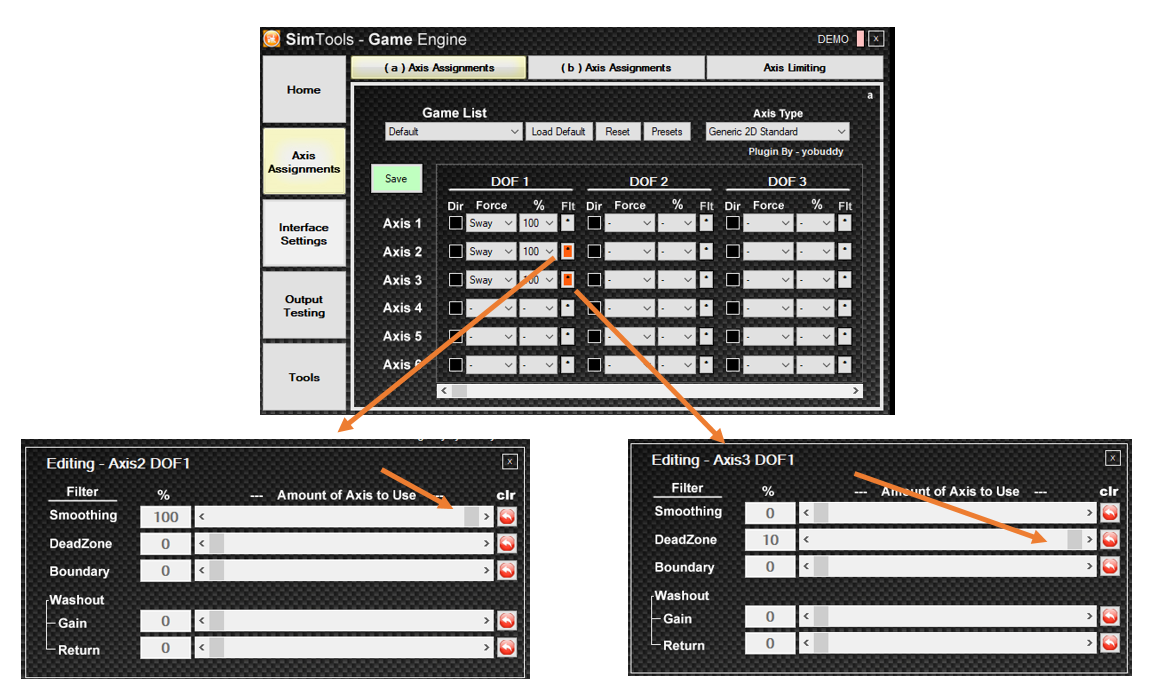

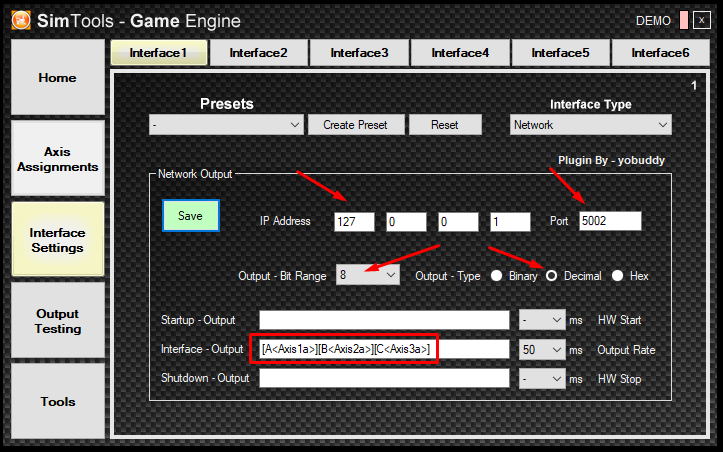

    SimTools settings:




    Attached Files:
