Start a project, 2dof or 4dof why?

Discussion in 'DIY Motion Simulator Projects' started by marco cristopulos, May 3, 2021.

  1. marco cristopulos

    marco cristopulos New Member

    Joined:
    Apr 30, 2021
    Messages:
    23
    Balance:
    139Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino
    I see how connect 2dof electric blue print, the 4dof is same?
    marco cristopulos, May 3, 2021
    #1
  2. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    20,551
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    145,124Coins
    Ratings:
    +10,778 / 52 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    noorbeast, May 3, 2021
    #2
  3. marco cristopulos

    marco cristopulos New Member

    Joined:
    Apr 30, 2021
    Messages:
    23
    Balance:
    139Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino

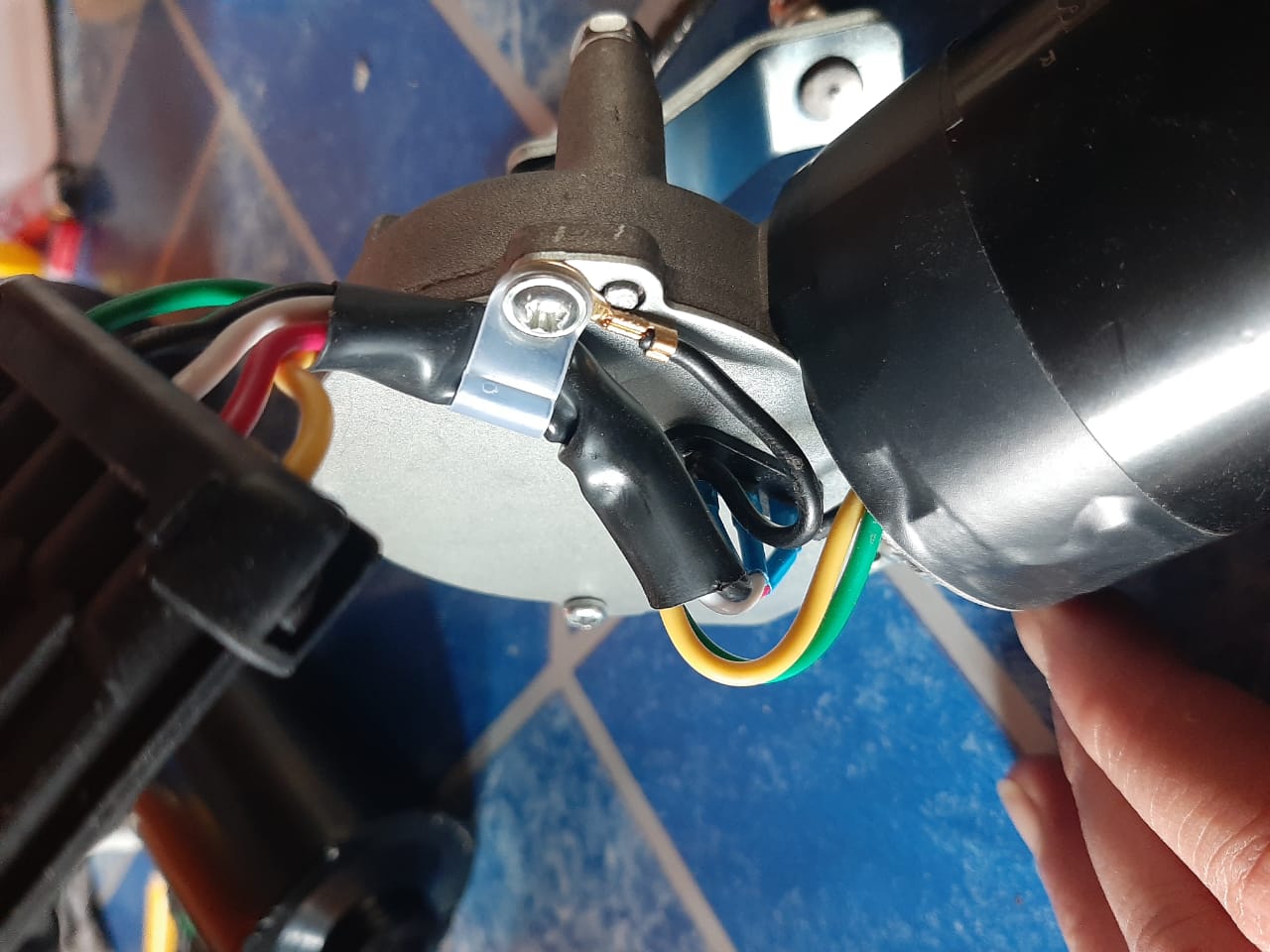

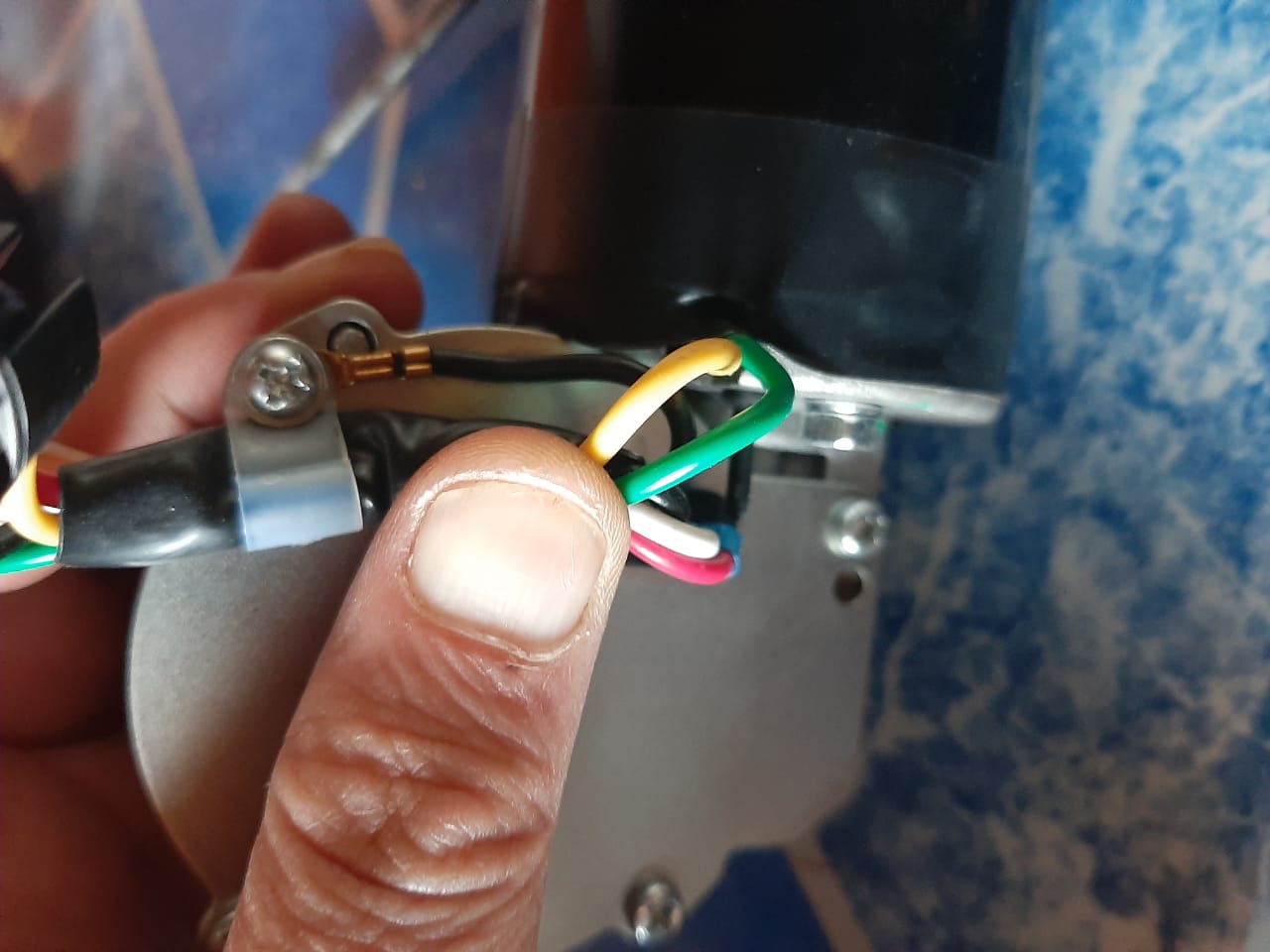

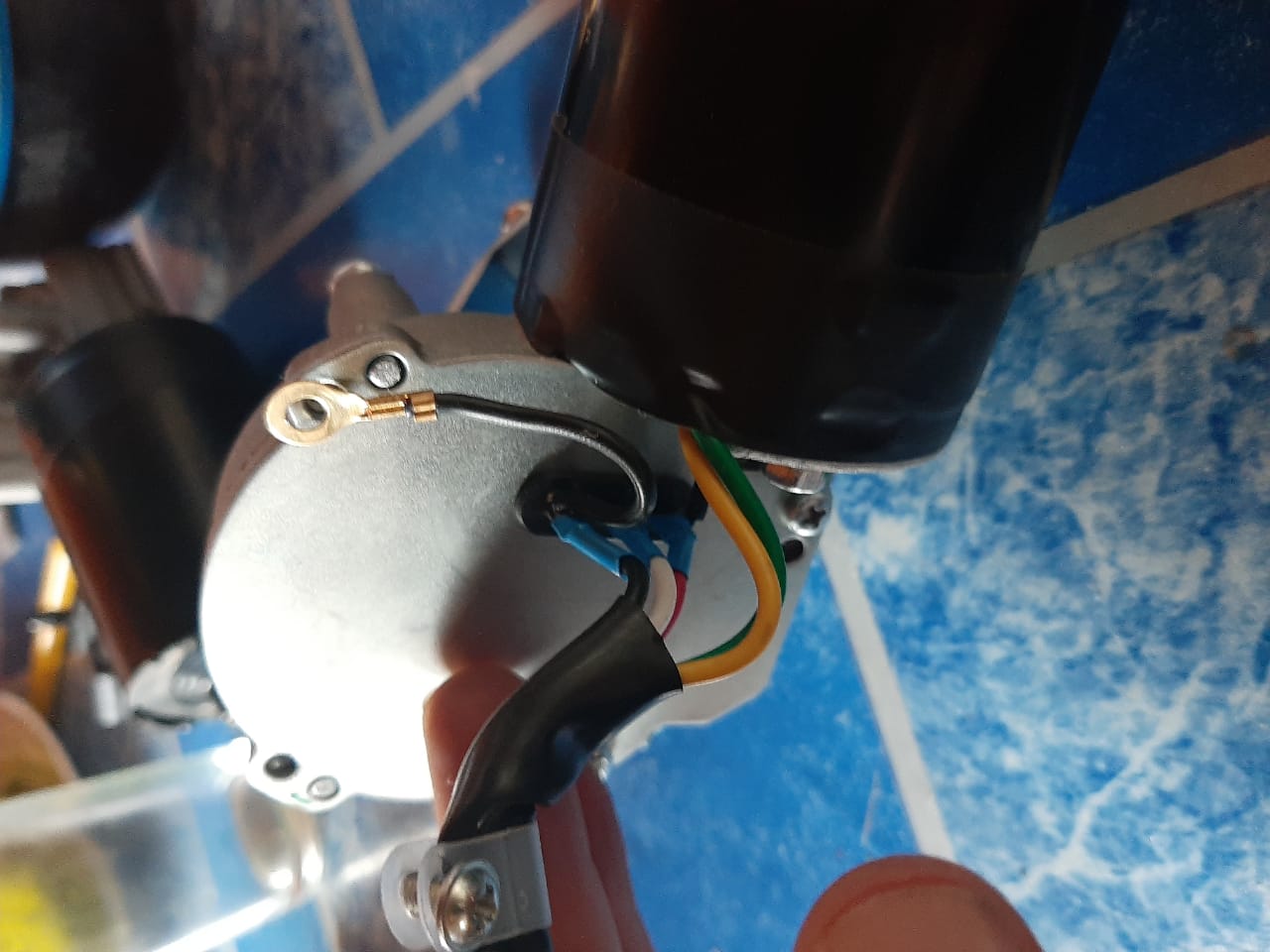

    I am starting with the motors, I need help with the connections and how to isolate their mass since it is different from the ones I have seen, I need to know what the cables are and where to connect them.

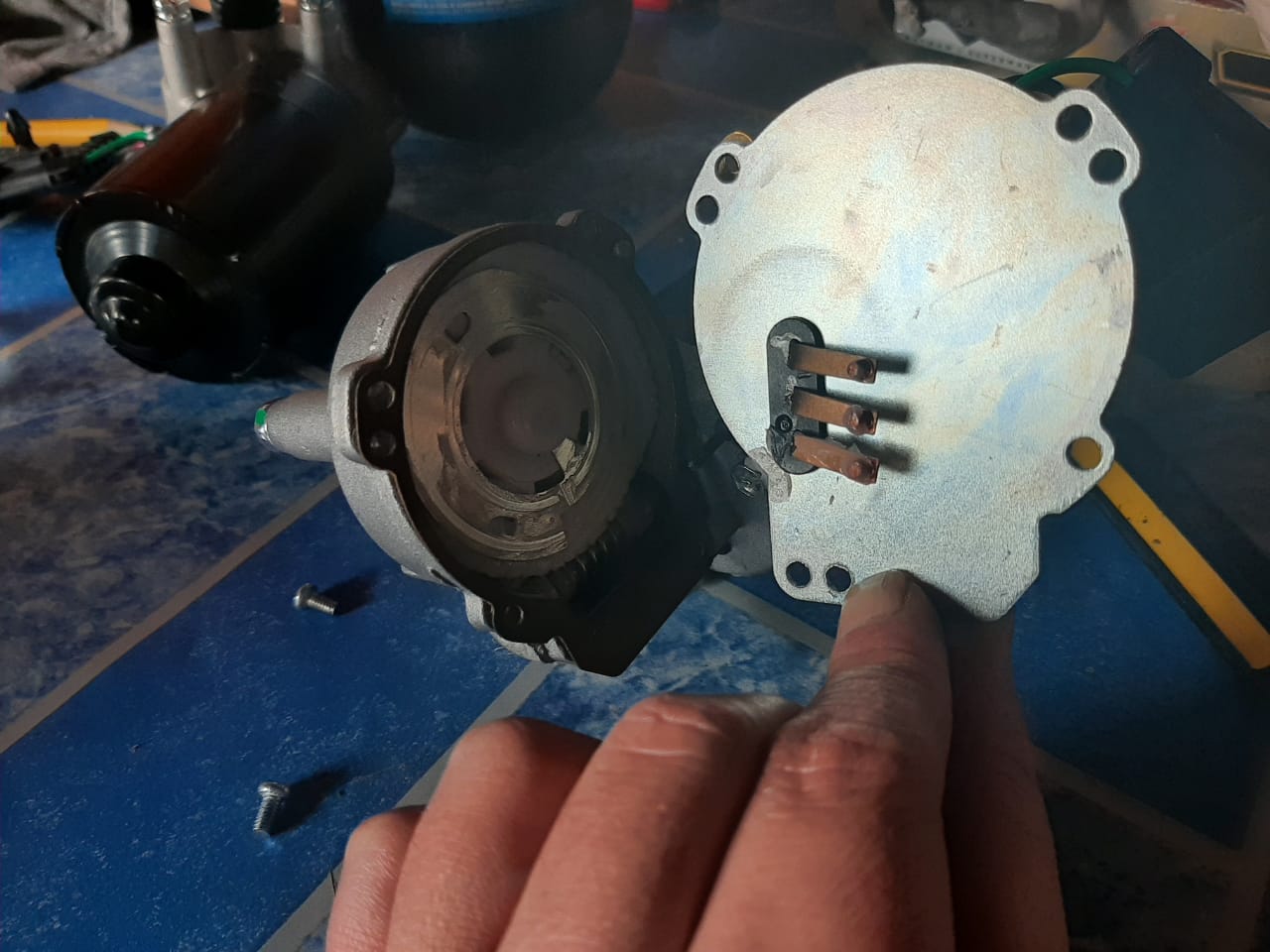

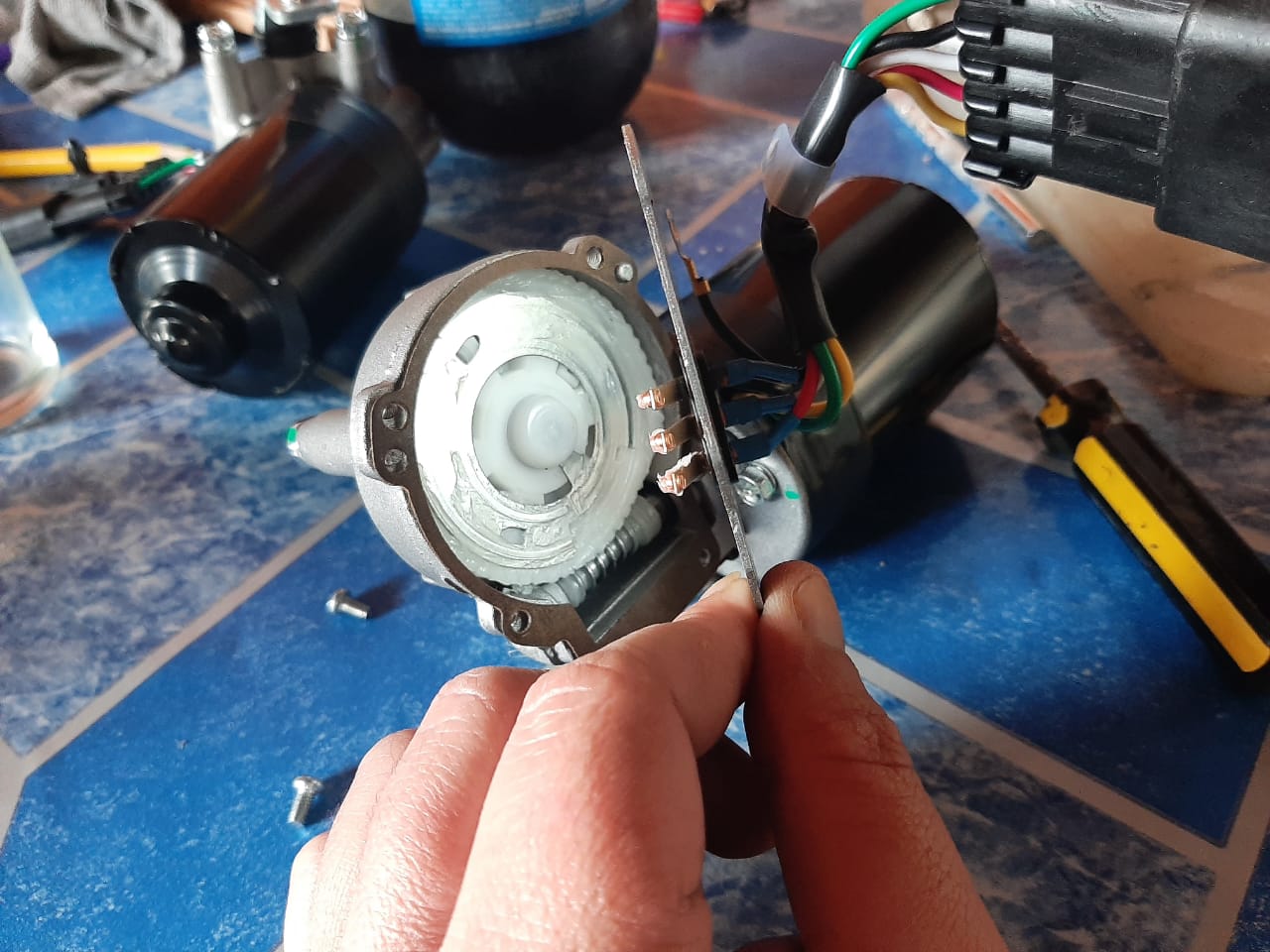

    I disassembled the black part, but it cannot be put back together, luckily I have two

    Attached Files:

    marco cristopulos, May 5, 2021
    #3
  4. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    20,551
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    145,124Coins
    Ratings:
    +10,778 / 52 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    noorbeast, May 5, 2021
    #4
  5. marco cristopulos

    marco cristopulos New Member

    Joined:
    Apr 30, 2021
    Messages:
    23
    Balance:
    139Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino
    Yo reviso same that link and dont come to back armed agai i think are different, have only 2 cablw inside
    marco cristopulos, May 5, 2021
    #5
  6. marco cristopulos

    marco cristopulos New Member

    Joined:
    Apr 30, 2021
    Messages:
    23
    Balance:
    139Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino

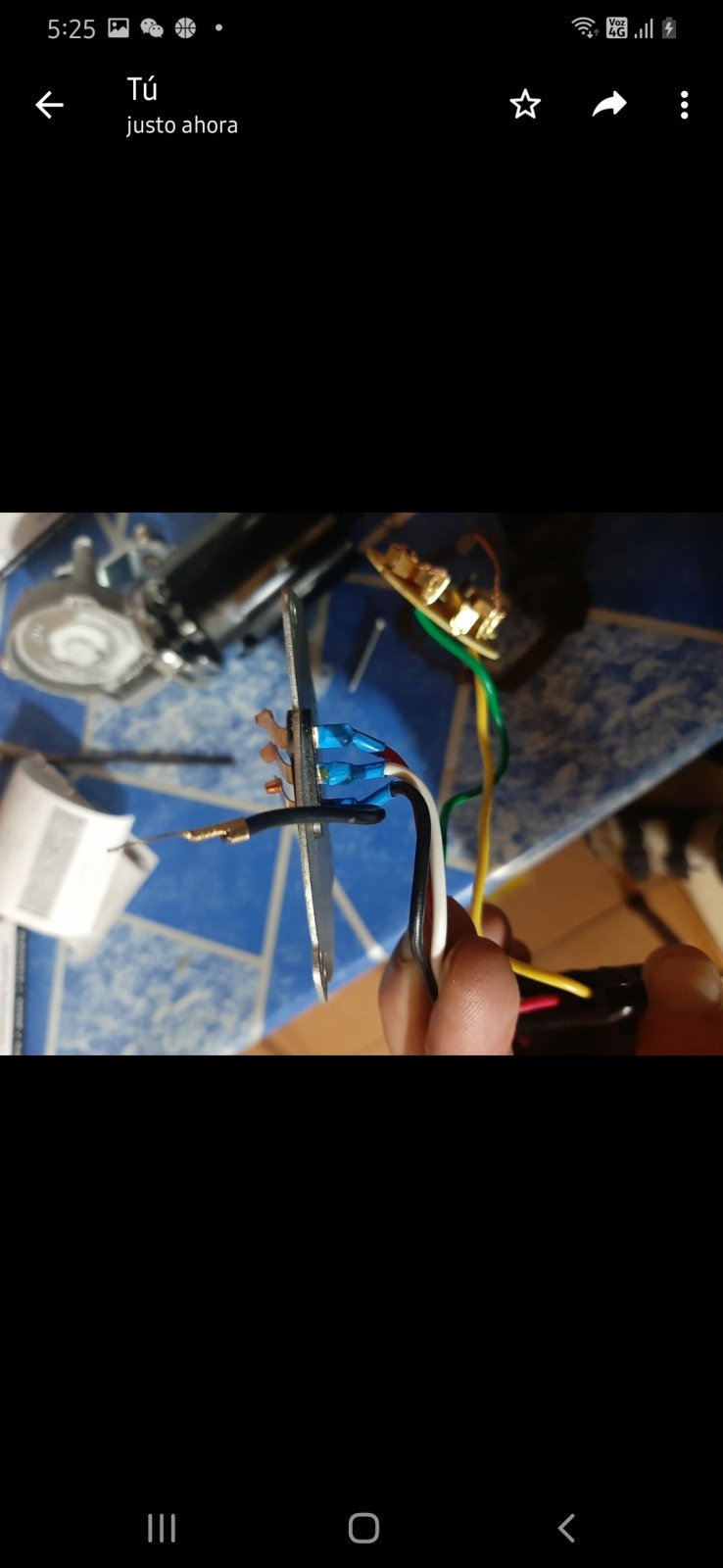

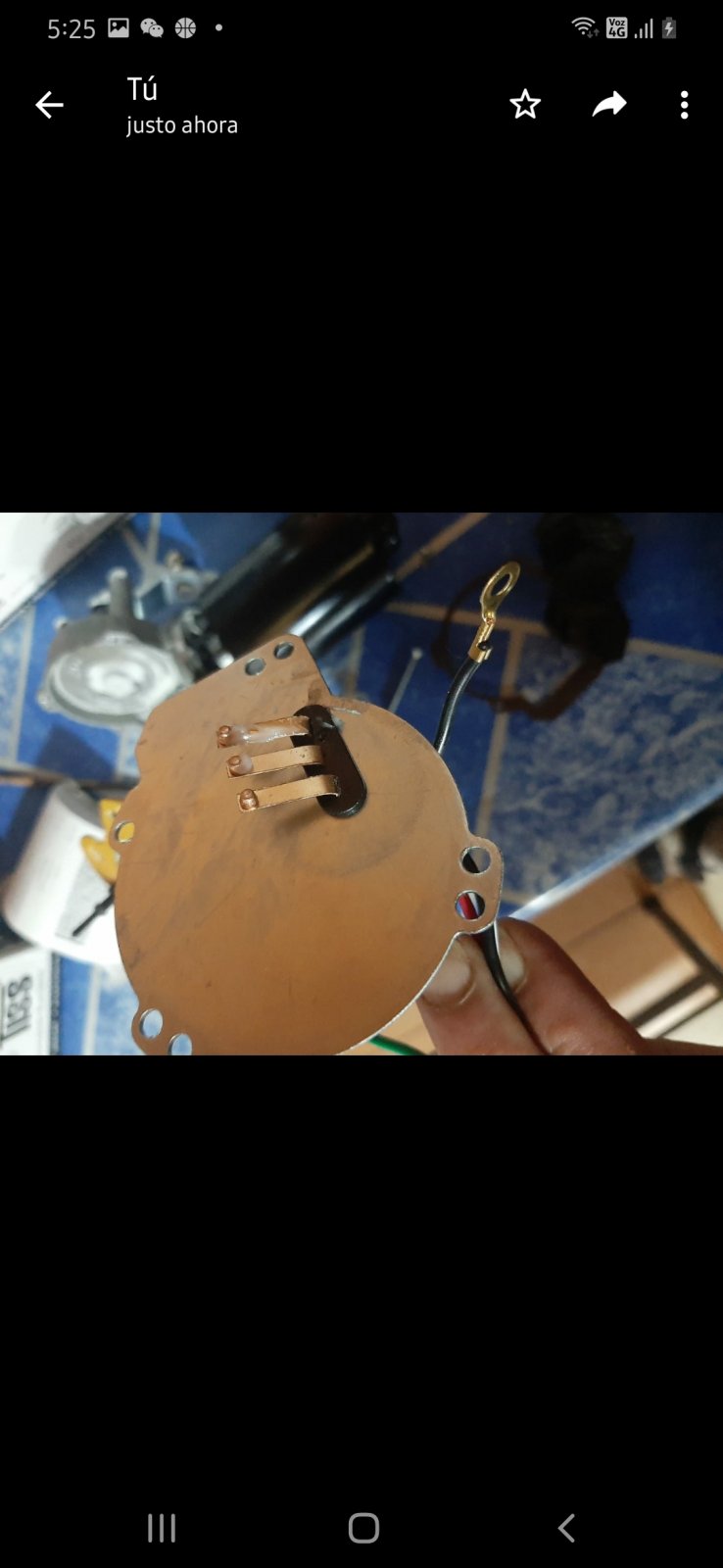

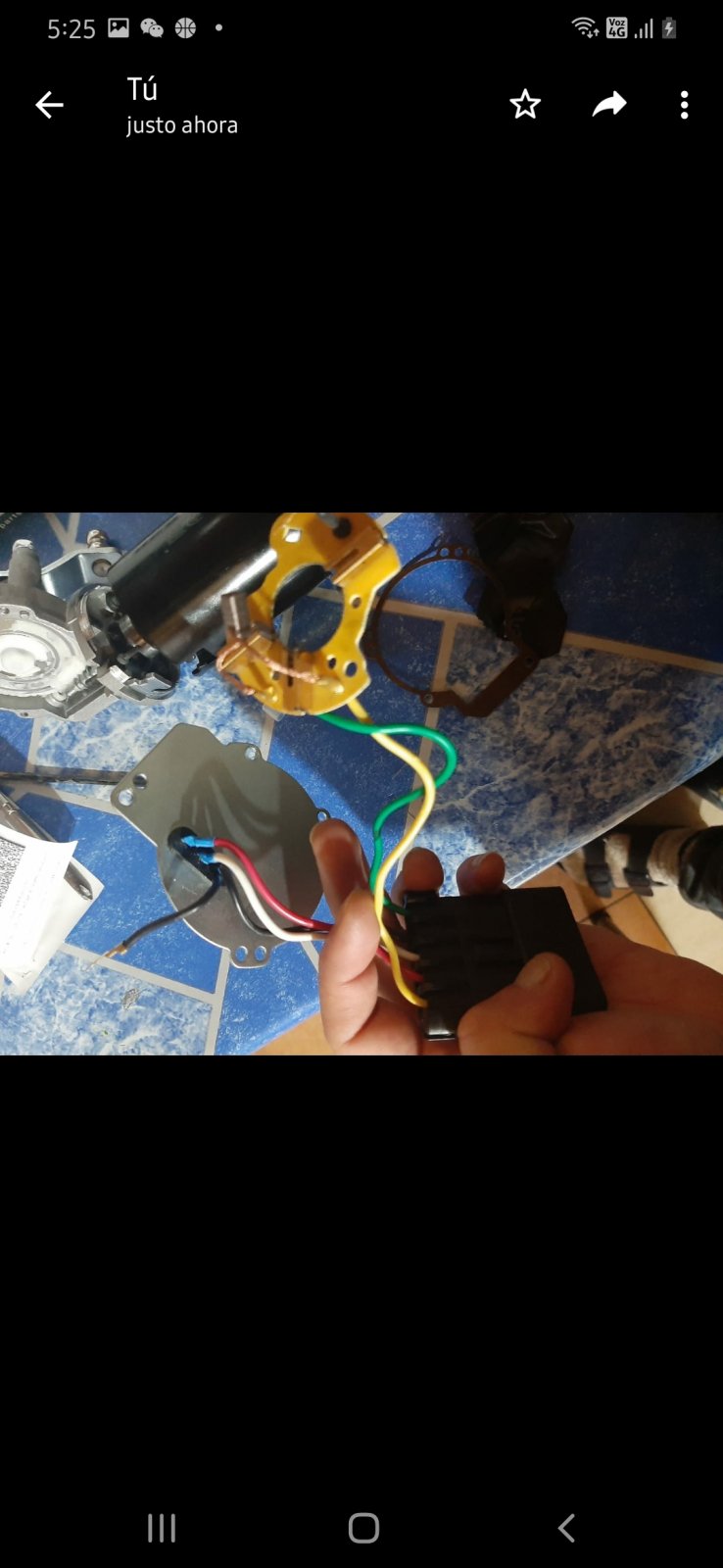

    Check pls

    Attached Files:

    Last edited by a moderator: May 5, 2021
    marco cristopulos, May 5, 2021
    #6
  7. C1500

    C1500 Active Member

    Joined:
    Nov 19, 2018
    Messages:
    165
    Location:
    Germany
    Balance:
    1,118Coins
    Ratings:
    +86 / 1 / -0
    My Motion Simulator:
    AC motor, 6DOF
    Hi marco

    I think the yellow and green wire are for the motor.
    The other wires (red, white and black) are possibly for position detection as a whiper to switch the motor oposit direction.
    You will not need these wires.

    Do you have a multimeter?
    Measure the resistance between case of the motor and the yellow and green line.
    If there is no connection, you can put ground/shild on the case.

    cheers
    Peer
    C1500, May 5, 2021
