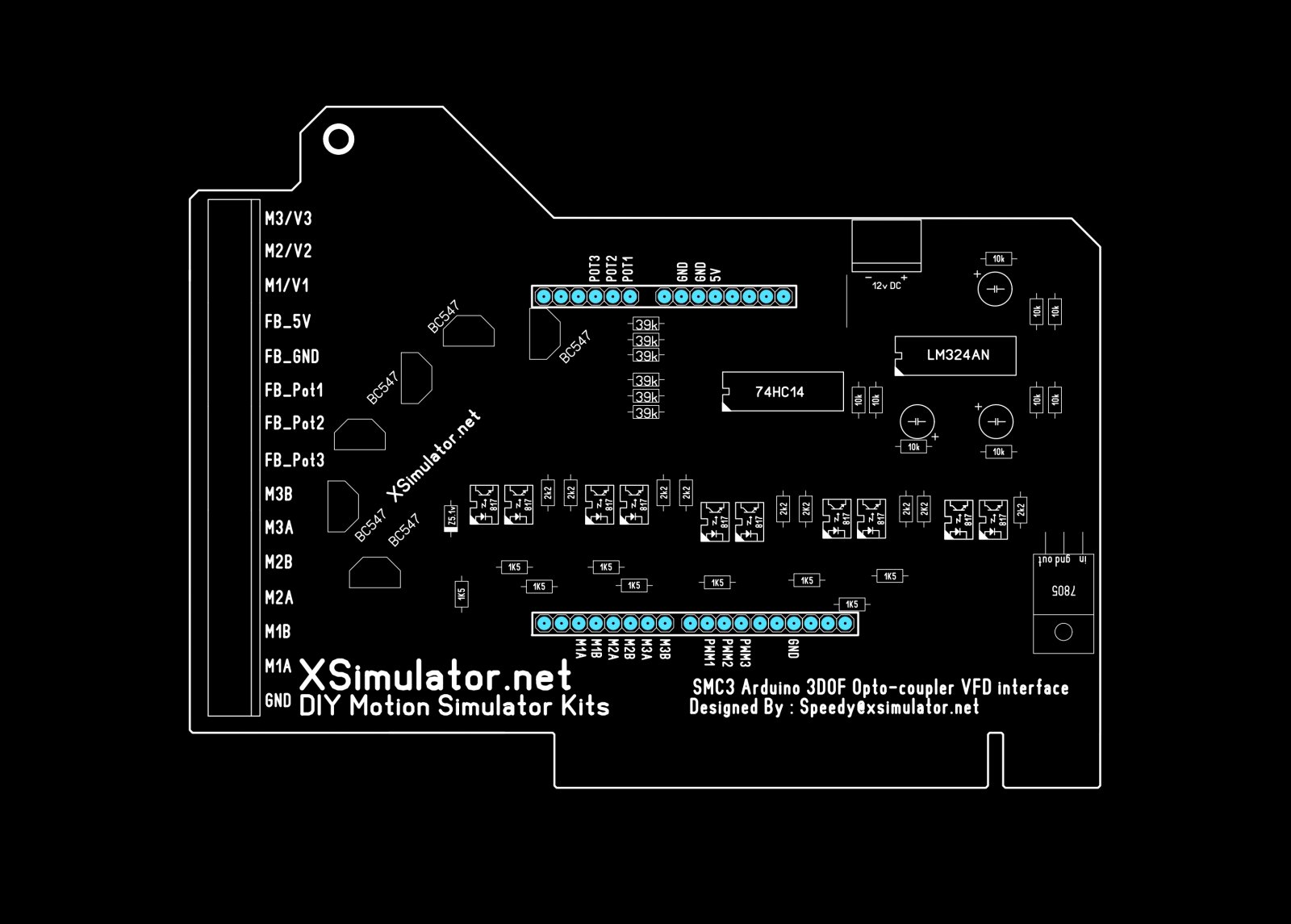

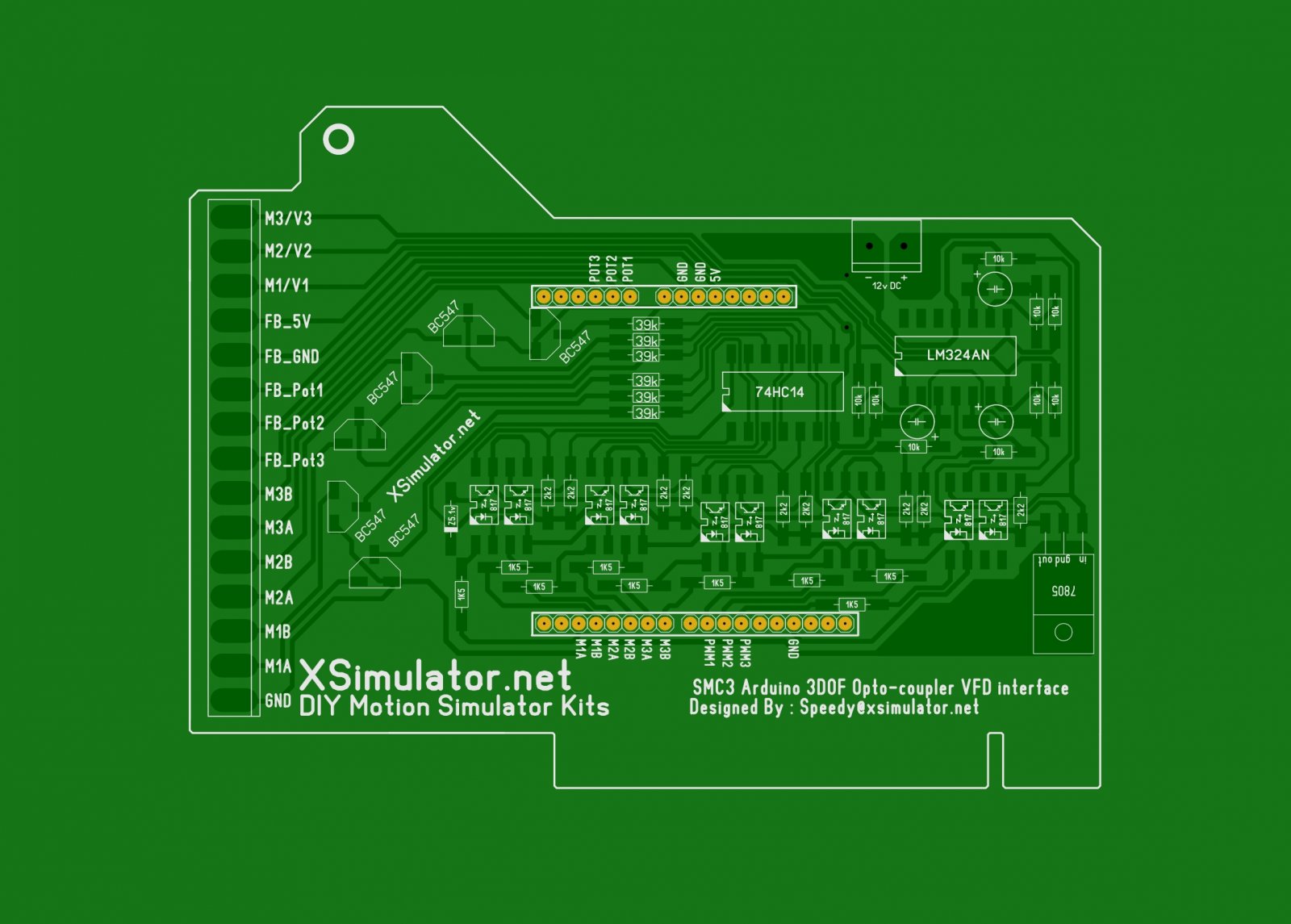

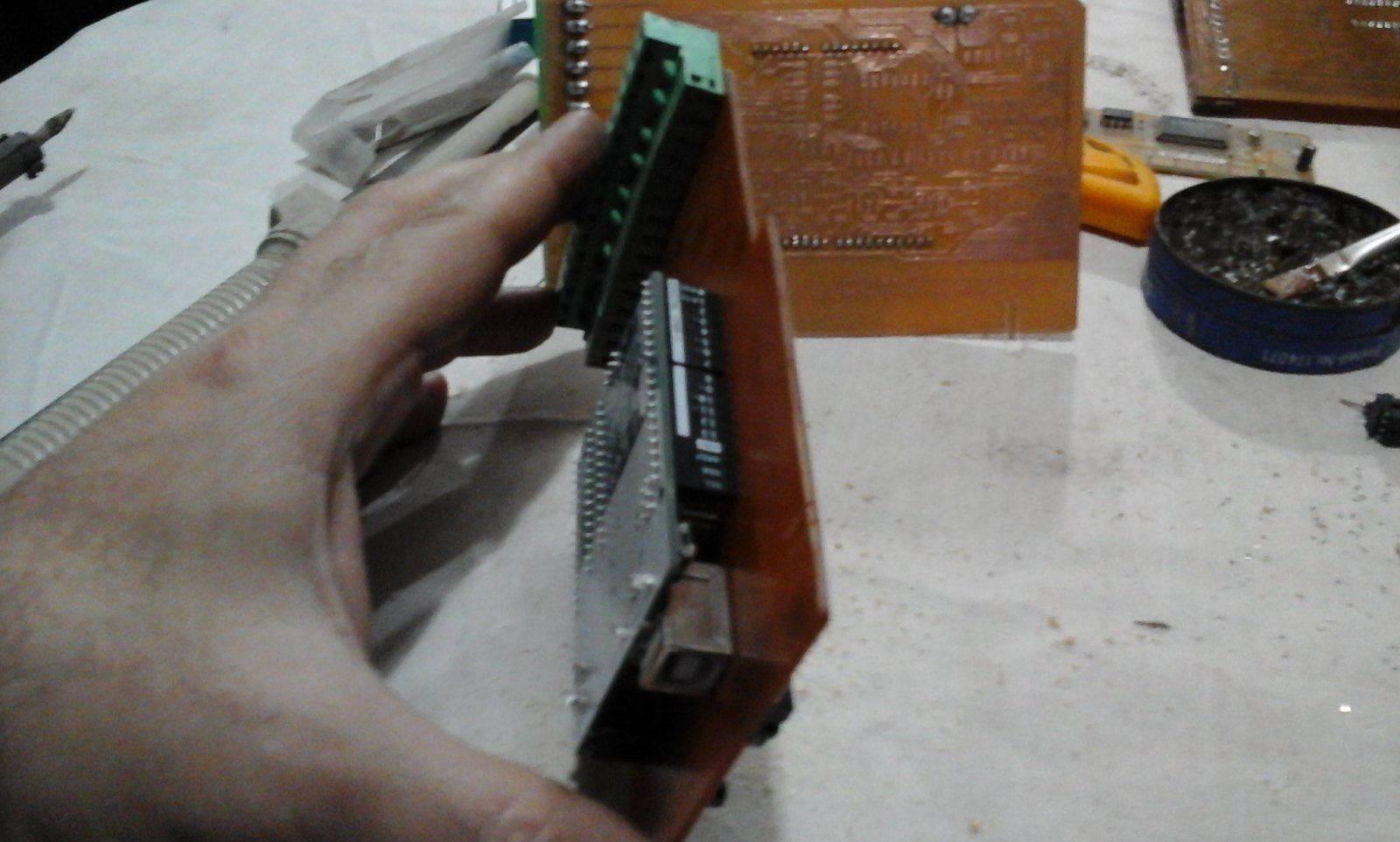

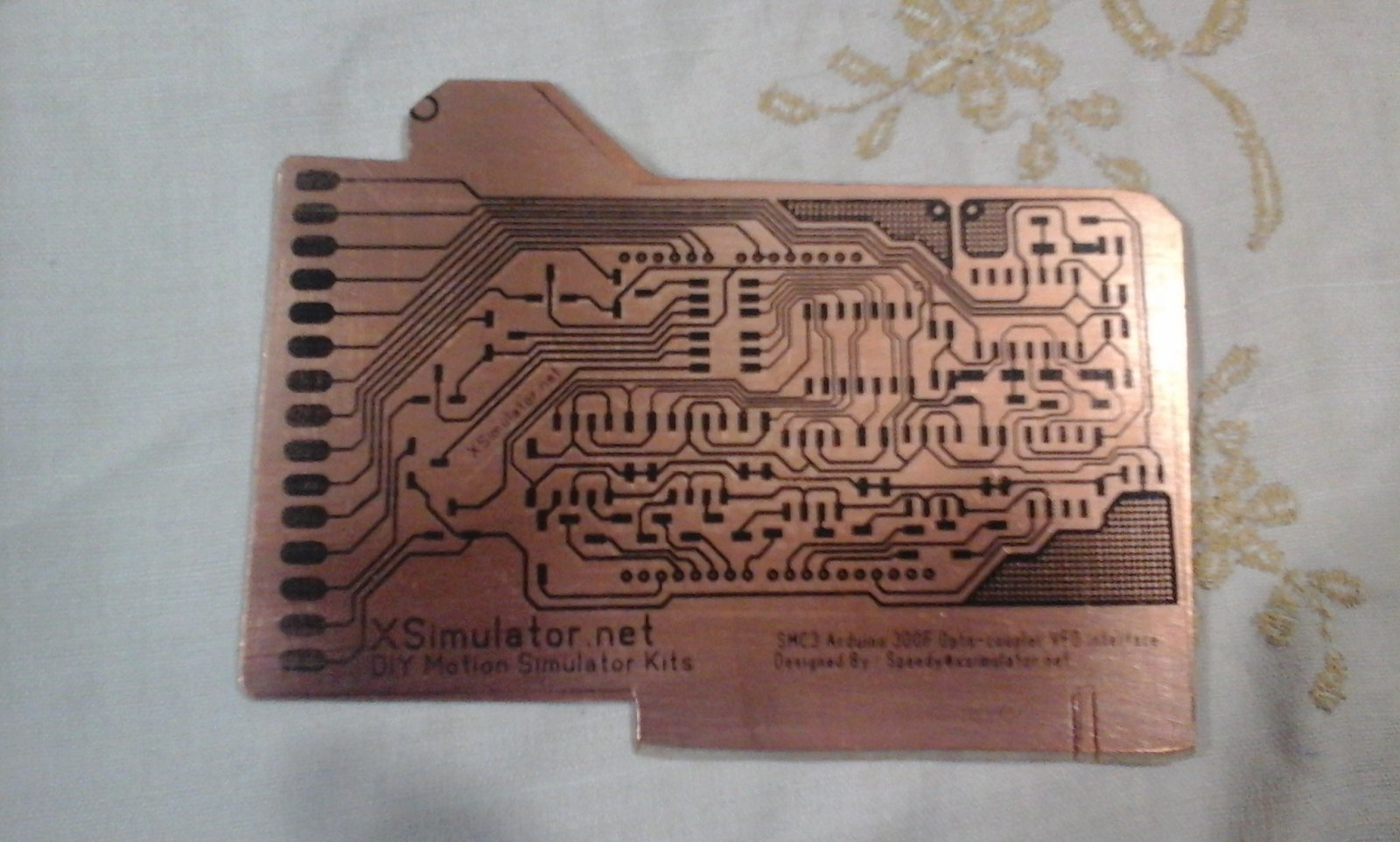

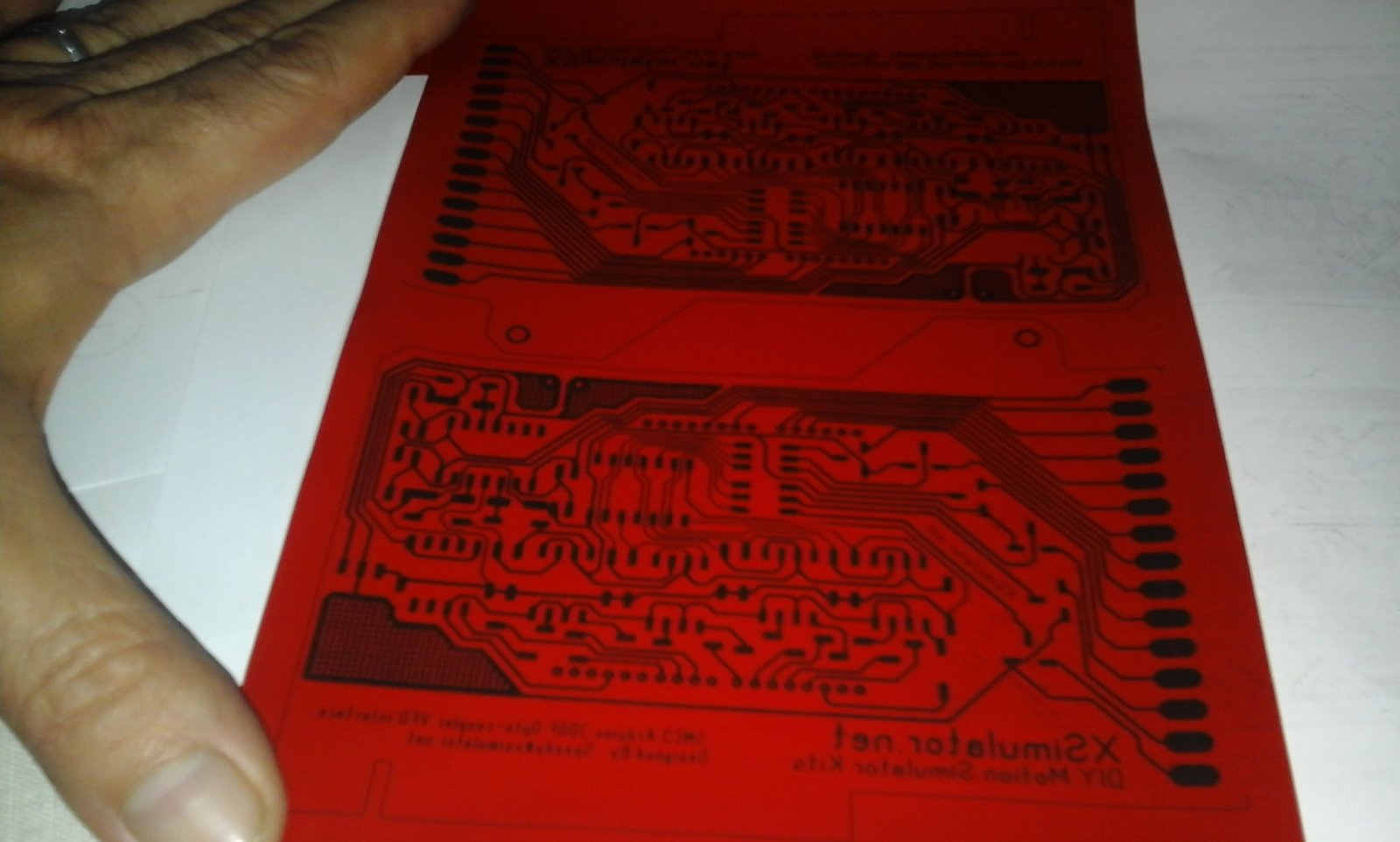

SMC3 Arduino 3DOF 3-Phase AC motor Opto-Coupler shield ...

Discussion in 'SimTools compatible interfaces' started by speedy, Jan 7, 2017.

  1. ramiro

    ramiro New Member

    Joined:
    Sep 30, 2018
    Messages:
    2
    Balance:
    175Coins
    Ratings:
    +0 / 0 / -0
    Good day Llewelyn, excuse my ignorance on electronics, I want to build a simulator with three-phase motors and I would like to know if this circuit has evolved or if something else is used to drive the motors, on the other hand, I understood that it is used with the SMC3 in mode 1 (monster motor shield), is that right? Thank you very much because your advice and data are invaluable.
  2. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    20,461
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    144,596Coins
    Ratings:
    +10,741 / 52 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    You will likely find the VFD section of the FAQs of interest: https://www.xsimulator.net/community/faq/vfds-and-3phase-motors.9/category
  3. F22raptom

    F22raptom Member

    Joined:
    Aug 31, 2017
    Messages:
    34
    Location:
    Australia
    Balance:
    271Coins
    Ratings:
    +5 / 1 / -0
    My Motion Simulator:
    Arduino, 6DOF
    This method of acuation was redundant from the start. Not to mention it didn't even work to begin with. The VFD threads are all dead ends.

    Take it from someone whose had a control panel to 3 dead motors on a giant frame in the garage for the past 4 years. Bite the bullet and invest in servos or whatever they are called or better yet buy an already built one.
  4. Arta Yasa

    Arta Yasa Member

    Joined:
    Jan 27, 2021
    Messages:
    153
    Balance:
    752Coins
    Ratings:
    +14 / 0 / -0
    My Motion Simulator:
    2DOF
    Hi sir output of optocoupler is PWM???
