PT-Actuators 3DOF system?

Discussion in 'Commercial Simulators and Peripherie' started by LukeBrown, Jul 1, 2019.

  1. Zeroselect

    Zeroselect Member Gold Contributor

    Joined:
    Oct 31, 2019
    Messages:
    33
    Location:
    Maryland, USA
    Balance:
    111Coins
    Ratings:
    +17 / 0 / -0
    My Motion Simulator:
    4DOF
    Watching that video just gave me the biggest :grin thinking how its going to be having a motion rig.
  2. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    1,346
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    2,692Coins
    Ratings:
    +1,043 / 9 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
  3. Zeroselect

    Zeroselect Member Gold Contributor

    Joined:
    Oct 31, 2019
    Messages:
    33
    Location:
    Maryland, USA
    Balance:
    111Coins
    Ratings:
    +17 / 0 / -0
    My Motion Simulator:
    4DOF
    Looking at buying a kit from PT-actuator.com. I am not much of a DIY/Maker type (not enough time in my life).

    Doesn't the PT-Actuator kit already come with the required hardware (aasd-15a)?
    • Agree Agree x 1
  4. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    1,346
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    2,692Coins
    Ratings:
    +1,043 / 9 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    Sure, look here:
    http://www.pt-actuator.com/proshow.asp?strID=174

    The actuators on PT-ACTUATOR are 150mm stroke (FSX-100 are 100mm stroke).

    It includes servomotors and drives ( AASD-15A) as well my AMC-AASD15A servo controller that makes it compatible with simtools.
  5. Zeroselect

    Zeroselect Member Gold Contributor

    Joined:
    Oct 31, 2019
    Messages:
    33
    Location:
    Maryland, USA
    Balance:
    111Coins
    Ratings:
    +17 / 0 / -0
    My Motion Simulator:
    4DOF
    Sweet!

    You're going to be inundated with question once I get my setup. :grin
  6. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    1,346
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    2,692Coins
    Ratings:
    +1,043 / 9 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    You can seek answers or ask questions here:
    https://discord.gg/bx4PxYR
  7. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    20,462
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    144,608Coins
    Ratings:
    +10,741 / 52 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    No I am suggesting adding traction loss and perhaps a G-Seat + harness tensioner to the motion rig for a more complete and realistic experience.

    Personally I do consider a traditional 3 actuator design is better, as with 4 sometimes one actuator will not be in contact with the ground, which can't happen with 3.
    • Agree Agree x 1
  8. djbart82

    djbart82 New Member

    Joined:
    Nov 6, 2019
    Messages:
    21
    Occupation:
    Operador
    Location:
    28029, Madrid
    Balance:
    210Coins
    Ratings:
    +1 / 0 / -0
    My Motion Simulator:
    3DOF, Motion platform
    good night Luke

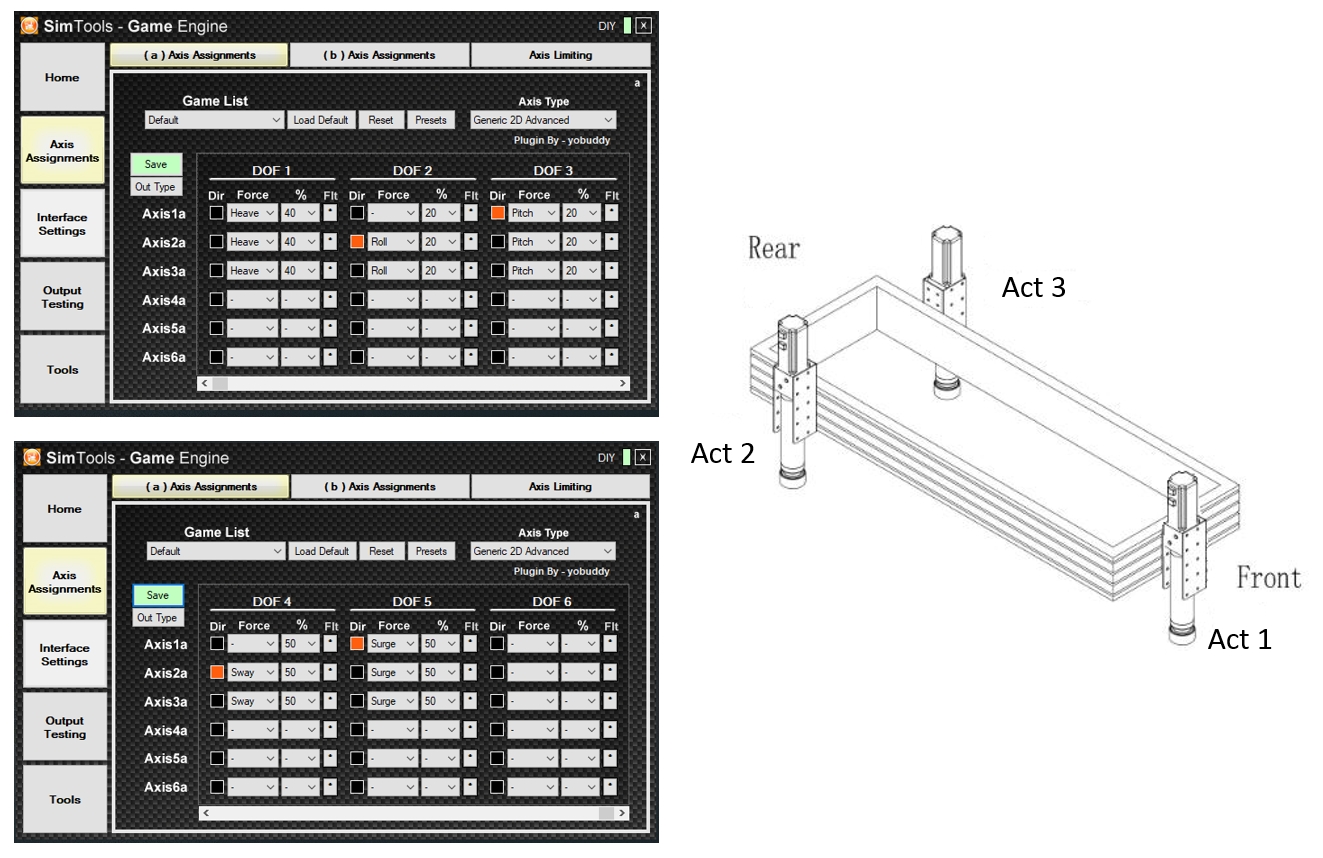

    I am going to mount a system like yours but with the SFX100, can you pass me the configuration file that you have please?
    Thanks greetings
  9. djbart82

    djbart82 New Member

    Joined:
    Nov 6, 2019
    Messages:
    21
    Occupation:
    Operador
    Location:
    28029, Madrid
    Balance:
    210Coins
    Ratings:
    +1 / 0 / -0
    My Motion Simulator:
    3DOF, Motion platform
    good
    this configuration is correct, currently I have the sfx100 with three servos, one front and two rear and this configuration I do not notice it natural
    when accelerating leans forward, when I brake back, it should be the other way around
    another thing that I notice and I don't know where to change in the simtool is the brsquedad when changing gears, I would like it to feel less abrupt
    could you help me please
    thanks
  10. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    20,462
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    144,608Coins
    Ratings:
    +10,741 / 52 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    In SimTools Axis Assignments the Dir box being checked orange or not determines which way and axis moves, so try reversing how yours are set for surge: https://www.xsimulator.net/community/faq/which-way-to-set-simtool-axis-movements.230/
    • Like Like x 1
  11. Chris0711

    Chris0711 New Member

    Joined:
    Apr 6, 2020
    Messages:
    2
    Balance:
    59Coins
    Ratings:
    +0 / 0 / -0
    Hi together,
    I followed the discussion 3 vs 4 actuators in different forums. With the PT actuators, I think we have a strong system . So 2 actuators in the rear, one in front of the pedals should be powerful enough.
    Has some of you testet both types and has good arguments for 4 actuators?

    My plan is, to combine a 3 post platform with a traction loss at front and rear and a seatmover for simulating the G forces.

    Best regards,
    Chris
  12. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    1,346
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    2,692Coins
    Ratings:
    +1,043 / 9 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    I would suggest placing TL only on the rear, and the front single actuator would be the rotation point for the TL... better balance while rotating a 3 legged rig.

    Also did you see this promotion on PT-actuator site? If you use iRacing would be great opportunity...

    Thanks
    Thanos
    • Agree Agree x 1
  13. Chris0711

    Chris0711 New Member

    Joined:
    Apr 6, 2020
    Messages:
    2
    Balance:
    59Coins
    Ratings:
    +0 / 0 / -0
    Wow, thar is really a good offer.

    For the TL System, i have more questions, but I think I find a better thread for this

    Have you tested both systems? 4 legged and 3 legged? I just wonder, if there is any reason for the 4th leg, else the better weight management. I understand the argument of simulating the suspension movement. But simulating a single wheel movement (lika a curb...) would lead to one actuator loosing ground contact? Or am I wrong?

    I just want to make sure to get the best immersion, if it's better to have 4 actuators, I will save money a bit longer ;)

    Thanks,
    Chris
  14. r3df0x

    r3df0x n00by Racer Gold Contributor

    Joined:
    Jan 17, 2016
    Messages:
    55
    Occupation:
    IT technician
    Location:
    Canada
    Balance:
    231Coins
    Ratings:
    +23 / 1 / -0
    My Motion Simulator:
    2DOF, SCN6
    Watch Out! is not 150mm or 100mm stroke but only 80mm

    Too bad!
  15. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    1,346
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    2,692Coins
    Ratings:
    +1,043 / 9 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    Yes, its a special offer for iRacing as it says... and 80mm is still a lot for 3 actuator platform which has more range than a 4 actuator platform... Its a trade-off between stability or range. ;)
  16. nikwilliamson

    nikwilliamson New Member

    Joined:
    Nov 12, 2018
    Messages:
    11
    Occupation:
    UX Designer
    Location:
    Orlando, FL
    Balance:
    112Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    3DOF
    Hey. It looks like it's been updated, and is now 100mm stroke? @Thanos can you confirm?
  17. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    1,346
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    2,692Coins
    Ratings:
    +1,043 / 9 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    Hey, I'm not sure myself either. It's from PT-Actuator, maybe you can contact them to ask? Despite PT-Actuator using my AMC controllers, I have little or no say to the actuator hardware they make!

    Thanks
    Thanos
  18. r3df0x

    r3df0x n00by Racer Gold Contributor

    Joined:
    Jan 17, 2016
    Messages:
    55
    Occupation:
    IT technician
    Location:
    Canada
    Balance:
    231Coins
    Ratings:
    +23 / 1 / -0
    My Motion Simulator:
    2DOF, SCN6
    @Thanos Does it make a difference to you if we buy your AMC Controller on your Tindie page or from PT-Actuator?
  19. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    1,346
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    2,692Coins
    Ratings:
    +1,043 / 9 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    No its the same thing. The only difference is that PT-ACTUATOR adds a really cool metal enclosure to it... ;)
  20. Shao

    Shao New Member

    Joined:
    Mar 28, 2019
    Messages:
    5
    Balance:
    140Coins
    Ratings:
    +4 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, Motion platform, 4DOF, 6DOF
    Hi, buddy, it's so upset to hear about this, what's the motion kit you bring from us ? we checked the sales rocord a moment ago, all orders are been sent within 3-5days, no more delay, no lost parts, no dispute, and, we are really great honor to hear that you are saying quick message response, day , night, it's my working style, definitely, and, we are also provide service in a short time , too. So, what kind of service do you need ? i can't see the service items that you are asking for by here, thanks. Shao.
