My 5 DOF with SFX-100 Build.

Discussion in 'DIY Motion Simulator Building Q&A / FAQ' started by Randy, Jun 11, 2021.

  1. Randy

    Randy Member

    Joined:
    Jun 10, 2021
    Messages:
    61
    Occupation:
    Re-tired
    Location:
    Glendale,AZ
    Balance:
    449Coins
    Ratings:
    +12 / 0 / -0
    My Motion Simulator:
    6DOF

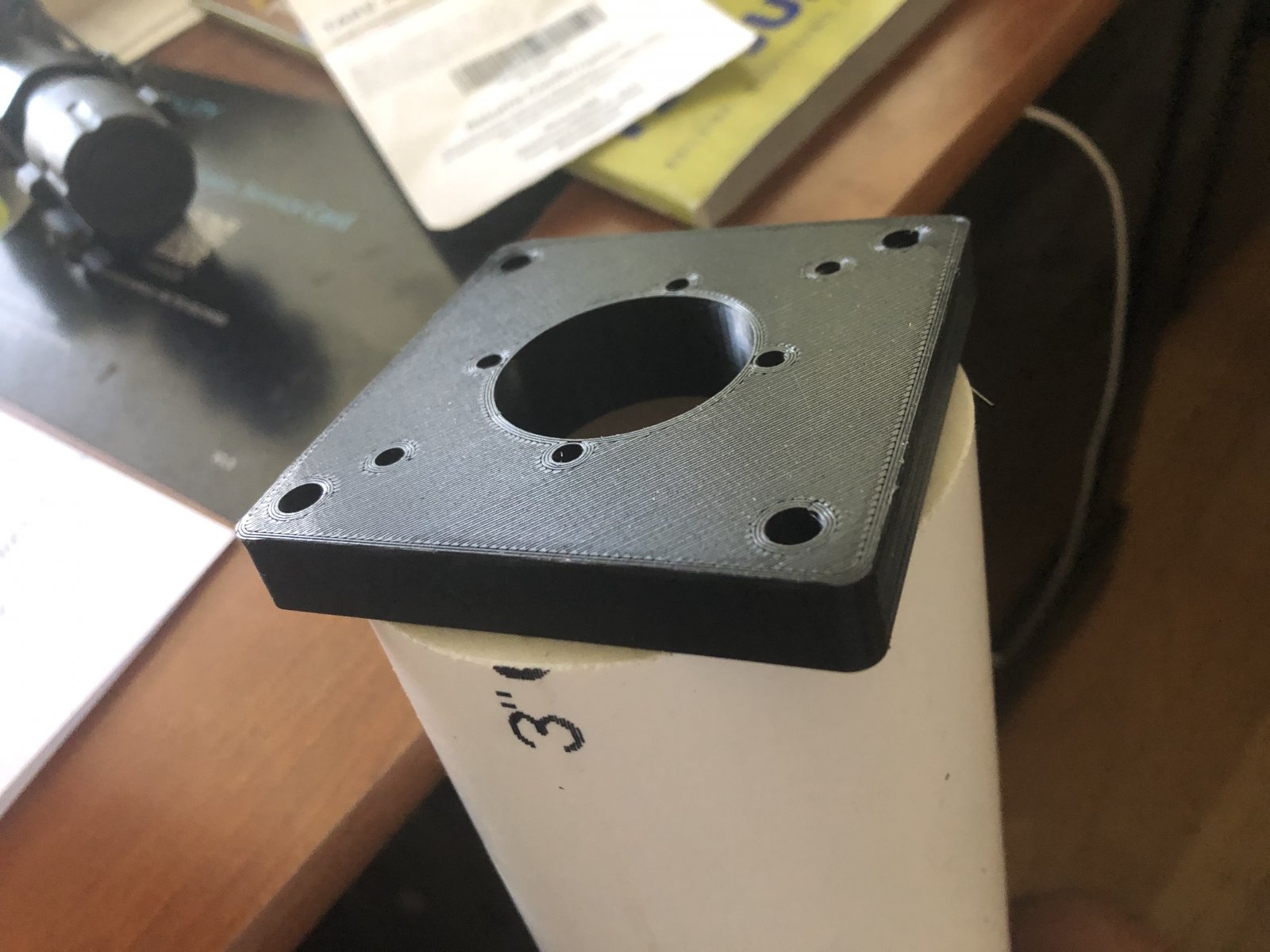

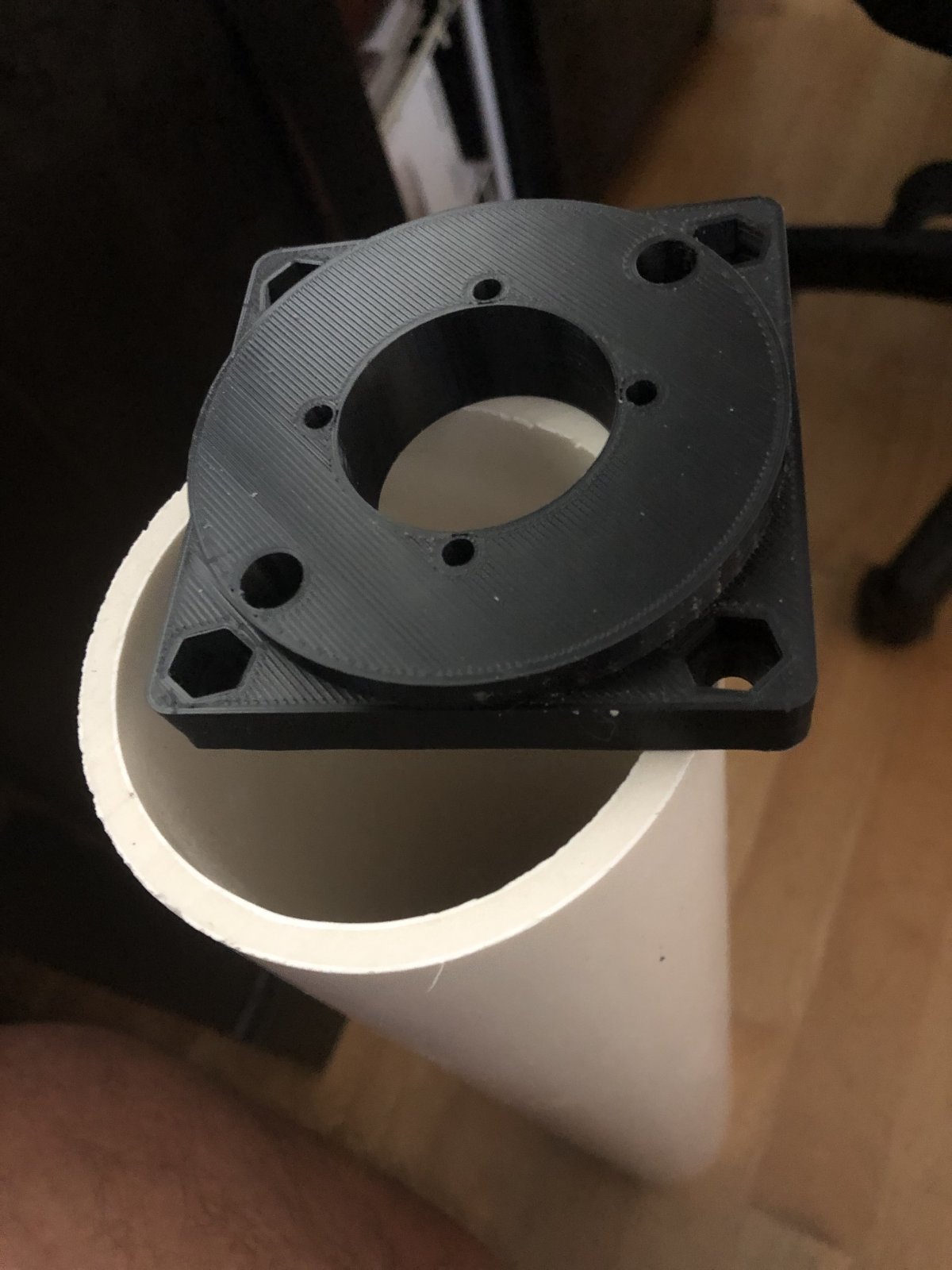

    Test number 1. Got the inside right but will need to go to 90 x 90 to get full contact with the tube with the 3" PVC.
    May even look into trying 2" PVC ?

    Attached Files:

  2. Randy

    Randy Member

    Joined:
    Jun 10, 2021
    Messages:
    61
    Occupation:
    Re-tired
    Location:
    Glendale,AZ
    Balance:
    449Coins
    Ratings:
    +12 / 0 / -0
    My Motion Simulator:
    6DOF
    Been going over the Sim with my Wife and I'm going back to the original plan. I will build the SFX-100 .
    Its the size that is pushing me into it. Now I will start looking for a traction lose system for it
  3. Randy

    Randy Member

    Joined:
    Jun 10, 2021
    Messages:
    61
    Occupation:
    Re-tired
    Location:
    Glendale,AZ
    Balance:
    449Coins
    Ratings:
    +12 / 0 / -0
    My Motion Simulator:
    6DOF
    Been printing some parts and trying to learn Solidworks . Looks like its going to be up hill all the way.

    Attached Files:

    • Like Like x 1
  4. Randy

    Randy Member

    Joined:
    Jun 10, 2021
    Messages:
    61
    Occupation:
    Re-tired
    Location:
    Glendale,AZ
    Balance:
    449Coins
    Ratings:
    +12 / 0 / -0
    My Motion Simulator:
    6DOF
    So how much traction lose is ? How about 130mm total,75mm L and R.
  5. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    16,889
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    122,668Coins
    Ratings:
    +9,683 / 47 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    • Like Like x 1
  6. Randy

    Randy Member

    Joined:
    Jun 10, 2021
    Messages:
    61
    Occupation:
    Re-tired
    Location:
    Glendale,AZ
    Balance:
    449Coins
    Ratings:
    +12 / 0 / -0
    My Motion Simulator:
    6DOF
    What happened to "more is less" thing ? LOL
  7. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    16,889
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    122,668Coins
    Ratings:
    +9,683 / 47 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    I actually agree with that, I am just flagging common member approaches ;)
    • Like Like x 1
  8. Sim Freak

    Sim Freak Sim Freak Gold Contributor

    Joined:
    Jun 7, 2020
    Messages:
    10
    Balance:
    8Coins
    Ratings:
    +8 / 0 / -0
    It depends on where you place the actuator, relative to the pivot point for the TL platform. The closer they are the shorter stroke, speedier effect but less details.
  9. Randy

    Randy Member

    Joined:
    Jun 10, 2021
    Messages:
    61
    Occupation:
    Re-tired
    Location:
    Glendale,AZ
    Balance:
    449Coins
    Ratings:
    +12 / 0 / -0
    My Motion Simulator:
    6DOF
    Pivot will be about 1305mm.
  10. Randy

    Randy Member

    Joined:
    Jun 10, 2021
    Messages:
    61
    Occupation:
    Re-tired
    Location:
    Glendale,AZ
    Balance:
    449Coins
    Ratings:
    +12 / 0 / -0
    My Motion Simulator:
    6DOF
    What infill are people printing at ? 30%,70% ?
  11. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    1,171
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    4,170Coins
    Ratings:
    +919 / 9 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    I'd suggest 85% with 10 walls...
    • Like Like x 1
  12. Randy

    Randy Member

    Joined:
    Jun 10, 2021
    Messages:
    61
    Occupation:
    Re-tired
    Location:
    Glendale,AZ
    Balance:
    449Coins
    Ratings:
    +12 / 0 / -0
    My Motion Simulator:
    6DOF

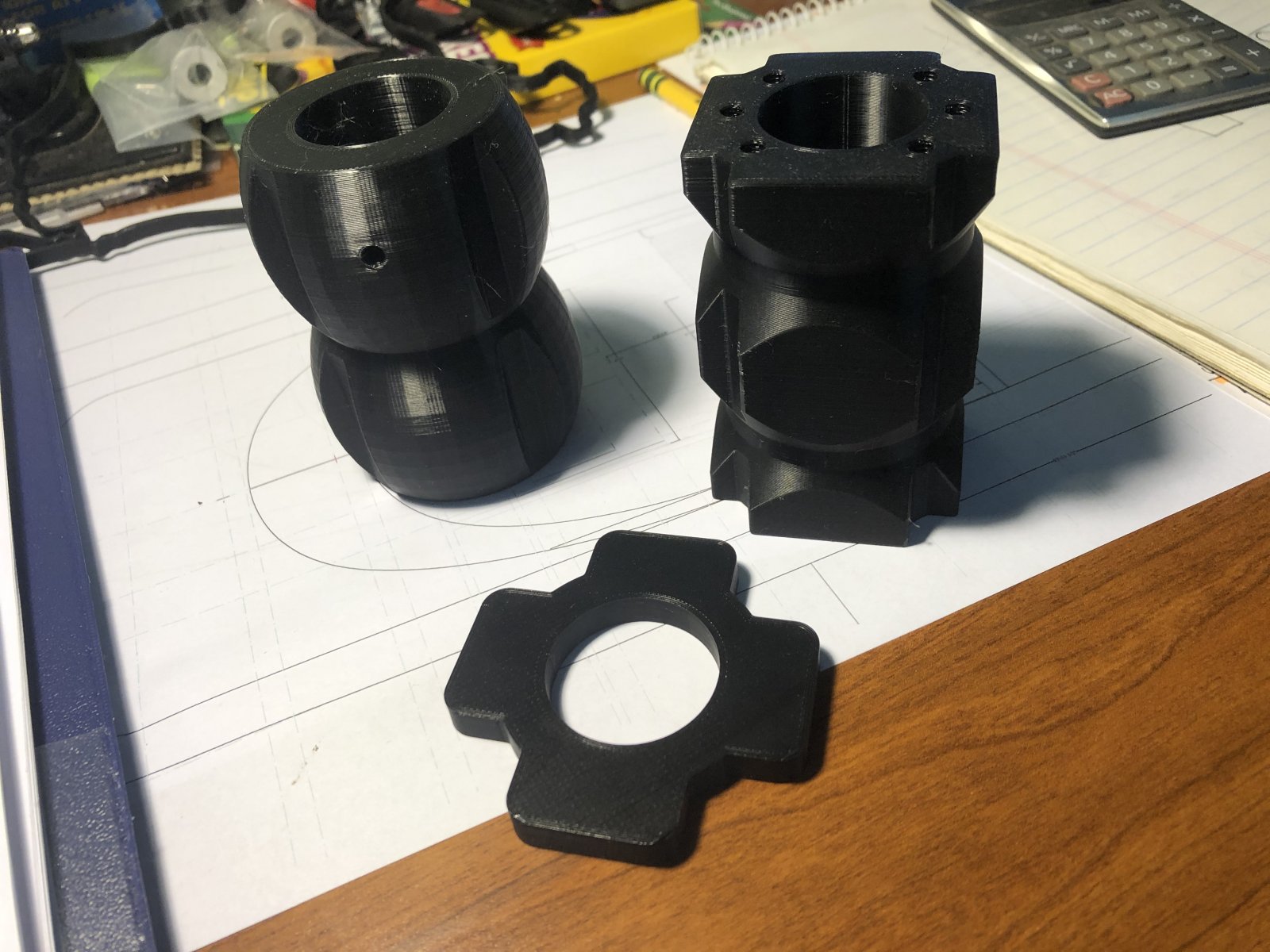

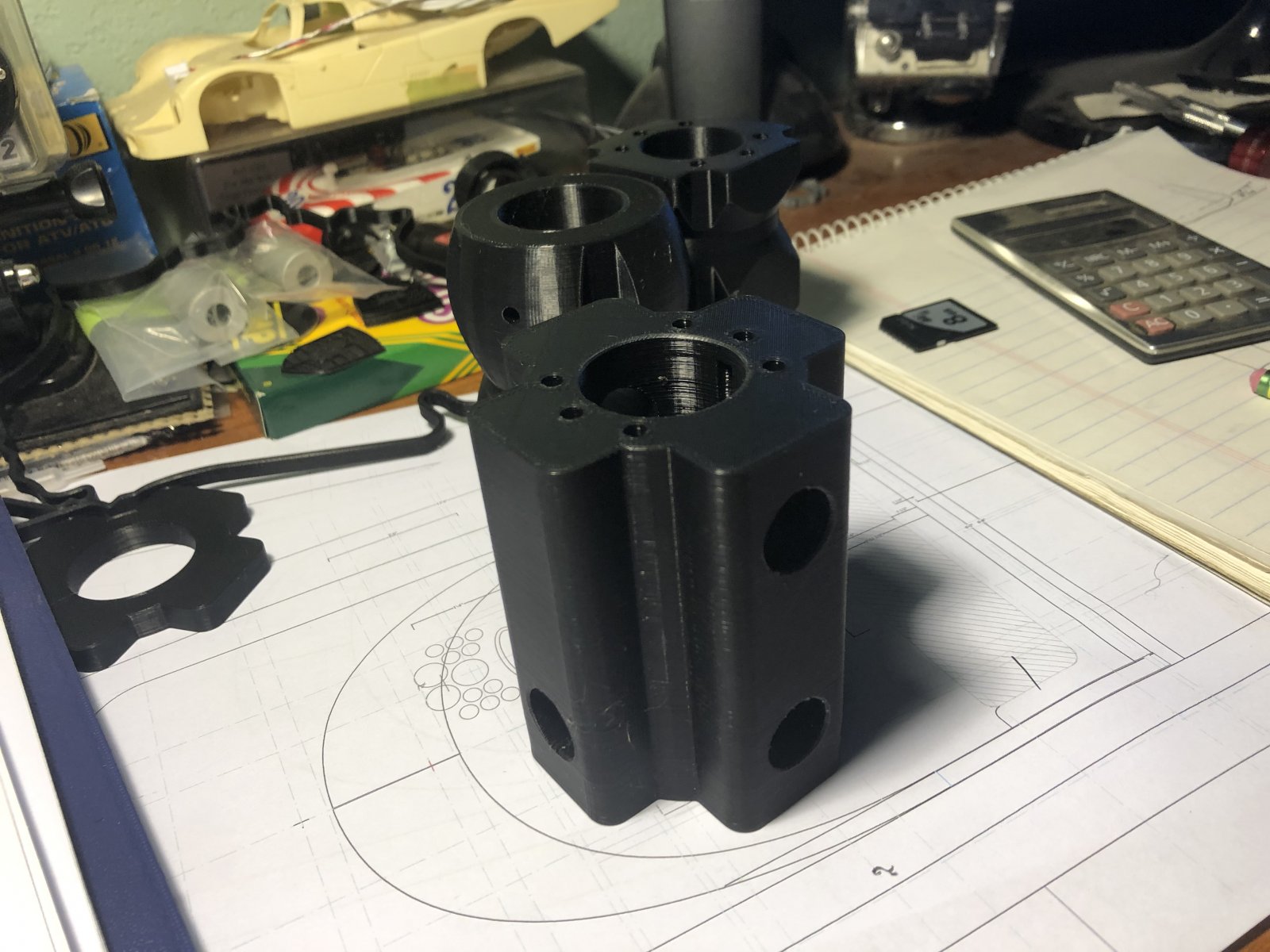

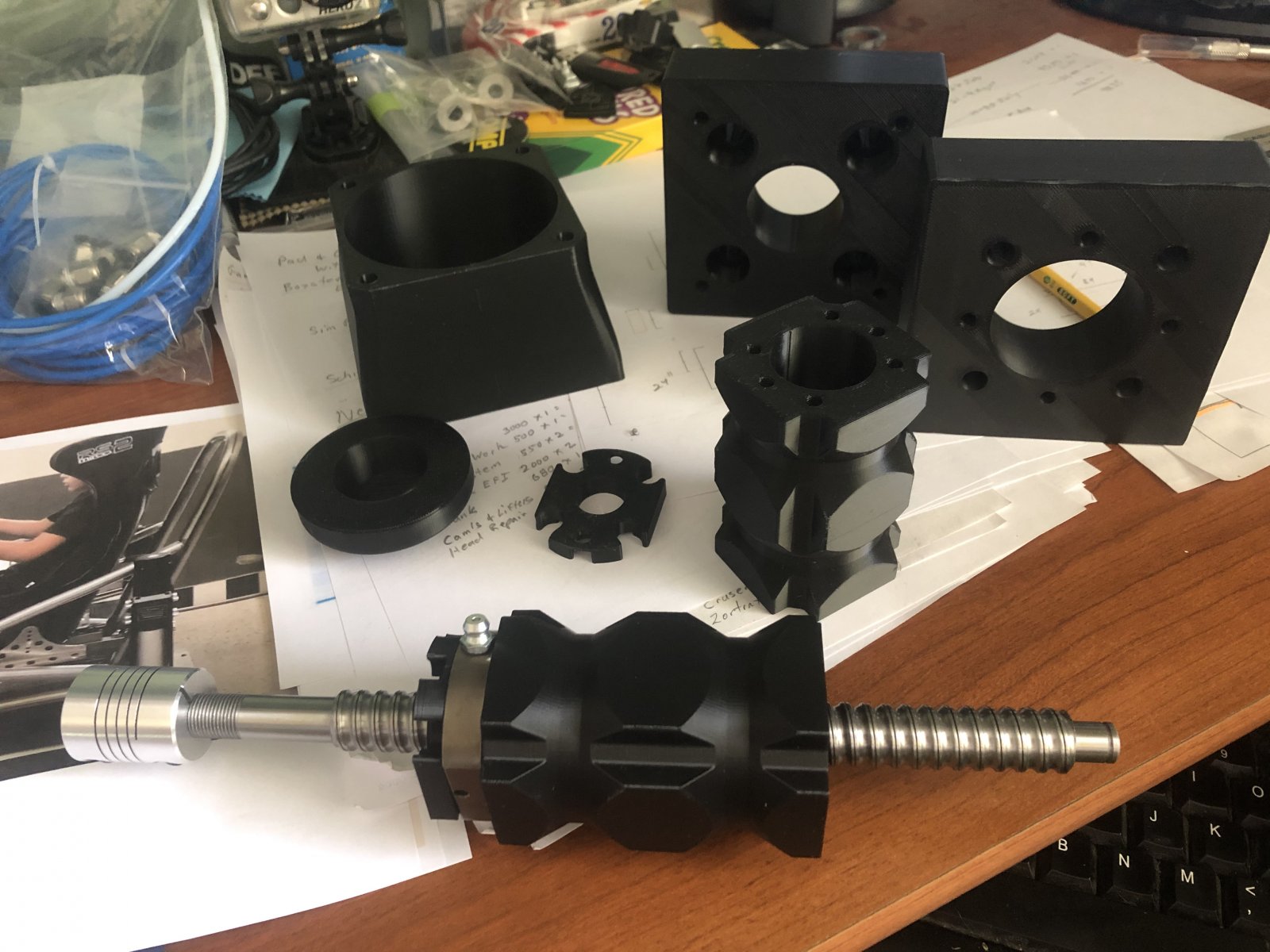

    More parts.

    Attached Files:

    • Like Like x 3
  13. Randy

    Randy Member

    Joined:
    Jun 10, 2021
    Messages:
    61
    Occupation:
    Re-tired
    Location:
    Glendale,AZ
    Balance:
    449Coins
    Ratings:
    +12 / 0 / -0
    My Motion Simulator:
    6DOF

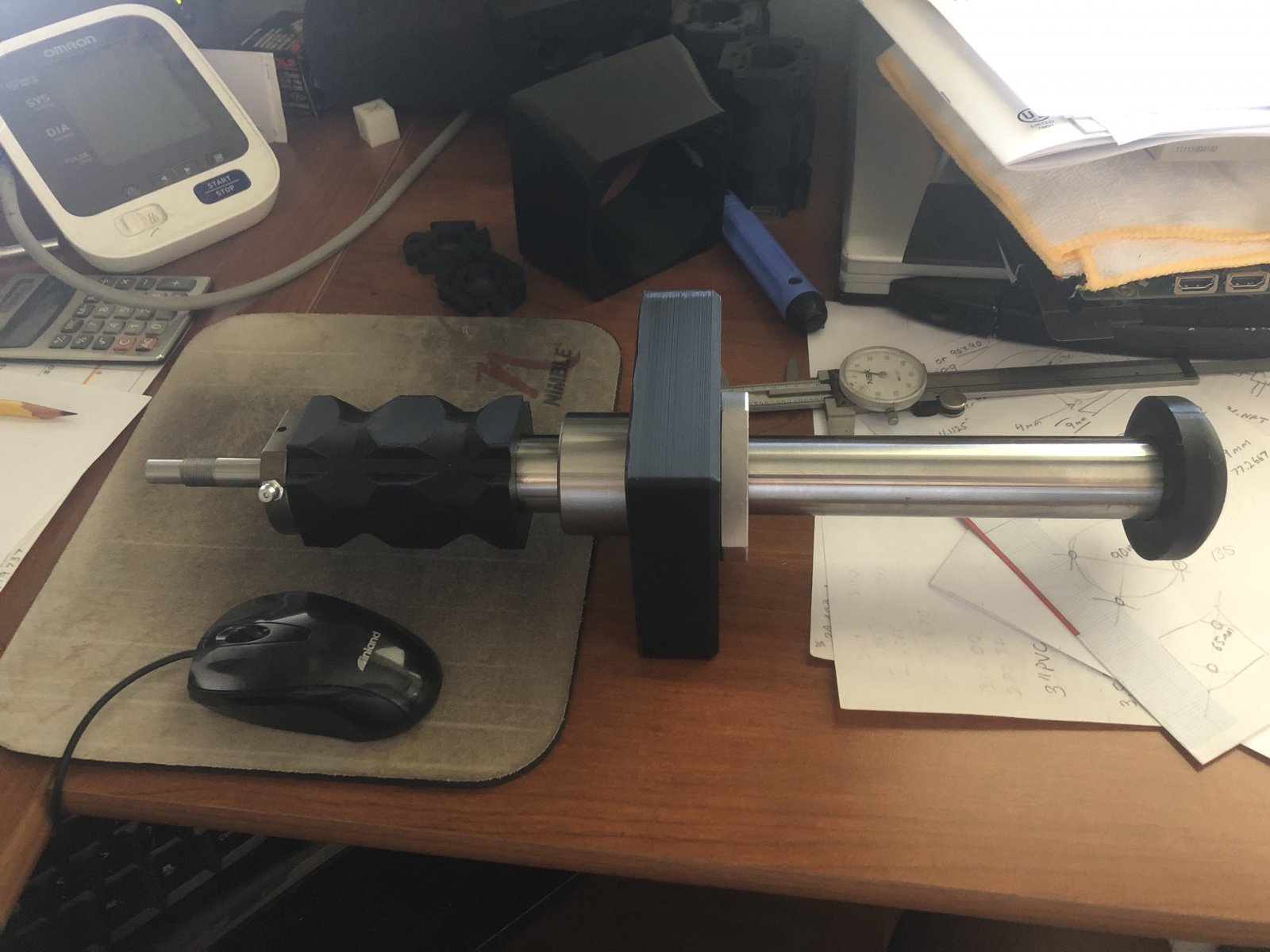

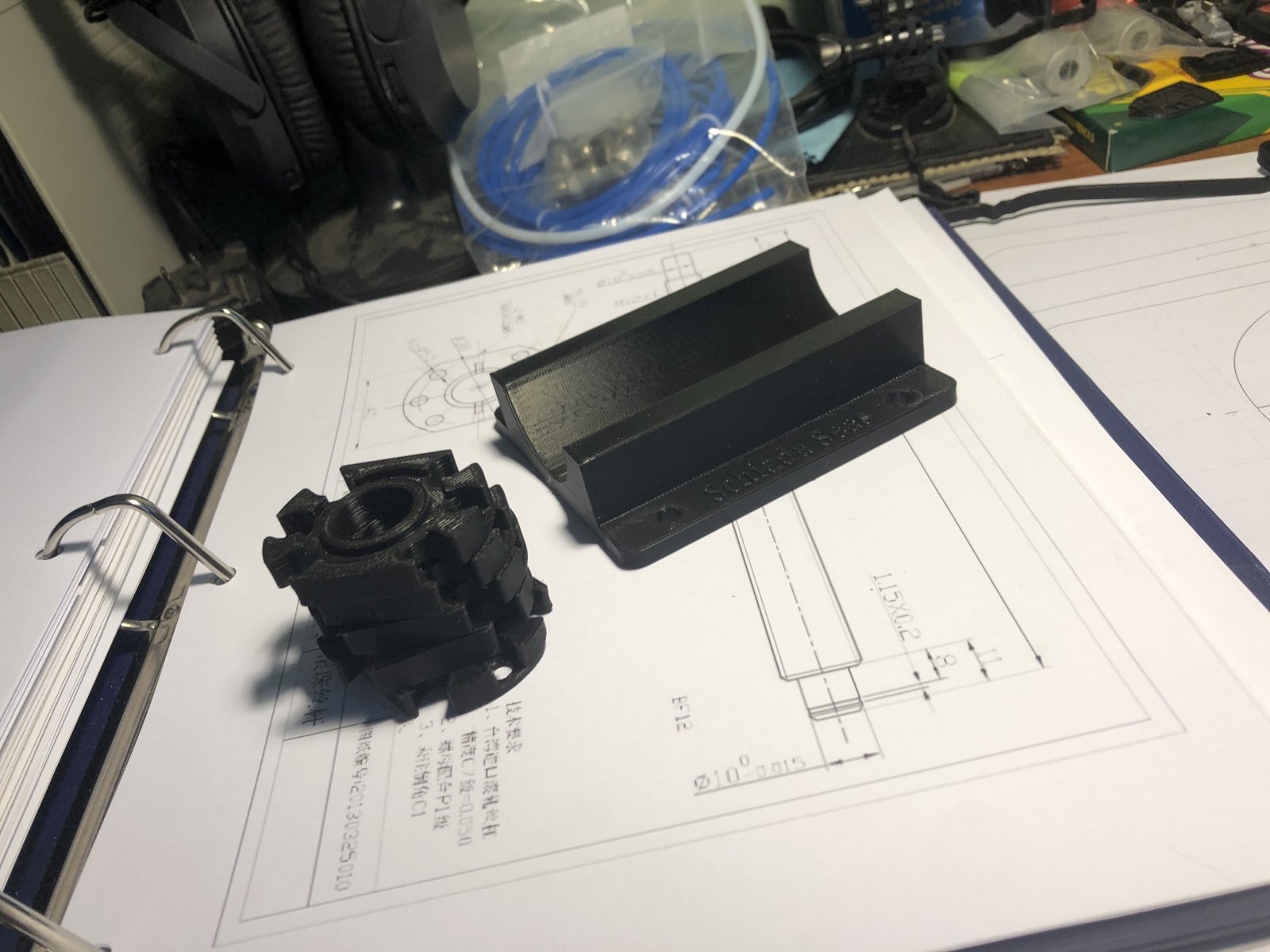

    Been trying different slides. Now I have started trying one on my own. In the photo their is a small crosection of the new one. Wanted to see if it fit before printing the hole thing. We will see. The 100x100 was from eRacing and the STL's on SFX-100 will not fit, way off .On a side not I have used 2Kg. of PLA to get to this point. LOL

    But I have 5 spacers and a mount for my boat that are good. And its all good.

    Can't seem to get my head around Solidworks. Been using Tinkercad and that I can make work, but I'm slow with it. Got 2 books for Beginners and one more coming for Tinkercad. May it will be the one ?

    Attached Files:

  14. Randy

    Randy Member

    Joined:
    Jun 10, 2021
    Messages:
    61
    Occupation:
    Re-tired
    Location:
    Glendale,AZ
    Balance:
    449Coins
    Ratings:
    +12 / 0 / -0
    My Motion Simulator:
    6DOF
    First try. But it needs some tweaking.

    Attached Files:
