Showroom MY 2DOF PROJECT (w.i.p.)

Discussion in 'DIY Motion Simulator Projects' started by giorgionrg, Mar 13, 2020.

  1. giorgionrg

    giorgionrg New Member Gold Contributor

    Joined:
    Feb 2, 2020
    Messages:
    8
    Occupation:
    Technician
    Location:
    Italy
    Balance:
    55Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Hi everyone.

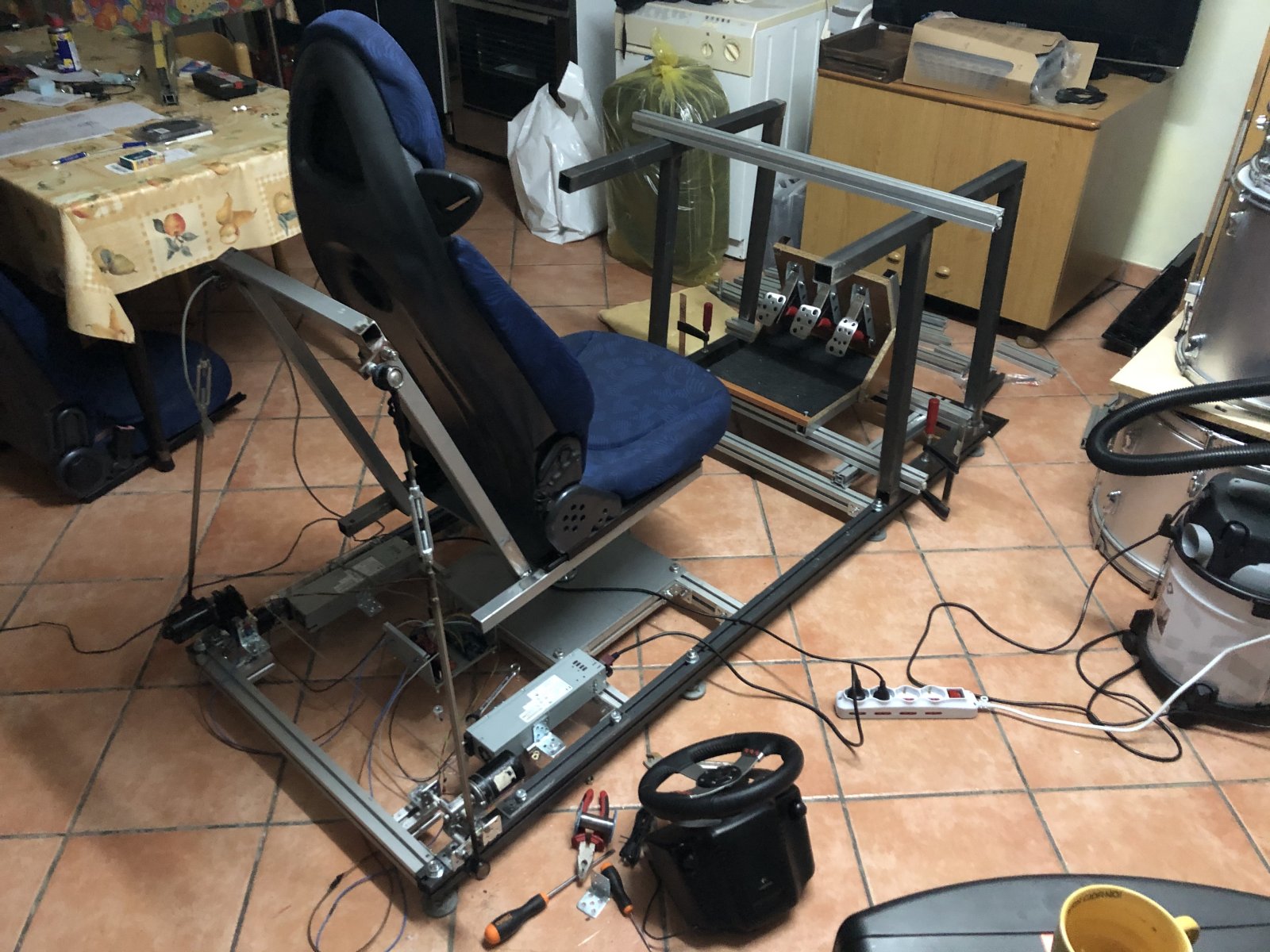

    I show you my 2dof project. It's not completed yet. It's my intention to update the thread with each improvement.

    MECHANIC PART

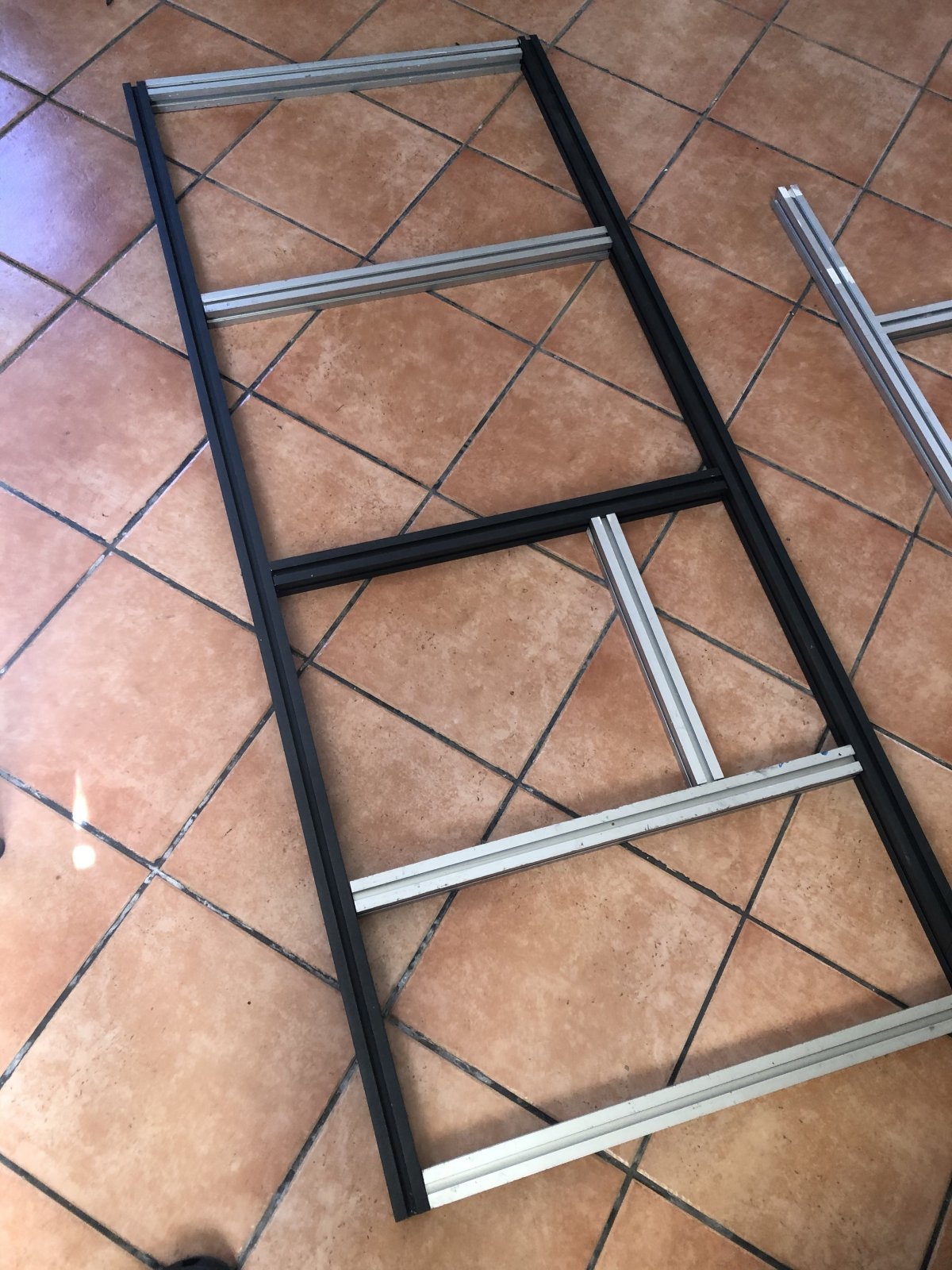

    I choosed to use aluminum profile for the base structure.

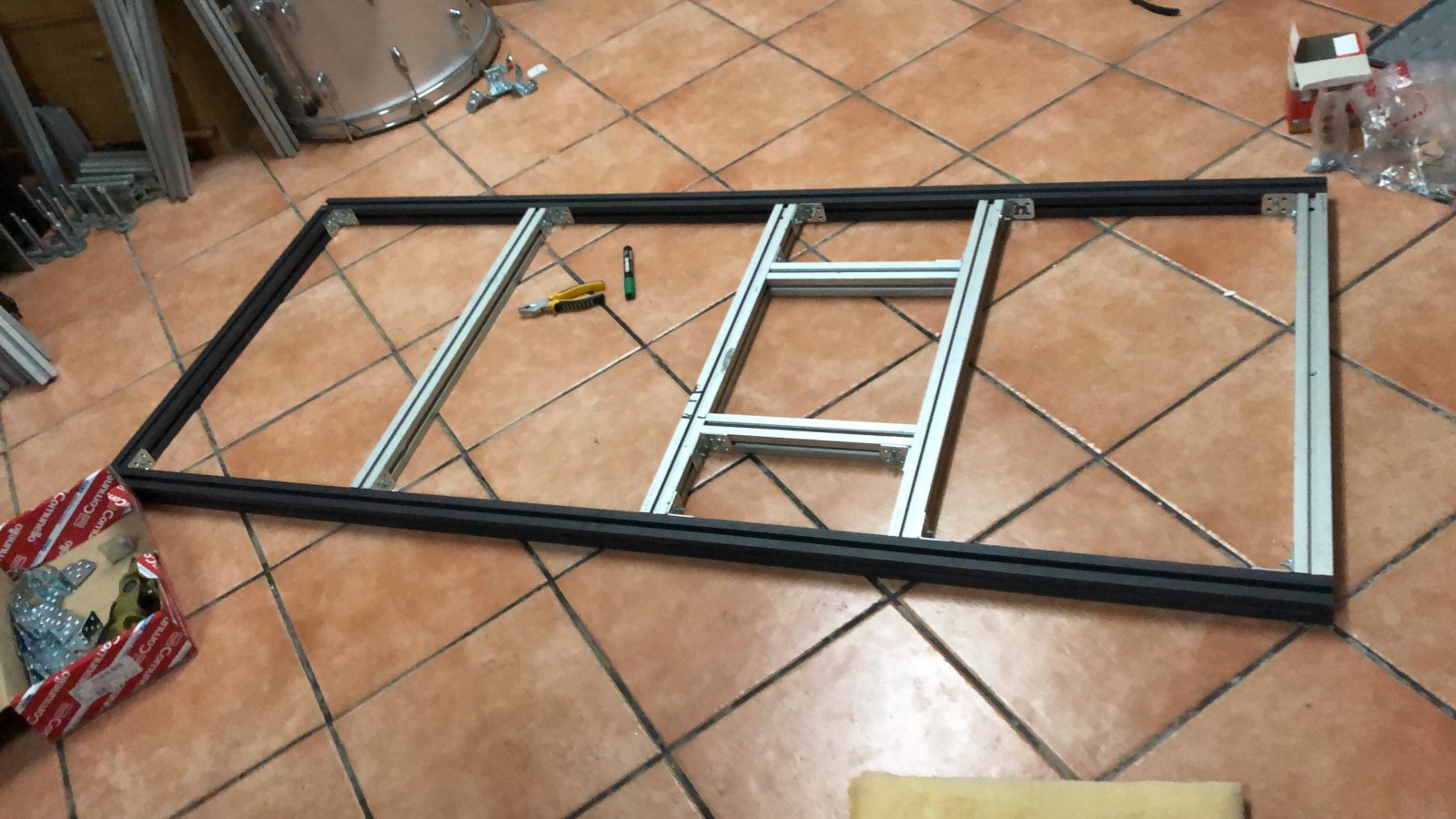

    The profiles are connected via L bracket.

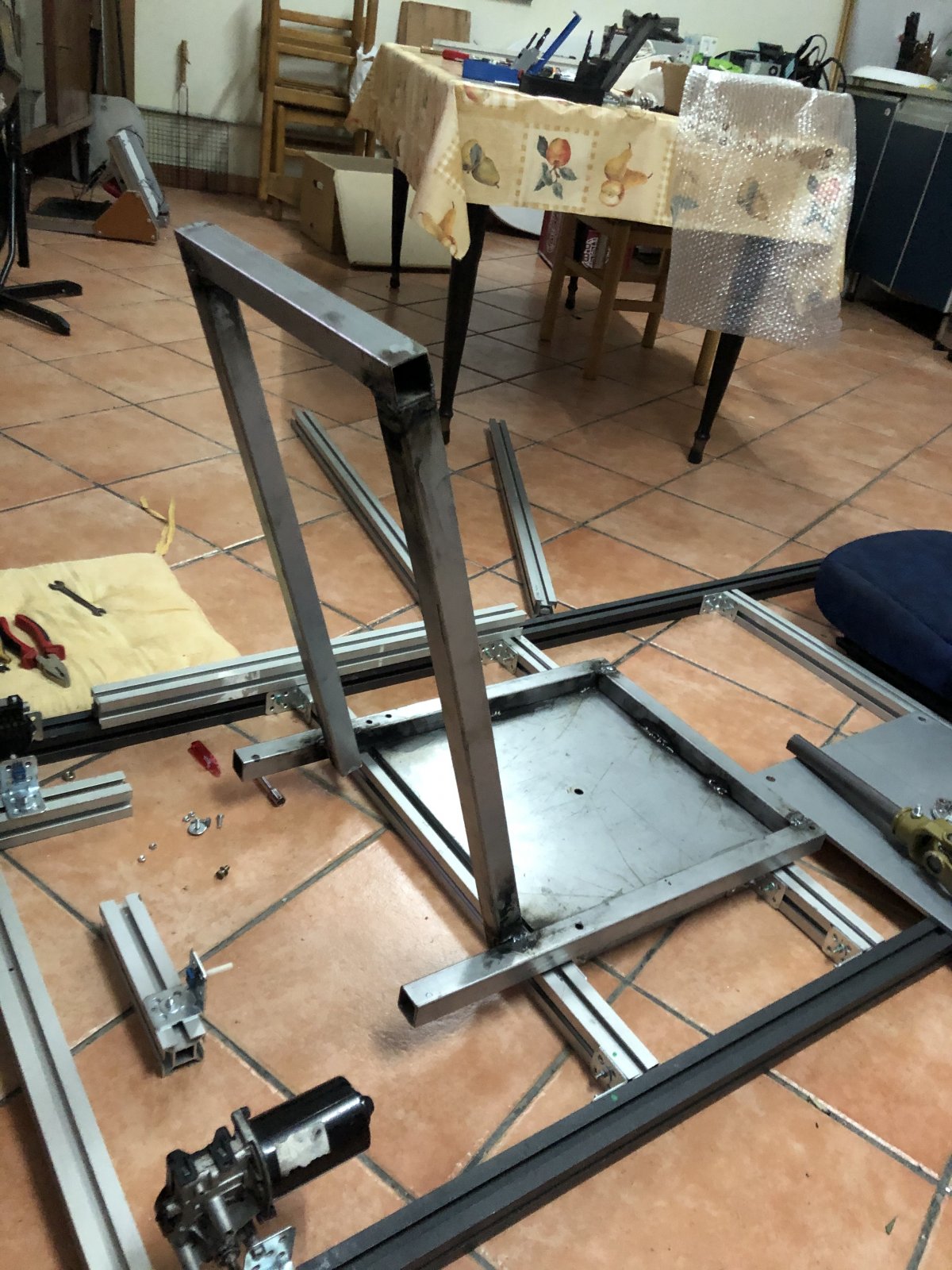

    The seat structure is build with 30x30 iron tubular.

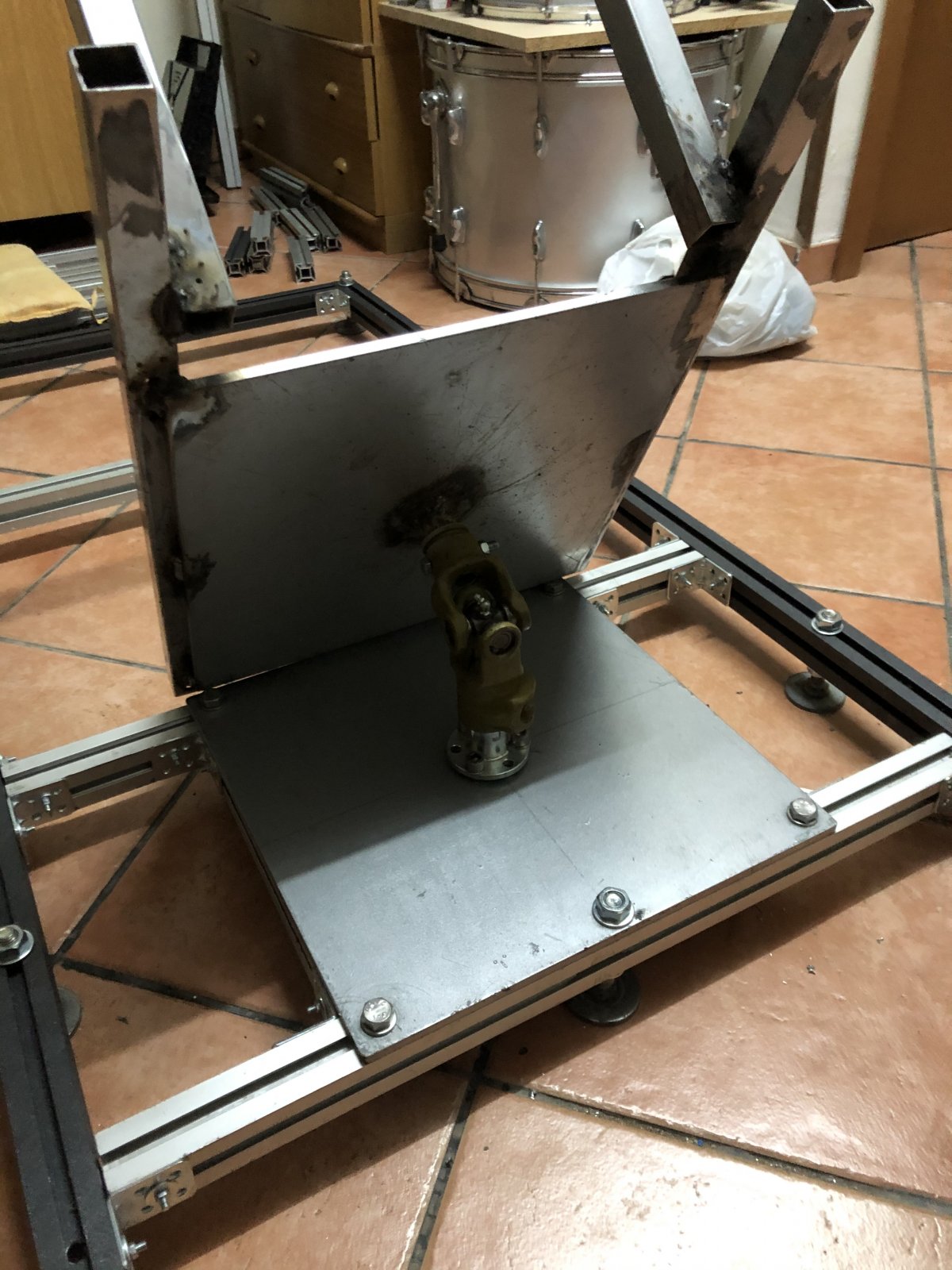

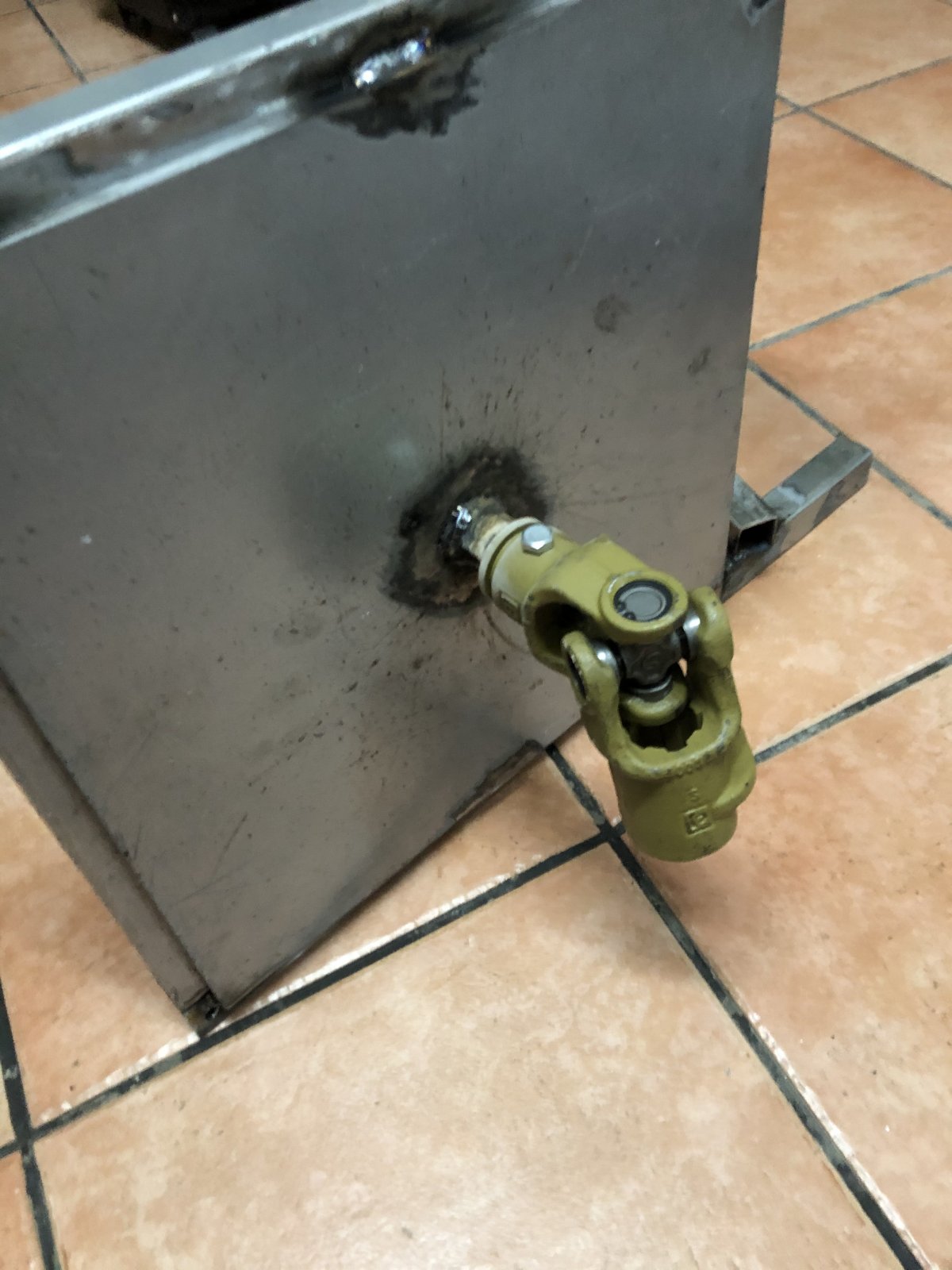

    The cardan joint

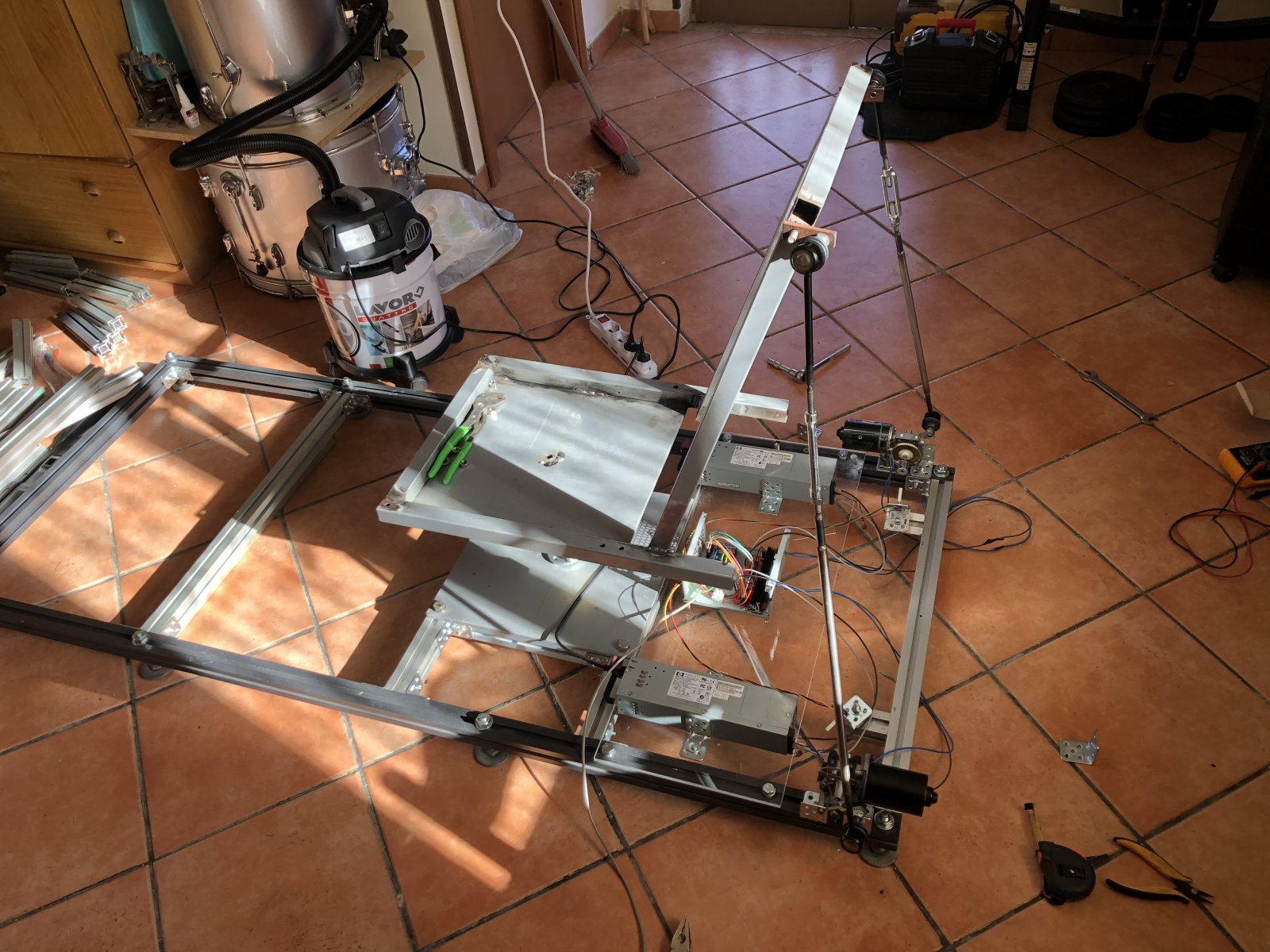

    Then I use 2 modified stabilizer bar link to connect the seat to the wiper motors




    ELECTRONIC PART

    I used the SMC3 guide of this forum.

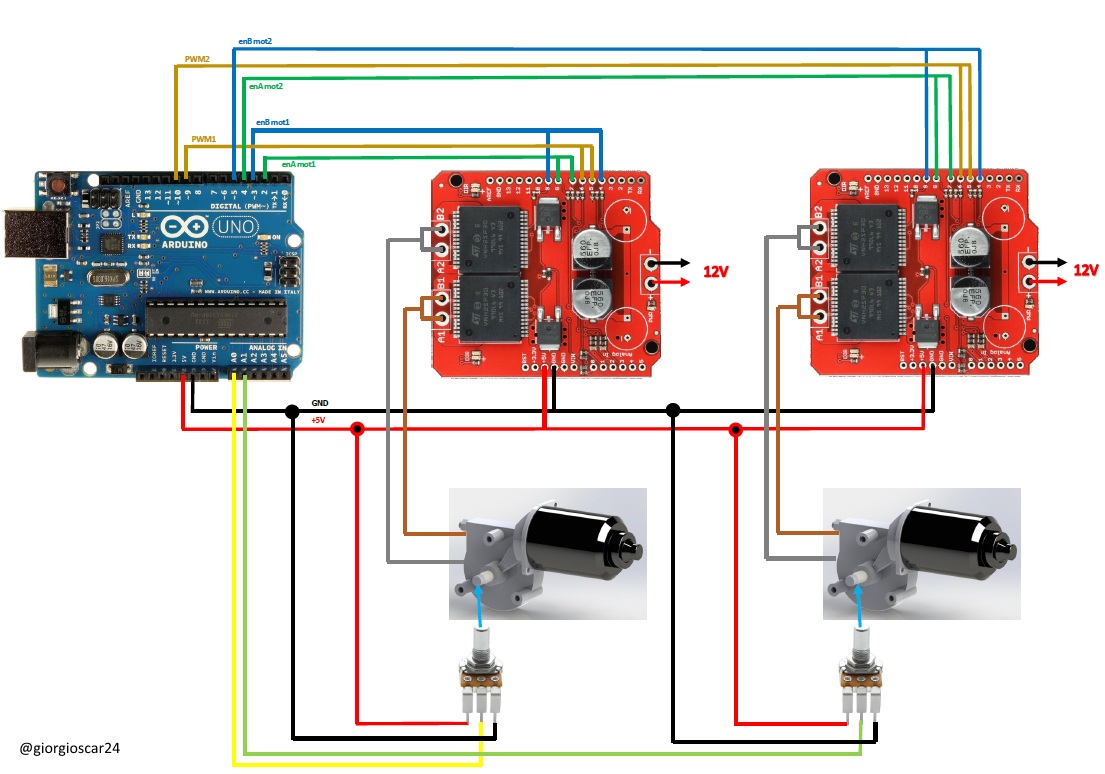

    The wiring:
    Rig Alu .jpg

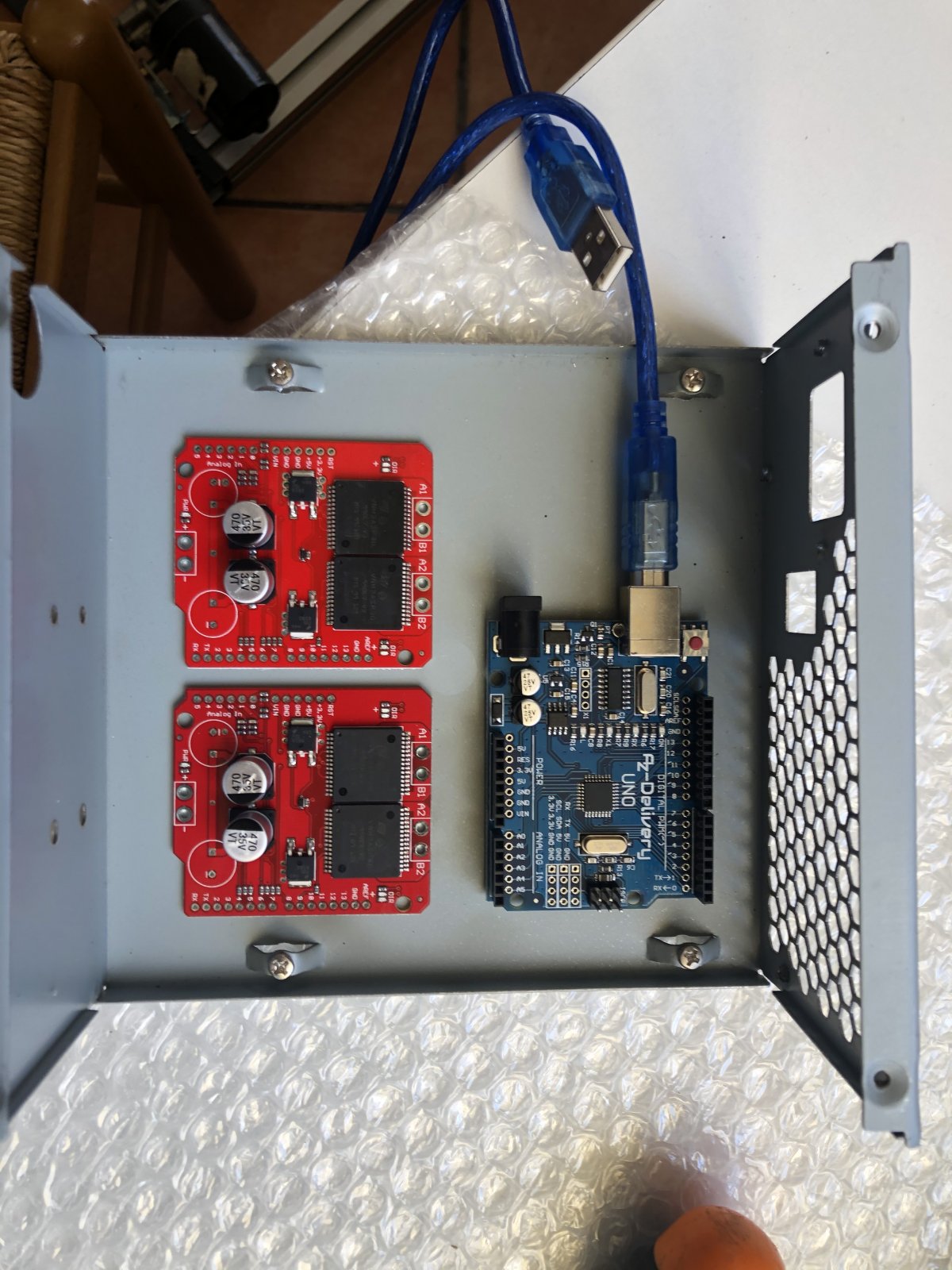

    The boards. I opted to use one MM each motor.

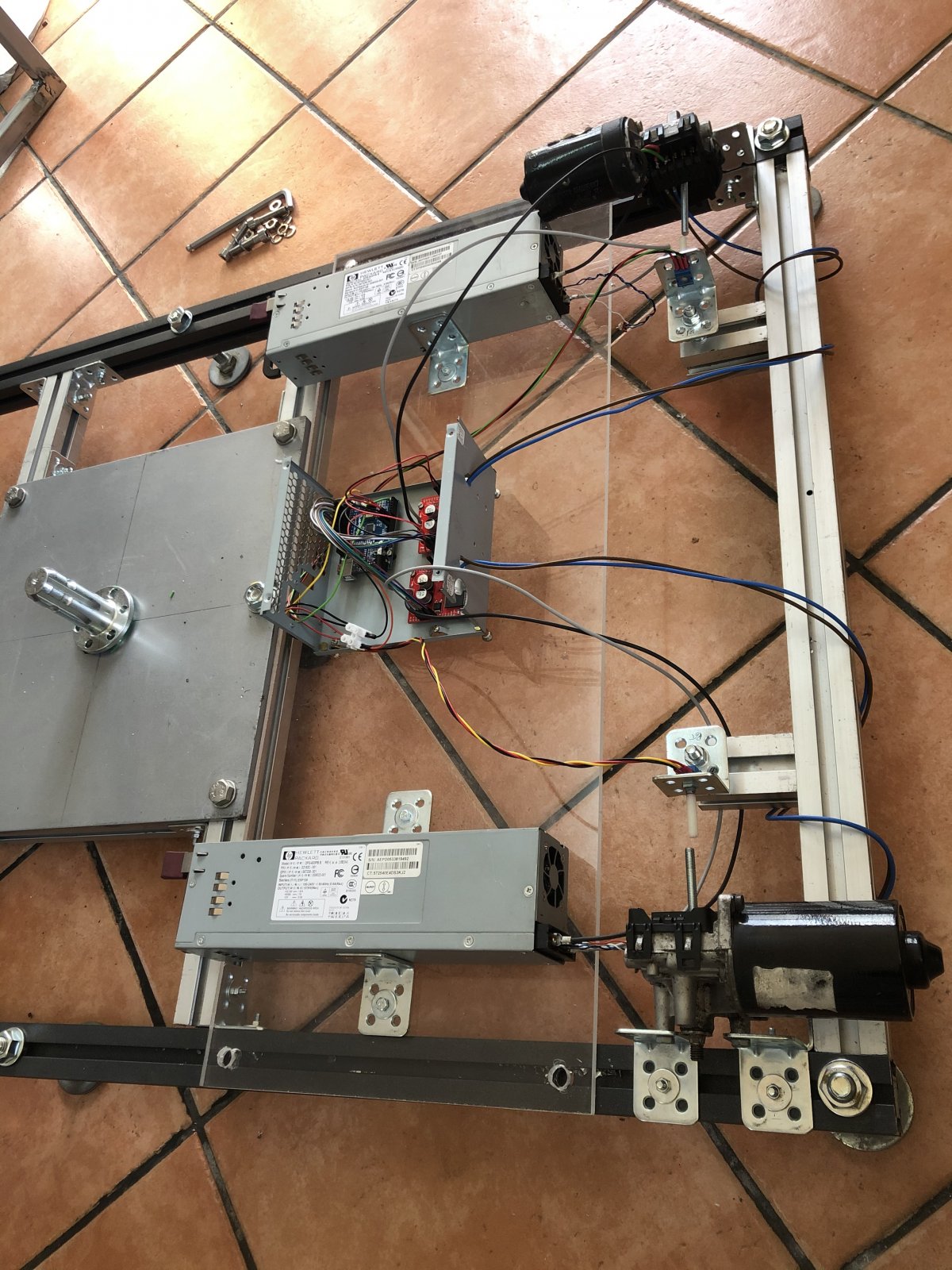

    The PSUs used are the HP DPS600BP IMG_8012.jpg

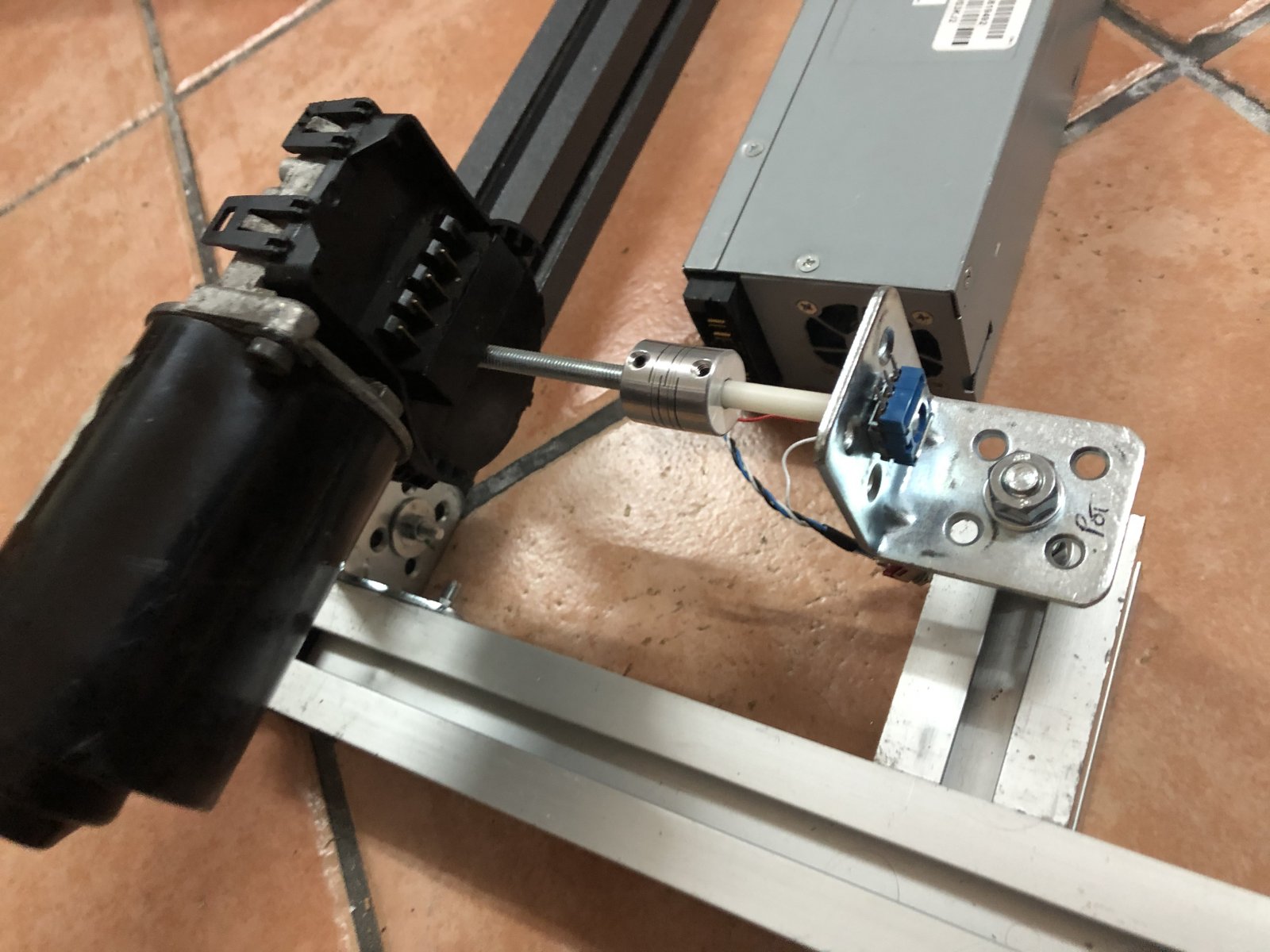

    I connected the pots with the shaft through a flexible coupler

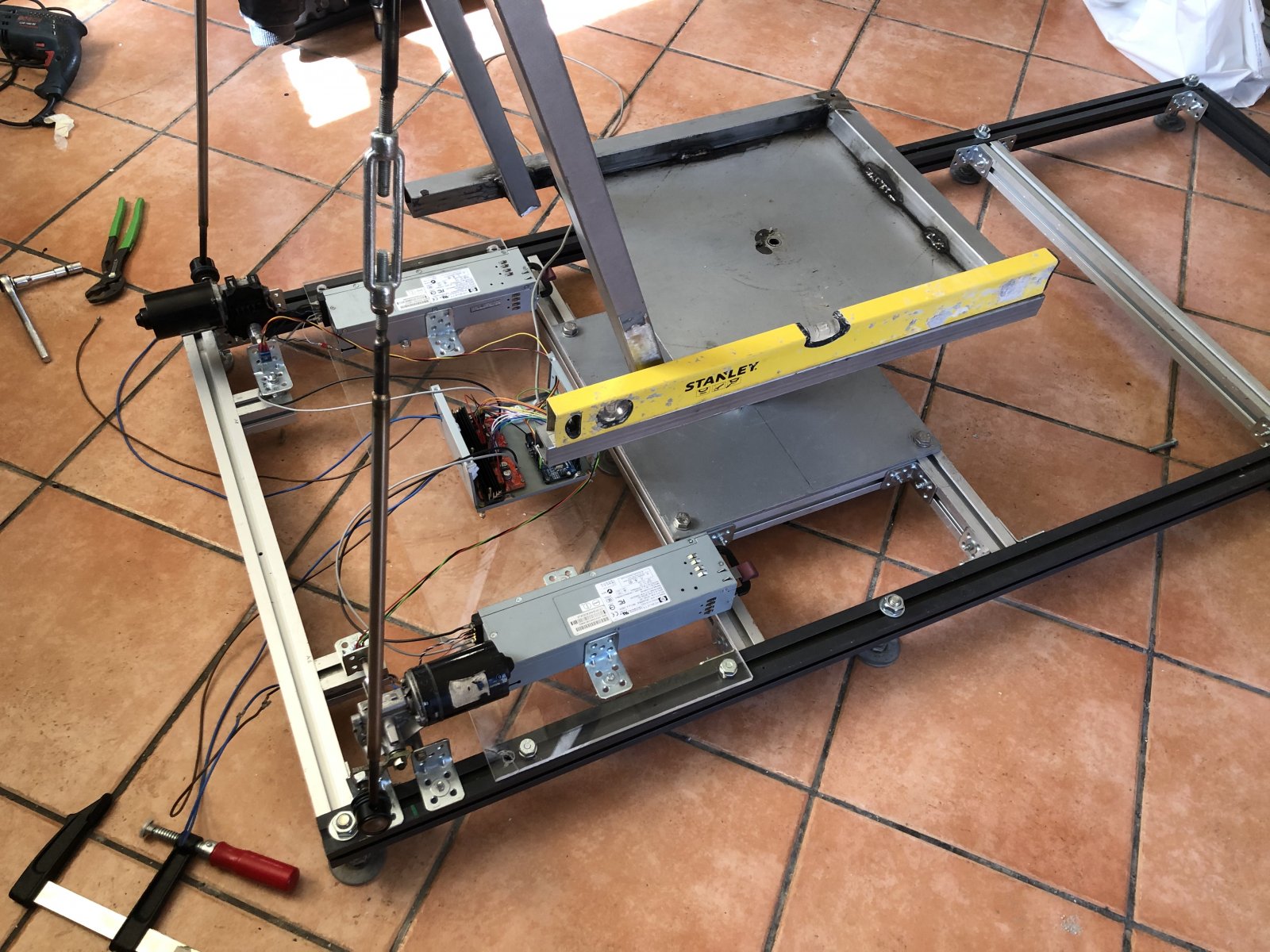

    Seat structure adjustment IMG_8198.jpg

    Wheel base structure measurements

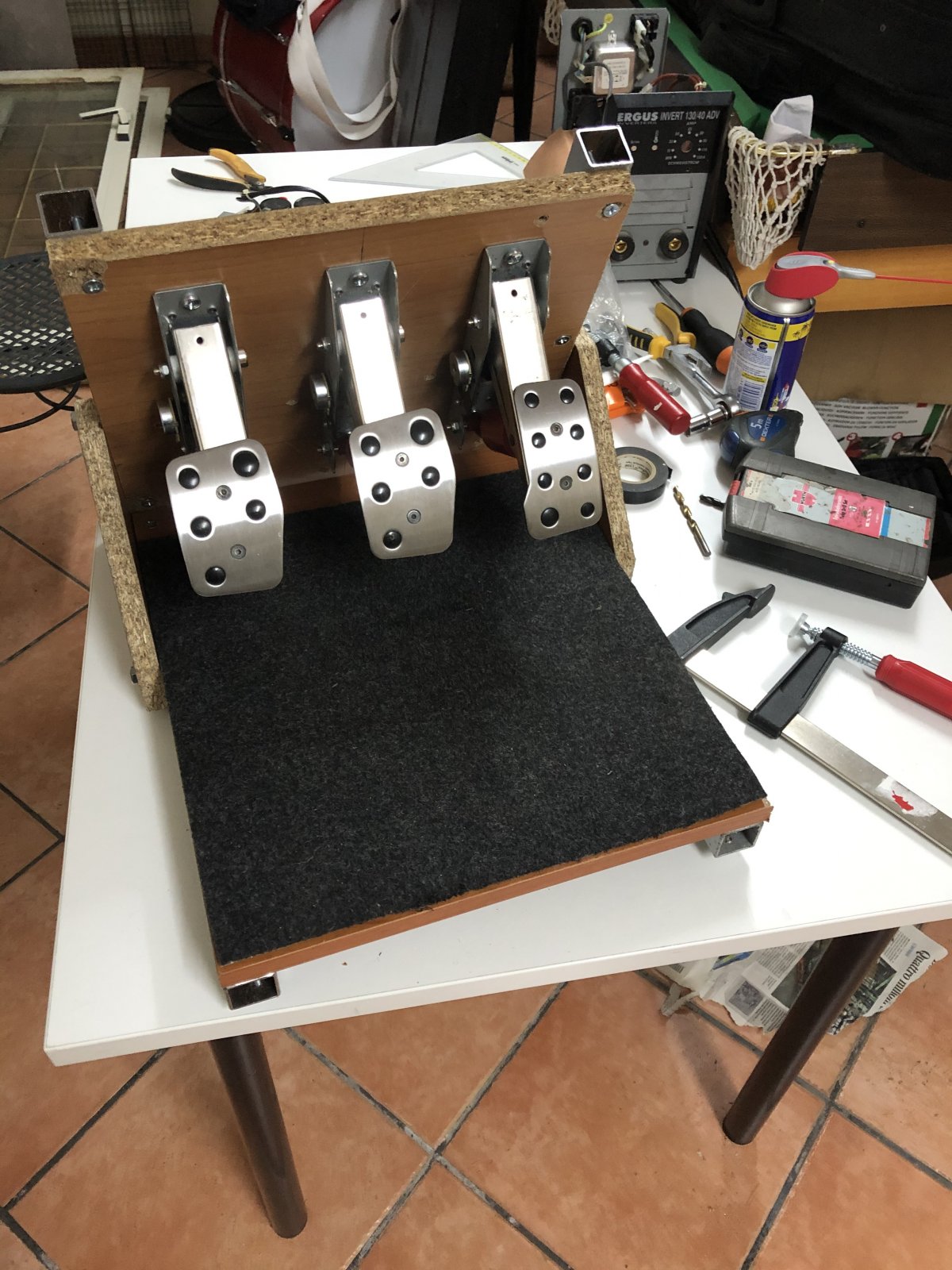

    Pedals with autobuilded structure

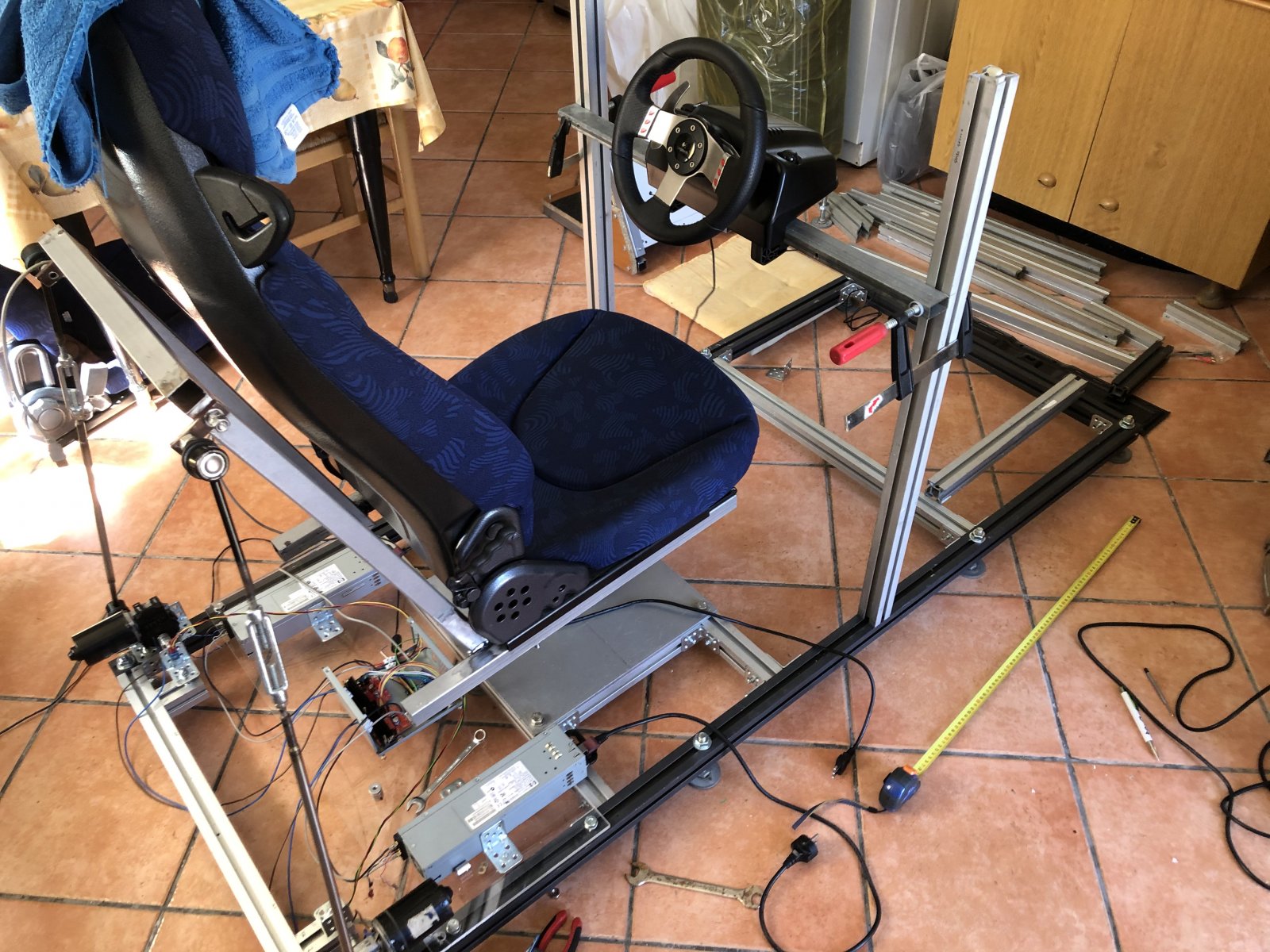

    Currently I'm continuing the building of the G27's structure. I'm using 40x40 tubular iron.
    The base will support the screen.


    CONFIG PART

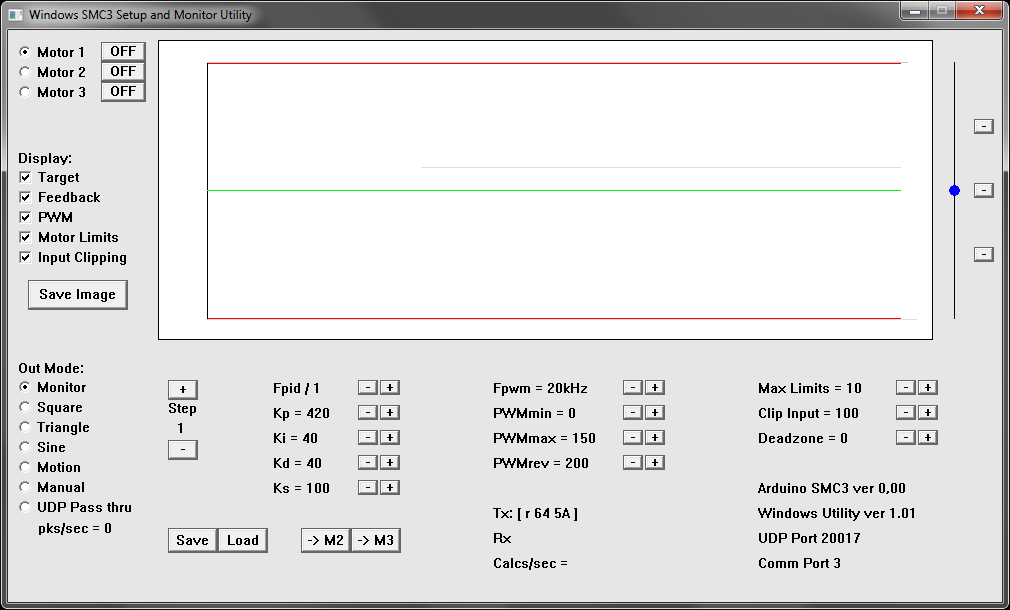

    SMC3utils parameters

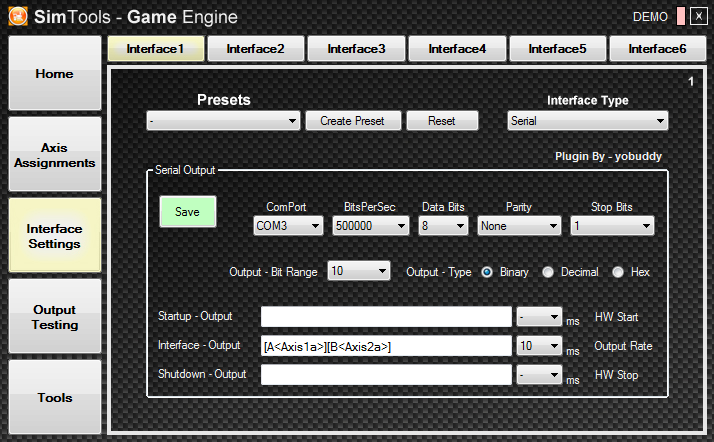

    simtools Interface settings

    Simtools Axis Assignments

    I tested the system with LFS and all work good but the fine adjustments are not completed yet.

    I hope to finish the total assembly before the end of the month.

    THANK YOU VERY MUCH for the attention and for the work that made in this forum.

    Bye!hug:
