Low cost 2DOF/3DOF/6DOF motion simulator - DOF REALITY

Discussion in 'Commercial Simulators and Peripherie' started by Radioproffi, May 23, 2016.

  1. DOFreality

    DOFreality Member

    Joined:
    Oct 30, 2016
    Messages:
    84
    Location:
    Montreal
    Balance:
    336Coins
    Ratings:
    +44 / 5 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino, Motion platform, 6DOF
    Not exactly, but any balancing is way better than none.
    • Agree Agree x 1
  2. Thug

    Thug New Member

    Joined:
    May 8, 2015
    Messages:
    16
    Location:
    Middlesbrough UK
    Balance:
    441Coins
    Ratings:
    +3 / 0 / -0
    Good and I agree.
    I have already bought my racing seat and it has rails so I can adjust it backwards and forwards for when friends etc come to use it.
    Just need to buy the rig now.
  3. Andy Booth

    Andy Booth Active Member

    Joined:
    May 3, 2017
    Messages:
    178
    Location:
    Malaysia
    Balance:
    375Coins
    Ratings:
    +55 / 0 / -0
    My Motion Simulator:
    3DOF
    Just remember Thug, it's not just balancing fore and aft, its balancing side to side as well and that take a little more work to get right.

    Balancing front to back is simpler with seat rails however the further back you go with your seat means you may need to move the assembly above the universal joint forward and adjust the position of the pedals and the wheel as well, especially if you are going with a heavy direct drive wheel or similar. You also have to consider if you move your seat back to get the balance, you may then be taking wheel and pedal out of comfortable reach. Its a bit of a juggling act.

    Then you need to consider the side to side balance. If you have a lot of equipment on one side or the other (shifters, handbrake etc) then you will have to move your seat more over to the opposite side. Do that and you are likely to want to shift your pedals and wheel to align with where you sit. But that of course puts more weight onto the opposite side. Again, this all takes a little time to get right. I'm not sure about the latest version of the DofReality rig but in the revision I have, there were only three holes each side of the seat mounting frames. To give more fine adjustment, I slotted those frames and added some additional holes through the frames where those frames mount to the main spine. Gave me a lot more adjustability.

    Just dont expect the DofReality to be 'plug and play'.

    Andy
    • Like Like x 1
  4. DotComRich

    DotComRich Member Gold Contributor

    Joined:
    Nov 8, 2018
    Messages:
    59
    Balance:
    485Coins
    Ratings:
    +46 / 1 / -0
    For people that have this, how do you find it for fast small movements like kerbs, rumble strips, grass/dirt? I see a lot of the higher priced actuators can do all this stuff on a micro level to the point where it basically replaces the need for transducers. From all the videos I have seen on these DOF Reality motion rigs, they seem to be just that, a motion rig but not a complete simulator. Would you say this is true or can these micro details be tuned in with settings?
  5. Clayton2318

    Clayton2318 New Member

    Joined:
    Apr 1, 2016
    Messages:
    15
    Location:
    Delaware
    Balance:
    272Coins
    Ratings:
    +0 / 0 / -0
    My Motion Simulator:
    Joyrider
  6. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    15,097
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    111,364Coins
    Ratings:
    +9,002 / 43 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    It sounds like an issue on the hardware side, pots, control boards or how they are configured. So I would suggest direct contact with the manufacturer @Radioproffi.
  7. Thug

    Thug New Member

    Joined:
    May 8, 2015
    Messages:
    16
    Location:
    Middlesbrough UK
    Balance:
    441Coins
    Ratings:
    +3 / 0 / -0
    I would like to know this too.

    I do have a Buttkicker (Pearl Throne Thumper) I could use though.

    I also noticed that Simvibe can be set up to start other software, so can this also start up Simtools too for motion, or is it best doing it another way?
  8. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    15,097
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    111,364Coins
    Ratings:
    +9,002 / 43 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    On a suitably powerful DC powered rig kerbs, rumble strips, grass/dirt simulation is possible with a refined motion profile: https://www.xsimulator.net/community/faq/steps-to-create-a-motion-profile.228/
    • Like Like x 1
  9. RAHULUS

    RAHULUS New Member

    Joined:
    Sep 5, 2018
    Messages:
    20
    Balance:
    109Coins
    Ratings:
    +3 / 0 / -0

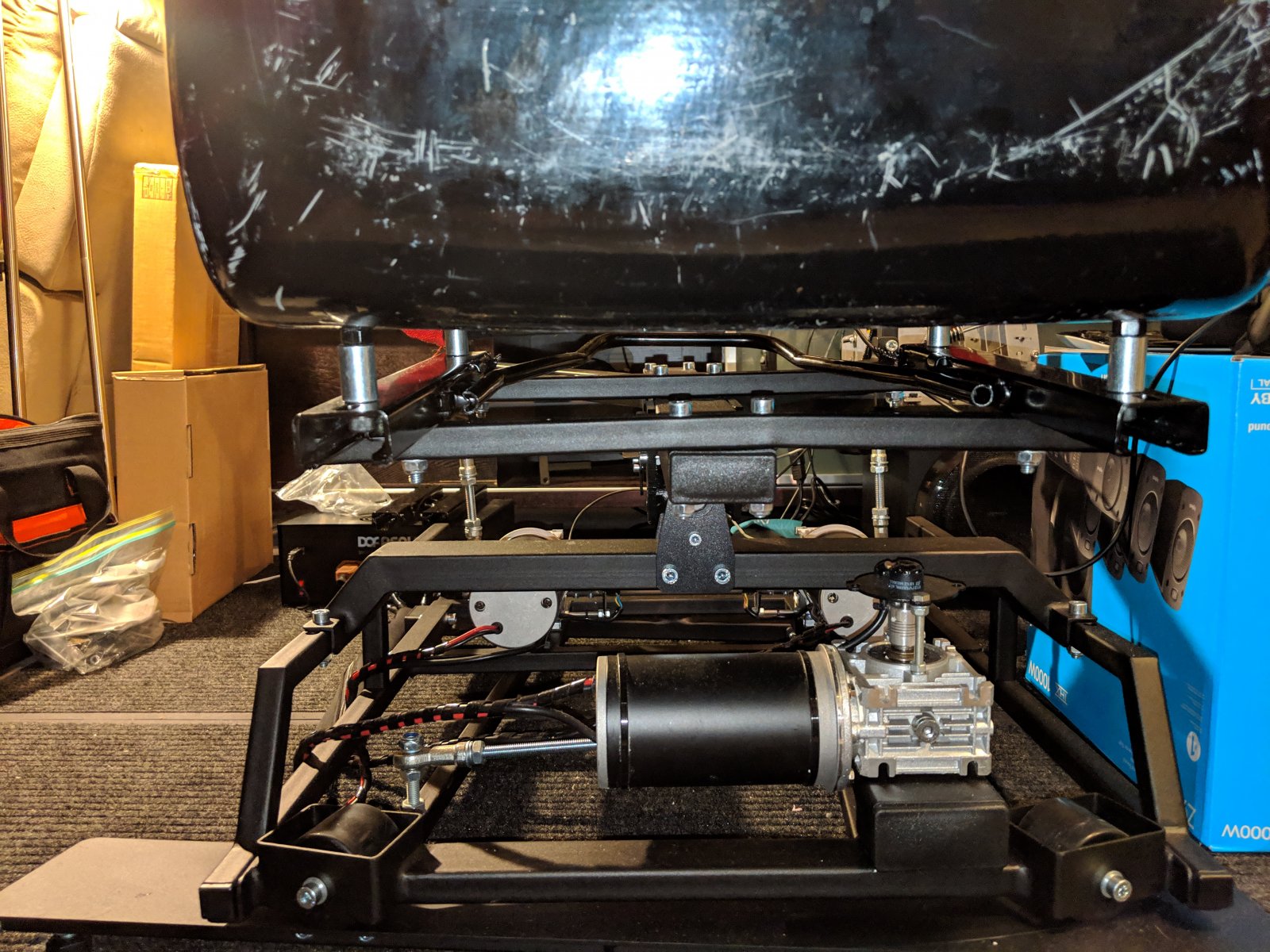

    Has anyone had any issues with bending in the frame pieces that support the seat?

    Starting to see that happen on mine after less than a month of use, i'm not a heavy guy!

    Attached a pic, look at the area below the centre bolts.

    Attached Files:

  10. Thug

    Thug New Member

    Joined:
    May 8, 2015
    Messages:
    16
    Location:
    Middlesbrough UK
    Balance:
    441Coins
    Ratings:
    +3 / 0 / -0
    That is worrying.
  11. Kranky Pantz

    Kranky Pantz Active Member

    Joined:
    Sep 9, 2018
    Messages:
    347
    Location:
    Canada, Eh!
    Balance:
    1,869Coins
    Ratings:
    +275 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, JRK, Motion platform
    Interesting, especially after the price increase.

    I'm not sure when that occurred, but the M2 is now $899 USD up from $799 USD.

    It must have been at some point during the last couple of months, as I was seriously considering buying one in mid-Sept.
    Last edited: Nov 13, 2018
  12. Andy Booth

    Andy Booth Active Member

    Joined:
    May 3, 2017
    Messages:
    178
    Location:
    Malaysia
    Balance:
    375Coins
    Ratings:
    +55 / 0 / -0
    My Motion Simulator:
    3DOF


    DofReality obviously think they can charge more for the product which is obviously going through a cost cutting exercises. Unless of course your idea of 'not a heavy guy' is different to a Ukrainians idea of 'not a heavy guy'.

    Most of the box section is too thin really with the section deforming when the bolts are tightened but I think that's a step too far.

    I know that those seat frames were quite thick when I bought the rig because it was quite a lot of work for me to join up all the holes so they became slots.

    I'm quite heavy really (90kg) and those rails didn't bend in that location for me.

    I would be going back to DofReality and asking what the hell is going on.

    I was just looking at your photo and I think there has been quite a lot of cost saving along the way since the version I have. Motors and gearboxes seem cheaper, no covers on pots. Im sure there are all sorts of other changes.

    Andy
  13. Thug

    Thug New Member

    Joined:
    May 8, 2015
    Messages:
    16
    Location:
    Middlesbrough UK
    Balance:
    441Coins
    Ratings:
    +3 / 0 / -0
    I also noticed an earlier version had a far better looking gear stick holder that looked like a piece of chrome exhaust, where the newer ones have a cheap looking F piece.
    It also works out expensive for us in the UK as the delivery is around 3x that of the Prosimu T1000 3dof, and there will also be tax to add on too.

    The Prosimu will cost me 3,008 euro (T1000 3dof, shifter bracket, delivery) = £2621
    Where the DOF Reality will cost $3,310 (P3, bracket, delivery, 20% tax) = £2550

    I have some serious thinking to do.

    It may decide on who has the better black Friday deal.
  14. tomster83

    tomster83 New Member

    Joined:
    Nov 9, 2018
    Messages:
    4
    Occupation:
    Full-time Hoon
    Location:
    Australia
    Balance:
    111Coins
    Ratings:
    +2 / 0 / -0
    My Motion Simulator:
    3DOF
    Hi guys, I'm new to the Forum and to my DOFReality H3. Love the setup so far, but could use some pointers on issues to look out for. For example, I've noticed there is a lot of play in the 2-axis joint beneath the seat, which allows it to pivot a few degrees around the vertical axis. Is that normal? It doesn't seem to affect the quality of motion. Also, the traction loss wheels seem to be leaving a chalky white dust on the frame member they roll on - Not sure if this is ground up polystyrene foam from the packing material or are the wheels disintegrating already?

    @DotComRich and @Thug , I find the DOFReality H3 does a decent job of simulating kerb heights and transitions between pavement / grass / gravel, but not down to a really fine level. You woudn't be able to feel individual rumble strip ridges, for example.
    • Like Like x 2
  15. splendiddd

    splendiddd Active Member

    Joined:
    Jun 13, 2009
    Messages:
    356
    Occupation:
    CCTV security
    Location:
    Netherlands
    Balance:
    708Coins
    Ratings:
    +59 / 1 / -0
    My Motion Simulator:
    3DOF, Arduino, Motion platform
    Thats weird, my P3 with hotas mounts and delivery to holland was around 2350 euro. and i did not see a price increase on the P3 when you fill in the buy form. Total was 2709 US

    EDIT, i did not need to pay import tax i must mention
  16. RCFlyer

    RCFlyer Member

    Joined:
    Mar 22, 2018
    Messages:
    61
    Location:
    United States
    Balance:
    264Coins
    Ratings:
    +12 / 0 / -0
    My Motion Simulator:
    3DOF
    Are the traction-loss wheels small white nylon appearing material? If so, they are the old style wheels and the white dust you are seeing is most likely material from the wheels. These wheels do not last very long. The newer H3 has a different traction-loss wheel configuration (blue barrel type rollers).

    I have an H3 which came with the white nylon wheels and had to replace them within a few months. I eventually modified my traction-loss setup to accommodate stainless steel rollers.

    Danny
  17. xxpelle

    xxpelle Discord "TPMax#9574" Gold Contributor

    Joined:
    Dec 24, 2017
    Messages:
    99
    Occupation:
    Discord "TPMax#9574"
    Location:
    Germany
    Balance:
    411Coins
    Ratings:
    +117 / 0 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF

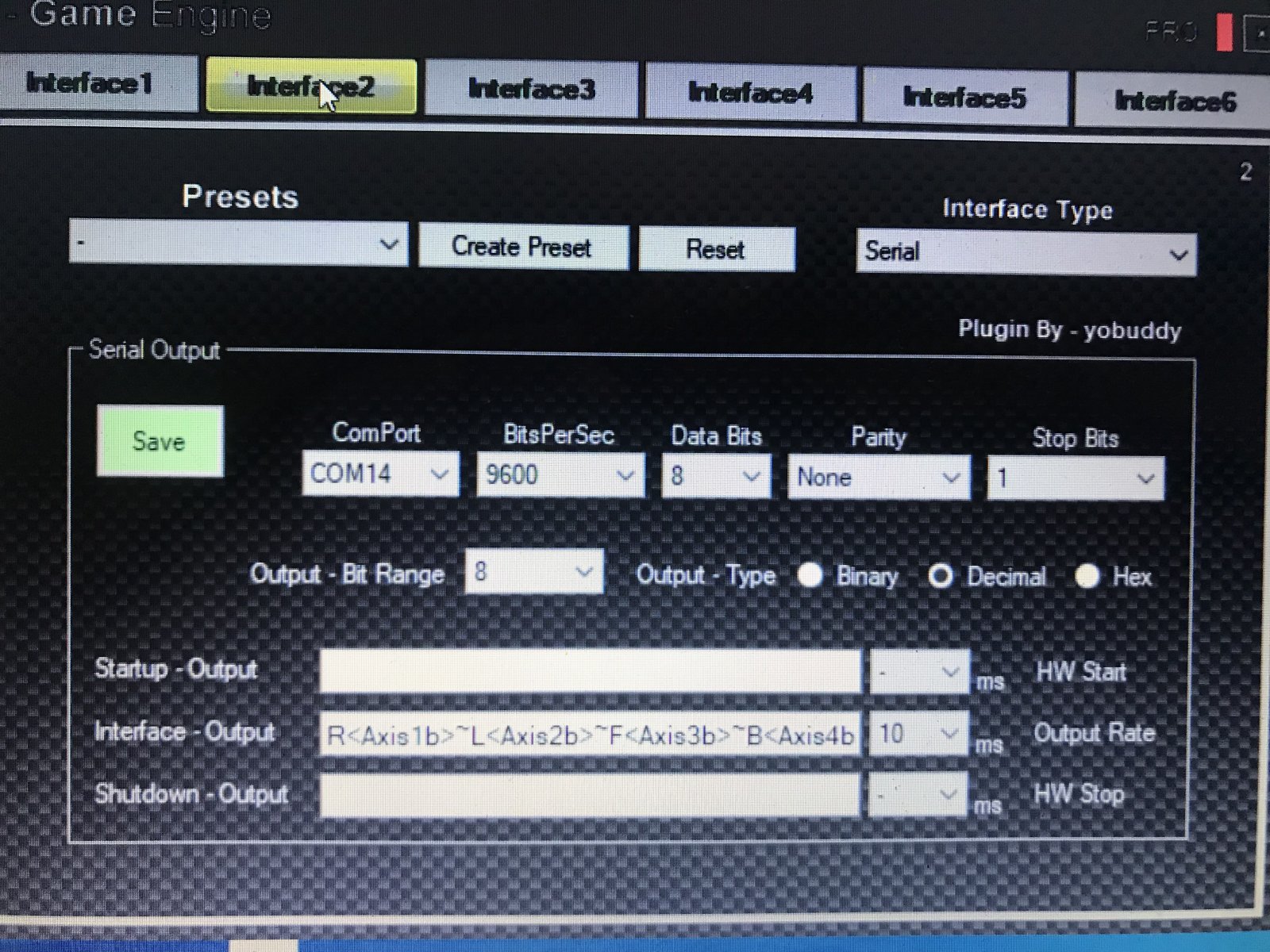

    Here are my Arduino code for the G-Seat for up to 6 servos
    Interface Type : Serial
    Comport : is at every individual
    BitsPerSec : 9600
    Data Bits : 8
    Parity : None
    Stop Bits : 1
    Bit Range : 8
    Output Type : Decimal
    Interface Output : R<Axis1b>~L<Axis2b>~F<Axis3b>~B<Axis4b>~G<Axis5b>~H<Axis6b>~
    Output Rate : 10ms


    this setup works well for me

    Attached Files:

    • Informative Informative x 2
    Last edited: Nov 18, 2018
  18. Mpmo

    Mpmo Member

    Joined:
    Oct 15, 2017
    Messages:
    230
    Location:
    United Arab Emirates
    Balance:
    1,258Coins
    Ratings:
    +27 / 2 / -0
    what's this? could you elaborate and show a video of it on your rig please..? i'm interested in g seats
  19. Mpmo

    Mpmo Member

    Joined:
    Oct 15, 2017
    Messages:
    230
    Location:
    United Arab Emirates
    Balance:
    1,258Coins
    Ratings:
    +27 / 2 / -0
    email igor asap. He responds quick
  20. xxpelle

    xxpelle Discord "TPMax#9574" Gold Contributor

    Joined:
    Dec 24, 2017
    Messages:
    99
    Occupation:
    Discord "TPMax#9574"
    Location:
    Germany
    Balance:
    411Coins
    Ratings:
    +117 / 0 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    • Like Like x 1
