Keith's 2dof rig

Discussion in 'DIY Motion Simulator Projects' started by Keith, Mar 4, 2020.

  1. Keith

    Keith Active Member

    Joined:
    Jan 21, 2020
    Messages:
    161
    Occupation:
    Electrician
    Location:
    Canada, Saskatchewan
    Balance:
    47Coins
    Ratings:
    +78 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, Motion platform
    Yes. The motors will fall down when powered down
  2. luu trung

    luu trung Member

    Joined:
    Apr 4, 2022
    Messages:
    47
    Balance:
    11Coins
    Ratings:
    +1 / 0 / -0
    My Motion Simulator:
    3DOF
    if the power is turned on the motor lever will return to the horizontal position????
  3. Keith

    Keith Active Member

    Joined:
    Jan 21, 2020
    Messages:
    161
    Occupation:
    Electrician
    Location:
    Canada, Saskatchewan
    Balance:
    47Coins
    Ratings:
    +78 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, Motion platform
    Yes If you have things set up properly it will return to the level position
  4. kalbasator

    kalbasator Member

    Joined:
    Dec 28, 2021
    Messages:
    70
    Location:
    Kazahstan
    Balance:
    422Coins
    Ratings:
    +26 / 0 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino, Motion platform, 4DOF
    Hello Keith.
    I have a question about how you connected the kbpc 5010 diode bridge. If it’s not difficult for you, you can draw what and to which contacts it is connected.
  5. iLLuac4

    iLLuac4 Active Member

    Joined:
    Jun 19, 2019
    Messages:
    113
    Balance:
    770Coins
    Ratings:
    +46 / 0 / -0
    My Motion Simulator:
    2DOF
  6. Keith

    Keith Active Member

    Joined:
    Jan 21, 2020
    Messages:
    161
    Occupation:
    Electrician
    Location:
    Canada, Saskatchewan
    Balance:
    47Coins
    Ratings:
    +78 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, Motion platform

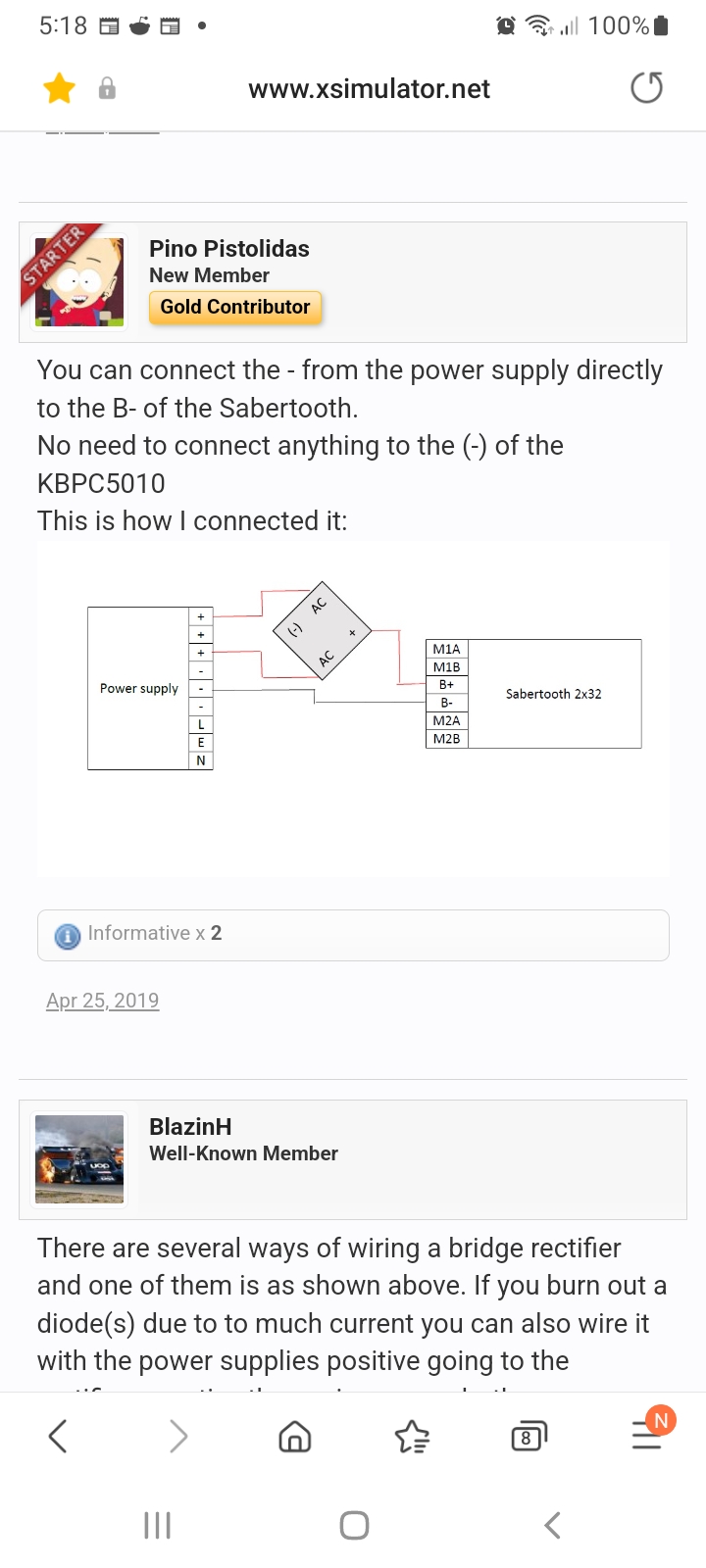

    Yes. I wired it off of this picture

    Attached Files:

  7. kalbasator

    kalbasator Member

    Joined:
    Dec 28, 2021
    Messages:
    70
    Location:
    Kazahstan
    Balance:
    422Coins
    Ratings:
    +26 / 0 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino, Motion platform, 4DOF
    Thanks, much appreciated!
