Question Axis assignment for 4 pt-actuators

Discussion in 'Game Engine axes presets' started by Wajdi, Feb 18, 2019.

  1. Wajdi

    Wajdi Member Gold Contributor

    Joined:
    Aug 13, 2018
    Messages:
    41
    Balance:
    303Coins
    Ratings:
    +8 / 1 / -0
    Hi, any one can post his basic axes assignment for 4 linear actuators?( front right/left and rear right/left
    Would be a great help for me. Thanks
  2. Ads Master

    Ads Master

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
  3. DotComRich

    DotComRich Member Gold Contributor

    Joined:
    Nov 8, 2018
    Messages:
    55
    Balance:
    400Coins
    Ratings:
    +43 / 1 / -0
    Which actuators specifically do you have?
  4. Wajdi

    Wajdi Member Gold Contributor

    Joined:
    Aug 13, 2018
    Messages:
    41
    Balance:
    303Coins
    Ratings:
    +8 / 1 / -0
    • Like Like x 1
  5. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    13,544
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    102,194Coins
    Ratings:
    +8,497 / 42 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    You would be better off and get the best results by creating and refining your own motion profiles tuned to your actuators and personal preferences: https://www.xsimulator.net/community/faq/steps-to-create-a-motion-profile.228/
    • Friendly Friendly x 1
  6. DotComRich

    DotComRich Member Gold Contributor

    Joined:
    Nov 8, 2018
    Messages:
    55
    Balance:
    400Coins
    Ratings:
    +43 / 1 / -0
    Here is mine with the same actuators, test carefully!

    Attached Files:

  7. Wajdi

    Wajdi Member Gold Contributor

    Joined:
    Aug 13, 2018
    Messages:
    41
    Balance:
    303Coins
    Ratings:
    +8 / 1 / -0
    Great thank.
  8. brad nichols

    brad nichols New Member Gold Contributor

    Joined:
    Nov 27, 2016
    Messages:
    10
    Location:
    United States
    Balance:
    52Coins
    Ratings:
    +12 / 0 / -0
    Wow, those are nice. Im having to make mine from scratch. Are those the actuators "D-Box" uses?
  9. DotComRich

    DotComRich Member Gold Contributor

    Joined:
    Nov 8, 2018
    Messages:
    55
    Balance:
    400Coins
    Ratings:
    +43 / 1 / -0
    No these blow Dbox out of the water for 1/10th the price
    • Agree Agree x 3
  10. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    552
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    3,790Coins
    Ratings:
    +463 / 4 / -0
    My Motion Simulator:
    AC motor, Joyrider, Motion platform, 4DOF, 6DOF
    • Like Like x 4
  11. hogig

    hogig New Member

    Joined:
    May 7, 2019
    Messages:
    4
    Balance:
    33Coins
    Ratings:
    +0 / 0 / -0
    Hi Thanos,

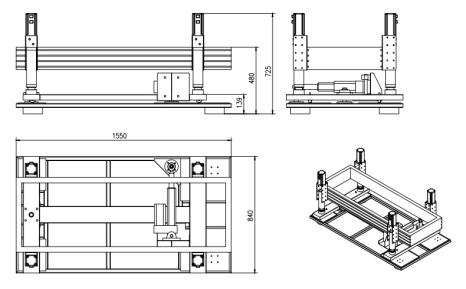

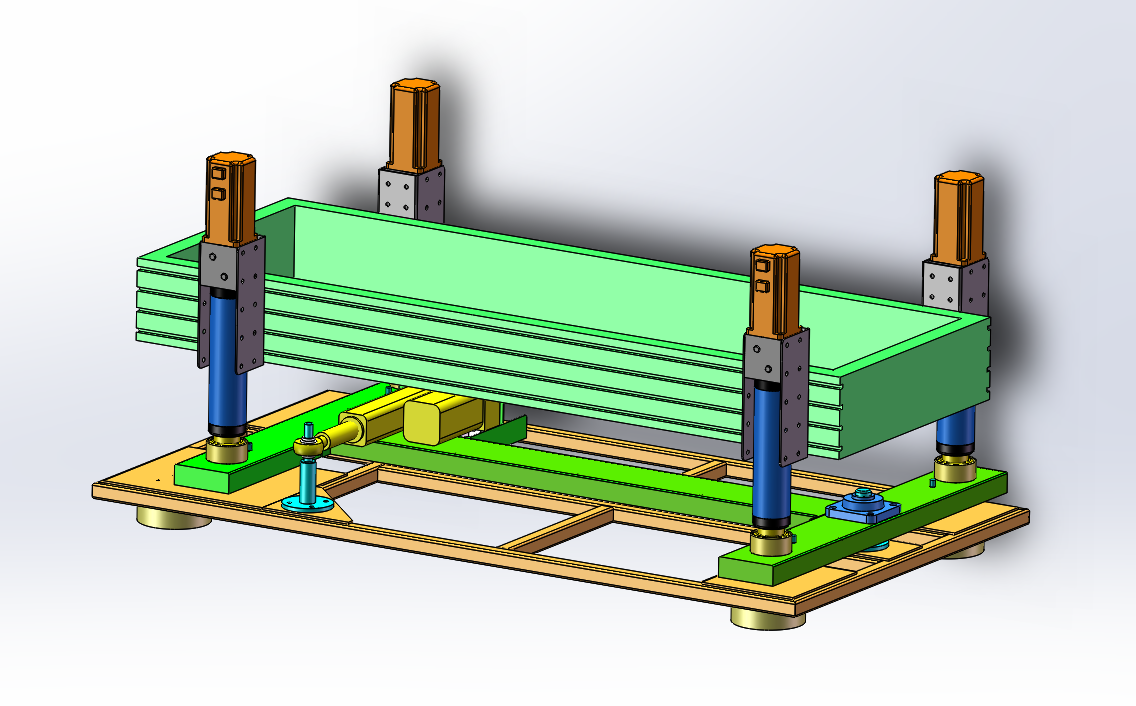

    Would you have more information re the blueprint of that TL 5 axis rig? I am interested to replicate also using PT actuators... Noob here. Certainly could use a comprehensive to buy list....
  12. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    552
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    3,790Coins
    Ratings:
    +463 / 4 / -0
    My Motion Simulator:
    AC motor, Joyrider, Motion platform, 4DOF, 6DOF
    Check your PM
  13. HugoB

    HugoB New Member Gold Contributor

    Joined:
    Jan 11, 2019
    Messages:
    9
    Balance:
    164Coins
    Ratings:
    +6 / 0 / -0
    My Motion Simulator:
    3DOF, Arduino

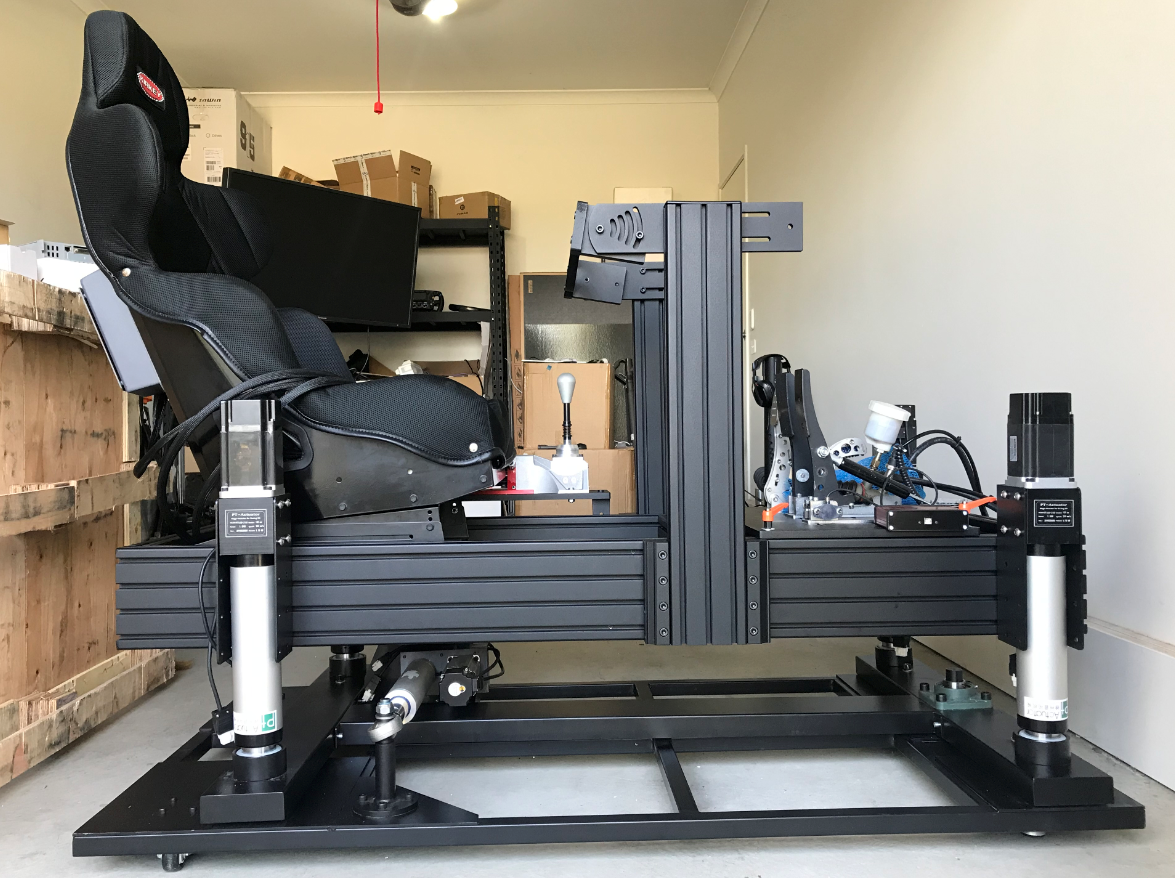

    I’ve always wanted to build a TL module for my 80/20 rig but have no idea how to do this... could you also help me a bit with more information about your blueprint from before? Is it easy to make with aluminum profile? How do you connect the fold back PT-Actuator and so? Thanks for your help!
  14. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    552
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    3,790Coins
    Ratings:
    +463 / 4 / -0
    My Motion Simulator:
    AC motor, Joyrider, Motion platform, 4DOF, 6DOF

  15. djkc

    djkc Member Gold Contributor

    Joined:
    Dec 20, 2015
    Messages:
    33
    Location:
    Australia
    Balance:
    34Coins
    Ratings:
    +13 / 0 / -0
    My Motion Simulator:
    3DOF, SCN5

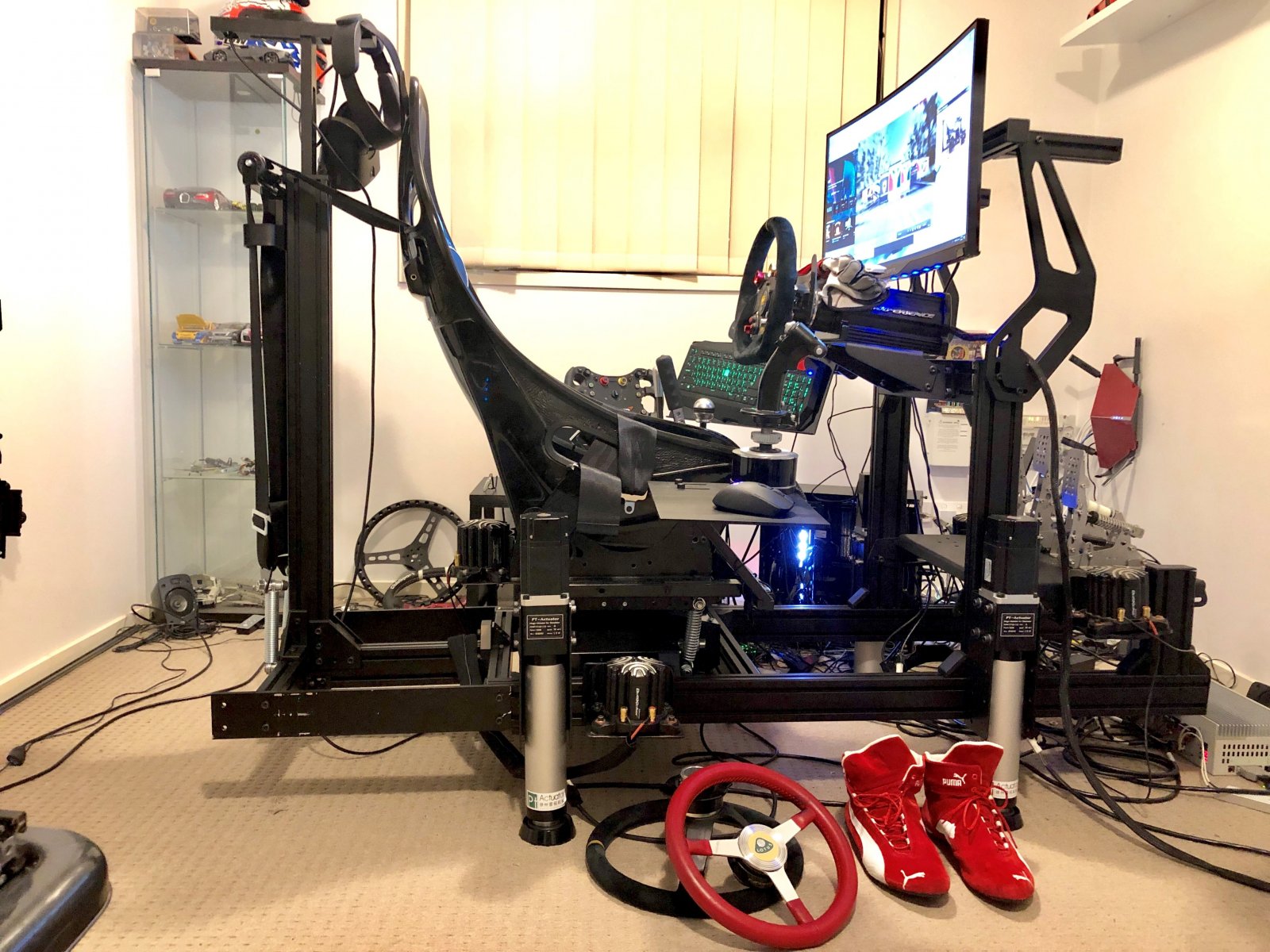

    Can anybody share a DCS profile? See my setup attached.
