Showroom A few years later, I'm finally ready to finish this 2DOF project!

Discussion in 'DIY Motion Simulator Projects' started by TL1000S, Feb 16, 2021.

  1. TL1000S

    TL1000S New Member

    Joined:
    Mar 23, 2016
    Messages:
    25
    Location:
    China
    Balance:
    39Coins
    Ratings:
    +18 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

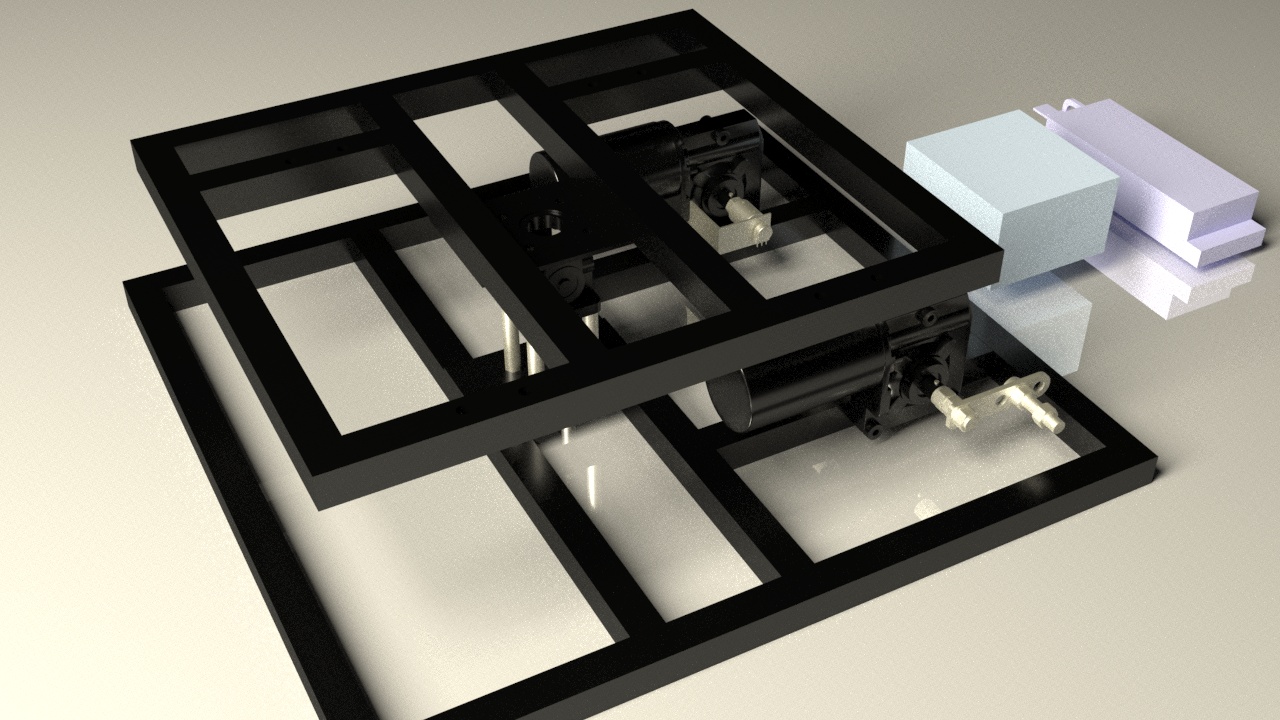

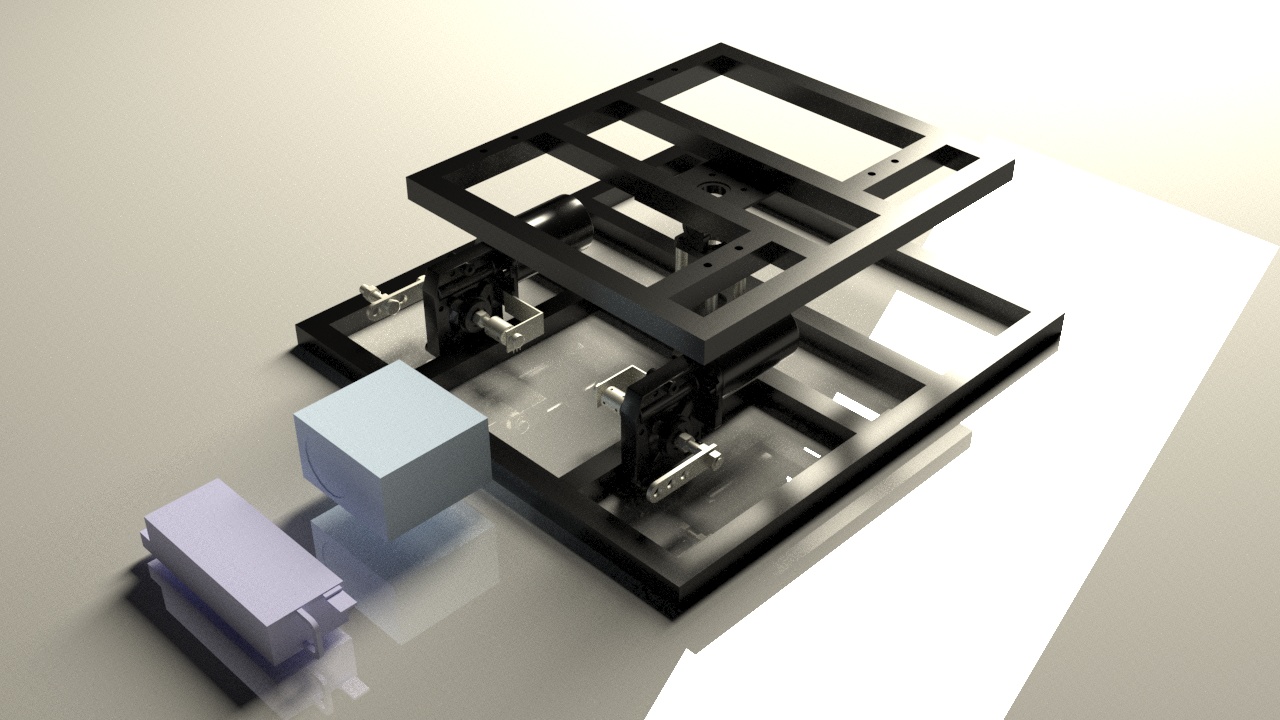

    This design has been on the drawing for a long time.

    Attached Files:

    • Like Like x 1
  2. TL1000S

    TL1000S New Member

    Joined:
    Mar 23, 2016
    Messages:
    25
    Location:
    China
    Balance:
    39Coins
    Ratings:
    +18 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

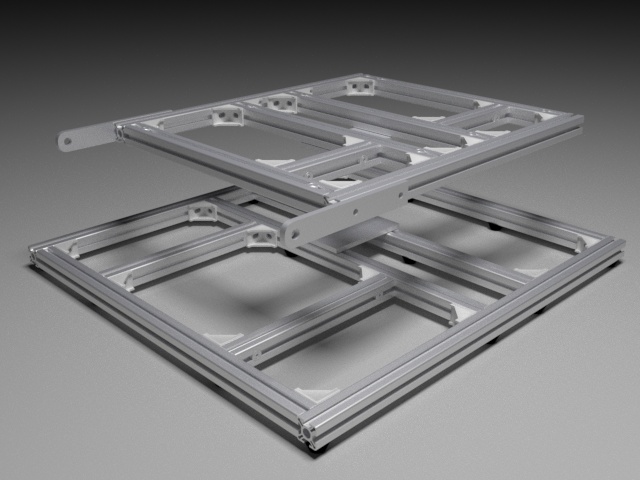

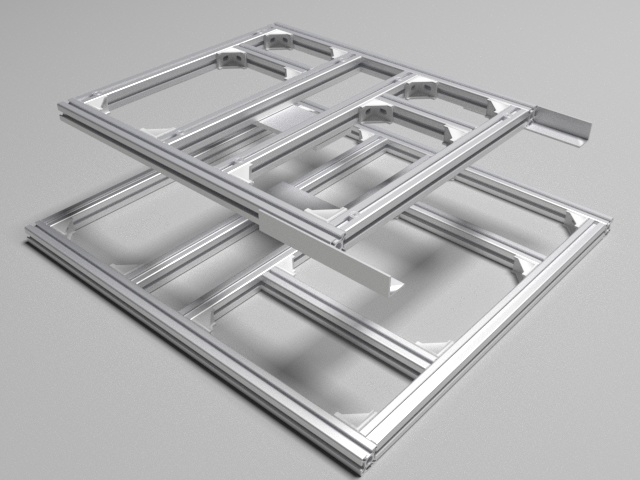

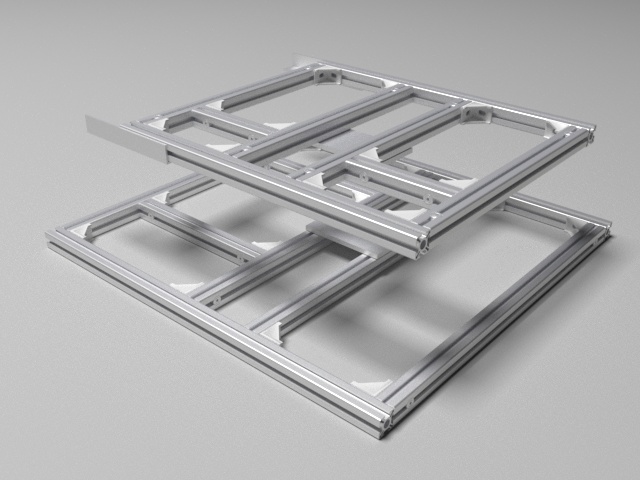

    Aluminum profile design

    Attached Files:

    • Al1.jpg
      File size:
      78.1 KB
      Views:
      135
    • Al2.jpg
      File size:
      89.4 KB
      Views:
      127
    • Like Like x 1
  3. TL1000S

    TL1000S New Member

    Joined:
    Mar 23, 2016
    Messages:
    25
    Location:
    China
    Balance:
    39Coins
    Ratings:
    +18 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

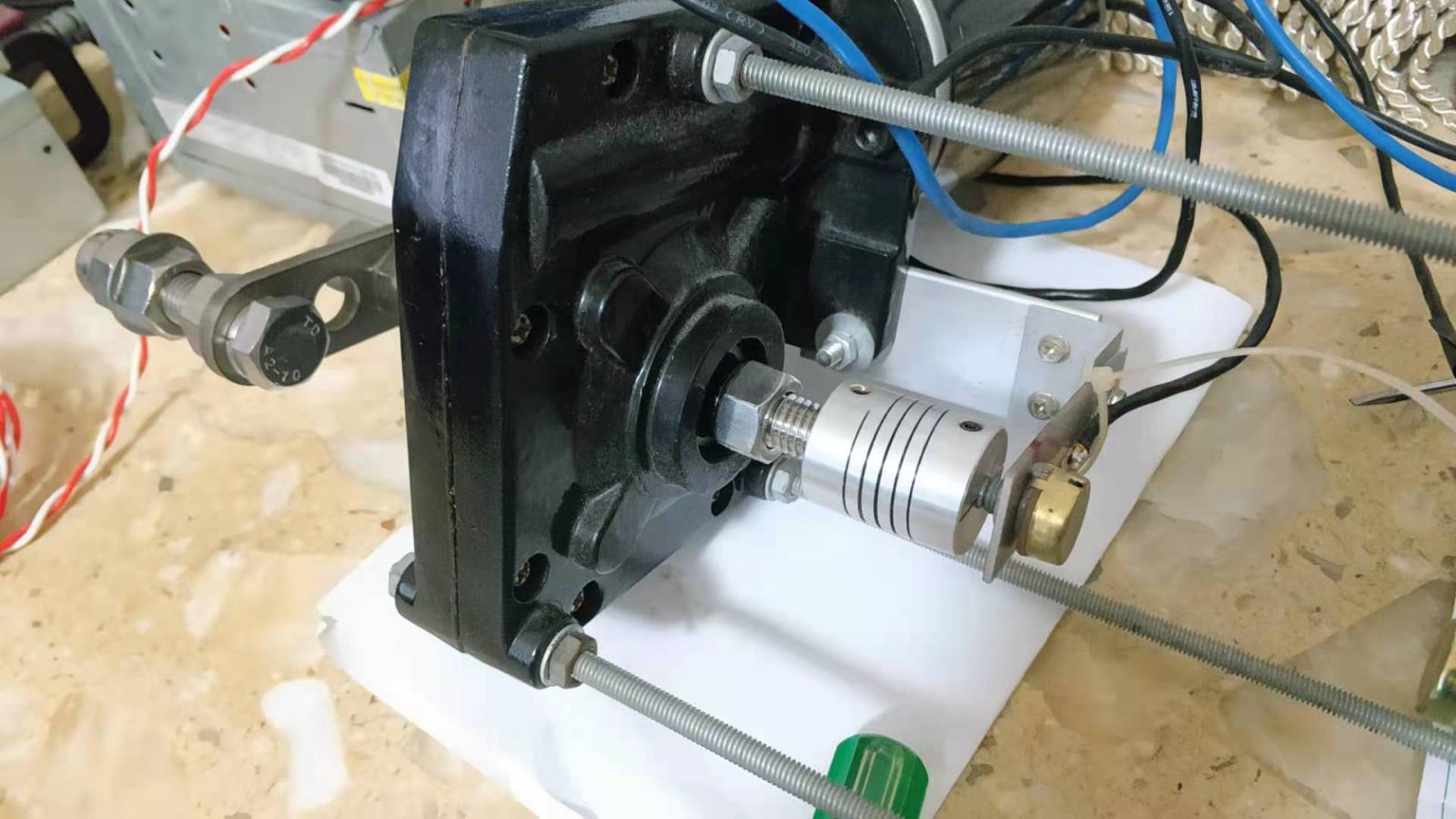

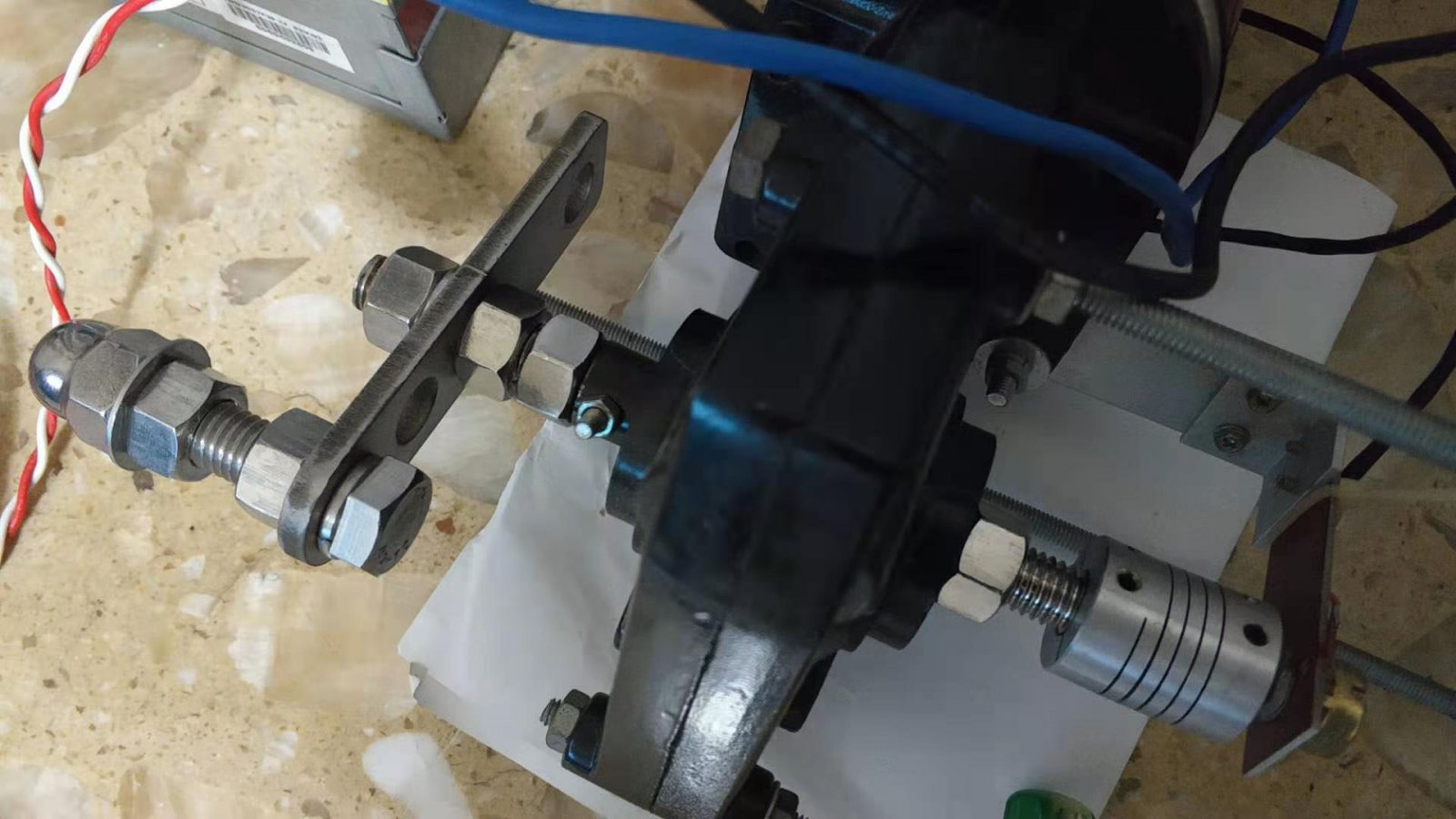

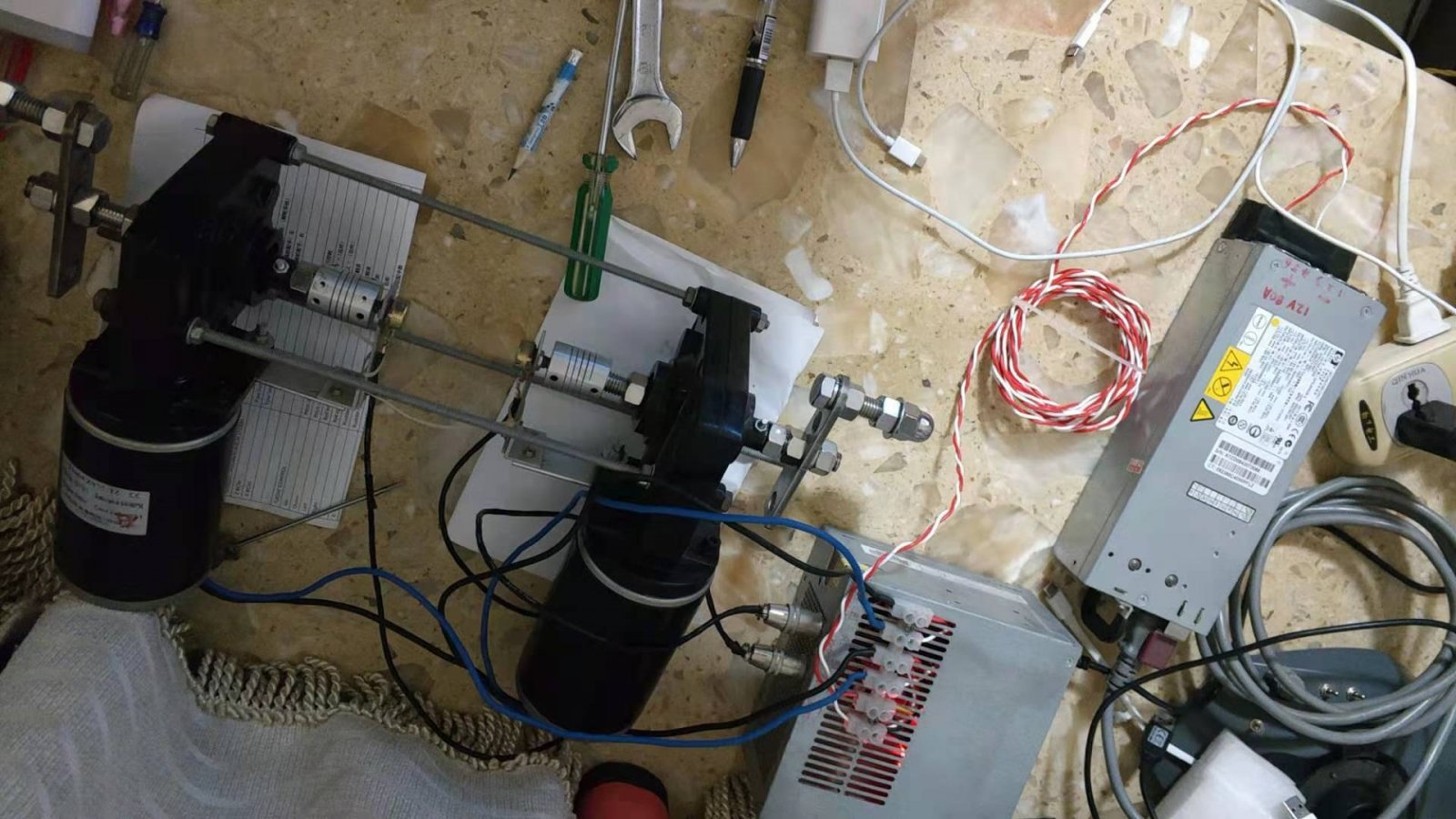

    The bracket parts didn't arrive. Test the motor. Everything is normal.

    Attached Files:

    • Like Like x 1
  4. TL1000S

    TL1000S New Member

    Joined:
    Mar 23, 2016
    Messages:
    25
    Location:
    China
    Balance:
    39Coins
    Ratings:
    +18 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

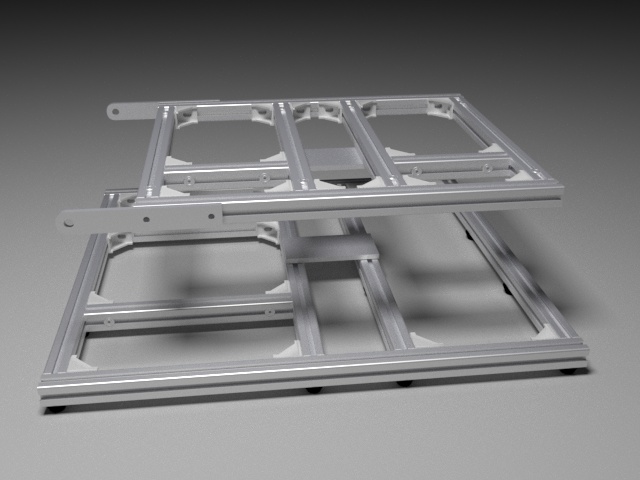

    Due to the limited space for seats, the bracket must be designed to be compact. At the same time, there is no welding condition, and in order to facilitate the adjustment, the final choice of aluminum profiles.

    Attached Files:

    • Ala.jpg
      File size:
      75.3 KB
      Views:
      133
    • Alb.jpg
      File size:
      66.9 KB
      Views:
      121
    • Like Like x 1
  5. TL1000S

    TL1000S New Member

    Joined:
    Mar 23, 2016
    Messages:
    25
    Location:
    China
    Balance:
    39Coins
    Ratings:
    +18 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

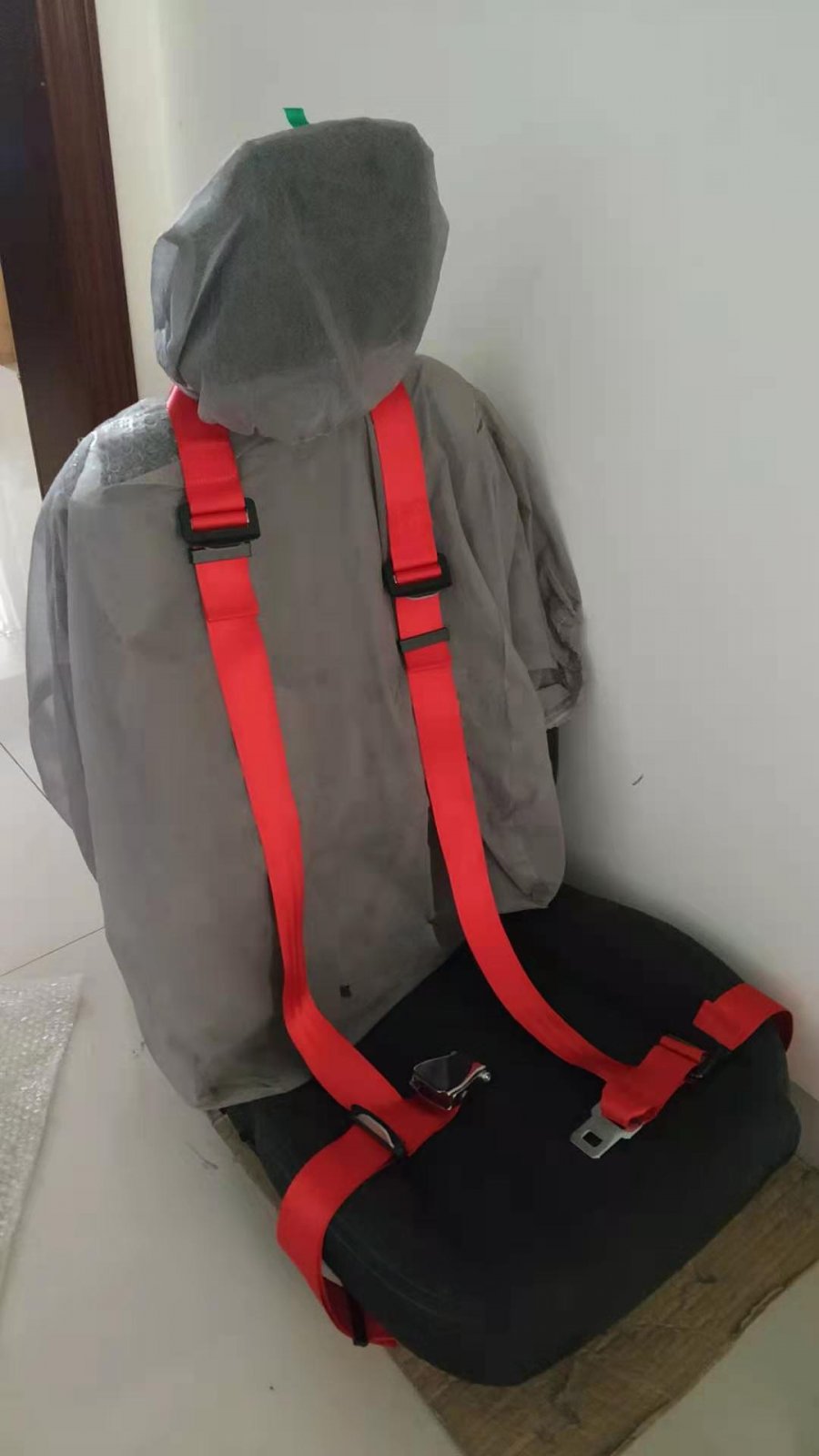

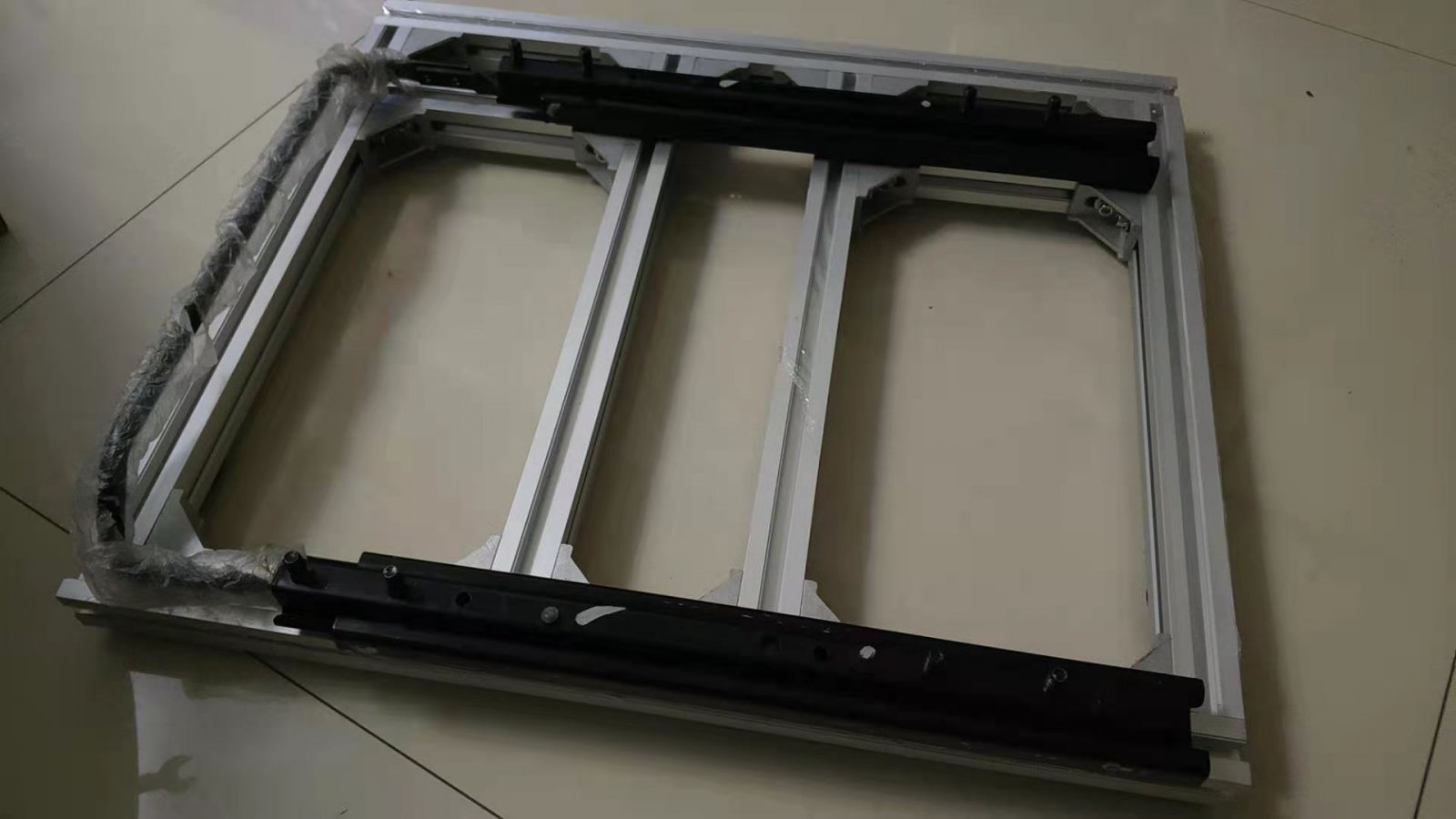

    Order aluminum profiles today. This seat and seat belt have been here for a long time.

    Attached Files:

    • seat.jpg
      File size:
      95.4 KB
      Views:
      127
    • Like Like x 1
  6. TL1000S

    TL1000S New Member

    Joined:
    Mar 23, 2016
    Messages:
    25
    Location:
    China
    Balance:
    39Coins
    Ratings:
    +18 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

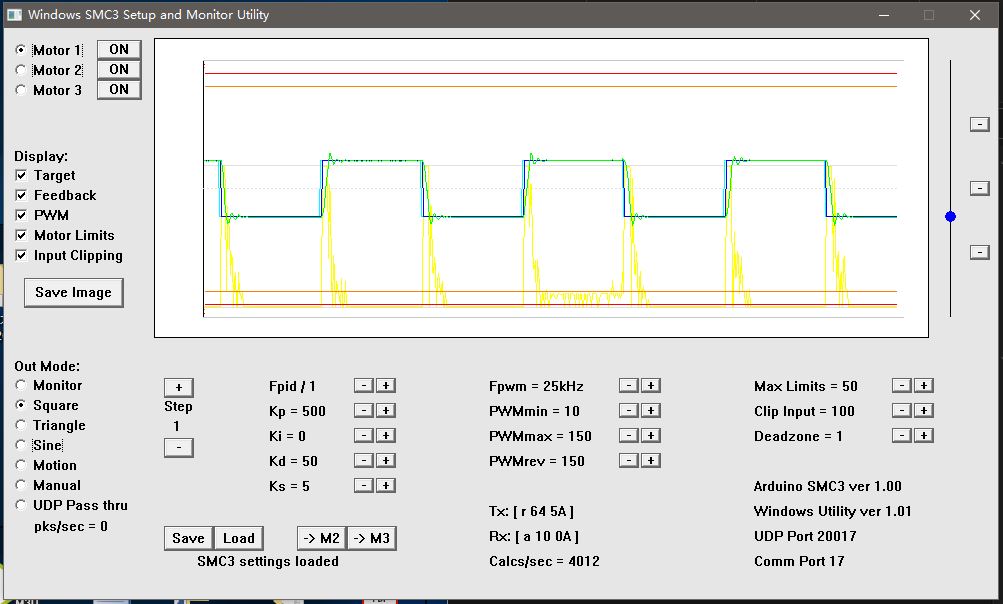

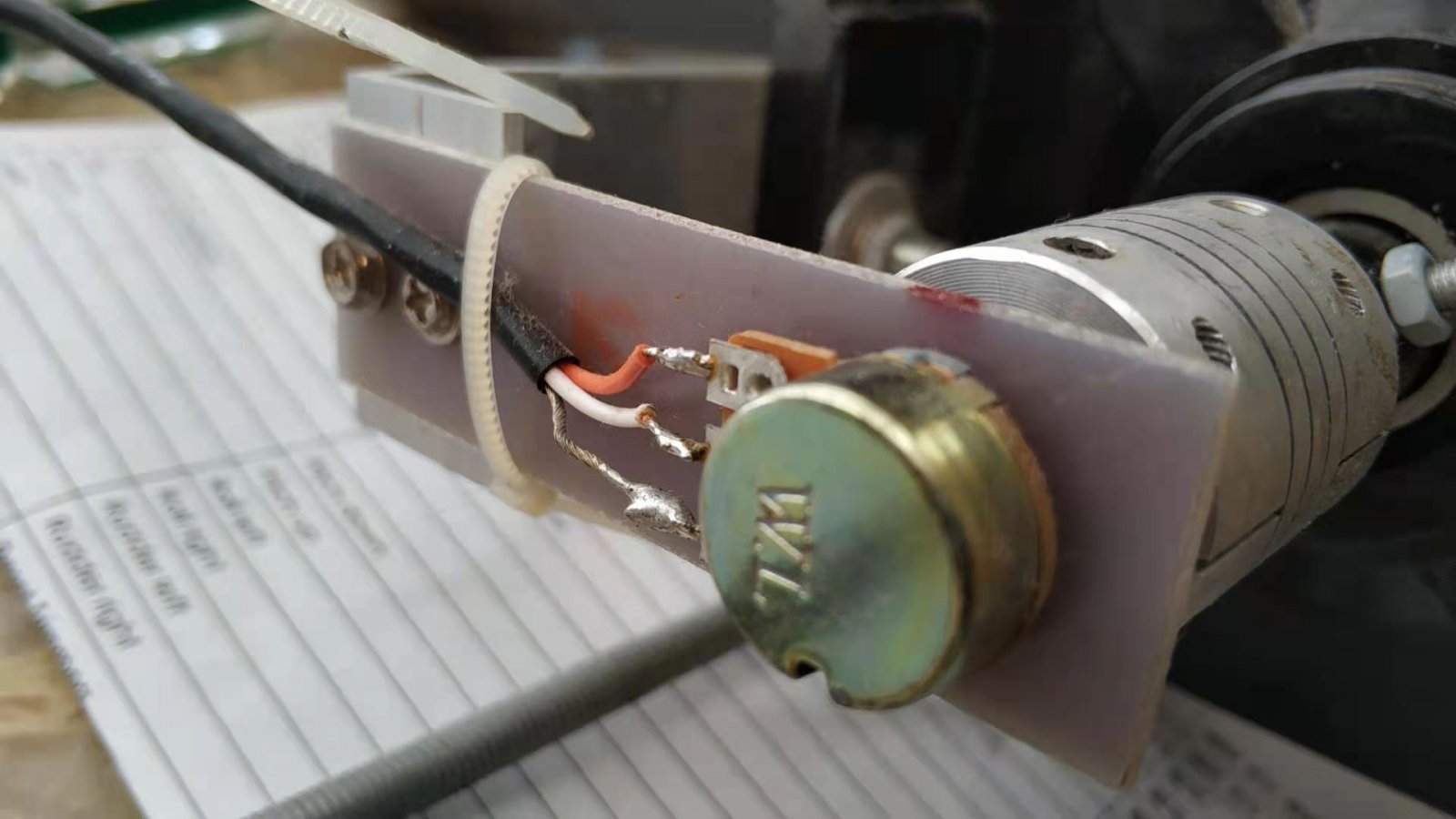

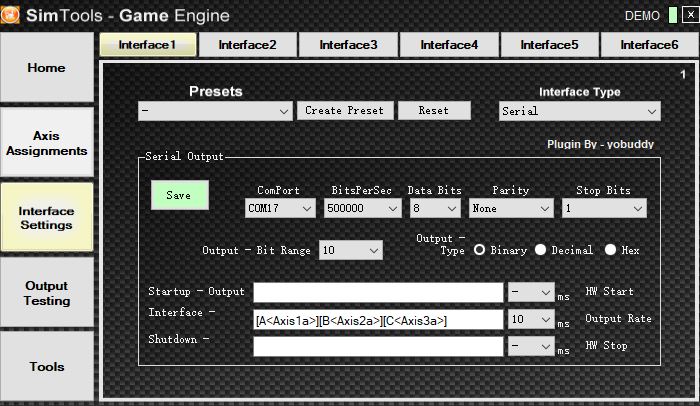

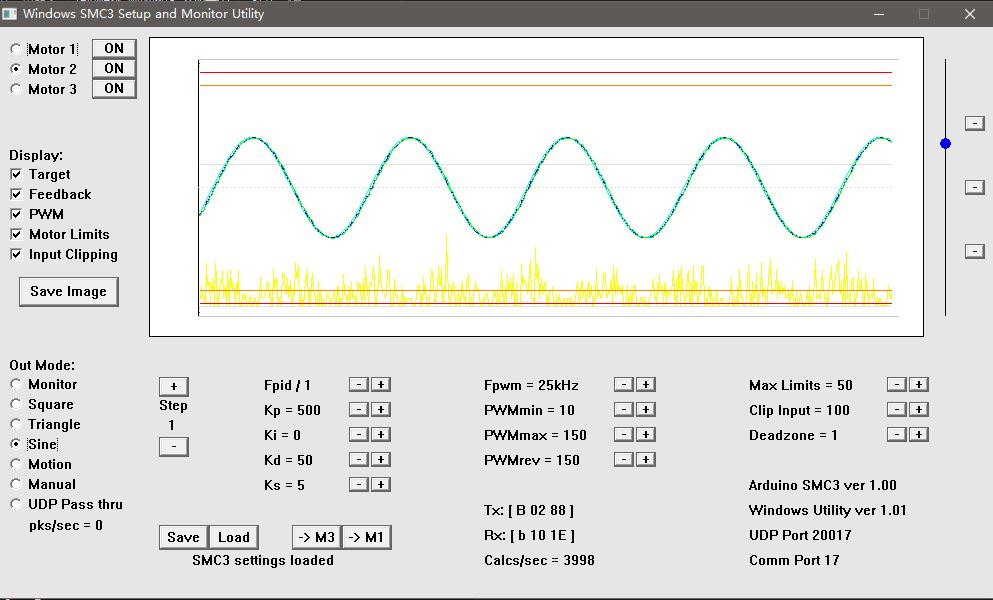

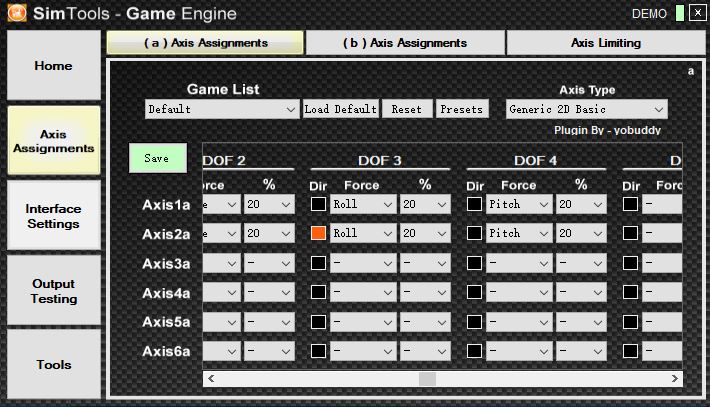

    Motor no load test and software setting.Aluminum profile on the road, worry!

    Attached Files:

    • Like Like x 1
  7. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    20,461
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    144,602Coins
    Ratings:
    +10,741 / 52 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
  8. TL1000S

    TL1000S New Member

    Joined:
    Mar 23, 2016
    Messages:
    25
    Location:
    China
    Balance:
    39Coins
    Ratings:
    +18 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Thanks for noorbeast's attention and advice.

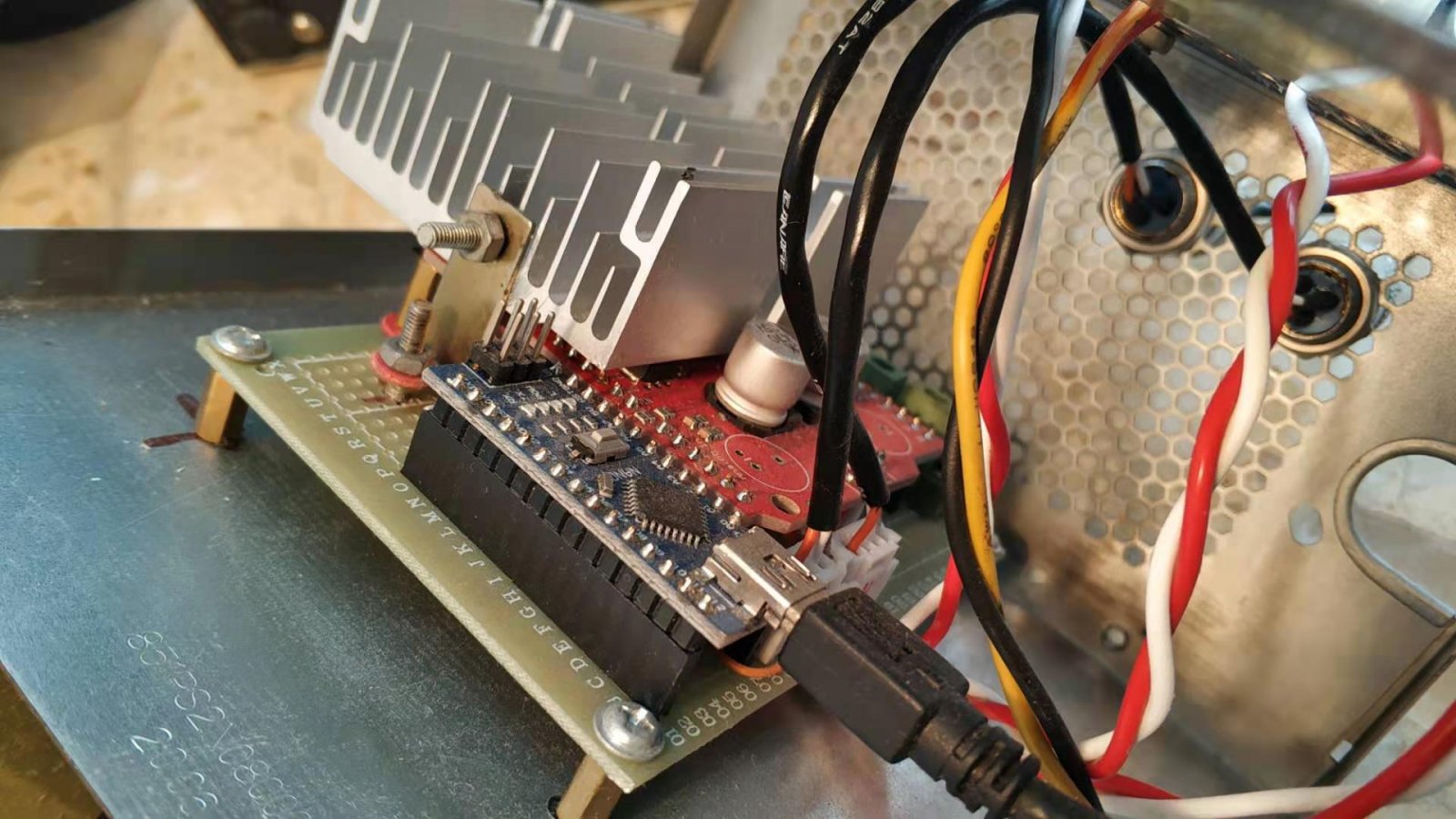

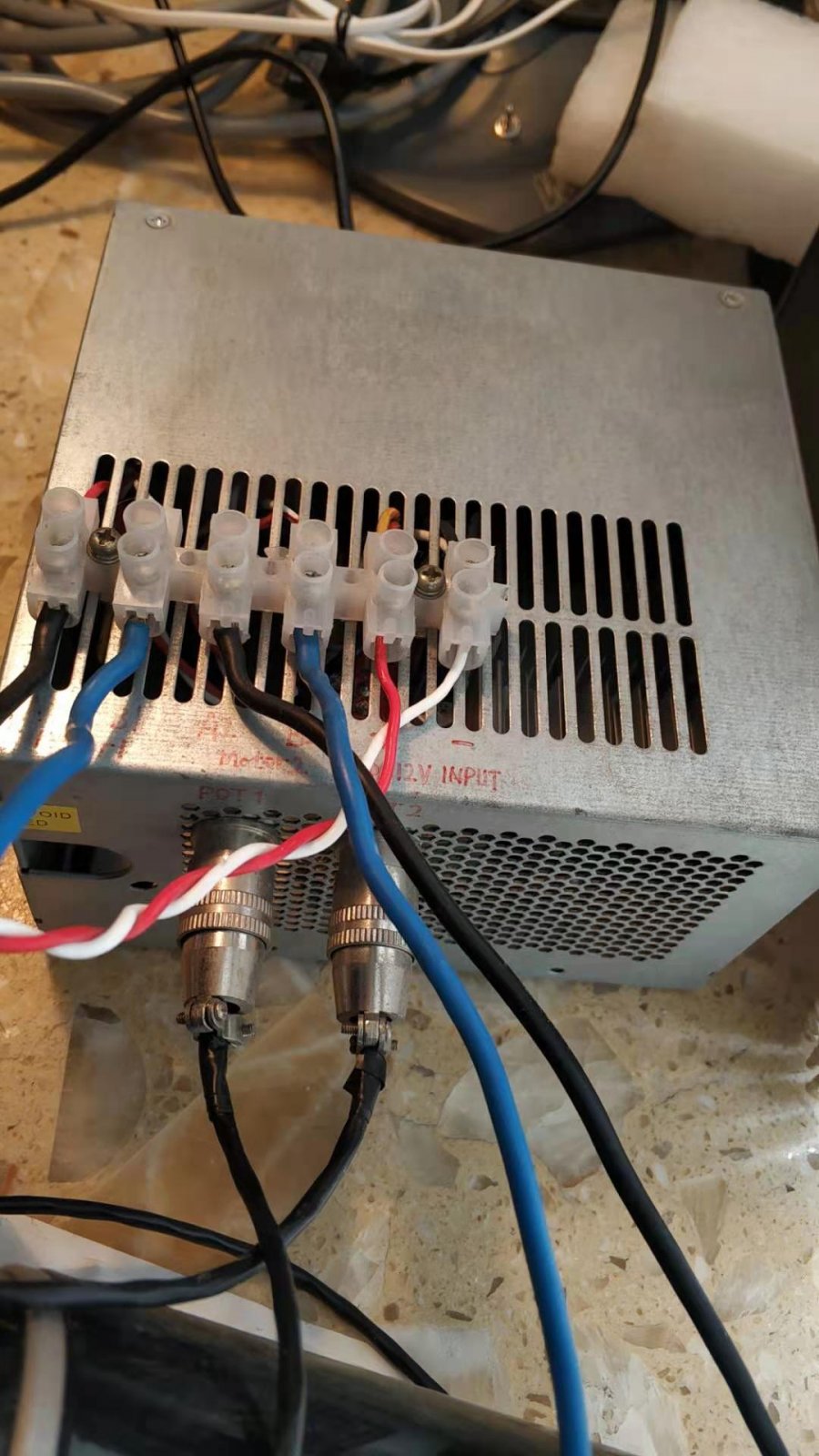

    Using circuit and driver:
    arduino nano

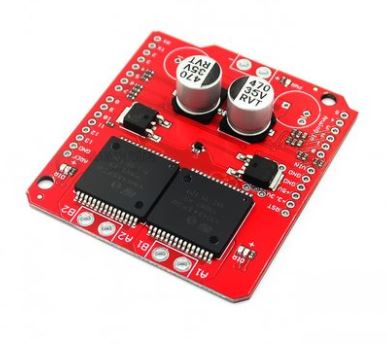

    Monster Moto Shield VNH2SP30 stepper motor driver module

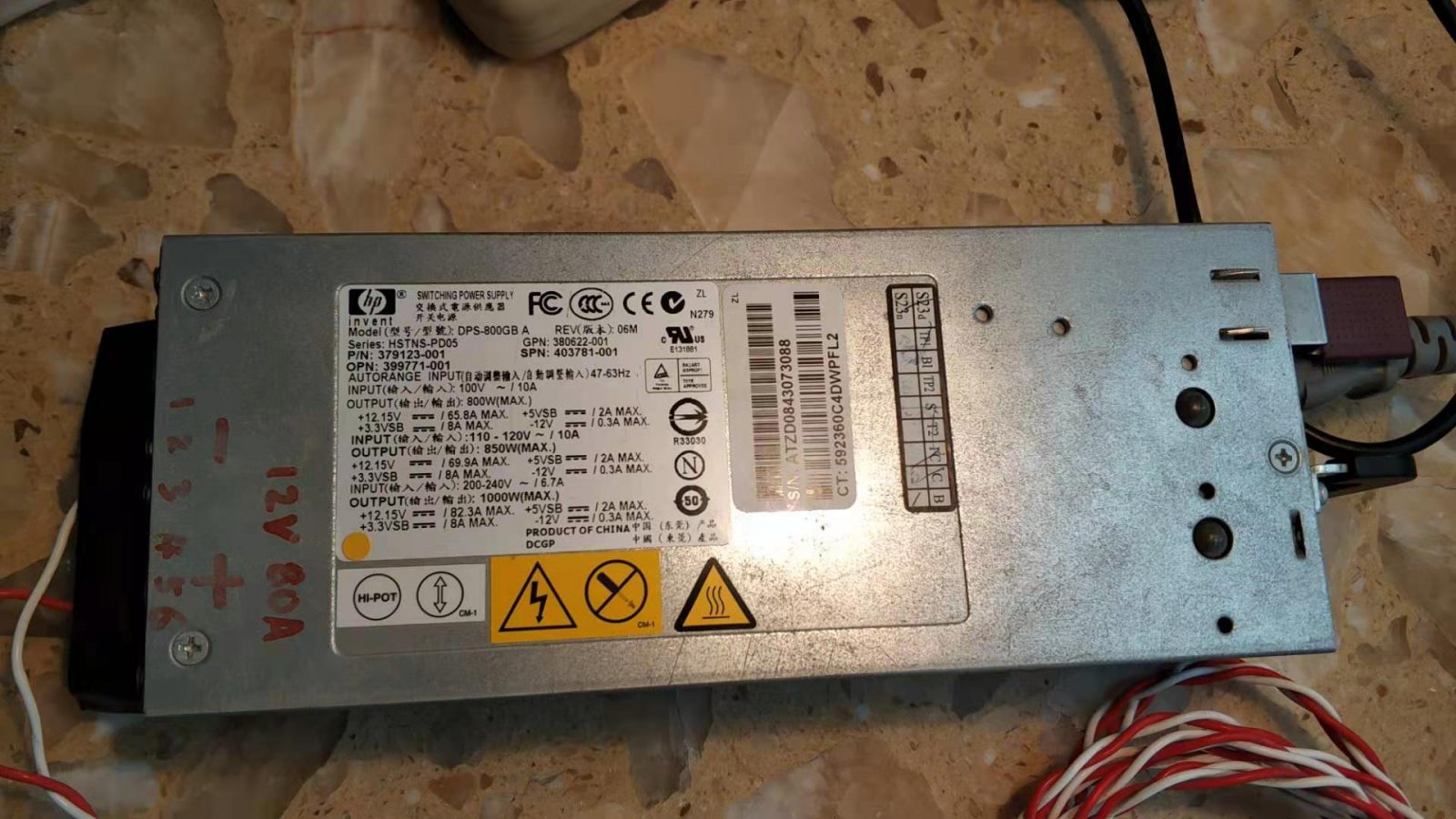

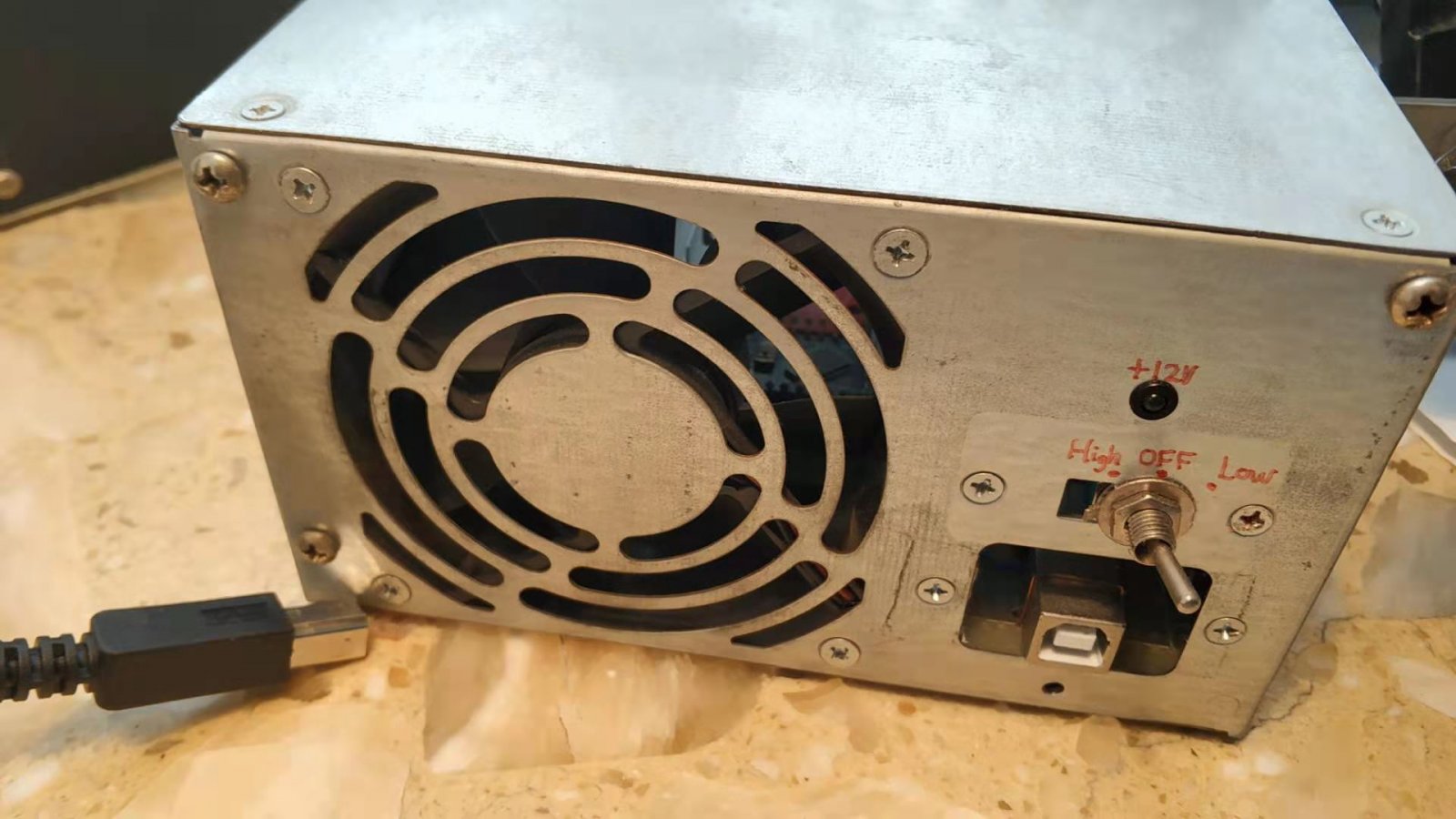

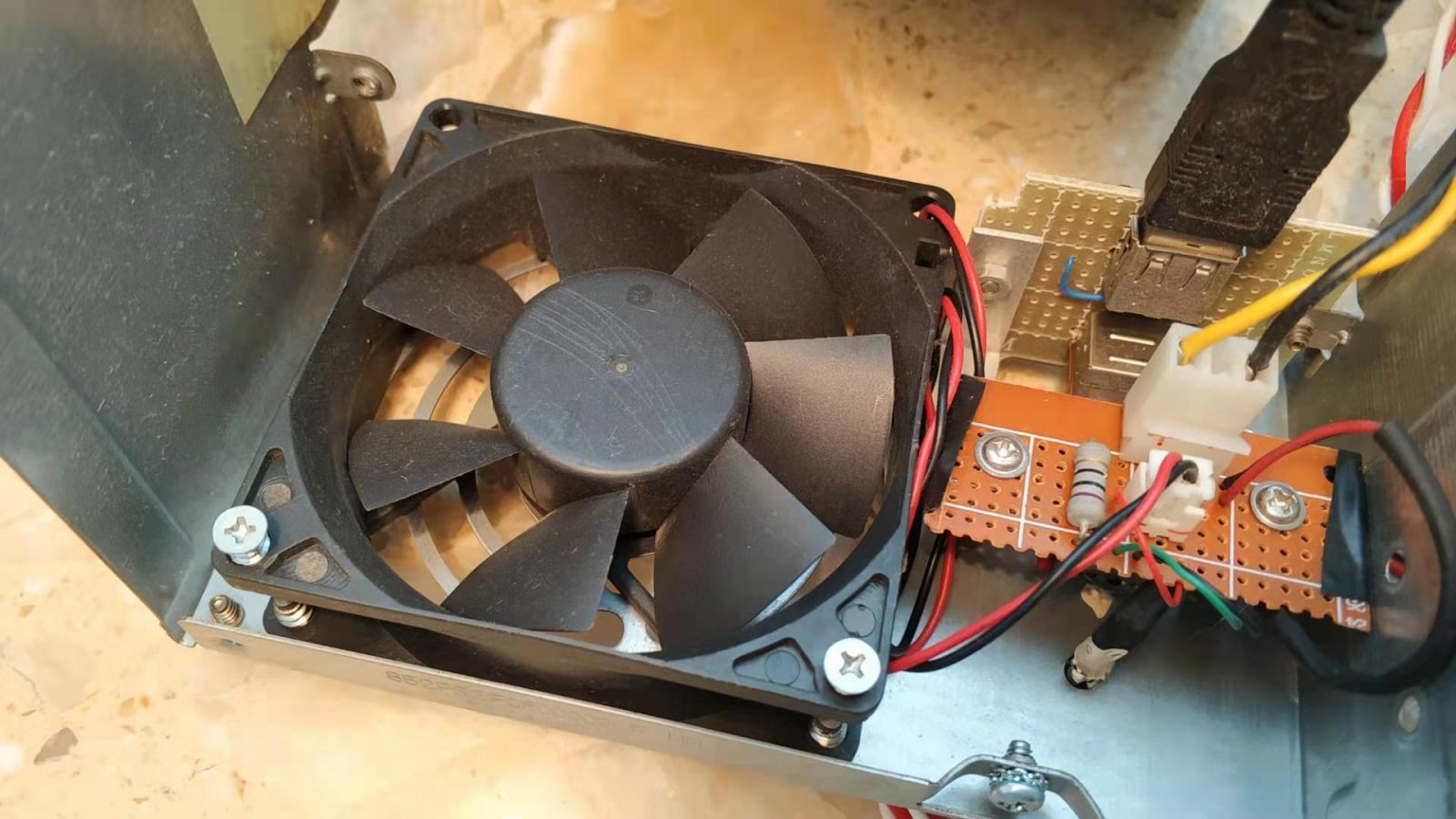

    12V 80A power

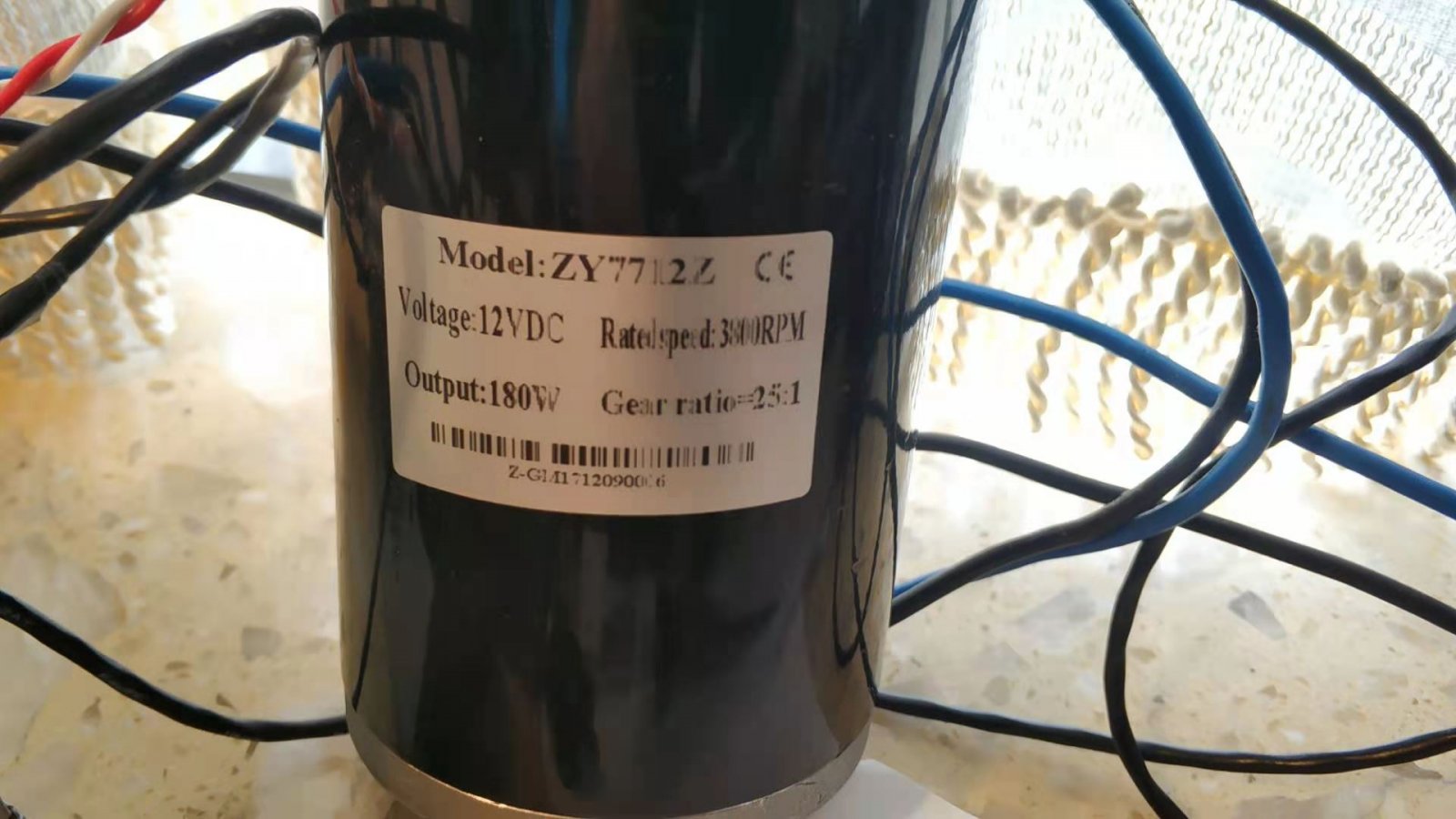

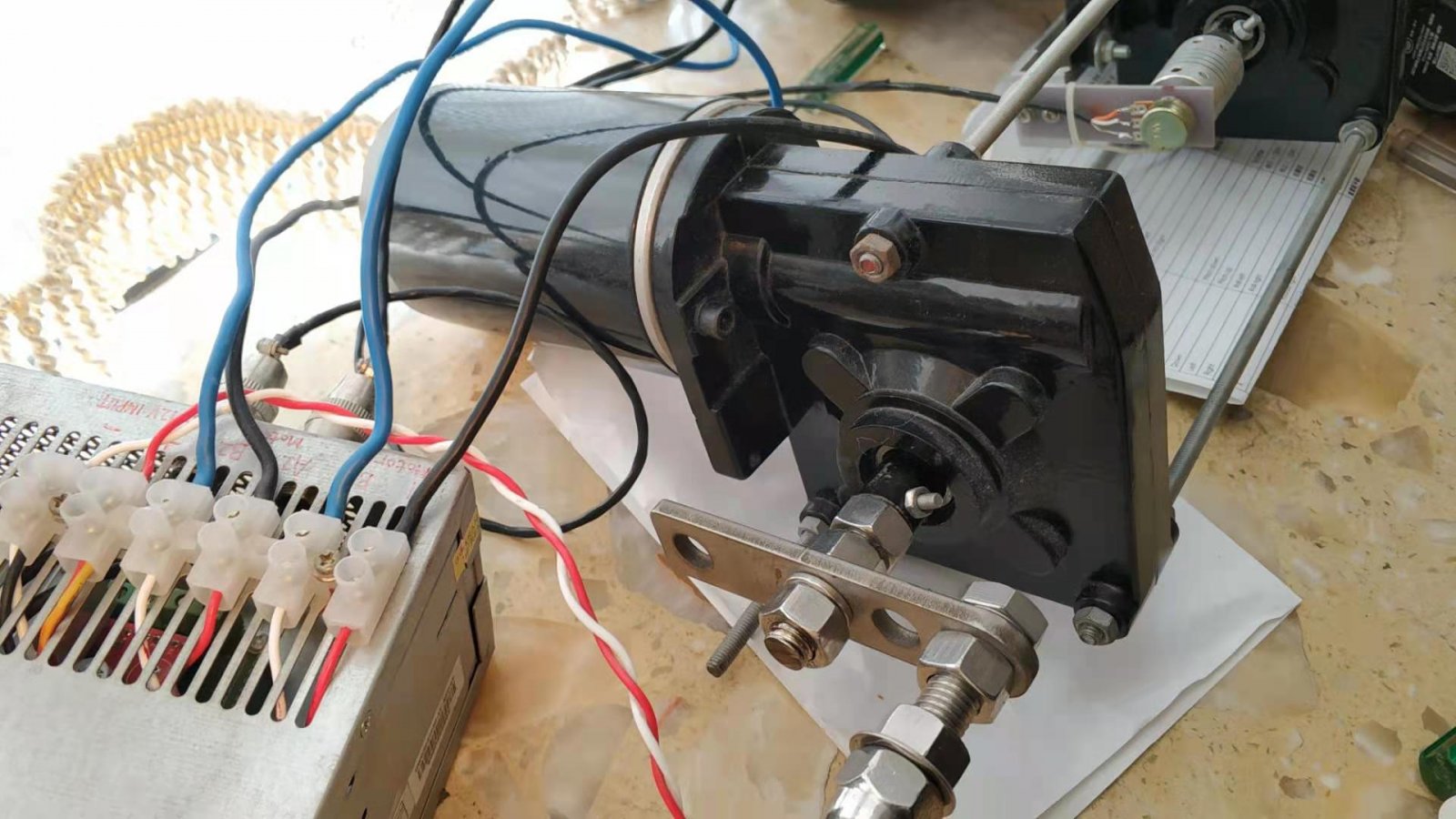

    12VDC 180W 3800RPM Motor ,Gear ratio=25:1
    10K potentiometer

    Attached Files:

  9. TL1000S

    TL1000S New Member

    Joined:
    Mar 23, 2016
    Messages:
    25
    Location:
    China
    Balance:
    39Coins
    Ratings:
    +18 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

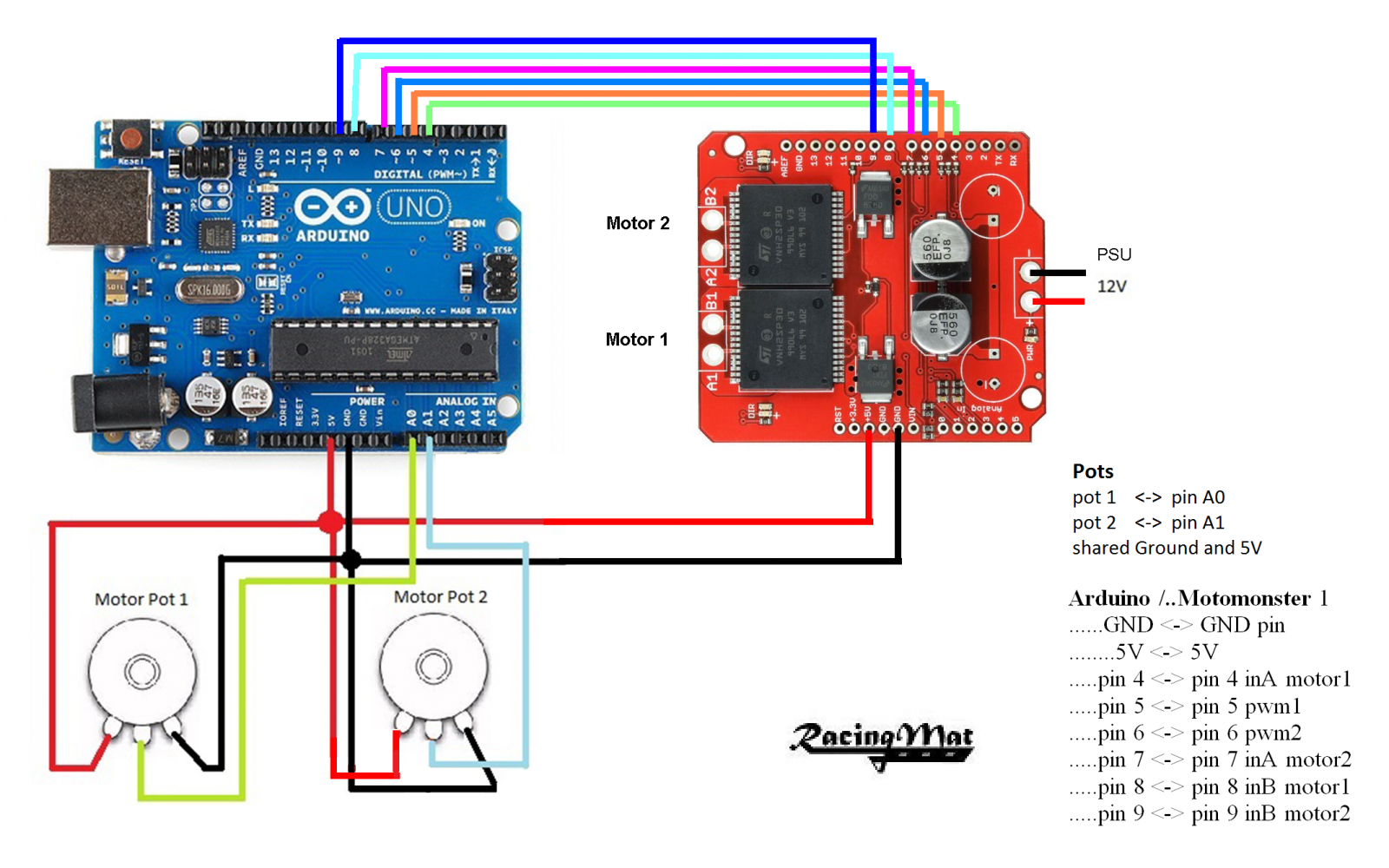

    Circuit reference,thank you Racingmat

    Attached Files:

    • Like Like x 1
  10. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    20,461
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    144,602Coins
    Ratings:
    +10,741 / 52 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    • Agree Agree x 1
  11. TL1000S

    TL1000S New Member

    Joined:
    Mar 23, 2016
    Messages:
    25
    Location:
    China
    Balance:
    39Coins
    Ratings:
    +18 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
  12. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    20,461
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    144,602Coins
    Ratings:
    +10,741 / 52 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    See the provided link.
  13. TL1000S

    TL1000S New Member

    Joined:
    Mar 23, 2016
    Messages:
    25
    Location:
    China
    Balance:
    39Coins
    Ratings:
    +18 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    The ordered aluminum profile may be delivered in the evening!Little excitement!

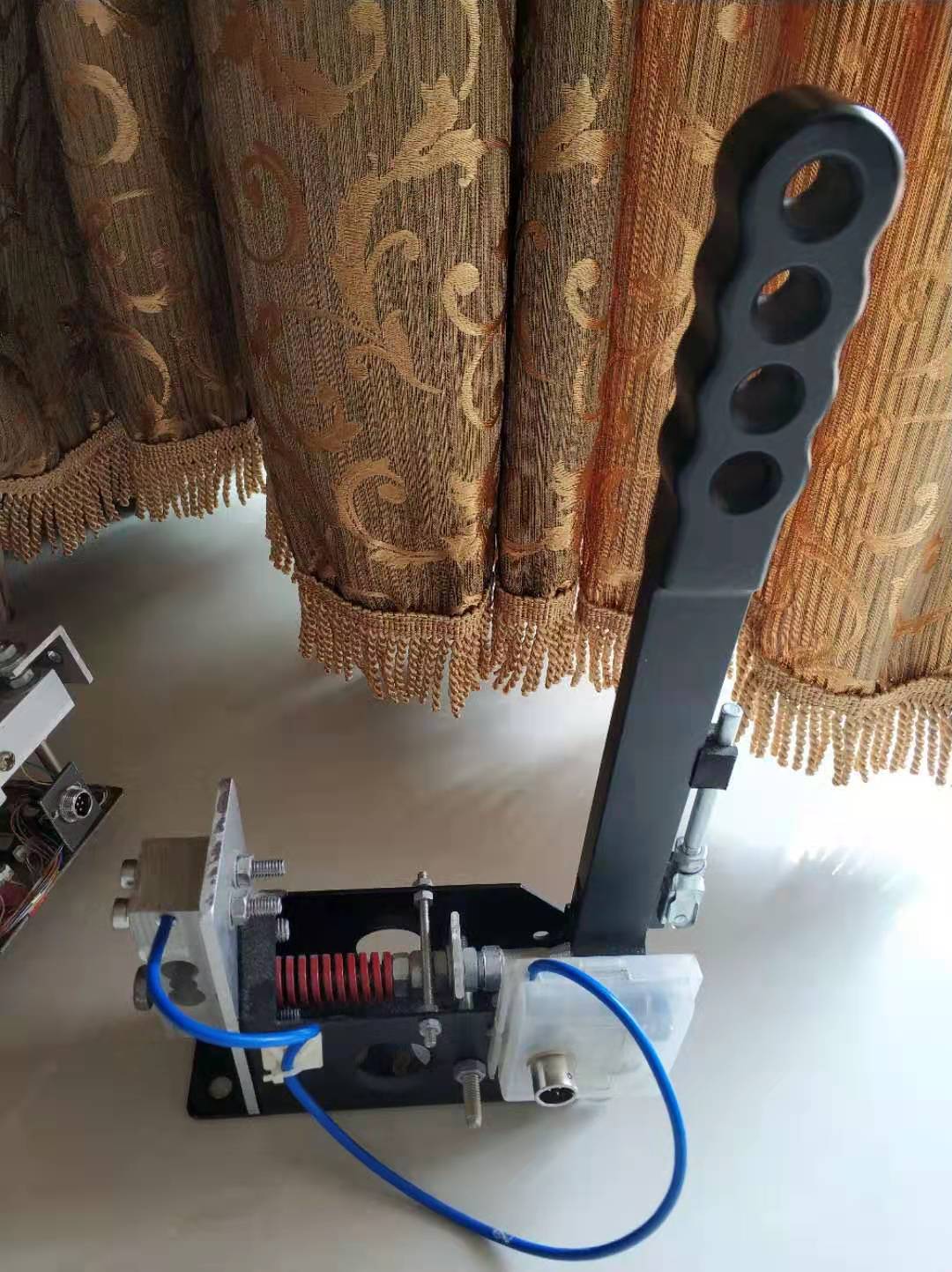

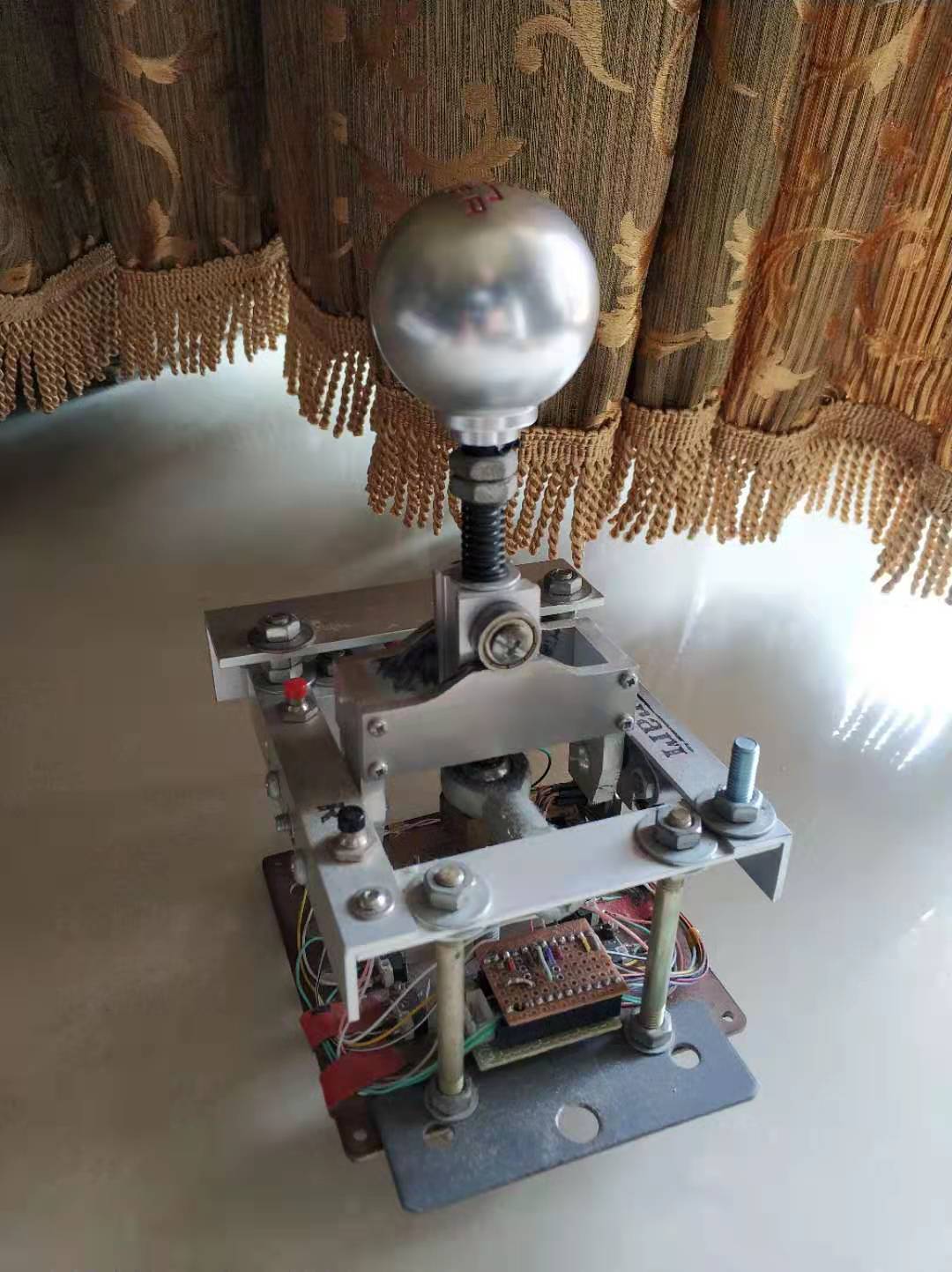

    Handbrake made a few years ago.

    Attached Files:

    • hb.jpg
      File size:
      200.1 KB
      Views:
      130
    • s.jpg
      File size:
      159.4 KB
      Views:
      151
    • Like Like x 2
  14. TL1000S

    TL1000S New Member

    Joined:
    Mar 23, 2016
    Messages:
    25
    Location:
    China
    Balance:
    39Coins
    Ratings:
    +18 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    A little bit of progress.
    3030 aluminum profile. After many years, I finally began to assembly work happily.
    The key parts are reinforced.
    The assembly work will continue tomorrow.

    Attached Files:

    • Like Like x 2
  15. TL1000S

    TL1000S New Member

    Joined:
    Mar 23, 2016
    Messages:
    25
    Location:
    China
    Balance:
    39Coins
    Ratings:
    +18 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

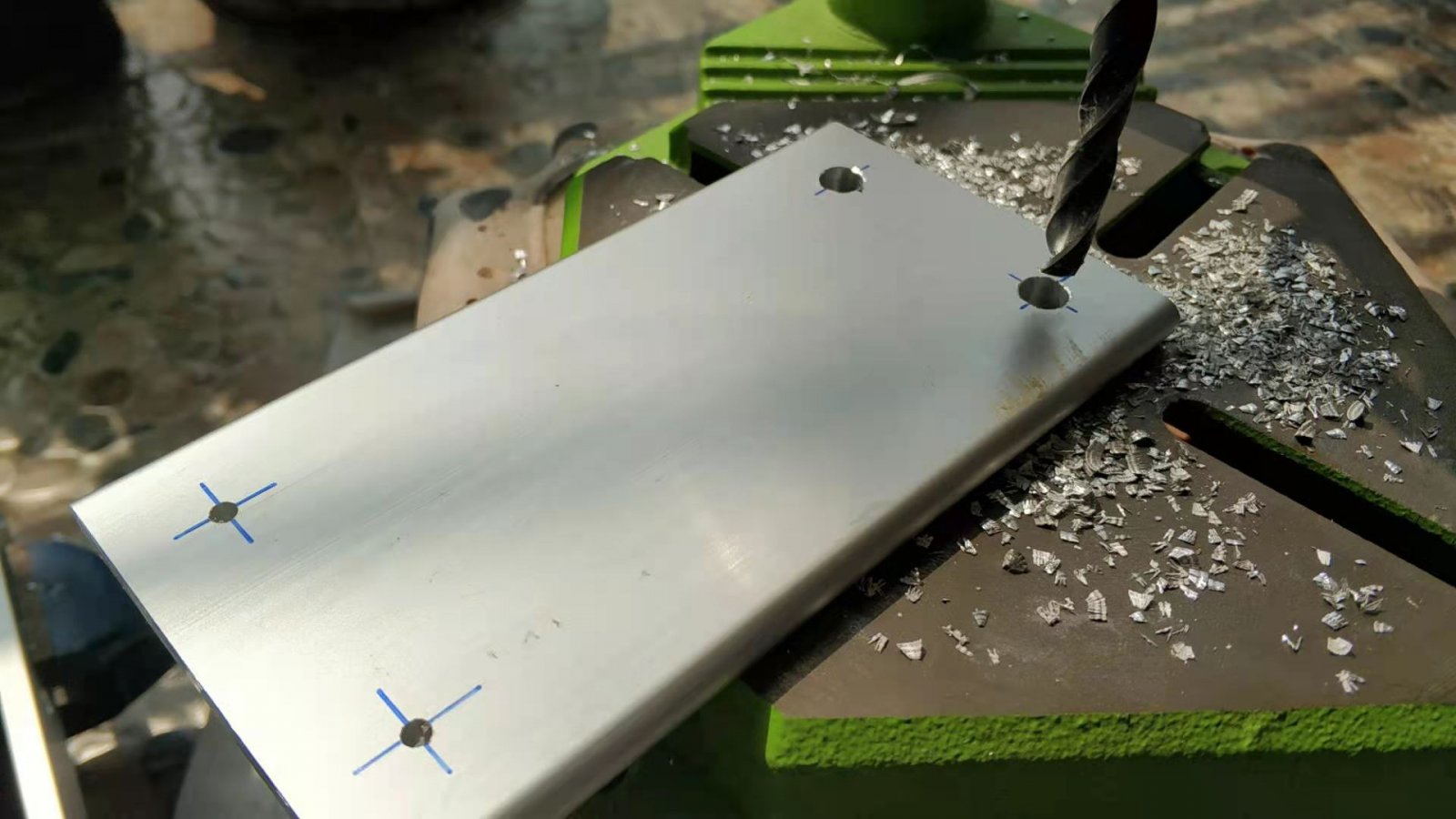

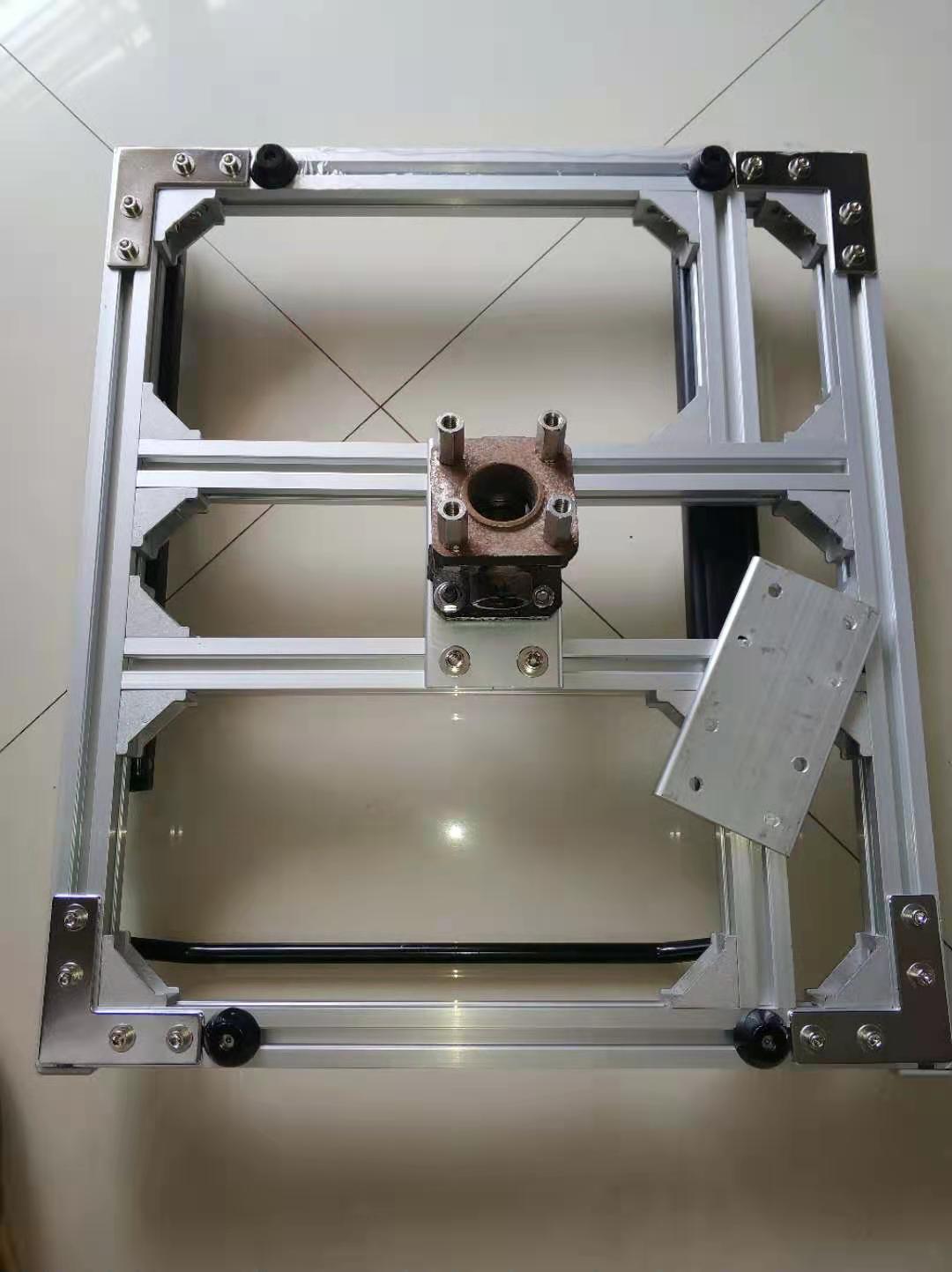

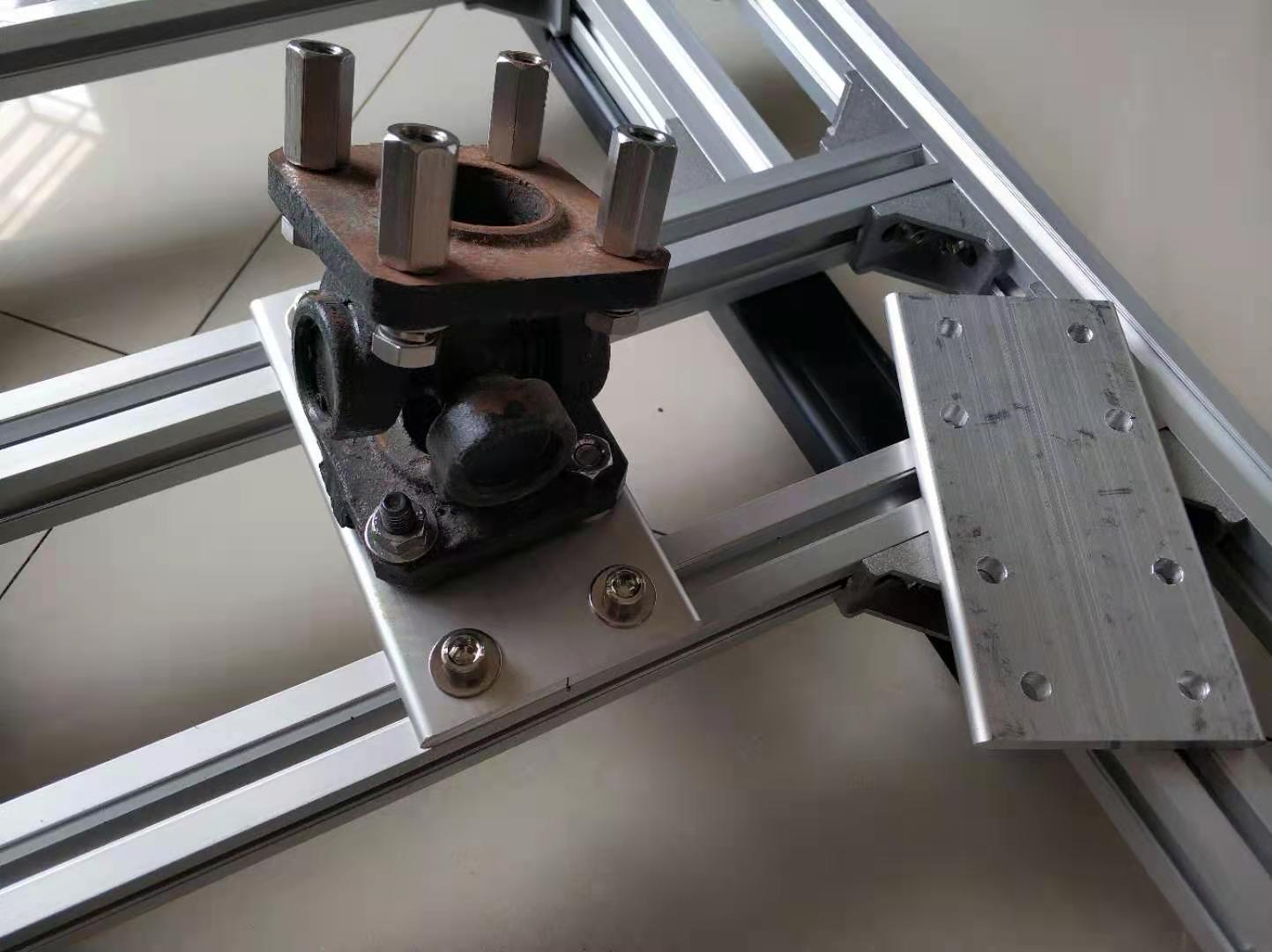

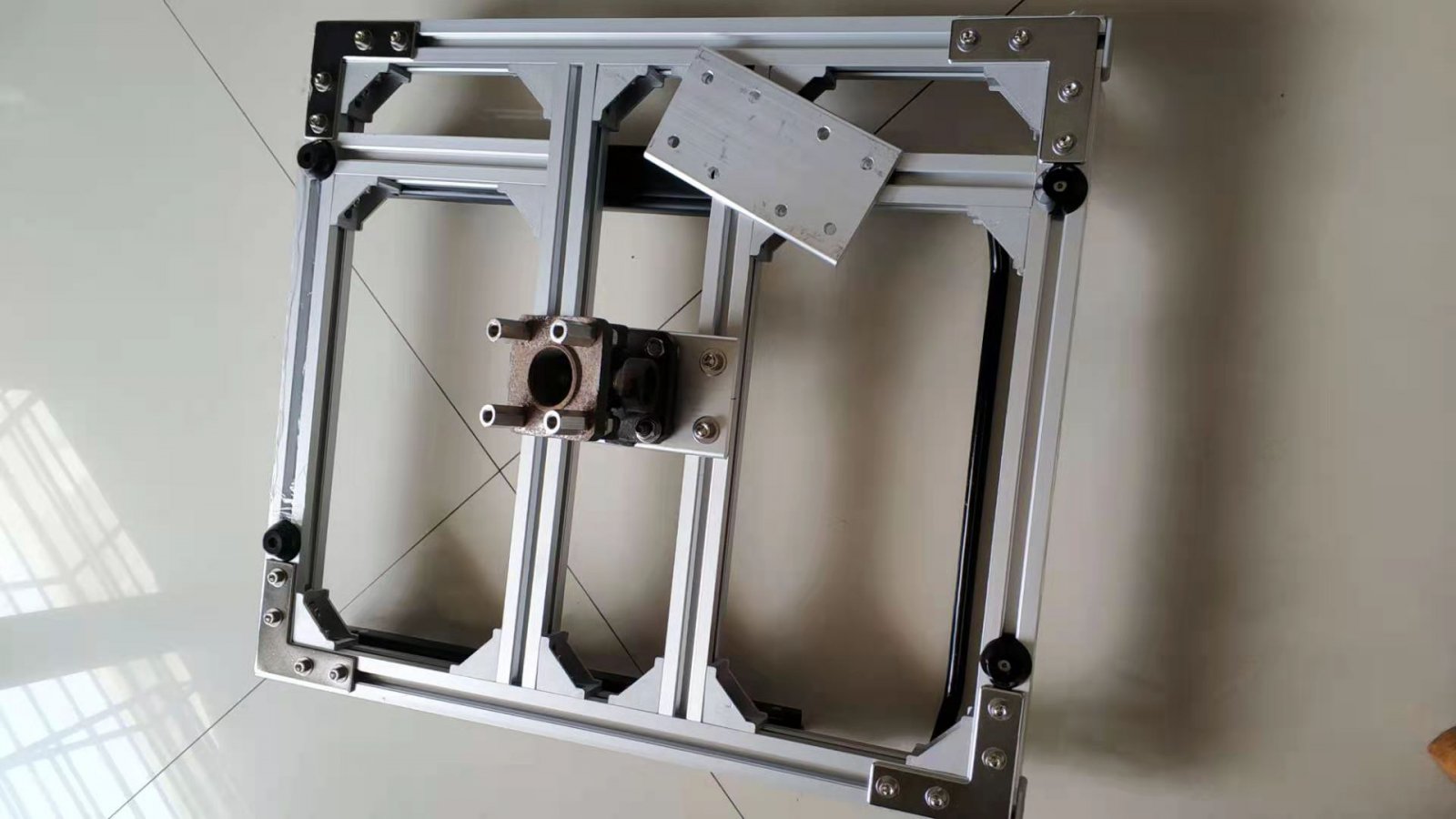

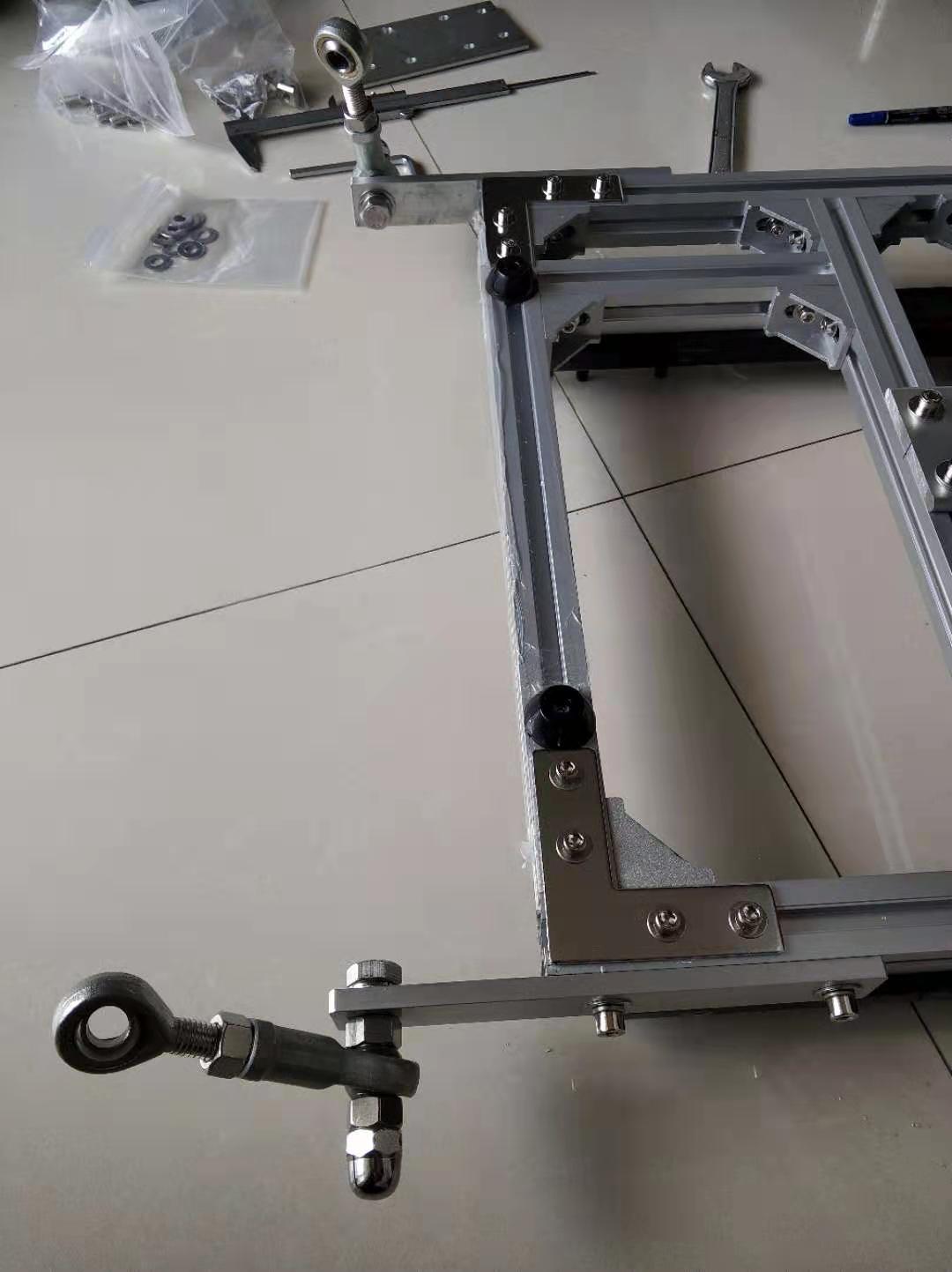

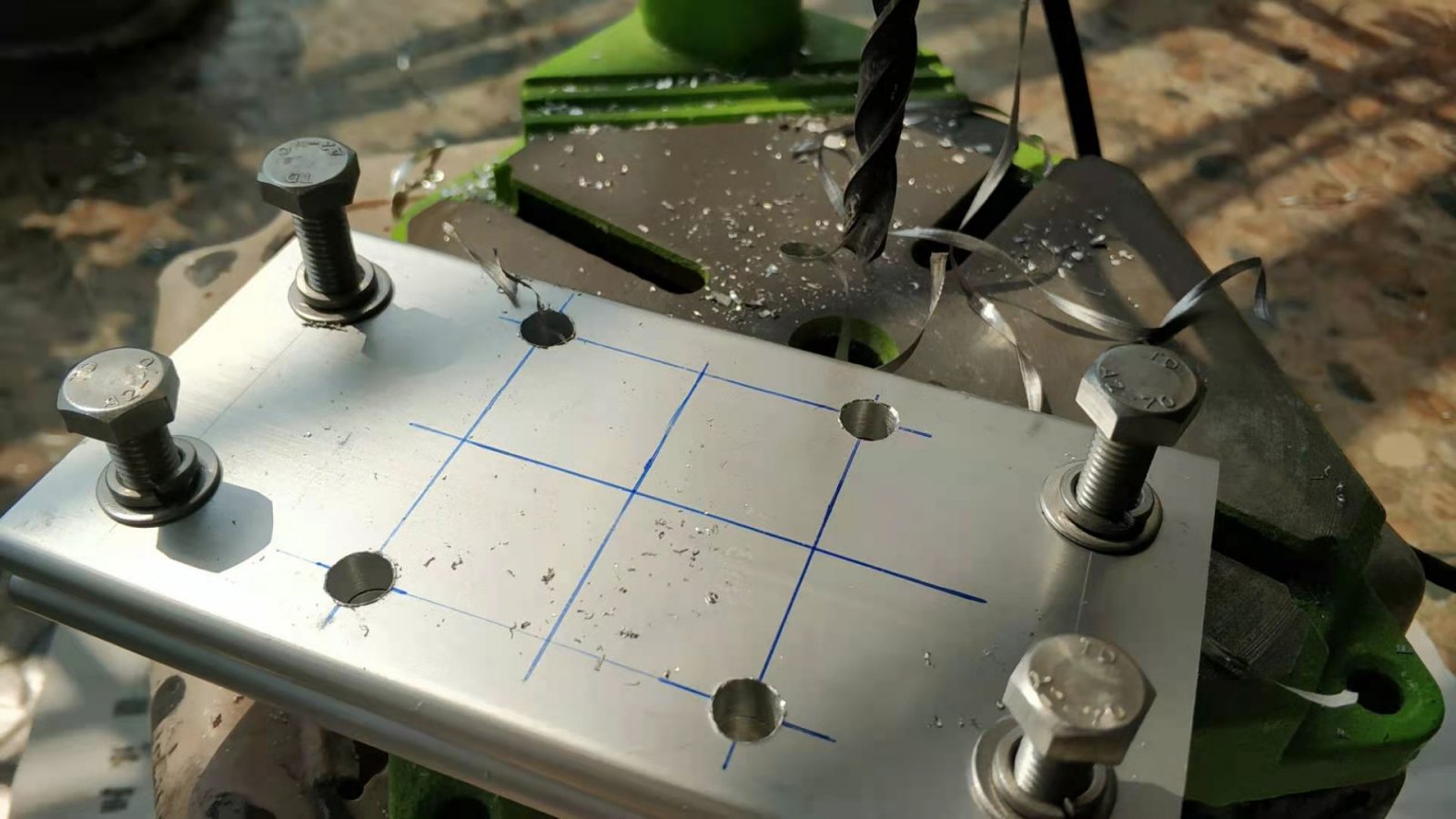

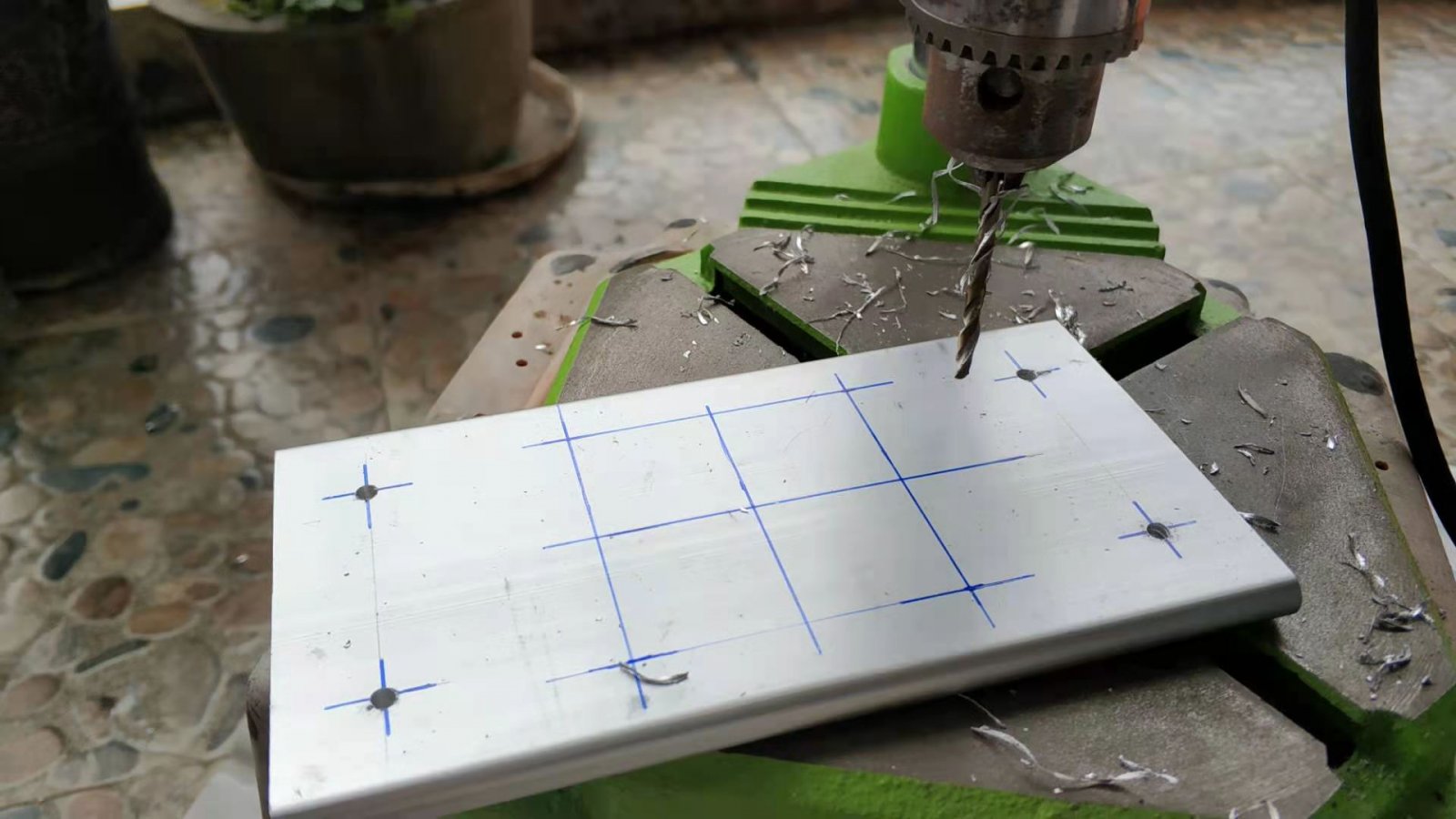

    Processing aluminum.

    Attached Files:

    • a1.jpg
      File size:
      157.8 KB
      Views:
      137
    • a2.jpg
      File size:
      156.6 KB
      Views:
      135
    • a3.jpg
      File size:
      165.9 KB
      Views:
      136
    • a4.jpg
      File size:
      246.3 KB
      Views:
      134
    • a5.jpg
      File size:
      134.1 KB
      Views:
      131
    • a6.jpg
      File size:
      113.4 KB
      Views:
      137
    • a7.jpg
      File size:
      123.2 KB
      Views:
      135
    • a8.jpg
      File size:
      98 KB
      Views:
      147
    • Like Like x 1
  16. TL1000S

    TL1000S New Member

    Joined:
    Mar 23, 2016
    Messages:
    25
    Location:
    China
    Balance:
    39Coins
    Ratings:
    +18 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

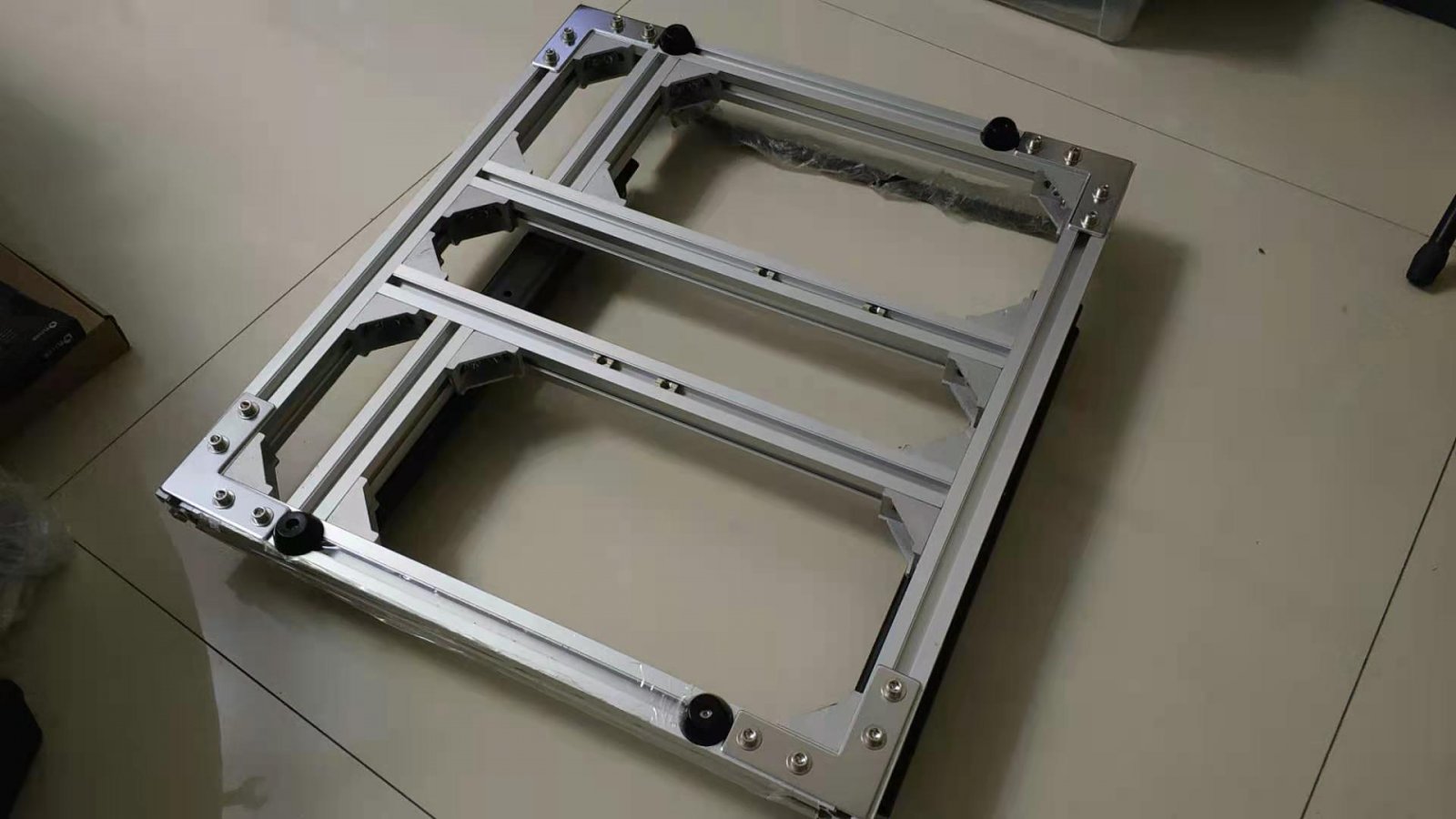

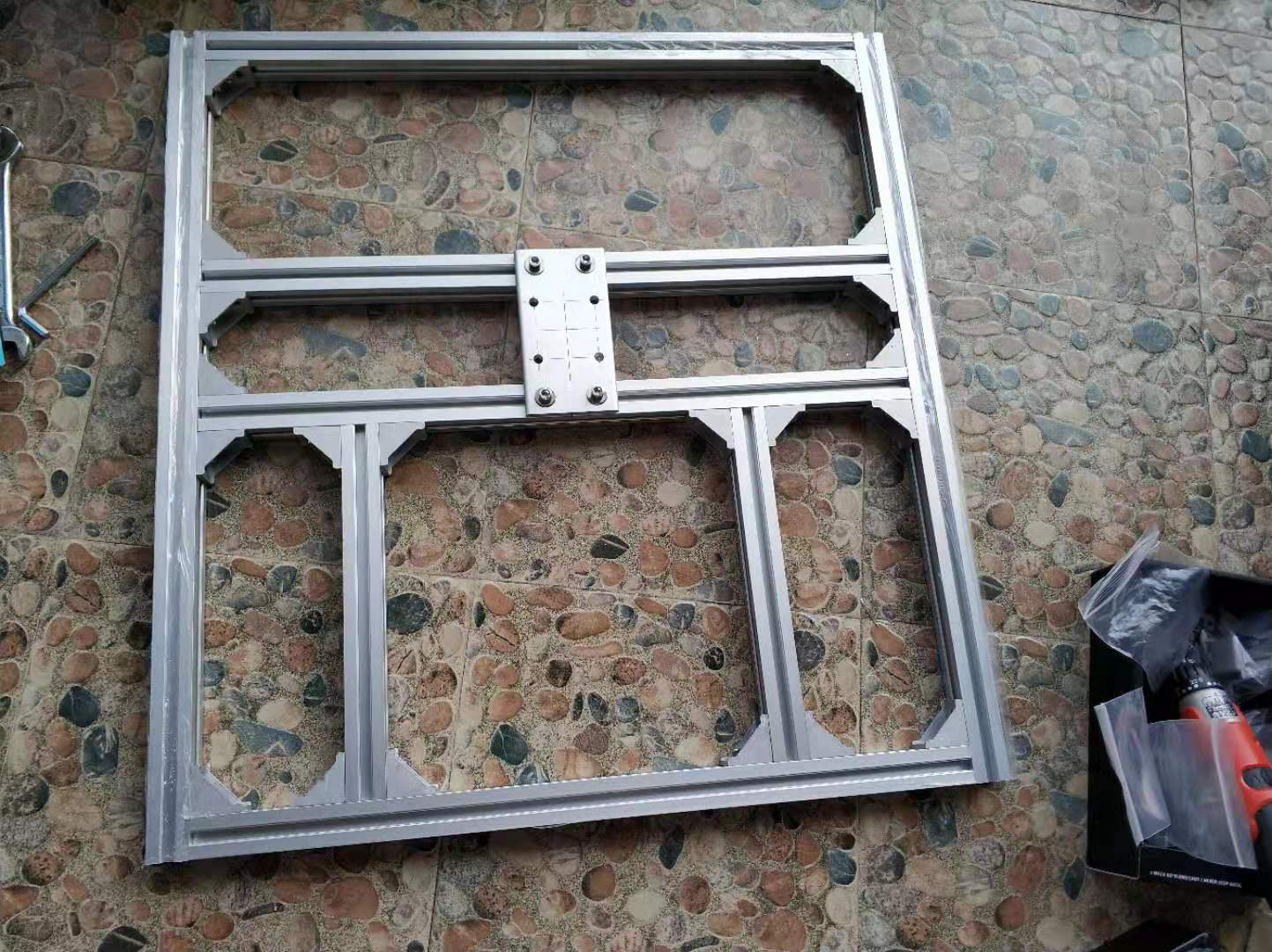

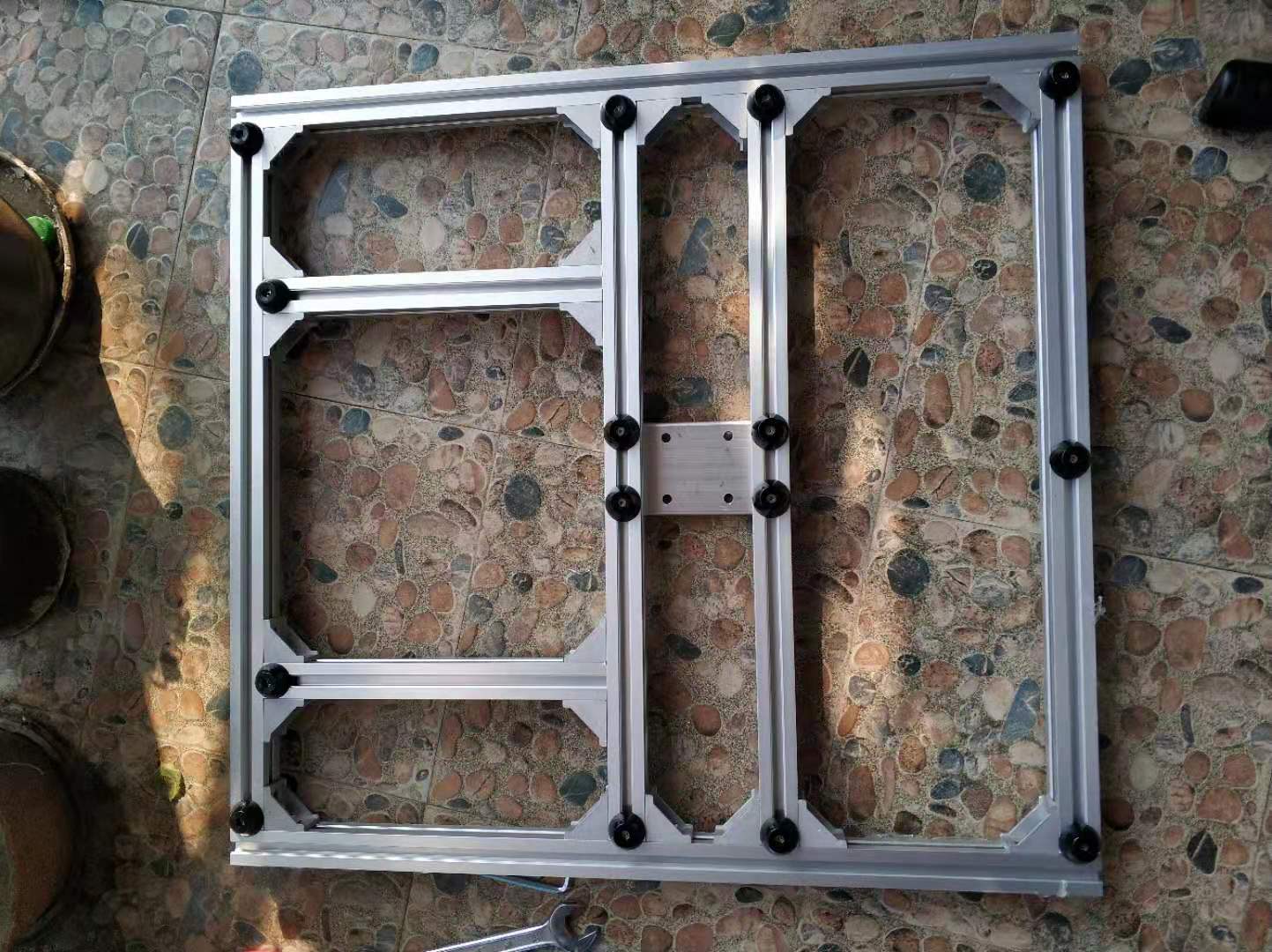

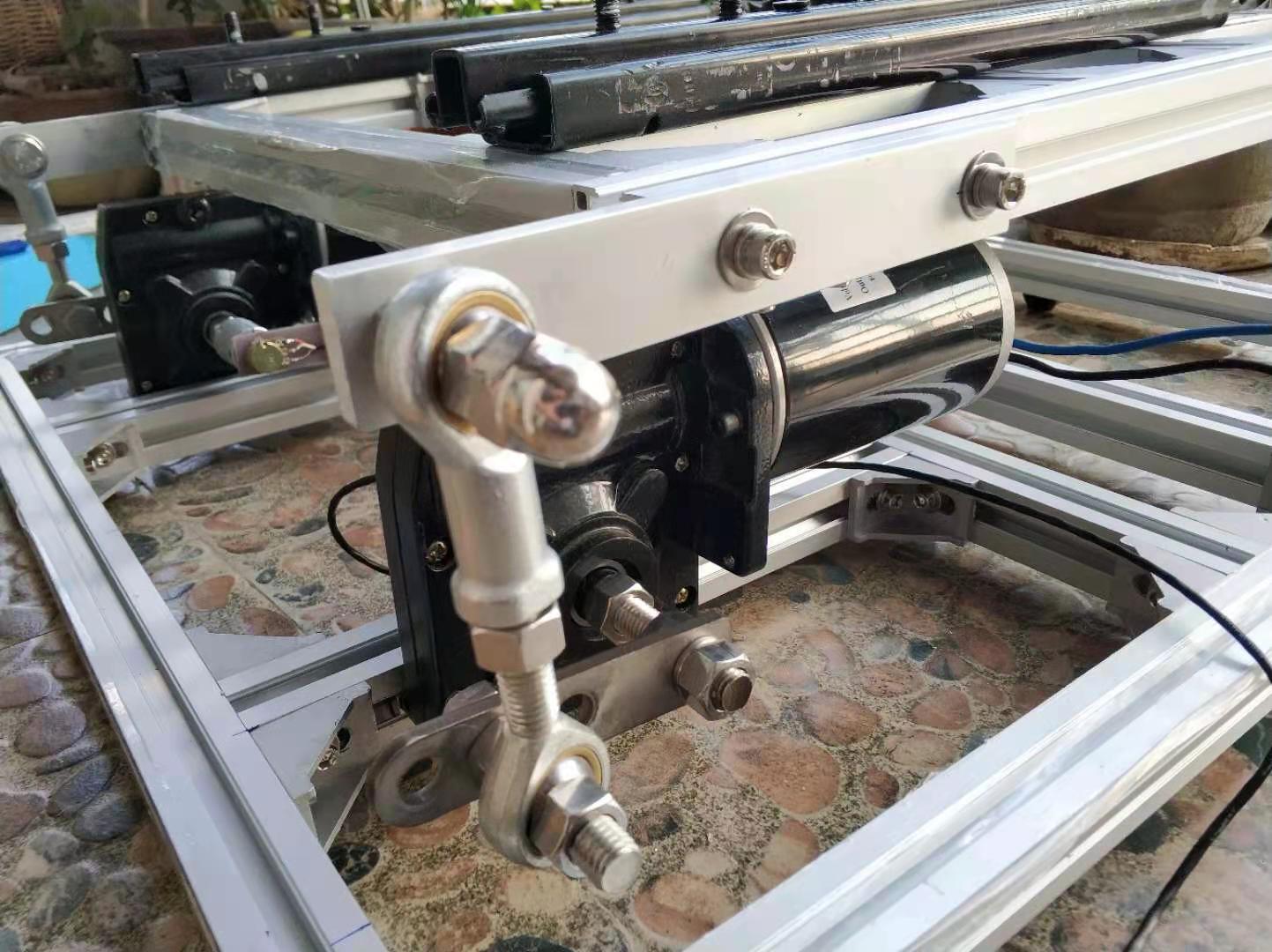

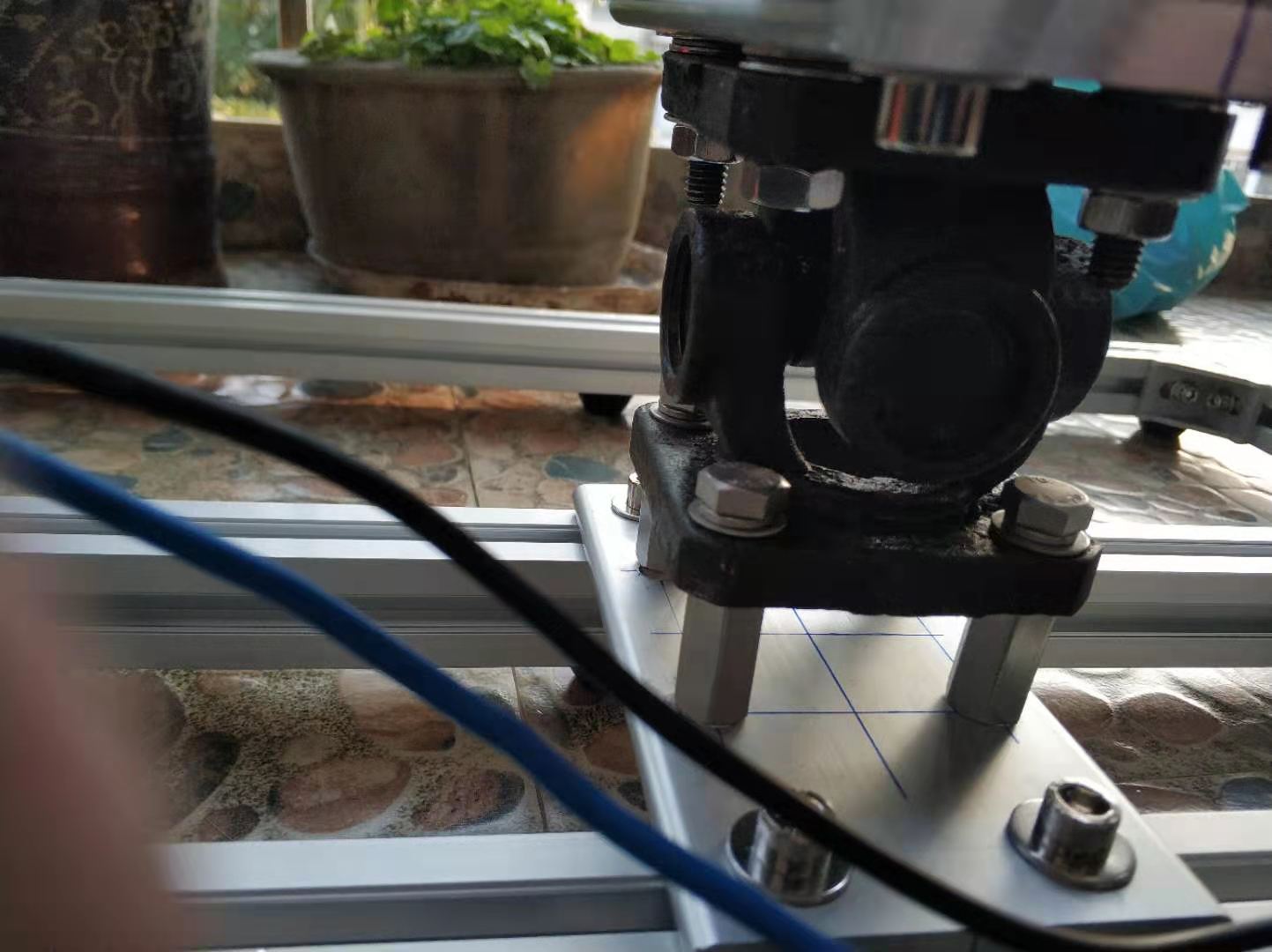

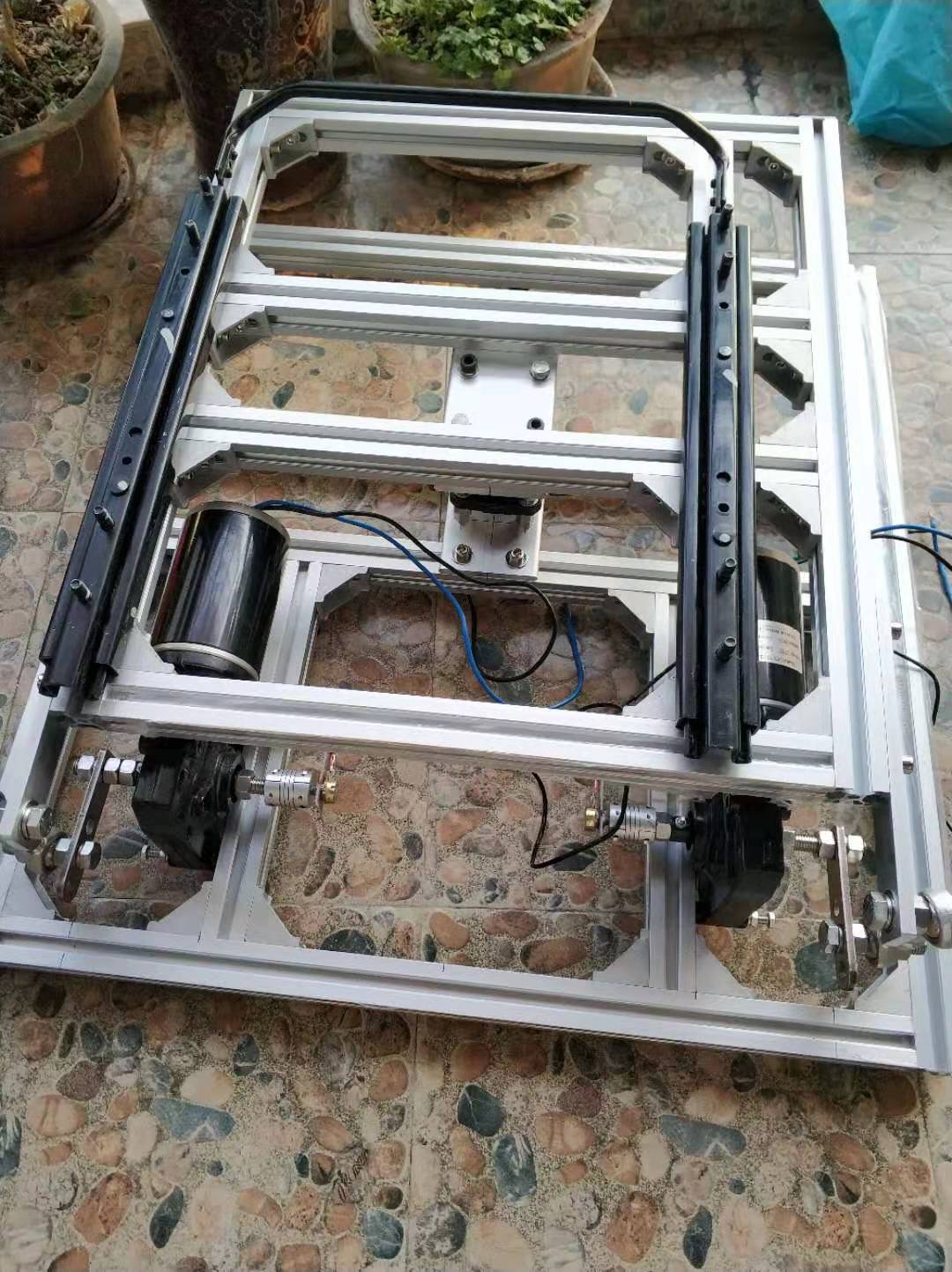

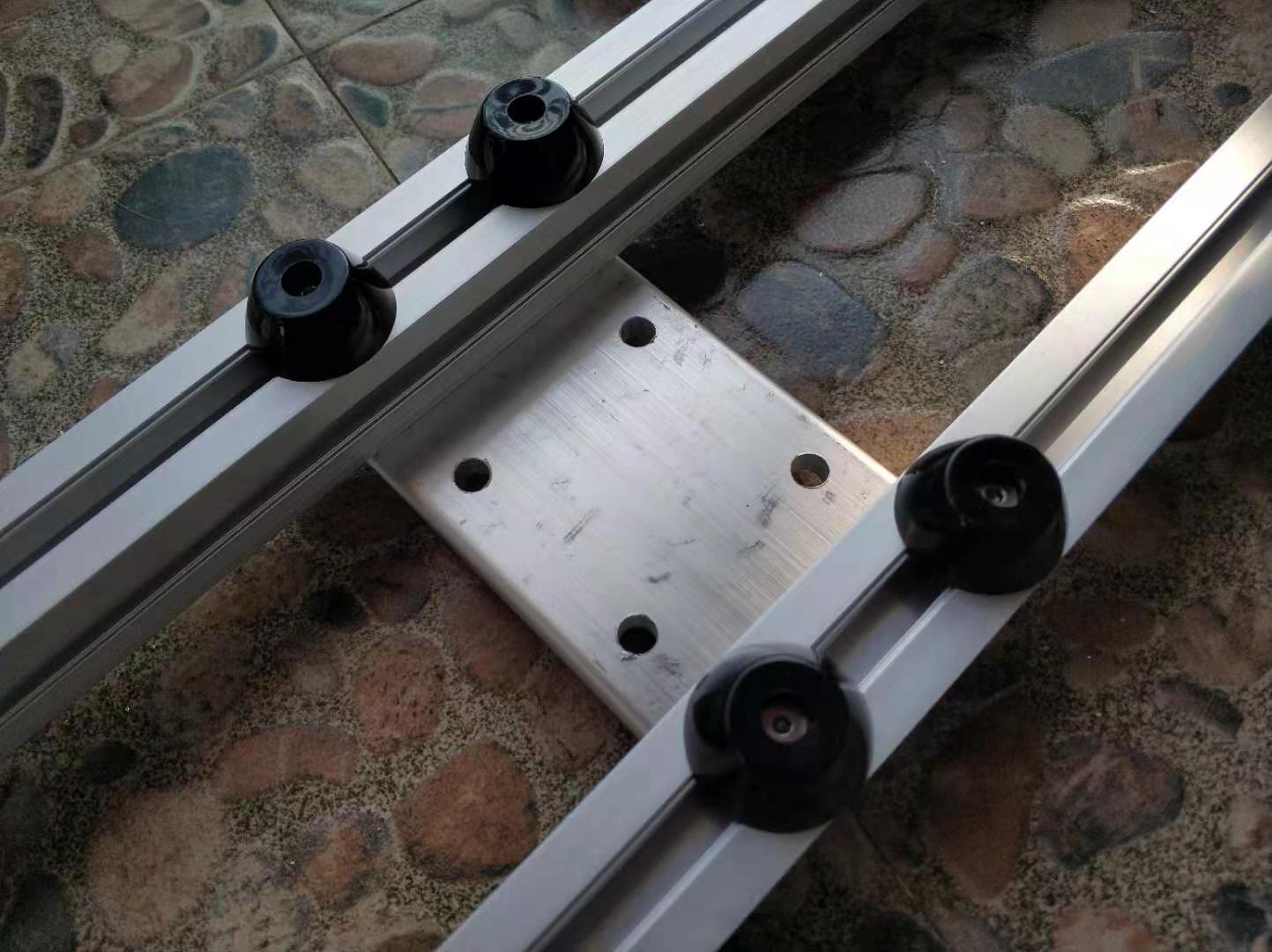

    Continue assembly. The height is not enough,need to buy accessories to improve the height.

    Attached Files:

    • b1.jpg
      File size:
      238.7 KB
      Views:
      130
    • b2.jpg
      File size:
      226.4 KB
      Views:
      139
    • b3.jpg
      File size:
      170 KB
      Views:
      133
    • b4.jpg
      File size:
      229.3 KB
      Views:
      103
    • b5.jpg
      File size:
      139.3 KB
      Views:
      103
    • b6.jpg
      File size:
      200.4 KB
      Views:
      102
    • Like Like x 1
  17. TL1000S

    TL1000S New Member

    Joined:
    Mar 23, 2016
    Messages:
    25
    Location:
    China
    Balance:
    39Coins
    Ratings:
    +18 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

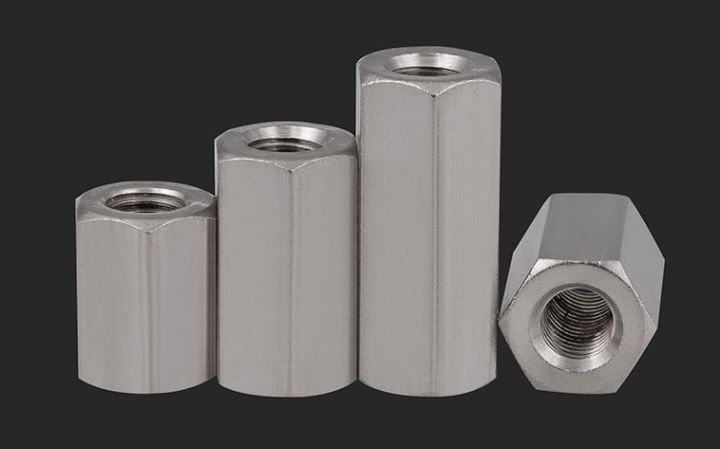

    Buy some of these long ones,have to wait again!

    Attached Files:

    • C1.JPG
      File size:
      27.7 KB
      Views:
      97
  18. TL1000S

    TL1000S New Member

    Joined:
    Mar 23, 2016
    Messages:
    25
    Location:
    China
    Balance:
    39Coins
    Ratings:
    +18 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

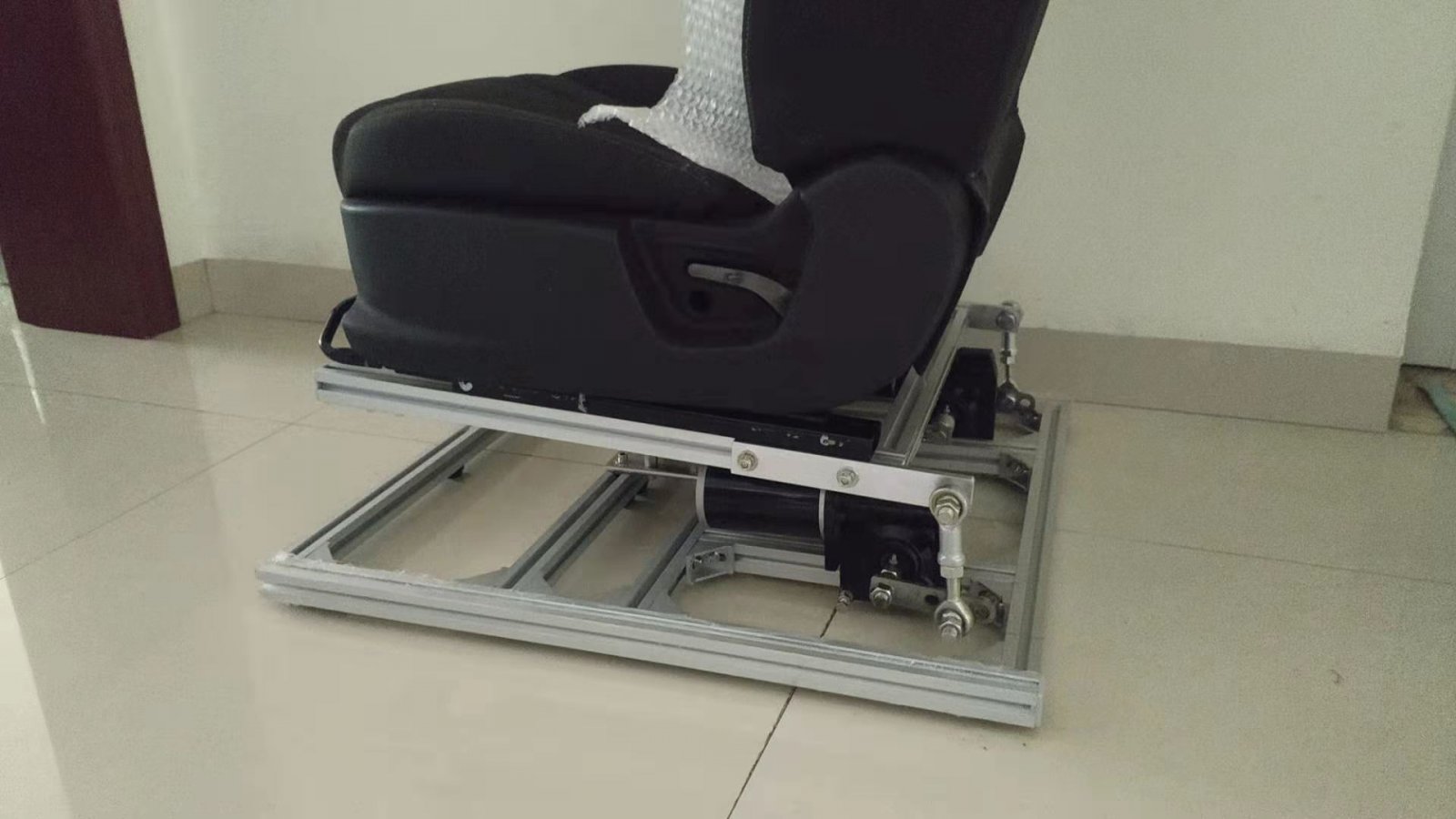

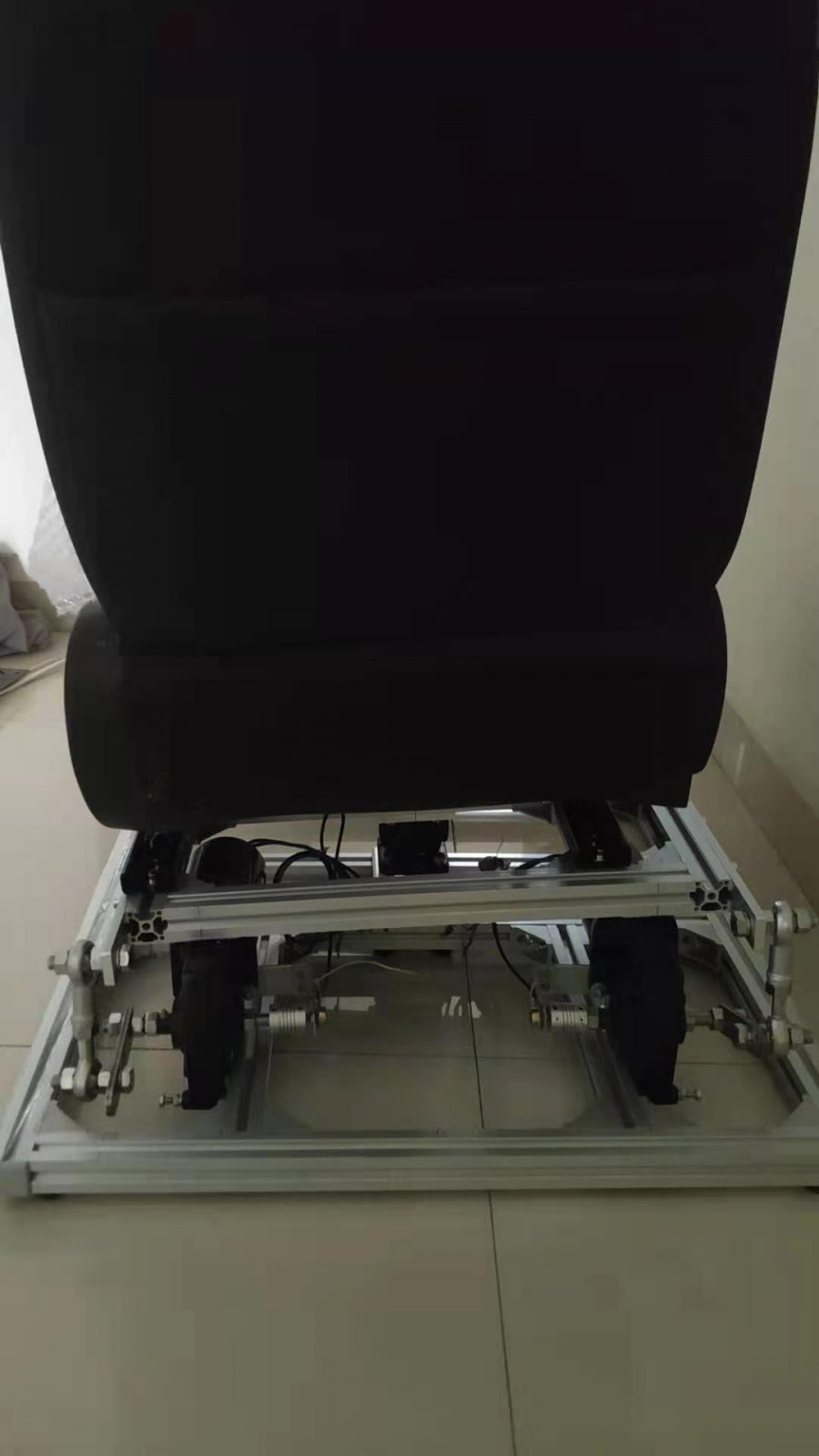

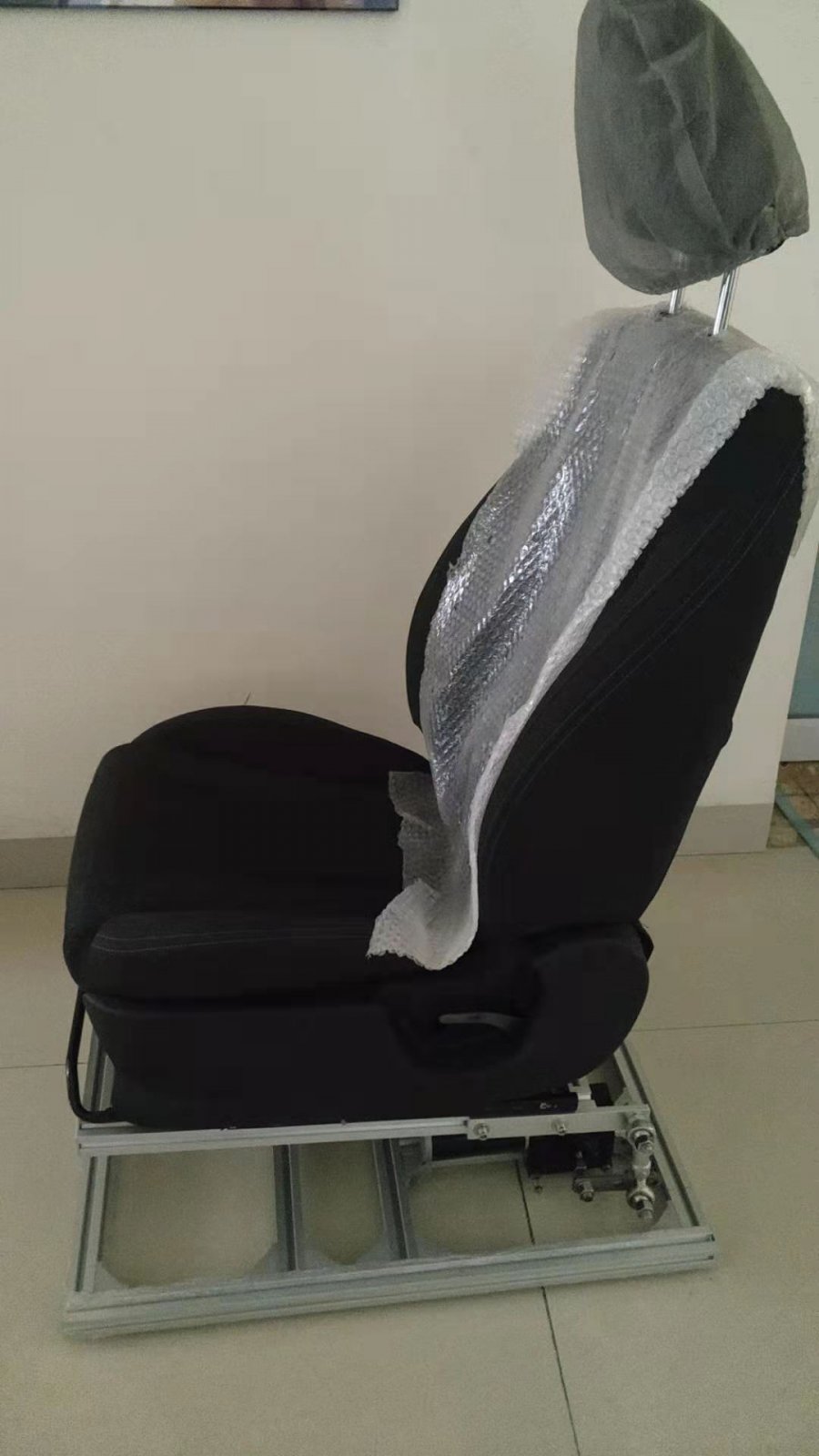

    The accessories haven't arrived yet. I can't help but put them together to see the overall effect.
    When it's completely installed, power on and test the machine. Keep waiting!

    Attached Files:

    • d1.jpg
      File size:
      78.4 KB
      Views:
      101
    • d2.jpg
      File size:
      137.4 KB
      Views:
      100
    • d3.jpg
      File size:
      162.4 KB
      Views:
      97
    • d4.jpg
      File size:
      120.7 KB
      Views:
      91
    • Like Like x 1
  19. TL1000S

    TL1000S New Member

    Joined:
    Mar 23, 2016
    Messages:
    25
    Location:
    China
    Balance:
    39Coins
    Ratings:
    +18 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

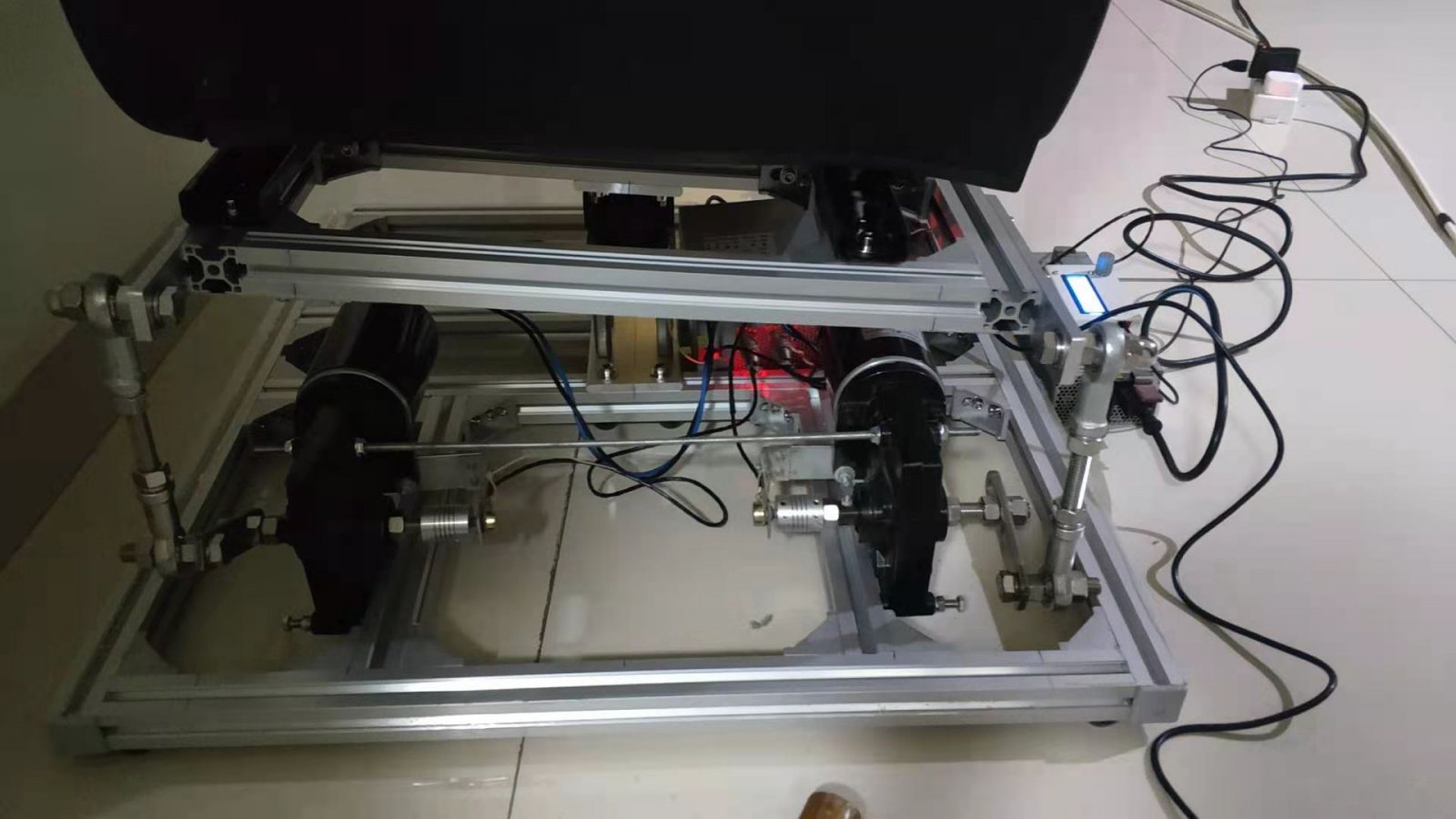

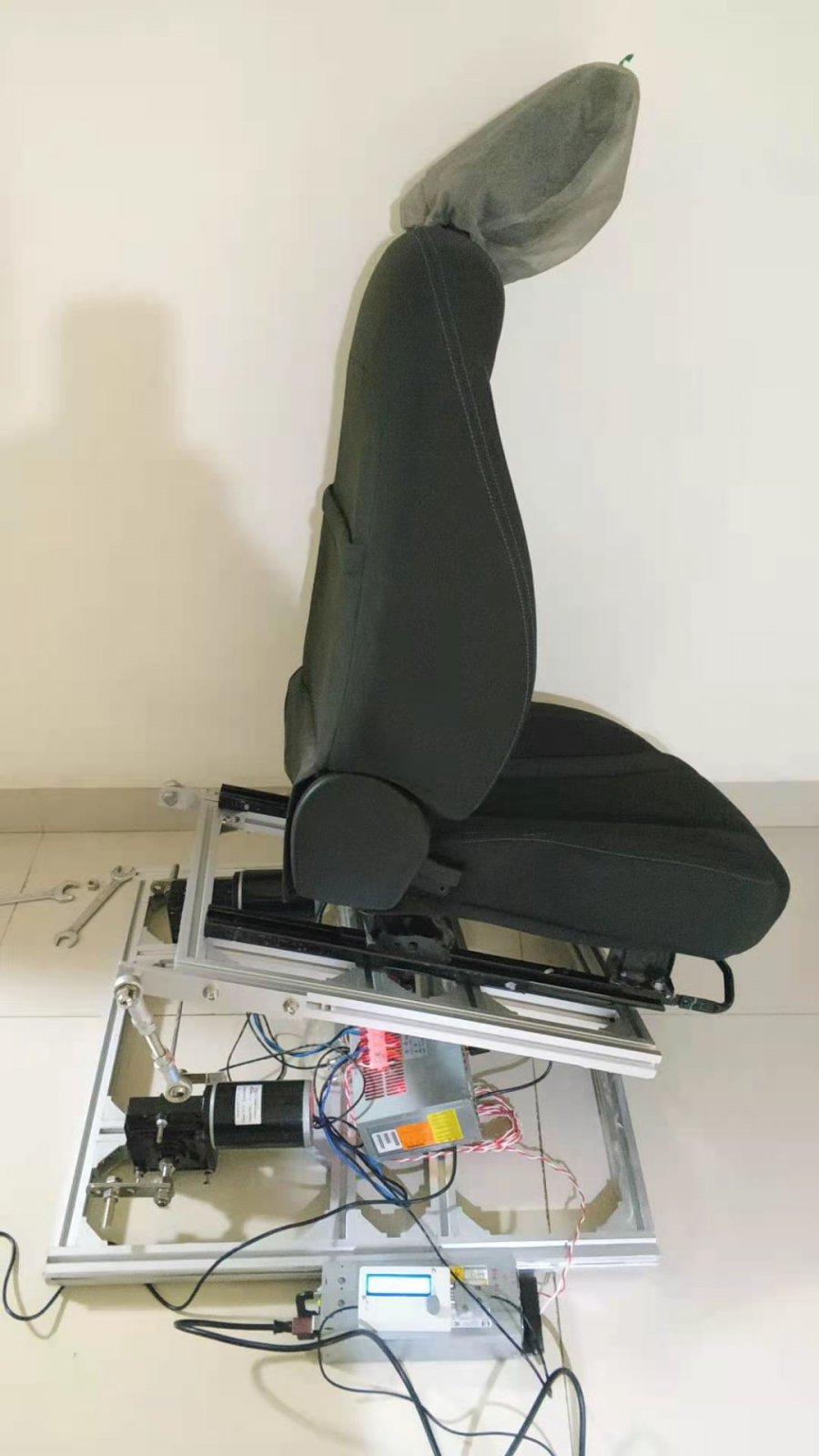

    Power on test. The motor shakes a little. There's nothing else wrong. There's no time for the game test.

    Attached Files:

    • e1.jpg
      File size:
      126.2 KB
      Views:
      110
    • e2.jpg
      File size:
      166.8 KB
      Views:
      105
    • e3.jpg
      File size:
      145.3 KB
      Views:
      101
    • Like Like x 1
  20. TL1000S

    TL1000S New Member

    Joined:
    Mar 23, 2016
    Messages:
    25
    Location:
    China
    Balance:
    39Coins
    Ratings:
    +18 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

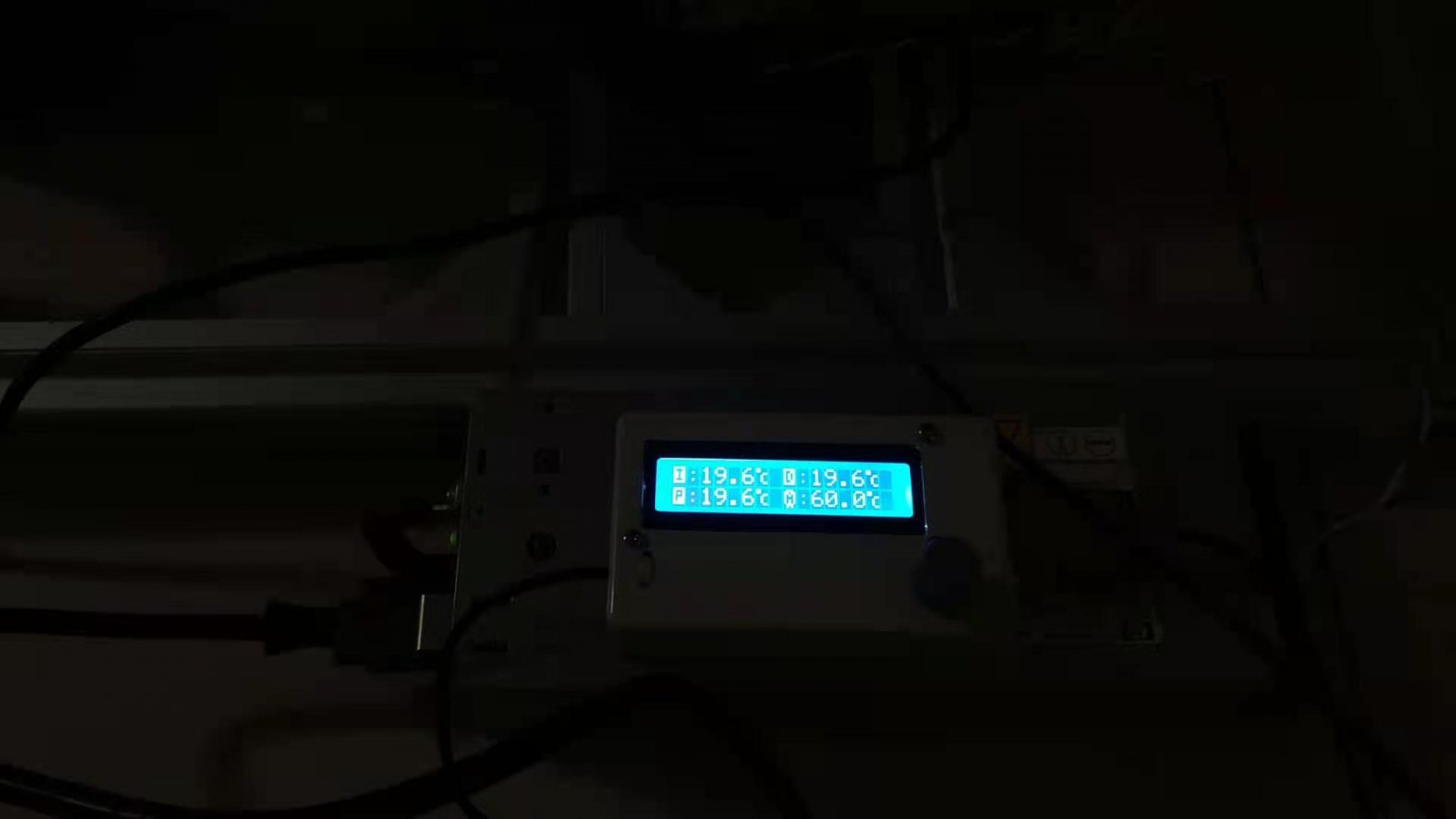

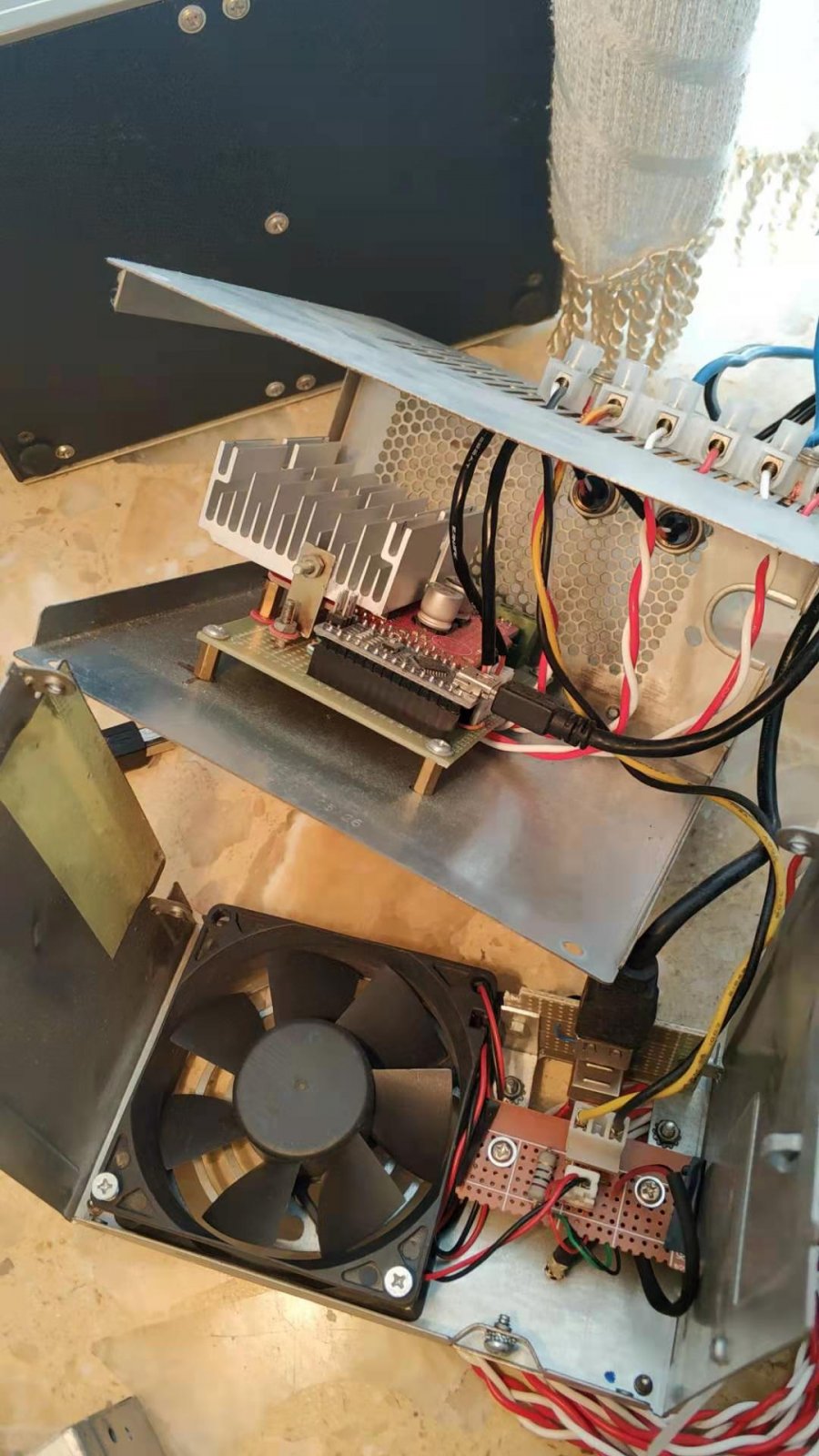

    A simple temperature monitoring and alarm device is made for fear of overheating and burning of the monster motor driver module. It specially monitors the temperature of mm and motor, and alarms when it exceeds the set value.

    Attached Files:

    • e4.jpg
      File size:
      51.7 KB
      Views:
      86
    • Like Like x 1
