360 Degree Flight Simulator Home build

Discussion in 'DIY Motion Simulator Projects' started by FattySteve, Jun 19, 2015.

  1. ferslash

    ferslash Active Member

    Joined:
    Feb 8, 2011
    Messages:
    464
    Balance:
    4,519Coins
    Ratings:
    +165 / 2 / -0
    yes video please :D
  2. SeatTime

    SeatTime Well-Known Member SimTools 2.0 Beta Tester

    Joined:
    Dec 27, 2013
    Messages:
    2,034
    Location:
    Newcastle Australia
    Balance:
    25,397Coins
    Ratings:
    +2,343 / 20 / -0
    My Motion Simulator:
    DC motor, Motion platform, 6DOF
    This is turning out to be a very professionally built Sim :thumbs - wish we all had access to a 'Shifu' :). Will you drive directly off the motors gearbox or via a chain as I have seen on similar builds? I have never been a fan of chain drives due to all the flex they introduce into a sim (although with this type of sim a bit of flex may be a good thing to save your neck), although if you are building on a budget and cannot get the gearbox that you need then sometimes you don't have a choice.
  3. Chriss

    Chriss IntMech

    Joined:
    May 7, 2016
    Messages:
    32
    Location:
    Bolivia
    Balance:
    - 35Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino, 4DOF
    hello friend, is a great project, I am also working on one, but what most difficulty I have is energy, and plugins must be a calculation of 360, I wish you could share your progress, and I think that the cost is low compared to sales prices in china are minimum $ us. 10000, here in my country it could cost me around $ us. 1500 - 2000, go ahead, talves we could help each other to realize this project.
  4. ftnet305

    ftnet305 New Member

    Joined:
    Dec 16, 2016
    Messages:
    1
    Location:
    Nürnberg, Germany
    Balance:
    26Coins
    Ratings:
    +1 / 0 / -0
    Hello, how are your results by now? I am (was) thinking about setting up a small VR-Arcade (once higher resolution VR headsets are available) with 2 x 720 degree simulators as a friend of mine owns a busy cafe with enough space to integrate it. There is also a huge parking lot, 2 fast food restaurants and a shopping center right next to with around 12.000 visitors every day. So location would be good. Also there would be no costs for personnel and rent as he would get a split of the profits in addition to attract more clients to come to his cafe. We made a 4 weeks survey asking his clients if they are interested and how much they would be willing to spend for a ride (result: 15 to 20 € per hour gaming / or per 360 degree video session of 30 to 45 min). These results are promising especially with good marketing support and online booking. Yet I asked for a quote at a professional maschine build shop (15 employees) owned by a guy I know from university time. It took him a rough week to come up with the estimate: 45.000 € for a 720 degree simulator including hive functionality. This is parts only price without profit for the shop, necessary CAD construction, stress analysis, shop labor and VAT rising the price to a rough but yet friend´s price of 85.000 € . The shop´s guarentee to get commercial approval from the authority for public entertainment including licensing fees and technical inspection would add approximately 5.000 €. Adding another very low calculated 10.000 € for VR headset, computer hardware, marketing material, website and basic software setup ends up at a 100.000 € (or somewhere around 200k for 2 simulators!). The final hit was the licensing policies of the game developers. For a one year commercial license they want you to pay somewhere from 1.500 € up to 3.000 € (Project Cars, F1 2017). Flight simulation is not such a problem as these are one time payments but you run into problems with the add ons which are often not available for commercial use. Il 2 Sturmovik does not allow commercial use, neither does Arma. P3D is not allowed for entertainment use and so on.... Finally I found the Steam VR commercial site for VR-Arcades etc. Pretty much all content is low quality and high price (like games from the 90s) and if clients want to play state of the art games they need to buy the game themself but thereafter can use it in the arcade. Could work but cuts severely on possible client base. I thought these insights of a business simulator project might be nice to know, so I shared it here. At the moment I do not have the money to get this started and with these initial costs the price for consumers I would need to ask for a ride (average 30 € per hour, 50% utilization, 12 hours open per day) would probably be to high to attract enough continous utilization in order to make the business a success...
    • Agree Agree x 1
  5. alexmouj

    alexmouj New Member

    Joined:
    Mar 28, 2017
    Messages:
    2
    Occupation:
    Moscow
    Location:
    Russia
    Balance:
    72Coins
    Ratings:
    +2 / 0 / -0
    Hi! What kind of motor do you finally used? Is it asynchronous one with encoder? How you contorol it? Whats power? How fast is reaction? Please tell more about result
  6. alexmouj

    alexmouj New Member

    Joined:
    Mar 28, 2017
    Messages:
    2
    Occupation:
    Moscow
    Location:
    Russia
    Balance:
    72Coins
    Ratings:
    +2 / 0 / -0
    As for safety, I suppose, it must be a solution in this way

    Otherwise it must be a safe guard on out site and in site.
    Also it's doesn't need any gear, because small drive weel and big sphere make together good gear ratios.
    That means, motors must be not so powerfull
    • Like Like x 2
  7. RandomCoder

    RandomCoder Active Member Gold Contributor

    Joined:
    Feb 19, 2017
    Messages:
    185
    Occupation:
    Control Engineer
    Location:
    UK
    Balance:
    1,539Coins
    Ratings:
    +138 / 0 / -0
    I don't have a simulator (yet), still researching, but I think that maybe you missed a zero off the end of this sum? It's looks more likely to cost in the region of $15,000 rather than $1,500 to me.
    I'm also surprised that no body has mentioned routing of the cables for power and positional feedback. Too many turns in the same direction and you'll quickly damage cables, therefore you may need to look into using slip ring connections, and these don't come cheap!
    http://www.slipring.co.uk/types/

    The alternative is to limit the number of turns in one direction and then try to return to the reference position. But this might not be possible without ruining the game experience?

    Very nice looking simulator and congratulations on such a well built machine.
  8. Chriss

    Chriss IntMech

    Joined:
    May 7, 2016
    Messages:
    32
    Location:
    Bolivia
    Balance:
    - 35Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino, 4DOF

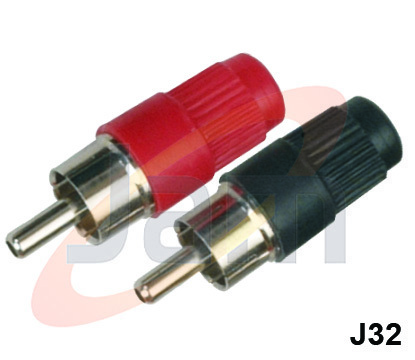

    Good to solve the connections, you can use the microphone plugs, or also use the plugs of rca, or those used in hair dryers, here are some pics:
