360 Degree Flight Simulator Home build

Discussion in 'DIY Motion Simulator Projects' started by FattySteve, Jun 19, 2015.

  1. FattySteve

    FattySteve New Member

    Joined:
    Jun 18, 2015
    Messages:
    20
    Location:
    YinChuan
    Balance:
    153Coins
    Ratings:
    +6 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF
    Hi,Guys.
    I plan to build a 2 Dof Flight simulator.
    well the whole progress may take a long~long~time because i'm still a student and have to graduate and deal with evil homework.:(But...I will continue it till finished.

    I try to build it in steel.One of my friends family fix cars and its rather easy for him or his father or his grandpa to make one.:)....BTW especially his grandpa..may be the most experienced engineer i met..not the type in school but the type who really fix cars.

    Hope this Recording Thread can help you.
    Sorry for my poor English(Also helped by google)
  2. FattySteve

    FattySteve New Member

    Joined:
    Jun 18, 2015
    Messages:
    20
    Location:
    YinChuan
    Balance:
    153Coins
    Ratings:
    +6 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF
    Last edited: Jun 19, 2015
  3. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator SimTools 2.0 Beta Tester

    Joined:
    Jul 13, 2014
    Messages:
    11,780
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    91,521Coins
    Ratings:
    +7,693 / 37 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    • Like Like x 1
  4. wokcz

    wokcz New Member

    Joined:
    May 29, 2015
    Messages:
    27
    Location:
    Argentina
    Balance:
    130Coins
    Ratings:
    +14 / 0 / -0
    I was recently watching a vid of something like this design:



    If you can pull it off it would be an amazing simulator, but I am guessing the main components for this are REALLY expensive.
  5. FattySteve

    FattySteve New Member

    Joined:
    Jun 18, 2015
    Messages:
    20
    Location:
    YinChuan
    Balance:
    153Coins
    Ratings:
    +6 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF
    The one on your vedio is..more complicated than what i designed ....may be the simple one will be cheaper?
    but. maybe not cheap a lot.how much will make everyone feel its cheap that can DIY themsleves?
    1500 dollars? or...less?
  6. FattySteve

    FattySteve New Member

    Joined:
    Jun 18, 2015
    Messages:
    20
    Location:
    YinChuan
    Balance:
    153Coins
    Ratings:
    +6 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF
    WOW! so cute!!!
    I'm agree with you!
    Actually in my plan the first step is to build an 1:5 or 1:8 model with alunimiun parts and little motors.
    Sorry about the Wrong tittle.. I thouth in ME...that there's roll and pitch free to move so named by 2DOF..
    • Like Like x 1
  7. cit

    cit New Member

    Joined:
    May 24, 2015
    Messages:
    6
    Location:
    Germany
    Balance:
    514Coins
    Ratings:
    +2 / 0 / -0

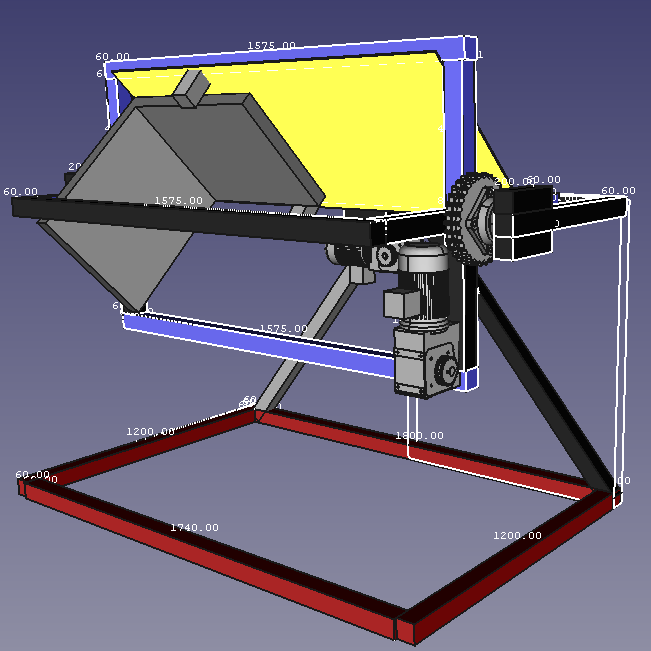

    i Plan this to. final1.PNG
    don´t forget the chain and gear.
    cause the dimension will change a bit.
    • Like Like x 2
  8. cit

    cit New Member

    Joined:
    May 24, 2015
    Messages:
    6
    Location:
    Germany
    Balance:
    514Coins
    Ratings:
    +2 / 0 / -0

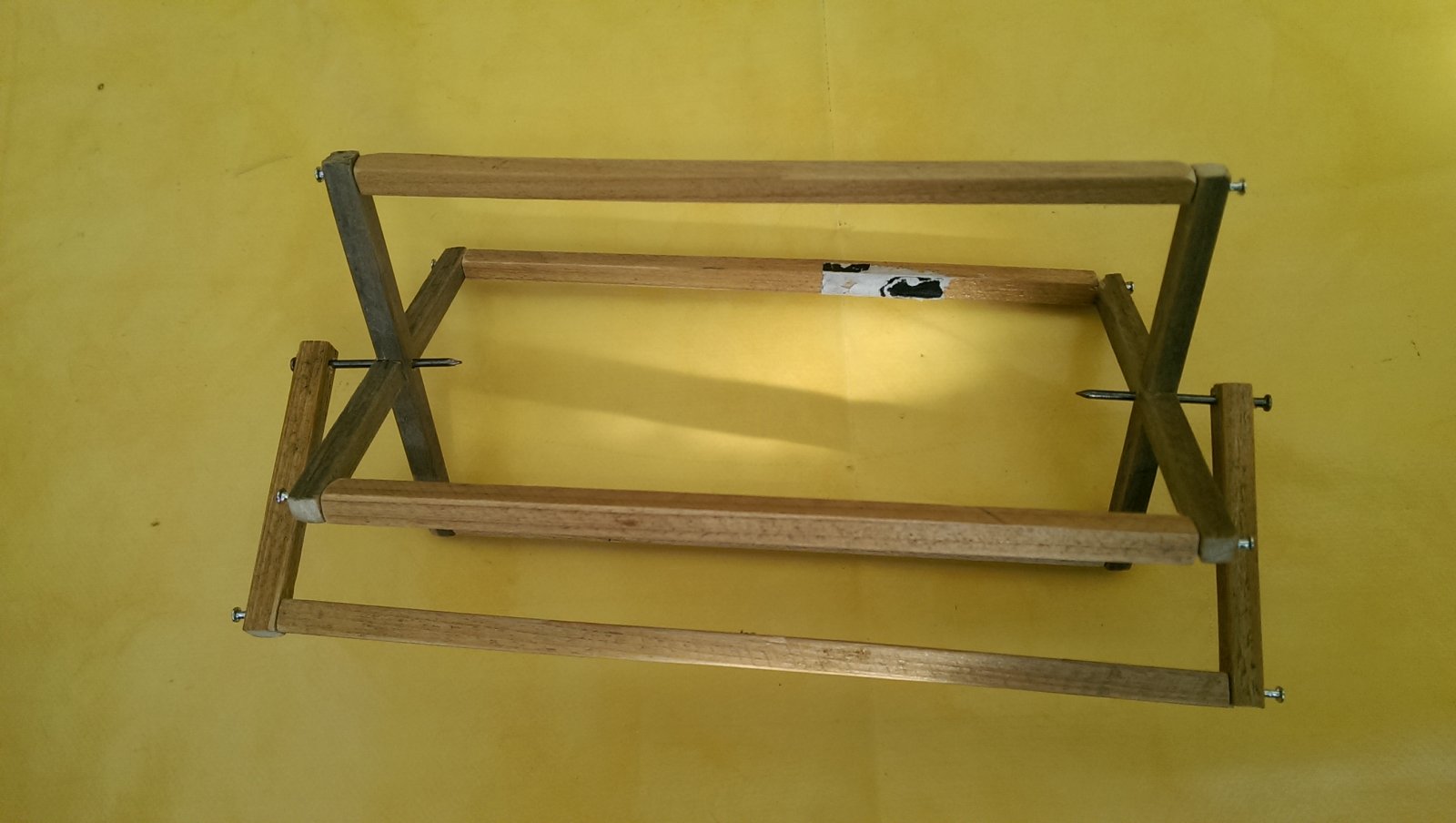

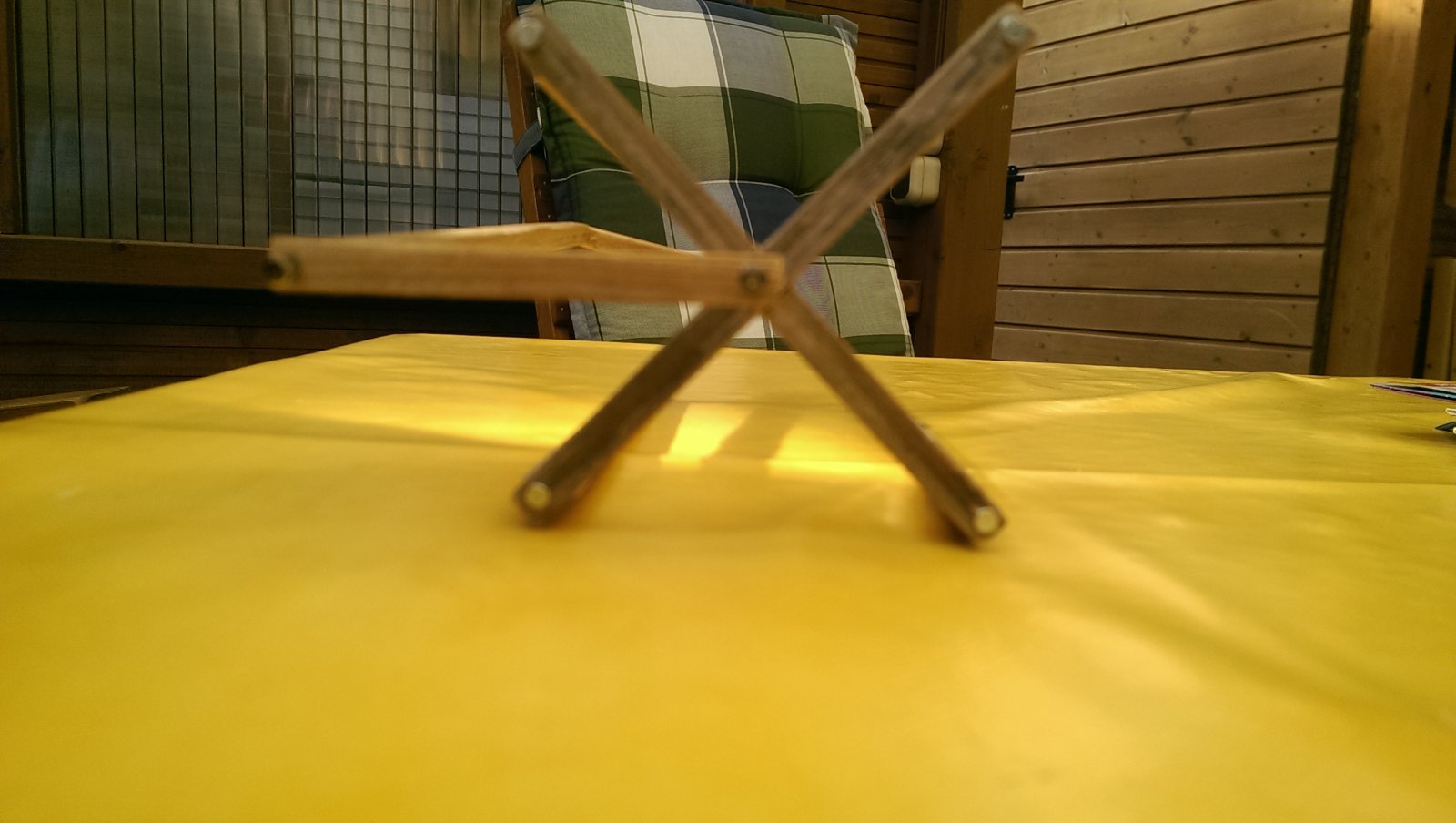

    Mosel1.jpg Mosel2.jpg
  9. cit

    cit New Member

    Joined:
    May 24, 2015
    Messages:
    6
    Location:
    Germany
    Balance:
    514Coins
    Ratings:
    +2 / 0 / -0
    but im unsure about the needet power of the engines. 0,25kw wormgear ~350 €. Its not mutch but i think it can work, but better 0,5 KW ?
  10. wokcz

    wokcz New Member

    Joined:
    May 29, 2015
    Messages:
    27
    Location:
    Argentina
    Balance:
    130Coins
    Ratings:
    +14 / 0 / -0
    1500 seems fine, I would be willing to spend a little more to build something like your project. I am not really sure how much the components for your project would cost, it just seems expensive for me, maybe it's not. What you need to make sure is to have a VERY solid frame, think that your entire rotating frame, plus seat, controllers and the player body will be attached on a single pivot, that has to be really strong, I don't think you can't just attach it to the motor axle. I think the motors will be the most expensive parts, I am not sure what kind of motors you will need, I guess the more power the better, hope some more experience user can tell you what you need.
    Last edited: Jun 19, 2015
  11. SeatTime

    SeatTime Well-Known Member SimTools 2.0 Beta Tester

    Joined:
    Dec 27, 2013
    Messages:
    2,034
    Location:
    Newcastle Australia
    Balance:
    25,397Coins
    Ratings:
    +2,344 / 20 / -0
    My Motion Simulator:
    DC motor, Motion platform, 6DOF
    Good luck, all the best in your build:thumbs, but even building a model does not adequately exercise the main issues with this build, which are large loads and inertia. Just remember that you could easily maim or kill someone on this if you are not careful. The only really successful ones I have seen built are by people from similar industries Eg. Carnival ride manufactures.
  12. bsft

    bsft

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
    @dontcarefilmer , I recall you were developing one? And maybe you have an idea of cost?
  13. eaorobbie

    eaorobbie Well-Known Member Staff Member SimTools Developer Gold Contributor SimTools 2.0 Beta Tester

    Joined:
    May 26, 2009
    Messages:
    2,593
    Occupation:
    CAD Detailer
    Location:
    Ellenbrook, Western Australia
    Balance:
    19,452Coins
    Ratings:
    +1,630 / 22 / -2
    My Motion Simulator:
    2DOF, DC motor, JRK, SimforceGT, 6DOF
    I agree they make good carnival rides but as a personal motion sim that I spend hours in a day in , no thanks.
    • Like Like x 1
  14. dontcarefilmer

    dontcarefilmer Member

    Joined:
    Apr 30, 2014
    Messages:
    33
    Occupation:
    Industrial Electrician
    Location:
    West Sydney, Australia
    Balance:
    471Coins
    Ratings:
    +39 / 0 / -0
    I am developing (*chirping crickets*) a machine which will do similar to your idea. A basic cost I estimated was around $12,000. It will weigh a lot, and the components required will need to be powerful. My one was going to be more than just for at home but, and from what I have read on these forums you can get very impressive motion from a simple setup.
    • Like Like x 1
  15. FattySteve

    FattySteve New Member

    Joined:
    Jun 18, 2015
    Messages:
    20
    Location:
    YinChuan
    Balance:
    153Coins
    Ratings:
    +6 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF
    Mine is plan to use 0.75kw...is that too big?
  16. FattySteve

    FattySteve New Member

    Joined:
    Jun 18, 2015
    Messages:
    20
    Location:
    YinChuan
    Balance:
    153Coins
    Ratings:
    +6 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF
    it takes one years for the porgram cause such as exams..or life troubles...but..the program is nearly done in this summer! I finally find a really kind "Shifu" (in english mater worker?)in the factory who helps me do the metal works.
    share some photos for my own 360 degree cockpit!
    [​IMG]
    this is the kind Shifu! He is also verrrrry interested in flying! that's the reason why he help me make the cockpit!
    [​IMG]
    this is the Arduino part of the cockpit.
    well it seems like i'm a student who just complete his homework and show to teachers
    =-=


    I use arduino 2560 give signal to motor to chase the motion data, for example, if the roll angle change to 45 degree, the 2560 will receive the data R45PXX and compared to the angle of cockpit now, the motors will turns.
    Tested in FSX successfully,but....it still not completed, just like Seattime said..safety is very important..the safety belt once broken and i almost ...killed? may be not so dangerous but really almost injured.
    so i decided to put on doors so that in the case safety belt broke,my legs or arms will not fall out!!That's really a dangerous time!
    • Like Like x 2
    Last edited: Jul 8, 2016
  17. FattySteve

    FattySteve New Member

    Joined:
    Jun 18, 2015
    Messages:
    20
    Location:
    YinChuan
    Balance:
    153Coins
    Ratings:
    +6 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF
    @noorbeast
    Noorbeast, lots of thanks at beginning! especially the FSX motion data problem solving.please check my homework and..maybe a grade over A? teacher, please:grin:grin:grin:grin! and i have another question want to ask for your help.
    The War thunder have been agent by Tencent, the largest game.. maybe little small than steam=w=. and i was attracted in...deeply,verrry deeply.
    I found an War thunder plugin in Forums but the roll data and pitch data are not realtive to the earth.
    https://www.xsimulator.net/community/marketplace/war-thunder-plugin.133/updates
    what books or things should i learn,to find how to catch these data=-=
    i read the tutorial in making plugin in simtools V1.o and V2.o..but V1.o one...may be i need more sample to understand, can you recommend me some ?
    • Like Like x 1
  18. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator SimTools 2.0 Beta Tester

    Joined:
    Jul 13, 2014
    Messages:
    11,780
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    91,521Coins
    Ratings:
    +7,693 / 37 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    • Informative Informative x 1
  19. FattySteve

    FattySteve New Member

    Joined:
    Jun 18, 2015
    Messages:
    20
    Location:
    YinChuan
    Balance:
    153Coins
    Ratings:
    +6 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF
    • Like Like x 1
  20. SilentChill

    SilentChill Problem Maker SimTools 2.0 Beta Tester

    Joined:
    Jul 19, 2014
    Messages:
    2,122
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    16,985Coins
    Ratings:
    +2,862 / 29 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    VIDEO WE WANT A VIDEO !!!! :p
    • Agree Agree x 2
