Showroom WowaDriver's 2DOF Wiper/Arduino/H-bridge Rig

Discussion in 'DIY Motion Simulator Projects' started by WowaDriver, Jul 20, 2015.

  1. WowaDriver

    WowaDriver Waldemar Jost

    Joined:
    Mar 4, 2014
    Messages:
    59
    Occupation:
    Bachelor of Science and Engineering
    Location:
    Hannover
    Balance:
    1,127Coins
    Ratings:
    +42 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino, JRK
    Hi guys,

    its time to show you my Rig. I decide to do this before i will to disassemble the whole rig, to build a new one. Actually i have to say, this status was v2.0. It begin with a normal static rig and ends with the first test and impressions of a 2DOF Motion Rig.

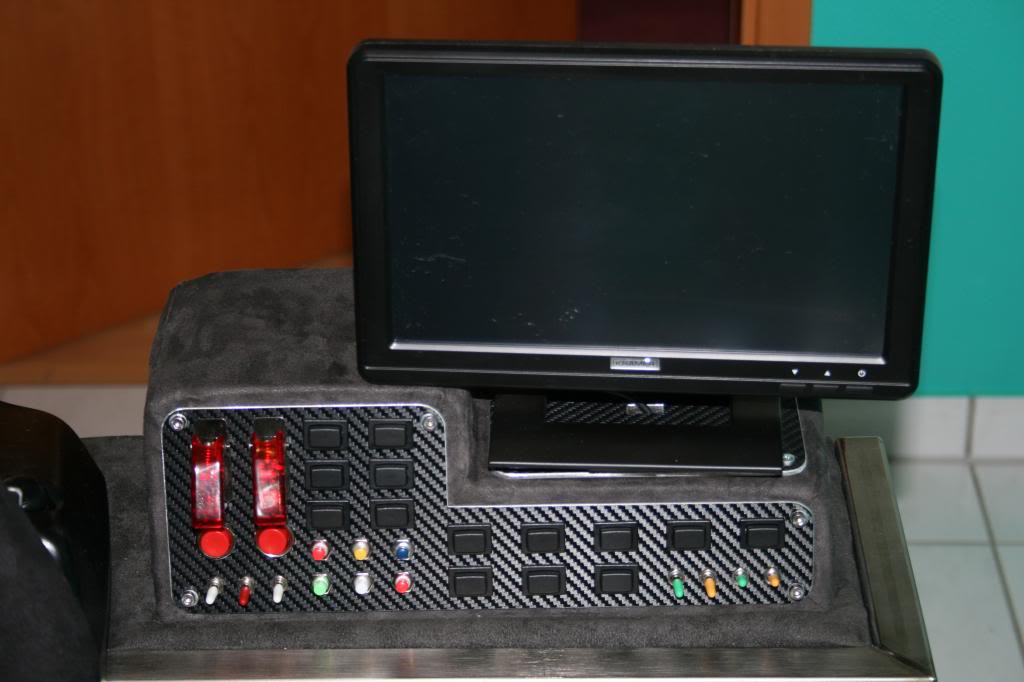

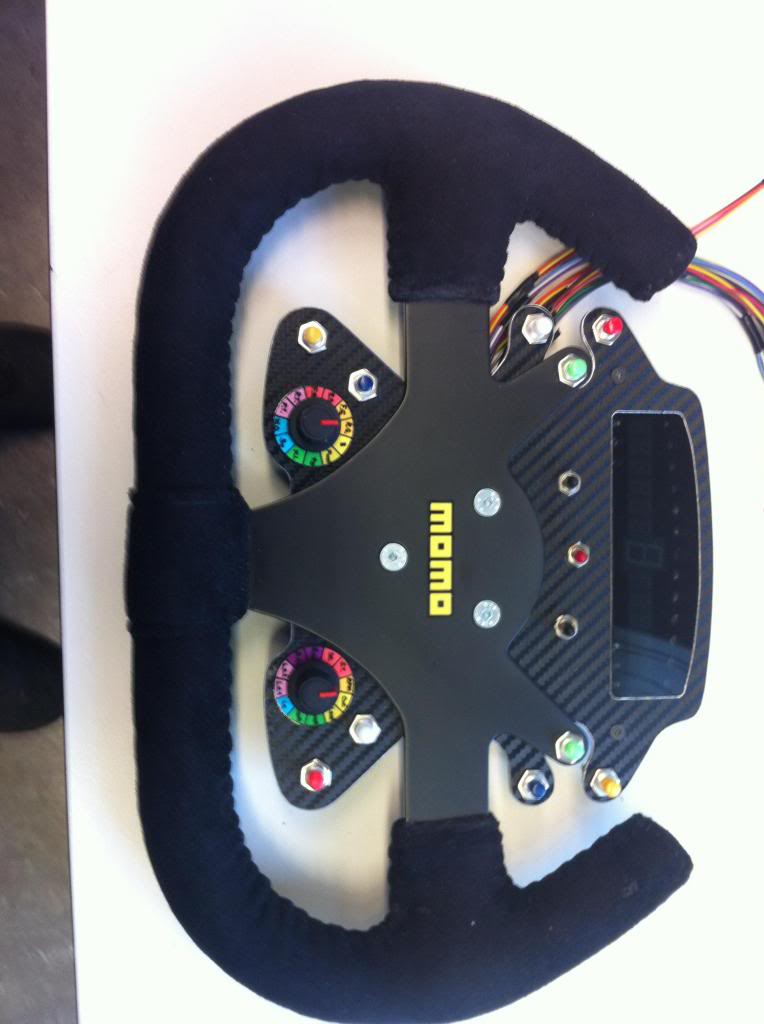

    I also modified my G27 with an formula Momo Wheel and insert a SLI Pro Dash display by LEO Bodnar. Furthermore a brake mod with a metallic cylinder was integrated for stronger brake mode.

    I have shown my rig on many other forums, and the people find the design useful for their own plans, so i think it would be good to show you guys here the old picture, before to build a new one. All of the modifications i done, was all handmade by myself, also the momo wheel too.

    The main point a decide to rebuild the rig is, to have a the screens for ever at the rig for a better FOV. The second point, i would have the trationloss upgrade. Moreover i decide to upgrade the motors and change the interfaces to pololus jrk's for better and faster movement! For more informations, see my topic in the motors and controllers section.

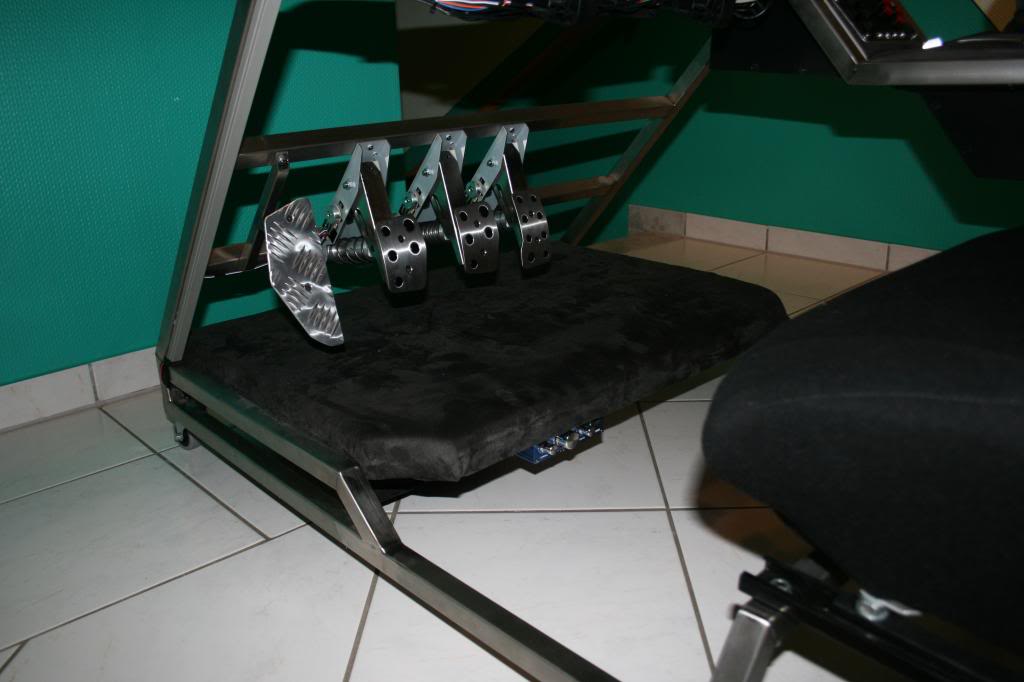

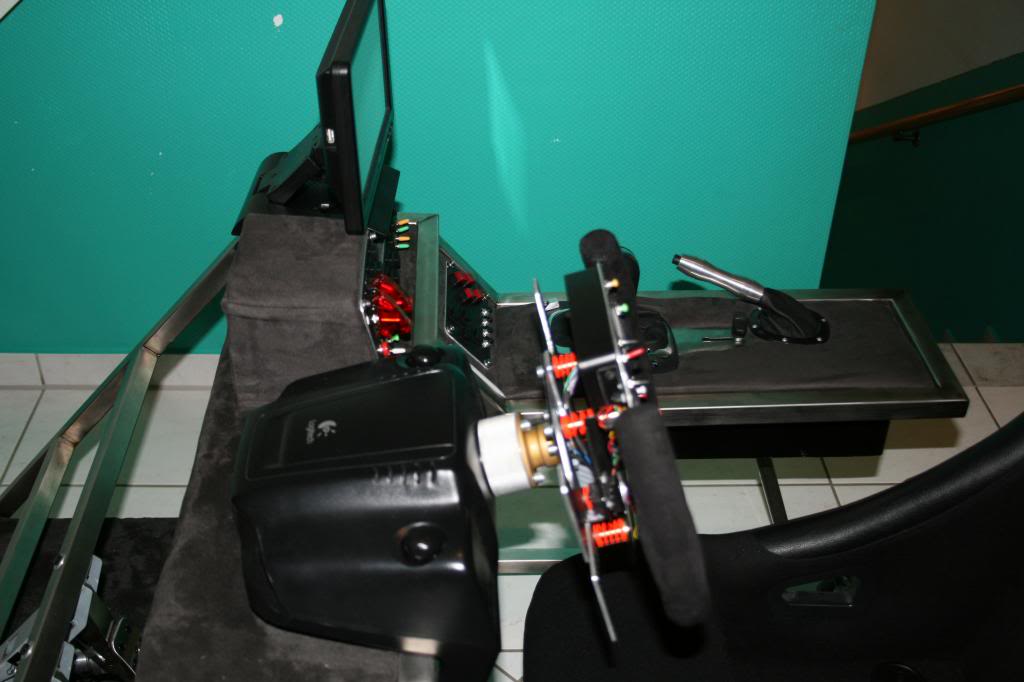

    Ok enough of the texts... i think pictures tell us more than 1000 words...

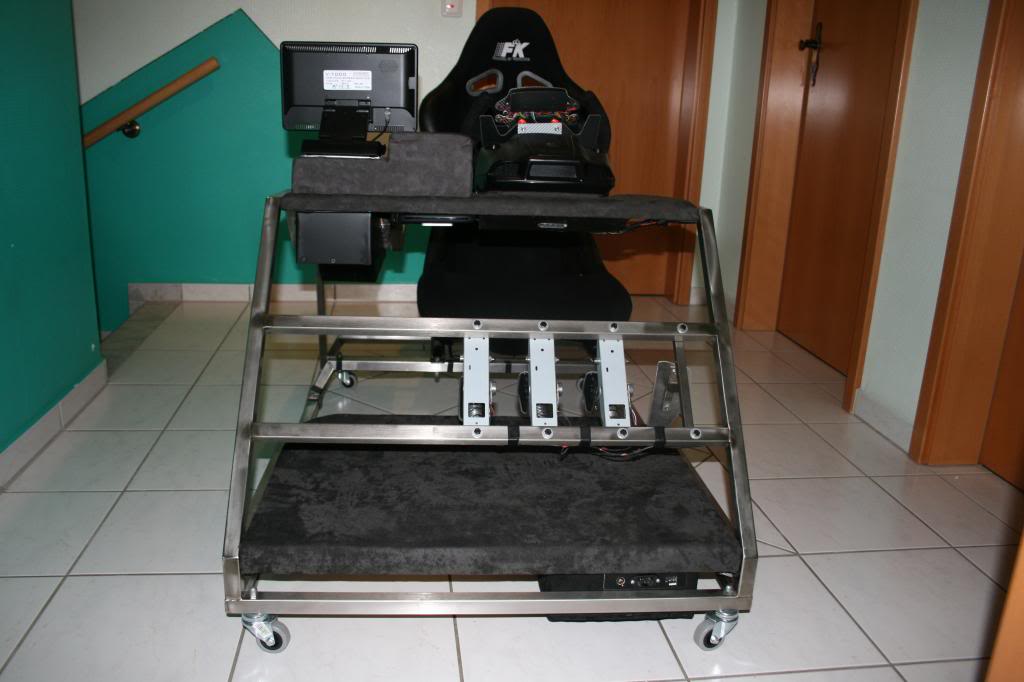

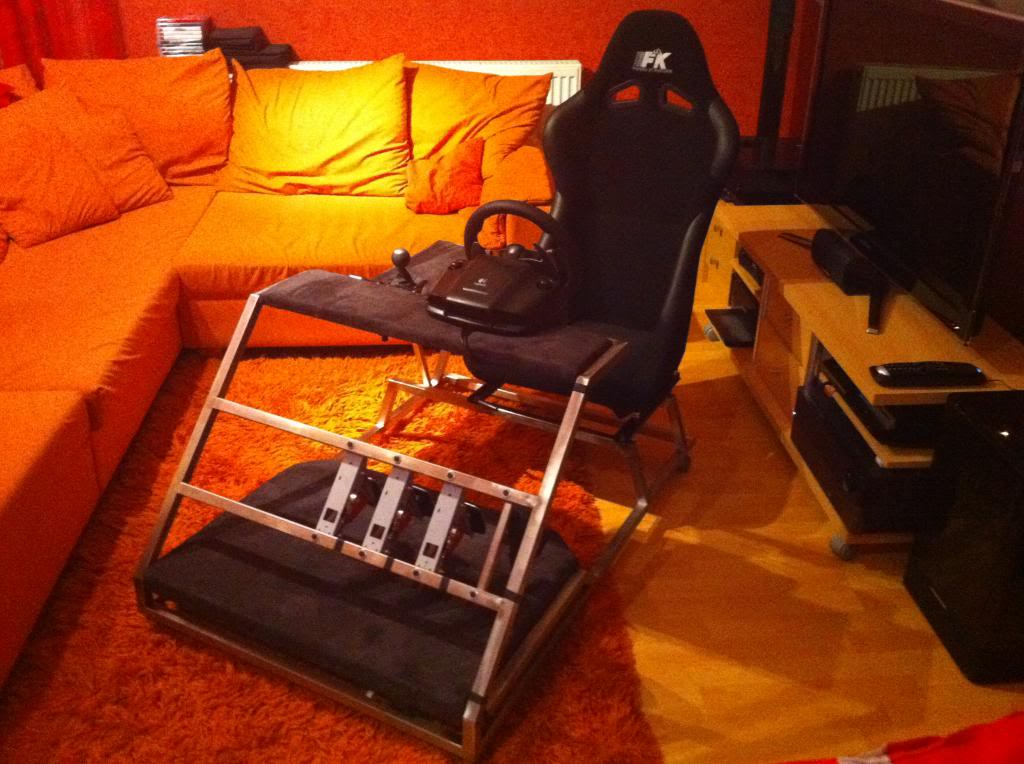

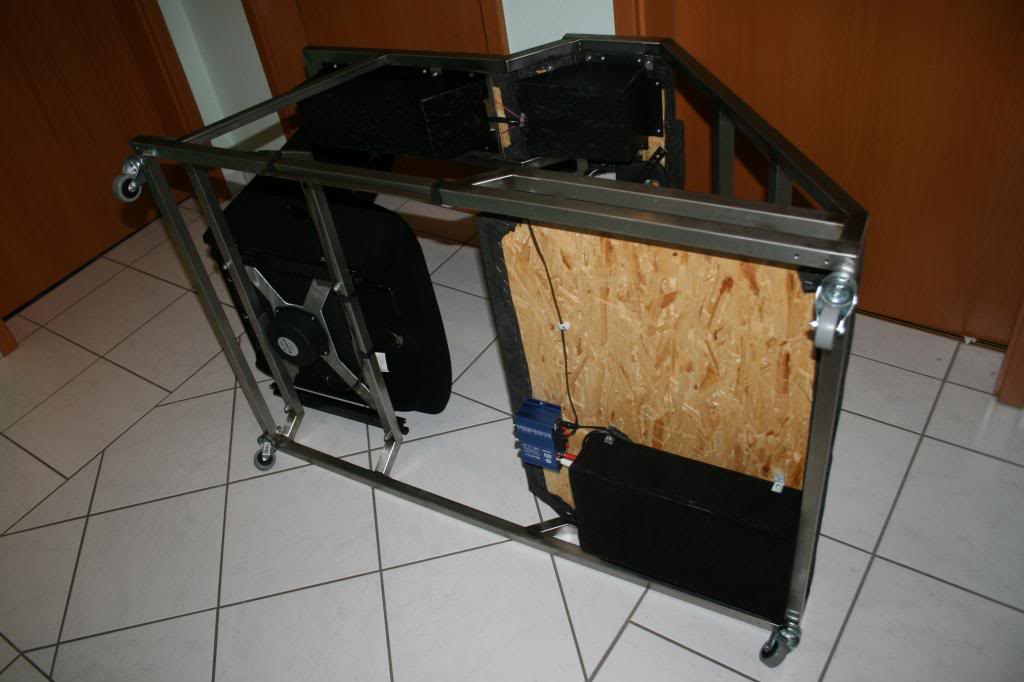

    How it begans...
    [​IMG]

    [​IMG]

    [​IMG]

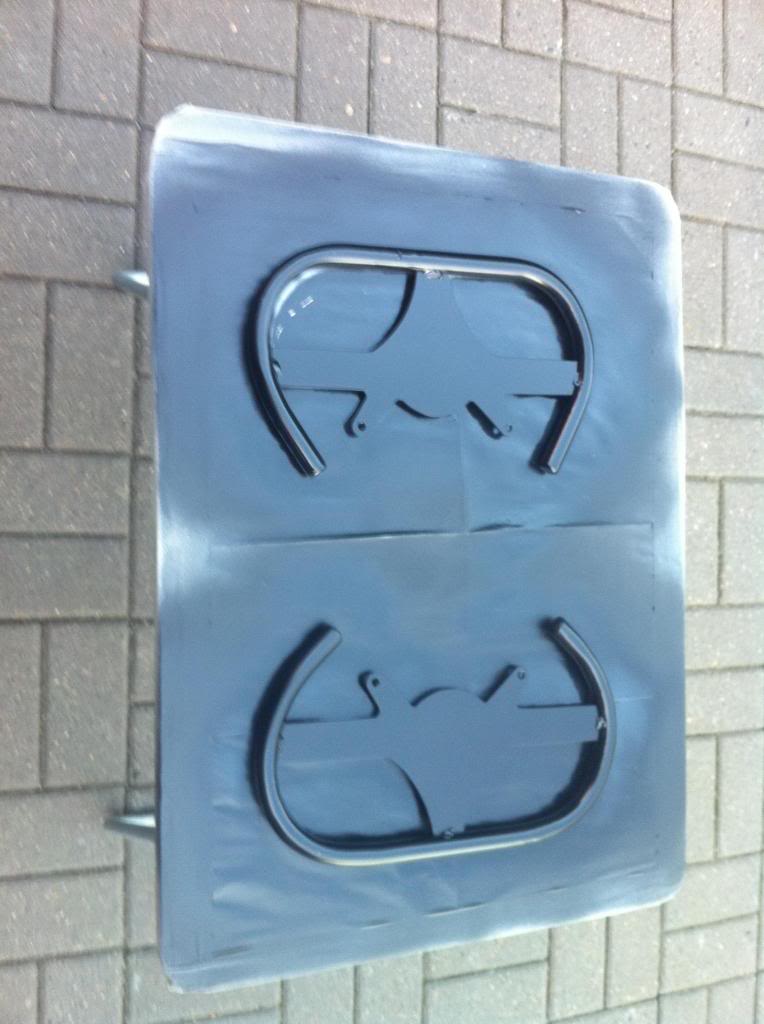

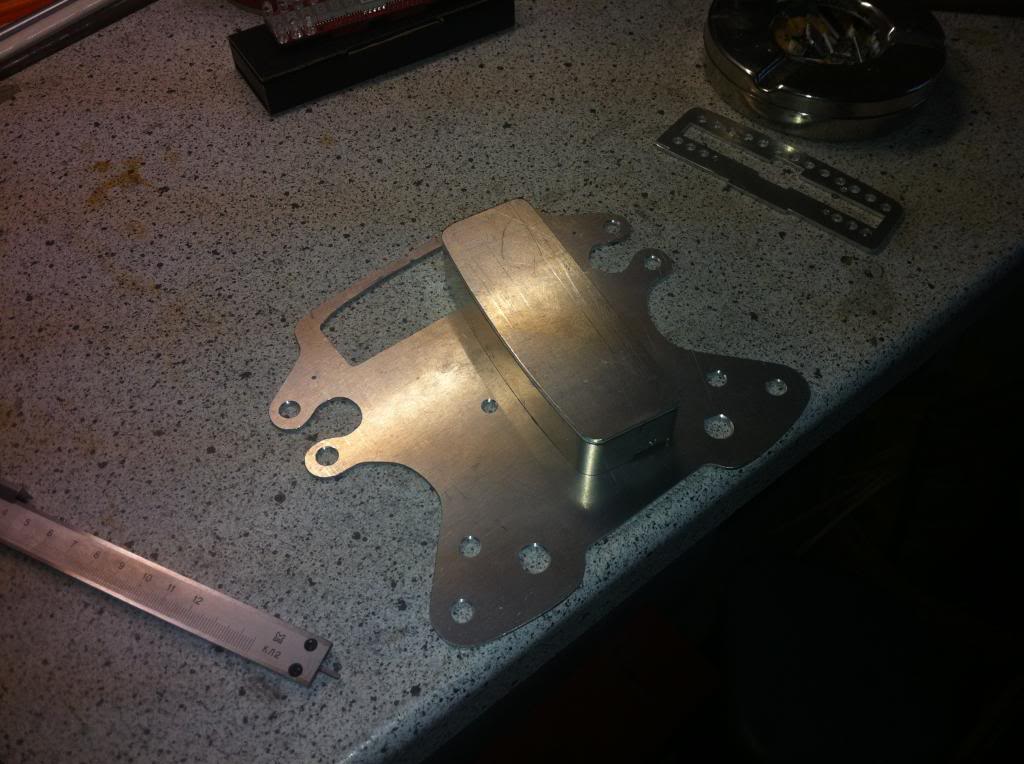

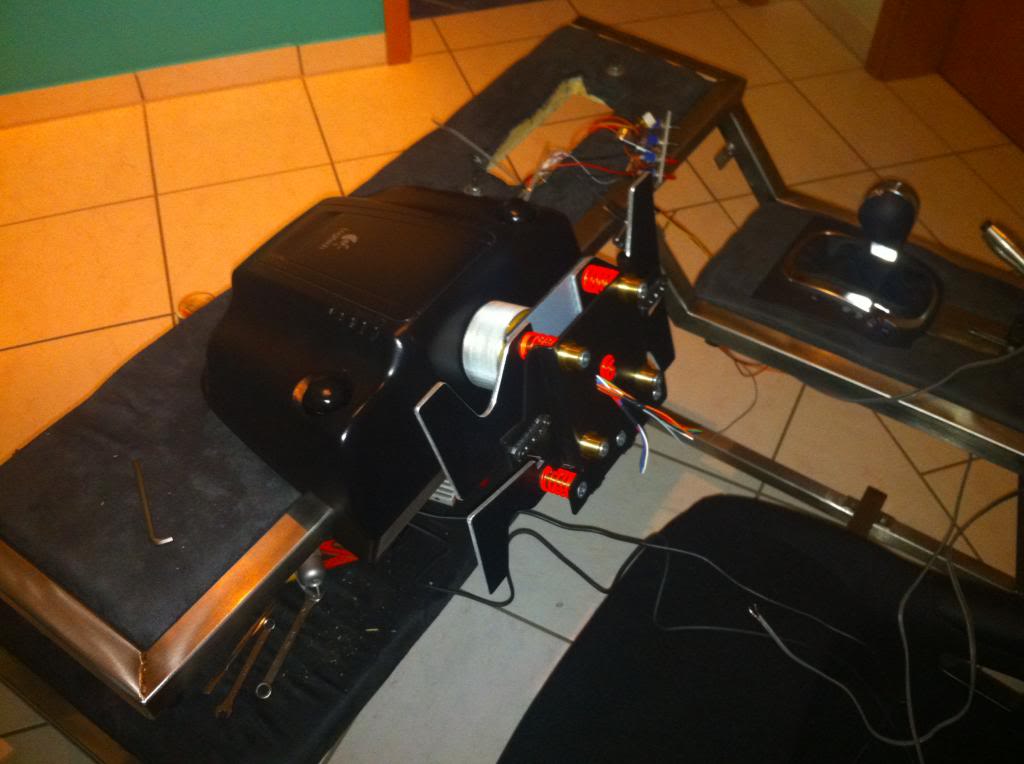

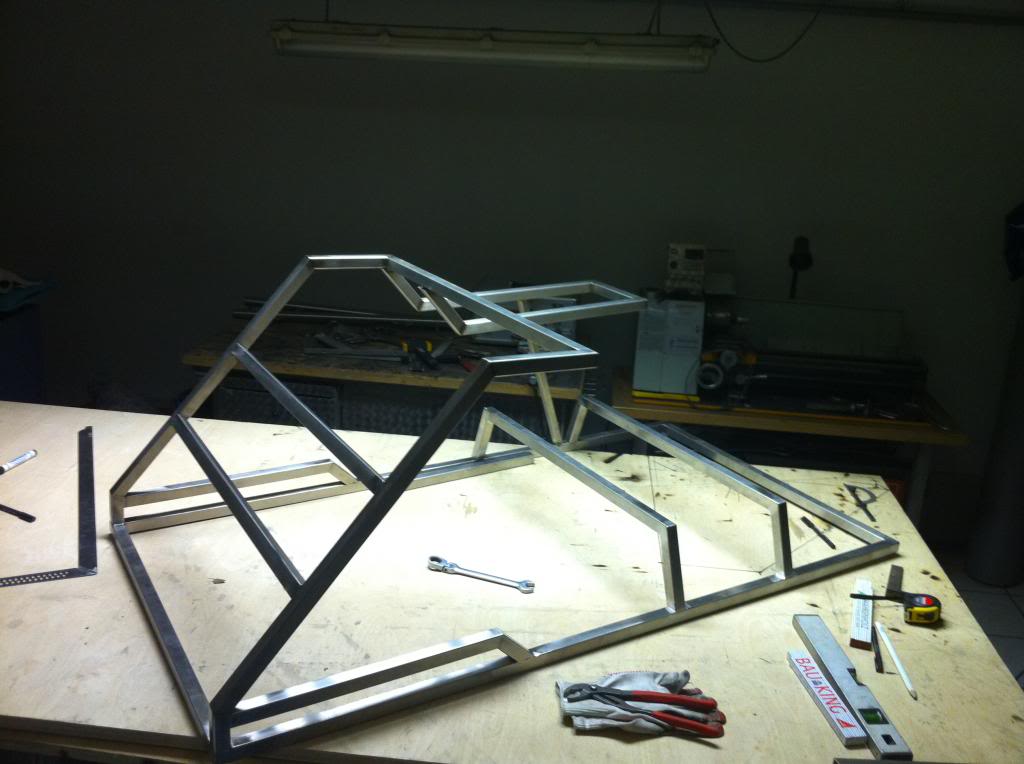

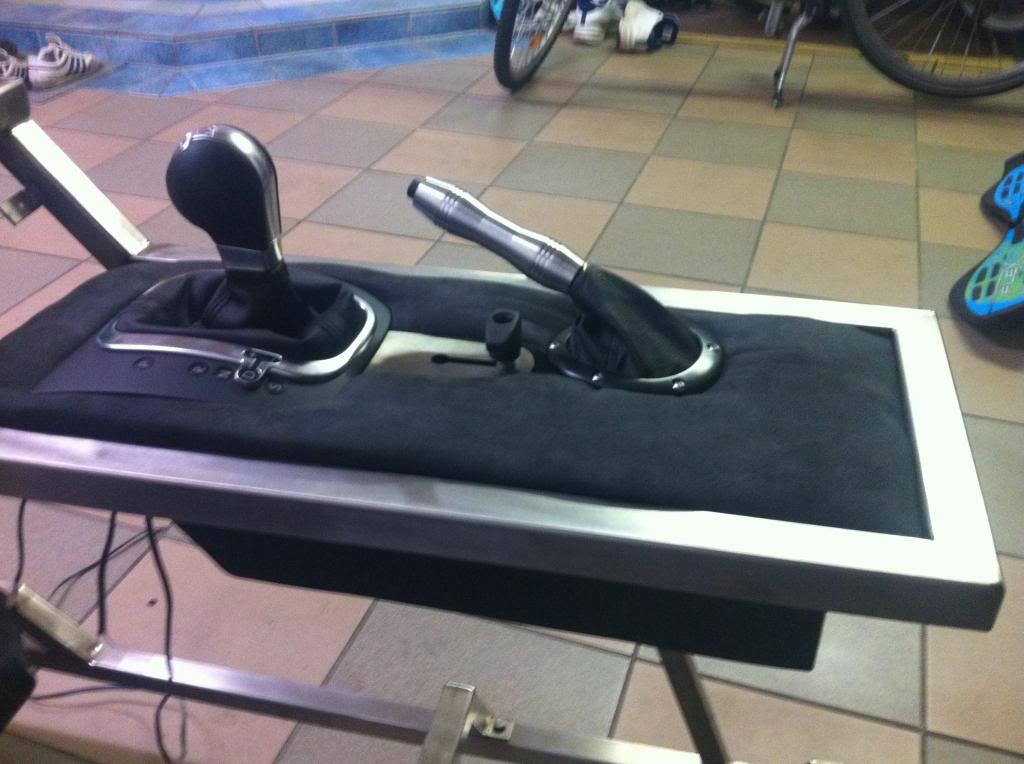

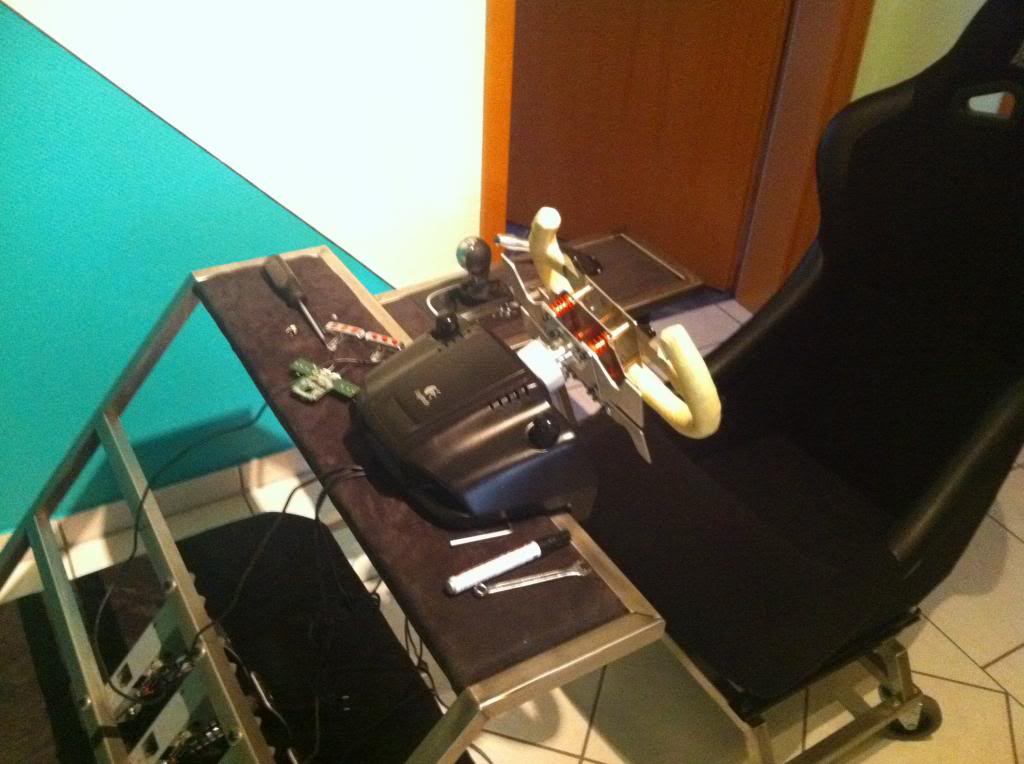

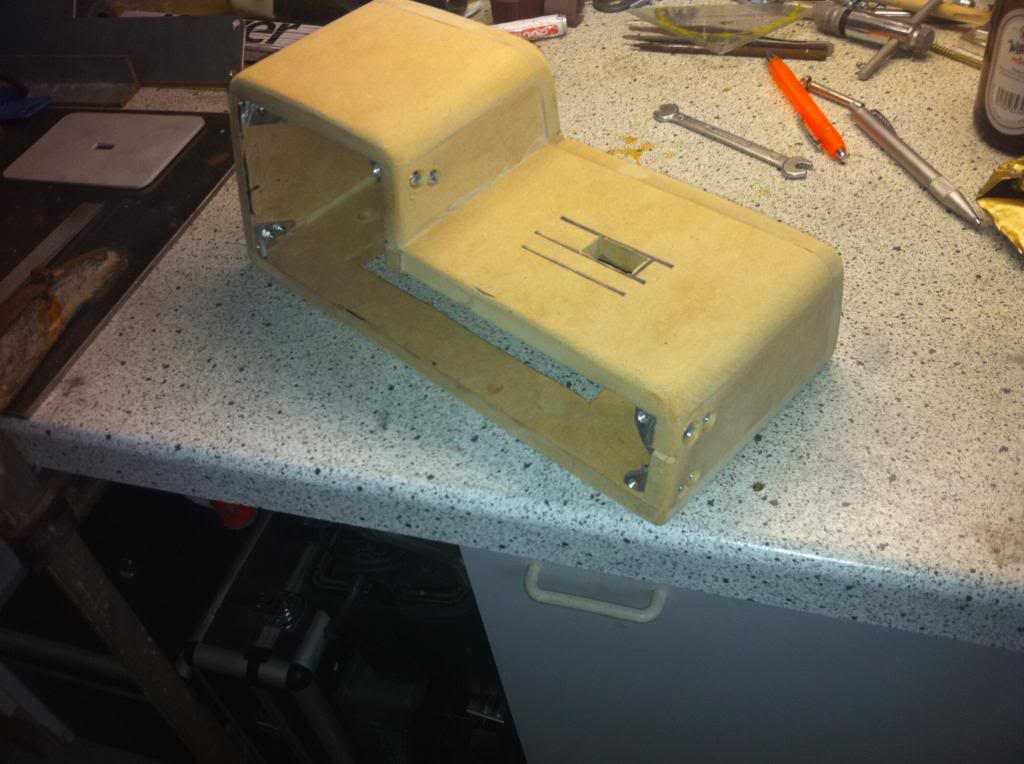

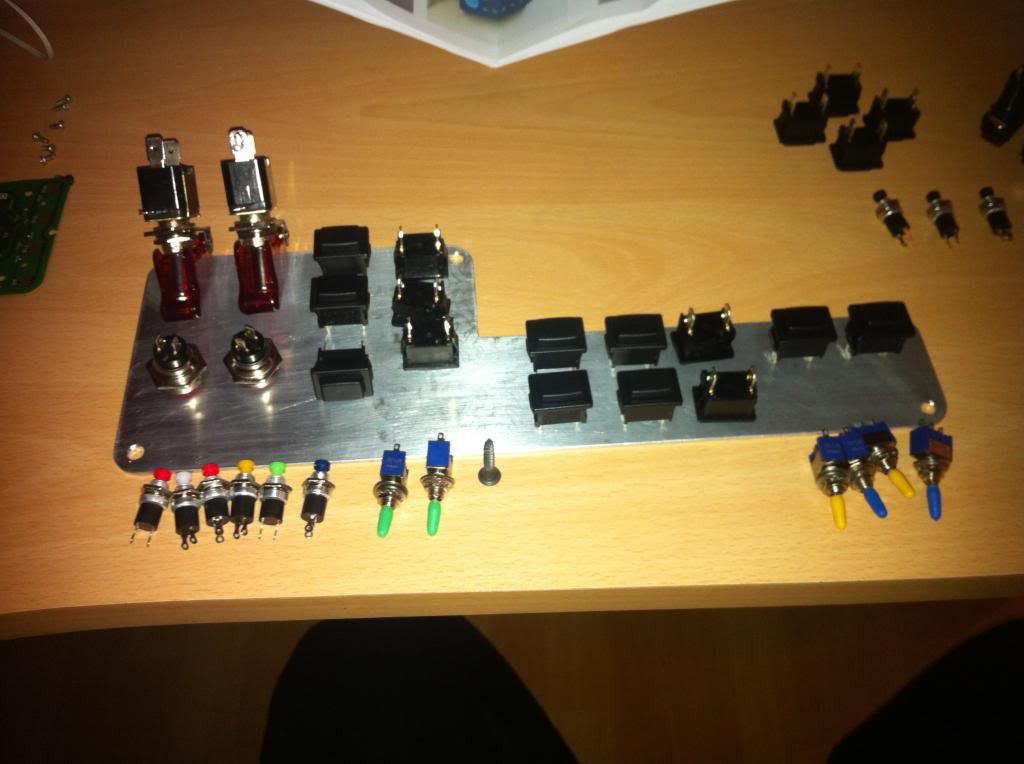

    let the modifcation begins:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

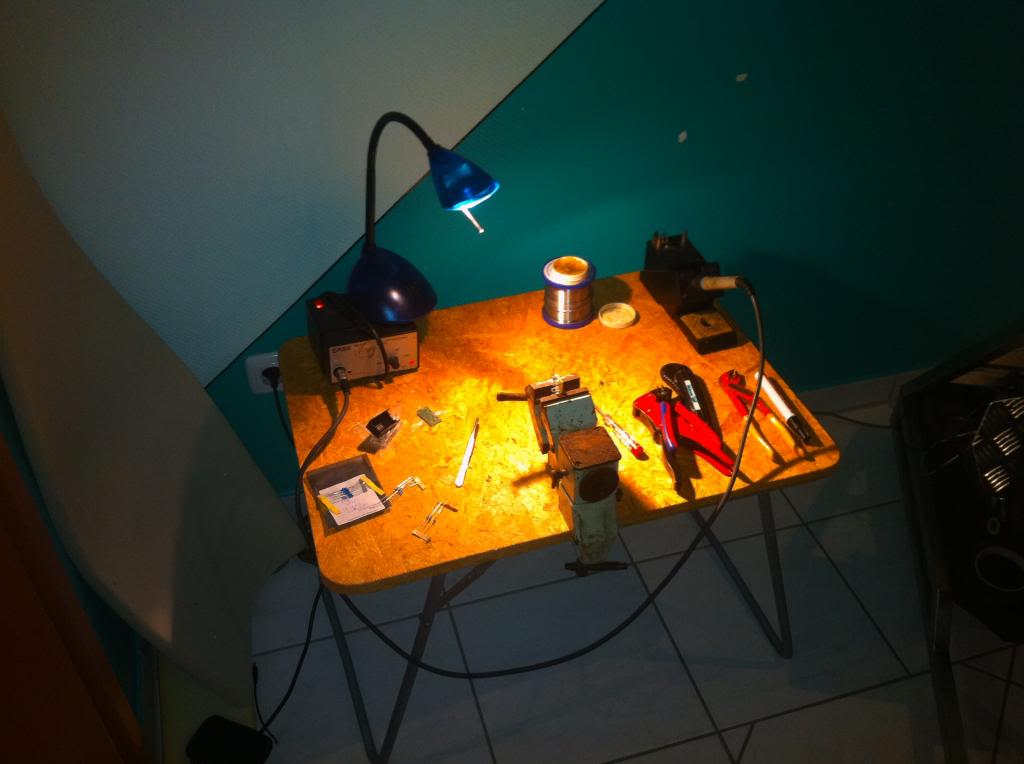

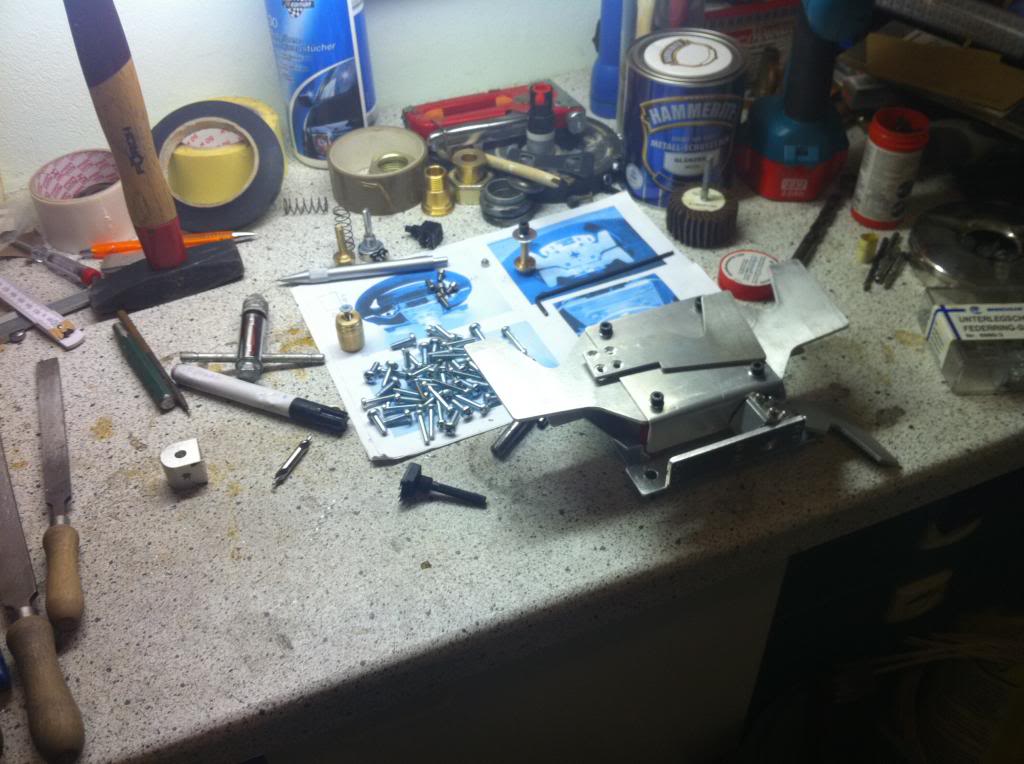

    my workplace for that time... theretime i was living by my parents...

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

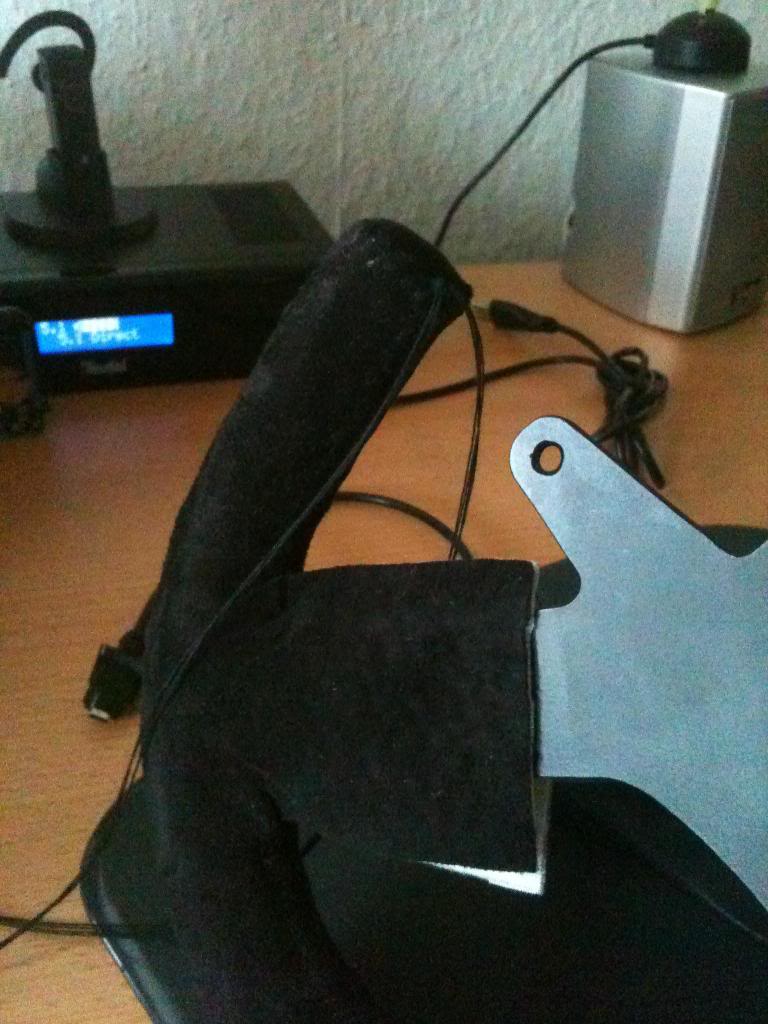

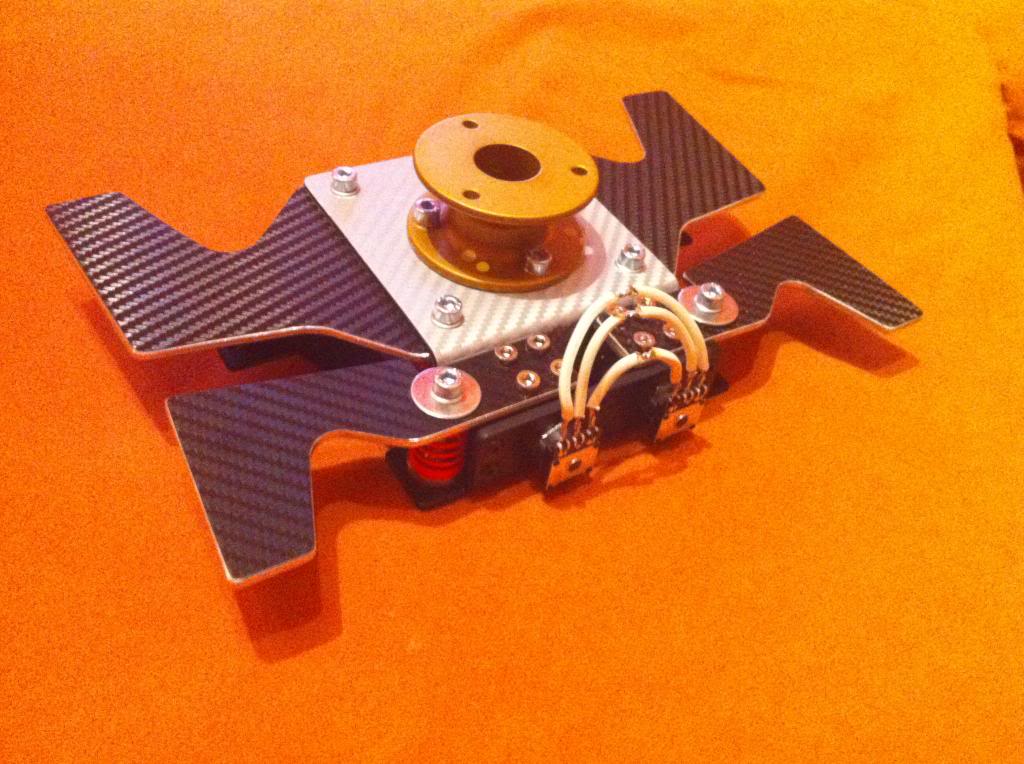

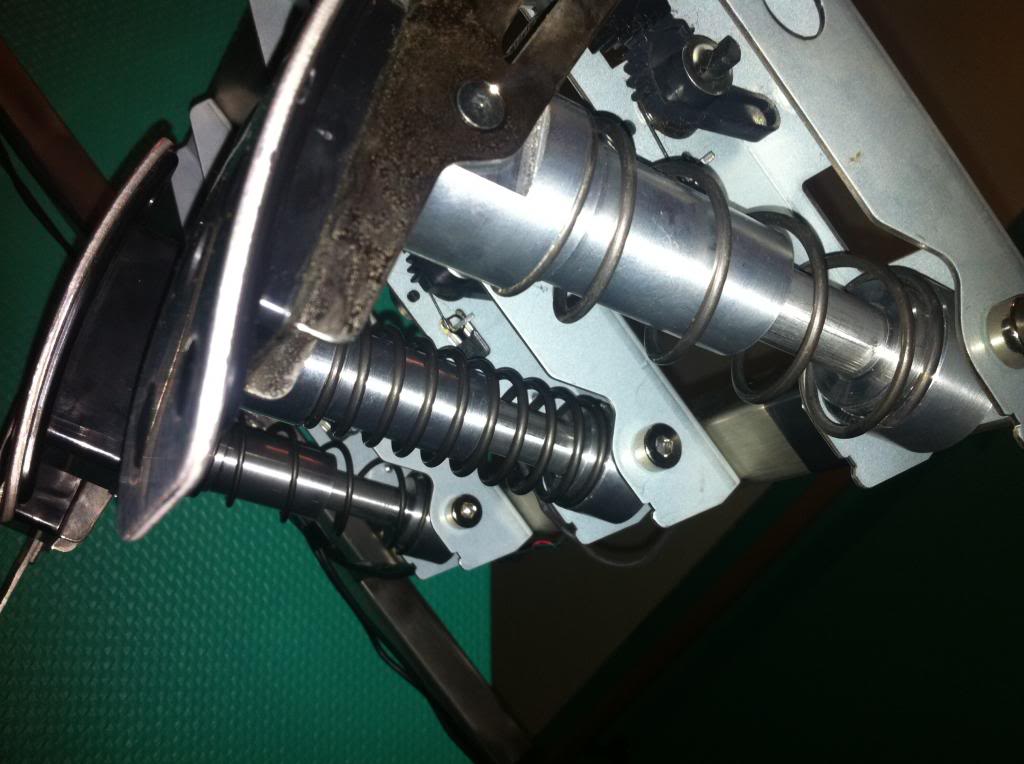

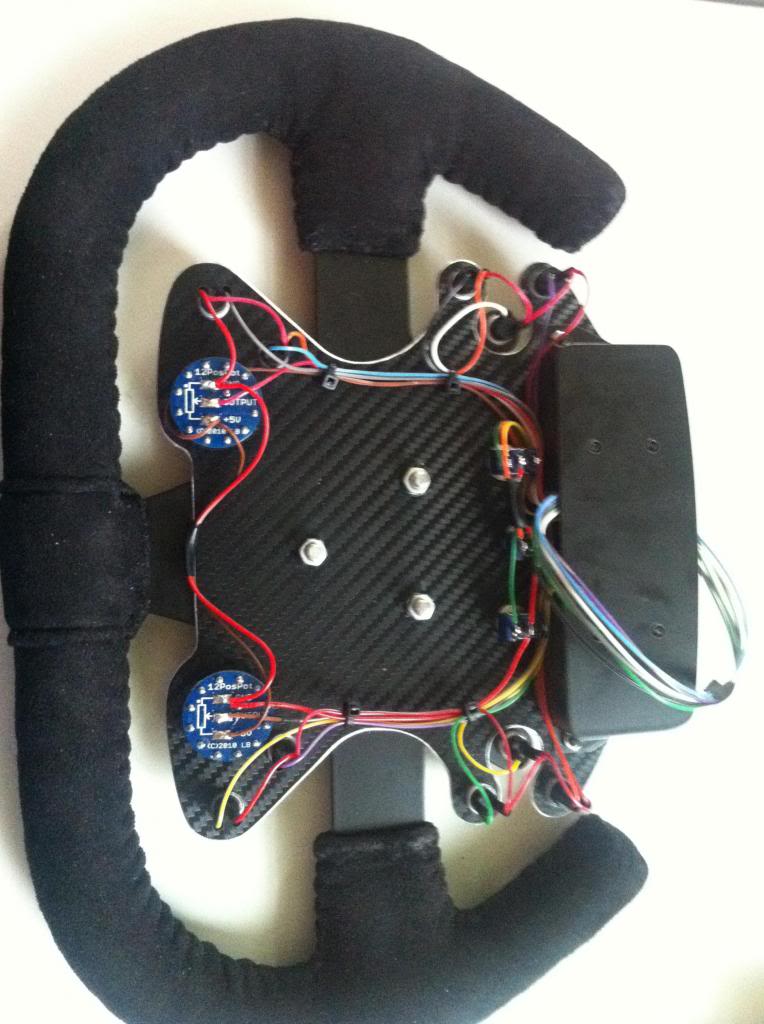

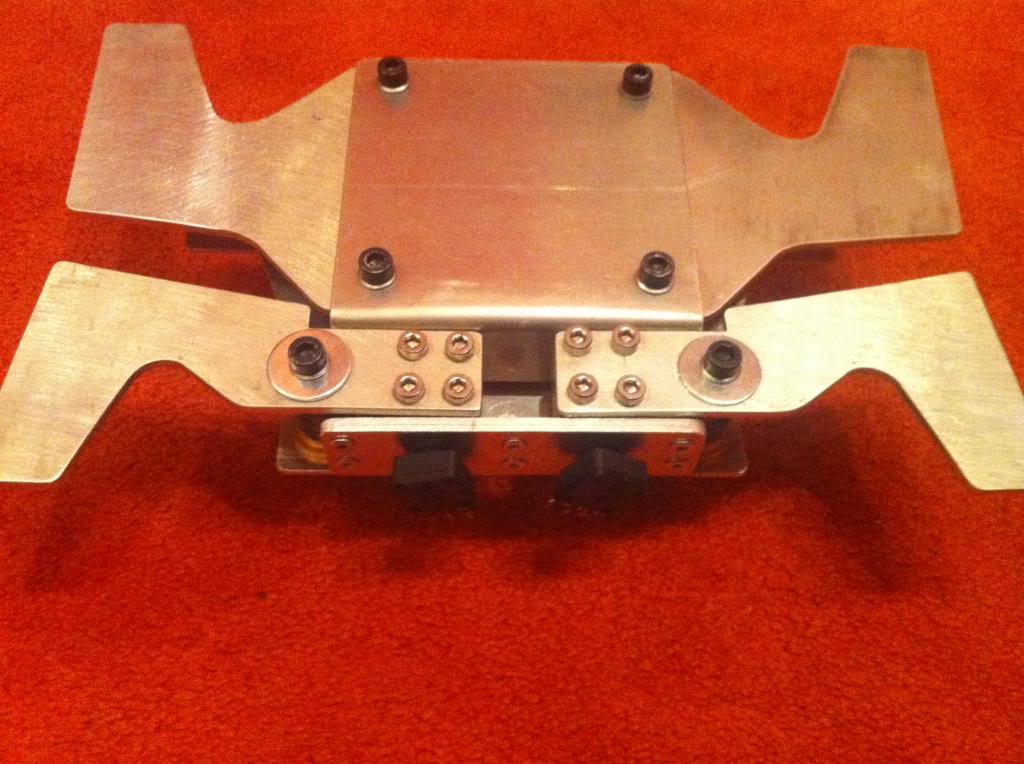

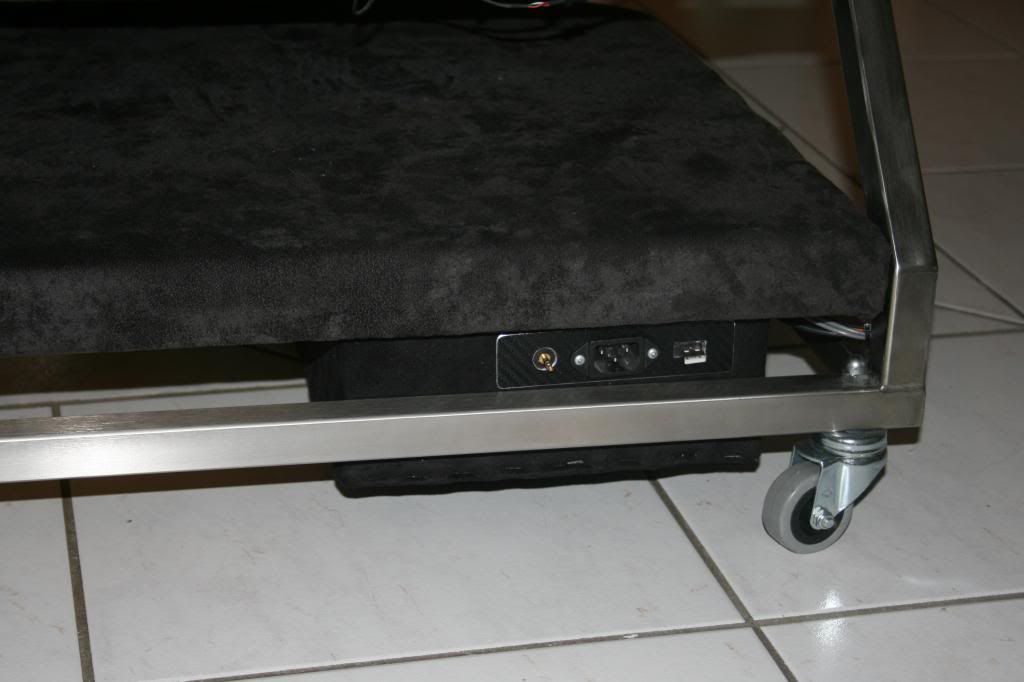

    Know came the wheel plate with the SLI Pro mount:

    [​IMG]

    [​IMG]

    [​IMG]

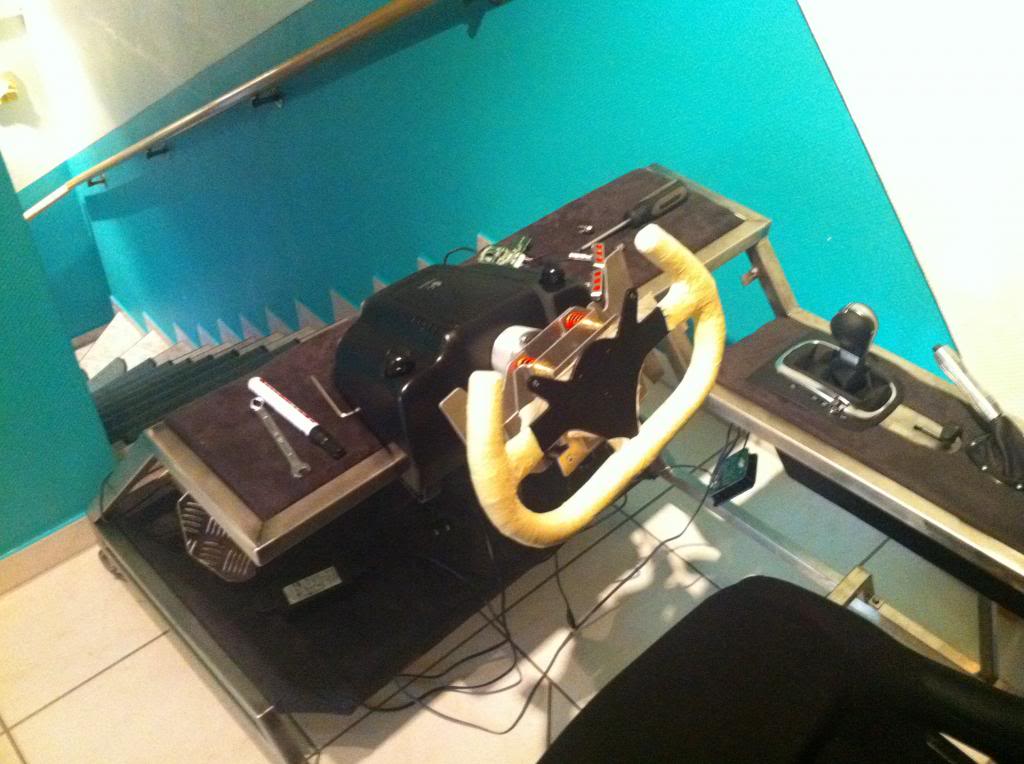

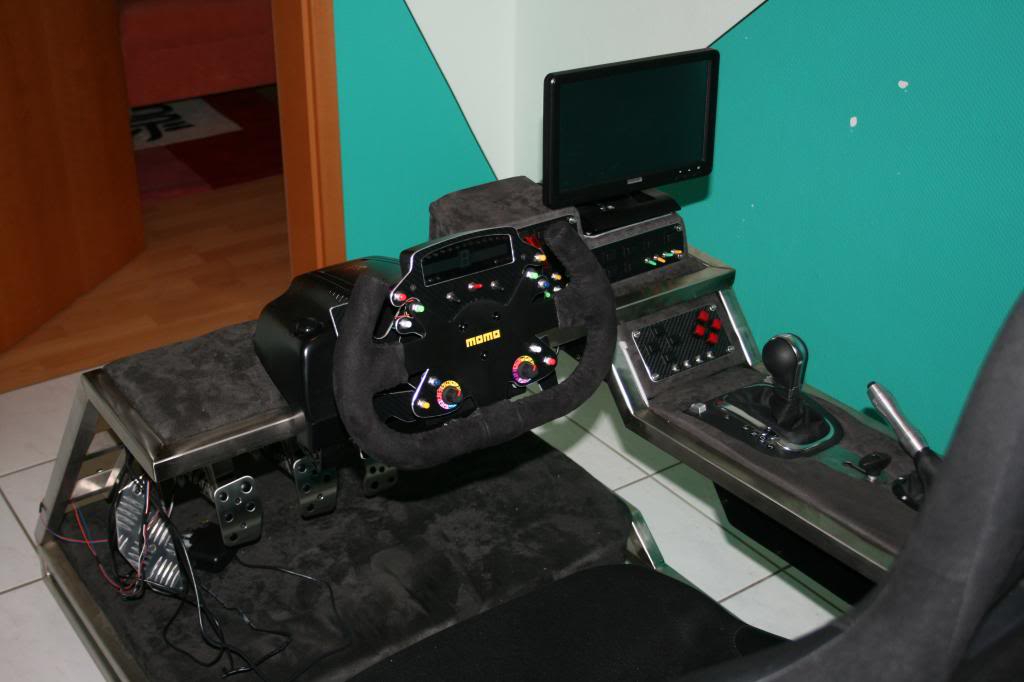

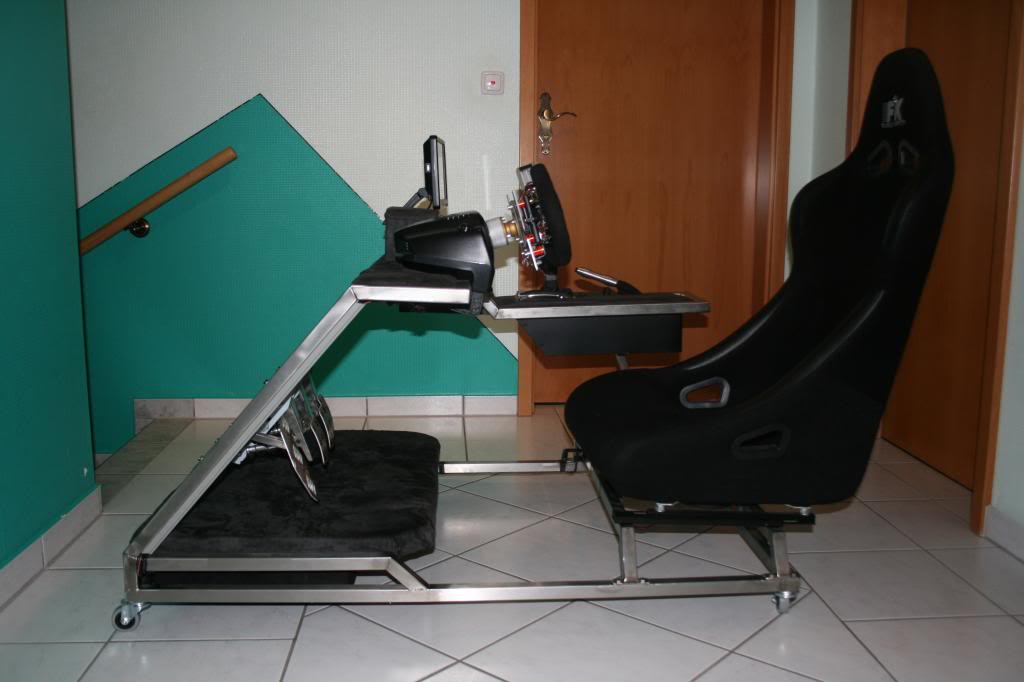

    Now came the final shots of the Stage 1 process, that was in the year 2013...

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Theretimes i was my little baby that i pulled every time in front of my 46" TV for racing...

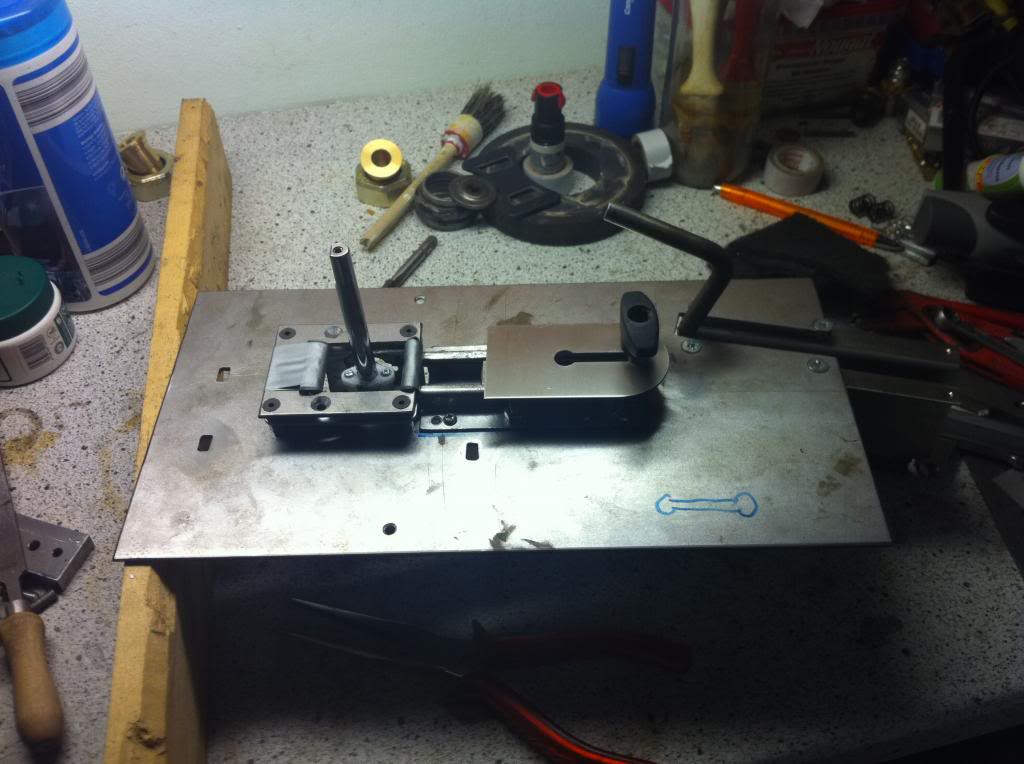

    After i found the motion section in diffentent forums like these ones, i decide to upgrade my baby
    with wiper motion for the first movements in form of a 2DOF system.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    10 kOhm linear mechanical pots with 270° pot angle and a mechanical stop:

    [​IMG]

    [​IMG]

    [​IMG]

    Now this is a pic from last year about this time... my workplace at my own study home :D
    I can say, yes i had some hurts on y knees ...

    [​IMG]

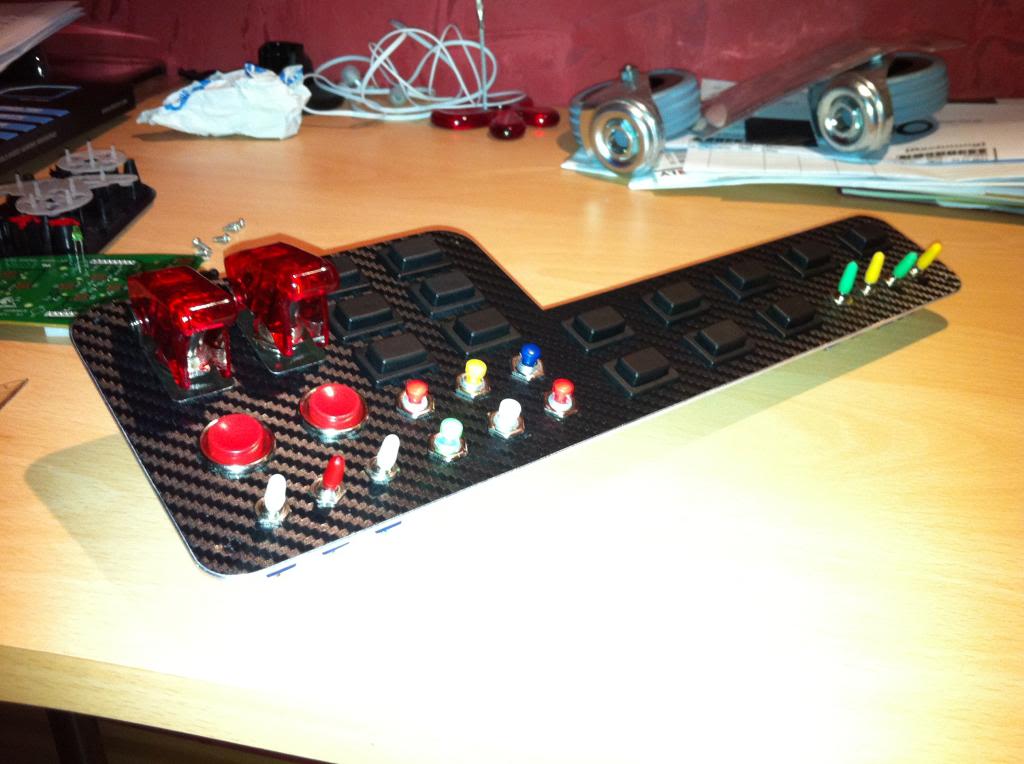

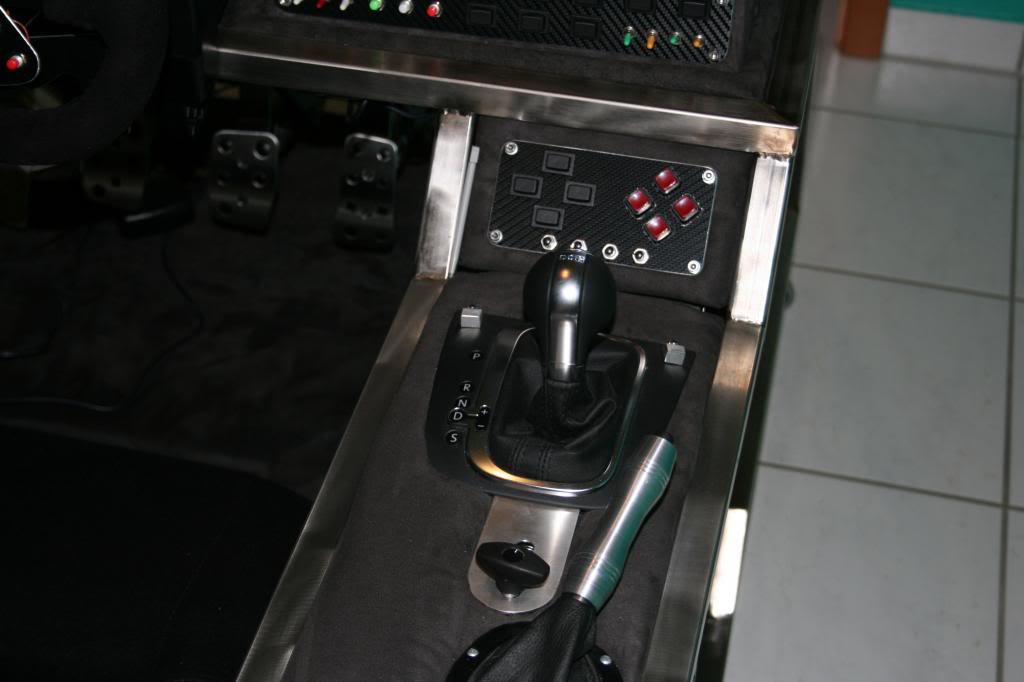

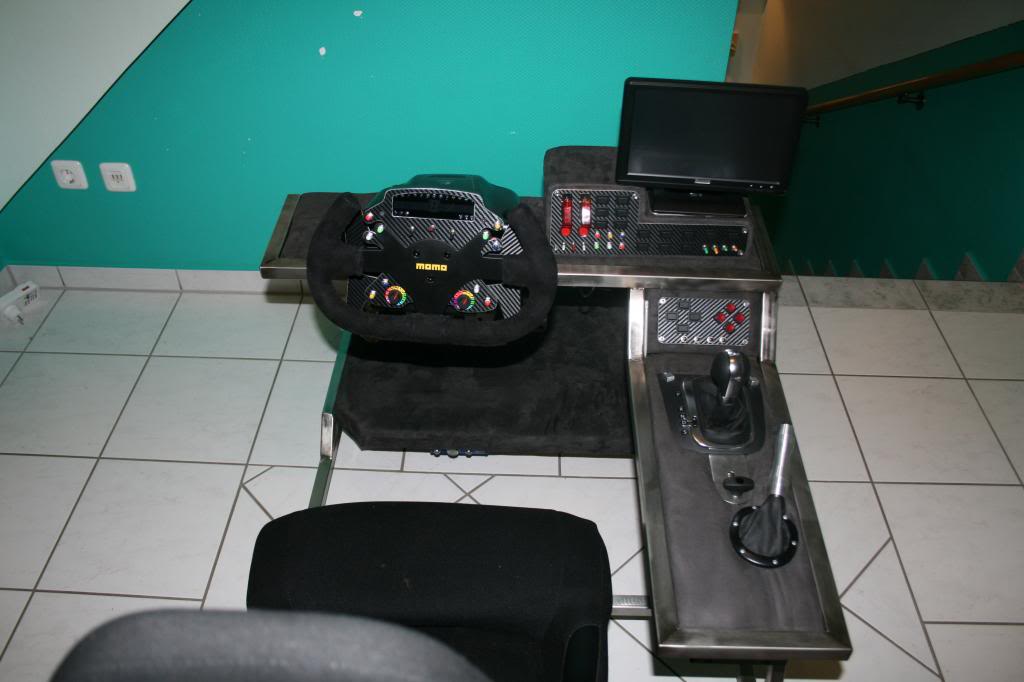

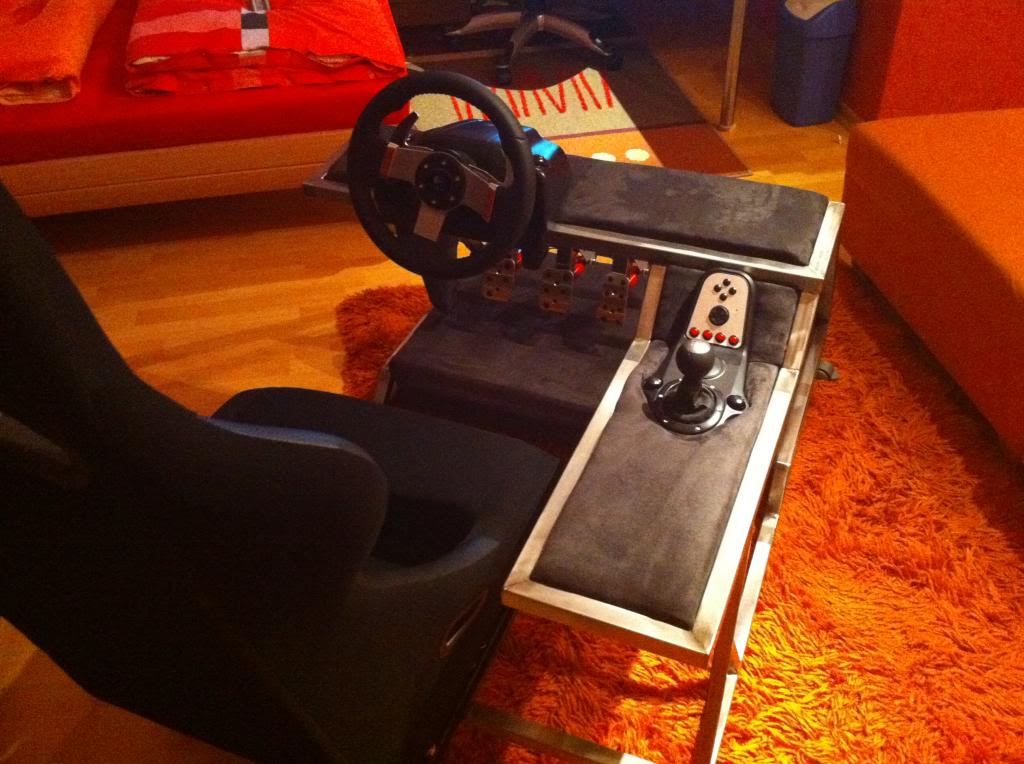

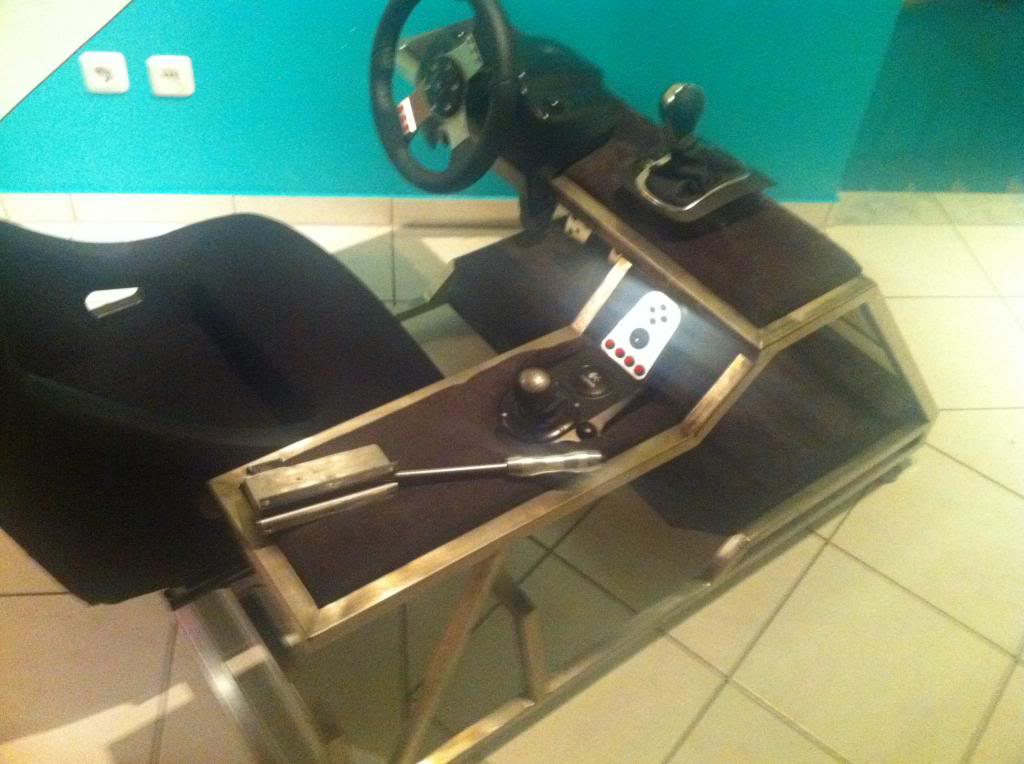

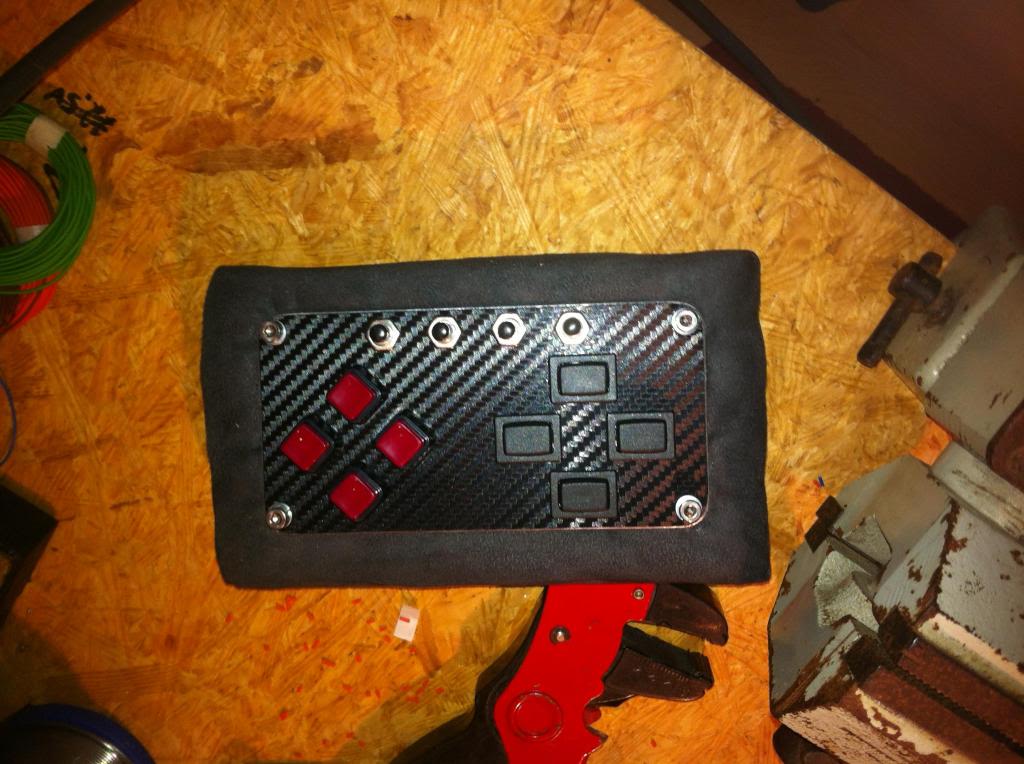

    And now some picture of the last modification and motion update till last month. Actually the rig
    is not exist like at the picture, it is only the frame and the seat here. The motors and the Motion
    Control Box i will store for a mini motion seat for my little brother or i will sell them... i don't know...
    If someone is interested in their please contact me...

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Yes that is it, that was my rig since 2012 till last month. Hope you guys enjoy it and leave some comment
    about you like, or dislike my rig or especially one of my modifications...

    Hope i can get in future for the next sim the support i get right now.

    Thanks a lot for this great community support, for simtools and for the possibility to build our own
    DIY Simulators, which can shown also with the commercial ones at the same level!!
