Showroom Tommys simulator and Hydraulik Pedals / Stockcar Nascar dash

Discussion in 'DIY Motion Simulator Projects' started by tommy06, Jun 16, 2011.

  1. tommy06

    tommy06 Active Member

    Joined:
    Jan 17, 2011
    Messages:
    130
    Balance:
    1,368Coins
    Ratings:
    +135 / 0 / -0
    • Like Like x 1
    Last edited: Jul 30, 2014
  2. tommy06

    tommy06 Active Member

    Joined:
    Jan 17, 2011
    Messages:
    130
    Balance:
    1,368Coins
    Ratings:
    +135 / 0 / -0

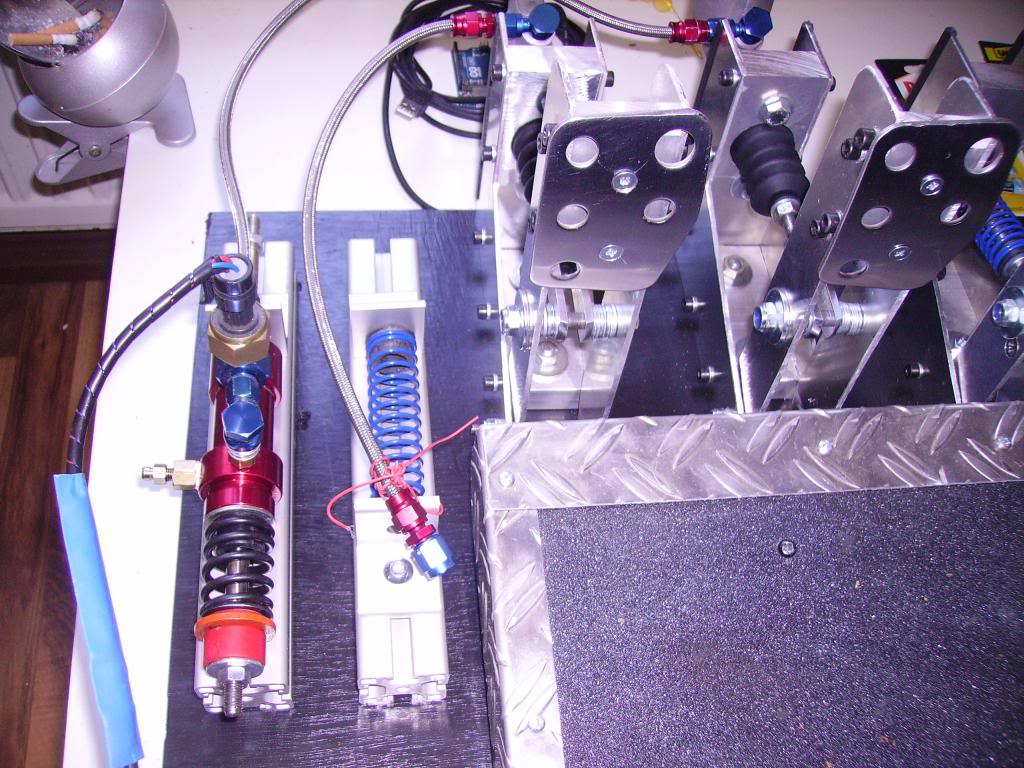

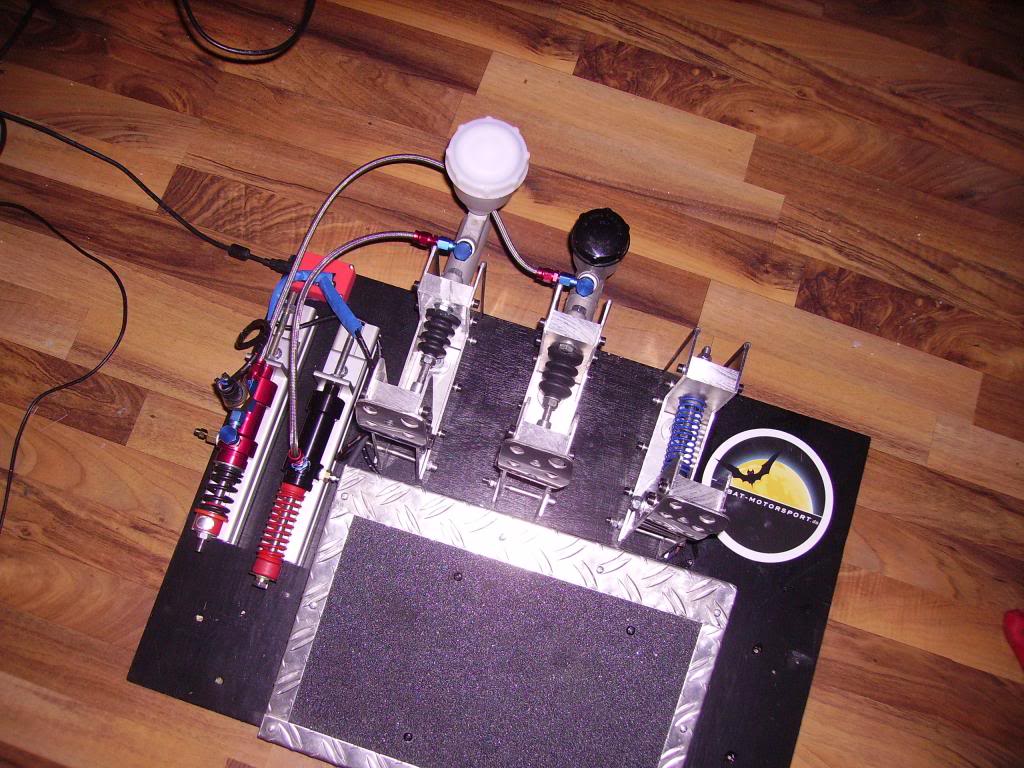

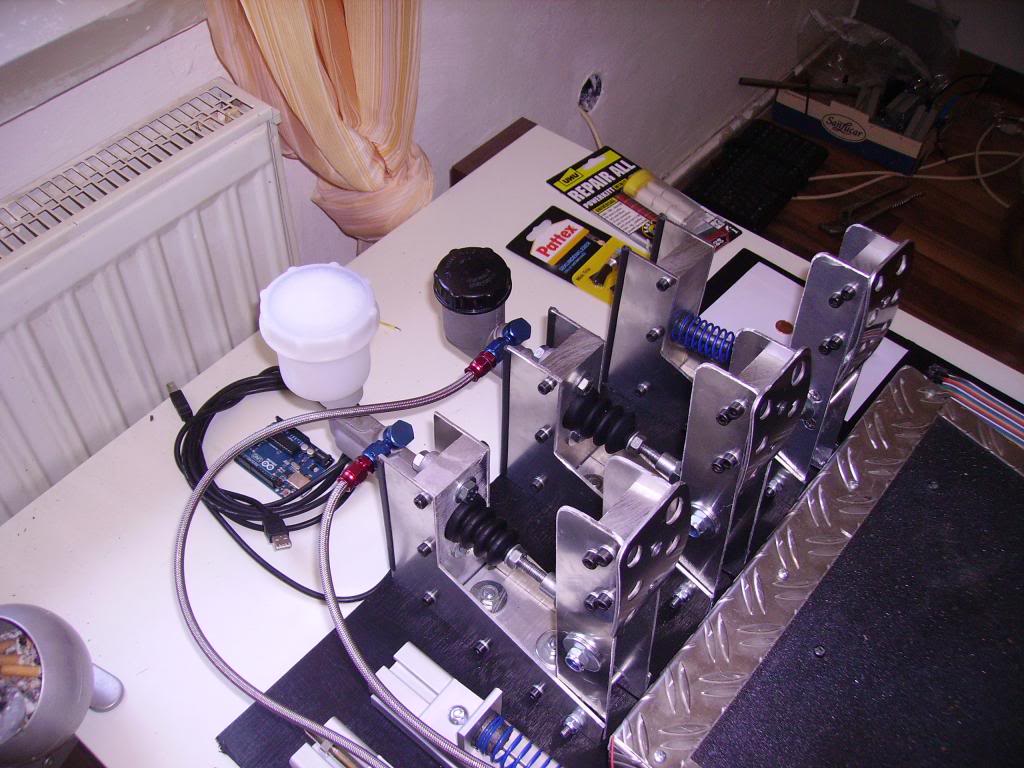

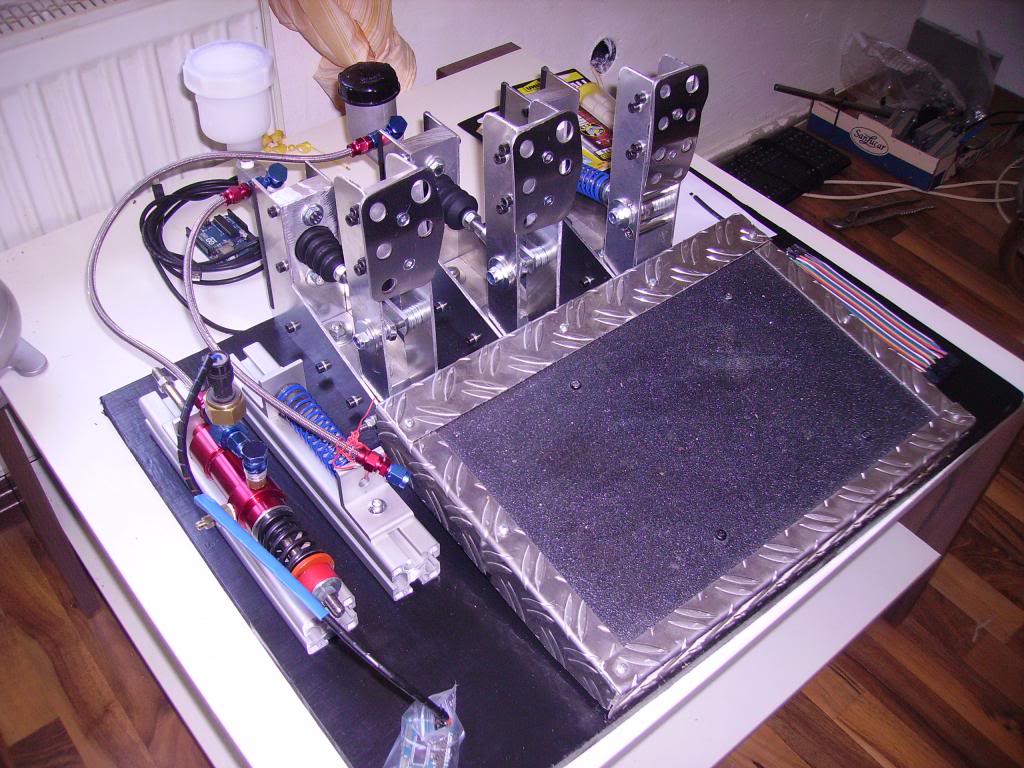

    Bilder Von meiner neue Pedalbox.
    Kupplung wird auch Hydraulisch, sind auch schon die Anschlüsse zu sehen am 2ten Zylinder :)
    [​IMG]
    [​IMG]
    Grüße Tom
    • Like Like x 4
  3. tommy06

    tommy06 Active Member

    Joined:
    Jan 17, 2011
    Messages:
    130
    Balance:
    1,368Coins
    Ratings:
    +135 / 0 / -0

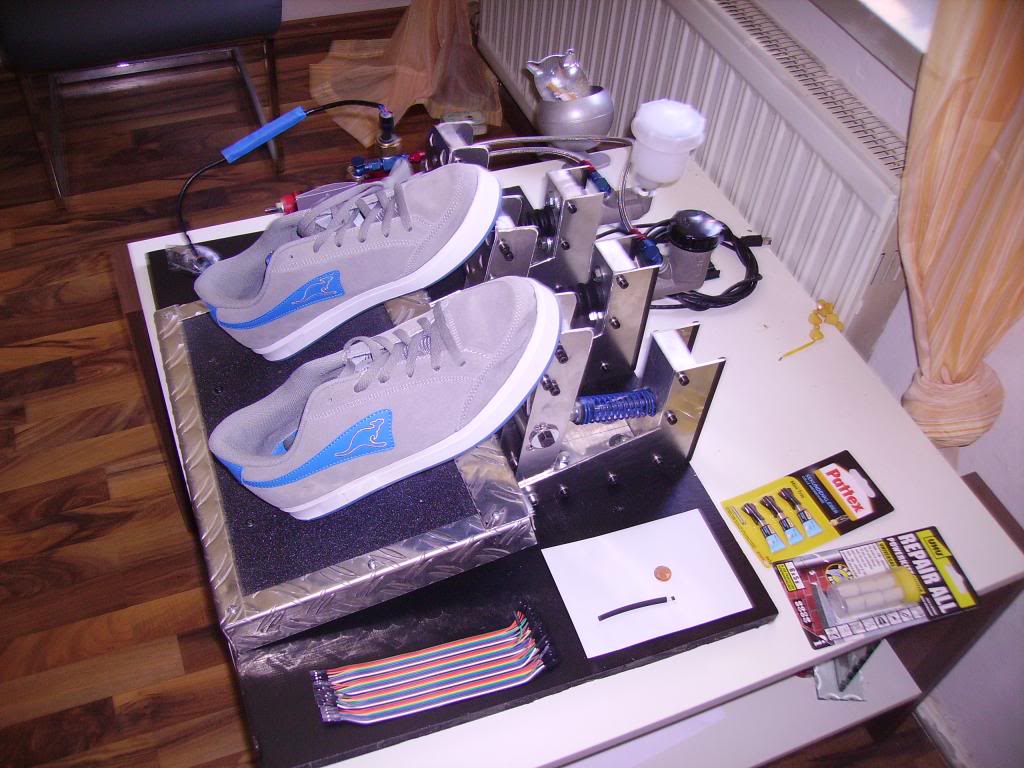

    New pictures of my pedal box :cheers

    these are not the right pictures, I deleted this entry.

    Brembo cylinder is not the right
    • Like Like x 2
    Last edited: Jul 30, 2014
  4. eaorobbie

    eaorobbie Well-Known Member Staff Member SimTools Developer Gold Contributor

    Joined:
    May 26, 2009
    Messages:
    2,593
    Occupation:
    CAD Detailer
    Location:
    Ellenbrook, Western Australia
    Balance:
    19,573Coins
    Ratings:
    +1,647 / 22 / -2
    My Motion Simulator:
    2DOF, DC motor, JRK, SimforceGT, 6DOF
    Sweet all this hard work is worth it. I really do want to build a set myself, well as soon as I can land a full time job again. Moneys tight still.
  5. tommy06

    tommy06 Active Member

    Joined:
    Jan 17, 2011
    Messages:
    130
    Balance:
    1,368Coins
    Ratings:
    +135 / 0 / -0

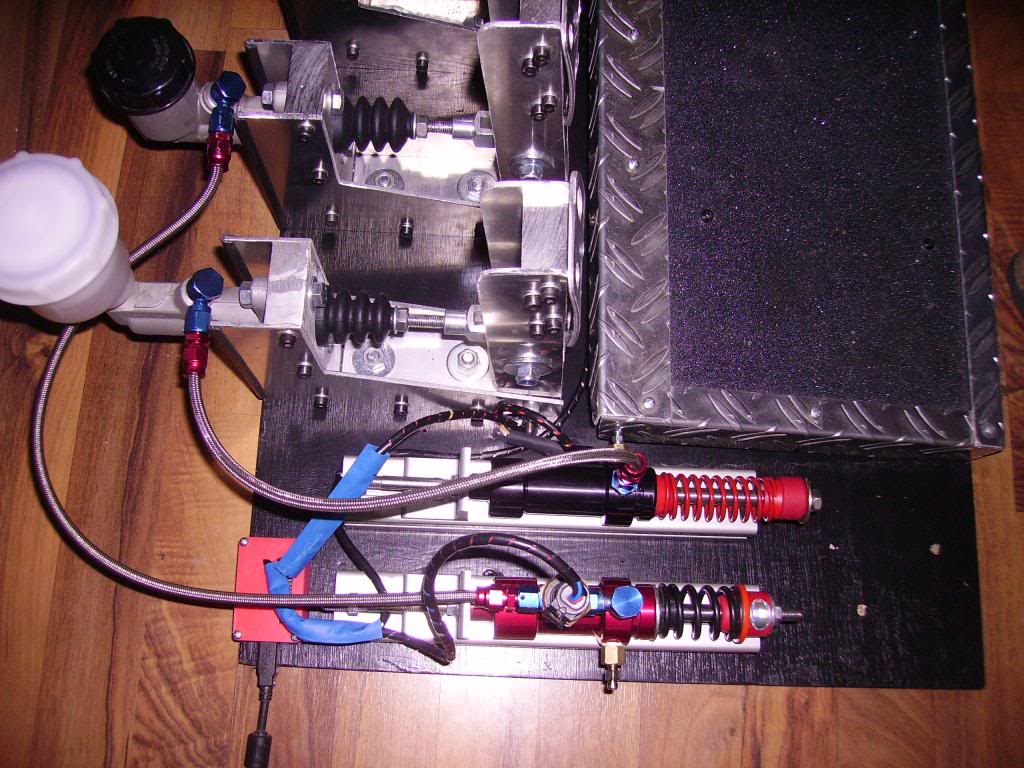

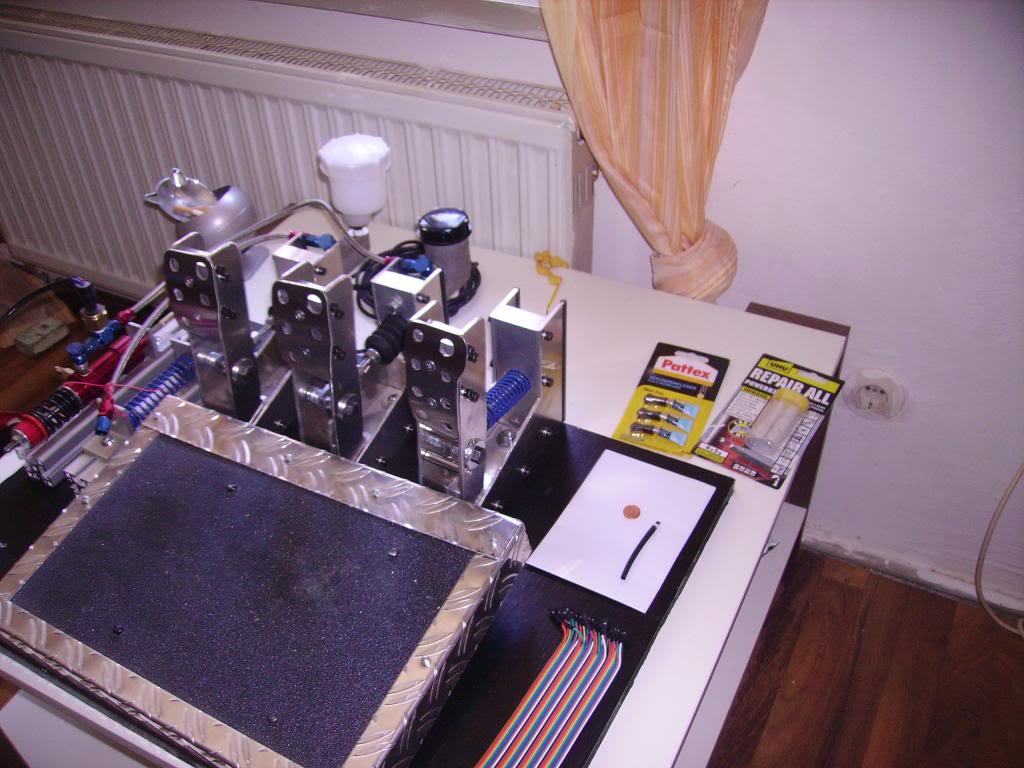

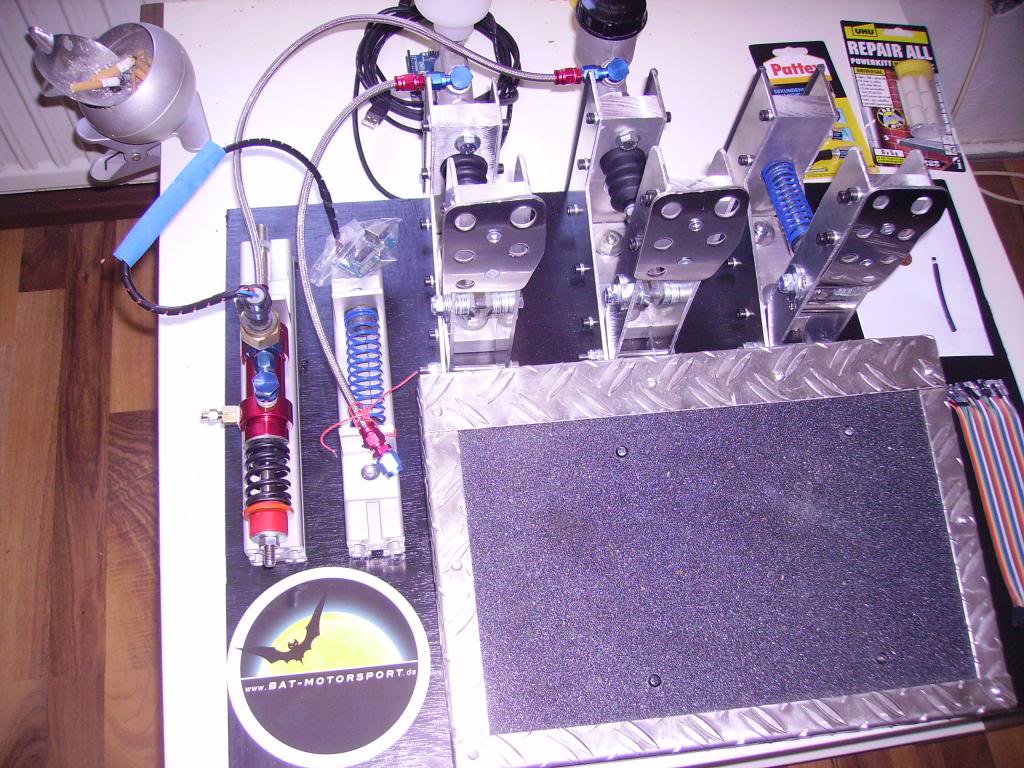

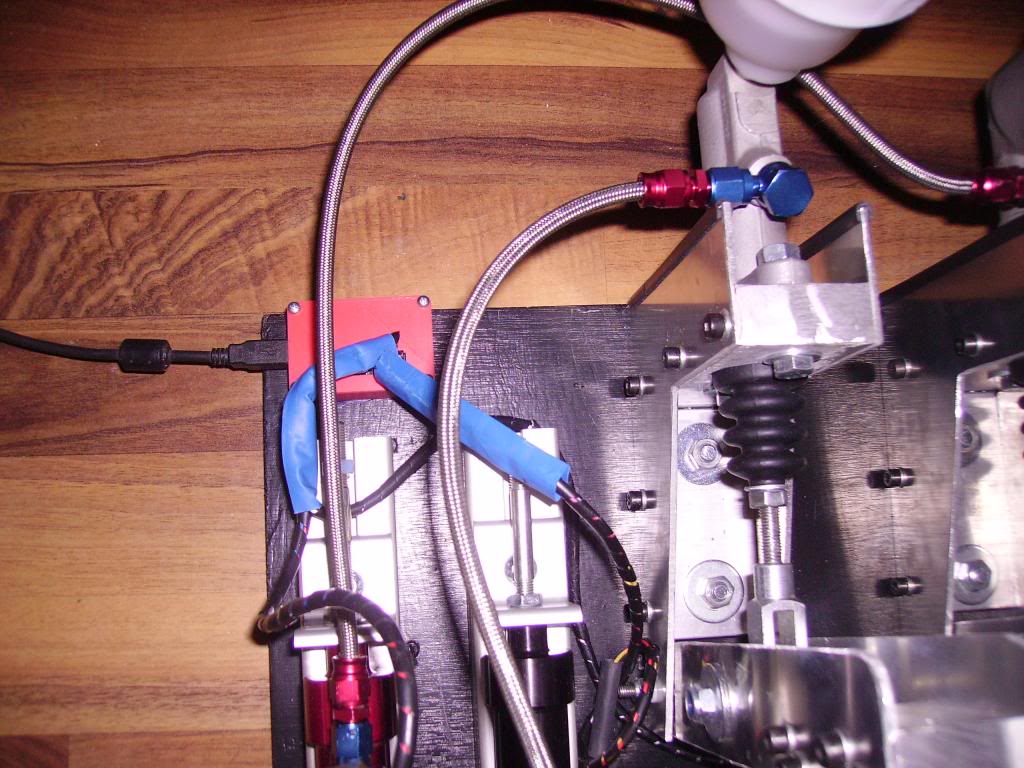

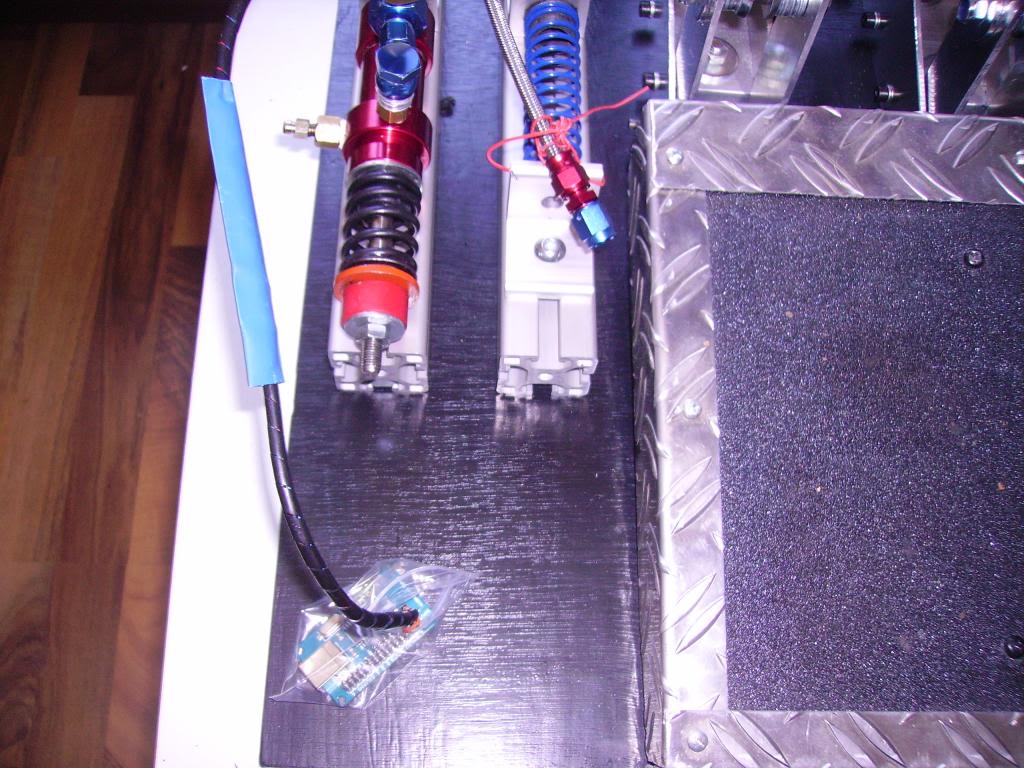

    However, it still lacks the clutch cylinder as the complete electronics. Am I doing the days. Pictures are there again.
    Have a nice Weekend
    Nascartv20
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    PS: Simracing DIY = full time Job yess it is :grin
    • Winner Winner x 1
  6. tommy06

    tommy06 Active Member

    Joined:
    Jan 17, 2011
    Messages:
    130
    Balance:
    1,368Coins
    Ratings:
    +135 / 0 / -0
    In about 2-3 weeks is my 2nd pull type cylinder from America. For my clutch.

    Here's even a short video :D




    sorry englisch ...:eek:
    • Like Like x 1
  7. Pit

    Pit - - - - - - - - - - - - - - - - Staff Member Moderator Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    2,985
    Location:
    Switzerland
    Balance:
    29,051Coins
    Ratings:
    +2,975 / 29 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    Hallo tommy06 super Arbeit! Erlaube mir einen kleinen Input meinerseits : der Pedalweg zwischen Gaspedal und Bremse scheint fast gleich (weit) und die Bremse scheint relativ weich eingestellt. Ich hab Erfahrung mit Sportwagen und die Bremse hat oft einen sehr kurzen Weg und braucht relativ viel Kraft

    Hello tommy06 great work! Allow me a suggestion: the pedal travel between the accelerator and brake seems almost the same (long way) and the brake seems set to be relatively soft. have experience in driving sport cars and often the brake has a very short way and needs quite a lot of force
  8. tommy06

    tommy06 Active Member

    Joined:
    Jan 17, 2011
    Messages:
    130
    Balance:
    1,368Coins
    Ratings:
    +135 / 0 / -0
    Danke:cheers

    Ich kann mir denn Pedalweg so wie die härte einstellen wie ich es möchte. Kurzer weg , sehr hart zb ! mit Federn / und Core Bushes (Skateboard)

    So hart und ein kurzer Pedalweg mag vielleicht bei Road Cars so sein, aber ich fahre hauptsächlich Oval ( Nascar)

    Wenn das so hart ist fällt mir nach 200 Runden in New Hampshire Motor Speedway der Fuß ab.:D

    Ich habe das Video Verwendet und nachgebaut, viel Pedalweg und nicht zu hart und zu weich.
    Bei denn beiden Road strecken im Jahr Watkins Glen / Sonoma / kann ich noch bei bedarf eine 2cm Core Bushes einbauen (medium /hard) so wird der weg kurzer und härter. Außerdem kann ich die Stepps von 1300 noch erhöhen und wie gesagt denn gegen druck so hart machen das man es fast nicht mehr Treten kann. Aber nicht der Sinn

    Ich komme so wie im Video am besten zurecht. :)


    NASCAR Racing !!! ;)

    Last edited: Jul 28, 2014
  9. Pit

    Pit - - - - - - - - - - - - - - - - Staff Member Moderator Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    2,985
    Location:
    Switzerland
    Balance:
    29,051Coins
    Ratings:
    +2,975 / 29 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    Video Zitat Kommentator: ..."you need a lot of pressure on the break..." :grin 200 Runden sind natürlich sehr heftig. Da geht irgendwann nix mehr. Auf jeden Fall ganz klasse dein Teil, und mit den vielen Einstellungsmöglichkeiten liegt alles drin. Viel Spass damit :)
  10. tommy06

    tommy06 Active Member

    Joined:
    Jan 17, 2011
    Messages:
    130
    Balance:
    1,368Coins
    Ratings:
    +135 / 0 / -0
    Danke ich habe meinen Spaß damit, fahren macht auch eine menge Freude aber ich behaupte jetzt mal das ich mehr Freude dran habe solche Pedale aus Alu zu bauen;)

    Meine Küche sieht genau so aus wie ein Bild was du eingestellt hast ( Werkzeug überall:D). Was gebaut zu haben das dann auch noch super gut läuft ...unbeschreiblich.;)

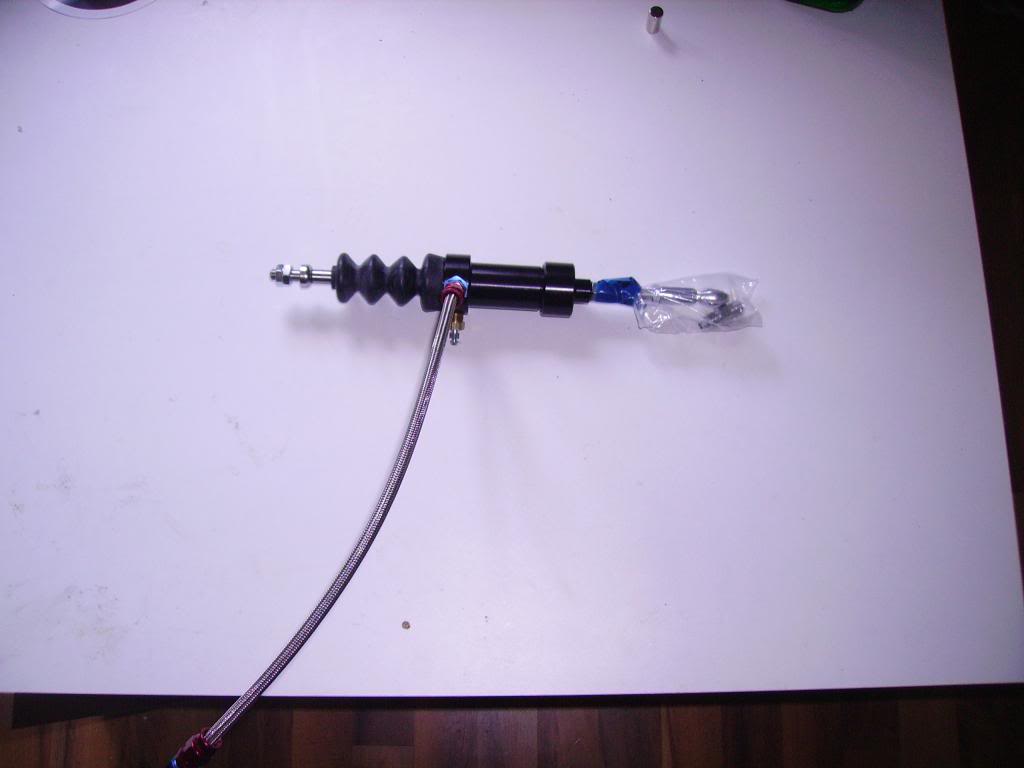

    2nd cylinder for the clutch has arrived from Usa :) can finally make my box ready.
    great job by Fedex USA / and Hermes Germany
    photos Follow

    Iracing.com Nascar Racing :thumbs

    [​IMG]

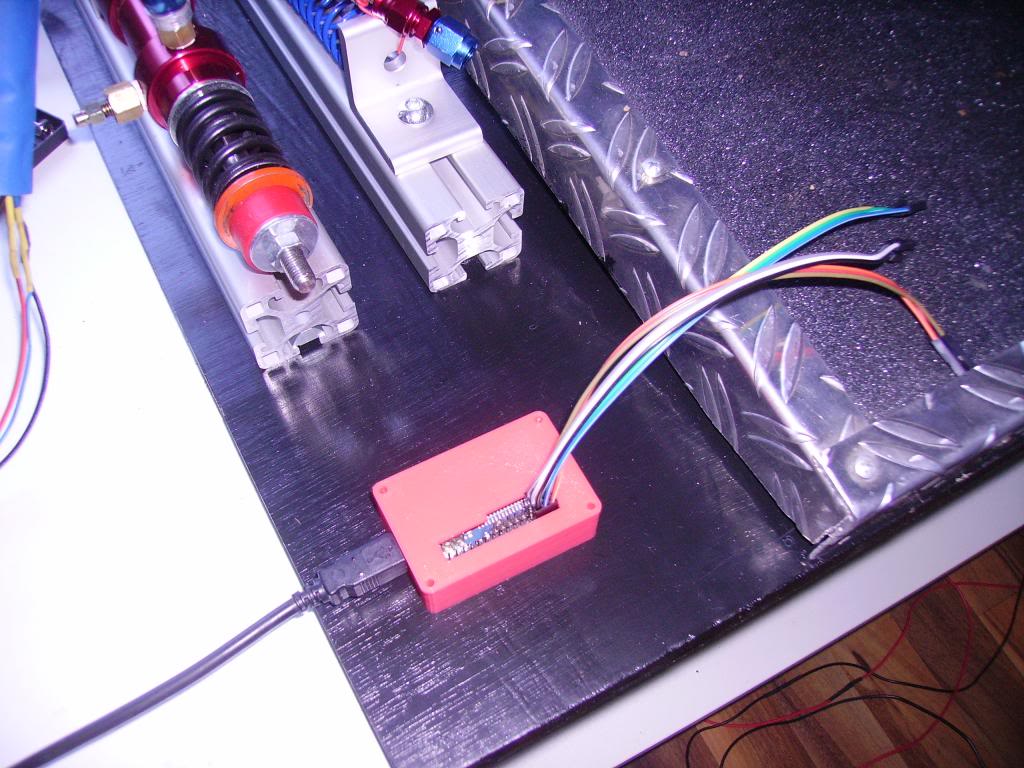

    3D housing for BU0836A 12-bit joystick Board. made by Karsten and Martin Virtual ev Forum.:thumbs
    [​IMG]
    Last edited: Jul 30, 2014
  11. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    12,629
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    96,579Coins
    Ratings:
    +8,109 / 40 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    Nice work there.
  12. Pit

    Pit - - - - - - - - - - - - - - - - Staff Member Moderator Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    2,985
    Location:
    Switzerland
    Balance:
    29,051Coins
    Ratings:
    +2,975 / 29 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    Das Bauen ist das Beste. Aber auch das Justieren danach. Gestern sass ich sicher 8h am Rig um u. a. SweetFX und Simvibe auf meiner Hardware zu optimieren.
  13. tommy06

    tommy06 Active Member

    Joined:
    Jan 17, 2011
    Messages:
    130
    Balance:
    1,368Coins
    Ratings:
    +135 / 0 / -0
    Hello

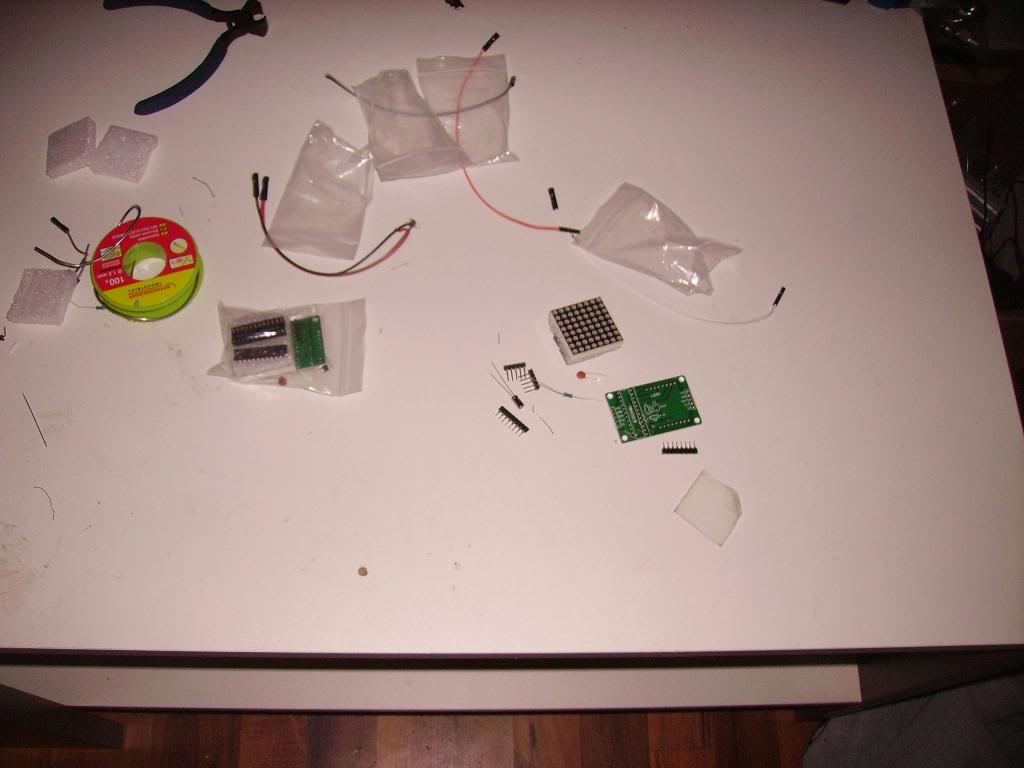

    My homemade Led ( marquee) ? for my YouTube Onboard Vo Racing ( Nascar)
    [​IMG]

    the video is a demo.


    in the race I do not turn on with the push of a button yellow LEDs. Pc takes over the whole, which is very important to me that I've said this :)

    In The Race Push the pc the button / green 0n , off / yellow on, off / :) !!!!


    More DIY coming soon :D

    Nascartv
    • Like Like x 1
    • Creative Creative x 1
    Last edited: Aug 6, 2014
  14. tommy06

    tommy06 Active Member

    Joined:
    Jan 17, 2011
    Messages:
    130
    Balance:
    1,368Coins
    Ratings:
    +135 / 0 / -0
    Hello :D mein Englisch wenn nicht so schlecht wer , könnte ja mal auch einen Kleinen Witz bei euch hier machen.:grin

    [​IMG]

    [​IMG]

    [​IMG]

    Stockcar Racing :cheers

    More !!! DIY coming soon :D
    • Like Like x 1
  15. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    12,629
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    96,579Coins
    Ratings:
    +8,109 / 40 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
  16. eaorobbie

    eaorobbie Well-Known Member Staff Member SimTools Developer Gold Contributor

    Joined:
    May 26, 2009
    Messages:
    2,593
    Occupation:
    CAD Detailer
    Location:
    Ellenbrook, Western Australia
    Balance:
    19,573Coins
    Ratings:
    +1,647 / 22 / -2
    My Motion Simulator:
    2DOF, DC motor, JRK, SimforceGT, 6DOF
    @noorbeast , droool is not the word mate , would sell me left nut for them.
    Once I have the free time , I will be following @tommy06 build to the letter.
    Best I have seen yet should be selling them, they are that good, Well done, Love them and want them Ahhhhhhhhh!
    • Agree Agree x 1
  17. tommy06

    tommy06 Active Member

    Joined:
    Jan 17, 2011
    Messages:
    130
    Balance:
    1,368Coins
    Ratings:
    +135 / 0 / -0
    Hello
    Pedal set in use, clutch pedal is not ready yet. Why? No time for hall sensor installed.
    Pressure sensor is also an option but at the moment too expensive for the clutch pedal.
    :rolleyes:


    My second attempt to build a racing steering column. From VW Polo is not good :eek:

    [​IMG]

    [​IMG]


    The same I want to have
    [​IMG]

    sorry again my english:blush

    More !!! DIY coming soon :D
    Last edited: Sep 14, 2014
  18. bsft

    bsft

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
    brilliant work!
  19. tommy06

    tommy06 Active Member

    Joined:
    Jan 17, 2011
    Messages:
    130
    Balance:
    1,368Coins
    Ratings:
    +135 / 0 / -0
    Many thanks :cheers
    But I am not finished with my Simulator:grin
  20. bsft

    bsft

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
    who ever is "finished" with their projects?
    • Like Like x 1
    • Agree Agree x 1
