Supramans 2DOF Rig Build

Discussion in 'DIY Motion Simulator Projects' started by supraman, Jun 15, 2015.

  1. supraman

    supraman Member

    Joined:
    Jun 11, 2015
    Messages:
    35
    Location:
    canada
    Balance:
    543Coins
    Ratings:
    +24 / 0 / -0
    Hey guys decided to make this thread as both a documentation of build for myself and sou you guys can watch it progress. Id first like to give a big thanks to @noorbeast for all his help over PM's he has really made things a breeze for me to figure out and understand, so thanks for that!

    Now for my build I had originally decided to go for wiper motors but after looking into them and what Id personally like out of my rig I decided against it. Instead I will be using a motor that Noorbeast showed me, its a 12v worm drive motor that he used in his DX Racer build.

    Moving on from the motors I then needed to figure out what would power them, I cant remember who showed me the Server power supplies but know I am grateful and managed to find a good buy for a lot of 2 hp DL380s for under 40$ shipped!

    From there I have decided to go the route of JRK for the controllers and have found a nice set of hall sensors from a local Canadian site.

    As for the seat, I have a brand new Sparco Steel that I bought years ago for 780$ befor shipping directly from Sparco and never once installed it in any vehicle, and chances are never will soooo may as well strap it down ;)

    I will add pictures later today when I am off work but that's about all for now!
    • Like Like x 1
  2. Ads Master

    Ads Master

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
  3. supraman

    supraman Member

    Joined:
    Jun 11, 2015
    Messages:
    35
    Location:
    canada
    Balance:
    543Coins
    Ratings:
    +24 / 0 / -0
    Ok so I am now off work so here are some pictures!

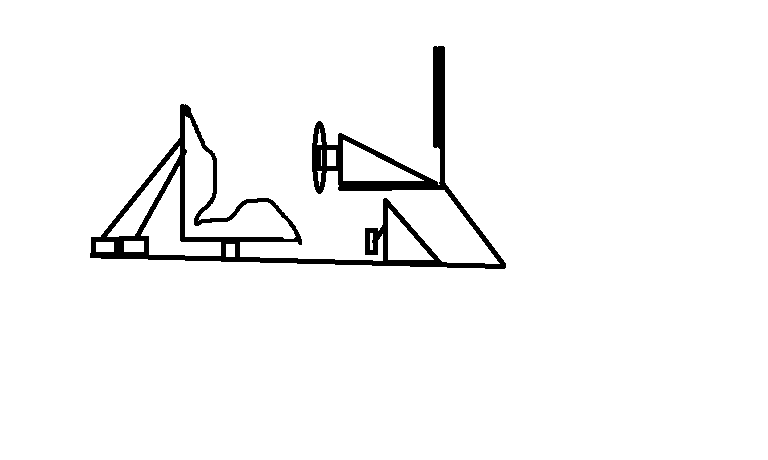

    first I will show a crappy picture I did in paint showing kinda how id like it to look, Id love to do it in some sort of 3d program unfortunately I do not have any skill at stuff like that but i'm awesome at building stuff haha.

    id like to make this rig easily able to be converted to a 3DOF cause eventually id like to add in traction loss cause I love drifting and do it myself in my spare time.

    [​IMG]

    if anyone can help make this more of a 3d render please do haha!

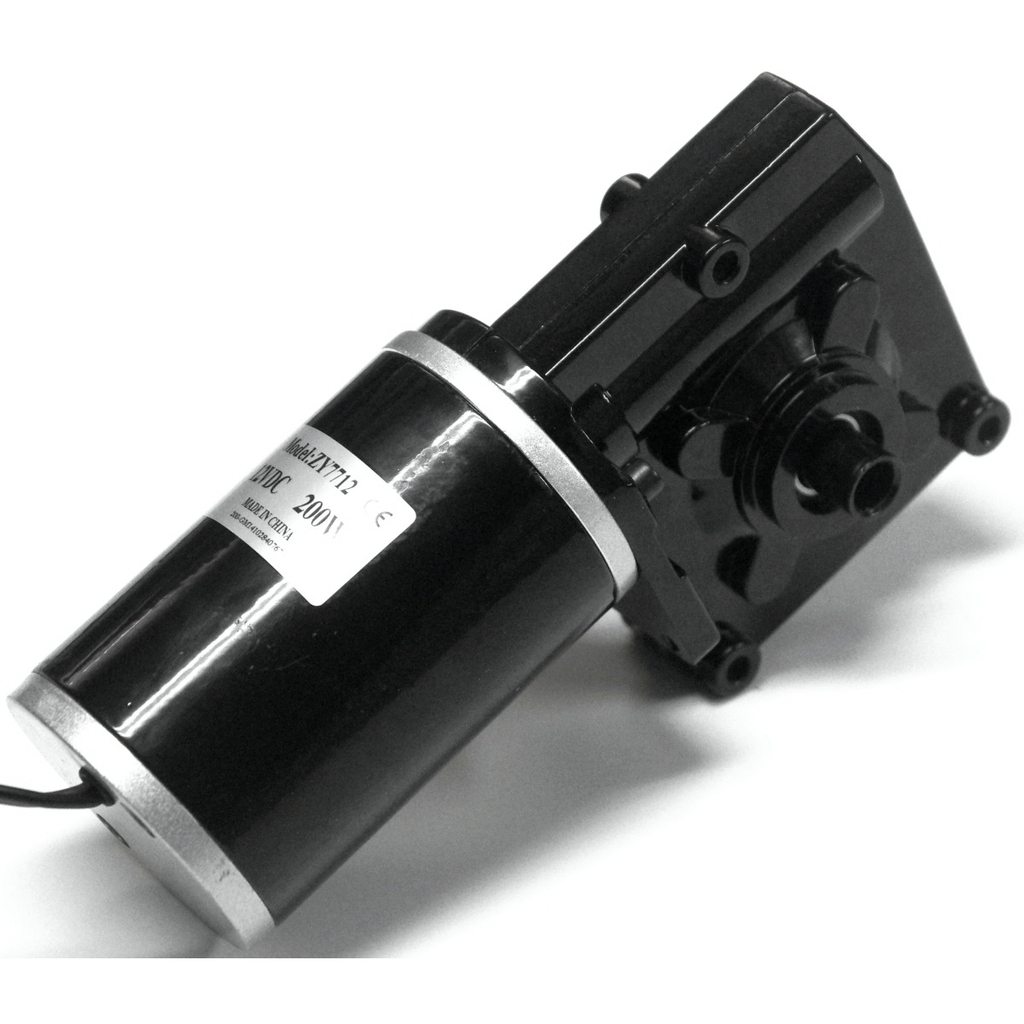

    next are the motors I will be using,

    [​IMG]

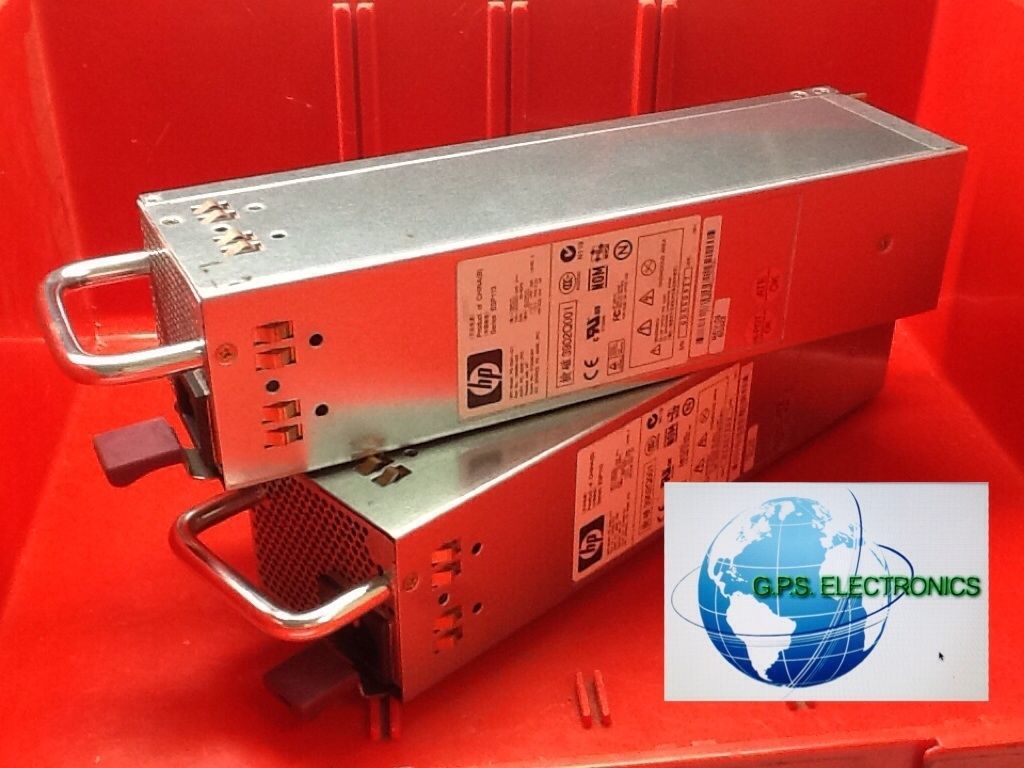

    here are the power supplies

    [​IMG]

    here is the seat next to one of my old child hobbies, even my hobbies were supra related lol

    [​IMG]

    for now I think thats all. enjoy!
    • Like Like x 1
  4. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    14,182
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    105,765Coins
    Ratings:
    +8,742 / 42 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    The Worm Drive Motor 12V/24V 200W, 180 RPM, 20Nm Torque are perfect for this type of sim. There used to be a Canadian Ebay seller that had them, but is now selling the remainder at $900, which is just ridiculous :eek:

    But do have a good look around for similar specs from local suppliers, as these types of motors have been used for crab pot pullers, truck tarp pullers and other similar tasks.

    Many current members are scouring the globe for local reasonably priced DC motors.
    • Like Like x 1
  5. supraman

    supraman Member

    Joined:
    Jun 11, 2015
    Messages:
    35
    Location:
    canada
    Balance:
    543Coins
    Ratings:
    +24 / 0 / -0

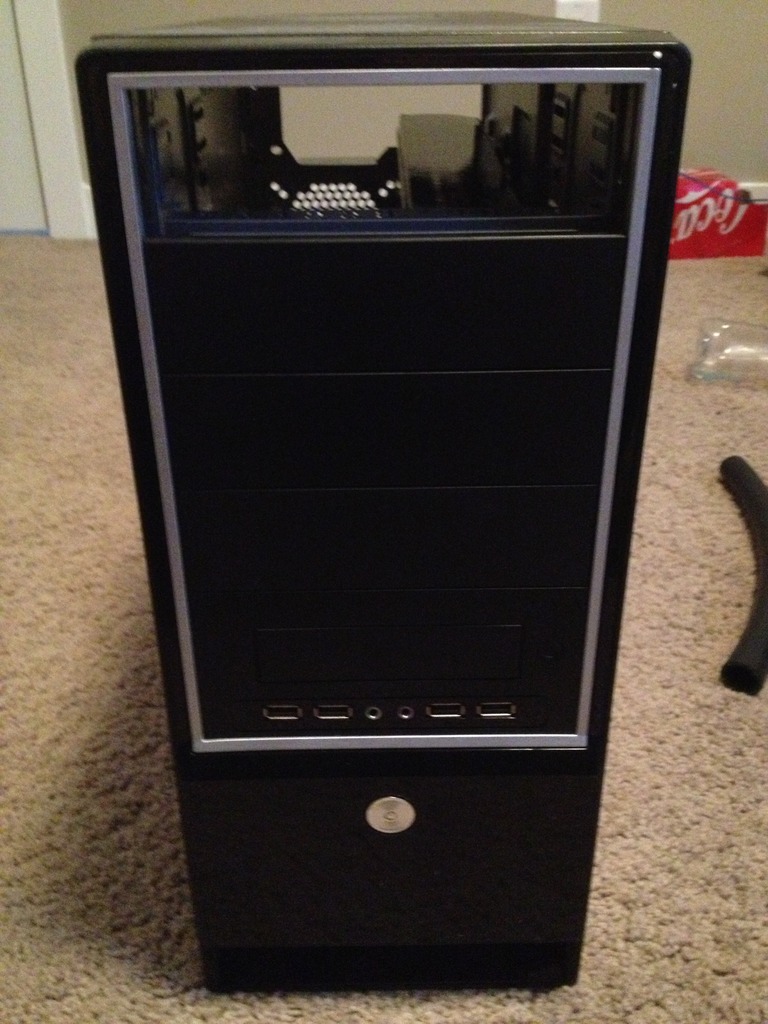

    well another update for the night, scored a second computer case to help run the rig :) total cost into my rig so far not counting the seat at all because that was bought for other intentions, is now only 43$!

    [​IMG]
    • Like Like x 3
  6. bsft

    bsft

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
    Try to avoid server PSUs, they are generally cheap because they sold 2nd hand because they are at the end of their service life.
    LED power supplies are new, cost more, and more reliable.
    Shoulder mount seat mover is fine
  7. supraman

    supraman Member

    Joined:
    Jun 11, 2015
    Messages:
    35
    Location:
    canada
    Balance:
    543Coins
    Ratings:
    +24 / 0 / -0
    even if that is the case @bsft at 37$ shipped for 2 I am not going to be too upset if one does die on me, I do not need super fancy gear I just want it to work and be able to say I succeeded in doing so. after version 1 is complete there will always be room for it to grow and improve and trust me it will definitely get upgrades. the wheel set I have right now is only a logitec G25, now thats not a bad wheel at all but its still not ideal but it was a great entry level.
    • Like Like x 3
    • Agree Agree x 1
  8. bsft

    bsft

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
    I run a G27 as I cannot afford, nor justify the cost of the CSR or stuff like that.
    I have a spring in the brake pedal to make it extra stiff, a custom sequential shifter build from a cheap dpad and bit and pieces.
    Ive been racing with that gear for years.
    @eaorobbie can verify that the G25 is still an excellent wheel.
  9. supraman

    supraman Member

    Joined:
    Jun 11, 2015
    Messages:
    35
    Location:
    canada
    Balance:
    543Coins
    Ratings:
    +24 / 0 / -0
    Oh im not saying that its a bad wheel, I quite enjoy this wheel and like that there are so many mods available for it. It does however lack an e-brake, which Is why eventually going to spend the money and do a full Fanatec setup minus the shifter cause I think theirs arent that nice for the money.
    • Like Like x 1
    • Agree Agree x 1
  10. eaorobbie

    eaorobbie Well-Known Member Staff Member SimTools Developer Gold Contributor

    Joined:
    May 26, 2009
    Messages:
    2,593
    Occupation:
    CAD Detailer
    Location:
    Ellenbrook, Western Australia
    Balance:
    19,753Coins
    Ratings:
    +1,657 / 22 / -2
    My Motion Simulator:
    2DOF, DC motor, JRK, SimforceGT, 6DOF
    G25 is a good begineers or part time wheel but if ya really want to get serious then yes upgrade for sure, Im still using a G25 , 10 years old. lol.

    Model , something like this -

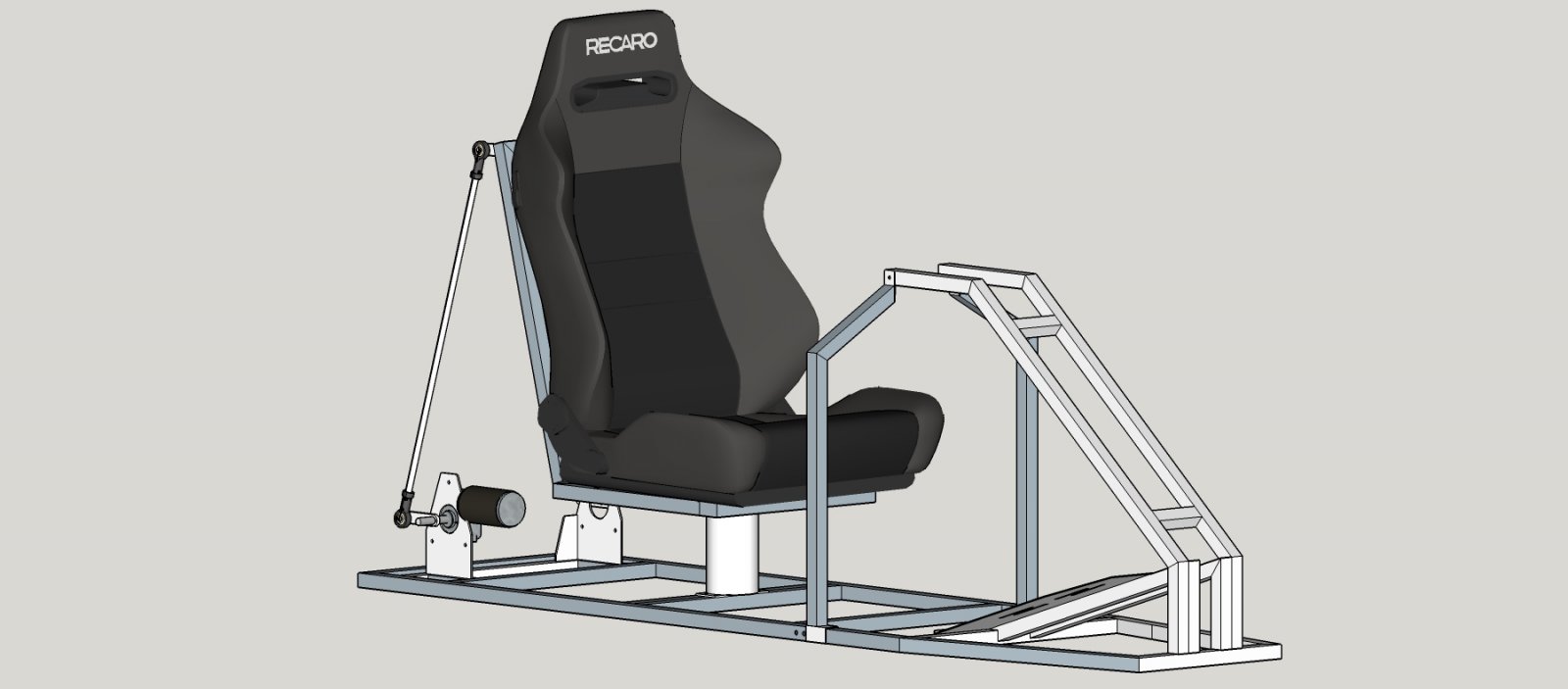

    Proposed layout.jpg
    Built the rear recently for @madgino its still a work in progress, lol if I can get him off it or he gets away from work. We will dress it up soon mate.
    Built to adapt the front of a Next Level - GTPro and reuses the original seat back in its original position. A Static Sim Conversion.
    • Like Like x 2
    • Winner Winner x 1
    • Creative Creative x 1
  11. madgino

    madgino New Member

    Joined:
    Feb 1, 2015
    Messages:
    15
    Balance:
    1,038Coins
    Ratings:
    +17 / 0 / -0
    @eaorobbie - I wasn't gonna jump on the sim tonight, but after seeing that, think I might have to go and have a thrash.
    • Like Like x 1
  12. supraman

    supraman Member

    Joined:
    Jun 11, 2015
    Messages:
    35
    Location:
    canada
    Balance:
    543Coins
    Ratings:
    +24 / 0 / -0
    @eaorobbie that is basically exactly the sim I would like to build for myself :D
  13. eaorobbie

    eaorobbie Well-Known Member Staff Member SimTools Developer Gold Contributor

    Joined:
    May 26, 2009
    Messages:
    2,593
    Occupation:
    CAD Detailer
    Location:
    Ellenbrook, Western Australia
    Balance:
    19,753Coins
    Ratings:
    +1,657 / 22 / -2
    My Motion Simulator:
    2DOF, DC motor, JRK, SimforceGT, 6DOF
    Its a basic concept for a std seat mover built to replace the NextLevels joke of a motion base, with high speed motion from DC WormGears.
    Happy to discuss possible plans, but wont release them hear in fear of all the commercial spies we have at present.
    Sent a PM mate.
