Sketchup objects

Discussion in 'DIY Motion Simulator Building Q&A / FAQ' started by delcarlo, Apr 3, 2017.

  1. delcarlo

    delcarlo Member

    Joined:
    Mar 28, 2017
    Messages:
    34
    Location:
    Australia
    Balance:
    433Coins
    Ratings:
    +36 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor
    hey guys,

    While I'm waiting on my parts to arrive i thought i might as well make a sketchup model of the sim thats in my head so i can make an accurate set of plans to build from (completely out of character.. i'm more of a cut twenty, measure none kind of guy).. found numerous off the shelf items in 3d warehouse and plonked em all over the floor of my model, similar to what my shed looks like at the moment

    before i go and make a model of the motion dynamics motor off the 2d cad files on their website id see if anyone else has already done that to save some time

    specifically this one https://www.motiondynamics.com.au/1...ve-geared-motor-200w-21-256-rpm-7.5-45nm.html

    cheers
    Andrew

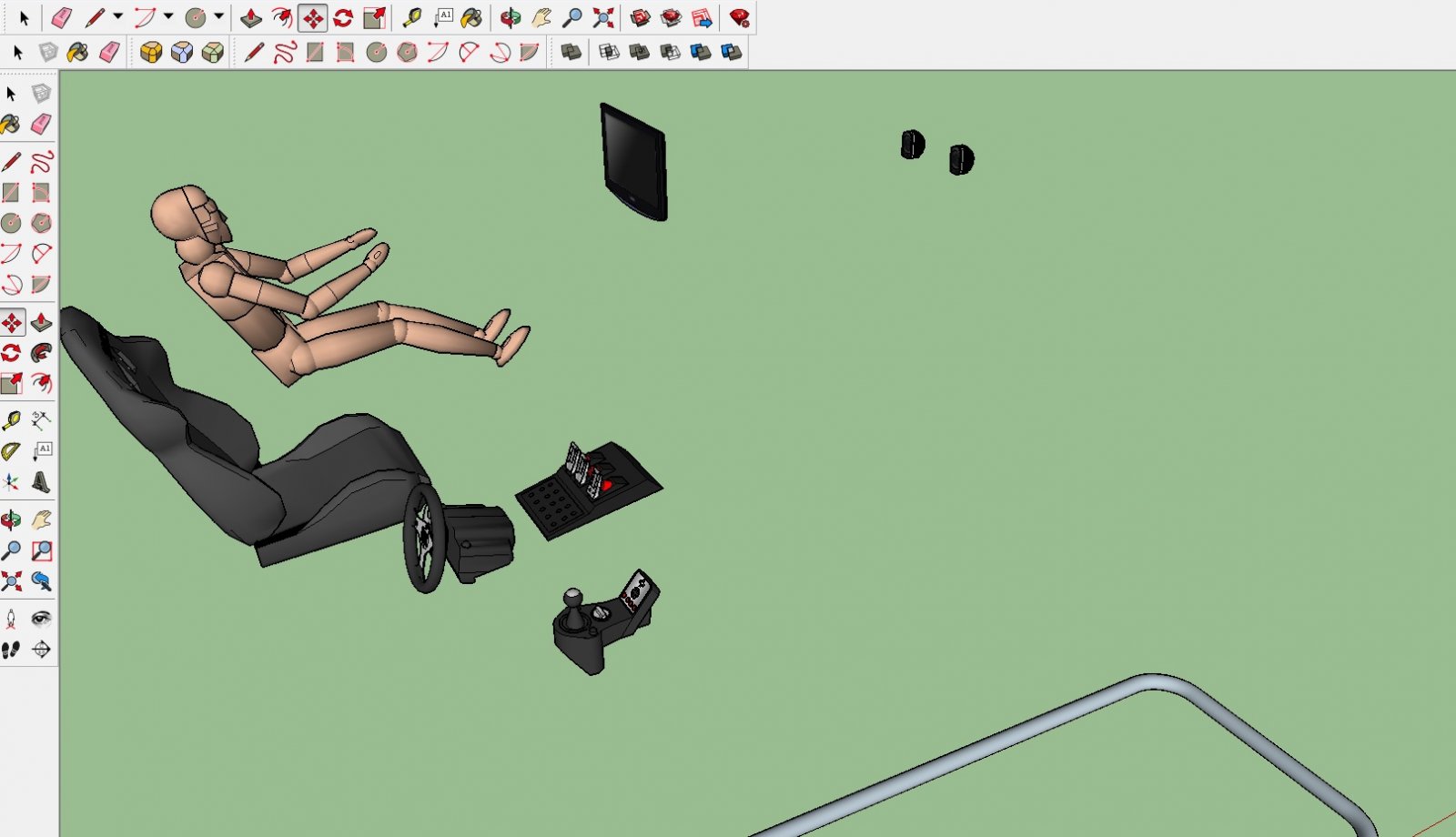

    sketchup start.jpg
  2. Ads Master

    Ads Master

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
  3. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    16,781
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    121,948Coins
    Ratings:
    +9,633 / 47 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    • Like Like x 1
    • Winner Winner x 1
  4. delcarlo

    delcarlo Member

    Joined:
    Mar 28, 2017
    Messages:
    34
    Location:
    Australia
    Balance:
    433Coins
    Ratings:
    +36 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor

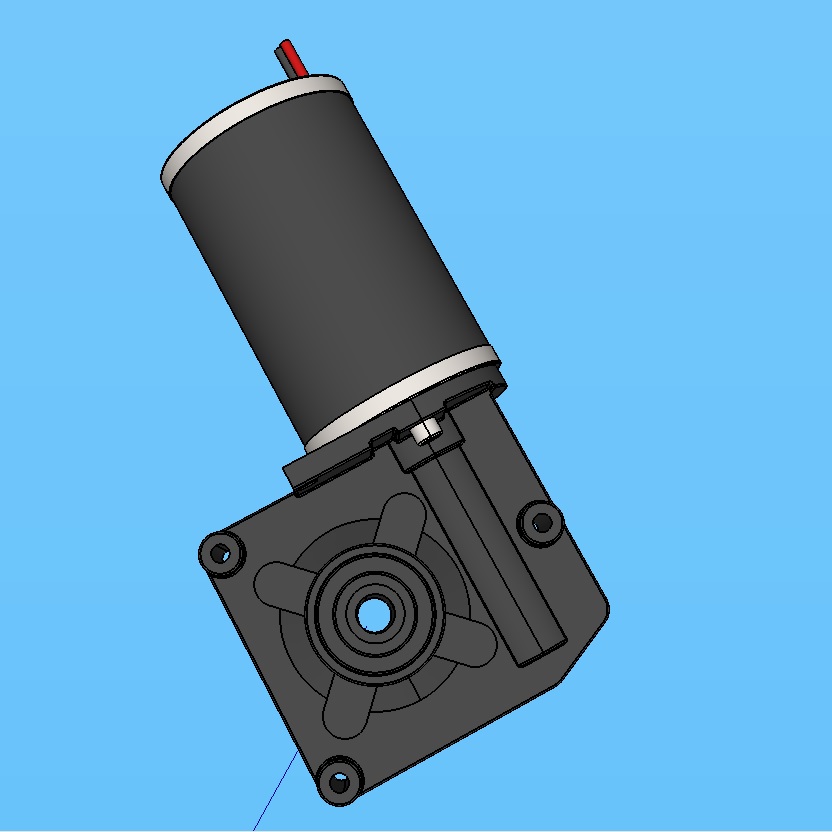

    awesome cheers!..

    searched high and low with every keyword I could think of.. (not solidworks.. haha)

    I've just converted the model to a sketchup file. I'ts not a free plugin (used the 30 day trial) maybe you could add it to the other link?

    i'll mod it to the motion dynamics one and upload that when done


    Attached Files:

  5. delcarlo

    delcarlo Member

    Joined:
    Mar 28, 2017
    Messages:
    34
    Location:
    Australia
    Balance:
    433Coins
    Ratings:
    +36 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor
    its so close its not worth making another for my purposes. sketchup doesnt have the resolution needed.

    i'll just make sure i use the schematic on motion dynamics website when drilling holes.
    the motor itself is 30mm longer, but the gearbox is identical
  6. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    16,781
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    121,948Coins
    Ratings:
    +9,633 / 47 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    Nice job, added to the FAQ section: https://www.xsimulator.net/community/faq/3d-model-of-pgsw-motion-dynamic-motors.247/
