SIMULATOR 2DOF PROJECT WITCH ARDUINO UNO R3 Y MOTO MONSTER H-BRIDGE

Discussion in 'DIY Motion Simulator Projects' started by Pastrana, Jan 3, 2016.

  1. bruce stephen

    bruce stephen Hammer doesnt fix it, must be electrical

    Joined:
    Jun 7, 2015
    Messages:
    1,293
    Occupation:
    general contractor
    Location:
    michigan
    Balance:
    9,022Coins
    Ratings:
    +1,227 / 9 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, Motion platform, 6DOF
    @spiroboy1 should start your own thread for assistance. It would not be fair to @Pastrana to hijack his thread.
    • Agree Agree x 4
  2. spiroboy1

    spiroboy1 New Member

    Joined:
    Sep 20, 2012
    Messages:
    23
    Balance:
    321Coins
    Ratings:
    +2 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, SimforceGT
    [​IMG]

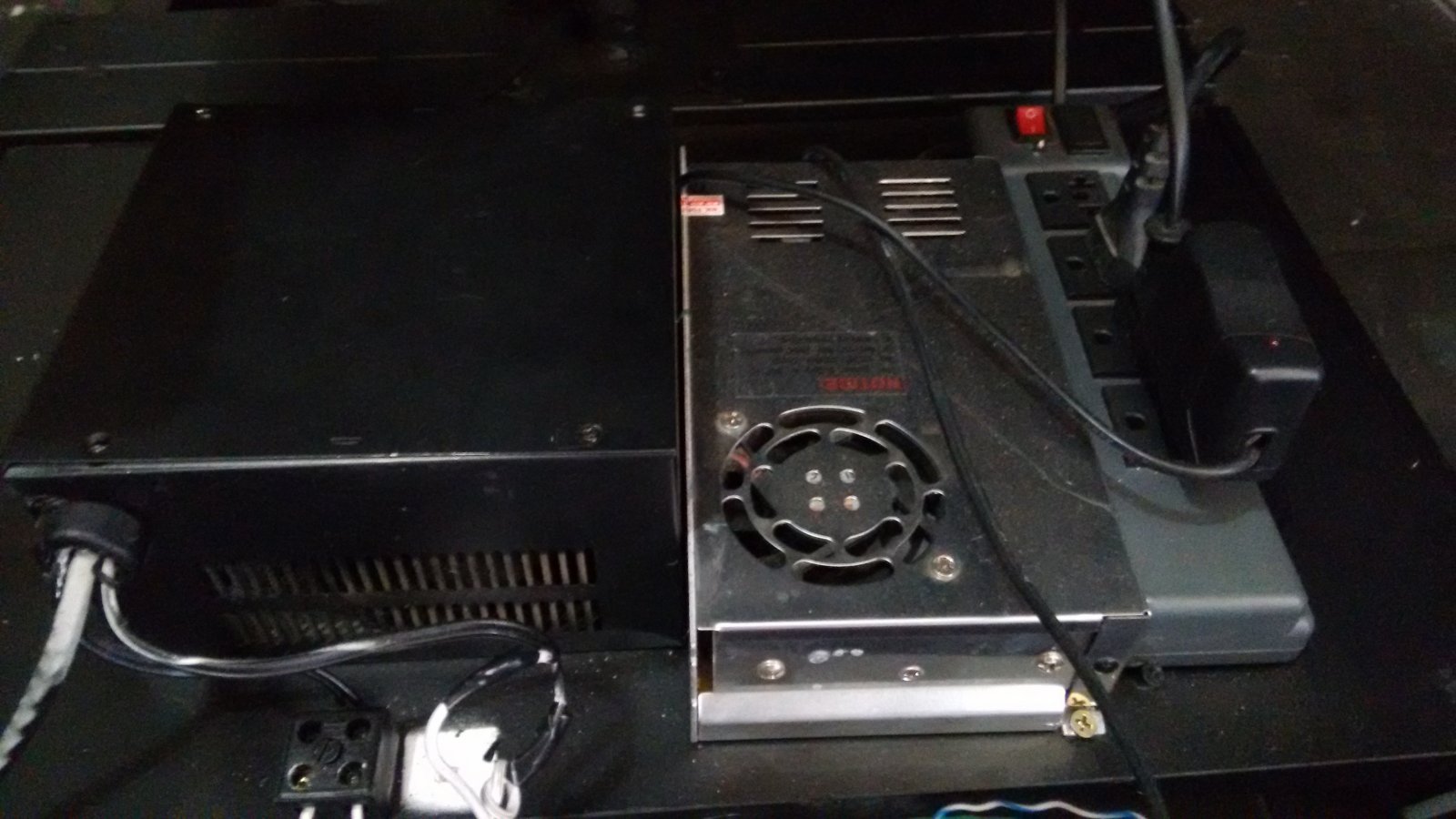

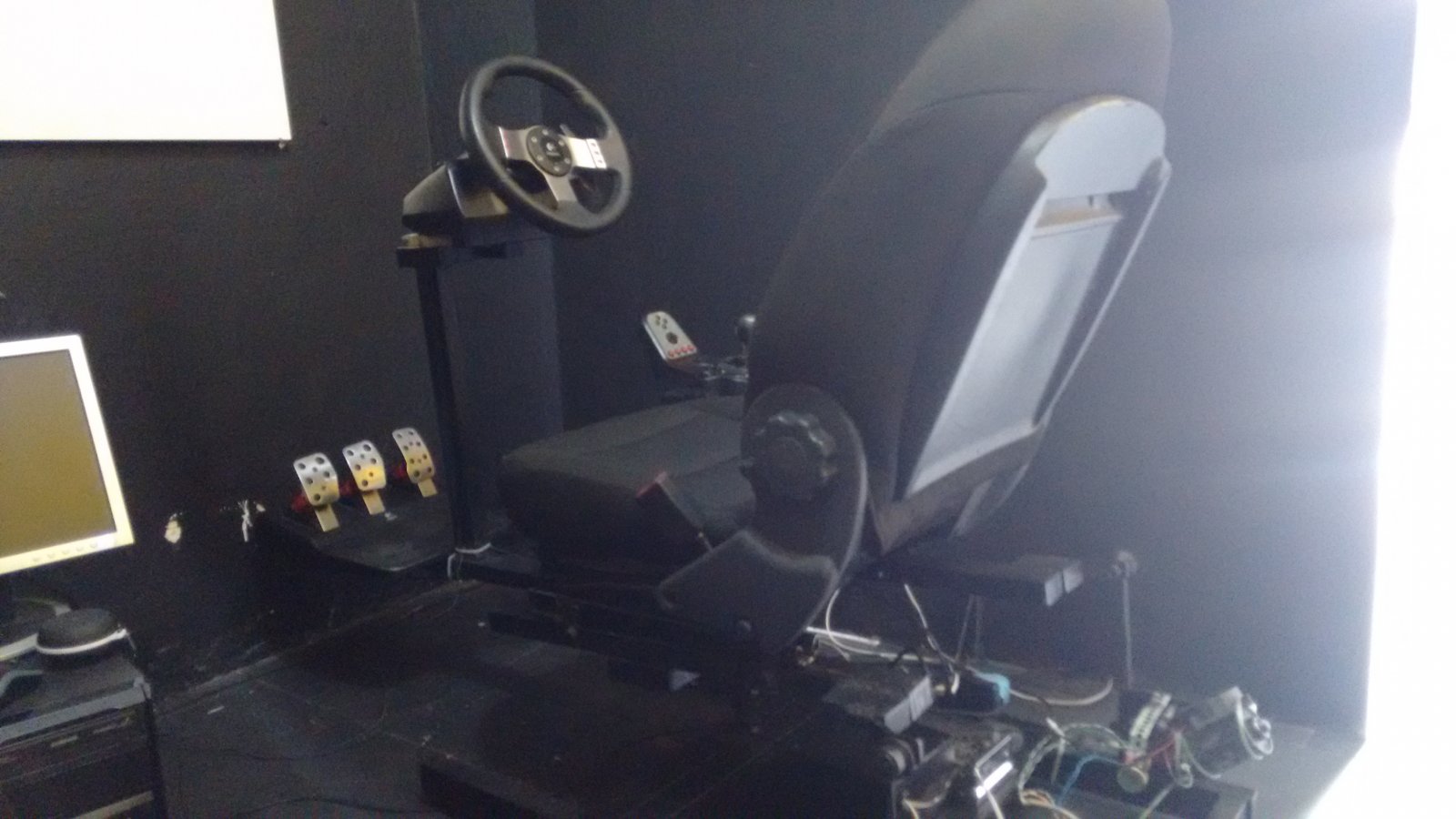

    Attached Files:

  3. spiroboy1

    spiroboy1 New Member

    Joined:
    Sep 20, 2012
    Messages:
    23
    Balance:
    321Coins
    Ratings:
    +2 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, SimforceGT
  4. Pastrana

    Pastrana Member

    Joined:
    Oct 30, 2015
    Messages:
    91
    Location:
    Argentina
    Balance:
    386Coins
    Ratings:
    +44 / 0 / -0
    My Motion Simulator:
    2DOF
    Hello glad to help . I used the software SCM3 . You can search the Forum section . There you have all the tools to run the Arduino with bridges - h . Ask me any questions .
  5. Pastrana

    Pastrana Member

    Joined:
    Oct 30, 2015
    Messages:
    91
    Location:
    Argentina
    Balance:
    386Coins
    Ratings:
    +44 / 0 / -0
    My Motion Simulator:
    2DOF
    Hi. No that may be malfunctioning. I have the G27 working well with simtools . It can be a problem in the "com"
  6. Pastrana

    Pastrana Member

    Joined:
    Oct 30, 2015
    Messages:
    91
    Location:
    Argentina
    Balance:
    386Coins
    Ratings:
    +44 / 0 / -0
    My Motion Simulator:
    2DOF

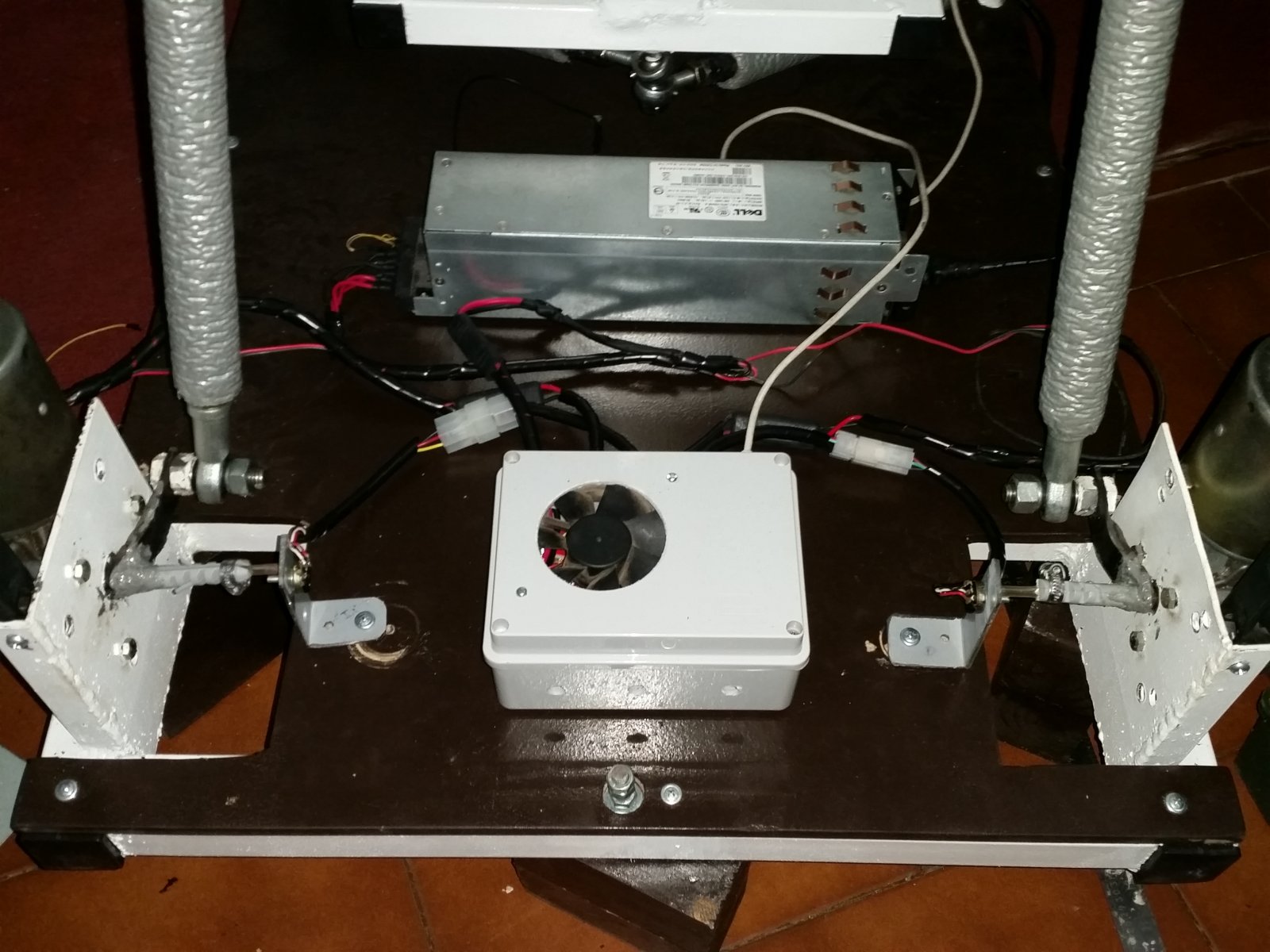

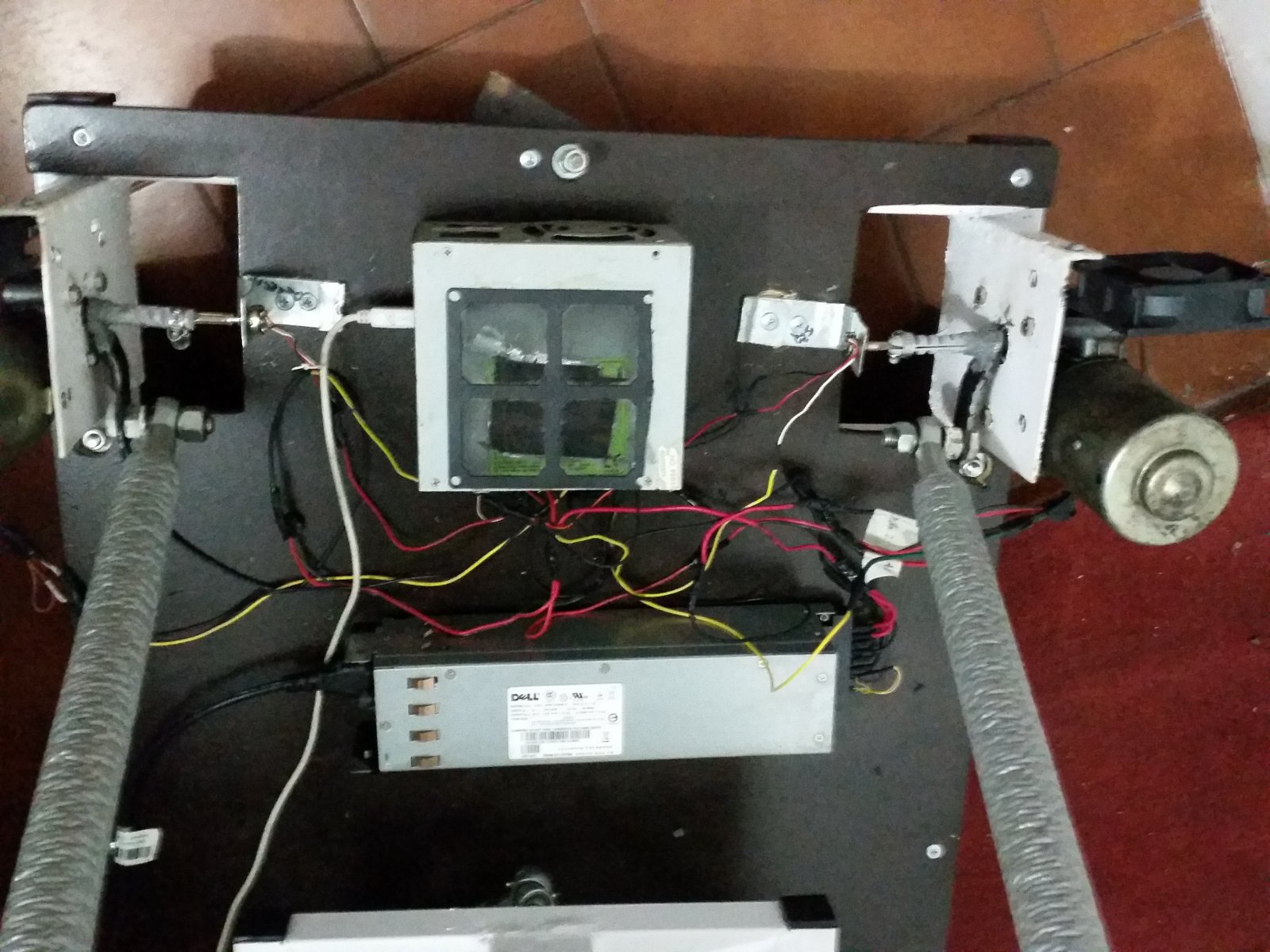

    Before and after. Wiring accommodated .
    20160111_123712.jpg 20160111_223602.jpg
    • Like Like x 2
  7. Pastrana

    Pastrana Member

    Joined:
    Oct 30, 2015
    Messages:
    91
    Location:
    Argentina
    Balance:
    386Coins
    Ratings:
    +44 / 0 / -0
    My Motion Simulator:
    2DOF

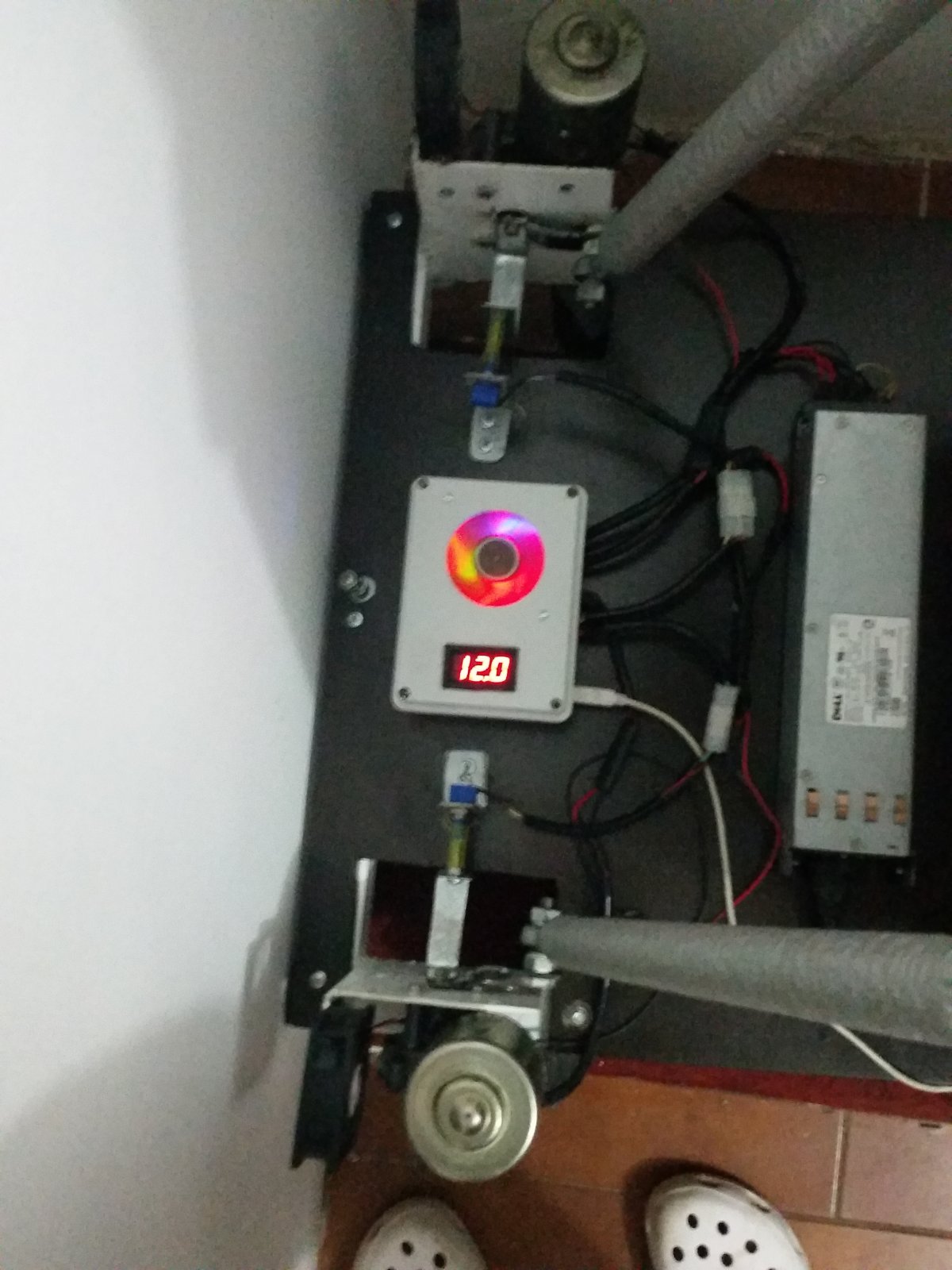

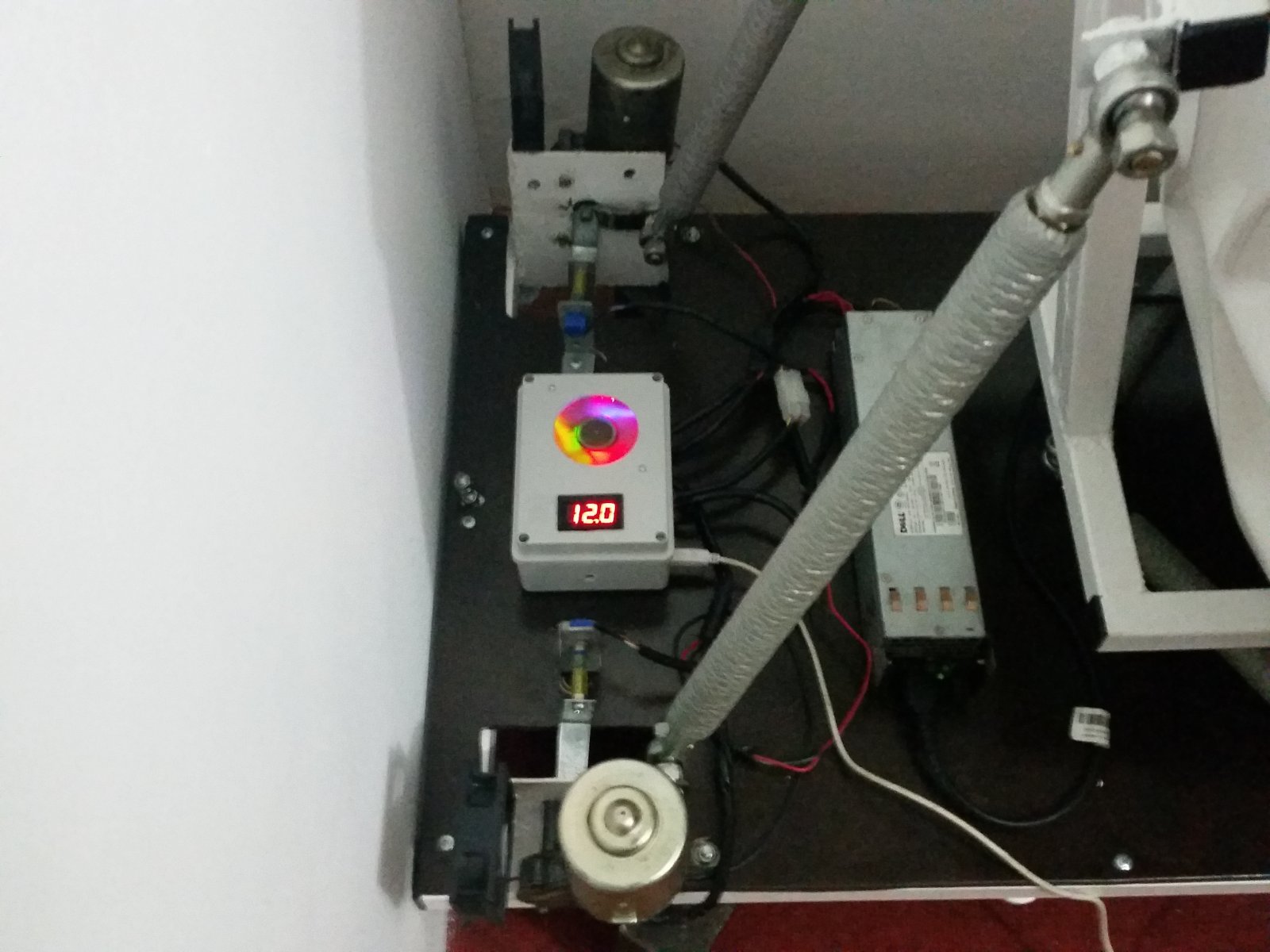

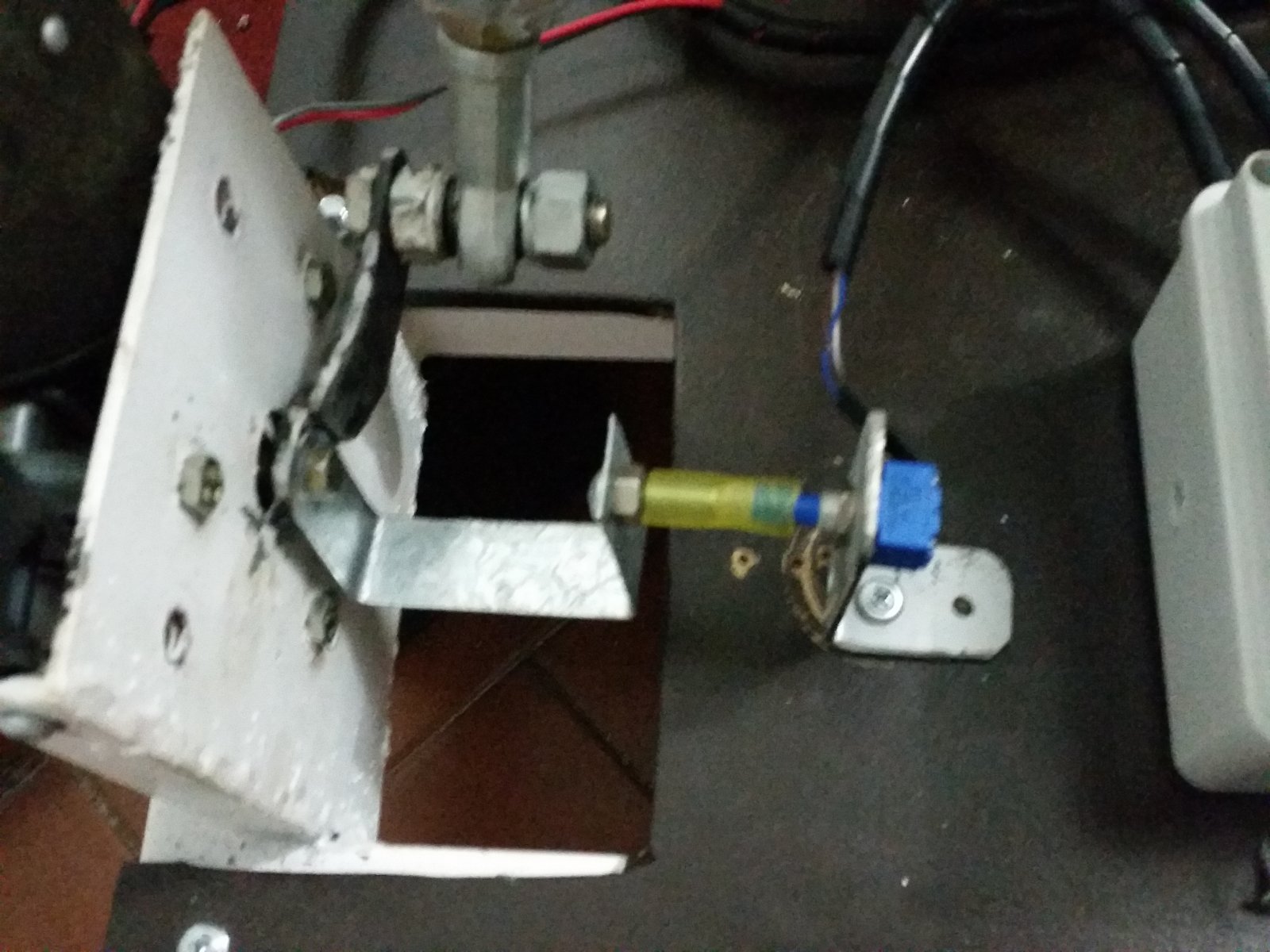

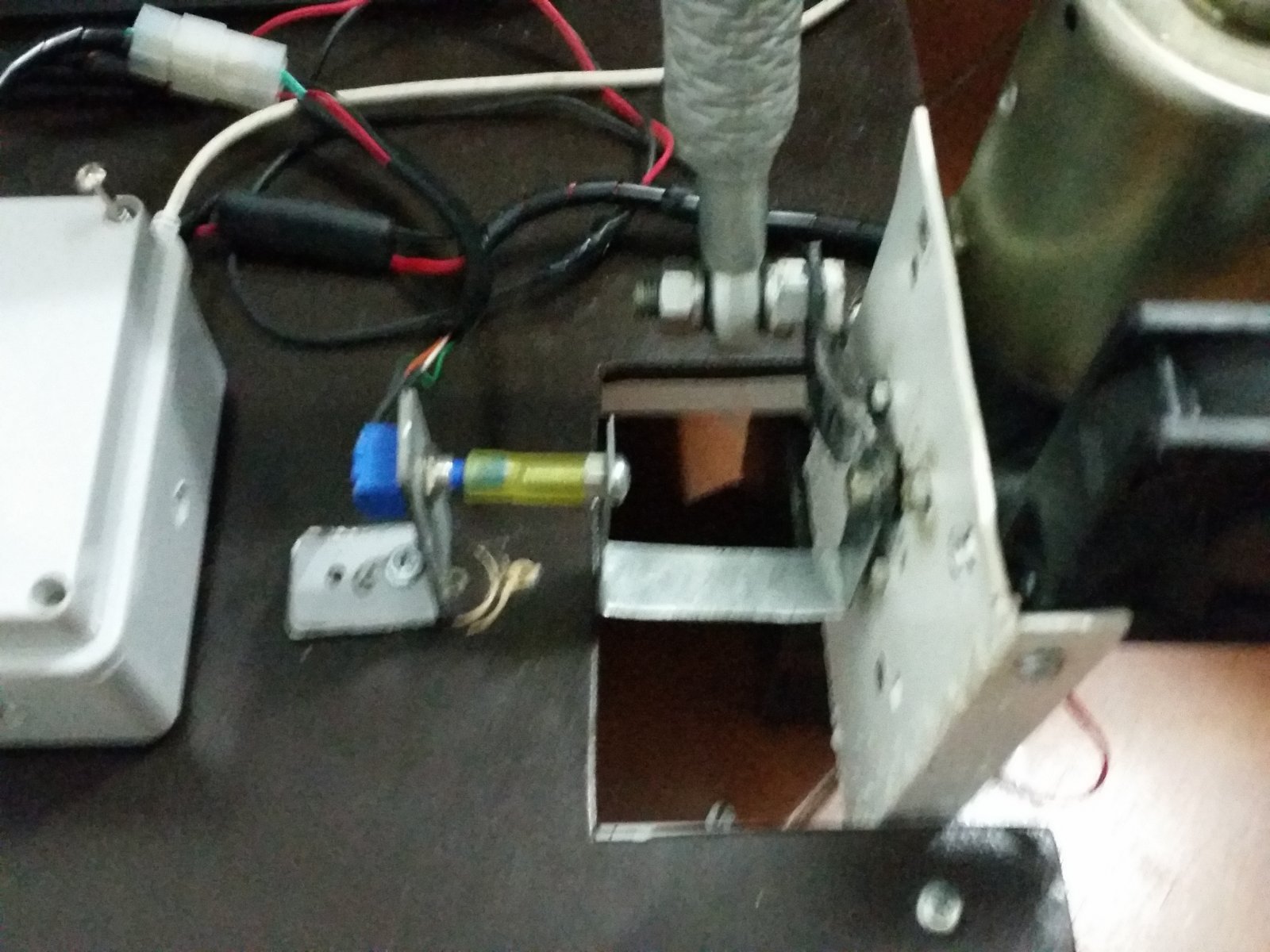

    Modifying , now permanently union of the rod with the potentiometer . And some tuning to the controller box.
    20160127_010953.jpg 20160127_010948.jpg 20160203_202741.jpg 20160203_202750.jpg
    • Like Like x 4
  8. Pedro Pablo

    Pedro Pablo Active Member

    Joined:
    Dec 7, 2015
    Messages:
    119
    Occupation:
    Software Developer
    Location:
    Valparaiso, Chile
    Balance:
    567Coins
    Ratings:
    +47 / 0 / -0
    Looking good mate. Keep it up!

    A question that I posted before: Exactly what wiper motor did you use?????
  9. Historiker

    Historiker Dramamine Adict Staff Member Moderator Gold Contributor

    Joined:
    Dec 16, 2010
    Messages:
    1,930
    Occupation:
    Retired
    Location:
    Michigan USA
    Balance:
    9,463Coins
    Ratings:
    +1,822 / 13 / -1
    My Motion Simulator:
    3DOF, DC motor, Arduino, Motion platform, 6DOF
    He commented on that in his first post.
    • Useful Useful x 1
  10. Pedro Pablo

    Pedro Pablo Active Member

    Joined:
    Dec 7, 2015
    Messages:
    119
    Occupation:
    Software Developer
    Location:
    Valparaiso, Chile
    Balance:
    567Coins
    Ratings:
    +47 / 0 / -0
    @Historiker I know, but I mean in specs. How many amps and watts have those wiper motors.
  11. Historiker

    Historiker Dramamine Adict Staff Member Moderator Gold Contributor

    Joined:
    Dec 16, 2010
    Messages:
    1,930
    Occupation:
    Retired
    Location:
    Michigan USA
    Balance:
    9,463Coins
    Ratings:
    +1,822 / 13 / -1
    My Motion Simulator:
    3DOF, DC motor, Arduino, Motion platform, 6DOF
    I assumed that you had but your question was not specific. If you want that information ask for it. Which now you have.

    Unfortunately I have found it is very difficult to get those specifics on automotive parts as they only information readily available is what vehicle it fits :(
  12. Pedro Pablo

    Pedro Pablo Active Member

    Joined:
    Dec 7, 2015
    Messages:
    119
    Occupation:
    Software Developer
    Location:
    Valparaiso, Chile
    Balance:
    567Coins
    Ratings:
    +47 / 0 / -0
    I'm new in the world of motion sim, what's why i'm asking. But now, i'm going to take your advise about "it is very difficult to get those specifics on automotive parts as they only information readily available is what vehicle it fits".
  13. Historiker

    Historiker Dramamine Adict Staff Member Moderator Gold Contributor

    Joined:
    Dec 16, 2010
    Messages:
    1,930
    Occupation:
    Retired
    Location:
    Michigan USA
    Balance:
    9,463Coins
    Ratings:
    +1,822 / 13 / -1
    My Motion Simulator:
    3DOF, DC motor, Arduino, Motion platform, 6DOF
    Sorry Pedro, I was not clear. I was agreeing with you that asking for specifics on those motors might reveal a tag on the motor itself giving the specifics. Something nor usually available via google. :cheers
  14. Guilherme Correia

    Guilherme Correia New Member

    Joined:
    Feb 5, 2016
    Messages:
    23
    Balance:
    165Coins
    Ratings:
    +4 / 0 / -0
    Hello everyone,

    I am new to the forum , I am Brazilian and I am interested in learning with you make a 2dof simulator, I found it very interesting
  15. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    15,571
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    114,132Coins
    Ratings:
    +9,137 / 46 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
  16. Guilherme Correia

    Guilherme Correia New Member

    Joined:
    Feb 5, 2016
    Messages:
    23
    Balance:
    165Coins
    Ratings:
    +4 / 0 / -0
    sorry , several open tabs and lost myself
  17. Pastrana

    Pastrana Member

    Joined:
    Oct 30, 2015
    Messages:
    91
    Location:
    Argentina
    Balance:
    386Coins
    Ratings:
    +44 / 0 / -0
    My Motion Simulator:
    2DOF
    We continue to modify the project. Now one of the central stabilizer bars was removed, which made it stay with better movement. The motors were modified internally because they had a central movement.
  18. Pastrana

    Pastrana Member

    Joined:
    Oct 30, 2015
    Messages:
    91
    Location:
    Argentina
    Balance:
    386Coins
    Ratings:
    +44 / 0 / -0
    My Motion Simulator:
    2DOF

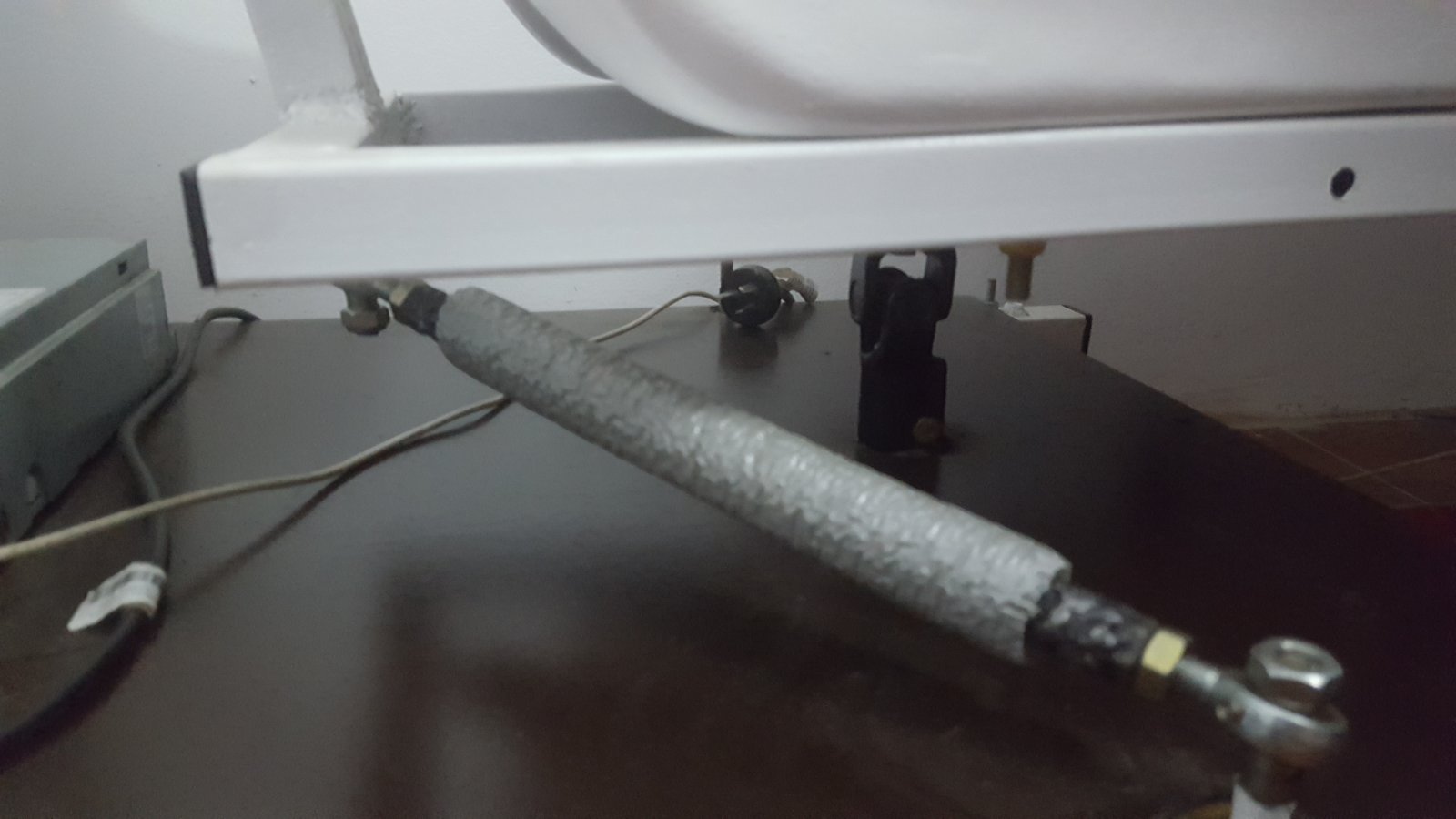

    20170123_105032.jpg There you can see, that only works with a single stabilizer bar.
  19. Pastrana

    Pastrana Member

    Joined:
    Oct 30, 2015
    Messages:
    91
    Location:
    Argentina
    Balance:
    386Coins
    Ratings:
    +44 / 0 / -0
    My Motion Simulator:
    2DOF
    Modification of the union of the potentiometers. 20170123_105107.jpg
  20. Pastrana

    Pastrana Member

    Joined:
    Oct 30, 2015
    Messages:
    91
    Location:
    Argentina
    Balance:
    386Coins
    Ratings:
    +44 / 0 / -0
    My Motion Simulator:
    2DOF

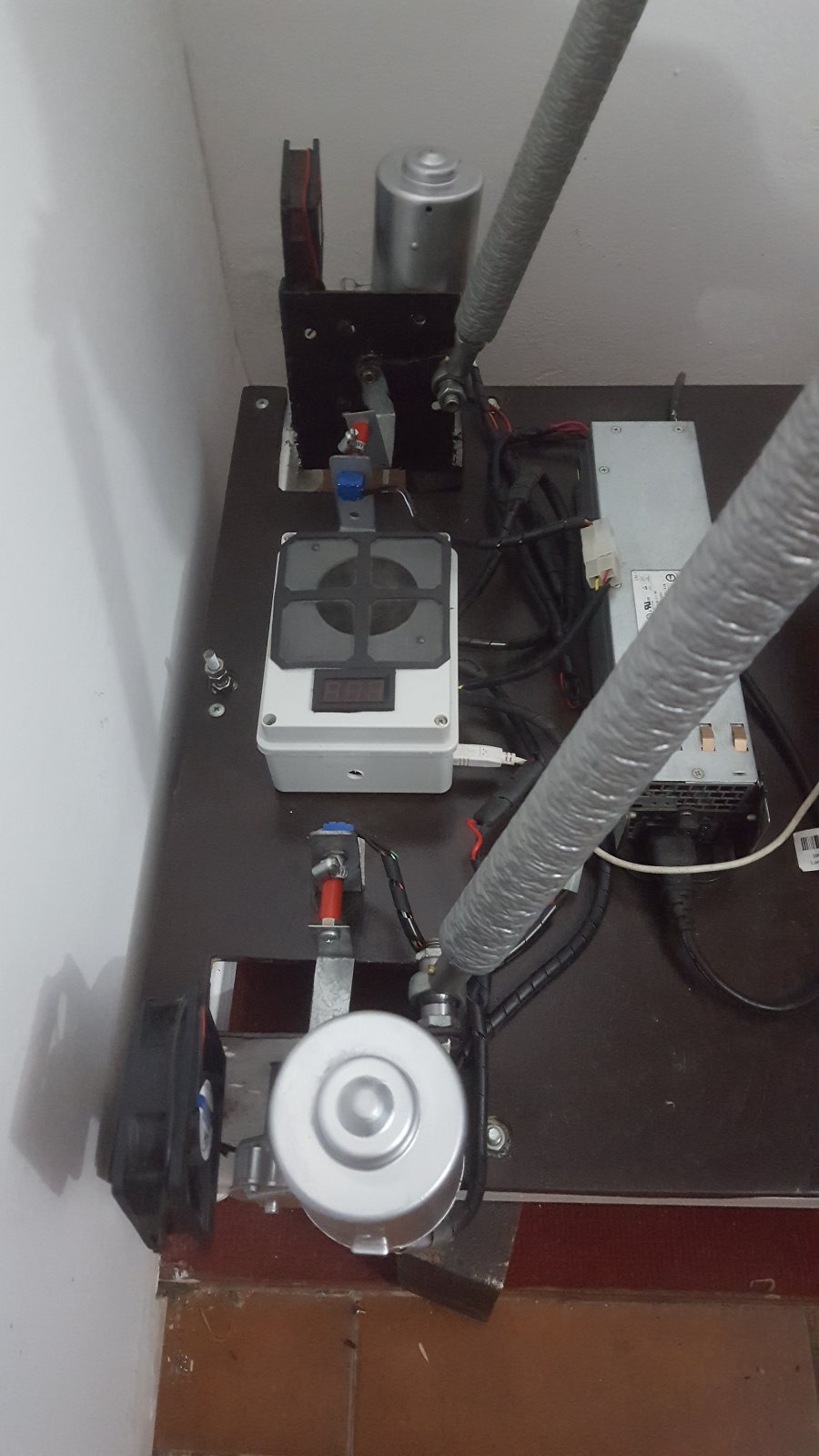

    Some aesthetic changes, painting, and cable accommodation. 20170123_105058.jpg
    • Like Like x 1
