Tutorial Sharing cockpit's dimensions

Discussion in 'DIY Motion Simulator Building Q&A / FAQ' started by RacingMat, Apr 15, 2015.

  1. RacingMat

    RacingMat Well-Known Member Gold Contributor

    Joined:
    Feb 22, 2013
    Messages:
    2,064
    Location:
    Marseille - FRANCE
    Balance:
    18,906Coins
    Ratings:
    +1,962 / 20 / -2
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Hello,

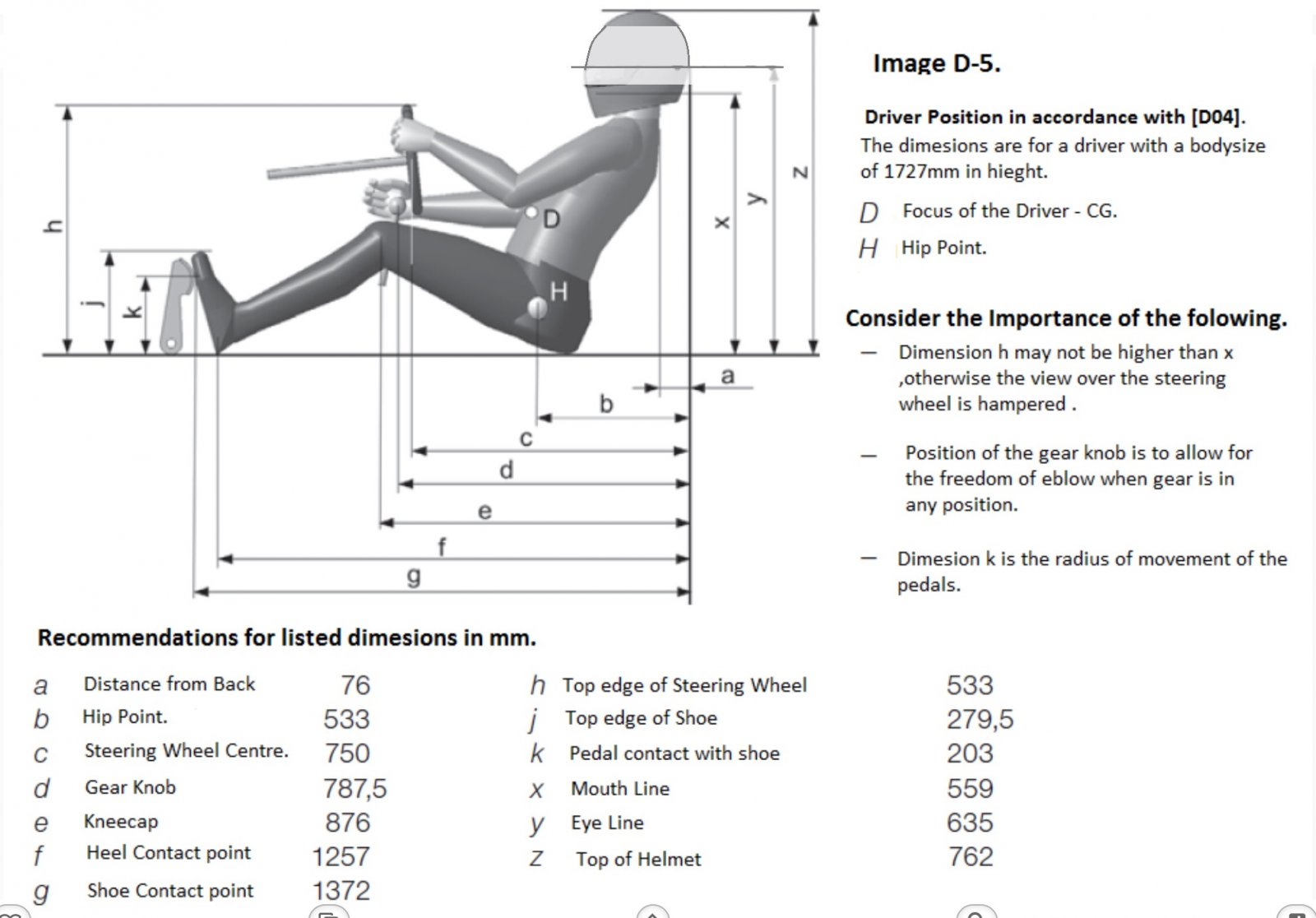

    How to start your own cockpit? Dimensions are often a good question... look.gif

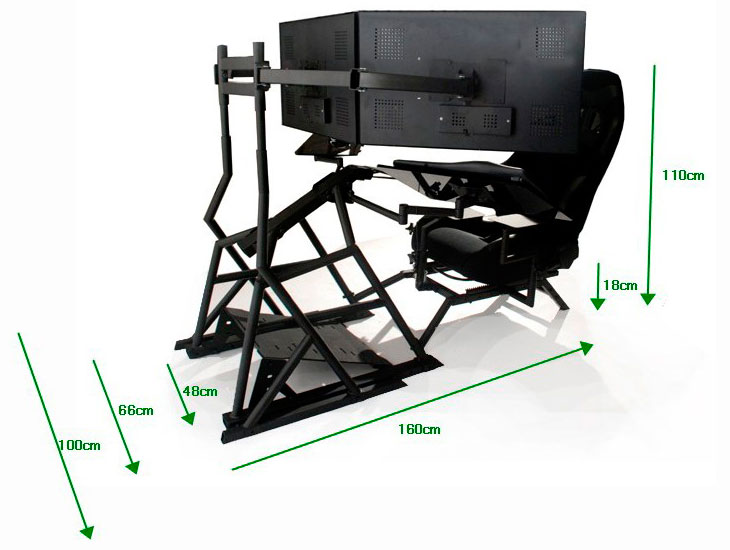

    In this thread we could gather and share any information about cockpit dimensions (and accordingly driver size)

    please no small talk, only schematics! ;)



    _____________________________________________________________

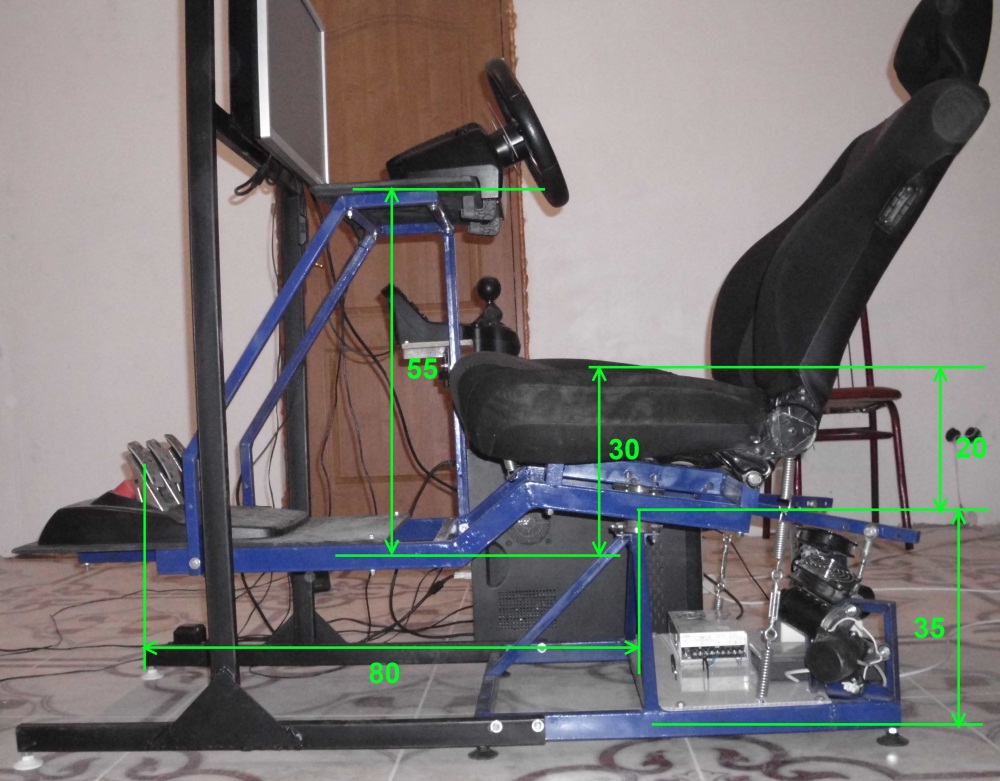

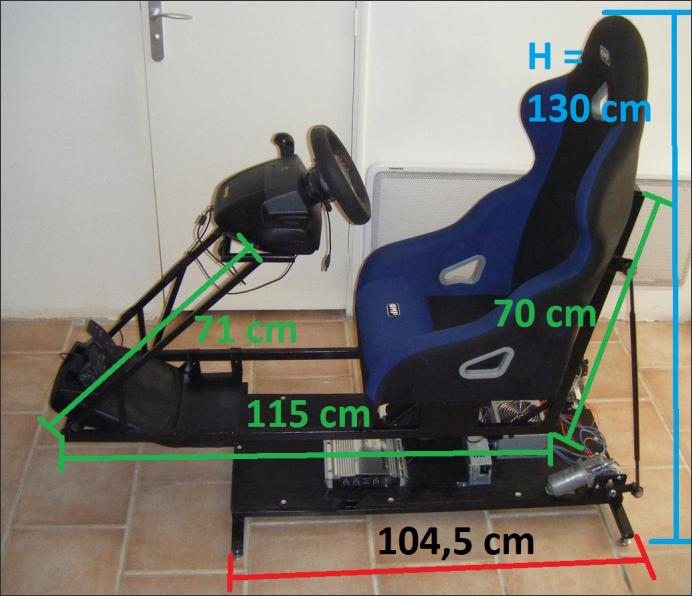

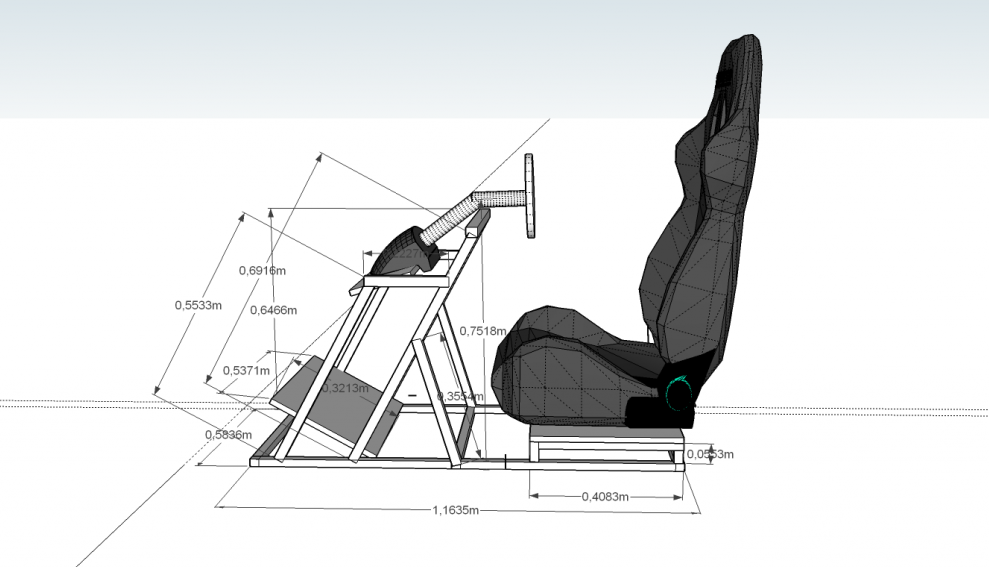

    driver 1m84 :
    _____________________________________________________________

    with a pdf guide describing all the parts http://www.sim-seats.com/uploads/SR-X2014.pdf
    _____________________________________________________________

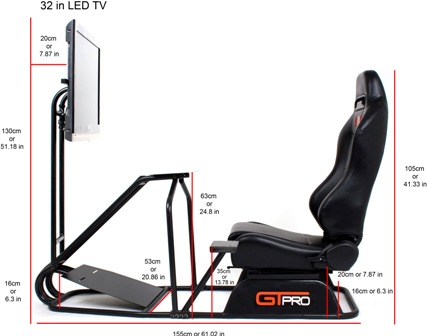

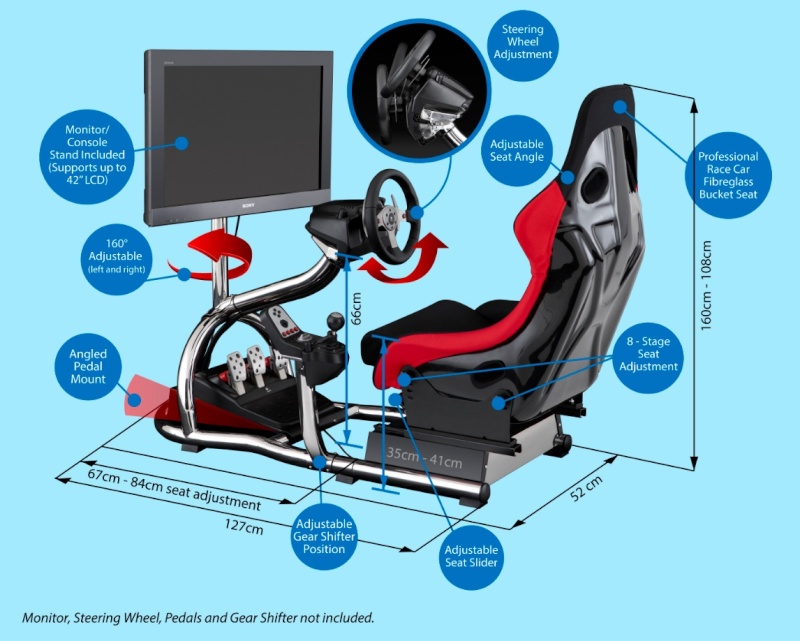

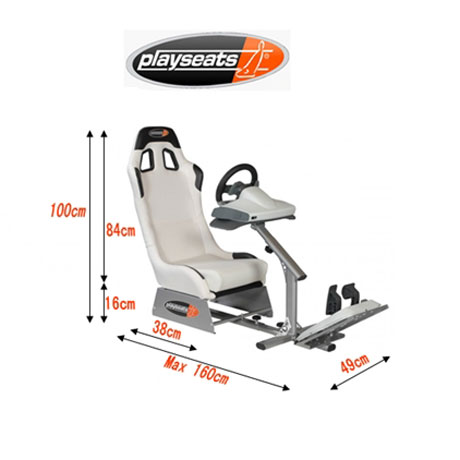

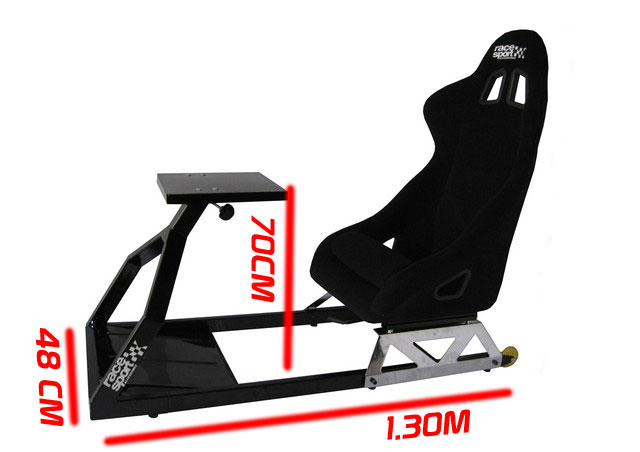

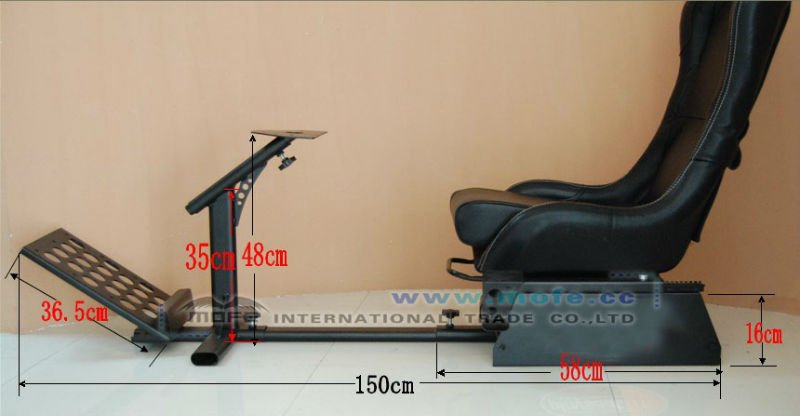

    Simulator_Racing_seat_Play_Seat_Evolution_Black_1634_2.jpg _____________________________________________________________

    _____________________________________________________________

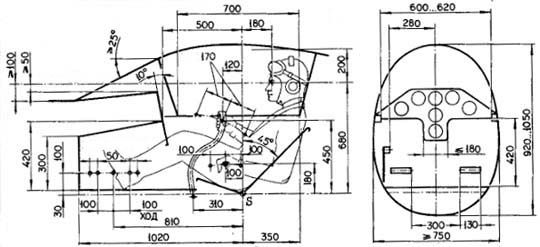

    driver 1m70
    http://www.isrtv.com/forums/topic/11083-my...g-wip/?p=105755

    _____________________________________________________________

    do you have any other plans to share?
    • Like Like x 4
    • Informative Informative x 4
    • Winner Winner x 3
    • Agree Agree x 1
    Last edited: Oct 21, 2015
  2. Ads Master

    Ads Master

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
  3. RacingMat

    RacingMat Well-Known Member Gold Contributor

    Joined:
    Feb 22, 2013
    Messages:
    2,064
    Location:
    Marseille - FRANCE
    Balance:
    18,906Coins
    Ratings:
    +1,962 / 20 / -2
    My Motion Simulator:
    2DOF, DC motor, Arduino
    hi guys!
    in order to keep this thread focused only on dimensions,
    and for better readability, please no small talks...
    ;)

    @value1: can you please separate the thread or remove the posts, please?
    • Agree Agree x 1
  4. RacingMat

    RacingMat Well-Known Member Gold Contributor

    Joined:
    Feb 22, 2013
    Messages:
    2,064
    Location:
    Marseille - FRANCE
    Balance:
    18,906Coins
    Ratings:
    +1,962 / 20 / -2
    My Motion Simulator:
    2DOF, DC motor, Arduino

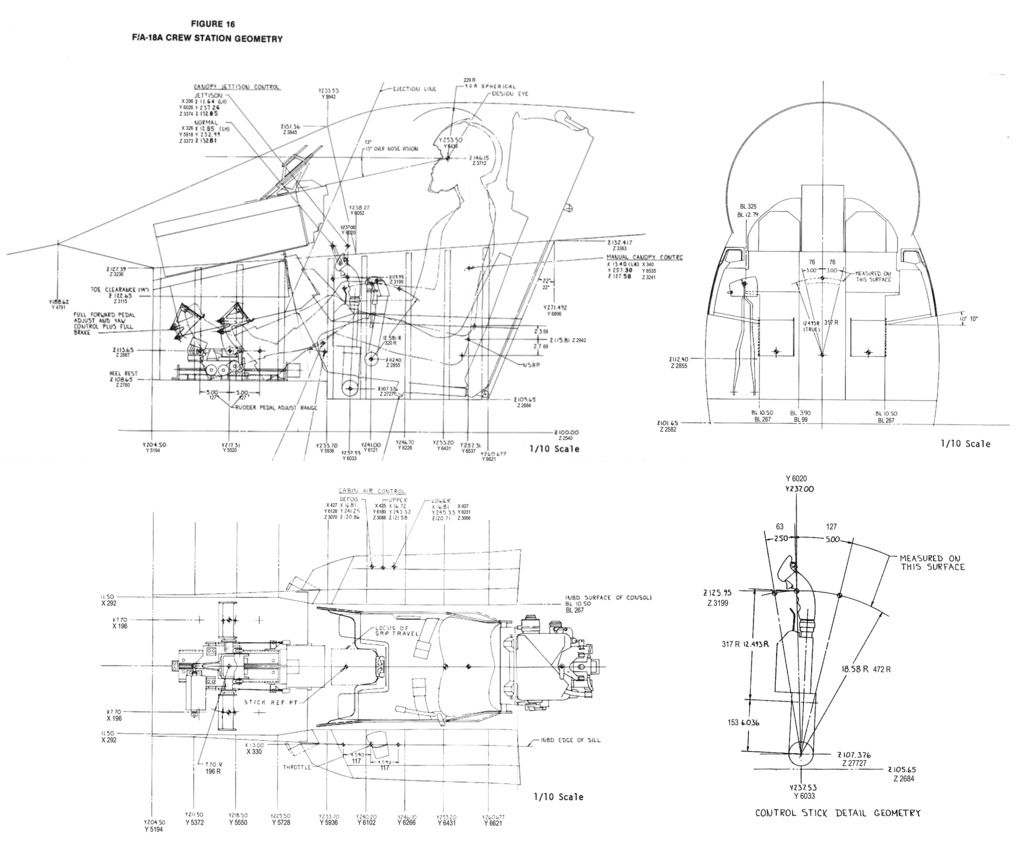

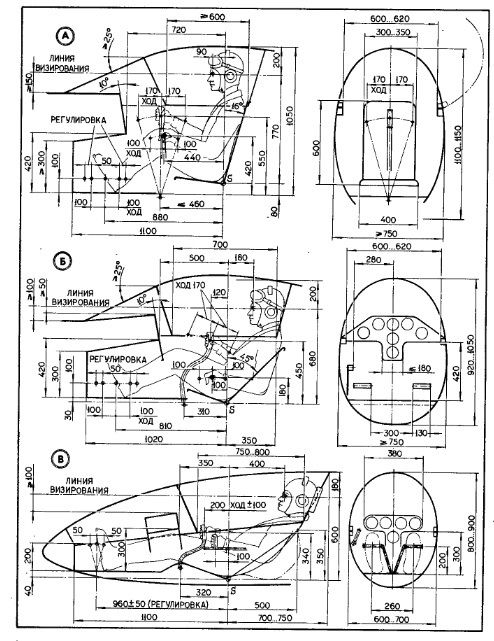

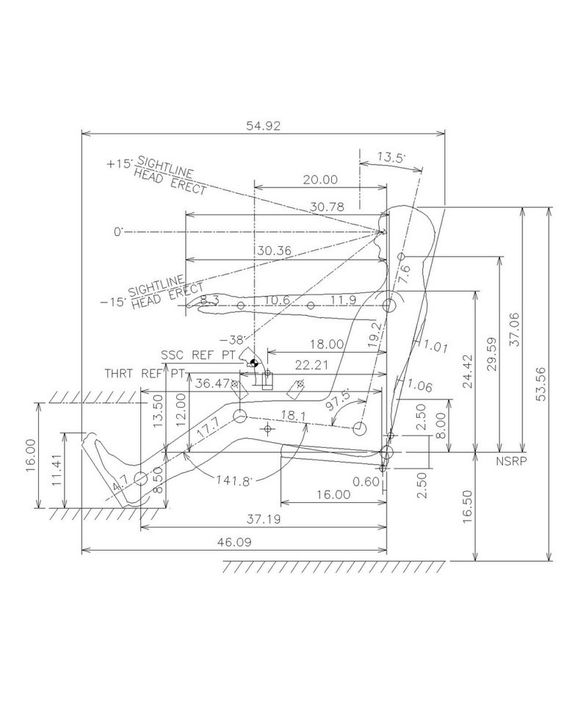

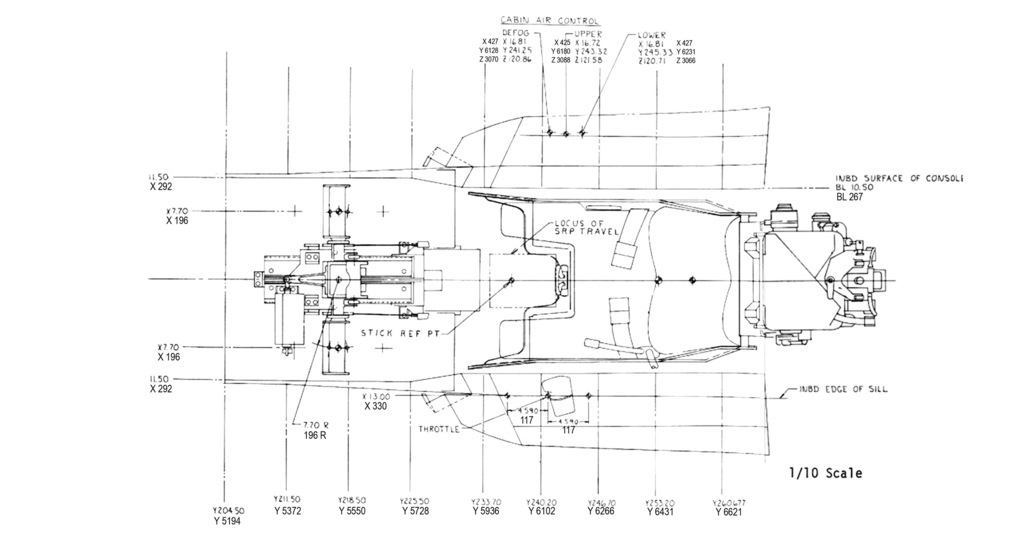

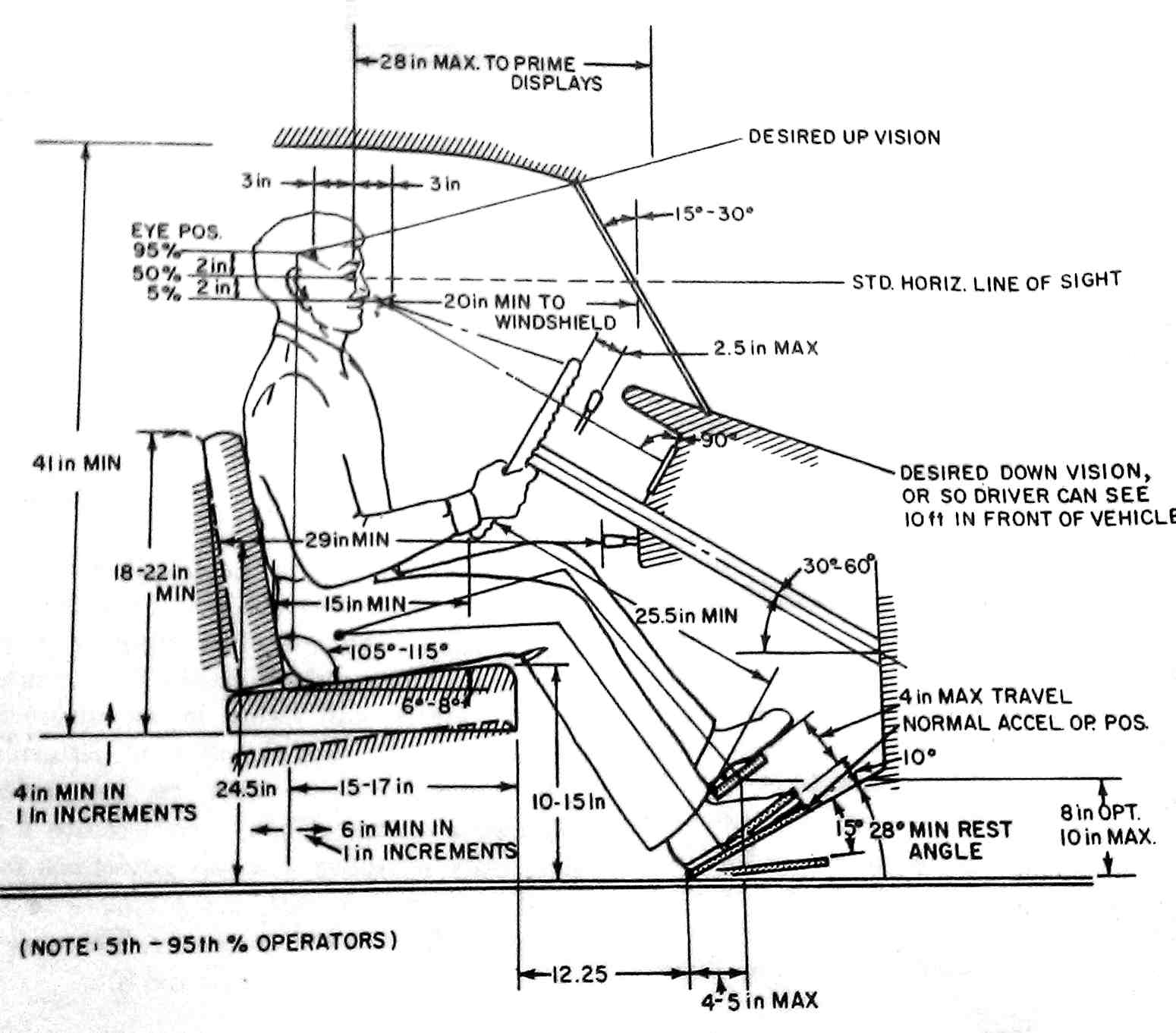

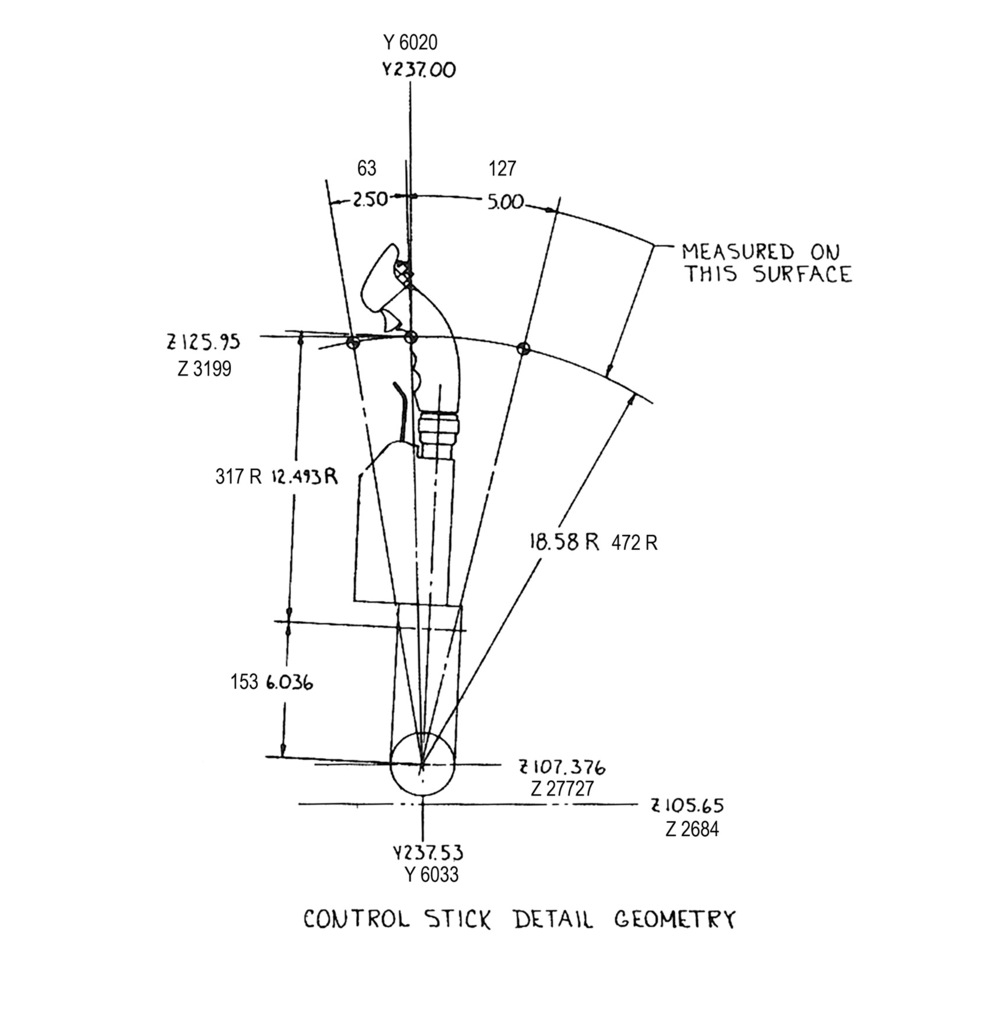

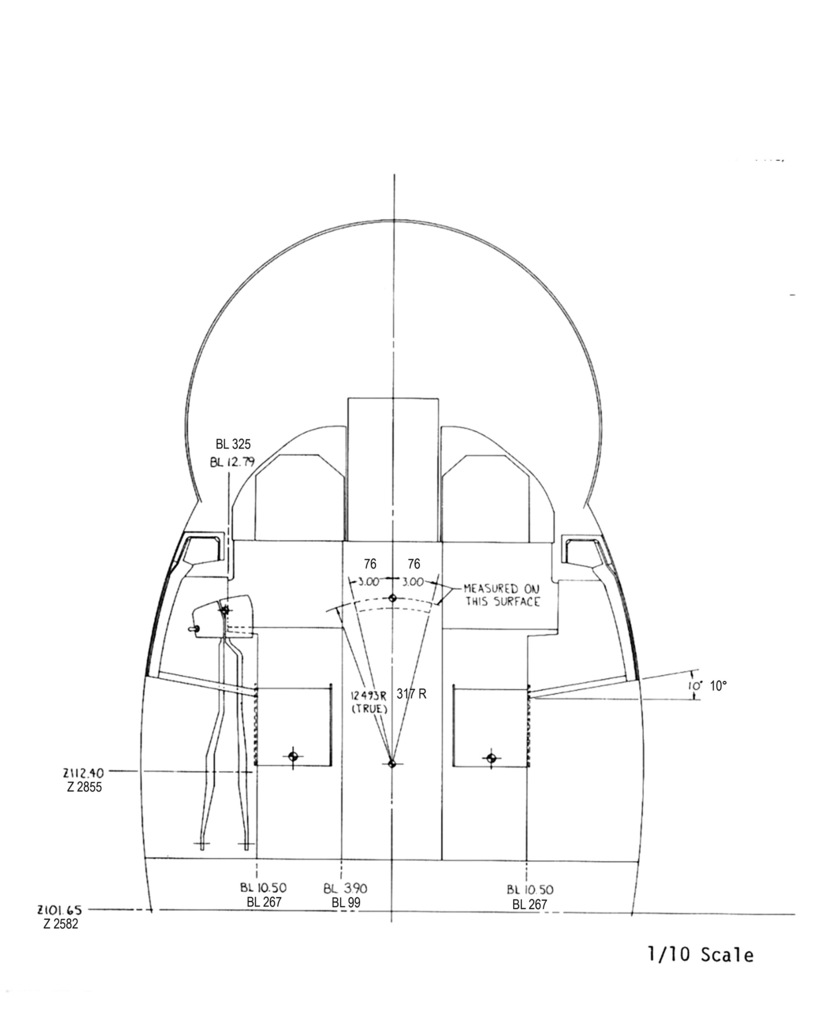

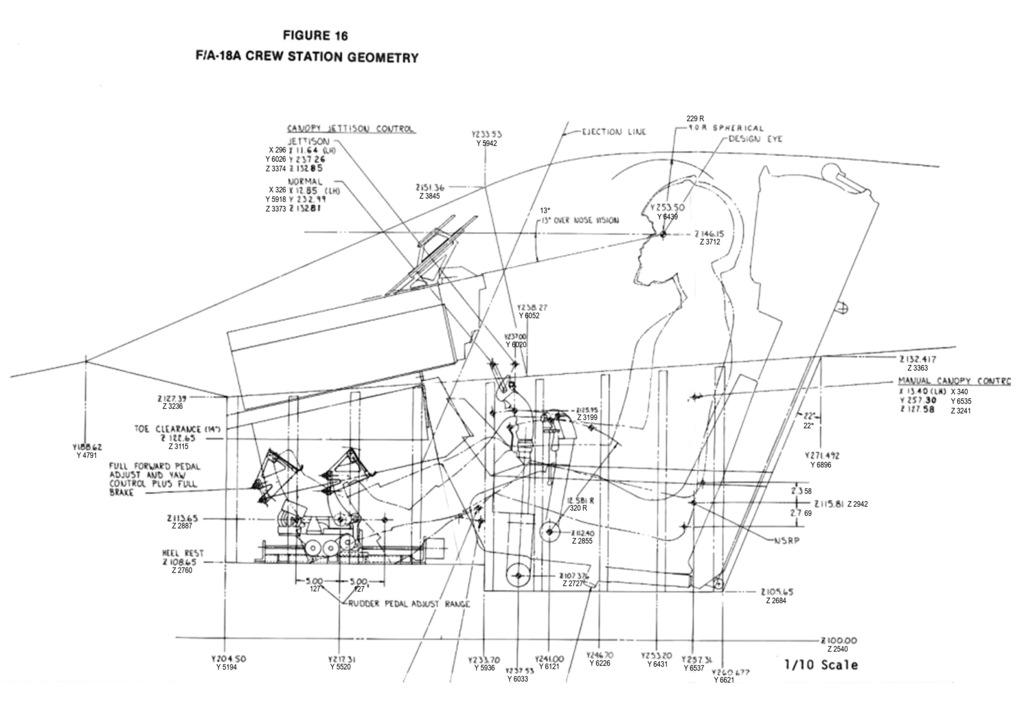

    • Useful Useful x 6
    • Informative Informative x 3
    • Like Like x 2
  5. soraz

    soraz Member

    Joined:
    Mar 5, 2013
    Messages:
    68
    Location:
    Noale VE, Italia
    Balance:
    5,076Coins
    Ratings:
    +78 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

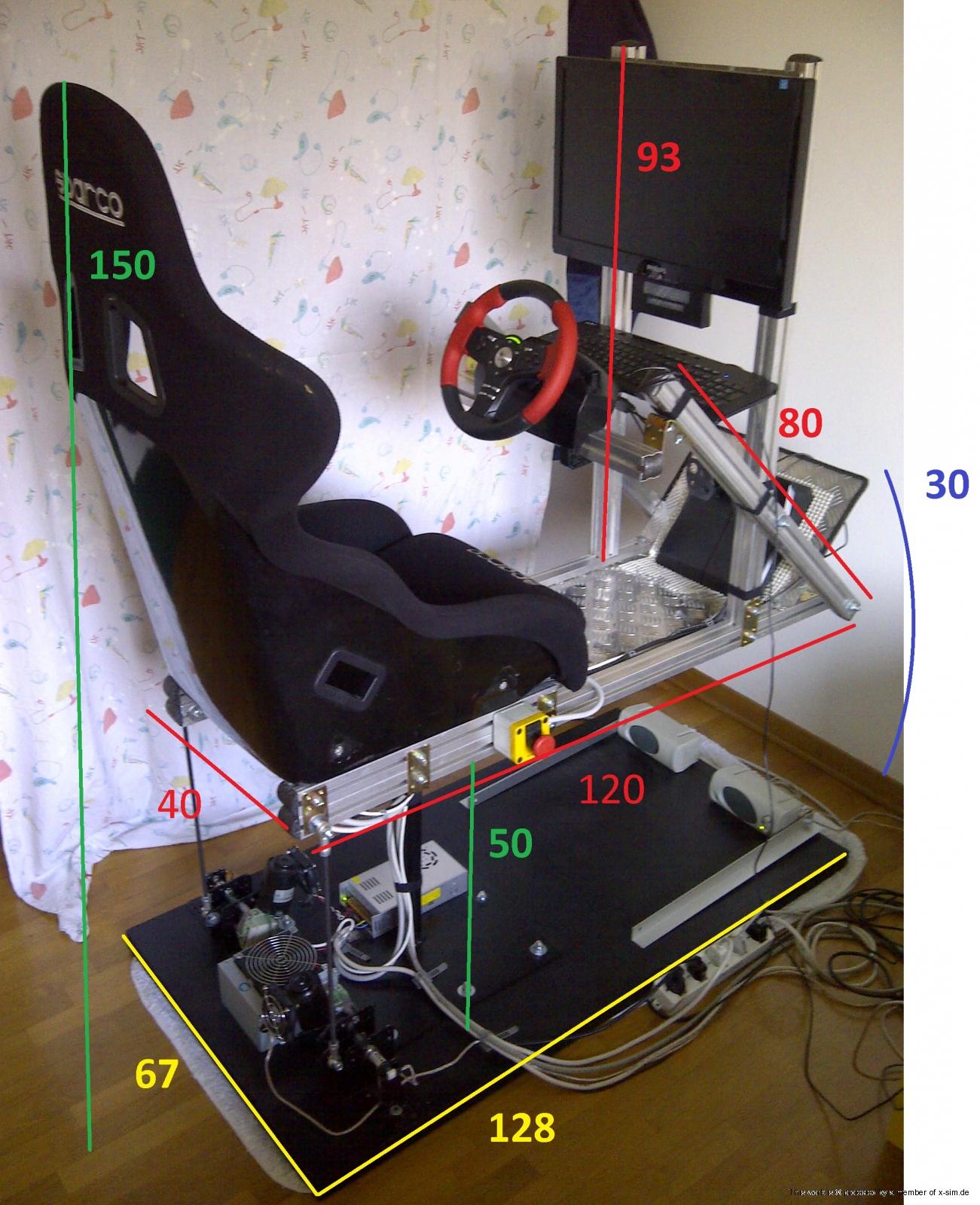

    vista misure.jpg
    • Like Like x 3
    • Informative Informative x 1
  6. RacingMat

    RacingMat Well-Known Member Gold Contributor

    Joined:
    Feb 22, 2013
    Messages:
    2,064
    Location:
    Marseille - FRANCE
    Balance:
    18,906Coins
    Ratings:
    +1,962 / 20 / -2
    My Motion Simulator:
    2DOF, DC motor, Arduino
    sorry, please post only dimensions in this topic :)
  7. paulopsx2

    paulopsx2 Active Member

    Joined:
    Apr 2, 2016
    Messages:
    491
    Location:
    brasil
    Balance:
    403Coins
    Ratings:
    +108 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino, Motion platform

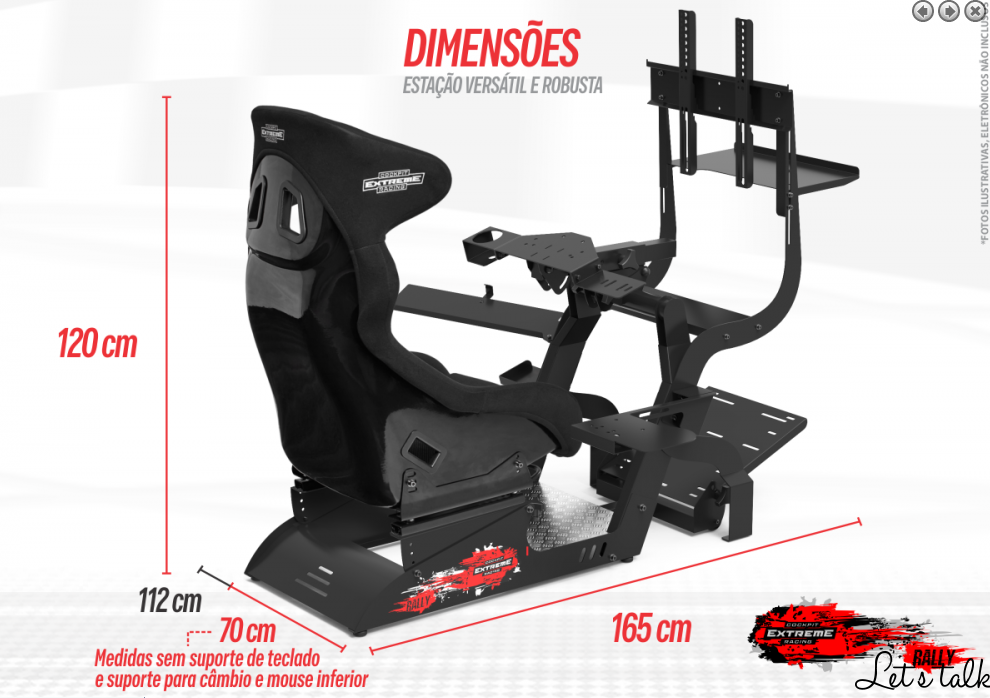

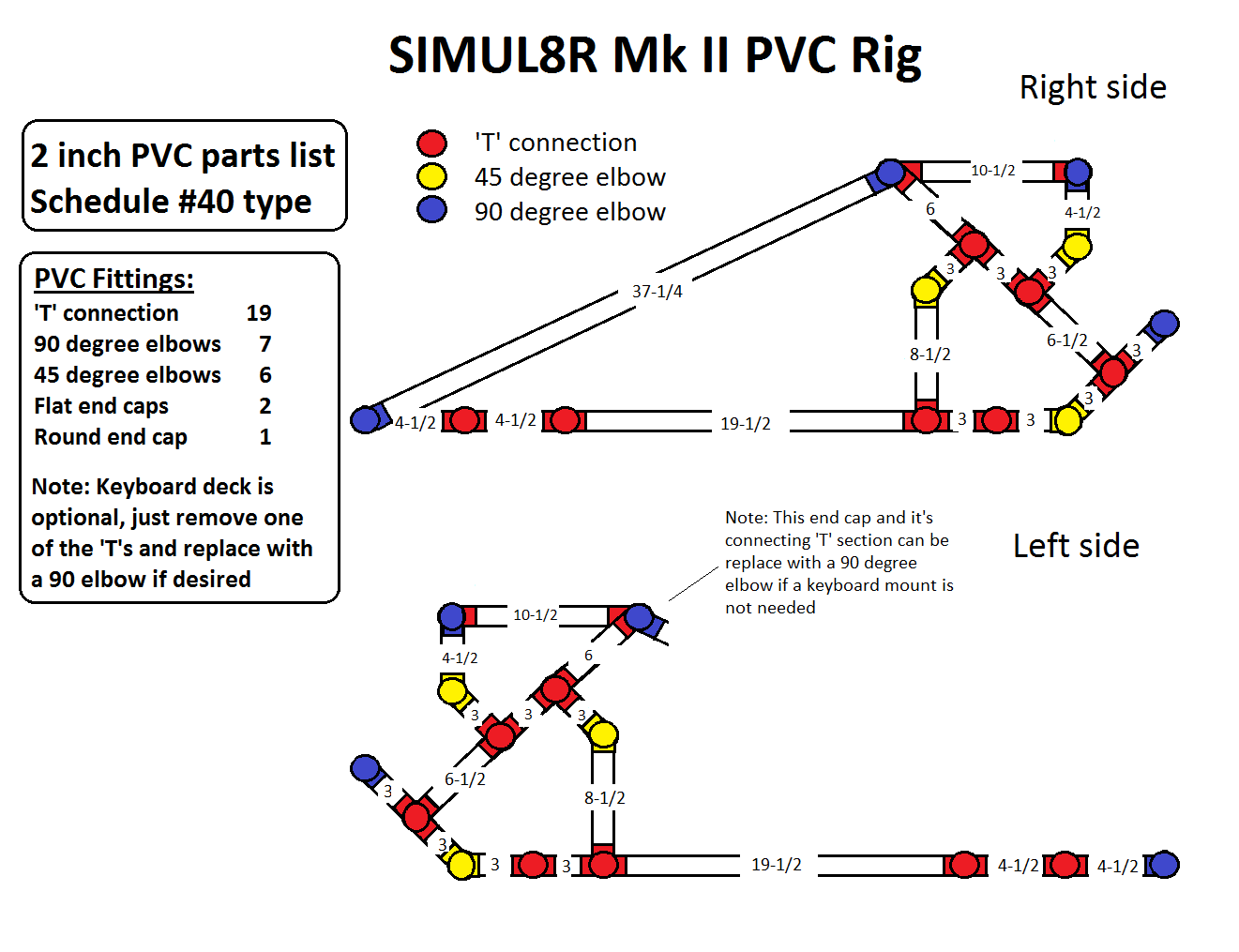

    i use this upload_2017-6-23_3-12-7.png
  8. jaimepacheco94

    jaimepacheco94 My setup

    Joined:
    Nov 11, 2017
    Messages:
    16
    Location:
    españa
    Balance:
    199Coins
    Ratings:
    +5 / 0 / -0
    Similar to my setup

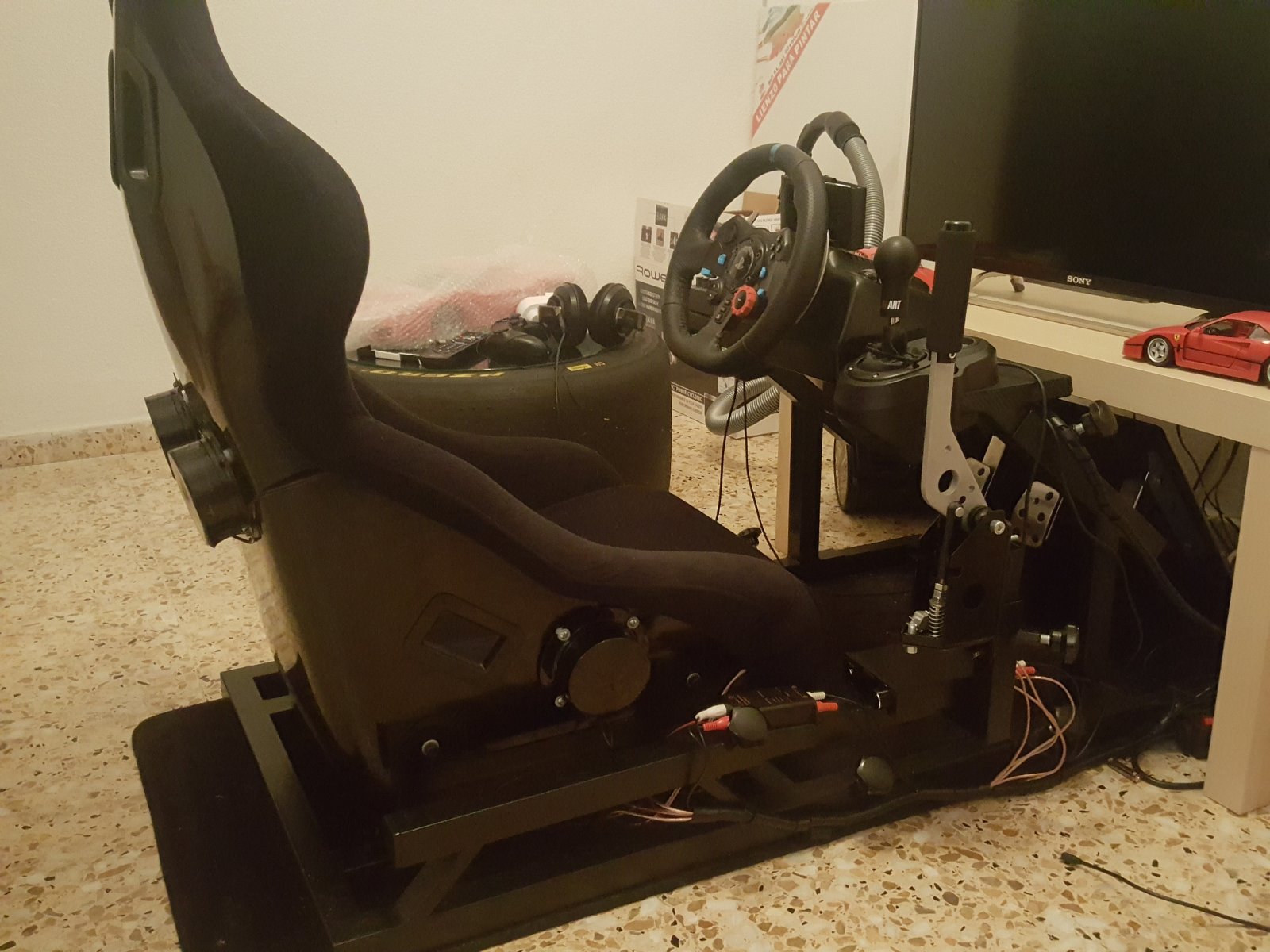

    [​IMG]
  9. paulopsx2

    paulopsx2 Active Member

    Joined:
    Apr 2, 2016
    Messages:
    491
    Location:
    brasil
    Balance:
    403Coins
    Ratings:
    +108 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino, Motion platform
    Include seat?
  10. jaimepacheco94

    jaimepacheco94 My setup

    Joined:
    Nov 11, 2017
    Messages:
    16
    Location:
    españa
    Balance:
    199Coins
    Ratings:
    +5 / 0 / -0
    The seat you put it with the guides I show you my setup
    • Winner Winner x 1
  11. ericRacer

    ericRacer You get old because you stop playing ! Gold Contributor

    Joined:
    Jun 11, 2009
    Messages:
    233
    Occupation:
    Pilot
    Location:
    Canada, Quebec
    Balance:
    9Coins
    Ratings:
    +143 / 2 / -0
    My Motion Simulator:
    3DOF, Arduino, Motion platform
    [​IMG]
    [​IMG]
    • Like Like x 2
    • Agree Agree x 1
  12. MikeSchumy

    MikeSchumy New Member

    Joined:
    Oct 12, 2017
    Messages:
    14
    Location:
    Italia
    Balance:
    62Coins
    Ratings:
    +10 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    These are my setup dimensions:
    • Like Like x 1
    • Agree Agree x 1
  13. Gianni

    Gianni New Member

    Joined:
    Feb 14, 2010
    Messages:
    20
    Location:
    Australia
    Balance:
    145Coins
    Ratings:
    +15 / 0 / -0
    My Motion Simulator:
    DC motor, 4DOF

    Attached Files:

  14. Simal

    Simal Member

    Joined:
    Oct 19, 2013
    Messages:
    19
    Location:
    Solar System, Earth, Ukraine, Kirovograd
    Balance:
    - 144Coins
    Ratings:
    +36 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor
    centimeters
    • Agree Agree x 1
  15. willy pichon

    willy pichon New Member

    Joined:
    Apr 2, 2018
    Messages:
    1
    Location:
    france
    Balance:
    89Coins
    Ratings:
    +2 / 0 / -0
    My Motion Simulator:
    2DOF, SCN5

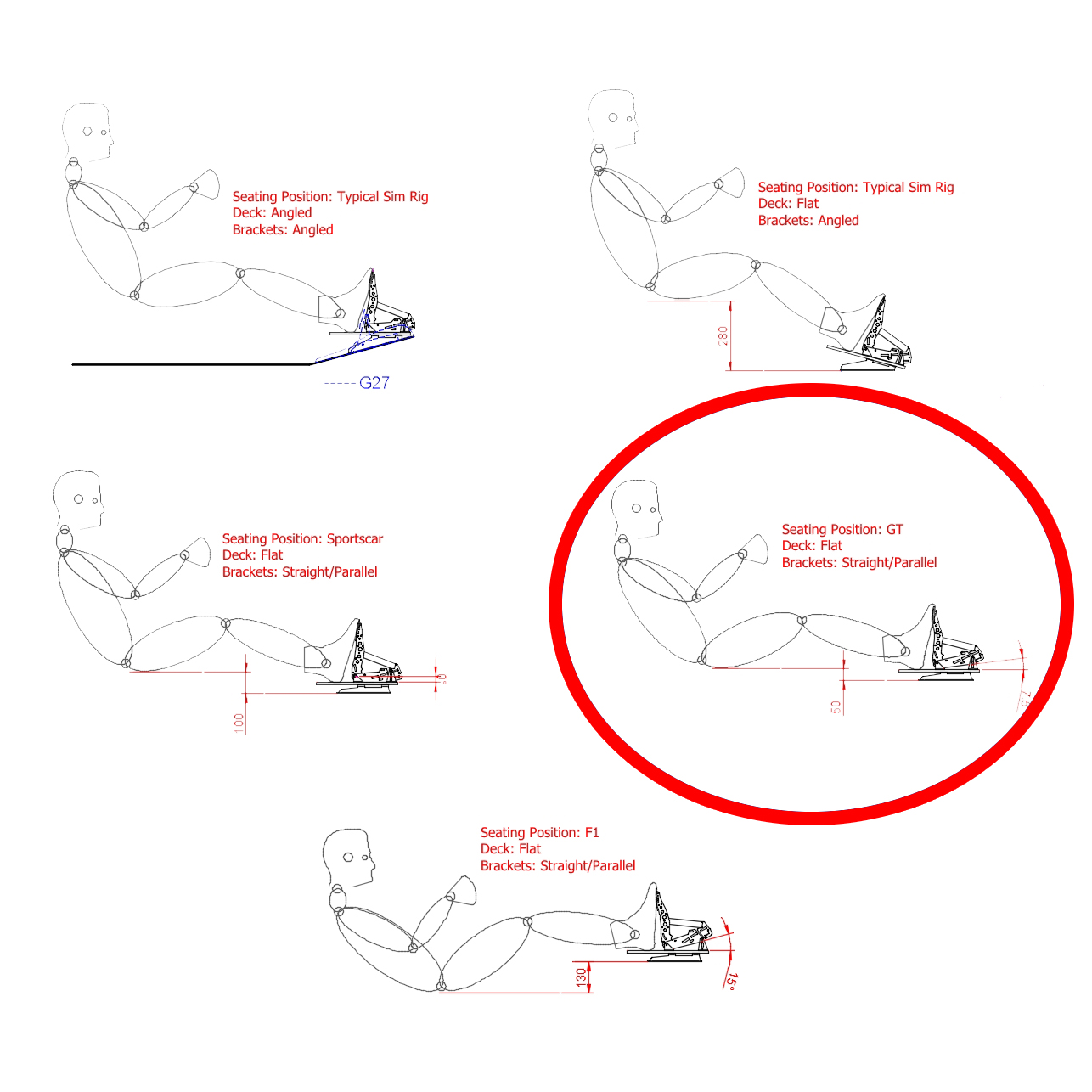

    114253positioncible.jpg Position_de_pilotage_supertrackday.jpg
    • Like Like x 2
  16. paulopsx2

    paulopsx2 Active Member

    Joined:
    Apr 2, 2016
    Messages:
    491
    Location:
    brasil
    Balance:
    403Coins
    Ratings:
    +108 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino, Motion platform
    its interesting to stay on 90 - 120 angle, and put pedals on the same angle ! more confortable, and should be great for general use. F1 position, tis cool, for the first 30 min. of play, but after this, your body its fallen down.. seriouslly. ( my experience)
  17. Marcos73

    Marcos73 Member

    Joined:
    Feb 14, 2020
    Messages:
    72
    Balance:
    309Coins
    Ratings:
    +48 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    [​IMG]

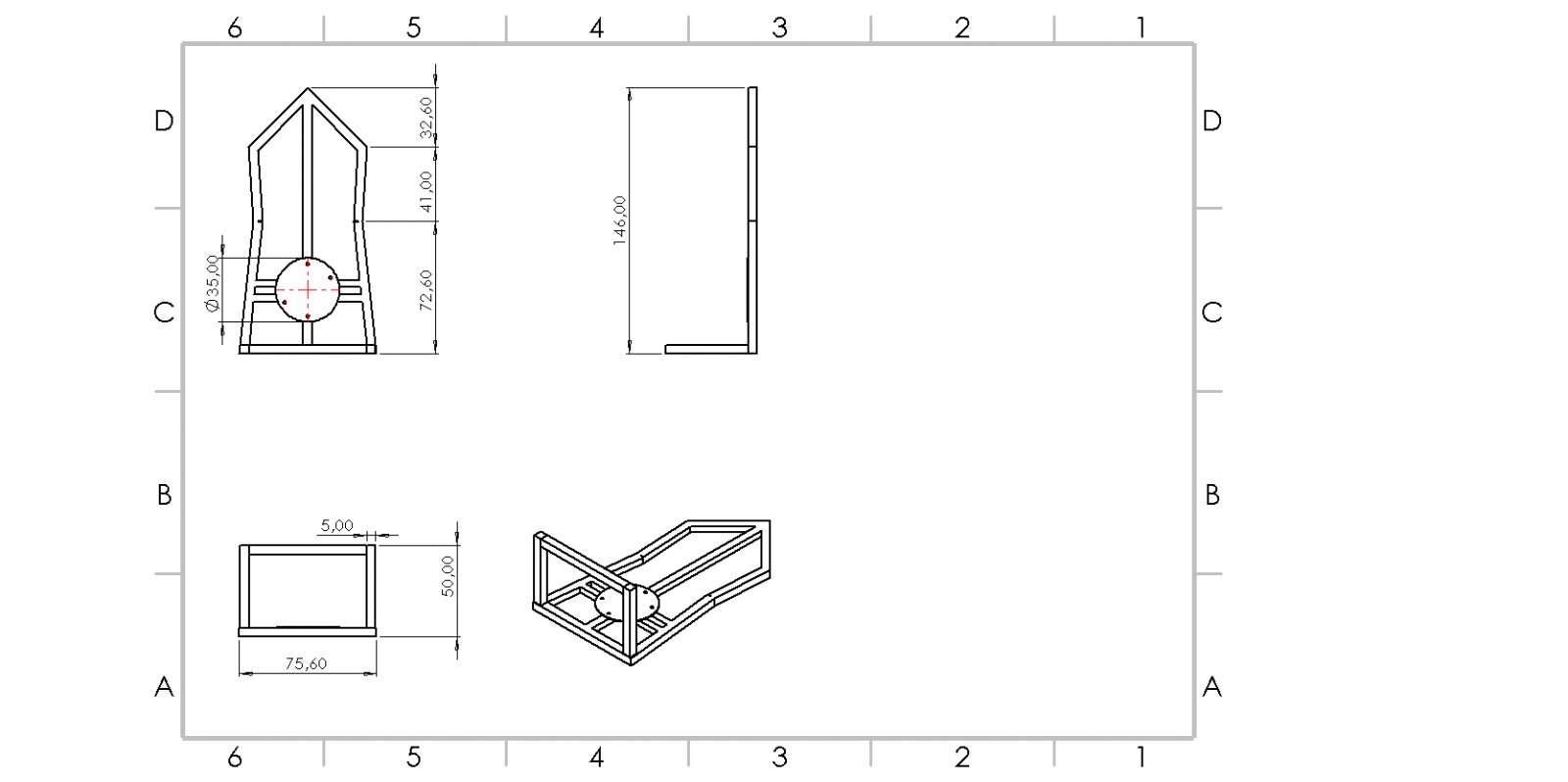

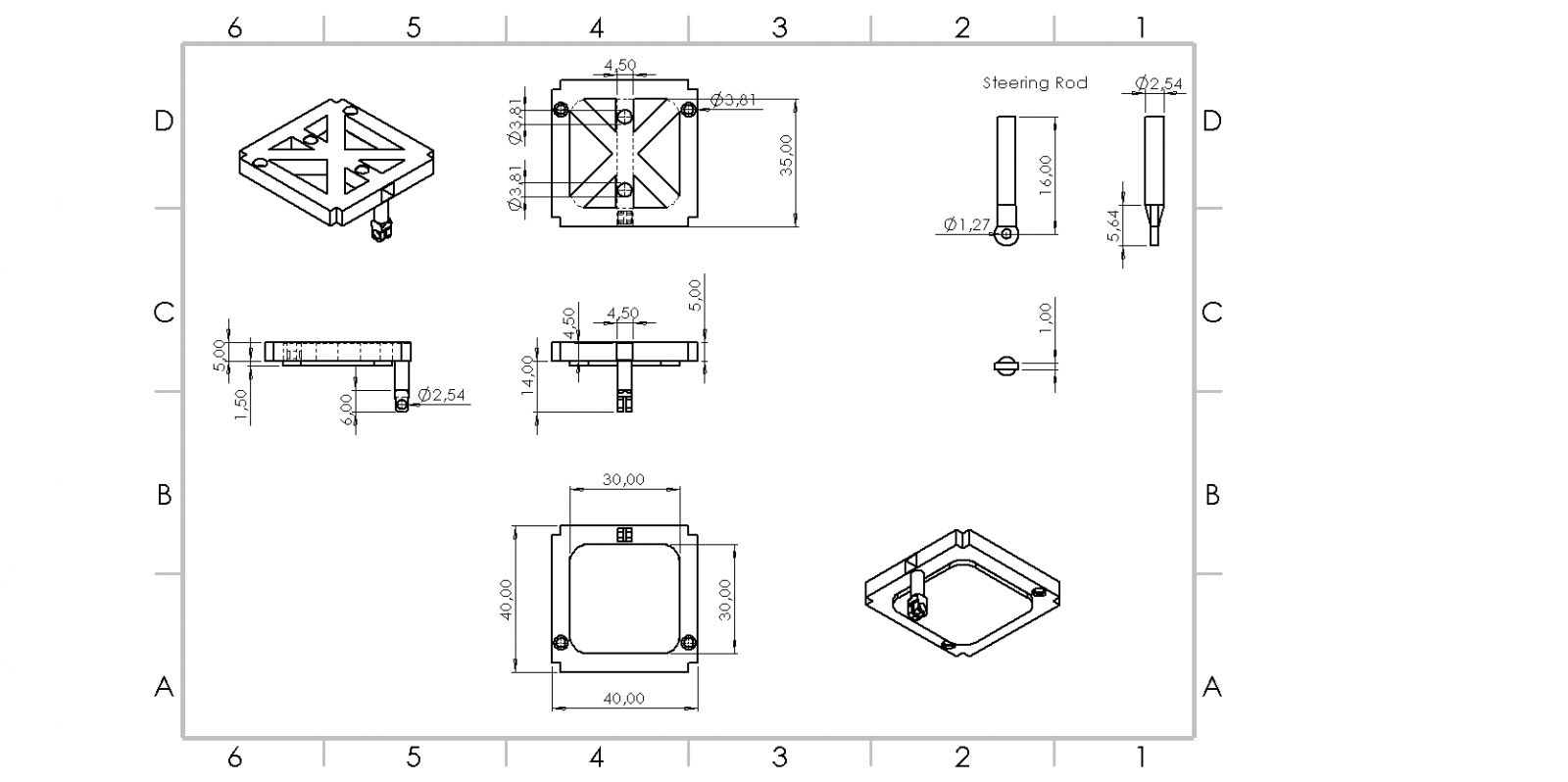

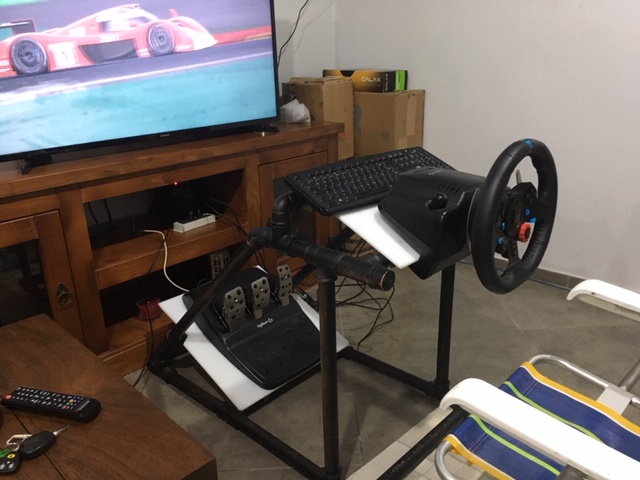

    Cockpit - Low cost steering wheel and pedals support.

    Built with Ø32mm PVC pipes and connections *, this structure is inexpensive and satisfactory for use with steering wheels and pedals. In the annex are more detailed information in case you want to copy them.
    * No need to paste.
    Good luck.
    --------------------------------------------------------------
    Cockpit - Suporte de volante e pedais de baixo custo.

    Construido com tubos e conexões em PVC colado* de Ø32mm, esta estrutura é barata e satisfatória para uso com volantes e pedais. No anexo estão as informações mais detalhadas caso queiram copiá-las.
    *Não necessita colar.
    Boa sorte.
    70071 70072 70073

    Attached Files:

    • Like Like x 2
  18. Znetsixe

    Znetsixe New Member Gold Contributor

    Joined:
    Mar 14, 2020
    Messages:
    6
    Balance:
    16Coins
    Ratings:
    +1 / 0 / -0
    My Motion Simulator:
    3DOF
    Interesting to see so many builds, even though the simulators are sometimes the same.
    We used a wooden plate to build the prosimu 3dof on. The cables are all tucked neatly under it and it stands on wheels if we ever decide to move it.
    I'll see if I can post some pictures with size soon. -> work in progress.
  19. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    15,576
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    114,166Coins
    Ratings:
    +9,138 / 46 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    When you are ready to share details about your rig then please start your own project thread.
  20. Leonardo Cardoso

    Leonardo Cardoso New Member

    Joined:
    Feb 12, 2019
    Messages:
    12
    Occupation:
    Mecha.Engineer/Intern HYPERBOXVR(R&D, PD and B.I)
    Location:
    Brazil - São Paulo
    Balance:
    148Coins
    Ratings:
    +5 / 0 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino, JRK, Motion platform

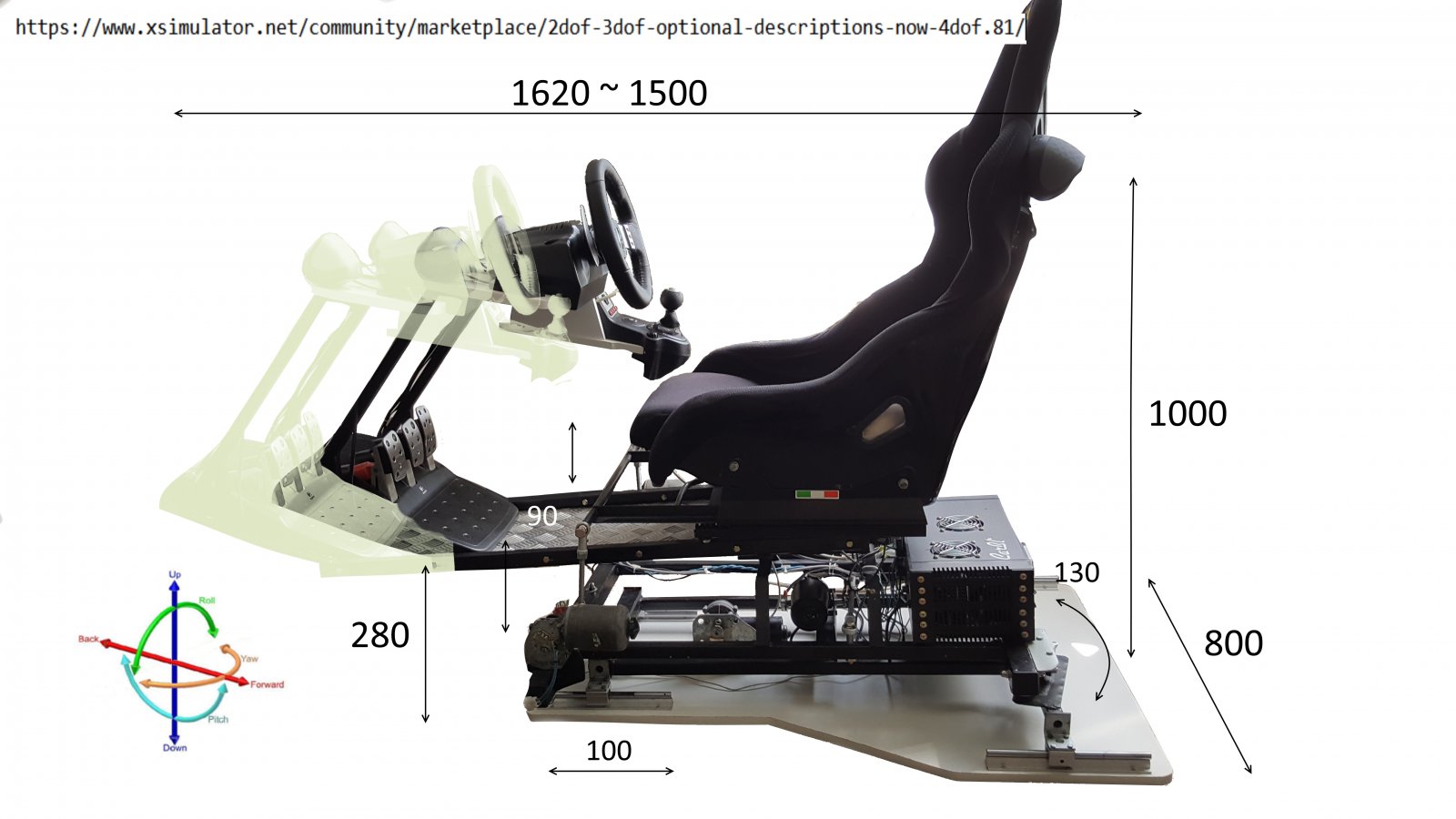

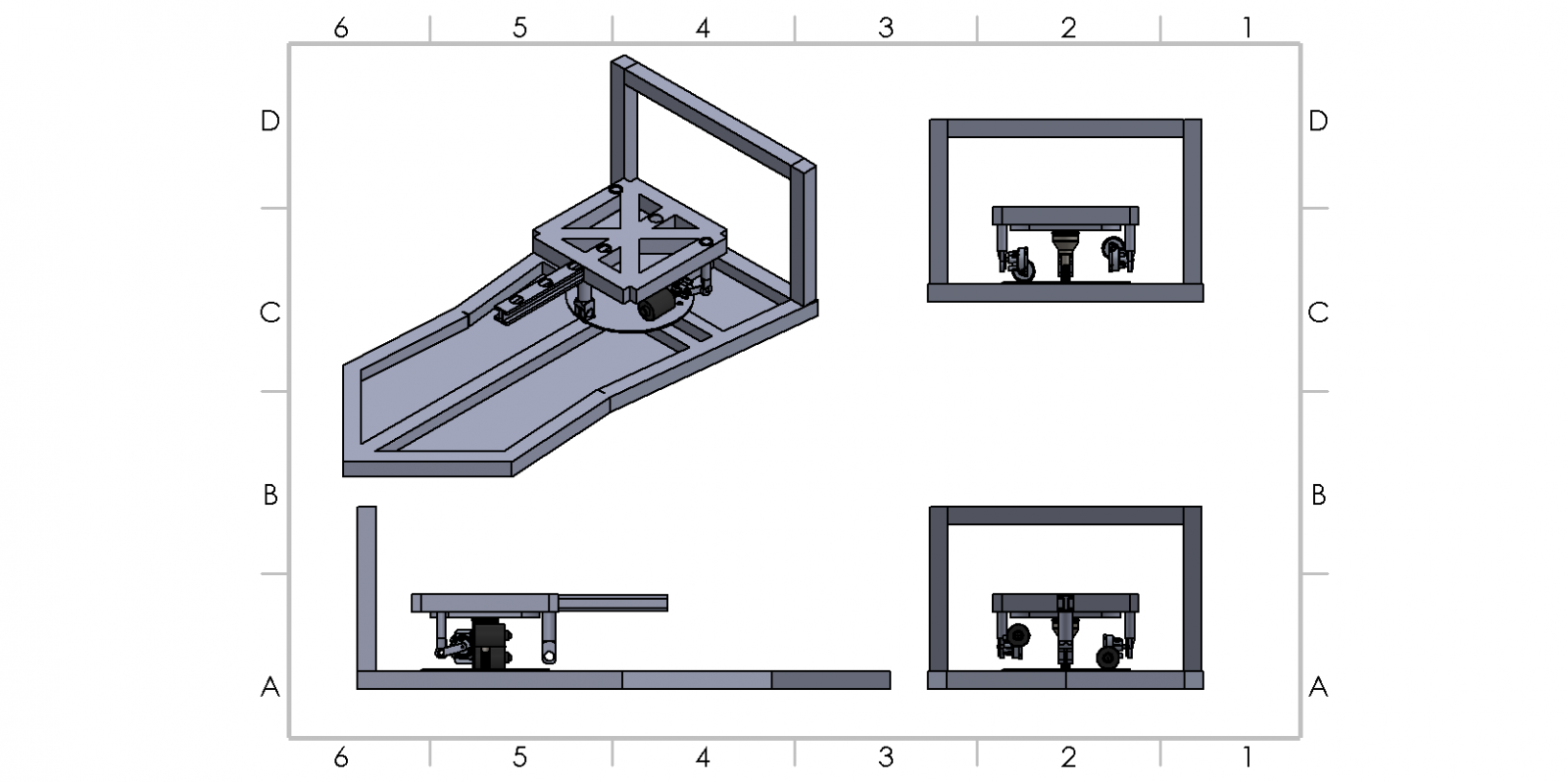

    Hello guys, sharing my dimensions here asap (Metric)
