Sebj - 8020 - Seat Mover with Traction Loss

Discussion in 'DIY Motion Simulator Projects' started by Sebj, Oct 23, 2015.

  1. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    13,465
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    101,672Coins
    Ratings:
    +8,473 / 41 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    With VR you don't need much axis rotation, it is actually far more important that the axis movement is fast and accurate with no lag.
    • Agree Agree x 1
    • Informative Informative x 1
    Last edited: Jan 9, 2016
  2. Pastrana

    Pastrana Member

    Joined:
    Oct 30, 2015
    Messages:
    81
    Location:
    Argentina
    Balance:
    341Coins
    Ratings:
    +39 / 0 / -0
    My Motion Simulator:
    2DOF
    For so great universal joint?
  3. Sebj

    Sebj Active Member

    Joined:
    Nov 13, 2014
    Messages:
    250
    Location:
    Canada
    Balance:
    1,358Coins
    Ratings:
    +152 / 1 / -0
    My Motion Simulator:
    2DOF
    • Agree Agree x 2
  4. dedas

    dedas Member

    Joined:
    Feb 5, 2012
    Messages:
    99
    Occupation:
    IT Manager
    Location:
    Netherlands
    Balance:
    274Coins
    Ratings:
    +63 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    Great project, nice to see how it develops.
    You inspire me to rebuild my 2-dof rig to a 3-dof one :grin
    • Like Like x 2
  5. Nick Moxley

    Nick Moxley Well-Known Member

    Joined:
    Dec 13, 2013
    Messages:
    2,779
    Occupation:
    Owner/Operator- Moxleys Rantals
    Location:
    Winnipeg Manitoba Canada
    Balance:
    19,116Coins
    Ratings:
    +2,486 / 29 / -2
    My Motion Simulator:
    2DOF, 3DOF, DC motor, JRK
    Lookin good Seb, Keep it up.
    • Like Like x 1
  6. Sebj

    Sebj Active Member

    Joined:
    Nov 13, 2014
    Messages:
    250
    Location:
    Canada
    Balance:
    1,358Coins
    Ratings:
    +152 / 1 / -0
    My Motion Simulator:
    2DOF

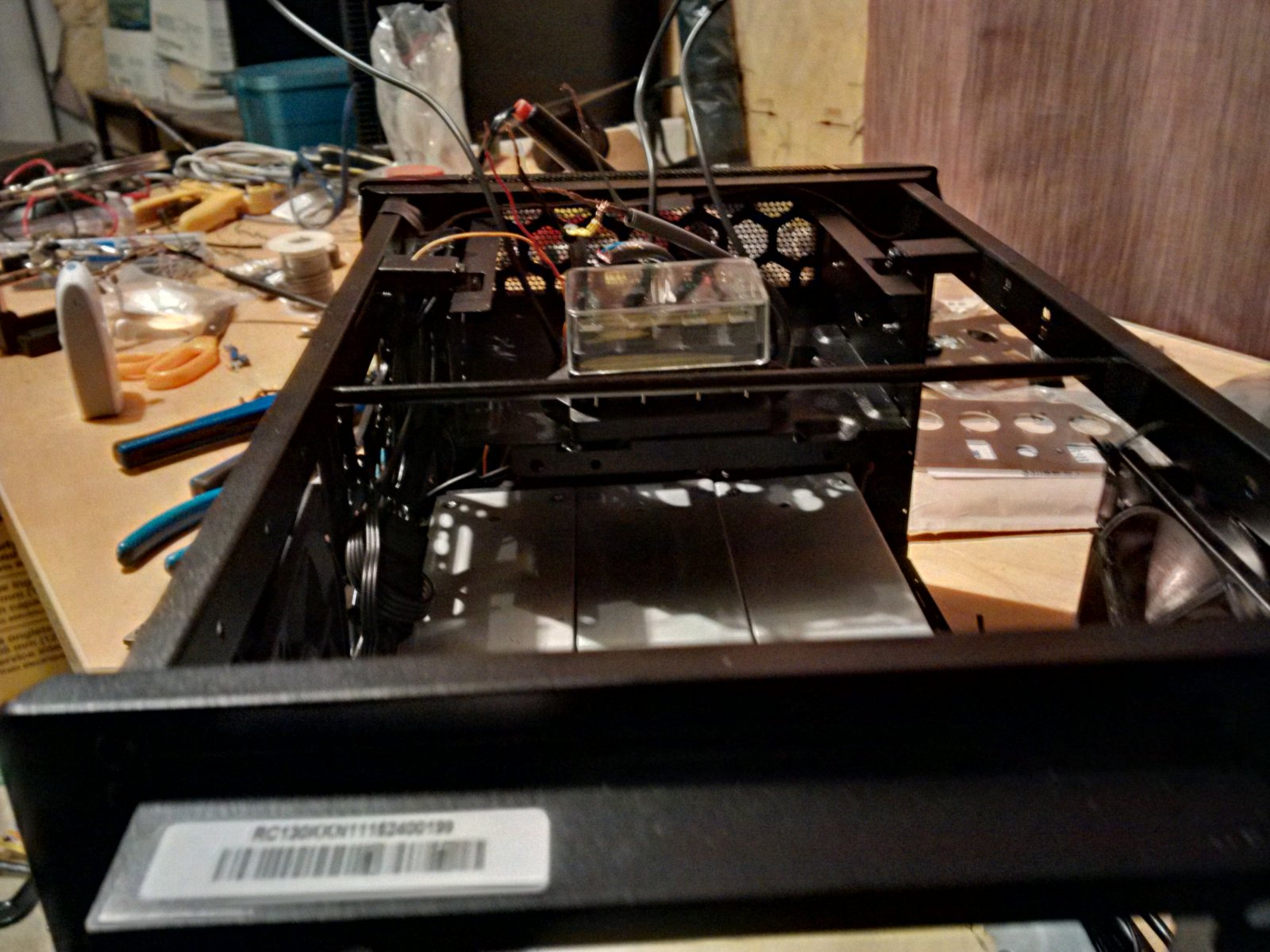

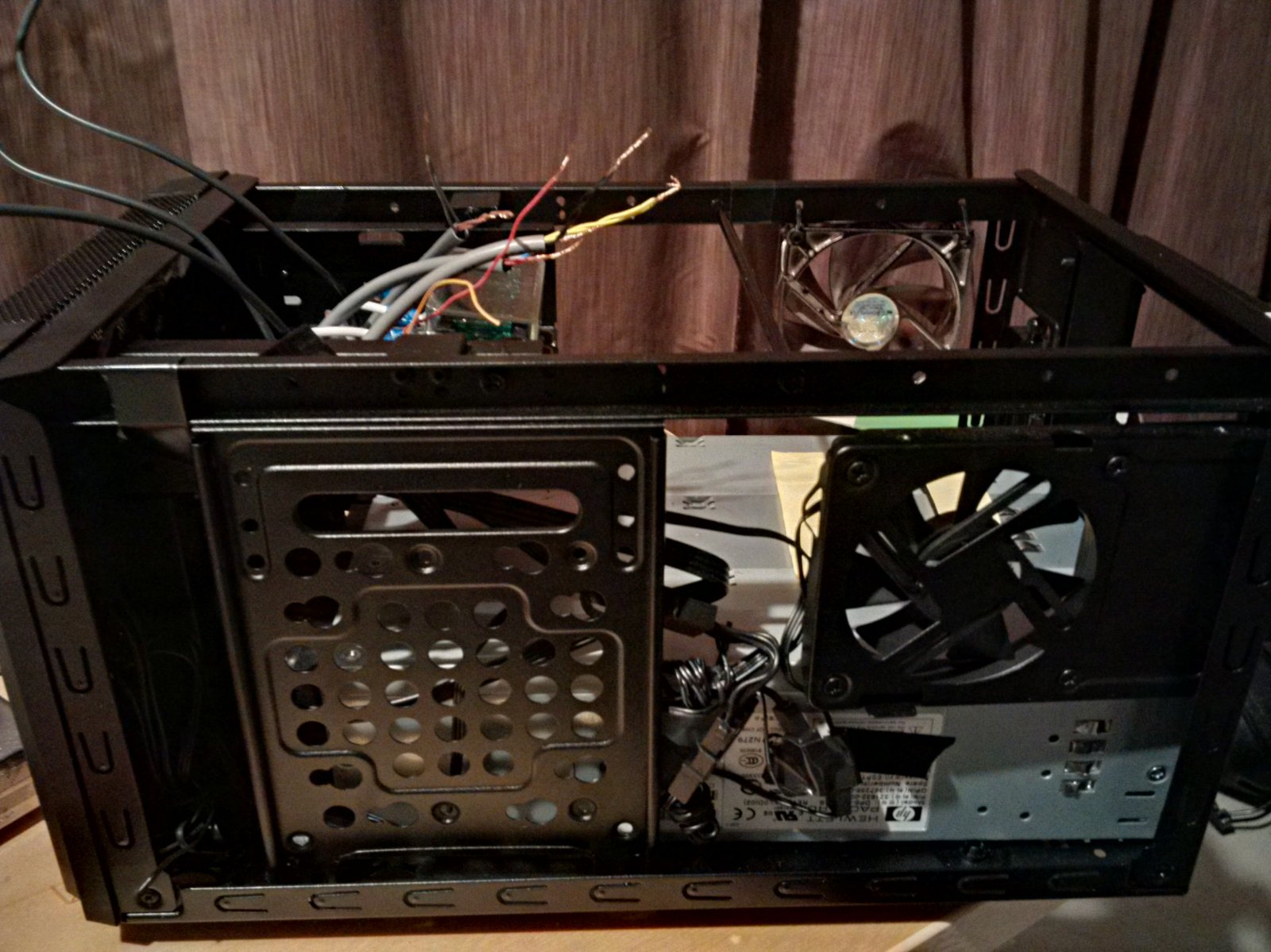

    More progress on the electronics. I'm just waiting on the USB hub and short usb cables for the inside. I'll have the JRKs wired up tomorrow. I have my cat5e cables done for my eSstop.
    I have 3 fans running. 120mm pushing air inside, another from the side 80mm pulling in air and another 80mm pushing out air. The latter two will be providing air flow for JRKs. Photos to come.
    • Like Like x 3
  7. Pit

    Pit - - - - - - - - - - - - - - - - Staff Member Moderator Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    2,996
    Location:
    Switzerland
    Balance:
    29,285Coins
    Ratings:
    +3,003 / 29 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    Translation: Why do you use such a big universal joint? (btw I like it :) )
  8. Sebj

    Sebj Active Member

    Joined:
    Nov 13, 2014
    Messages:
    250
    Location:
    Canada
    Balance:
    1,358Coins
    Ratings:
    +152 / 1 / -0
    My Motion Simulator:
    2DOF
    From what I have read here, smaller joints may need supports added. This larger joint is strong enough for a very heavy setup and there is no risk of it buckling / breaking.
  9. Nick Moxley

    Nick Moxley Well-Known Member

    Joined:
    Dec 13, 2013
    Messages:
    2,779
    Occupation:
    Owner/Operator- Moxleys Rantals
    Location:
    Winnipeg Manitoba Canada
    Balance:
    19,116Coins
    Ratings:
    +2,486 / 29 / -2
    My Motion Simulator:
    2DOF, 3DOF, DC motor, JRK

    Bigger is better syndrome ? :think..................:thumbs
    • Agree Agree x 1
  10. Sebj

    Sebj Active Member

    Joined:
    Nov 13, 2014
    Messages:
    250
    Location:
    Canada
    Balance:
    1,358Coins
    Ratings:
    +152 / 1 / -0
    My Motion Simulator:
    2DOF
    ..almost done electronics

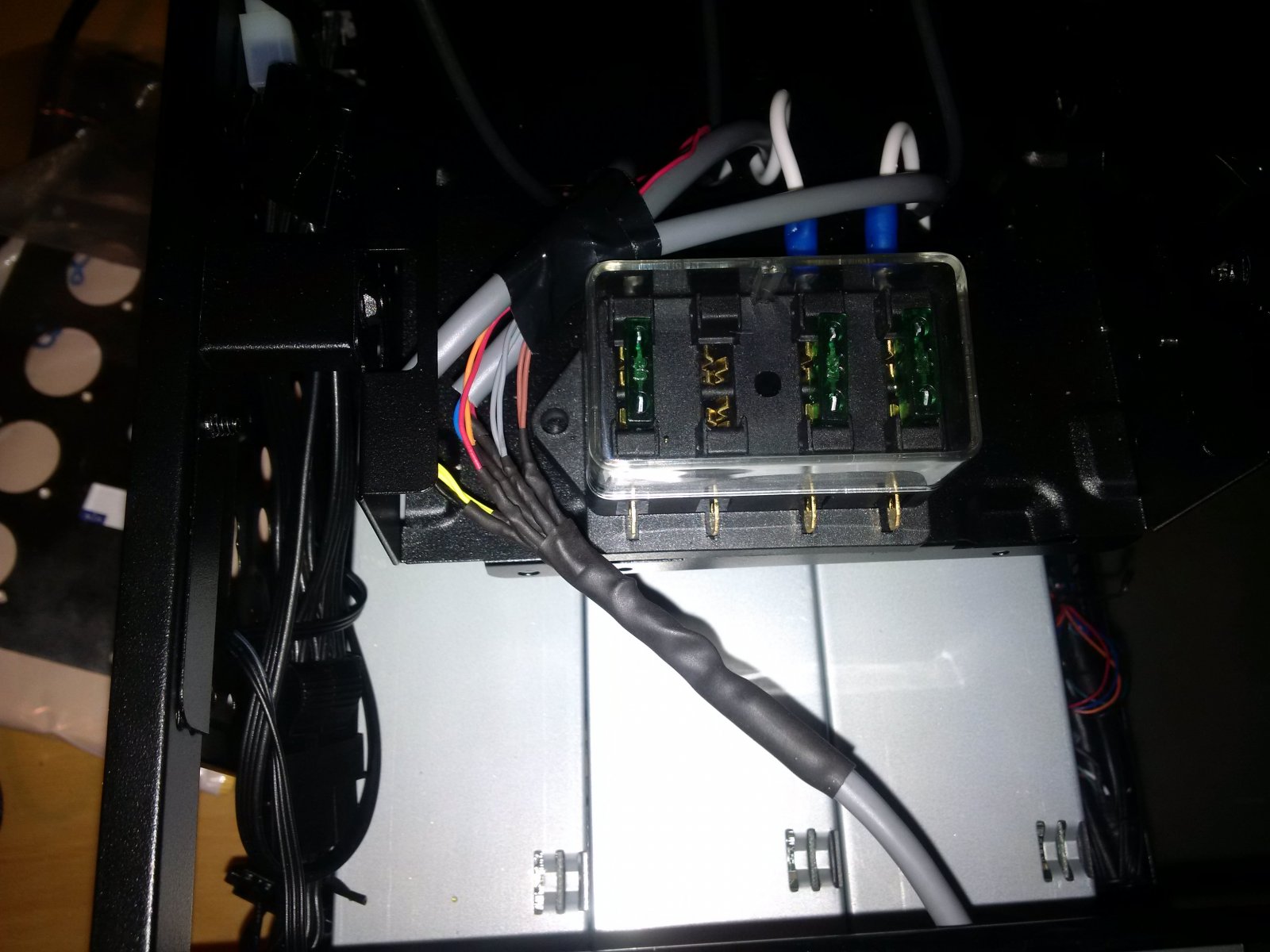

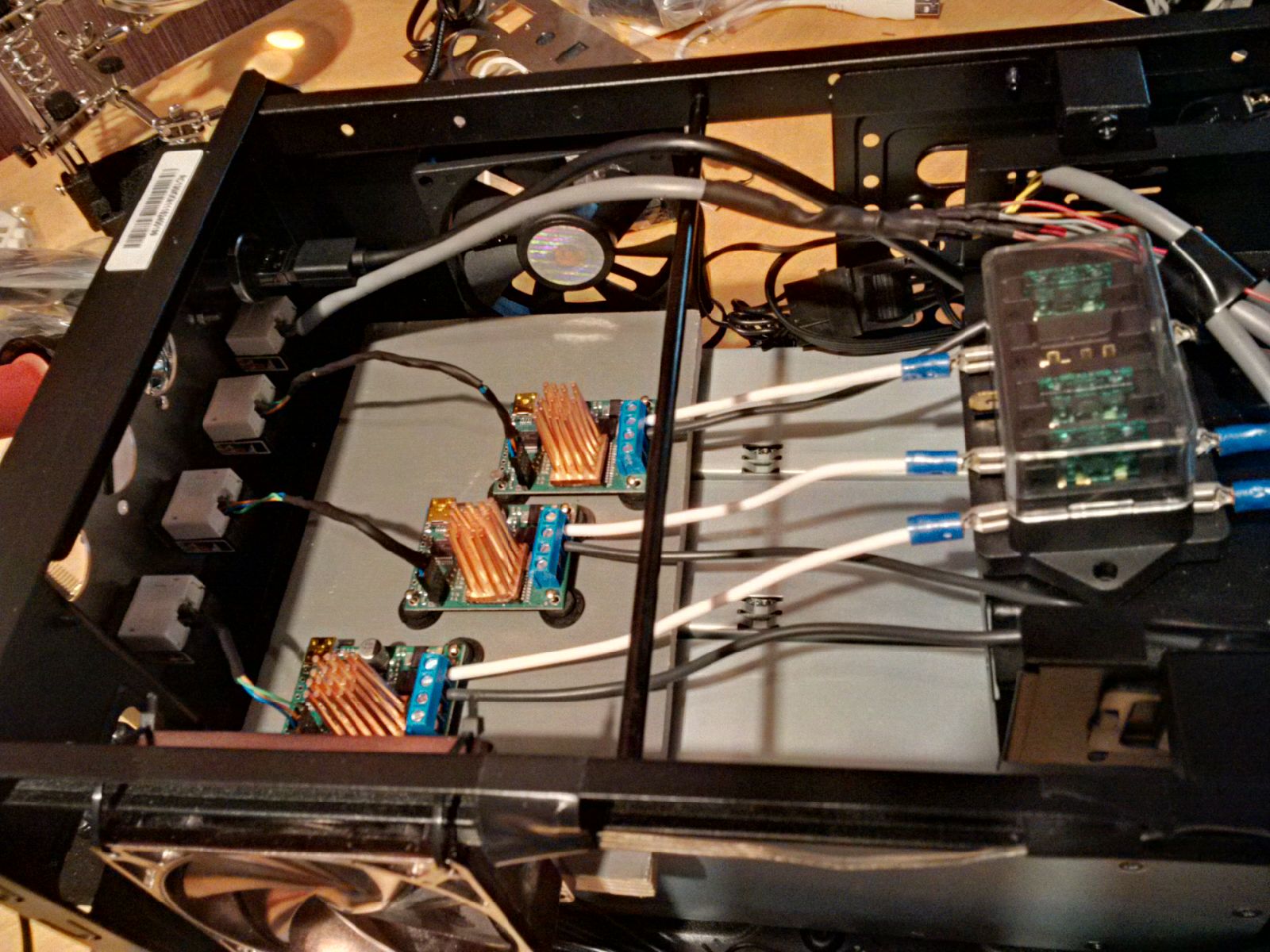

    IMG_20160120_151525_hdr.jpg IMG_20160120_151600_hdr.jpg
    • Like Like x 3
  11. Sebj

    Sebj Active Member

    Joined:
    Nov 13, 2014
    Messages:
    250
    Location:
    Canada
    Balance:
    1,358Coins
    Ratings:
    +152 / 1 / -0
    My Motion Simulator:
    2DOF

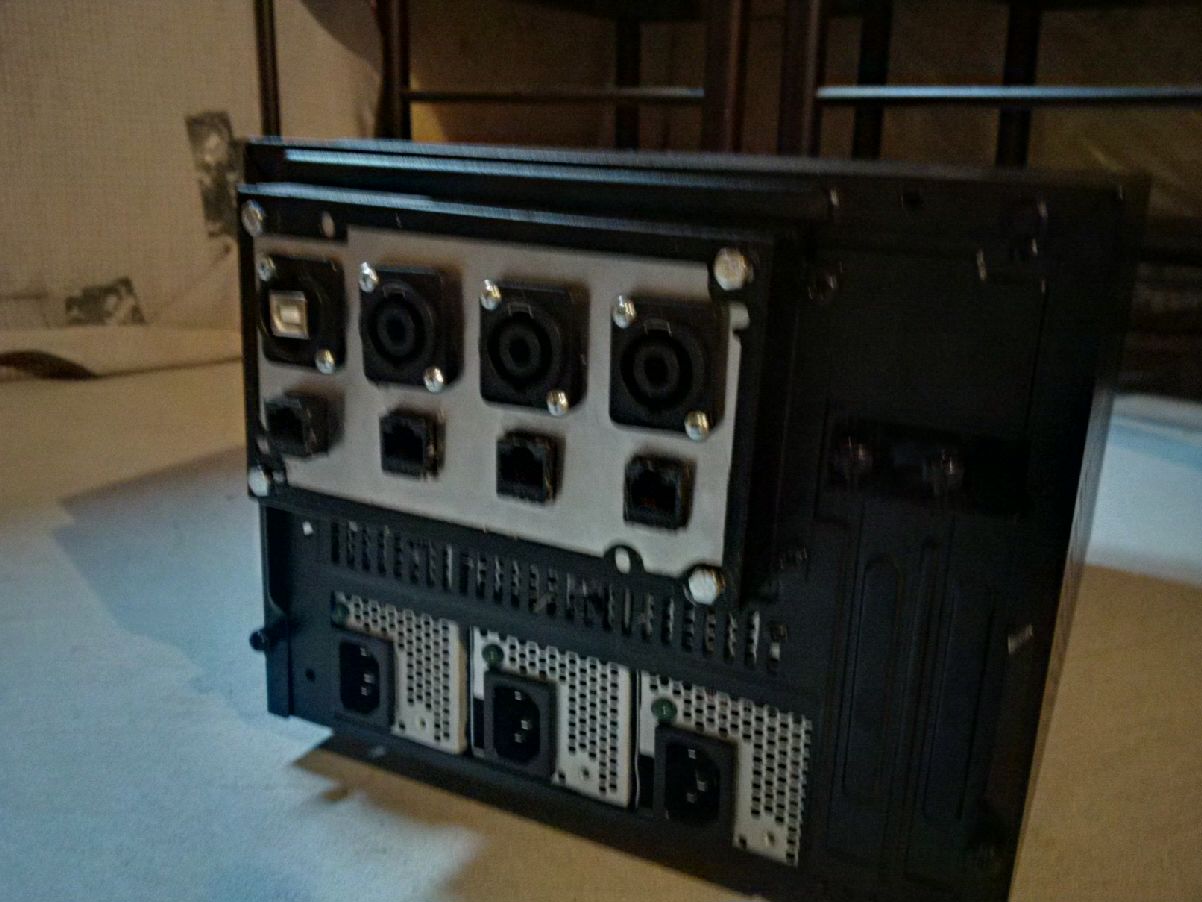

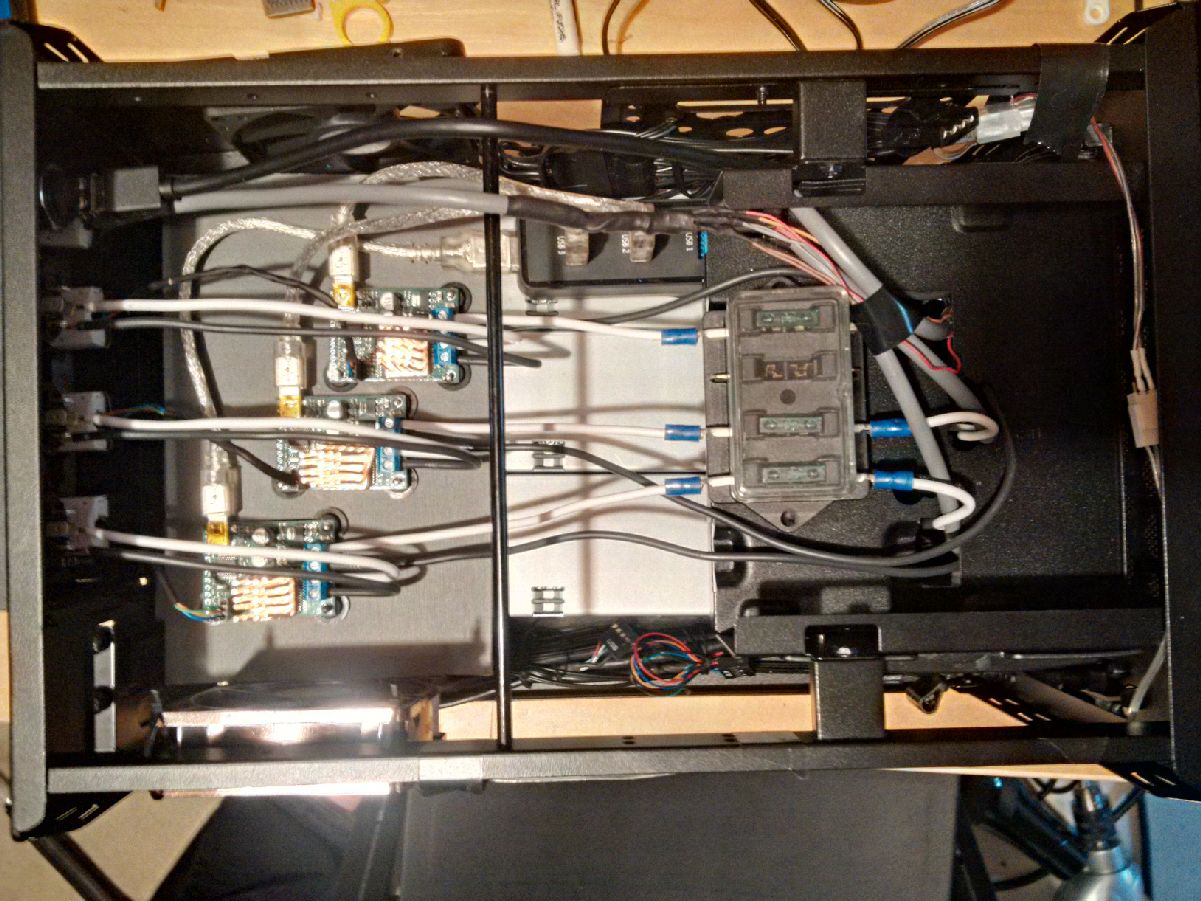

    Electronics all done! I really enjoyed this part of the build.

    I plan to connect the Cat5e cable to my eStop so I can turn on the power and configure the JRKs to windows. Potentially a project for this week :)

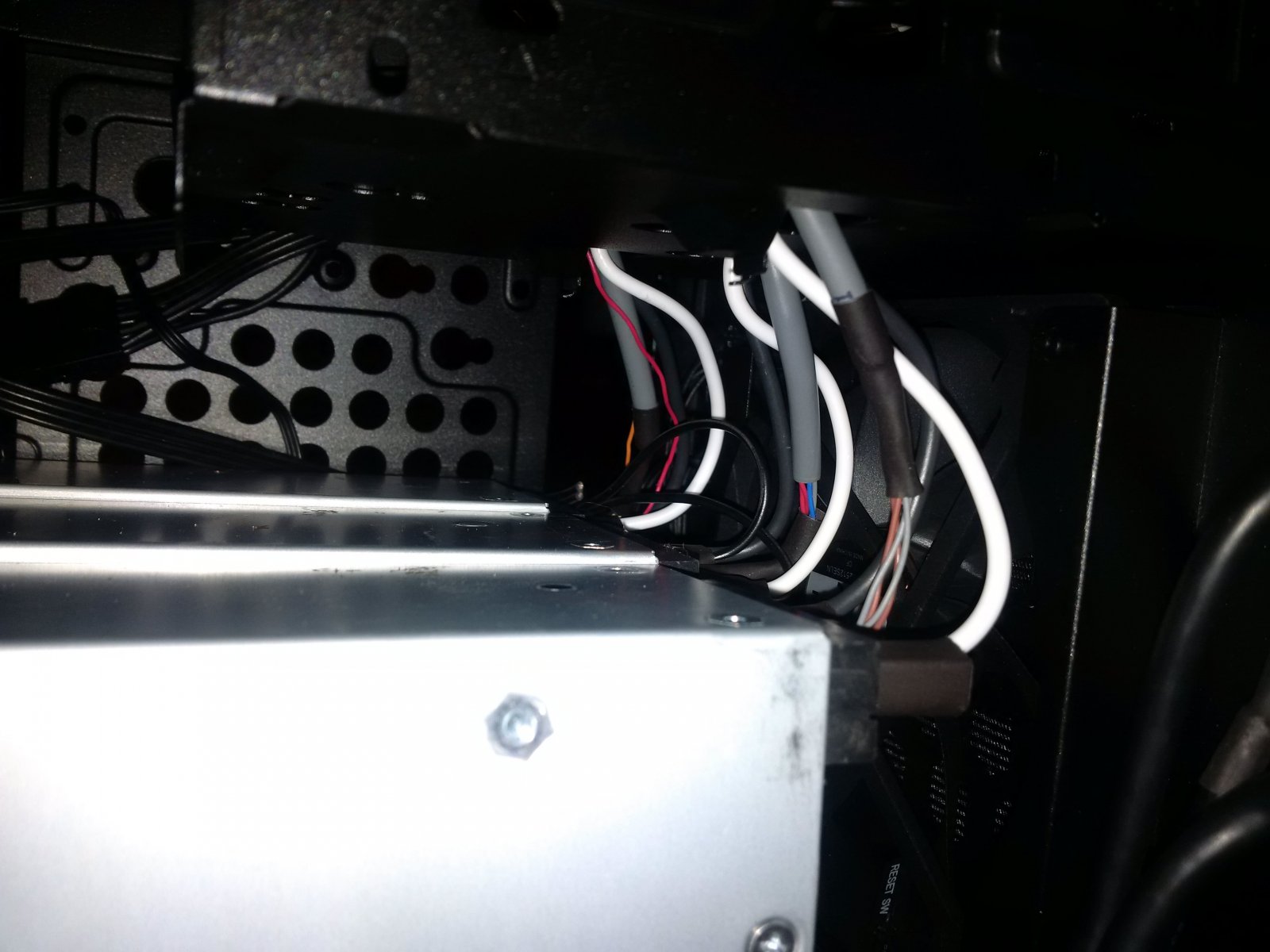

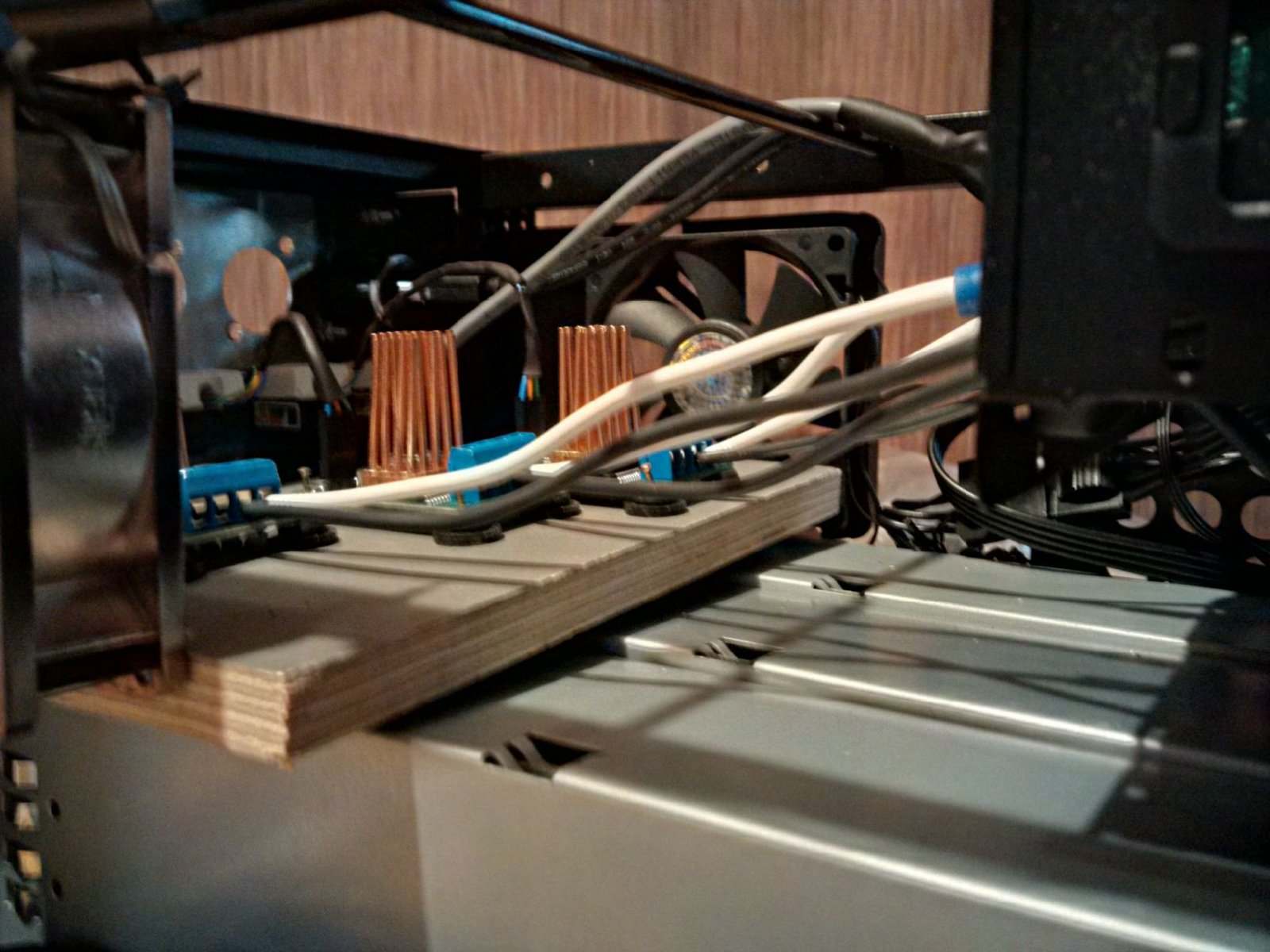

    IMG_20160131_155351_hdr.jpg IMG_20160131_155408_hdr.jpg IMG_20160131_155031_hdr.jpg
    • Like Like x 3
    • Winner Winner x 3
  12. Nick Moxley

    Nick Moxley Well-Known Member

    Joined:
    Dec 13, 2013
    Messages:
    2,779
    Occupation:
    Owner/Operator- Moxleys Rantals
    Location:
    Winnipeg Manitoba Canada
    Balance:
    19,116Coins
    Ratings:
    +2,486 / 29 / -2
    My Motion Simulator:
    2DOF, 3DOF, DC motor, JRK
    Man i need to get on re doing the Rats nest one of these days, How's progress comin Seb ?
    • Like Like x 1
  13. Sebj

    Sebj Active Member

    Joined:
    Nov 13, 2014
    Messages:
    250
    Location:
    Canada
    Balance:
    1,358Coins
    Ratings:
    +152 / 1 / -0
    My Motion Simulator:
    2DOF
    Hi, thanks for asking. I was having an issue with my cat5e cable wiring in order to get the PSUs running with a green light ie. jrks working. Really really strange as all the individual wire leads coming from the PSUs themselves worked but once in the cat5e connector some voodoo occurred and the wiring no longer responded with any logic. In the end I got if all to work but only through trial and error matching wires. It was as if there were wires crossed between psus but of course they were isolated.
    Anyhow I will get the JRKs configured in Windows now.
    Also life has been very busy and I haven't had much energy to work on the project late at night.
    It's coming though. I am ordering some additional plates to mount my flight controls to the seat as well.
    • Like Like x 1
  14. eightbit

    eightbit Active Member

    Joined:
    May 20, 2013
    Messages:
    108
    Occupation:
    Fish Farmer
    Location:
    Trentham Cliffs
    Balance:
    342Coins
    Ratings:
    +45 / 0 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino
    Looks like a great project sebj! It's such a learning experience building your own sled and theres no better feeling :) look forward to seeing your progress.
    • Like Like x 1
    • Useful Useful x 1
  15. Sebj

    Sebj Active Member

    Joined:
    Nov 13, 2014
    Messages:
    250
    Location:
    Canada
    Balance:
    1,358Coins
    Ratings:
    +152 / 1 / -0
    My Motion Simulator:
    2DOF
    Happy to report the JRKs are setup in windows and test ok using the utility. Now I need to move forward with the build process. Likely wont get rest of plates until 2 weeks, then I will be powdercoating them. Then ordering 8020 and onto the build phase after that.
    • Like Like x 2
  16. Sebj

    Sebj Active Member

    Joined:
    Nov 13, 2014
    Messages:
    250
    Location:
    Canada
    Balance:
    1,358Coins
    Ratings:
    +152 / 1 / -0
    My Motion Simulator:
    2DOF
    update:
    have my 80/20 and 95% of parts. Just waiting now about 8 weeks to get my M6 screws from China. Hope to post some pics soon as I go.
    • Like Like x 5
  17. Sebj

    Sebj Active Member

    Joined:
    Nov 13, 2014
    Messages:
    250
    Location:
    Canada
    Balance:
    1,358Coins
    Ratings:
    +152 / 1 / -0
    My Motion Simulator:
    2DOF

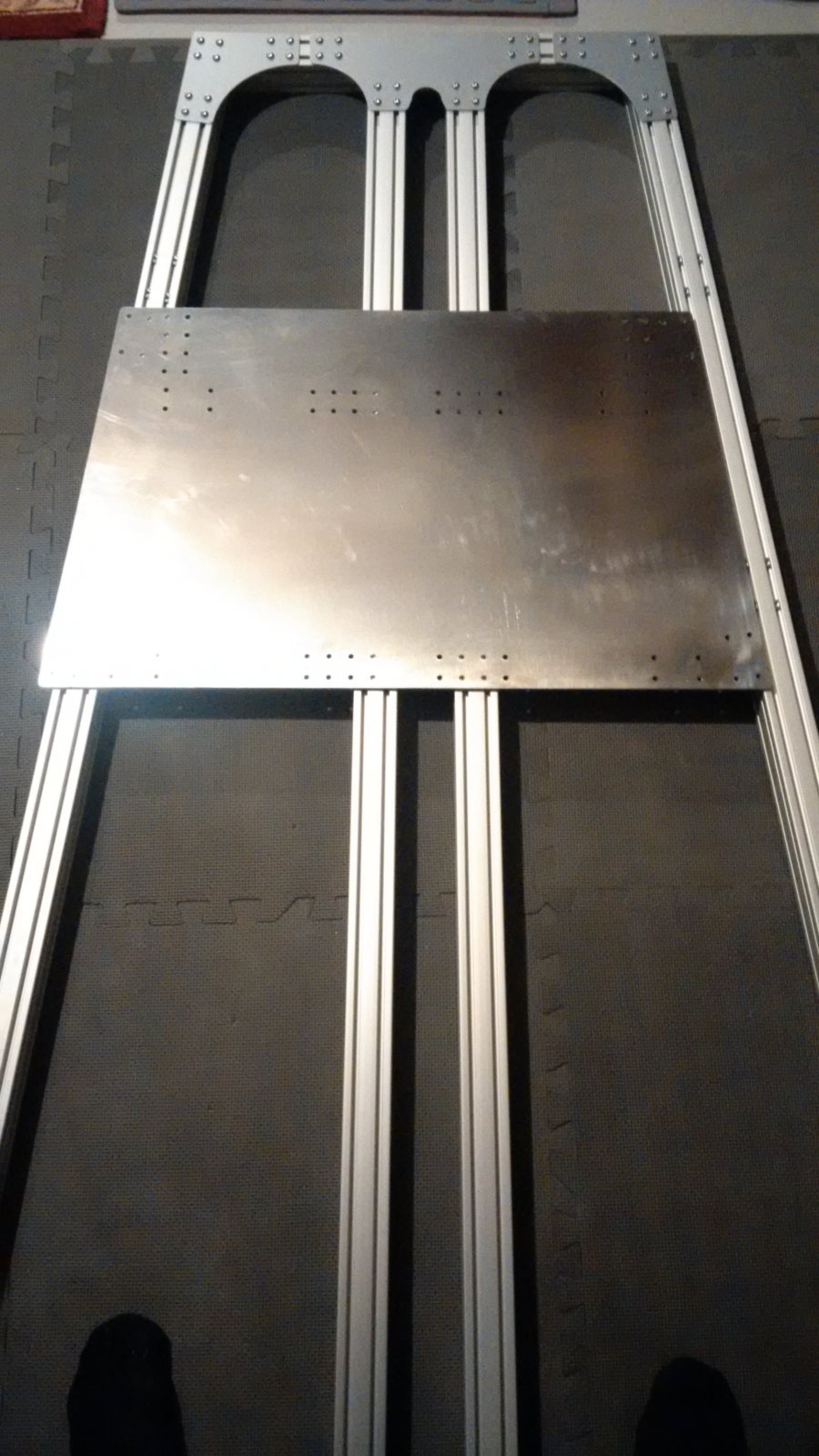

    back to progress, hope to post often going forward.

    • Like Like x 1
  18. Sebj

    Sebj Active Member

    Joined:
    Nov 13, 2014
    Messages:
    250
    Location:
    Canada
    Balance:
    1,358Coins
    Ratings:
    +152 / 1 / -0
    My Motion Simulator:
    2DOF

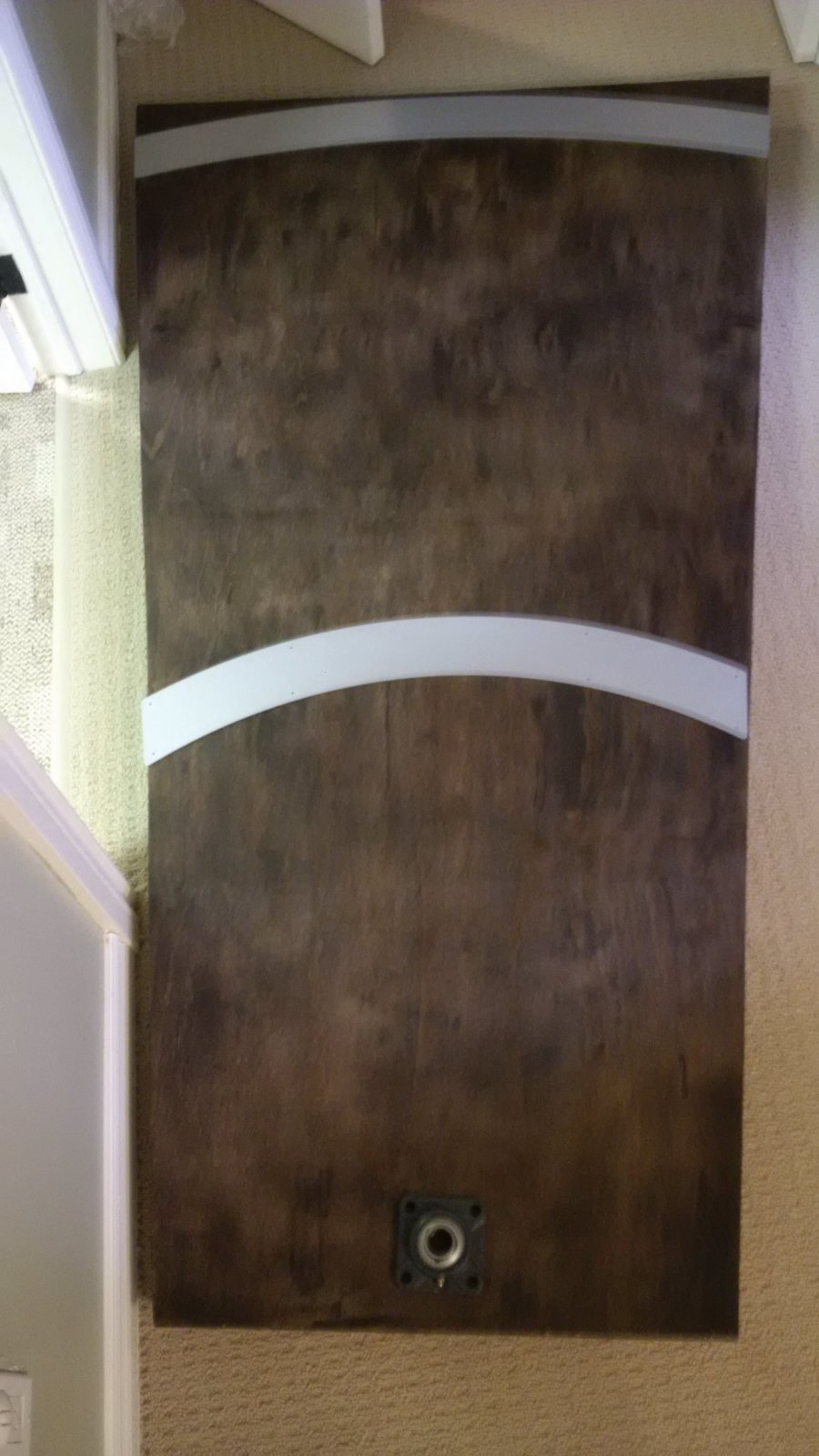

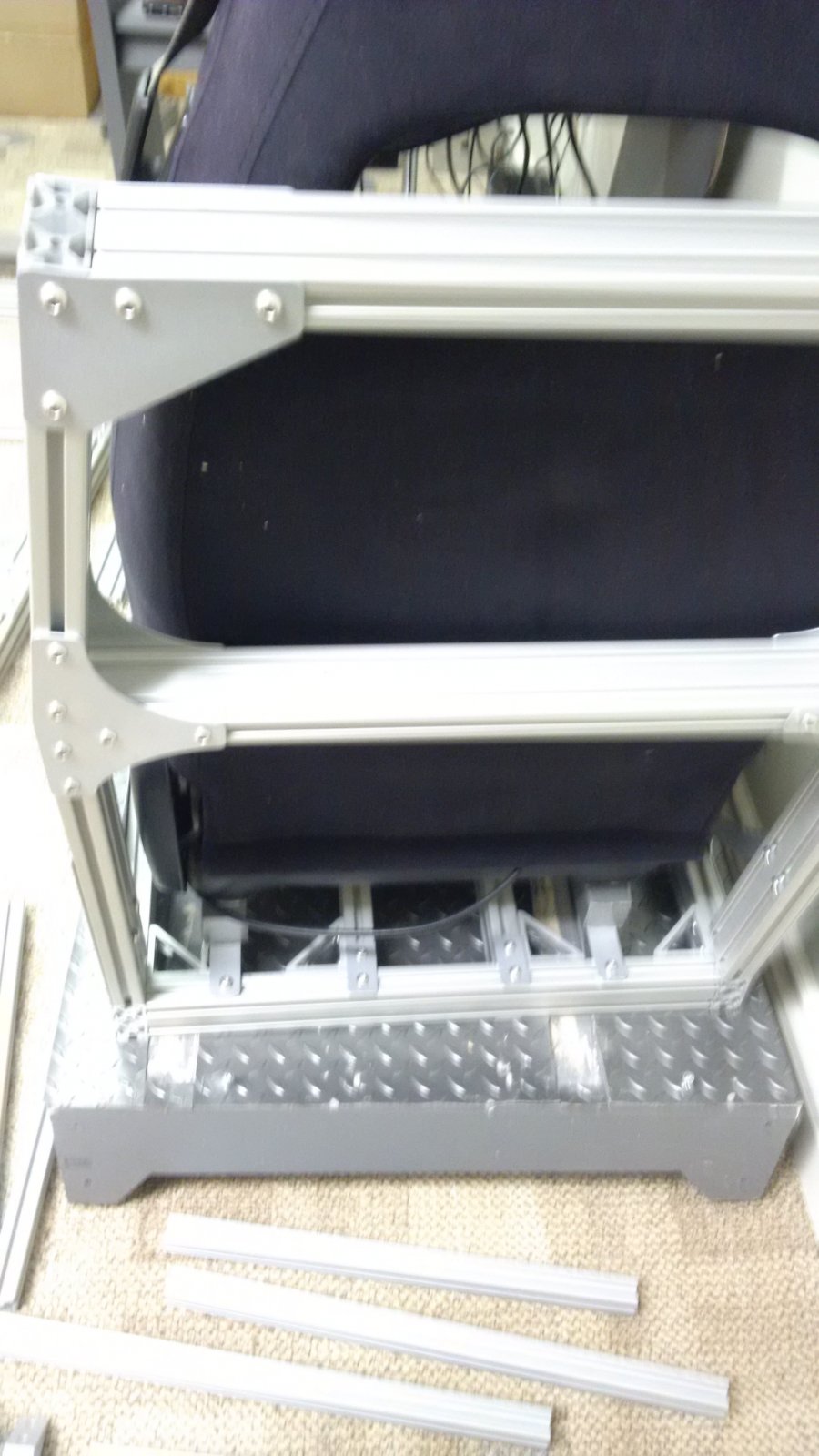

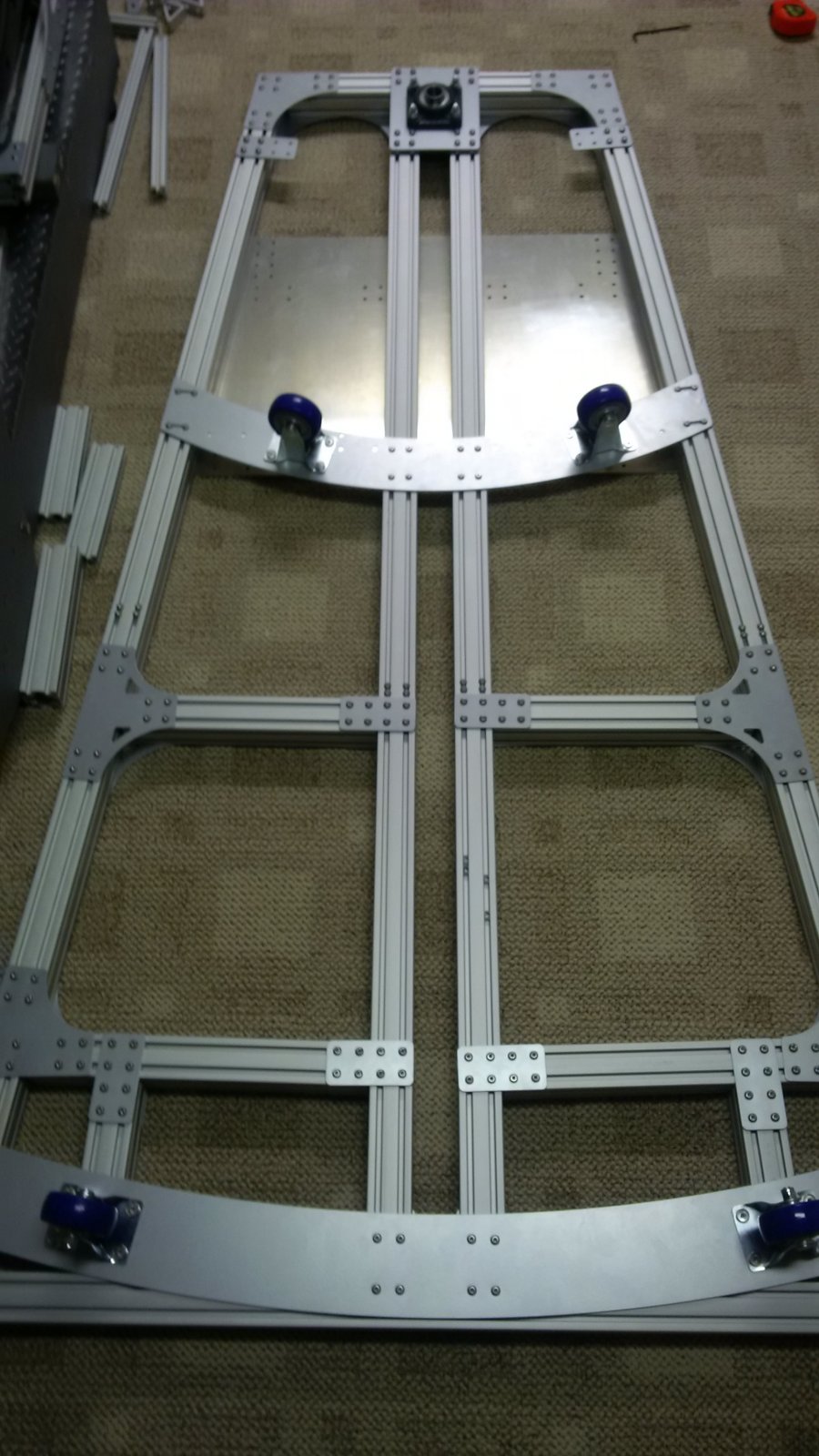

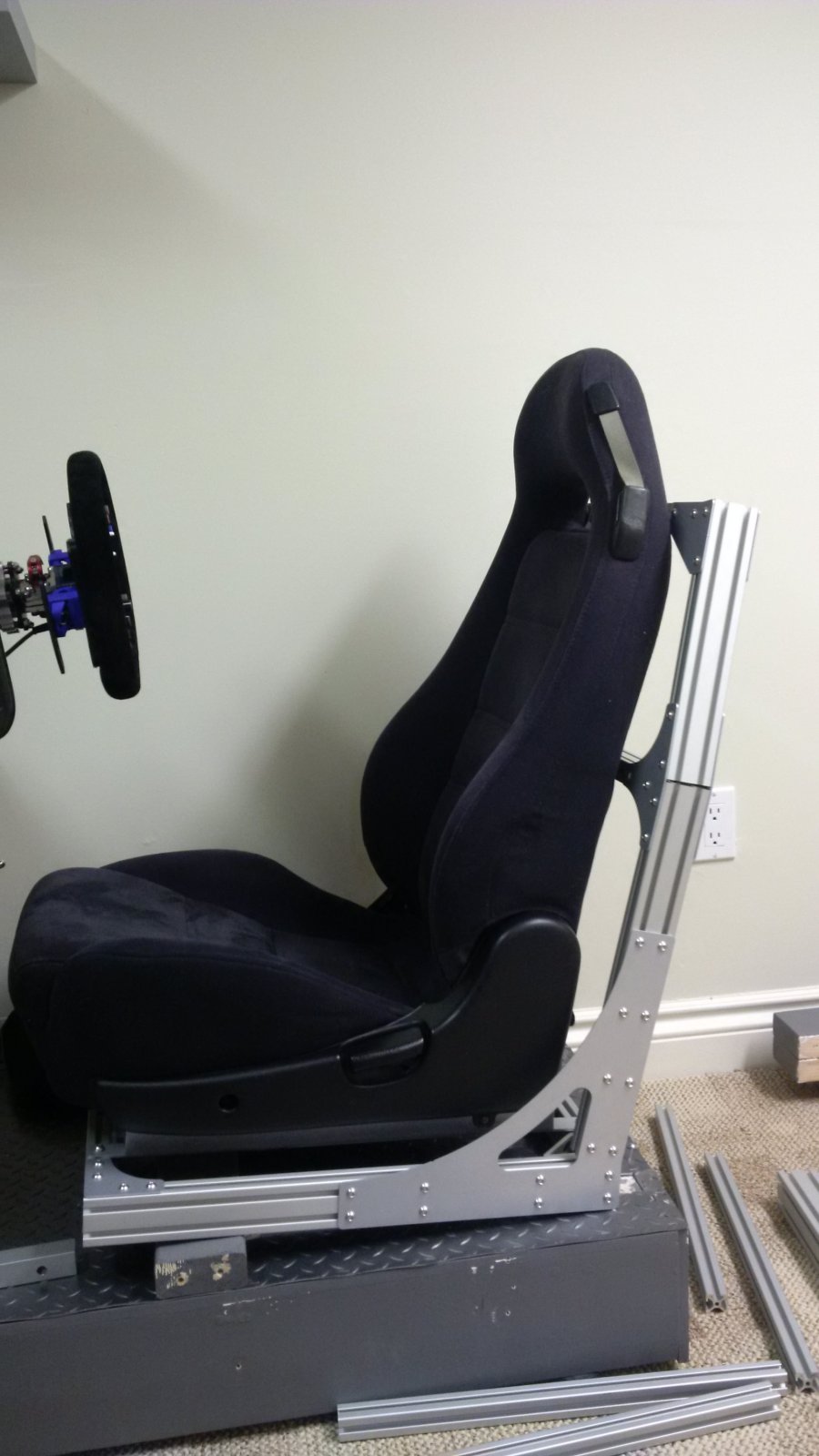

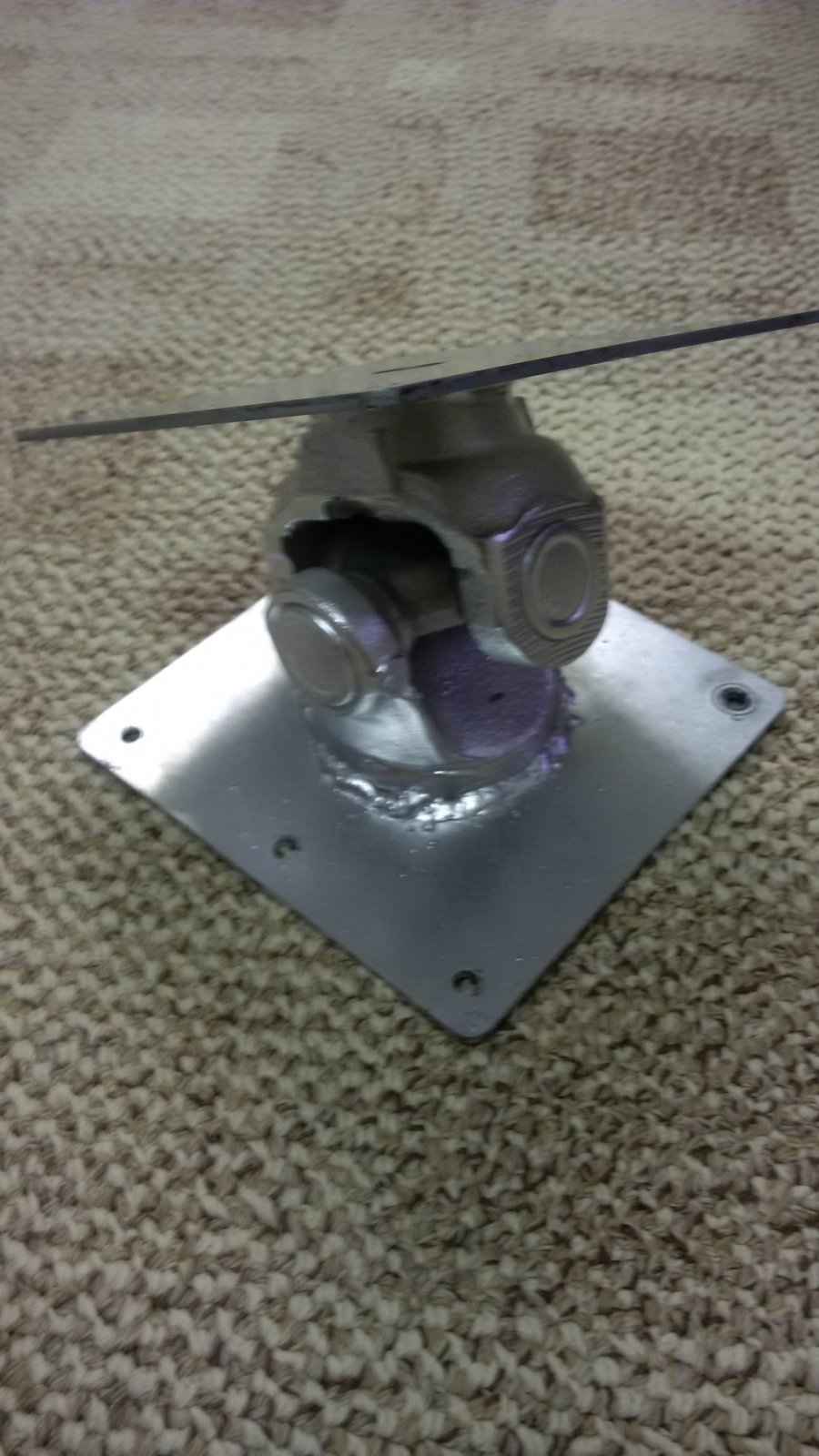

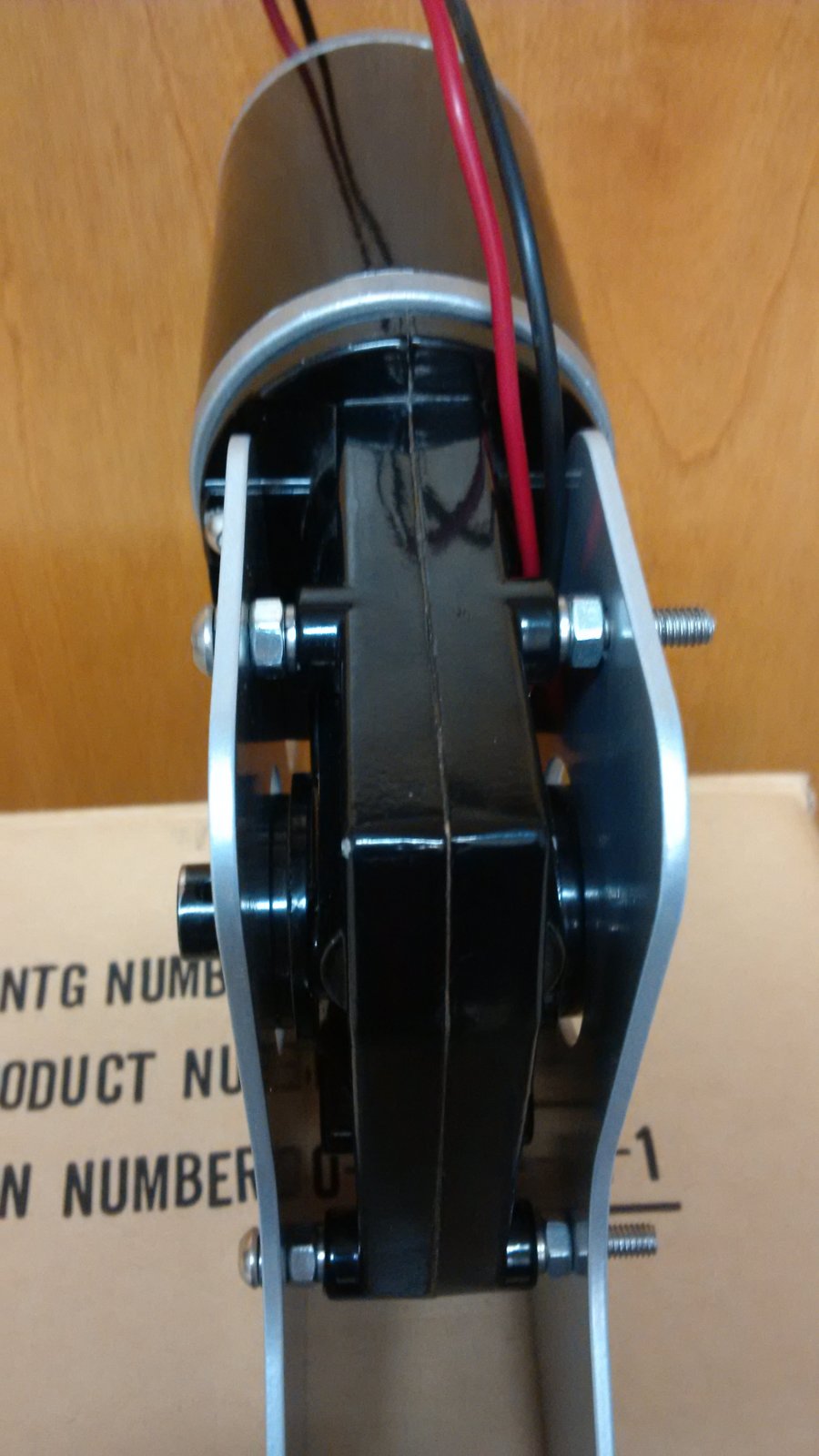

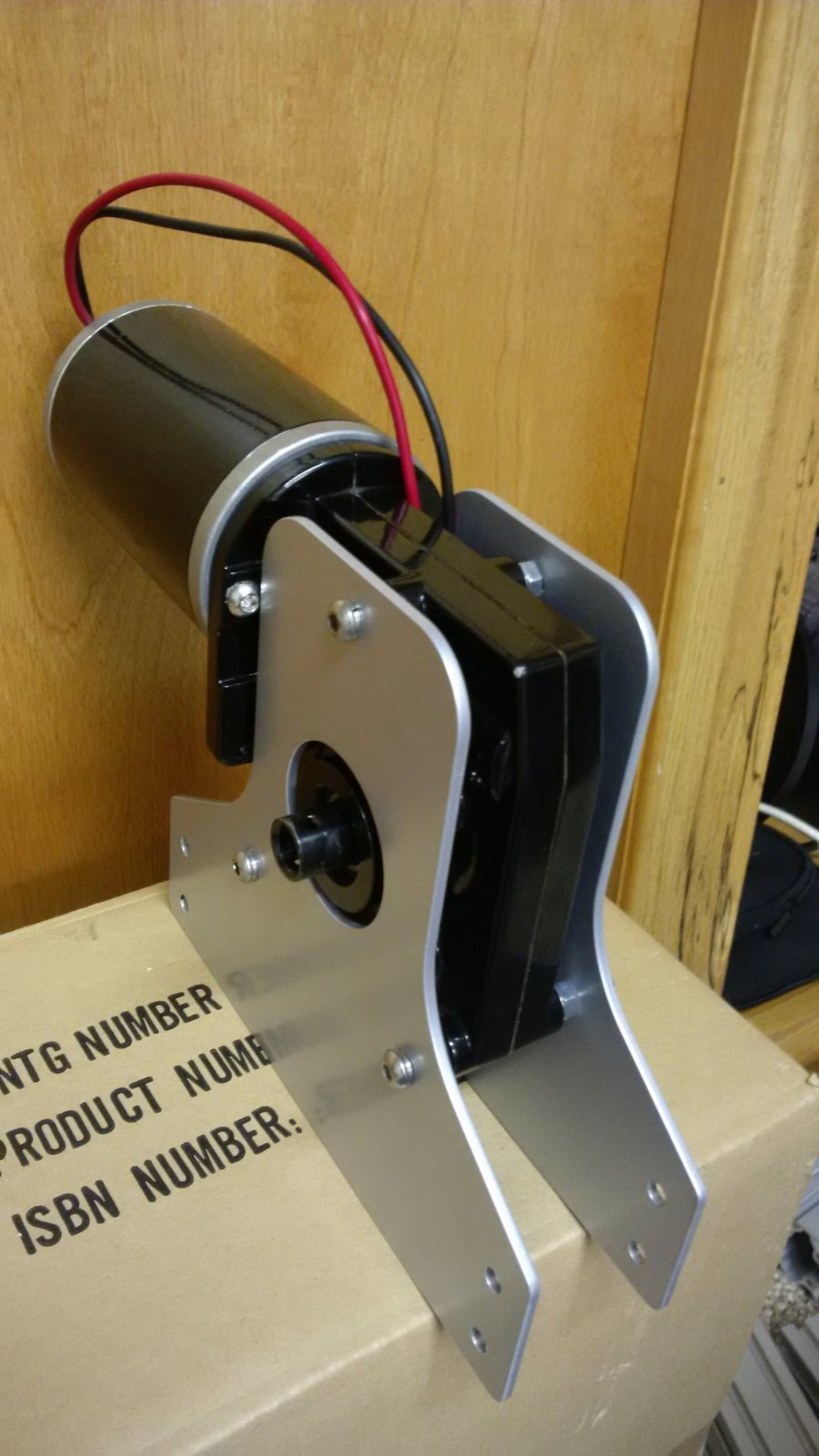

    IMG_20180407_163809.jpg IMG_20180407_163746.jpg IMG_20180407_163740.jpg IMG_20180407_163619.jpg IMG_20180407_163608.jpg IMG_20180407_163638.jpg


    After a baby and a house move, finally moving forward again.
    • Like Like x 6
  19. CPSNine

    CPSNine New Member

    Joined:
    Apr 9, 2017
    Messages:
    6
    Location:
    Canada
    Balance:
    181Coins
    Ratings:
    +2 / 0 / -0
    Wow Seb! this is a very cool project!
    I am currently trying to gather info to build a 2 DOF Seat mover (and eventually with traction loss), and your thread covers a lot of things very well.
    It is so well built it is almost overwhelming and kind of scary. It is making me reconsider my plans and my ability to do this. But I guess we all go through this when you are no engineer...
    Anyway, thanks for the very well documented thread.
    • Like Like x 1
    • Agree Agree x 1
  20. Stouuf

    Stouuf Member

    Joined:
    Dec 20, 2017
    Messages:
    42
    Location:
    France
    Balance:
    295Coins
    Ratings:
    +20 / 0 / -0
    My Motion Simulator:
    4DOF
    Great your project!

    This puts ideas full head !! :grin
    • Like Like x 1
