Showroom **RIP** - 6DOF project using 12v DC Motors, Sabertooth 2x60's (was MM's) and Arduinos + OSW

Discussion in 'DIY Motion Simulator Projects' started by SilentChill, Jun 2, 2015.

  1. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,538
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    19,376Coins
    Ratings:
    +3,286 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    lol @tronicgr i have a very understanding wife the quicker i get things done the quicker i get back to her. Think my avatar says it all :)
    • Like Like x 9
    • Winner Winner x 4
    • Agree Agree x 1
  2. Pit

    Pit - - - - - - - - - - - - - - - - Staff Member Moderator Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    2,998
    Location:
    Switzerland
    Balance:
    29,405Coins
    Ratings:
    +3,007 / 30 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    @SilentChill how will you sort out the maths? Which code you will use that the motors are working together? BTW your 6DOF is simple and genius on the one hand and and worth respecting on the the other hand, I have to follow your 6DOF route...
    • Like Like x 2
  3. zigzag49

    zigzag49 Active Member

    Joined:
    May 27, 2014
    Messages:
    251
    Balance:
    470Coins
    Ratings:
    +218 / 2 / -0
    My Motion Simulator:
    2DOF, Arduino
    Superbe travail , je fabrique aussi un 6dof en smolka 24v actuellement .
    Je vais suivre ton file de près , bon courage pour la suite .

    Great work, I also manufactures a 6DOF in smolka 24v now. I'll follow your lead close, good luck for the future.
    • Like Like x 1
  4. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,538
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    19,376Coins
    Ratings:
    +3,286 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    @Pit I will be using scn code on 3 arduino, 2 motors on each.

    Maths ??? I don't worry about that just build it and see what happens, as long as the angles are about right and it's all pretty much symmetrical it should work right ??
    • Like Like x 1
  5. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    13,787
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    103,771Coins
    Ratings:
    +8,611 / 42 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    The basics turn out to be pretty simple with a 6DOF. I helped out @Leandro Tercette via skype and would give the same advice, as long as you avoid an axis inversion SimTools can work pretty well: http://www.xsimulator.net/community/threads/6dof-stewart-rig-using-simtools.6900/

    So, for example, if you use the Elite Dangerous or FSX/P3D plugins you can avoid issues with traditional roll and pitch by using Extra 1 and 2, then tweak it with filters: http://www.xsimulator.net/community...oit-human-percption-in-motion-simulation.142/

    @Leandro Tercette has it pretty well sorted for ED: http://www.xsimulator.net/community/threads/6dof-stewart-rig-using-simtools.6900/page-2#post-79719

    And for racing: http://www.xsimulator.net/community/threads/6dof-motion-platform-with-a-c-motors.6907/#post-79949
    • Agree Agree x 1
  6. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,538
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    19,376Coins
    Ratings:
    +3,286 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    Back to action tomorrow had a bad couple of days injured (tried to blind myself grinding) 2 days rest and back at it all day tomorrow :) will have it moving by the end of the day or i'll not be amused
    • Like Like x 2
  7. Wanegain

    Wanegain Active Member

    Joined:
    Nov 6, 2013
    Messages:
    549
    Location:
    Bruxelles
    Balance:
    1,381Coins
    Ratings:
    +275 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    A new video tomorrow at the same time the Oculus conference?
    Christmas in June? :popcorn
    • Like Like x 1
    • Funny Funny x 1
    • Optimistic Optimistic x 1
  8. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,538
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    19,376Coins
    Ratings:
    +3,286 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    Solder solder solder pffffffff forgot how many needed doing lol

    • Like Like x 5
  9. Leo Burton

    Leo Burton Active Member

    Joined:
    Jul 23, 2014
    Messages:
    162
    Location:
    London, UK
    Balance:
    2,526Coins
    Ratings:
    +126 / 1 / -2
    My Motion Simulator:
    2DOF, Arduino
    Keep at it! I'm following this thread like it's an iPhone launch!! Very excited to see it!
    • Agree Agree x 4
    • Funny Funny x 1
  10. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,538
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    19,376Coins
    Ratings:
    +3,286 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF

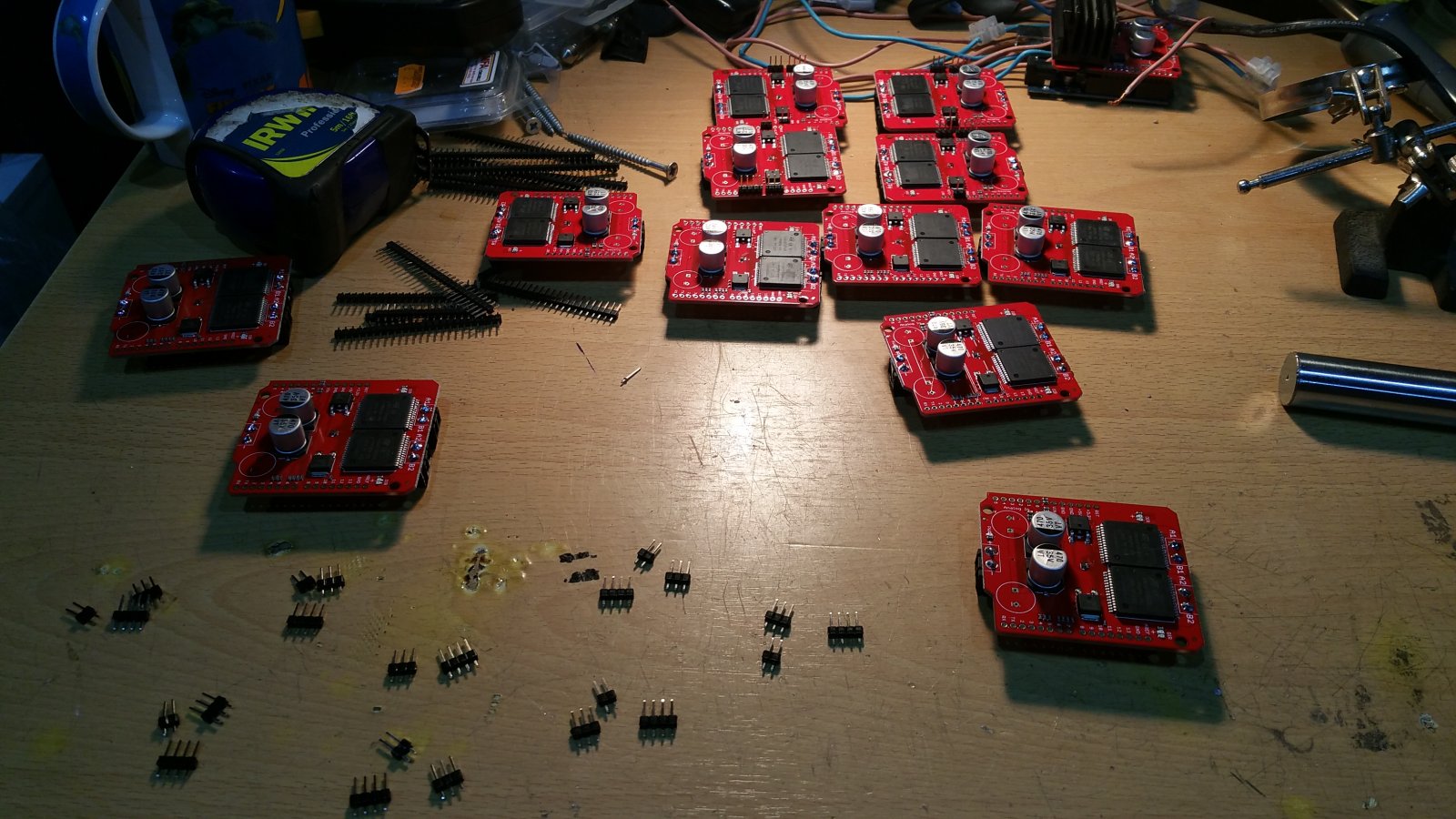

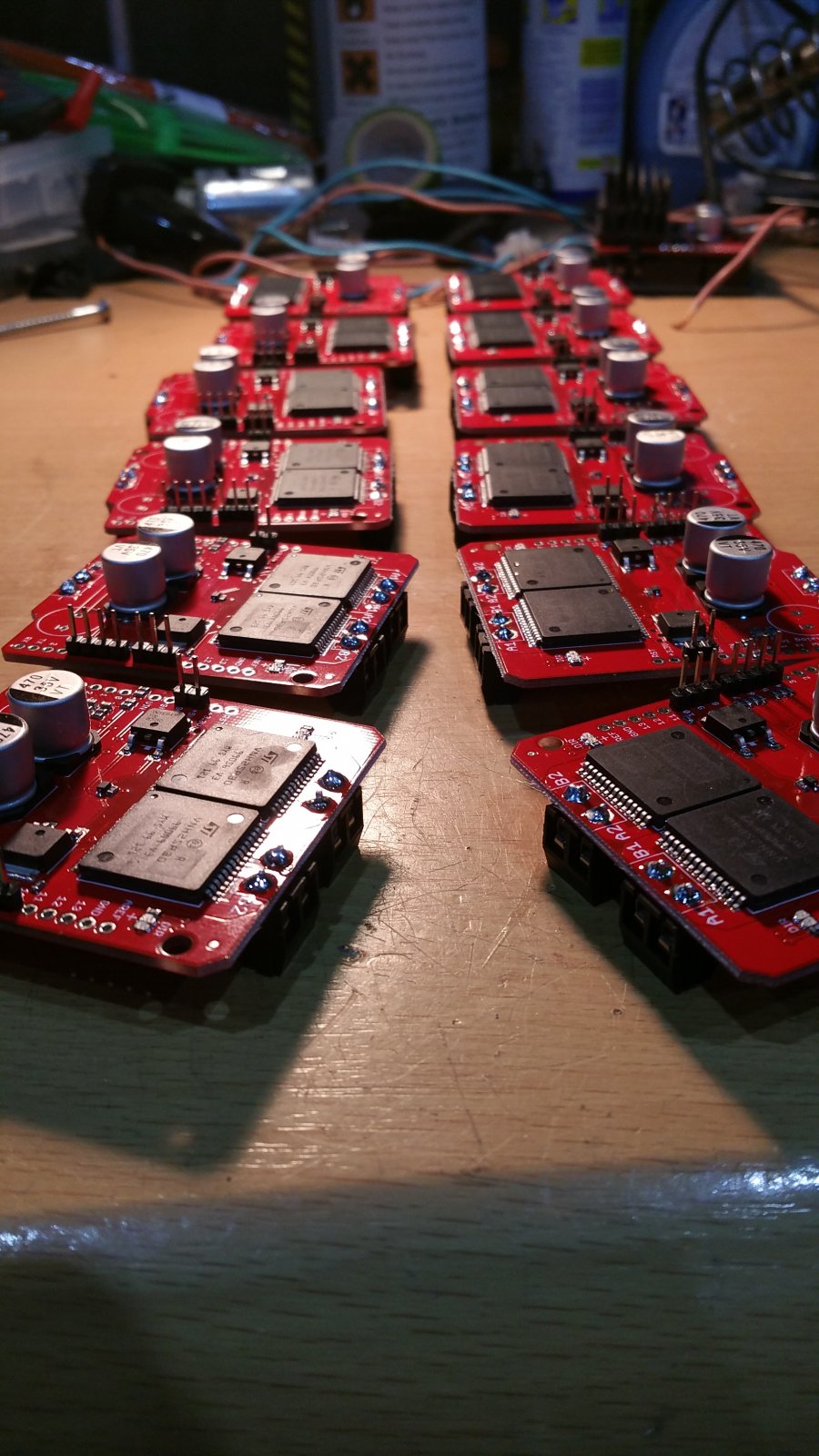

    All mm's power and pins soldered :)

    • Like Like x 3
  11. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,538
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    19,376Coins
    Ratings:
    +3,286 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF

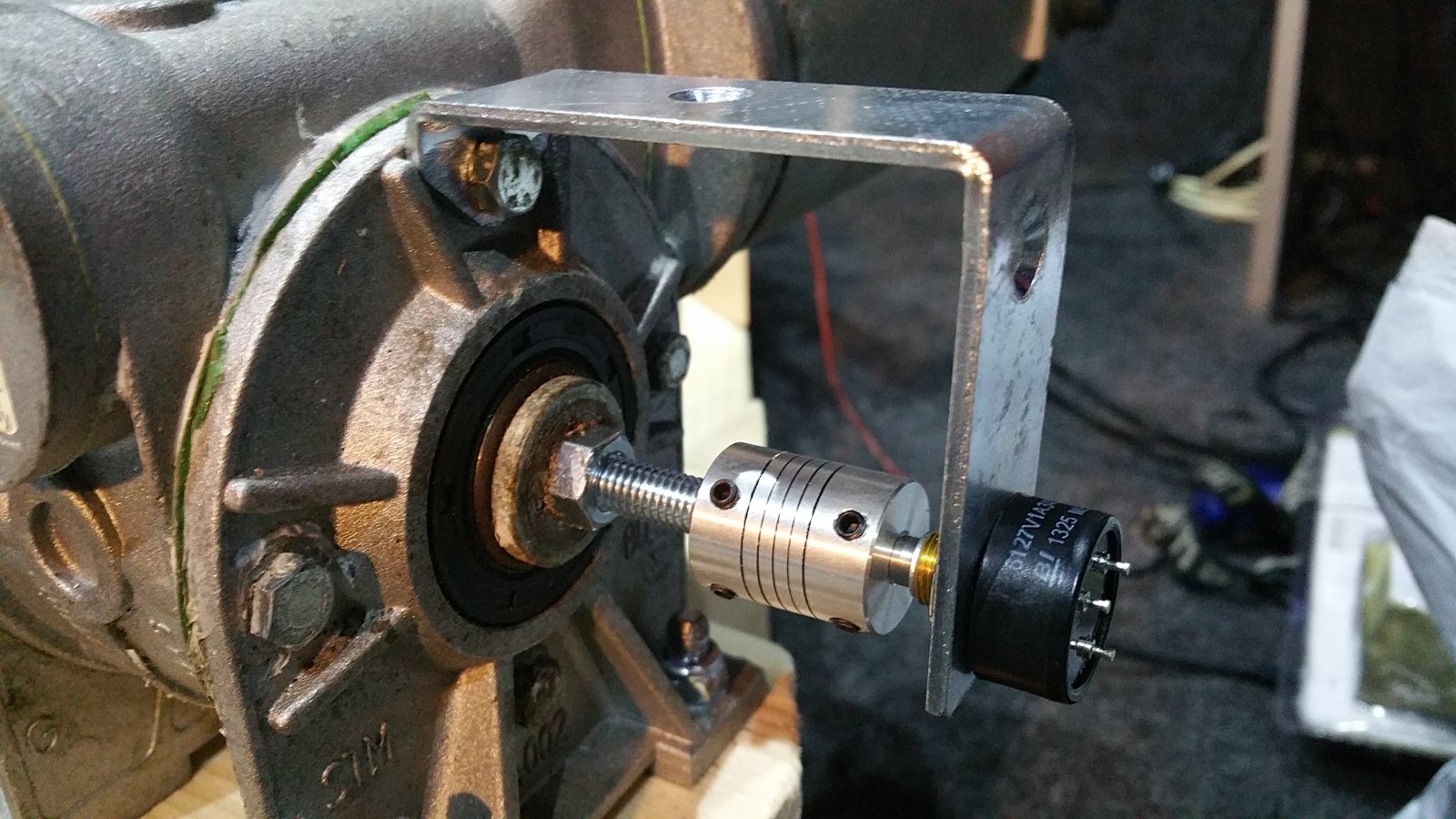

    6 brackets made for the hall pots :)


    • Like Like x 5
    • Creative Creative x 1
  12. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    13,787
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    103,771Coins
    Ratings:
    +8,611 / 42 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    Great progress @SilentChill.

    It must feel like you are working on a production line, doing the same thing over and over again each step of the way ;)
    • Agree Agree x 1
  13. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,538
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    19,376Coins
    Ratings:
    +3,286 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    Yes @noorbeast 6 of this 6 of that 12 of this 24 of that lol.

    It will be worth it in the end I hope
    • Like Like x 2
    • Agree Agree x 1
  14. Pit

    Pit - - - - - - - - - - - - - - - - Staff Member Moderator Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    2,998
    Location:
    Switzerland
    Balance:
    29,405Coins
    Ratings:
    +3,007 / 30 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    too late for my suggestion but I would test them before soldering... anyway your progress is insane :)
  15. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,538
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    19,376Coins
    Ratings:
    +3,286 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF

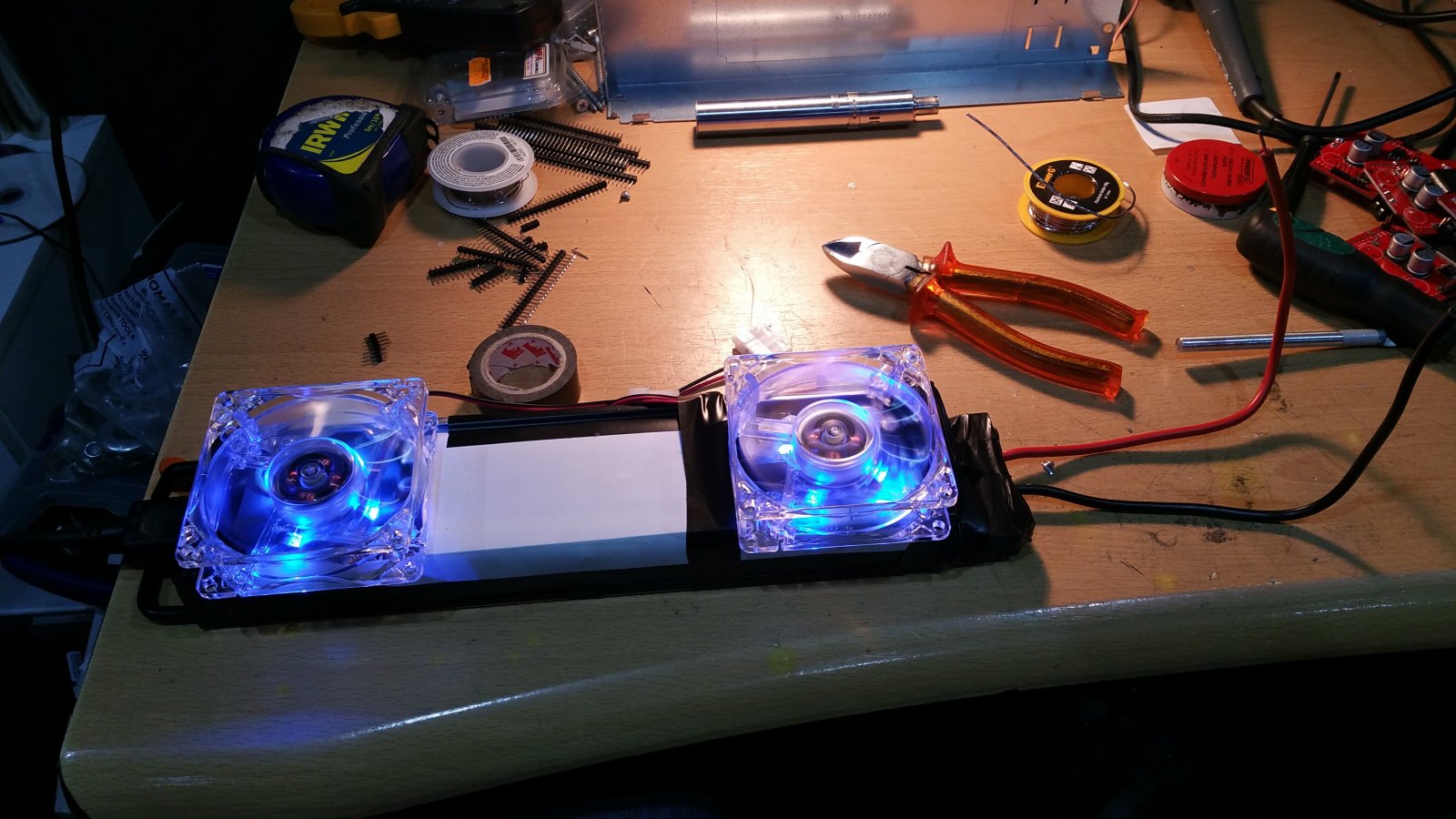

    1st PSU modded 5 more to go :D

    • Like Like x 3
  16. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,538
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    19,376Coins
    Ratings:
    +3,286 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    That was boring ....... all done with the psu's
    • Like Like x 6
  17. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    13,787
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    103,771Coins
    Ratings:
    +8,611 / 42 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    What model are the PSUs?
  18. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,538
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    19,376Coins
    Ratings:
    +3,286 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    1st page pictures dude
  19. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,538
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    19,376Coins
    Ratings:
    +3,286 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF

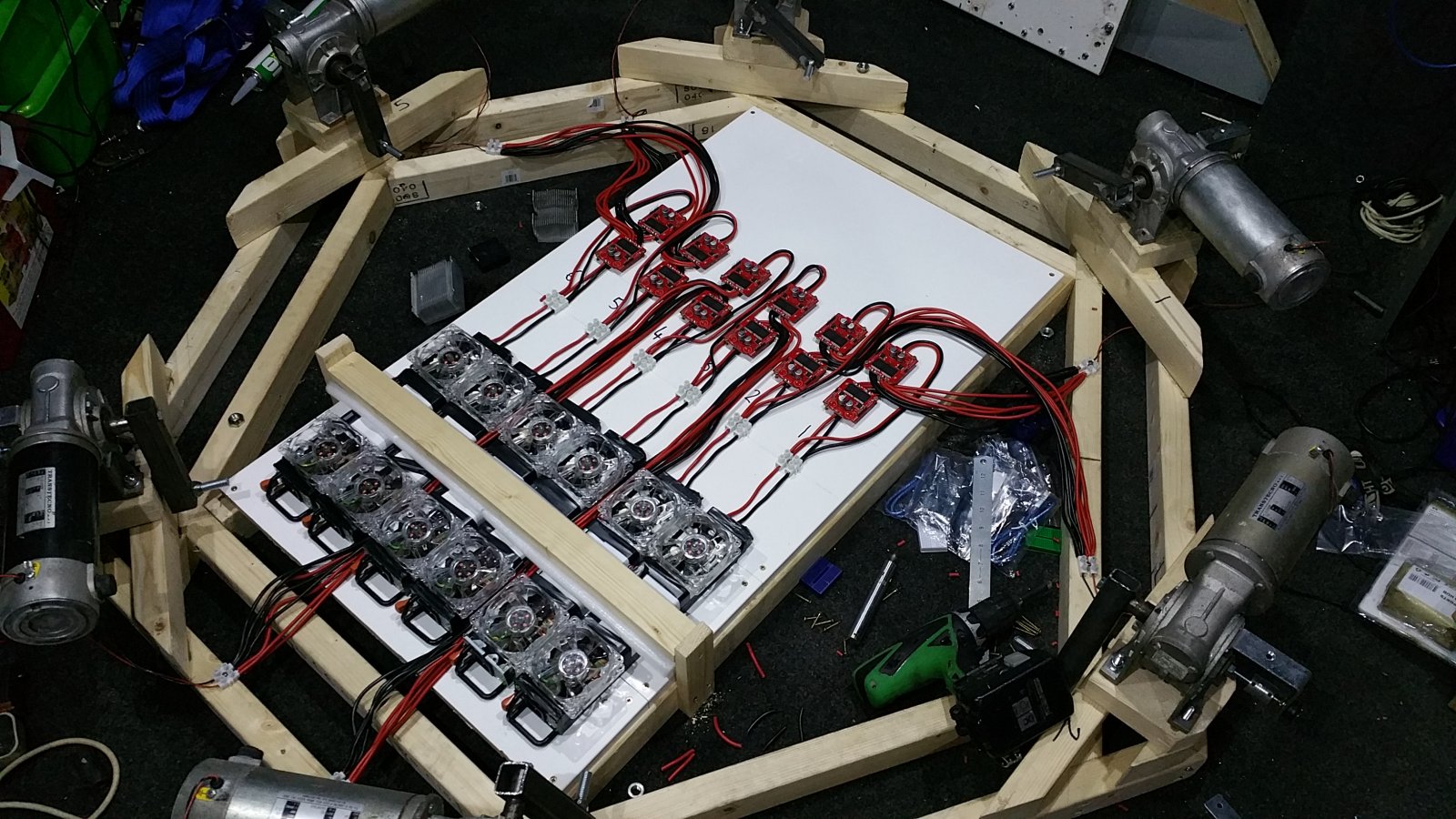

    Hard wiring that lot another checkbook done !!

    • Like Like x 1
    • Winner Winner x 1
    • Optimistic Optimistic x 1
  20. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,538
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    19,376Coins
    Ratings:
    +3,286 / 31 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF

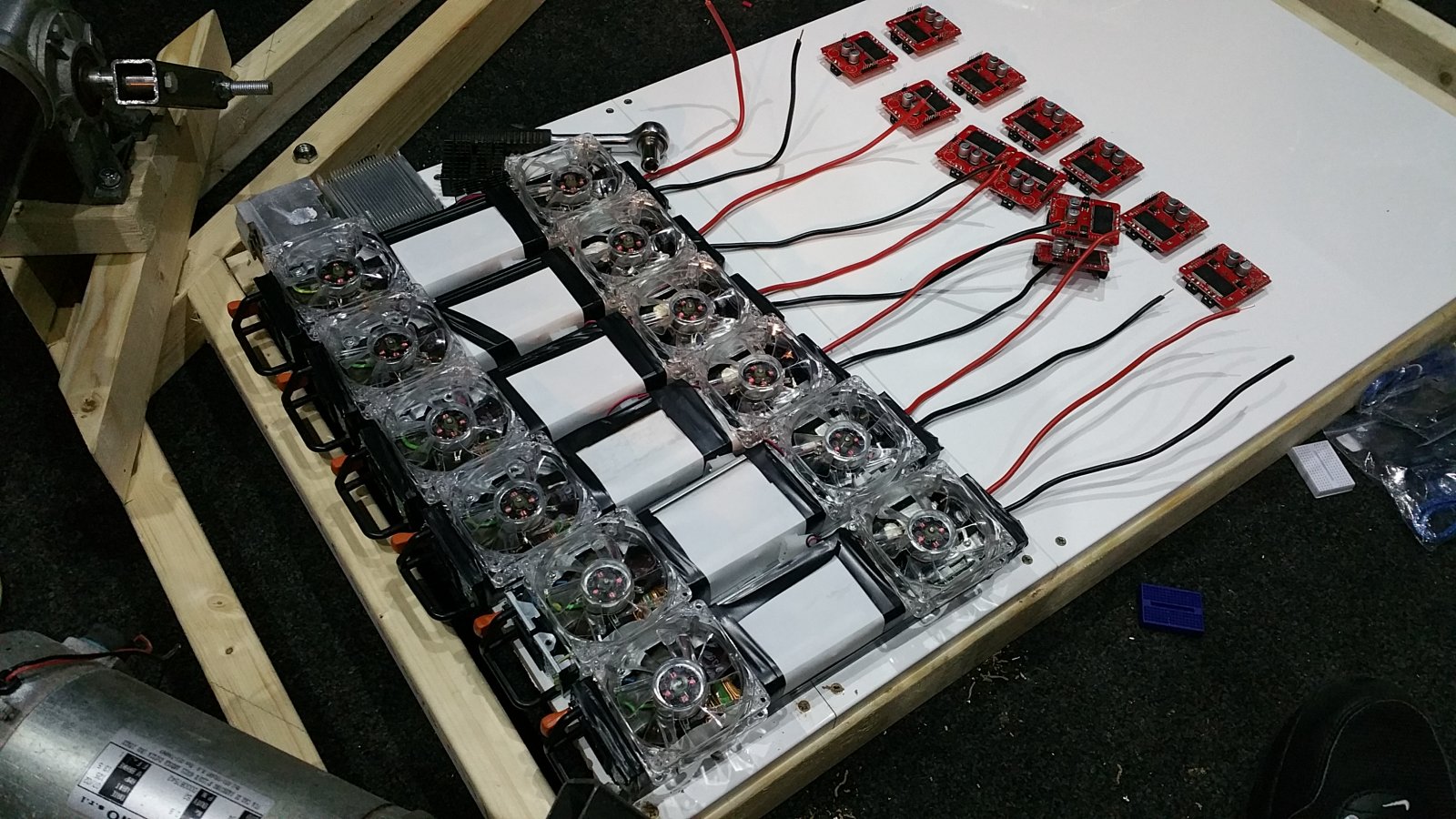

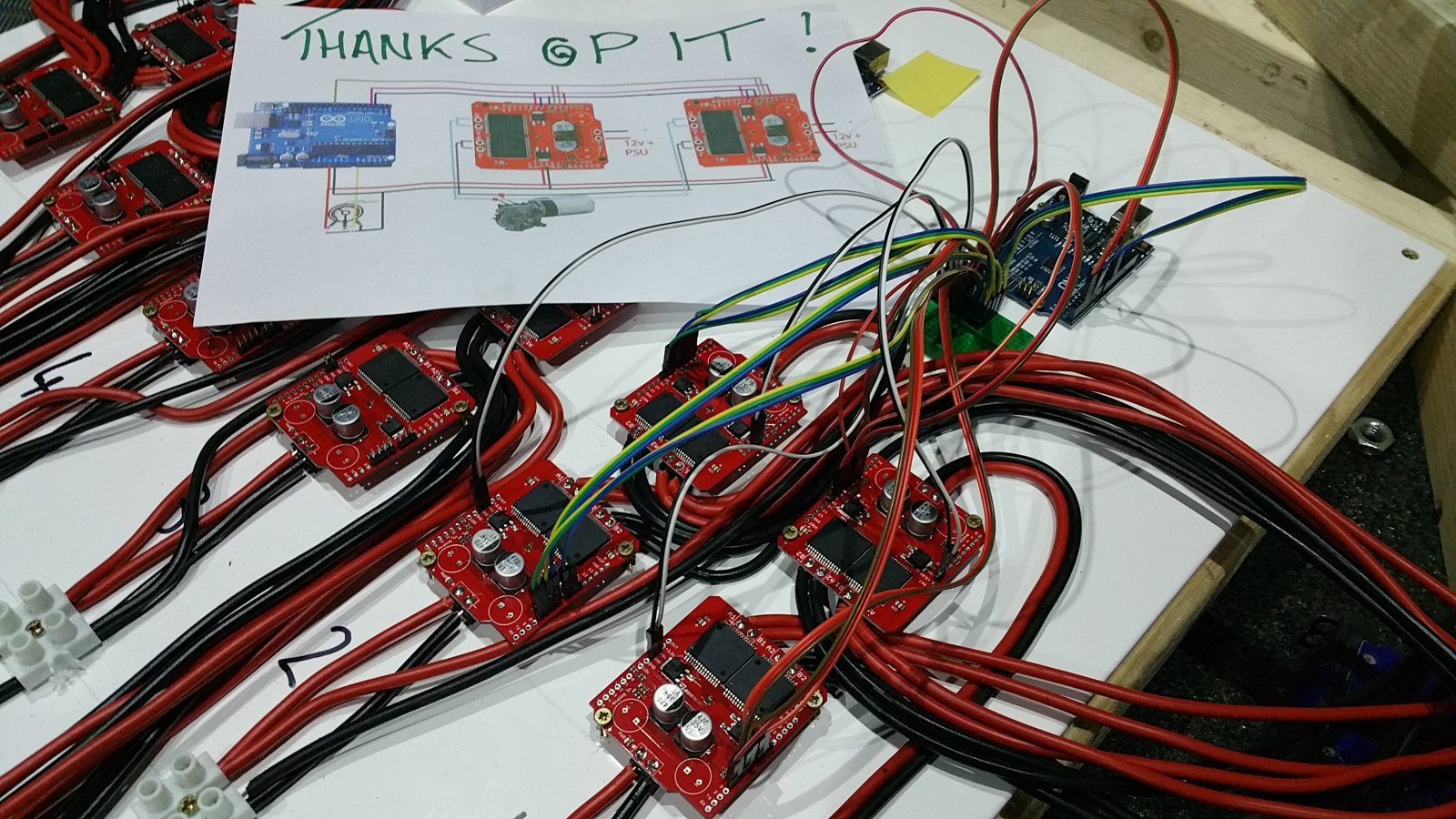

    more wiring lol

    • Like Like x 4
    • Winner Winner x 1
