Tutorial Old simulator - a new beginning

Discussion in 'DIY Motion Simulator Projects' started by Wojtek12, Feb 16, 2020.

  1. Wojtek12

    Wojtek12 never say never

    Joined:
    Feb 9, 2020
    Messages:
    16
    Occupation:
    mechanic
    Location:
    Poland
    Balance:
    152Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    Welcome. My adventure with the construction of the trea simulator is almost 7 years old. All this together improved her conscience and stability, and finally it was time to revive him. I made many players happy with this project;)

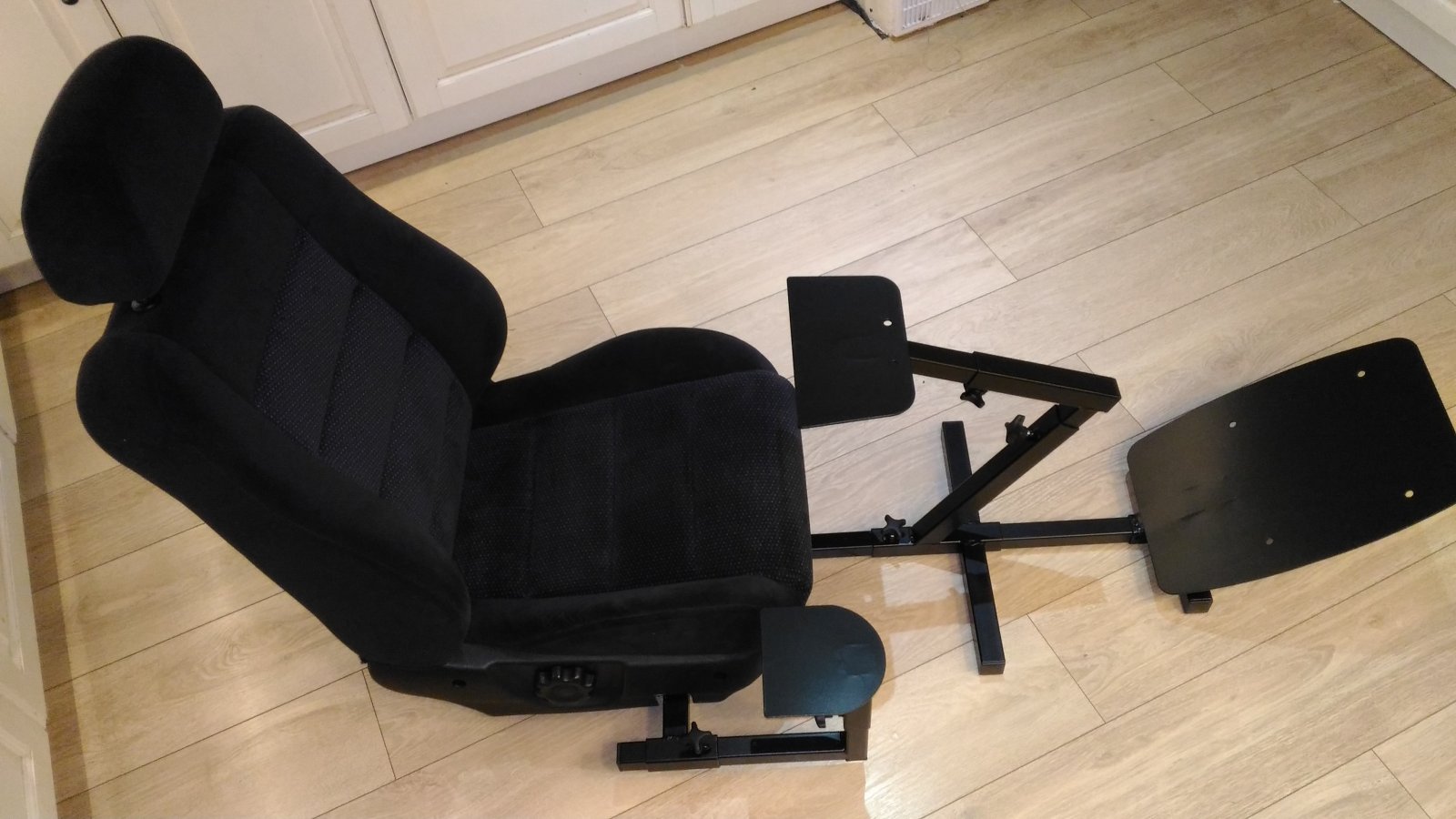

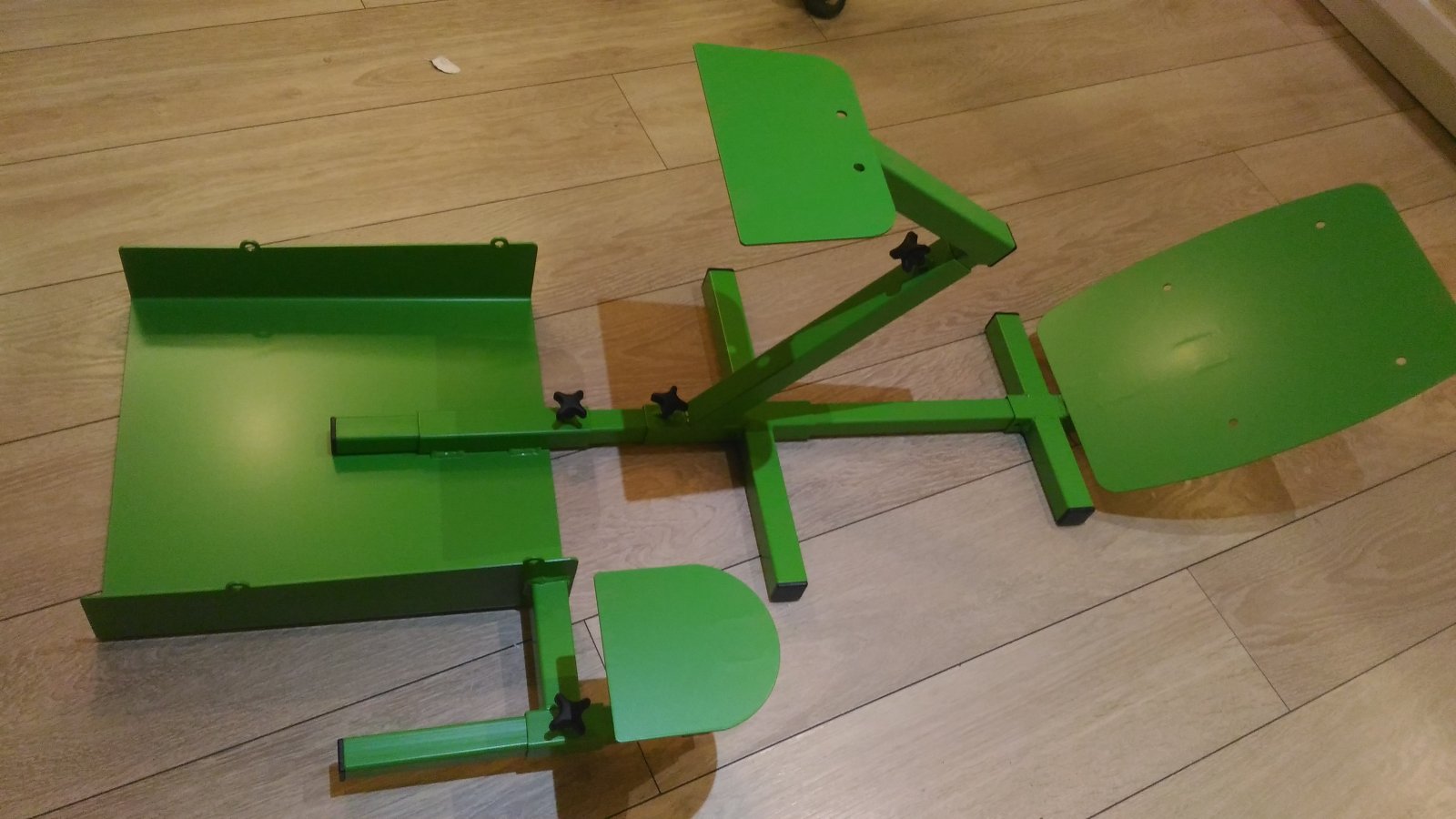

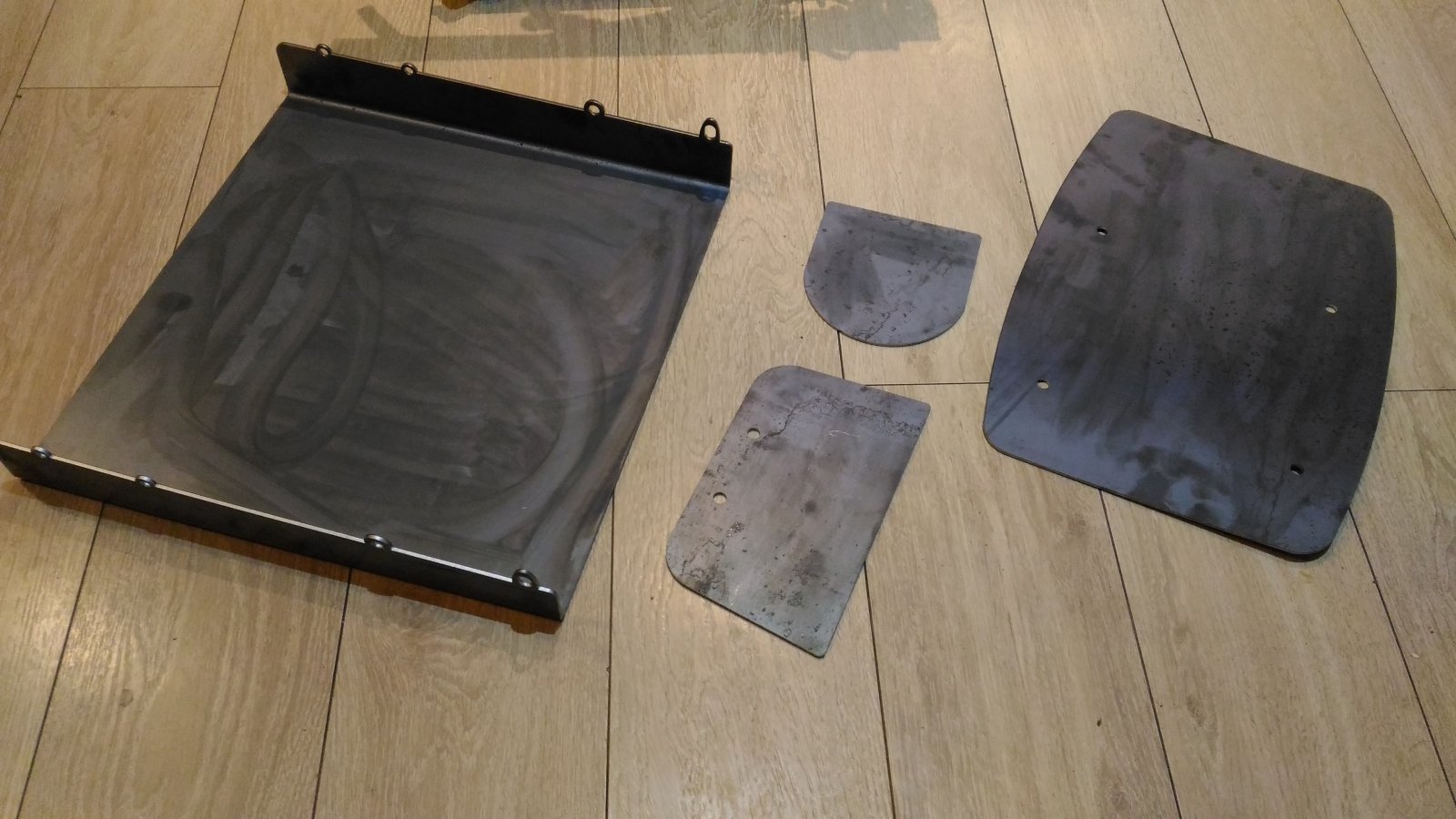

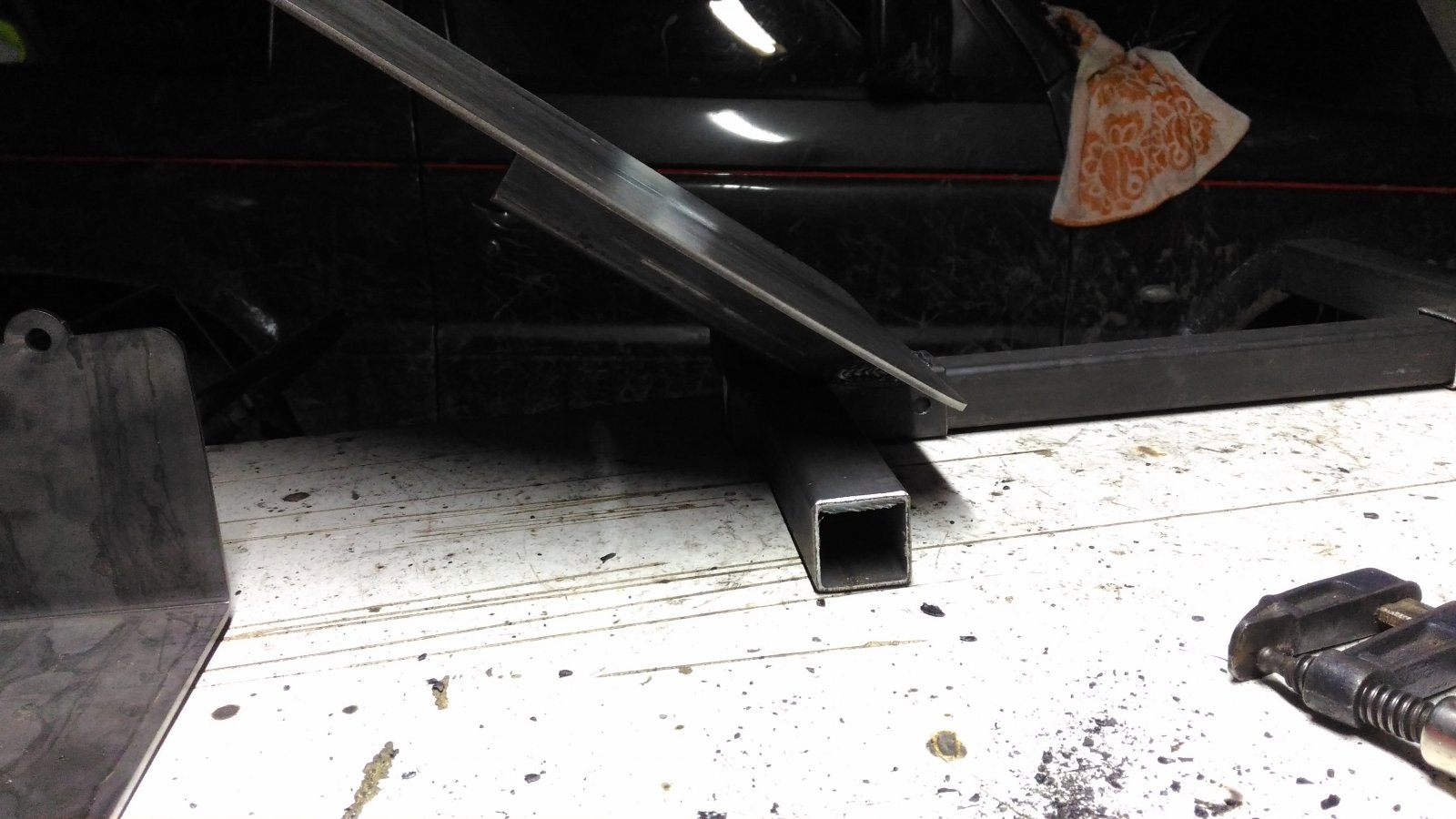

    Frame made of 2mm thick profiles, seat bases, pedals, steering wheel, gear levers made of 3mm sheet steel. Elements cut with laser, powder painted.
    Stable strong construction with full adjustment range. Seat with Honda Civic VI

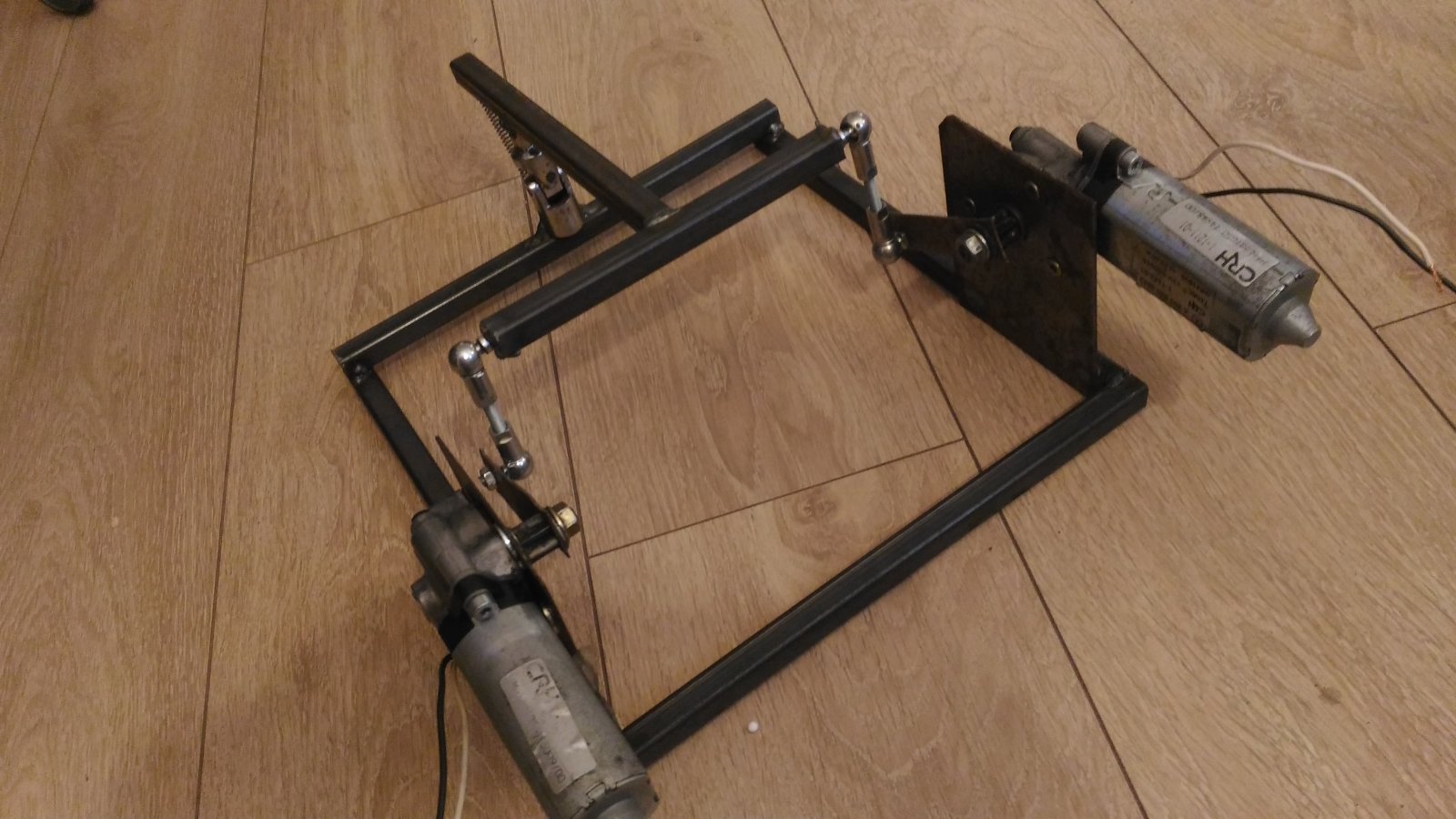

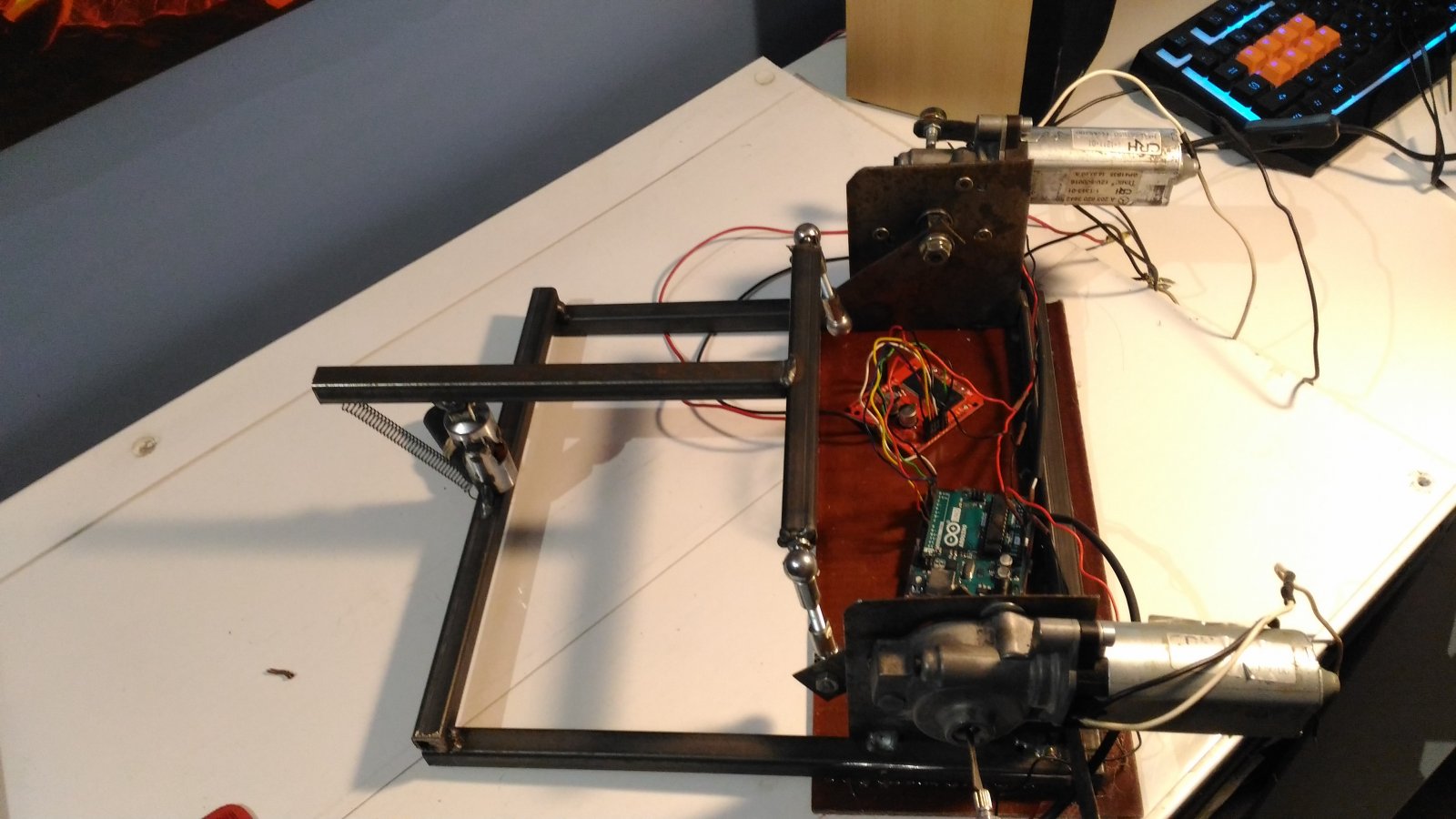

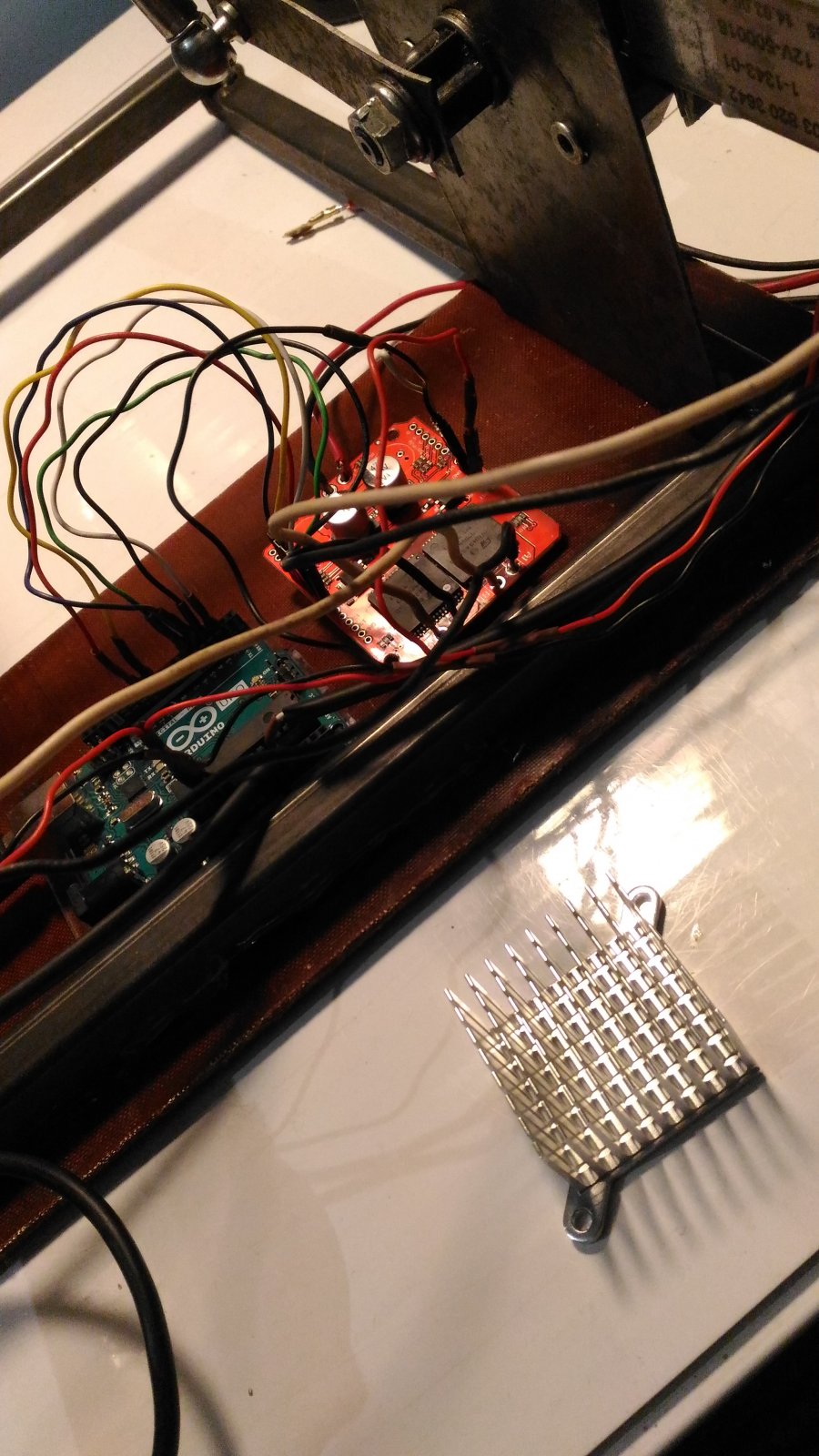

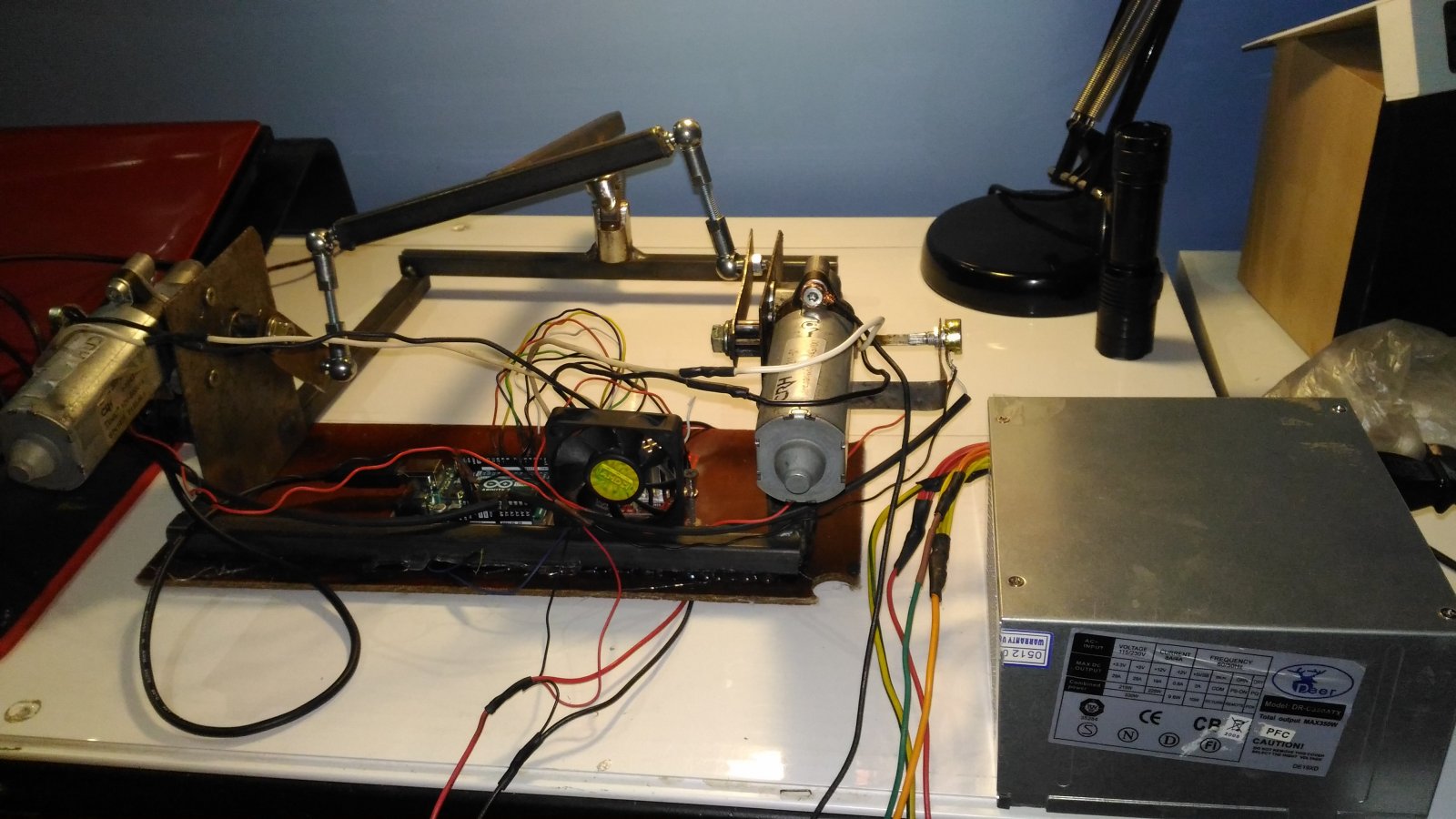

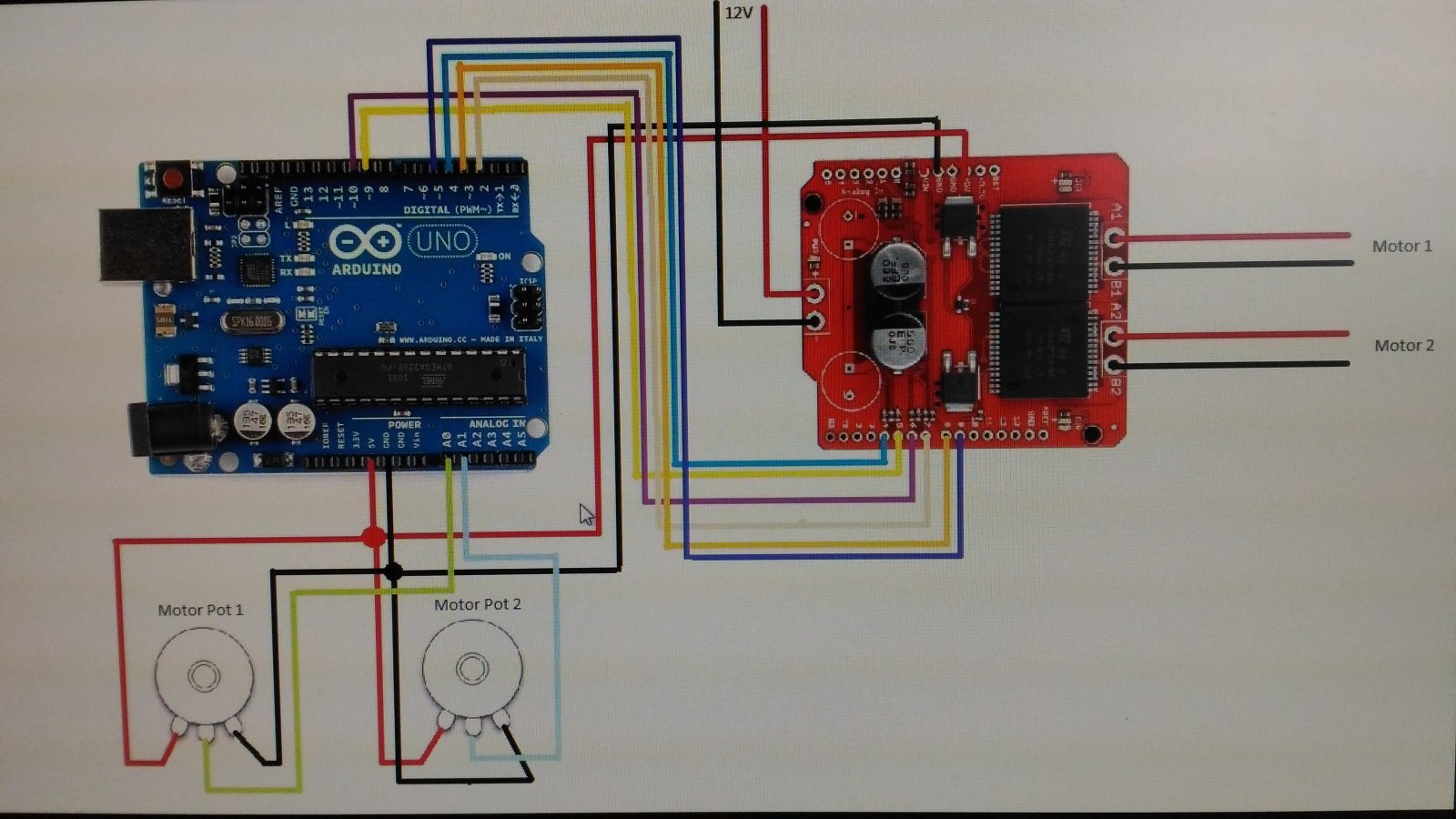

    .. I started with the model to make sure I could run it from the electronic side, and I succeeded

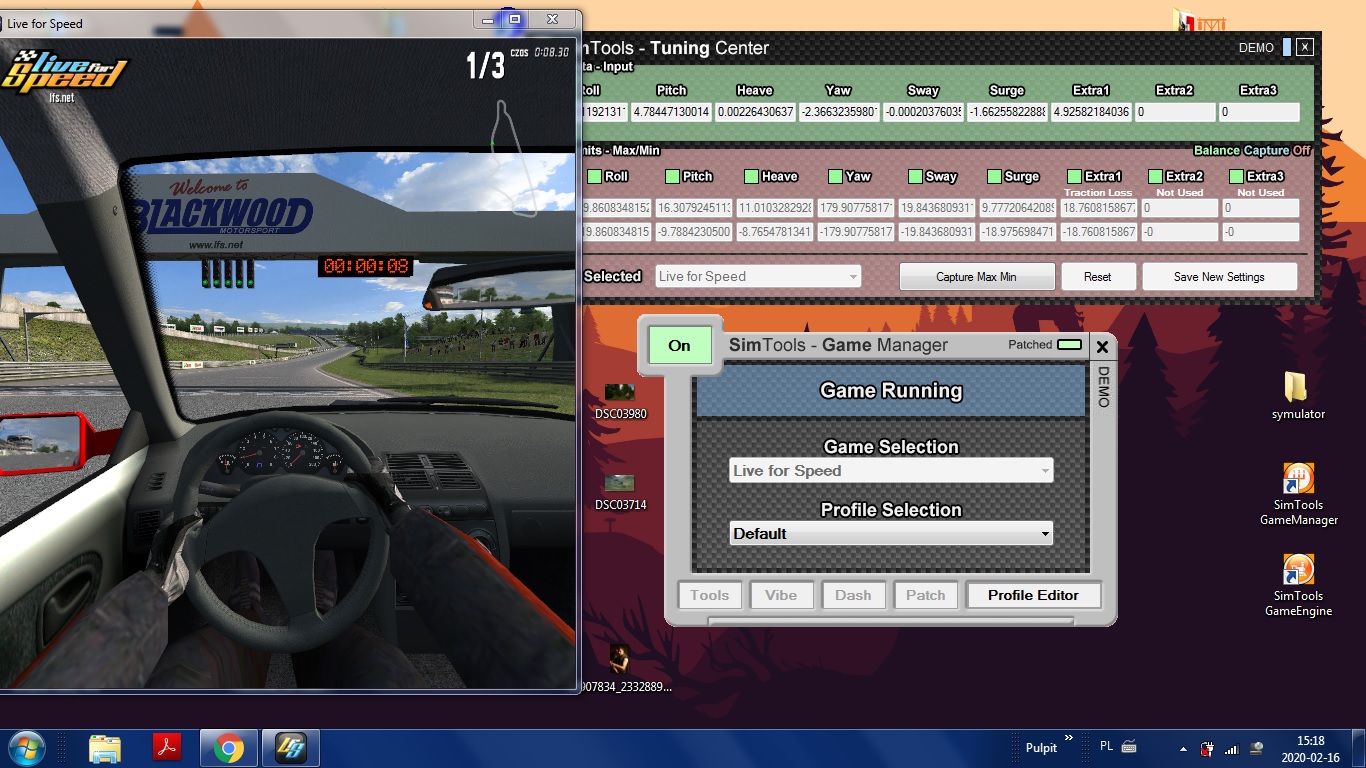

    now I can only pass engines using SMC3 and although I have the LFS game installed with SimTools 2.4 I can see the game parameters, but I can't transfer it to Arduino.
    And you will probably find a solution to this problem quickly.


    Now that the model is tested, I can start working on a real simulator, it will begin to collect elements for assembly:

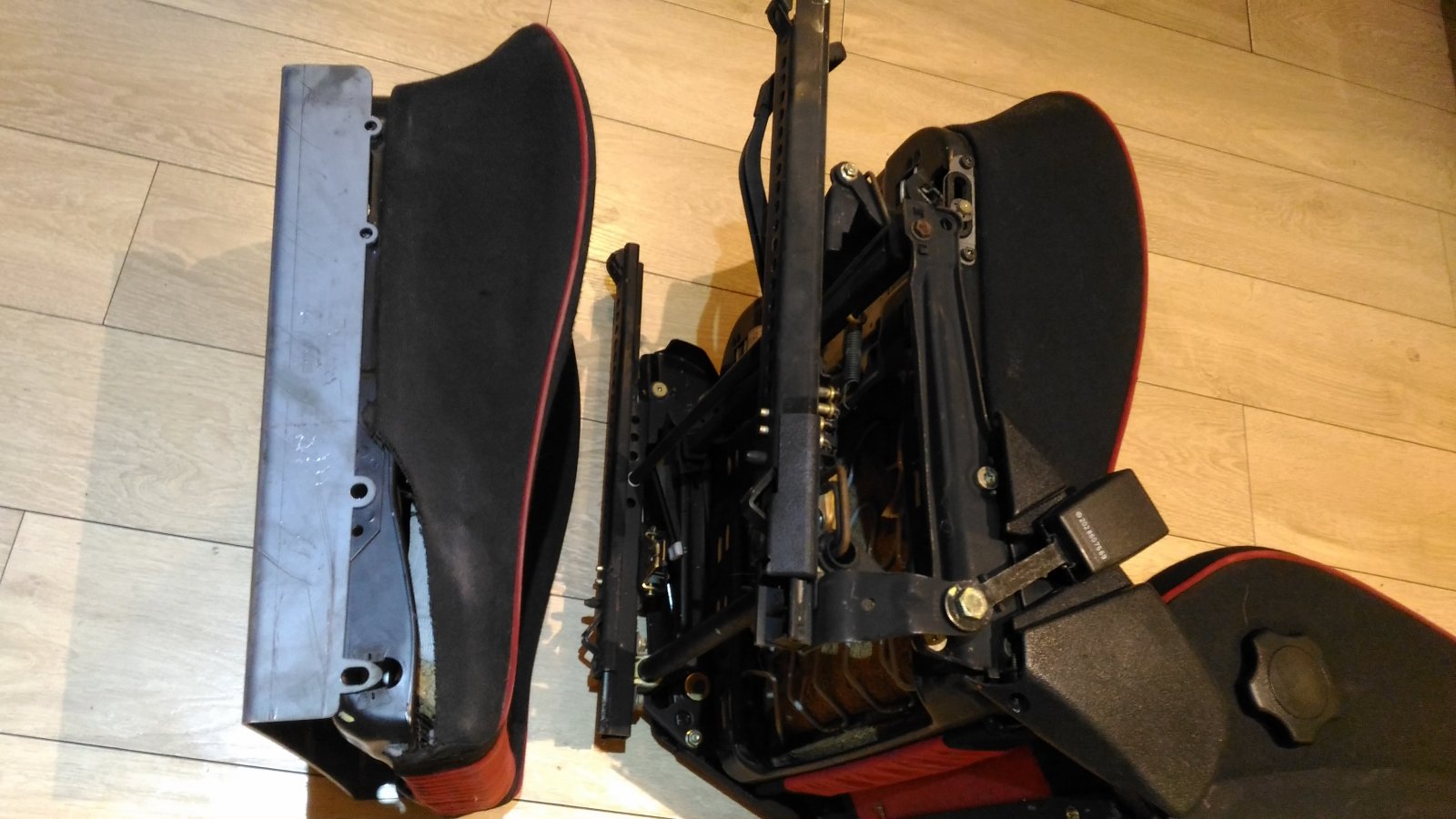

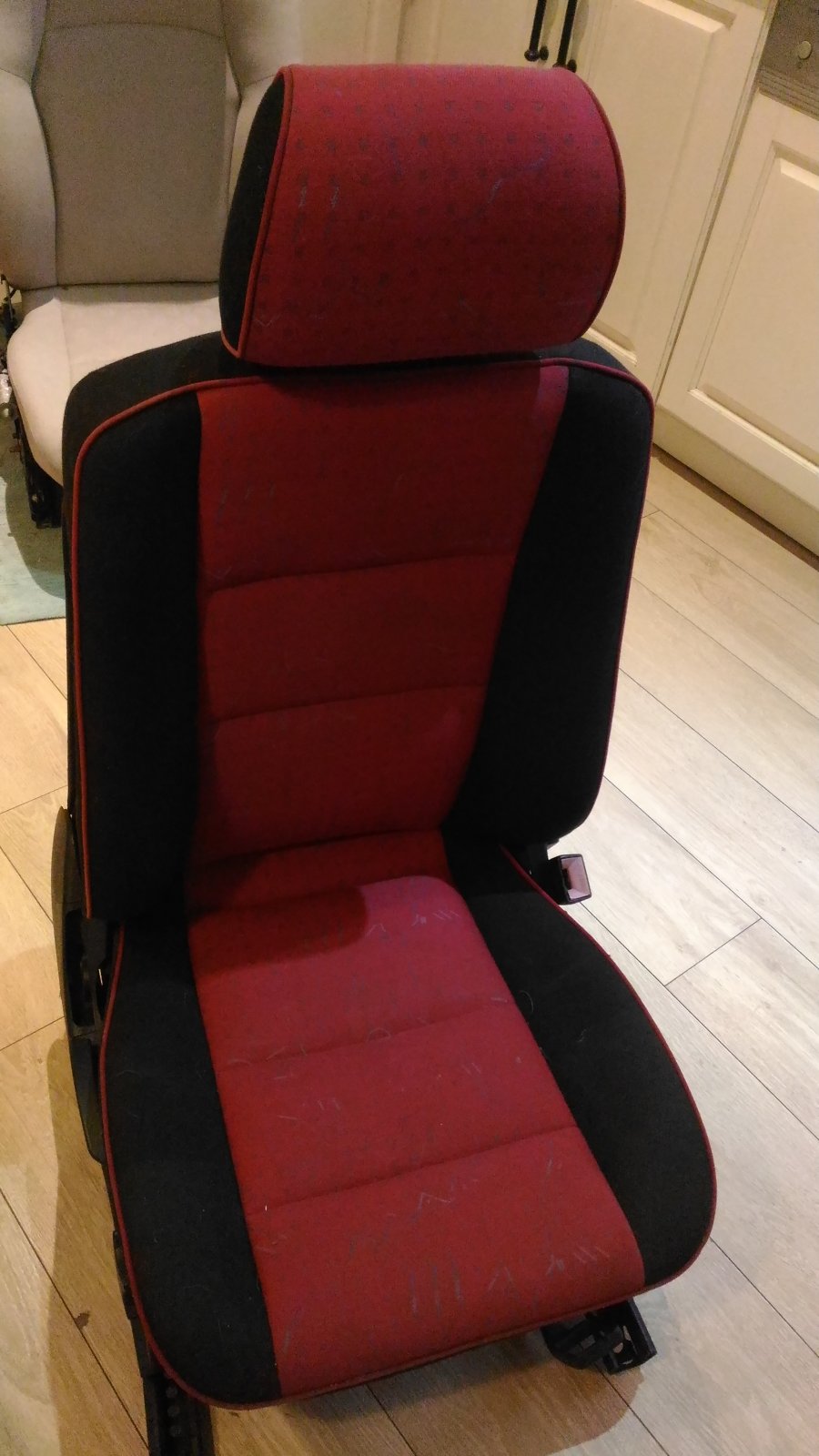

    I will take a Mercedes seat, I prefer standard seats rather than sports seats

    I have modified the base so that it can be used for the rest of the structure

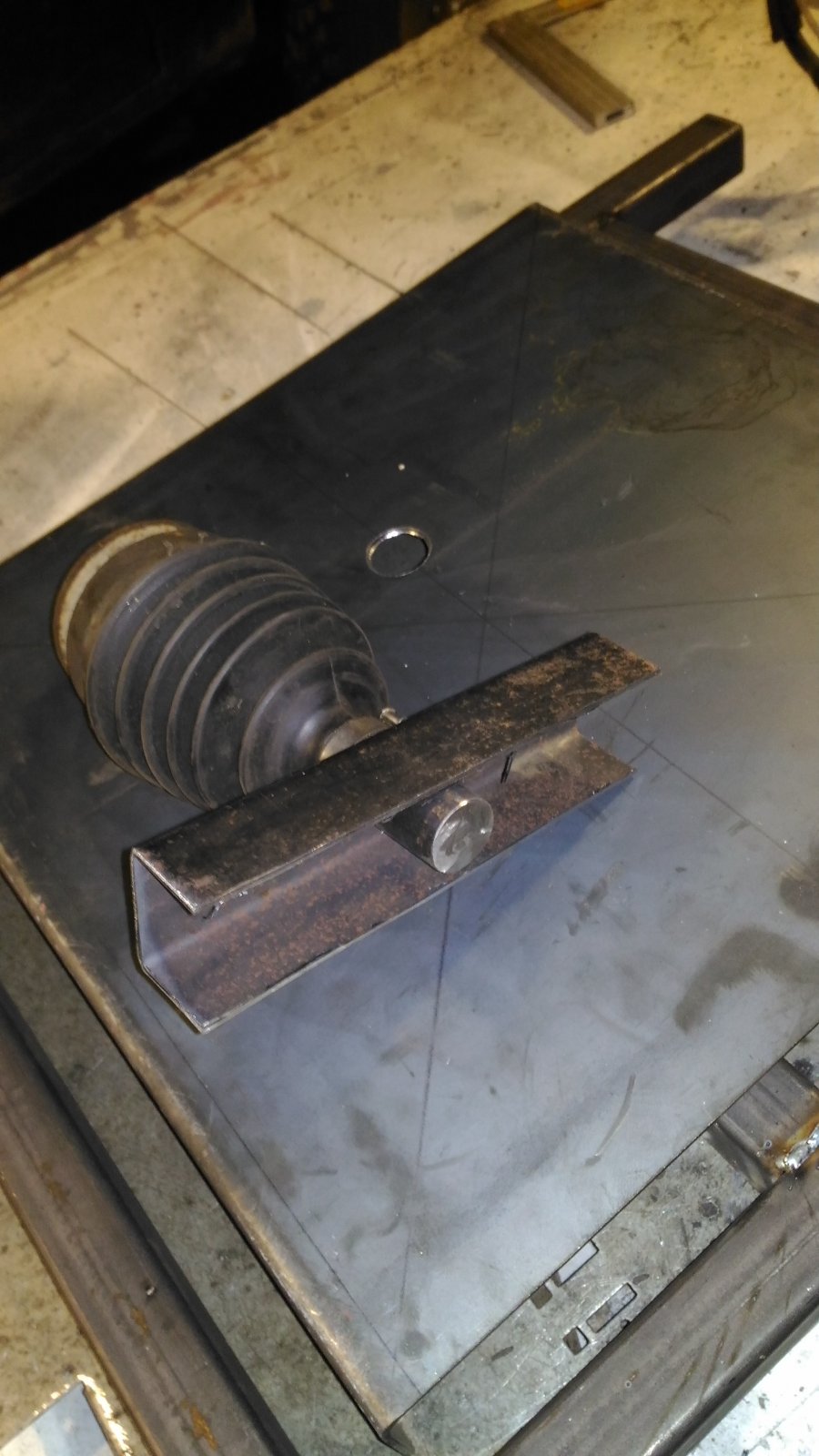

    I also have a steering wheel, pedals and gearshift lever

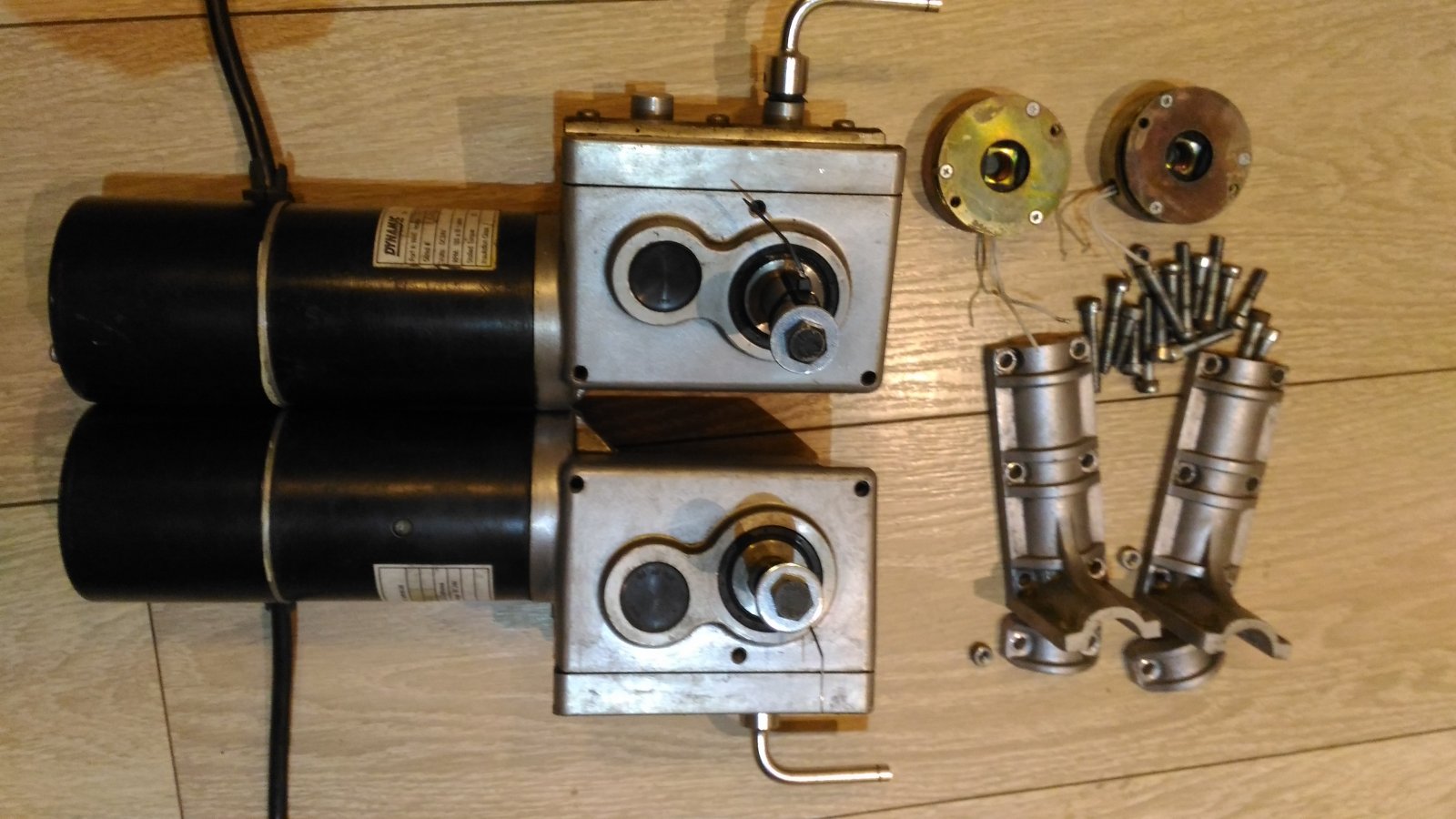

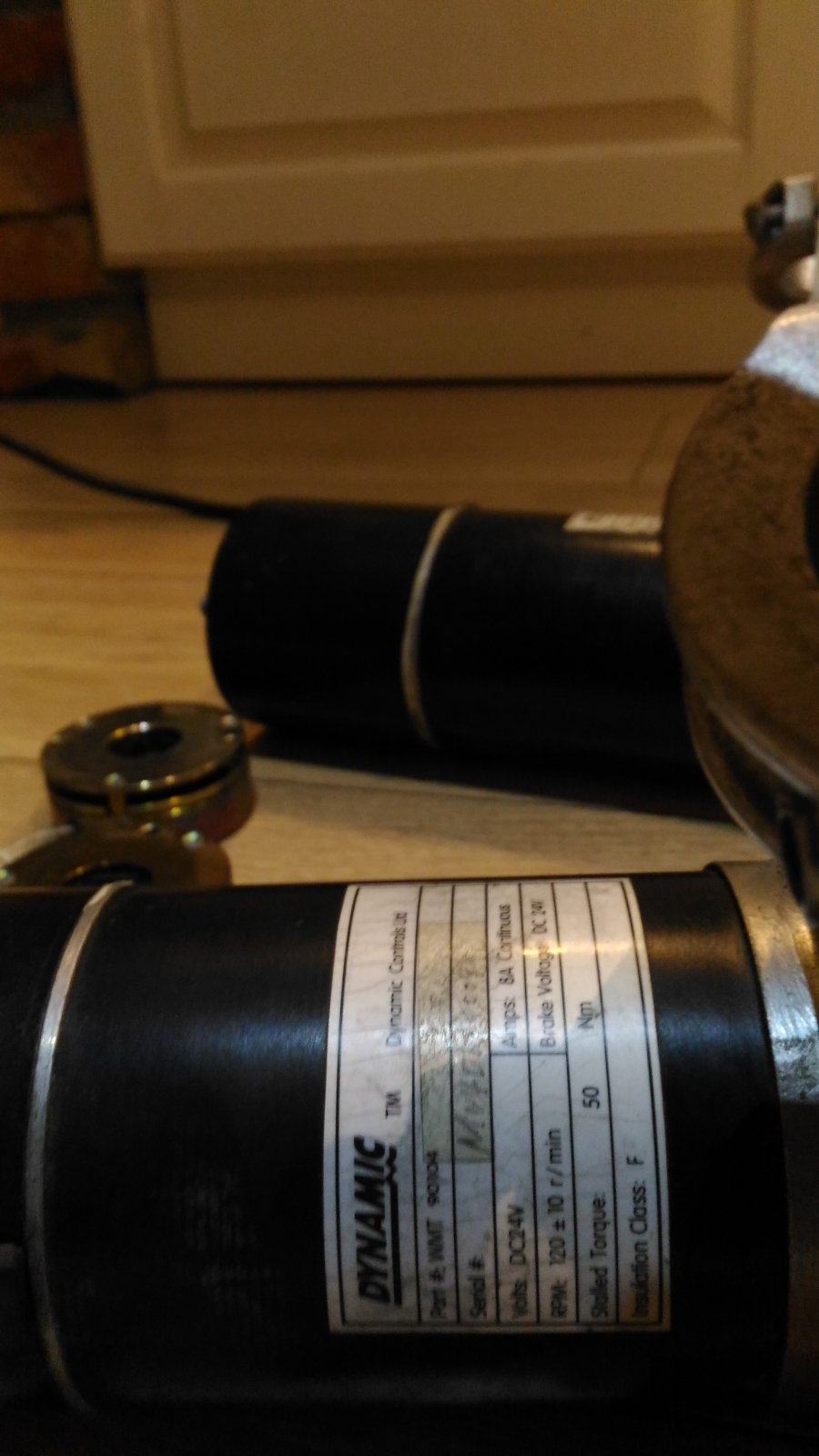

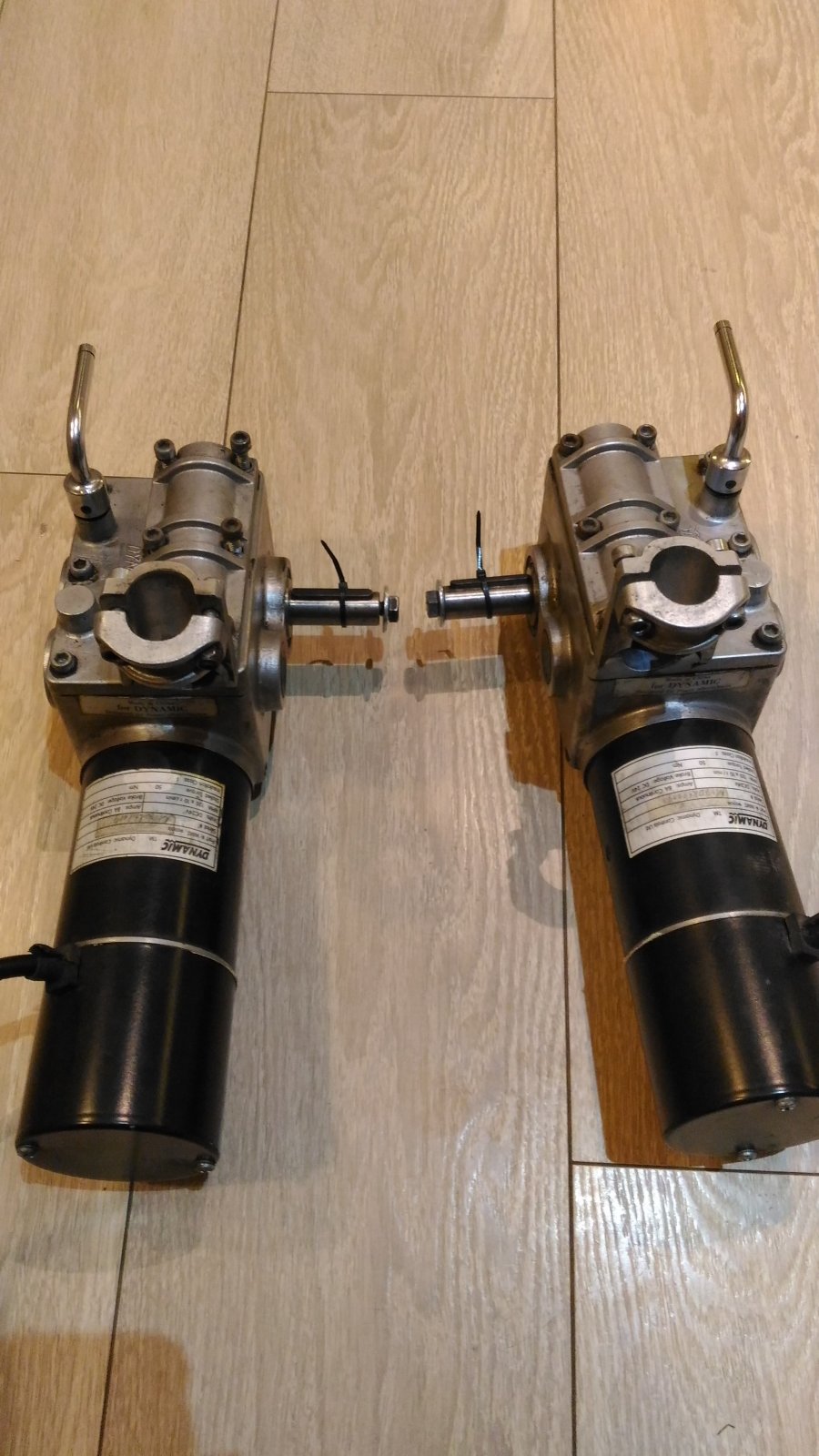

    I just received a gear motor, they are used but without looseness and in good condition and price ;)
    I unscrewed the pipe fittings and the magnetic brake from the rotor.
    They work quietly and without play, I will mount them on a 12V power supply

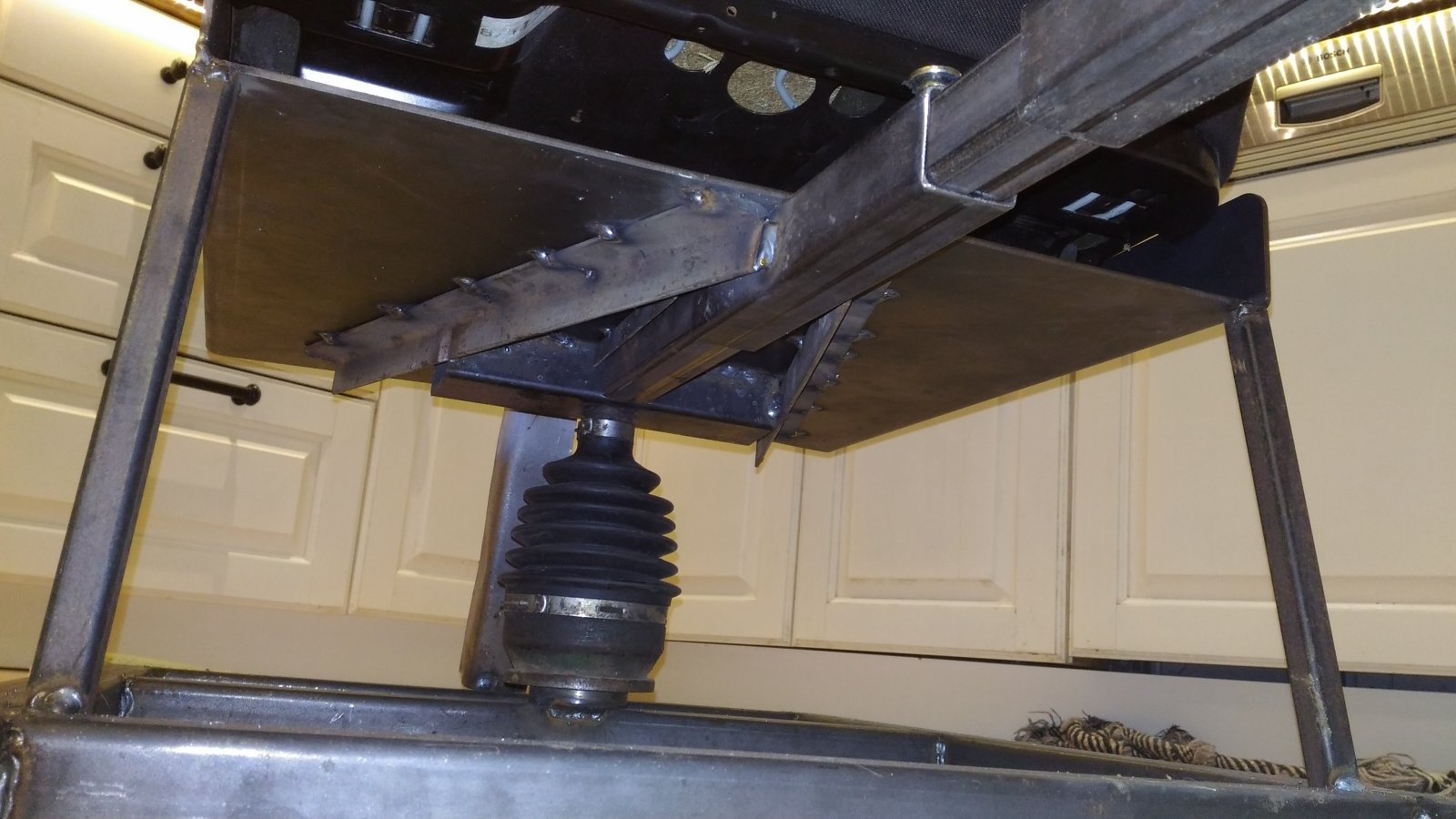

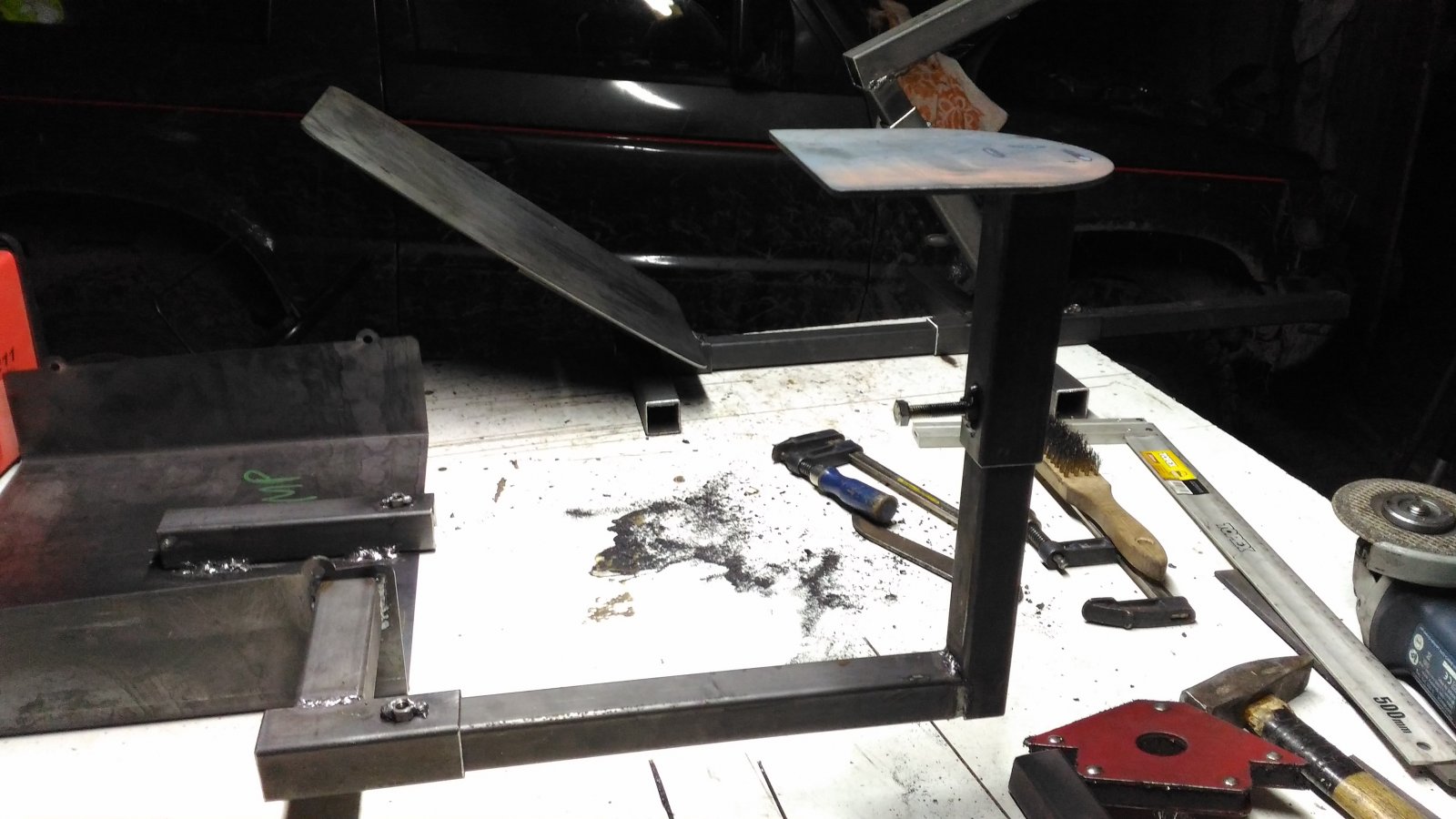

    the construction began well ...
    70187

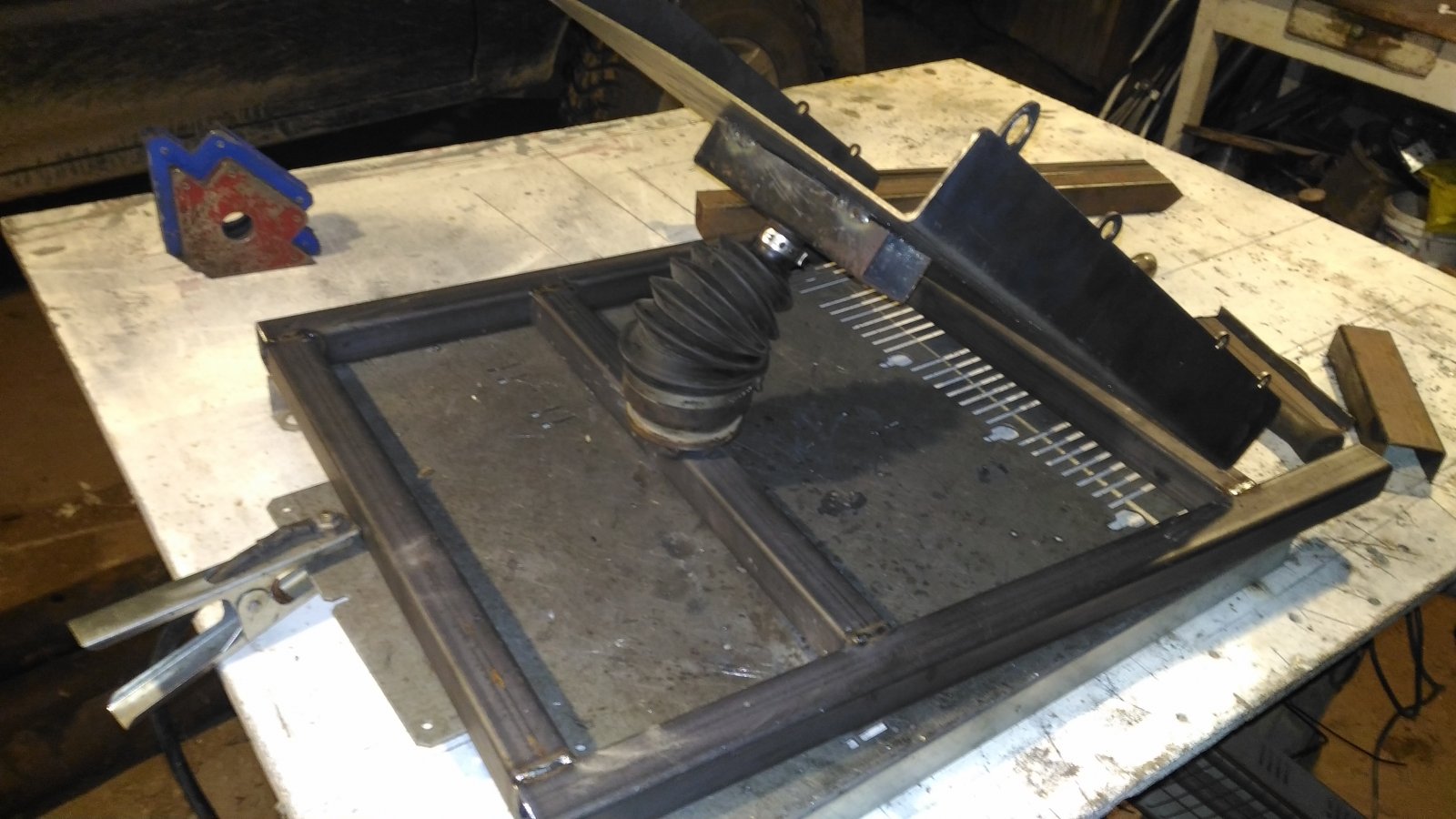

    he podium could have been strengthened

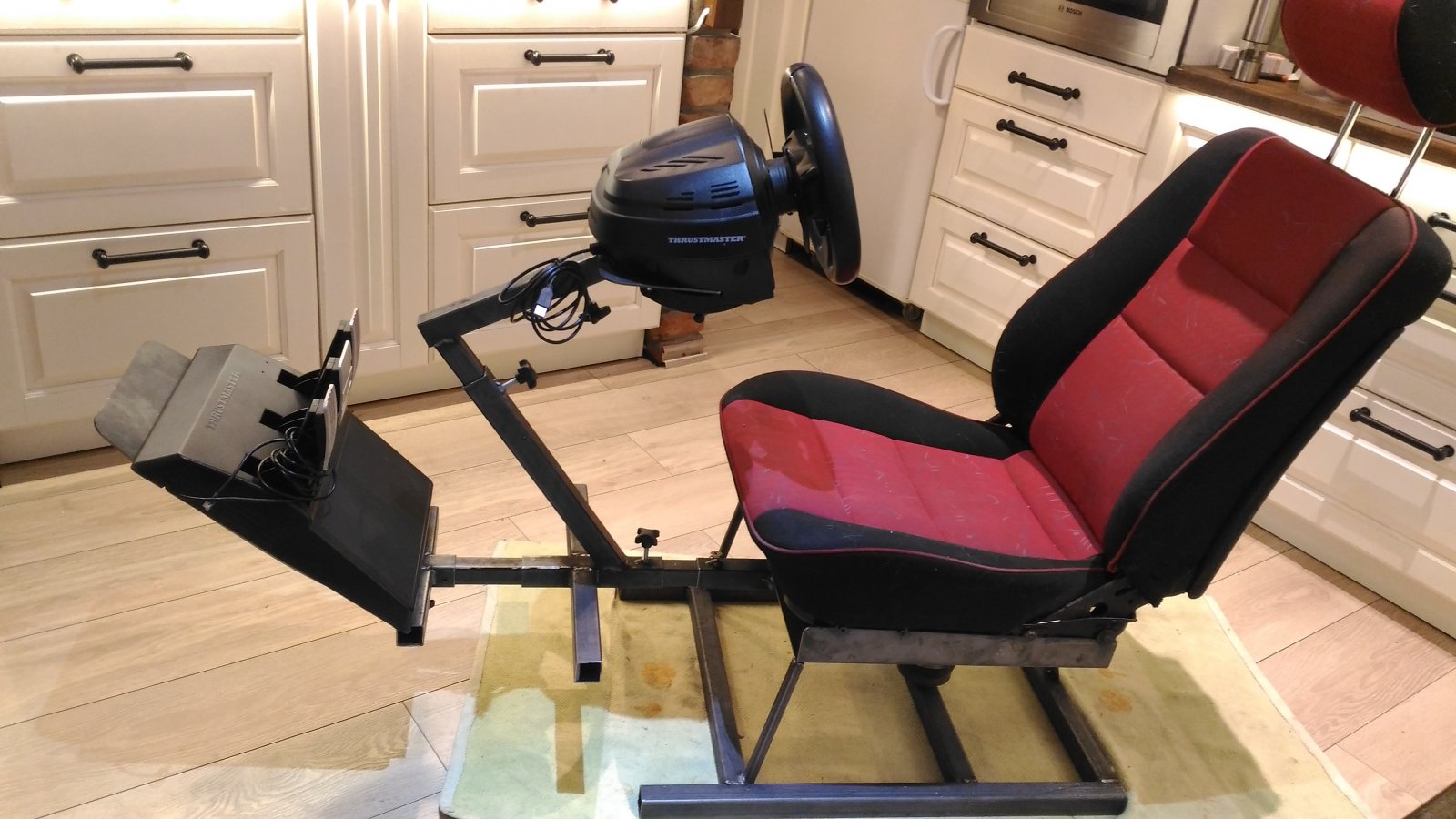

    Unfortunately, the basic set does not match the height of the current seat and steering wheel, I will have to make another one, the reason is the larger steering wheel and pedals - previously it was G27 ,
    now it will require a big change

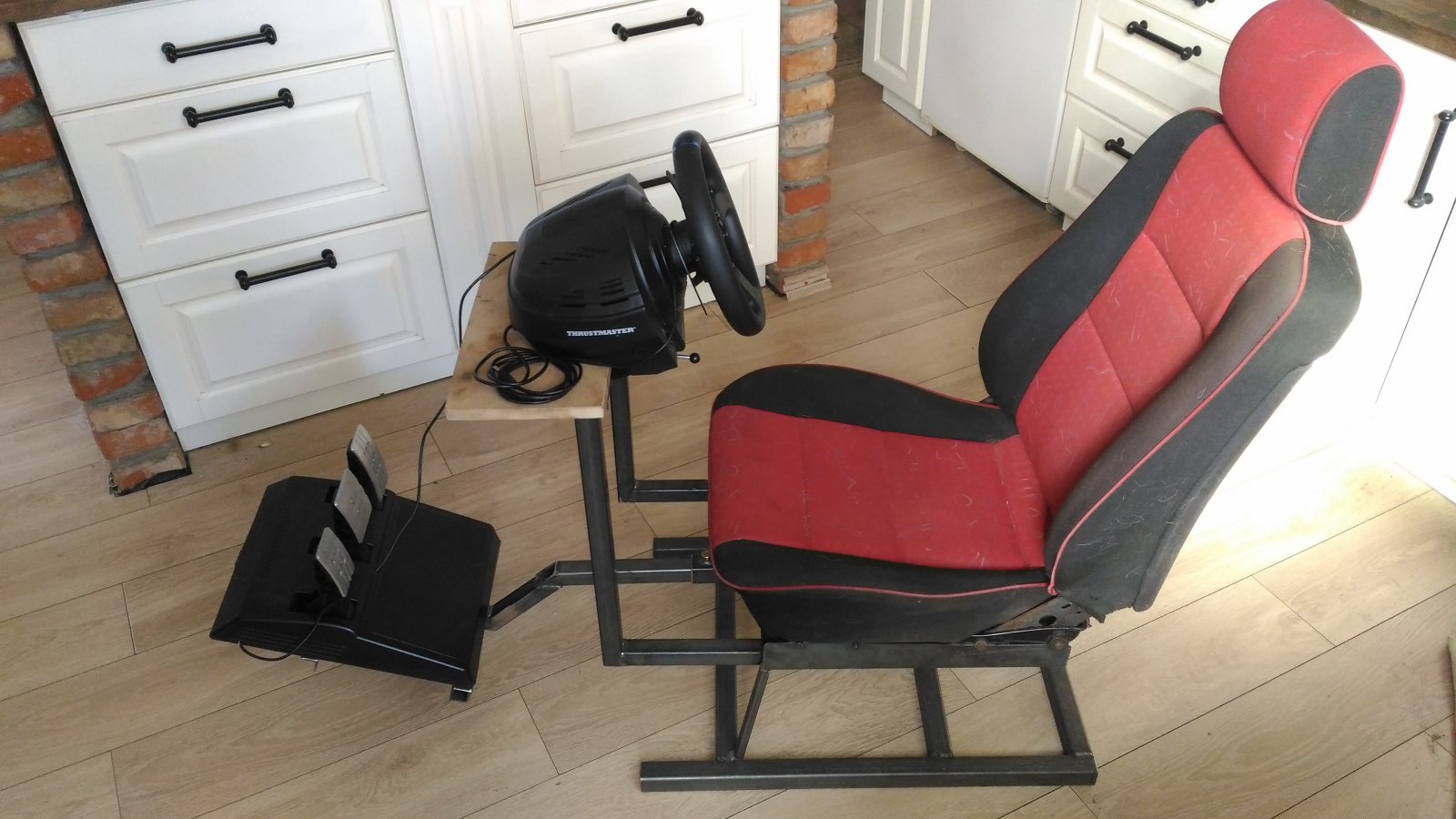

    Improved design, now I can mount engines
    Last edited: Mar 22, 2020
  2. Ads Master

    Ads Master

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
  3. Wojtek12

    Wojtek12 never say never

    Joined:
    Feb 9, 2020
    Messages:
    16
    Occupation:
    mechanic
    Location:
    Poland
    Balance:
    152Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    for now I can only move the engines using SMC3 and although I have the LFS game installed along with SimTools 2.4 I can see the game parameters, but I can't transfer it to Arduino.
    I will probably find a solution to this problem soon.
  4. Retro77

    Retro77 Member

    Joined:
    Mar 26, 2018
    Messages:
    73
    Occupation:
    Nurse Practitioner
    Location:
    Canada
    Balance:
    13Coins
    Ratings:
    +35 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

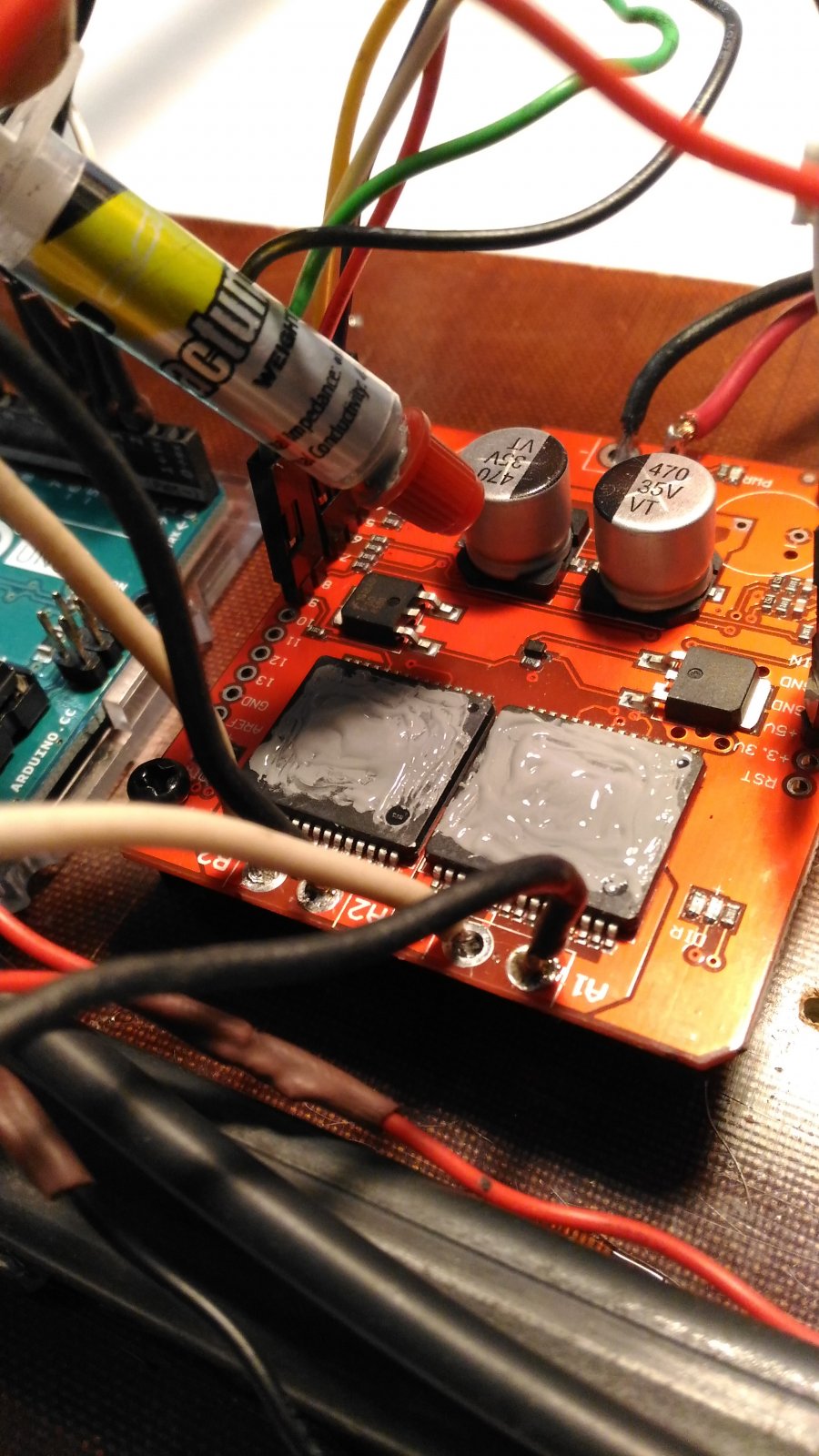

    Can't wait to see how this project goes. For a more reliable motor driver you may want to look at a Sabertooth. I found that Monster Moto boards run hot and fail especially if they are Ebay specials.
  5. Wojtek12

    Wojtek12 never say never

    Joined:
    Feb 9, 2020
    Messages:
    16
    Occupation:
    mechanic
    Location:
    Poland
    Balance:
    152Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    Thanks for asking Retrro77 , I am 74 :)
    for the time being for the test model, I'm not very good at electronics so it was the biggest challenge for me. Welding structures is not a problem, but for now I am looking for engines - for new ones I have no money and those from windshield wipers are rather good to start with
    Do you know why I can't connect to an Arduinogame? Do I need a license for Simtools?---
    thank you for the noorbeast that explains it to me--

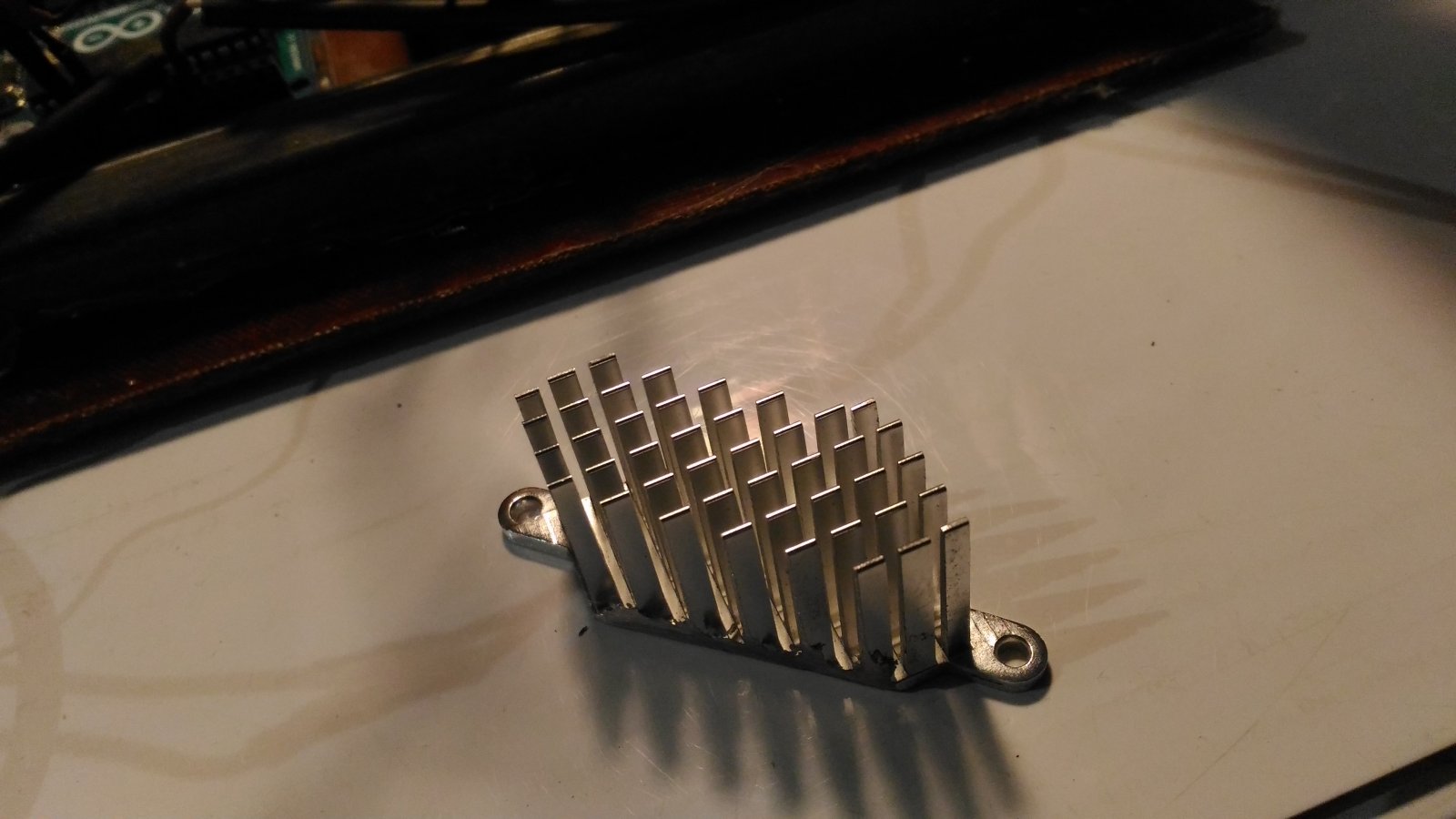

    Cooling is not a problem yet - the car weighs 1kg ;)
