My very cheap 2dof

Discussion in 'DIY Motion Simulator Projects' started by SteULM, Dec 15, 2021.

  1. SteULM

    SteULM Active Member

    Joined:
    Nov 13, 2021
    Messages:
    225
    Occupation:
    Alla ricerca di cose nuove da imparare.
    Location:
    Italy
    Balance:
    611Coins
    Ratings:
    +149 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino

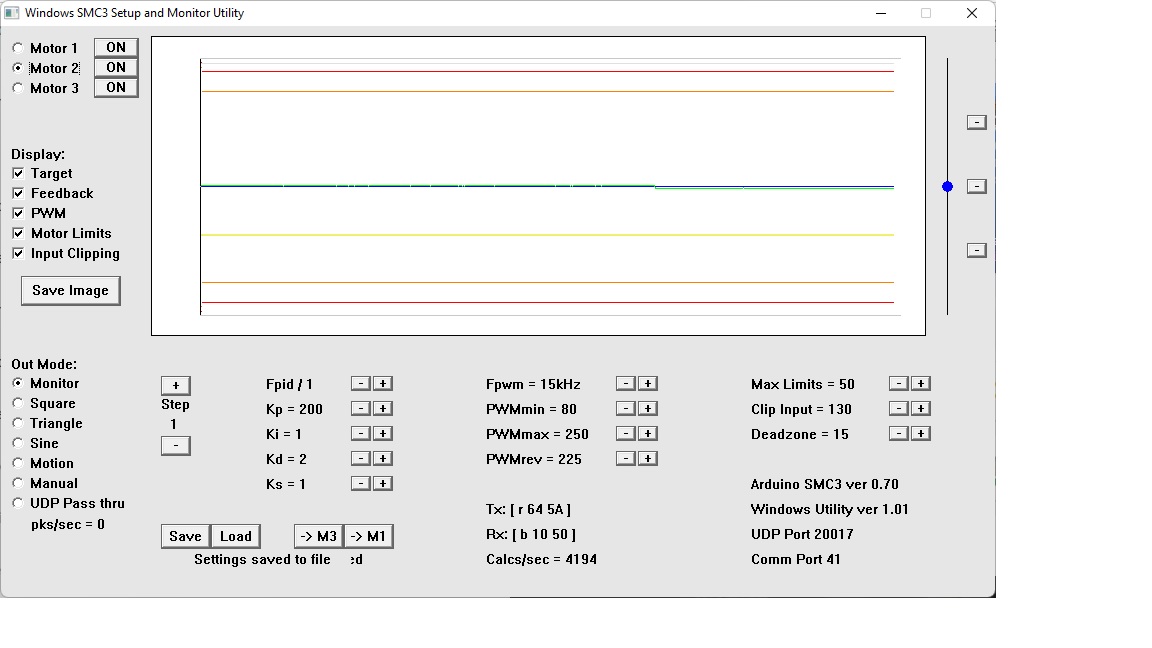

    You use SMC3 for motor pid calibration, this setup varies according to the motors, drivers and power supply you use. I will place mine with these motors and 24V power supply.


    • Useful Useful x 1
  2. SteULM

    SteULM Active Member

    Joined:
    Nov 13, 2021
    Messages:
    225
    Occupation:
    Alla ricerca di cose nuove da imparare.
    Location:
    Italy
    Balance:
    611Coins
    Ratings:
    +149 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino

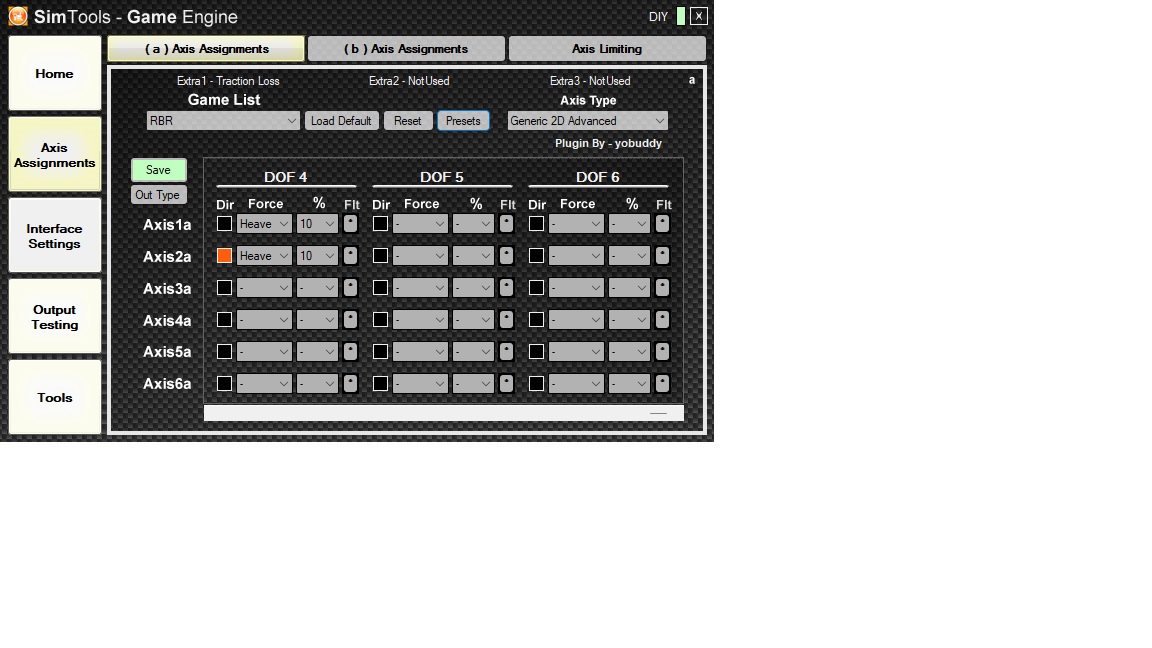

    Regarding the assignments of the axes, here too the values vary according to what one wants to receive as a response to the reaction of the motors according to the feeling one wants to have. For now I am using this configuration on RBR that I use for more time with which I am very comfortable.


    Axis Assignments_1-RBR.jpg Axis Assignments_2-RBR.jpg
    • Like Like x 1
  3. itsumairu

    itsumairu Active Member

    Joined:
    Dec 13, 2021
    Messages:
    194
    Occupation:
    Psychologist
    Location:
    Indonesia
    Balance:
    392Coins
    Ratings:
    +84 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    thank you for sharing! I'll try your settings, hope it can give me a clearer image on how this simtools works.
    good luck with your new 6dof project!
  4. SteULM

    SteULM Active Member

    Joined:
    Nov 13, 2021
    Messages:
    225
    Occupation:
    Alla ricerca di cose nuove da imparare.
    Location:
    Italy
    Balance:
    611Coins
    Ratings:
    +149 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    I hope they can help you in case you ask, if I can I am happy to help you.
    • Friendly Friendly x 2
  5. RP39

    RP39 New Member

    Joined:
    Sep 16, 2021
    Messages:
    10
    Location:
    Germany
    Balance:
    30Coins
    Ratings:
    +1 / 0 / -0
    Great build! Would you be willing to share some more infos on the motors?
  6. SteULM

    SteULM Active Member

    Joined:
    Nov 13, 2021
    Messages:
    225
    Occupation:
    Alla ricerca di cose nuove da imparare.
    Location:
    Italy
    Balance:
    611Coins
    Ratings:
    +149 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    Thank you. Within the limits of my knowledge I am available.

    PS.
    I do not see your origin in your contact, I would like to know what nationality my interlocutors are.
    Thank you.
  7. SteULM

    SteULM Active Member

    Joined:
    Nov 13, 2021
    Messages:
    225
    Occupation:
    Alla ricerca di cose nuove da imparare.
    Location:
    Italy
    Balance:
    611Coins
    Ratings:
    +149 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    The characteristics of the motors are:
    12-24 V 25/50W MAX NM 150 15-70 RPM
  8. RP39

    RP39 New Member

    Joined:
    Sep 16, 2021
    Messages:
    10
    Location:
    Germany
    Balance:
    30Coins
    Ratings:
    +1 / 0 / -0
    Thanks! May I also ask where you got them from and how much you paid?

    I found these ones. Do you think they are sufficient (strong/fast enough) for a similar build?
    https://www.ibs-gruppe.de/shop/deta...MI0IKv_MGx9QIVgqrVCh19gAMBEAQYAiABEgKdJvD_BwE

    I simply don't know, where to put this kind of information. There is no option in the user control panel... (at least I don't find it).
  9. RP39

    RP39 New Member

    Joined:
    Sep 16, 2021
    Messages:
    10
    Location:
    Germany
    Balance:
    30Coins
    Ratings:
    +1 / 0 / -0
    I'm from Germany, Bavaria.
  10. SteULM

    SteULM Active Member

    Joined:
    Nov 13, 2021
    Messages:
    225
    Occupation:
    Alla ricerca di cose nuove da imparare.
    Location:
    Italy
    Balance:
    611Coins
    Ratings:
    +149 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    I can't tell you anything about those motors, I can tell you that the ones I'm using do their job, they cost little and, what I think is very important, they have brass gears and not plastic. You can find them here -> link sito
  11. SteULM

    SteULM Active Member

    Joined:
    Nov 13, 2021
    Messages:
    225
    Occupation:
    Alla ricerca di cose nuove da imparare.
    Location:
    Italy
    Balance:
    611Coins
    Ratings:
    +149 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    For the origin you have to click on your contact at the top right and choose "Personal Details", you will find them under "Location".
  12. SteULM

    SteULM Active Member

    Joined:
    Nov 13, 2021
    Messages:
    225
    Occupation:
    Alla ricerca di cose nuove da imparare.
    Location:
    Italy
    Balance:
    611Coins
    Ratings:
    +149 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    Of course, they are not engines like you see them on many projects but, in my opinion, better than common wiper motors. Then it always depends on what you want to achieve, I am satisfied with a simple structure and considerably low costs, you see
  13. RP39

    RP39 New Member

    Joined:
    Sep 16, 2021
    Messages:
    10
    Location:
    Germany
    Balance:
    30Coins
    Ratings:
    +1 / 0 / -0
    Those are indeed nice and not expensive. Are you using the same motors for your new 6 DoF build?
  14. SteULM

    SteULM Active Member

    Joined:
    Nov 13, 2021
    Messages:
    225
    Occupation:
    Alla ricerca di cose nuove da imparare.
    Location:
    Italy
    Balance:
    611Coins
    Ratings:
    +149 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    Yes, they are the same.
