My platform with 2dof

Discussion in 'DIY Motion Simulator Projects' started by pablo ochoa, Apr 28, 2019.

  1. pablo ochoa

    pablo ochoa New Member

    Joined:
    Apr 11, 2019
    Messages:
    7
    Balance:
    86Coins
    Ratings:
    +9 / 0 / -0

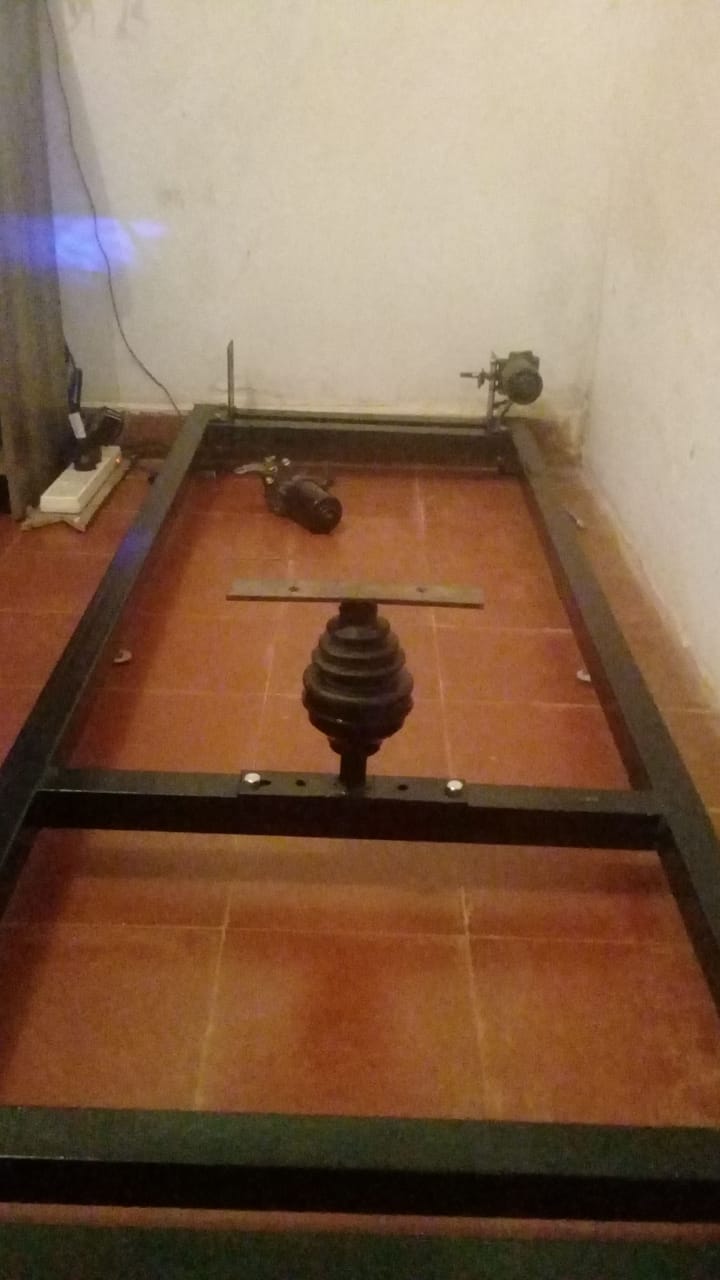

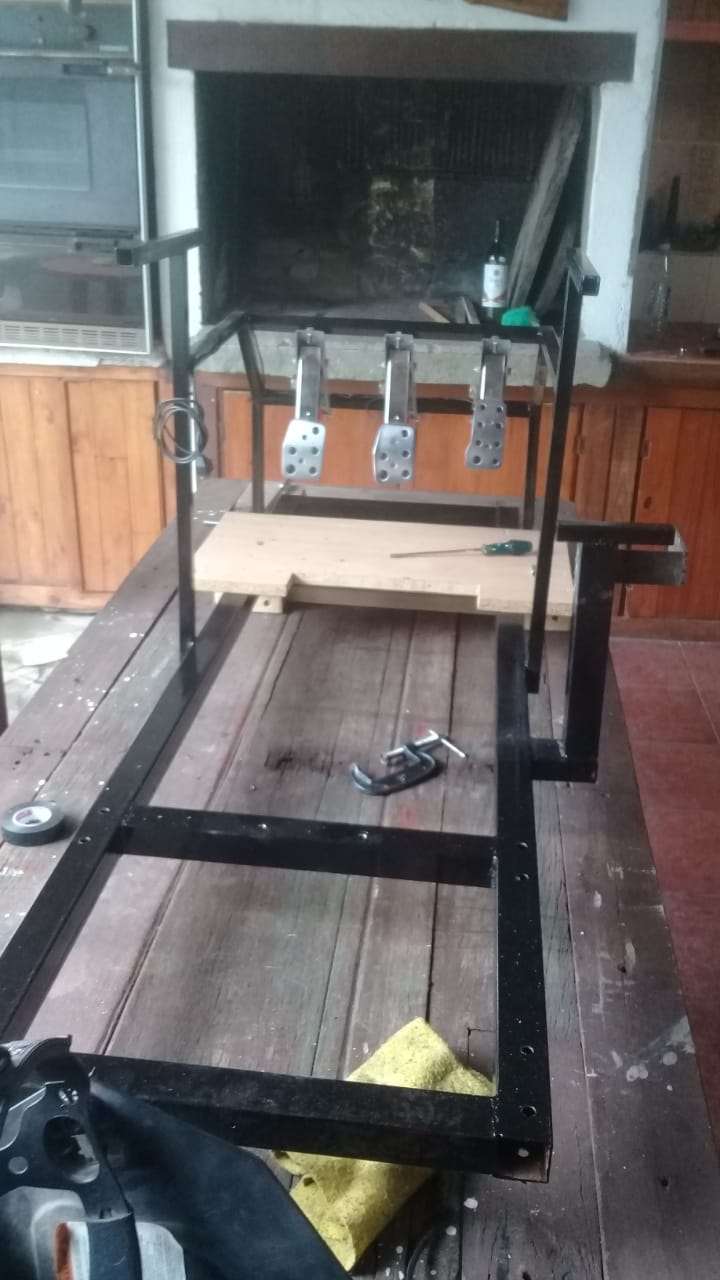

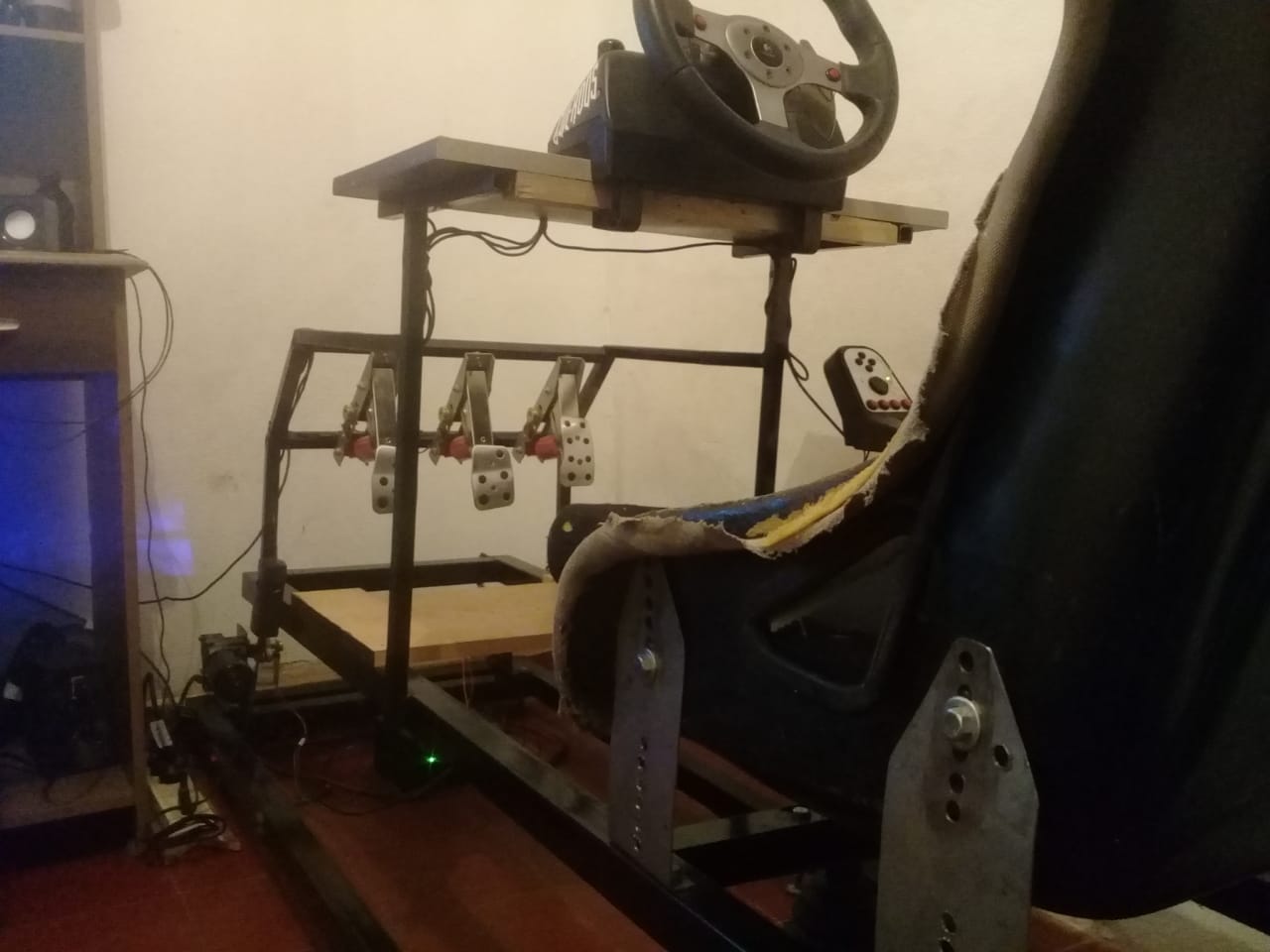

    IMG-20190427-WA0277.jpg IMG-20190427-WA0279.jpg IMG-20190427-WA0267.jpg IMG-20190425-WA0083.jpg IMG-20190427-WA0275.jpg IMG-20190424-WA0055.jpg IMG-20190427-WA0272.jpg IMG-20190427-WA0269.jpg IMG-20190427-WA0277.jpg Hi my name is Pablo Ochoa, I'm from Mina Clavero, province of Córdoba, Argentina ..
    I present my 2DOF project.

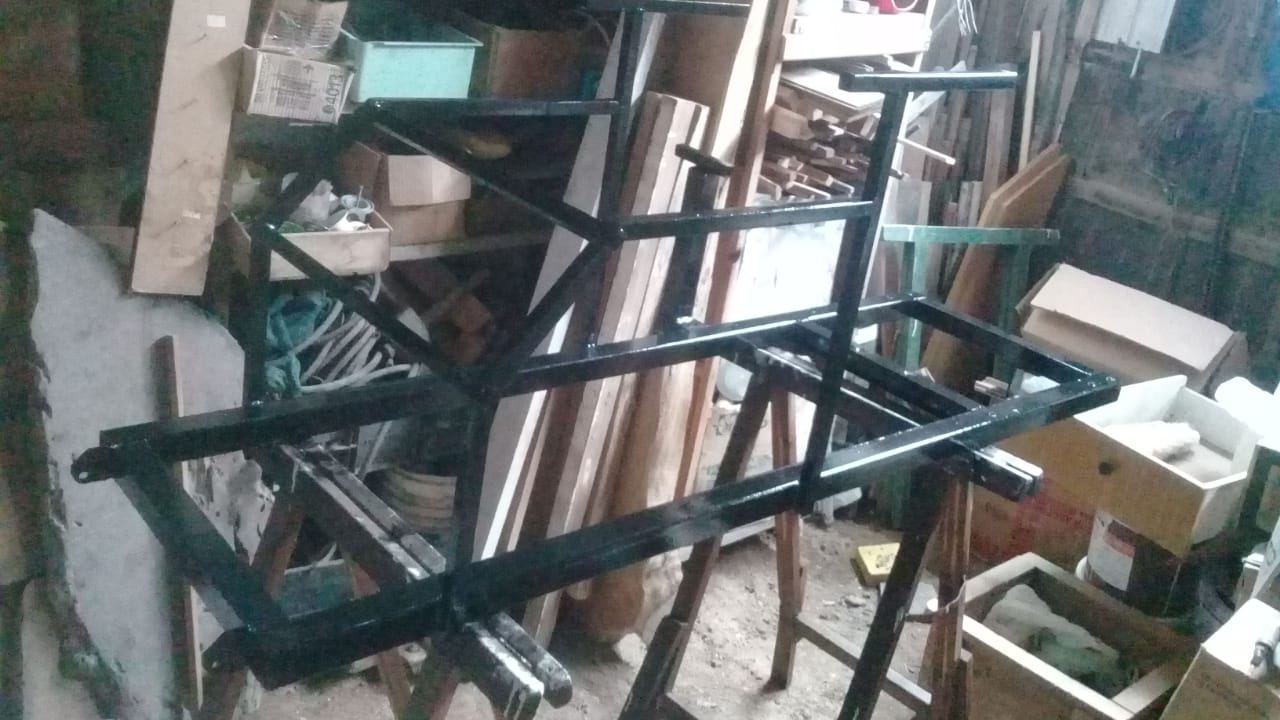

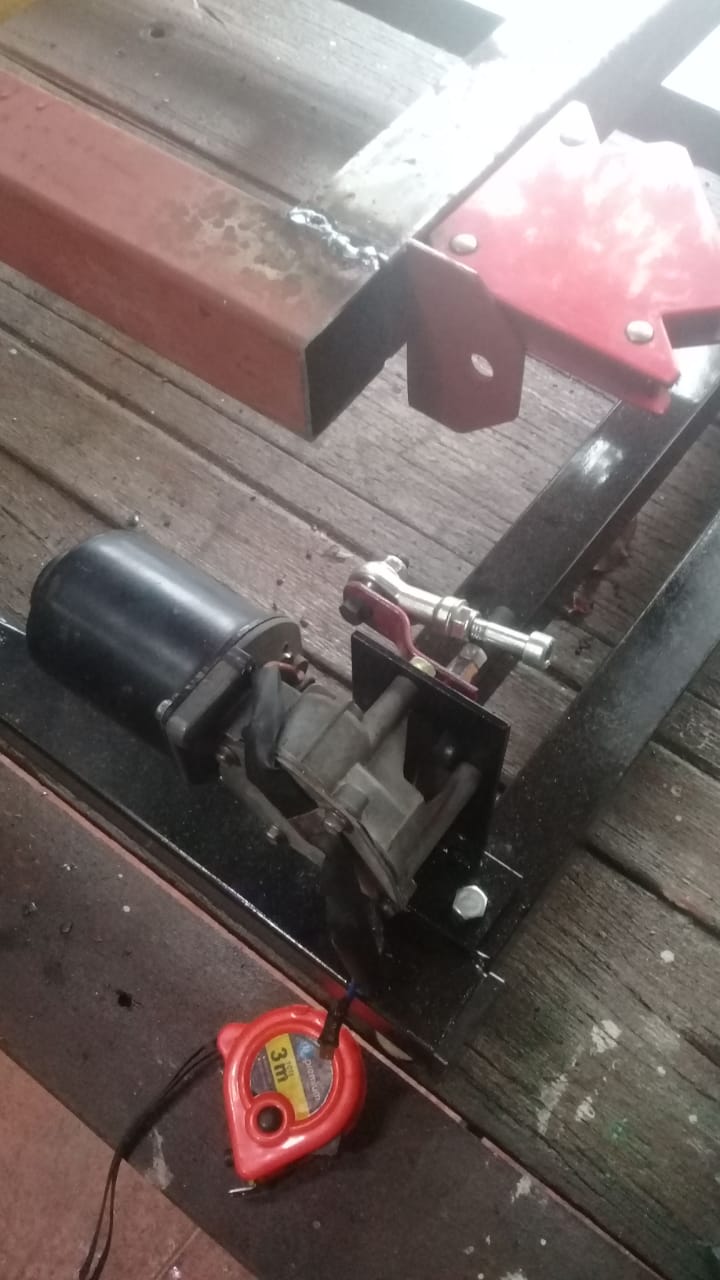

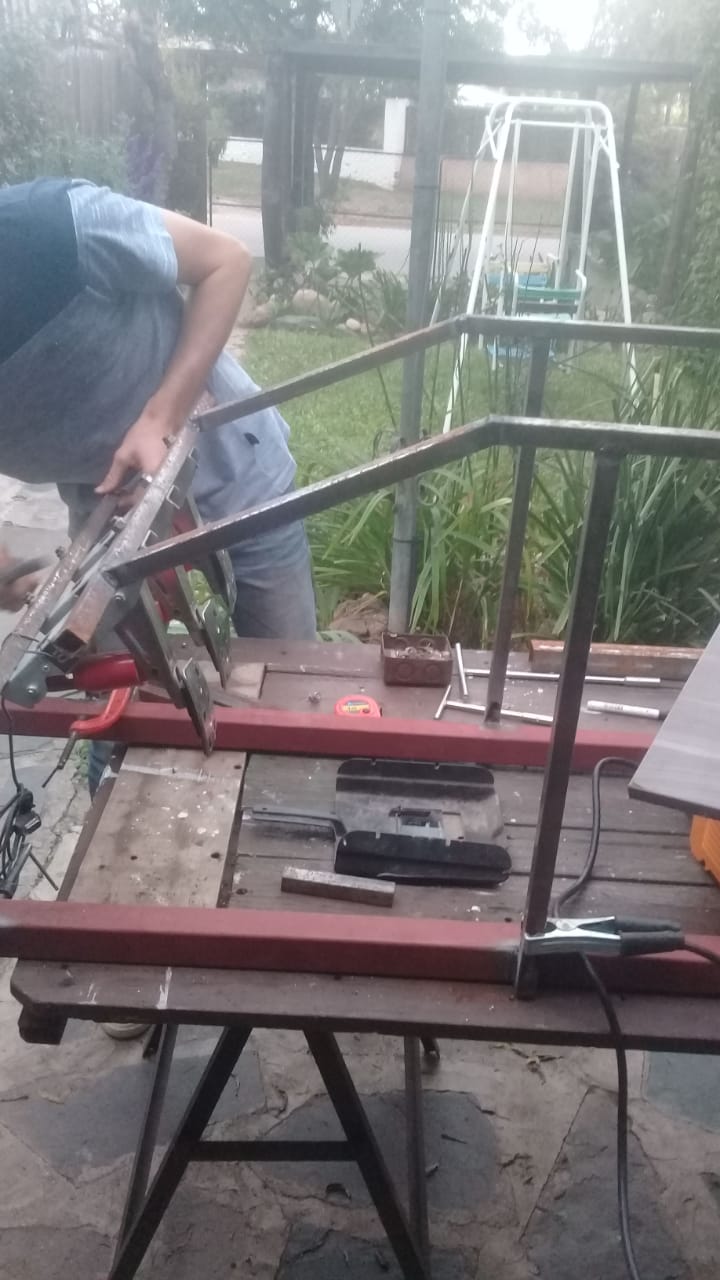

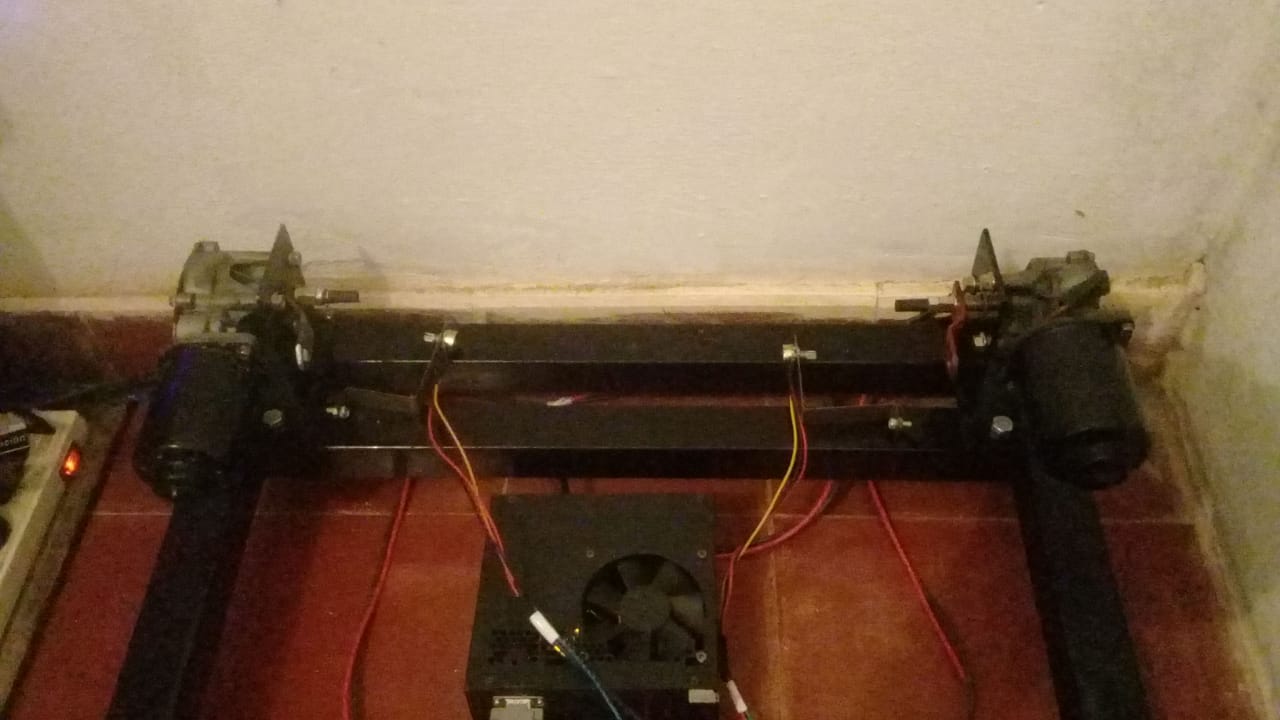

    After trying two different models of structure I tilt for the side to move the whole structure, with the engines ahead and move the entire platform.
    With the help of some friends who are here in the forum with similar projects I have managed to finish my project.

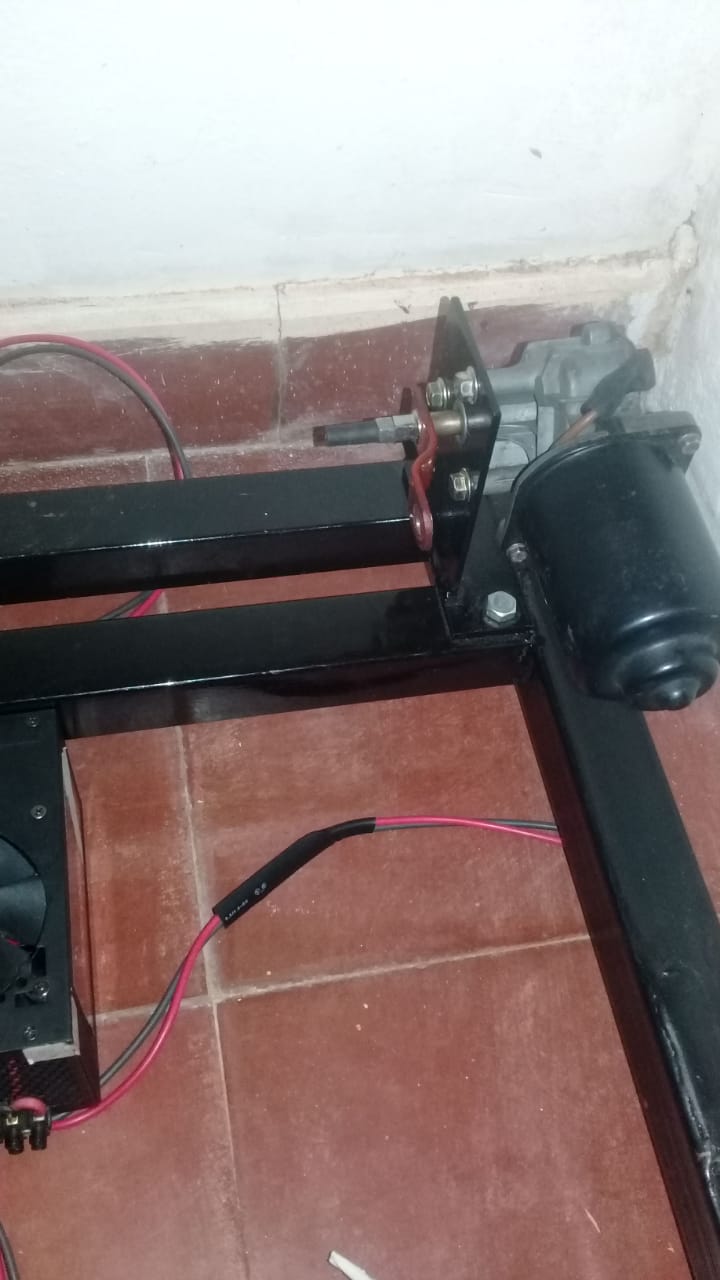

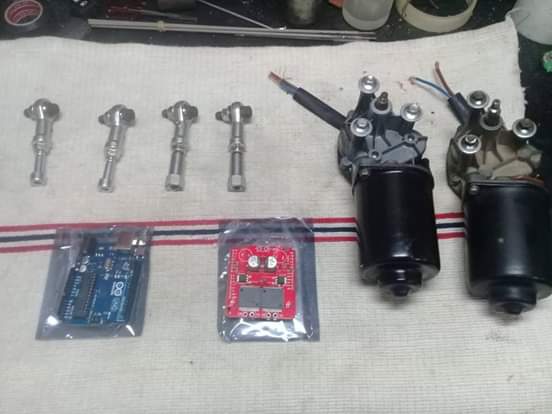

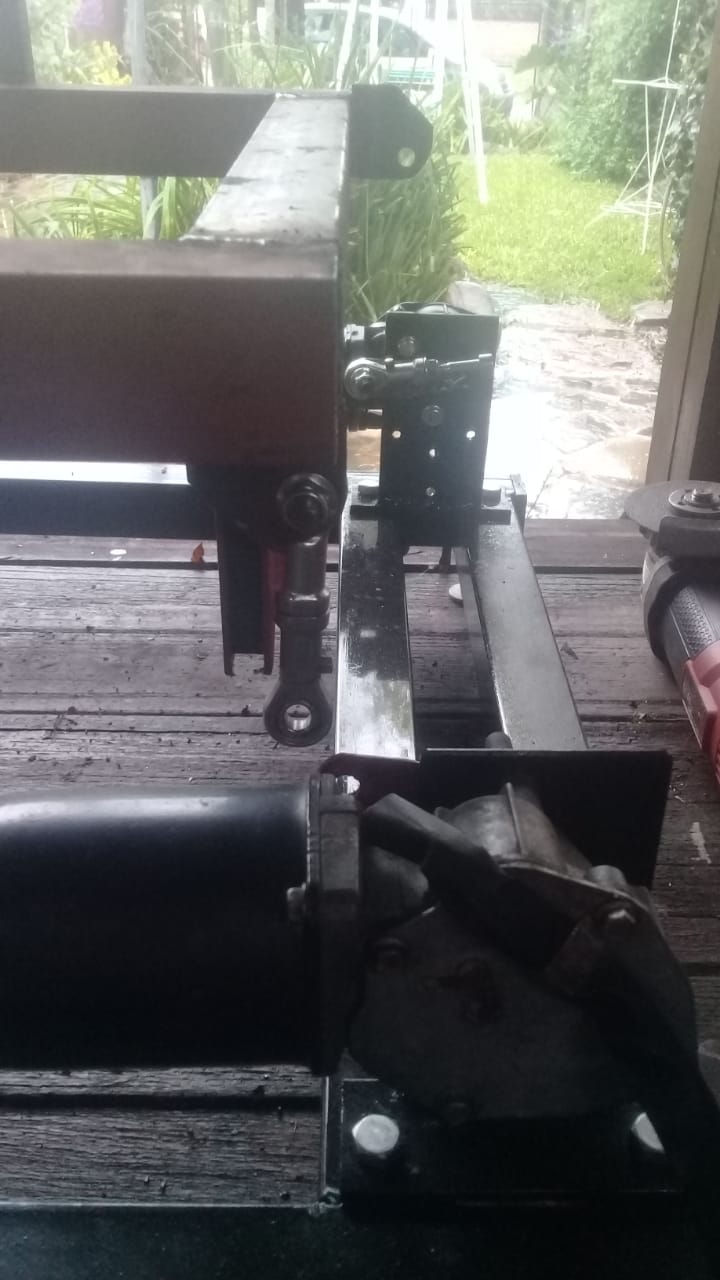

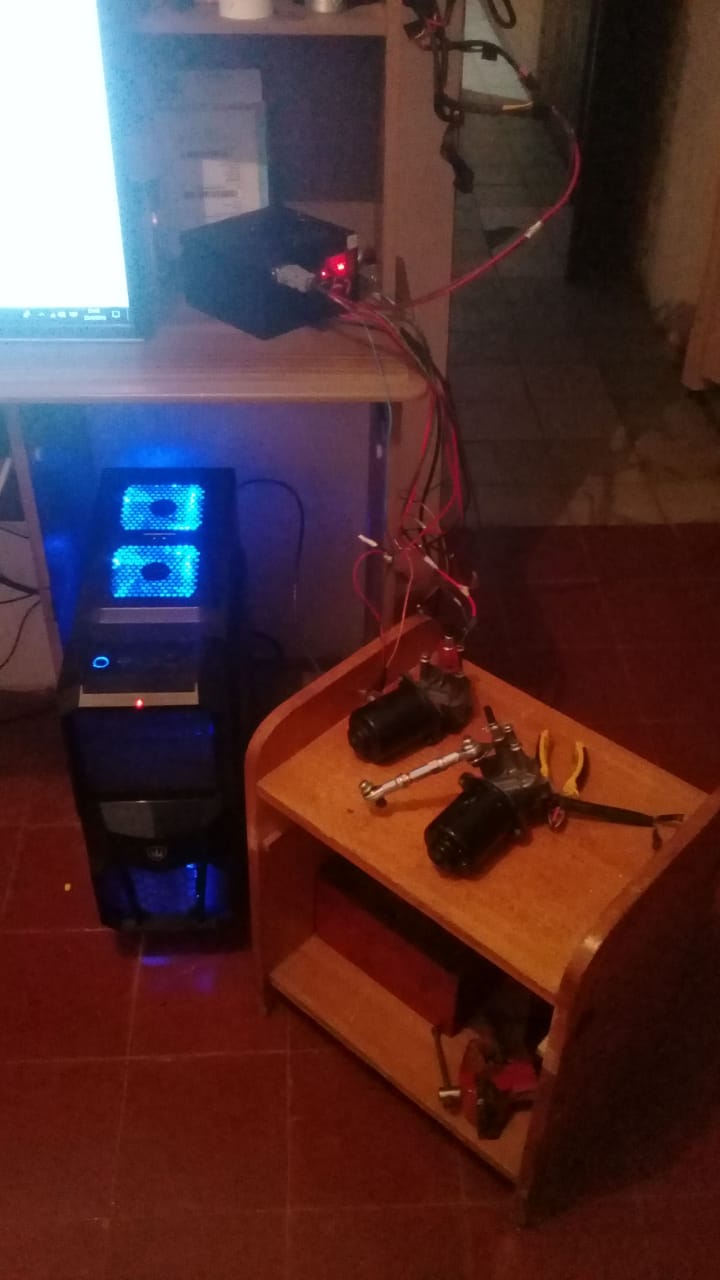

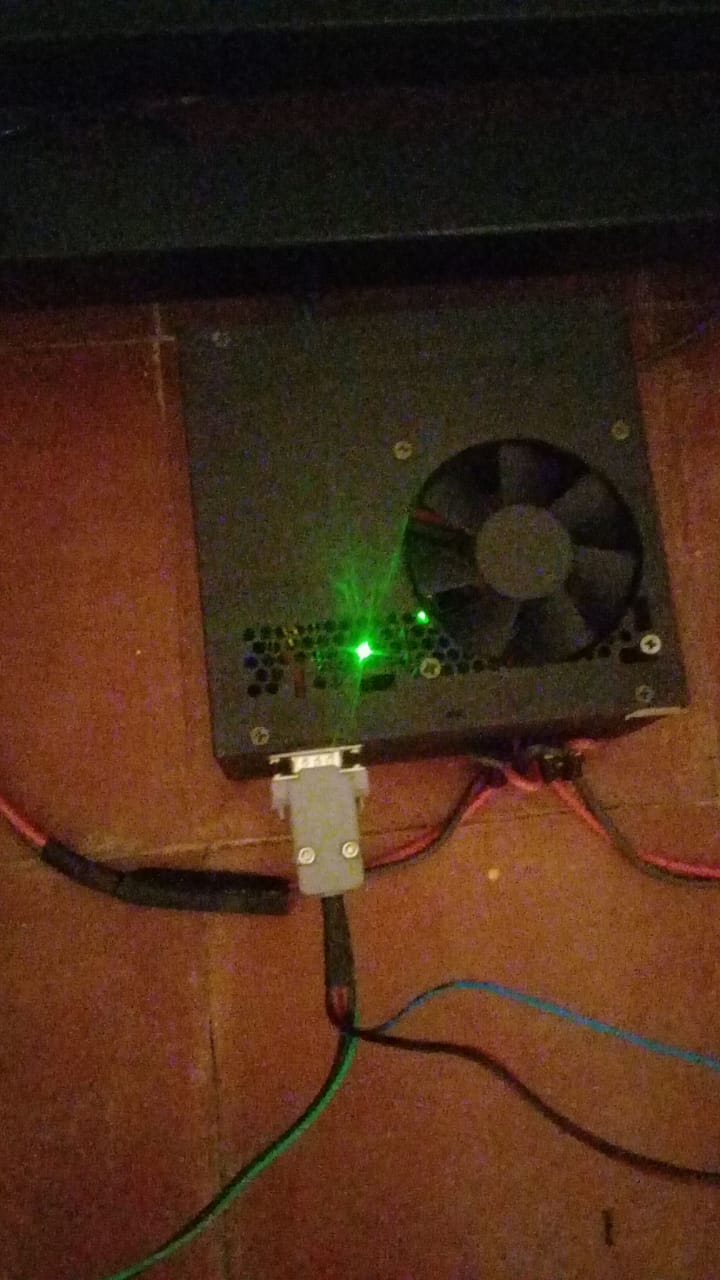

    It has two glass cleaner motors, Arduino Uno R3 board and a Monster Shield.
    • Like Like x 4
  2. Ads Master

    Ads Master

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
  3. Juanjo1986

    Juanjo1986 Member

    Joined:
    Jan 6, 2016
    Messages:
    53
    Occupation:
    Comerciante.. Copiloto Rally...
    Location:
    Argentina
    Balance:
    427Coins
    Ratings:
    +18 / 1 / -0
    My Motion Simulator:
    3DOF
    Hello Pablo, your project is very good ... continue to improve that simulator
    • Like Like x 1
  4. pablo ochoa

    pablo ochoa New Member

    Joined:
    Apr 11, 2019
    Messages:
    7
    Balance:
    86Coins
    Ratings:
    +9 / 0 / -0
    many thanks friends

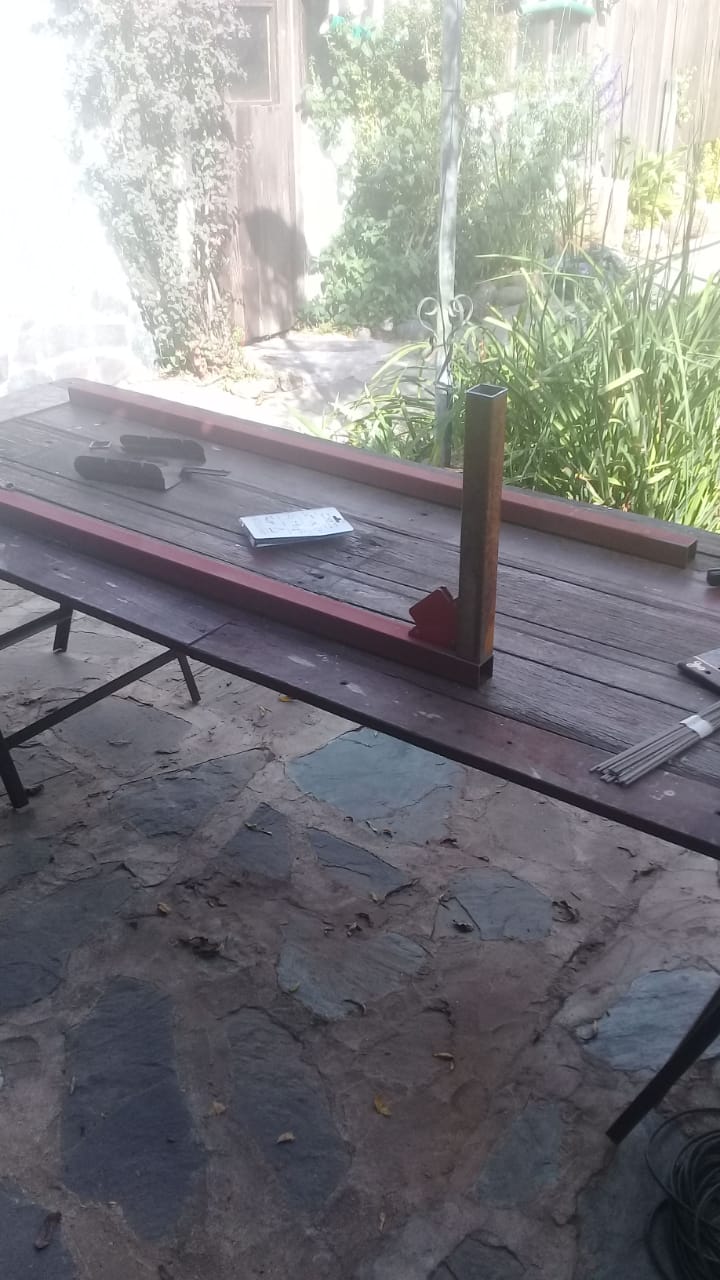

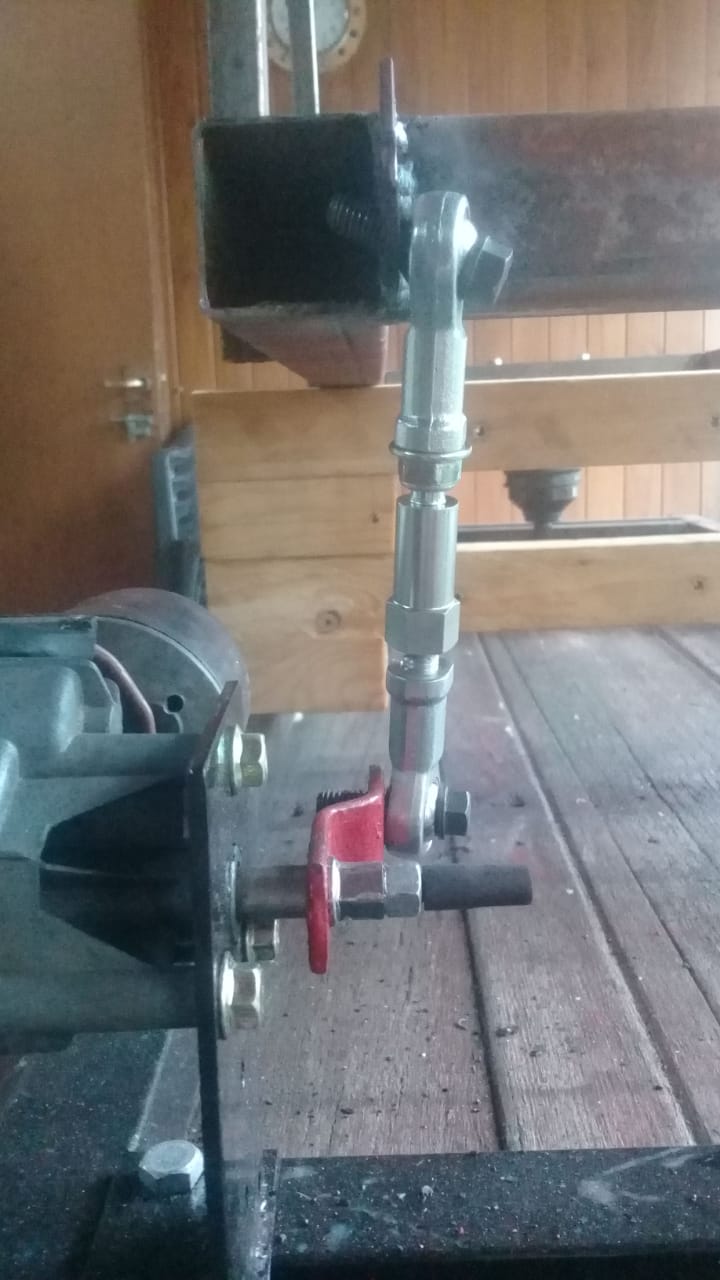

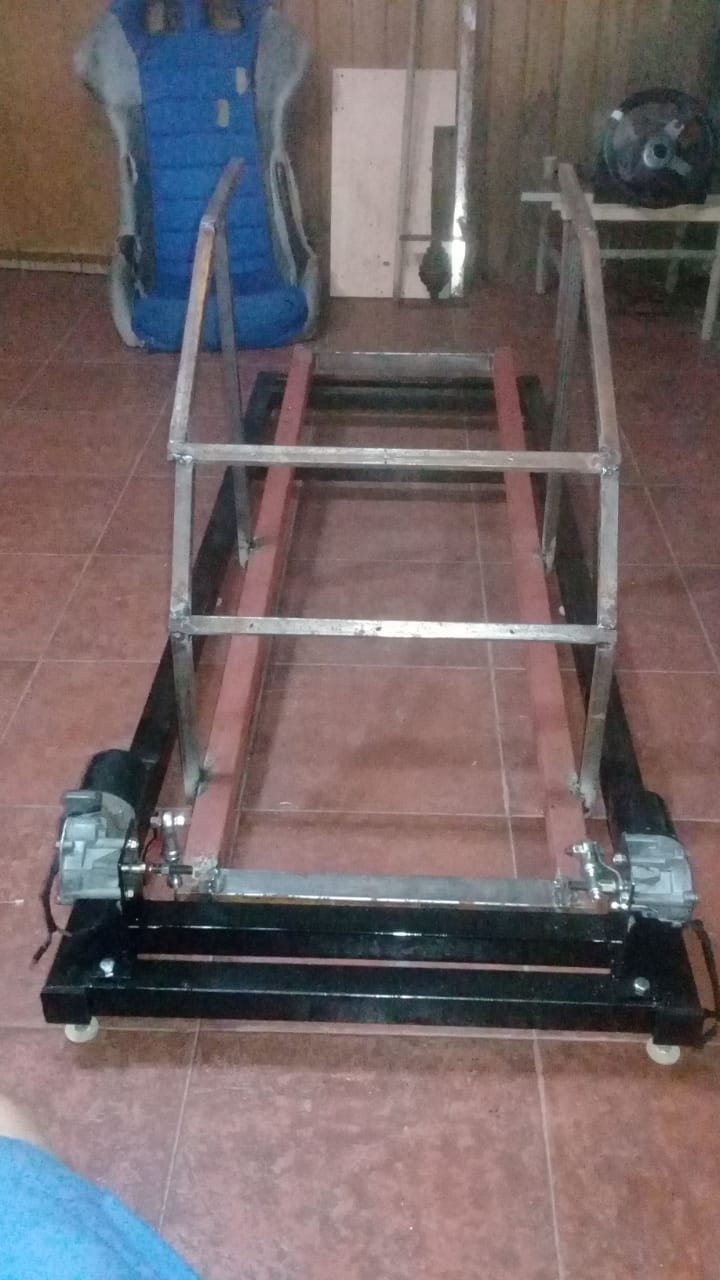

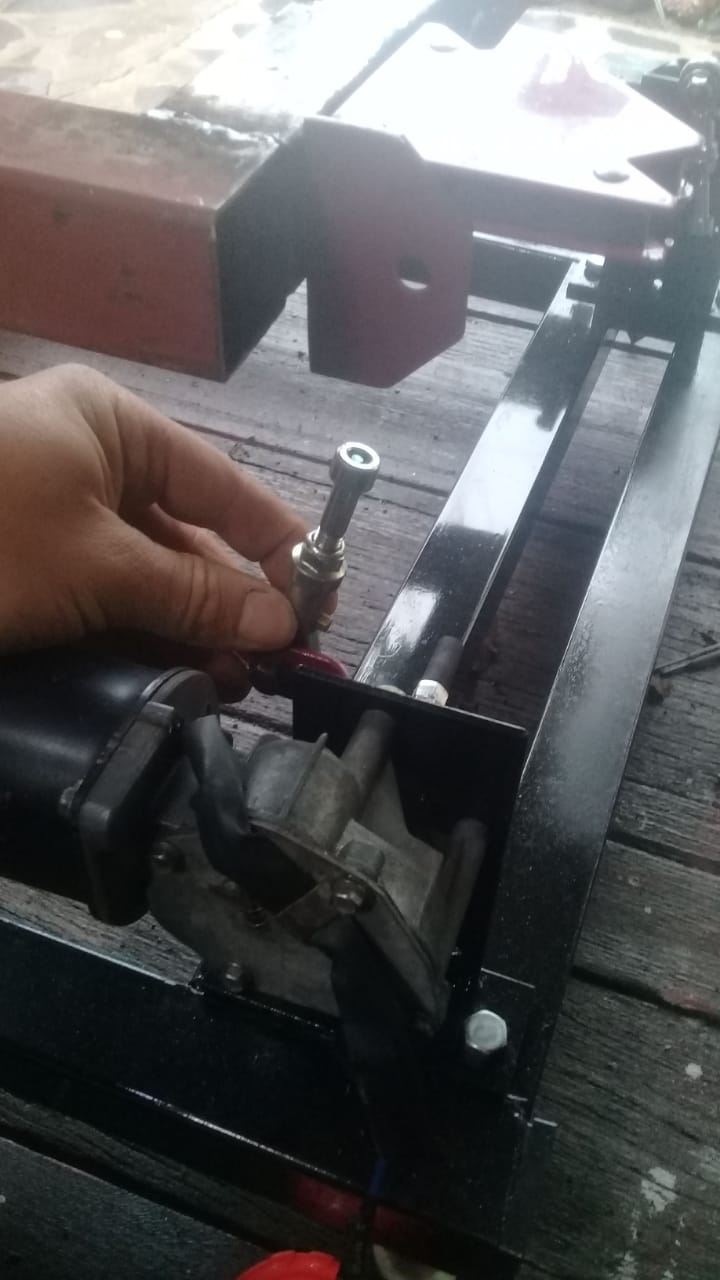

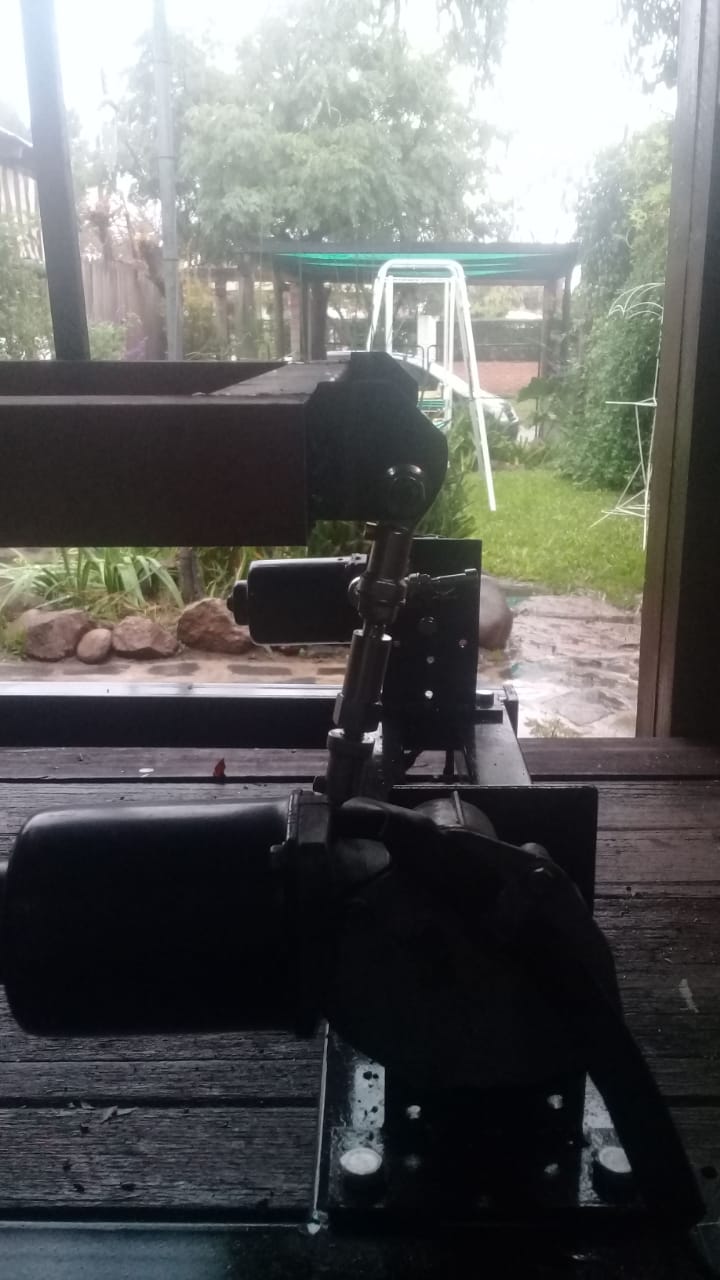

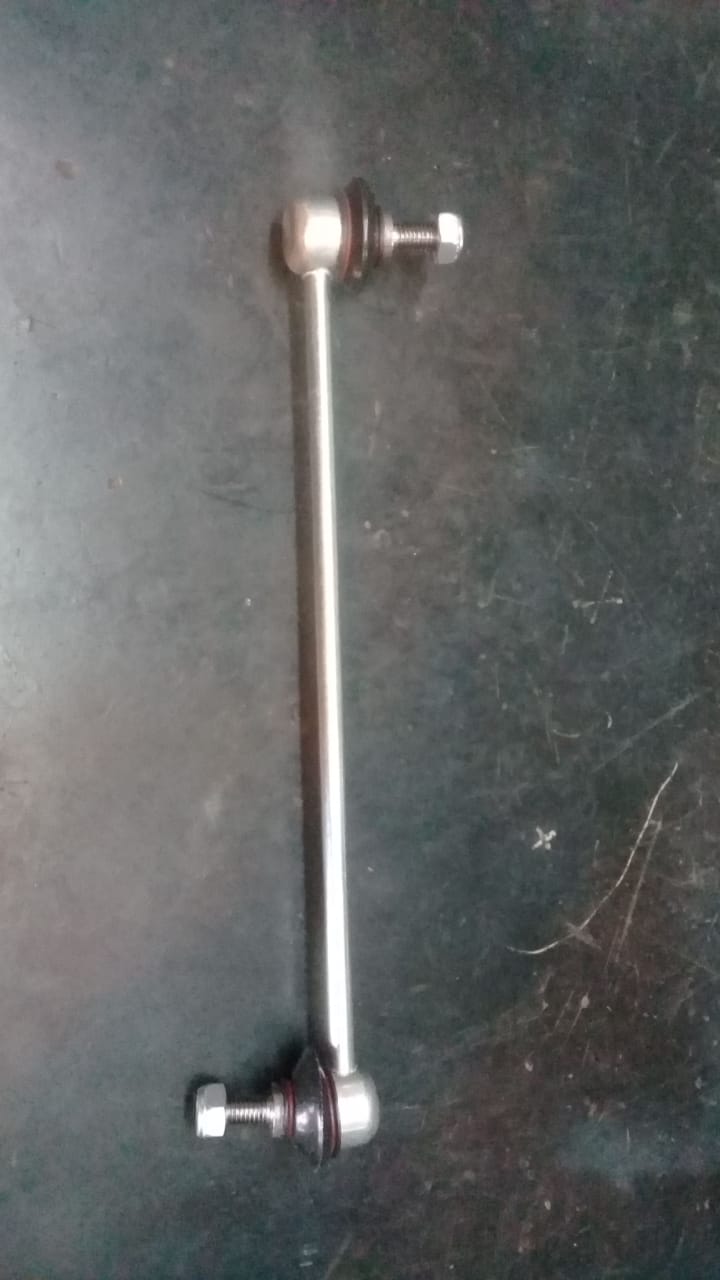

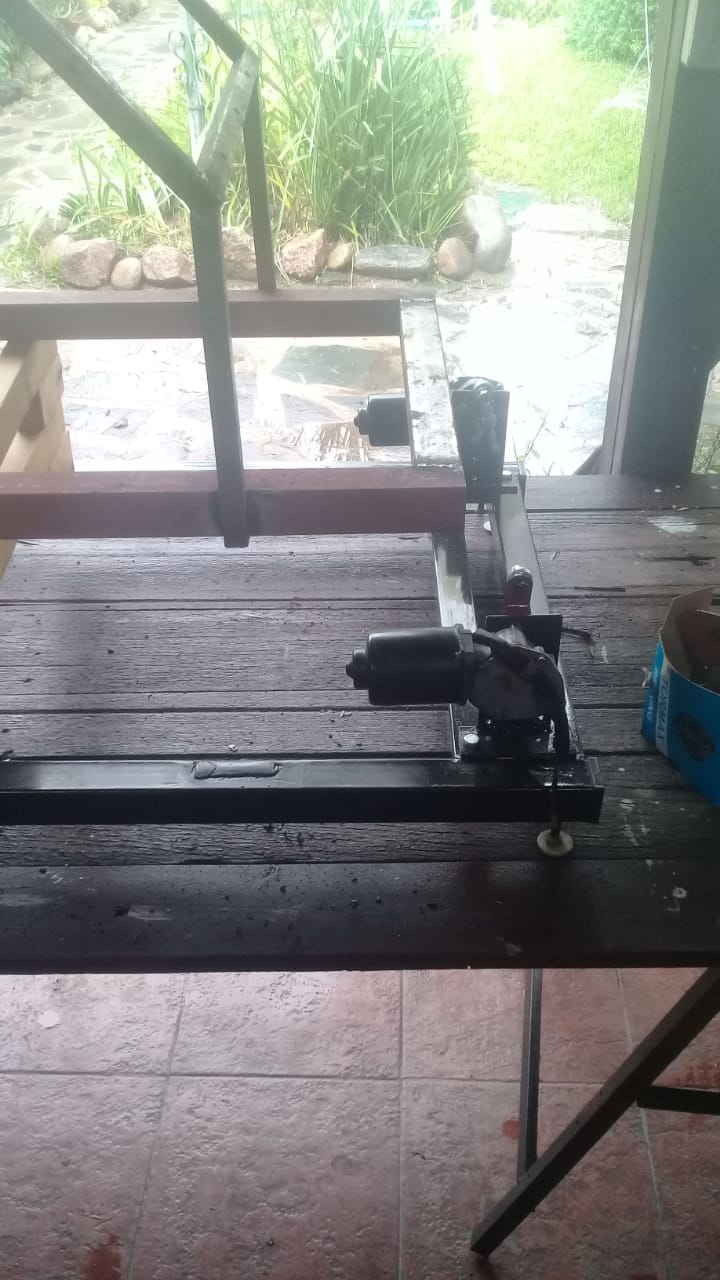

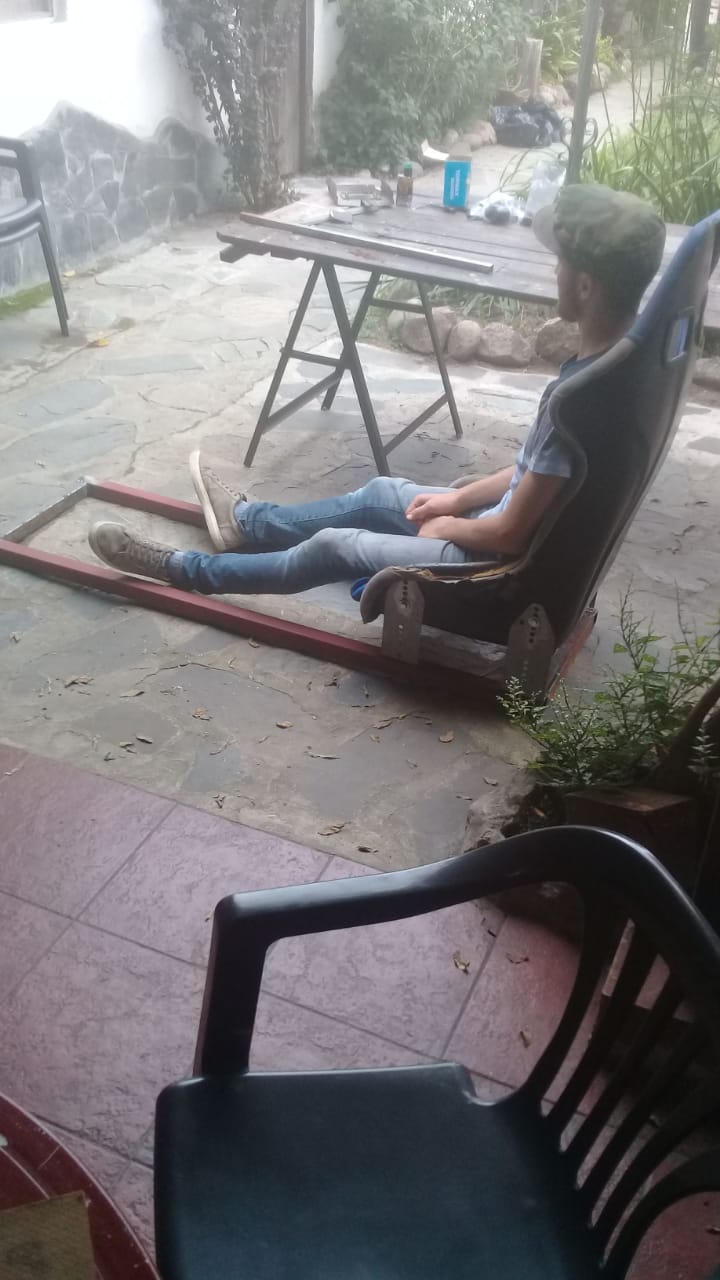

    I leave you a couple of more photos
    4f95a89d-7e91-4c23-bf83-668f24cb38c6.jpg 7be6b127-9895-4686-ad90-7e3b99c9daad.jpg 7ce09d20-6113-4f01-a8df-4871450af613.jpg 9f098360-c119-47a9-9f5d-32f497d8014a.jpg 13ea5bbc-90b3-4f24-999e-fa5a189f1f65.jpg 60ad4d9d-0723-4e93-839b-55236bf88b05.jpg 71bc4a0c-7c83-4c1c-9ff5-d46fafac3170.jpg 86ecf65b-6895-491b-b093-031df35893fe.jpg 5015c5d5-b319-4582-b0c5-3aa416f34355.jpg 8851e567-5e97-4b28-a155-73e6dc860026.jpg 87459237-2adc-4f67-a062-ecd3c64fcbf7.jpg a0d5f199-415f-4daf-993d-ba0c4f8edf44.jpg aad47866-b784-4cf6-9f07-35af35bdae7a.jpg abfb576f-2f82-4904-9593-e1a4cbeb57d2.jpg ef854d70-3049-45fe-9ce1-a9f97e8ba5e2.jpg

    to keep working on it and improve some things
    • Like Like x 2
  5. pablo ochoa

    pablo ochoa New Member

    Joined:
    Apr 11, 2019
    Messages:
    7
    Balance:
    86Coins
    Ratings:
    +9 / 0 / -0
    First tests and a little calibration for the axes

    • Like Like x 3
  6. Tags..(VR)

    Tags..(VR) Member

    Joined:
    Aug 28, 2017
    Messages:
    147
    Location:
    indiana
    Balance:
    19Coins
    Ratings:
    +20 / 2 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, Motion platform
    nice job but im confused by you saying the motors are GLASS CLEANER MOTORS ? where did you find them?
  7. pablo ochoa

    pablo ochoa New Member

    Joined:
    Apr 11, 2019
    Messages:
    7
    Balance:
    86Coins
    Ratings:
    +9 / 0 / -0
    I mean clean buffalo brand windshield engines
  8. Tags..(VR)

    Tags..(VR) Member

    Joined:
    Aug 28, 2017
    Messages:
    147
    Location:
    indiana
    Balance:
    19Coins
    Ratings:
    +20 / 2 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, Motion platform
    i have a similar setup but one thing i wish i could and probably will is taking out the u joint for the pivot and replacing it with a 200 lbs compression spring to give heave . i think it would smooth the ride out a lot. ... that bottom framing. is that a 2" bed frame followed with 1" square bar on the top frame?
  9. pablo ochoa

    pablo ochoa New Member

    Joined:
    Apr 11, 2019
    Messages:
    7
    Balance:
