Question My 4dof project with DC 24V motor (linear actuator)

Discussion in 'DIY Motion Simulator Building Q&A / FAQ' started by Paulo Rogerio, Jul 22, 2020.

Tags:
  1. Paulo Rogerio

    Paulo Rogerio New Member

    Joined:
    Oct 30, 2019
    Messages:
    3
    Occupation:
    Professor
    Location:
    São Paulo - SP - Brasil
    Balance:
    70Coins
    Ratings:
    +2 / 0 / -0
    My Motion Simulator:
    Arduino, 4DOF

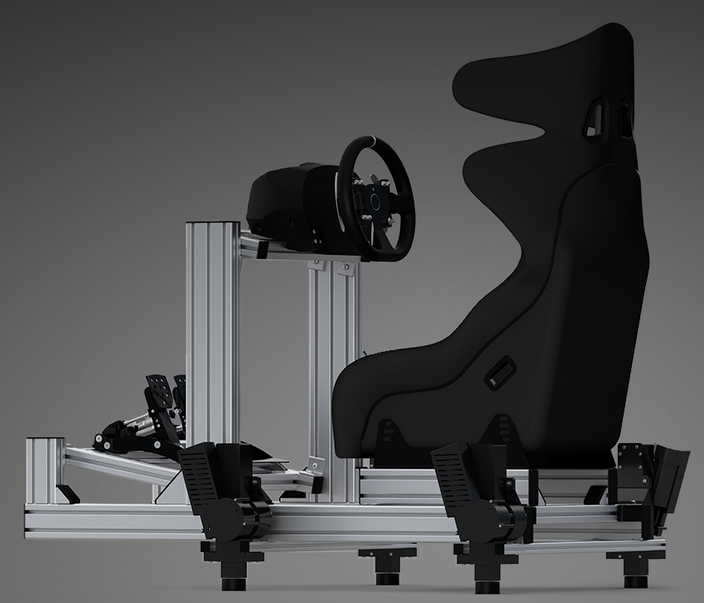

    I have already started my 4dof project using a 12 or 24V DC motor.
    I will use the engine specified below and would like help in choosing which would be the best option to control these engines and which power supply would suit the 4 engines.
    Is it possible with simtools to work 4dof? which controller card is recommended?
    Thanks.

    Engine characteristics:
    - Nominal voltage UN: 12 or 24 V
    - PN rated power: 54 W
    - Rated current IN: 5 A
    - Maximum current Imax: 58 A
    - Nominal speed NN: 82 rpm
    - Nominal torque MN: 10 Nm
    - Tightening torque MA: 35 Nm
    - Reduction i: 1:55
    - Direction of rotation: clockwise and counterclockwise
    - Protection type: IP 23
    - Weight: 1.3 Kg
    - Worm material: SAE 1045
    - Crown Material: Polyacetal
    • Like Like x 1
    Last edited by a moderator: Jul 22, 2020
  2. Ads Master

    Ads Master

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
  3. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    15,085
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    111,171Coins
    Ratings:
    +8,992 / 43 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    Do you have a link to the motors you plan to use, as they do not look to be particularly powerful, and I am also not sure of the intended linear actuator speed?
  4. Paulo Rogerio

    Paulo Rogerio New Member

    Joined:
    Oct 30, 2019
    Messages:
    3
    Occupation:
    Professor
    Location:
    São Paulo - SP - Brasil
    Balance:
    70Coins
    Ratings:
    +2 / 0 / -0
    My Motion Simulator:
    Arduino, 4DOF
    It's ok. Follow the link for the DC motor. It was the most powerful one I found for sale in Brazil. I am understanding the components to assemble the prototype in order to verify the performance.
    https://motoredutorclub.commercesui...utor-imobras-1005019-12v-e-24v-54w-82rpm-10nm
