My 2DOF +Traction loss

Discussion in 'DIY Motion Simulator Projects' started by Andrea 1968, Jan 6, 2018.

  1. Andrea 1968

    Andrea 1968 Member

    Joined:
    Jul 1, 2015
    Messages:
    60
    Location:
    italia
    Balance:
    159Coins
    Ratings:
    +37 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    hi, I want to share my second project with this forum as the first one I realized thanks to all of you of this wonderful community.

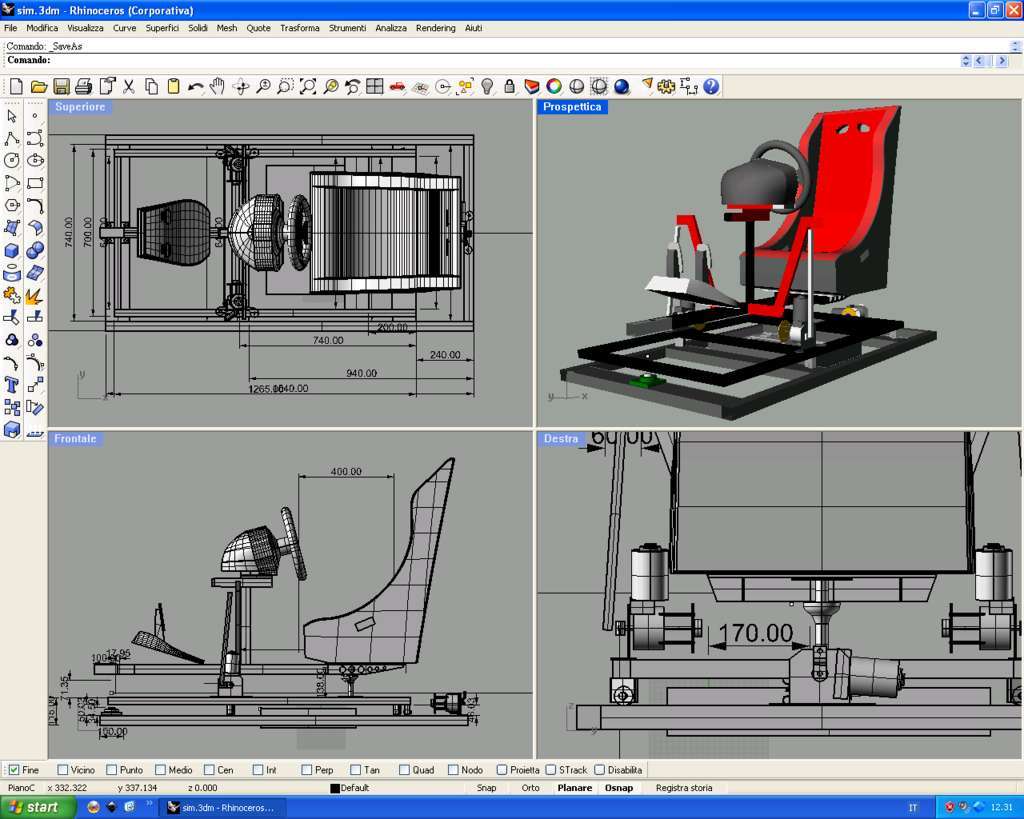

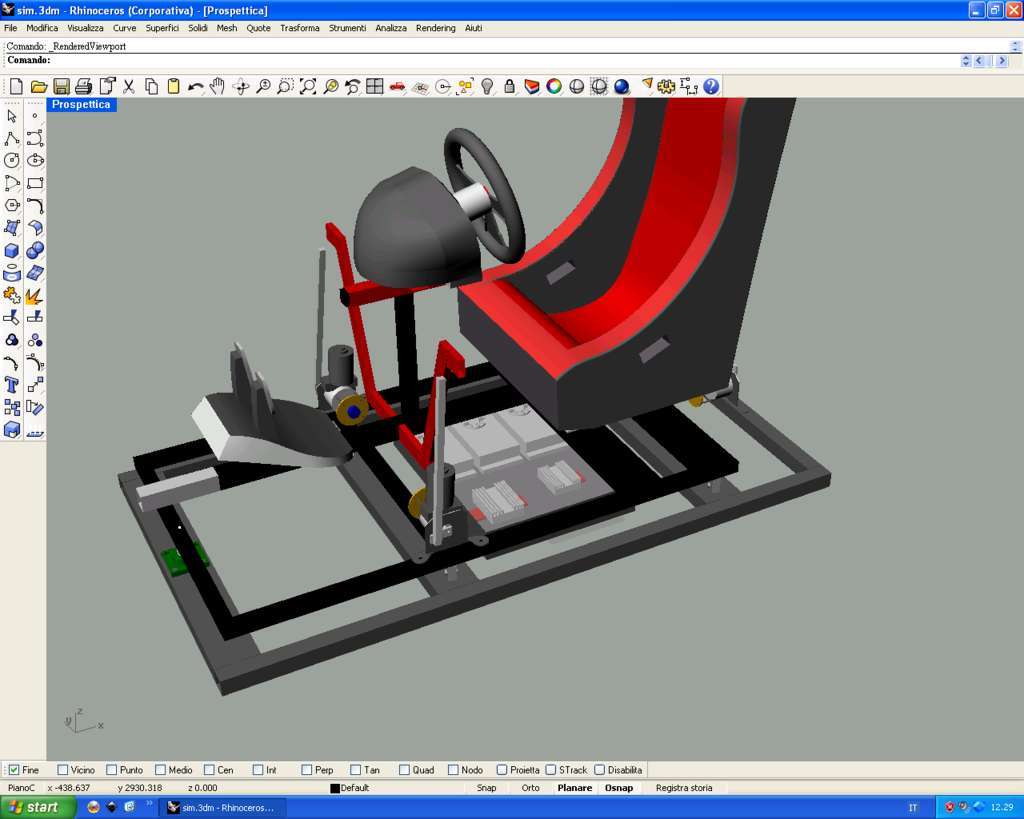

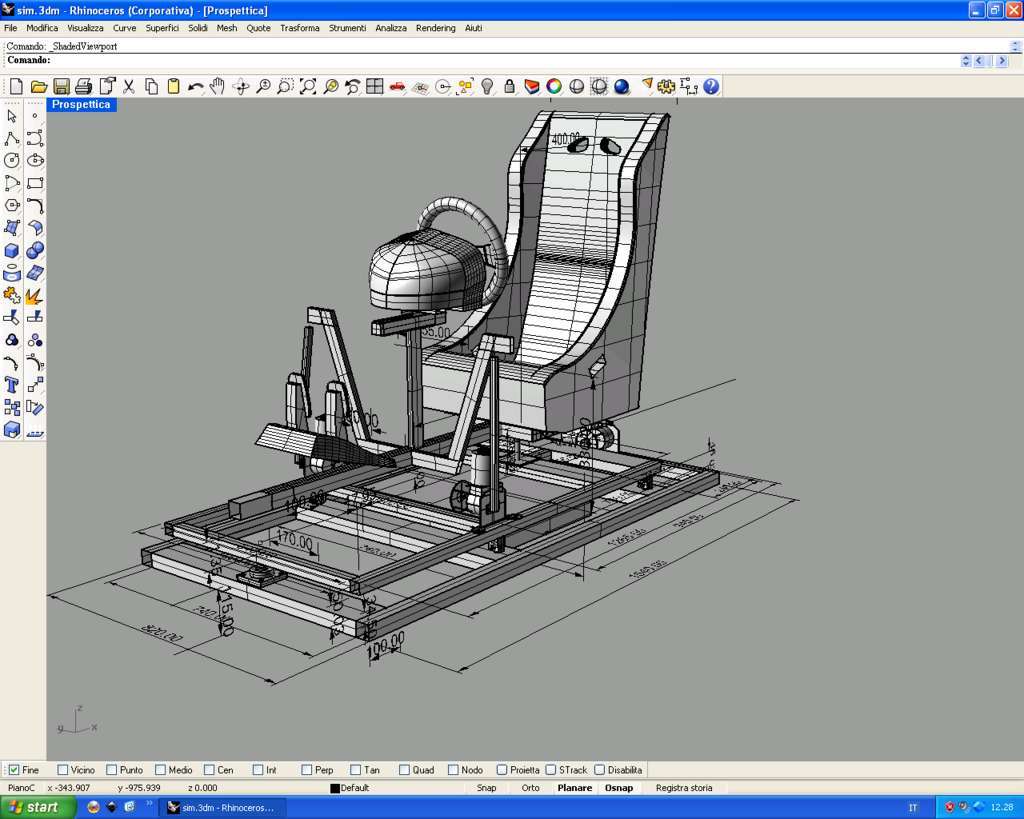

    to make this project I used rhinoceros a 3d drawing program.

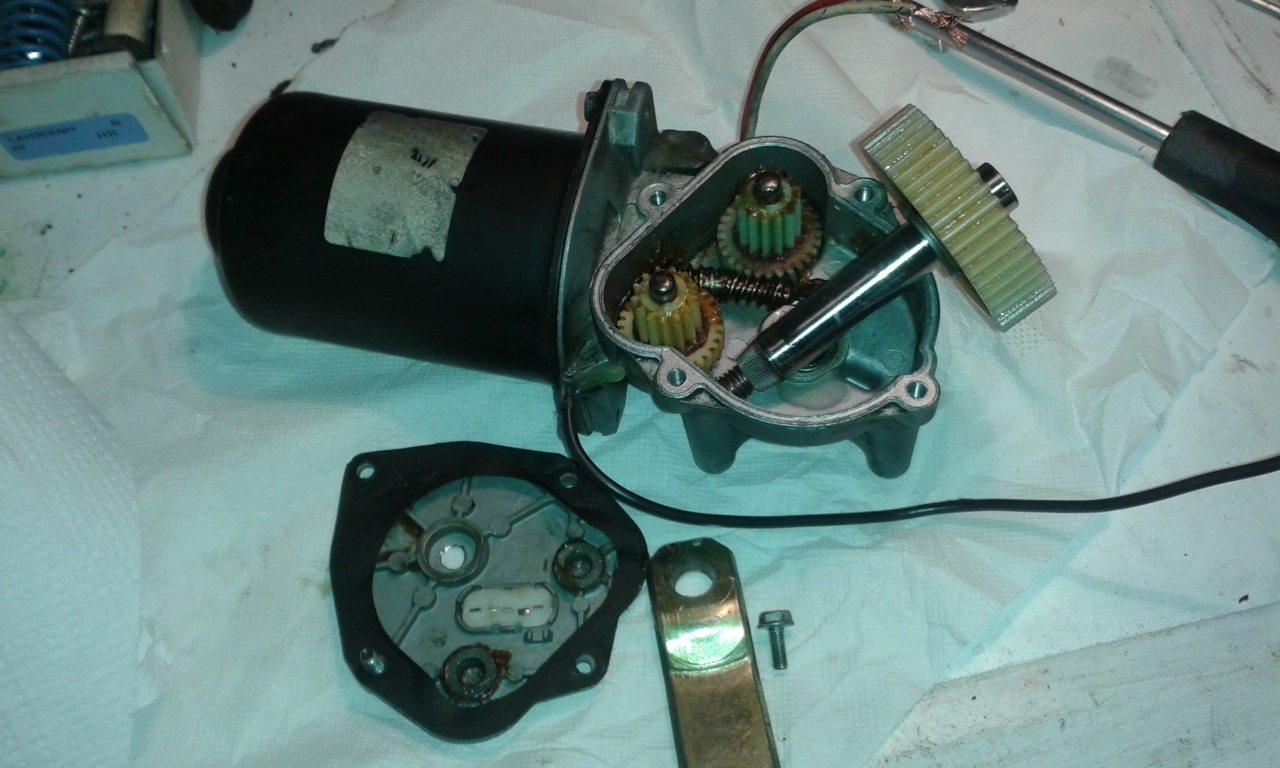

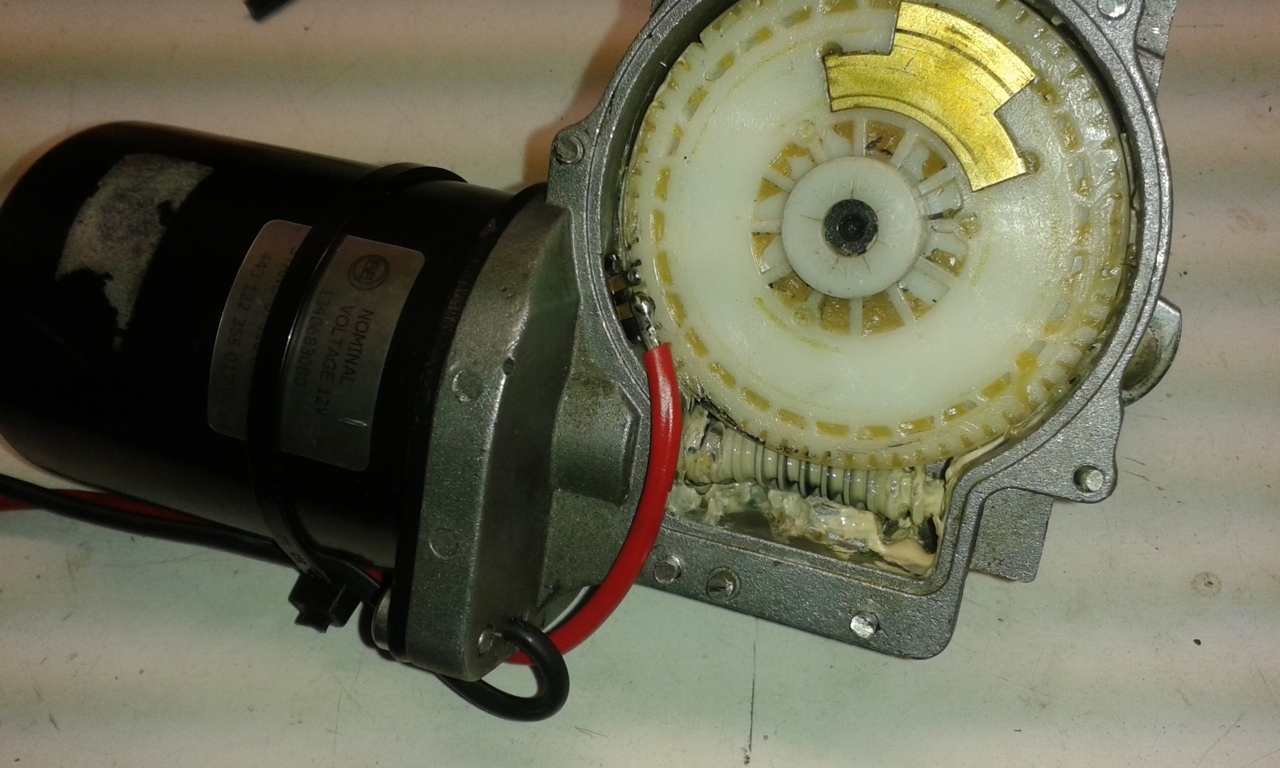

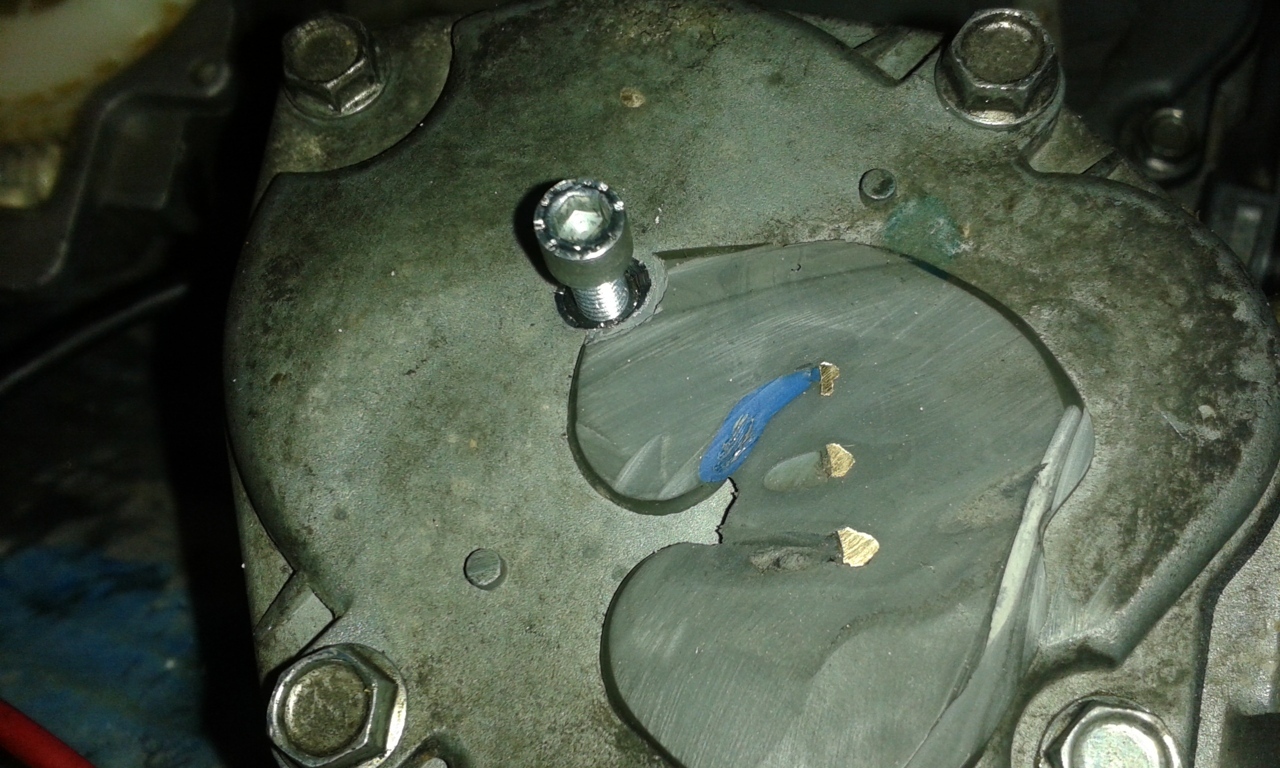

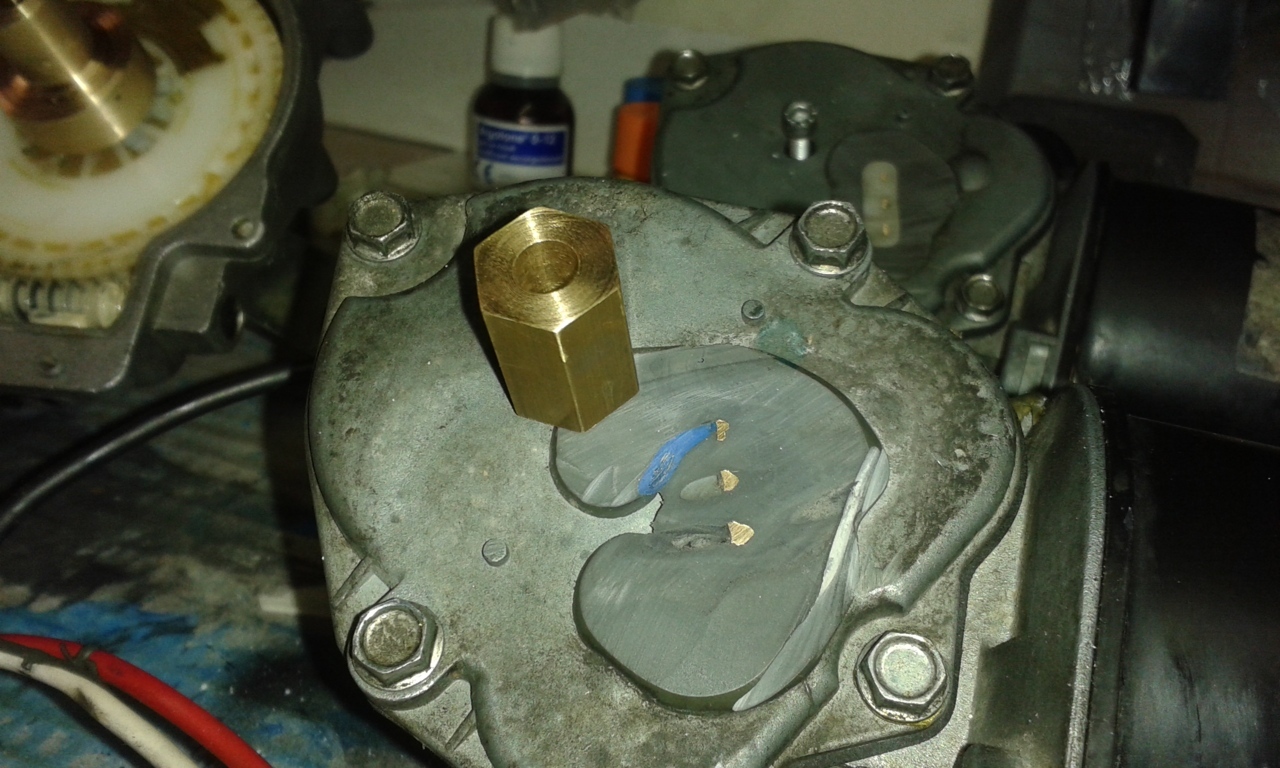

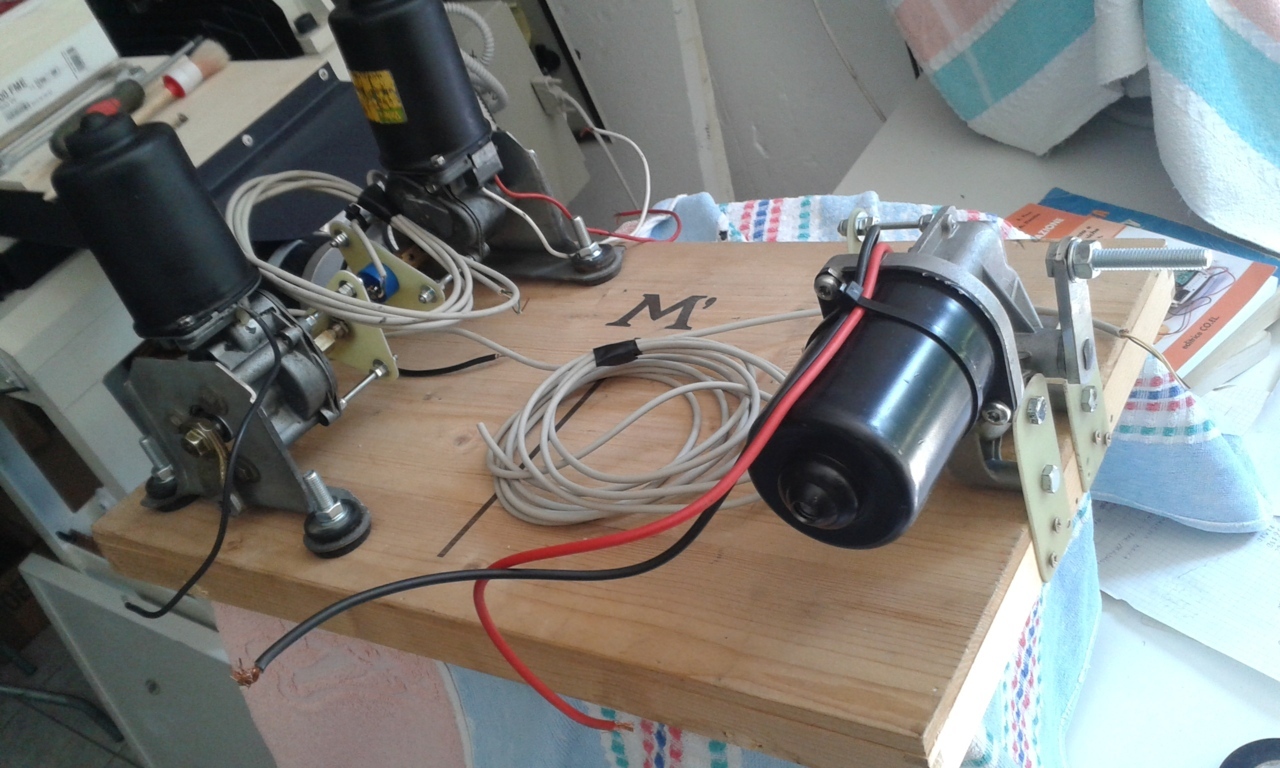

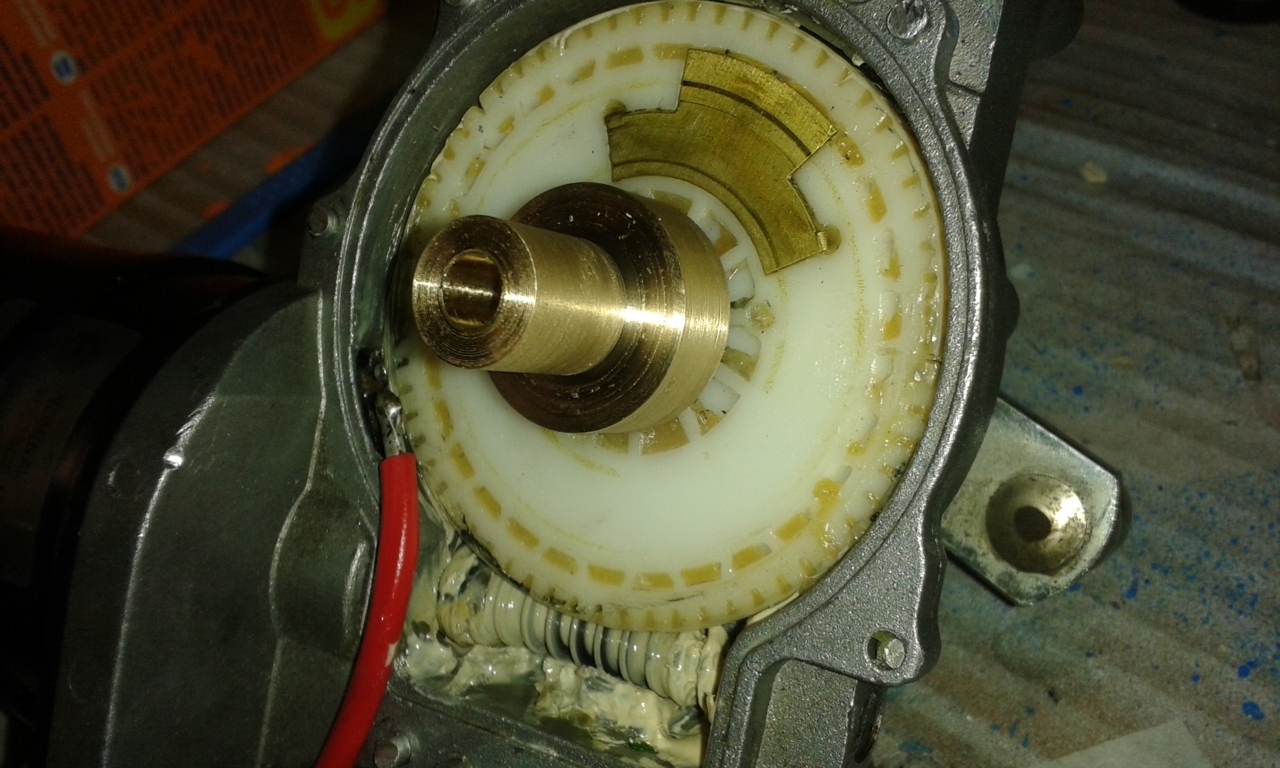

    the motors are wipers for the axies 1 and 2 are FIAT SCUDO wipers for the traction loss is FIAT DUCATO wipers, disassembled and modified to isolate the negative from the carcass.

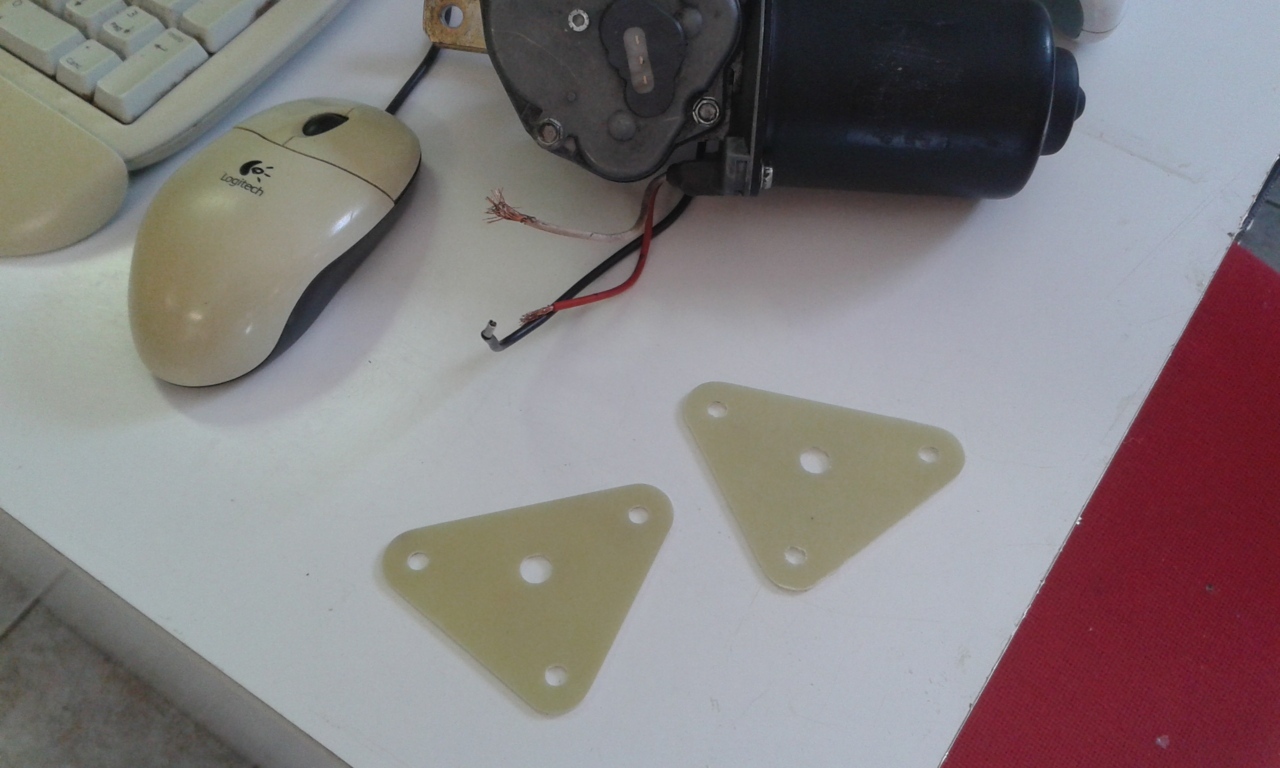

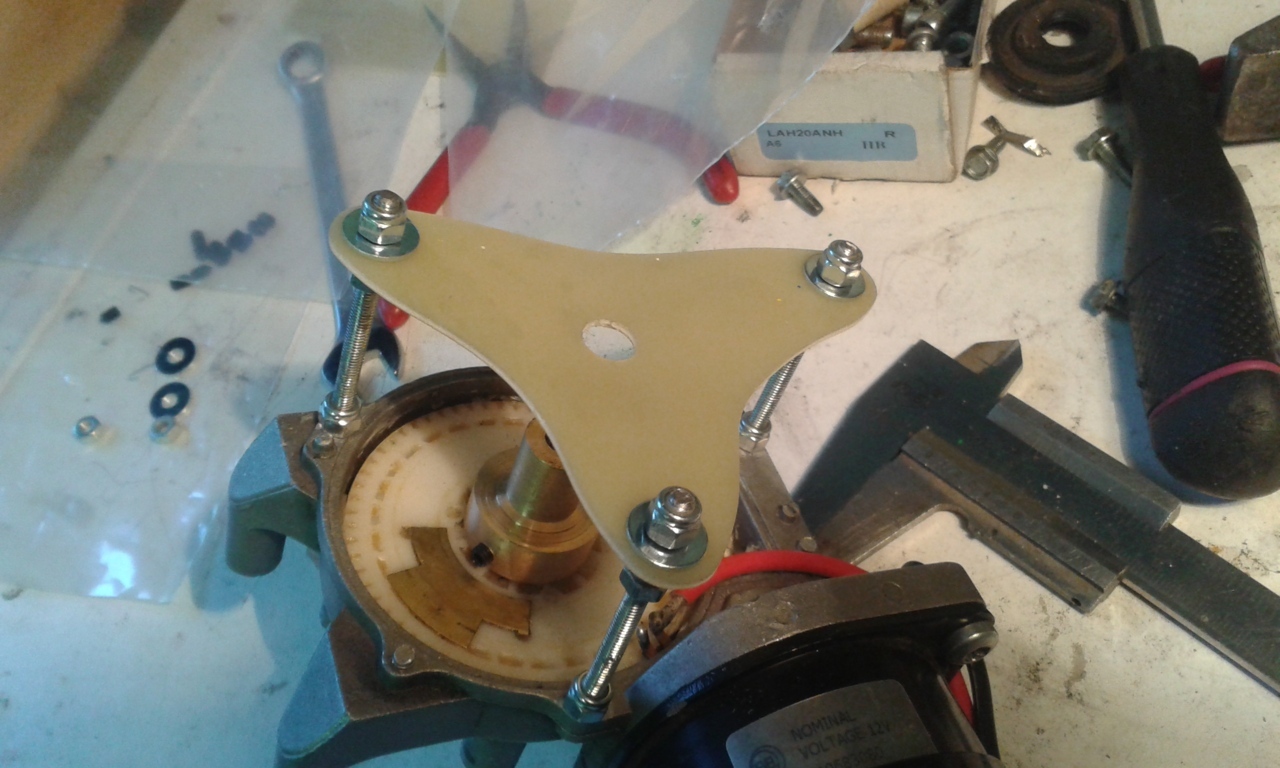

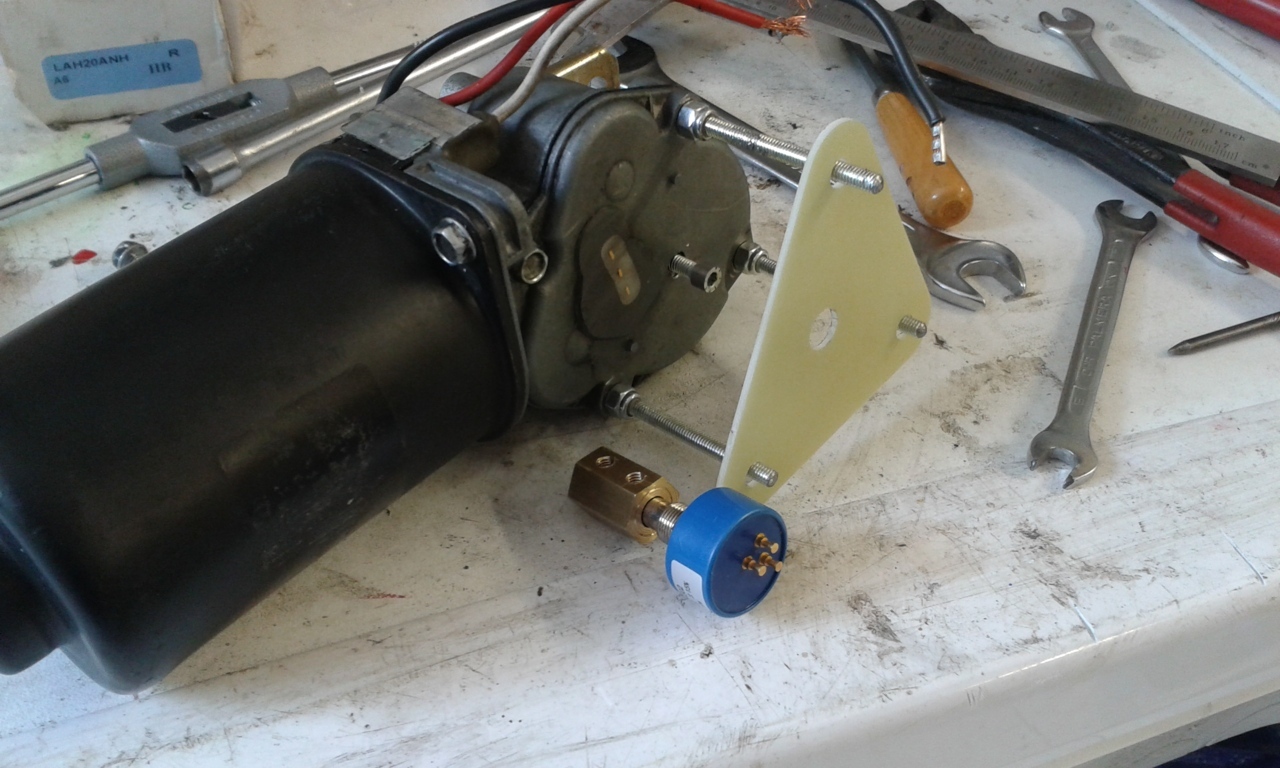

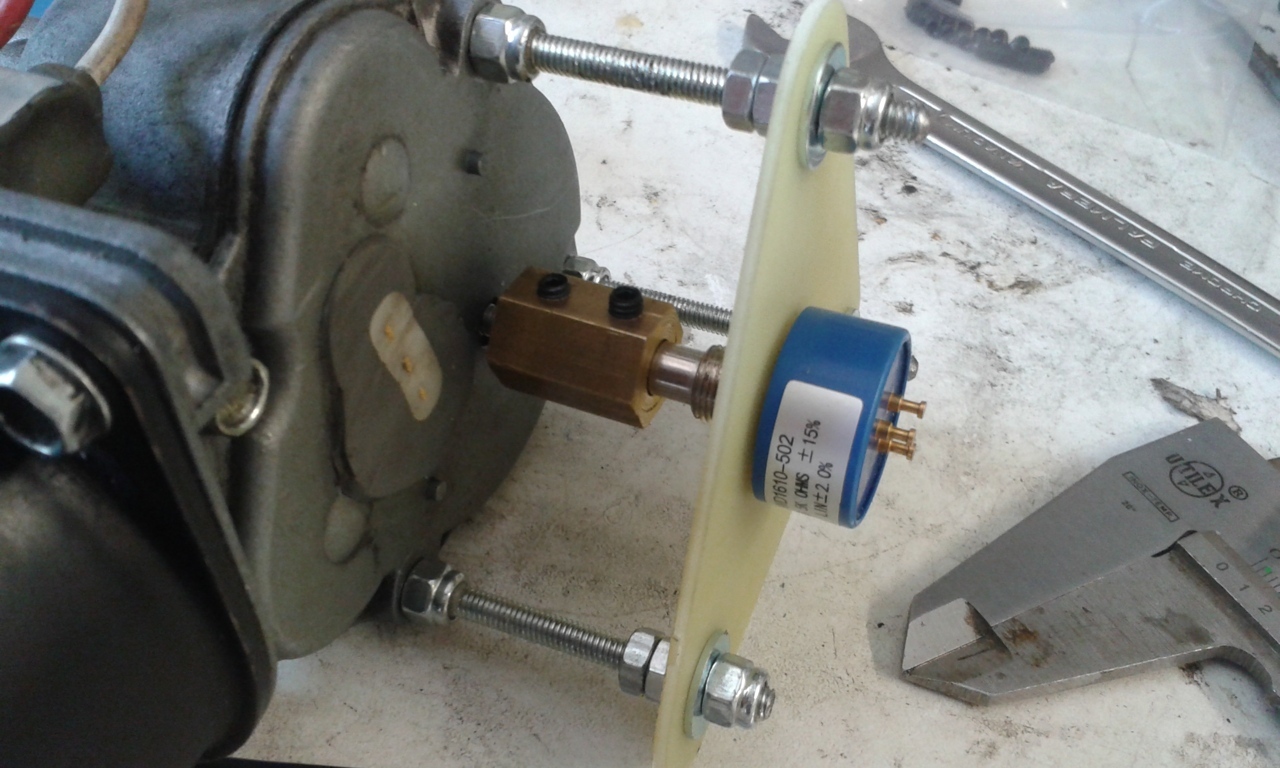

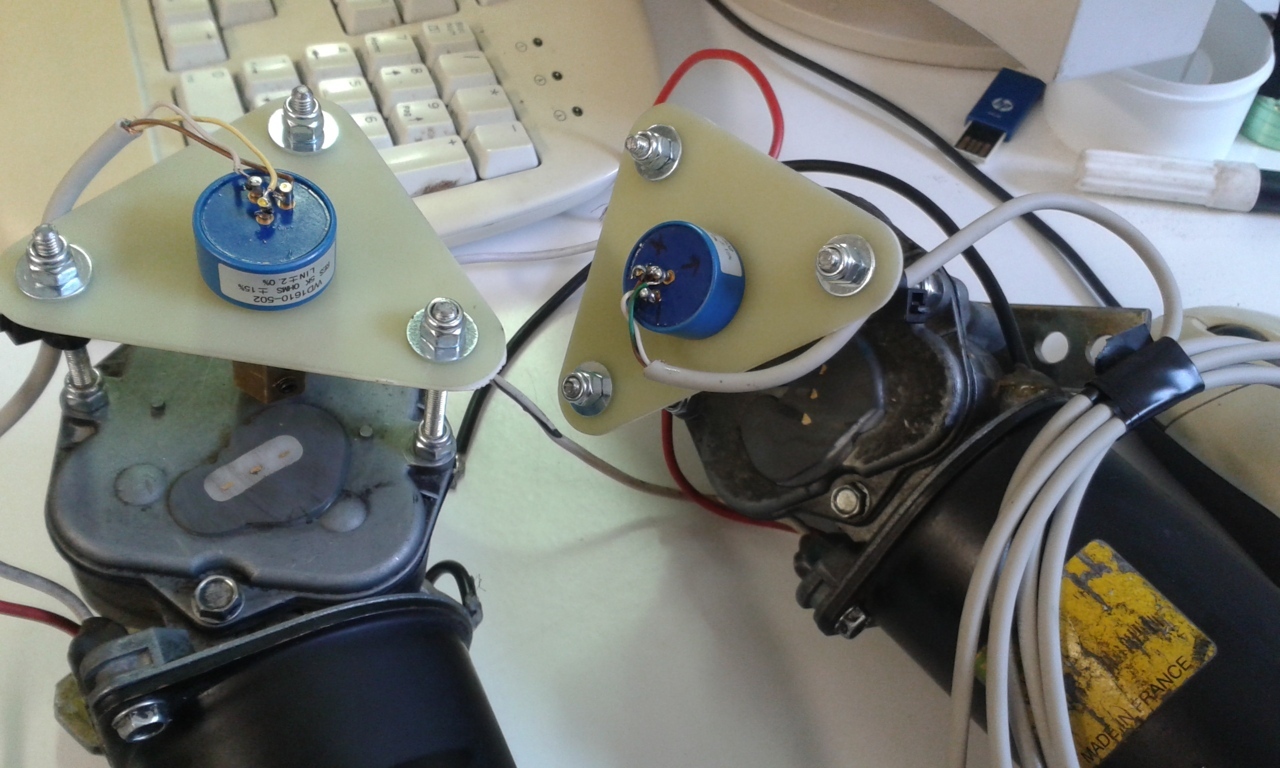

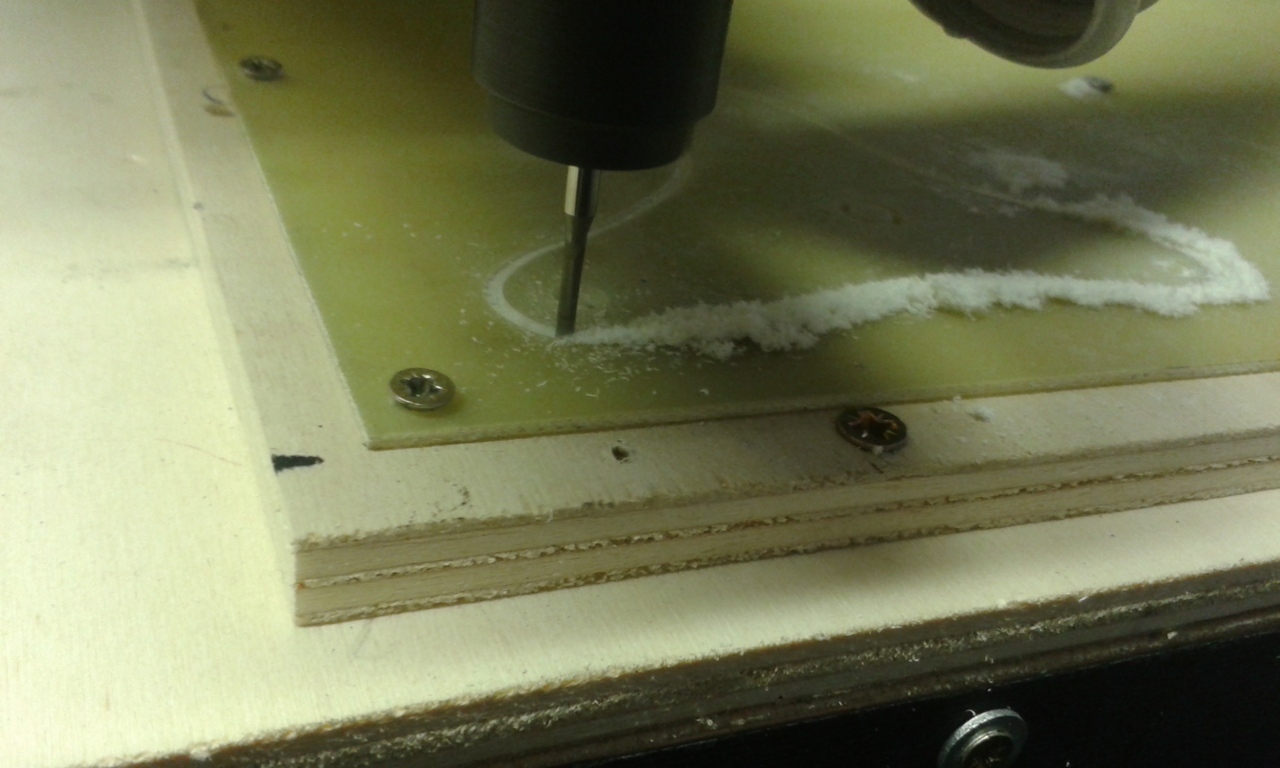

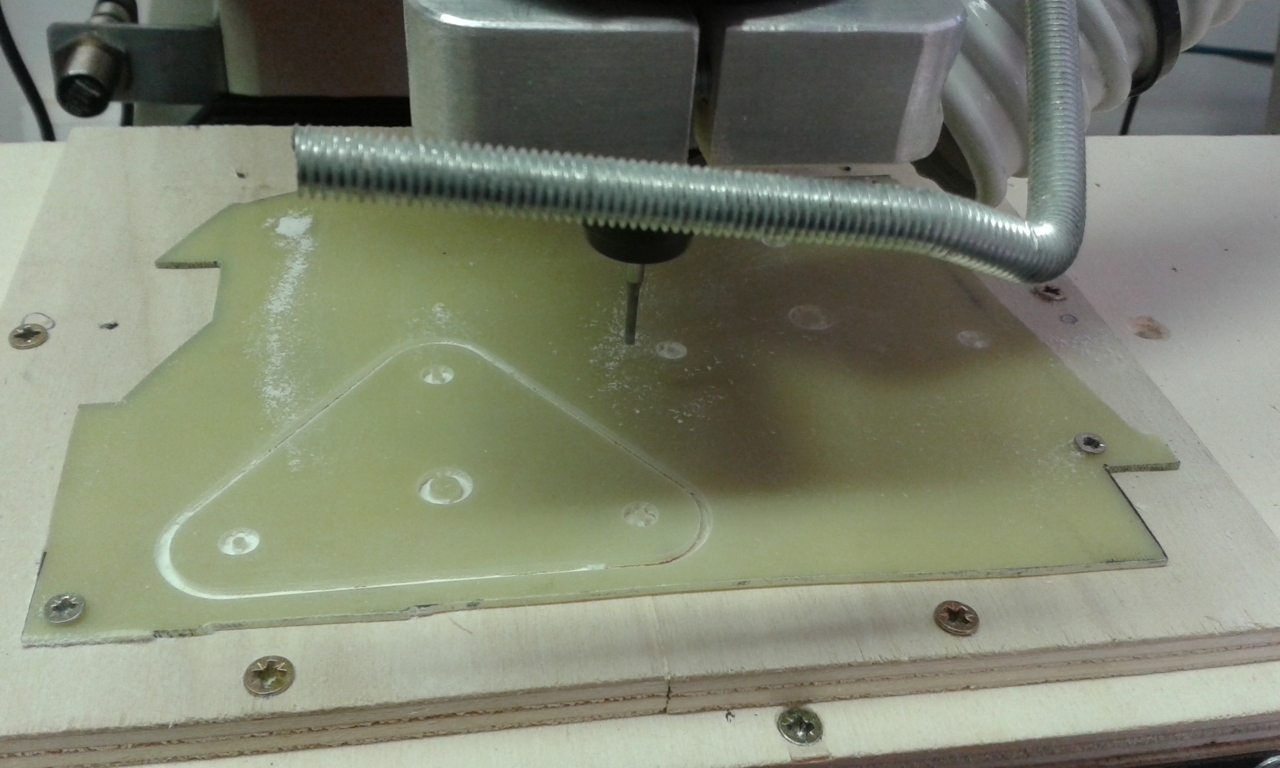

    made to the cutter the supports for the potentiometers for a perfect alignment as in the picture
    1.jpg 2.jpg 3.jpg 4.jpg 5.jpg 6.jpg 11.jpg 7.jpg 8.jpg 9.jpg 12.jpg 10.jpg 14.jpg
    soon we go ahead with the construction of the unit that I intend to make with arduino one and mm with double power connection for each engine
    • Like Like x 2
    • Agree Agree x 1
  2. Brett Horton

    Brett Horton Active Member Gold Contributor

    Joined:
    Aug 18, 2016
    Messages:
    289
    Occupation:
    UAS Manager / Pilot / Integration Specialist
    Location:
    Tampa FL
    Balance:
    - 12Coins
    Ratings:
    +191 / 2 / -0
    My Motion Simulator:
    3DOF, DC motor, JRK, Motion platform
    I have Maaaaany hours in Rhino, great product for surfacing, how is it for solids now, been 100 years since I've used it
  3. Bilao

    Bilao New Member

    Joined:
    Oct 29, 2015
    Messages:
    12
    Location:
    Portugal
    Balance:
    100Coins
    Ratings:
    +9 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    The wiper motors are 12v or 24v ?
    Tanks
  4. Andrea 1968

    Andrea 1968 Member

    Joined:
    Jul 1, 2015
    Messages:
    60
    Location:
    italia
    Balance:
    159Coins
    Ratings:
    +37 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    12 volts,
    FIAT SCUDO wipers are mechanically very strong and have double gear and are quite easy to isolate from the mass
    the two windscreen wipers inclusive of support plate € 50 from junkyard
    rhinoceros is easy to use especially for surface modeling.

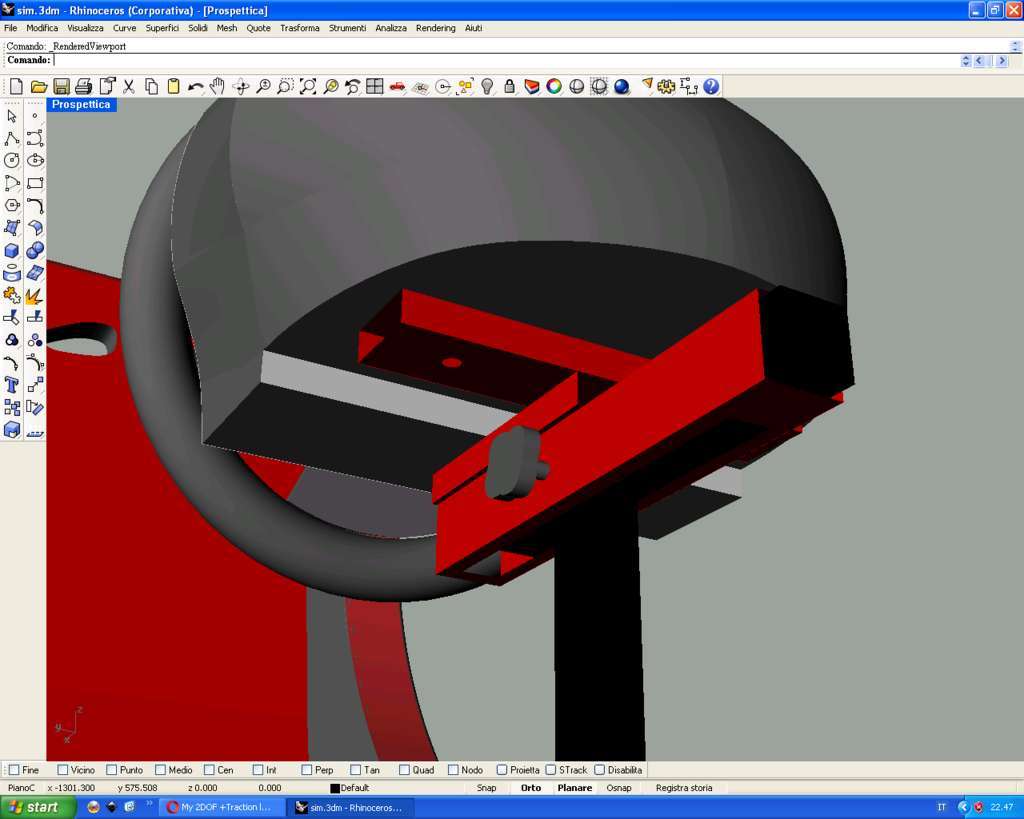

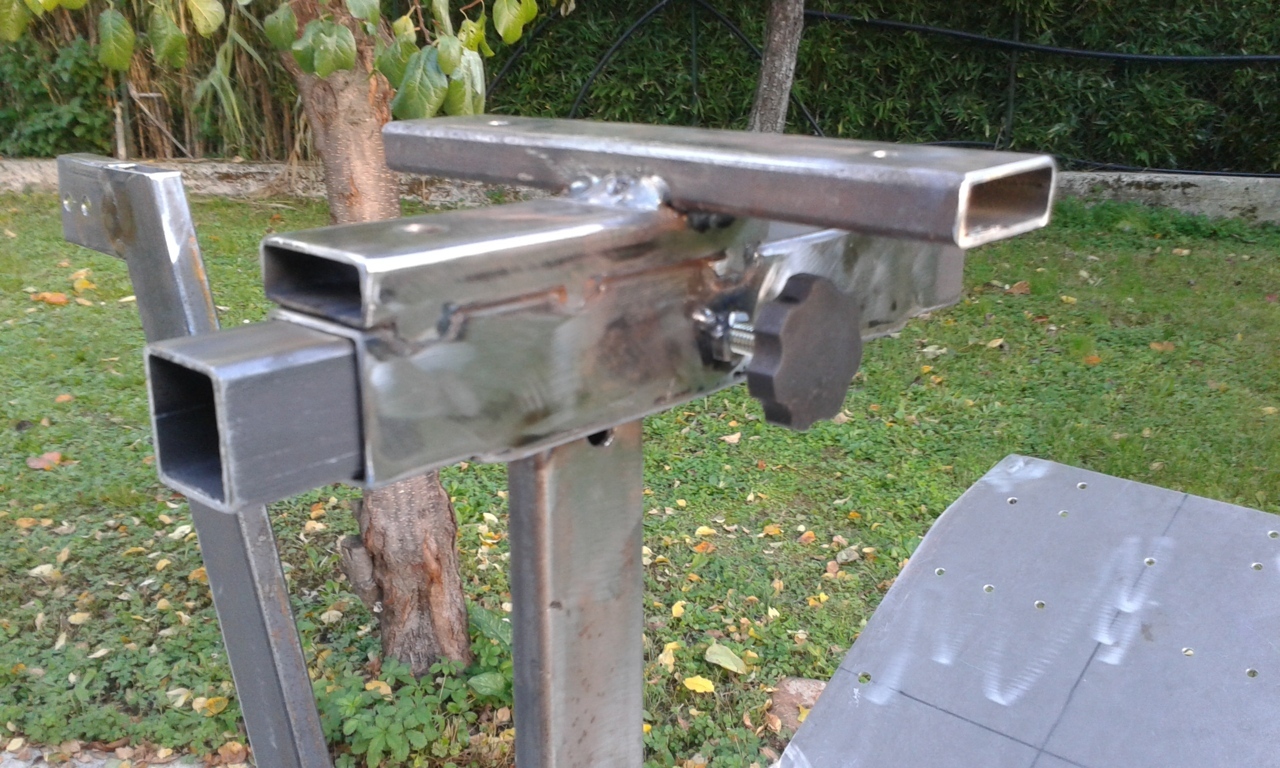

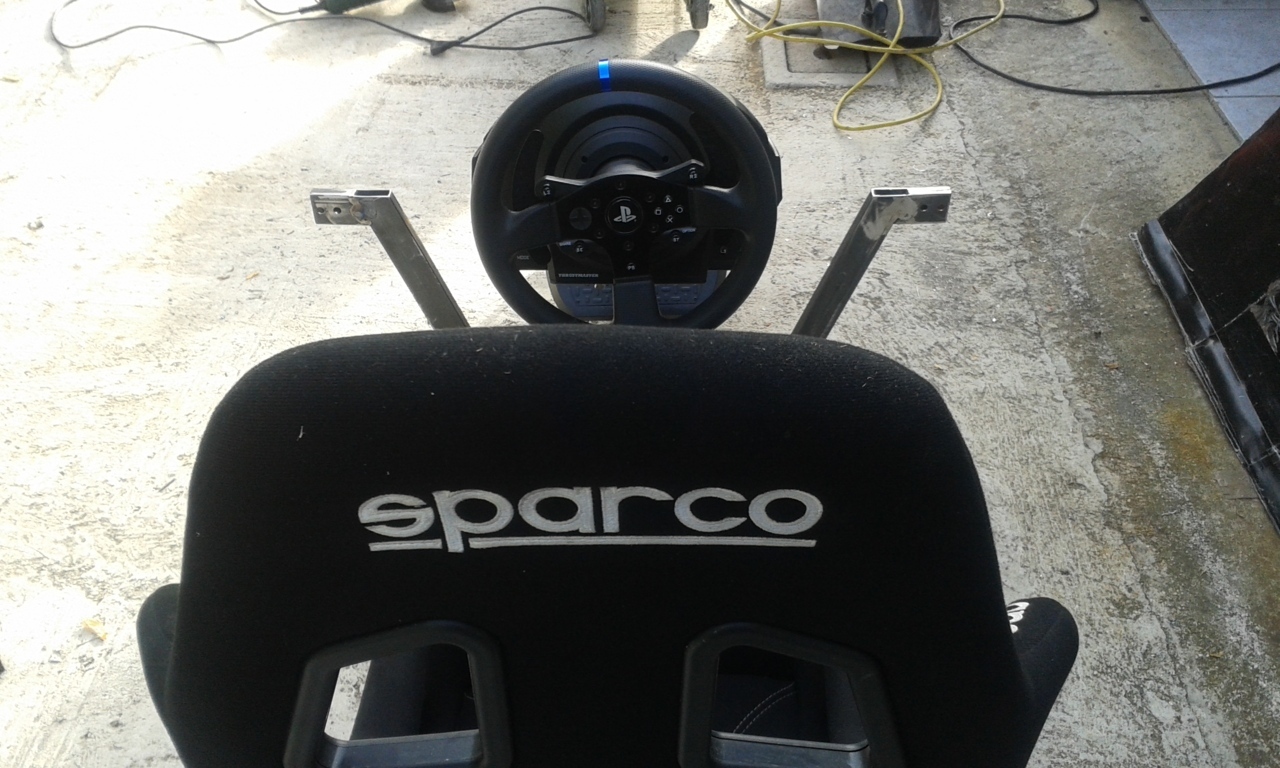

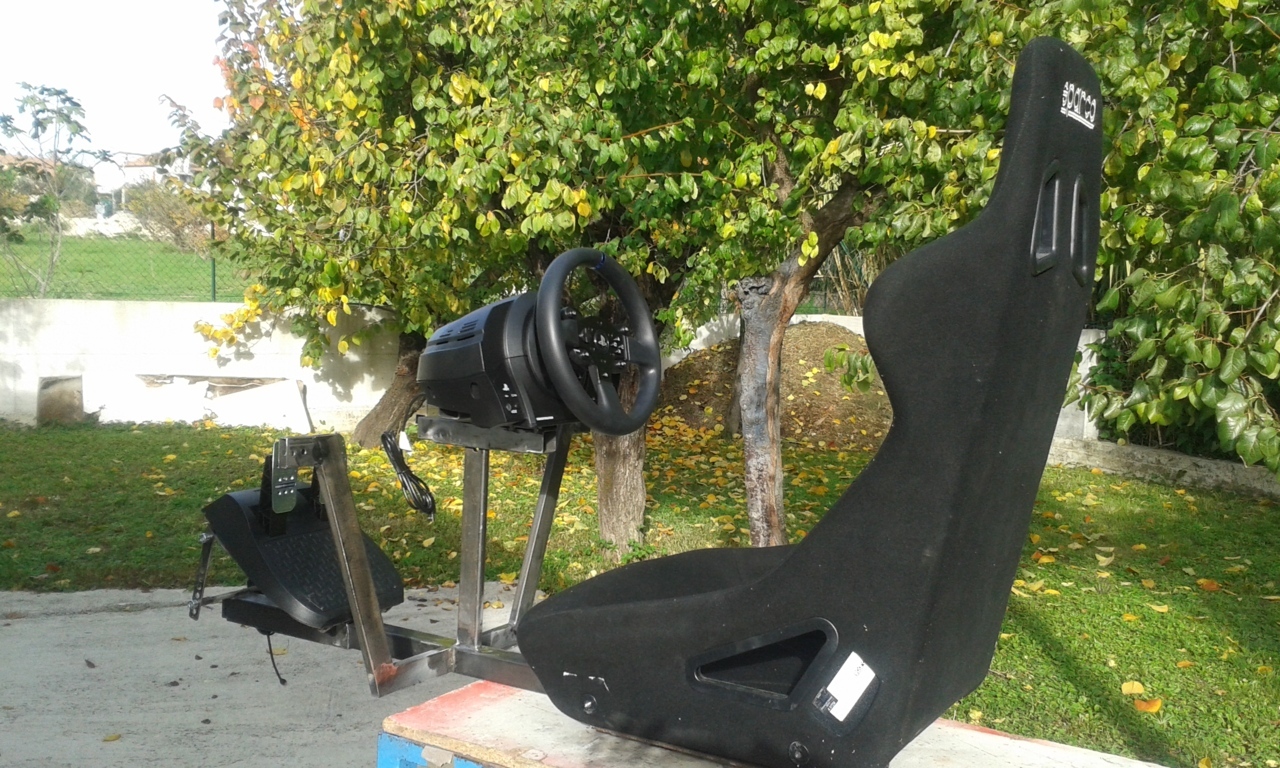

    the steering wheel mount is designed for the Thrustmaster T300RS and is adjustable back and forth as well as the pedal board supporto volante.jpg
  5. Andrea 1968

    Andrea 1968 Member

    Joined:
    Jul 1, 2015
    Messages:
    60
    Location:
    italia
    Balance:
    159Coins
    Ratings:
    +37 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

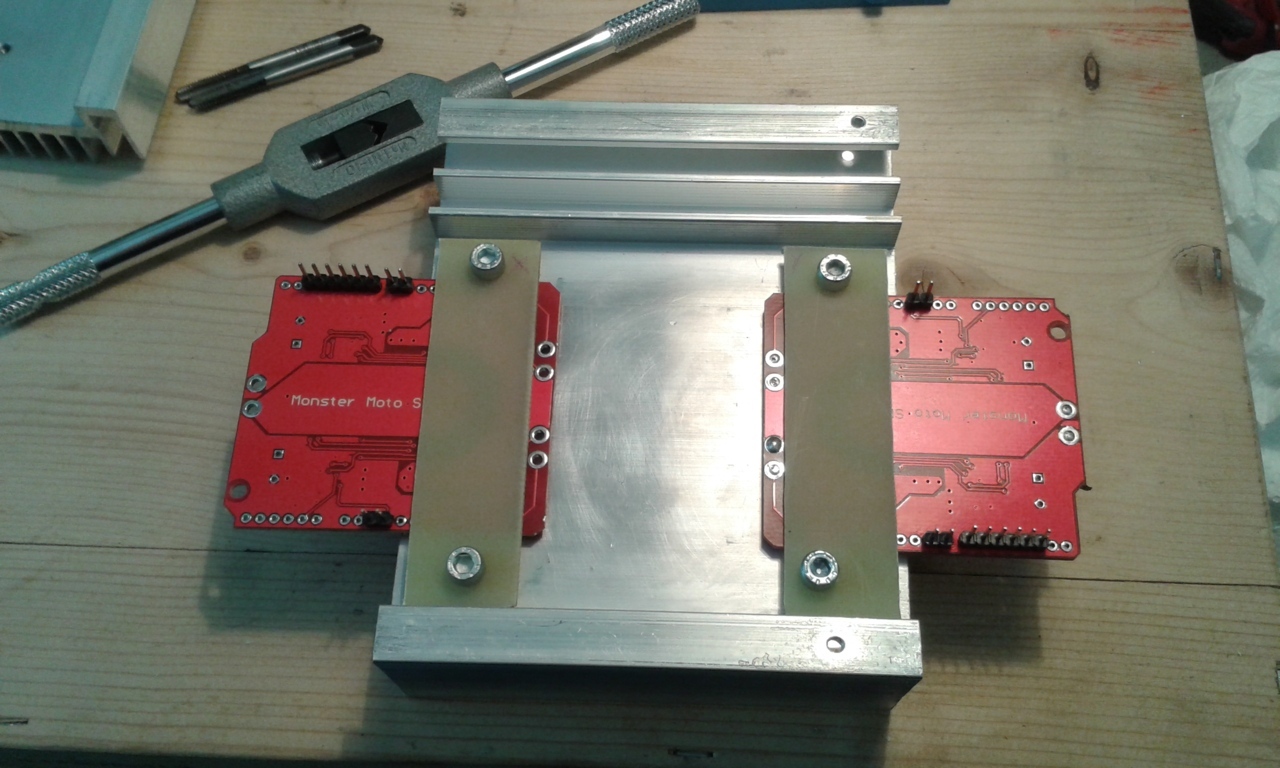

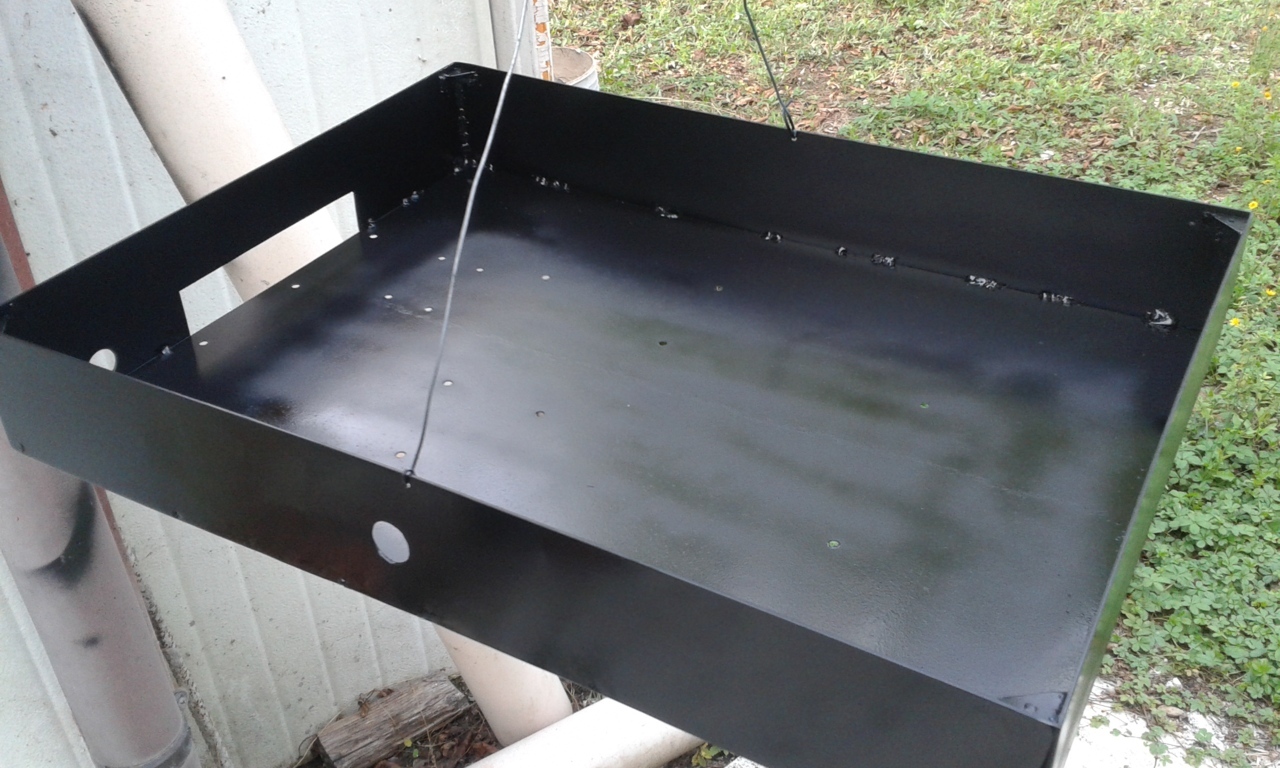

    ok, let's move on to the construction of the power unit
    material used:
    1 Arduino R3uno
    3 MM
    3 Power supplies 12 v 30Amp

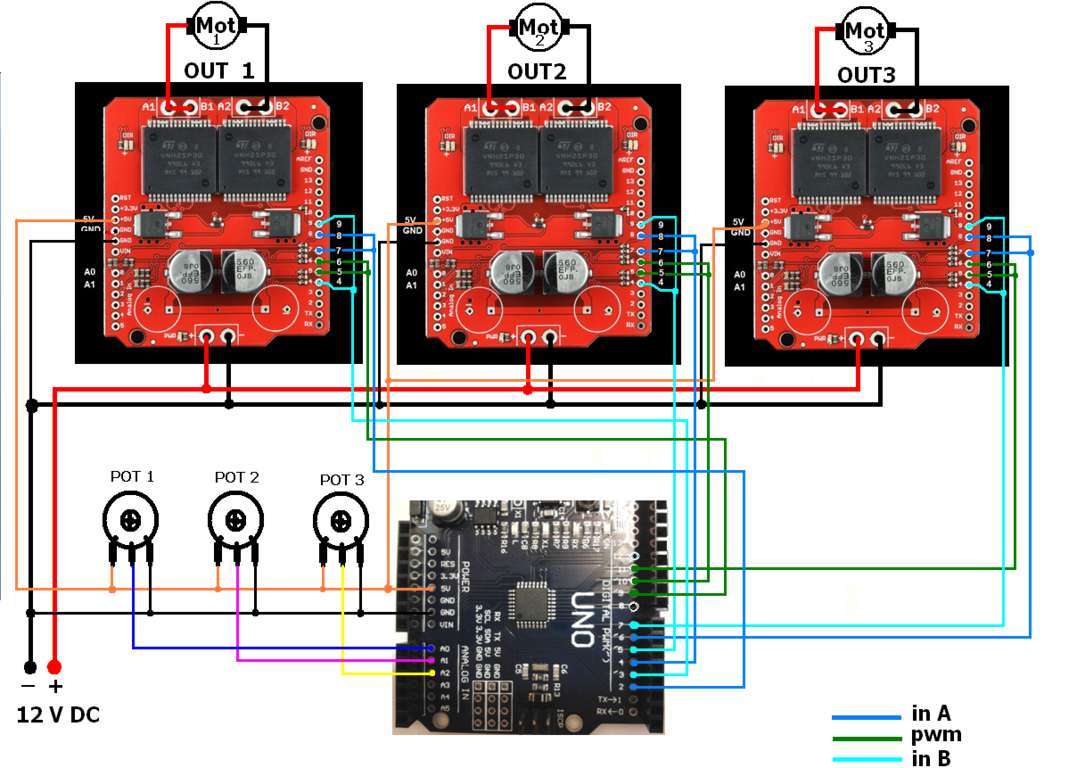

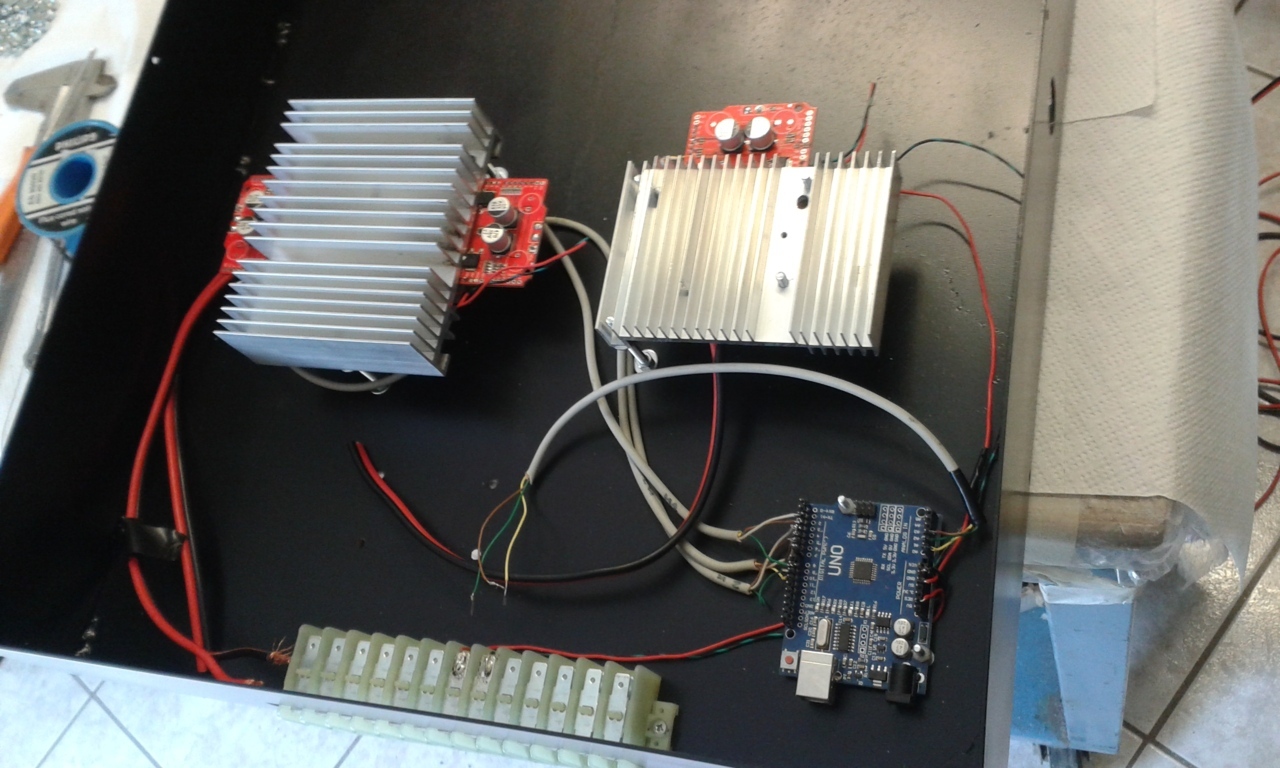

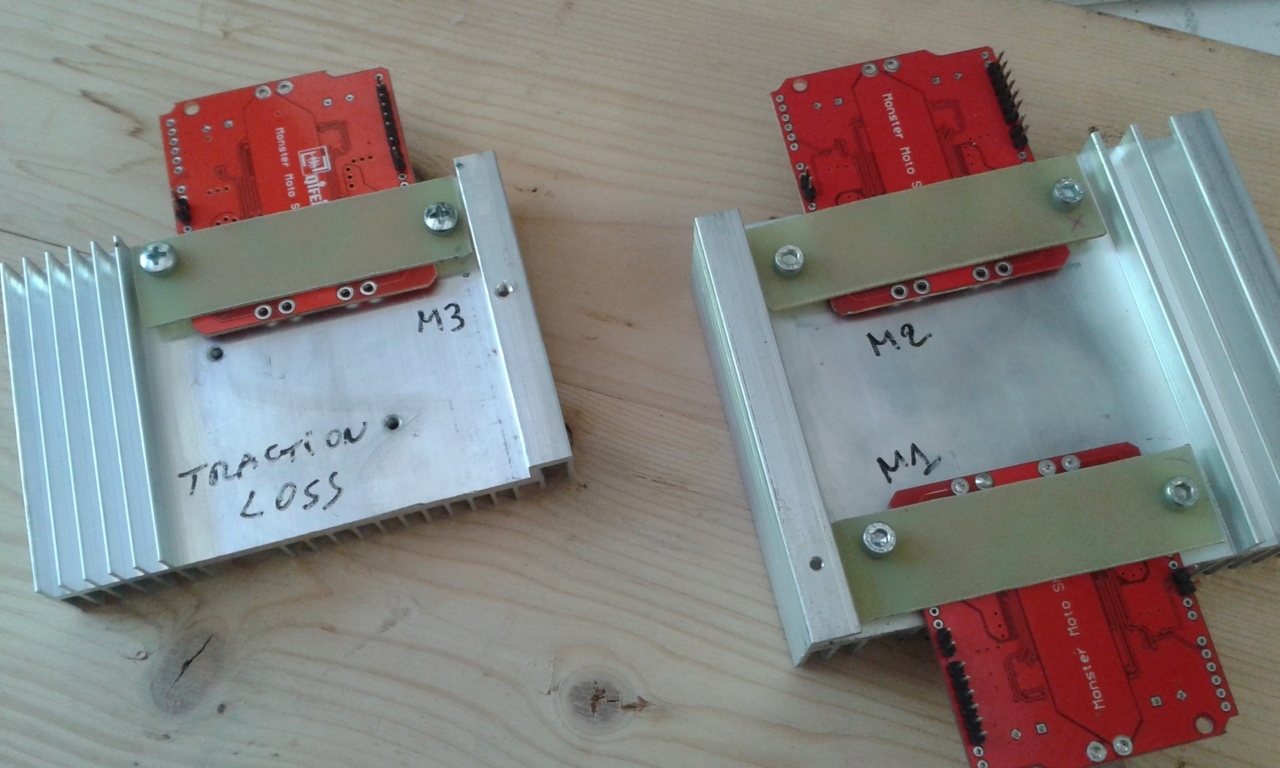

    the electric scheme used is this:
    arduino piu 3  motormonster doppia potenza (FILEminimizer).jpg
    the file to load on arduino is SMC3 and you can download it at this link: https: //www.xsimulator.net/community/threads/smc3-arduino-3dof-motor-driver-and-windows-utilities.4957/

    15.jpg 16.jpg 17.jpg 20.jpg 21.jpg 22.jpg 23.jpg 24.jpg

    CAUTION!! in case you use more power supplies as I did, it is necessary to connect all the negatives together and with the negative of ARDUINO in order to put all the components to the zero potential with respect to the PC and so you will avoid the malfunctions of all peripherals connected to USB as a steering wheel or various accessories.

    let's move on to the test I performed for simplicity with simtools v1.3 and rfactor


    the test took place without any problems, some adjustments to the software were enough and everything went well. The SMC3 software is fantastic !!

    ok, next time we start with the frame of the simulator
    Last edited: Jan 23, 2018
  6. djboss001

    djboss001 New Member

    Joined:
    May 25, 2014
    Messages:
    27
    Balance:
    57Coins
    Ratings:
    +9 / 0 / -0
    My Motion Simulator:
    2DOF
    Nice test and good job for the fixation of potentiometer on the wiper motor.
  7. Andrea 1968

    Andrea 1968 Member

    Joined:
    Jul 1, 2015
    Messages:
    60
    Location:
    italia
    Balance:
    159Coins
    Ratings:
    +37 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    thanks, with nut and locknut you can make a fine and precise adjustment
  8. Andrea 1968

    Andrea 1968 Member

    Joined:
    Jul 1, 2015
    Messages:
    60
    Location:
    italia
    Balance:
    159Coins
    Ratings:
    +37 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

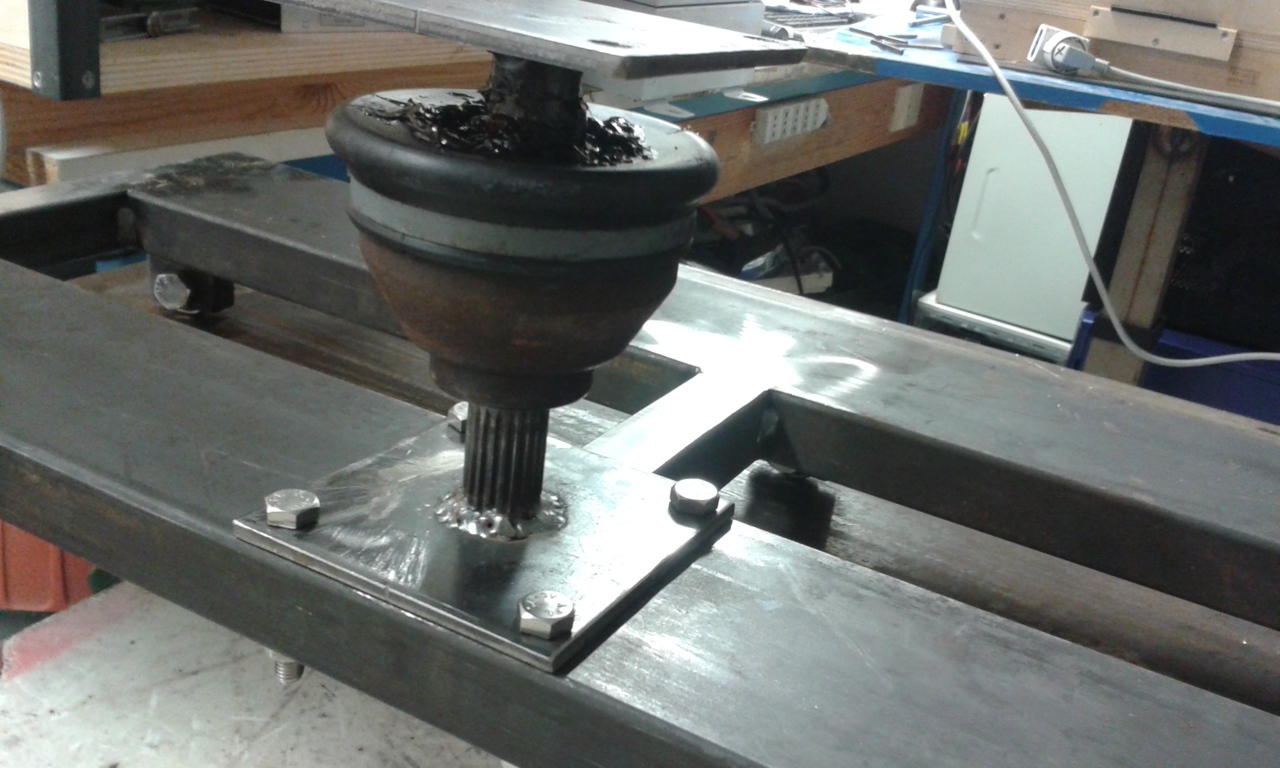

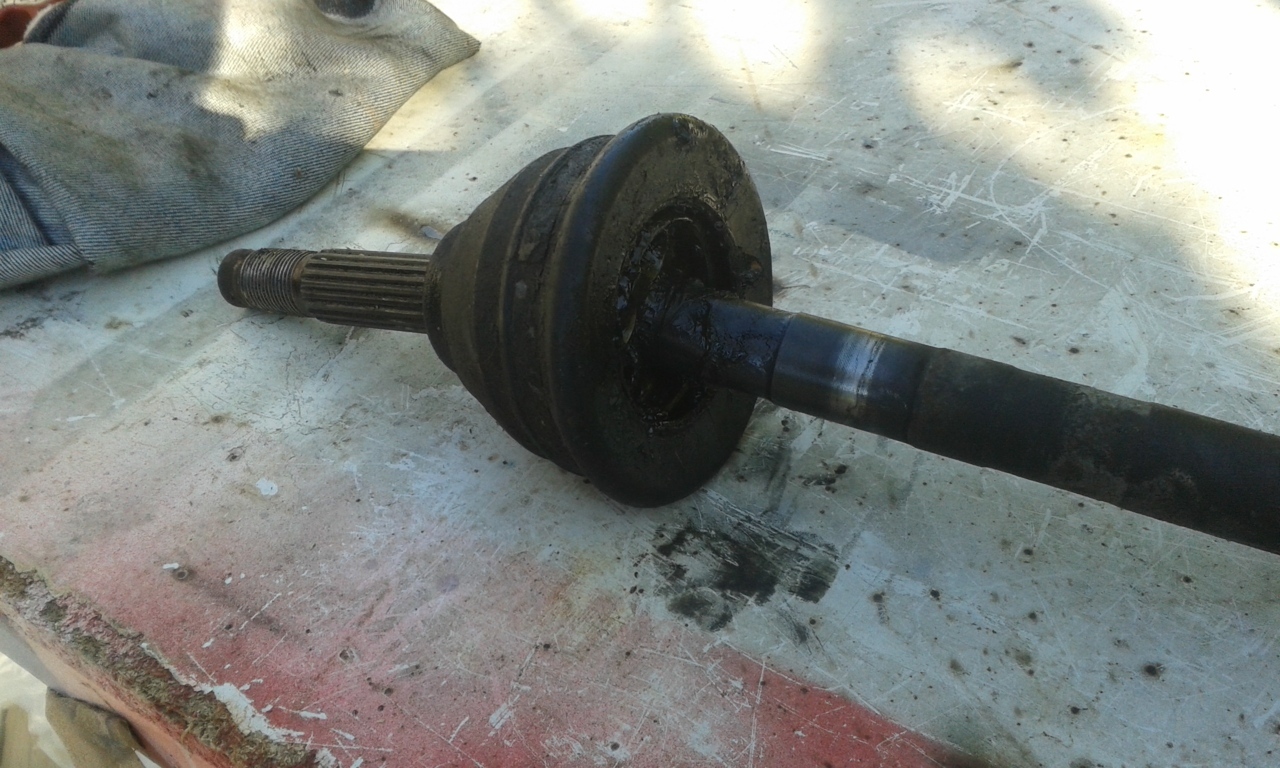

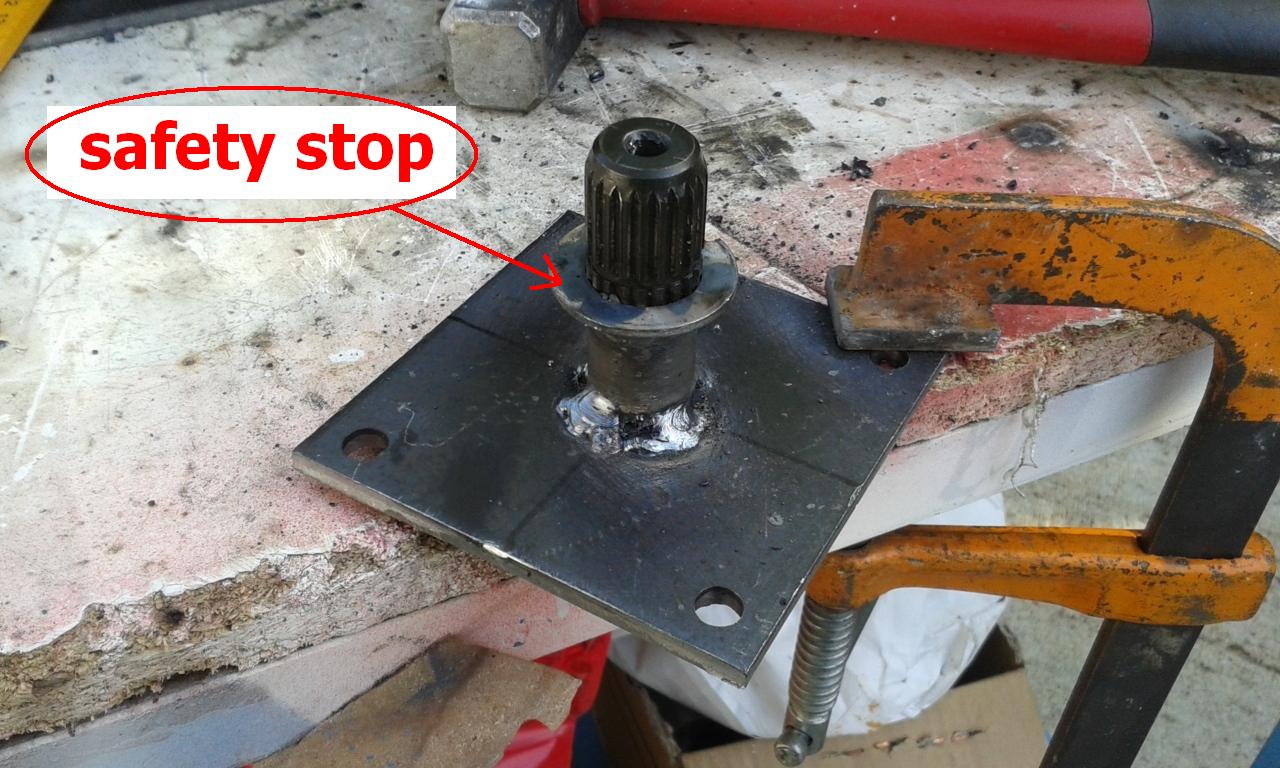

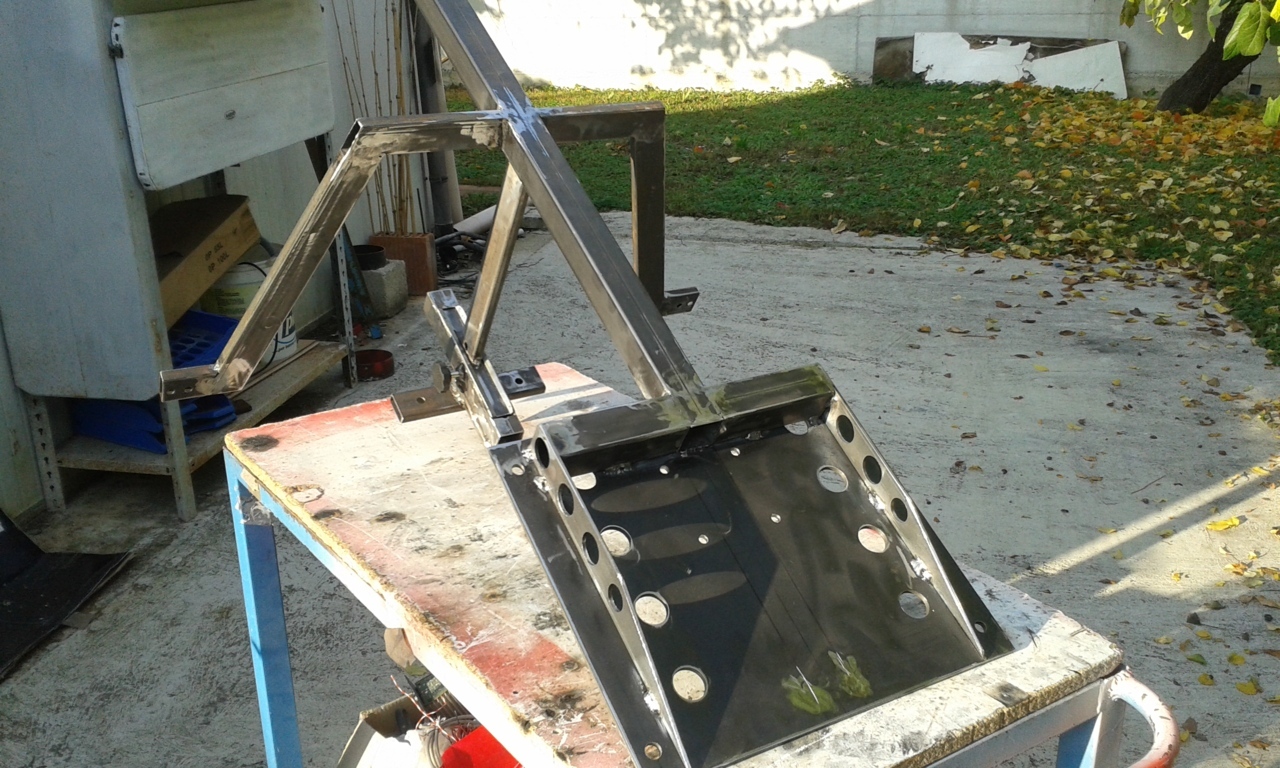

    For the mechanical part I would say to start with the articulated joint.
    I used a semi-axis of a truly massive FIAT PUNTO.
    25.jpg 26.jpg 27.jpg

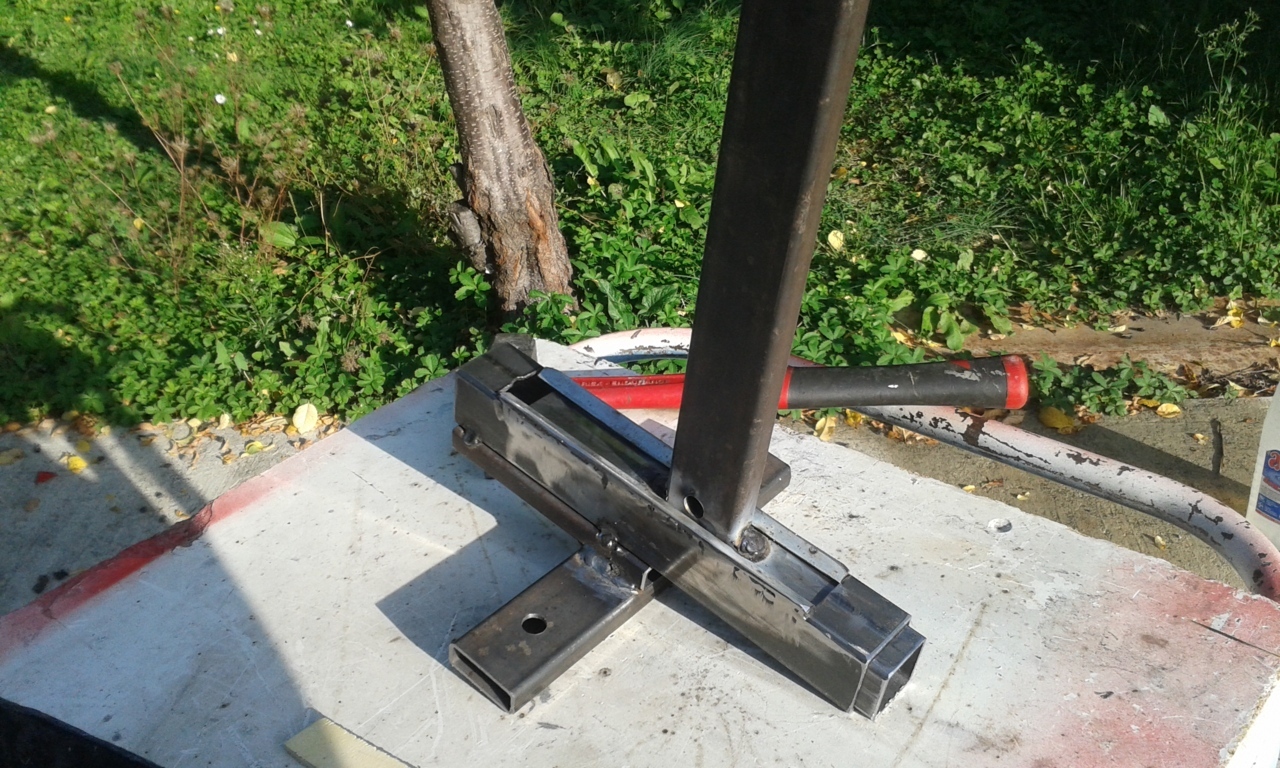

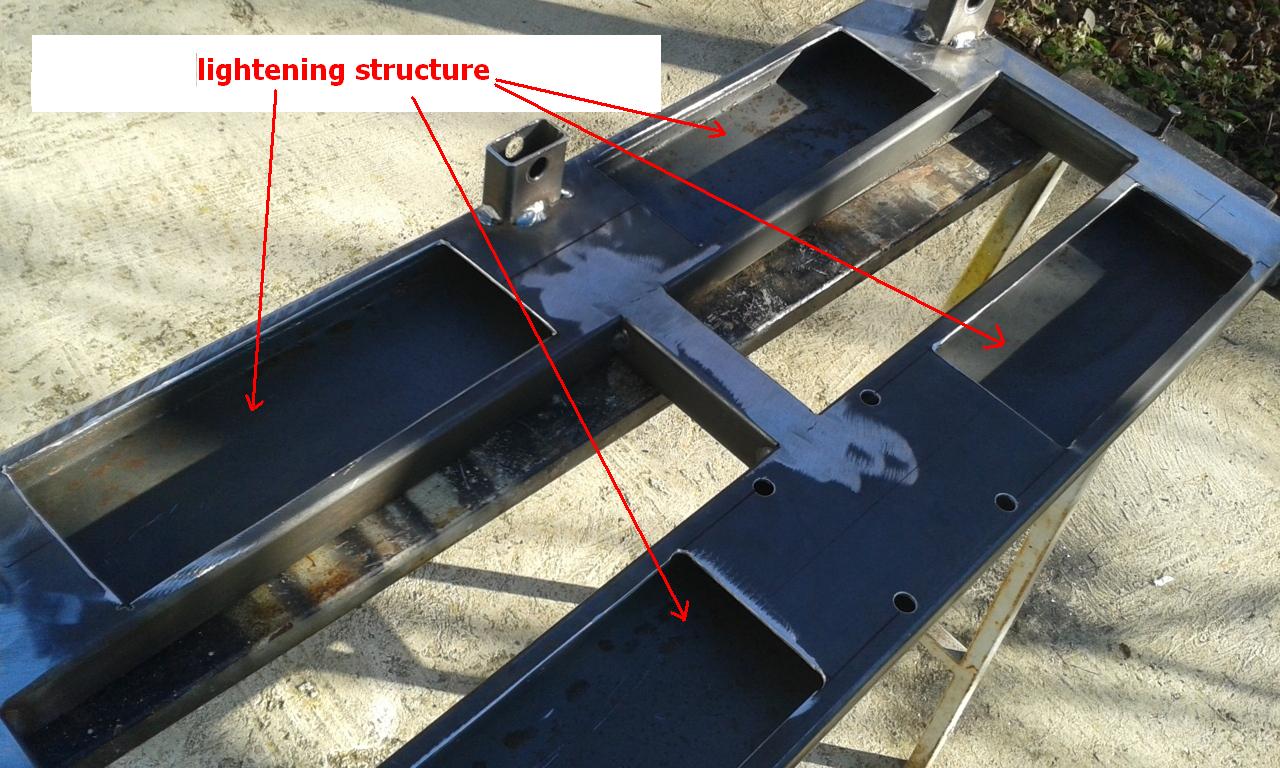

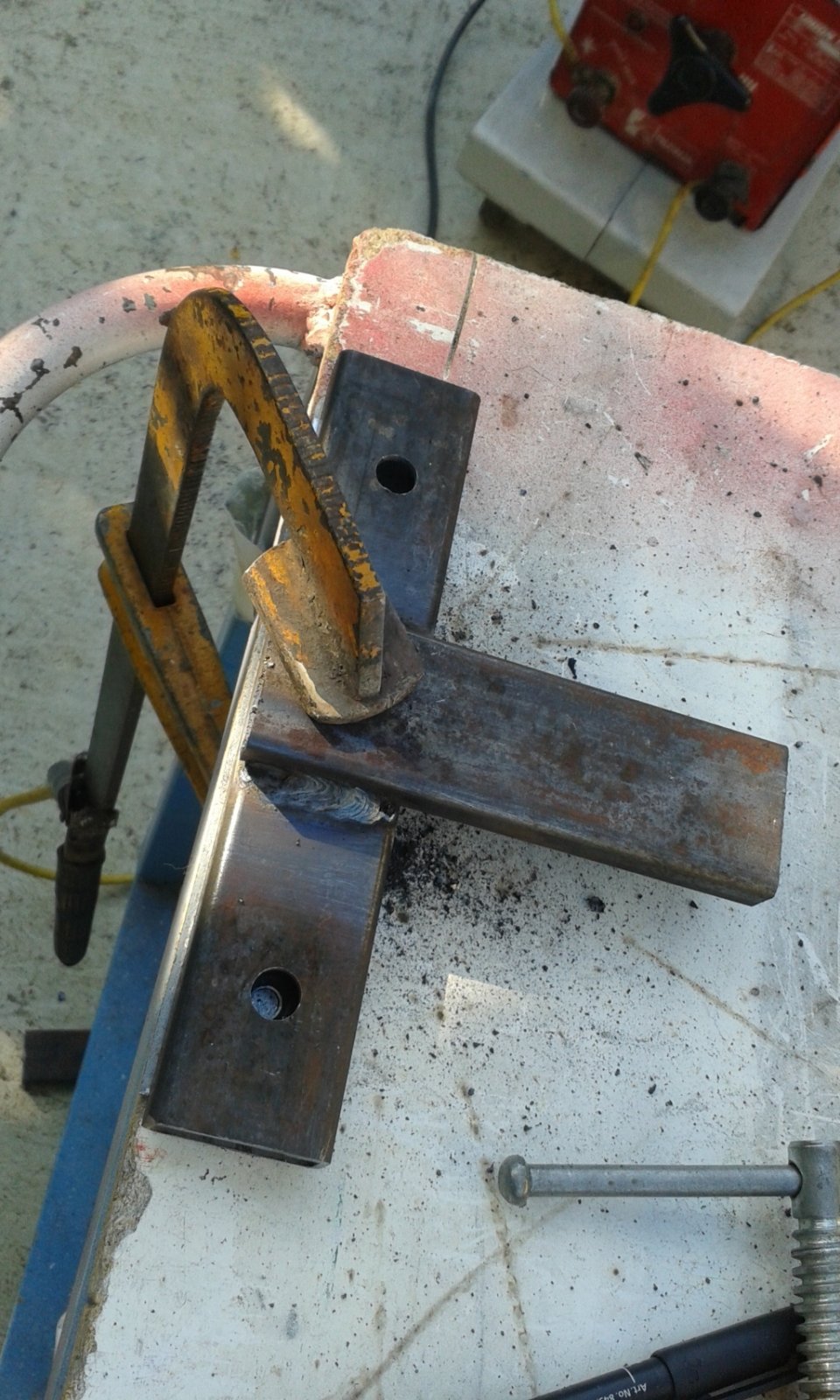

    this cage structure allows perfect alignment before carrying out the final welding
    antirust
    final painting color BLACK GOFFRED
    I can guarantee you that it resists a lot of weight and above all it has very fluid movements
    • Like Like x 1
  9. Andrea 1968

    Andrea 1968 Member

    Joined:
    Jul 1, 2015
    Messages:
    60
    Location:
    italia
    Balance:
    159Coins
    Ratings:
    +37 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

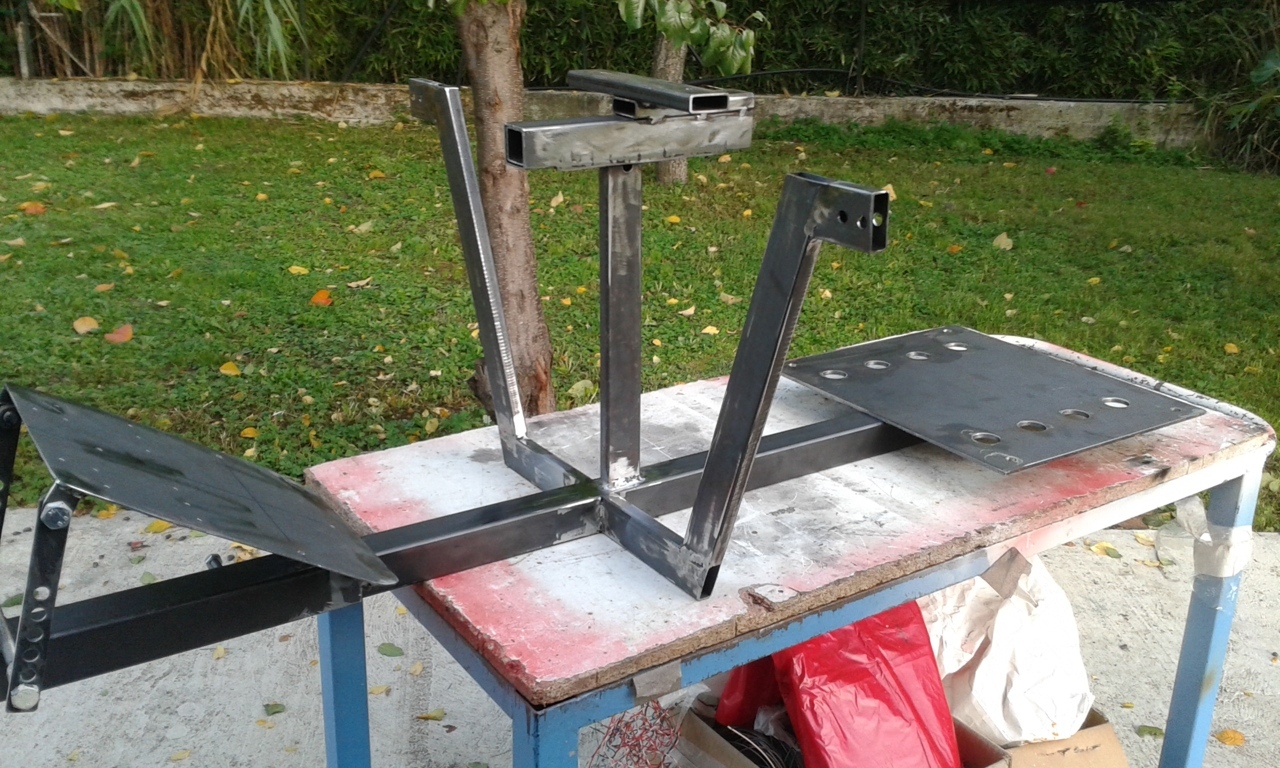

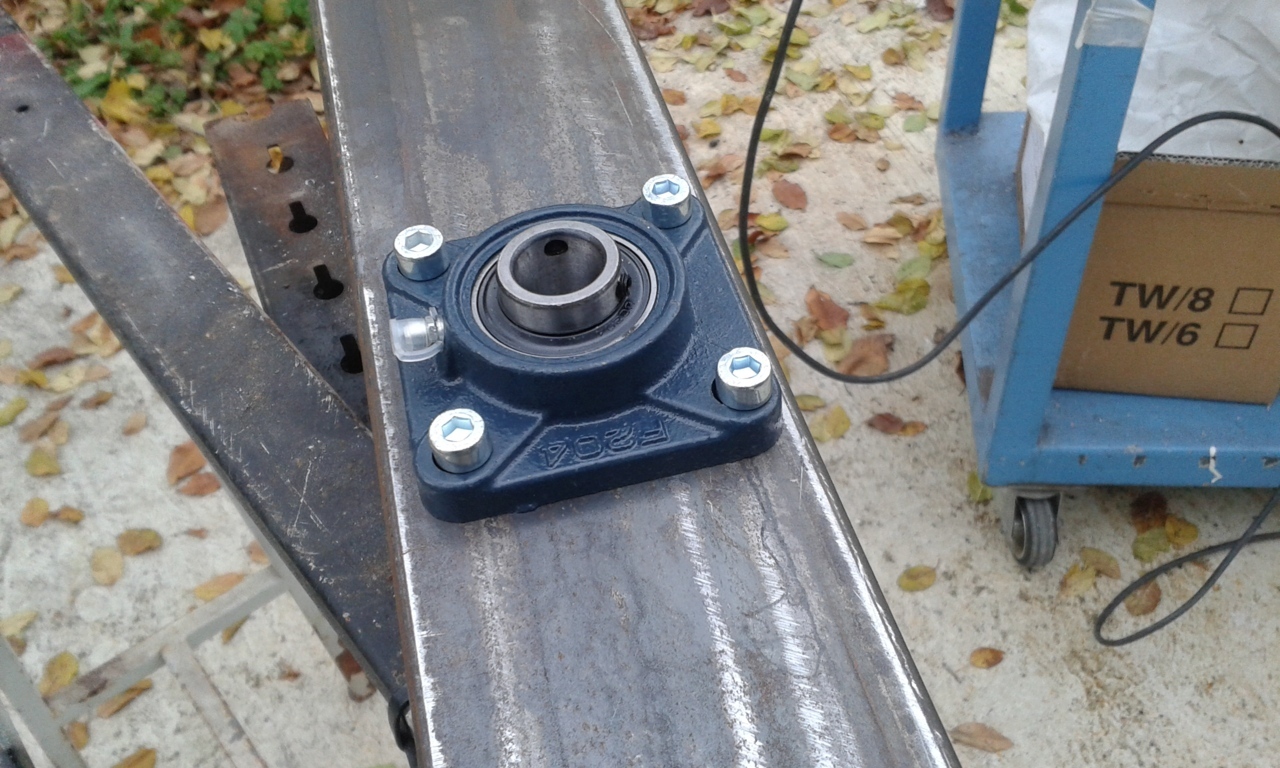

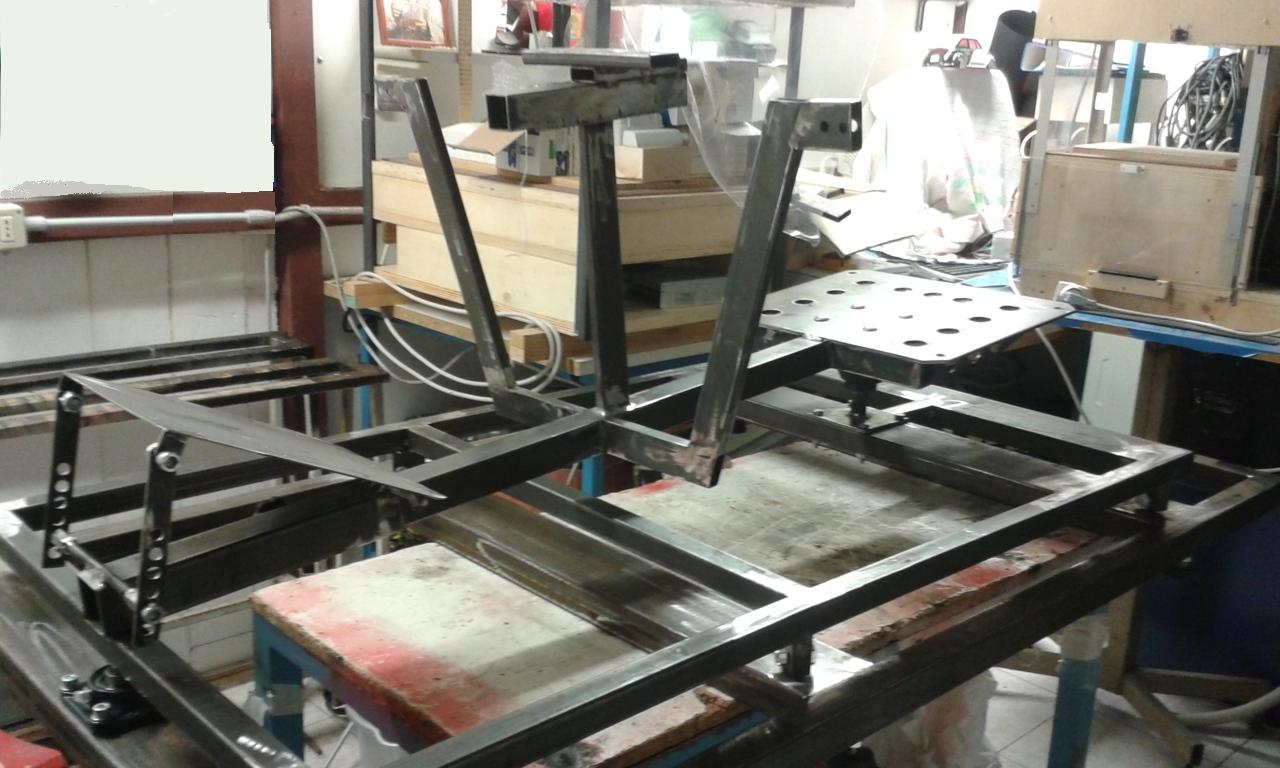

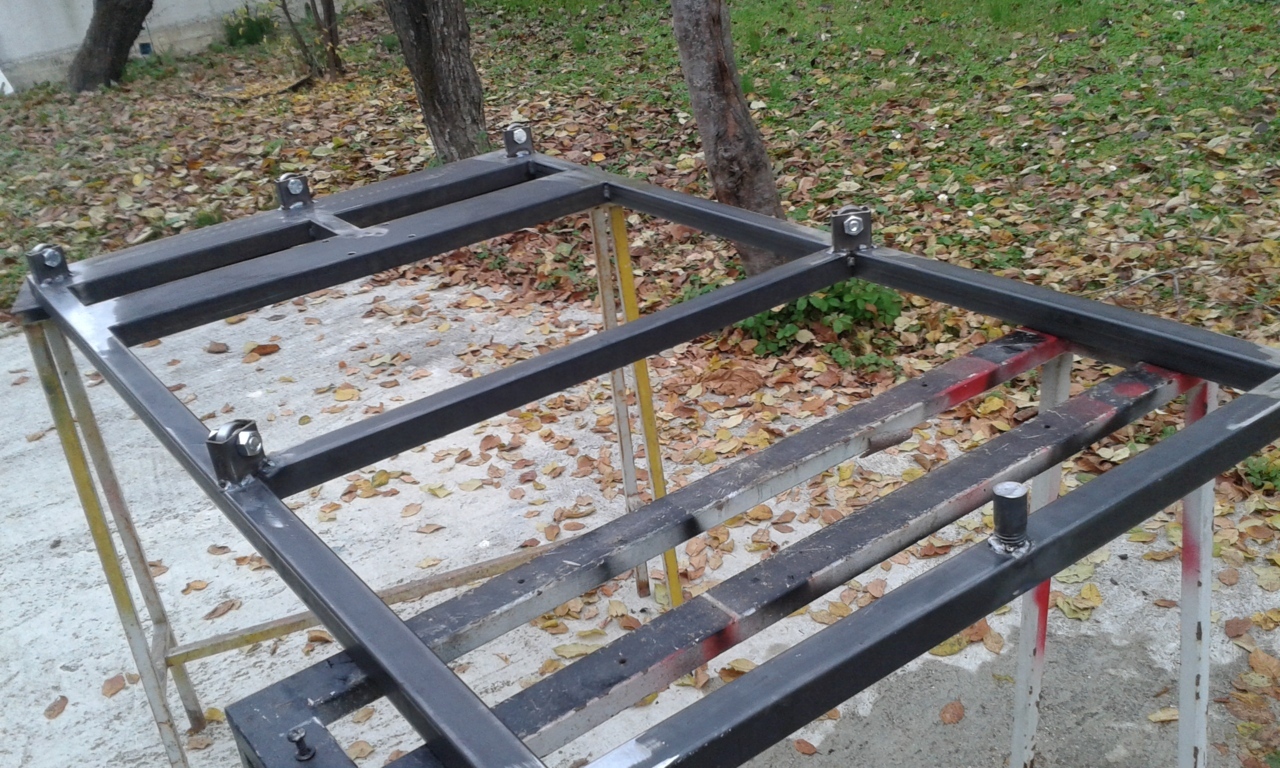

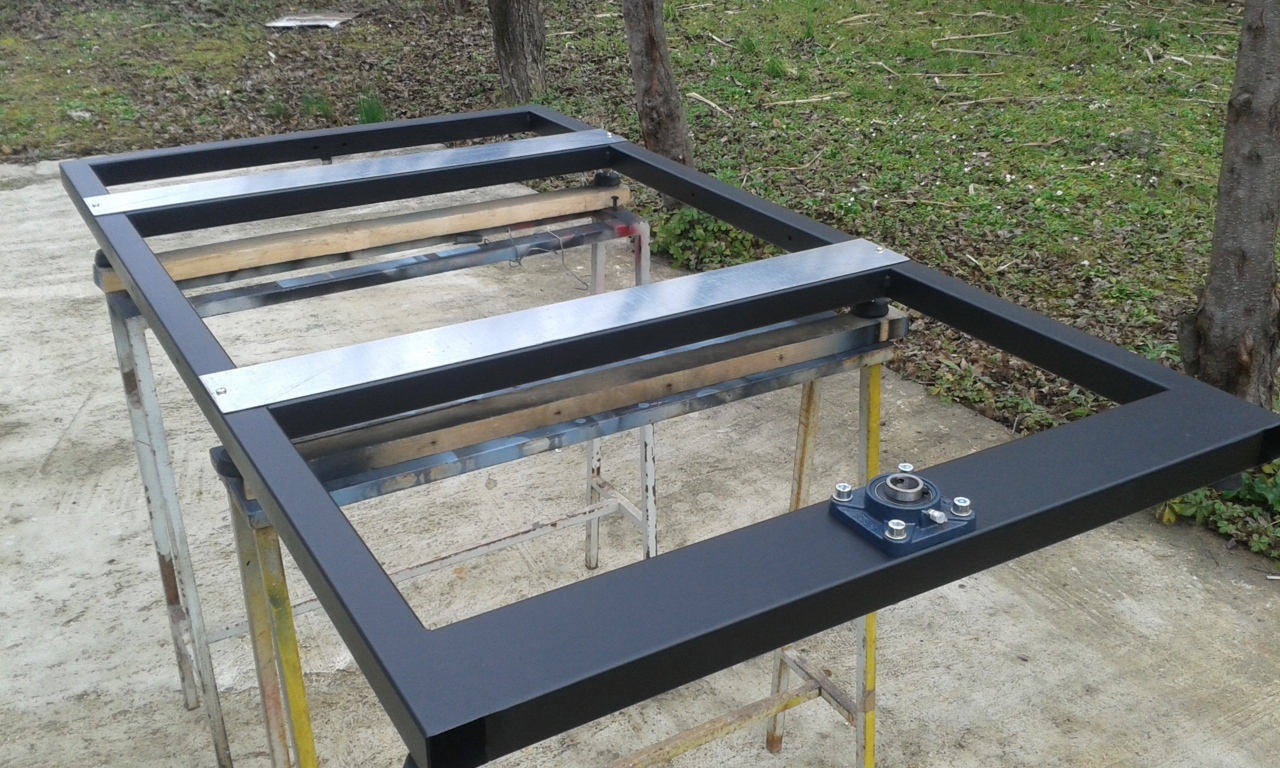

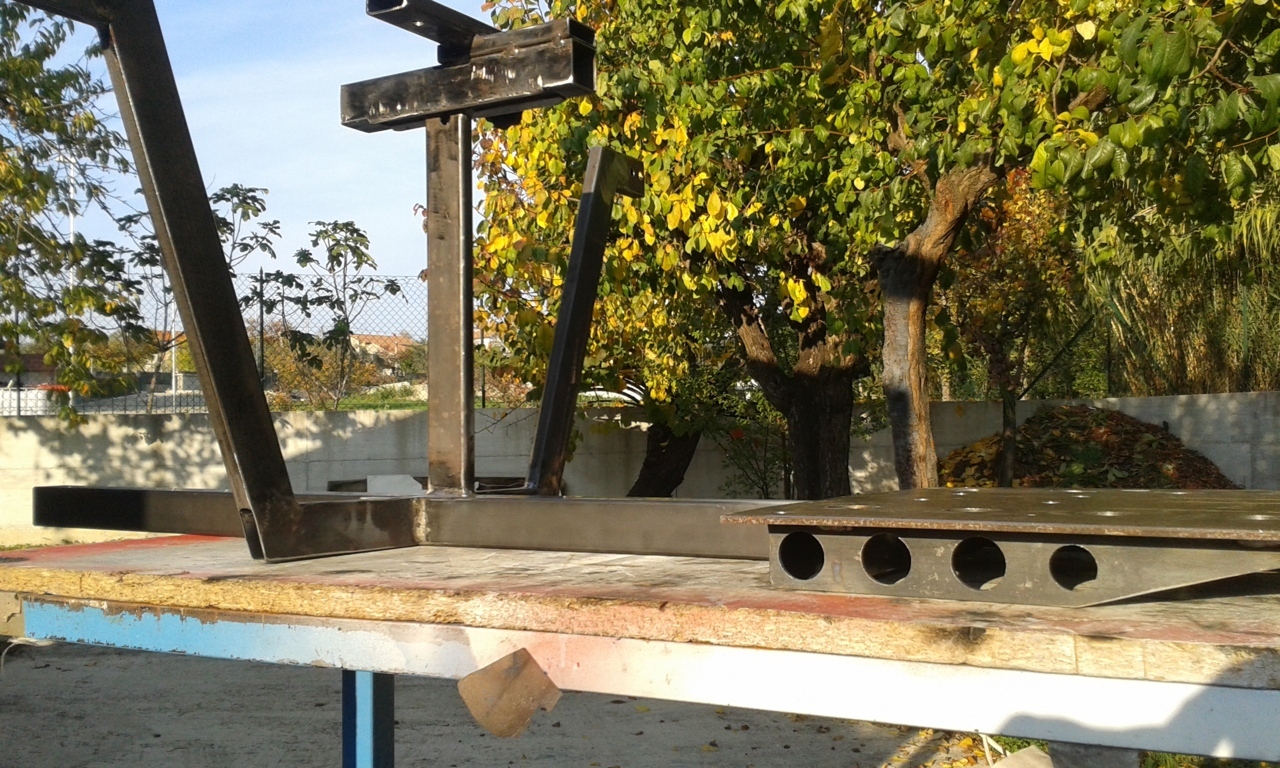

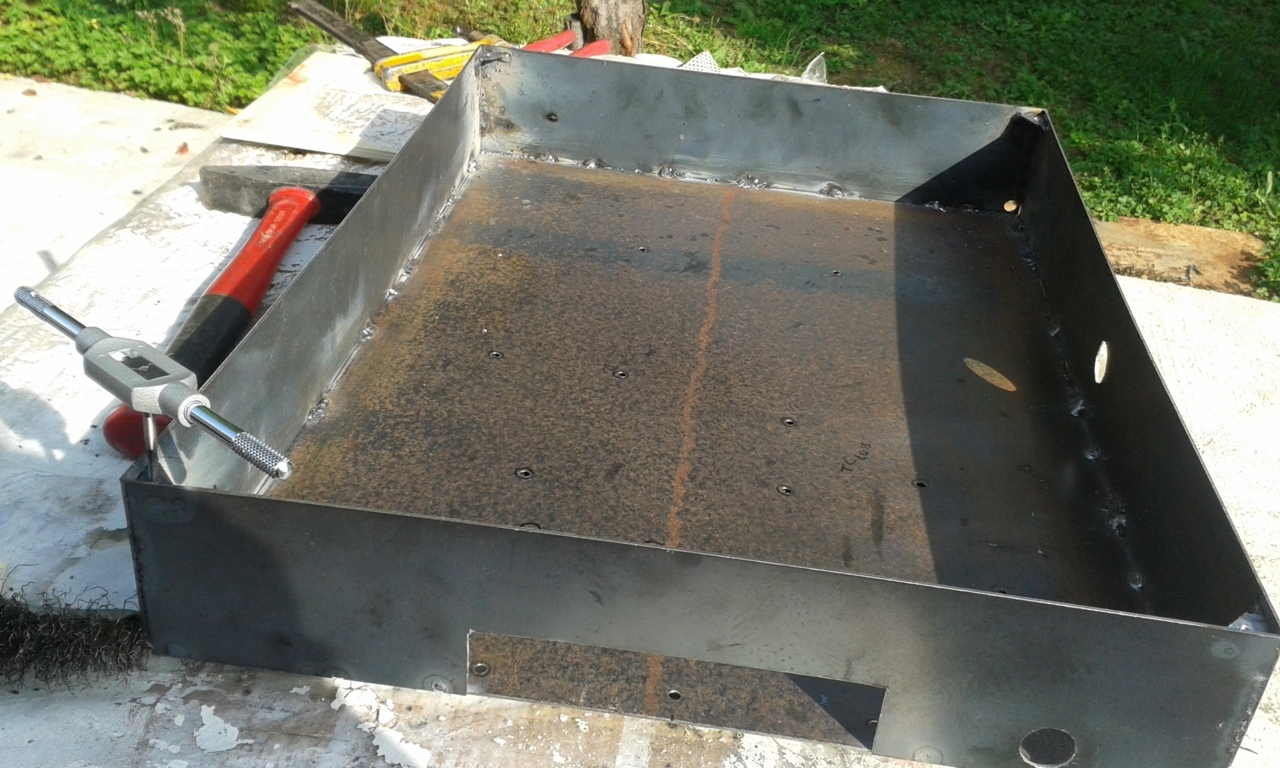

    now we move on to making lower frames and mounting bearings

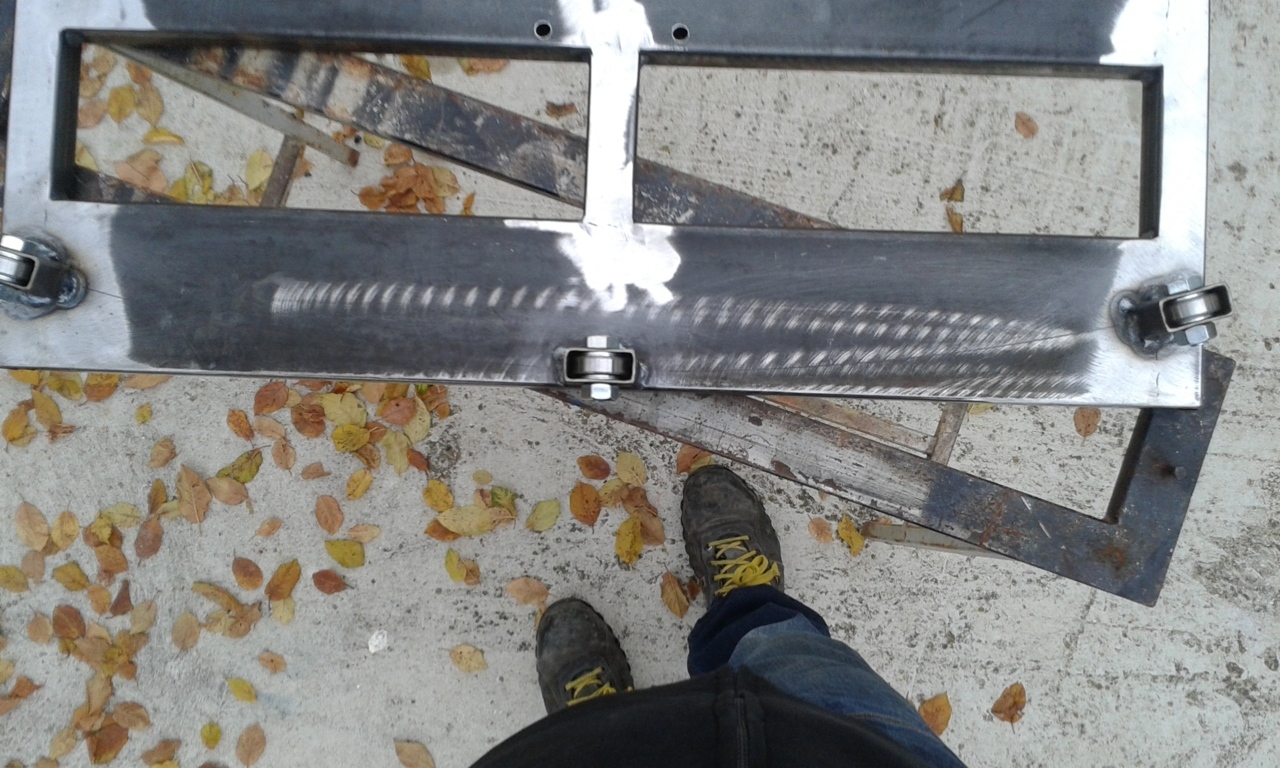

    31.jpg 32.jpg 33.jpg
    34.jpg 35.jpg 36.jpg
  10. Andrea 1968

    Andrea 1968 Member

    Joined:
    Jul 1, 2015
    Messages:
    60
    Location:
    italia
    Balance:
    159Coins
    Ratings:
    +37 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
  11. Andrea 1968

    Andrea 1968 Member

    Joined:
    Jul 1, 2015
    Messages:
    60
    Location:
    italia
    Balance:
    159Coins
    Ratings:
    +37 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

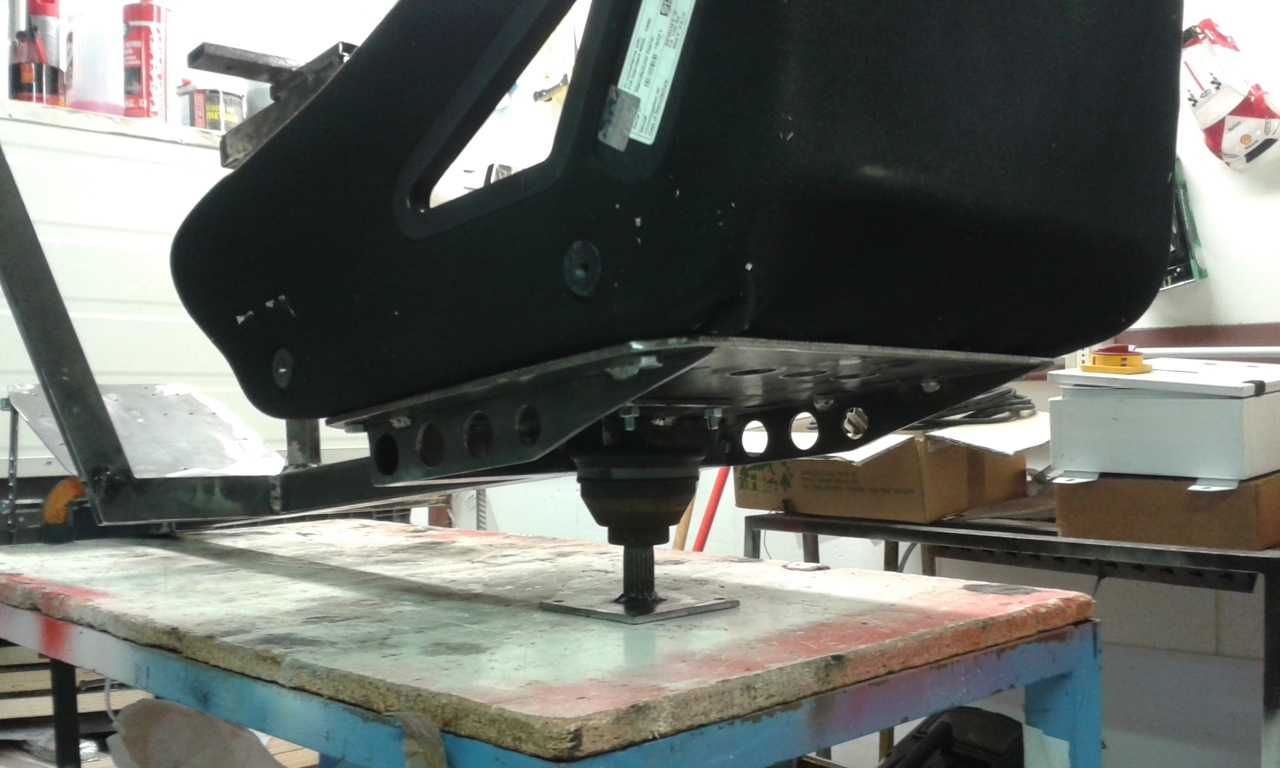

    45.jpg 46.jpg 47.jpg 48.jpg 51.jpg 50.jpg 49.jpg 52.jpg
    • Like Like x 2
  12. Andrea 1968

    Andrea 1968 Member

    Joined:
    Jul 1, 2015
    Messages:
    60
    Location:
    italia
    Balance:
    159Coins
    Ratings:
    +37 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    The position of the joint has been calculated to remain in perfect balance with all the components mounted and for a person of average height and weight of about 80 kg
    • Like Like x 1
  13. Andrea 1968

    Andrea 1968 Member

    Joined:
    Jul 1, 2015
    Messages:
    60
    Location:
    italia
    Balance:
    159Coins
    Ratings:
    +37 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

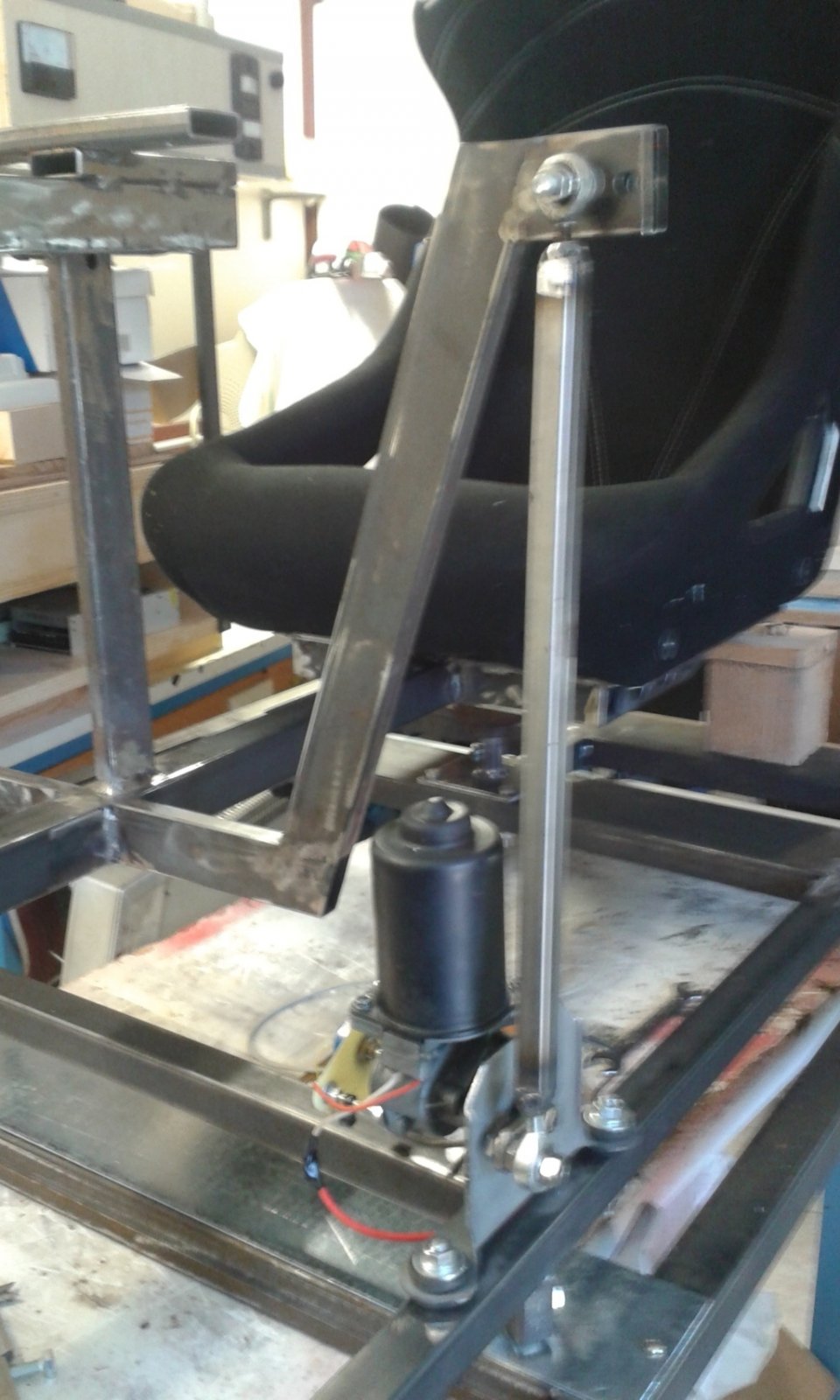

    we install the axis1 and axis 2 motors

    gokart steering heads

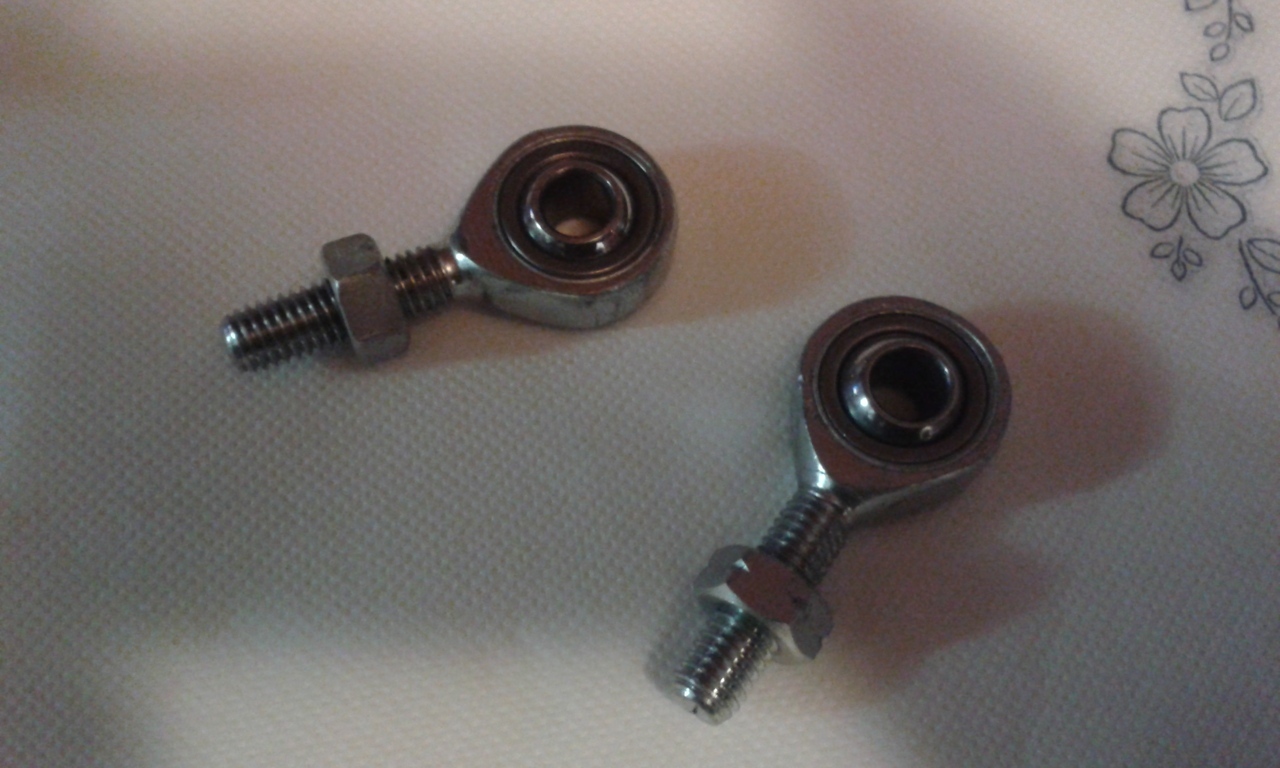

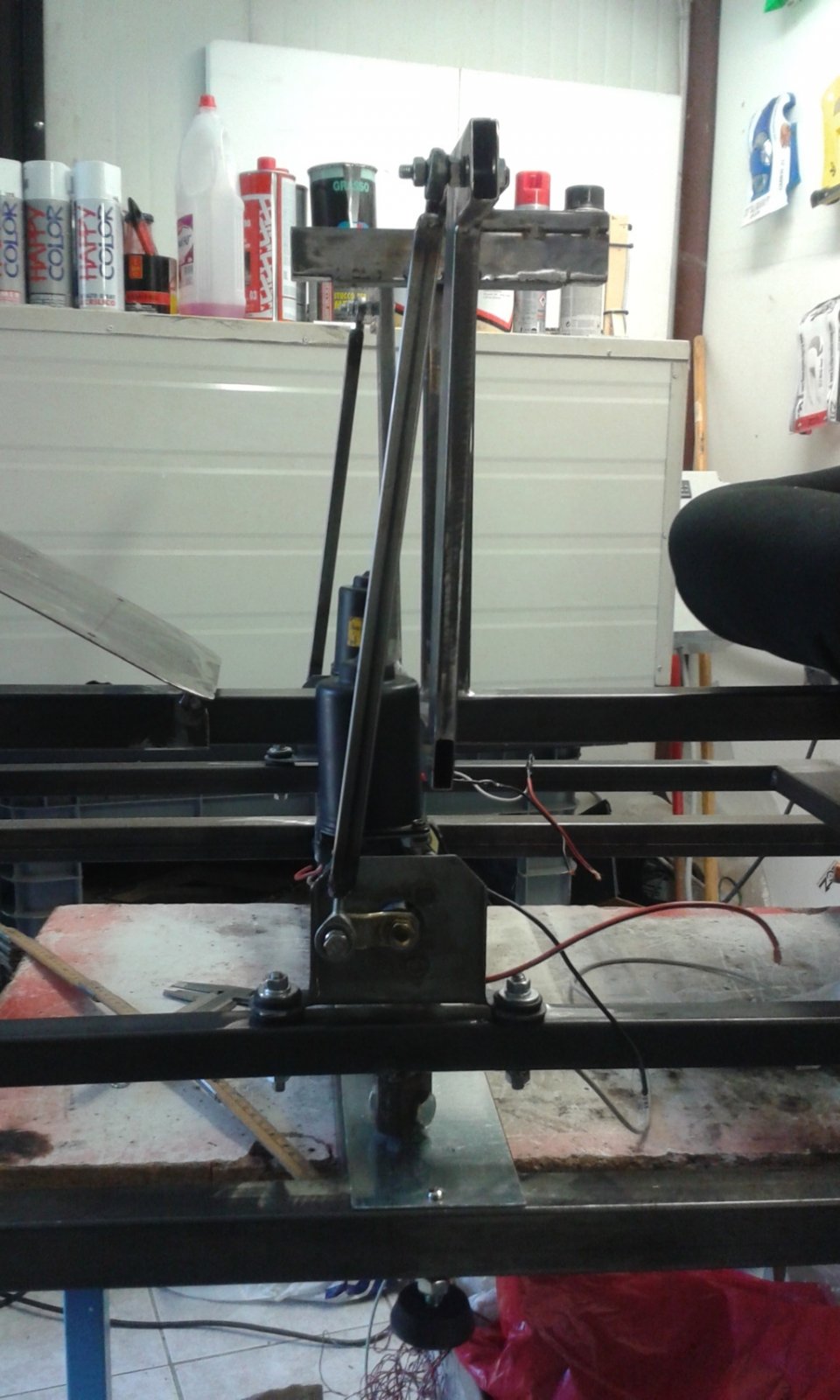

    57.jpg 56.jpg 55.jpg 58.jpg 63.jpg
    Last edited: Jan 25, 2018
  14. Andrea 1968

    Andrea 1968 Member

    Joined:
    Jul 1, 2015
    Messages:
    60
    Location:
    italia
    Balance:
    159Coins
    Ratings:
    +37 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

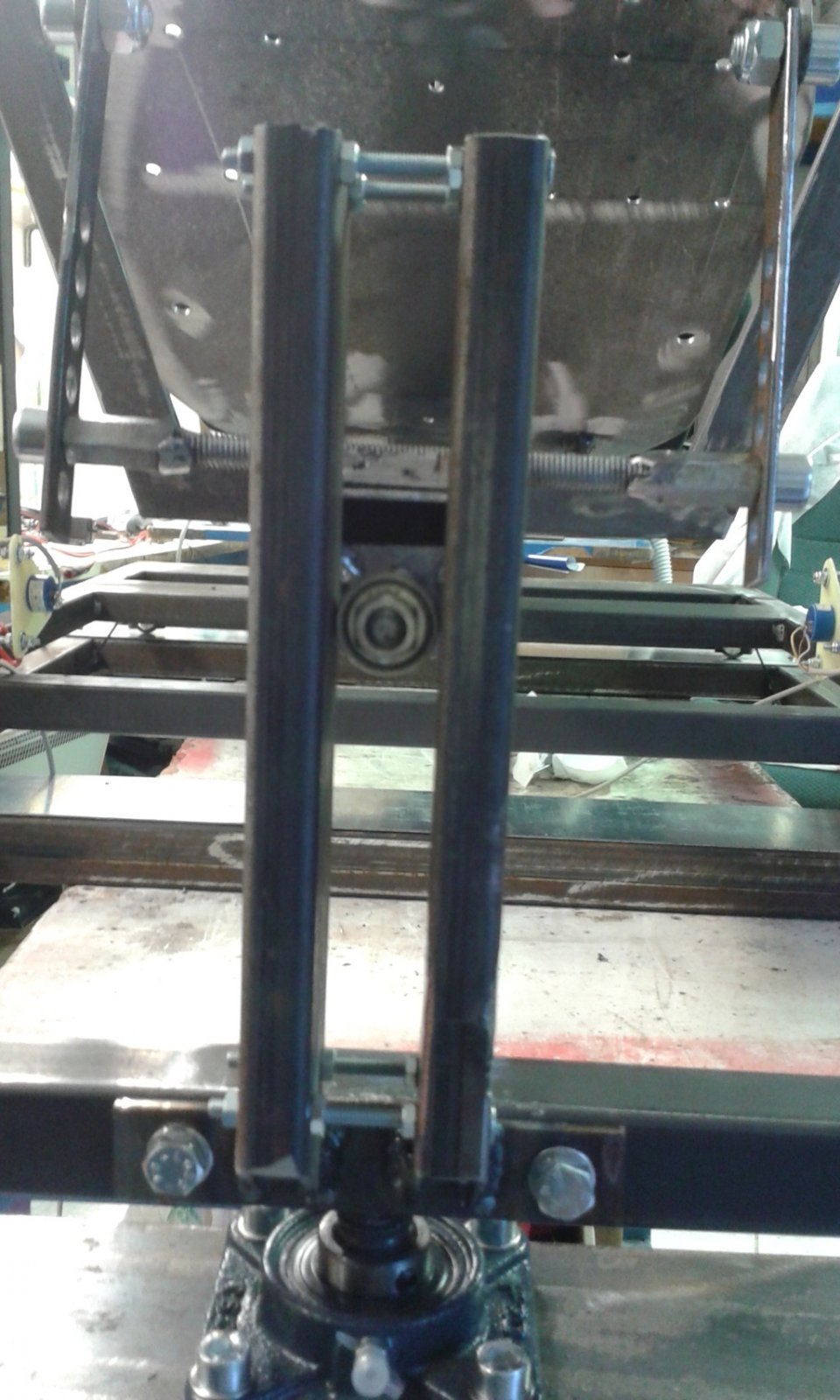

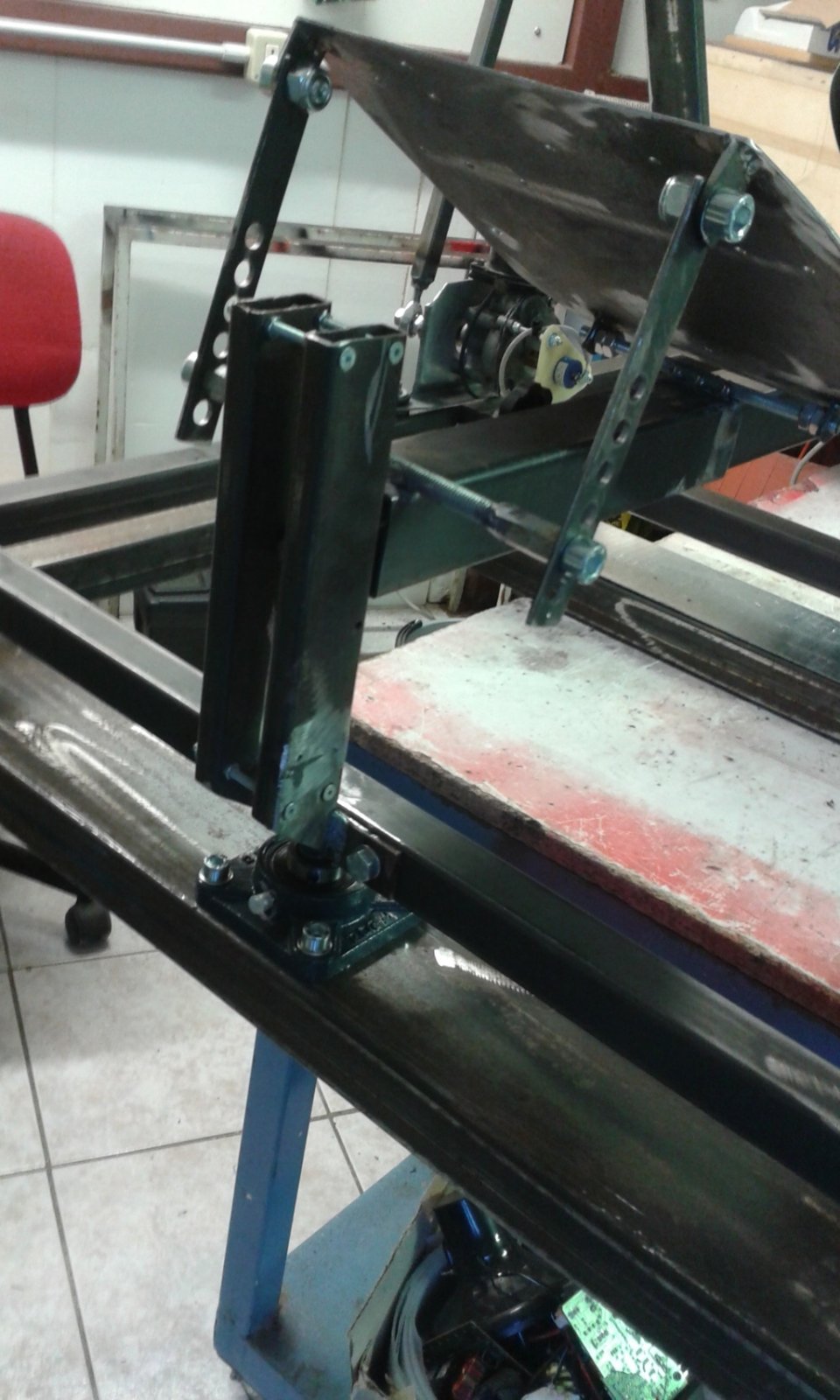

    ANTI-TORSION DEVICE

    59.jpg 60.jpg 61.jpg

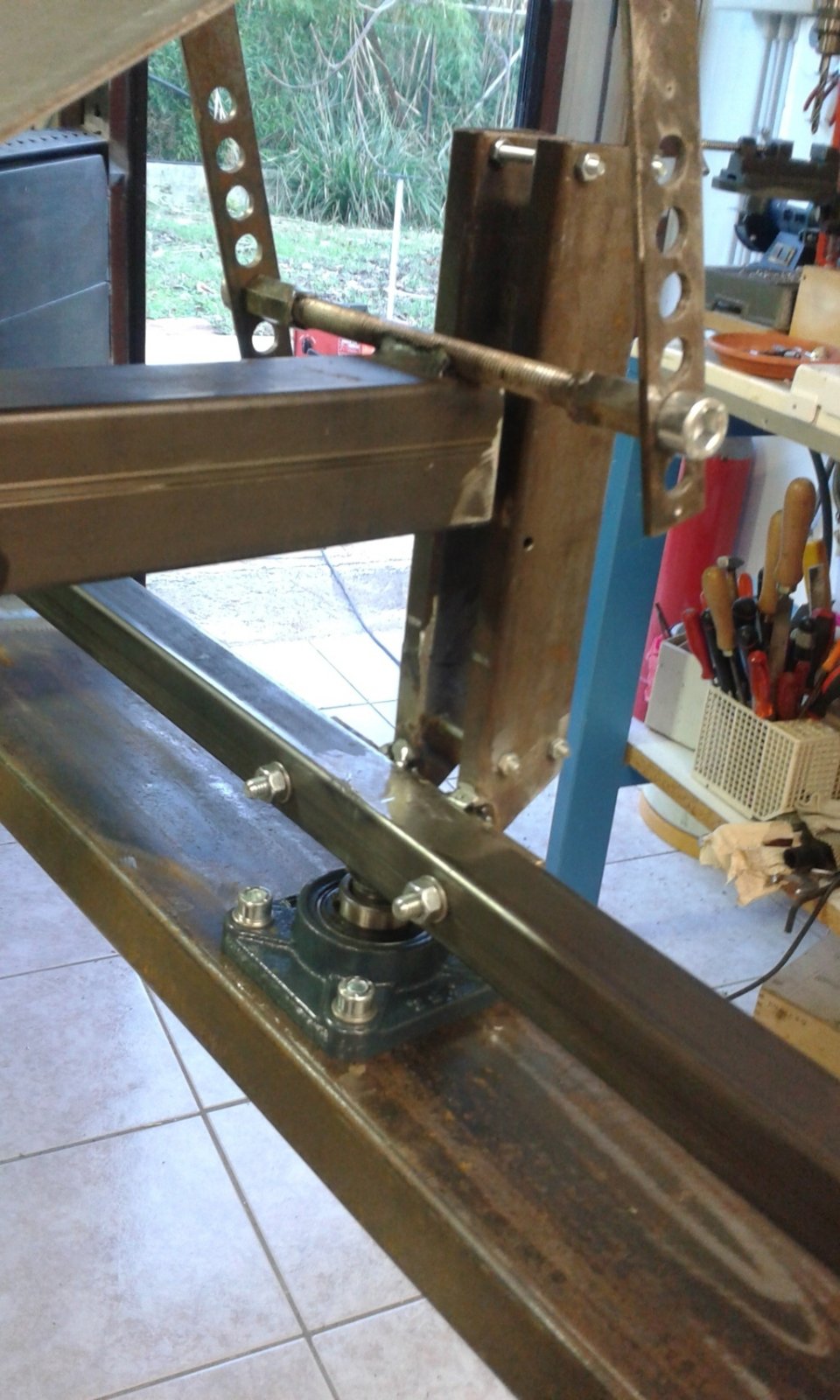

    this device consisting of a fork and a support pin serves to block all the torsional forces on the articular joint, thus stabilizing the entire structure

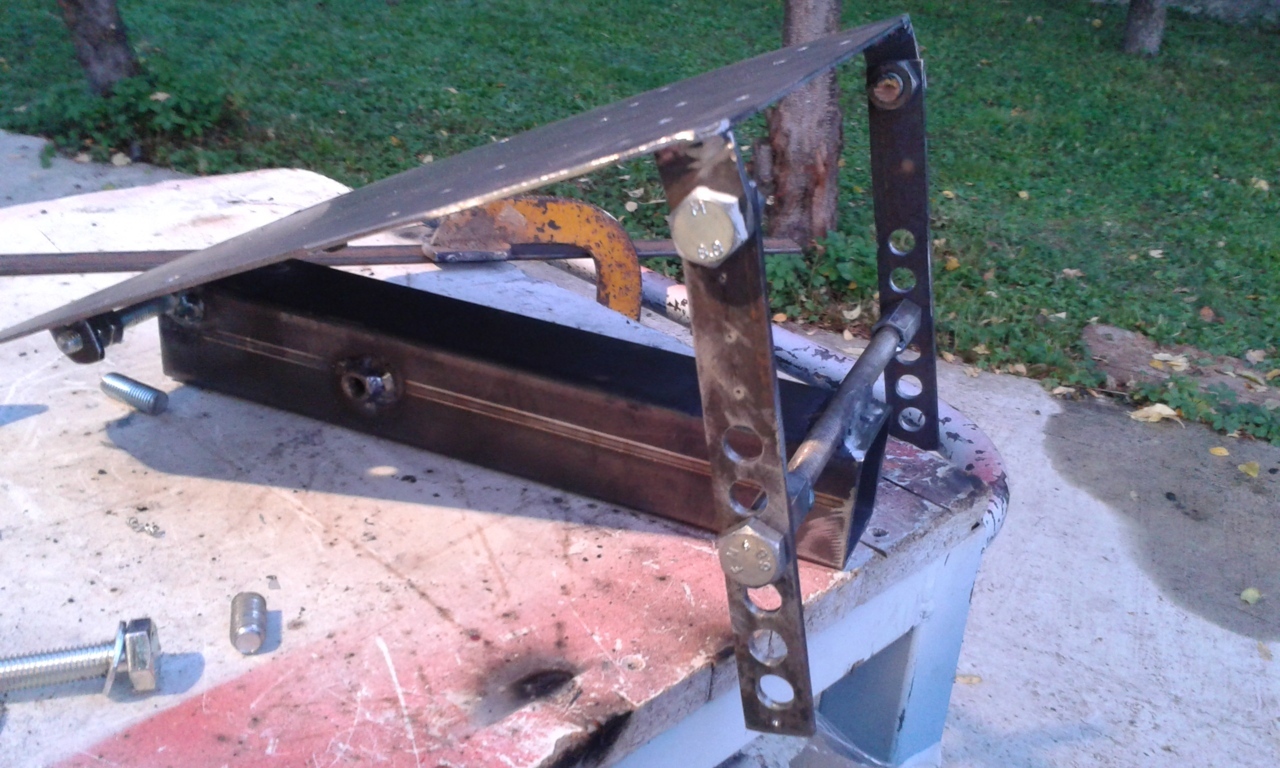

  15. Andrea 1968

    Andrea 1968 Member

    Joined:
    Jul 1, 2015
    Messages:
    60
    Location:
    italia
    Balance:
    159Coins
    Ratings:
    +37 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    We install the Traction loss engine

    62.jpg 64.jpg 65.jpg

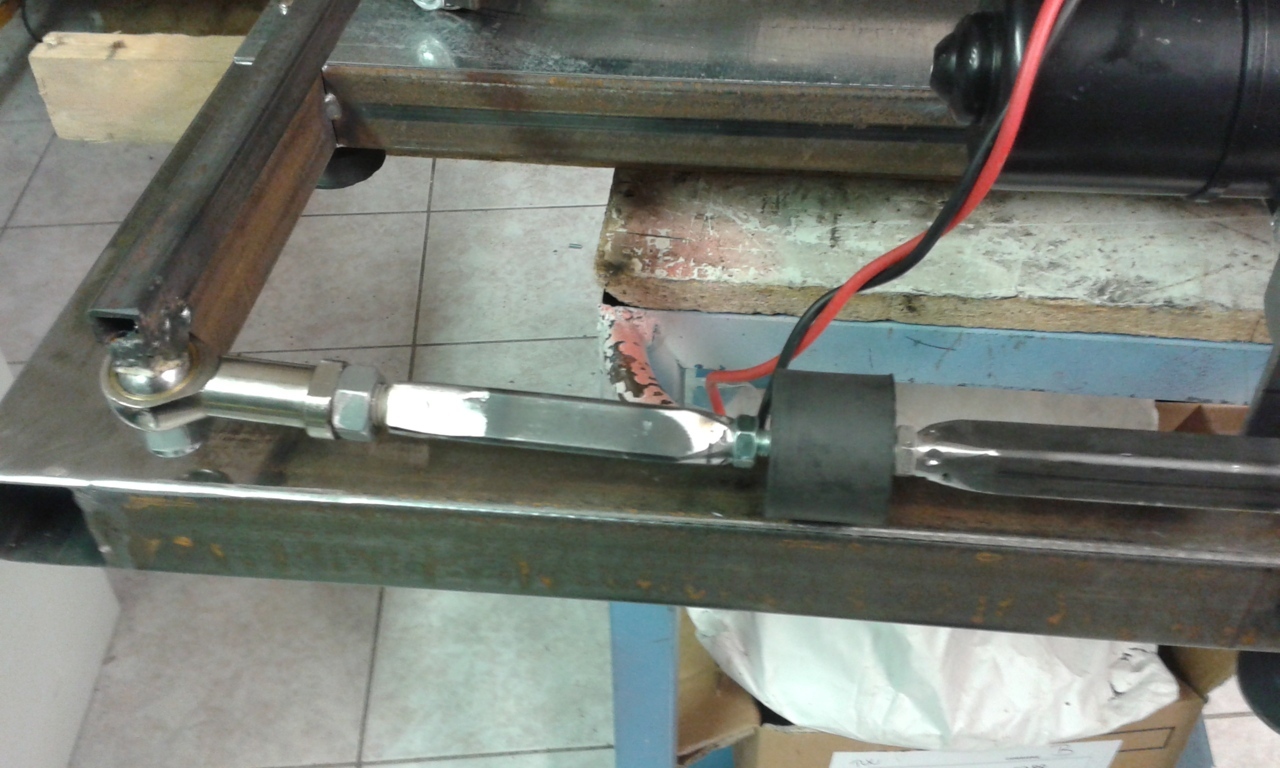

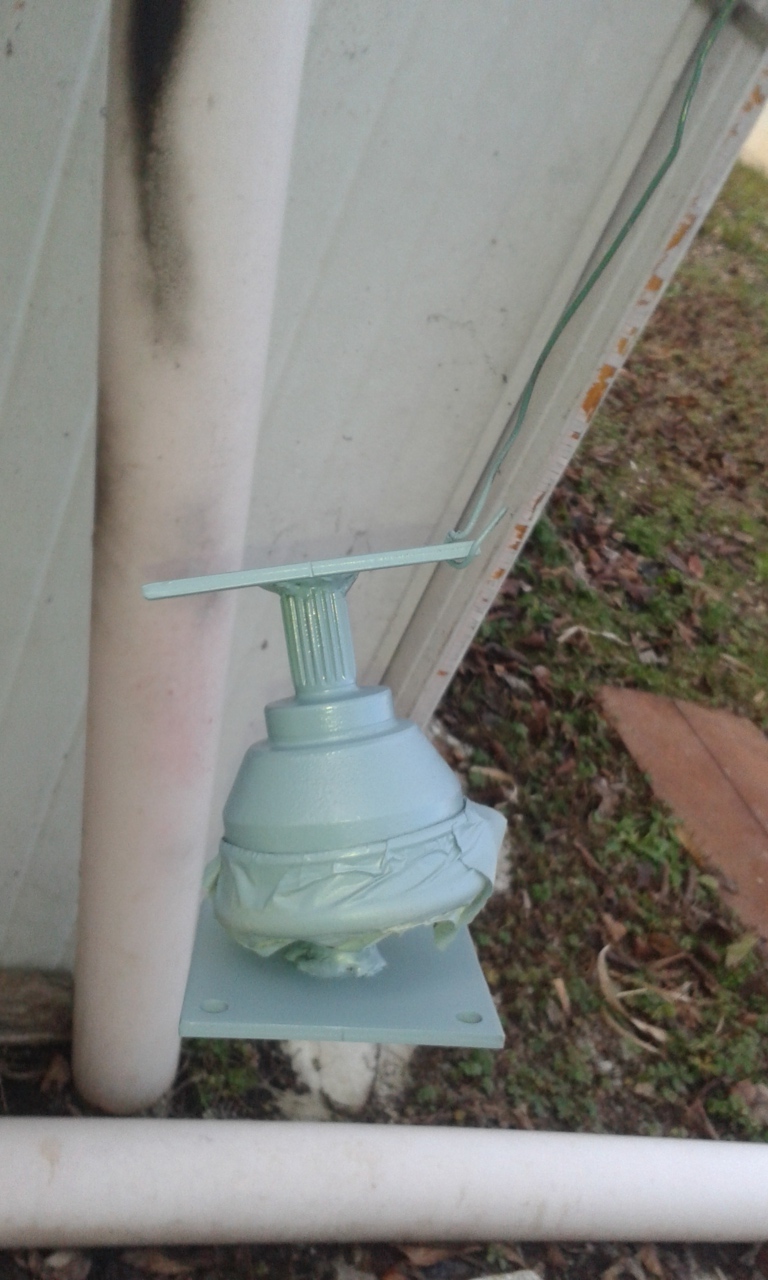

    at the center of the two arms I installed rubber dampers for the strongest tears

    where the bearings flow, I installed an interchangeable galvanized iron plate so as not to damage the underlying frame due to friction
    • Like Like x 1
    Last edited: Jan 25, 2018
  16. Andrea 1968

    Andrea 1968 Member

    Joined:
    Jul 1, 2015
    Messages:
    60
    Location:
    italia
    Balance:
    159Coins
    Ratings:
    +37 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino

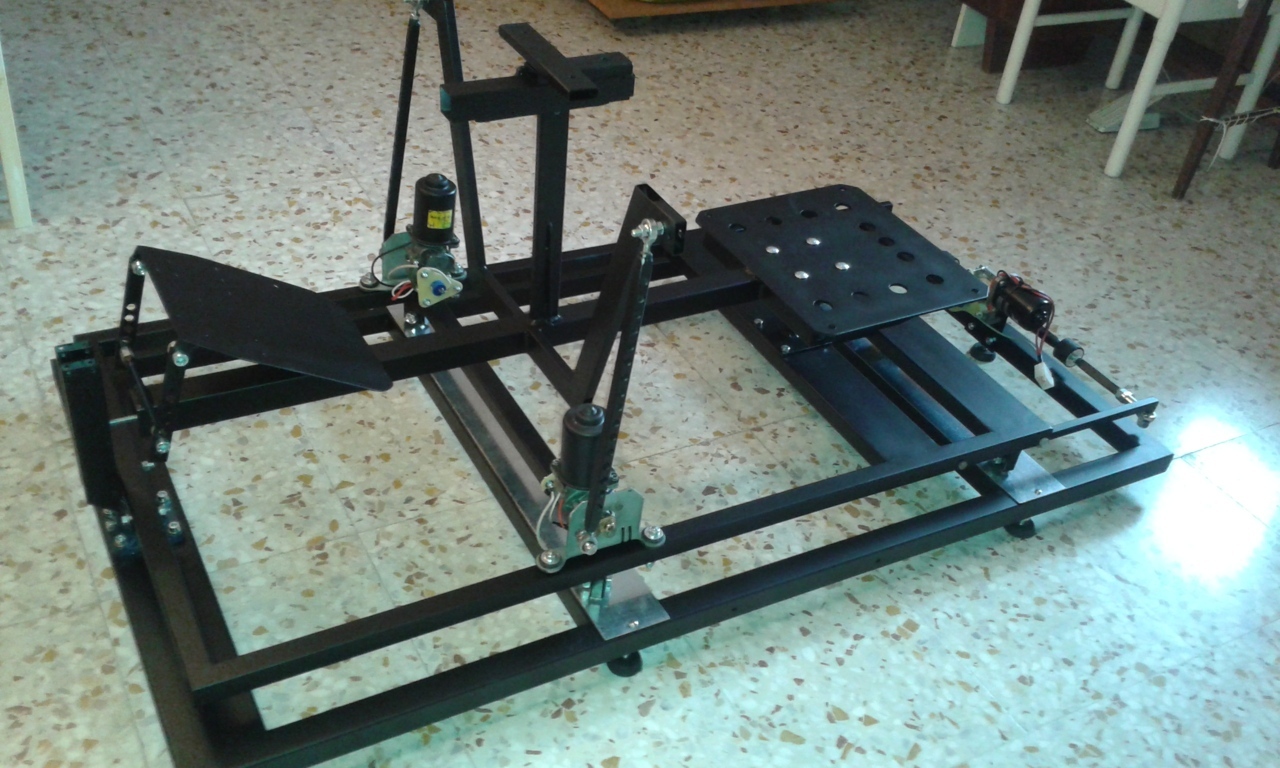

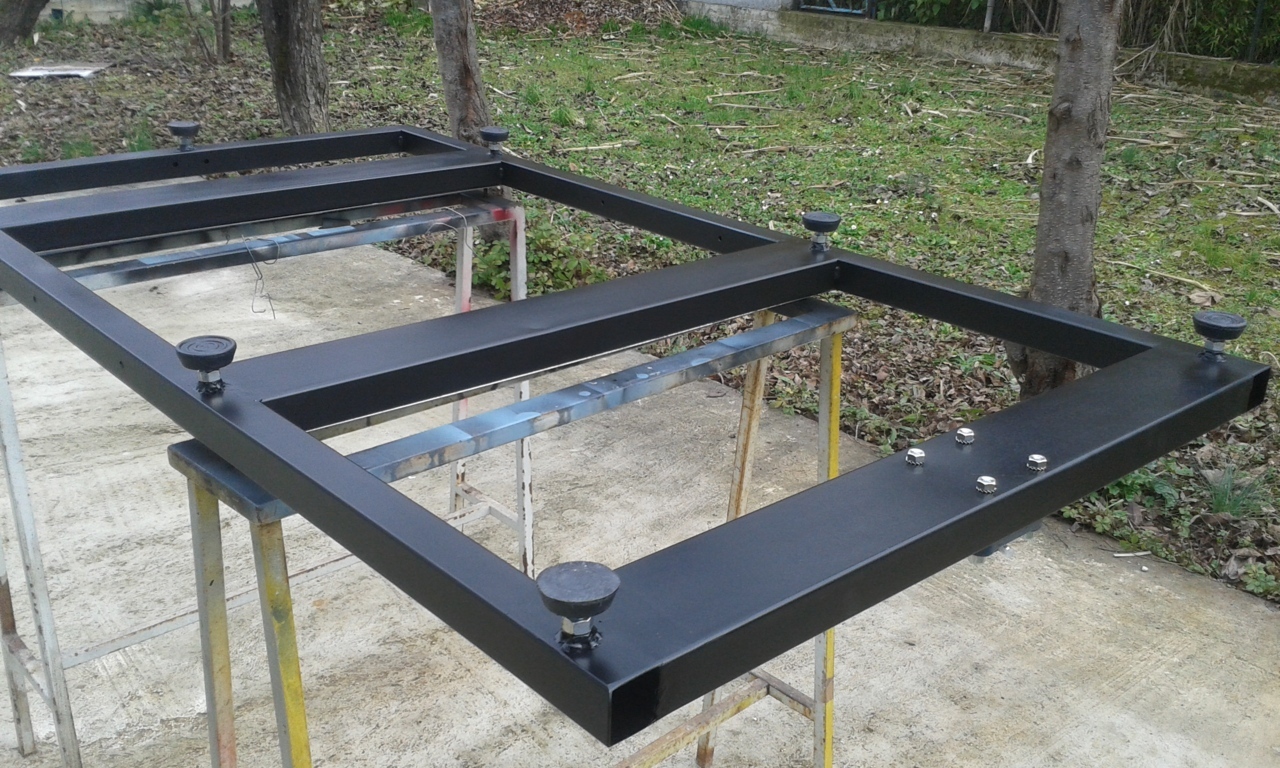

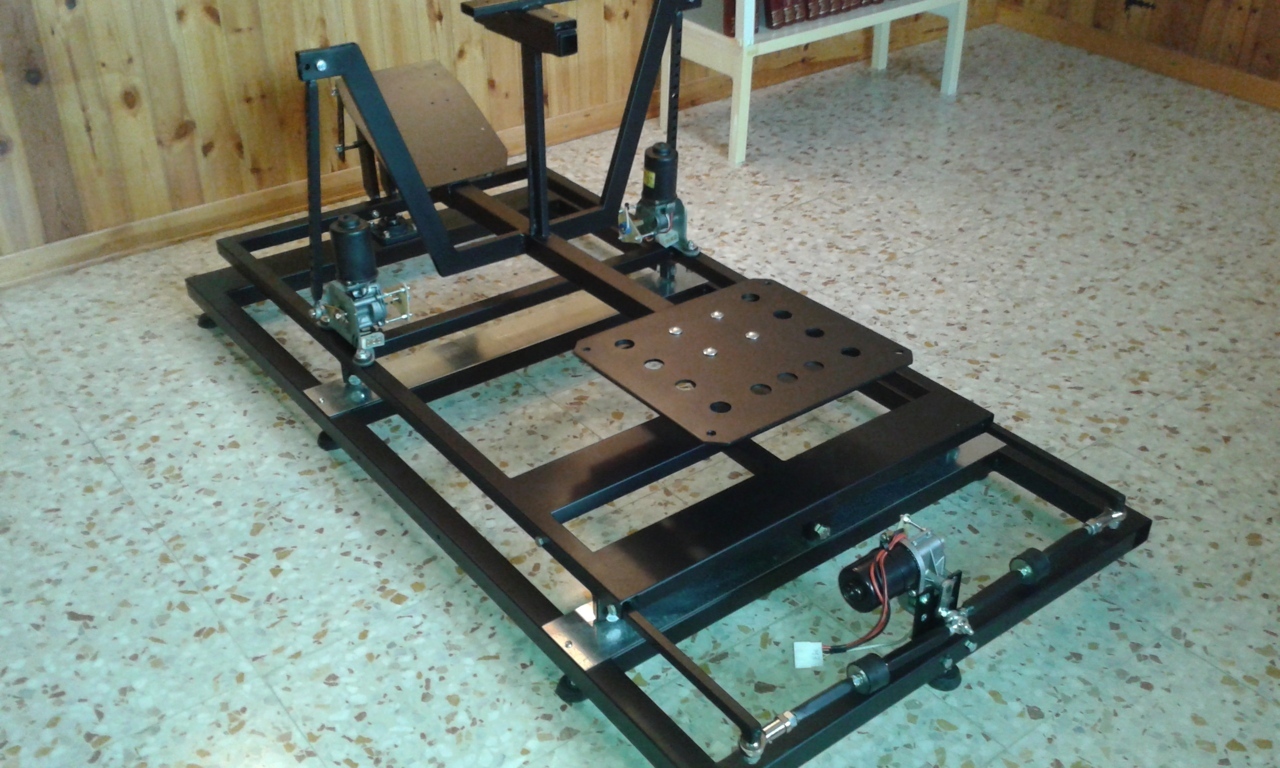

    66.jpg 67.jpg 68.jpg 69.jpg 70.jpg
    • Like Like x 3
  17. dualclick76

    dualclick76 Active Member

    Joined:
    Mar 23, 2015
    Messages:
    161
    Location:
    italia
    Balance:
    70Coins
    Ratings:
    +40 / 0 / -2
    My Motion Simulator:
    2DOF, DC motor, Arduino
    congratulations great job, I'm curious to see a video with your simulator on the go
  18. Andrea 1968

    Andrea 1968 Member

    Joined:
    Jul 1, 2015
    Messages:
    60
    Location:
    italia
    Balance:
    159Coins
    Ratings:
    +37 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    first test with simtools 1.3 pitch, roll, extra1 (traction loss)

    • Like Like x 2
  19. feromelo57

    feromelo57 simulateur 2dof avec derive Gold Contributor

    Joined:
    Nov 4, 2019
    Messages:
    3
    Balance:
    9Coins
    Ratings:
    +0 / 0 / -0
    My Motion Simulator:
    3DOF, Arduino
    [QUOTE = « Andrea 1968, après: 148090, membre: 17792 »] Salut, je veux partager mon deuxième projet avec ce forum que le premier j'ai réalisé grâce à vous tous de cette merveilleuse communauté.
    pour réaliser ce projet je rhinoceros un programme de dessin 3D.
    [Attach = full] 47505 [/ attach]
    [Attach = full] 47506 [/ attach]
    [Attach = full] 47507 [/ attach]
    les moteurs sont des essuie-glaces pour les axies 1 et 2 sont des essuie-glaces FIAT SCUDO pour la perte de traction est FIAT Ducato, essuie-glaces démontées et modifiées pour isoler le négatif de la carcasse.
    faites au couteau les supports pour les potentiomètres pour un parfait alignement comme dans l'image
    47509
  20. feromelo57

    feromelo57 simulateur 2dof avec derive Gold Contributor

    Joined:
    Nov 4, 2019
    Messages:
    3
    Balance:
    9Coins
    Ratings:
    +0 / 0 / -0
    My Motion Simulator:
    3DOF, Arduino
    Merci un tuto au top
