My 2DOF Project Demo

Discussion in 'DIY Motion Simulator Projects' started by KarsonCN, Jul 12, 2021.

  1. KarsonCN

    KarsonCN New Member

    Joined:
    Jul 11, 2021
    Messages:
    1
    Balance:
    24Coins
    Ratings:
    +1 / 0 / -0
    My Motion Simulator:
    2DOF
    Hey guys,I'm a Chinese studunt.emmmm my English is not good.so,don't mind that some of my parlance are worng.
    OK,get straight to the point.This project is learned form so many Chinese diyer,Combined with my own situation, to change the scheme.
    Here are the drawings I refer to

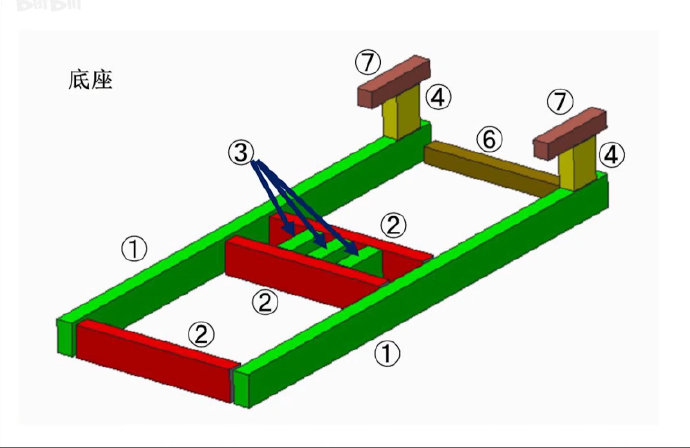

    1pedestal
    [​IMG]

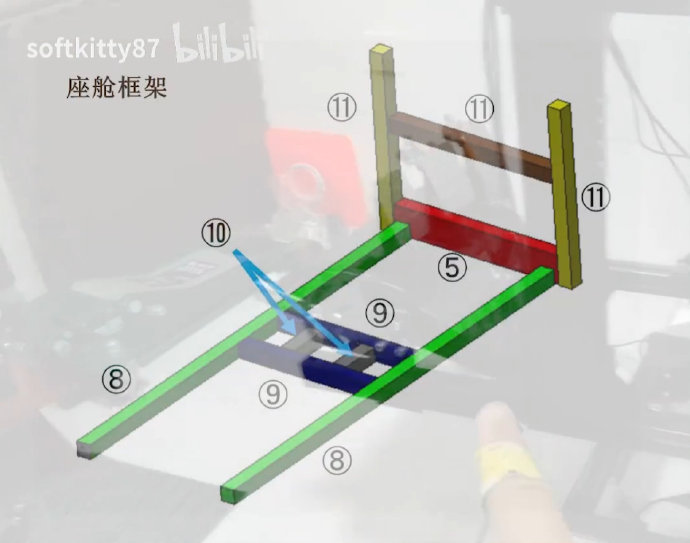

    2cockpit
    [​IMG]

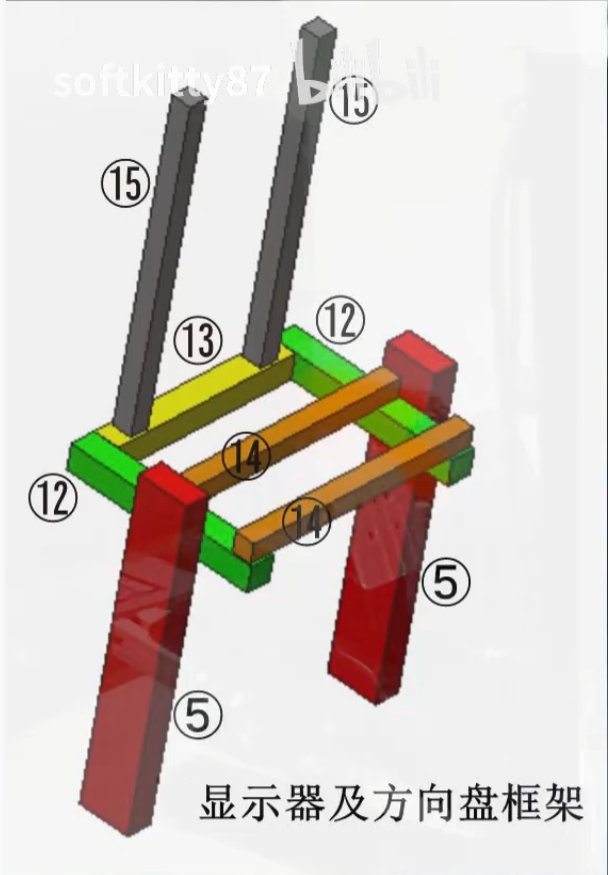

    3Steering wheel bracket
    [​IMG]

    I'm going to do this with AL.Because in China, this kind of material is not too expensive.It can be fixed with nuts and bolts without welding

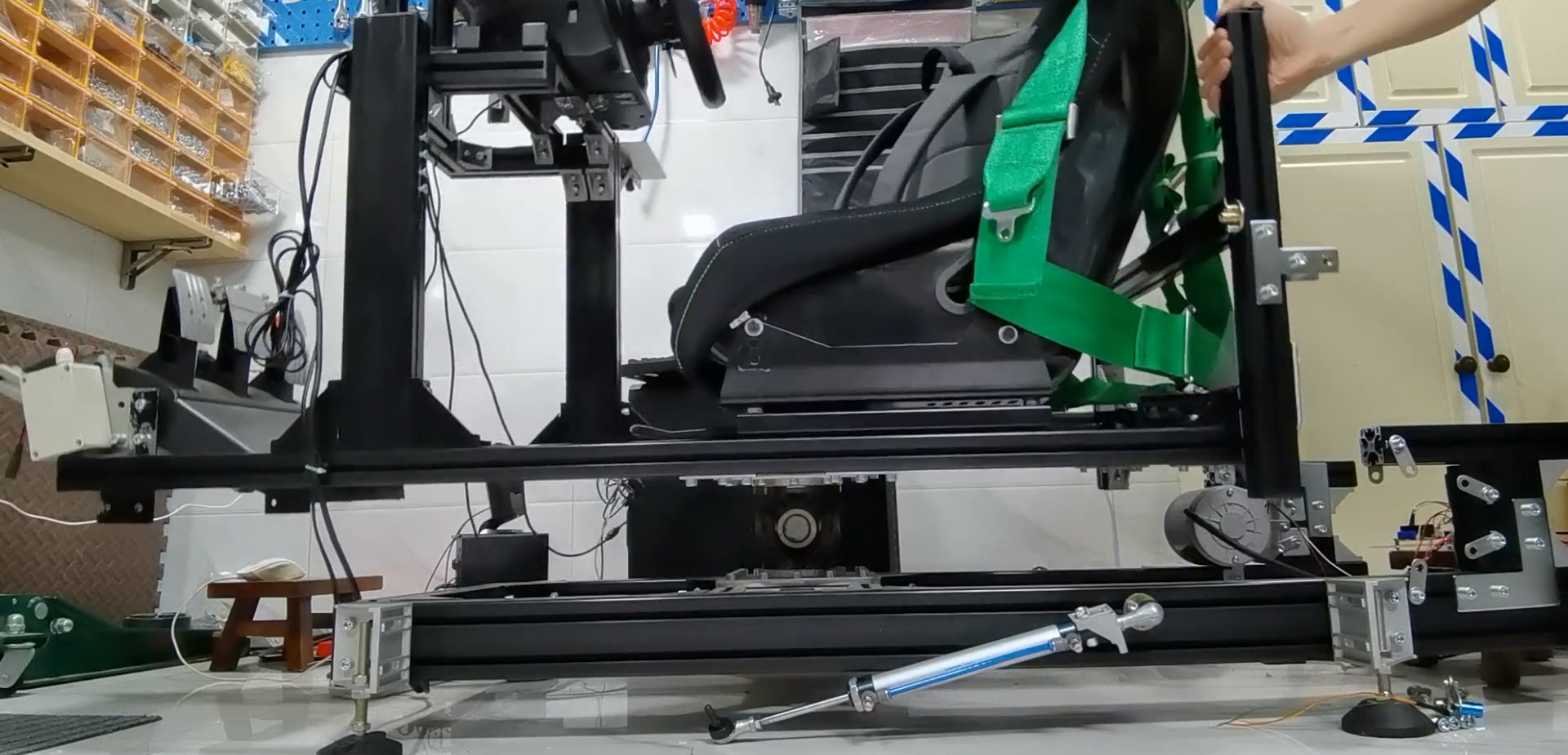

    The effect after assembly
    [​IMG]
    ps:The cockpit is connected to the base by a universal joint(Manually straighten the cockpit, there is no debugging because SIMTools is not active yet)
    The motor
    [​IMG]

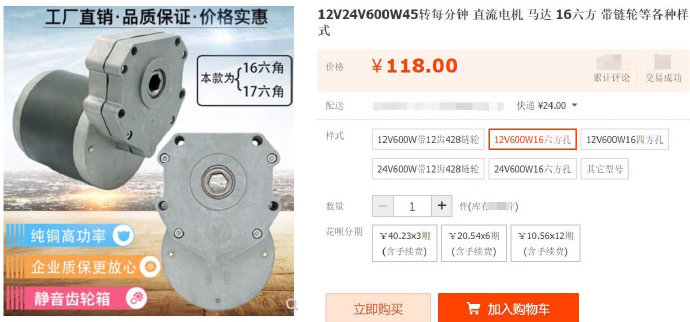

    The motor is bought from Taobao, 12V 55RPM 600W motor with differential, the price is 118CNY
    ps:There may be false labels, but I weigh less than 50kg, which is definitely enough

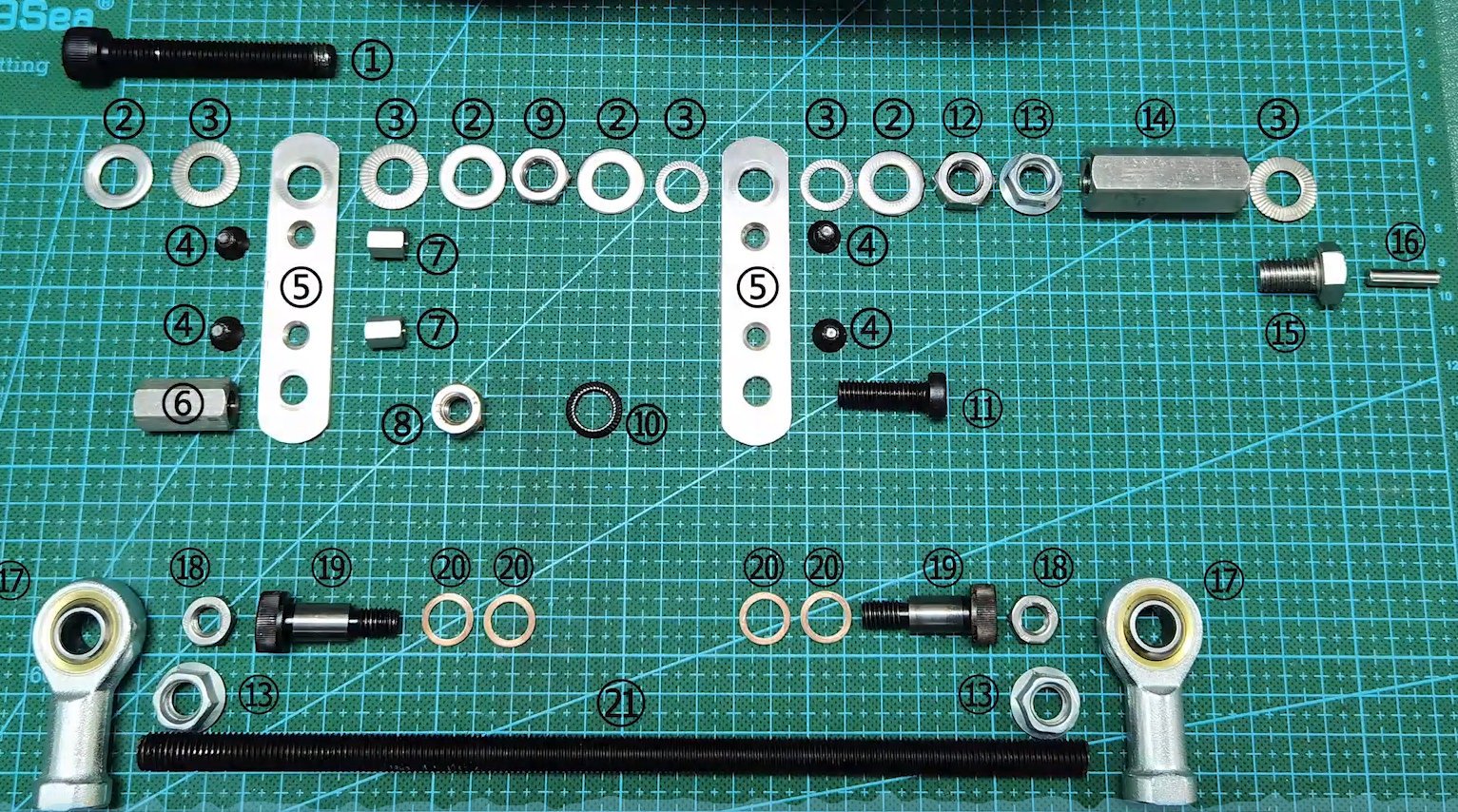

    Connecting rod required parts
    [​IMG]

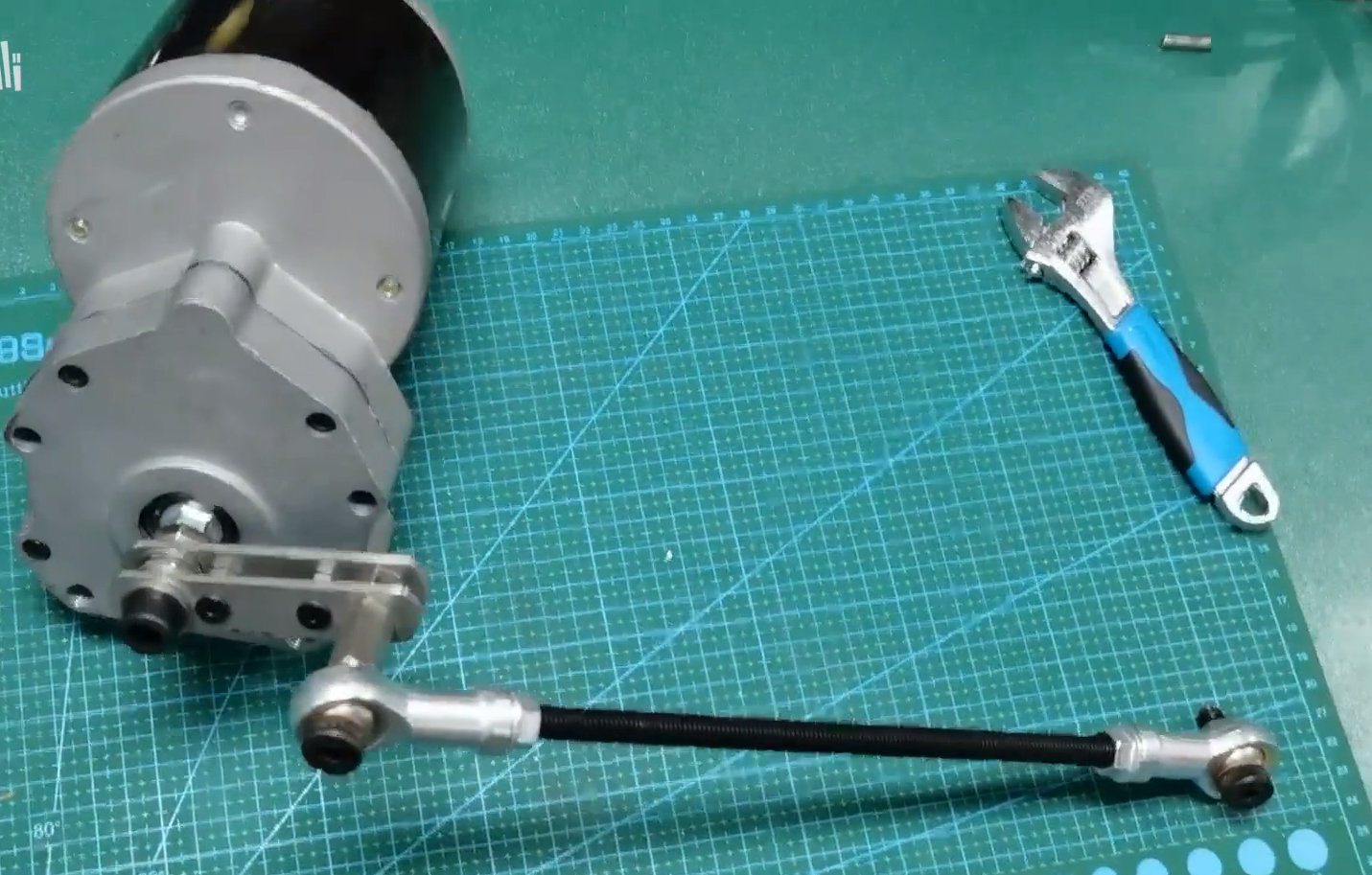

    assemble
    [​IMG]
