My 1st 2DOF project

Discussion in 'DIY Motion Simulator Projects' started by cnupa4ka, Jun 3, 2019.

  1. cnupa4ka

    cnupa4ka Member

    Joined:
    Mar 1, 2019
    Messages:
    52
    Balance:
    379Coins
    Ratings:
    +17 / 0 / -0
    Hi friends! Its time to start building my rig :)

    The plan is to build cockpit with all details
    And the last step is to mount the motors to make 2DOF motion! I have G27 so I have to do some tuning on the pedals and the wheel :)

    Thanks in advance because without your experience and help I will be not able to do it! :)
    • Like Like x 2
  2. Ads Master

    Ads Master

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
  3. cnupa4ka

    cnupa4ka Member

    Joined:
    Mar 1, 2019
    Messages:
    52
    Balance:
    379Coins
    Ratings:
    +17 / 0 / -0

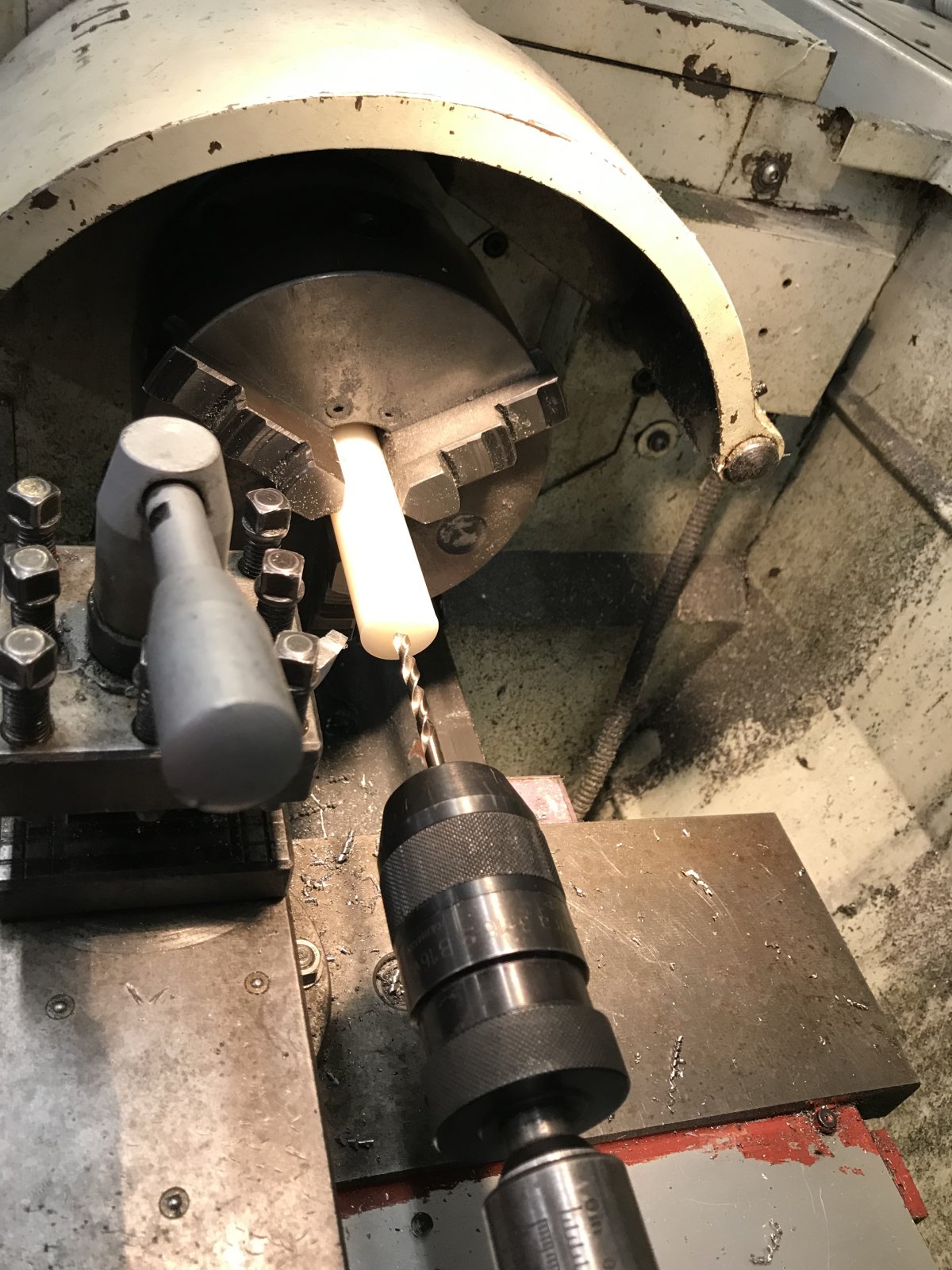

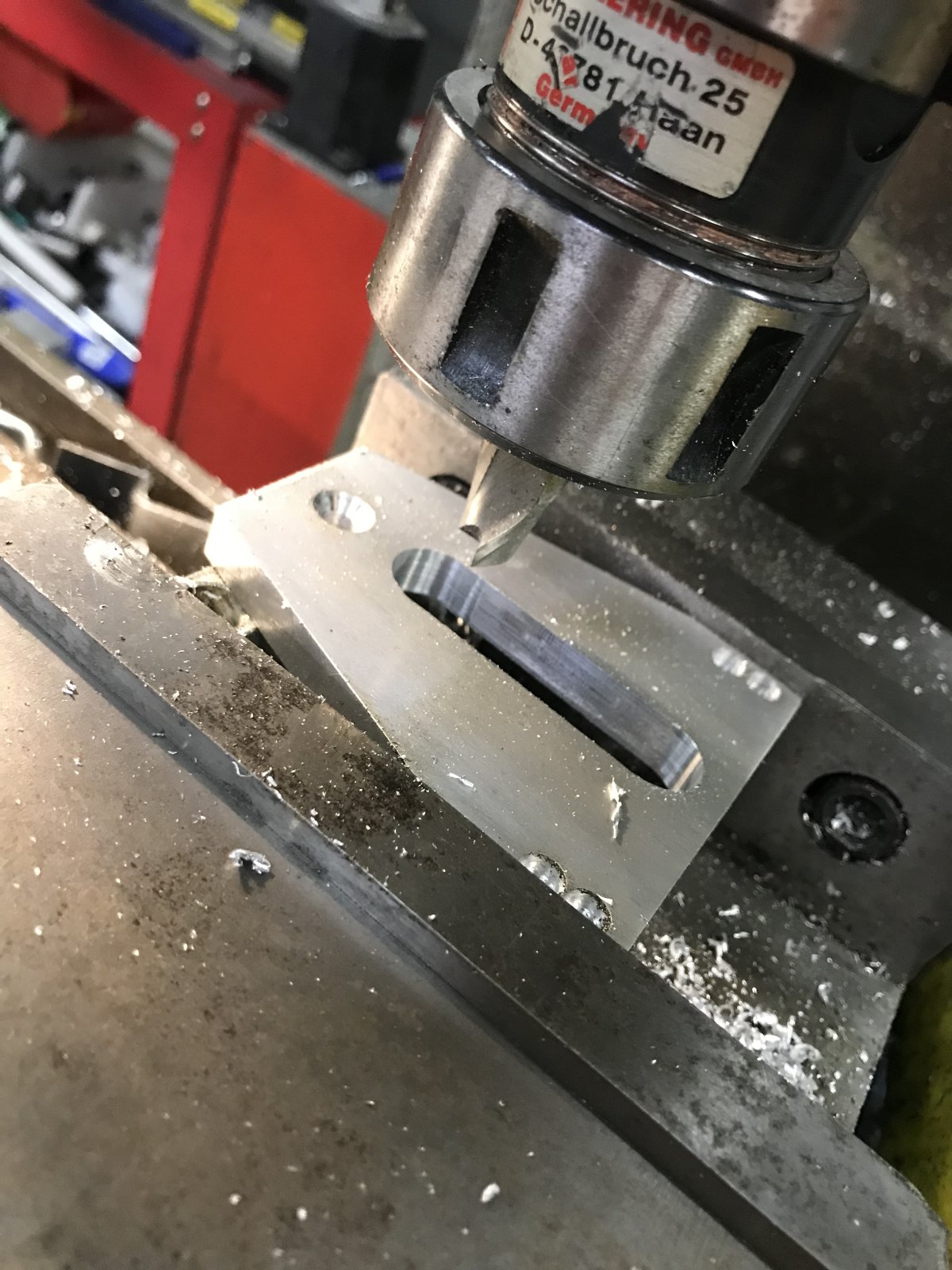

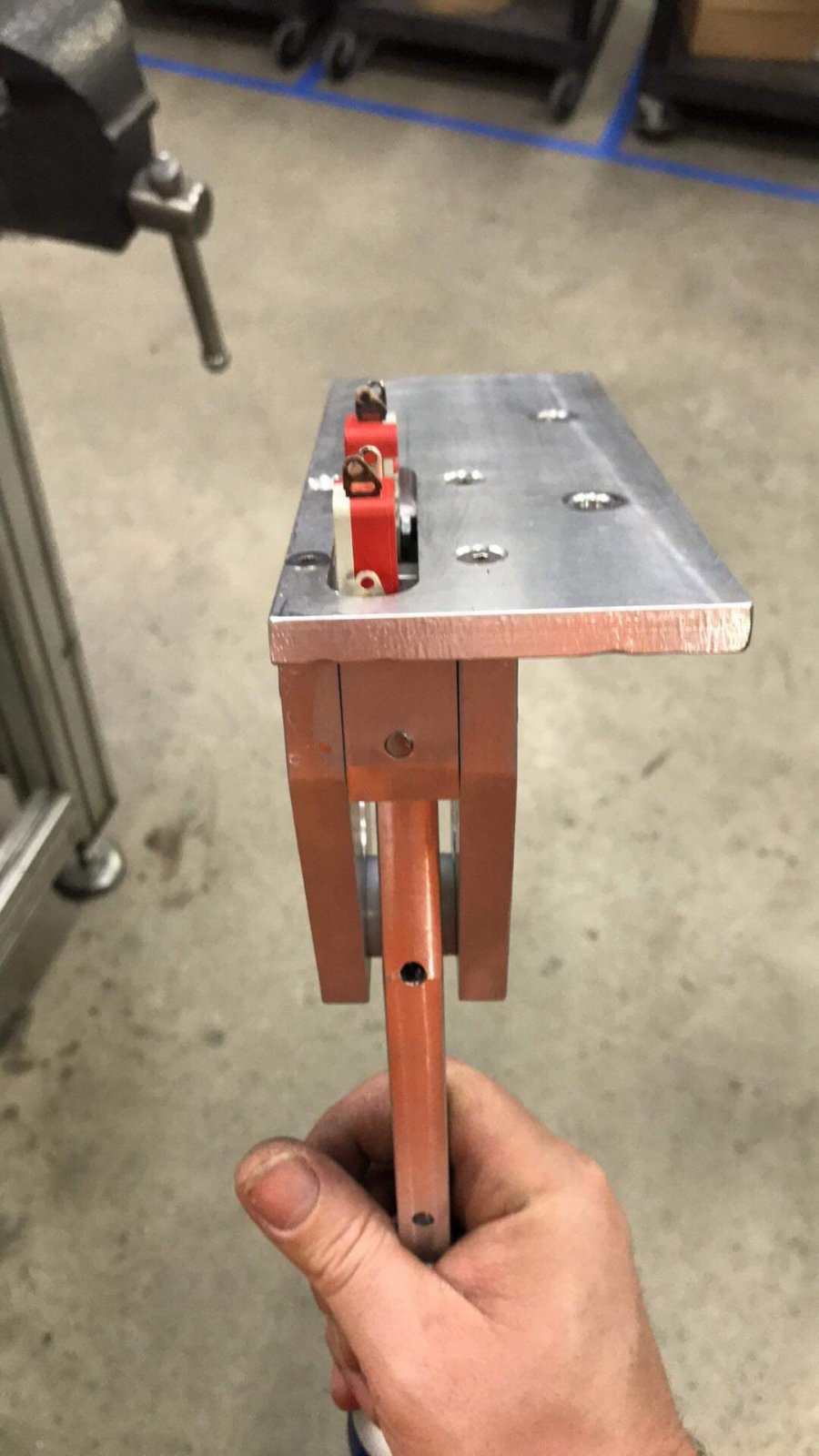

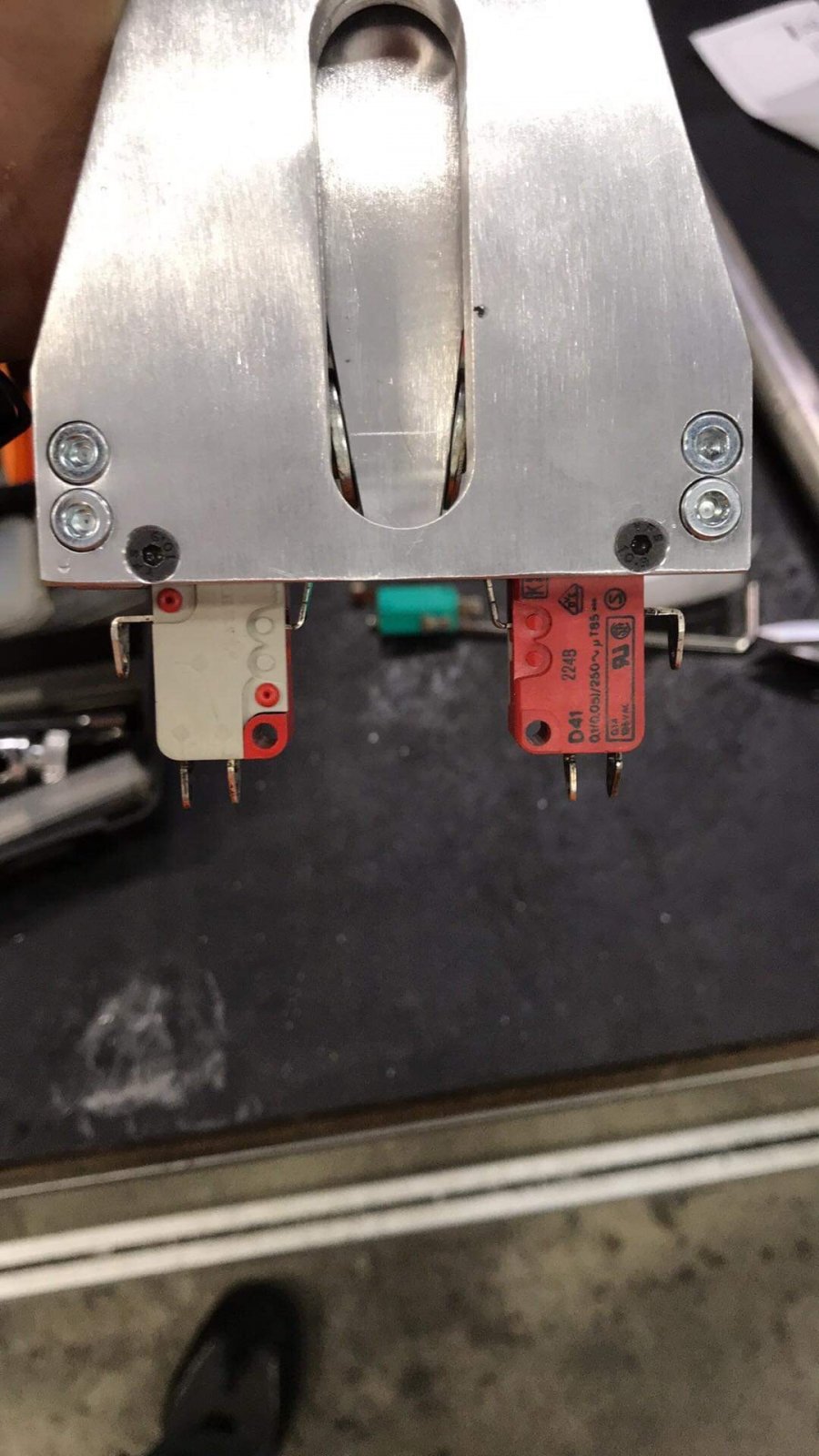

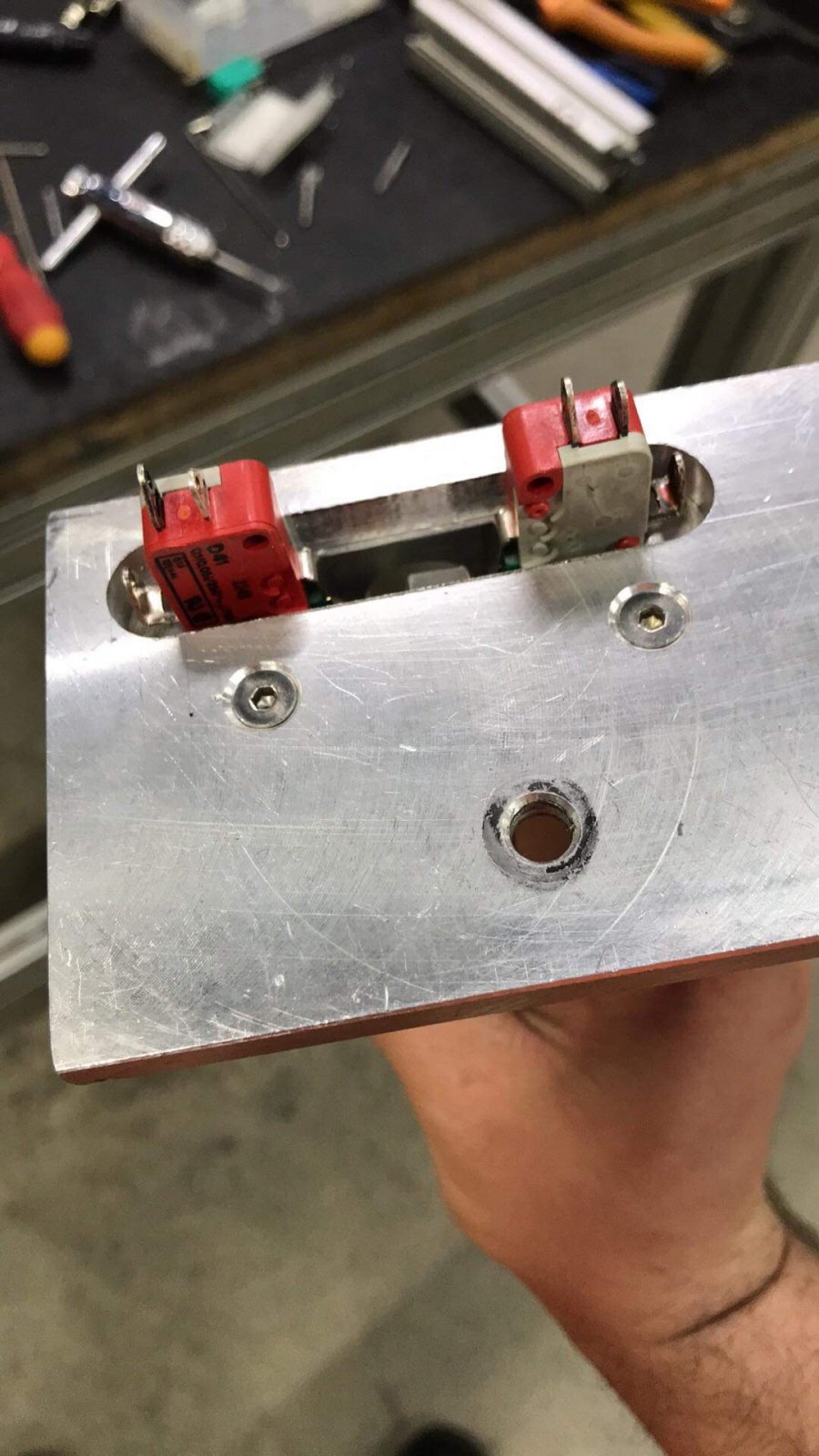

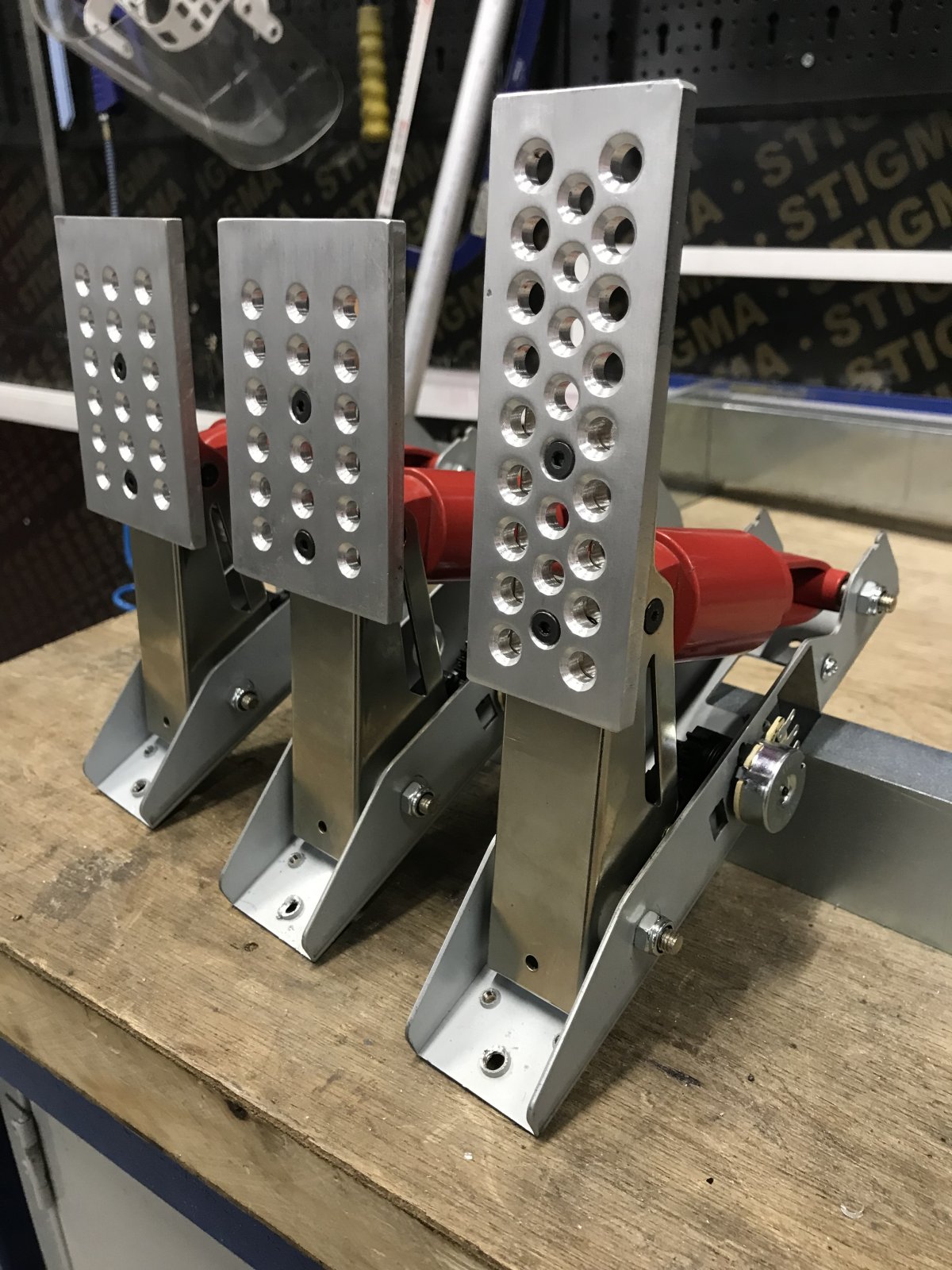

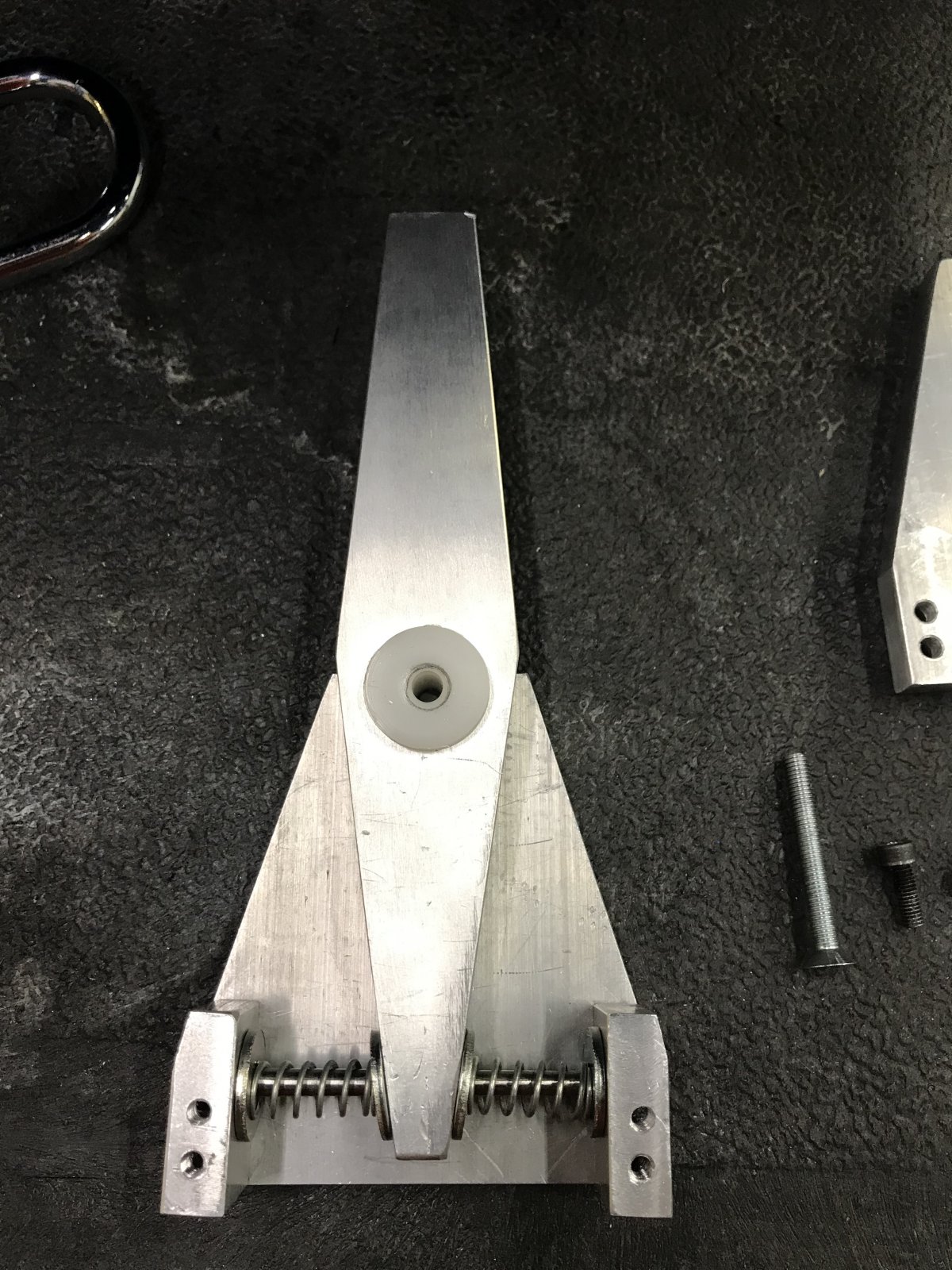

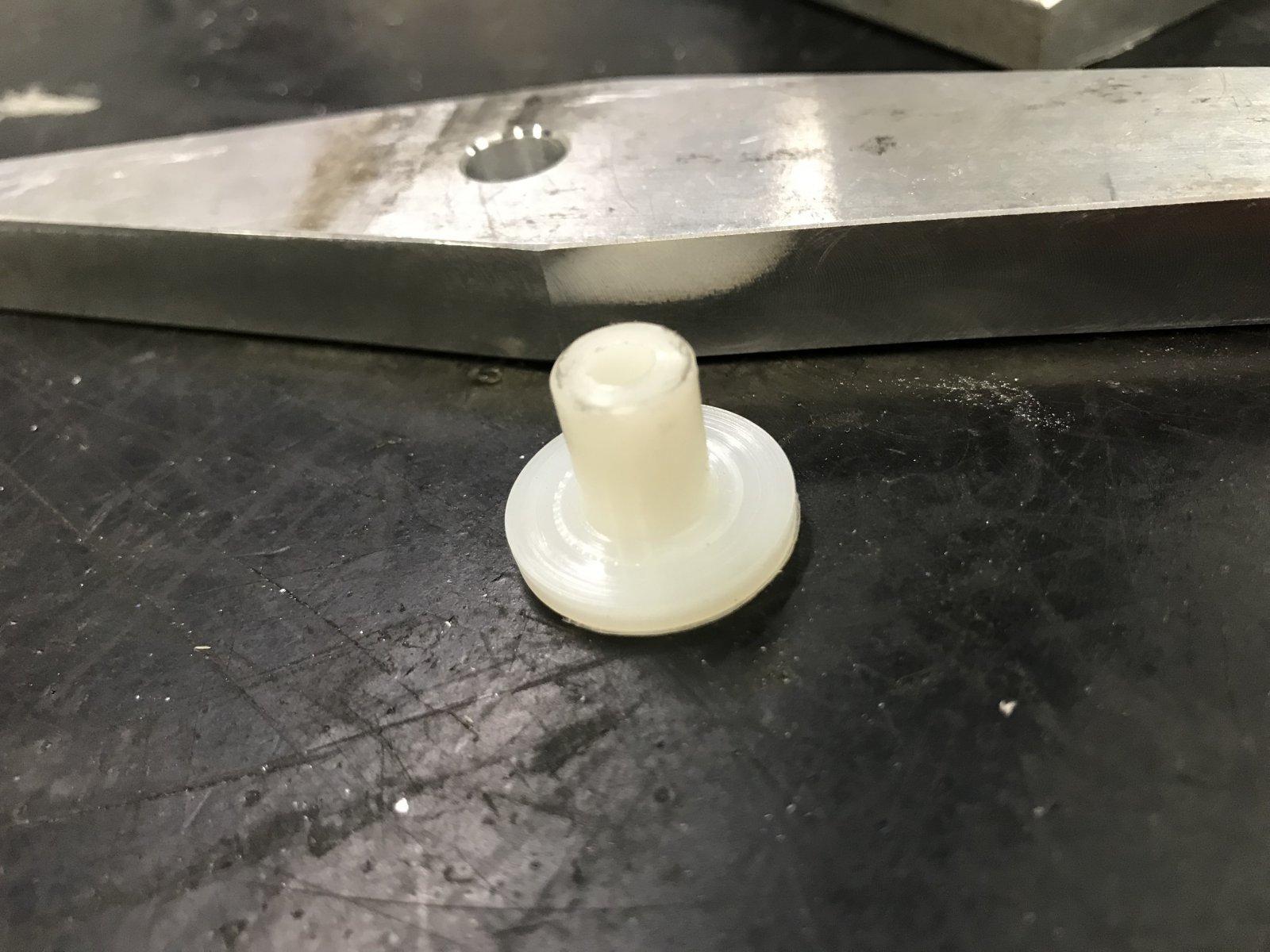

    So I have done some update the G27 pedals :p

    Attached Files:

    • Like Like x 3
  4. cnupa4ka

    cnupa4ka Member

    Joined:
    Mar 1, 2019
    Messages:
    52
    Balance:
    379Coins
    Ratings:
    +17 / 0 / -0

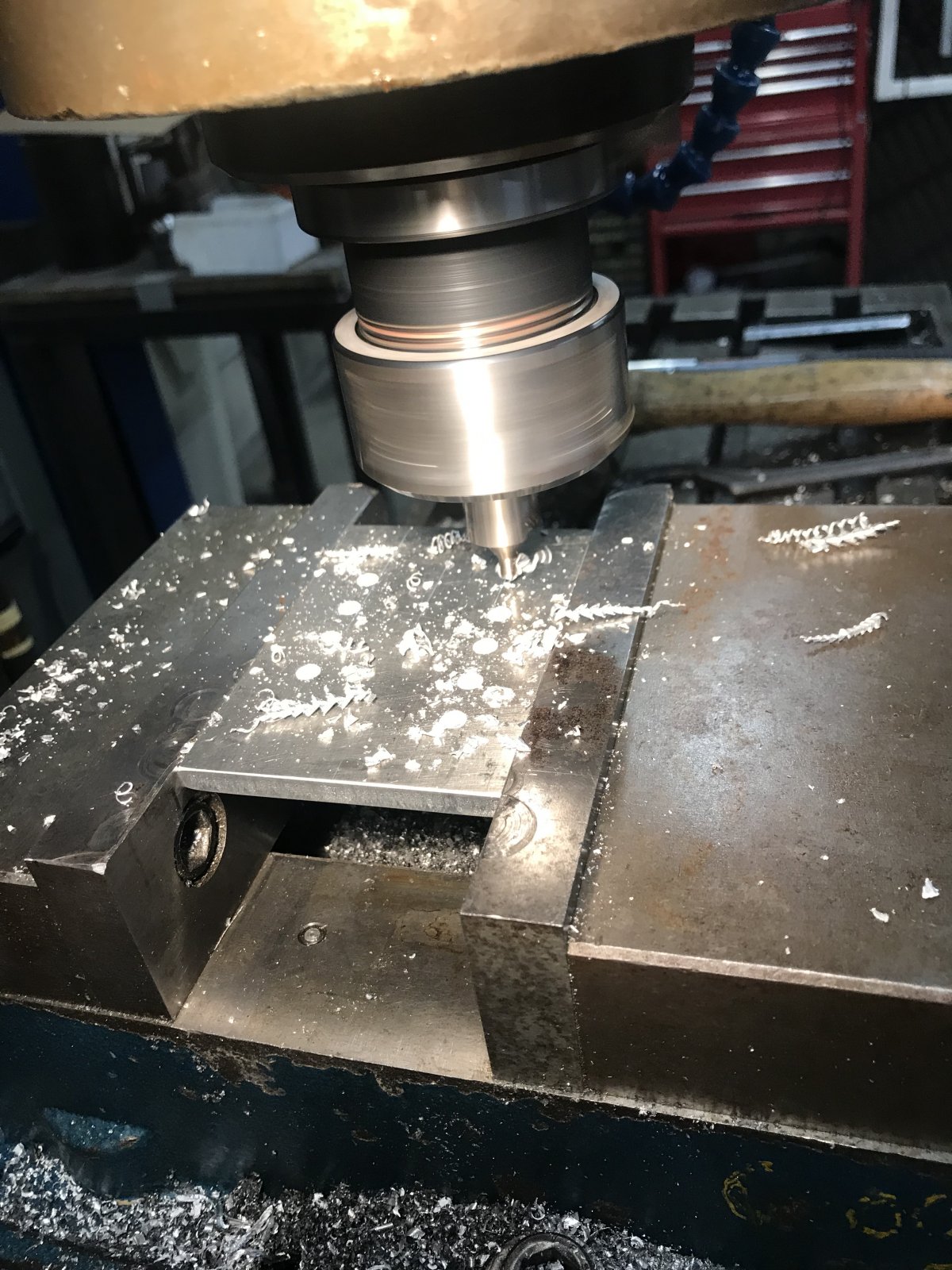

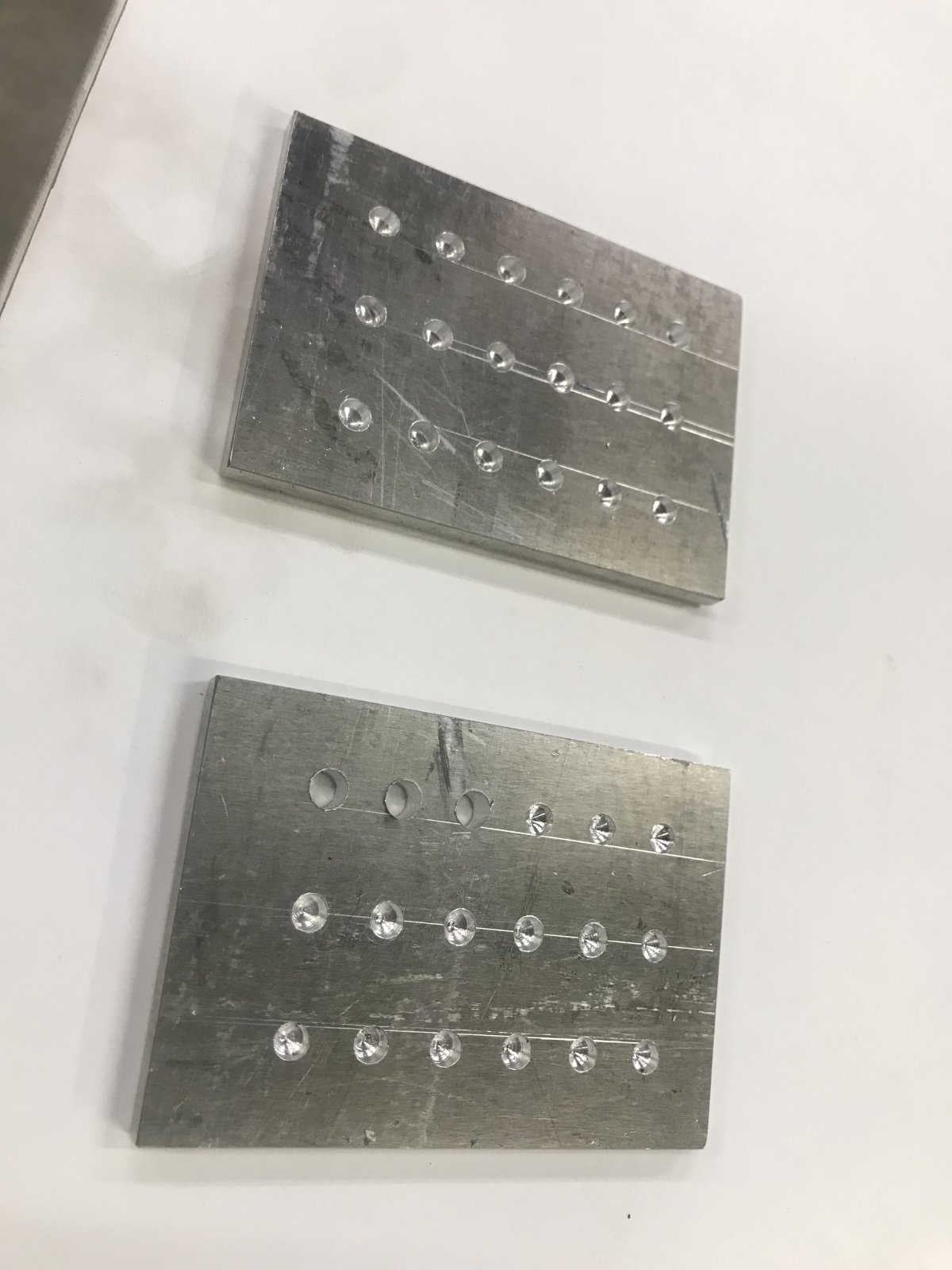

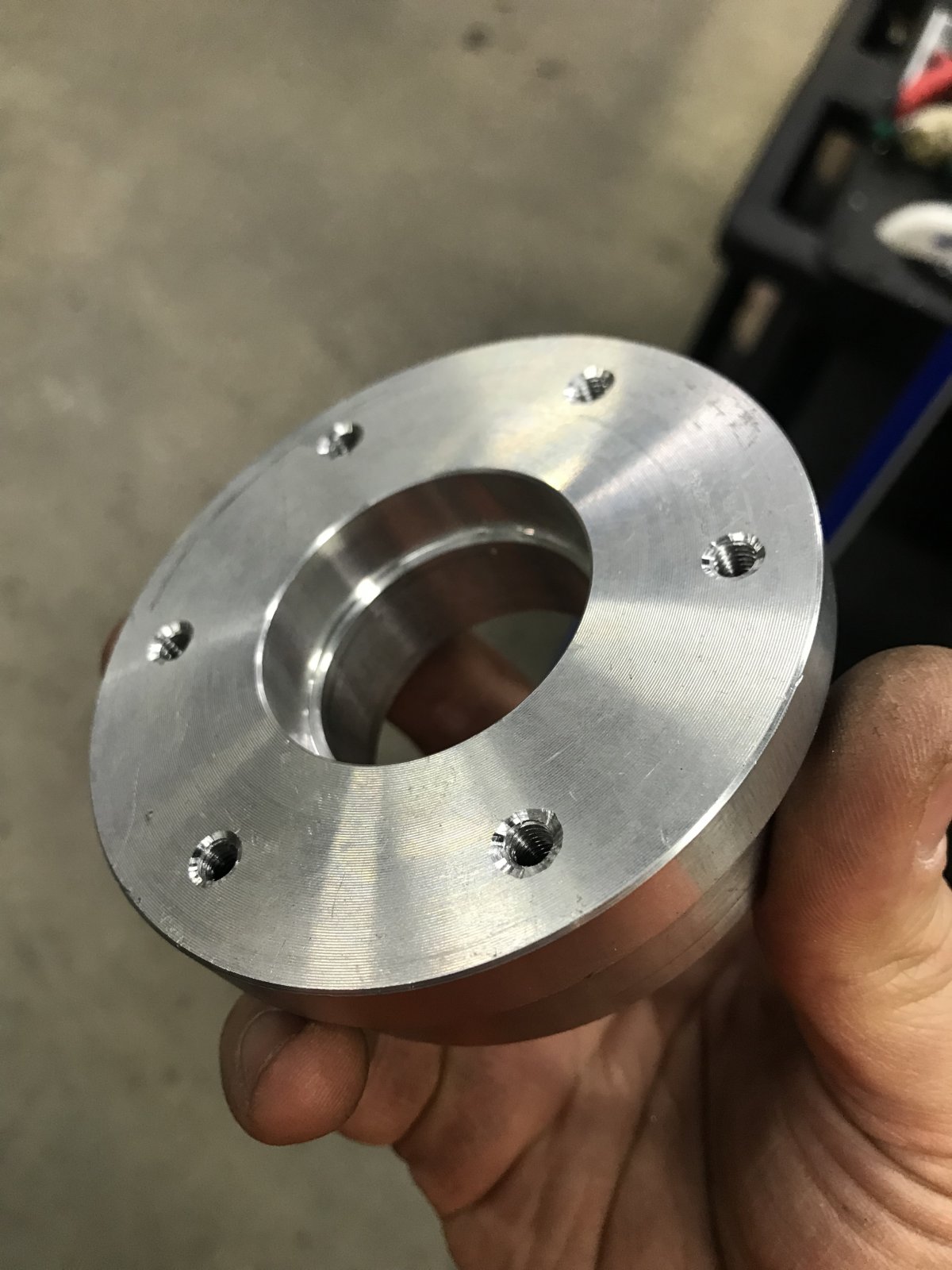

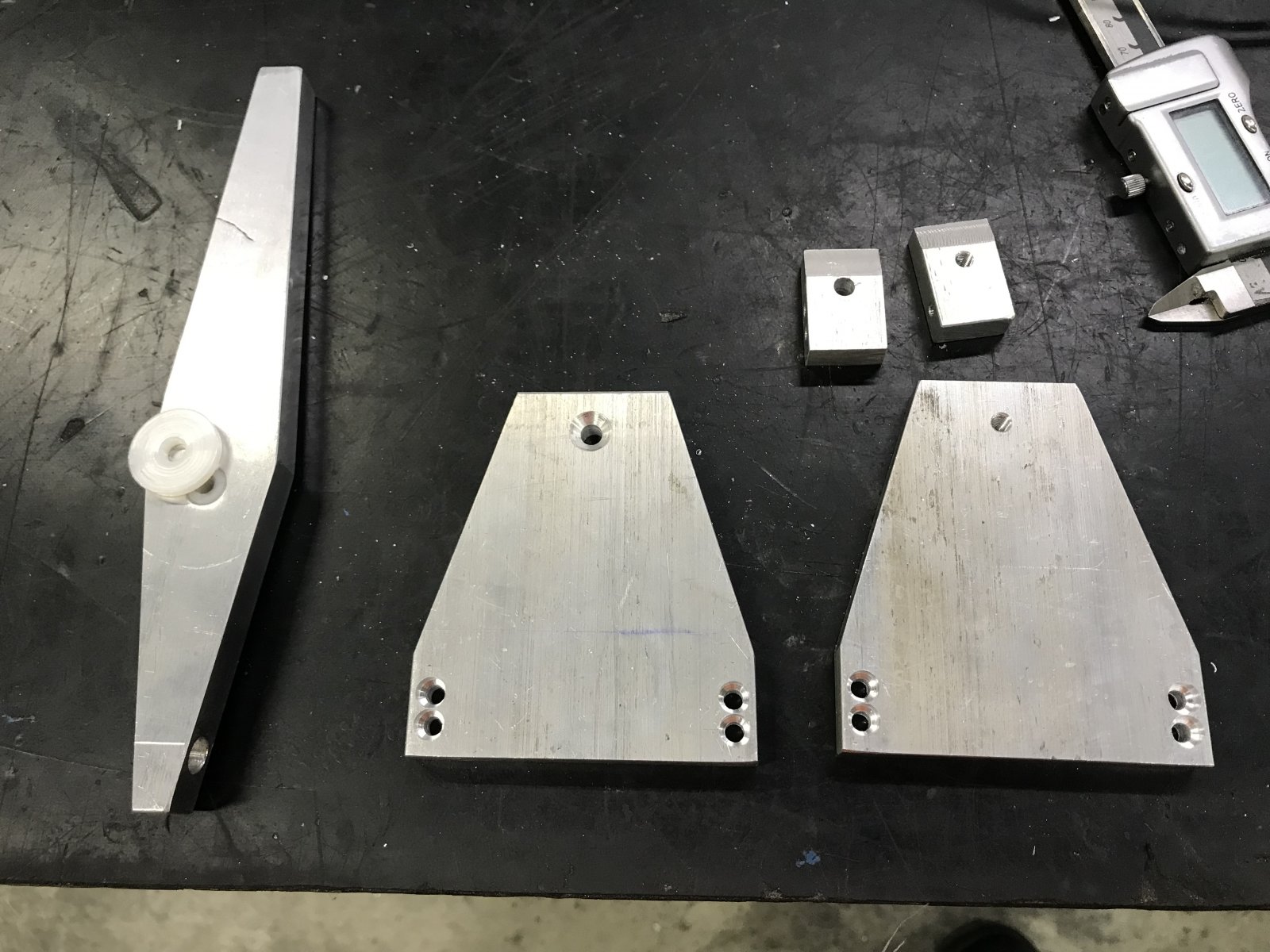

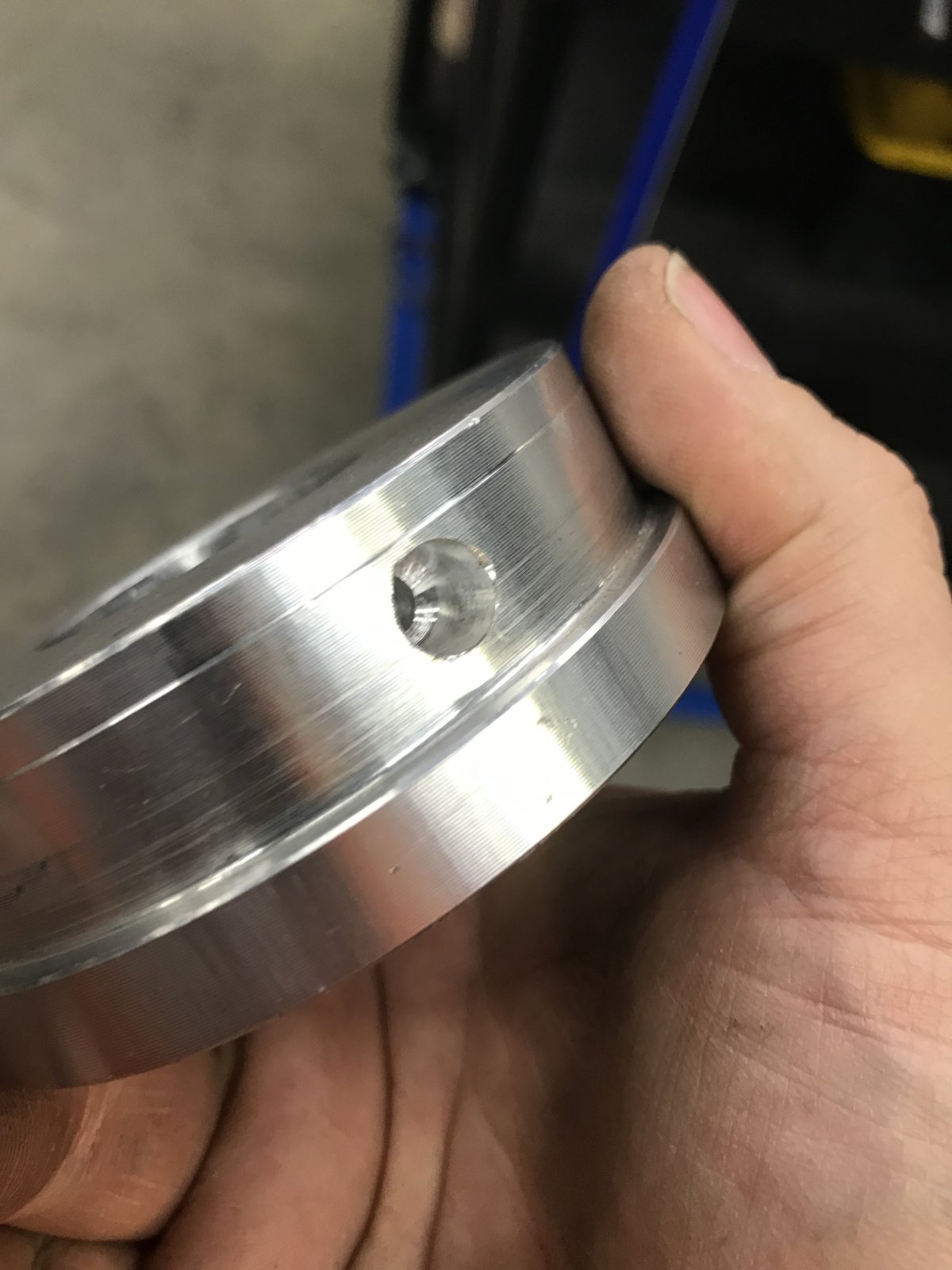

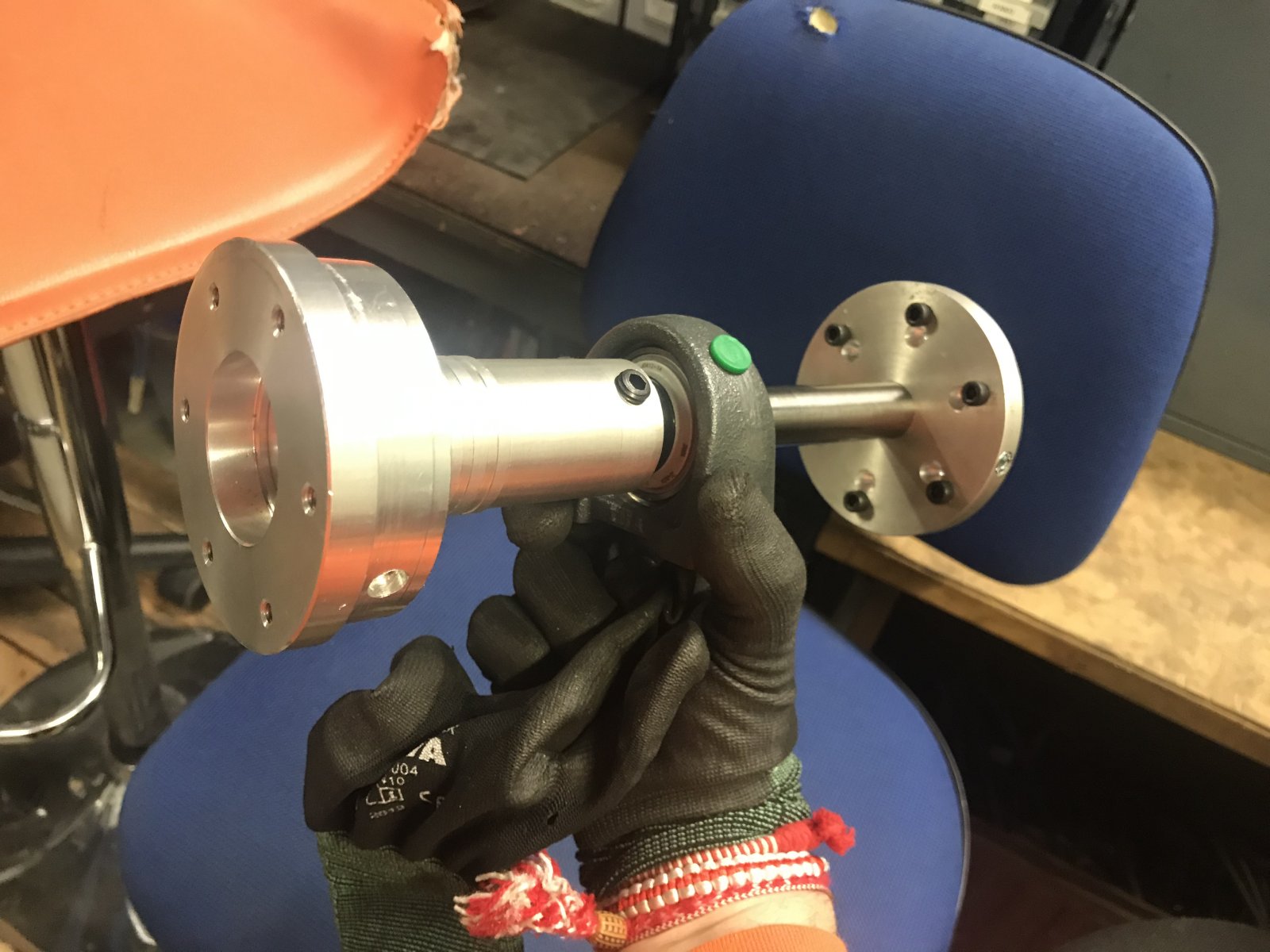

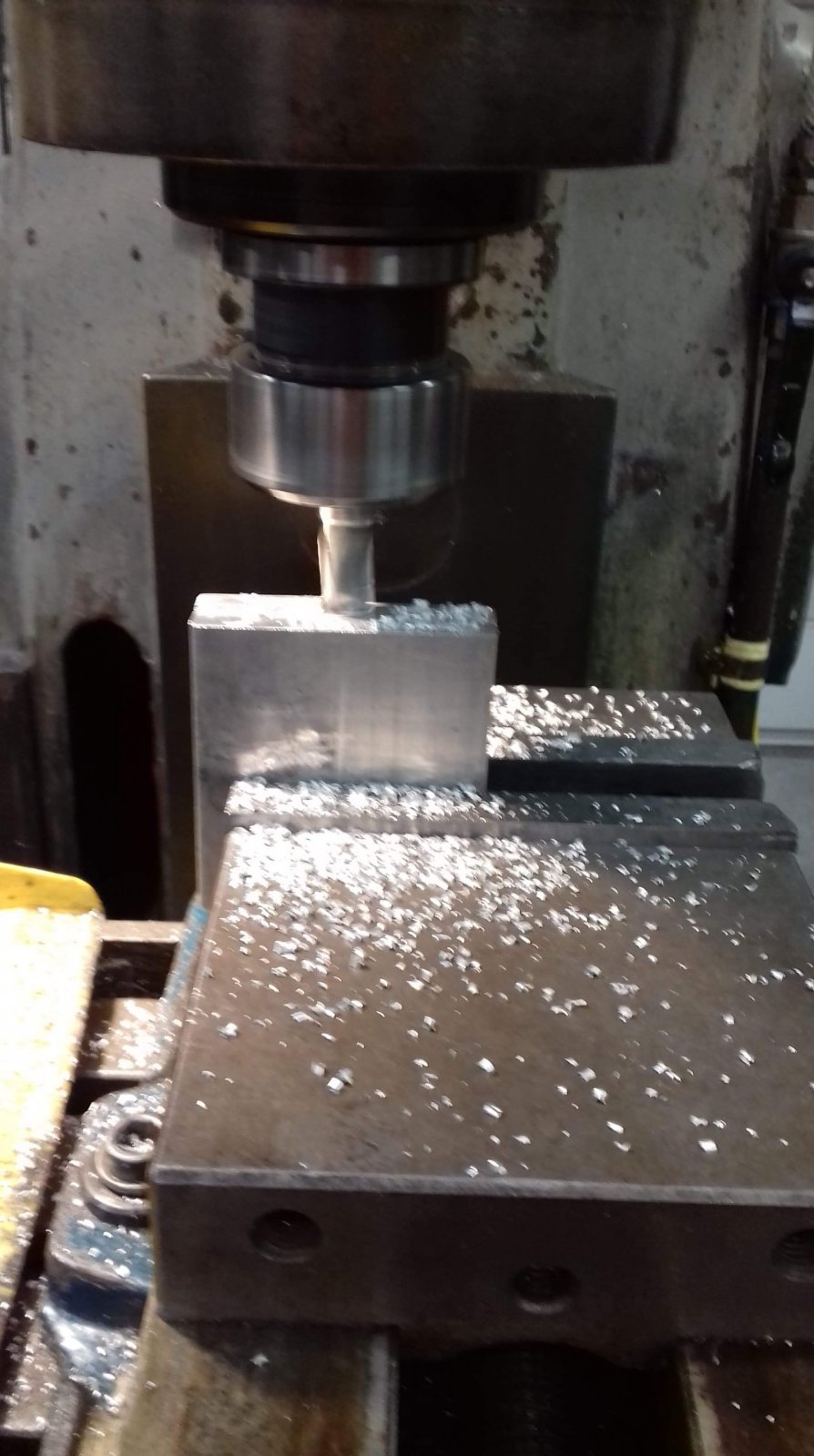

    Wheel adapter is done as well

    Attached Files:

    • Like Like x 1
  5. cnupa4ka

    cnupa4ka Member

    Joined:
    Mar 1, 2019
    Messages:
    52
    Balance:
    379Coins
    Ratings:
    +17 / 0 / -0

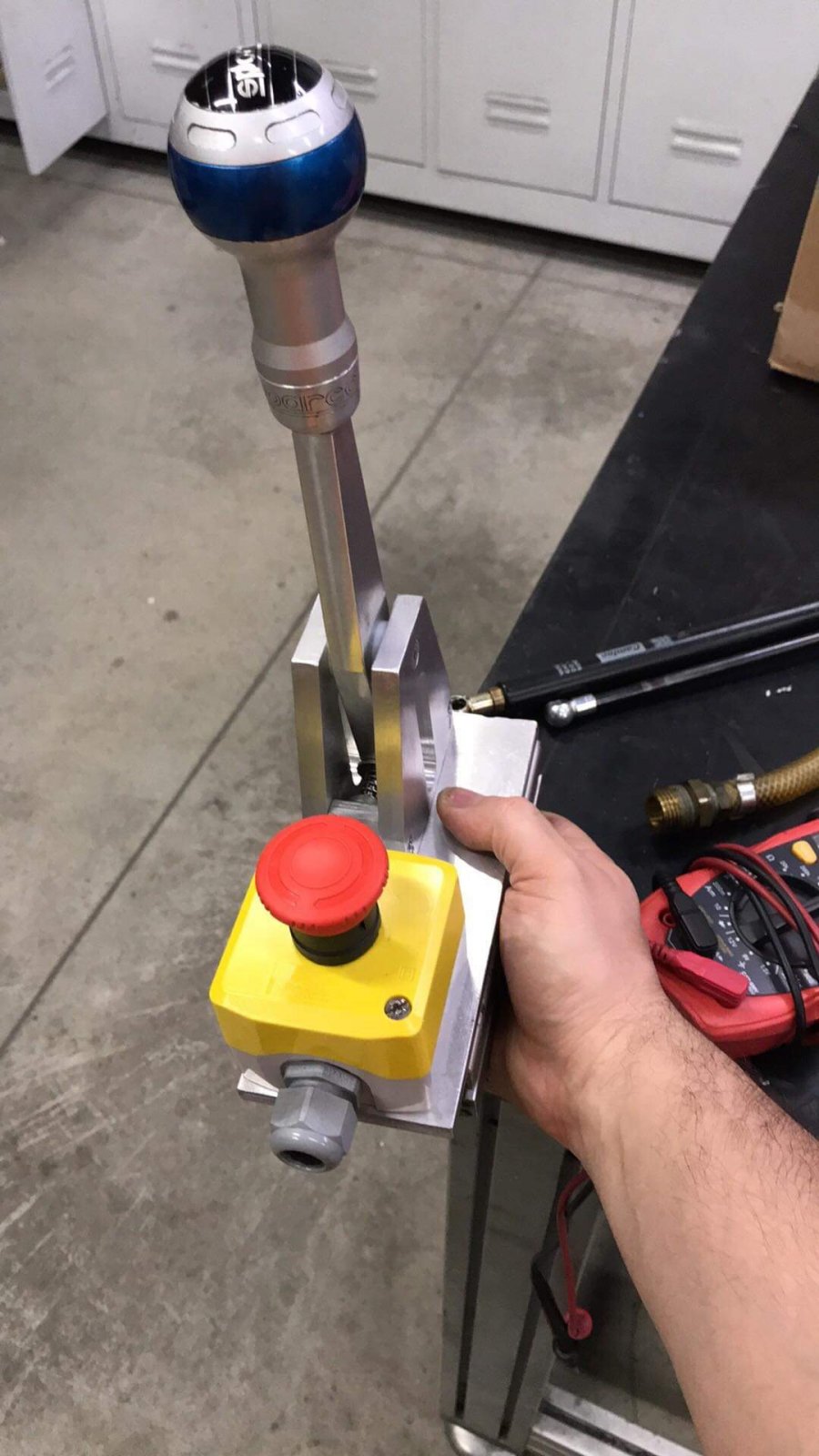

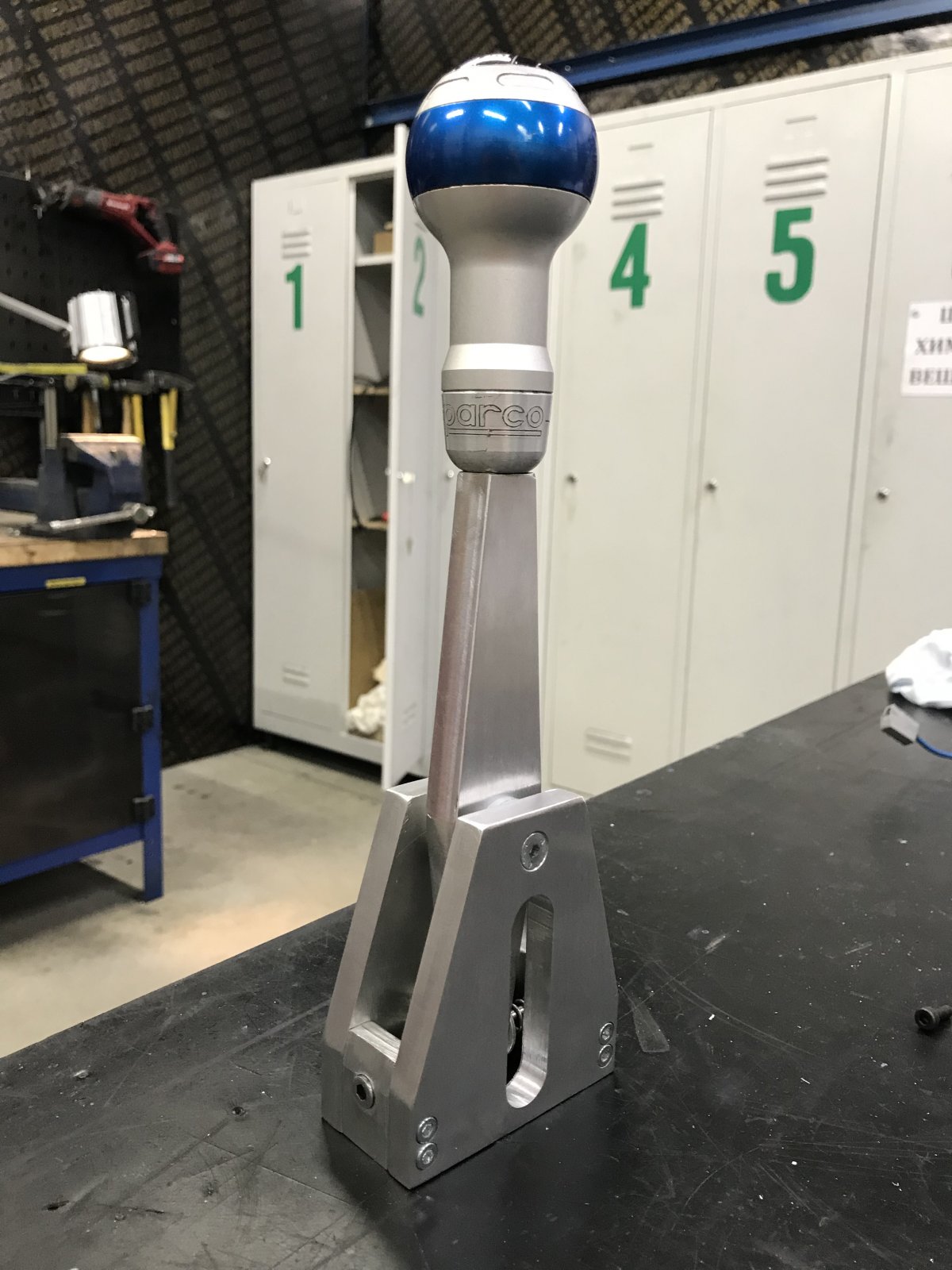

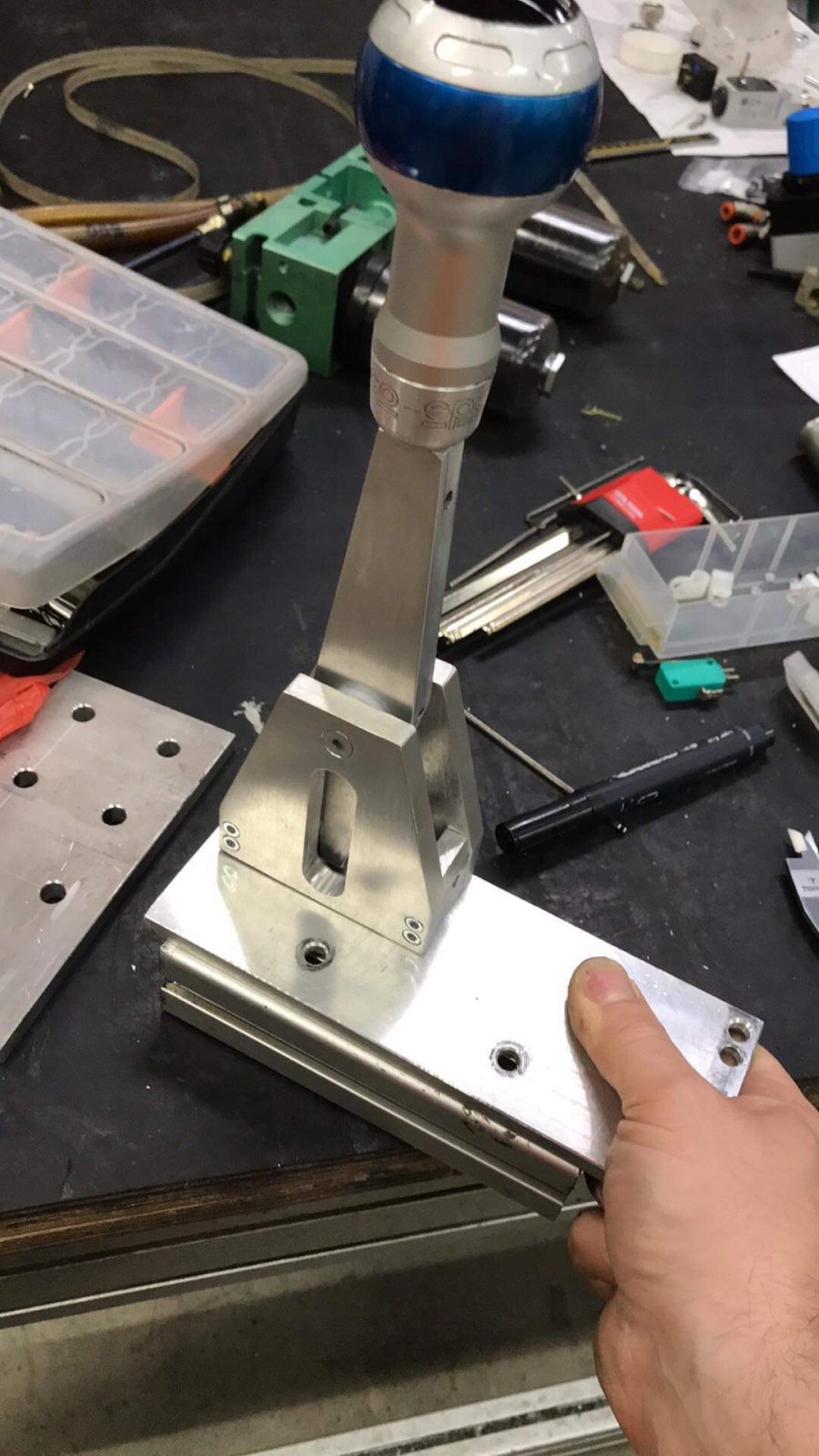

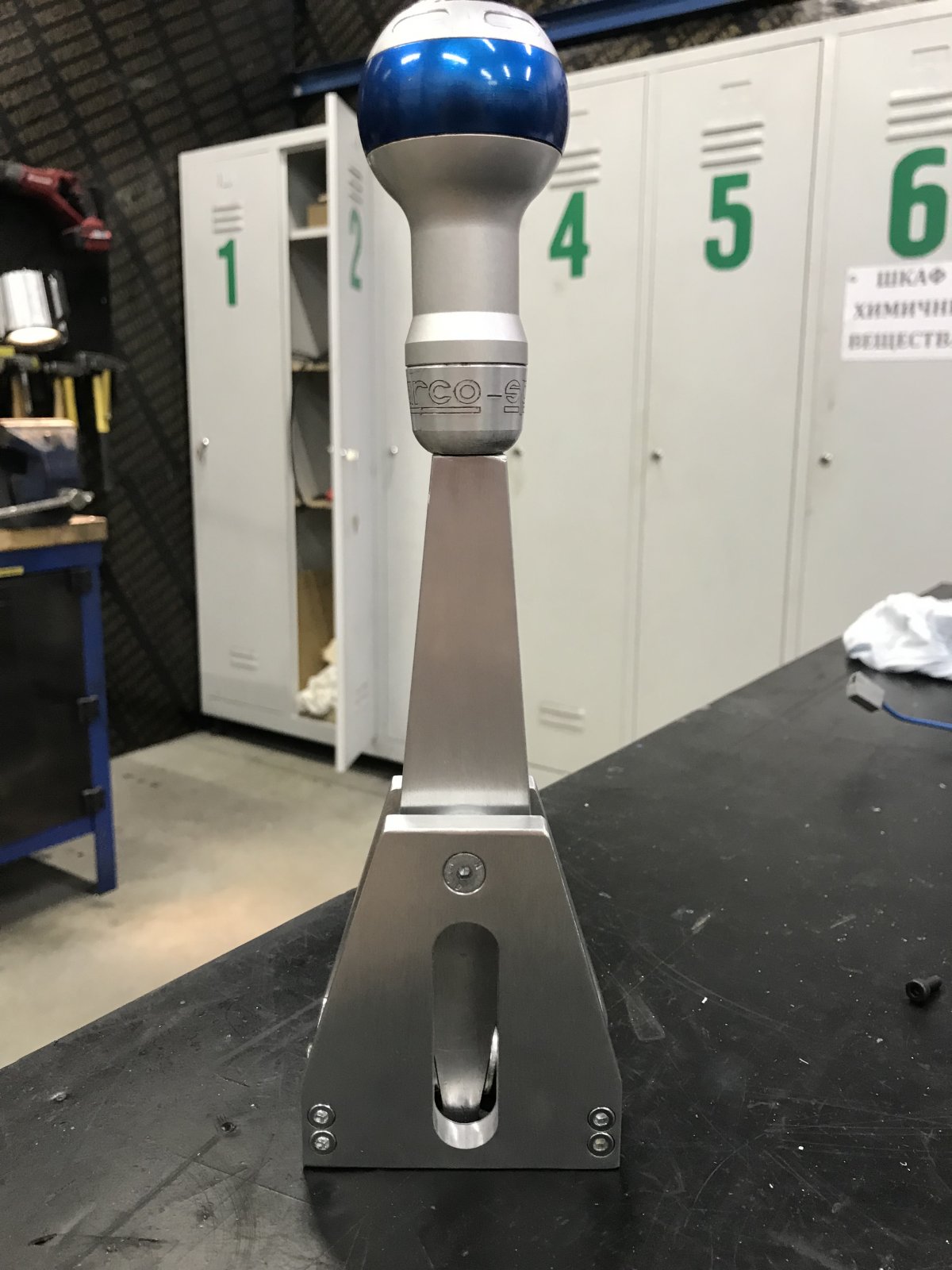

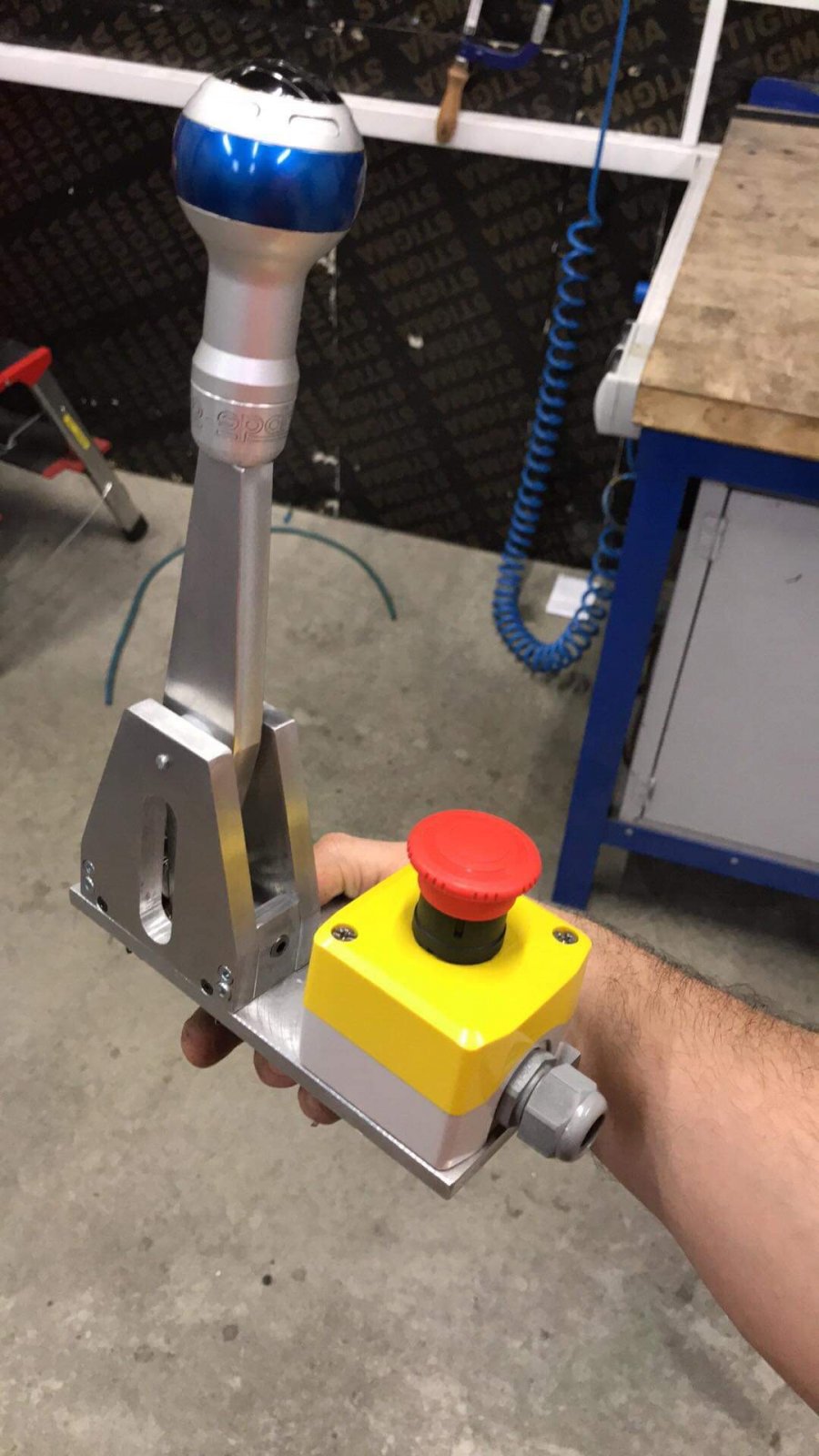

    I love the result with the sequential shifter :)

    Attached Files:

    • Like Like x 2
  6. cnupa4ka

    cnupa4ka Member

    Joined:
    Mar 1, 2019
    Messages:
    52
    Balance:
    379Coins
    Ratings:
    +17 / 0 / -0

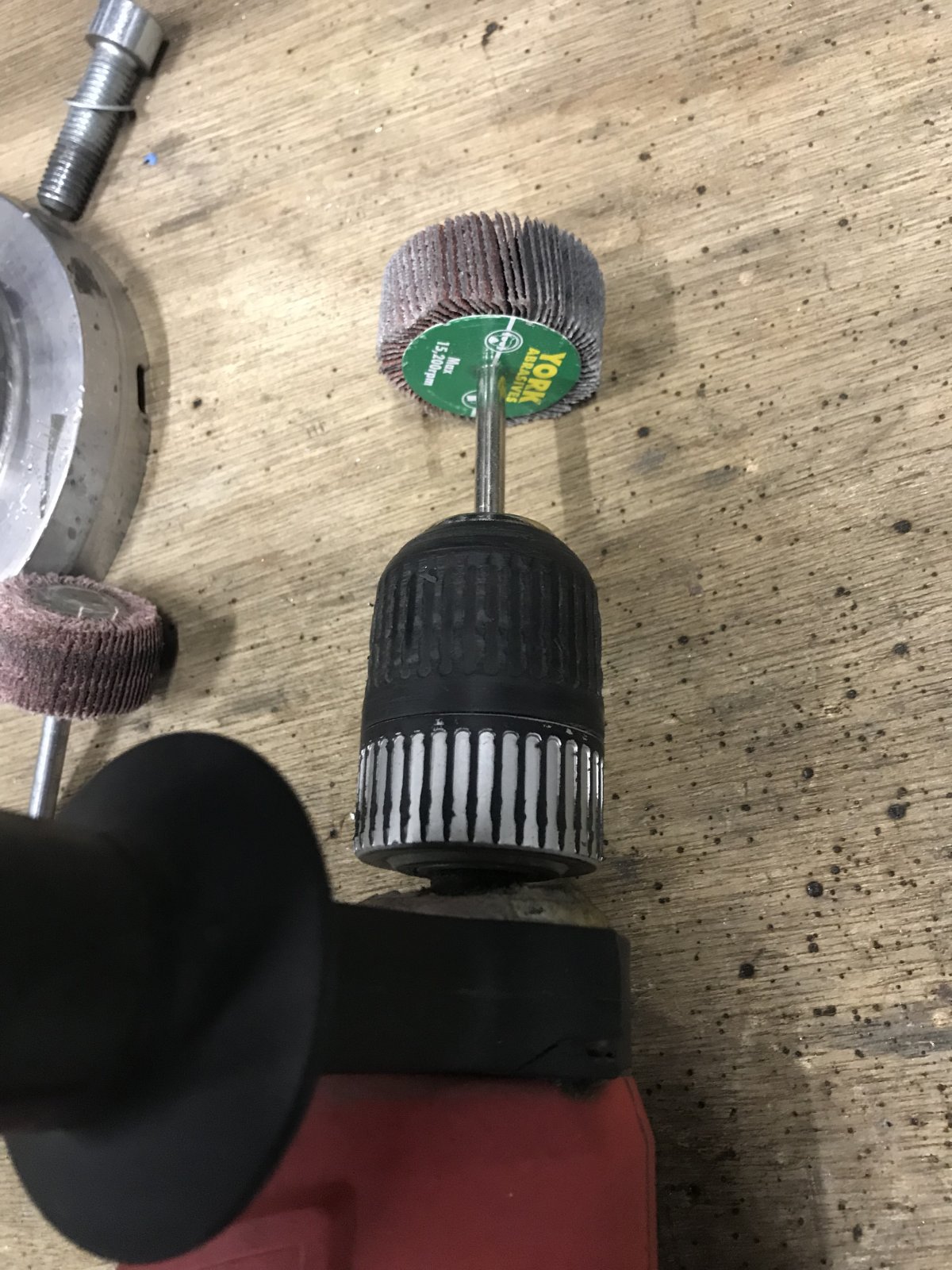

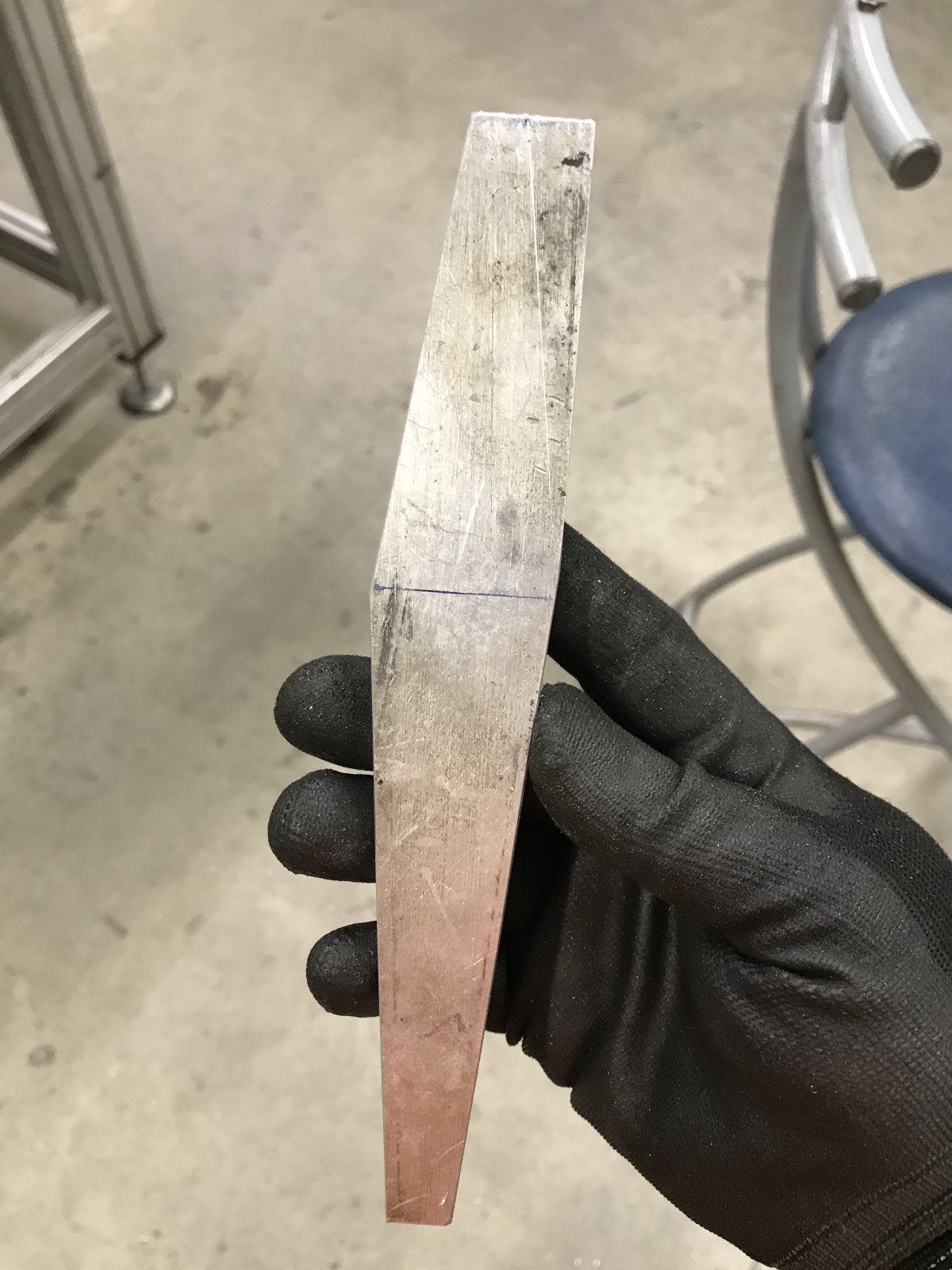

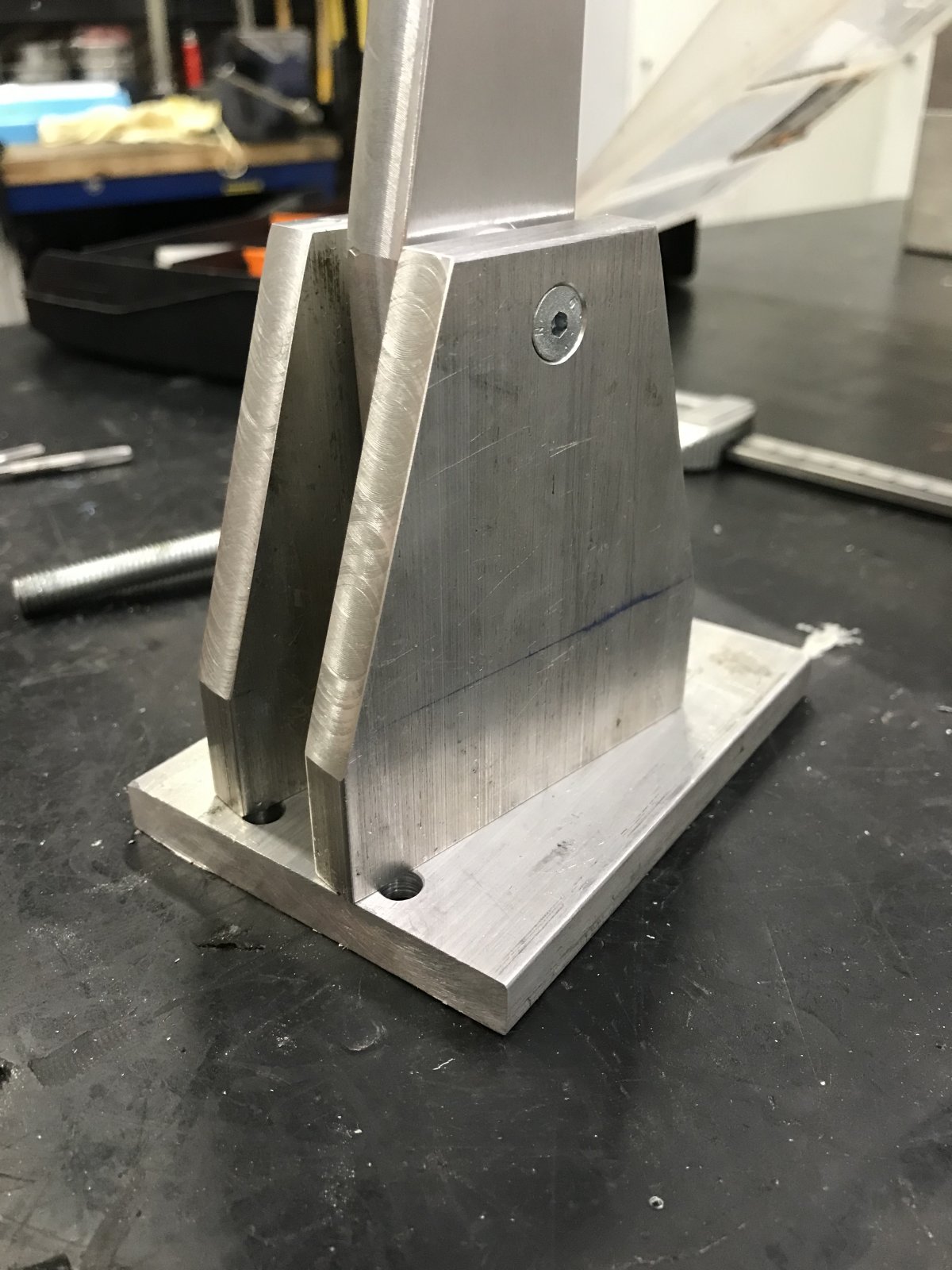

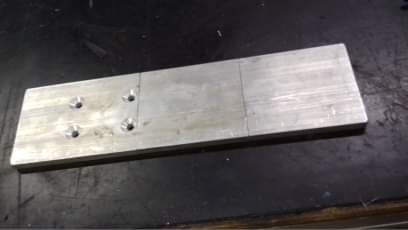

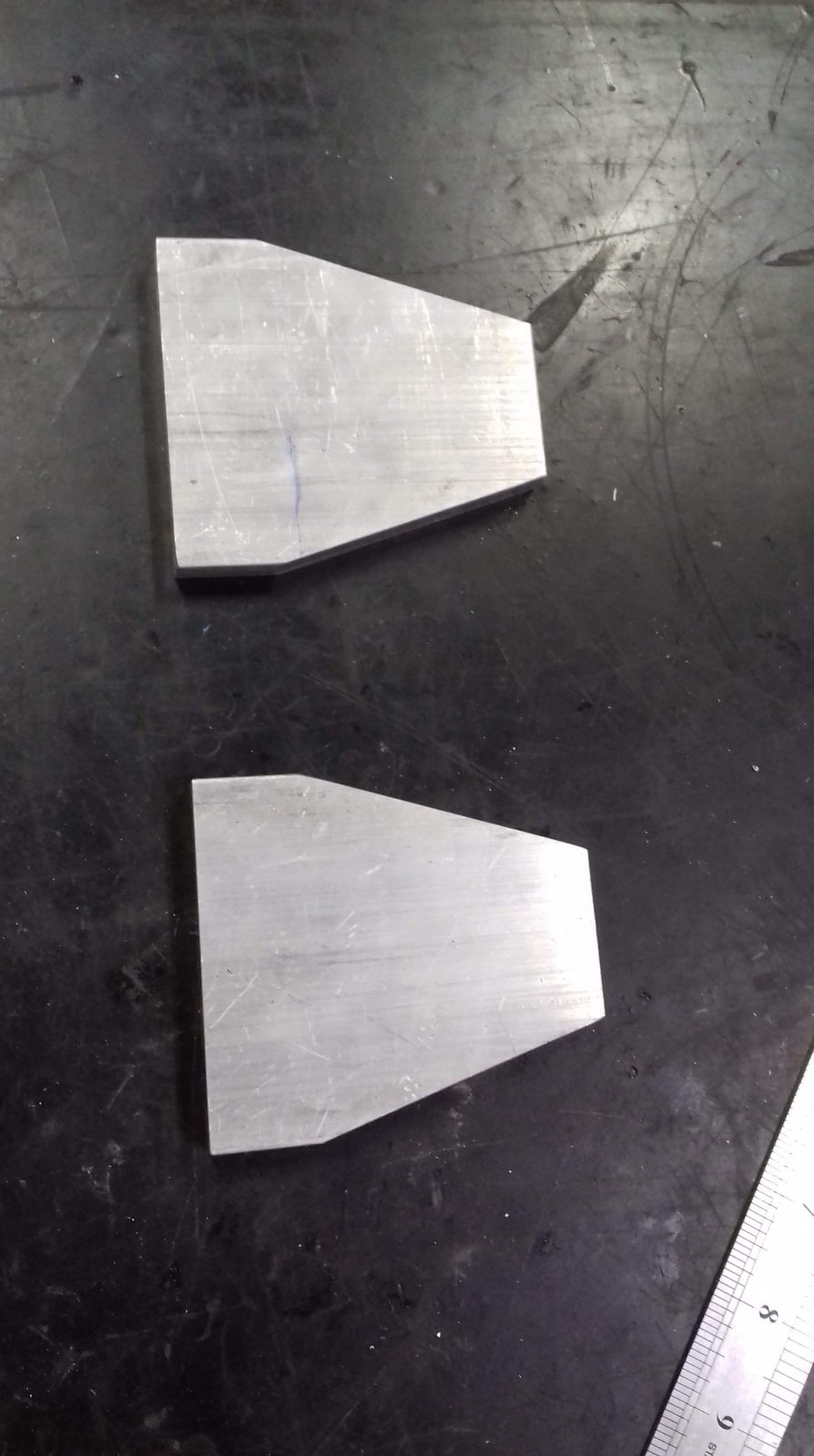

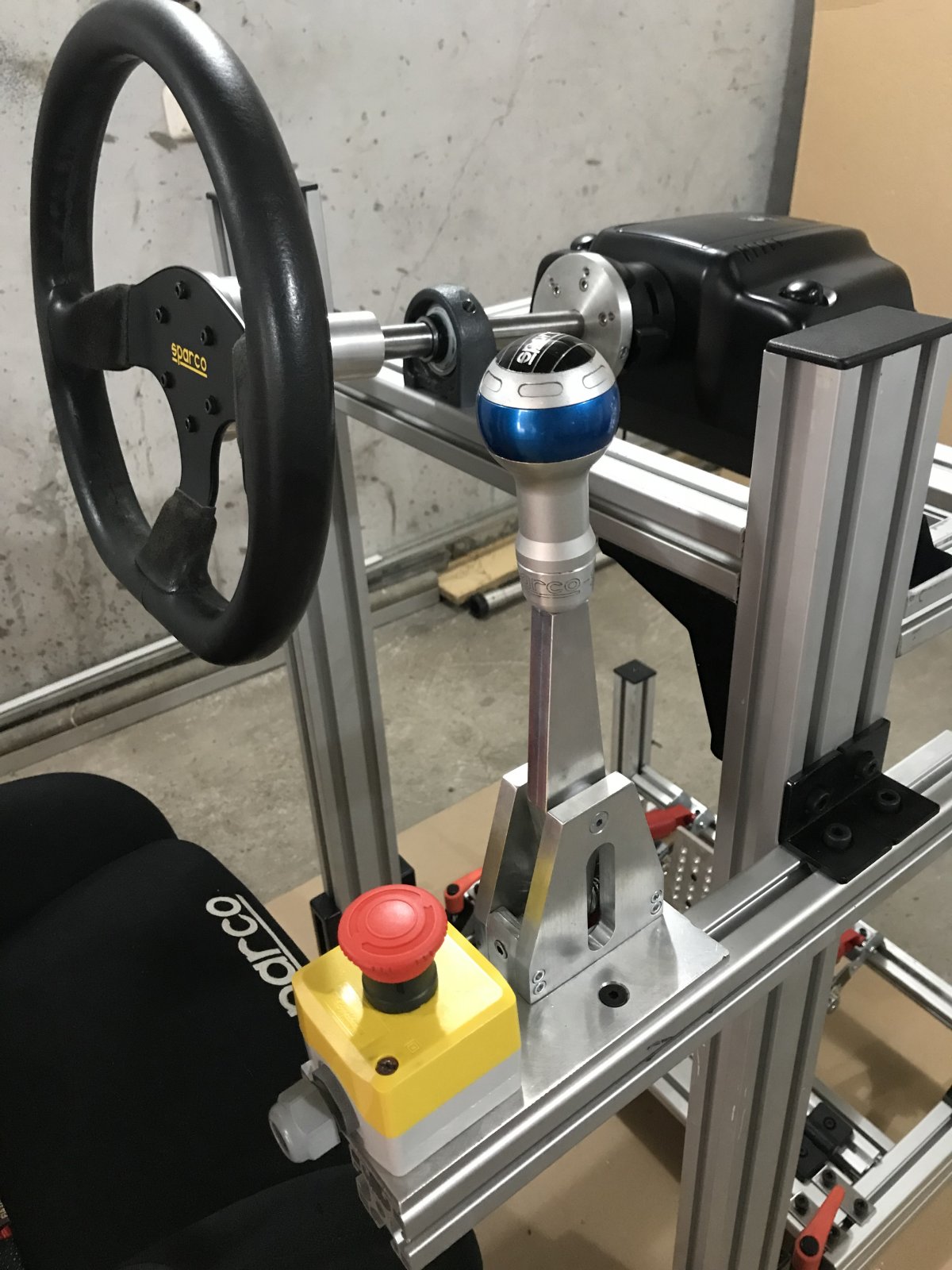

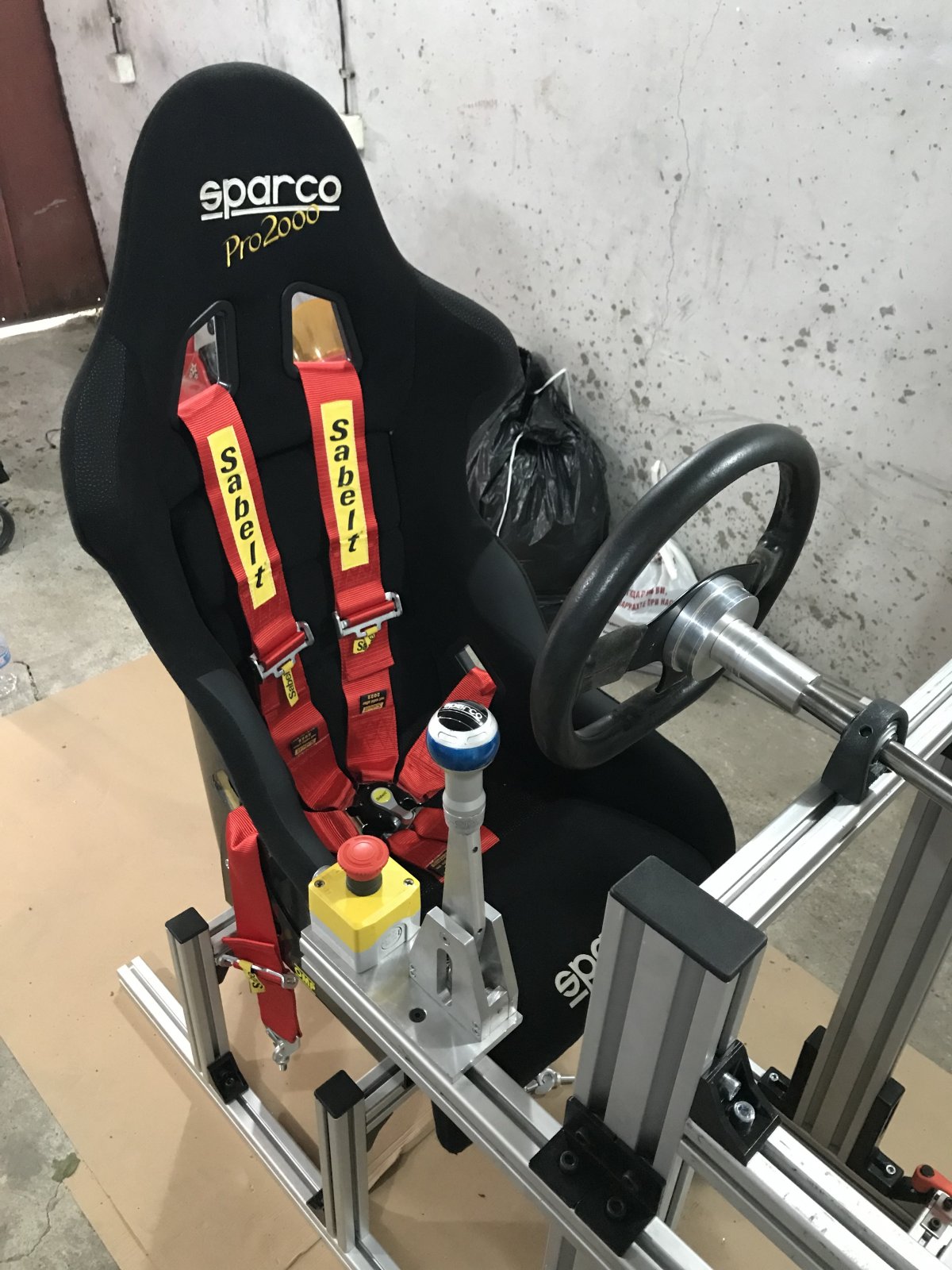

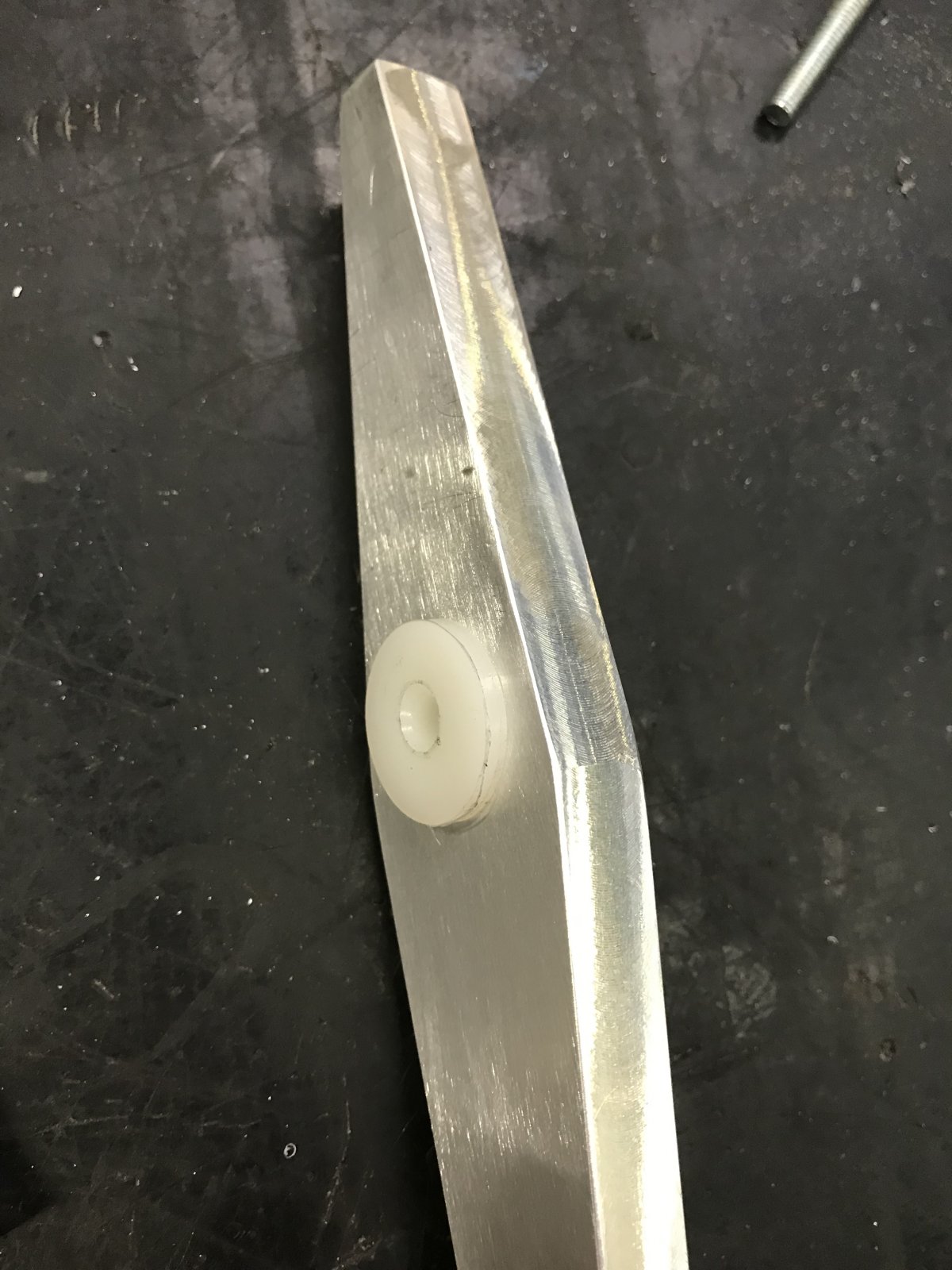

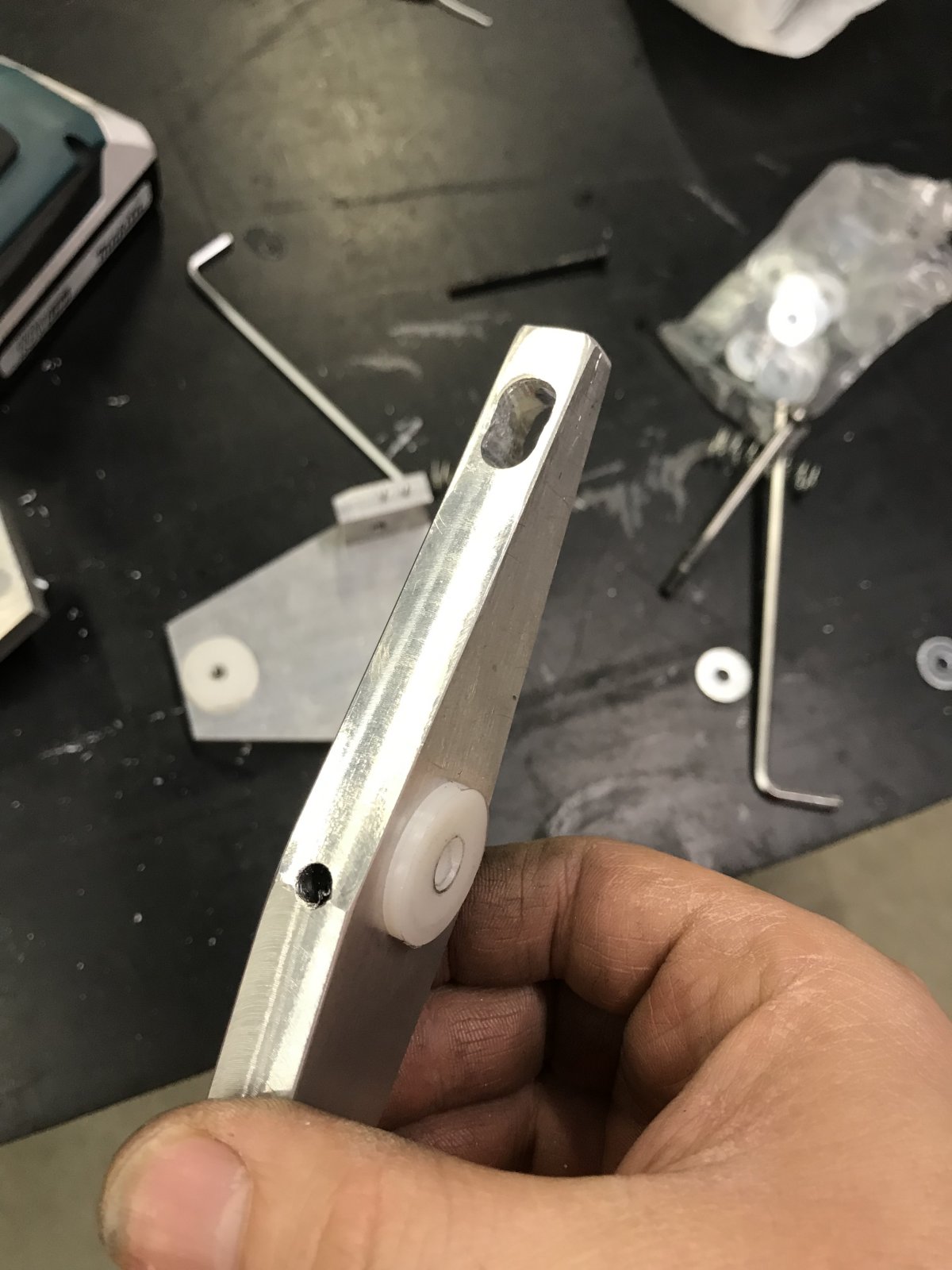

    Some more pics

    Attached Files:

    • Like Like x 4
  7. cnupa4ka

    cnupa4ka Member

    Joined:
    Mar 1, 2019
    Messages:
    52
    Balance:
    379Coins
    Ratings:
    +17 / 0 / -0

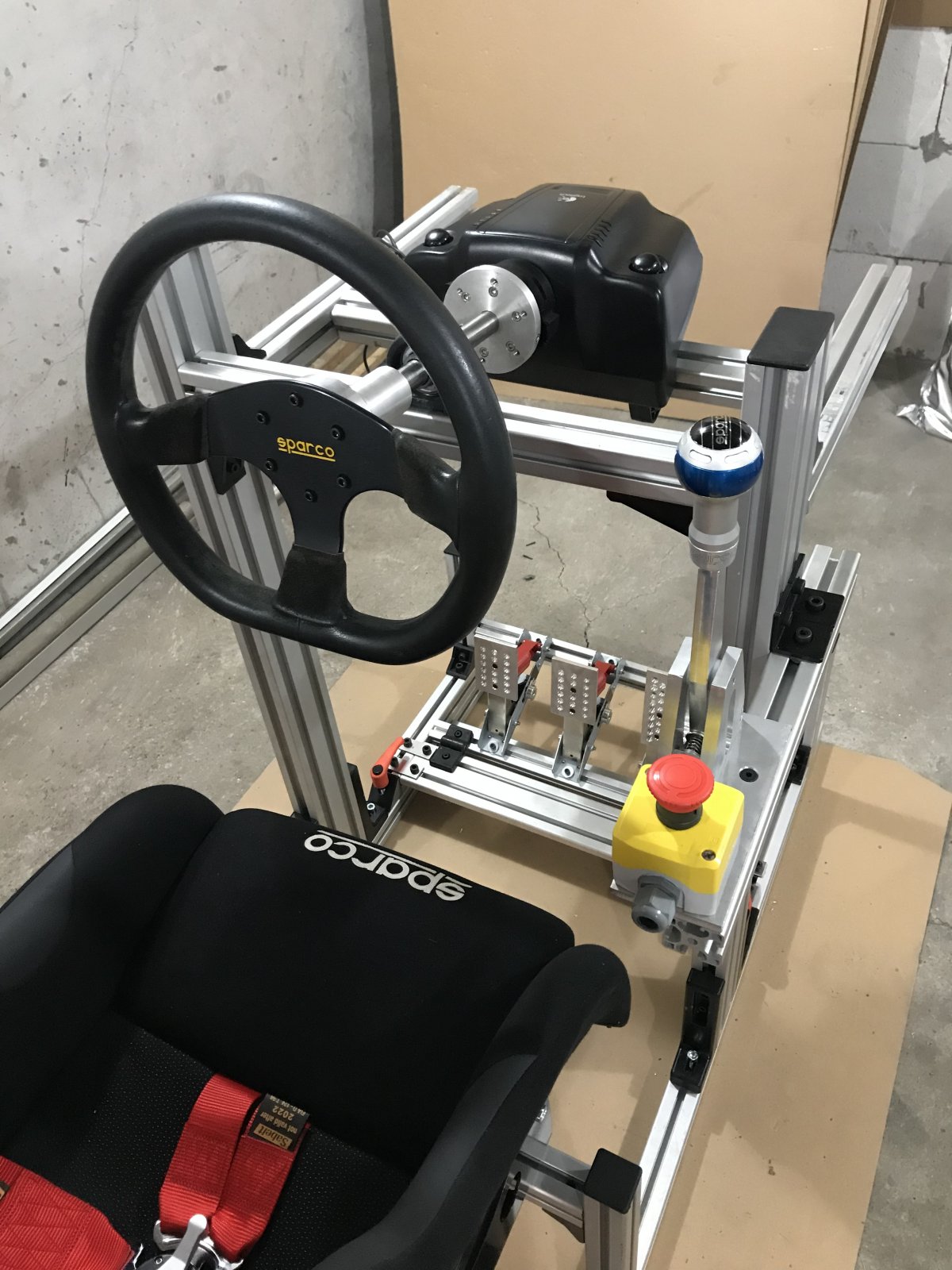

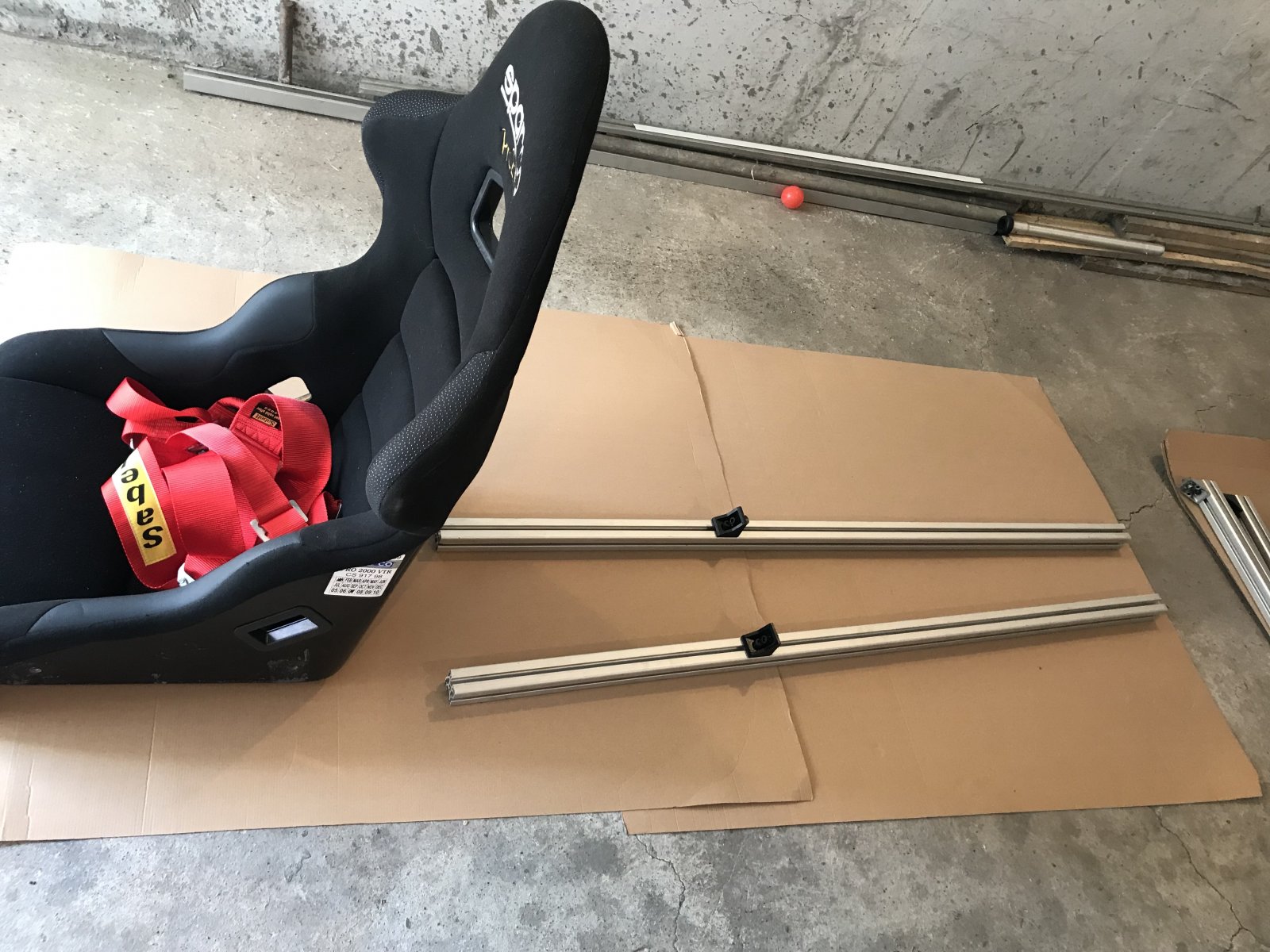

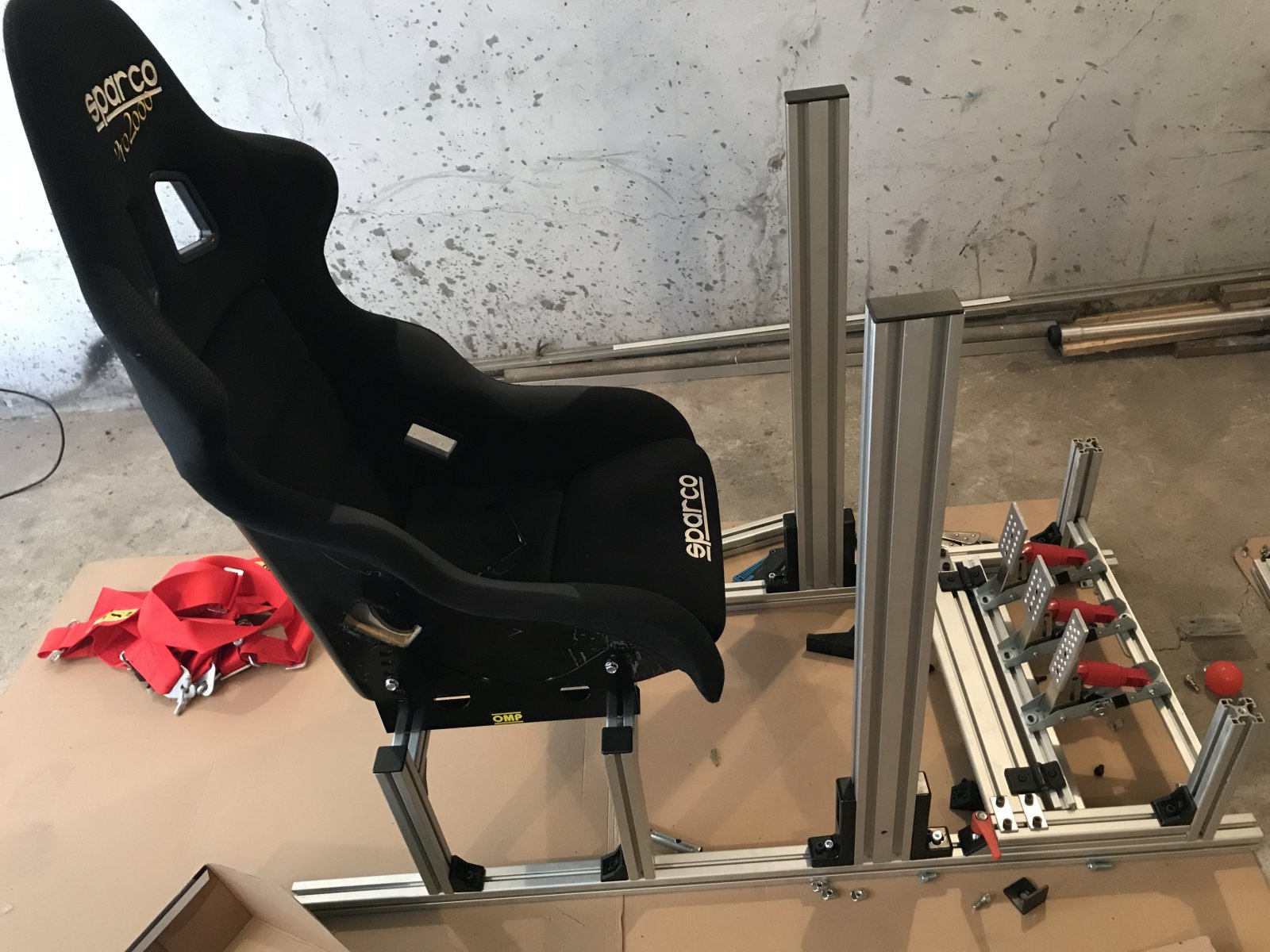

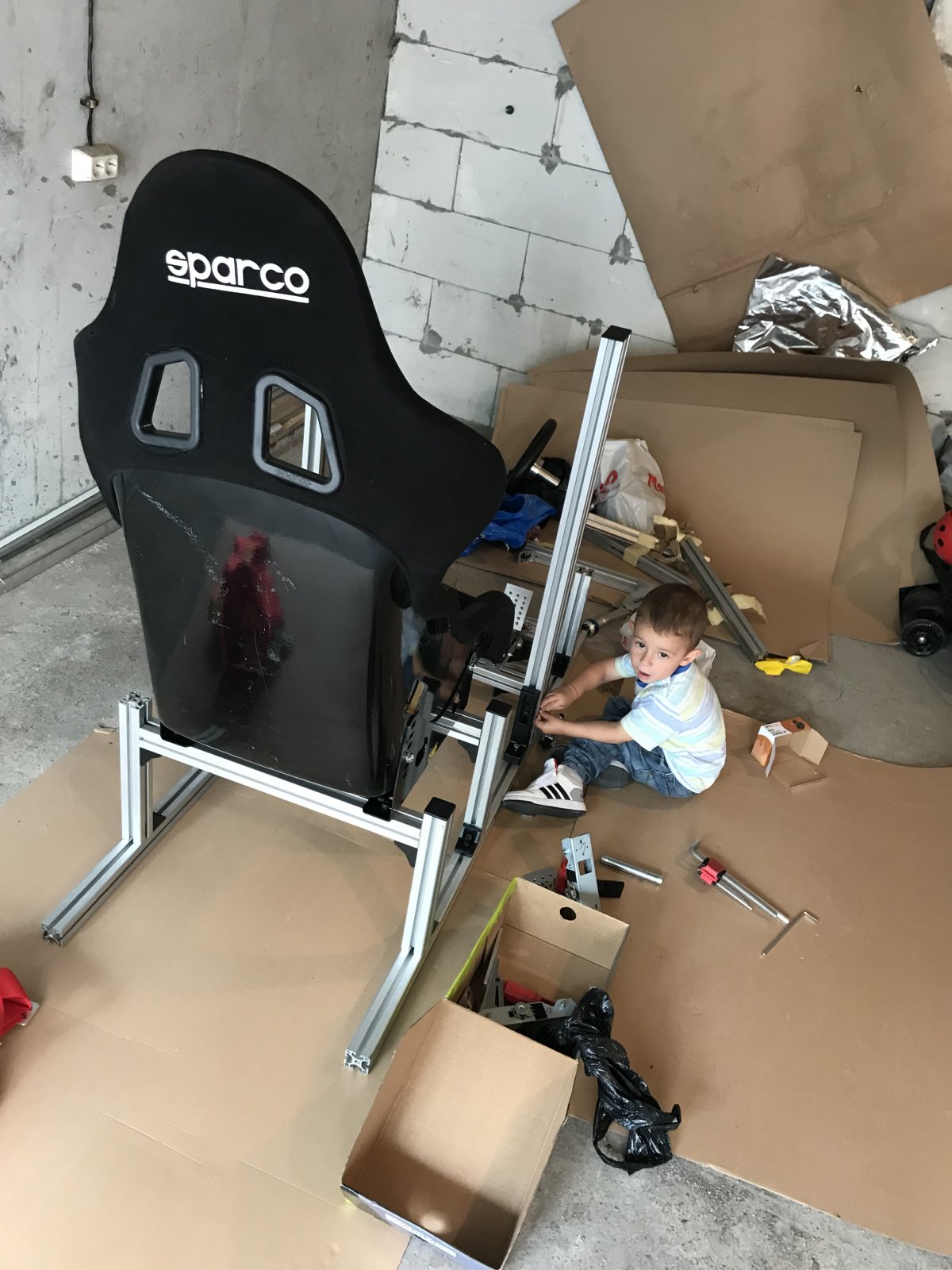

    Let start the frame with my teammate :D

    Attached Files:

    • Like Like x 2
  8. cnupa4ka

    cnupa4ka Member

    Joined:
    Mar 1, 2019
    Messages:
    52
    Balance:
    379Coins
    Ratings:
    +17 / 0 / -0

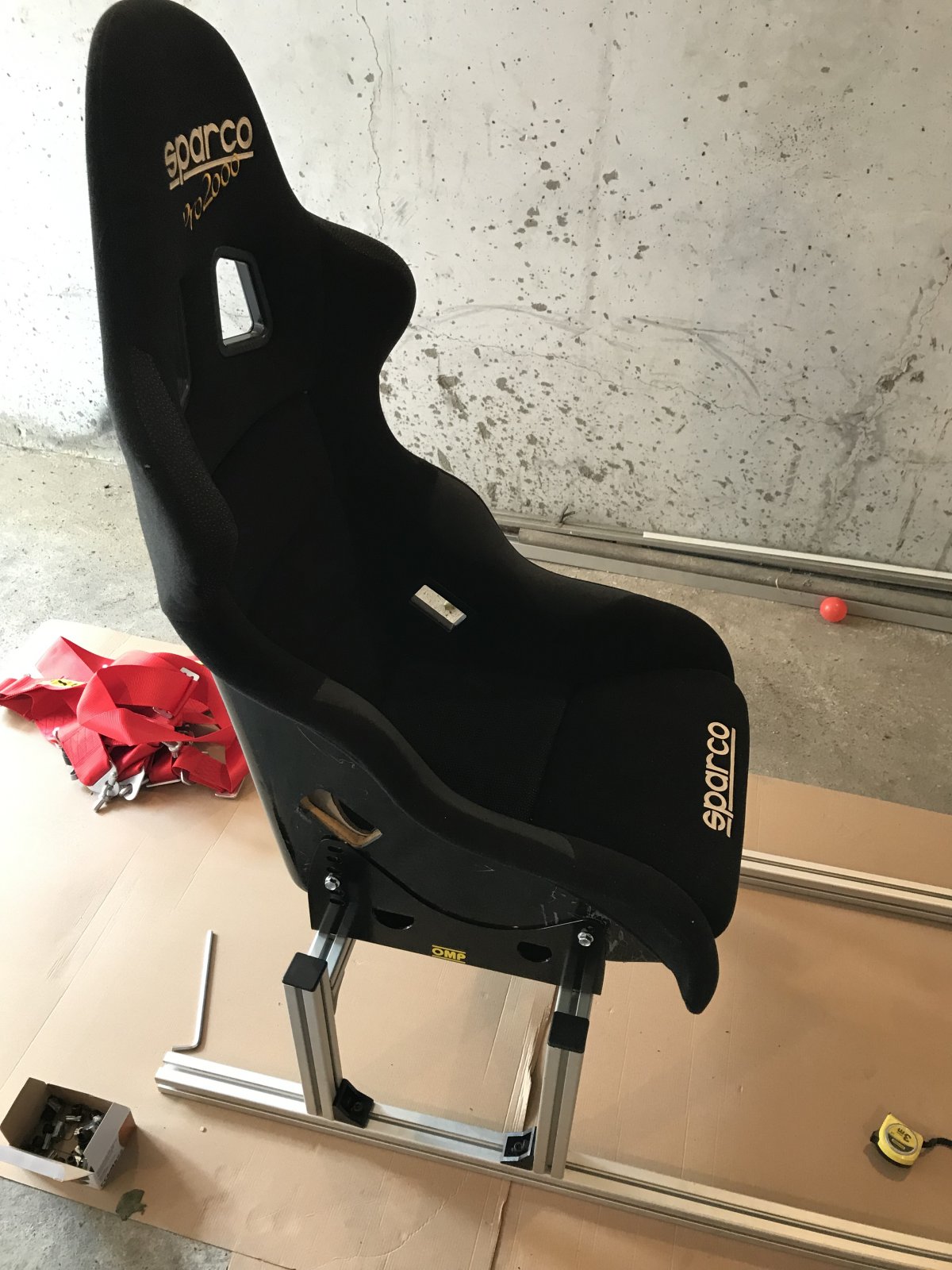

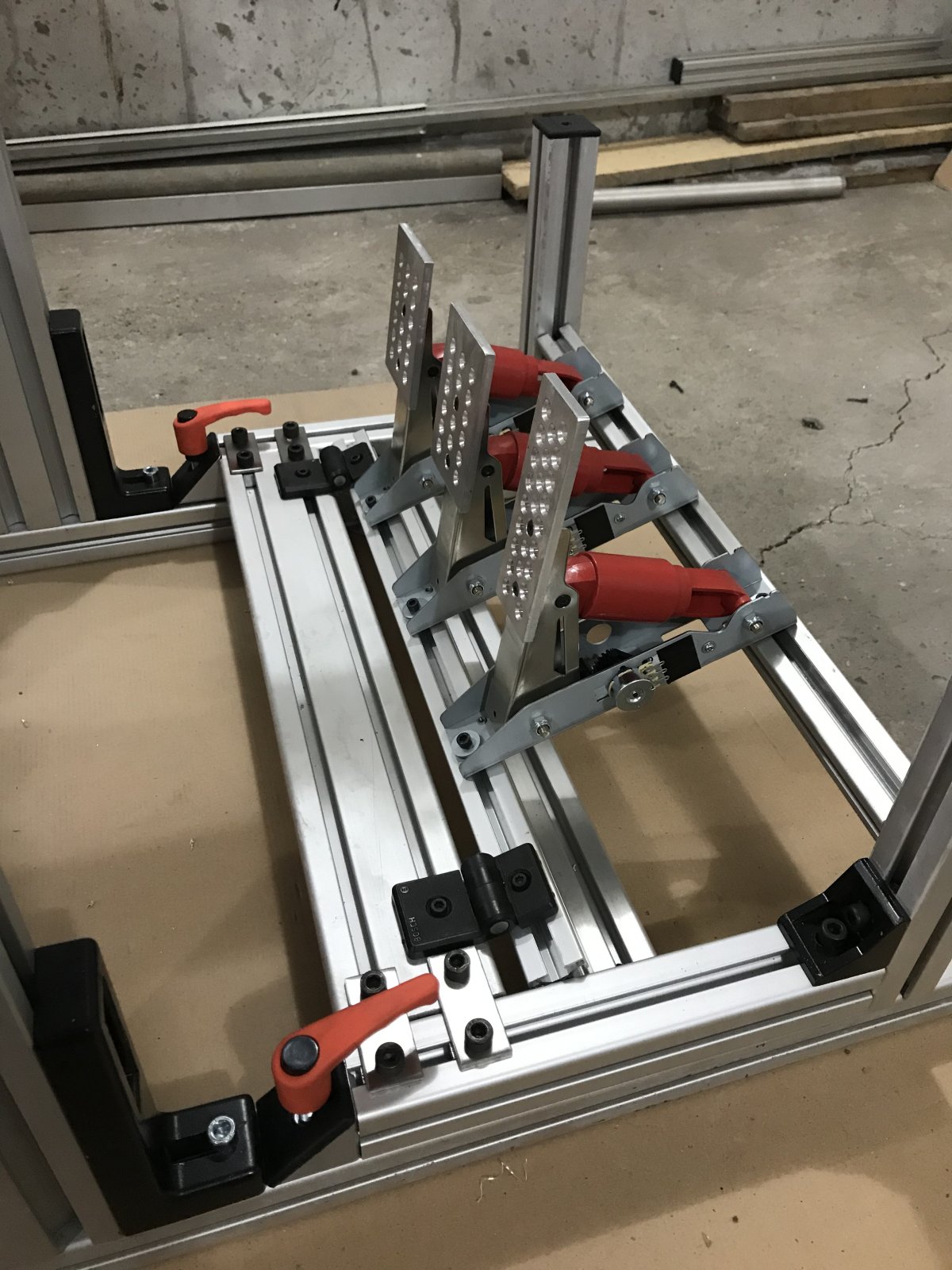

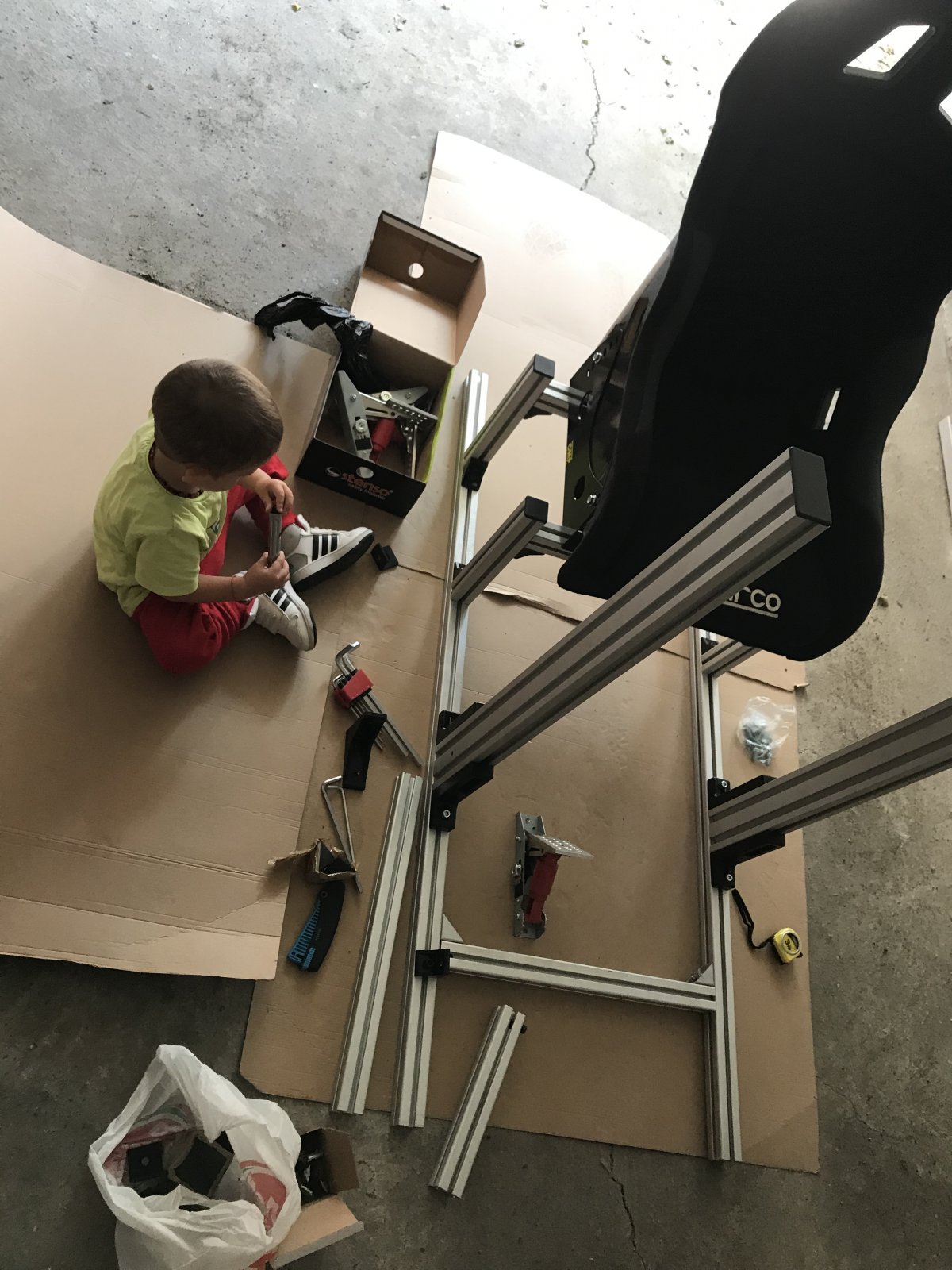

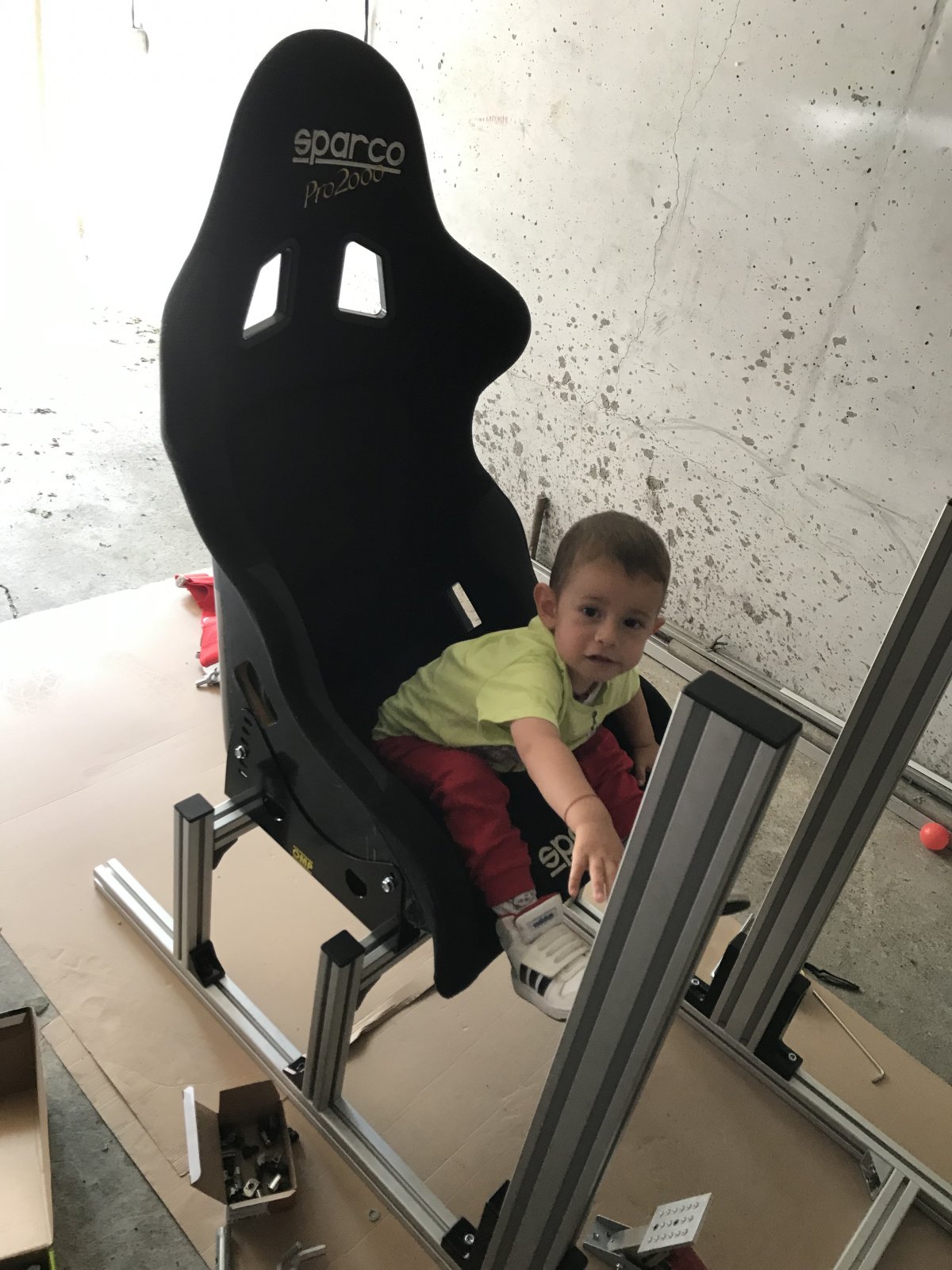

    This is at the moment. Next step is to mount the triple screen holder.

    Attached Files:

    • Like Like x 2
  9. cnupa4ka

    cnupa4ka Member

    Joined:
    Mar 1, 2019
    Messages:
    52
    Balance:
    379Coins
    Ratings:
    +17 / 0 / -0

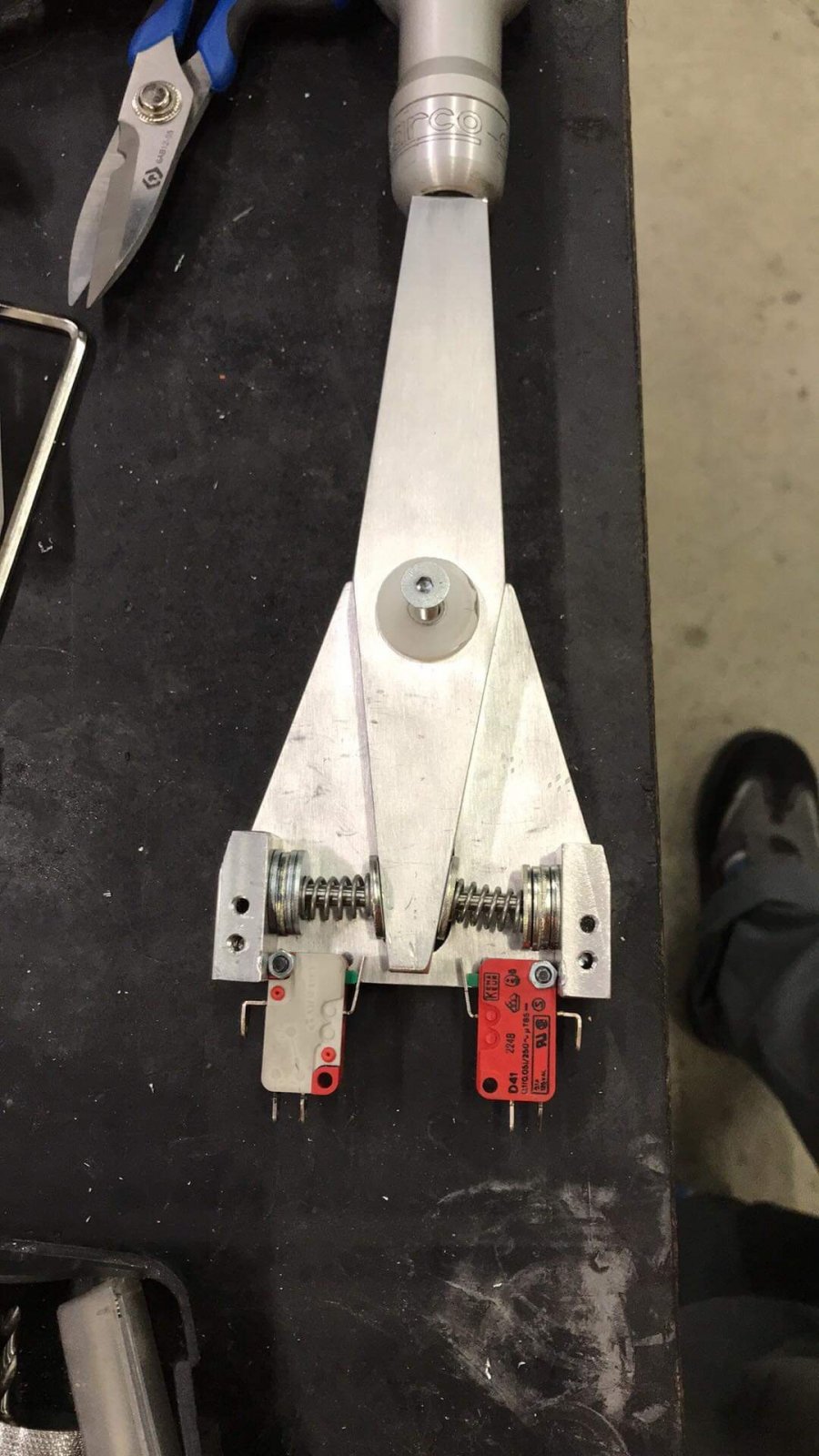

    Hi guys! I bought Oculus Rift S which is cool :)

    Now I am thinking to start with the 2DOF motion building.

    Can you give me any scheme of wiring.

    The parts I have:

    Sabertooth 2x60

    2x 12V Server PSU

    2x wheelchair 24V motors

    Arduino Uno

    I now I will need also batteries for the regenerative current. 2 x ????amps. maybe 30-35 could be enough?

    Thank You friends :)
  10. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    13,482
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    101,790Coins
    Ratings:
    +8,478 / 41 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
  11. cnupa4ka

    cnupa4ka Member

    Joined:
    Mar 1, 2019
    Messages:
    52
    Balance:
    379Coins
    Ratings:
    +17 / 0 / -0
    I cant see wiring diagram?
  12. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    13,482
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    101,790Coins
    Ratings:
    +8,478 / 41 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    [​IMG]
    • Informative Informative x 1
  13. cnupa4ka

    cnupa4ka Member

    Joined:
    Mar 1, 2019
    Messages:
    52
    Balance:
    379Coins
    Ratings:
    +17 / 0 / -0
    I mean Fully diagram. 24V motors, pots, PSUs, batteries, arduino :)
  14. hannibal

    hannibal Active Member

    Joined:
    Sep 29, 2018
    Messages:
    429
    Balance:
    2,776Coins
    Ratings:
    +131 / 1 / -0
    My Motion Simulator:
    3DOF
    @noorbeast .. is the dip settings for the sabertooth from diagram good for 6 doF operation?
