Showroom Motorcycle 4 DoF Motion sim

Discussion in 'DIY Motion Simulator Projects' started by Chris_Beeves, Sep 10, 2021.

Page 3 of 11
  1. Chris_Beeves

    Chris_Beeves Active Member Gold Contributor

    Joined:
    May 31, 2019
    Messages:
    332
    Balance:
    1,910Coins
    Ratings:
    +232 / 3 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    Yeah, the old simtools gpb plugin didn’t have support for vibe or dash so I’m using simhub for now. Hopefully I’ll be able to migrate everything to Simtools v3 in the future.
    • Like Like x 1
    • Informative Informative x 1
    Chris_Beeves, Apr 25, 2022
    #41
  2. hideki

    hideki Active Member

    Joined:
    Feb 3, 2014
    Messages:
    169
    Location:
    Spain
    Balance:
    - 198Coins
    Ratings:
    +51 / 1 / -0
    My Motion Simulator:
    2DOF, SCN5
    Thanks for the answer.
    Nice project !!
    • Like Like x 1
    hideki, Apr 25, 2022
    #42
  3. Chris_Beeves

    Chris_Beeves Active Member Gold Contributor

    Joined:
    May 31, 2019
    Messages:
    332
    Balance:
    1,910Coins
    Ratings:
    +232 / 3 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    Got some assembly work done today. Hiding the cables in the aluminum profiles gives me goose bumps! :grin
    • Like Like x 2
    Chris_Beeves, Apr 25, 2022
    #43
  4. Chris_Beeves

    Chris_Beeves Active Member Gold Contributor

    Joined:
    May 31, 2019
    Messages:
    332
    Balance:
    1,910Coins
    Ratings:
    +232 / 3 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF


    Testing motion live!
    • Like Like x 6
    Chris_Beeves, Apr 30, 2022
    #44
  5. Chris_Beeves

    Chris_Beeves Active Member Gold Contributor

    Joined:
    May 31, 2019
    Messages:
    332
    Balance:
    1,910Coins
    Ratings:
    +232 / 3 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF

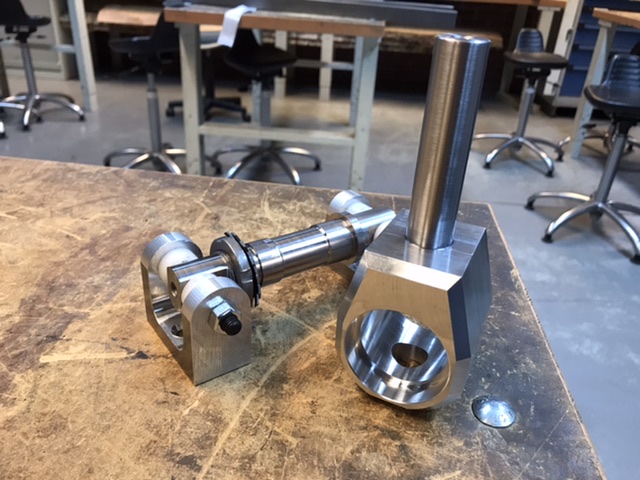

    Spent some time in the workshop yesterday finishing up some of the aluminum parts.

    Just waiting for the bearings now to start upper platform assembly!
    • Like Like x 3
    Chris_Beeves, May 3, 2022
    #45
  6. Chris_Beeves

    Chris_Beeves Active Member Gold Contributor

    Joined:
    May 31, 2019
    Messages:
    332
    Balance:
    1,910Coins
    Ratings:
    +232 / 3 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF

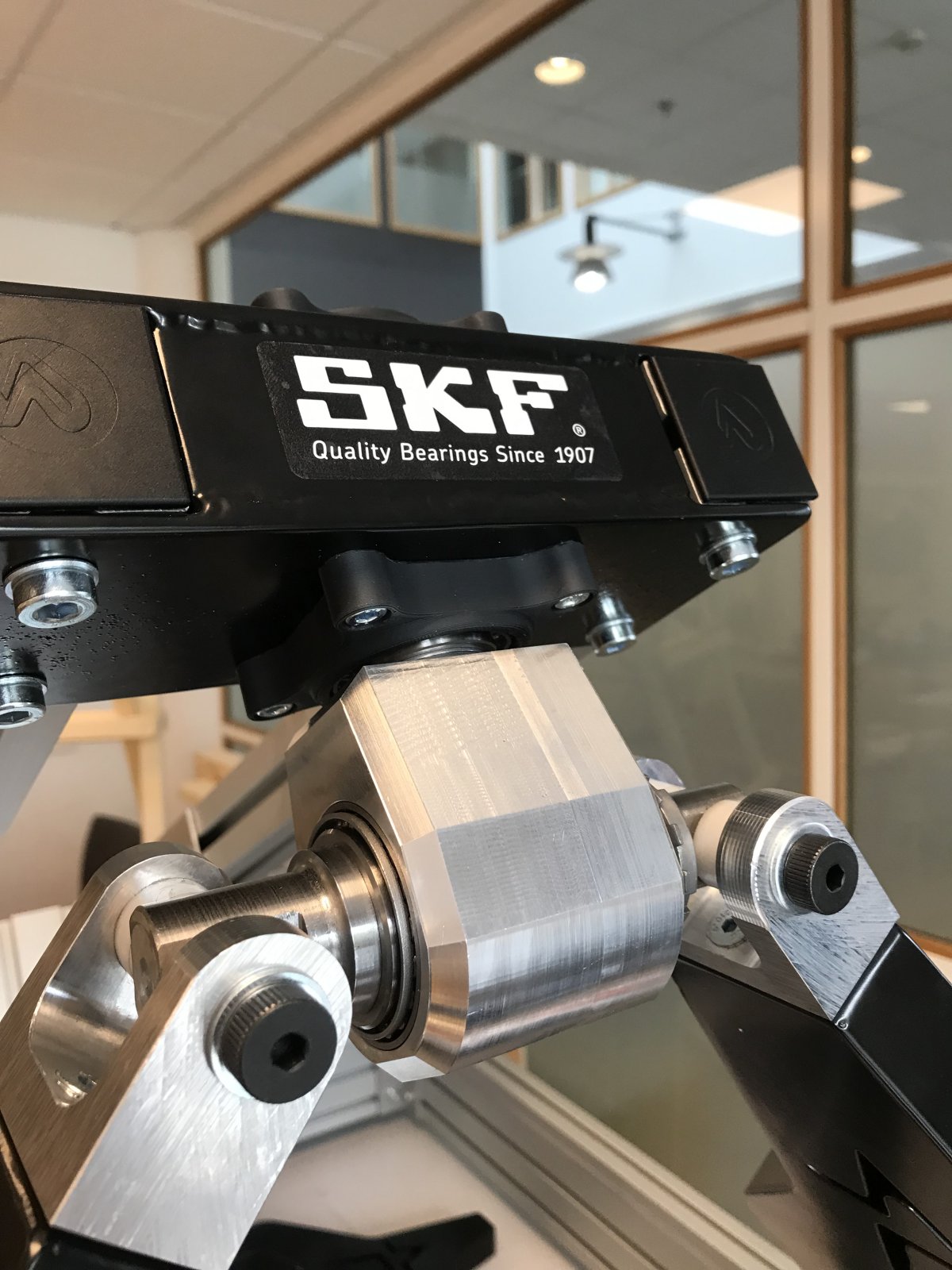

    We got sponsored by SKF with all the bearings we needed. They also helped guide us what type elements to use where, super helpful!

    Yesterday we got them installed:


    Now things are really starting to come together. The fairings are due to be deliviered any day now, so we can start fitting them and painting.
    • Like Like x 4
    Chris_Beeves, May 11, 2022
    #46
  7. Arturo Cipriano

    Arturo Cipriano New Member Gold Contributor

    Joined:
    Mar 9, 2021
    Messages:
    9
    Location:
    Barcelona, Spain
    Balance:
    - 67Coins
    Ratings:
    +6 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    It is taking shape and it looks incredible…very good job…..congratulations:thumbs:thumbs:thumbs
    Arturo Cipriano, May 11, 2022
    #47
  8. Chris_Beeves

    Chris_Beeves Active Member Gold Contributor

    Joined:
    May 31, 2019
    Messages:
    332
    Balance:
    1,910Coins
    Ratings:
    +232 / 3 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    Thank you Arturo!
    Feels surreal being this close to having it finished.
    • Like Like x 1
    Chris_Beeves, May 11, 2022
    #48
  9. Gadget999

    Gadget999 Well-Known Member

    Joined:
    Dec 27, 2015
    Messages:
    1,897
    Location:
    London
    Balance:
    11,610Coins
    Ratings:
    +458 / 9 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, 6DOF
    I use SKF, very good quality :)

    Can't wait to see your sim on action !
    • Like Like x 1
    Gadget999, May 12, 2022
    #49
  10. Chris_Beeves

    Chris_Beeves Active Member Gold Contributor

    Joined:
    May 31, 2019
    Messages:
    332
    Balance:
    1,910Coins
    Ratings:
    +232 / 3 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    The best! SKF was founded in Gothenburg, my home city, so I could be a tad biased..
    • Like Like x 1
    Chris_Beeves, May 12, 2022
    #50
  11. Chris_Beeves

    Chris_Beeves Active Member Gold Contributor

    Joined:
    May 31, 2019
    Messages:
    332
    Balance:
    1,910Coins
    Ratings:
    +232 / 3 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    The fairing manufacturer is having some trouble delivering in time, so an impatient mock-up mount of some test fairings made it possible to test the new controller design and other geometries.

    • Like Like x 3
    • Winner Winner x 3
    • Creative Creative x 1
    Chris_Beeves, May 16, 2022
    #51
  12. Chris_Beeves

    Chris_Beeves Active Member Gold Contributor

    Joined:
    May 31, 2019
    Messages:
    332
    Balance:
    1,910Coins
    Ratings:
    +232 / 3 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF

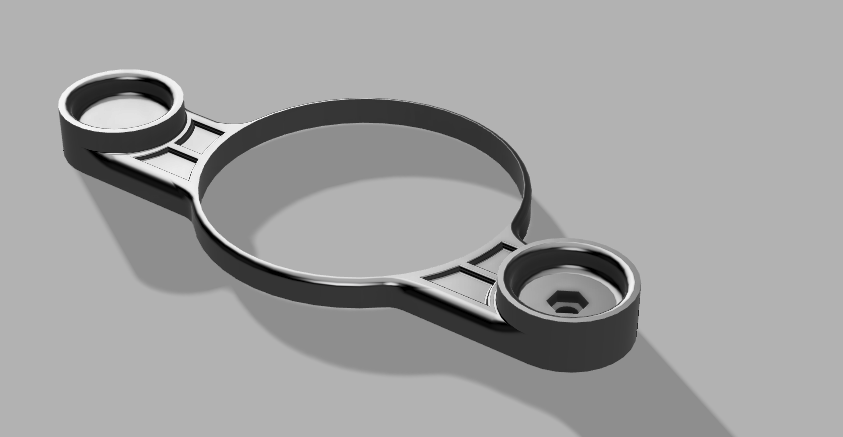

    The steer clamp for the force feedback unit needed some reinforcing, so I made a ring that tied the bottom of the "forks" to the motor.
    Made a little hole in the bottom of the left side to mount a steering damper in the future.
    • Like Like x 1
    Chris_Beeves, May 18, 2022
    #52
  13. Chris_Beeves

    Chris_Beeves Active Member Gold Contributor

    Joined:
    May 31, 2019
    Messages:
    332
    Balance:
    1,910Coins
    Ratings:
    +232 / 3 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    Had a more lengthy test run yesterday, still without the full controls unfortunately.
    And wow, I underestimated the tuning part of Simtools. There is ALOT of hidden immersion in there.

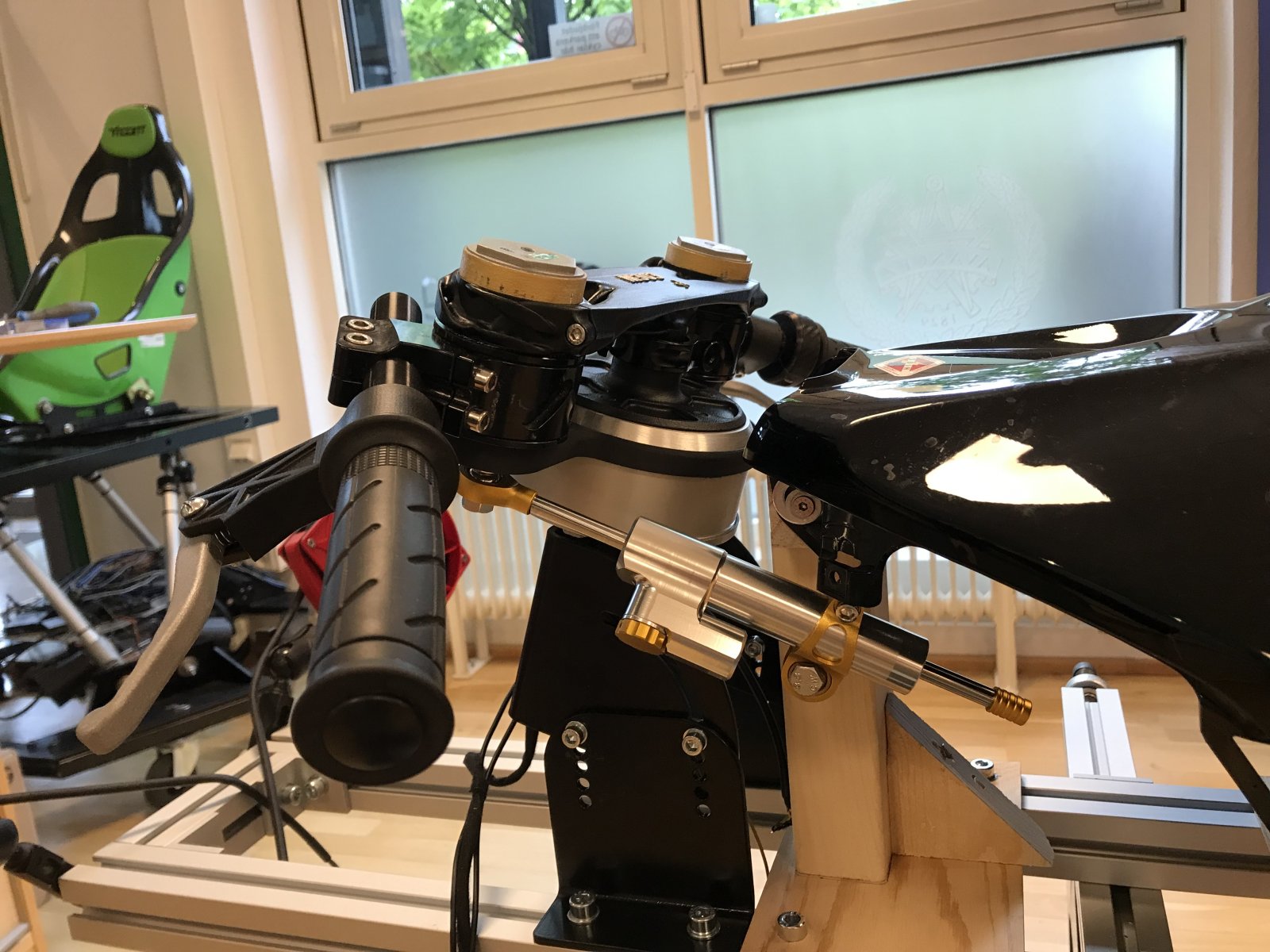

    Attached Dayton vibe pucks to the seat and footrest mount. The rig is a bit too stiff for them and the effect was quite mellow. I guess I’ll just have to get bigger ones :)

    And also attached a steering damper to the handlebar controller. Feels awesome! Eager to see the effect it will have on the force feedback..

    • Like Like x 1
    Chris_Beeves, May 25, 2022
    #53
  14. Gadget999

    Gadget999 Well-Known Member

    Joined:
    Dec 27, 2015
    Messages:
    1,897
    Location:
    London
    Balance:
    11,610Coins
    Ratings:
    +458 / 9 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, 6DOF
    Is that a 6dof we see in the background ??
    Gadget999, May 25, 2022
    #54
  15. Chris_Beeves

    Chris_Beeves Active Member Gold Contributor

    Joined:
    May 31, 2019
    Messages:
    332
    Balance:
    1,910Coins
    Ratings:
    +232 / 3 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    Yeah. It doesn’t love me back though so I left it in the corner.
    Chris_Beeves, May 25, 2022
    #55
  16. Arturo Cipriano

    Arturo Cipriano New Member Gold Contributor

    Joined:
    Mar 9, 2021
    Messages:
    9
    Location:
    Barcelona, Spain
    Balance:
    - 67Coins
    Ratings:
    +6 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino

    I attached the Daytons to the fuel tank to feel the vibrations in the seat and handlebars. Also, being made of fiberglass, it transmits vibrations very well… if you don't feel it well on the seat, try changing places, there is a lot of difference if you feel the vibrations well or not…

    It looks better and better... congratulations:cheers
    • Like Like x 2
    Arturo Cipriano, May 25, 2022
    #56
  17. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    20,527
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    144,986Coins
    Ratings:
    +10,774 / 52 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    • Like Like x 2
    noorbeast, May 25, 2022
    #57
  18. Chris_Beeves

    Chris_Beeves Active Member Gold Contributor

    Joined:
    May 31, 2019
    Messages:
    332
    Balance:
    1,910Coins
    Ratings:
    +232 / 3 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    Thanks Arturo! Yeah, I suspect it will be better when (if) I get the fairings I ordered. They are quite solid glass fiber so should transmit the vibrations quite well.
    Also I ordered two Dayton bst-1 units just in case
    Chris_Beeves, May 25, 2022
    #58
  19. Chris_Beeves

    Chris_Beeves Active Member Gold Contributor

    Joined:
    May 31, 2019
    Messages:
    332
    Balance:
    1,910Coins
    Ratings:
    +232 / 3 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF
    Does this technically count as a 5DoF including the force feedback steer controller?
    Chris_Beeves, May 31, 2022
    #59
  20. Chris_Beeves

    Chris_Beeves Active Member Gold Contributor

    Joined:
    May 31, 2019
    Messages:
    332
    Balance:
    1,910Coins
    Ratings:
    +232 / 3 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 4DOF

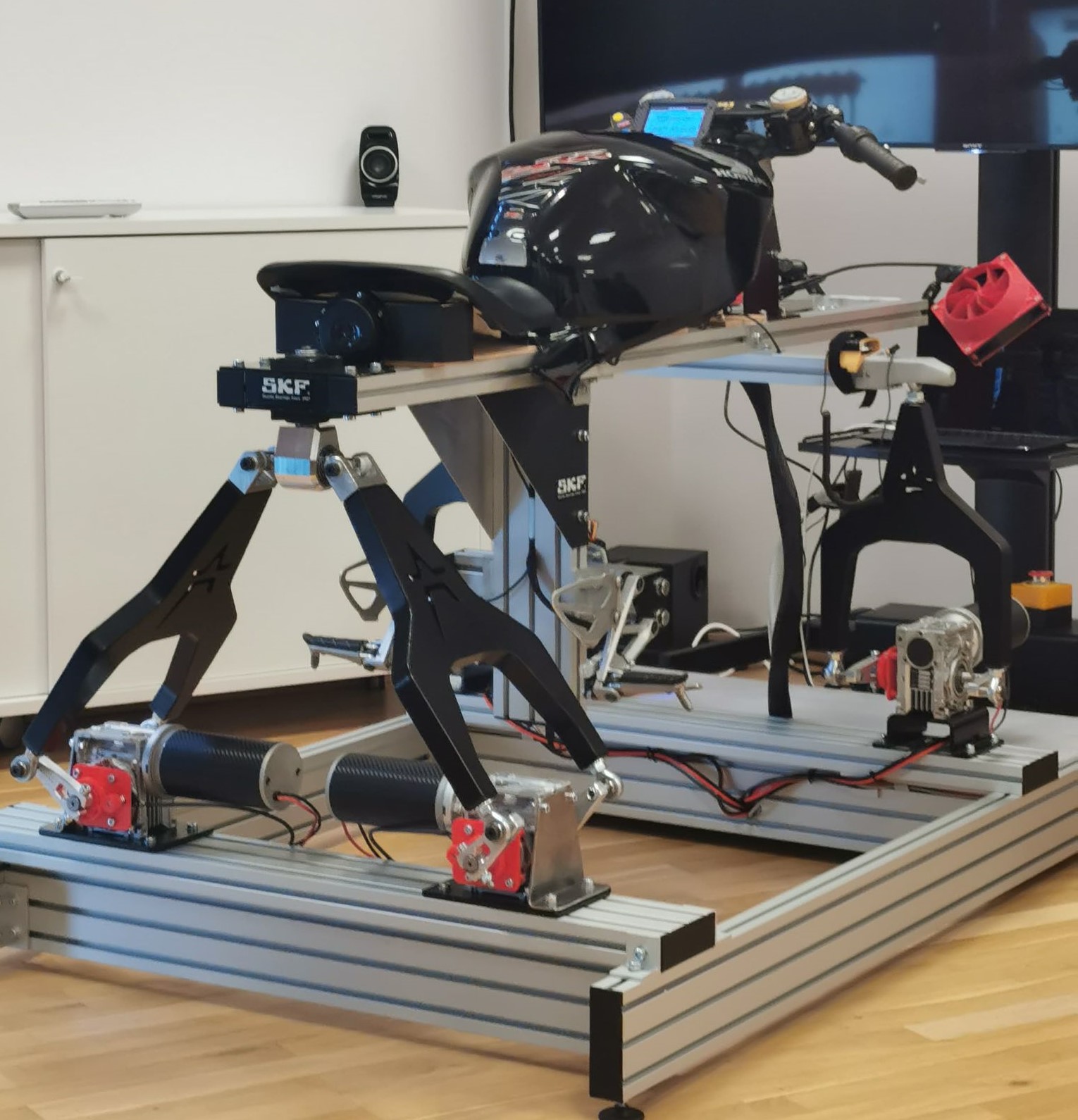

    Thursday was the big unveiling day! The presentation of our thesis.
    Everything worked great, except for something disturbing the rear motors so they didn't react as fast as they should. I'll have to troubleshoot.
    Anyhow, it was an amazing experience and I'm really looking forward to tuning this thing in.

    Tried adding suspension travel to the plugin and it really looks spectacular. Only tried it on the scale prototype so far though.


    One hour after we finished the presentation I got a notification that the fairings were ready to be picked up, about a month delay.. Ironic!
    • Like Like x 5
    • Winner Winner x 2
    Chris_Beeves, Jun 11, 2022
    #60
Page 3 of 11
