Large footprint 6DOF motion base ......

Discussion in 'DIY Motion Simulator Projects' started by jthiani, Jun 16, 2015.

  1. jthiani

    jthiani Member

    Joined:
    Jun 15, 2015
    Messages:
    34
    Location:
    Knightdale, NC
    Balance:
    496Coins
    Ratings:
    +38 / 0 / -0
    My Motion Simulator:
    DC motor, AC motor, Motion platform, 6DOF
    Hi all ..... soooo i have been working on building my motion platform for the better part of 2014 and planning since 2013. Im close to completing and i figured it was time to share my progress and get some opinions, thoughts etc etc. A little about the motion base ... it is crank arm based with an 8 foot base and should have a seated height of about 5 feet. It should be able to handle a payload of about 2000 pounds and the intention is to mount a full scale 737 NG or 787 dreamliner flight deck with full wrap around display system. Well thats the plan hahahahaha ... let me finish it first. Here are some pictures.

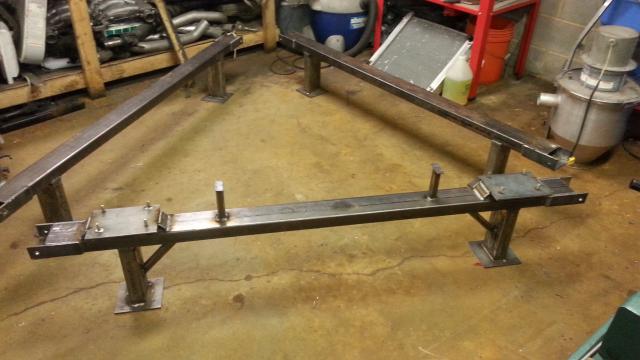

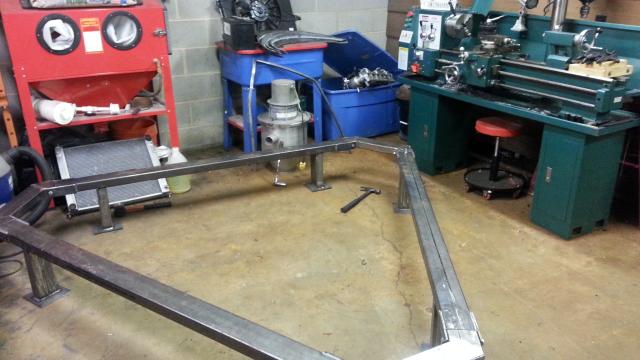

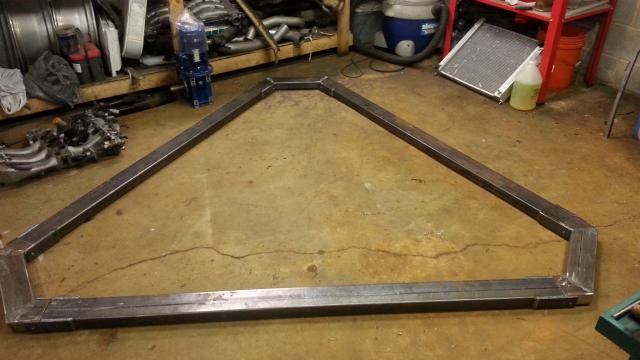

    In this picture i had the main frame cut and welded up .... The end caps are removable and held together using 6 bolts ...

    [​IMG]

    ************************
    Here the legs are attached

    [​IMG]

    ***************************

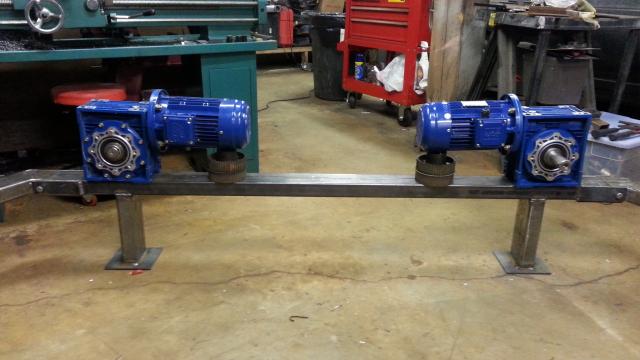

    Motor and gear mock up ....

    [​IMG]

    *************************

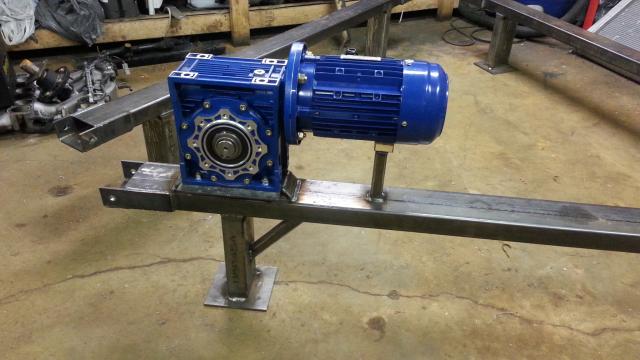

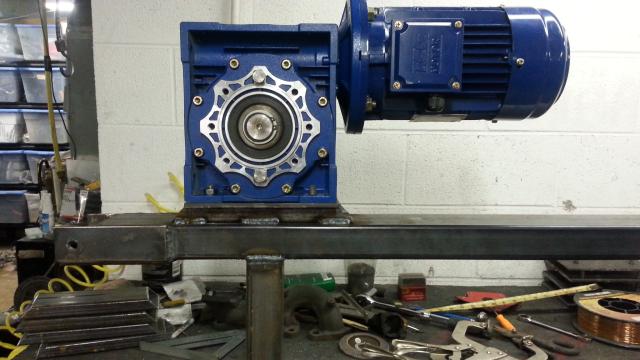

    Here is a close up of the motor seats. They are slightly raised so that i would get the bolts through the seat plate.

    [​IMG]

    *****************************
    Added some rear support legs to take some of the weight off the motor mounting face.

    [​IMG]

    *******************************

    [​IMG]

    ******************************

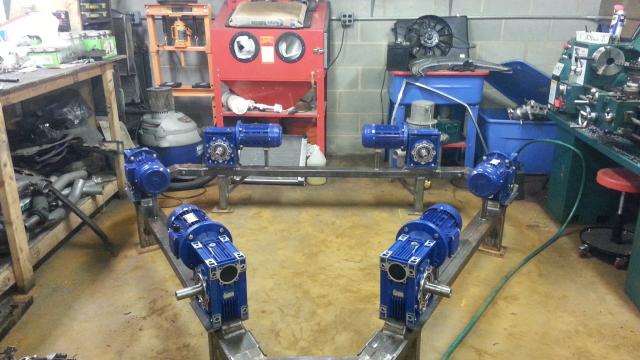

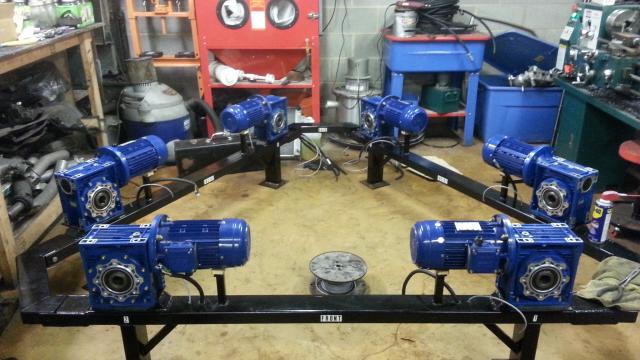

    Here all the motors are mounted. This was a mock up before any wiring had been ran ..... This thing turned into a freakin monster ..... Bigger than i envisioned it and i freaking love it !!!!!!

    [​IMG]
    • Like Like x 6
    • Winner Winner x 2
  2. Ads Master

    Ads Master

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
  3. jthiani

    jthiani Member

    Joined:
    Jun 15, 2015
    Messages:
    34
    Location:
    Knightdale, NC
    Balance:
    496Coins
    Ratings:
    +38 / 0 / -0
    My Motion Simulator:
    DC motor, AC motor, Motion platform, 6DOF

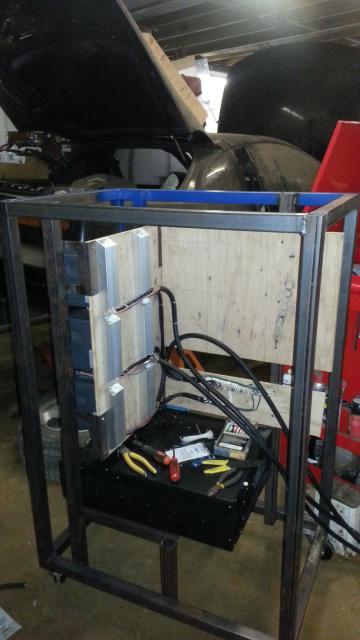

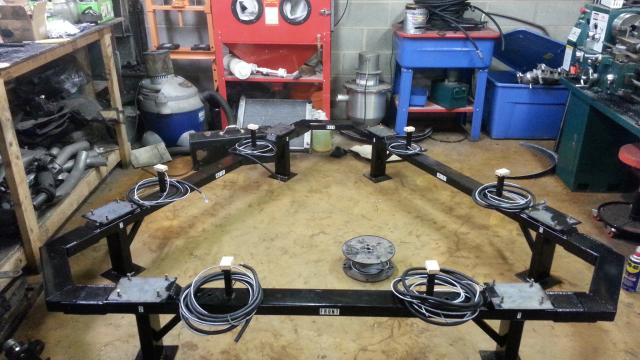

    Soooo time to wire this puppy up ..... i had to get ALLOT of wiring. Especially since the control cart is separate and i want it to have a 15 to 20 foot clearance for any sim mounted. so i used over 200 feet of main cables. All motor wiring is ran through the frame to a junction box in the rear of the frame.


    [​IMG]

    ******************************
    wires ran ..... took the better part of a whole day just to this part .... And before anyone asked, the signal wire for the position sensors is double shielded wire to maintain signal integrity


    [​IMG]

    ***************************

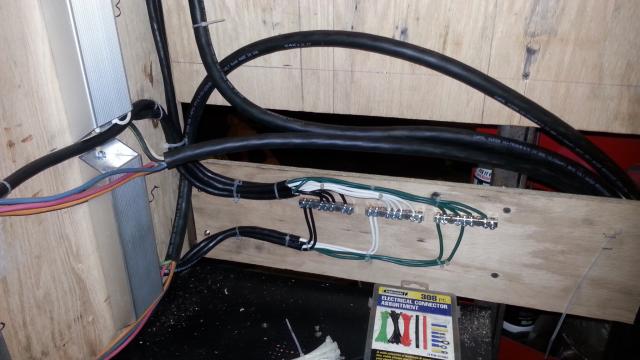

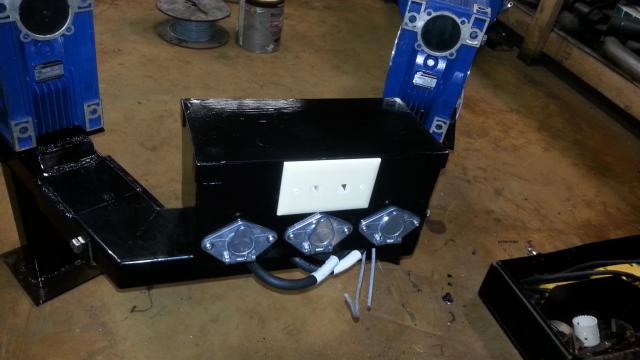

    Here is the little junction box i mentioned earlier

    [​IMG]

    ****************************

    [​IMG]
    • Like Like x 6
    • Winner Winner x 1
  4. jthiani

    jthiani Member

    Joined:
    Jun 15, 2015
    Messages:
    34
    Location:
    Knightdale, NC
    Balance:
    496Coins
    Ratings:
    +38 / 0 / -0
    My Motion Simulator:
    DC motor, AC motor, Motion platform, 6DOF

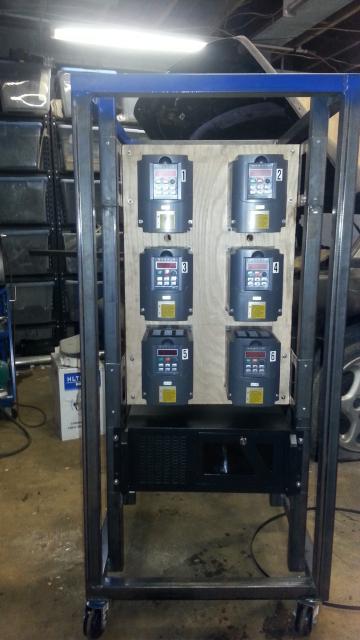

    Now for the control cart .... it houses the VFD's, main computer for the motion and all wiring and braking resistors


    [​IMG]


    ***********************

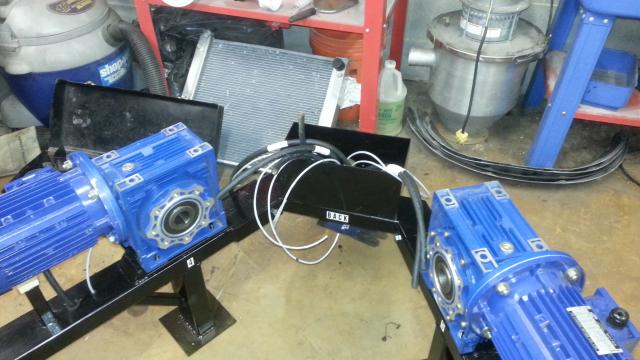

    shot of the back panel. The wiring is not complete yet. That is what i am currently working on
