Flypt Filter Research (or why doesnt my rig move right?)

Discussion in 'FlyPt Mover' started by Historiker, Feb 13, 2020.

  1. Historiker

    Historiker Dramamine Adict Staff Member Moderator Gold Contributor

    Joined:
    Dec 16, 2010
    Messages:
    1,930
    Occupation:
    Retired
    Location:
    Michigan USA
    Balance:
    9,463Coins
    Ratings:
    +1,822 / 13 / -1
    My Motion Simulator:
    3DOF, DC motor, Arduino, Motion platform, 6DOF
    This thread is to, hopefully, help those of us that do not have a firm grasp on filters and how to use them. Too often filters are discussed in terms of audio wave forms and although I understand that this is the correct terminology (ok, I don't really but I am told it is) it would be very very helpful to have filters explained in a (setting) = (effect) manner.

    I will start off with an example of Washout:

    These are some posts from the XSimulator Discord server that may help to better understand washout.

    HANNIBAL02/04/2020
    yea, i been hearing more about this wash out filter... someone give us the math!!

    Insecta Tech - The Roach02/04/2020
    What do you want to do?

    Insecta Tech - The Roach02/04/2020
    lower EMALP to make it more responsive and increase EMAHP to slow the return(edited)

    HANNIBAL02/04/2020

    can u post a 3d graphic and the pose formula? @Insecta Tech - The Roach

    as an example?
    im very nooby mover user

    February 5, 2020
    Insecta Tech - The Roach02/05/2020
    First create a EMALP filter and change it to 50, then add a second filter on top of this for EMAHP and range that one to 500 and you'll see what I mean.HANNIBAL02/05/2020
    thanks.. ill try it out!!!! nice!

    Historiker02/05/2020
    I had not thought of upping the high pass filter to 500. For some reason I thought of it as a percentage with 100 being the highest possible. Thanks @Insecta Tech - The Roach for the tip.

    Insecta Tech - The Roach02/05/2020
    You're welcome

    Here is what I have learned (which is not much): I set the low pass filter higher to get the return to slow down. Higher LP = Slower movement. (I will freely admit that I do not understand what the HP filter does). My final filter settings for DCS is LP=200 HP=500 (EM)

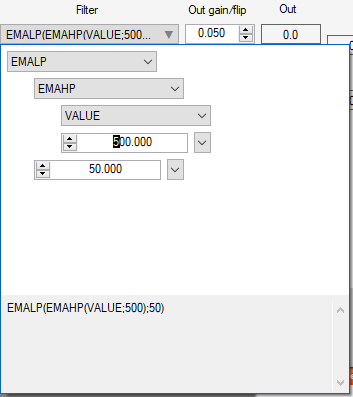

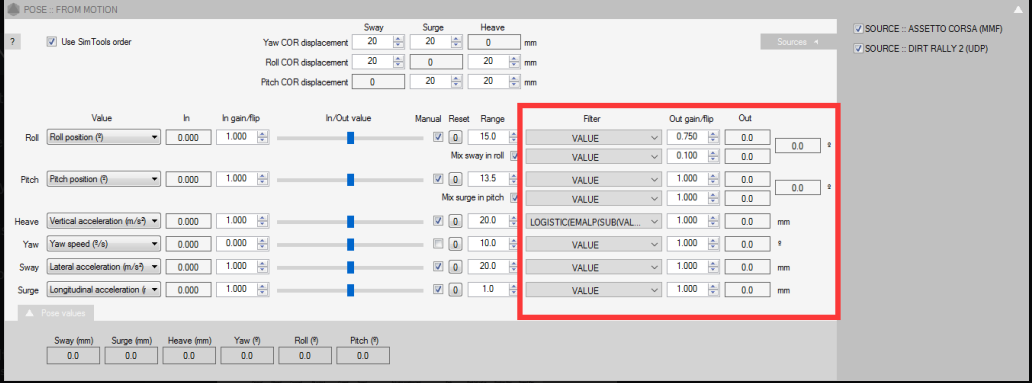

    EDIT: Here is a screenshot showing how I set it up.

    Washout filter example.png
    • Like Like x 2
    Last edited: Feb 13, 2020
  2. Ads Master

    Ads Master

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
  3. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    15,551
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    113,997Coins
    Ratings:
    +9,133 / 46 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    To avoid confusion it would help to be clear about what filters are being discussed, so as to not have SimTools newbies scratching their heads and asking questions about missing SimTools filter fields ;)

    Edited the title as likely to turn up in a search on 'filters', where newbies could easily miss the thread section.
    • Like Like x 1
    Last edited: Feb 14, 2020
  4. Historiker

    Historiker Dramamine Adict Staff Member Moderator Gold Contributor

    Joined:
    Dec 16, 2010
    Messages:
    1,930
    Occupation:
    Retired
    Location:
    Michigan USA
    Balance:
    9,463Coins
    Ratings:
    +1,822 / 13 / -1
    My Motion Simulator:
    3DOF, DC motor, Arduino, Motion platform, 6DOF
    Good point, thanks!
    • Like Like x 1
  5. Dirty

    Dirty Well-Known Member Gold Contributor

    Joined:
    Oct 15, 2017
    Messages:
    474
    Occupation:
    All the way up front.
    Location:
    Germany
    Balance:
    5,210Coins
    Ratings:
    +584 / 1 / -0
    Oh,... I just now saw this thread :)

    Indeed, I think that the vast majority of users are NOT limited by what Mover is capable of, but by their ability to understand what it even is they're trying to do and recognizing the means available in Mover to do it.

    I have invested some time in filters to understand them reasonably well in the time and frequency domain and I came out of it with two deep convictions:
    1. It is possible to get a basic understanding of the behavior of filters with little to no background knowledge.
    2. It is super important to acquire that basic understanding of filters to be able get your rig to do what you want it to do.


    Your first step on the "journey to filters" is building your own EMALP filter, just like FlyPT did in his software. You won't have to scratch your heads anymore asking yourself "What is it for","How does it work?", "How does it behave?", "What does it do to the signal?".

    NO!!!

    YOU
    will build it yourself!!! YOU will understand it! Because YOU will have created it!

    Open up excel, right now! Then create a table like this one:

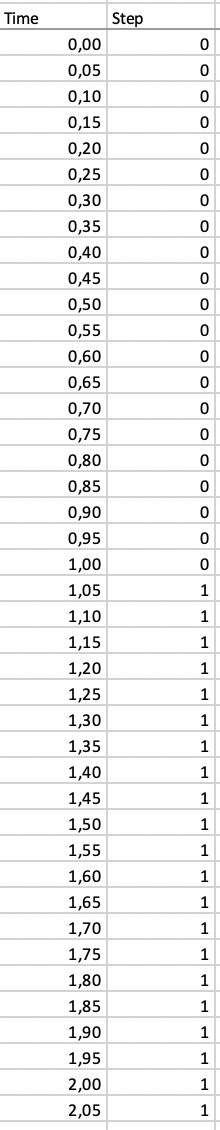

    Bildschirmfoto 2020-08-30 um 21.55.20.png

    Initially the signal is zero, but at a certain point the signal makes a step. This is the step input to our filter:
    Zero --> One

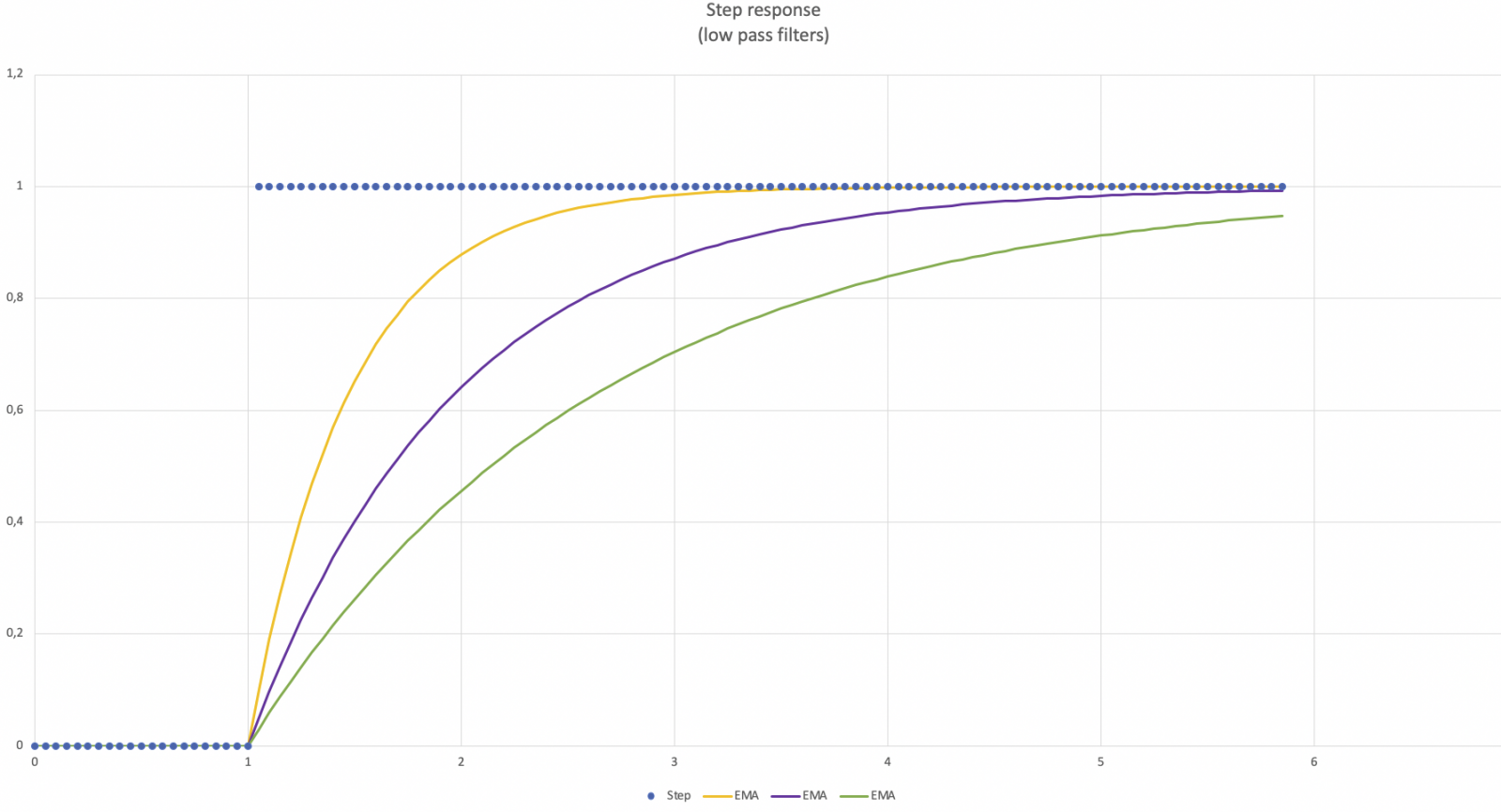

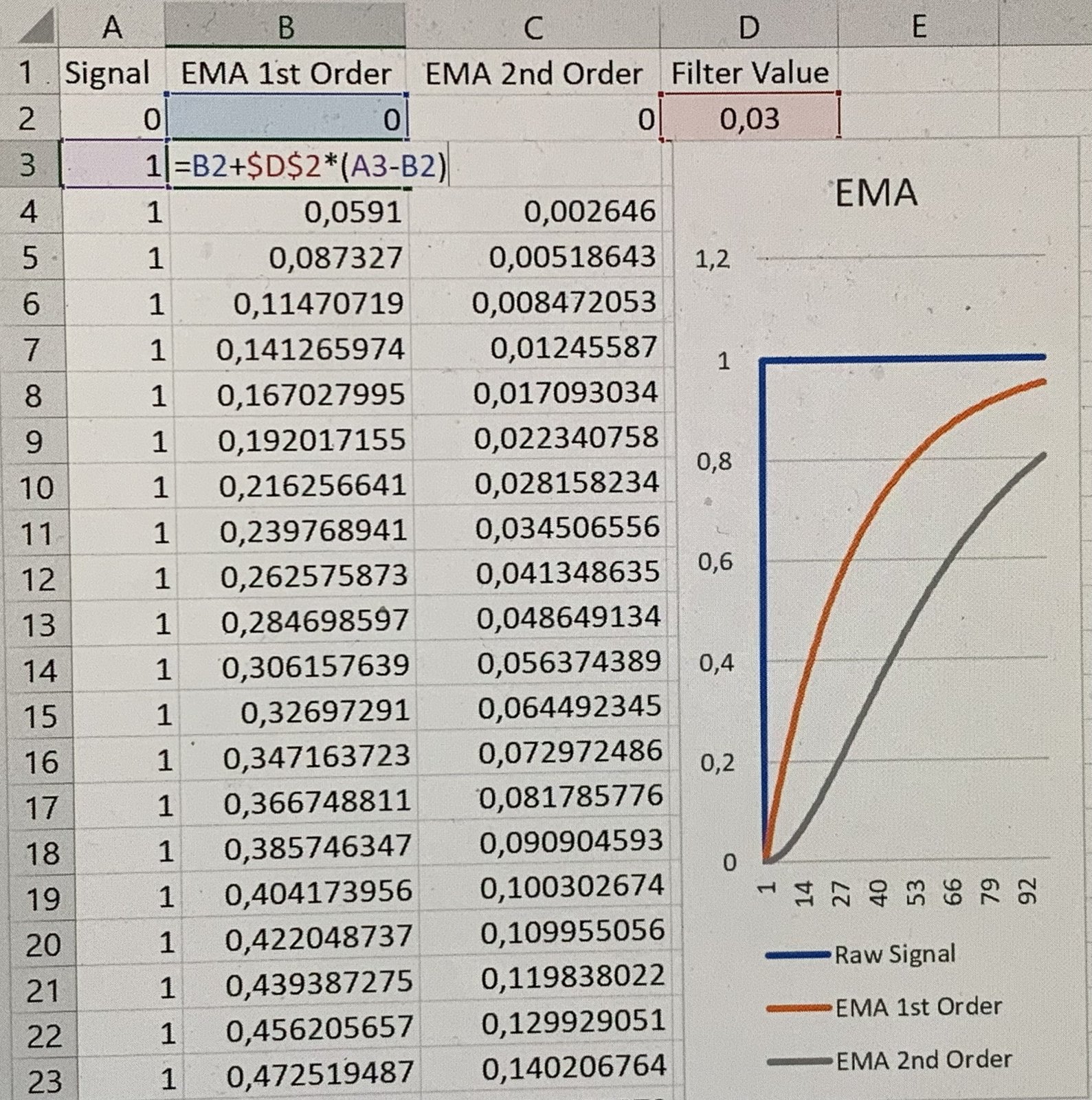

    Then you plot those points out in an X-Y chart (Not a line chart! Not a bar chart!) and what comes out are the blue dots in this picture:
