Showroom DX - Compact Simulator

Discussion in 'DIY Motion Simulator Projects' started by noorbeast, Sep 29, 2014.

  1. muxximess

    muxximess New Member

    Joined:
    Aug 16, 2015
    Messages:
    16
    Location:
    Australia
    Balance:
    245Coins
    Ratings:
    +4 / 0 / -0
    Ahh, that makes a lot of sense, thanks @noorbeast. With my setup, I was thinking of using the heave spring and one motor situated directly under the chair very close to the heave spring, if not right next to it (Similar to what you have done) to exclusively control heave/pitch alone and to then use two shoulder mounted motors/arms to control the other axis. I plan on installing a traction loss shortly thereafter.

    Is an exclusive motion setting a good idea in your opinion? Or do you feel better motion is achieved through sharing axis settings across motors? I guess I was hoping for as many simultaneous movements being transmitted at any given point in time.
    • Informative Informative x 1
  2. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    14,281
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    106,423Coins
    Ratings:
    +8,765 / 42 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    Unless there is a dedicated axis that only does one thing, like traction loss, there is always a degree of dialing a motion profile in using all the other motor axis. For example my heave axis uses all three motors in unison.

    So no, the only time it is a good idea to use exclusive settings is when the axis it is controlling is the only one that can affect that particular motion, such as traction loss or a dedicated surge table.
    • Like Like x 1
    • Agree Agree x 1
    • Informative Informative x 1
  3. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    14,281
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    106,423Coins
    Ratings:
    +8,765 / 42 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    I am working toward a generic motion profile for Assetto Corsa that I can tweak further per car. It may not look like it but the seat moves around under you quite a bit and heave brings a whole new dimension to Nordschleife, particularly in places like Flugplatz where you really feel the lift and compression.

    When they are uploaded I will post some other videos of the basic profile used with the Williams F1, the Corvette and Cobra, as they are all very different in the way the suspension moves and hence I used them when working on the profile.

    For now here is the Williams FW31 @ Nords, the Game Manager has been turned down to 95% to tame the motion a bit, as above that the bumps at Nordschleife are just too rough.

    • Like Like x 4
    Last edited: Sep 22, 2015
  4. bsft

    bsft

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
    Nice video, I can see the sim really shaking around, just drive a softer car.
    Oh and I am surprised on how low the wheel is . Id though higher , but its what suits you
  5. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    14,281
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    106,423Coins
    Ratings:
    +8,765 / 42 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    I am uploading a comparison video now, the Cobra is very different to the fw31. I may make a higher wheel post at some stage but it's current height is determine by what length it could be to also fold down to centre mount the Warthog joystick.
  6. bsft

    bsft

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
    Ah, ok, I forgot about joystick, maybe make height adjustable column.
  7. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    14,281
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    106,423Coins
    Ratings:
    +8,765 / 42 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    Yes adjustable would be the way to go.
  8. Nick Moxley

    Nick Moxley Well-Known Member

    Joined:
    Dec 13, 2013
    Messages:
    2,782
    Occupation:
    Owner/Operator- Moxleys Rantals
    Location:
    Winnipeg Manitoba Canada
    Balance:
    18,888Coins
    Ratings:
    +2,494 / 30 / -2
    My Motion Simulator:
    2DOF, 3DOF, DC motor, JRK
    Noor, do me a favor and test with the F1sr 2006 Ferrari mod. Remember the Williams has been left in the wake of the Shi* storm that Scott from FCM left and it hasn't been updated to current specs so in reality its a tail happy, with Very little traction but Quality looking mod at minimum, unfortunately tho the physics/Suspension are essentially broken. And i can see why you need to bump down the main profiler, The main test tracks we use for motion testing are Monza, Spa and Silverstone. Nords in real life would be a death wish with a F1.
    • Like Like x 1
  9. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    14,281
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    106,423Coins
    Ratings:
    +8,765 / 42 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    Do you have a download link for the Ferrari @Nick Moxley, I would enjoy trying something new and value your suggestions?

    Yes I can bump the profiler up on the likes of Silverstone, Spa and Monza but as you know I love the complexity and challenge of Nords. For me it is just a bit of fun.
  10. Nick Moxley

    Nick Moxley Well-Known Member

    Joined:
    Dec 13, 2013
    Messages:
    2,782
    Occupation:
    Owner/Operator- Moxleys Rantals
    Location:
    Winnipeg Manitoba Canada
    Balance:
    18,888Coins
    Ratings:
    +2,494 / 30 / -2
    My Motion Simulator:
    2DOF, 3DOF, DC motor, JRK
    • Like Like x 1
  11. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    14,281
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    106,423Coins
    Ratings:
    +8,765 / 42 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
  12. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    14,281
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    106,423Coins
    Ratings:
    +8,765 / 42 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    Here is a birds eye view of my compact sim's heave using the FW31, Corvette and Cobra at Nordschleife.

    In their motion the FW31 is rapid and harsh, the Corvette moderately stiff and the Cobra wallows at the edge of uncontrollability. Each are fun in their own way and feel completely different despite using the same motion profile.

    In between cars the sim returns to its un-powered state, the front 60:1 motors can't be back driven even un-powered, but the rear 25:1 motor can.

    • Like Like x 1
    • Winner Winner x 1
  13. muxximess

    muxximess New Member

    Joined:
    Aug 16, 2015
    Messages:
    16
    Location:
    Australia
    Balance:
    245Coins
    Ratings:
    +4 / 0 / -0
    Hi @noorbeast, cool vids you've taken of nords! Heave spring looks like so much fun!

    Thanks for the feedback on the axis and how to dial them in. Out of curiosity and excuse my ignorance with motion sims, is it not possible to dedicate the heave axis to one motor alone?
  14. Nick Moxley

    Nick Moxley Well-Known Member

    Joined:
    Dec 13, 2013
    Messages:
    2,782
    Occupation:
    Owner/Operator- Moxleys Rantals
    Location:
    Winnipeg Manitoba Canada
    Balance:
    18,888Coins
    Ratings:
    +2,494 / 30 / -2
    My Motion Simulator:
    2DOF, 3DOF, DC motor, JRK
    :)

    Yes you can run Heave on the Heave motor only, but you cant control the left and right seat motor's independently with heave. The heave Axis works off of a + and - Value from what the car is doing in game, either Going UP or Down.
  15. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    14,281
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    106,423Coins
    Ratings:
    +8,765 / 42 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    What is needed to dial in a motion profile can differ quite dramatically. For example these are my current setting for Assetto Corsa, I use 5% smoothing on the rear heave Axis 2. Note I am using all 3 motors for heave and also for surge. It is likely hard to see in the videos but with surge the rear motor actually pulls the seat back and pushes it forward a small amount because of the arc of the heave knee.

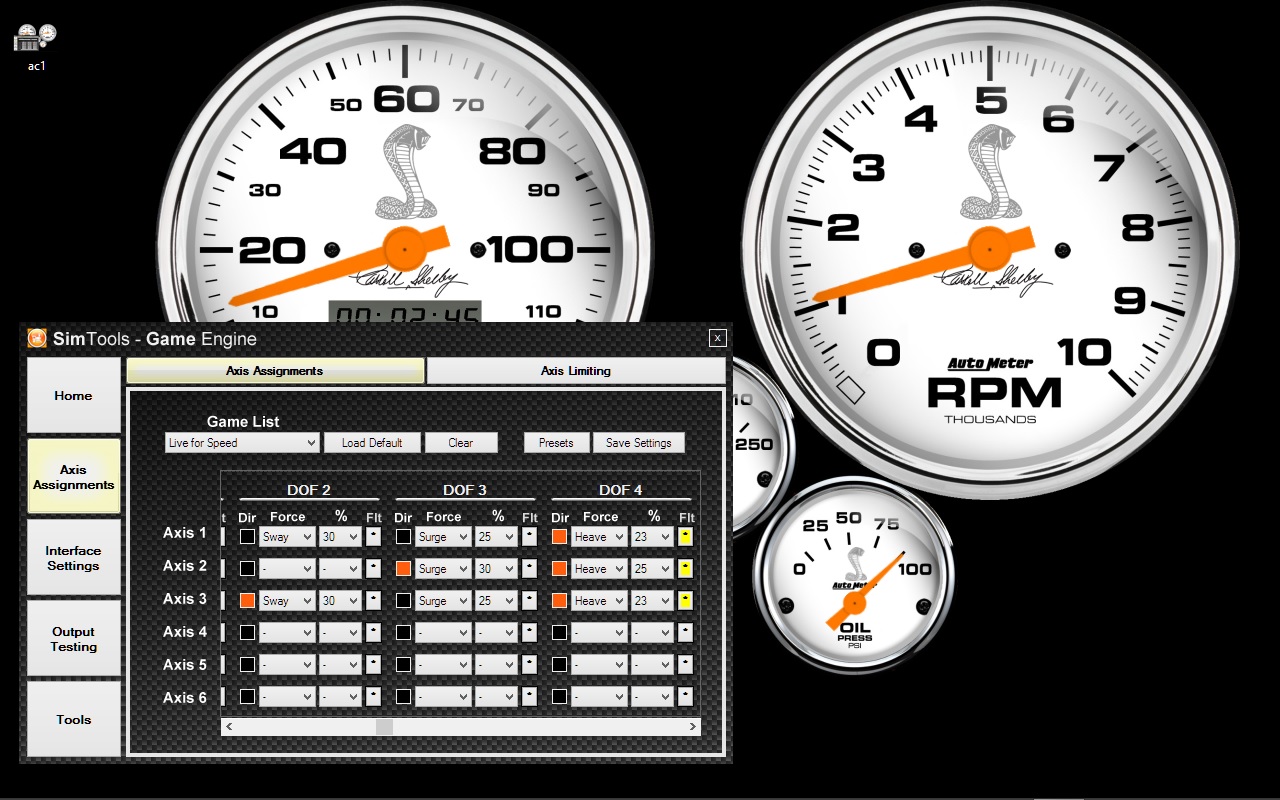

    The settings for heave are dramatically different for LFS, there I am using quite a bit of boundary limiting for heave and much less allocation on the rear Axis 2.

    • Informative Informative x 1
    Last edited: Sep 22, 2015
  16. speedy

    speedy Well-Known Member

    Joined:
    Feb 1, 2012
    Messages:
    1,196
    Location:
    Alexandria , Egypt
    Balance:
    7,612Coins
    Ratings:
    +1,269 / 9 / -0
    My Motion Simulator:
    3DOF, AC motor, Arduino, Motion platform
    Awesome driving @noorbeast ... Sooo HOT and encouraging videos .
    you hit the 200 KM H pretty easy with the FW31 on these fu**nig bouncy tight curves ...
    Where did you learn to drive aggressively like that ? ... WOW :grin
  17. Blame73

    Blame73 Yet it moves!

    Joined:
    Nov 6, 2014
    Messages:
    1,138
    Location:
    Italy
    Balance:
    8,063Coins
    Ratings:
    +998 / 2 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, Motion platform
    • Like Like x 1
  18. Nick Moxley

    Nick Moxley Well-Known Member

    Joined:
    Dec 13, 2013
    Messages:
    2,782
    Occupation:
    Owner/Operator- Moxleys Rantals
    Location:
    Winnipeg Manitoba Canada
    Balance:
    18,888Coins
    Ratings:
    +2,494 / 30 / -2
    My Motion Simulator:
    2DOF, 3DOF, DC motor, JRK

    FW31 IRL was often described as "On rails"

    Just wait for the Koenig One:1 almost makes the F1 car look Slow.....lol
    • Agree Agree x 1
    • Winner Winner x 1
  19. insanegr

    insanegr !N$@n€

    Joined:
    Jan 14, 2014
    Messages:
    510
    Location:
    Athens
    Balance:
    16,591Coins
    Ratings:
    +493 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    • Agree Agree x 1
  20. Blame73

    Blame73 Yet it moves!

    Joined:
    Nov 6, 2014
    Messages:
    1,138
    Location:
    Italy
    Balance:
    8,063Coins
    Ratings:
    +998 / 2 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, Motion platform
    Sorry for the OT, we should discuss this somewhere else not to dirt @noorbeast thread. That car is amazing @Nick Moxley , made a few laps @Spa 1.51.3. Had to turn down SimTools main level % :grin
    • Like Like x 1
