[during] Cheap self-made project 2dof

Discussion in 'DIY Motion Simulator Projects' started by didiops, Sep 8, 2017.

  1. didiops

    didiops flat

    Joined:
    Jul 4, 2017
    Messages:
    5
    Location:
    russis
    Balance:
    - 74Coins
    Ratings:
    +7 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino, Motion platform
    Hello everyone, I'm building my first 2dof. on the instructions from our site. And I try not to buy anything but to make it from the materials I have.
    As a basis, I took my first cockpit and began to build from it 2dof.

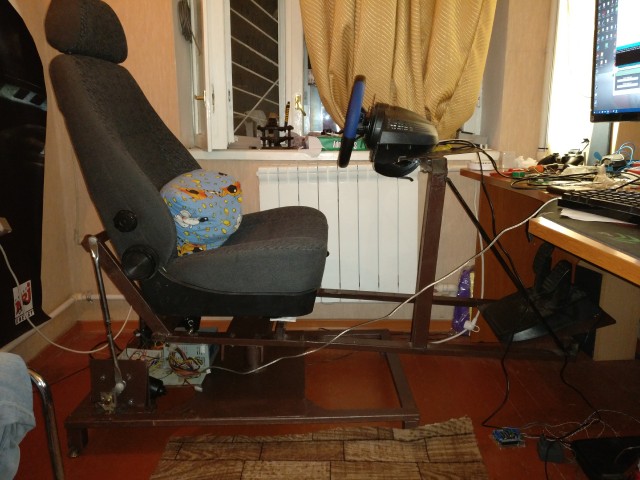

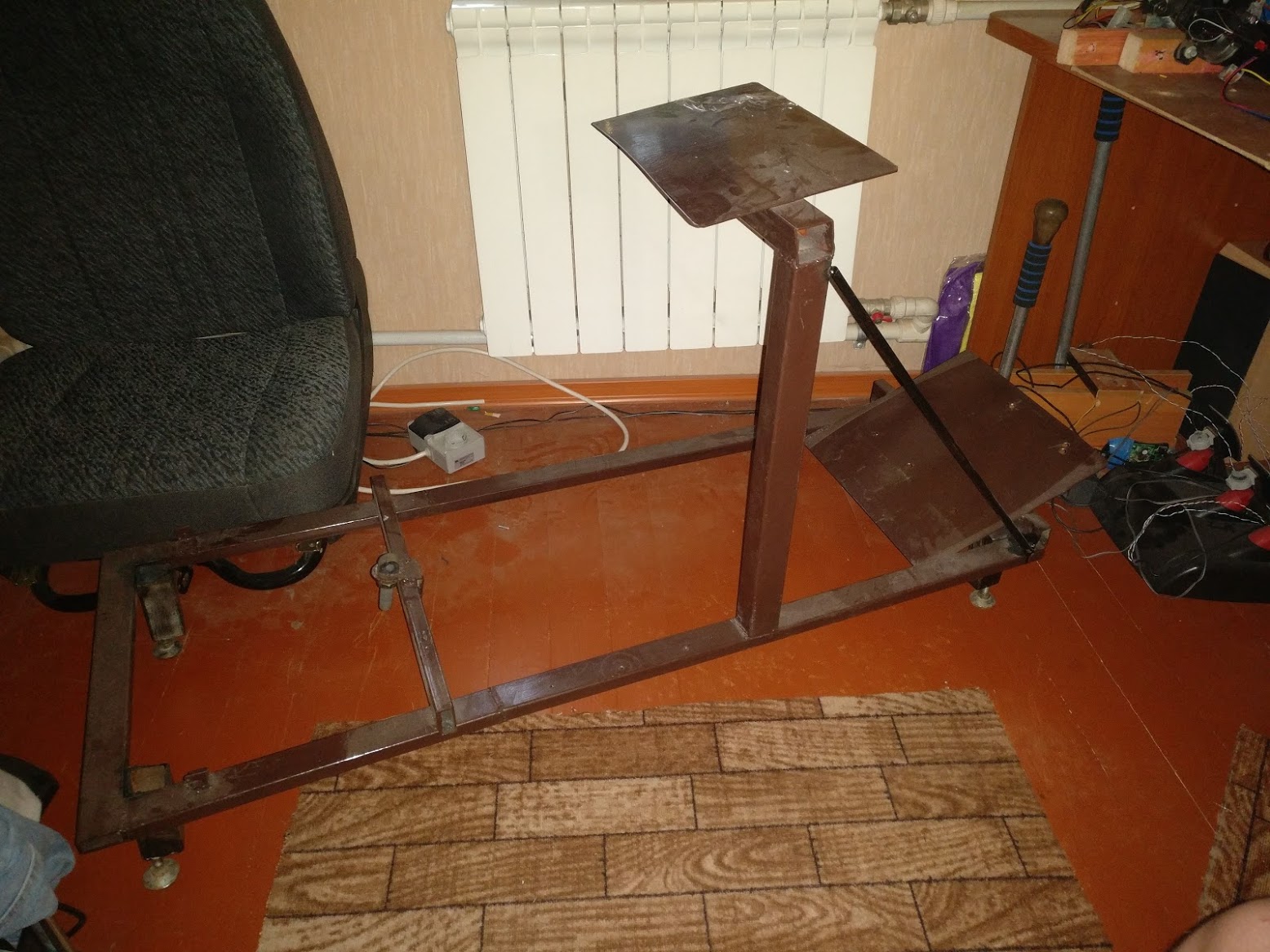

    my old cockpit. do not look at the dust;)

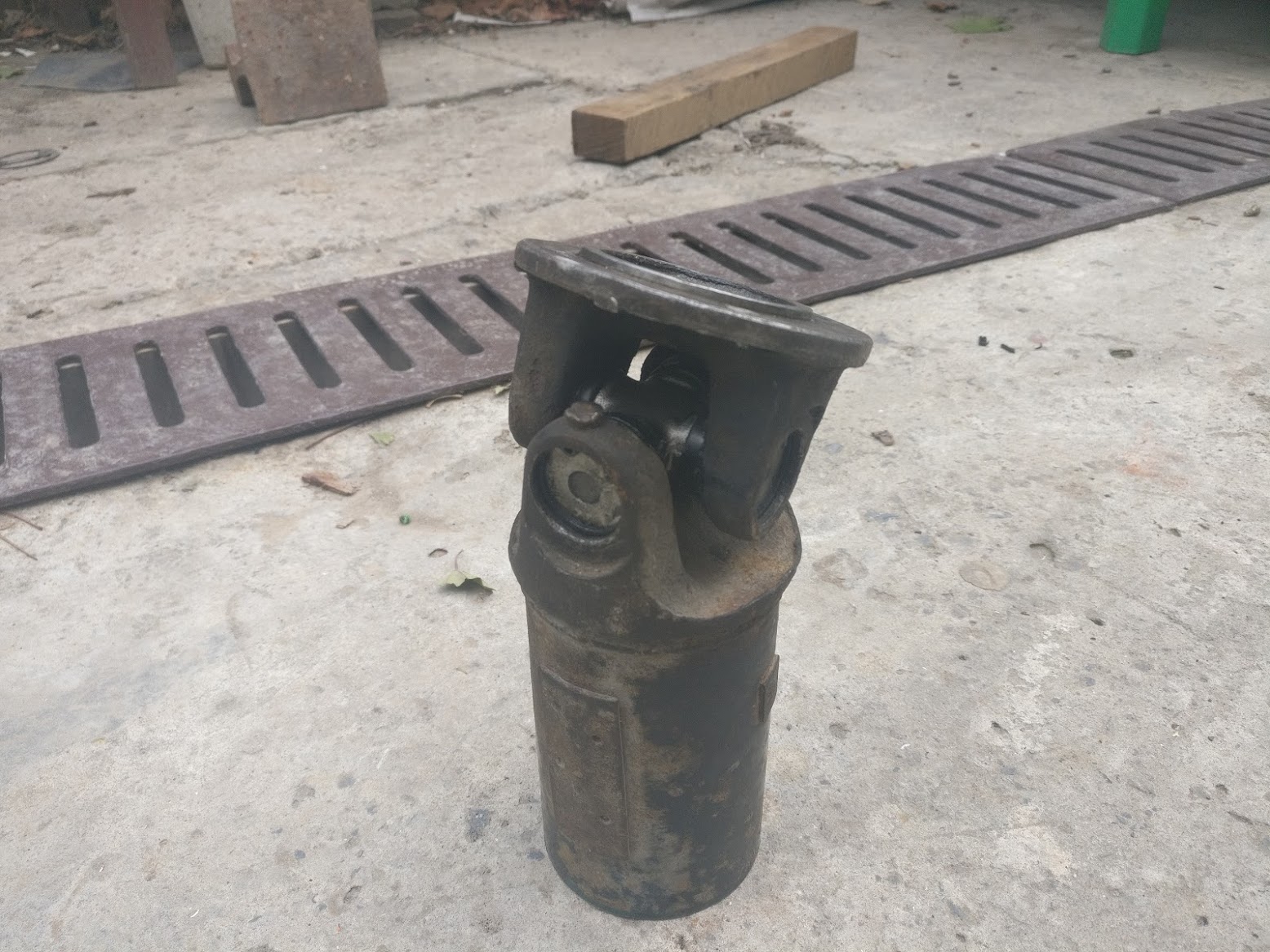

    cardan from LADA:)

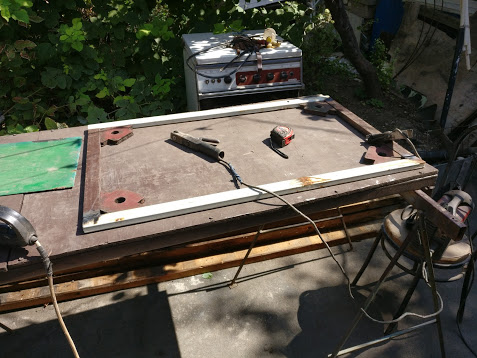

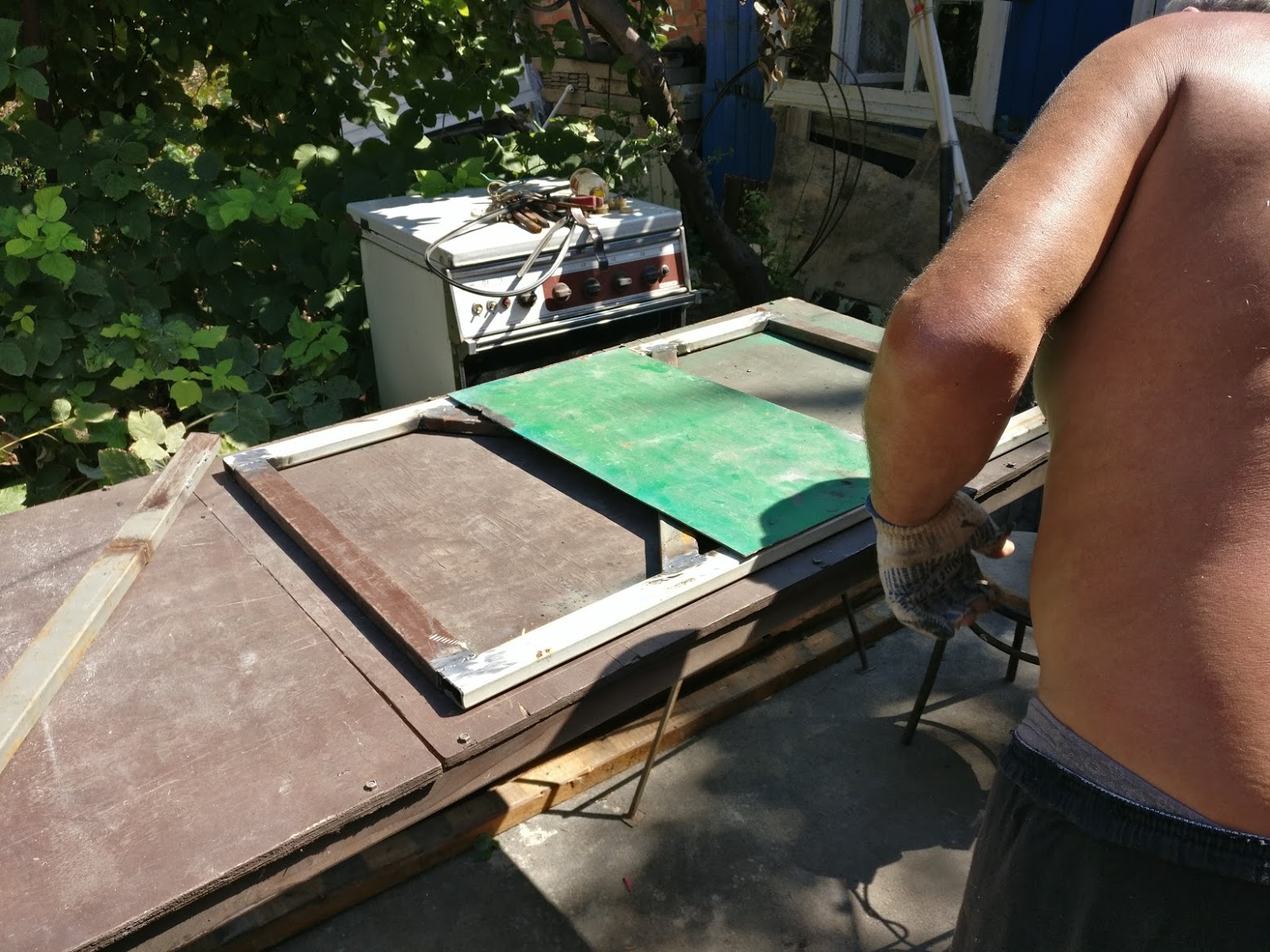

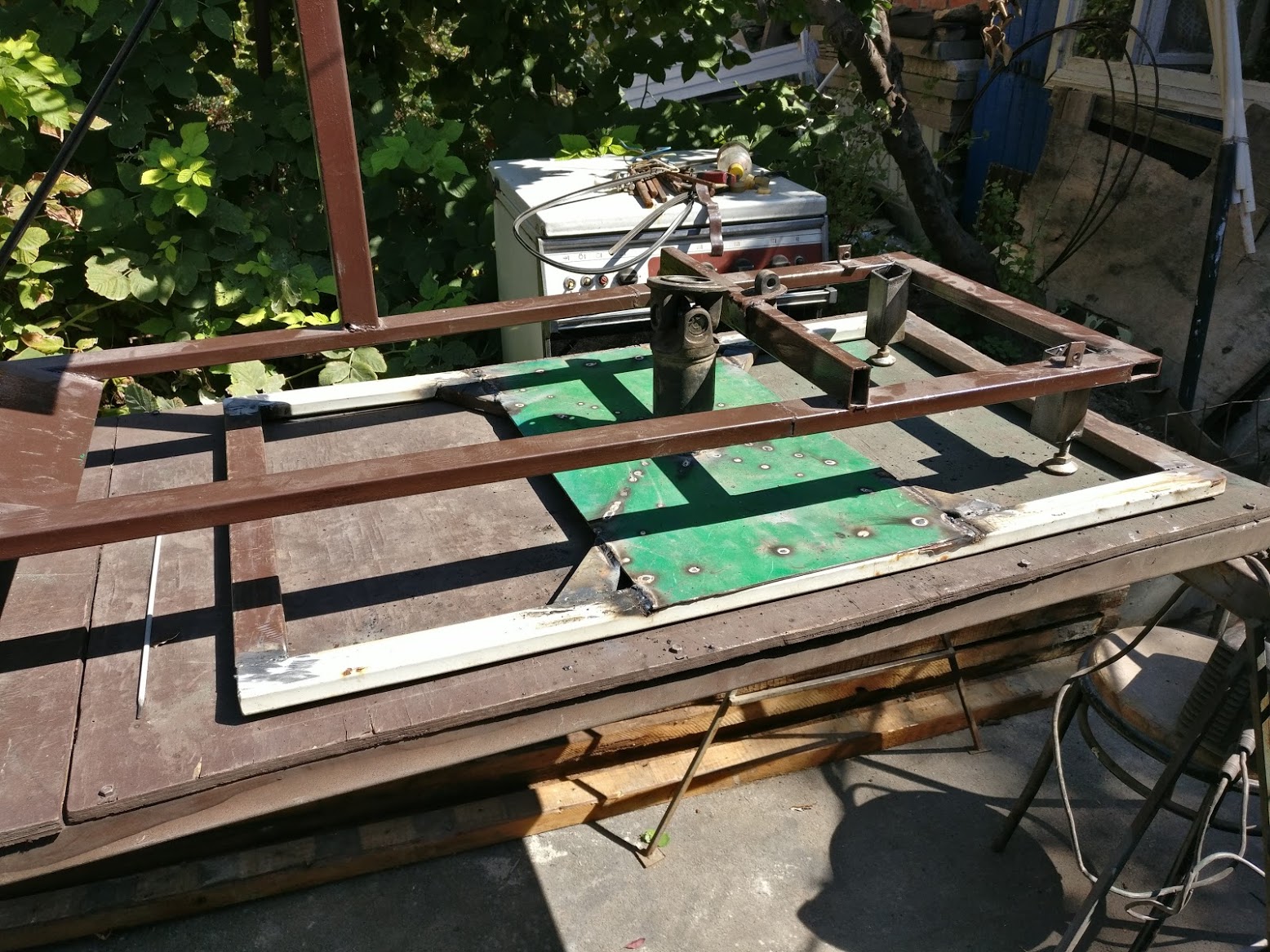

    Beginning of work;)

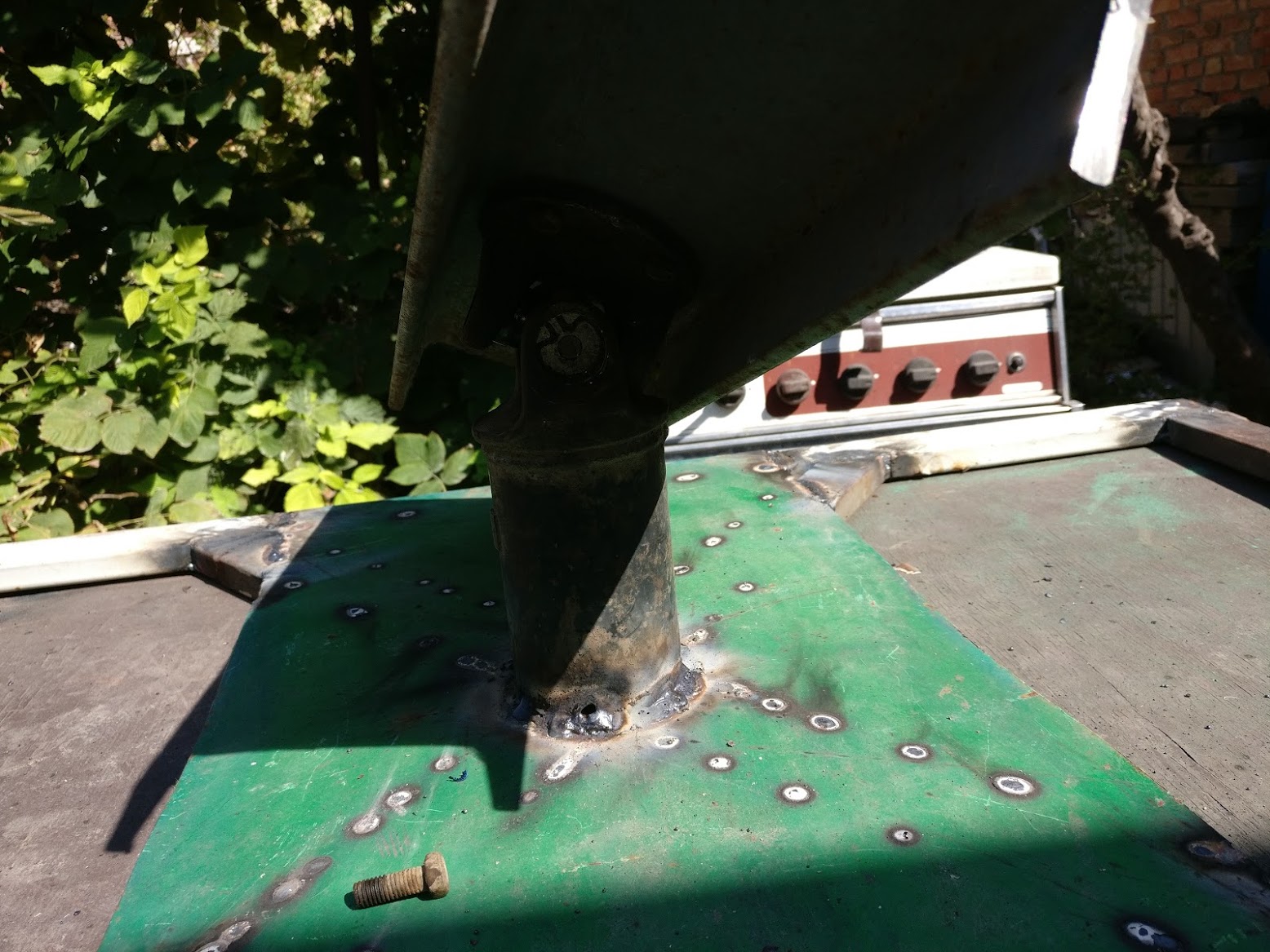

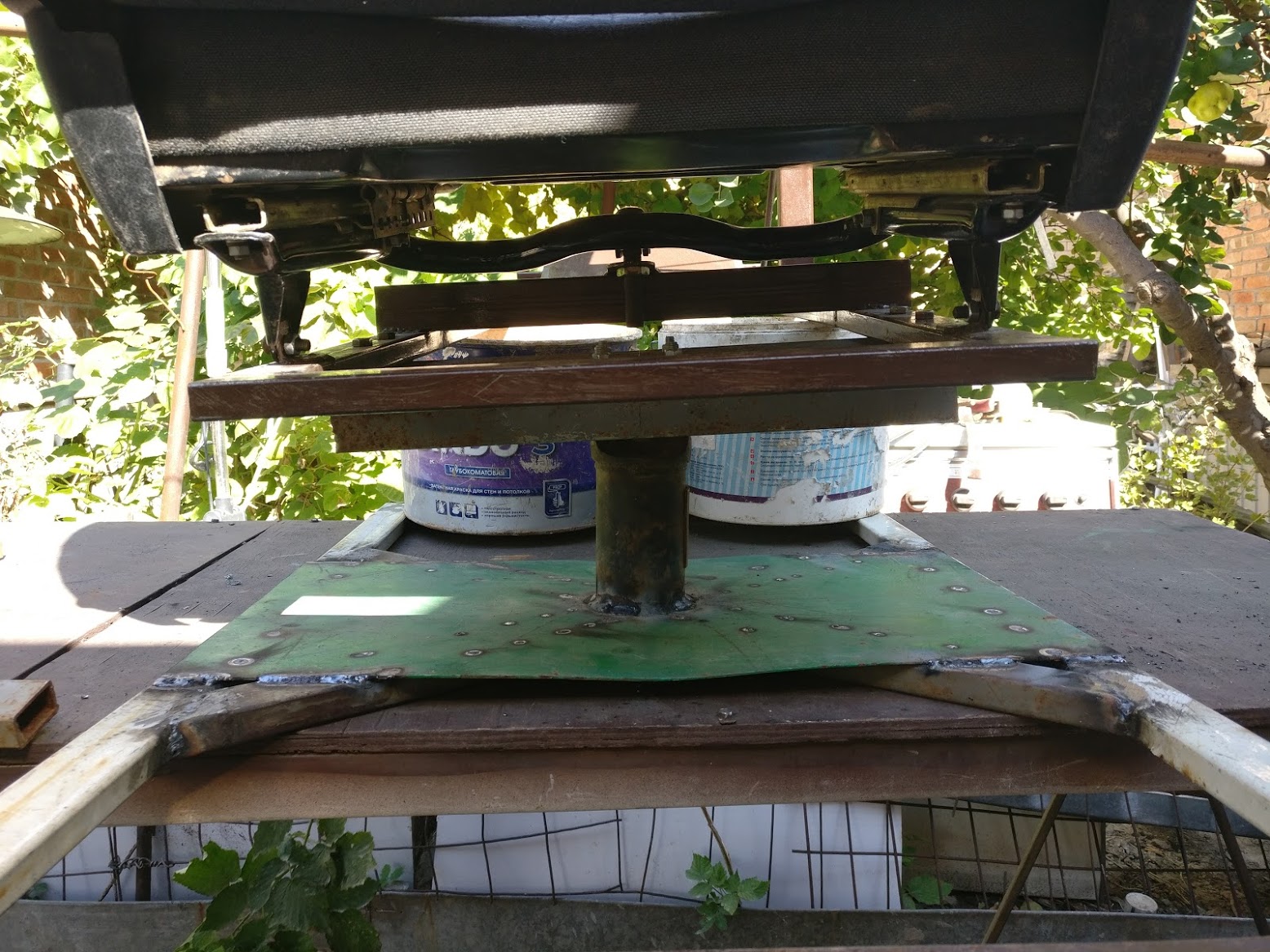

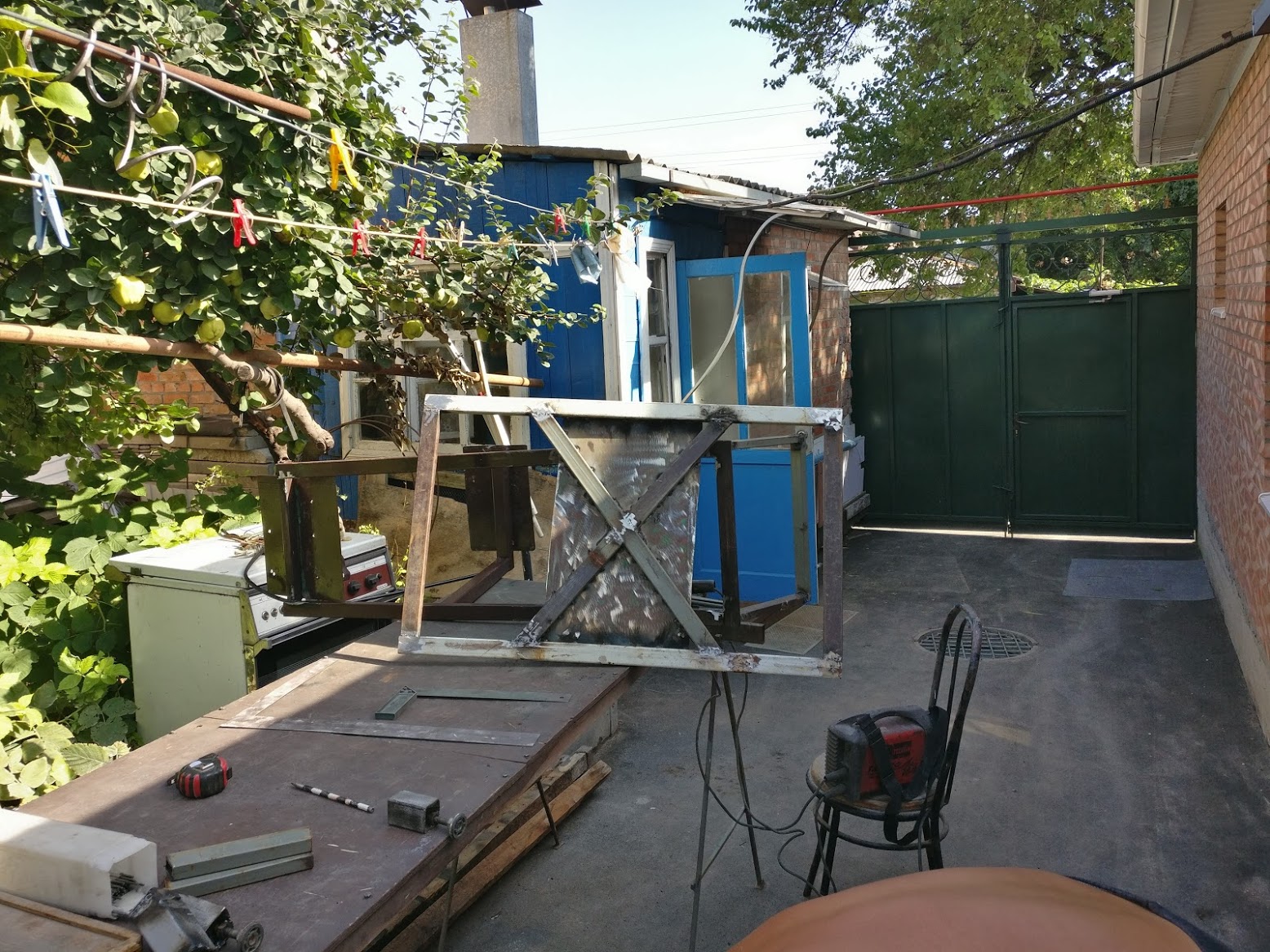

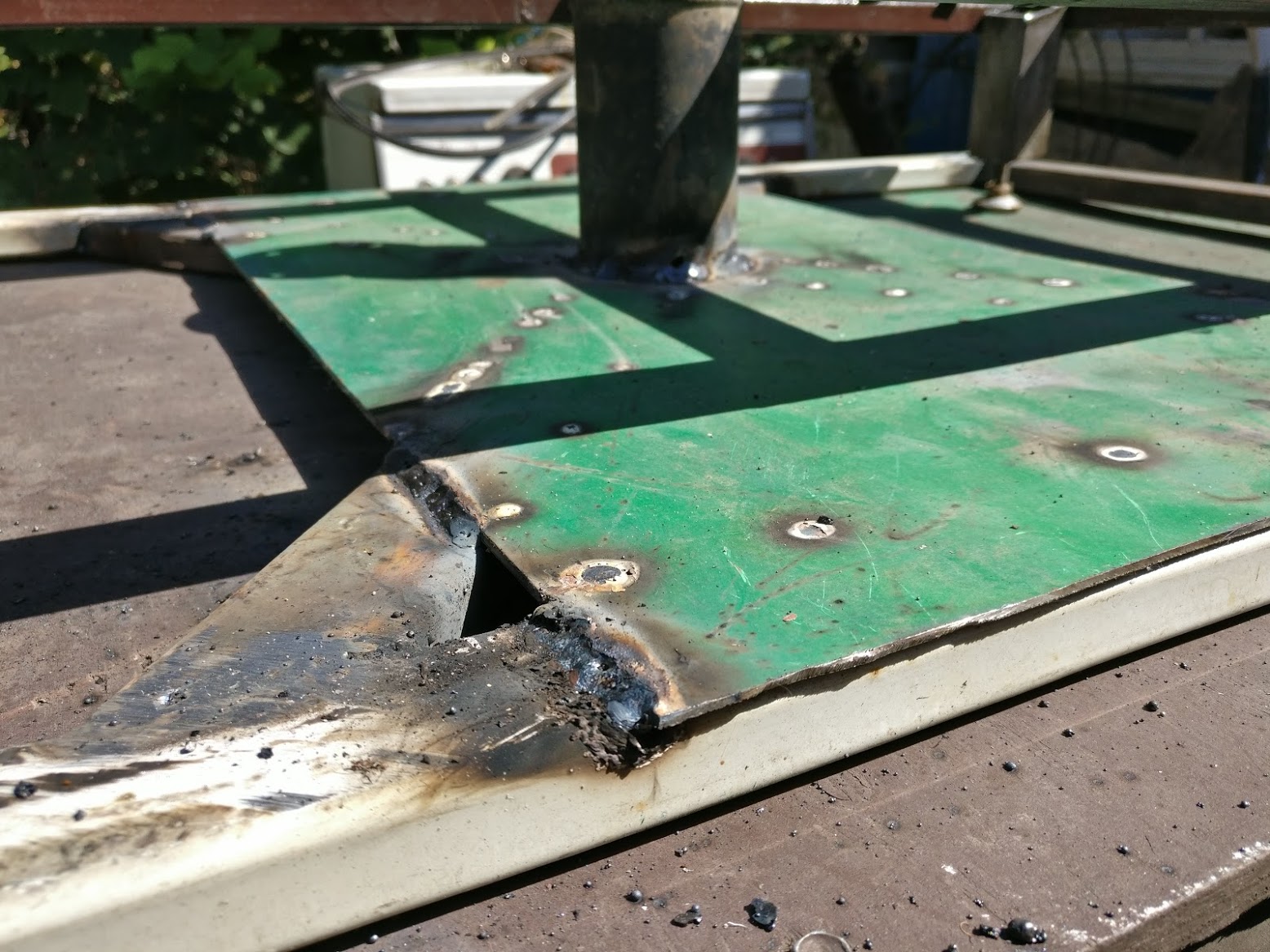

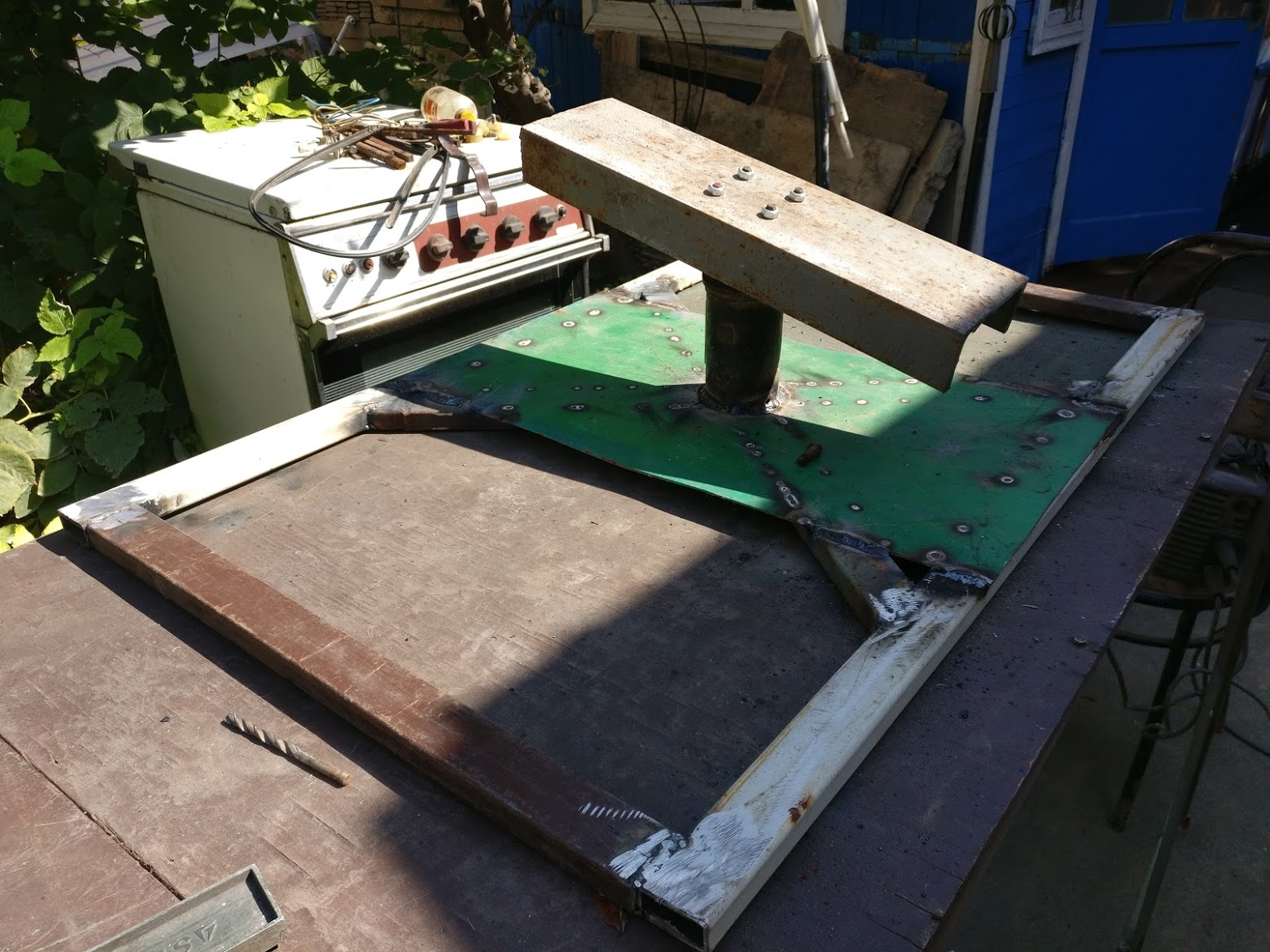

    bottom

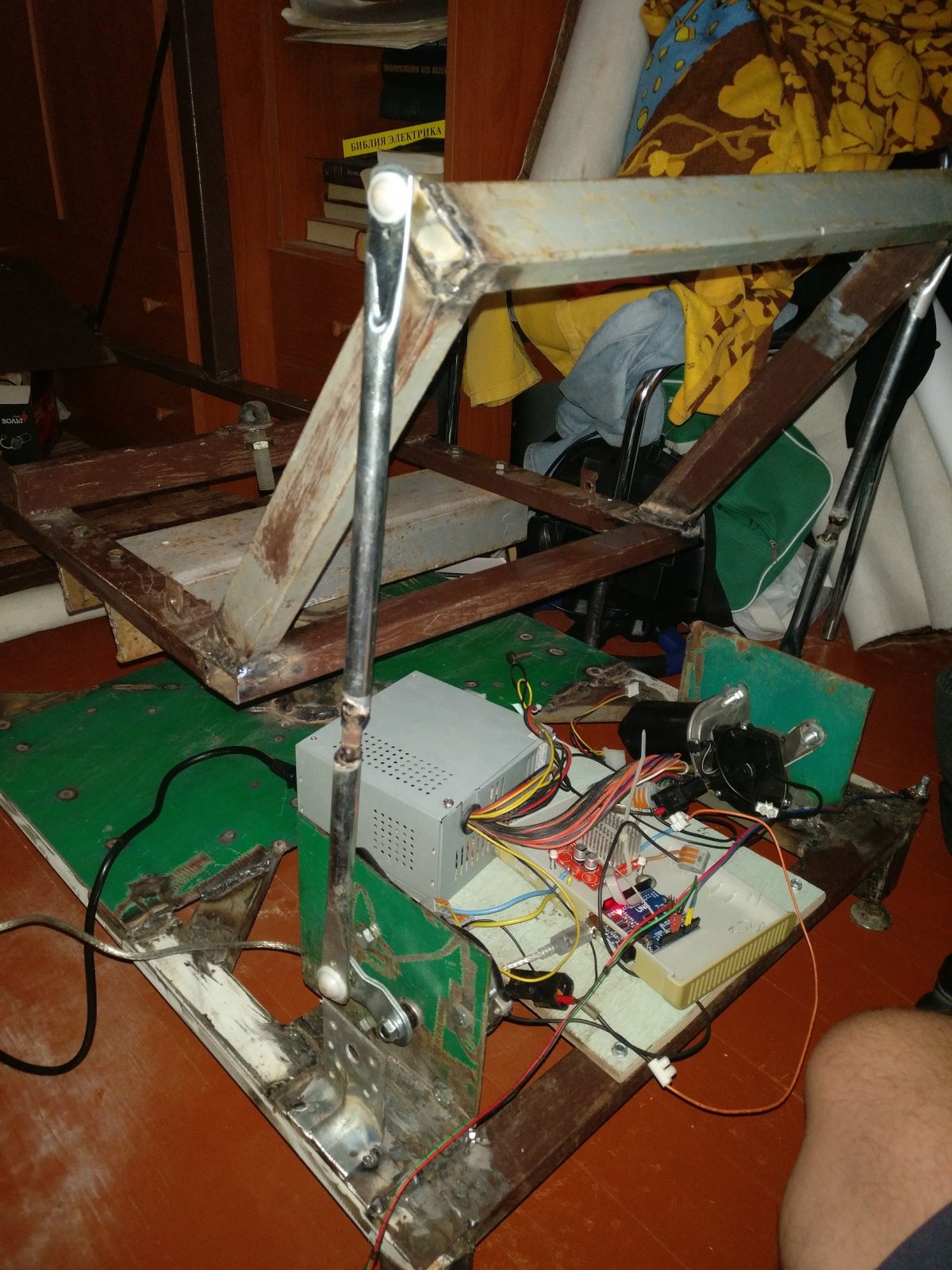

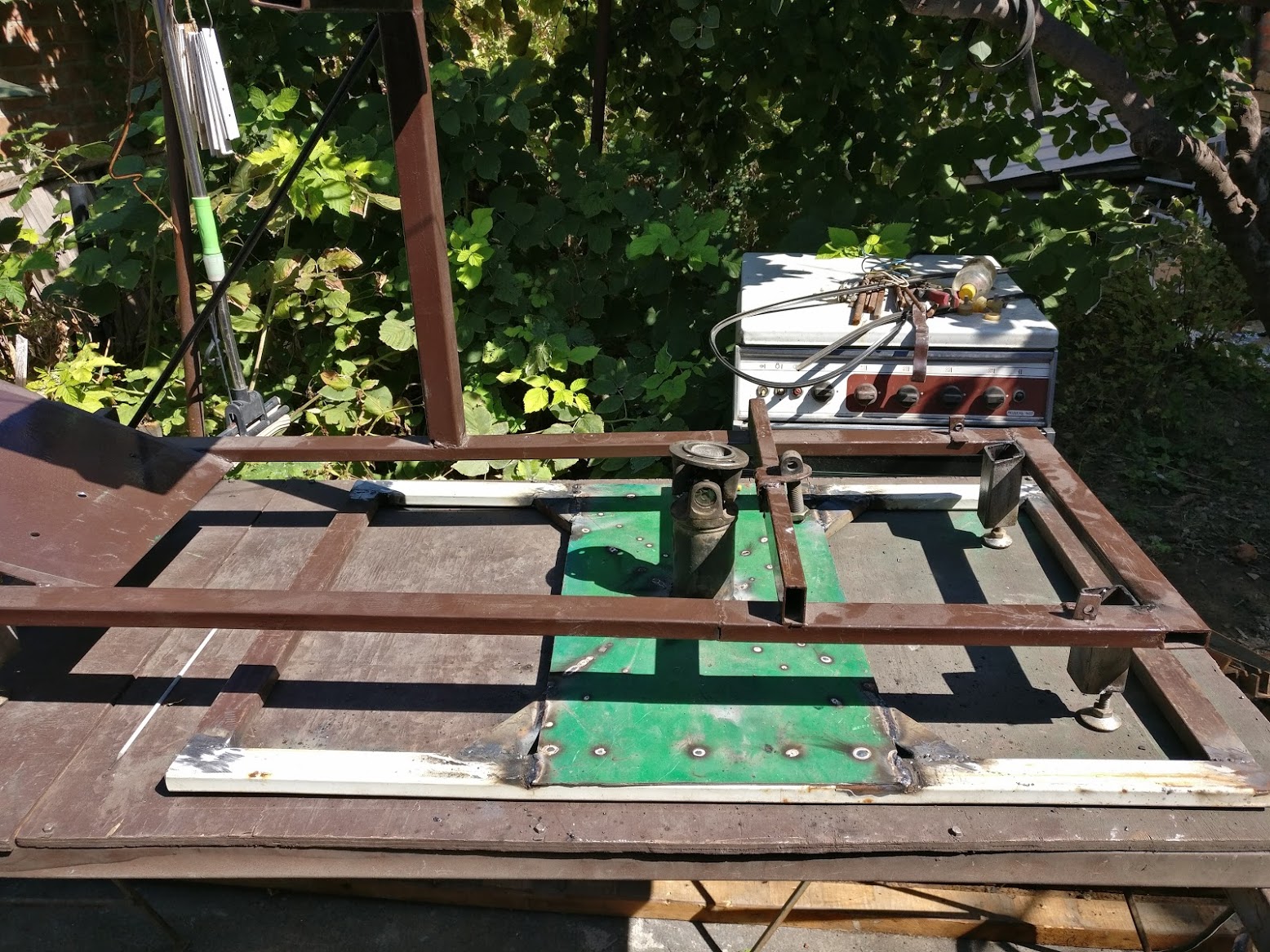

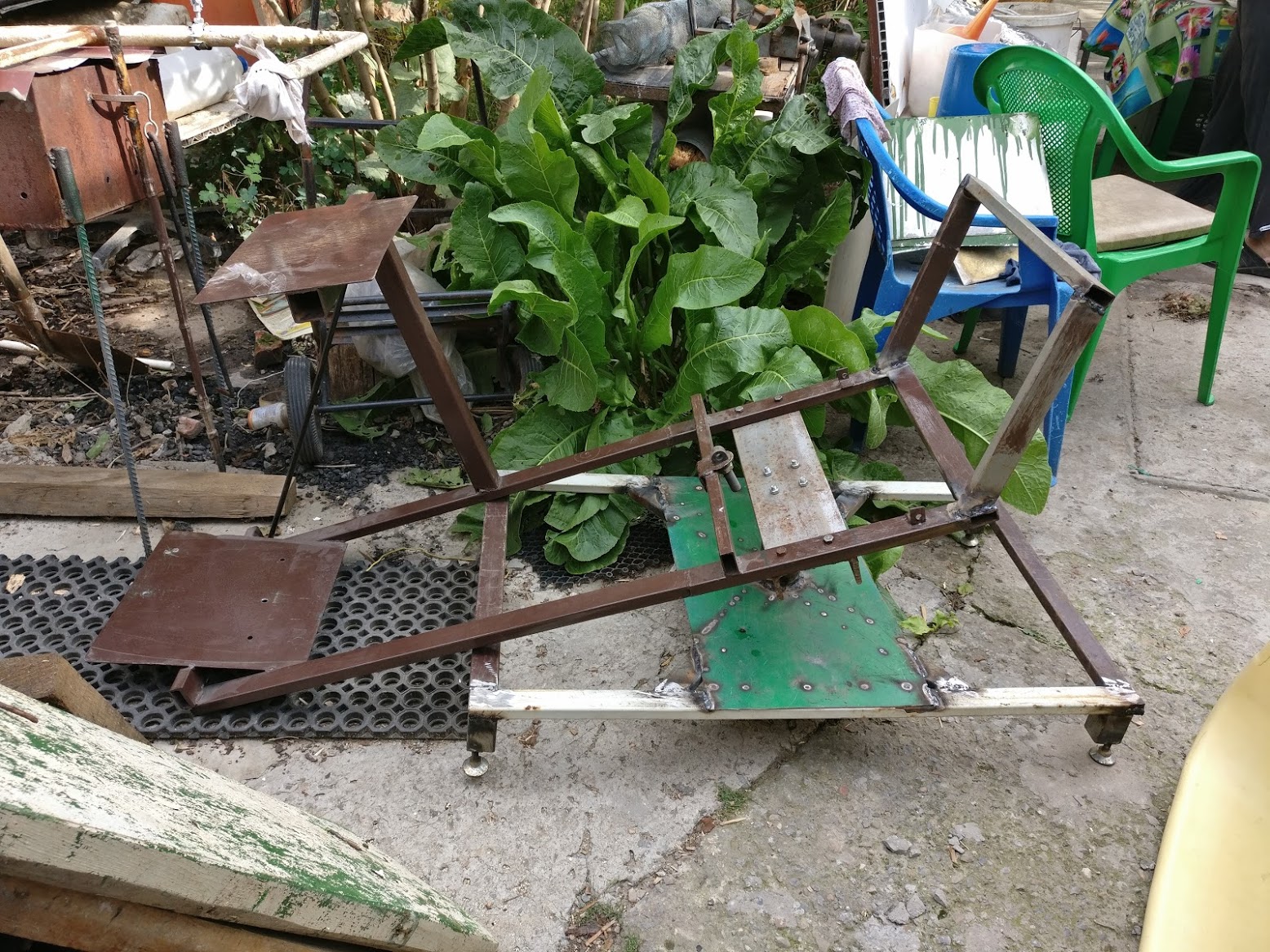

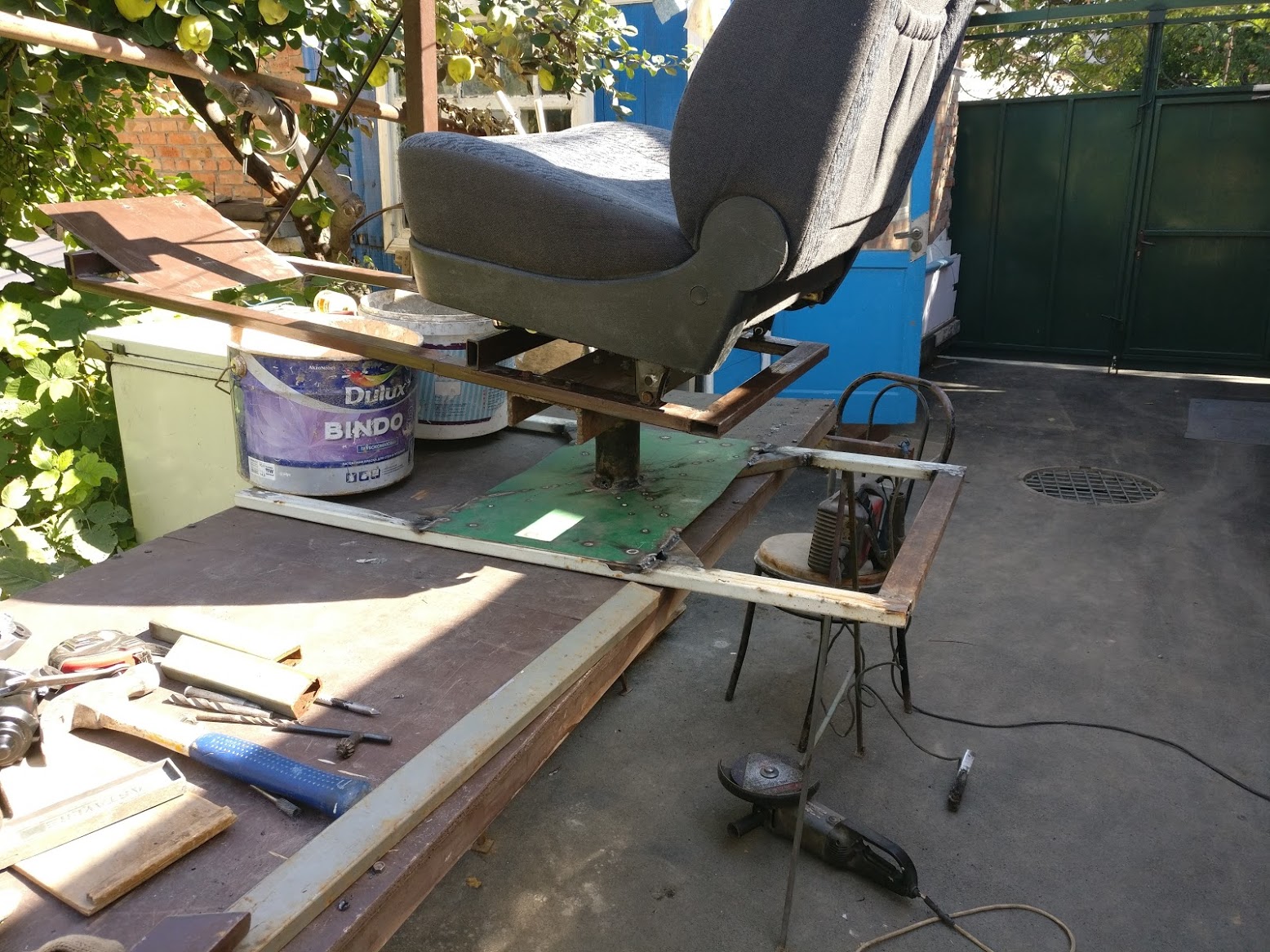

    Result before installing motors

    to be continued...

    • Like Like x 3
  2. didiops

    didiops flat

    Joined:
    Jul 4, 2017
    Messages:
    5
    Location:
    russis
    Balance:
    - 74Coins
    Ratings:
    +7 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino, Motion platform

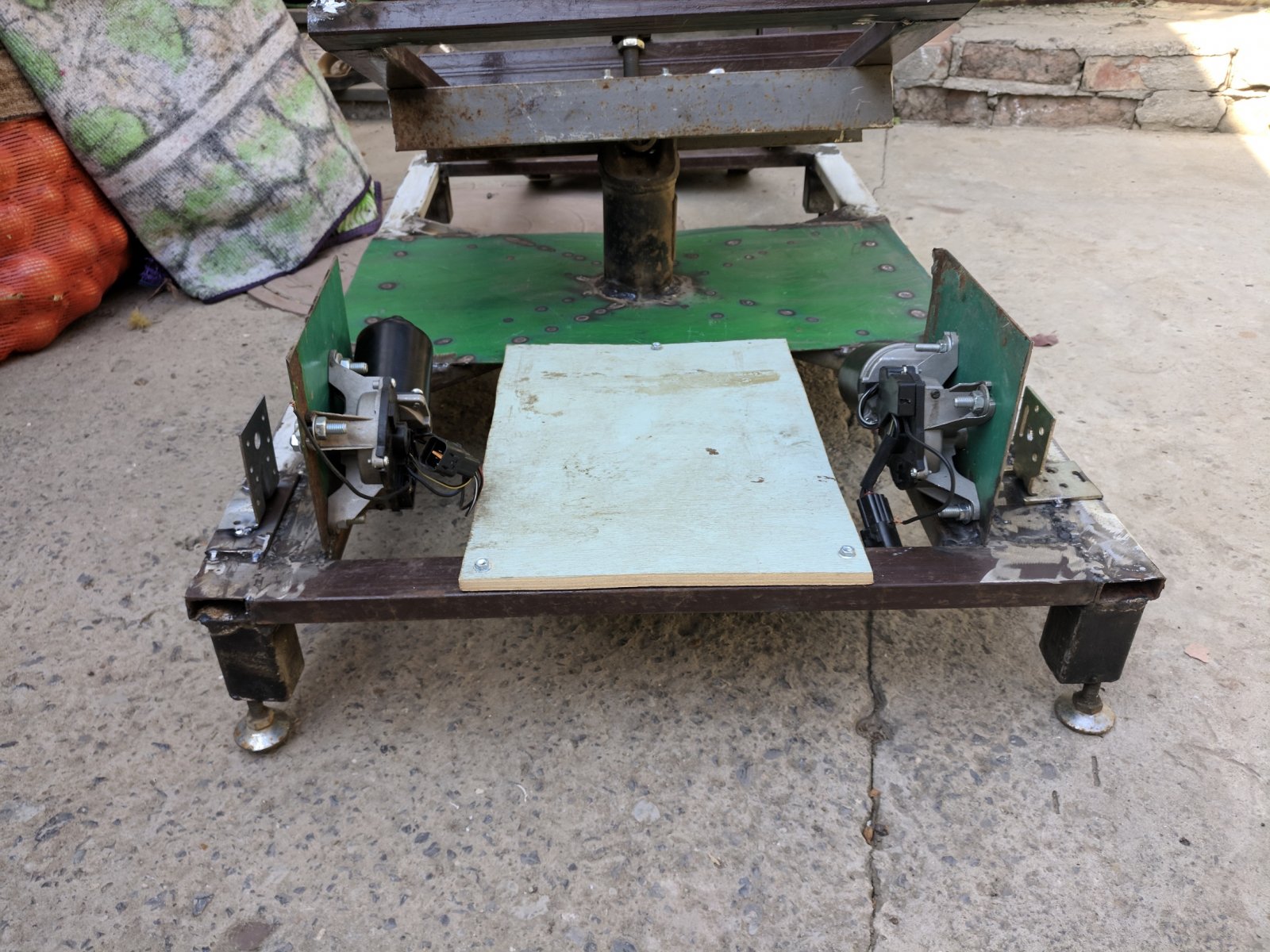

    I continue to build

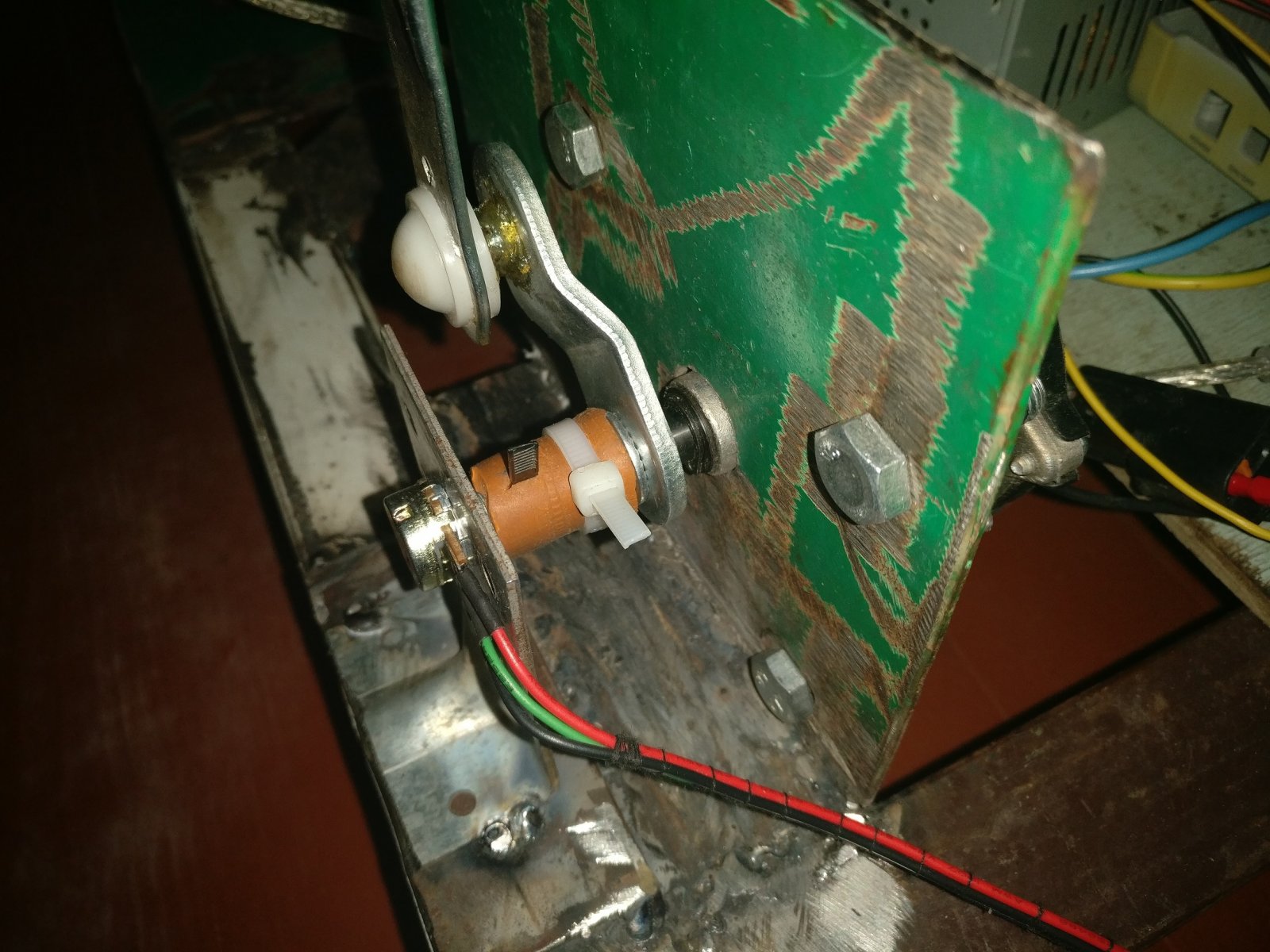

    IMG_20170915_134005.jpg IMG_20170915_133958.jpg IMG_20170915_155407.jpg IMG_20170915_230043.jpg

    Attached Files:

  3. didiops

    didiops flat

    Joined:
    Jul 4, 2017
    Messages:
    5
    Location:
    russis
    Balance:
    - 74Coins
    Ratings:
    +7 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino, Motion platform
    end
    painting
    [​IMG]

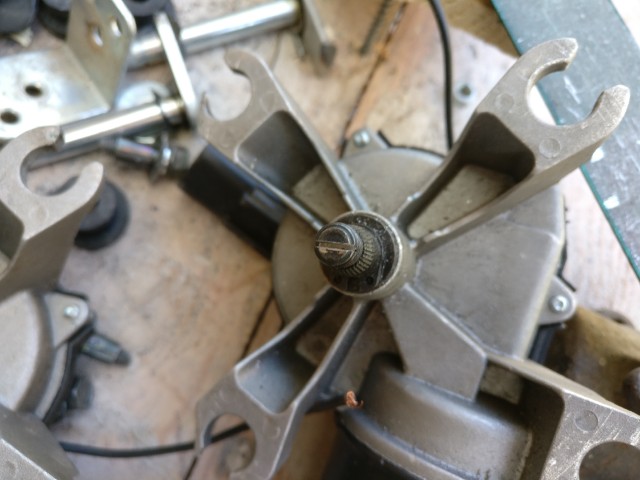

    engine cut
    [​IMG]

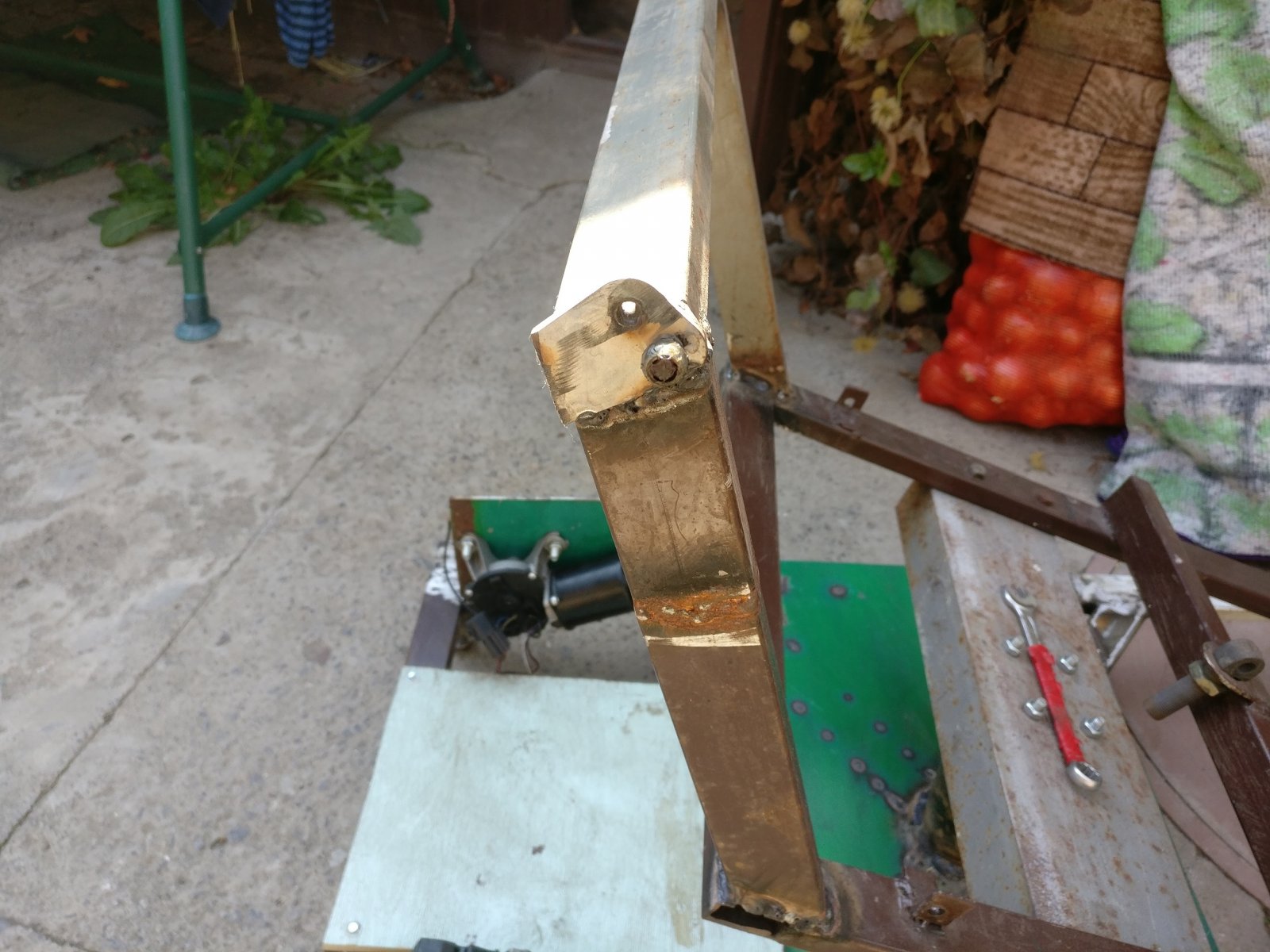

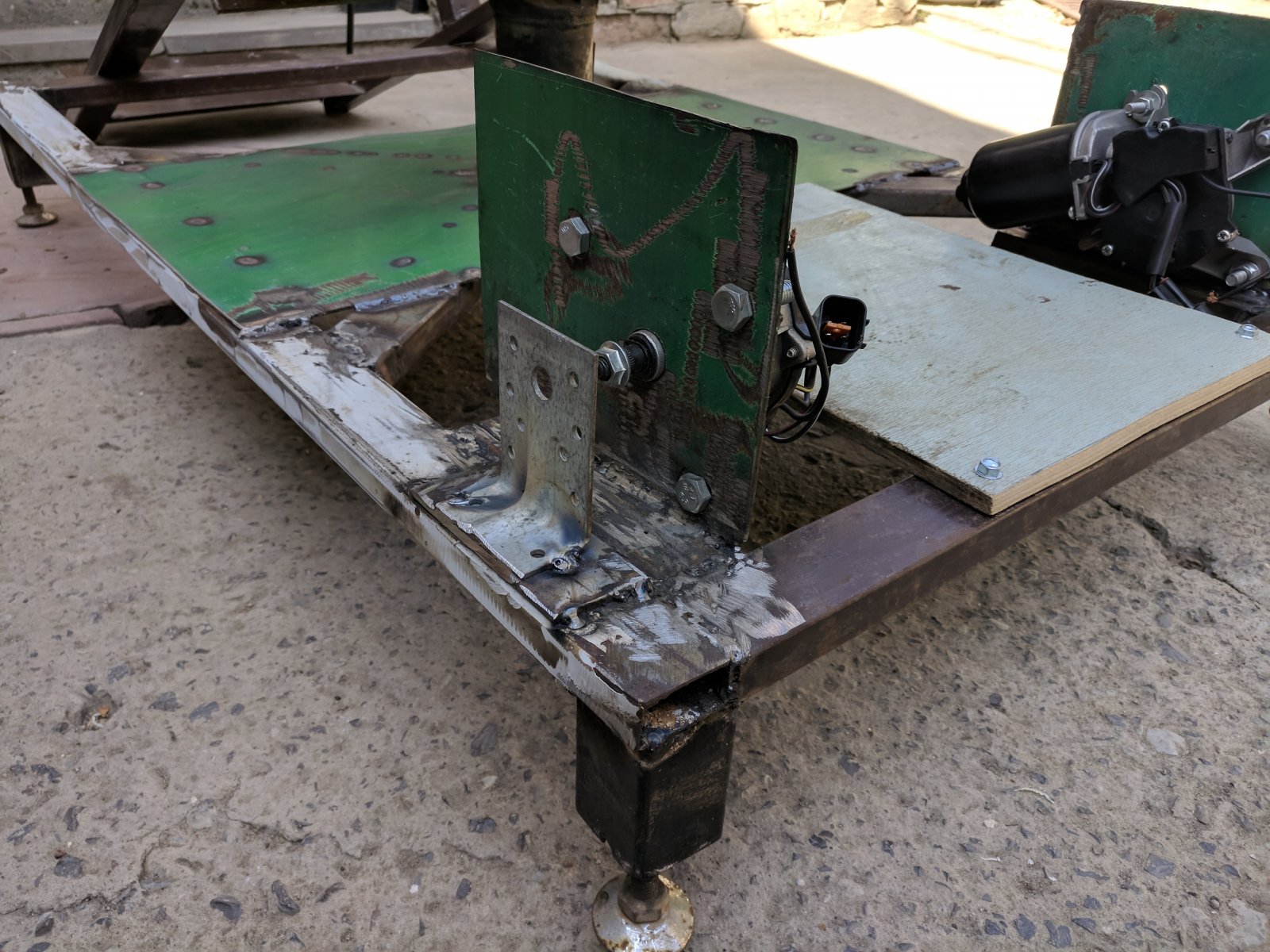

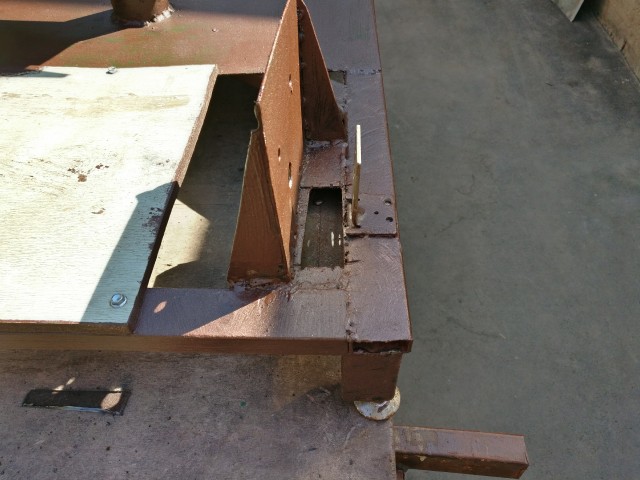

    reinforcement of motor mounting
    [​IMG]

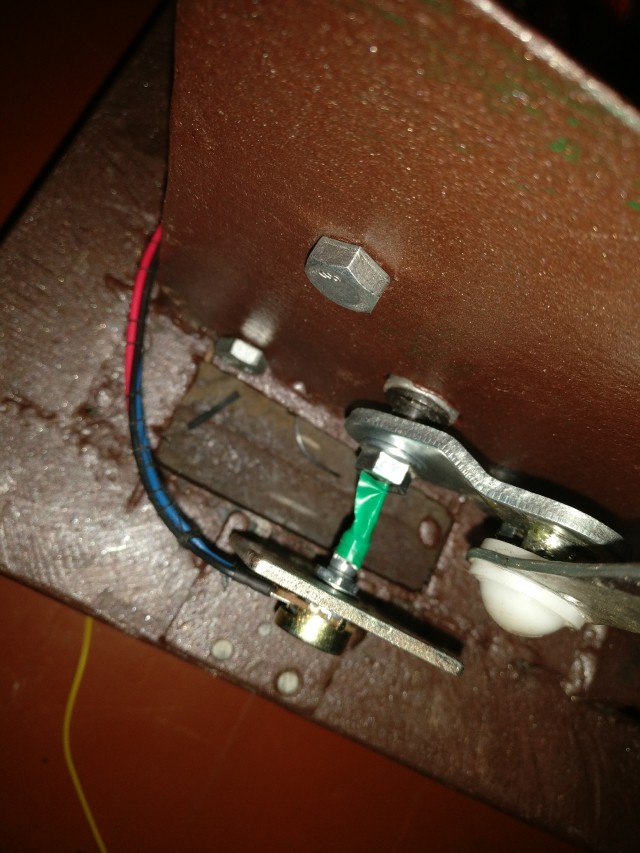

    Resistor Mounting
    [​IMG]
    [​IMG]

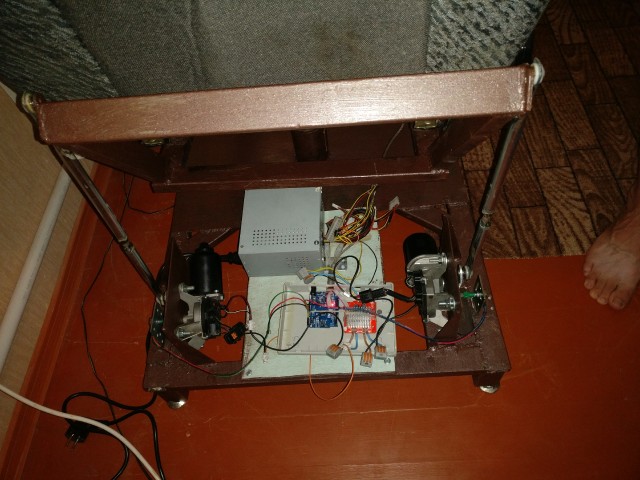

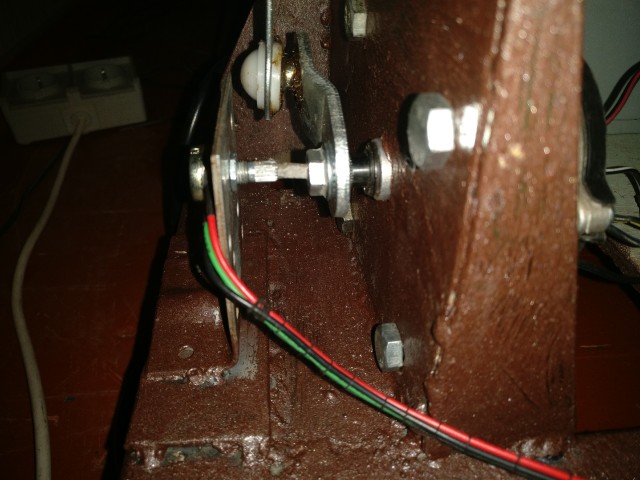

    power section
    [​IMG]

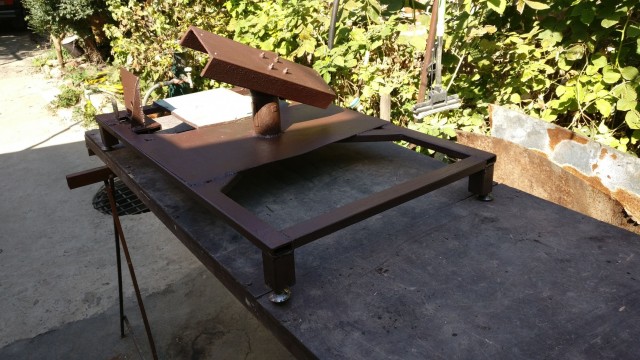

    general form
    [​IMG]
  4. didiops

    didiops flat

    Joined:
    Jul 4, 2017
    Messages:
    5
    Location:
    russis
    Balance:
    - 74Coins
    Ratings:
    +7 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino, Motion platform
    • Like Like x 4
  5. yobuddy

    yobuddy Well-Known Member Staff Member Moderator SimTools Developer SimAxe Beta Tester Gold Contributor SimTools 2.0 Beta Tester

    Joined:
    Feb 9, 2007
    Messages:
    2,816
    Occupation:
    Computer Technician
    Location:
    Portland, Oregon - USA
    Balance:
    30,409Coins
    Ratings:
    +2,970 / 9 / -0
    This is about as DIY as it gets!
    Great job!

    Are you using Surge and Sway to run the sim or Roll and Pitch?
    If your only using Roll and Pitch, Try out Sway and Surge.
    I think you will like it!
    yobuddy
