Tutorial DIY 3D printed Sim Racing Hydraulic pedals SRT

Discussion in 'DIY peripherals' started by Lebois, Jan 26, 2020.

  1. 7HUND3R

    7HUND3R Active Member

    Joined:
    May 25, 2020
    Messages:
    154
    Balance:
    1,159Coins
    Ratings:
    +41 / 0 / -0
    My Motion Simulator:
    Arduino
    Well, I will use the P1 together with the GT. I have already asked for a budget to see how much it costs to print everything.
  2. 7HUND3R

    7HUND3R Active Member

    Joined:
    May 25, 2020
    Messages:
    154
    Balance:
    1,159Coins
    Ratings:
    +41 / 0 / -0
    My Motion Simulator:
    Arduino
    I have already asked for a price so that they only print the brake and they charge me 200 euros for the brake pedal and support of the master cylinder and the pedal plate.
  3. 7HUND3R

    7HUND3R Active Member

    Joined:
    May 25, 2020
    Messages:
    154
    Balance:
    1,159Coins
    Ratings:
    +41 / 0 / -0
    My Motion Simulator:
    Arduino
  4. Lebois

    Lebois (maybe I am wrong, but who knows...)

    Joined:
    Dec 10, 2018
    Messages:
    350
    Occupation:
    Math teacher
    Location:
    France
    Balance:
    2,544Coins
    Ratings:
    +206 / 2 / -0
    My Motion Simulator:
    2DOF
    I personnaly use an Ender 3, and I would higly recommand you to buy one ! It would be paid for just by printing those pedals ! And then you would be able to :
    - print newer versions
    - print broken parts if breaks occur
    - print other things (H shifter, steering wheels, paddle shifters)

    You can use any PLA you want. I always buy the cheaper.
  5. 7HUND3R

    7HUND3R Active Member

    Joined:
    May 25, 2020
    Messages:
    154
    Balance:
    1,159Coins
    Ratings:
    +41 / 0 / -0
    My Motion Simulator:
    Arduino
    But is it difficult to handle that model of a five-way printer?
    Last edited by a moderator: Jun 4, 2020
  6. Lebois

    Lebois (maybe I am wrong, but who knows...)

    Joined:
    Dec 10, 2018
    Messages:
    350
    Occupation:
    Math teacher
    Location:
    France
    Balance:
    2,544Coins
    Ratings:
    +206 / 2 / -0
    My Motion Simulator:
    2DOF
    I wouldn't say that it is plug and play. You will need to tune it if you want it to work perfectly... But once you got it, you are good to go !
  7. 7HUND3R

    7HUND3R Active Member

    Joined:
    May 25, 2020
    Messages:
    154
    Balance:
    1,159Coins
    Ratings:
    +41 / 0 / -0
    My Motion Simulator:
    Arduino
    Can you put a video to see the brake in action?

    I already have the brake pedal lever echo.

    Attached Files:

    • Like Like x 1
    Last edited: Jun 6, 2020
  8. Lebois

    Lebois (maybe I am wrong, but who knows...)

    Joined:
    Dec 10, 2018
    Messages:
    350
    Occupation:
    Math teacher
    Location:
    France
    Balance:
    2,544Coins
    Ratings:
    +206 / 2 / -0
    My Motion Simulator:
    2DOF
    @7HUND3R you can see it there at11:30 :


    I will do more videos with the next updates
    Last edited: Jun 6, 2020
  9. 7HUND3R

    7HUND3R Active Member

    Joined:
    May 25, 2020
    Messages:
    154
    Balance:
    1,159Coins
    Ratings:
    +41 / 0 / -0
    My Motion Simulator:
    Arduino
    It looks perfect. I like that it is soft at first and then later it gets harder on the last hit.
  10. Lebois

    Lebois (maybe I am wrong, but who knows...)

    Joined:
    Dec 10, 2018
    Messages:
    350
    Occupation:
    Math teacher
    Location:
    France
    Balance:
    2,544Coins
    Ratings:
    +206 / 2 / -0
    My Motion Simulator:
    2DOF
    With this pedal, you can set it up as you want, and still have a realistic feeling :)
    I am working on adding other options for the master cylinder : willwood, apracing...
    • Like Like x 1
  11. Lebois

    Lebois (maybe I am wrong, but who knows...)

    Joined:
    Dec 10, 2018
    Messages:
    350
    Occupation:
    Math teacher
    Location:
    France
    Balance:
    2,544Coins
    Ratings:
    +206 / 2 / -0
    My Motion Simulator:
    2DOF

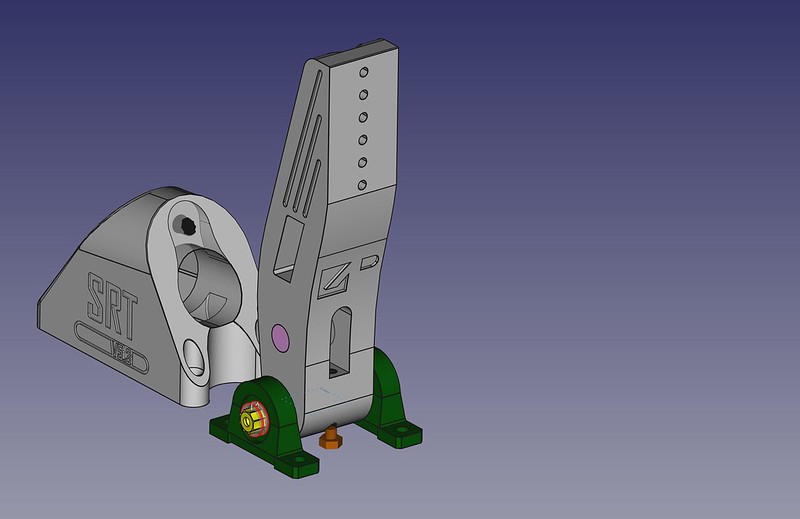

    Working on a logo for the P1 pedals... but I think this one is too abstract ^^
    [​IMG]
  12. 7HUND3R

    7HUND3R Active Member

    Joined:
    May 25, 2020
    Messages:
    154
    Balance:
    1,159Coins
    Ratings:
    +41 / 0 / -0
    My Motion Simulator:
    Arduino
    It looks much improved
  13. Lebois

    Lebois (maybe I am wrong, but who knows...)

    Joined:
    Dec 10, 2018
    Messages:
    350
    Occupation:
    Math teacher
    Location:
    France
    Balance:
    2,544Coins
    Ratings:
    +206 / 2 / -0
    My Motion Simulator:
    2DOF
    I think I should upload accelerator GT v5.8 tomorrow
  14. 7HUND3R

    7HUND3R Active Member

    Joined:
    May 25, 2020
    Messages:
    154
    Balance:
    1,159Coins
    Ratings:
    +41 / 0 / -0
    My Motion Simulator:
    Arduino
    Can the pedals be mounted upside down? my question is what happens to the master cylinder, if I invest it, would the deposit remain face down?
  15. Lebois

    Lebois (maybe I am wrong, but who knows...)

    Joined:
    Dec 10, 2018
    Messages:
    350
    Occupation:
    Math teacher
    Location:
    France
    Balance:
    2,544Coins
    Ratings:
    +206 / 2 / -0
    My Motion Simulator:
    2DOF
    no, the master cylinder can't be inverted, the oil would leak... Otherwise I could add an inverted master cylinder support.
  16. 7HUND3R

    7HUND3R Active Member

    Joined:
    May 25, 2020
    Messages:
    154
    Balance:
    1,159Coins
    Ratings:
    +41 / 0 / -0
    My Motion Simulator:
    Arduino
    The downside to the inverted cylinder mount is that the master cylinder mount would have to be redesigned.
  17. Lebois

    Lebois (maybe I am wrong, but who knows...)

    Joined:
    Dec 10, 2018
    Messages:
    350
    Occupation:
    Math teacher
    Location:
    France
    Balance:
    2,544Coins
    Ratings:
    +206 / 2 / -0
    My Motion Simulator:
    2DOF
    It's not a problem to redesign it. The bigger problem is that inverted mounting plate designs vary a lot, so I don't know how the master cylinder mount should be fixed...
  18. Lebois

    Lebois (maybe I am wrong, but who knows...)

    Joined:
    Dec 10, 2018
    Messages:
    350
    Occupation:
    Math teacher
    Location:
    France
    Balance:
    2,544Coins
    Ratings:
    +206 / 2 / -0
    My Motion Simulator:
    2DOF

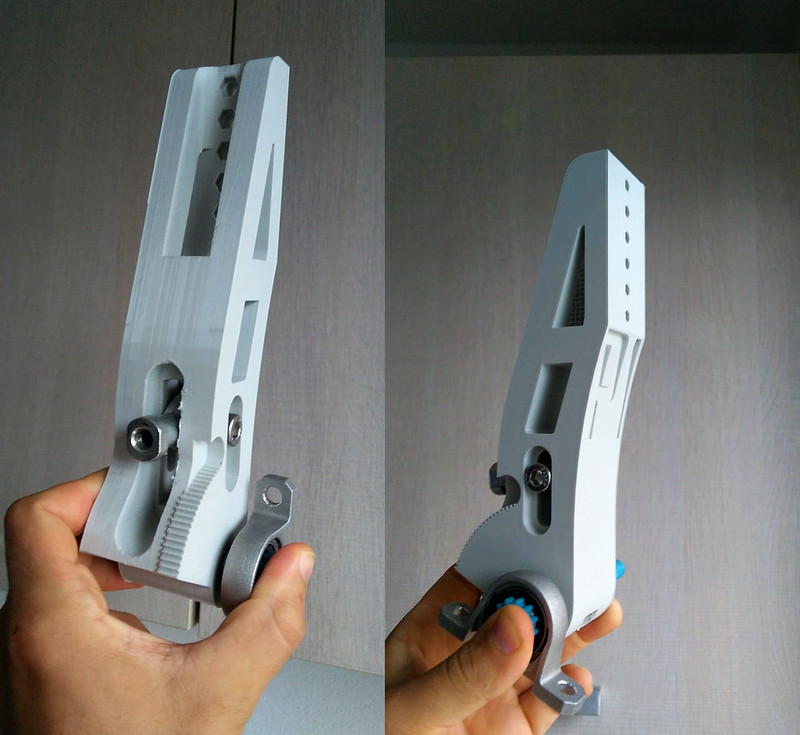

    Last version online !
  19. 7HUND3R

    7HUND3R Active Member

    Joined:
    May 25, 2020
    Messages:
    154
    Balance:
    1,159Coins
    Ratings:
    +41 / 0 / -0
    My Motion Simulator:
    Arduino
    the quality of the printer looks fantastic. the only bad point is that having so many colors of pieces it looks like a toy
    • Like Like x 1
  20. Lebois

    Lebois (maybe I am wrong, but who knows...)

    Joined:
    Dec 10, 2018
    Messages:
    350
    Occupation:
    Math teacher
    Location:
    France
    Balance:
    2,544Coins
    Ratings:
    +206 / 2 / -0
    My Motion Simulator:
    2DOF
    Well I a way of course you are right.
    But in a way, I like it this way.... it's a touch of derision compared to very expensive full metallic pedals sets :)
    (and I burn off a lot of PLA for my tests. Once it's right, I can print a new one just to do photos :/).

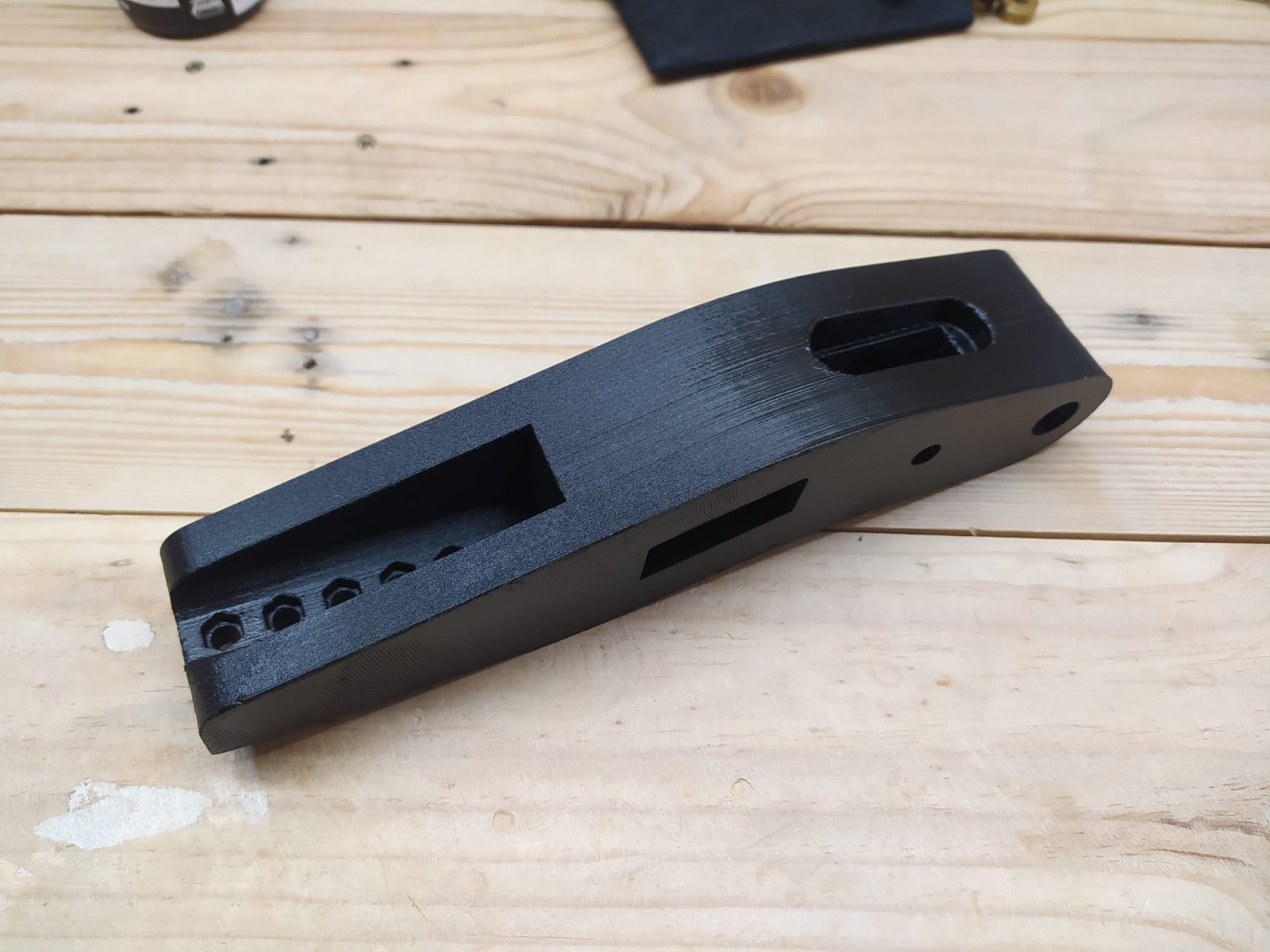

    Second lever for the P1 accelerator :
    [​IMG]
