DIY 2DOF simulator

Discussion in 'DIY Motion Simulator Projects' started by drazic, Sep 24, 2017.

  1. drazic

    drazic New Member SimAxe Beta Tester Gold Contributor

    Joined:
    Jul 7, 2015
    Messages:
    26
    Balance:
    - 55Coins
    Ratings:
    +5 / 0 / -0
    Hi,

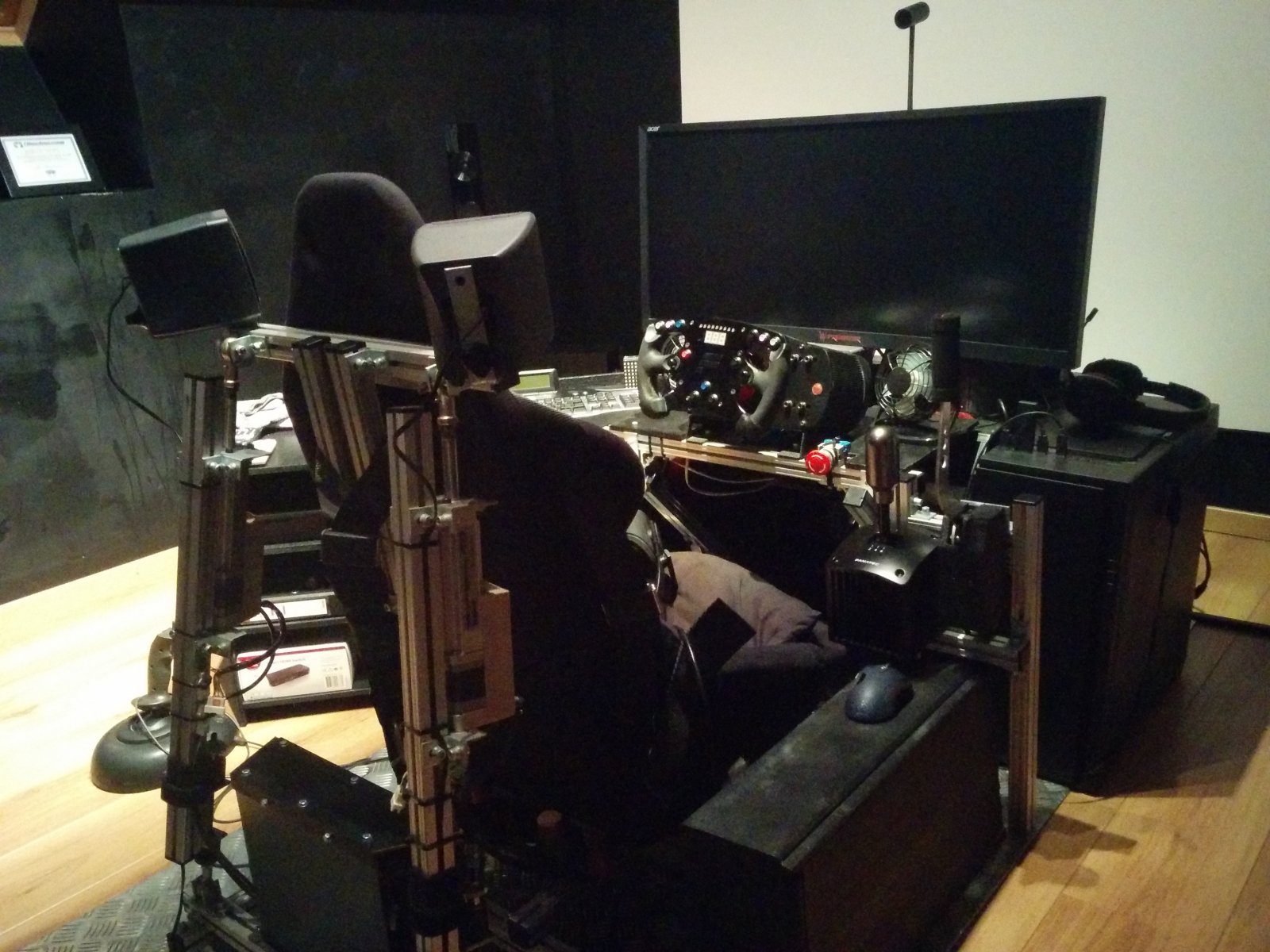

    Here is my simulator.

    Aluminum cockpit
    Motion: 2 DOF
    Wheel base: Fanatec v1
    Pedals: Fanatec v2
    Shifter: Fanatec
    Handbrake: Fanatec
    35" screen Acer Predator
    Oculus Rift
    Audio 5.1 THX system
    Hand made furniture surrounding the cockpit
    2 small fans
