DIY 2DOF MotionSim [Wipers, SMC, Arduino]

Discussion in 'DIY Motion Simulator Projects' started by Radioproffi, Jan 26, 2015.

Share This Page

  1. Radioproffi

    Radioproffi Member SimTools 2.0 Beta Tester

    Joined:
    May 15, 2014
    Messages:
    72
    Location:
    Запоріжжя
    Balance:
    1,562Coins
    Ratings:
    +53 / 1 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino, Motion platform, 4DOF, 6DOF
    Hi all. My first sim.

    I'm using 2 wipers 30W, Arduino Uno, MonsterMotoShield, PSU HP 525W, 2 pot 10kOm.

    Software -SMC3 0.7, SimTools 1.3, Dirt2





    Unfortunately have a defective chair, began to creak spring.

    THX Ale (@prilad) for helping.
    • Like Like x 13
    Last edited: Jan 26, 2015
  2. Ads Master

    Ads Master

    Balance:
    Coins
    Ratings:
    +0 / 0 / -0
  3. noorbeast

    noorbeast VR - The Next Generation SimTools 2.0 Beta Tester

    Joined:
    Jul 13, 2014
    Messages:
    8,735
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    73,151Coins
    Ratings:
    +6,078 / 30 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    Thanks for sharing the videos of your motion simulator @Radioproffi. Your rig looks both solid and compact, well done :thumbs
    • Agree Agree x 1
  4. Pit

    Pit Dreams become true. Here. When do you begin? Staff Member Moderator Gold Contributor SimTools 2.0 Beta Tester

    Joined:
    Oct 2, 2013
    Messages:
    2,780
    Location:
    Switzerland
    Balance:
    26,323Coins
    Ratings:
    +2,720 / 27 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    @Radioproffi great work, very compact design. Although you are using 3oW motors (only!!) the motion is fairly acceptable. For harder turns you have to switch to more powerful motors (in future).
    • Like Like x 1
    • Agree Agree x 1
  5. Daguru

    Daguru Rally drivers do it in the mud

    Joined:
    Sep 4, 2013
    Messages:
    421
    Occupation:
    window cleaner
    Location:
    Wales uk
    Balance:
    2,329Coins
    Ratings:
    +410 / 0 / -0
    My Motion Simulator:
    2DOF
    Nice well done !! Thanks for the videos:)
  6. Radioproffi

    Radioproffi Member SimTools 2.0 Beta Tester

    Joined:
    May 15, 2014
    Messages:
    72
    Location:
    Запоріжжя
    Balance:
    1,562Coins
    Ratings:
    +53 / 1 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino, Motion platform, 4DOF, 6DOF

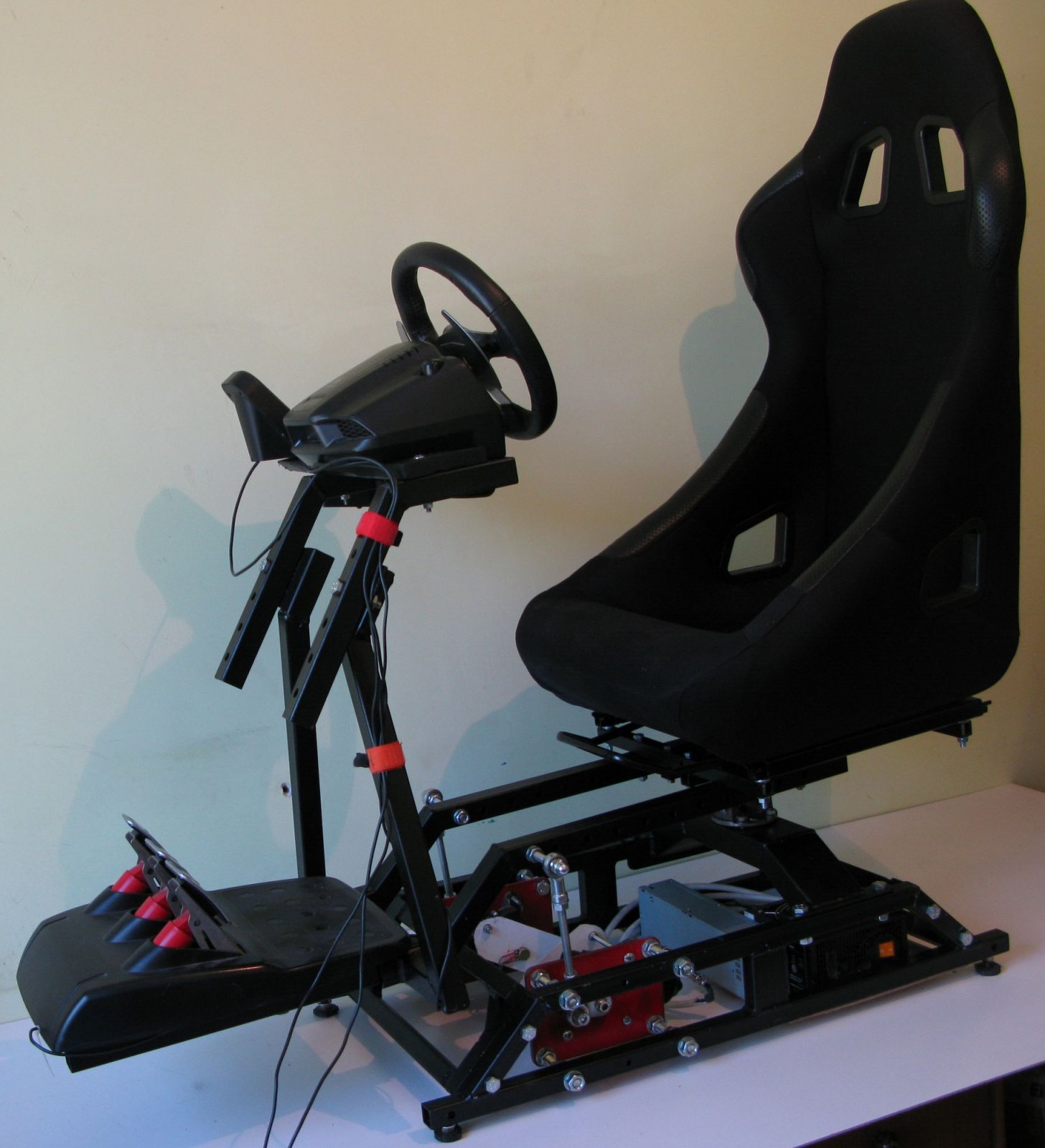

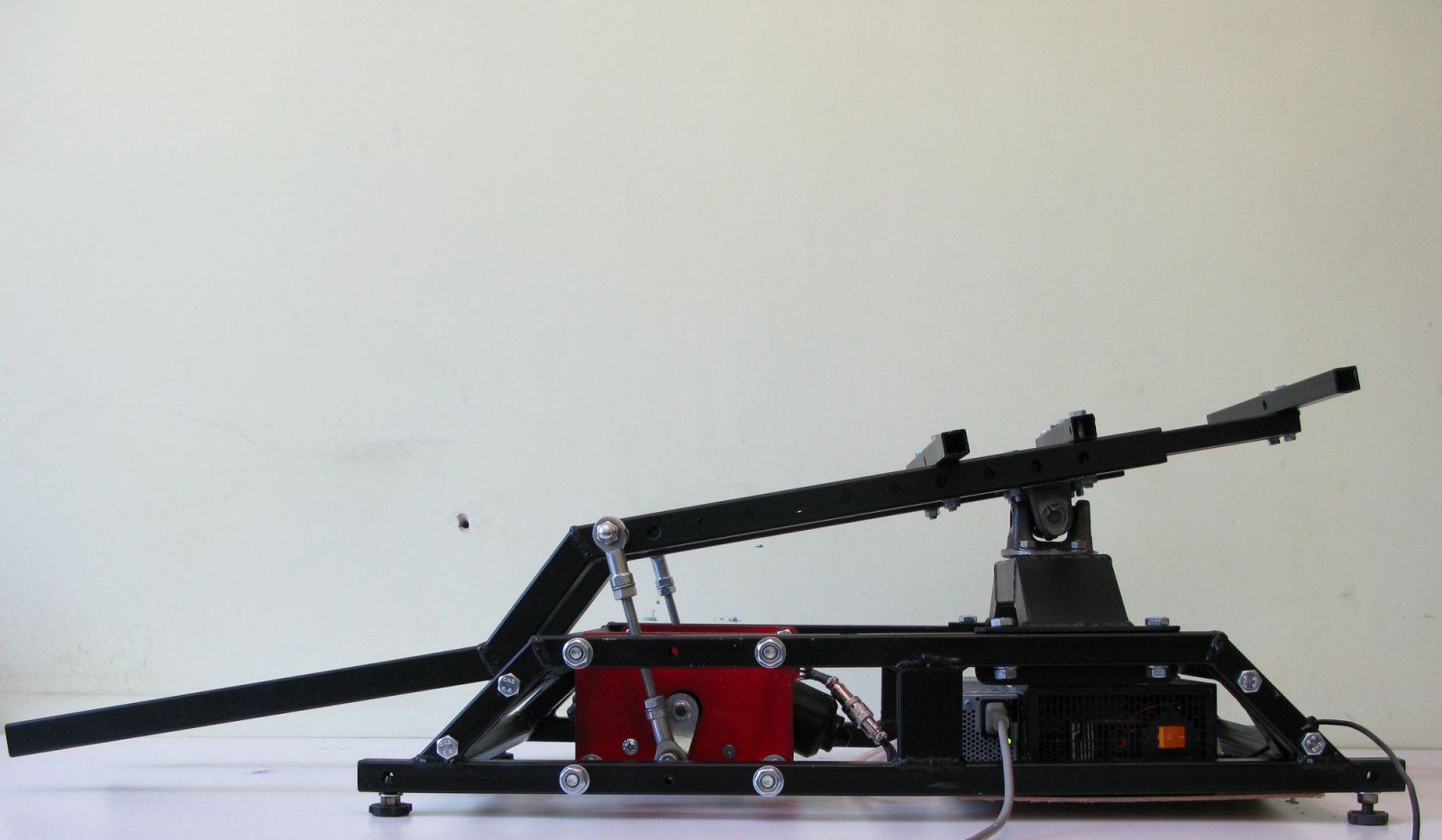

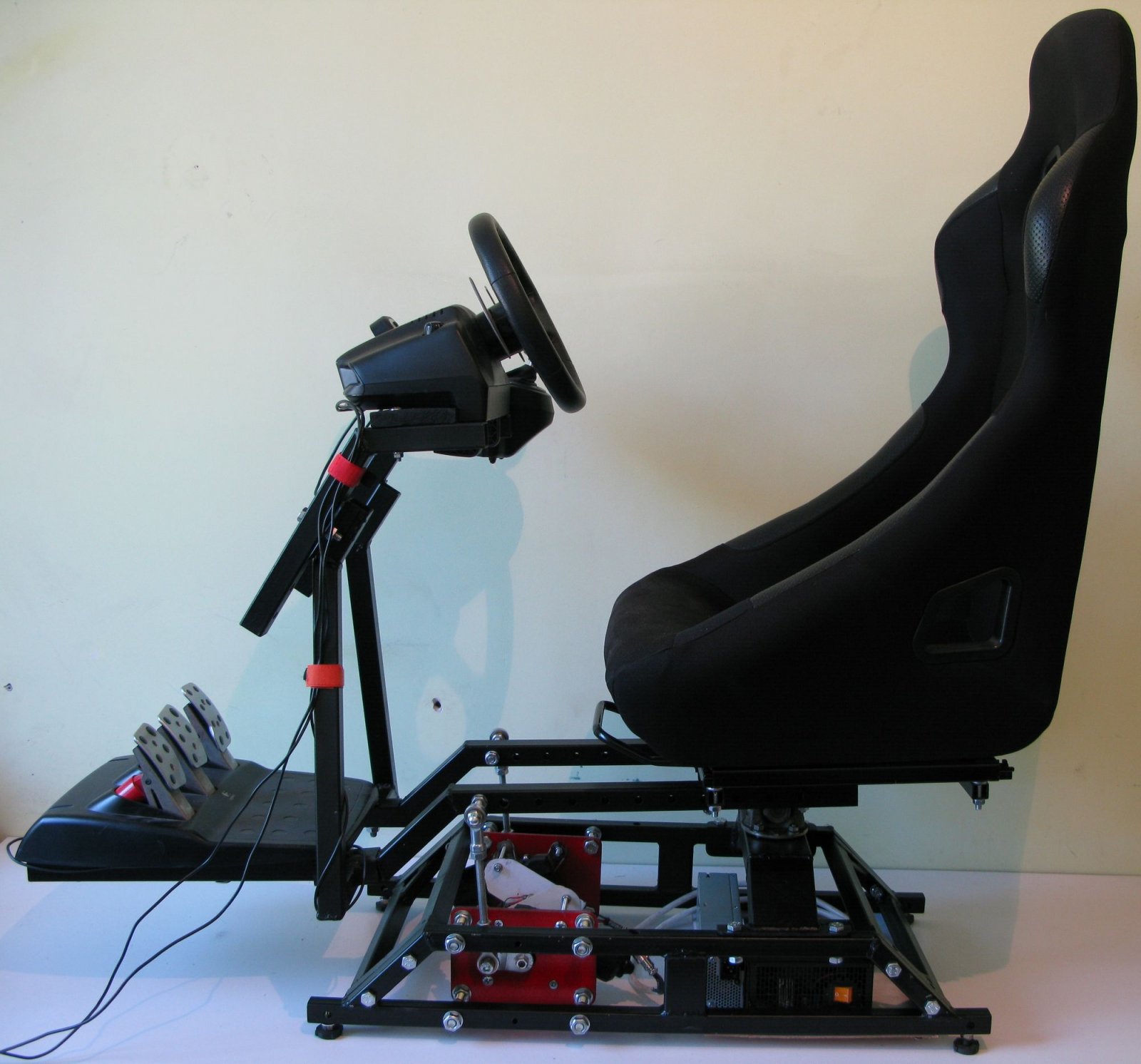

    Repainted chair and slightly changed the location of the hinge. The chair is a lot better.

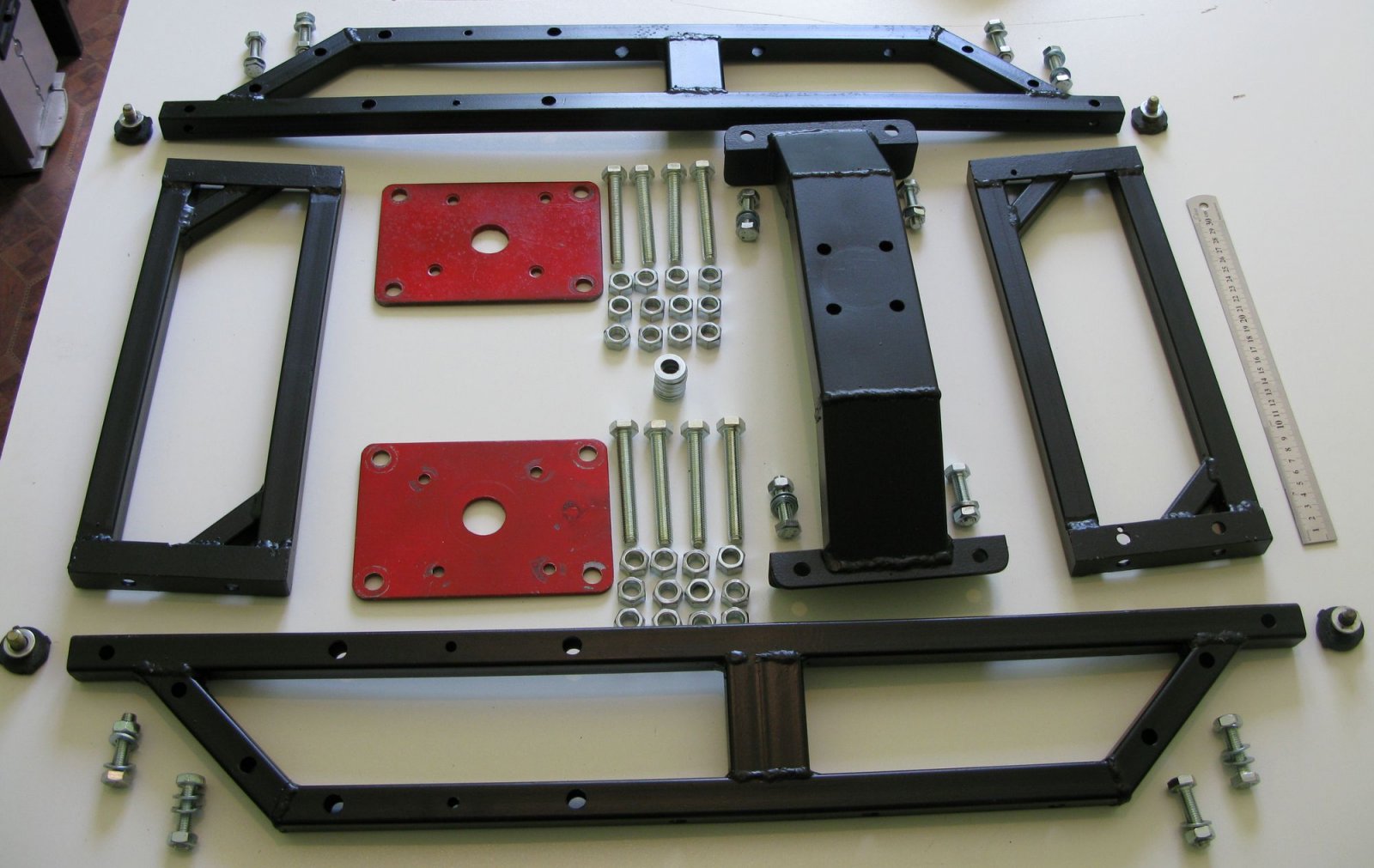

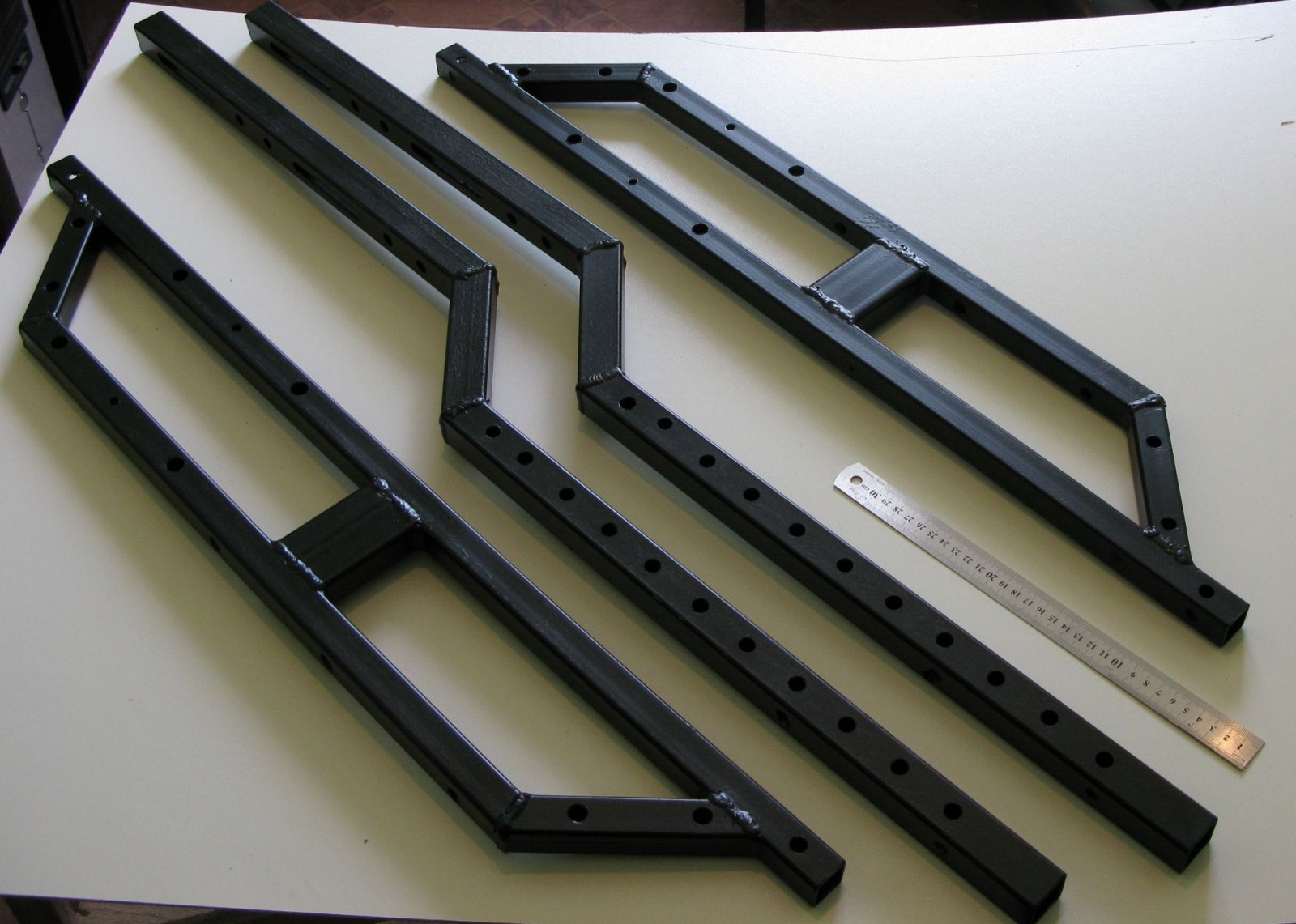

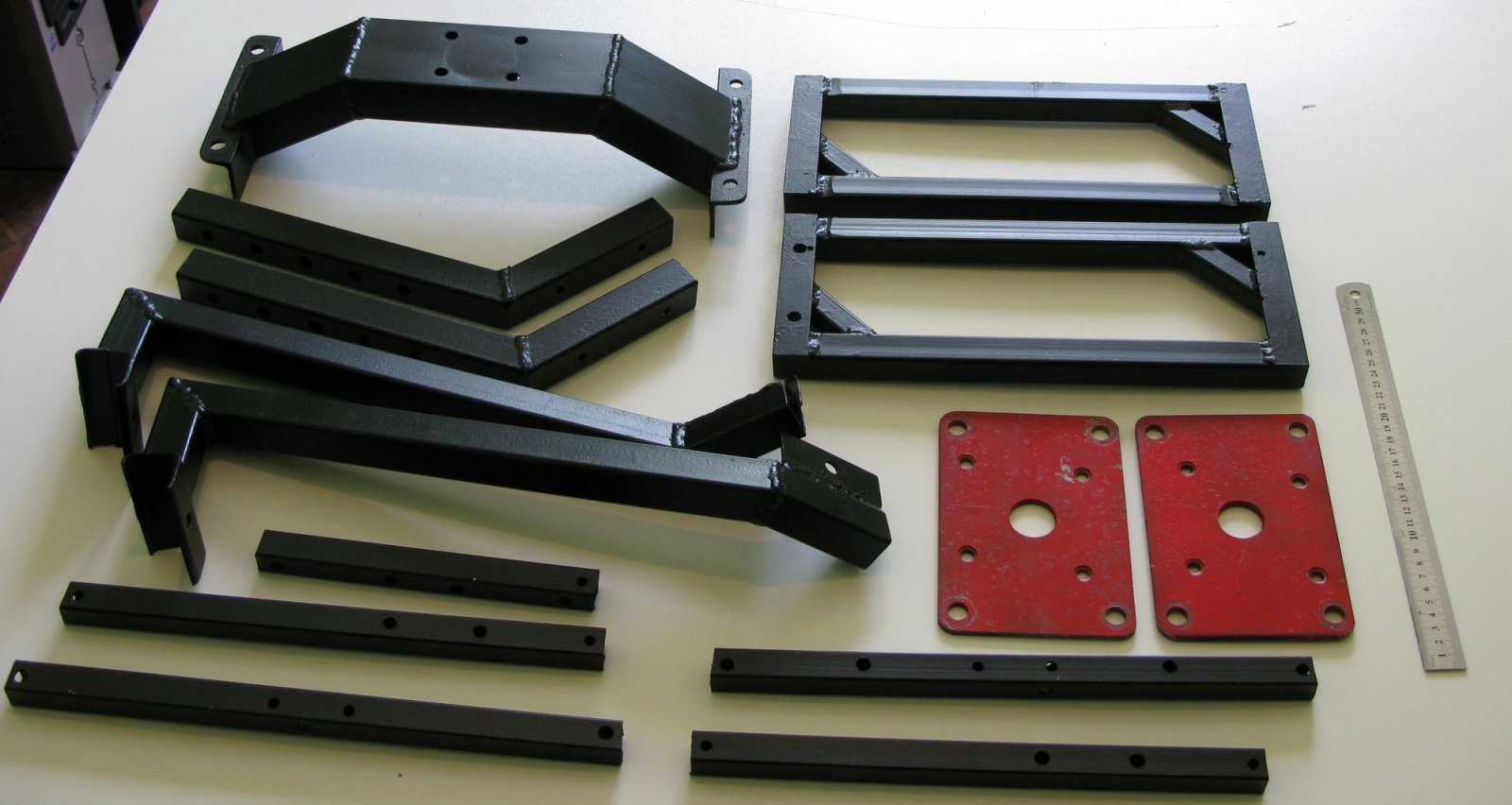

    In attachment some pics with parts.

    Attached Files:

    • Like Like x 5
  7. michto35

    michto35 Member Gold Contributor

    Joined:
    Jan 31, 2014
    Messages:
    98
    Location:
    france
    Balance:
    131Coins
    Ratings:
    +51 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    thanks for sharing, very good job :thumbs
  8. momoclic

    momoclic Active Member

    Joined:
    Sep 23, 2014
    Messages:
    182
    Occupation:
    Retraité
    Location:
    Nantes - France
    Balance:
    2,338Coins
    Ratings:
    +94 / 1 / -0
    My Motion Simulator:
    DC motor, Arduino
    Very nice achievement!
  9. Rastus

    Rastus Active Member

    Joined:
    Oct 8, 2011
    Messages:
    117
    Occupation:
    Retired
    Location:
    Sydney Australia
    Balance:
    11,148Coins
    Ratings:
    +148 / 2 / -0
    My Motion Simulator:
    2DOF, DC motor, JRK
    I like it, real professional looking, wish I could weld!!
  10. alexis67

    alexis67 Member

    Joined:
    May 10, 2015
    Messages:
    56
    Balance:
    170Coins
    Ratings:
    +38 / 1 / -0
    My Motion Simulator:
    2DOF
    nice sim ! this give me idea for my project
  11. dualclick76

    dualclick76 Member

    Joined:
    Mar 23, 2015
    Messages:
    141
    Location:
    italia
    Balance:
    166Coins
    Ratings:
    +30 / 0 / -2
    My Motion Simulator:
    2DOF, DC motor, Arduino
    nice work very compact pubblicheresti settings smc 3 I tried but I could not even move the sim
  12. francky foor

    francky foor Member

    Joined:
    May 10, 2015
    Messages:
    110
    Location:
    france (nord)
    Balance:
    122Coins
    Ratings:
    +18 / 1 / -0
    My Motion Simulator:
    2DOF, SCN6
    nice work !!!:thumbs
  13. hazardic

    hazardic m3gt2 fan

    Joined:
    Jan 1, 2015
    Messages:
    58
    Balance:
    373Coins
    Ratings:
    +44 / 0 / -0
    My Motion Simulator:
    3DOF, Arduino

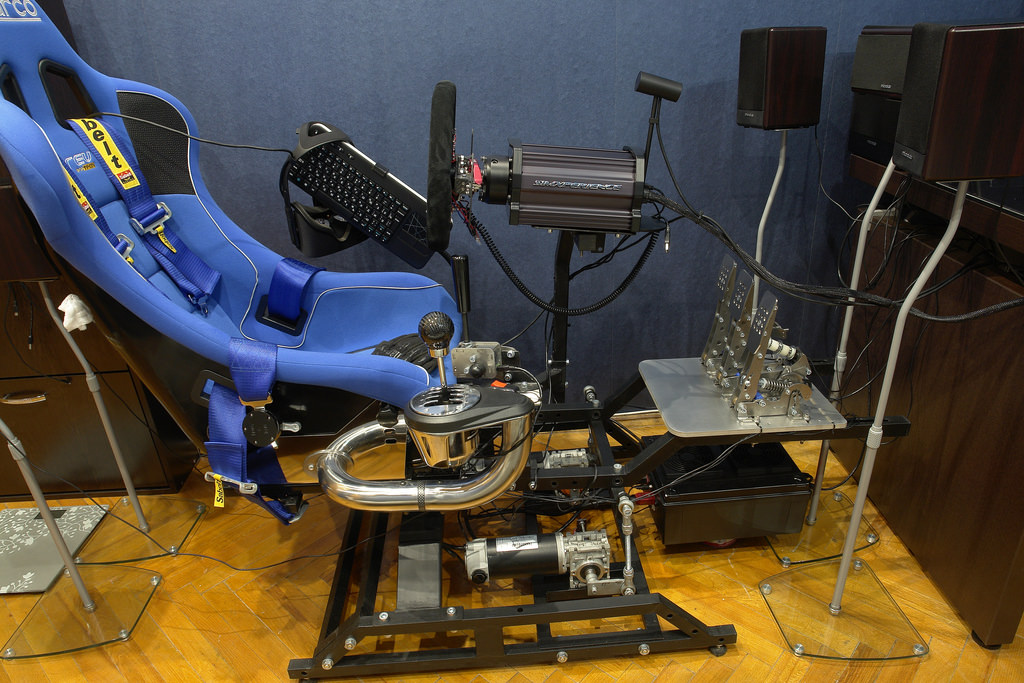

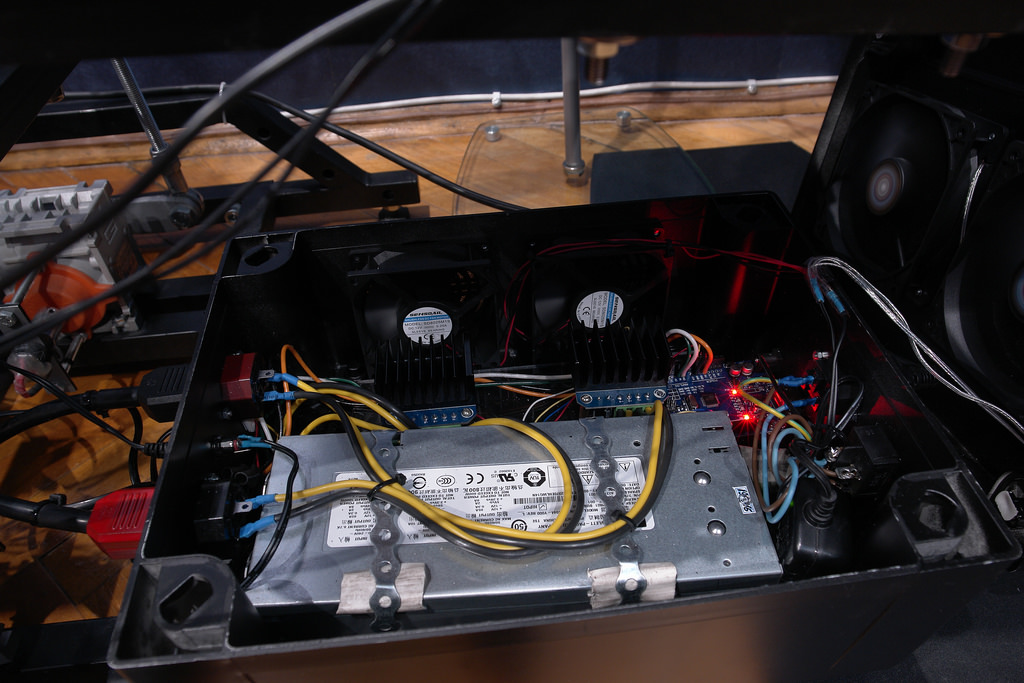

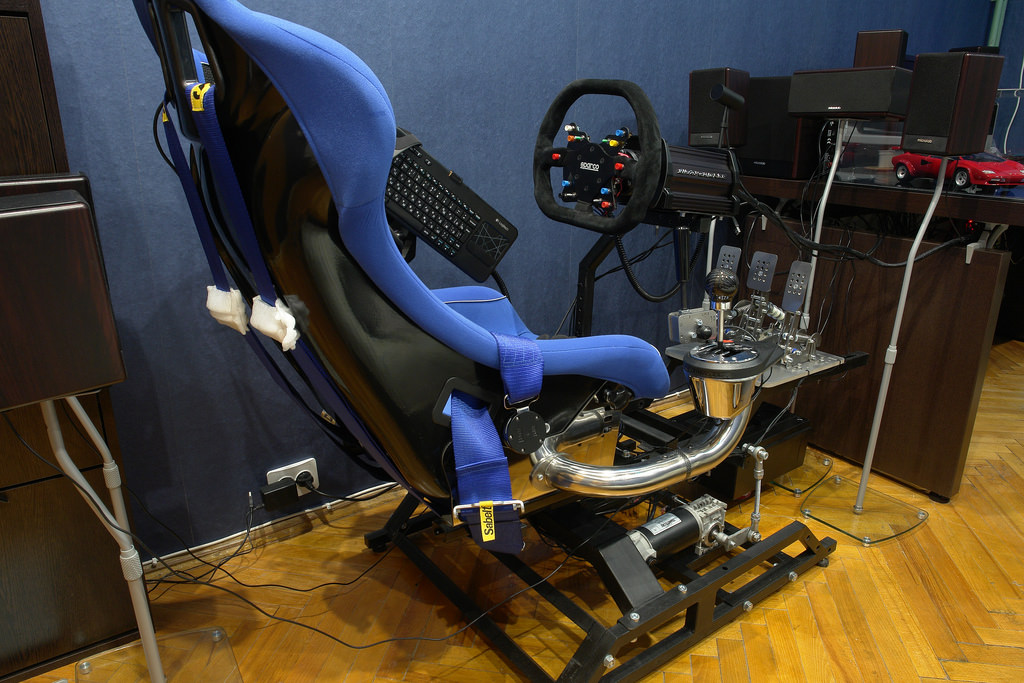

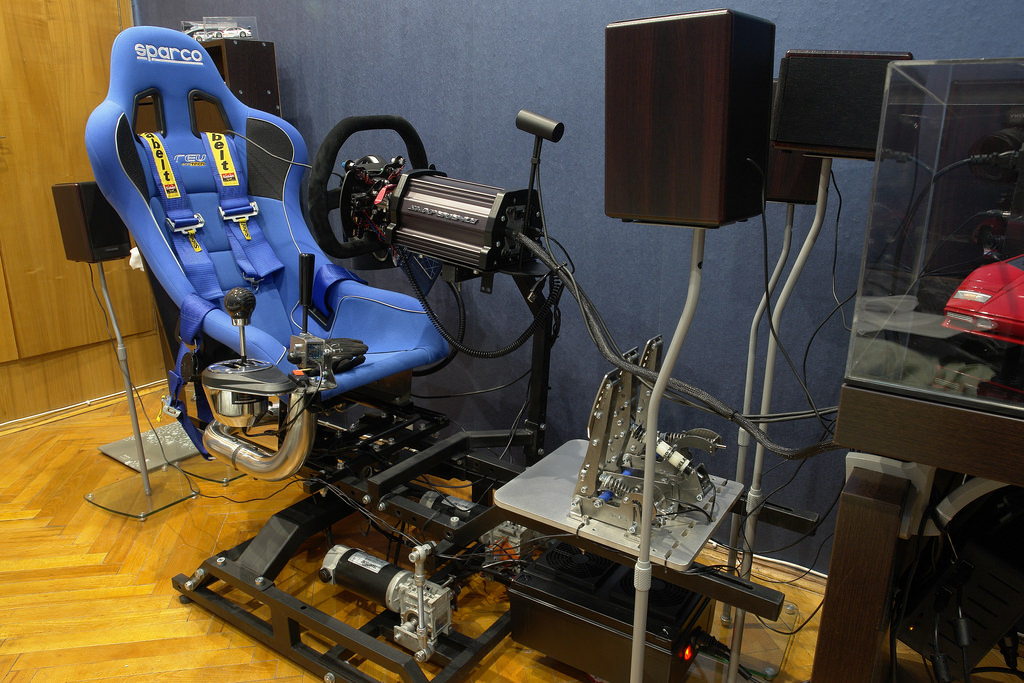

    Forgot to mention it there (yesterday assembling was quite tenseful, even wife wife and a kid didn't see me much), and since the original design belongs to @Radioproffi, I think it would be nice to show how it works with high powered industrial Dc motors.
    My very first attempt in motion and some photo (will redo it asap with long exposure), need tweaking for sure.
    Anyaway, without @Radioproffi help I still be on static rig, now all my inputs should be reconsidered and reviewed, since high speed motion flood my brain with additional info.
    The construction itself feels very solid and sturdy, needs some adjustments though, but overall it has almost an industrial quality

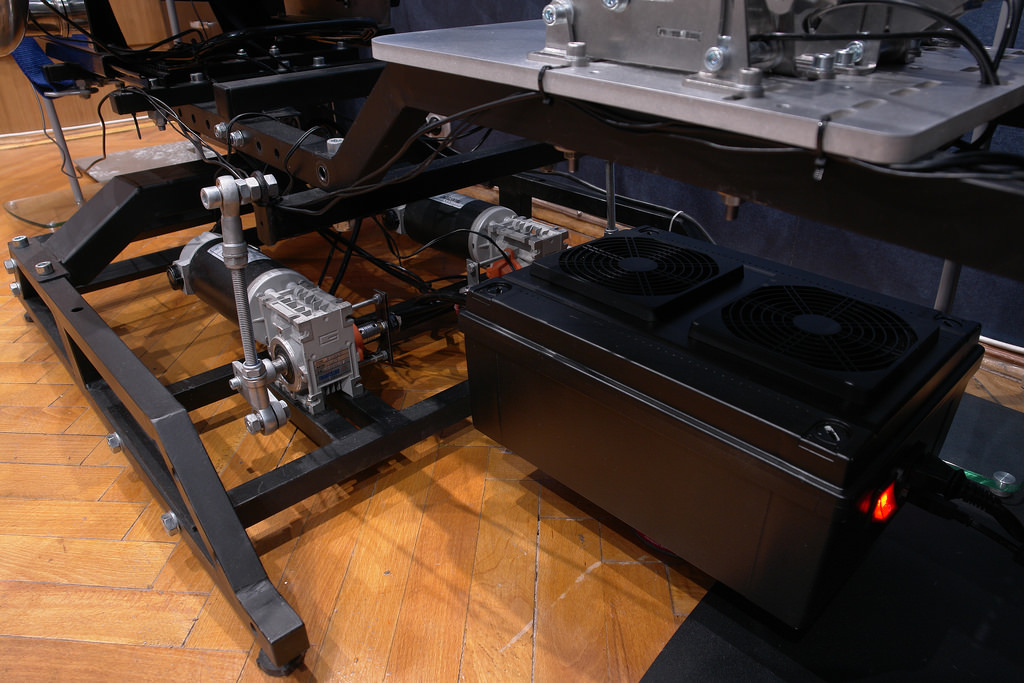

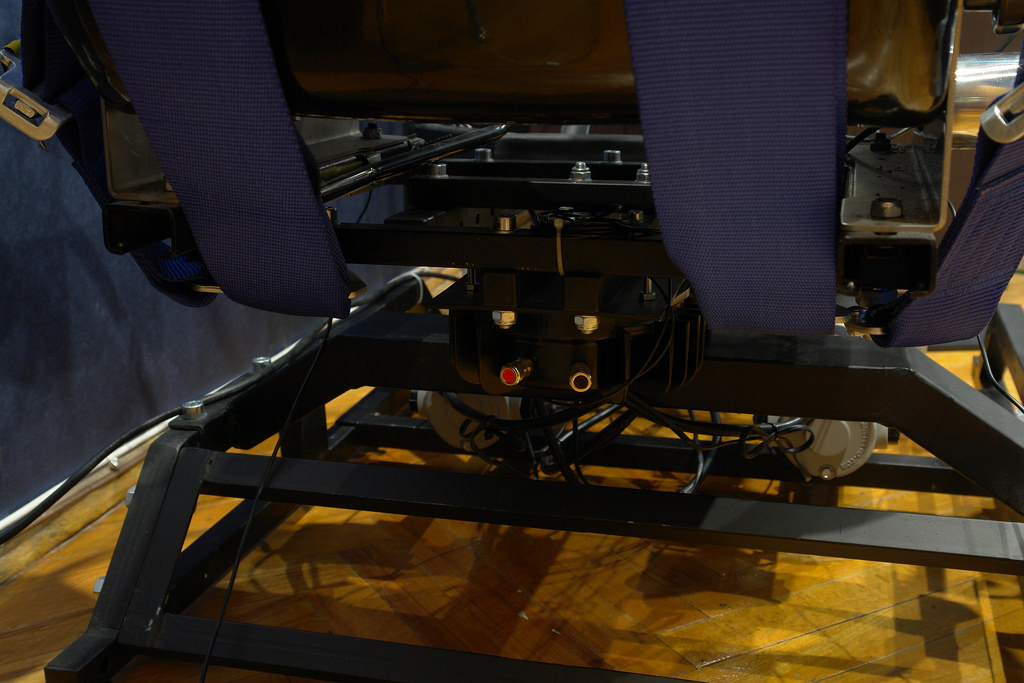

    Below are photos of a completed configuration specifically for my needs
