Creazyrider 2DOF for car races and plane

Discussion in 'DIY Motion Simulator Projects' started by creazyrider, Jun 25, 2018.

Page 3 of 8
  1. creazyrider

    creazyrider Active Member

    Joined:
    Sep 12, 2017
    Messages:
    197
    Location:
    france
    Balance:
    850Coins
    Ratings:
    +56 / 1 / -0
    My Motion Simulator:
    3DOF

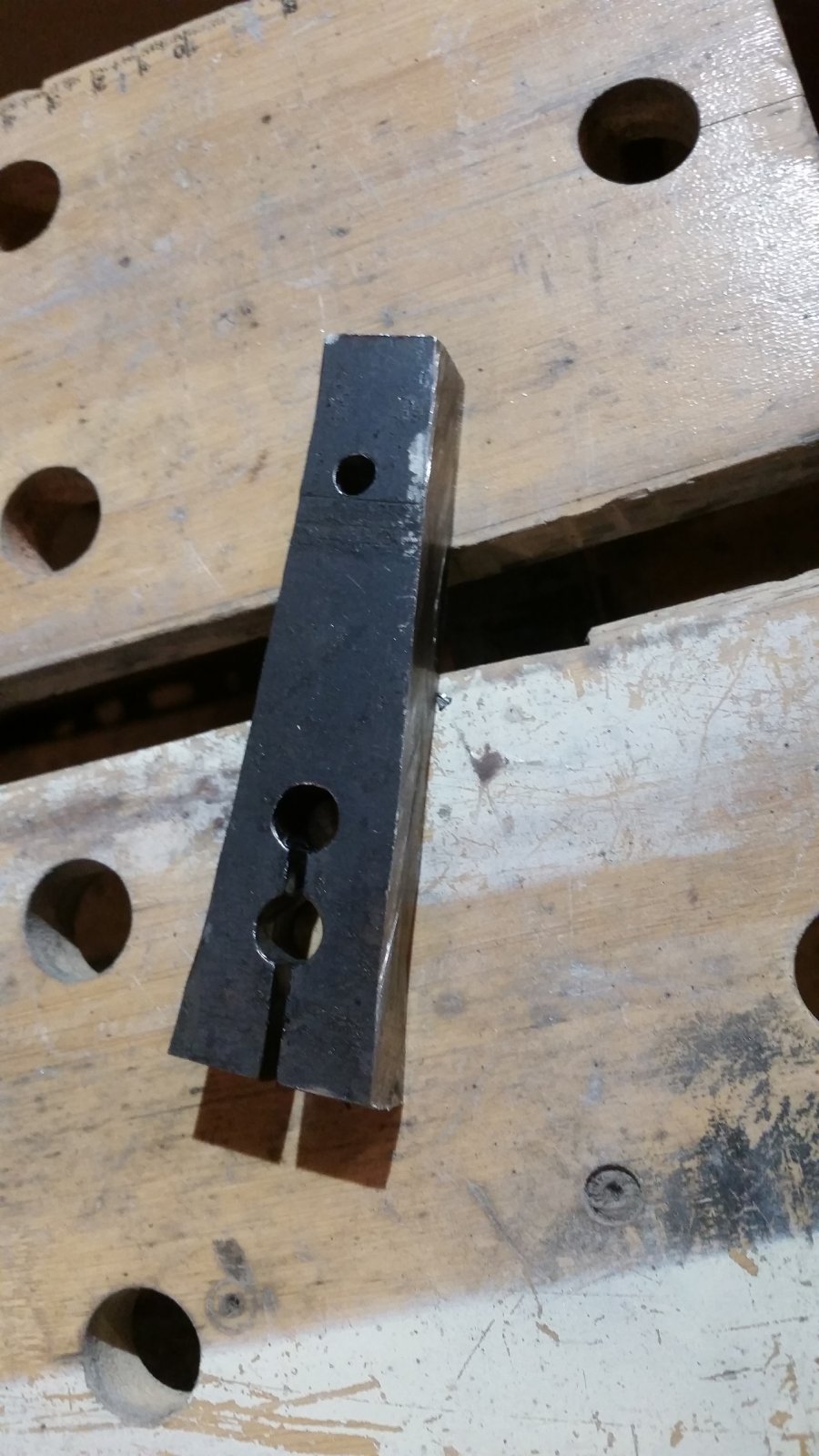

    Came moteur 2.jpg
    creazyrider, Aug 30, 2018
    #41
  2. creazyrider

    creazyrider Active Member

    Joined:
    Sep 12, 2017
    Messages:
    197
    Location:
    france
    Balance:
    850Coins
    Ratings:
    +56 / 1 / -0
    My Motion Simulator:
    3DOF

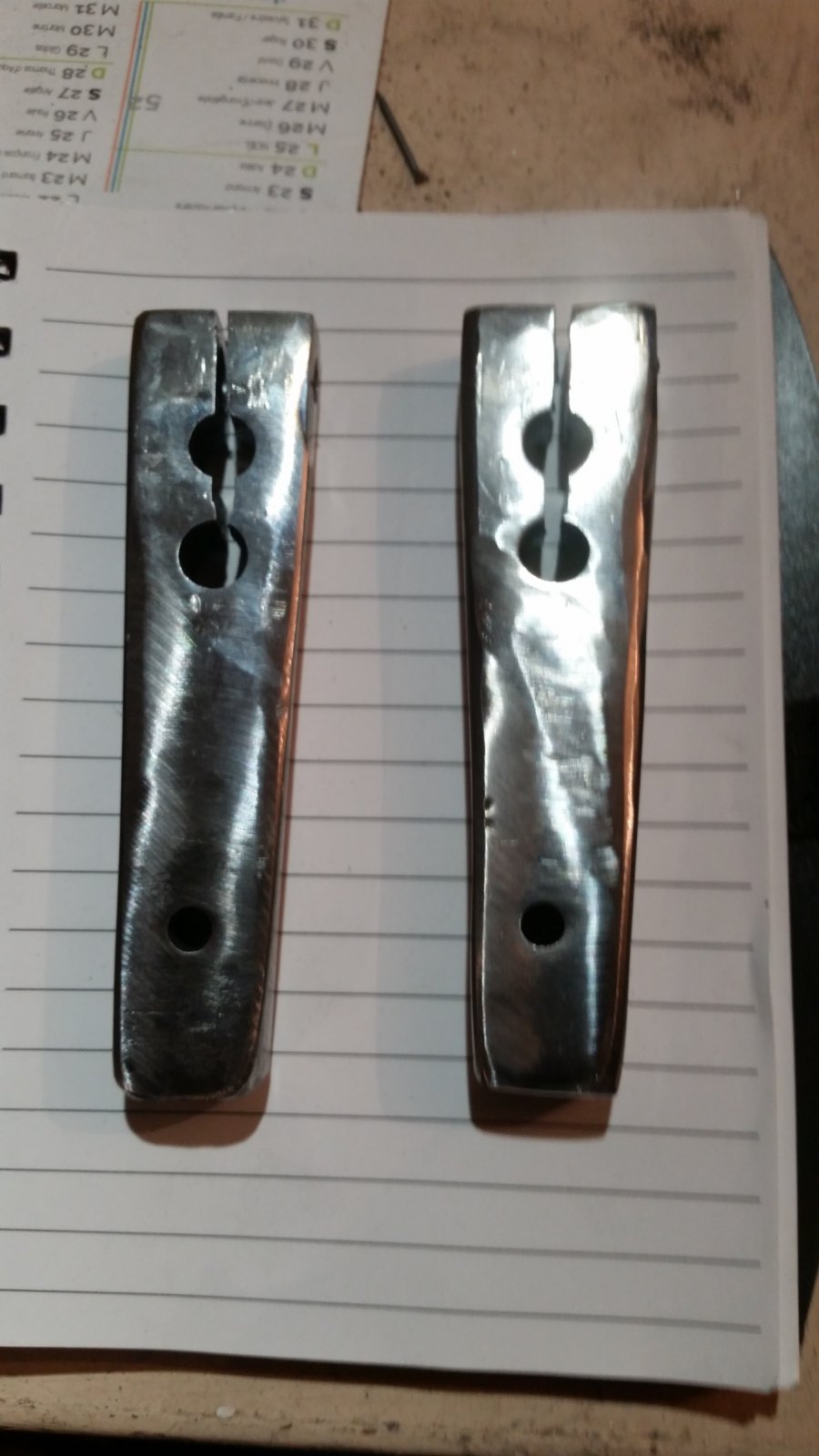

    The arm finished

    Came moteur 3.jpg
    creazyrider, Aug 30, 2018
    #42
  3. creazyrider

    creazyrider Active Member

    Joined:
    Sep 12, 2017
    Messages:
    197
    Location:
    france
    Balance:
    850Coins
    Ratings:
    +56 / 1 / -0
    My Motion Simulator:
    3DOF

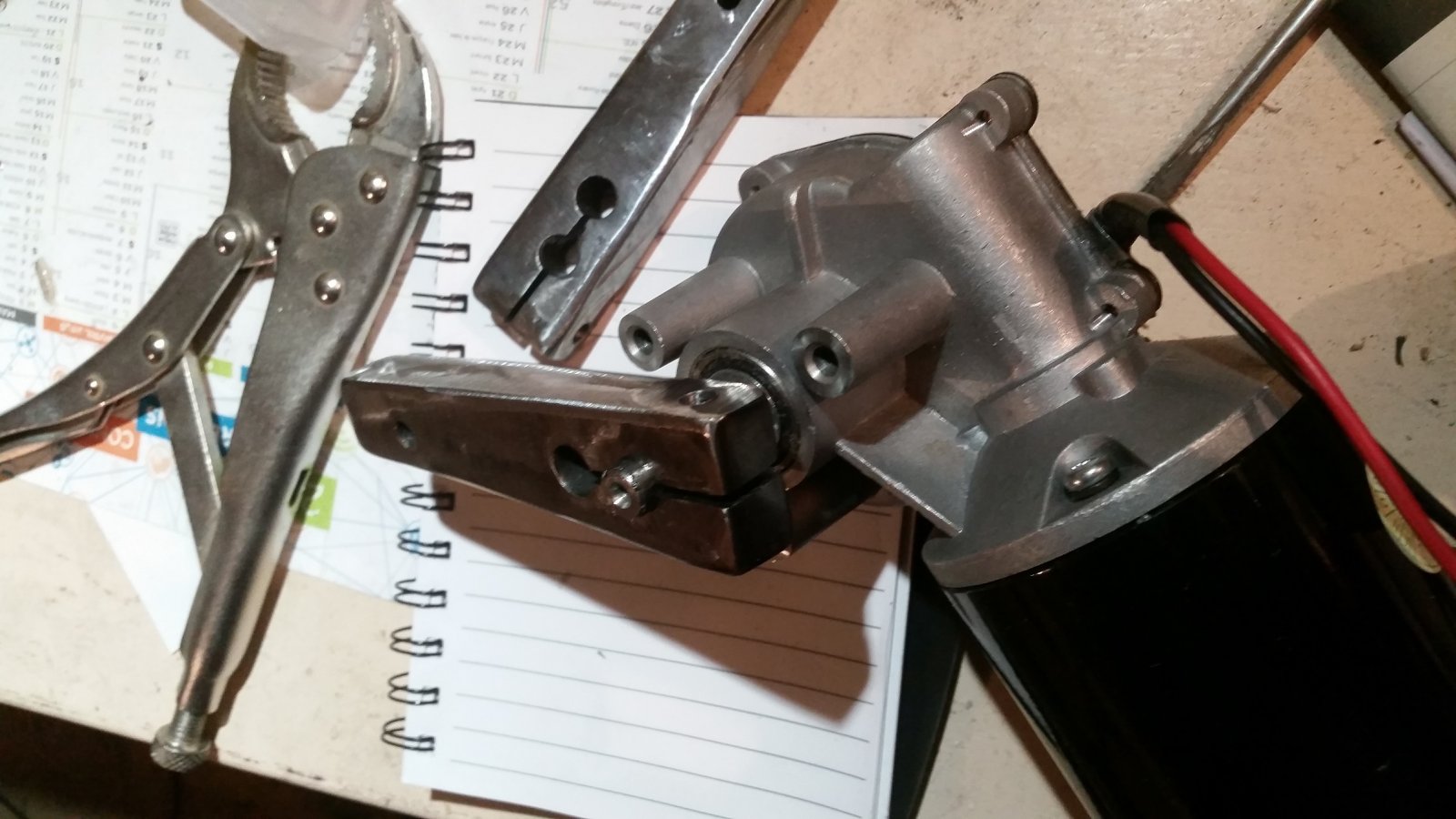

    Fitting in the shaft of the motor

    Came moteur 4.jpg
    • Like Like x 2
    creazyrider, Aug 30, 2018
    #43
  4. Poo9jao

    Poo9jao I Like all Mod

    Joined:
    Jul 22, 2018
    Messages:
    9
    Occupation:
    Coppy Machine Service Engineer
    Location:
    Bangkok Thailand
    Balance:
    146Coins
    Ratings:
    +3 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    how much dimension
    Poo9jao, Sep 2, 2018
    #44
  5. creazyrider

    creazyrider Active Member

    Joined:
    Sep 12, 2017
    Messages:
    197
    Location:
    france
    Balance:
    850Coins
    Ratings:
    +56 / 1 / -0
    My Motion Simulator:
    3DOF

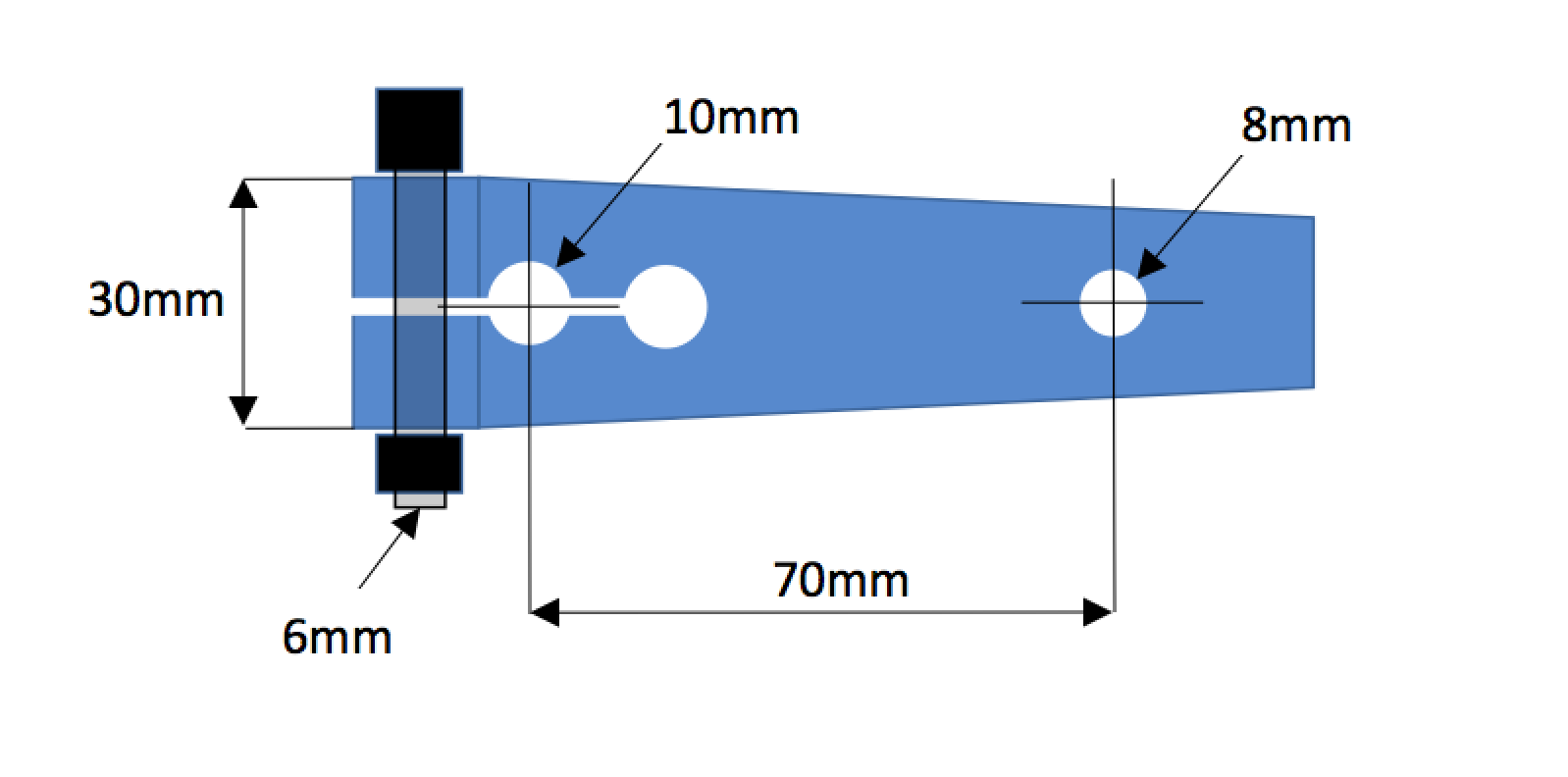

    Here is the drawing

    Capture d’écran 2018-09-03 à 00.46.31.png
    • Useful Useful x 1
    creazyrider, Sep 3, 2018
    #45
  6. creazyrider

    creazyrider Active Member

    Joined:
    Sep 12, 2017
    Messages:
    197
    Location:
    france
    Balance:
    850Coins
    Ratings:
    +56 / 1 / -0
    My Motion Simulator:
    3DOF

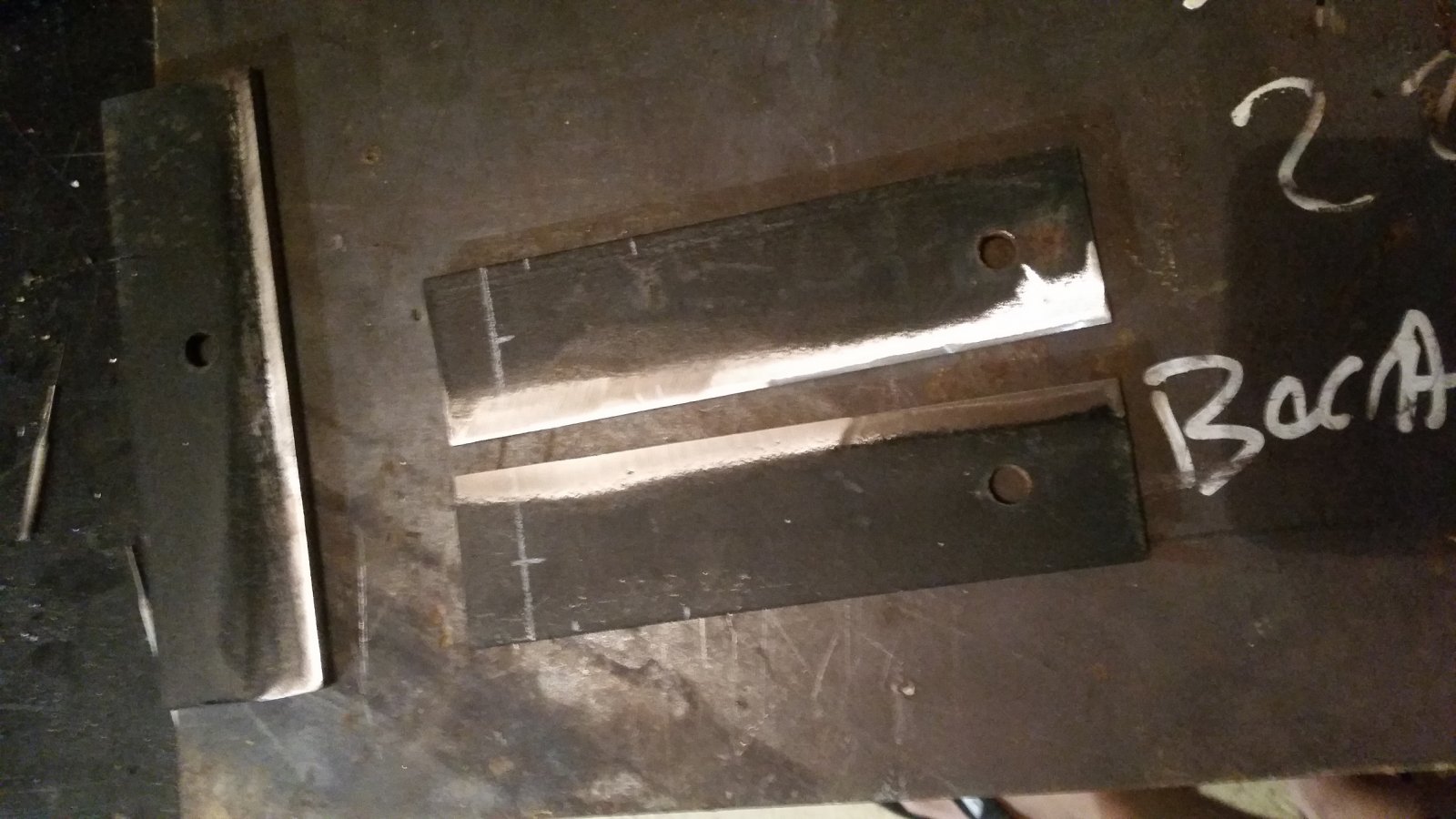

    The motors mount

    Supports moteur 2.jpg
    creazyrider, Sep 3, 2018
    #46
  7. creazyrider

    creazyrider Active Member

    Joined:
    Sep 12, 2017
    Messages:
    197
    Location:
    france
    Balance:
    850Coins
    Ratings:
    +56 / 1 / -0
    My Motion Simulator:
    3DOF

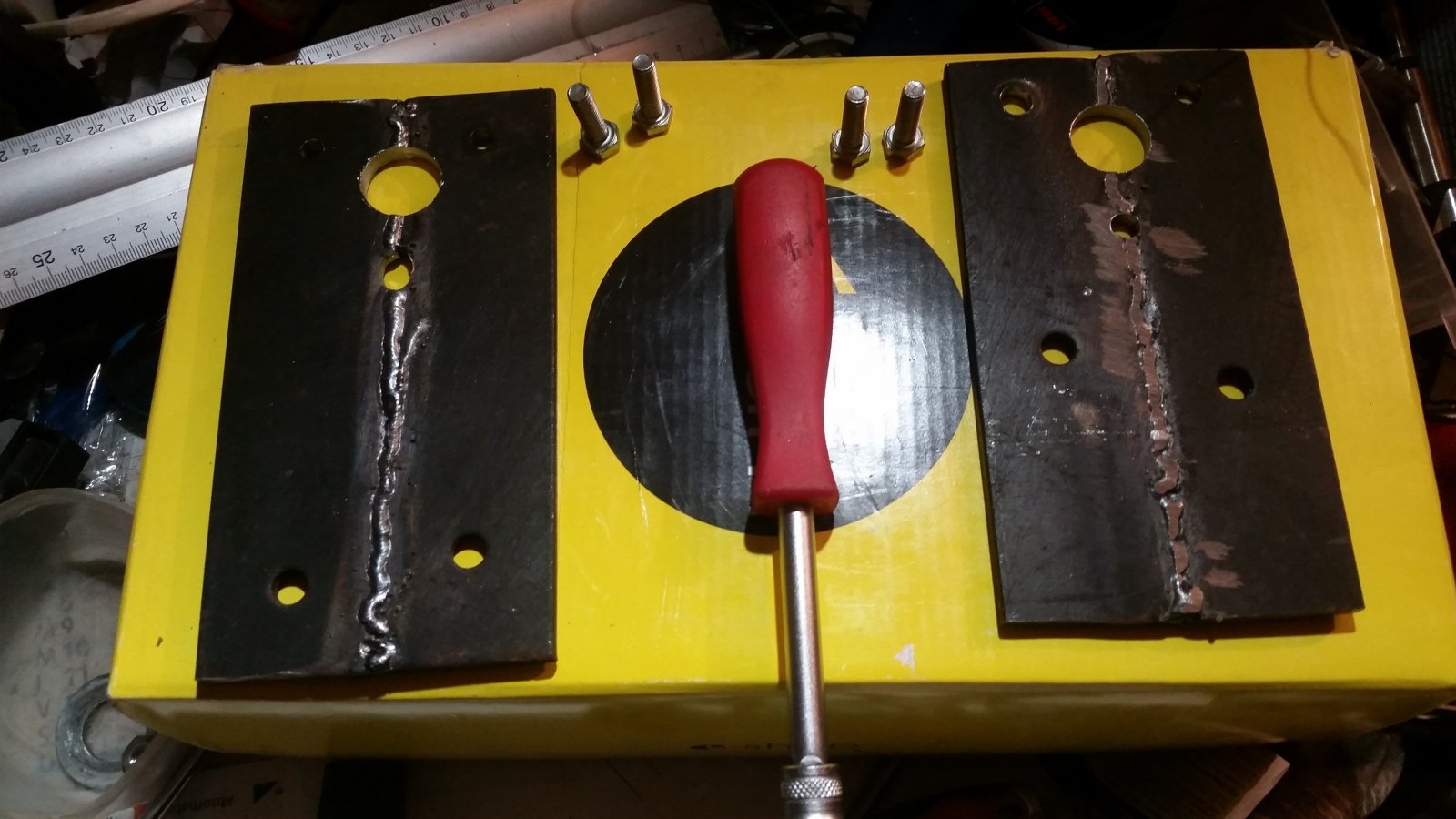

    Suports moteurs 3.jpg
    creazyrider, Sep 3, 2018
    #47
  8. creazyrider

    creazyrider Active Member

    Joined:
    Sep 12, 2017
    Messages:
    197
    Location:
    france
    Balance:
    850Coins
    Ratings:
    +56 / 1 / -0
    My Motion Simulator:
    3DOF

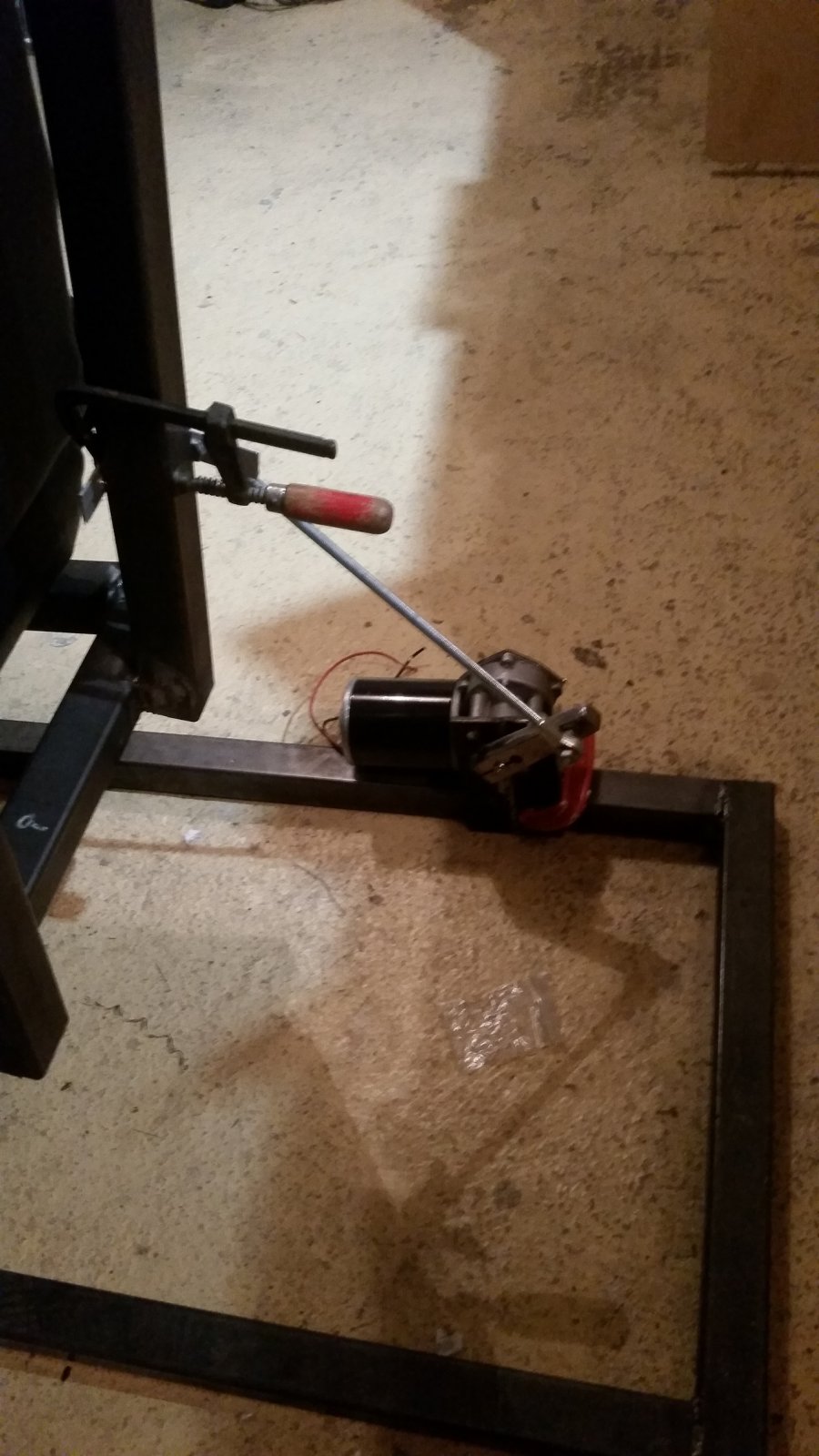

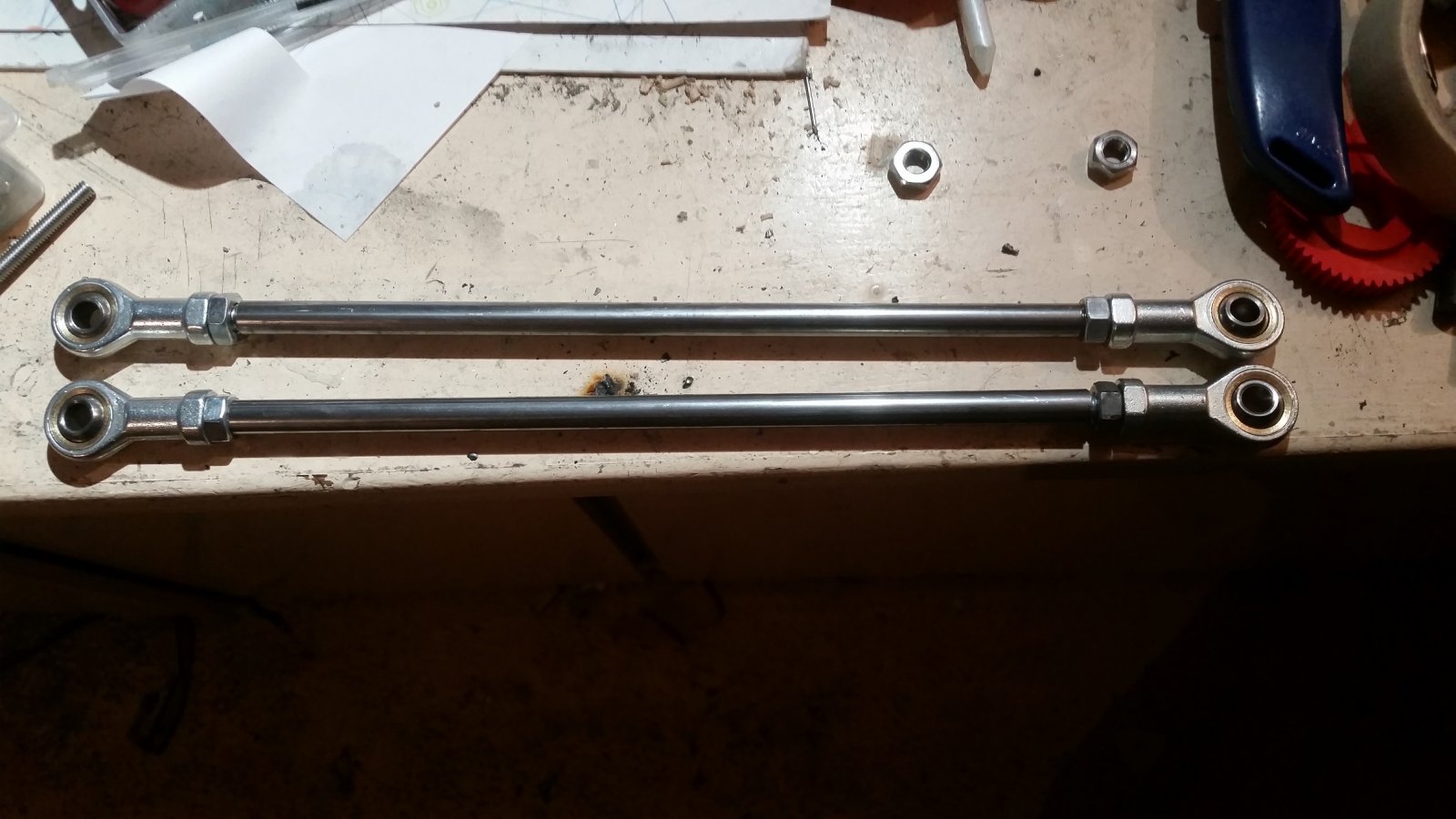

    Biellette moteur.jpg
    creazyrider, Sep 3, 2018
    #48
  9. creazyrider

    creazyrider Active Member

    Joined:
    Sep 12, 2017
    Messages:
    197
    Location:
    france
    Balance:
    850Coins
    Ratings:
    +56 / 1 / -0
    My Motion Simulator:
    3DOF

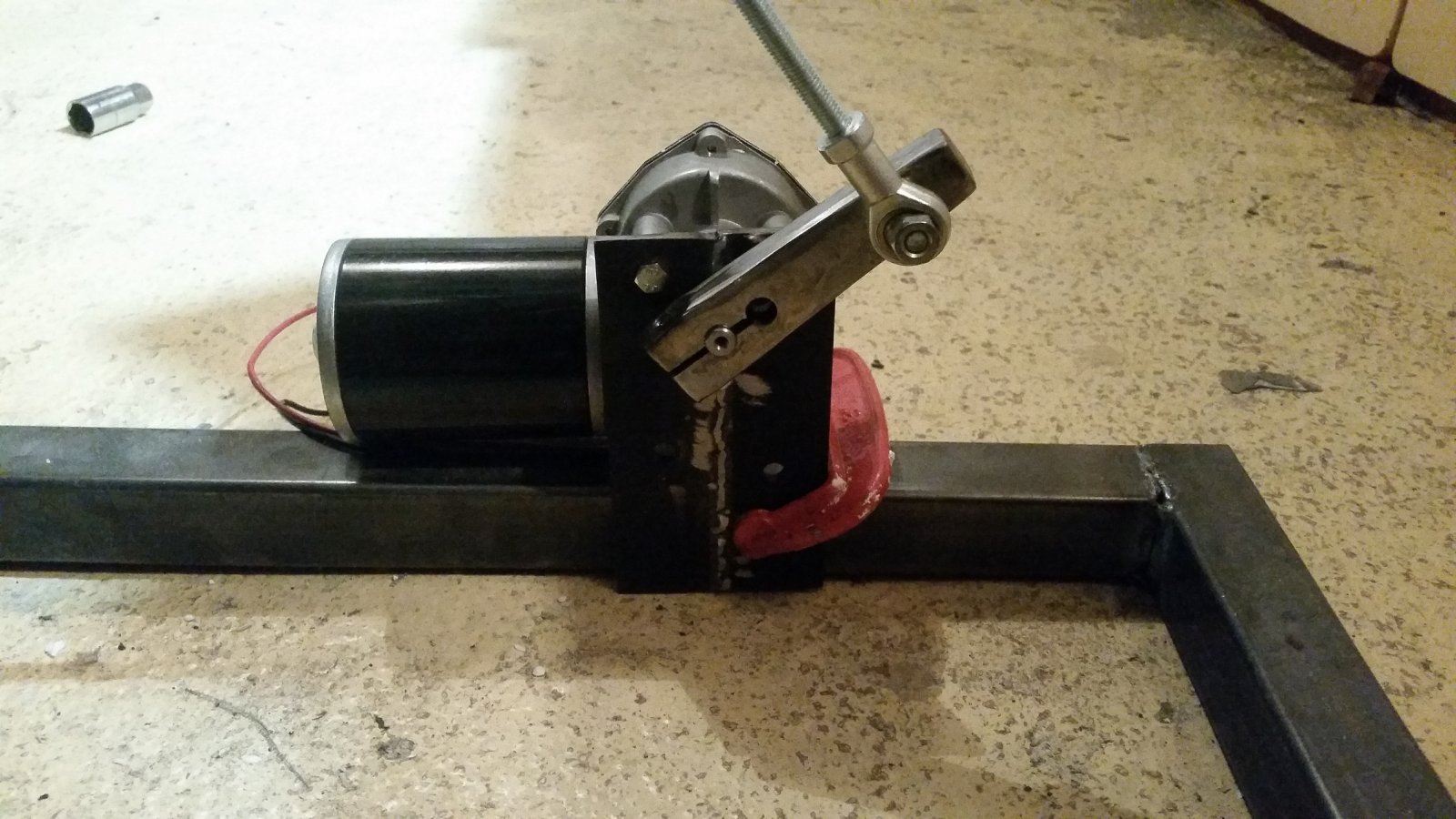

    Biellettes moteur 2.jpg
    creazyrider, Sep 3, 2018
    #49
  10. creazyrider

    creazyrider Active Member

    Joined:
    Sep 12, 2017
    Messages:
    197
    Location:
    france
    Balance:
    850Coins
    Ratings:
    +56 / 1 / -0
    My Motion Simulator:
    3DOF
    New

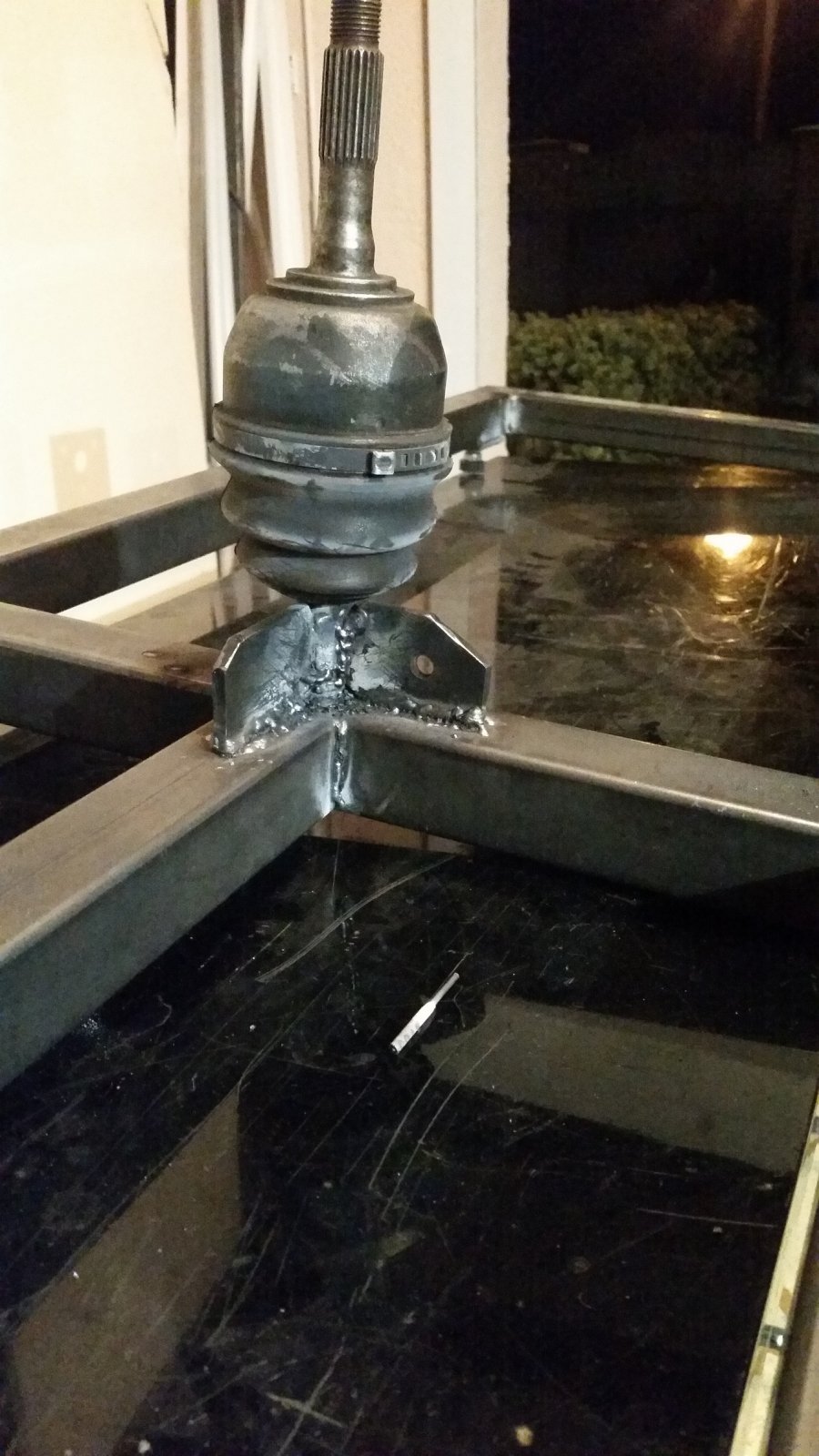

    Reinforcement of the U-joint in the both axis

    Cardan renforcé.jpg
    creazyrider, Sep 5, 2018
    #50
  11. creazyrider

    creazyrider Active Member

    Joined:
    Sep 12, 2017
    Messages:
    197
    Location:
    france
    Balance:
    850Coins
    Ratings:
    +56 / 1 / -0
    My Motion Simulator:
    3DOF

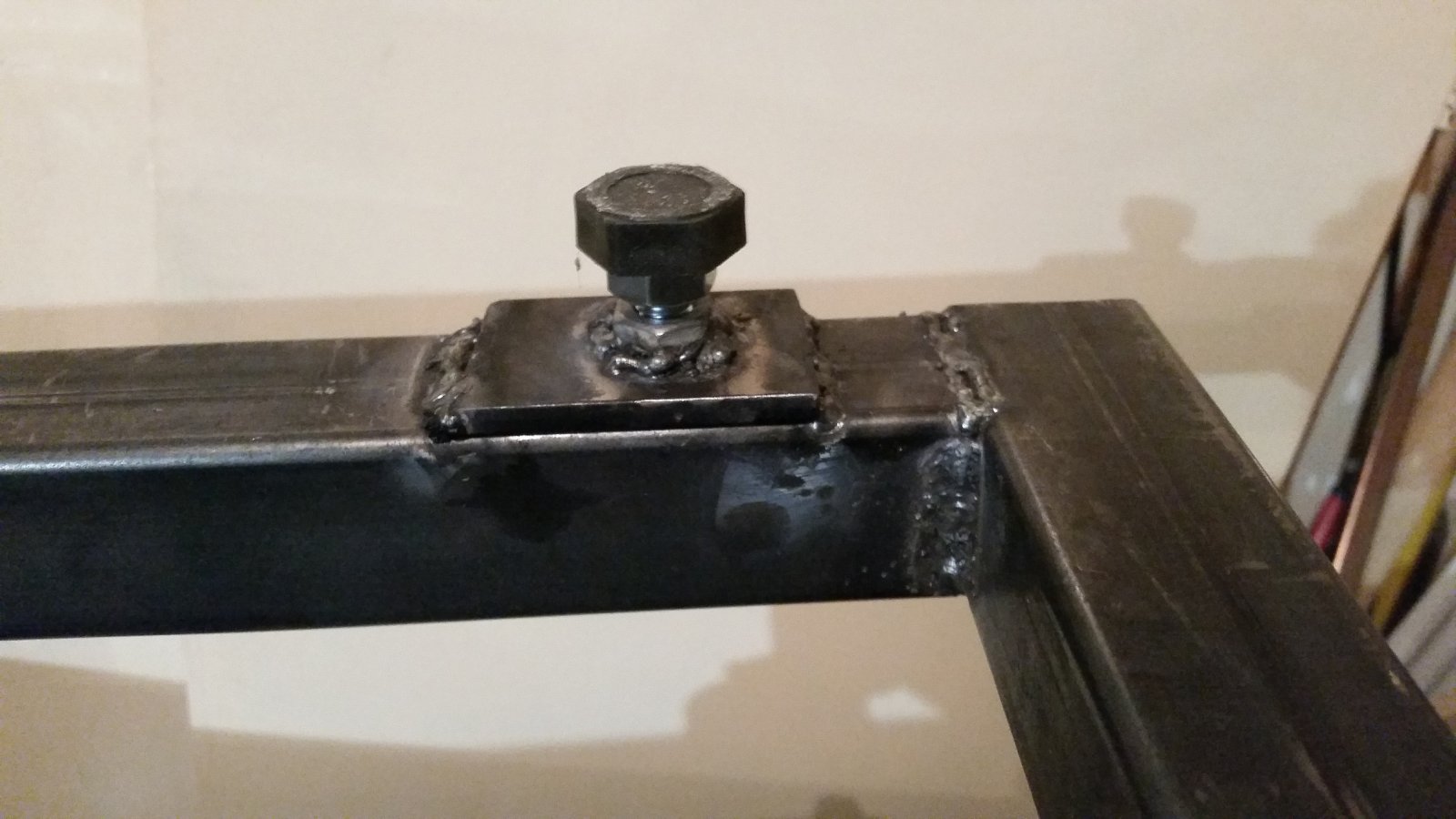

    Adding feet reinforced with a 4mm metal plate

    Pied renforce.jpg
    creazyrider, Sep 5, 2018
    #51
  12. creazyrider

    creazyrider Active Member

    Joined:
    Sep 12, 2017
    Messages:
    197
    Location:
    france
    Balance:
    850Coins
    Ratings:
    +56 / 1 / -0
    My Motion Simulator:
    3DOF

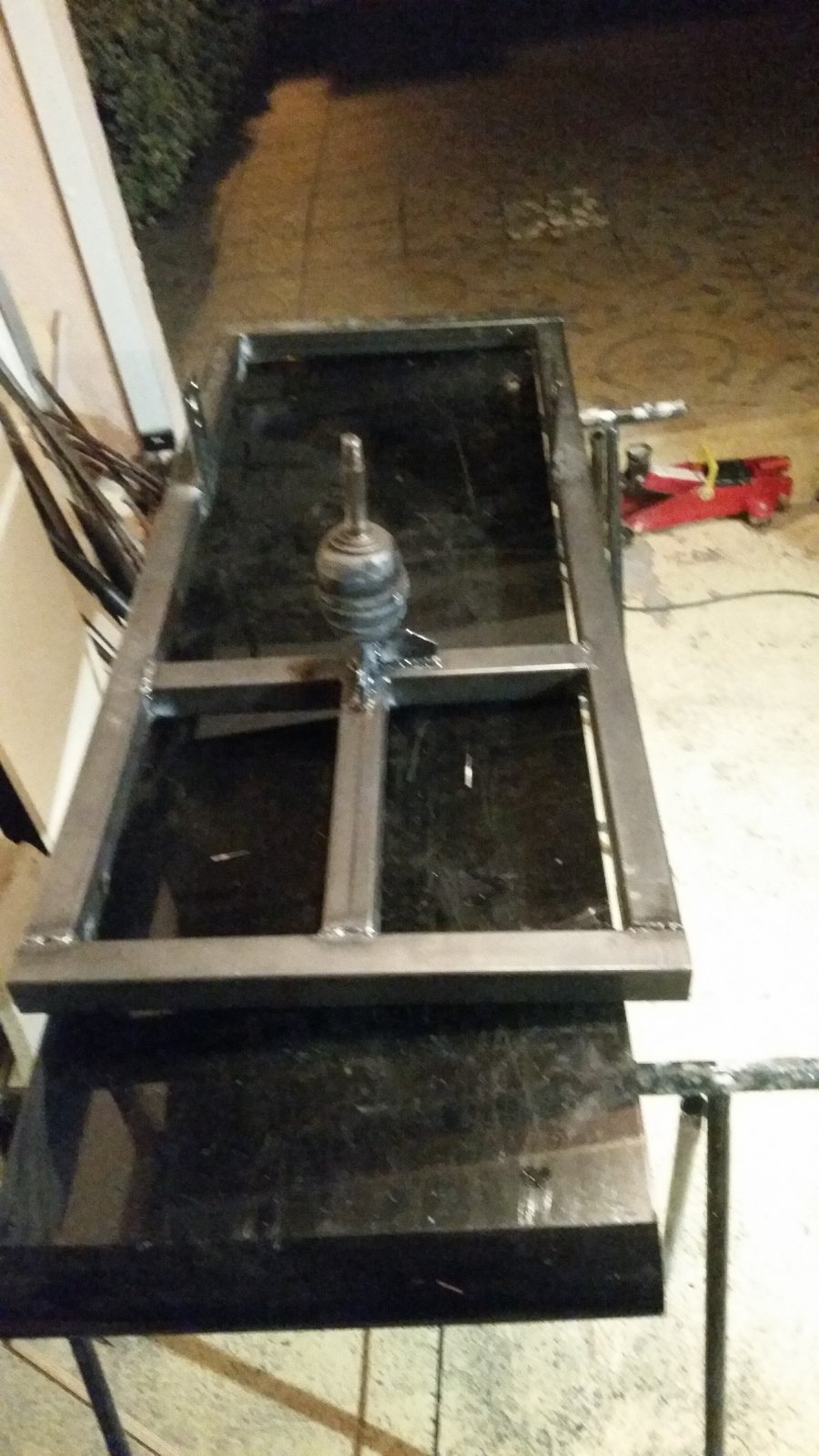

    Vue complete.jpg
    creazyrider, Sep 5, 2018
    #52
  13. creazyrider

    creazyrider Active Member

    Joined:
    Sep 12, 2017
    Messages:
    197
    Location:
    france
    Balance:
    850Coins
    Ratings:
    +56 / 1 / -0
    My Motion Simulator:
    3DOF

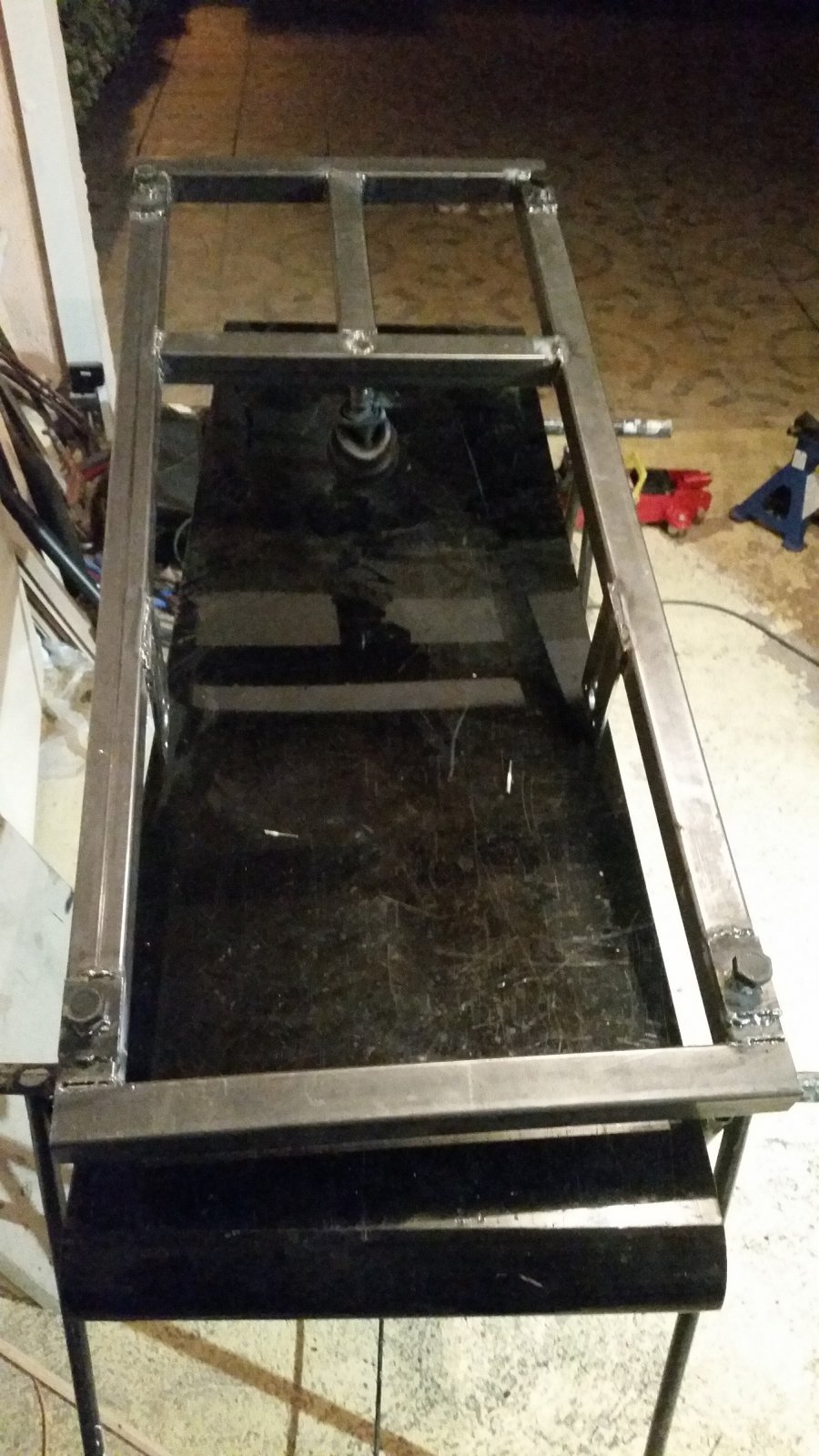

    Vue Dessous .jpg
    creazyrider, Sep 5, 2018
    #53
  14. creazyrider

    creazyrider Active Member

    Joined:
    Sep 12, 2017
    Messages:
    197
    Location:
    france
    Balance:
    850Coins
    Ratings:
    +56 / 1 / -0
    My Motion Simulator:
    3DOF

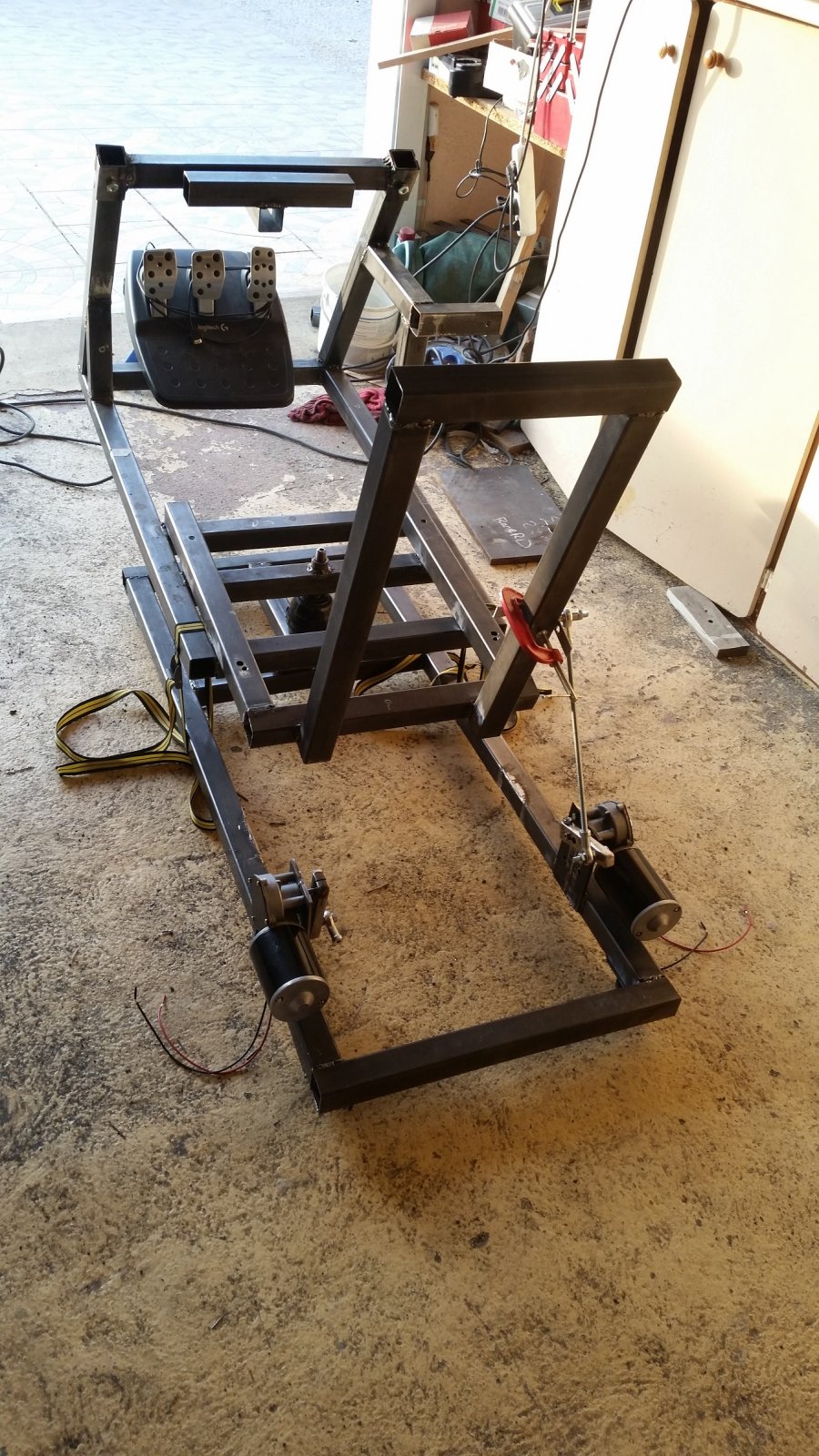

    soldering the motors

    simu moteurs 2.jpg
    creazyrider, Sep 6, 2018
    #54
  15. creazyrider

    creazyrider Active Member

    Joined:
    Sep 12, 2017
    Messages:
    197
    Location:
    france
    Balance:
    850Coins
    Ratings:
    +56 / 1 / -0
    My Motion Simulator:
    3DOF

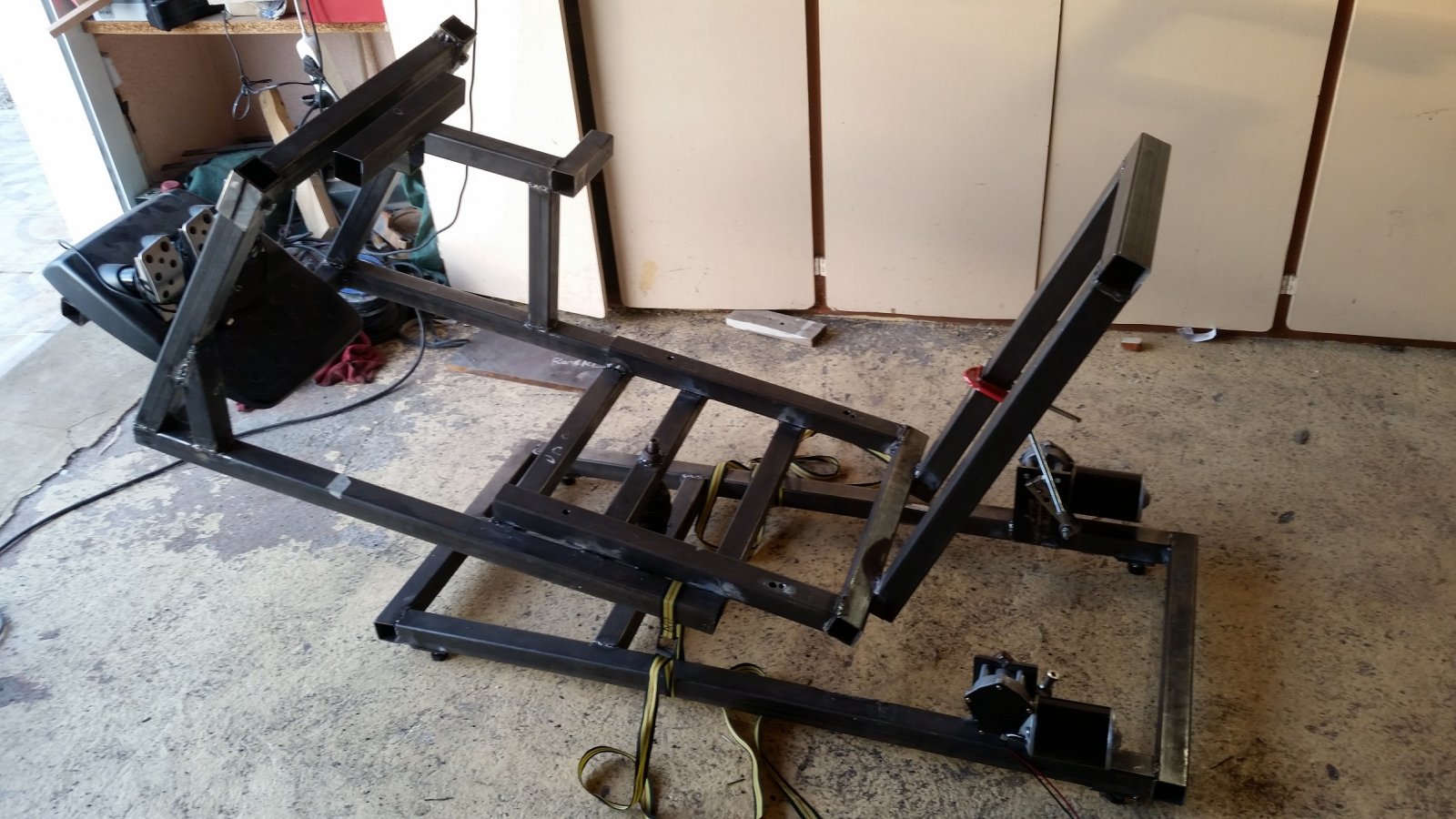

    simu moteurs incliné.jpg
    creazyrider, Sep 6, 2018
    #55
  16. creazyrider

    creazyrider Active Member

    Joined:
    Sep 12, 2017
    Messages:
    197
    Location:
    france
    Balance:
    850Coins
    Ratings:
    +56 / 1 / -0
    My Motion Simulator:
    3DOF

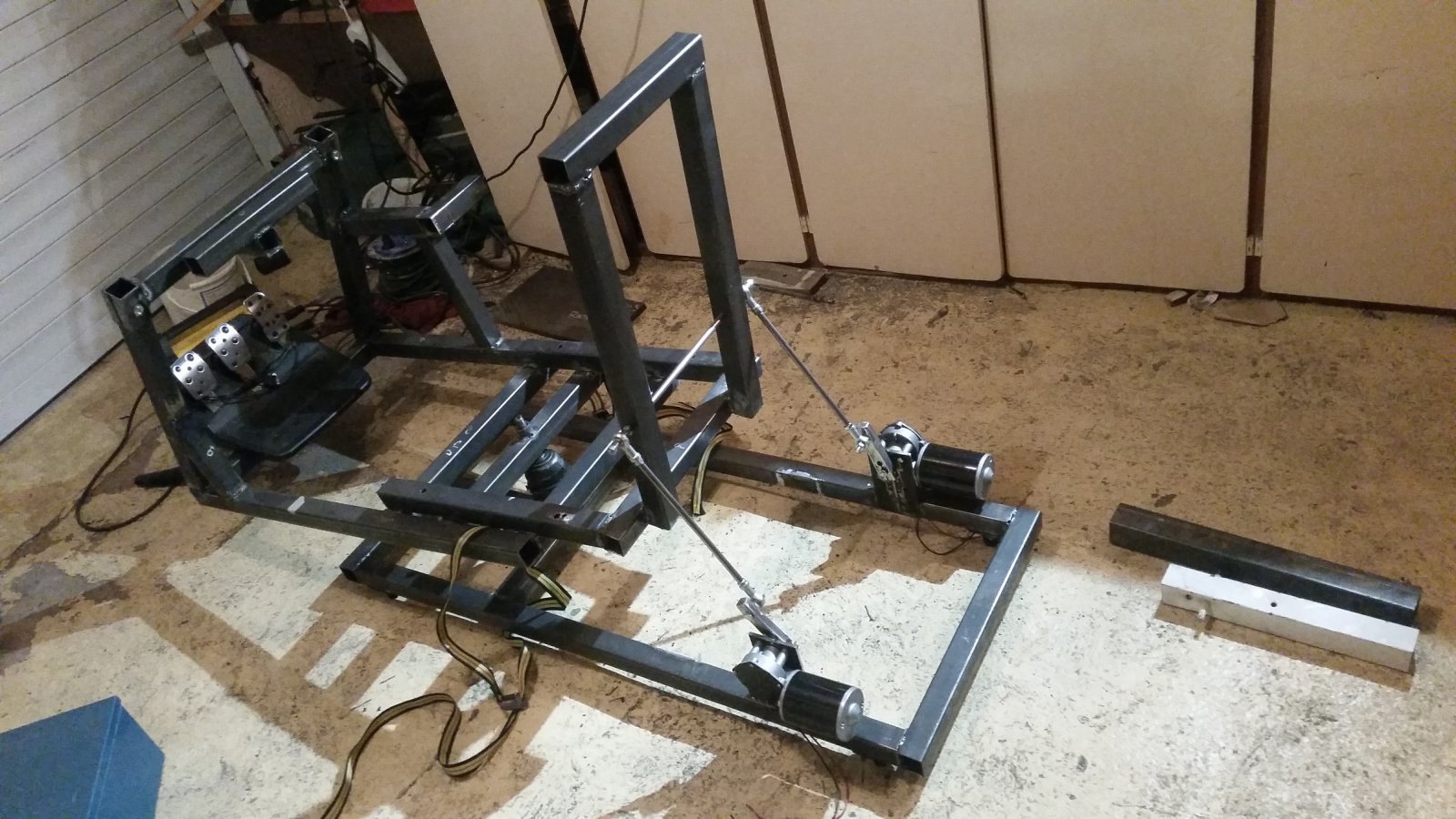

    Building the Rod mount

    Simulateur avec moteurs.jpg
    • Optimistic Optimistic x 1
    creazyrider, Sep 7, 2018
    #56
  17. creazyrider

    creazyrider Active Member

    Joined:
    Sep 12, 2017
    Messages:
    197
    Location:
    france
    Balance:
    850Coins
    Ratings:
    +56 / 1 / -0
    My Motion Simulator:
    3DOF
    creazyrider, Sep 7, 2018
    #57
  18. creazyrider

    creazyrider Active Member

    Joined:
    Sep 12, 2017
    Messages:
    197
    Location:
    france
    Balance:
    850Coins
    Ratings:
    +56 / 1 / -0
    My Motion Simulator:
    3DOF

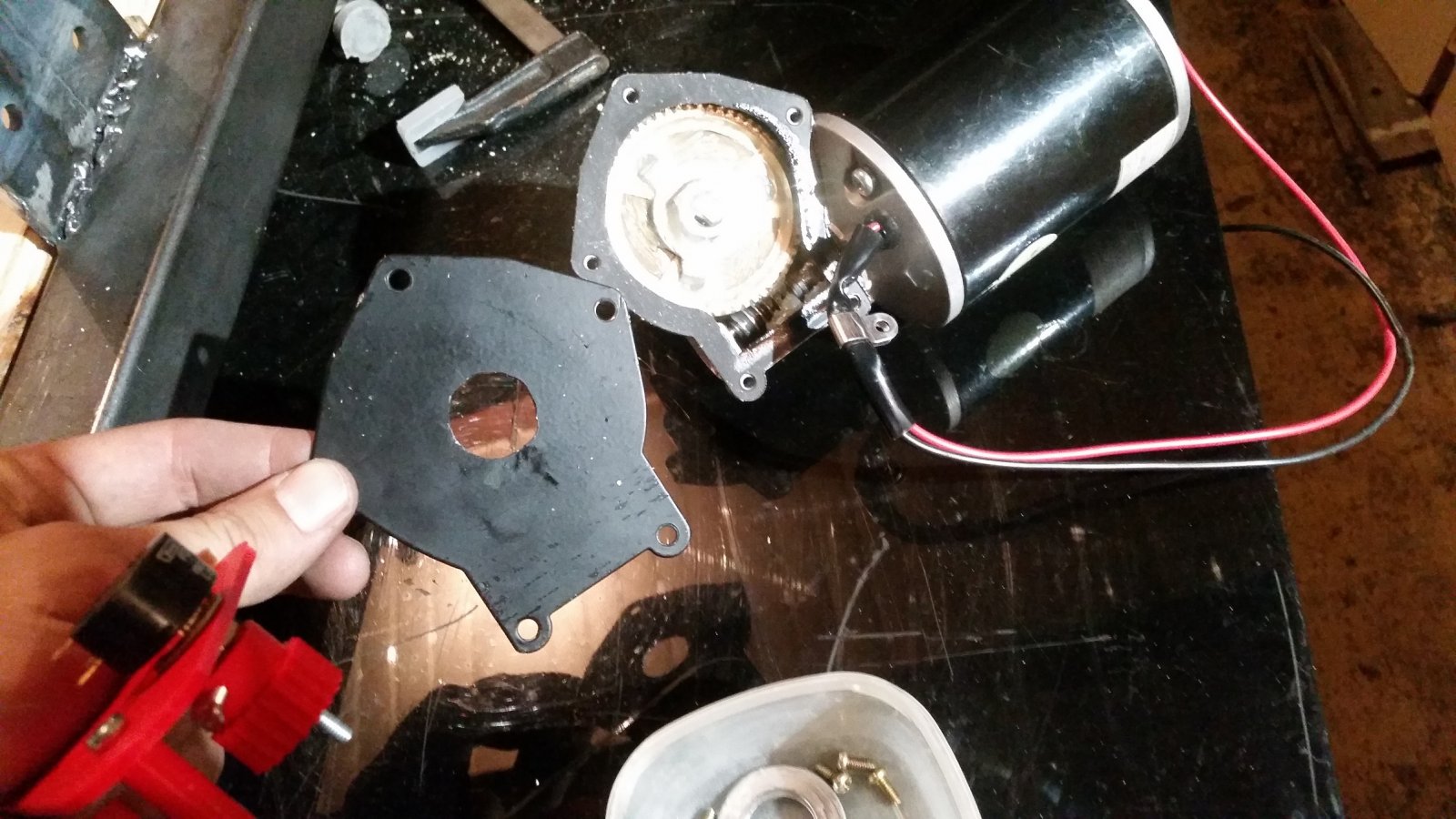

    Cutting the motor plate to put the sensor

    Decoupe cache moteurs.jpg
    creazyrider, Sep 7, 2018
    #58
  19. creazyrider

    creazyrider Active Member

    Joined:
    Sep 12, 2017
    Messages:
    197
    Location:
    france
    Balance:
    850Coins
    Ratings:
    +56 / 1 / -0
    My Motion Simulator:
    3DOF

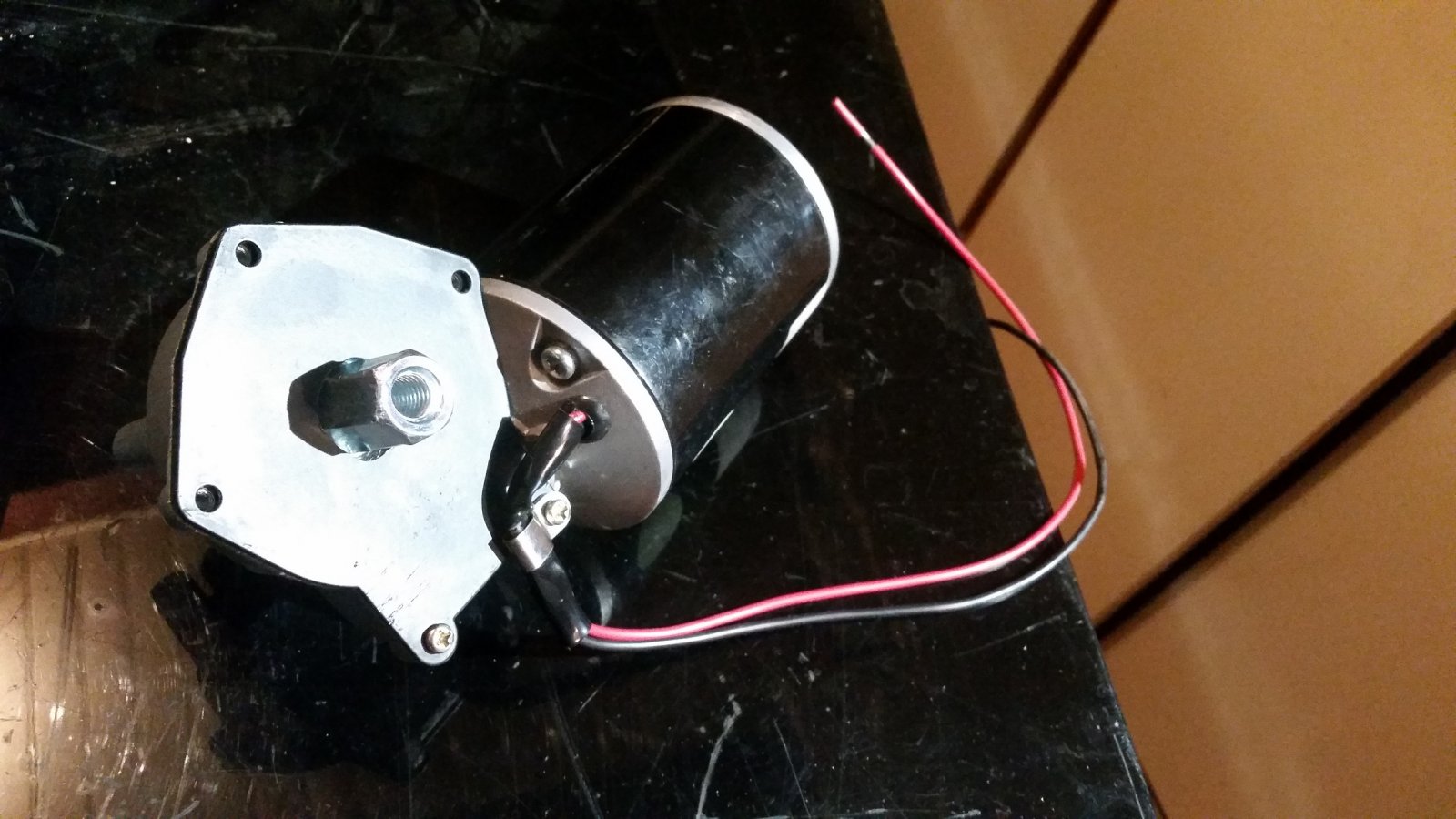

    moteur avec ecrou M10.jpg
    creazyrider, Sep 7, 2018
    #59
  20. creazyrider

    creazyrider Active Member

    Joined:
    Sep 12, 2017
    Messages:
    197
    Location:
    france
    Balance:
    850Coins
    Ratings:
    +56 / 1 / -0
    My Motion Simulator:
    3DOF

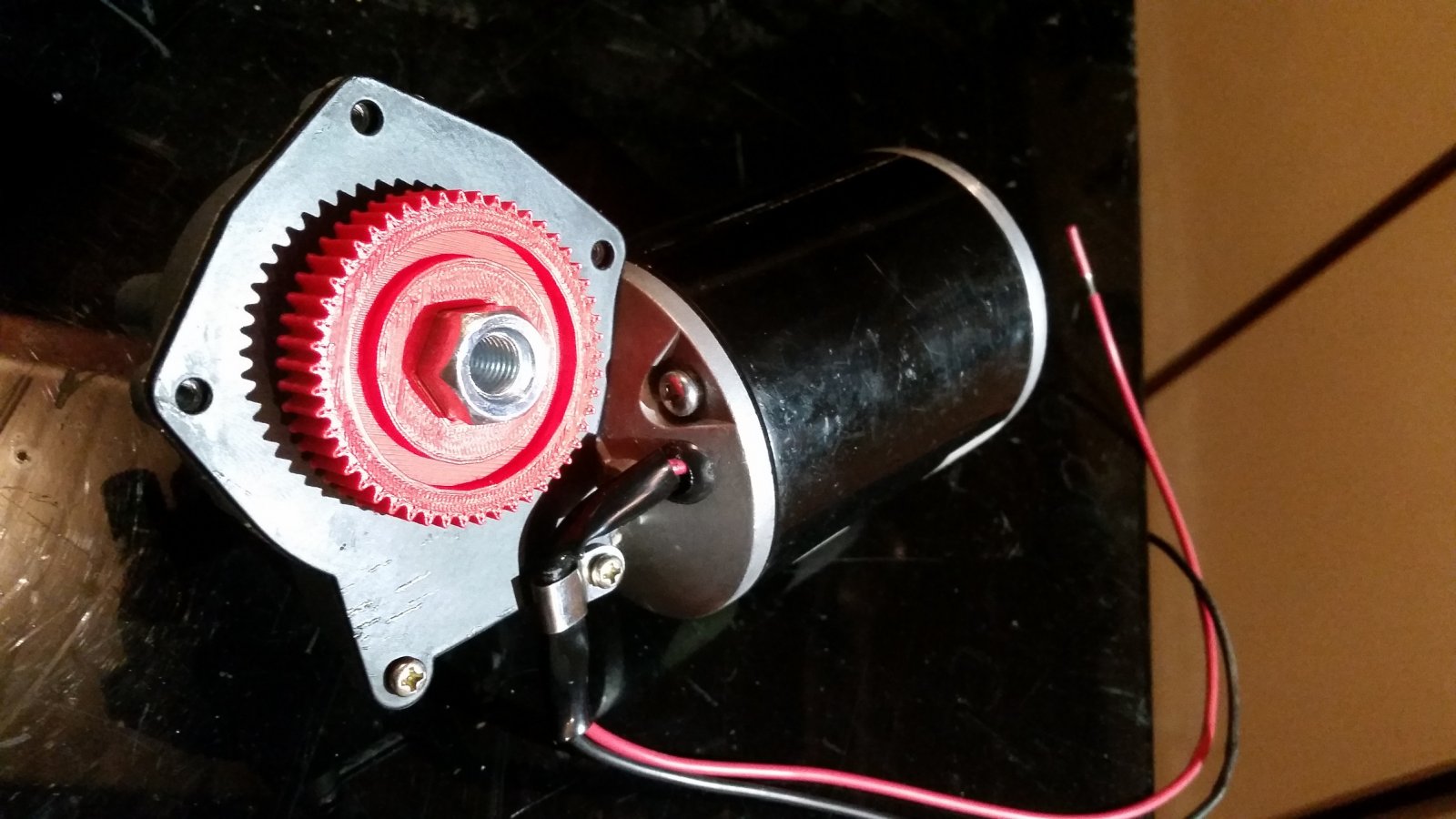

    Thanks to Simukit for the printed gears

    moteur avec engrenage.jpg
    creazyrider, Sep 7, 2018
    #60
