Crammy's project No2

Discussion in 'DIY Motion Simulator Projects' started by crammy, May 20, 2016.

  1. crammy

    crammy Active Member Gold Contributor

    Joined:
    Feb 23, 2016
    Messages:
    562
    Occupation:
    Fabrication
    Location:
    essex
    Balance:
    4,519Coins
    Ratings:
    +323 / 2 / -0
    My Motion Simulator:
    SCN6, 4DOF

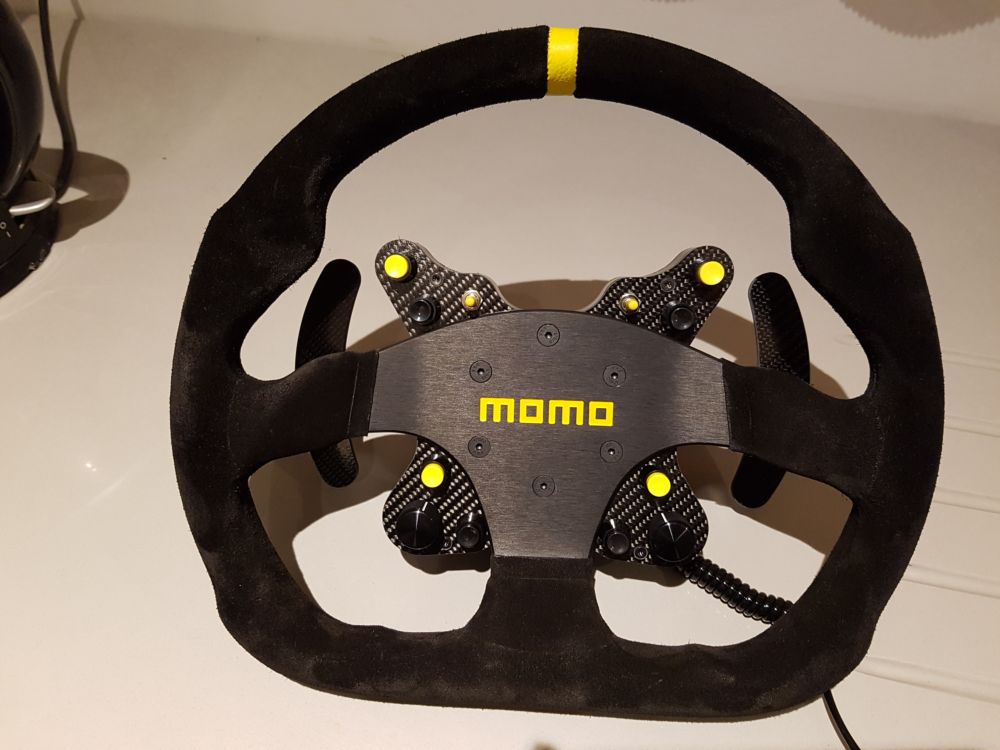

    got the paddles and QR mounted on the wheel. I really like the black and yellow combo.

    20170120_175522 resize.jpg
    • Like Like x 7
  2. crammy

    crammy Active Member Gold Contributor

    Joined:
    Feb 23, 2016
    Messages:
    562
    Occupation:
    Fabrication
    Location:
    essex
    Balance:
    4,519Coins
    Ratings:
    +323 / 2 / -0
    My Motion Simulator:
    SCN6, 4DOF
    the paddles are not as close to the centre as they seem in the picture. they are in the perfect position.
  3. stevemontuno

    stevemontuno Active Member

    Joined:
    Apr 24, 2015
    Messages:
    309
    Location:
    UK
    Balance:
    2,090Coins
    Ratings:
    +330 / 0 / -0
    My Motion Simulator:
    2DOF
    yeah that looks mint dude :thumbs
  4. crammy

    crammy Active Member Gold Contributor

    Joined:
    Feb 23, 2016
    Messages:
    562
    Occupation:
    Fabrication
    Location:
    essex
    Balance:
    4,519Coins
    Ratings:
    +323 / 2 / -0
    My Motion Simulator:
    SCN6, 4DOF
    cheers mate. photos dont do it justice as always
  5. crammy

    crammy Active Member Gold Contributor

    Joined:
    Feb 23, 2016
    Messages:
    562
    Occupation:
    Fabrication
    Location:
    essex
    Balance:
    4,519Coins
    Ratings:
    +323 / 2 / -0
    My Motion Simulator:
    SCN6, 4DOF
    I cant wait to try it out but ive got to go out for a meal now
  6. bruce stephen

    bruce stephen Hammer doesnt fix it, must be electrical

    Joined:
    Jun 7, 2015
    Messages:
    1,292
    Occupation:
    general contractor
    Location:
    michigan
    Balance:
    8,893Coins
    Ratings:
    +1,221 / 9 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, Motion platform, 6DOF
    thats pretty.
  7. Blame73

    Blame73 Yet it moves!

    Joined:
    Nov 6, 2014
    Messages:
    1,137
    Location:
    Italy
    Balance:
    8,055Coins
    Ratings:
    +994 / 2 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, Motion platform
    Beautiful wheel @crammy I love it!
    Is that a 30 cm. Alcantara one?
  8. crammy

    crammy Active Member Gold Contributor

    Joined:
    Feb 23, 2016
    Messages:
    562
    Occupation:
    Fabrication
    Location:
    essex
    Balance:
    4,519Coins
    Ratings:
    +323 / 2 / -0
    My Motion Simulator:
    SCN6, 4DOF
    Thanks @Blame73. its a suede momo mod 30, with a martin ascher C20m button plate its a 33cm wheel
  9. abs

    abs Active Member Gold Contributor

    Joined:
    Mar 3, 2011
    Messages:
    318
    Occupation:
    consultant
    Location:
    Montreal
    Balance:
    654Coins
    Ratings:
    +62 / 0 / -0
    My Motion Simulator:
    3DOF, SCN5
    awesome motion rig !
    there are no words to describe this as it is perfect . nice work . very clever design also as it is neat and simple . I am looking forward to seeing the rig running
    it motivate greatly to display my rig. I will start to do so As I will upgrade rear traction loss and also my diy gseat (I am still waiting for the main hardware)
  10. crammy

    crammy Active Member Gold Contributor

    Joined:
    Feb 23, 2016
    Messages:
    562
    Occupation:
    Fabrication
    Location:
    essex
    Balance:
    4,519Coins
    Ratings:
    +323 / 2 / -0
    My Motion Simulator:
    SCN6, 4DOF
    thanks mate. i like the design but how it actually turns out is a different story lol. ive just got to work to get started but its absolutly freezing in the workshop. im normally sat in the office doing quotes.
    im hoping it turns out ok. im not going to rush it. ill get a good few hours in today if i can deal with the cold. ideally id like to get the base done this weekend and the top the weekend after. The plasma table will be set up tuesday so i can get the aluminium plates cut. hoping im up and running in a few weeks as i have so much to do on the house still but im having a bit of time off from it.
  11. crammy

    crammy Active Member Gold Contributor

    Joined:
    Feb 23, 2016
    Messages:
    562
    Occupation:
    Fabrication
    Location:
    essex
    Balance:
    4,519Coins
    Ratings:
    +323 / 2 / -0
    My Motion Simulator:
    SCN6, 4DOF

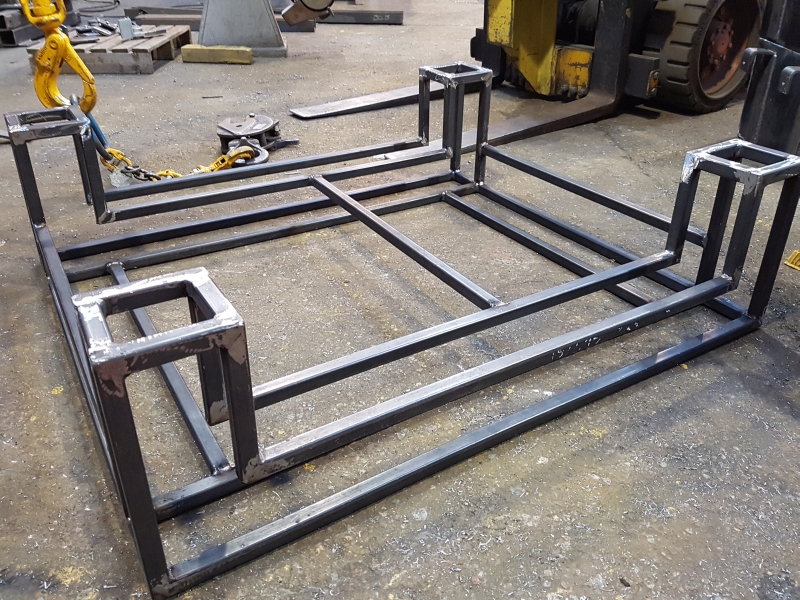

    ive managed to get most of the base done today. just got to put the wheel plates, and traction loss bar in, and also the for top plates to mount the actuators but need the plasma to cut those accuratly.

    I should be able to get it finished next weekend if nothing comes up, except for the pedal mount and the aluminium plate. the plates will go on after i have rewired it all neatly

    base frame resize.jpg
    • Like Like x 6
    • Winner Winner x 2
  12. Pit

    Pit - - - - - - - - - - - - - - - - Staff Member Moderator Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    2,994
    Location:
    Switzerland
    Balance:
    29,141Coins
    Ratings:
    +2,996 / 29 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    What a monster - no wonder that you need the fork lift :) Really impressing so far, I'm following your progress mate!
  13. crammy

    crammy Active Member Gold Contributor

    Joined:
    Feb 23, 2016
    Messages:
    562
    Occupation:
    Fabrication
    Location:
    essex
    Balance:
    4,519Coins
    Ratings:
    +323 / 2 / -0
    My Motion Simulator:
    SCN6, 4DOF
    Thanks mate. I just re-looked at that picture and it does look big, but it must the the camera. it is 1200mm, long 1050mm wide and the 4 corners are 350mm high is only made from 25mm hollow section.
    • Like Like x 2
    • Informative Informative x 1
  14. obobo

    obobo Active Member

    Joined:
    Nov 8, 2016
    Messages:
    248
    Location:
    France
    Balance:
    1,262Coins
    Ratings:
    +76 / 1 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino
    and the weigh ?
  15. crammy

    crammy Active Member Gold Contributor

    Joined:
    Feb 23, 2016
    Messages:
    562
    Occupation:
    Fabrication
    Location:
    essex
    Balance:
    4,519Coins
    Ratings:
    +323 / 2 / -0
    My Motion Simulator:
    SCN6, 4DOF
    its only about 35-40kg mate so nothing drastic but is absolutely solid. its 2.5mm thick
  16. crammy

    crammy Active Member Gold Contributor

    Joined:
    Feb 23, 2016
    Messages:
    562
    Occupation:
    Fabrication
    Location:
    essex
    Balance:
    4,519Coins
    Ratings:
    +323 / 2 / -0
    My Motion Simulator:
    SCN6, 4DOF

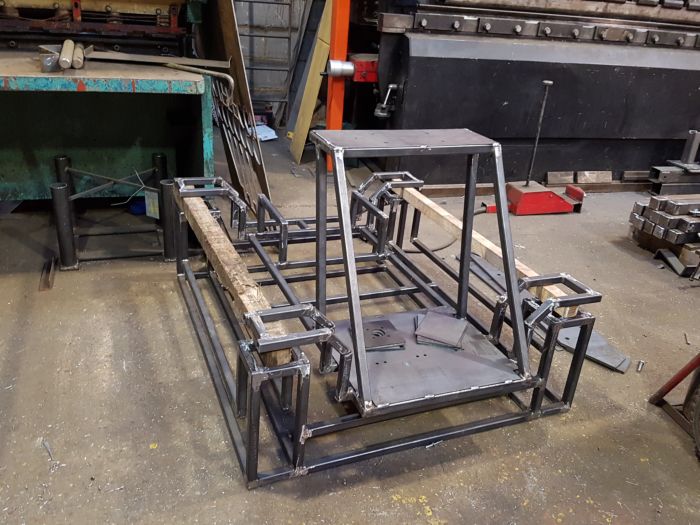

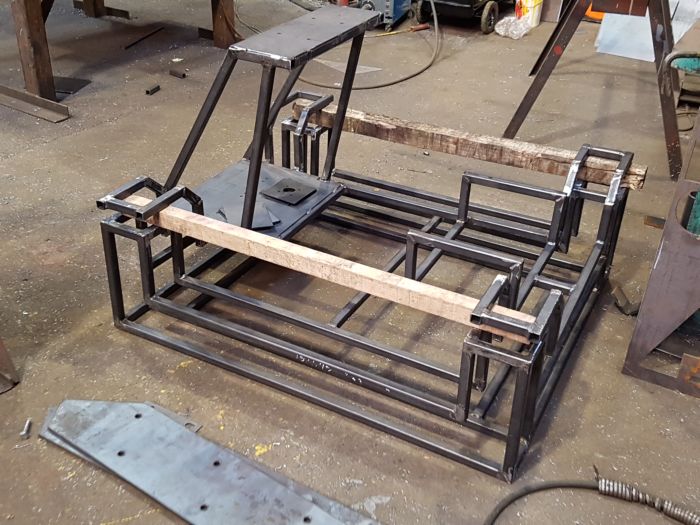

    Had a really good day today and got a fair bit done. I had a go on the cnc plasma too to cut the plates for the actuators, wheel mount plate, pedal mount plate and the plates for the top frame. What a fantastic bit of kit that is. It must of took 4-5 minutes to cut the lot.

    I may stay on at work in the week to get the traction loss brackets sorted and to weld the actuator plates, and top plates in.

    For now i opted for the pedal plate to be flat to take my t500 pedals. This was just an easy option to save time because when i sort the HE pro pedals these will be top mounted and hanging so will be removing the plate anyway, and modify to suit

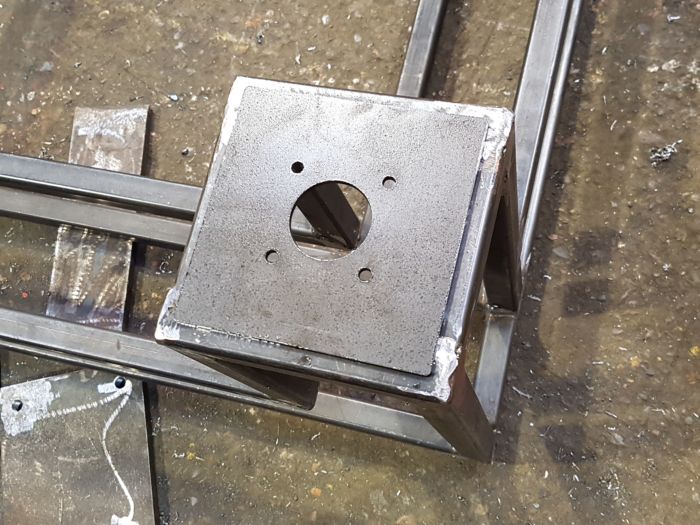

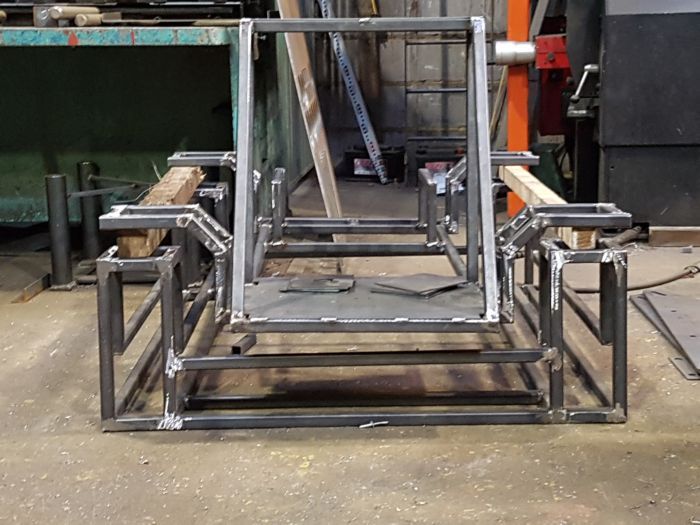

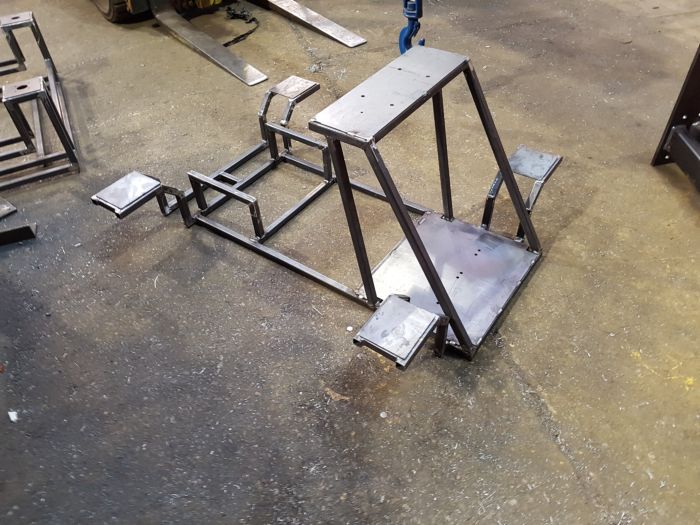

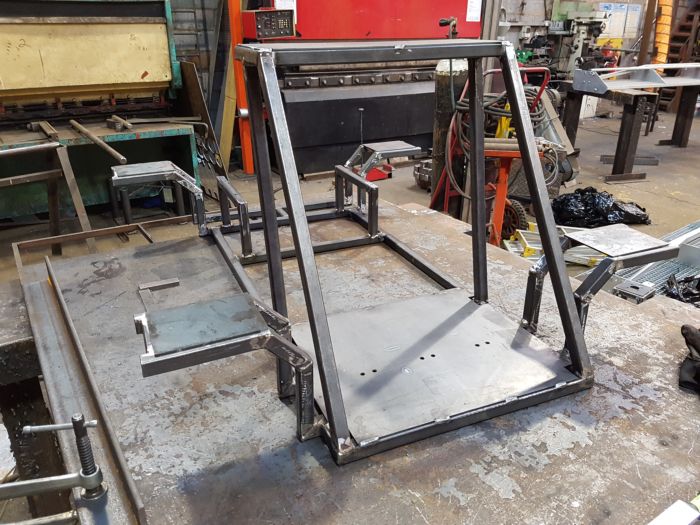

    plate small.jpg floor small.jpg on bench small.jpg front small.jpg view 1 small.jpg view 2 small.jpg

    The wood was put there so i could get a rough idea of how it will sit.

    Overall i'm happy with the outcome
    • Like Like x 8
  17. Roadster2

    Roadster2 Member

    Joined:
    Apr 20, 2007
    Messages:
    157
    Location:
    UK
    Balance:
    1,090Coins
    Ratings:
    +39 / 2 / -0
    Looking really good mate. Can't wait to see what you think when you get it running :)
    • Like Like x 1
  18. My.stAr

    My.stAr Active Member

    Joined:
    Sep 7, 2012
    Messages:
    145
    Occupation:
    Engineer
    Location:
    Germany
    Balance:
    944Coins
    Ratings:
    +56 / 0 / -0
    My Motion Simulator:
    DC motor
    A really great project:thumbs Something to become jealous^^

    But there is one thing I don't understand. Are you planning to cover the actuators with aluminum? Why not building something with a greater absorption? The goal is to reduce the noise of the actuators, ist't it. So i'd really recommend to use a different or combined material. If you want to have the metal on the outside you can make a sandwich-wall. E.g. MDF, bitumen and aluminum on the outside. Or just aluminum and bitumen (about 4mm).That would reduce the noise WAY MORE than only aluminum. Aluminum has a big young's modulus, so it really transmits the vibration and sound waves better than other materials.
  19. crammy

    crammy Active Member Gold Contributor

    Joined:
    Feb 23, 2016
    Messages:
    562
    Occupation:
    Fabrication
    Location:
    essex
    Balance:
    4,519Coins
    Ratings:
    +323 / 2 / -0
    My Motion Simulator:
    SCN6, 4DOF
    Hi mate. Im hoping it turns out OK. Ill order the alluminium floor plate today so i should have it cut and the frame painted by the weekend.

    It is only going to mask some of the squeaking being boxed in. If it doesn't mask too much i am going to glue acoustic sheets to the insides as someone mentioned earlier, but as its not bass, and just a squeal i'm not sure how effective it will be.

    Im justing hoping it all works as is should and looks good. I am mainly playing with headphones on the rift now so its not the end of the world if they still make a bit of noise. The other main reason for doing this was so i can hide all the cables as there are loads and it looks terrible. i will be carrying out a full rewire when i've got it in place
  20. crammy

    crammy Active Member Gold Contributor

    Joined:
    Feb 23, 2016
    Messages:
    562
    Occupation:
    Fabrication
    Location:
    essex
    Balance:
    4,519Coins
    Ratings:
    +323 / 2 / -0
    My Motion Simulator:
    SCN6, 4DOF

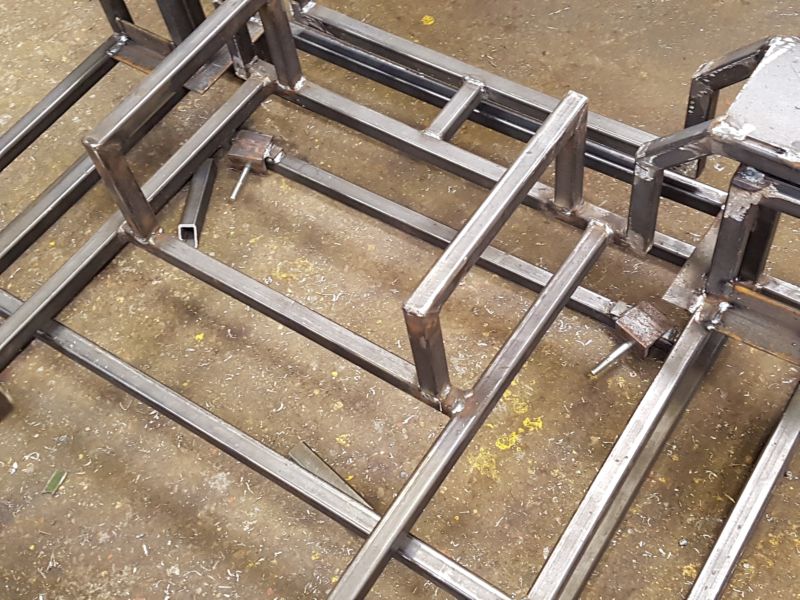

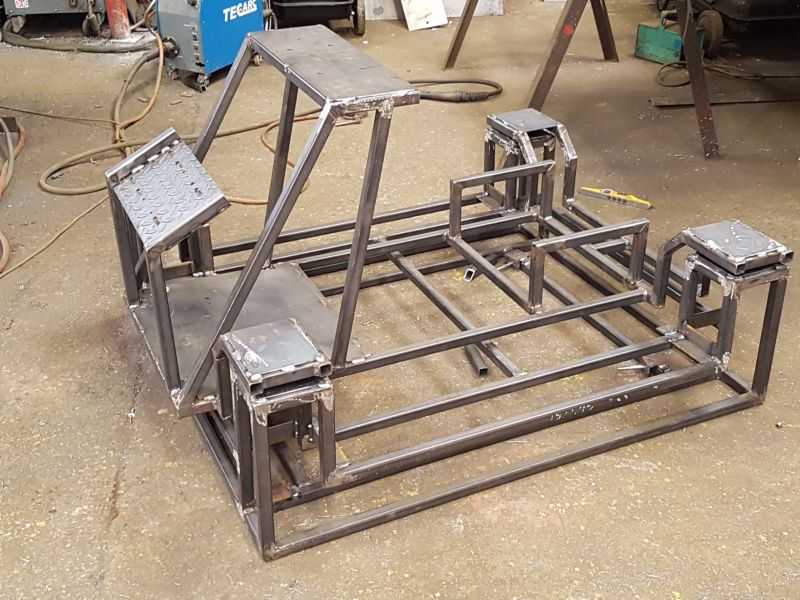

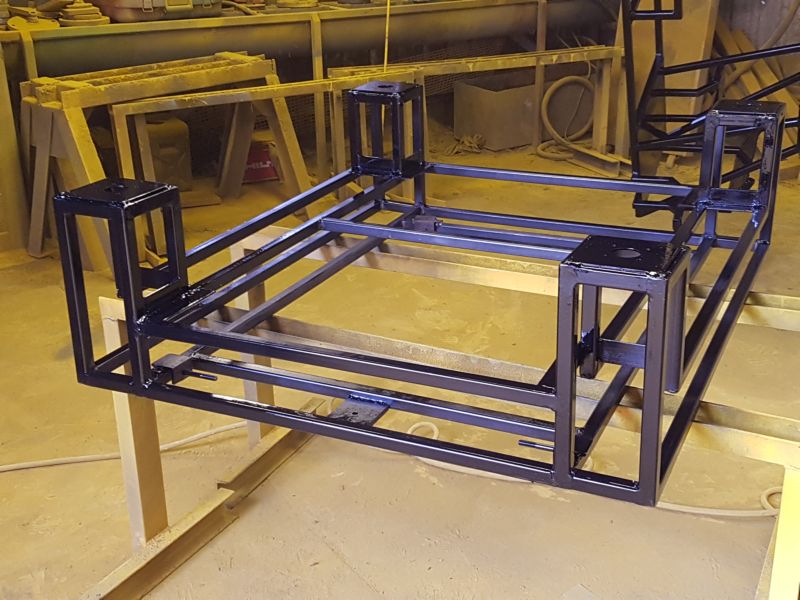

    Had another good day at work today. Its finished on the fabrication side. I will hopefully bring it home tomorrow to put the aluminum plates on and then i can start the tedious job of wiring it all up.
    I have got to machine some Nylon inserts to Go in the cups on the top frame so the actuators are not metal on metal, but no one had told me the lathe had packed up so i need to get that fixed.

    I have also put the new support frame in for the HE Pedals with the dimensions supplied by Svens at HE engineering, so when i get them in the next couple of weeks i can just bolt them on.

    I still have to make a mount for the handbrake but this will just bolt on as im not sure where i want it until that arrives.

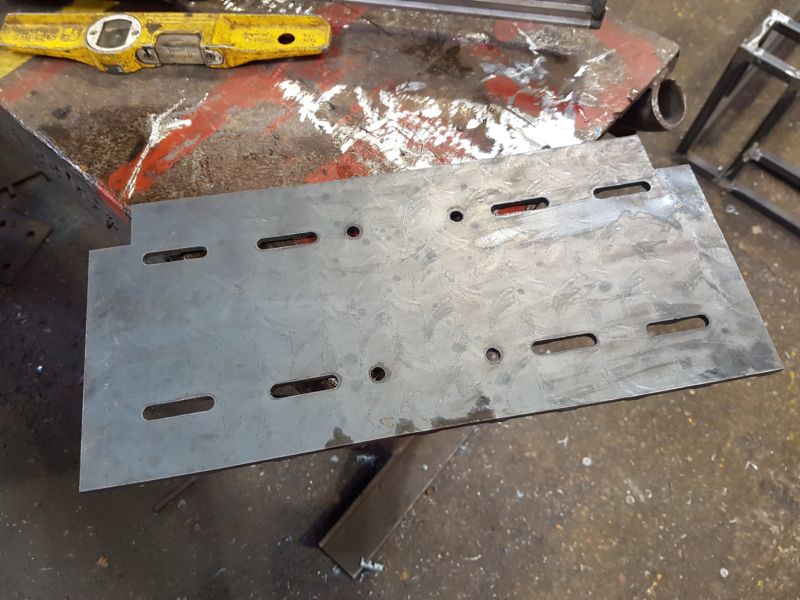

    The first picture is the new pedal mount plate cut on the plasma today.

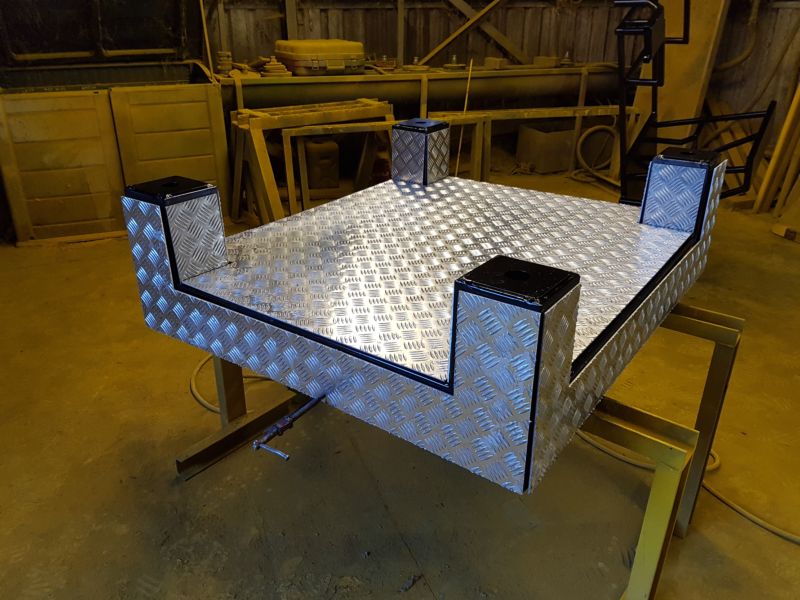

    I also haven't secured the aluminium in the pictures but i wanted to see how it looked and has turned out pretty well and looks like an arcade cabinet so i'm happy

    The close up just shows the rear brackets for the tractio loss wheels, but i will be playing without that for the time beeing, but can just bolt on my actuator and wheels when ready

    20170204_092634 resize.jpg 20170204_131644 resize.jpg 20170204_131656 resize.jpg 20170204_142248 resize.jpg 20170204_142311 resize.jpg 20170204_161003 resize.jpg
    • Like Like x 7
    • Winner Winner x 2
