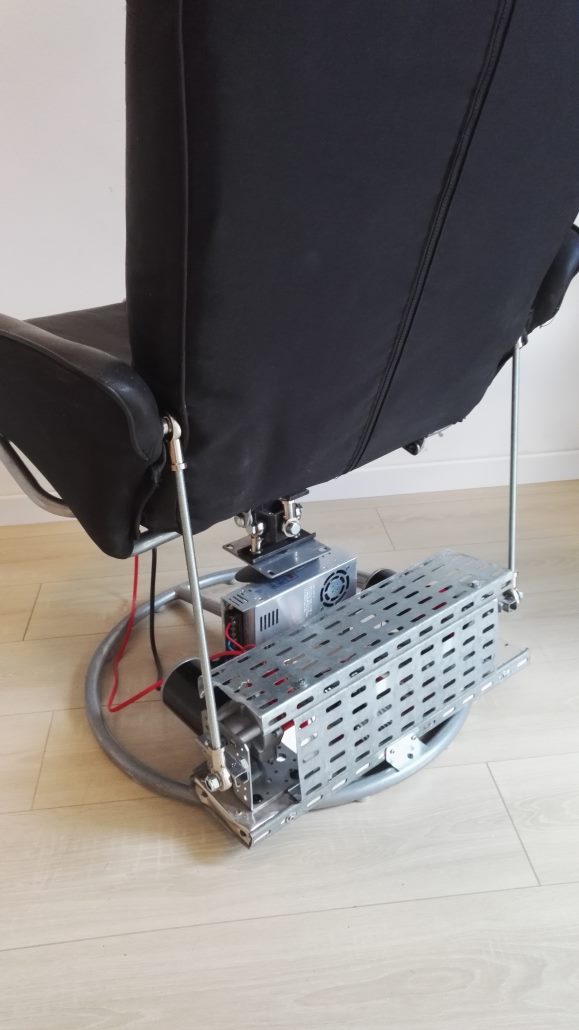

Ben's 2DOF seat mover based on Ikea Seat

Discussion in 'DIY Motion Simulator Projects' started by ben06600, Jun 4, 2018.

  1. Patrik Zapletal

    Patrik Zapletal New Member

    Joined:
    Jul 8, 2018
    Messages:
    7
    Balance:
    26Coins
    Ratings:
    +2 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, AC motor, Arduino, Motion platform

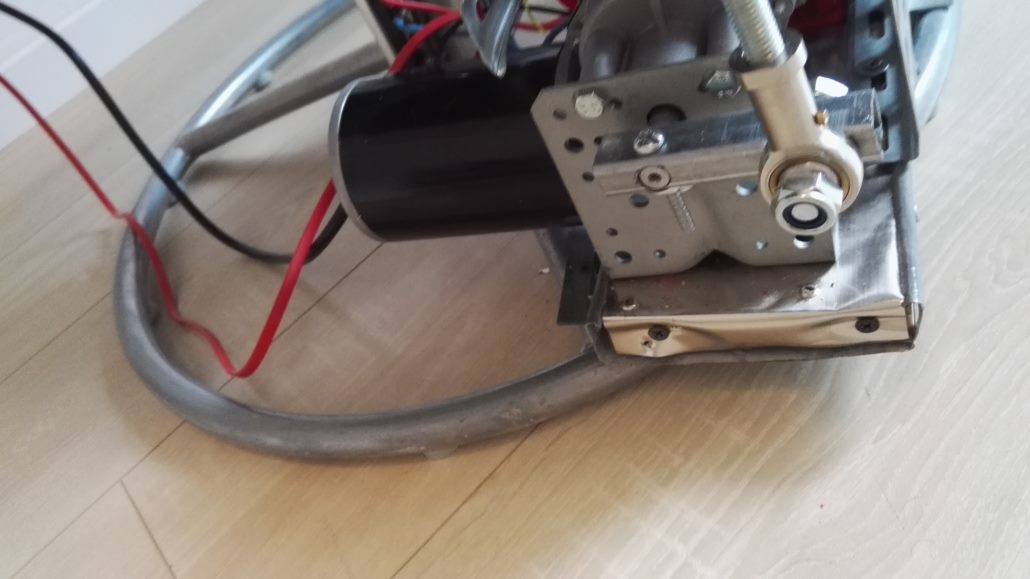

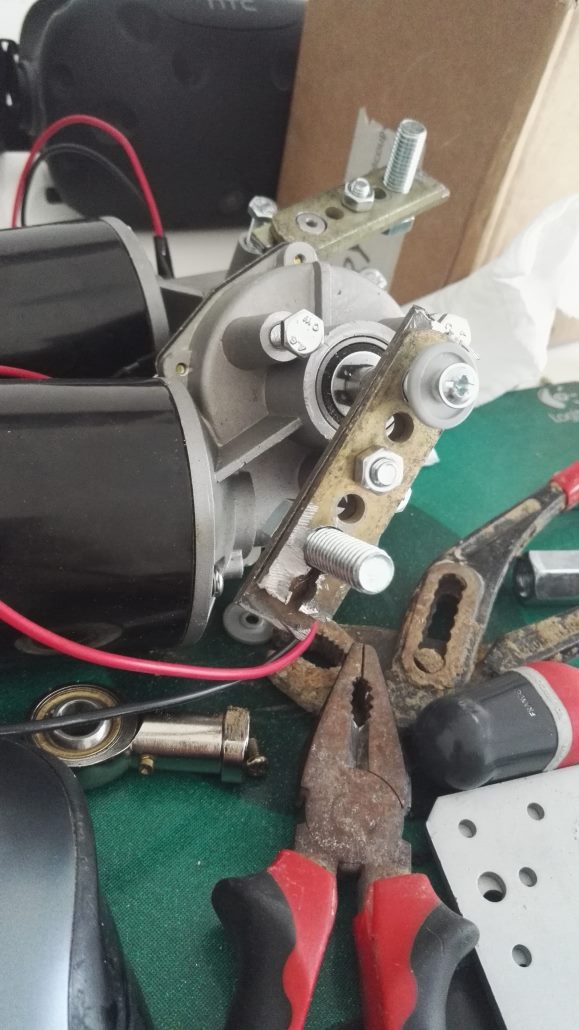

    Thank you. I look around by attaching the rods under the seat, which saves space too.
  2. hjr2

    hjr2 Member

    Joined:
    Apr 24, 2018
    Messages:
    64
    Location:
    Canada
    Balance:
    25Coins
    Ratings:
    +19 / 0 / -0
    My Motion Simulator:
    DC motor, Arduino
    Fantastic job!
  3. hjr2

    hjr2 Member

    Joined:
    Apr 24, 2018
    Messages:
    64
    Location:
    Canada
    Balance:
    25Coins
    Ratings:
    +19 / 0 / -0
    My Motion Simulator:
    DC motor, Arduino
    I'm a big fan of that U joint design as well. Any tips on how to make one, height it should be etc.?
  4. ben06600

    ben06600 New Member

    Joined:
    Jun 3, 2018
    Messages:
    16
    Location:
    France
    Balance:
    21Coins
    Ratings:
    +7 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino

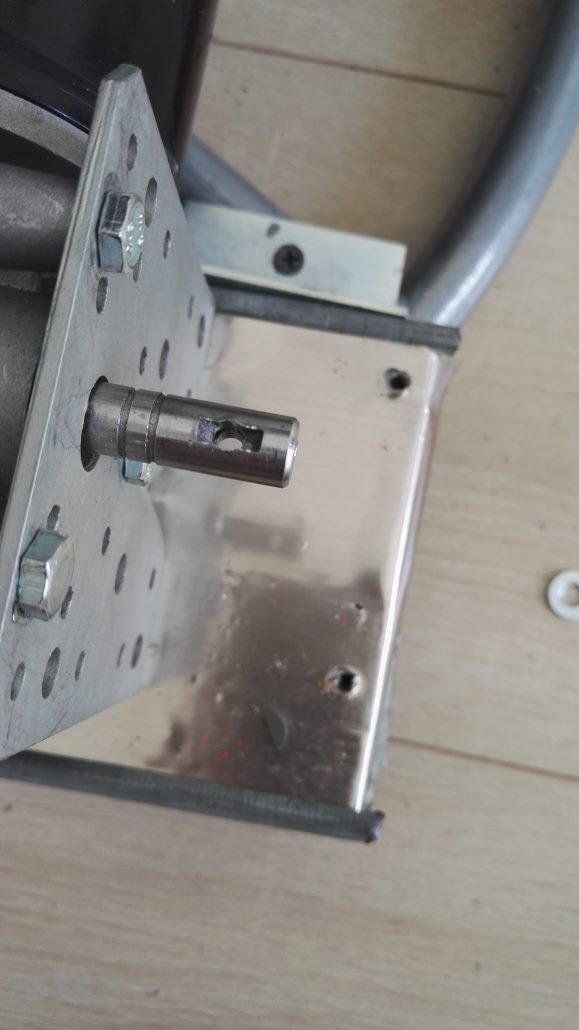

    Well to be honest, it is not that hard to do, but it is true that I spent a lot of time trying to find the U joint :roll
    I initially thought about a car transmission joint, but it was not obvious to adapt.
    If you search hard, you have some farm tractor joint that can be easy to adapt.

    I took a square metal bar (E24) 50x50 mm and cut it at height 40 mm.
    Then just drilled at the center of each side. There is a picture above (5th june comment).
