Arduino code for force feedback

Discussion in 'DIY Motion Simulator Building Q&A / FAQ' started by sthevan pinter kairys, Jun 5, 2021.

  1. sthevan pinter kairys

    sthevan pinter kairys New Member

    Joined:
    Jun 5, 2021
    Messages:
    1
    Balance:
    8Coins
    Ratings:
    +0 / 0 / -0
    My Motion Simulator:
    Arduino

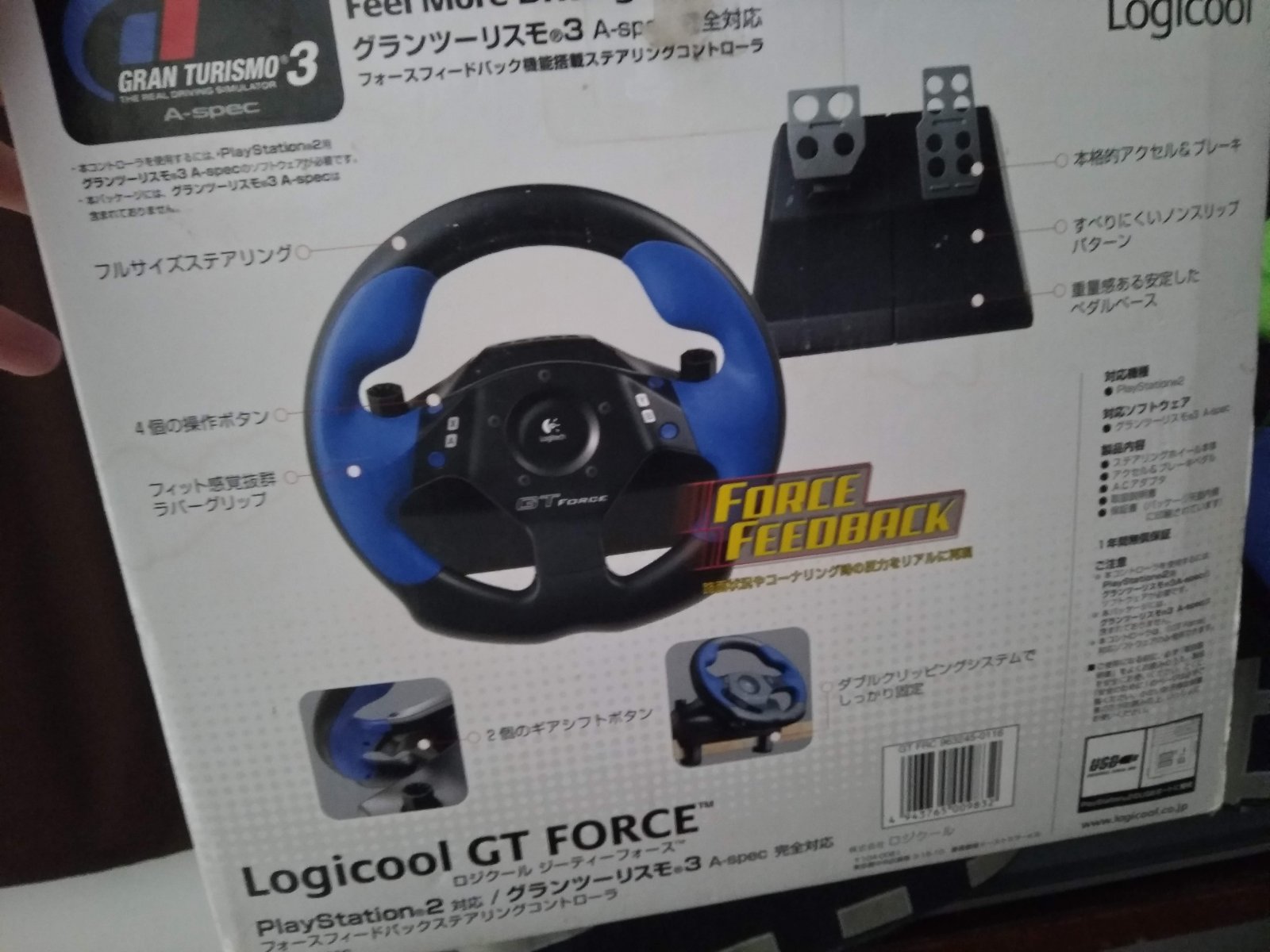

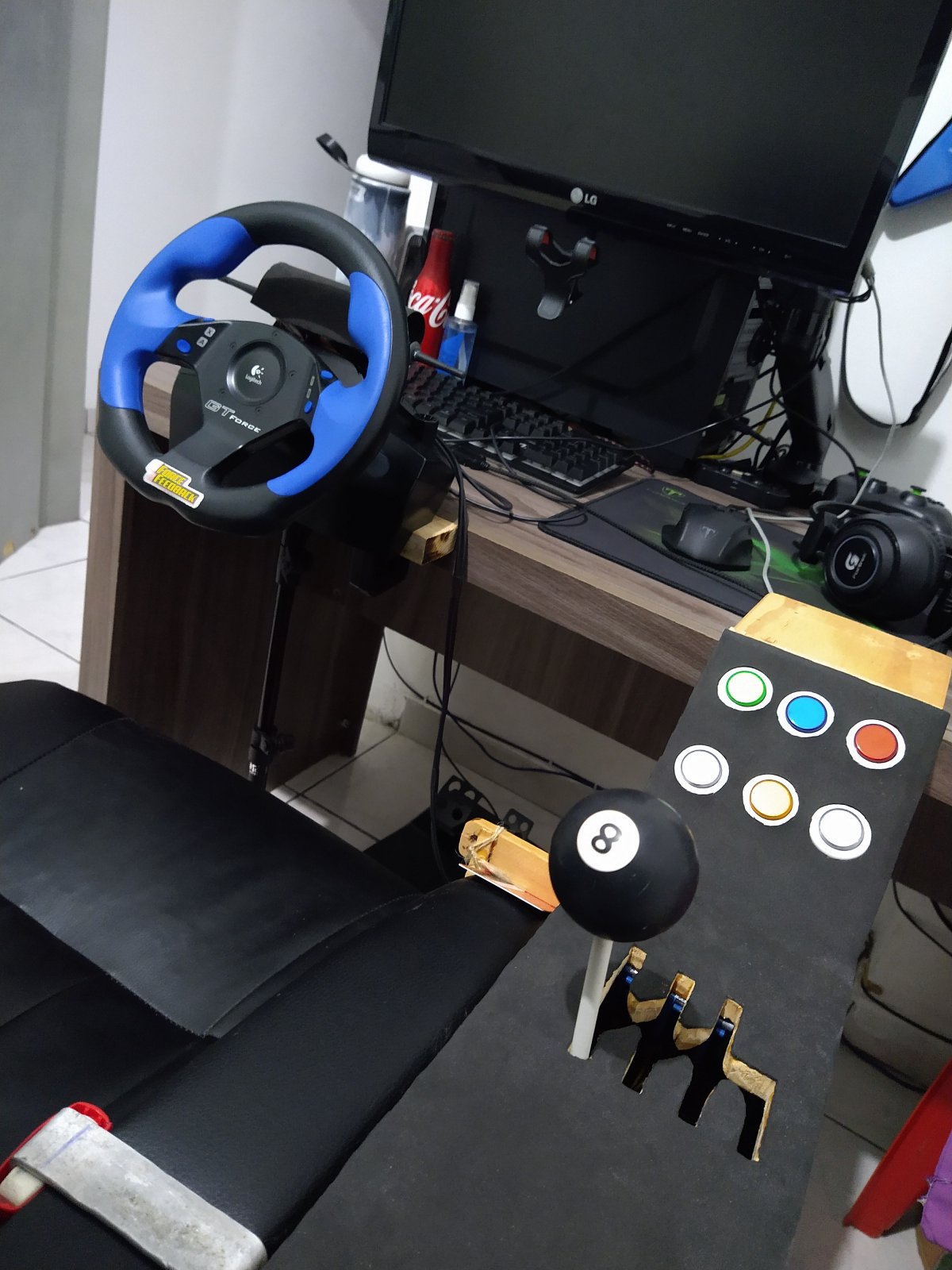

    hello i have the steering wheel: gt force lprc-10000

    The drive found on the logithech website does not start my engine. (Flywheel open and engine test done, it is working) 'It could be some faulty circuit'.

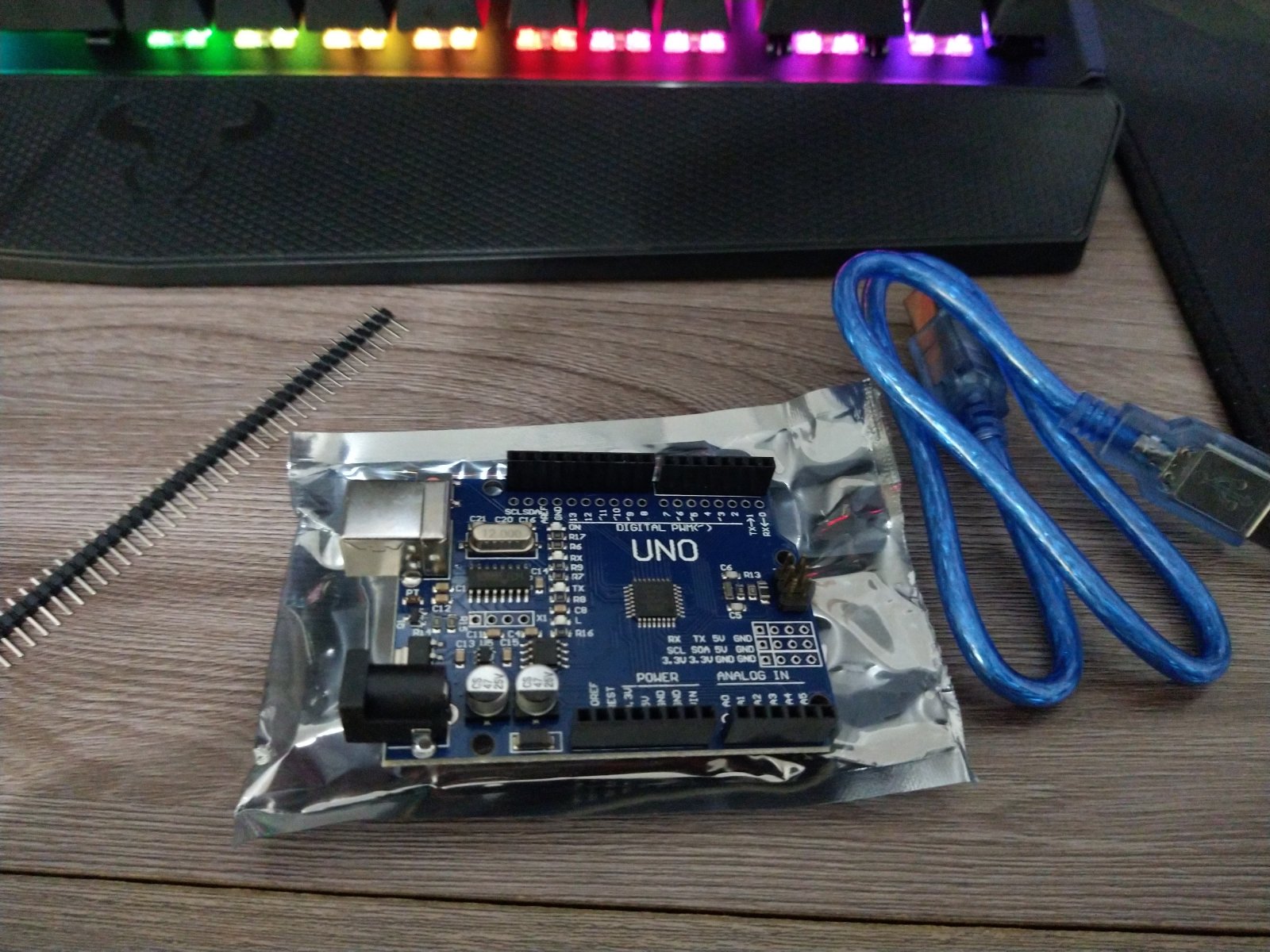

    I bought an arduino uno with the intention of starting the engine on it, to have force feedback.

    Could someone help me with the code.

    I found this one, but it uses 4 engines, my case will take advantage of the single engine on the flywheel.

    https://www.xsimulator.net/community/threads/arduino-haptic-force-feedback-assetto-corsa.7412/
    Code:
    // Em parte baseado no X-sim3dashboard v1 (usando a tela TM1638 e Arduino Nano v3) por TronicGr (Thanos) 4-26-2012
    // Compartilhado como domínio público


    void setup () {

    // Declara os pinos 3,5,6 e 11 como uma saída
          pinMode (3, SAÍDA);
          pinMode (5, SAÍDA);
          pinMode (6, SAÍDA);
          pinMode (11, SAÍDA);
    // Criar objeto serial
        Serial.begin (9600);

    }

    byte SteeringxSpeed;
    byte SteeringxSpeed1;
    byte SteeringxSpeed2;
    byte SteeringxSpeed3;
    byte SteeringxSpeed4;
    byte SteeringxSpeed5;
    byte SteeringxSpeed6;

    void loop () {

    char bufferArray [20]; // mantém todos os dados seriais em um array

    int i;
    byte FrontSlip;
    int FrontSlipOut;
    byte RearSlip;
    int RearSlipOut;

    byte SideslipValue;
    int SideSlipMinusSxS;
    int Subviragem;
    int UndersteerOut;
    int Oversteer;
    int OversteerOut;





    if (Serial.available ()> = 12) {// se 12 bytes disponíveis no buffer Serial ...
          para (i = 0; i <12; i ++) {// para cada byte
          bufferArray [i] = Serial.read (); // colocar na matriz


         }
      }
    if (bufferArray [0] == 'A') {// se novos bytes foram recebidos

       FrontSlip = bufferArray [1];
        if (FrontSlip> 100) {
            FrontSlip = 100;
             }
       FrontSlipOut = map (FrontSlip, 0, 100, 40, 255);
        analogWrite (3, FrontSlipOut);
    }


    if (bufferArray [2] == 'B') {// se novos bytes foram recebidos

       RearSlip = bufferArray [3];
       if (RearSlip> 100) {
            RearSlip = 100;
             }
       RearSlipOut = map (RearSlip, 0, 100, 40, 255);
        analogWrite (5, RearSlipOut);

    }


    if (bufferArray [4] == 'C') {// se novos bytes foram recebidos
    SteeringxSpeed5 = bufferArray [5];

    SteeringxSpeed = SteeringxSpeed1;
    SteeringxSpeed1 = SteeringxSpeed2;
    SteeringxSpeed2 = SteeringxSpeed3;
    SteeringxSpeed3 = SteeringxSpeed4;
    SteeringxSpeed4 = SteeringxSpeed5;
    // Há um atraso entre a entrada da direção e a reação do carro. A rotina acima cancela esse atraso.


    }

    if (bufferArray [6] == 'D') {// se novos bytes foram recebidos
    SideslipValue = bufferArray [7];

    SideslipValue = SideslipValue / 2;
    SteeringxSpeed = SteeringxSpeed / 2;
    SideSlipMinusSxS = SideslipValue + SteeringxSpeed;



      // Se a derrapagem for menor que um determinado valor em comparação com a direção da direção, o carro está subvirando. Vibrador conectado ao PIN 6 será ativado.
    if (SideSlipMinusSxS> 131) {
          Subviragem = SideSlipMinusSxS - 131;
         if (Subviragem> 10) {
                Subviragem = 10;
                }
         SubviragemSaída = mapa (Subviragem, 0, 10, 40, 255);


        }
        if (SideSlipMinusSxS <132) {
            SubviragemSaída = 0;}

       analogWrite (6, UndersteerOut);


       // Se a derrapagem estiver acima de um certo valor em comparação com a direção da direção, o carro está sobrevirando. Vibrador conectado ao PIN 11 será ativado.

             if (SideSlipMinusSxS <126) {
          Oversteer = SideSlipMinusSxS * -1 + 126;
           if (Oversteer> 10) {
            Sobrevirar = 10;
             }
         OversteerOut = map (Oversteer, 0, 10, 40, 255);
        }


        if (SideSlipMinusSxS> 125) {
            OversteerOut = 0;
             }

       analogWrite (11, OversteerOut);
      }
    }

    P_20200115_092210.jpg IMG_20210401_180329468.jpg IMG_20210528_143915606.jpg
