AMC1280USB Motion Simulator Controller

Discussion in 'SimTools compatible interfaces' started by Thanos, Jul 6, 2017.

  1. SilentChill

    SilentChill Problem Maker

    Joined:
    Jul 19, 2014
    Messages:
    2,552
    Occupation:
    Railway Maintenance
    Location:
    Morecambe, Lancashire, England
    Balance:
    19,568Coins
    Ratings:
    +3,336 / 33 / -0
    My Motion Simulator:
    DC motor, Arduino, Motion platform, 6DOF
    Any chance of screw terminals instead of jumpers? dunno if your design is final or not, would make it so much more secure.
  2. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    674
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    3,939Coins
    Ratings:
    +561 / 5 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF

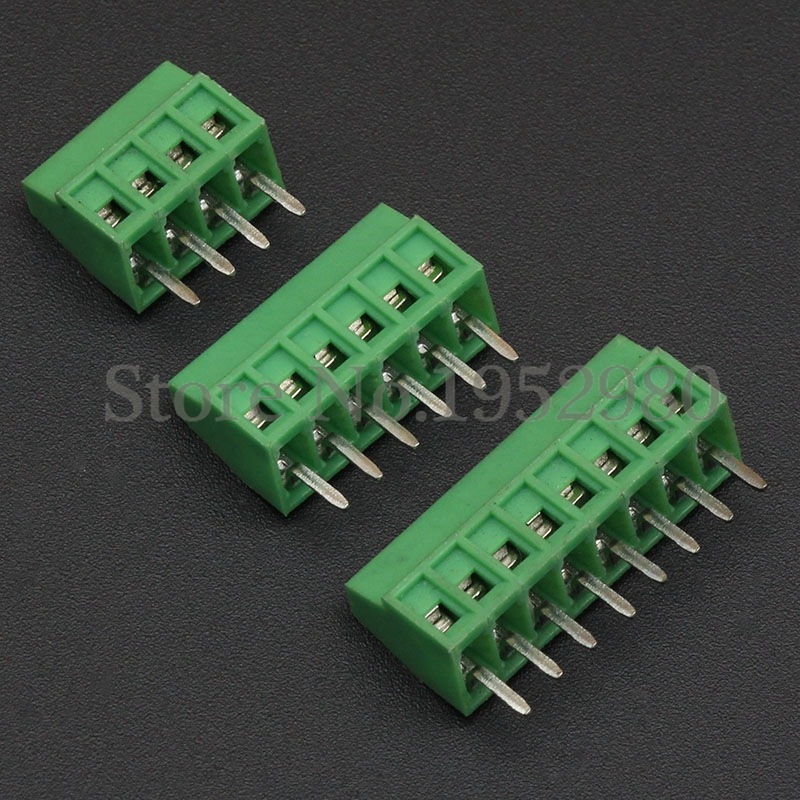

    The design is not final yet, can be changed. I was thinking to use screw terminals as I did in the prototype 1.x version AMC1280USB boards, but there is not enough space to for them even if I were to use 2.54mm pitch screw terminal. Also these terminals do not come in the size I need.

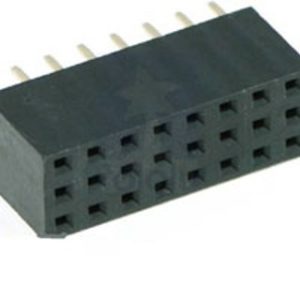

    Using normal 2.54 pitch pin headers is much easier as these are very common and can handle well the low voltage signals for the sensors. You could use some Female headers to solder the sensor wiring on them and plug/unplug the whole group of sensors if needed:


    Or break them to any size you want:


    Thanks
    Thanos
  3. mariano68

    mariano68 Active Member

    Joined:
    Nov 15, 2014
    Messages:
    585
    Occupation:
    builder contractor
    Location:
    Argentina
    Balance:
    3,247Coins
    Ratings:
    +390 / 2 / -0
    My Motion Simulator:
    2DOF, Arduino, 4DOF
    No more $55 boards for xsimulator ?
  4. SeatTime

    SeatTime Well-Known Member

    Joined:
    Dec 27, 2013
    Messages:
    2,431
    Location:
    Newcastle Australia
    Balance:
    27,070Coins
    Ratings:
    +2,723 / 32 / -0
    My Motion Simulator:
    DC motor, Motion platform, 6DOF
    Yep, they were likely all taken up.
  5. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    674
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    3,939Coins
    Ratings:
    +561 / 5 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    Some rewards expired yesterday morning. Sorry that you missed it.

    The KS will be ending in 27 hours and a few other reward offers are still there.
    The "7x AMC1280USB Barebones for xsimulator" is still there...!
    • Funny Funny x 1
  6. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    674
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    3,939Coins
    Ratings:
    +561 / 5 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    Hey @mariano68, I put up a "Late Bird" offer just for you. So you don't feel left out. Check it out...



    Thanks
    Thanos
    • Like Like x 5
    • Funny Funny x 1
  7. mariano68

    mariano68 Active Member

    Joined:
    Nov 15, 2014
    Messages:
    585
    Occupation:
    builder contractor
    Location:
    Argentina
    Balance:
    3,247Coins
    Ratings:
    +390 / 2 / -0
    My Motion Simulator:
    2DOF, Arduino, 4DOF
    Thanks, I think you will get some more backers for sure.
    • Like Like x 2
  8. Alexey

    Alexey Well-Known Member

    Joined:
    Sep 23, 2014
    Messages:
    455
    Occupation:
    Electronics Technician
    Location:
    Adelaide, Australia
    Balance:
    7,944Coins
    Ratings:
    +607 / 2 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino
    Kick starter hates me. I tried during the initial backing but it just tells me there was an error processing payment.
    Tried again and same error.... The joys of modern technology.
  9. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    674
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    3,939Coins
    Ratings:
    +561 / 5 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF

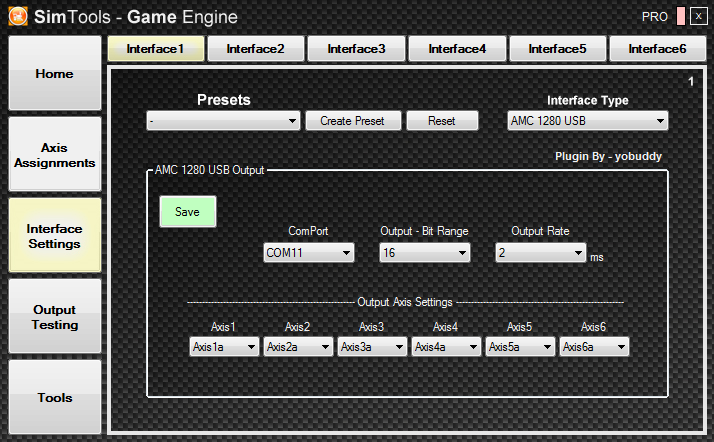

    Plugin interface for the AMC1280USB is in the works!! First initial simple beta was successful before the kickstarter ended! Now on to more features!


    AMC1280USB interface settings ok.png


    Thanks
    Thanos
    • Like Like x 9
    • Winner Winner x 1
    • Informative Informative x 1
    Last edited: Aug 4, 2017
  10. yobuddy

    yobuddy Well-Known Member Staff Member Moderator SimAxe Beta Tester SimTools Developer Gold Contributor

    Joined:
    Feb 9, 2007
    Messages:
    3,725
    Occupation:
    Computer Technician
    Location:
    Portland, Oregon - USA
    Balance:
    30,887Coins
    Ratings:
    +3,764 / 10 / -0
    These two projects (SimTools and the AMC) were made for each other. :cheers
    Let see just how far we can push this awesome setup!
    yobuddy
    • Like Like x 10
    • Agree Agree x 1
  11. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    674
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    3,939Coins
    Ratings:
    +561 / 5 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    I'm going to post the simple interface plugin here for now, for anyone that already has the AMC1280USB to try, but there will be a specific thread about it later on.

    You only need to choose the COM port that the AMC1280USB takes (autodetection will be implemented soon).

    AMC1280USB interface settings ok.png


    The axis assignments can be as follows for testing each motor separately:

    AMC1280USB axis assignments 123 ok.png

    AMC1280USB axis assignments 456 ok.png

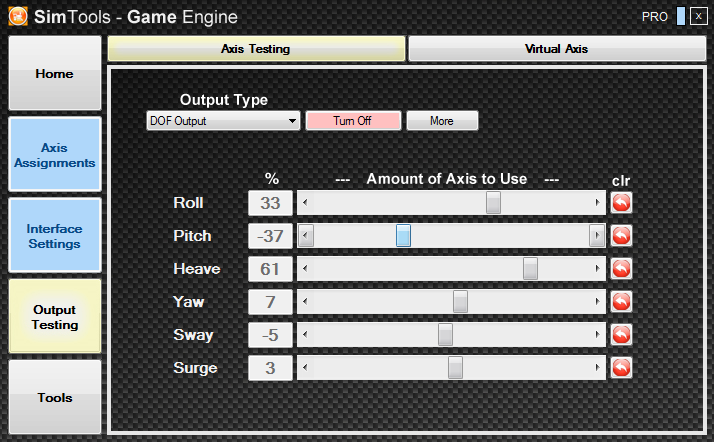

    Here is what I used for testing
    AMC1280USB Output testing ok.png



    Thanks
    Thanos

    Attached Files:

    • Like Like x 7
    • Useful Useful x 1
  12. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    674
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    3,939Coins
    Ratings:
    +561 / 5 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    Hi Alexey,

    I got messages from people that either could not process their cards or were too late to pledge. Therefore I'll allow some extra pre-orders via Paypal, outside kickstarter for the kickstarter rewards throughout August. These will be manufactured along the normal kickstarter rewards.

    The price for the AMC1280USB Barebones would be $85 (outside kickstarter price).
    The shipping cost to $23 for International or $10 for USA. Lead time for it to be ready to ship would be same as kickstarter (mid to end September).

    If you or anyone else here that missed the kickstarter, interested in this offer, send me a PM with your name, email address and message content "pre-order AMC1280USB Barebones" to receive Paypal Invoice for the pre-order.

    Thanks
    Thanos
    • Like Like x 5
    • Winner Winner x 1
  13. Jerry Atrick

    Jerry Atrick this is my sim Gold Contributor

    Joined:
    May 3, 2017
    Messages:
    141
    Occupation:
    Retired
    Location:
    Sydney Australia
    Balance:
    1,257Coins
    Ratings:
    +43 / 1 / -0
    My Motion Simulator:
    4DOF
    Hi Thanos, can you please explain in simple (Homer Simpson) terms;
    What does this device take the place of in the sim?

    Maybe you have a simple diagram so Homer's brain can understand better!:think

    Regards Jerry
  14. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    674
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    3,939Coins
    Ratings:
    +561 / 5 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    Its an interface between the computer (via USB) and the Motor drivers. It also reads the sensors that are mounted on the motors and performs PID positioning as demanded by Simtools.

    See a simplified diagram here:
    https://www.xsimulator.net/community/threads/kickstarter-announcement.10517/#post-136749

    Thanks
    Thanos
  15. Jerry Atrick

    Jerry Atrick this is my sim Gold Contributor

    Joined:
    May 3, 2017
    Messages:
    141
    Occupation:
    Retired
    Location:
    Sydney Australia
    Balance:
    1,257Coins
    Ratings:
    +43 / 1 / -0
    My Motion Simulator:
    4DOF

    Thank you Thanos for the clarification, and I appreciate the reply.

    Thanos; I am NO where in the vicinity, to purchase a device such as this just yet, the C.N.C (not completed) has the come before the platform build.

    So will these devices be available, say in 6 months?

    Thanks for your time.
    Regards Jerry
  16. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    674
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    3,939Coins
    Ratings:
    +561 / 5 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    Perhaps. I'll be manufacturing some extra ones, but not sure how long it will be before they are gone. If there is demand I will be making more.

    Thanks
    Thanos
  17. Jerry Atrick

    Jerry Atrick this is my sim Gold Contributor

    Joined:
    May 3, 2017
    Messages:
    141
    Occupation:
    Retired
    Location:
    Sydney Australia
    Balance:
    1,257Coins
    Ratings:
    +43 / 1 / -0
    My Motion Simulator:
    4DOF
    Hi Thanos, thanks again for the reply.

    So may I order one (AMC1280USB Barebones would be $85 (outside kickstarter price) please.

    I don't have Pay Pal, however can supply a friends account, and shipping details, is that OK.

    If so send details of total costing including shipping.

    Regards Jerry.
    • Like Like x 1
  18. Milton

    Milton Well-Known Member Gold Contributor

    Joined:
    Nov 11, 2015
    Messages:
    345
    Location:
    Dallas Texas
    Balance:
    1,937Coins
    Ratings:
    +317 / 4 / -0
    My Motion Simulator:
    3DOF, JRK
    I am so late to the Party!
    Hello Thanos i want to order the AMC1280USB Deluxe can you send me the link or how i can order one?
  19. Milton

    Milton Well-Known Member Gold Contributor

    Joined:
    Nov 11, 2015
    Messages:
    345
    Location:
    Dallas Texas
    Balance:
    1,937Coins
    Ratings:
    +317 / 4 / -0
    My Motion Simulator:
    3DOF, JRK
    Anyone knows if this controller will be able to control a 24VDC brush motors?
  20. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    674
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    3,939Coins
    Ratings:
    +561 / 5 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    Hi,

    I'm behind a few days to make the order for the PCB's for the kickstarter as I was shorting out the parts list (some were obsolete and had to source from other vendors).

    So yes, there is still a little bit time. See these offers here for the AMC1280USB deluxe:
    http://motionsim.blogspot.com/2017/08/extending-pre-orders-for-kickstarter.html
    Follow the instructions there...

    And here is a video of the actual AMC1280USB Deluxe kickstarter version all assembled:



    Answering your other post, you can drive 24v Brush motors using Sabertooth (which can be connected to the AMC1280USB).
    But you can also drive Brushless DC motors if using a one with driver compatible with AMC1280USB ( @RobsonSwiss ).

    Thanks
    Thanos
    Last edited: Sep 1, 2017
