AMC1280USB Motion Simulator Controller

Discussion in 'SimTools compatible interfaces' started by Thanos, Jul 6, 2017.

  1. bruce stephen

    bruce stephen Hammer doesnt fix it, must be electrical

    Joined:
    Jun 7, 2015
    Messages:
    1,293
    Occupation:
    general contractor
    Location:
    michigan
    Balance:
    9,014Coins
    Ratings:
    +1,225 / 9 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, Motion platform, 6DOF
    This is an example of a package that caught their attention. It was a half dozen ballscrews. The package was delayed but did finally arrive. The total cost was under the limits so no charges were incurred.
  2. mariano68

    mariano68 Active Member

    Joined:
    Nov 15, 2014
    Messages:
    585
    Occupation:
    builder contractor
    Location:
    Argentina
    Balance:
    3,252Coins
    Ratings:
    +390 / 2 / -0
    My Motion Simulator:
    2DOF, Arduino, 4DOF
    The problem was that you didn't answer when I asked you the amount you put on the package, because I have to make a declaration here before getting the package and the amount has to be the same you put. Anyway...
    I have a friend that is going to the states in some days, I will ask him his address there so you just have to send it locally, and I will put it here, as I don't get much attention in kickstarter.
  3. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    779
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    4,150Coins
    Ratings:
    +667 / 6 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    Its true, sometimes I cannot even get back to emails for days. what happened happened. Let me know the address of your friend and I'll ship it to him right way. Email me on my GMAIL account to make sure I receive the notification, I don't use the older Yahoo account anymore. ( Tronigr @ Gmail . Com )

    Thanks
    Thanos
  4. mariano68

    mariano68 Active Member

    Joined:
    Nov 15, 2014
    Messages:
    585
    Occupation:
    builder contractor
    Location:
    Argentina
    Balance:
    3,252Coins
    Ratings:
    +390 / 2 / -0
    My Motion Simulator:
    2DOF, Arduino, 4DOF
    Sent
    Thanks
  5. BondeX

    BondeX Active Member

    Joined:
    Feb 11, 2016
    Messages:
    142
    Occupation:
    EE
    Location:
    Michigan, USA
    Balance:
    1,414Coins
    Ratings:
    +61 / 0 / -0
    My Motion Simulator:
    2DOF, 3DOF, DC motor, Arduino, 6DOF
    So, does anyone know how to wire this board to MMs? and has anyone gotten it to work?
  6. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    779
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    4,150Coins
    Ratings:
    +667 / 6 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    You can hook up the MM to the PWM outputs of the Amc1280usb main board. There are marked as Out1, Pwm1, Out2 for example. The Out1 and Out2 provide the logic signal for the direction, and the PWM1 is the sped output.

    Don't forget to also loop back to the analog inputs of the Amc1280usb the position sensors.
    • Informative Informative x 2
  7. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    779
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    4,150Coins
    Ratings:
    +667 / 6 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    I have some good news as well. I'm working with @yobuddy to integrate the 6DOF plugin driver for the Amc1280usb into simtools. I already got link and some data transferred, just need some adjustment on the data format in the simtools interface part to have soon a real inverse kinematics math solution for 6DOF platforms available in simtools as well.


    See more info on the 6dof plugin driver here:
    Http://hexpod.xyz

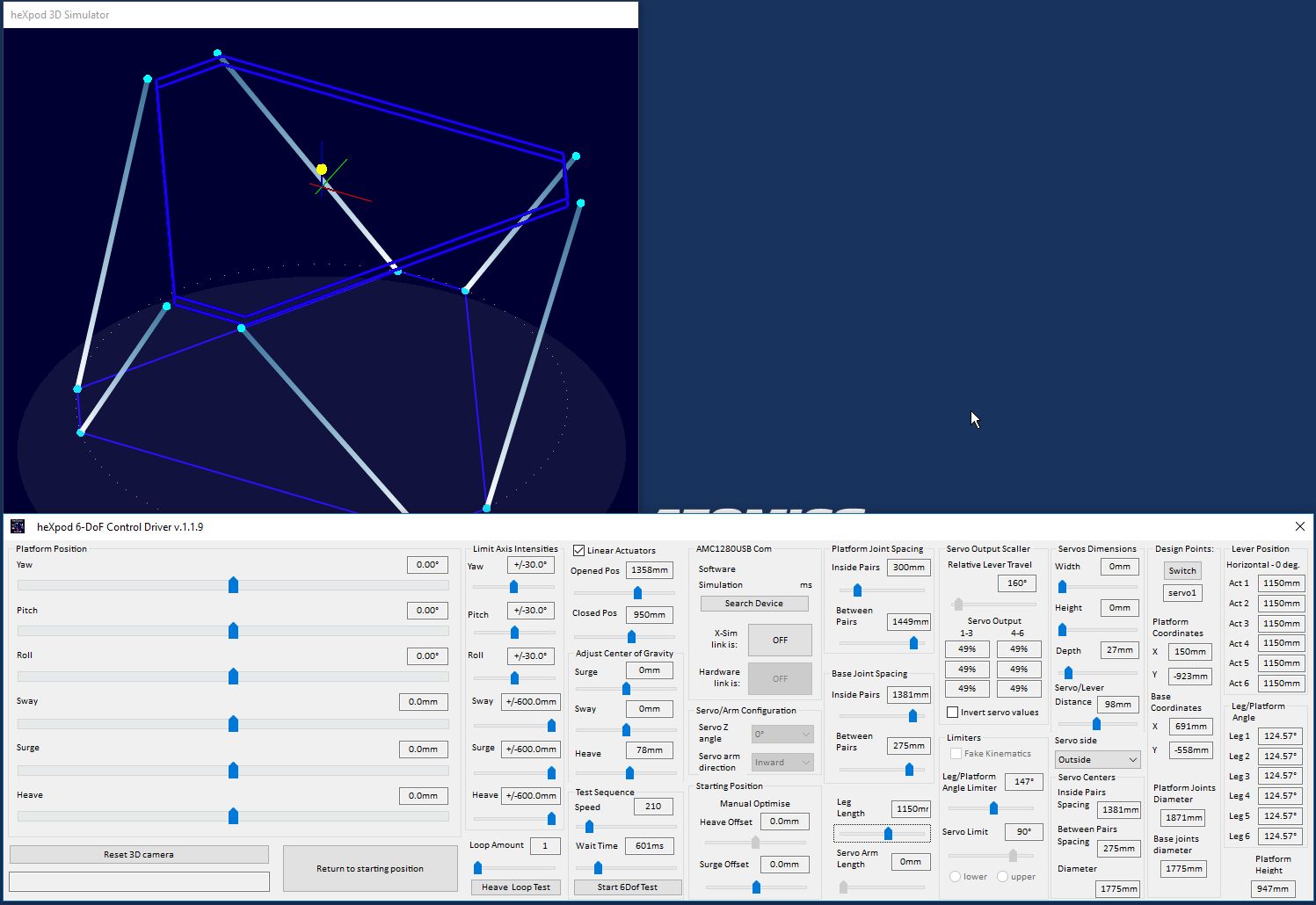

    platform dimensions.jpg


    Thanks
    Thanos
    • Like Like x 5
    • Winner Winner x 1
  8. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    779
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    4,150Coins
    Ratings:
    +667 / 6 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    Also for those that don't follow my youtube channel, I wanted to let them know, that the AMC1280USB can be used to convert ready 6DOF platforms with servomotors (chinese manufactured) so their owners can jailbreak them from using their locked motion software. A fellow Greek from Australia got this Cruden clone 6DOF platform that has no support from the manufacturer and had available only pCars... now he can connect it to x-sim, Ian's BFF 6DOF software and soon in Simtools as well.











    Thanks
    Thanos
    • Like Like x 4
    Last edited: May 24, 2018
  9. BlazinH

    BlazinH Well-Known Member

    Joined:
    Oct 19, 2013
    Messages:
    2,114
    Location:
    Oklahoma City, USA
    Balance:
    15,518Coins
    Ratings:
    +1,789 / 31 / -1
    Good news? I don't know because it sounds like only a 6DOF inverse kinematics driver for your Amc1280usb and not a 6DOF inverse kinematics solution for Simtools. If you really want to contribute something substantial to this community (DIY) then everyone would be able to use it and not just those that buy something from you. If I misunderstood and it will work with other microcontroller options also then my bad and kudos to you :thumbs. Otherwise it looks like you only want Simtools to help you sell more of your product. But I suppose for some that's still better than nothing.
  10. SeatTime

    SeatTime Well-Known Member

    Joined:
    Dec 27, 2013
    Messages:
    2,447
    Location:
    Newcastle Australia
    Balance:
    27,310Coins
    Ratings:
    +2,739 / 32 / -0
    My Motion Simulator:
    DC motor, Motion platform, 6DOF
    Excellent Thanos :thumbs. It's great to see this finally come to simtools. I understand that there may be some difficulty in making it work into multiple interfaces/controllers, but if it is possible then that would be great.
    • Agree Agree x 1
  11. Ringorumble

    Ringorumble Active Member

    Joined:
    Jan 20, 2008
    Messages:
    179
    Balance:
    200Coins
    Ratings:
    +49 / 1 / -0
    Funny, isnt it all about money ? People are investing time, some give things away for free, some not ..
    Maybe he is also helping Simtools to sell some licences ?

    As you said, for people which have no clue in programming its better than nothing ... For me this AMC (maybe) would be the only way to connect my servos to Simtools when my friend quits doing his software (hopefully not) ..
    • Agree Agree x 2
  12. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    779
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    4,150Coins
    Ratings:
    +667 / 6 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    Thank you. This new 6DOF plugin driver is not my development. Its totally revamped over the years and its more accurate than before. I just offered to link those two (simtools and 6dof plugin) as currently works only with x-sim. The problem is that simtools is programmed in VB .NET, while the plugin is pure C++. I work on the custom C++ Mapped Memory File wrapper to do the connection.

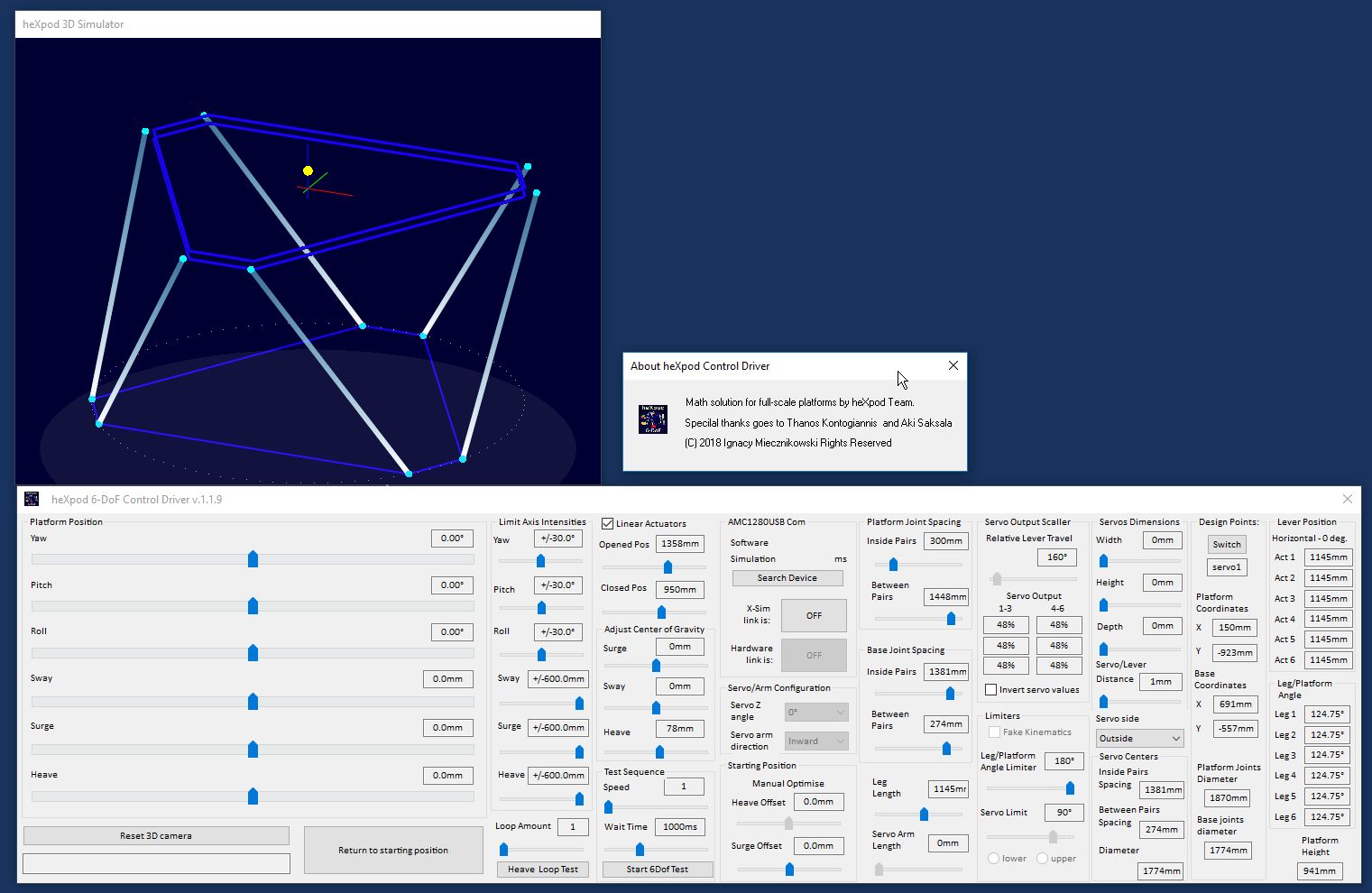

    hexpod about.jpg

    About having the plugin support multiple interfaces or other controller, its not as easy as you may think. The code is optimized for fast link with the AMC1280USB using pure binary transfer mode with 250000bps speed and a single interface output. As far as I know, most arduino interfaces are transferring either simple characters or HEX Let alone other interfaces apart arduino are even more arbitrary. I don't see why the 6DOF plugin has to have to deal with that. Simtools have better output support for these other interfaces.

    Thanks
    Thanos
    • Like Like x 3
  13. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    779
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    4,150Coins
    Ratings:
    +667 / 6 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF

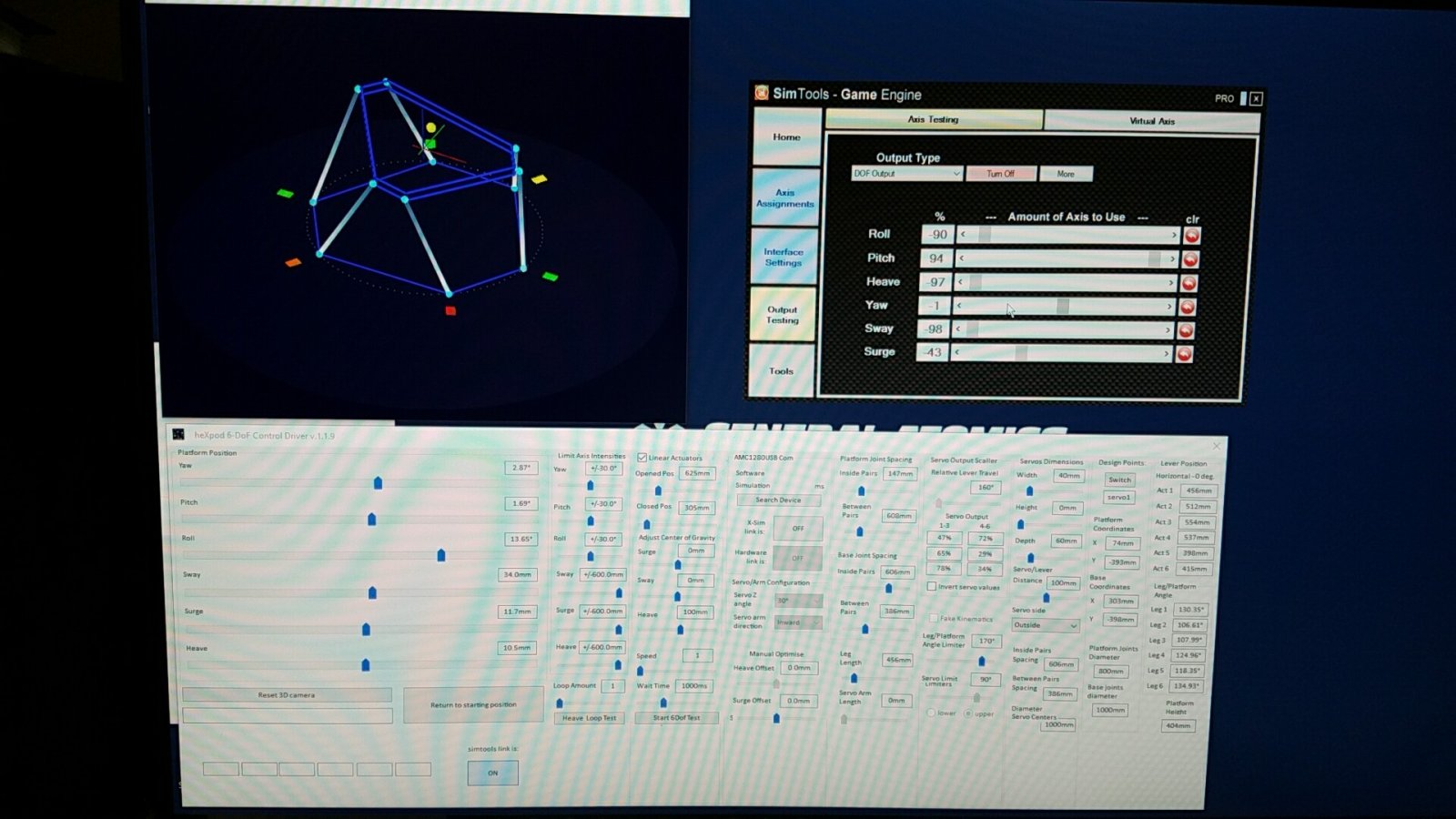

    The Simtools now has decent 6DOF math support thanks to Hexpod team. The new Hexpod driver v1.2.6 is very stable and works wonders on testing I did on LFS:








    Hopefully, will have some footage soon on using it a large scale 6DOF platform with Servomotors.

    The Hexpod driver will be available from http://Hexpod.xyz
    To clarify, its not my development, I just helped interface it to Simtools (custom memory mapped wrapper between the two).

    Thanks
    • Like Like x 3
  14. SeatTime

    SeatTime Well-Known Member

    Joined:
    Dec 27, 2013
    Messages:
    2,447
    Location:
    Newcastle Australia
    Balance:
    27,310Coins
    Ratings:
    +2,739 / 32 / -0
    My Motion Simulator:
    DC motor, Motion platform, 6DOF
    Nice :thumbs, but the only version that is available for download is V1.2.0...., or am I looking in the wrong place :confused:.
  15. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    779
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    4,150Coins
    Ratings:
    +667 / 6 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    I said WILL be available there. Finishing a few starter profiles for a few games and tests on life size 6DOF platform. We may perhaps need some more beta testers...
  16. Pit

    Pit - - - - - - - - - - - - - - - - Gold Contributor

    Joined:
    Oct 2, 2013
    Messages:
    3,021
    Location:
    Switzerland
    Balance:
    29,712Coins
    Ratings:
    +3,032 / 30 / -0
    My Motion Simulator:
    DC motor, Arduino, 6DOF
    When it will be available I will come back to my sim, so looking forward for this SimTools release hopefully soon
  17. hexpod

    hexpod http://heXpod.xyz

    Joined:
    Apr 18, 2016
    Messages:
    814
    Location:
    berlin
    Balance:
    5,149Coins
    Ratings:
    +234 / 2 / -0
    My Motion Simulator:
    DC motor, 6DOF
    some new stuff here:
    https://youtu.be/PMM1uqa5h0g
    hexpod.xyz

    cheers
    • Like Like x 2
    • Winner Winner x 1
  18. hexpod

    hexpod http://heXpod.xyz

    Joined:
    Apr 18, 2016
    Messages:
    814
    Location:
    berlin
    Balance:
    5,149Coins
    Ratings:
    +234 / 2 / -0
    My Motion Simulator:
    DC motor, 6DOF
  19. Thanos

    Thanos Building the Future one AC Servo at a time... or 6

    Joined:
    Jul 6, 2017
    Messages:
    779
    Occupation:
    Electronics Engineer
    Location:
    United States
    Balance:
    4,150Coins
    Ratings:
    +667 / 6 / -0
    My Motion Simulator:
    AC motor, Motion platform, 4DOF, 6DOF
    • Like Like x 1
  20. value1

    value1 Nerd Staff Member Moderator SimAxe Beta Tester SimTools Developer Gold Contributor

    Joined:
    Jan 9, 2011
    Messages:
    2,165
    Location:
    Zug, Switzerland
    Balance:
    9,484Coins
    Ratings:
    +3,175 / 11 / -1
    My Motion Simulator:
    2DOF, DC motor, JRK, Joyrider
    Obviously this is a feature of x-plane not an issue. Otherwise they wouldn't have designed the data output this way…
