News Alluminium rig with prosimu 3dof kit

Discussion in 'DIY Motion Simulator Projects' started by Giorgio73, Oct 2, 2018.

  1. Giorgio73

    Giorgio73 Alluminium rig with prosimu 3dof kit

    Joined:
    Jun 6, 2017
    Messages:
    100
    Occupation:
    Plc enginer
    Location:
    Italy,Varese
    Balance:
    700Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    2DOF, SCN6

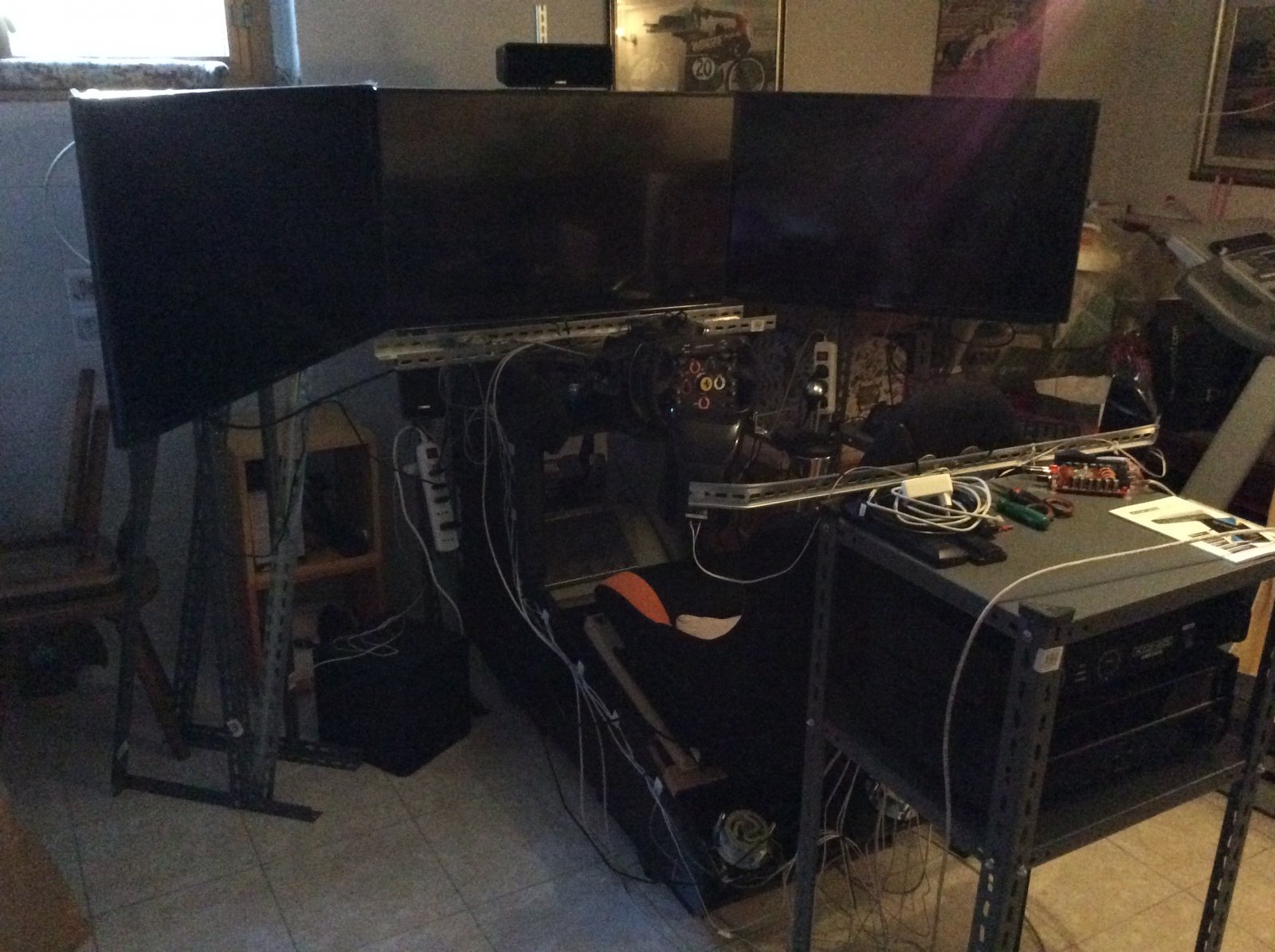

    Hy guys I have a static rig and I want to update with the scn6 actuators.
    Now the rig structure is on wood material.
    The next step is to convert this in alluminium structure.
    I want use some free software for the project, like my cad or similar.
    For the alluminium component I want to use motedis component.
    Is the cheaper alluminium component that I find in this moment.
  2. Giorgio73

    Giorgio73 Alluminium rig with prosimu 3dof kit

    Joined:
    Jun 6, 2017
    Messages:
    100
    Occupation:
    Plc enginer
    Location:
    Italy,Varese
    Balance:
    700Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    2DOF, SCN6
  3. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    12,625
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    96,552Coins
    Ratings:
    +8,108 / 40 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    • Like Like x 1
    • Informative Informative x 1
  4. Giorgio73

    Giorgio73 Alluminium rig with prosimu 3dof kit

    Joined:
    Jun 6, 2017
    Messages:
    100
    Occupation:
    Plc enginer
    Location:
    Italy,Varese
    Balance:
    700Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    2DOF, SCN6
    Ok Noorbeast thanks for the information
  5. Giorgio73

    Giorgio73 Alluminium rig with prosimu 3dof kit

    Joined:
    Jun 6, 2017
    Messages:
    100
    Occupation:
    Plc enginer
    Location:
    Italy,Varese
    Balance:
    700Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    2DOF, SCN6

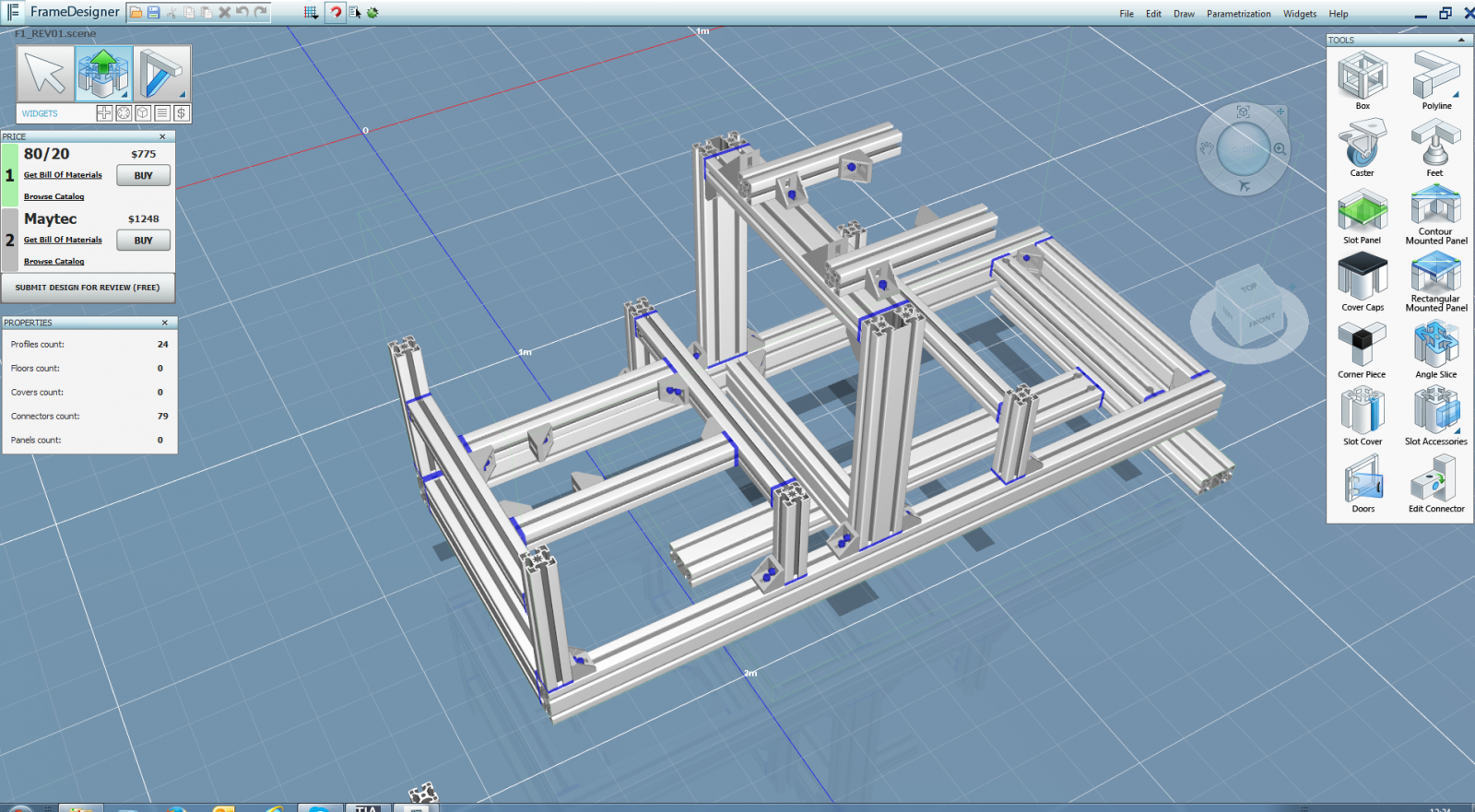

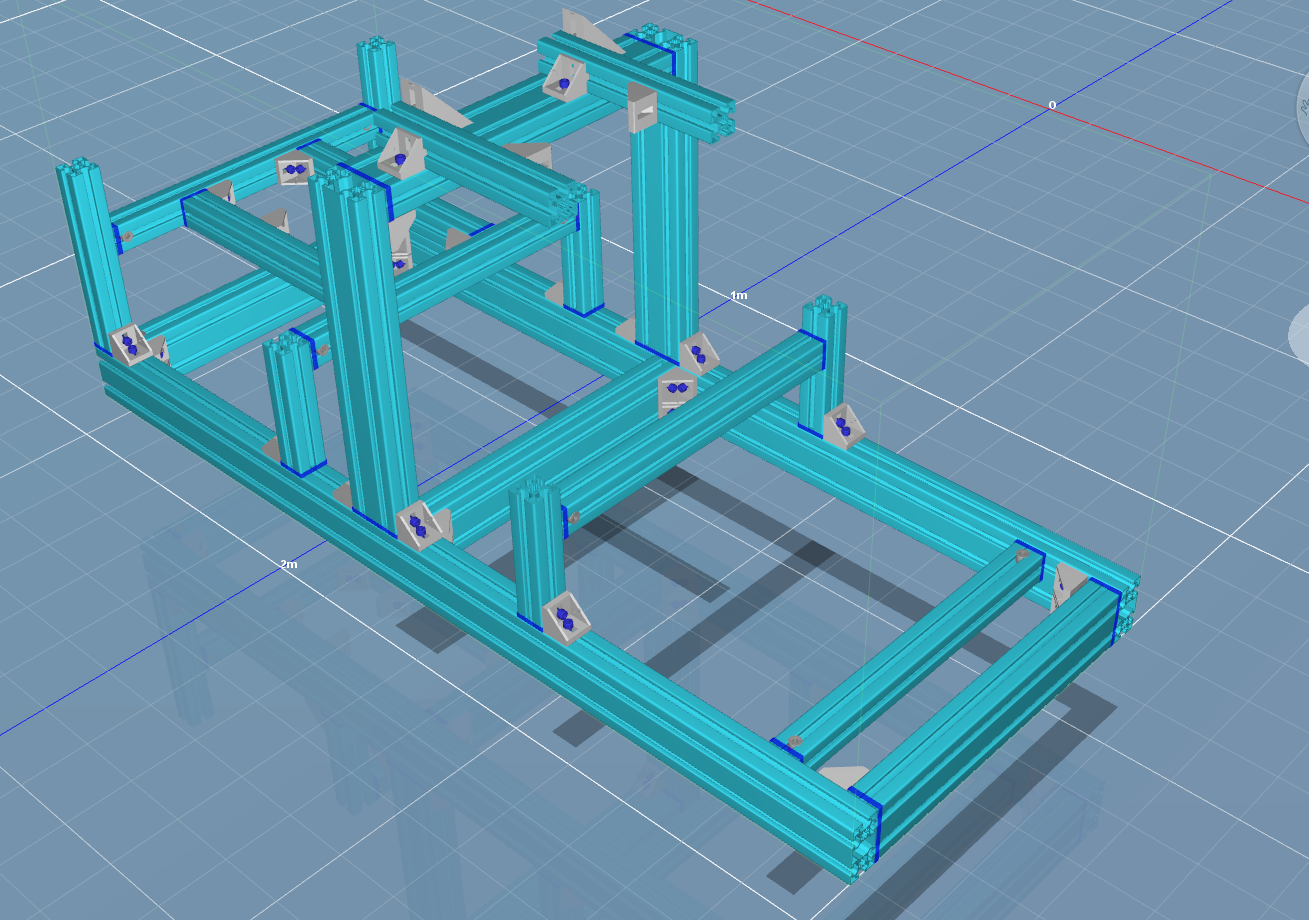

    I decide to use the designer software FrameDesigner, free software anfd very easy to use
  6. Giorgio73

    Giorgio73 Alluminium rig with prosimu 3dof kit

    Joined:
    Jun 6, 2017
    Messages:
    100
    Occupation:
    Plc enginer
    Location:
    Italy,Varese
    Balance:
    700Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    2DOF, SCN6

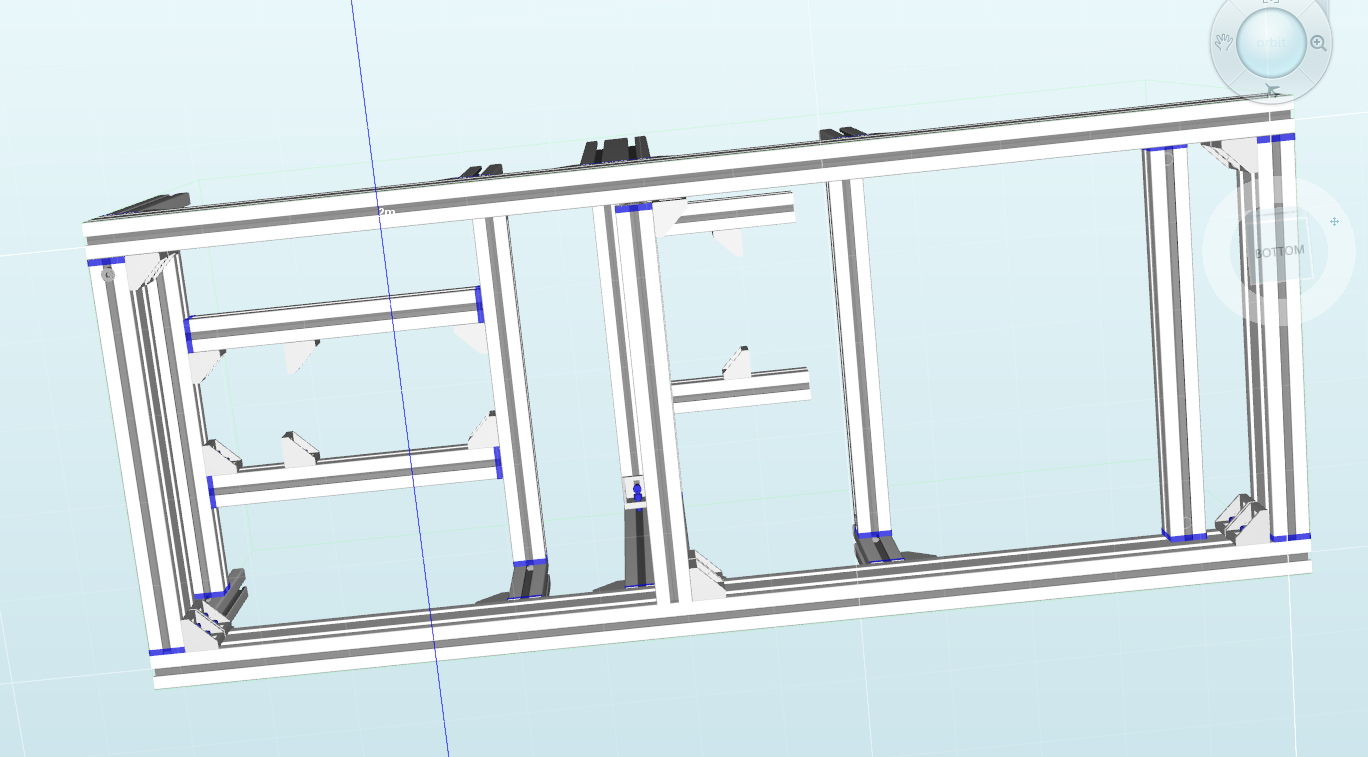

    I attached some picture of the progect

    Attached Files:

  7. Giorgio73

    Giorgio73 Alluminium rig with prosimu 3dof kit

    Joined:
    Jun 6, 2017
    Messages:
    100
    Occupation:
    Plc enginer
    Location:
    Italy,Varese
    Balance:
    700Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    2DOF, SCN6

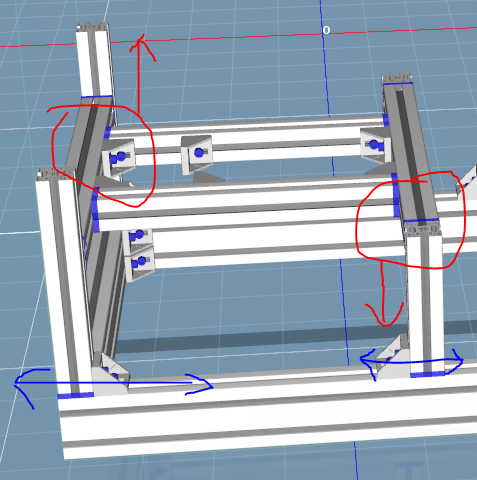

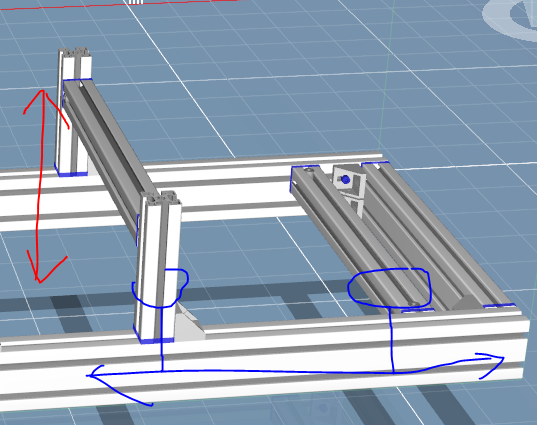

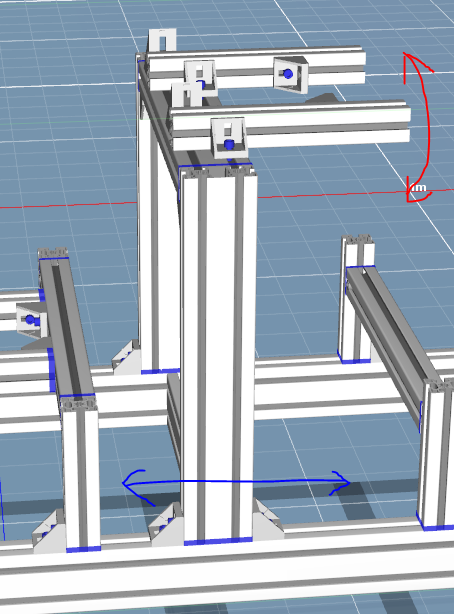

    For adjust the position of the pedals is possible move the red parts (angle regolation) and blu parts for front and rear regolation
    See attached

    Attached Files:

  8. Giorgio73

    Giorgio73 Alluminium rig with prosimu 3dof kit

    Joined:
    Jun 6, 2017
    Messages:
    100
    Occupation:
    Plc enginer
    Location:
    Italy,Varese
    Balance:
    700Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    2DOF, SCN6
    Same job for regolation of the steering wheel and the seat
    Now the next step is tu buy the alluminium components
    I want buy from Motedis in germany
    https://www.motedis.it/shop/

    Attached Files:

  9. Giorgio73

    Giorgio73 Alluminium rig with prosimu 3dof kit

    Joined:
    Jun 6, 2017
    Messages:
    100
    Occupation:
    Plc enginer
    Location:
    Italy,Varese
    Balance:
    700Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    2DOF, SCN6

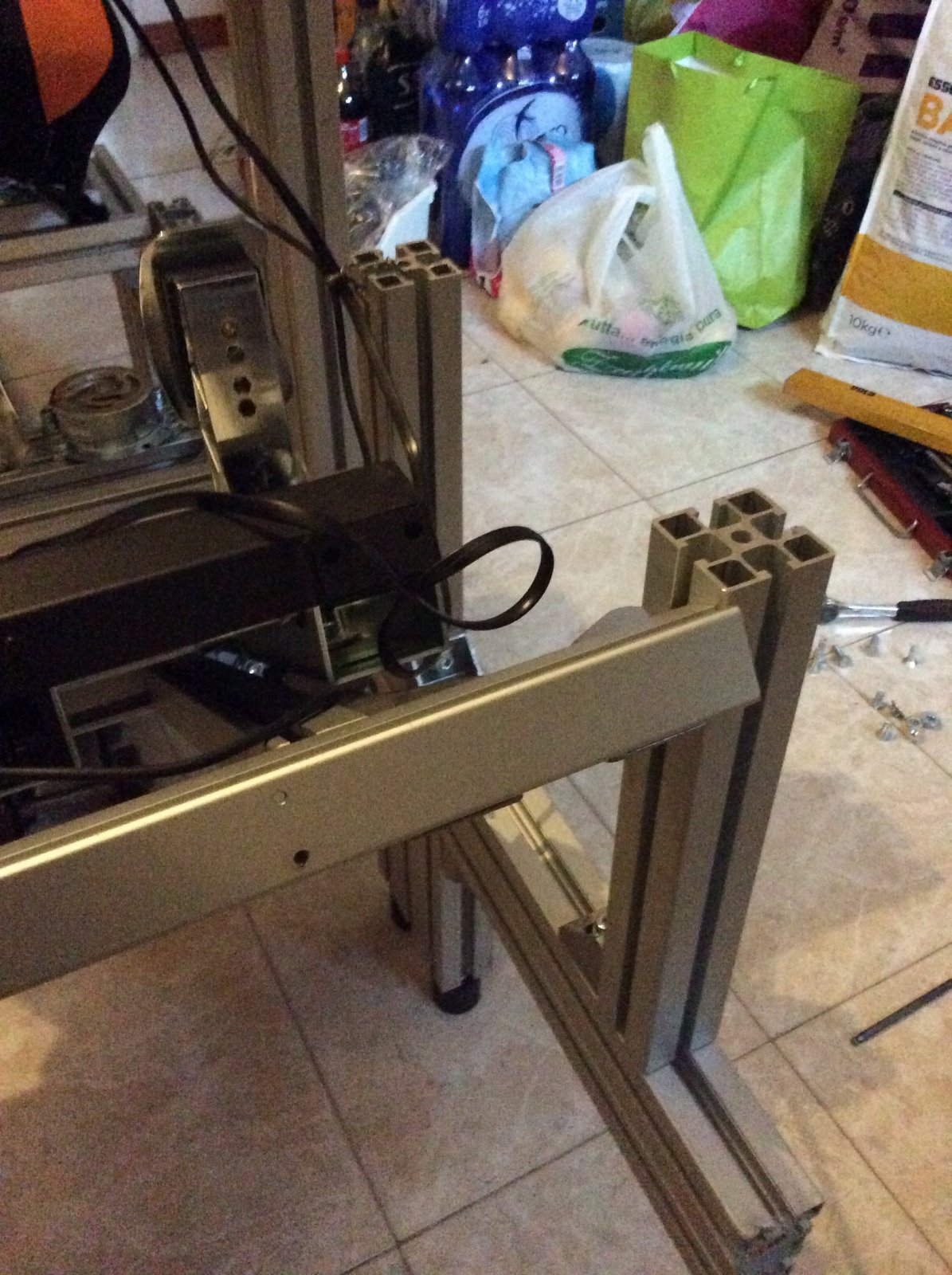

    The alluminium component camping from motedis and I building the new rig.

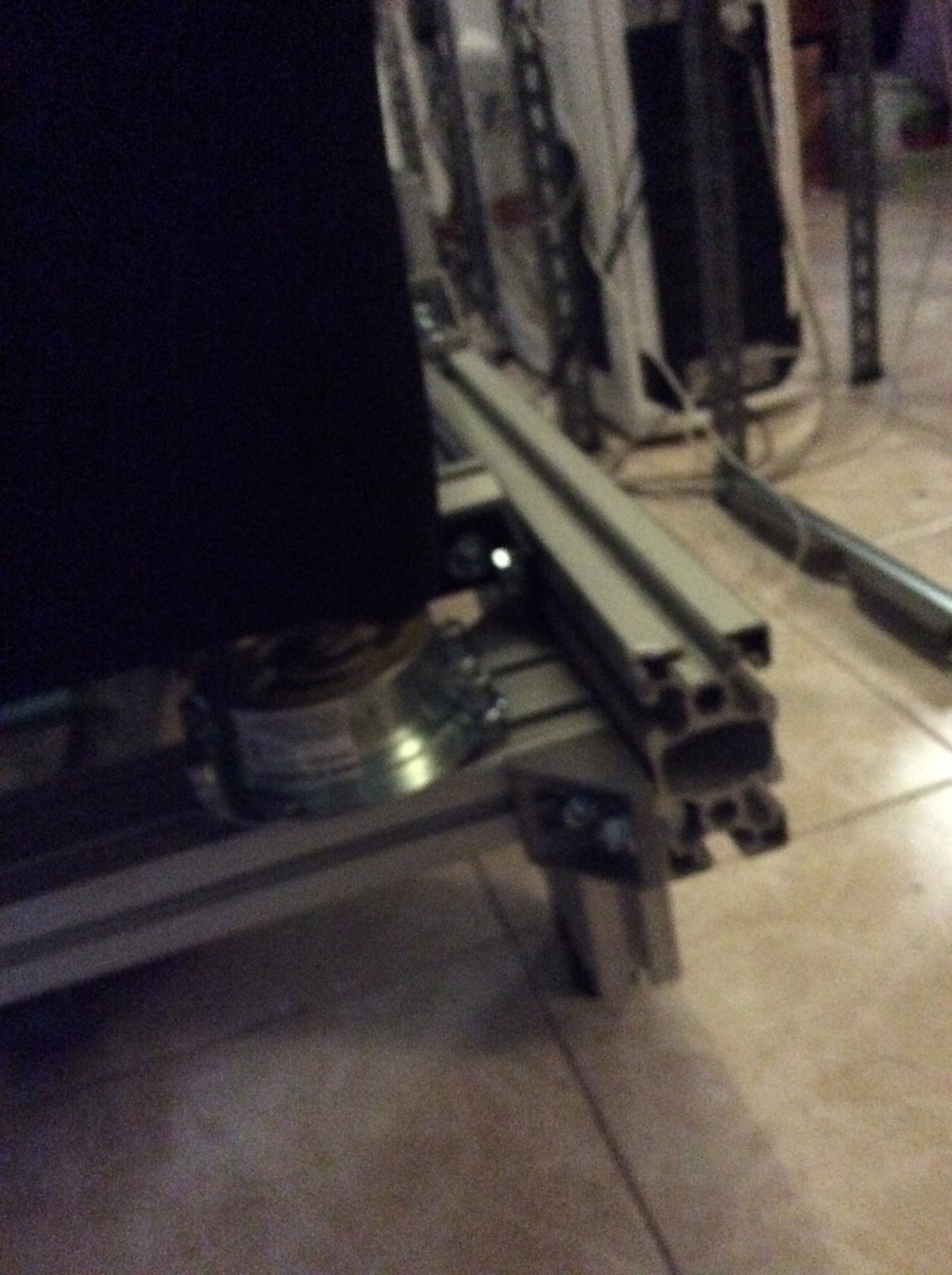

    I installed shims as feet to support the entire structure while waiting for the purchase of scn6 actuators
    • Like Like x 1
  10. Giorgio73

    Giorgio73 Alluminium rig with prosimu 3dof kit

    Joined:
    Jun 6, 2017
    Messages:
    100
    Occupation:
    Plc enginer
    Location:
    Italy,Varese
    Balance:
    700Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    2DOF, SCN6

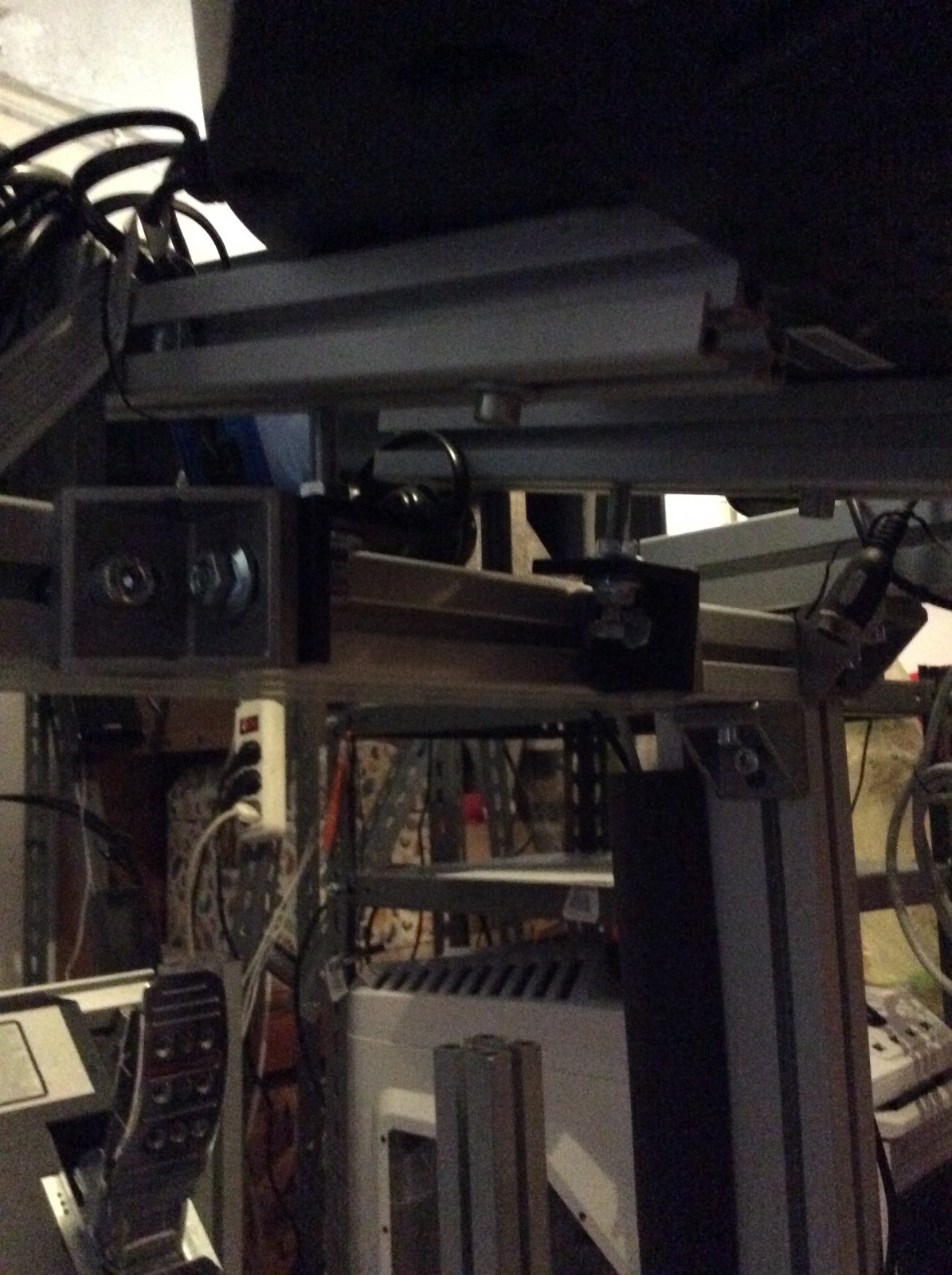

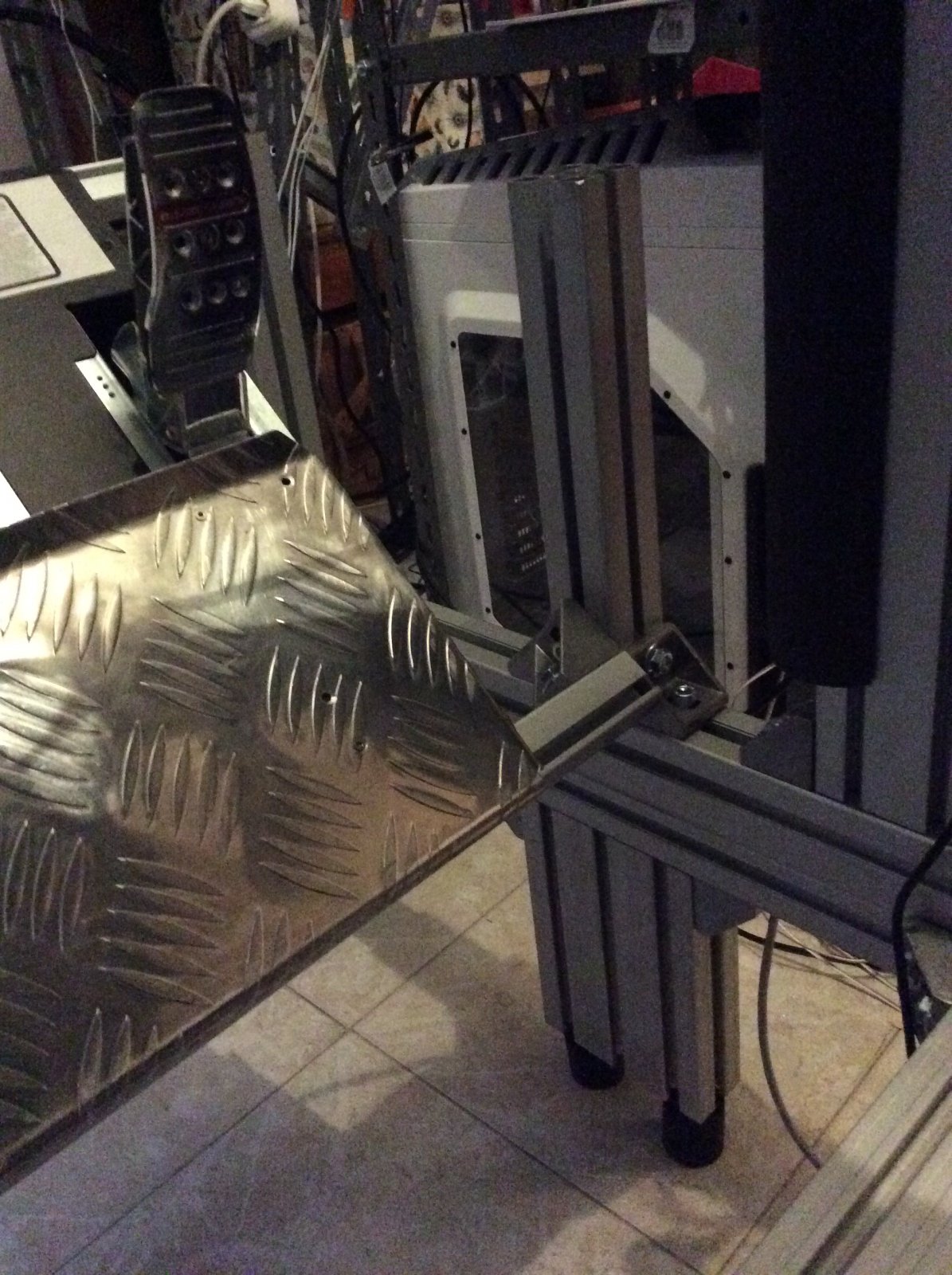

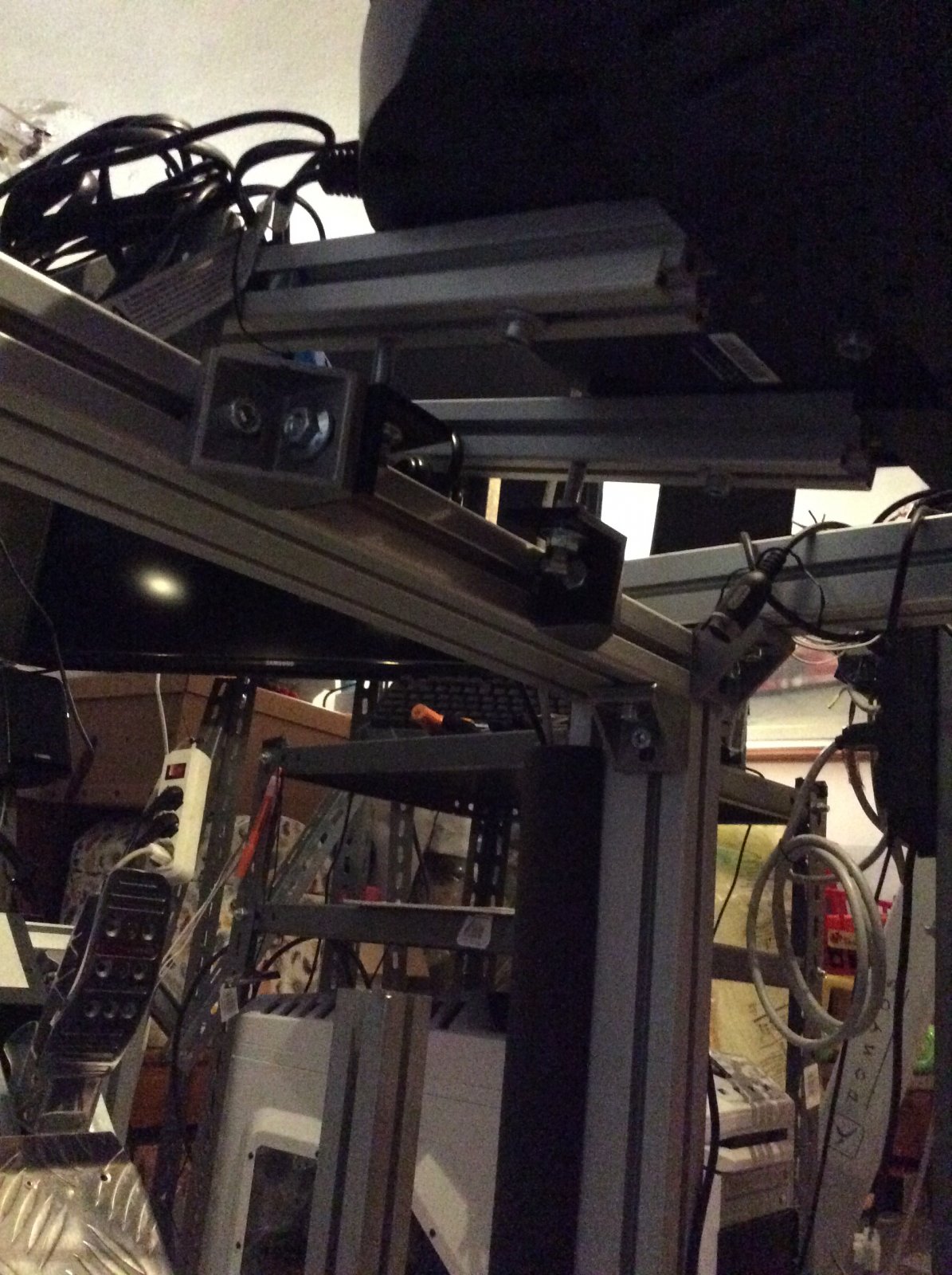

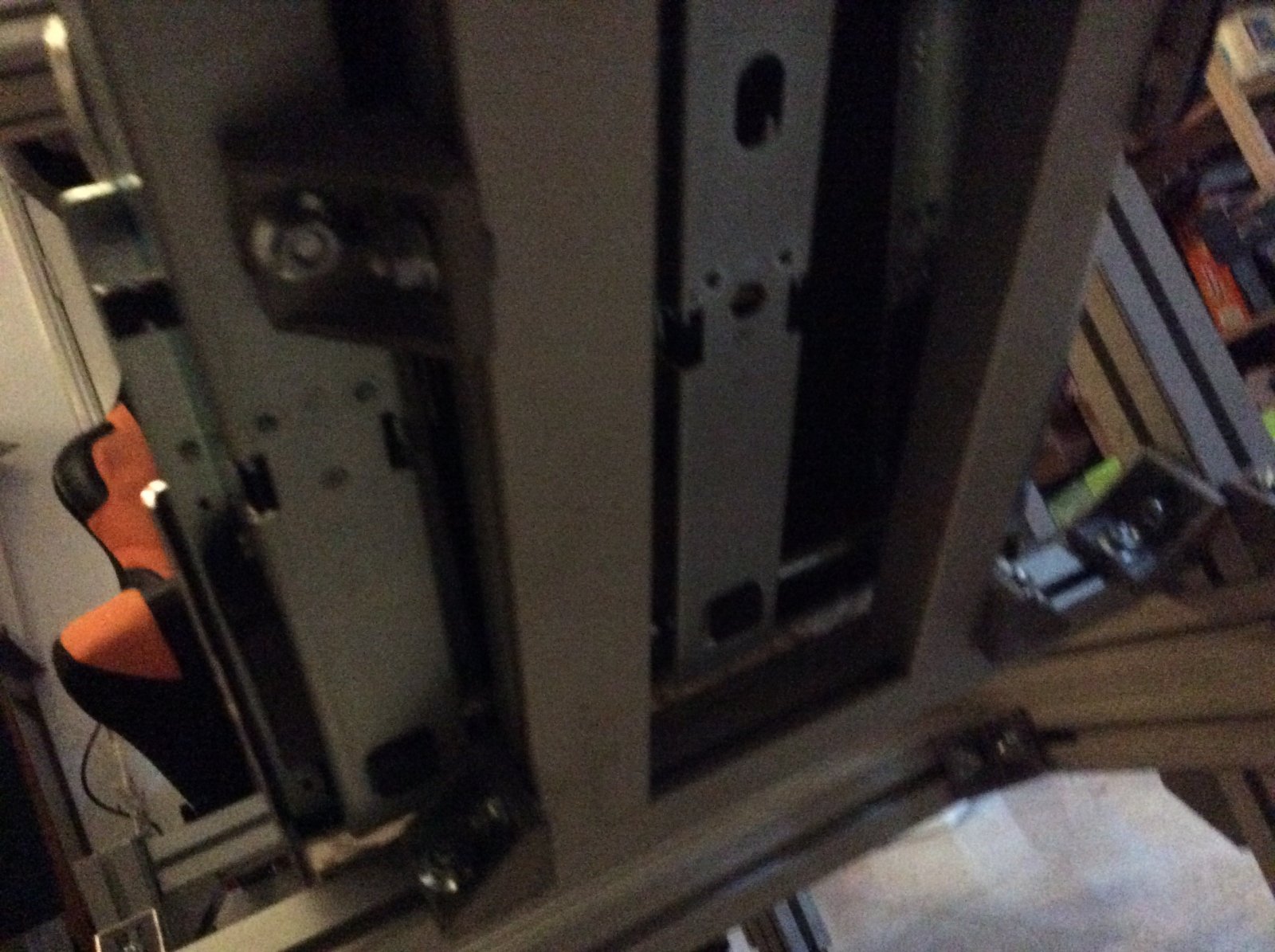

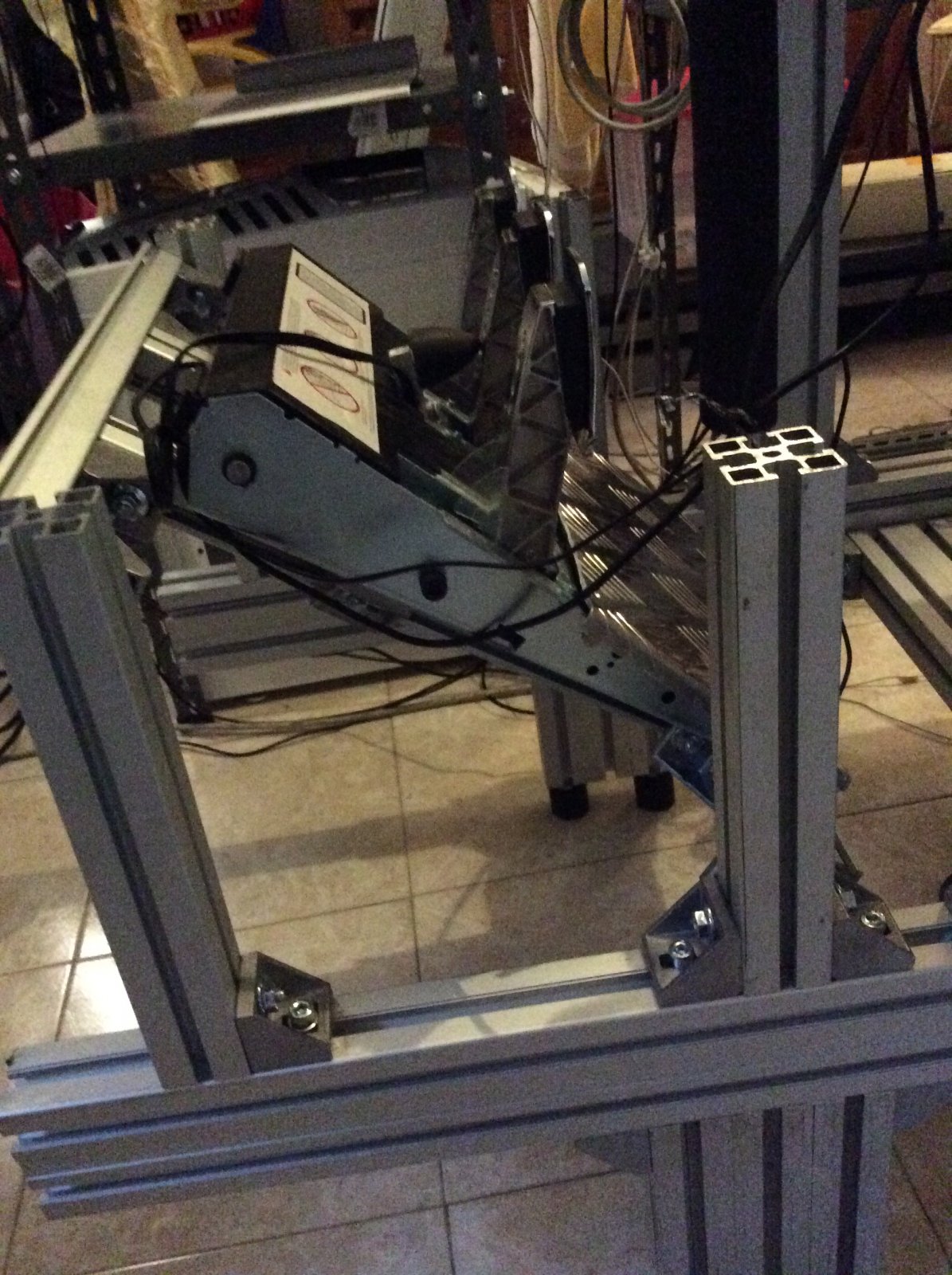

    some details of the pedal zone
    The pedal support can be move in all direction
    With the angolar square I fix the pedal
  11. Giorgio73

    Giorgio73 Alluminium rig with prosimu 3dof kit

    Joined:
    Jun 6, 2017
    Messages:
    100
    Occupation:
    Plc enginer
    Location:
    Italy,Varese
    Balance:
    700Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    2DOF, SCN6

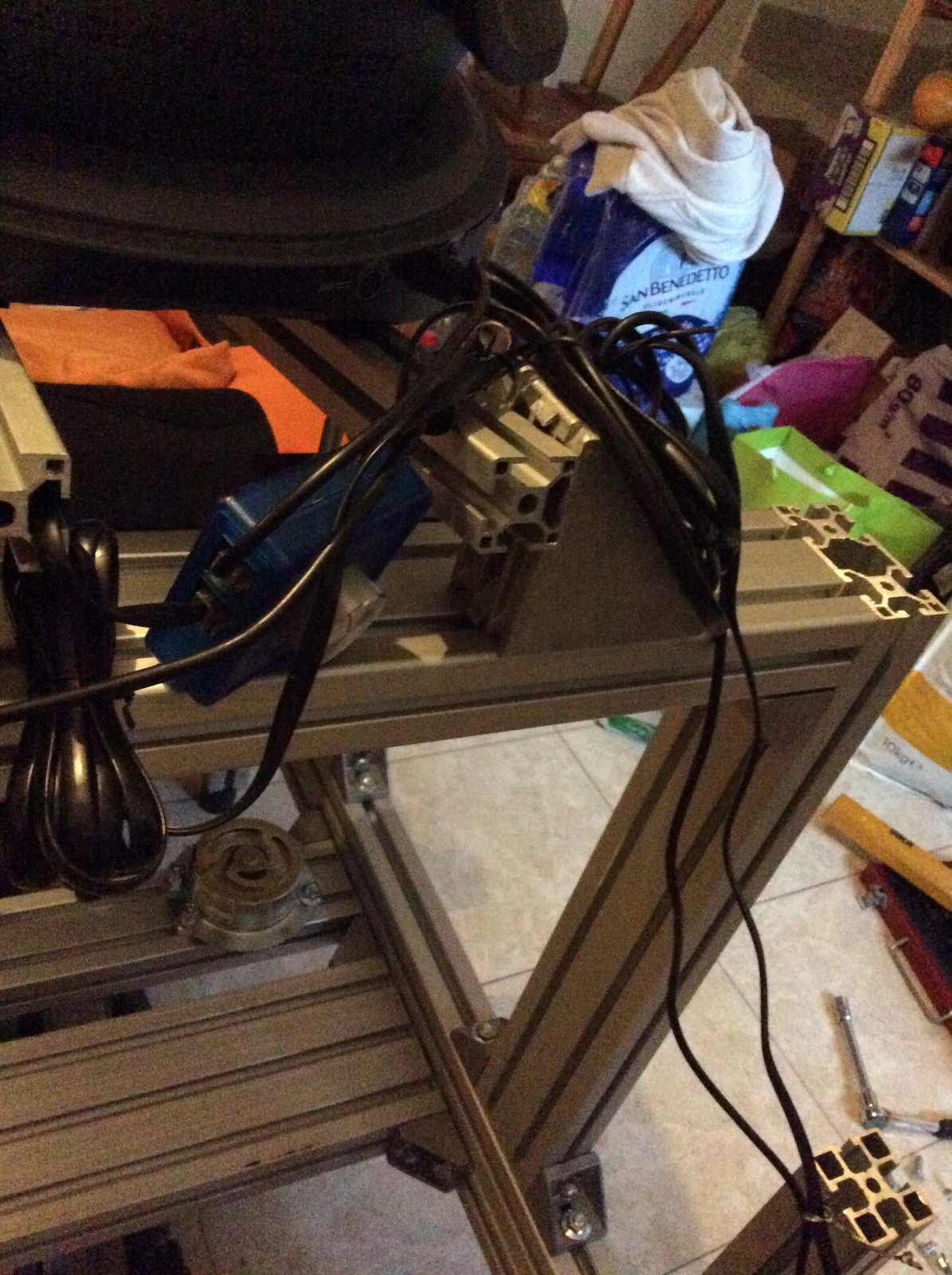

    Steering wheel details


  12. Giorgio73

    Giorgio73 Alluminium rig with prosimu 3dof kit

    Joined:
    Jun 6, 2017
    Messages:
    100
    Occupation:
    Plc enginer
    Location:
    Italy,Varese
    Balance:
    700Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    2DOF, SCN6

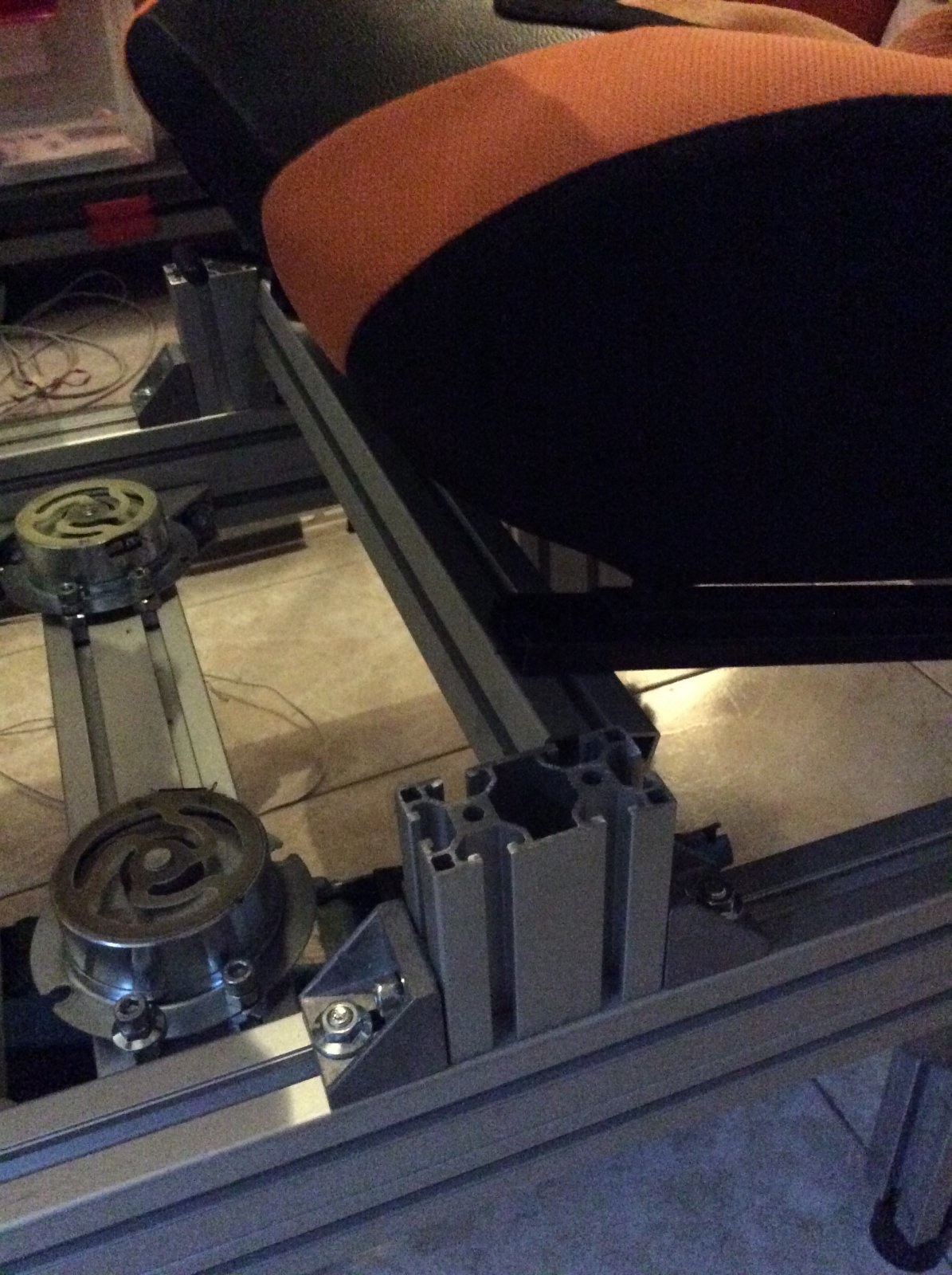

    Now the support of the seat




  13. Giorgio73

    Giorgio73 Alluminium rig with prosimu 3dof kit

    Joined:
    Jun 6, 2017
    Messages:
    100
    Occupation:
    Plc enginer
    Location:
    Italy,Varese
    Balance:
    700Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    2DOF, SCN6

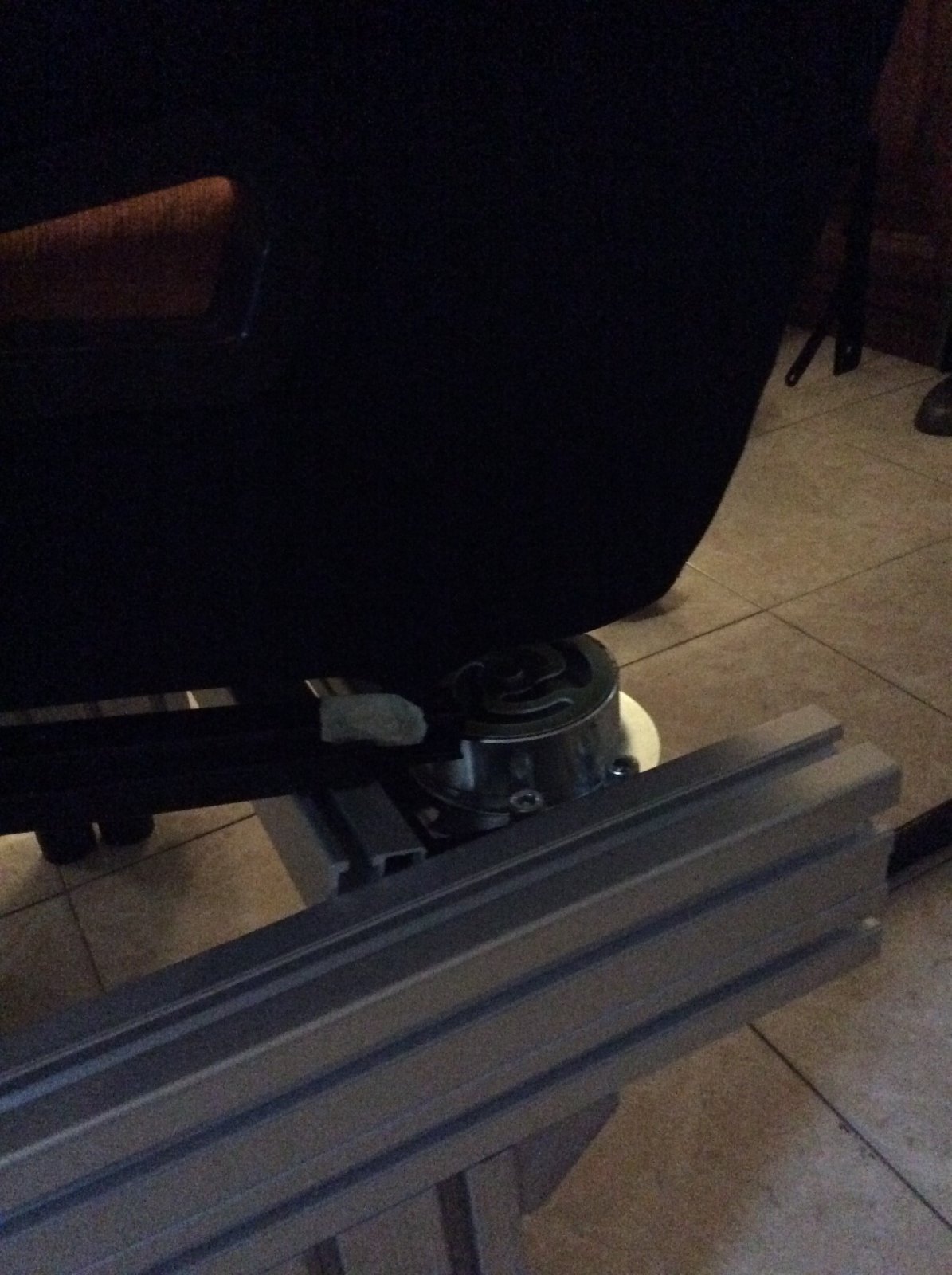

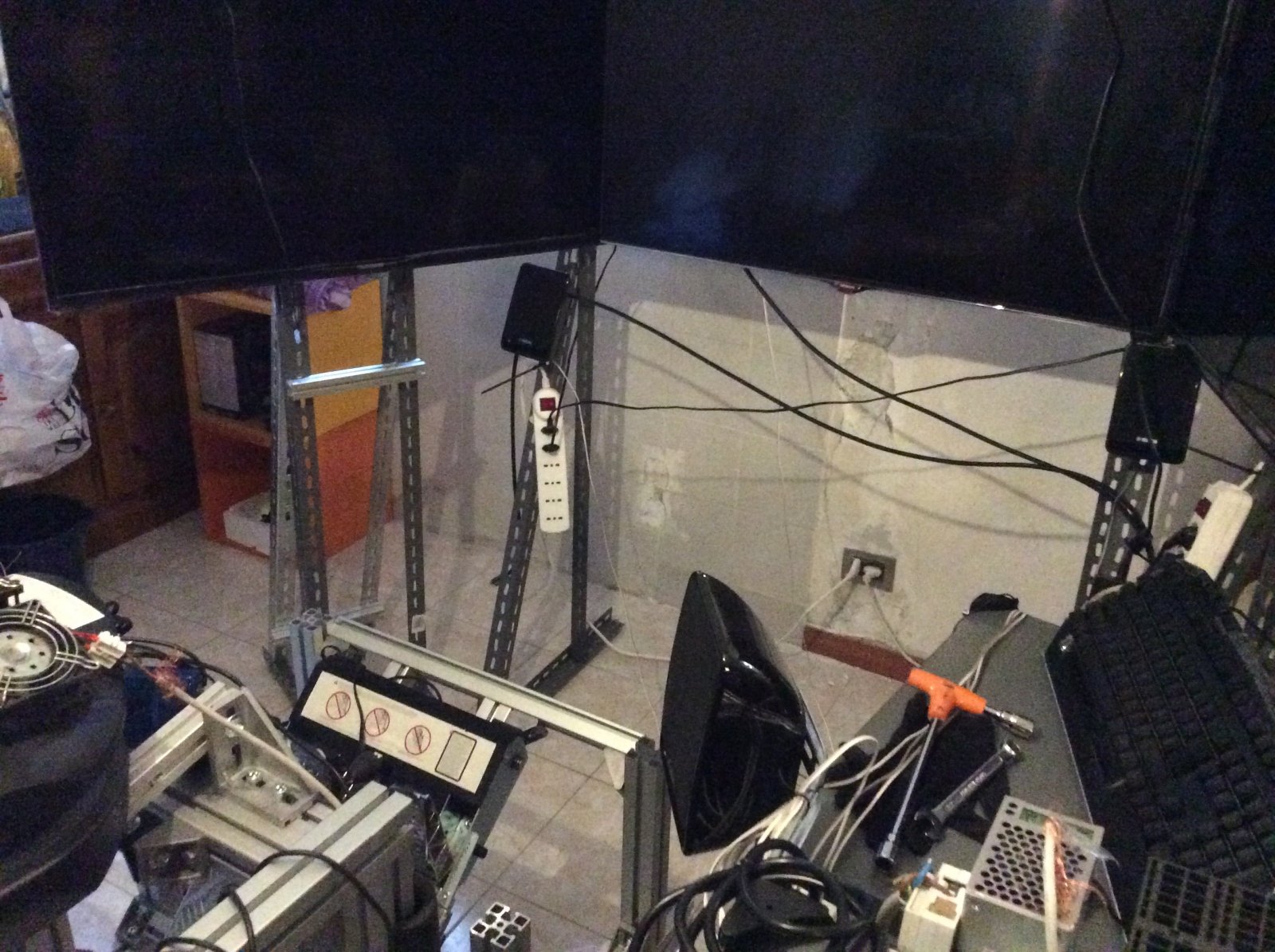

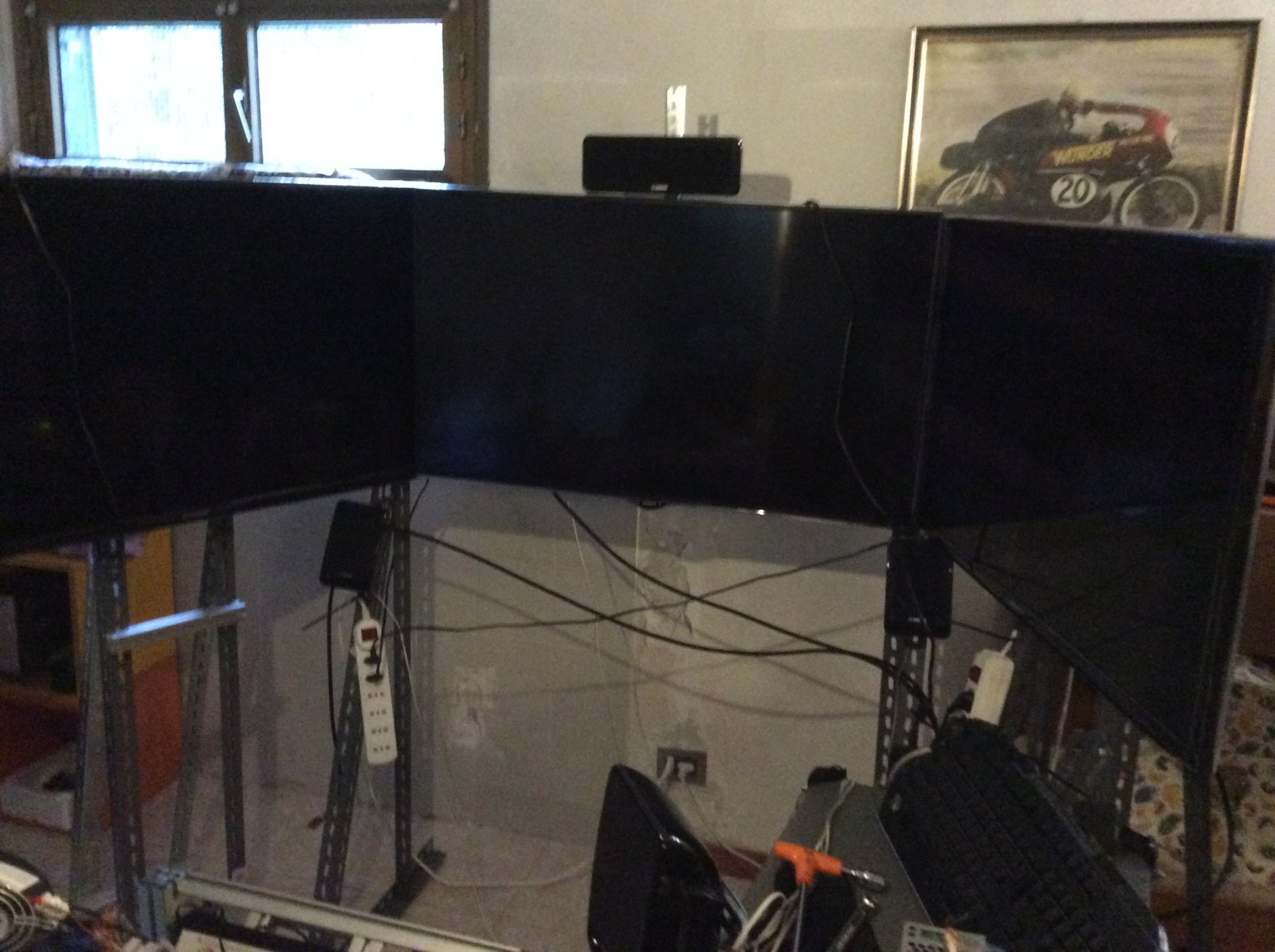

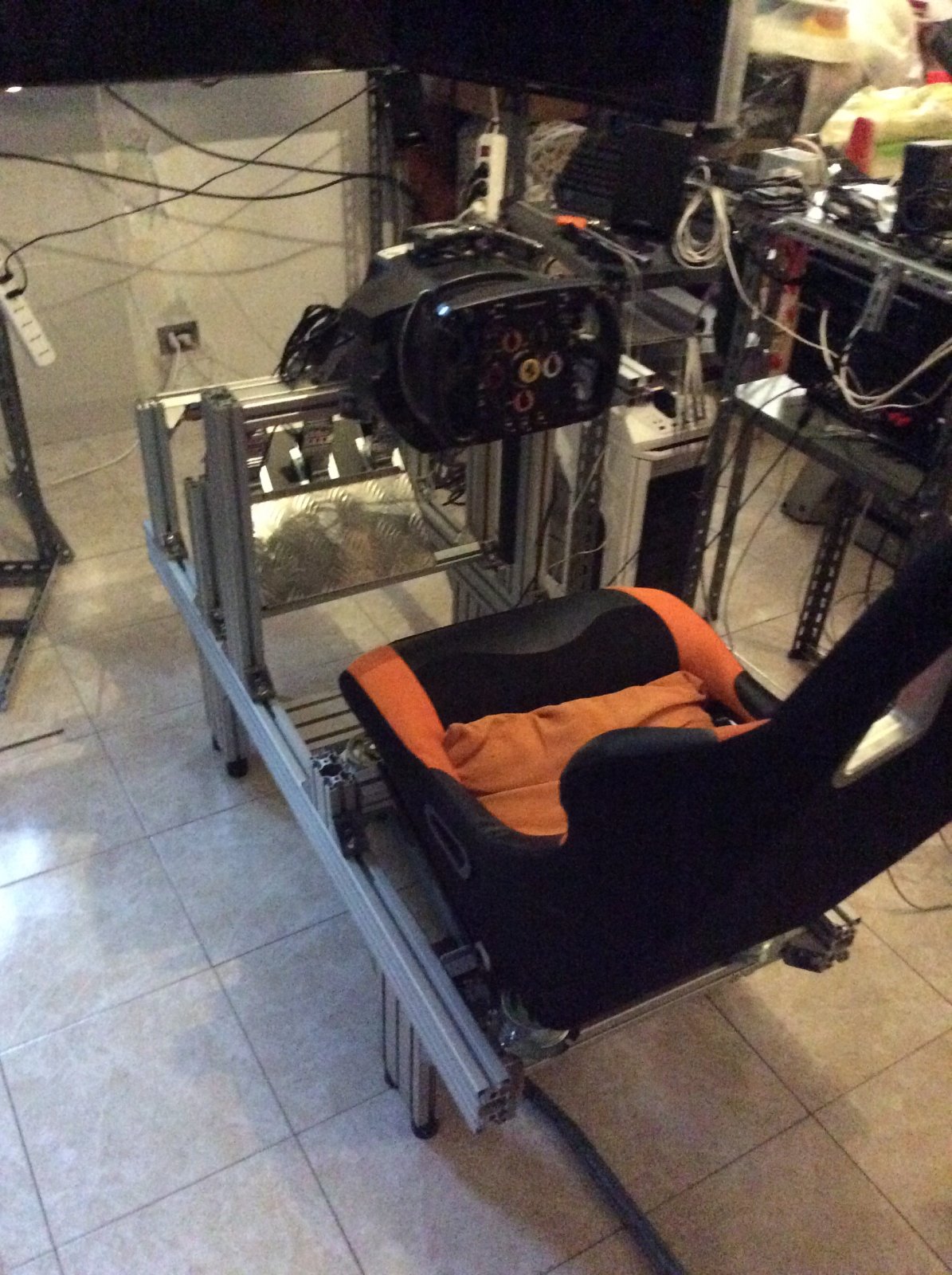

    compared to the initial configuration I had to review the tv supports. in this way they are wider in order to receive the bracket that supports the actuators



  14. Giorgio73

    Giorgio73 Alluminium rig with prosimu 3dof kit

    Joined:
    Jun 6, 2017
    Messages:
    100
    Occupation:
    Plc enginer
    Location:
    Italy,Varese
    Balance:
    700Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    2DOF, SCN6

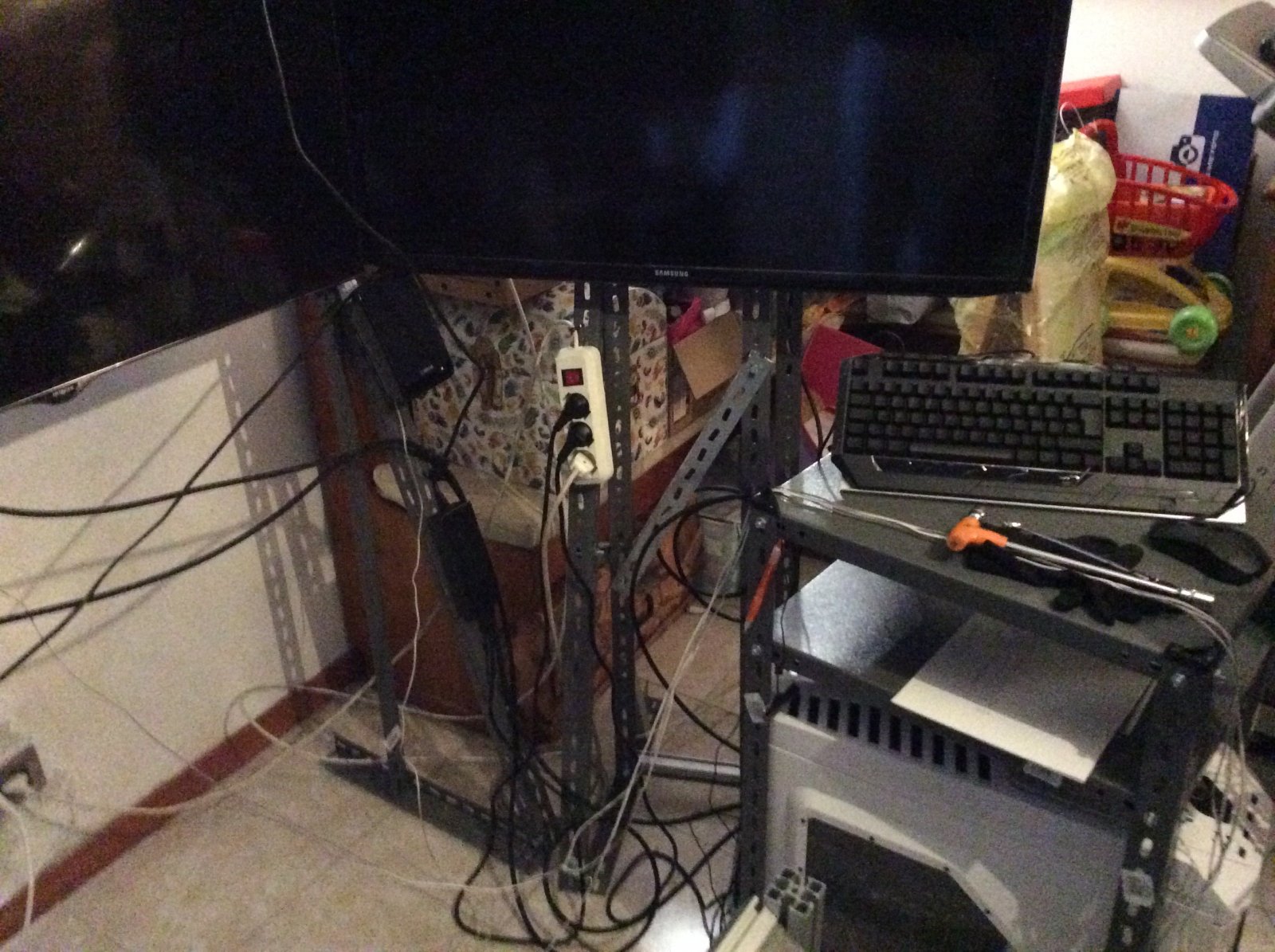

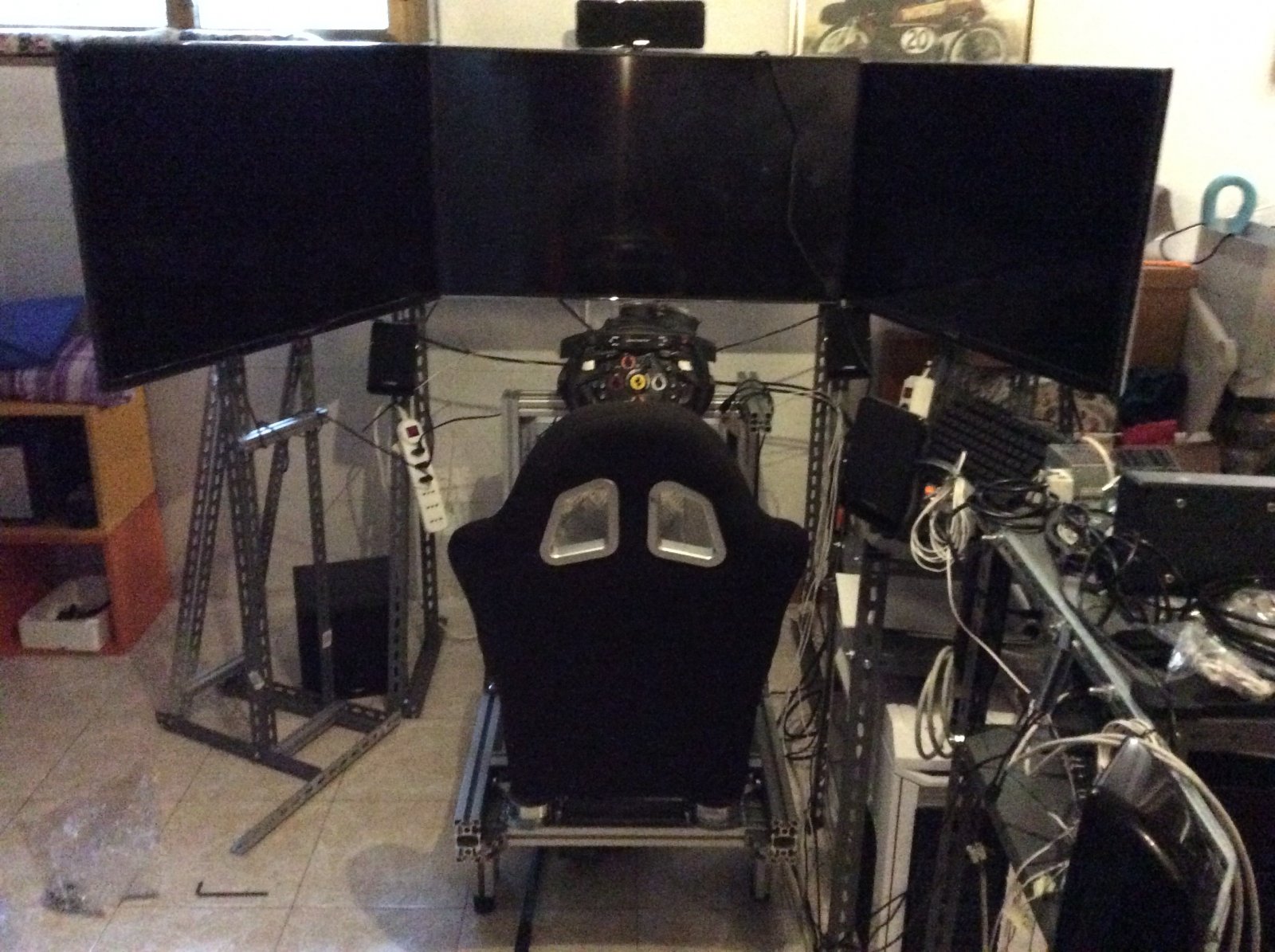

    everything in place, only the actuators are missing, next step to buy the scn6


    Attached Files:

    • Like Like x 1
  15. Giorgio73

    Giorgio73 Alluminium rig with prosimu 3dof kit

    Joined:
    Jun 6, 2017
    Messages:
    100
    Occupation:
    Plc enginer
    Location:
    Italy,Varese
    Balance:
    700Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    2DOF, SCN6

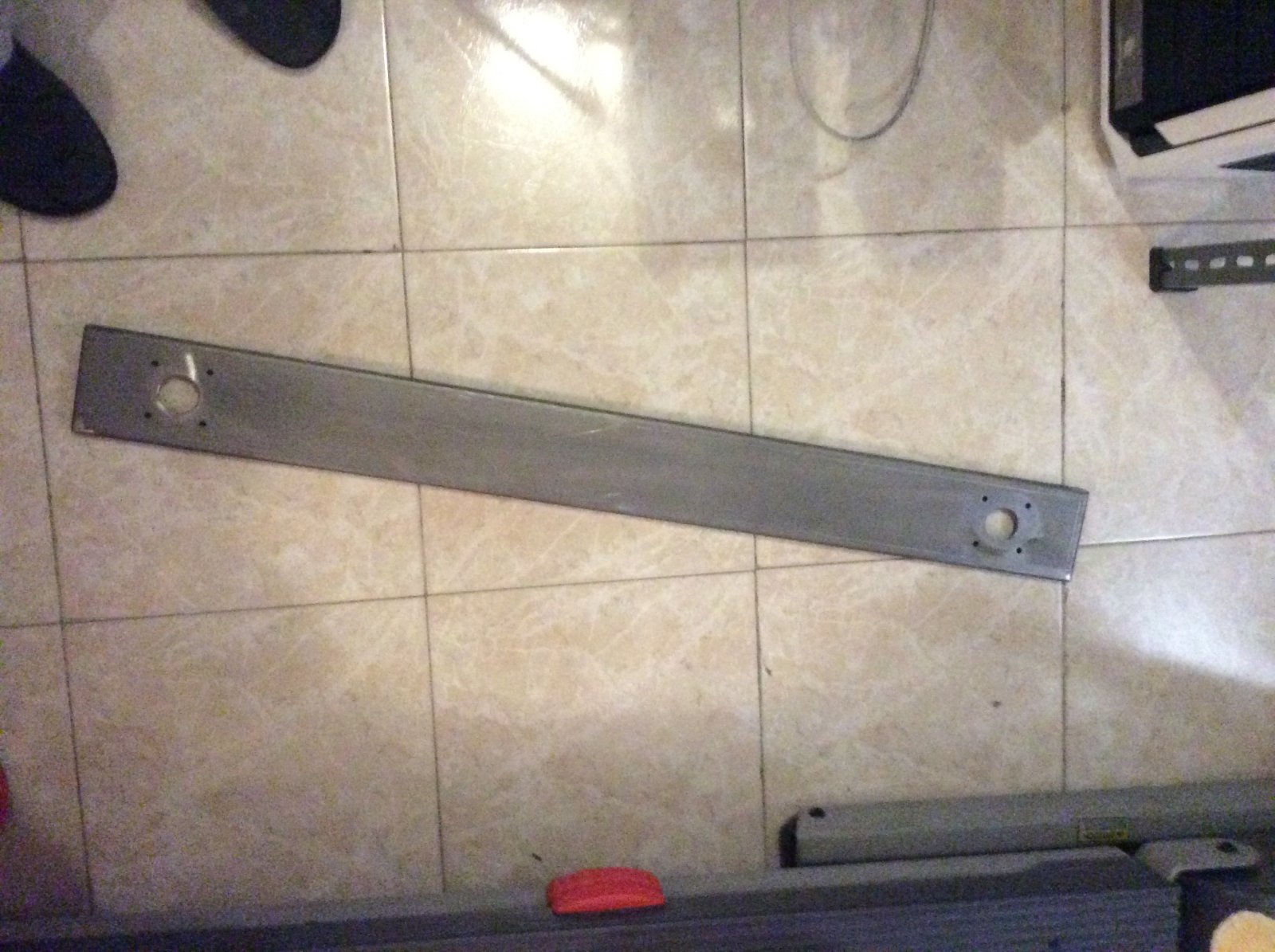

    after having designed with autocad I have made a support colleague for the actuators. Must be painting.

  16. noorbeast

    noorbeast VR - The Next Generation Staff Member Moderator

    Joined:
    Jul 13, 2014
    Messages:
    12,625
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    96,552Coins
    Ratings:
    +8,108 / 40 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    Have you mounted the actuators yet and do you have a video of your rig in action?
  17. Giorgio73

    Giorgio73 Alluminium rig with prosimu 3dof kit

    Joined:
    Jun 6, 2017
    Messages:
    100
    Occupation:
    Plc enginer
    Location:
    Italy,Varese
    Balance:
    700Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    2DOF, SCN6

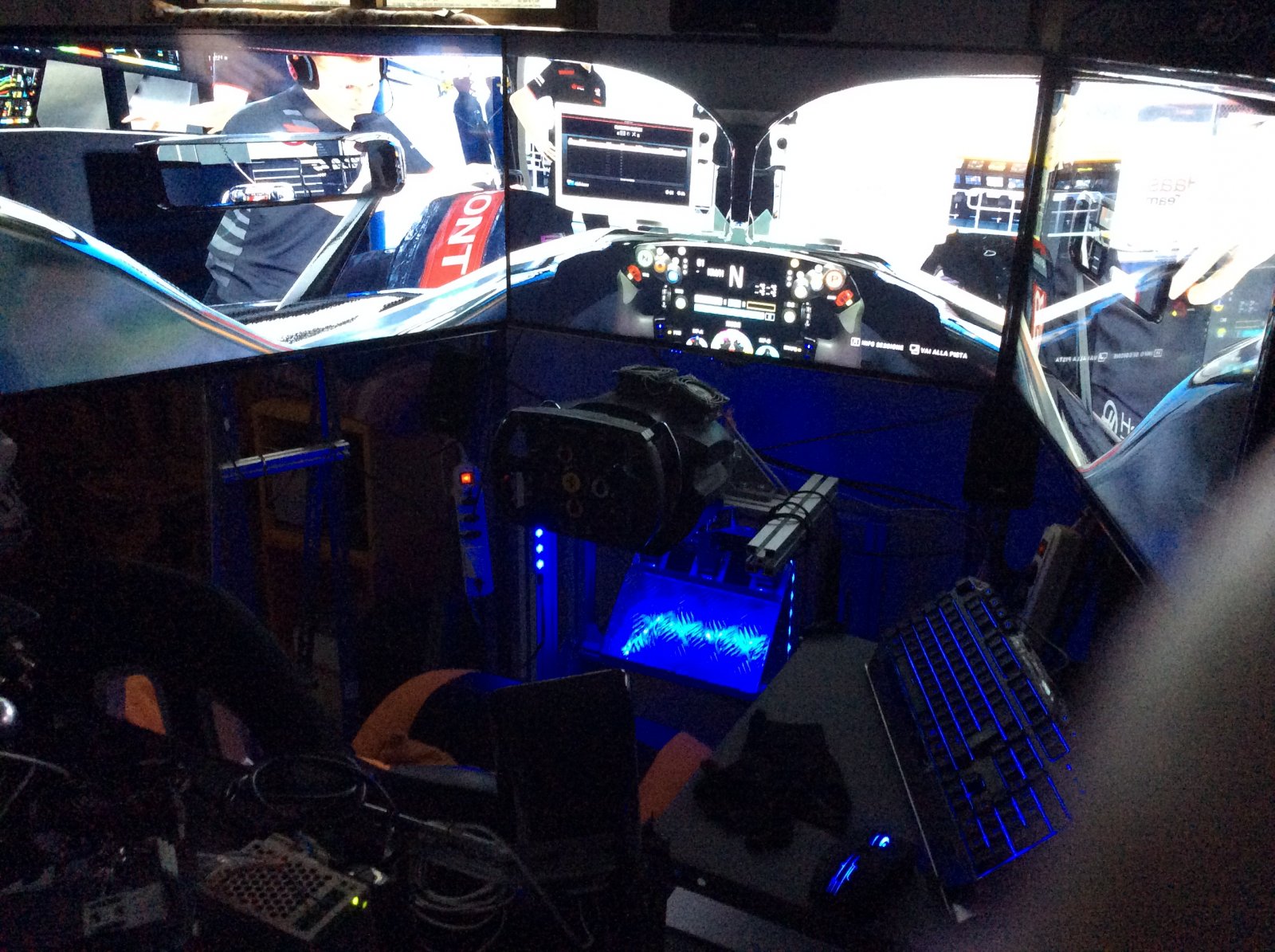

    Not yet, before buying the actuators, since they are not cheap, I wanted to test simtoll with the f1 2018 plugin and assetto corsa competizione.
  18. jharps

    jharps New Member

    Joined:
    Nov 5, 2018
    Messages:
    8
    Balance:
    77Coins
    Ratings:
    +0 / 0 / -0
    My Motion Simulator:
    DC motor
    this looks sick!!
  19. Giorgio73

    Giorgio73 Alluminium rig with prosimu 3dof kit

    Joined:
    Jun 6, 2017
    Messages:
    100
    Occupation:
    Plc enginer
    Location:
    Italy,Varese
    Balance:
    700Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    2DOF, SCN6
    sorry I did not understand, what seems sick. would you be so kind to explain yourself better?
  20. Giorgio73

    Giorgio73 Alluminium rig with prosimu 3dof kit

    Joined:
    Jun 6, 2017
    Messages:
    100
    Occupation:
    Plc enginer
    Location:
    Italy,Varese
    Balance:
    700Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    2DOF, SCN6
    Hy norbeast why you ask me this?
