80/20 Aluminum profile 2DoF build.

Discussion in 'DIY Motion Simulator Projects' started by Watchumacallit, Dec 12, 2018.

  1. sulfail

    sulfail Member

    Joined:
    Aug 31, 2018
    Messages:
    60
    Occupation:
    AISLAMIENTOS Y PLADUR.
    Location:
    vigo(pontevedra) SPAIN
    Balance:
    51Coins
    Ratings:
    +22 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    ok saved to favorites.
    • Like Like x 1
  2. Watchumacallit

    Watchumacallit BMET- Lead

    Joined:
    Oct 16, 2018
    Messages:
    64
    Occupation:
    Biomedical Engineer
    Location:
    Las Vegas, NV
    Balance:
    - 54Coins
    Ratings:
    +67 / 2 / -0
    My Motion Simulator:
    2DOF, JRK
    Hey @noorbeast
    Thinking about adding dampers on the rig. You think it’ll be beneficial in helping some of the harsher movement of the rig and help motors in the upward stroke when lifting more of the weight?

    Thanks in advance!
  3. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    15,804
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    115,446Coins
    Ratings:
    +9,228 / 46 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    Harsh movement likely indicates the need to refine the motion profile. For example decreasing the Main Level % a bit globally softens the profile.

    Are the motors getting excessively hot from being under strain? If so look at things like how well balanced the rig is, rather than dampeners.
    • Like Like x 1
  4. Kranky Pantz

    Kranky Pantz Active Member

    Joined:
    Sep 9, 2018
    Messages:
    349
    Location:
    Canada, Eh!
    Balance:
    1,885Coins
    Ratings:
    +279 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, JRK, Motion platform
    Have you tried using a small % of motion smoothing on some of the harsher axis movements?

    I use a bit here & there, and it works great.
    • Like Like x 1
  5. Watchumacallit

    Watchumacallit BMET- Lead

    Joined:
    Oct 16, 2018
    Messages:
    64
    Occupation:
    Biomedical Engineer
    Location:
    Las Vegas, NV
    Balance:
    - 54Coins
    Ratings:
    +67 / 2 / -0
    My Motion Simulator:
    2DOF, JRK
    It’s really not that harsh and I don’t have problems with motors getting extremely hot. The rig is well balanced. Just wondered if dampers will work and make the rig feel more like riding on suspensions.
  6. Watchumacallit

    Watchumacallit BMET- Lead

    Joined:
    Oct 16, 2018
    Messages:
    64
    Occupation:
    Biomedical Engineer
    Location:
    Las Vegas, NV
    Balance:
    - 54Coins
    Ratings:
    +67 / 2 / -0
    My Motion Simulator:
    2DOF, JRK
    Yea, I played with it and it does soften it up but too much makes the movement too slow. As I mentioned to Noorbeast, just wondering if dampers will work to make it feel like your riding on suspensions.
  7. noorbeast

    noorbeast VR Tassie Devil Staff Member Moderator Race Director

    Joined:
    Jul 13, 2014
    Messages:
    15,804
    Occupation:
    Innovative tech specialist for NGOs
    Location:
    St Helens, Tasmania, Australia
    Balance:
    115,446Coins
    Ratings:
    +9,228 / 46 / -2
    My Motion Simulator:
    3DOF, DC motor, JRK
    No I don't believe dampeners will really help, they are just a mechanical way to affect the movement, which you can already do using the motion profile.

    Keep in mind the physical limits of a 2DOF, you can do things like simulate heave, but that is not the same thing as having an actual heave axis.

    You also need to consider how the axis allocations work together to create the simulation of motion and effects. For example, how pitch and heave can have a role in simulating something like a rumble strip.

    In other words I doubt you have exhausted refinement of your motion profile, but in saying so there are limits to what a 2DOF can actually produce in terms of motion cues.
    • Like Like x 1
  8. Watchumacallit

    Watchumacallit BMET- Lead

    Joined:
    Oct 16, 2018
    Messages:
    64
    Occupation:
    Biomedical Engineer
    Location:
    Las Vegas, NV
    Balance:
    - 54Coins
    Ratings:
    +67 / 2 / -0
    My Motion Simulator:
    2DOF, JRK
    Ok, Thanks!
  9. Watchumacallit

    Watchumacallit BMET- Lead

    Joined:
    Oct 16, 2018
    Messages:
    64
    Occupation:
    Biomedical Engineer
    Location:
    Las Vegas, NV
    Balance:
    - 54Coins
    Ratings:
    +67 / 2 / -0
    My Motion Simulator:
    2DOF, JRK

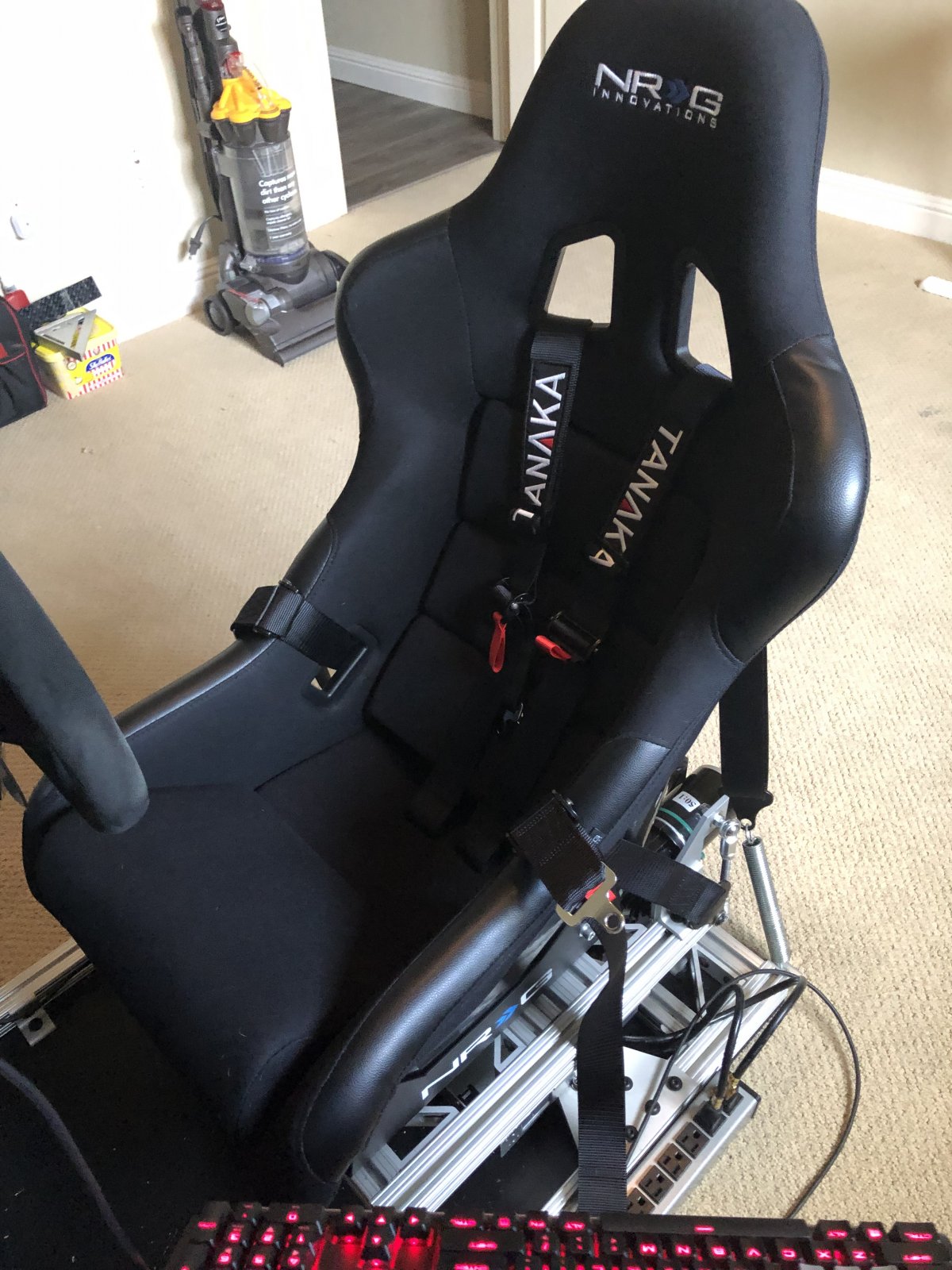

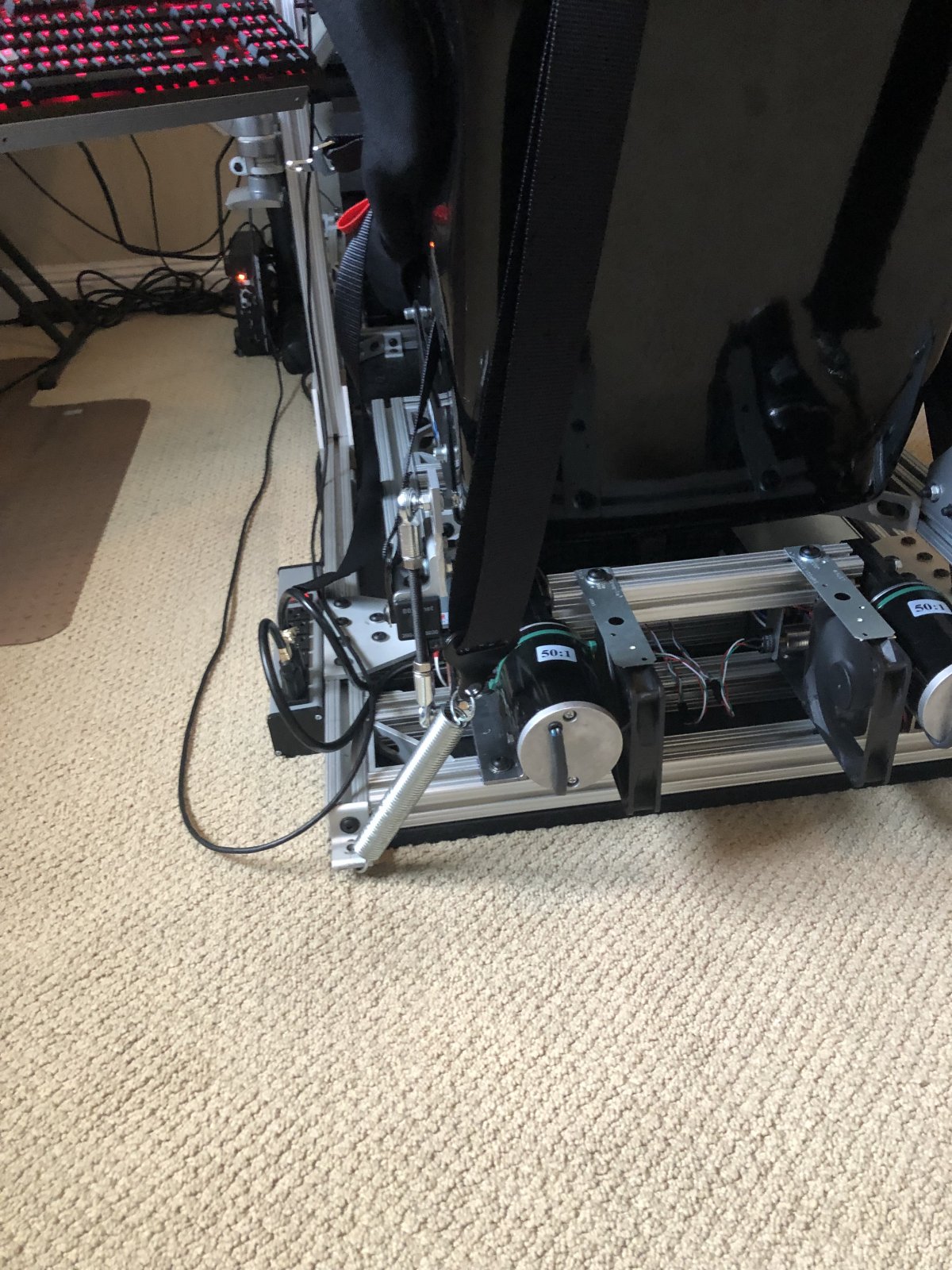

    Added 4 point harness and tension springs. Really adds to the immersion.
    IMG_2364.jpg IMG_2365.jpg

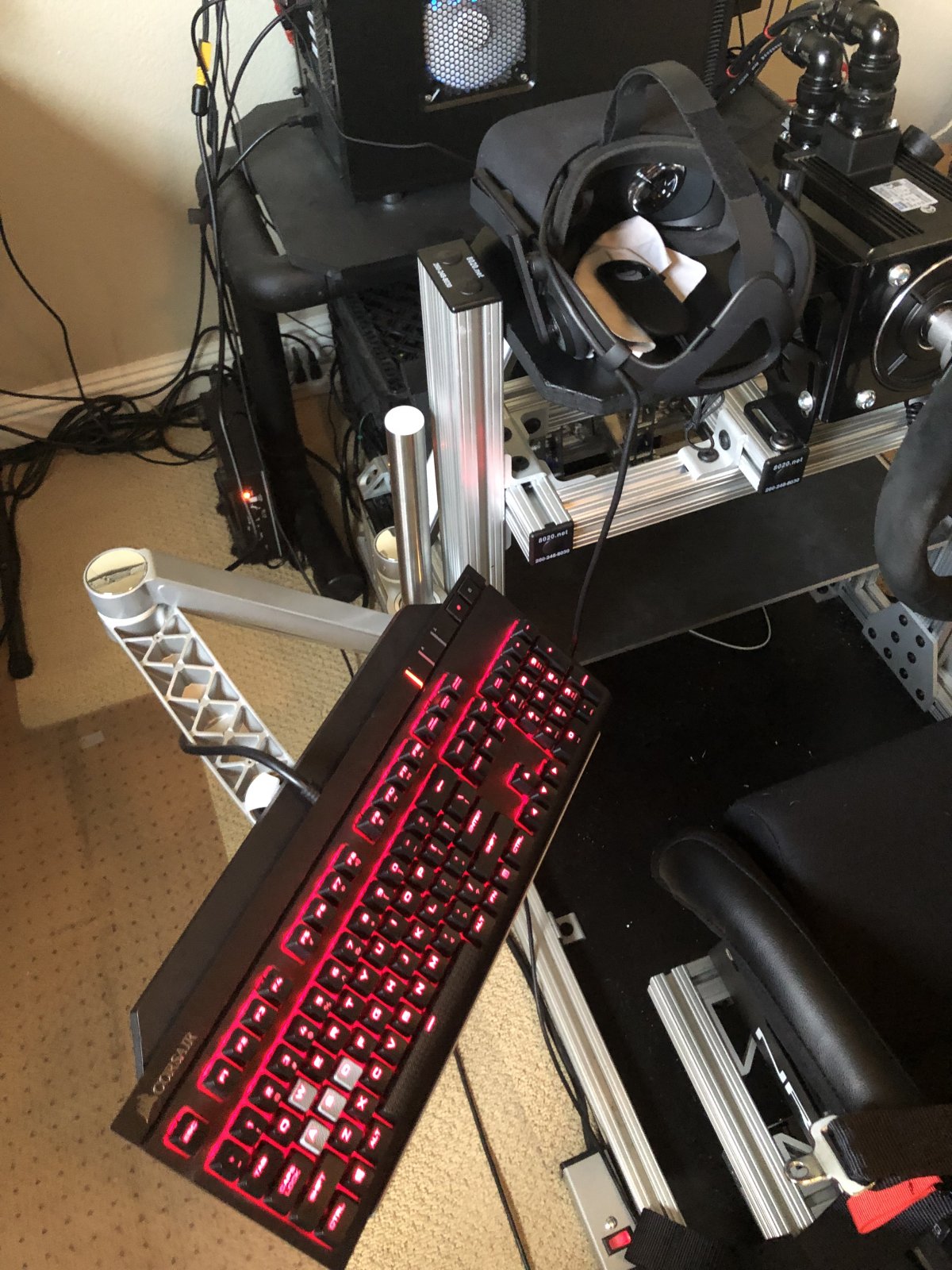

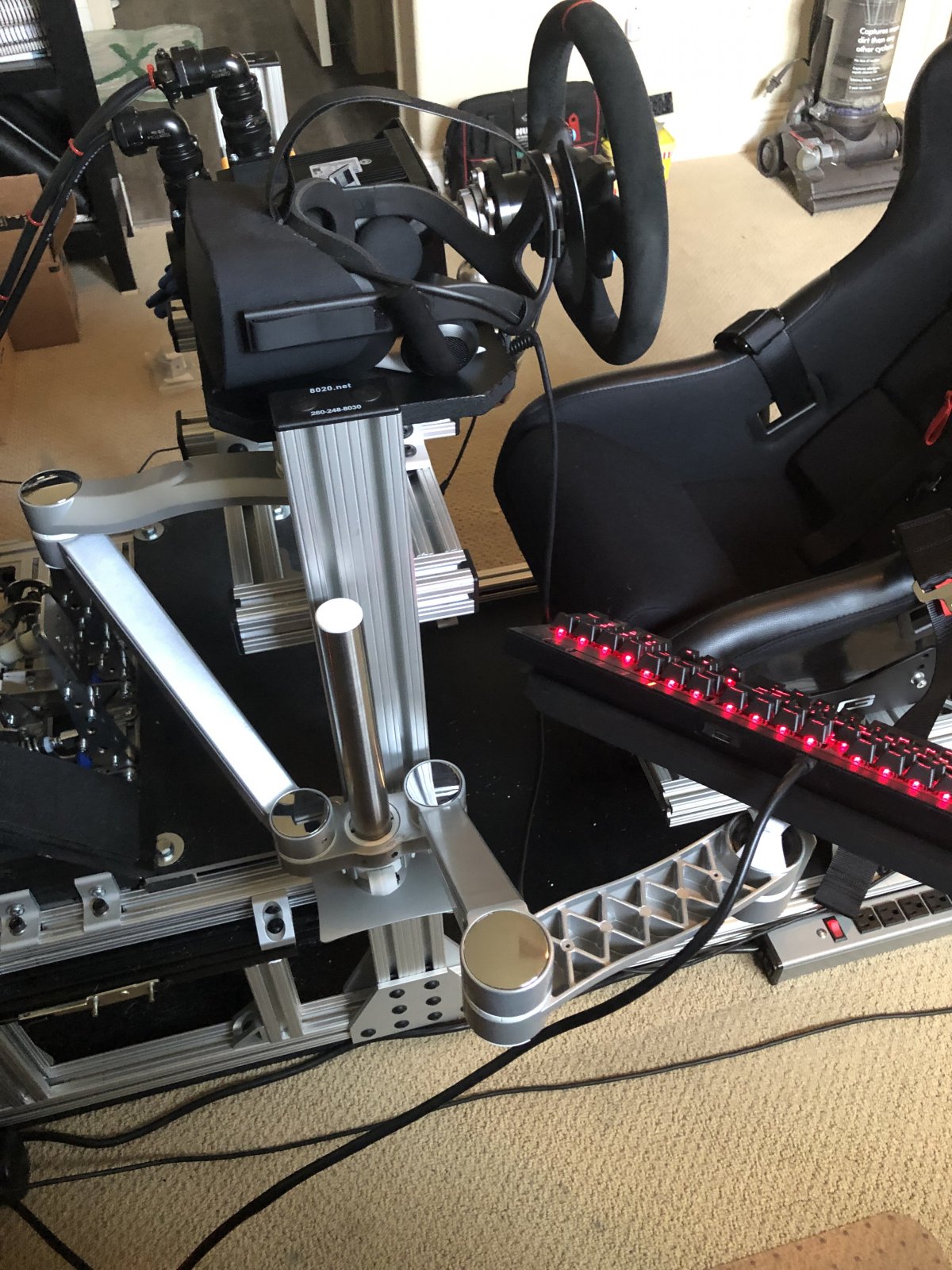

    Also modified double monitor stand that I got free from work to make keyboard and HMD tray.

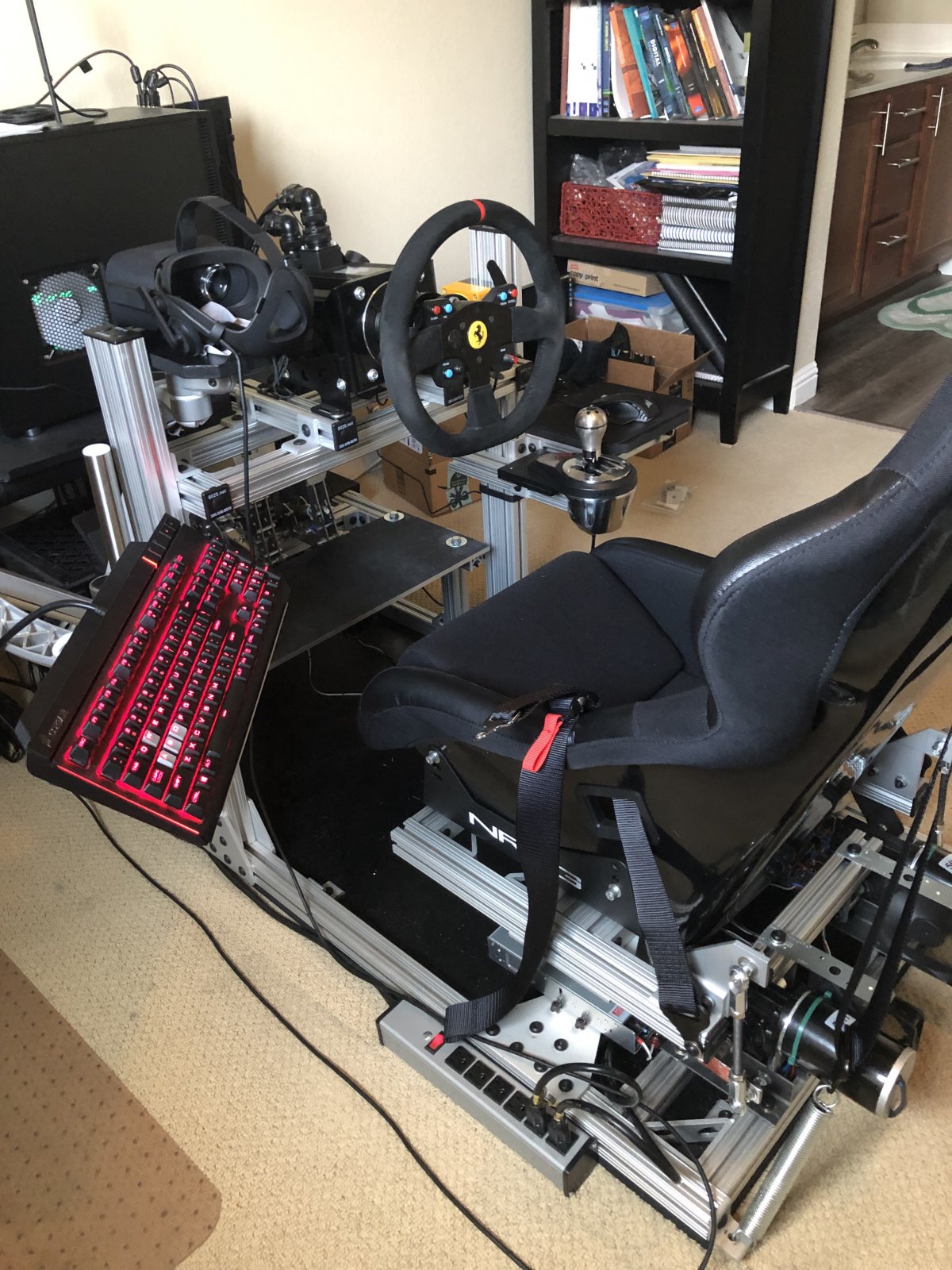

    IMG_2362.jpg IMG_2363.jpg IMG_2361.jpg
    • Like Like x 2
  10. Watchumacallit

    Watchumacallit BMET- Lead

    Joined:
    Oct 16, 2018
    Messages:
    64
    Occupation:
    Biomedical Engineer
    Location:
    Las Vegas, NV
    Balance:
    - 54Coins
    Ratings:
    +67 / 2 / -0
    My Motion Simulator:
    2DOF, JRK

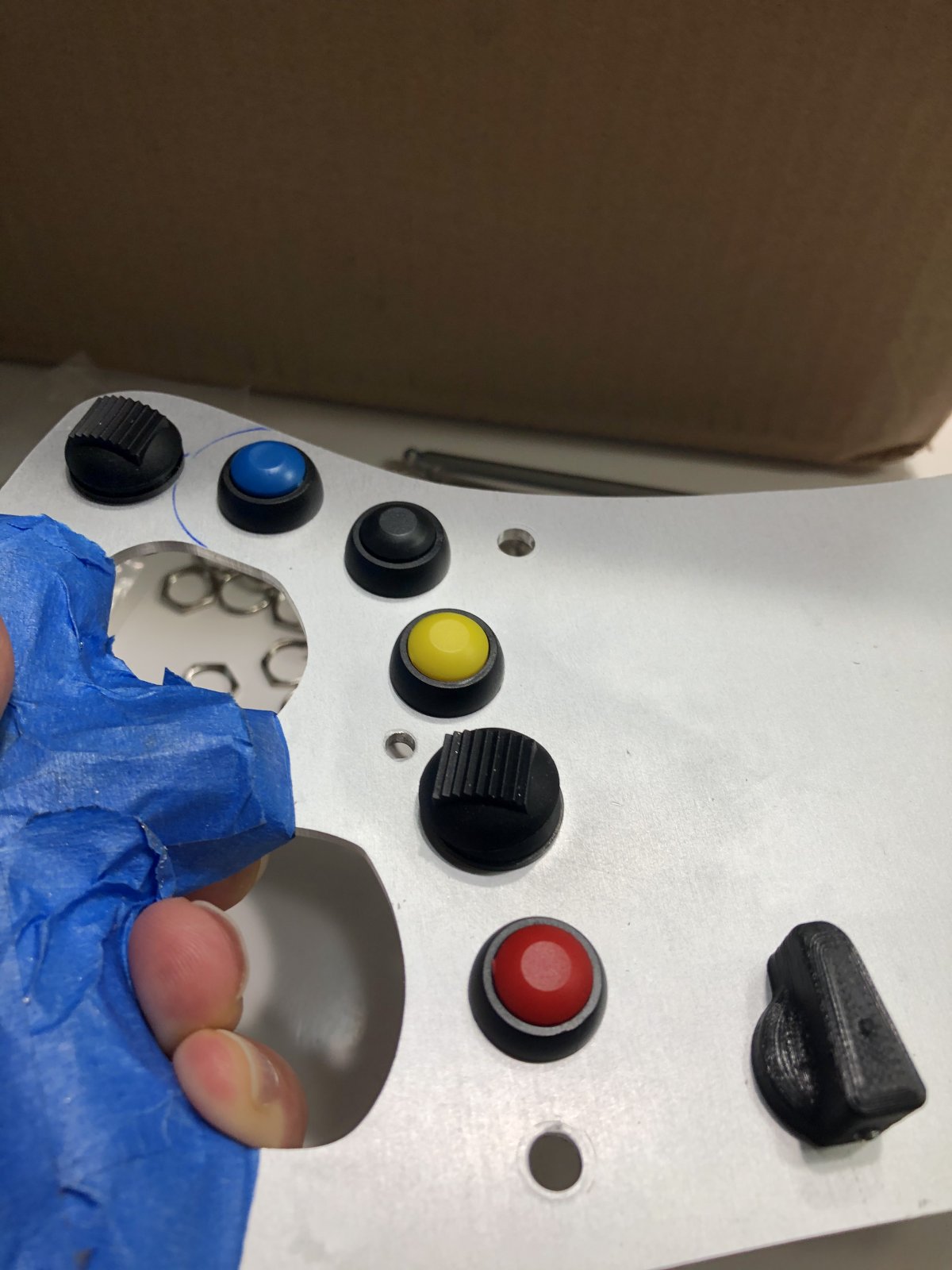

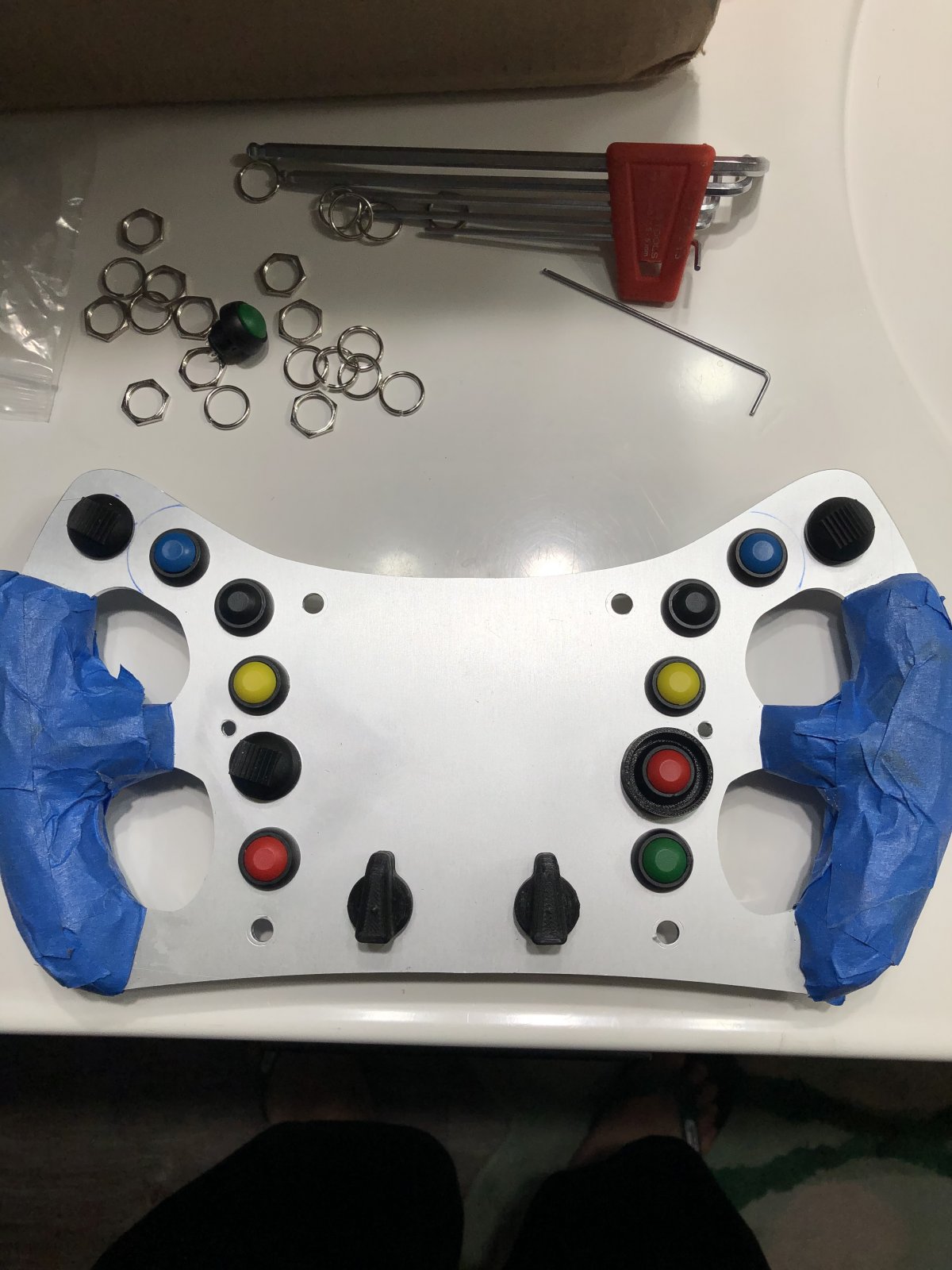

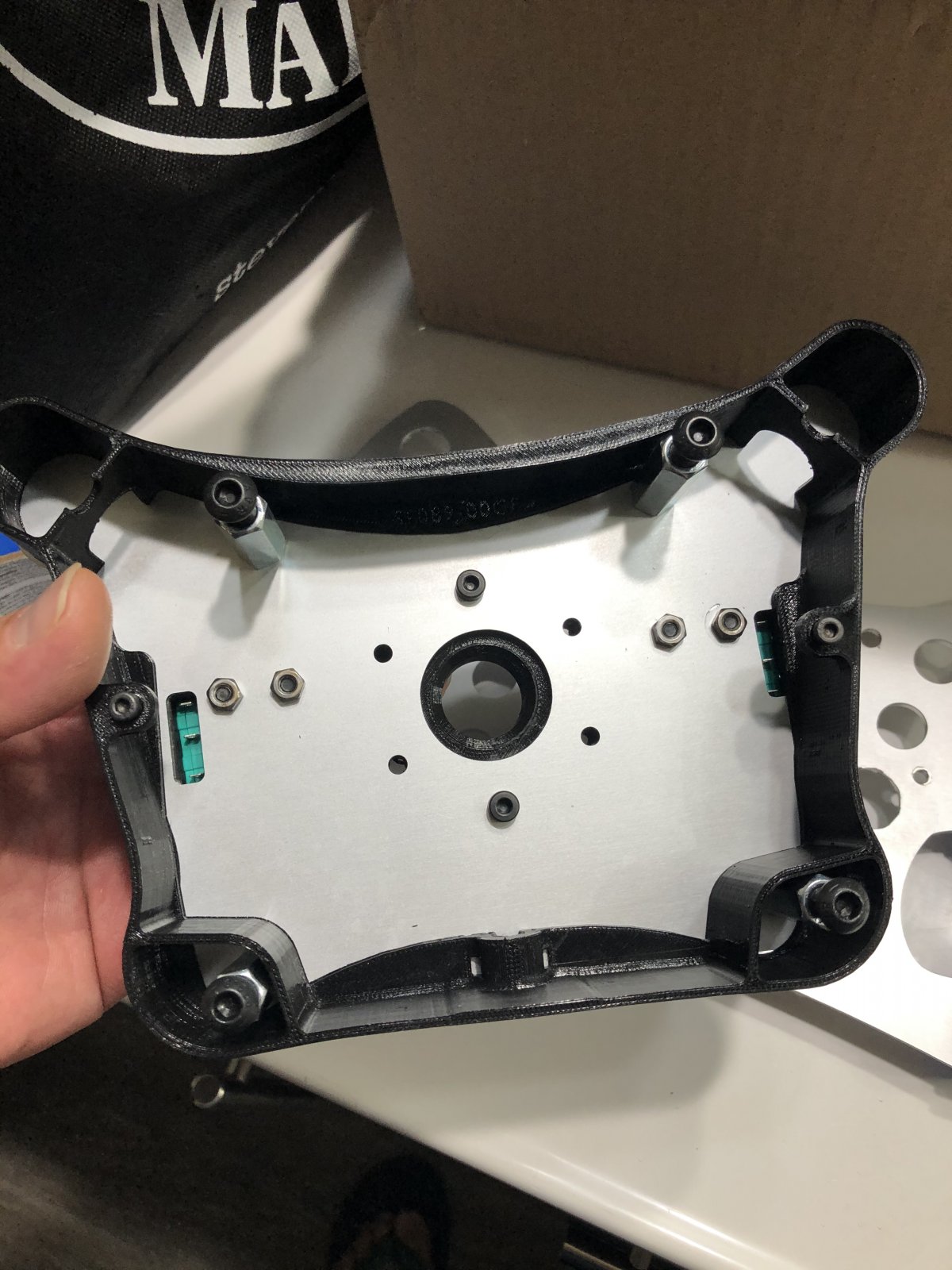

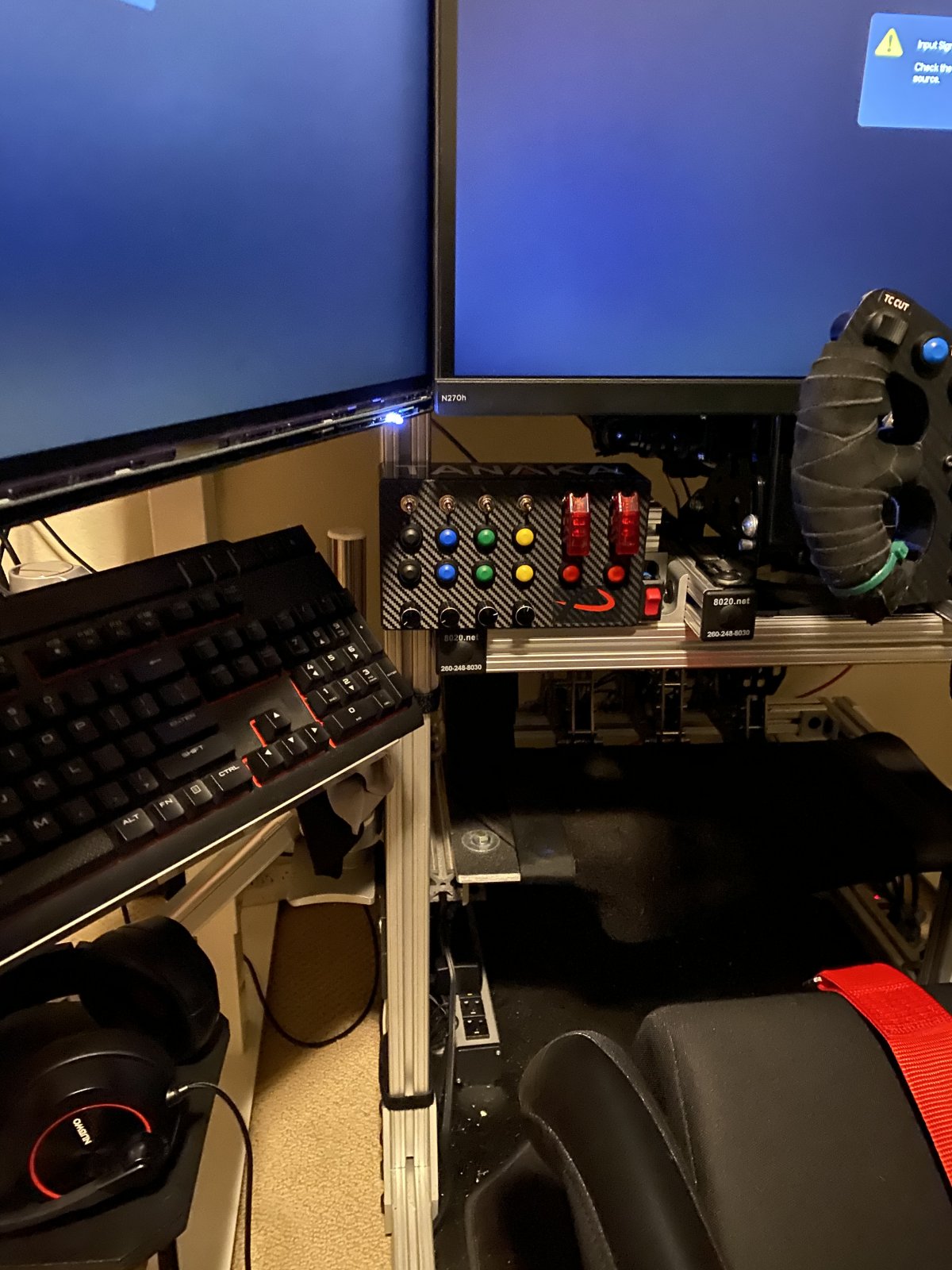

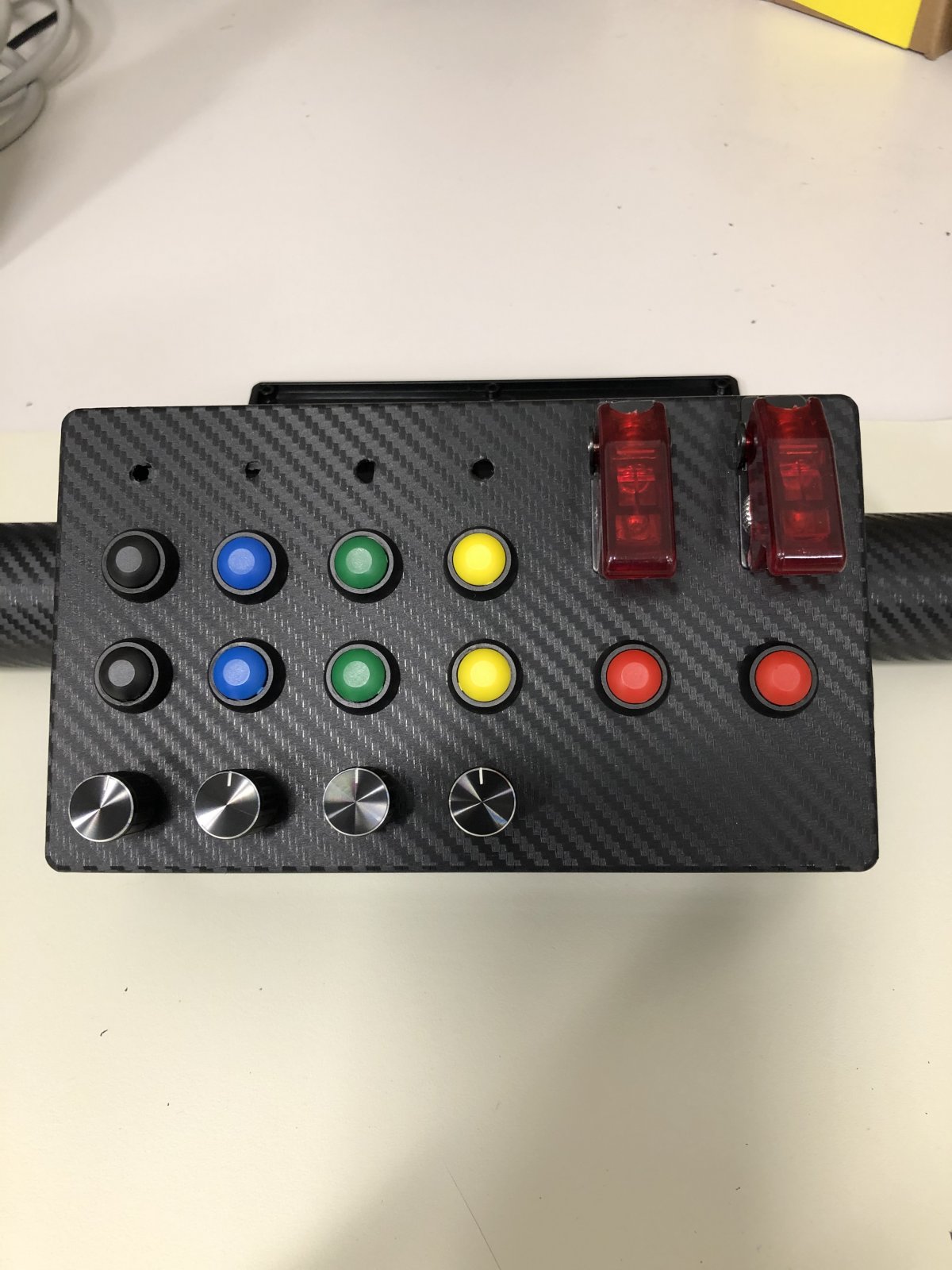

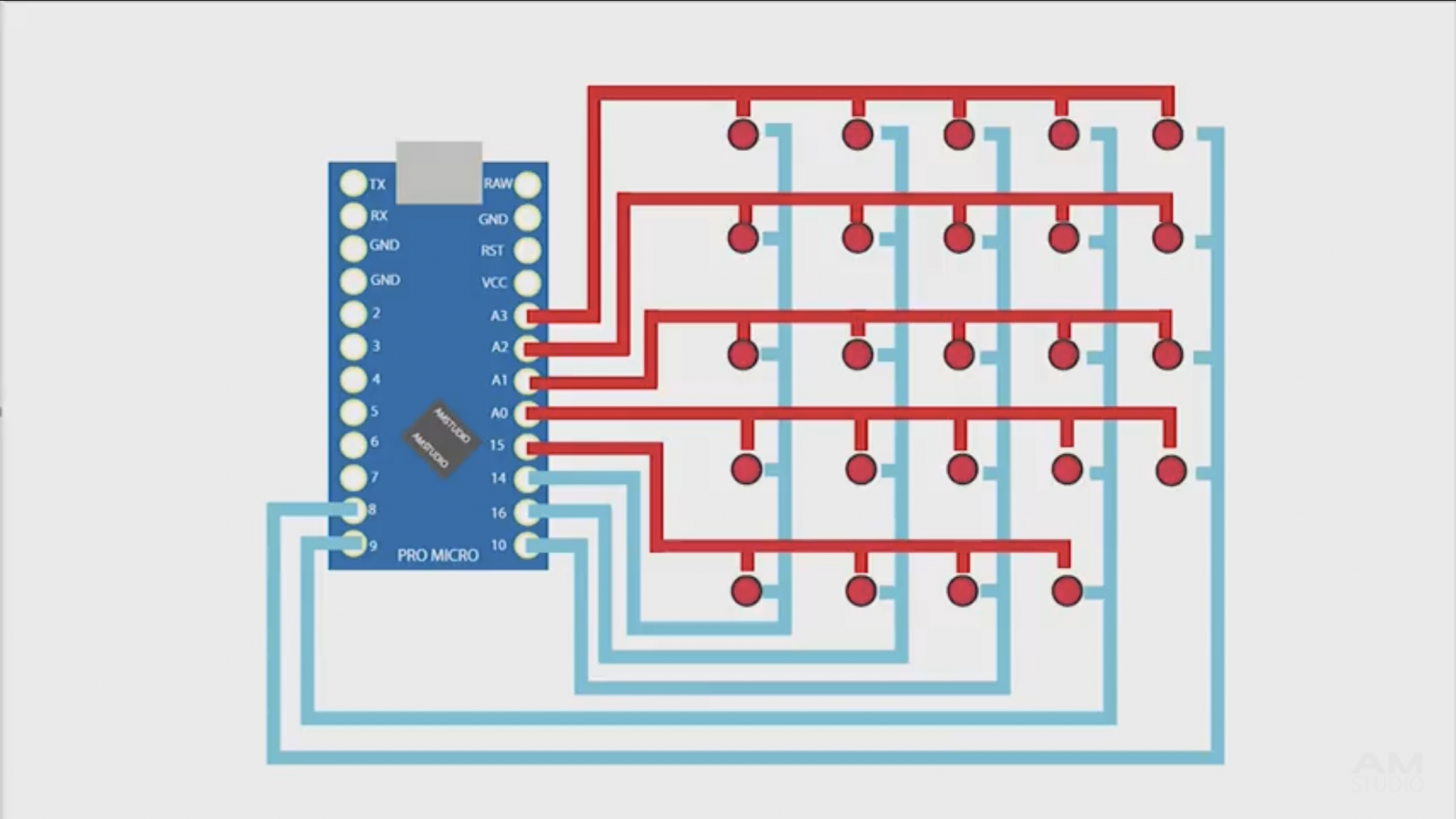

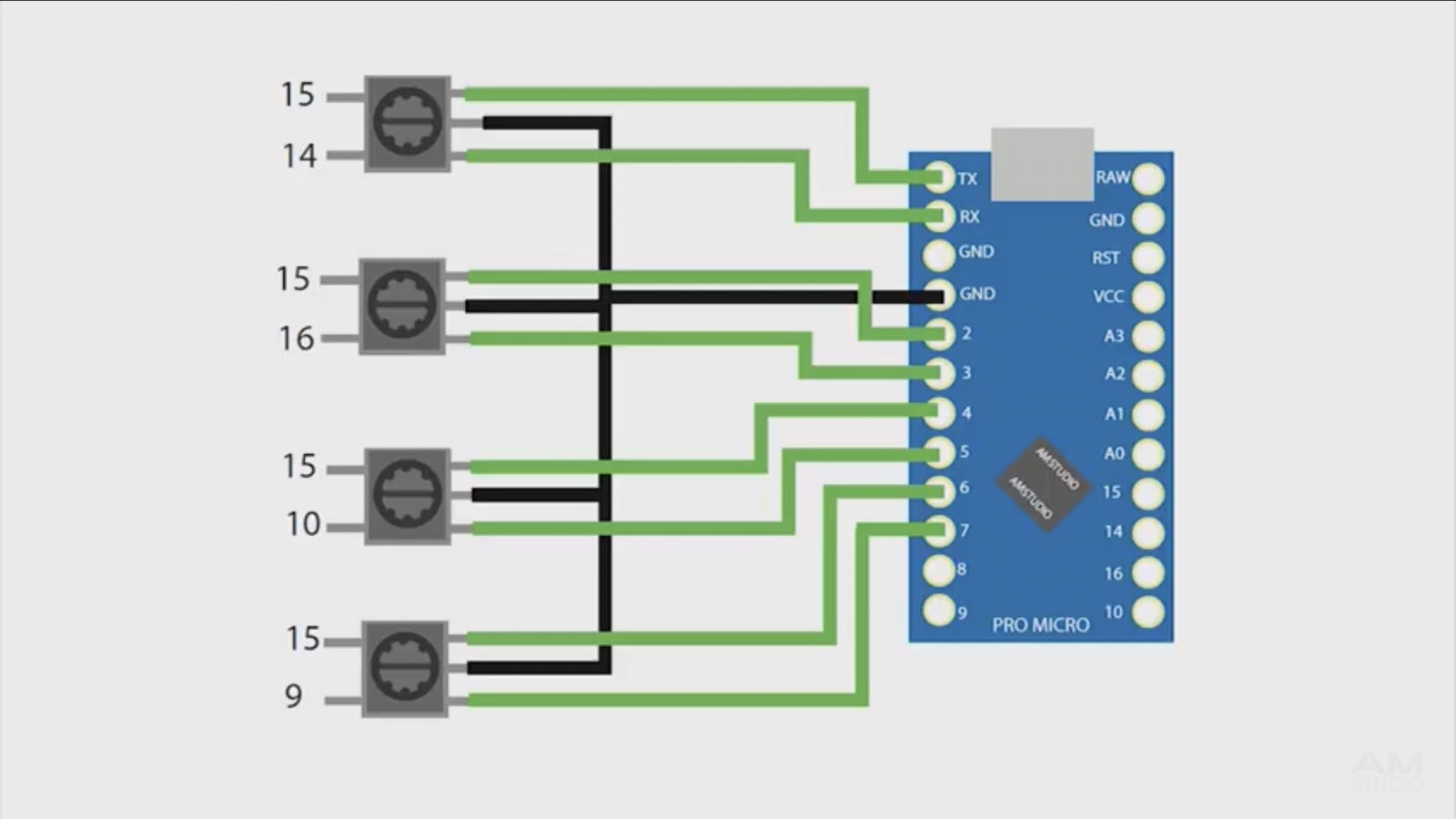

    Built a 32 function button box.
    • Like Like x 1
    Last edited: Nov 17, 2020
  11. Watchumacallit

    Watchumacallit BMET- Lead

    Joined:
    Oct 16, 2018
    Messages:
    64
    Occupation:
    Biomedical Engineer
    Location:
    Las Vegas, NV
    Balance:
    - 54Coins
    Ratings:
    +67 / 2 / -0
    My Motion Simulator:
    2DOF, JRK

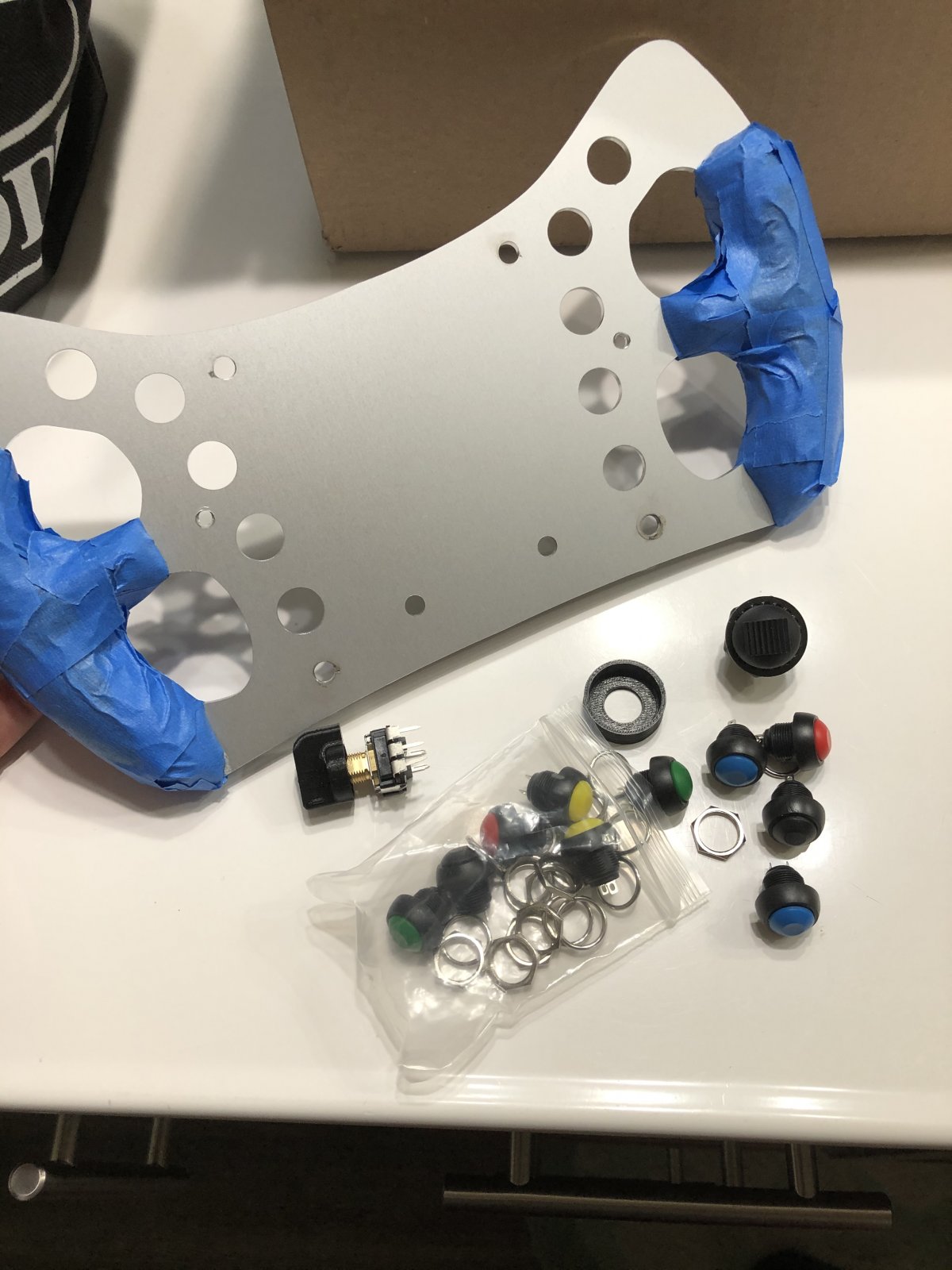

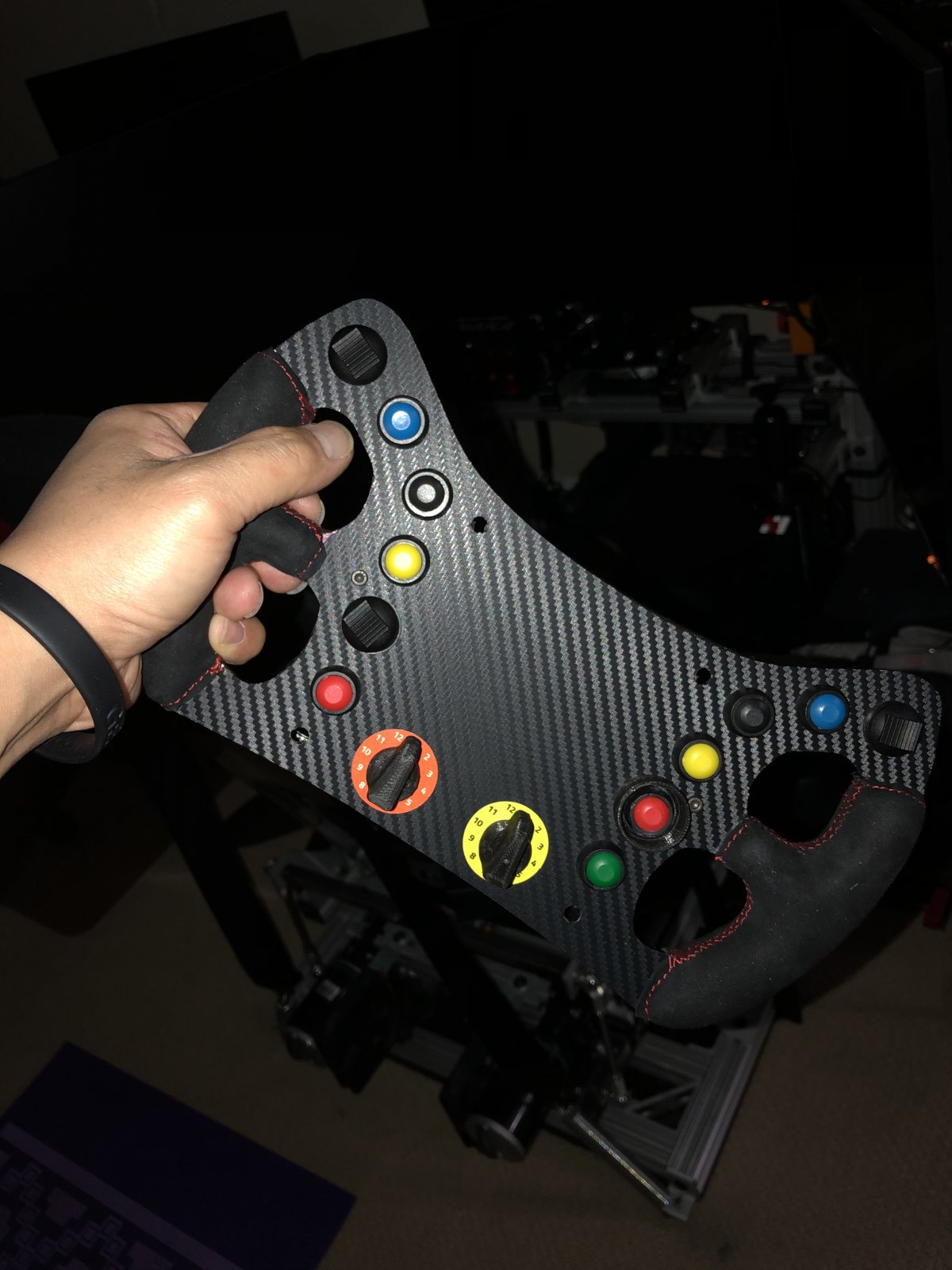

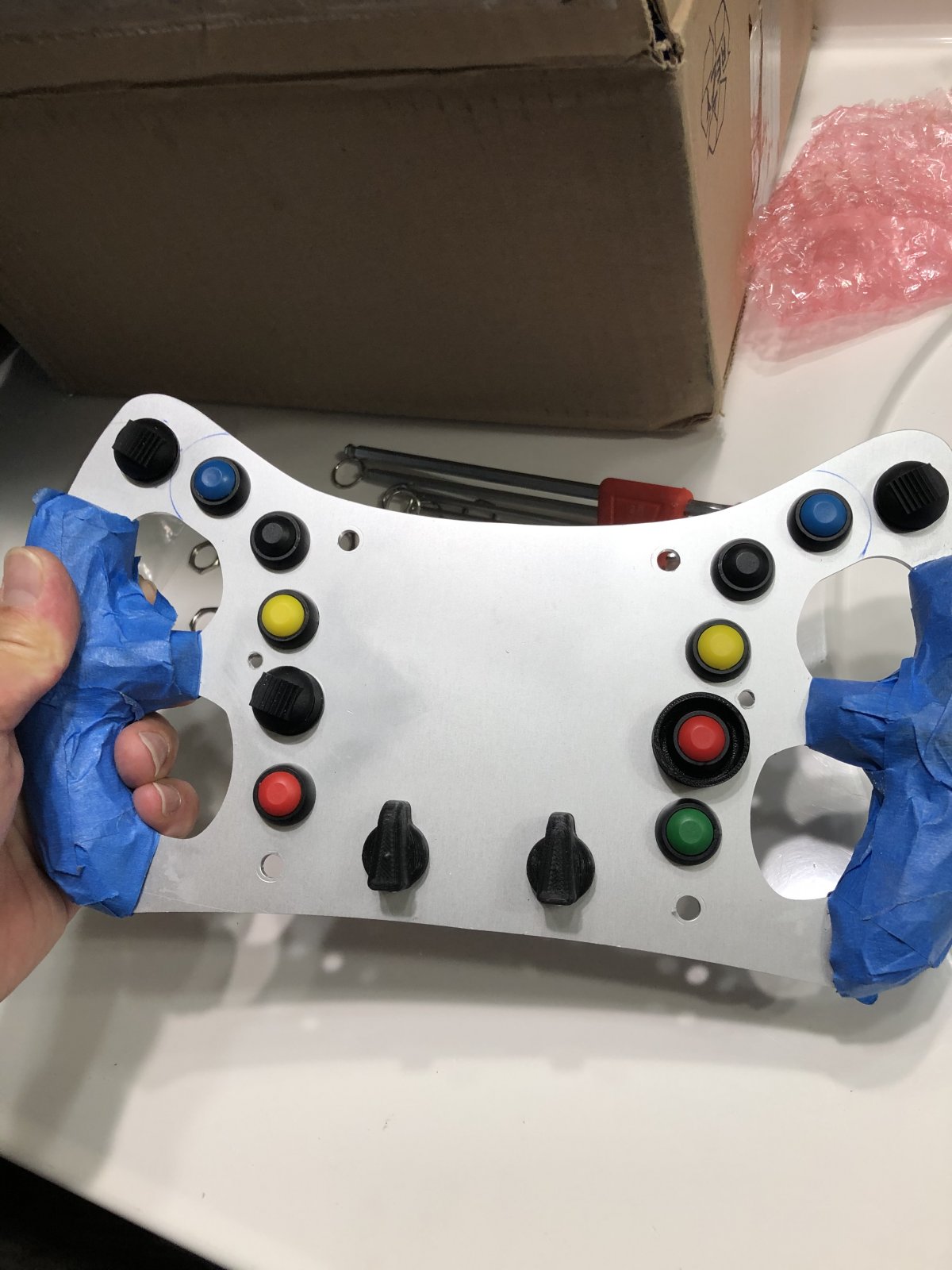

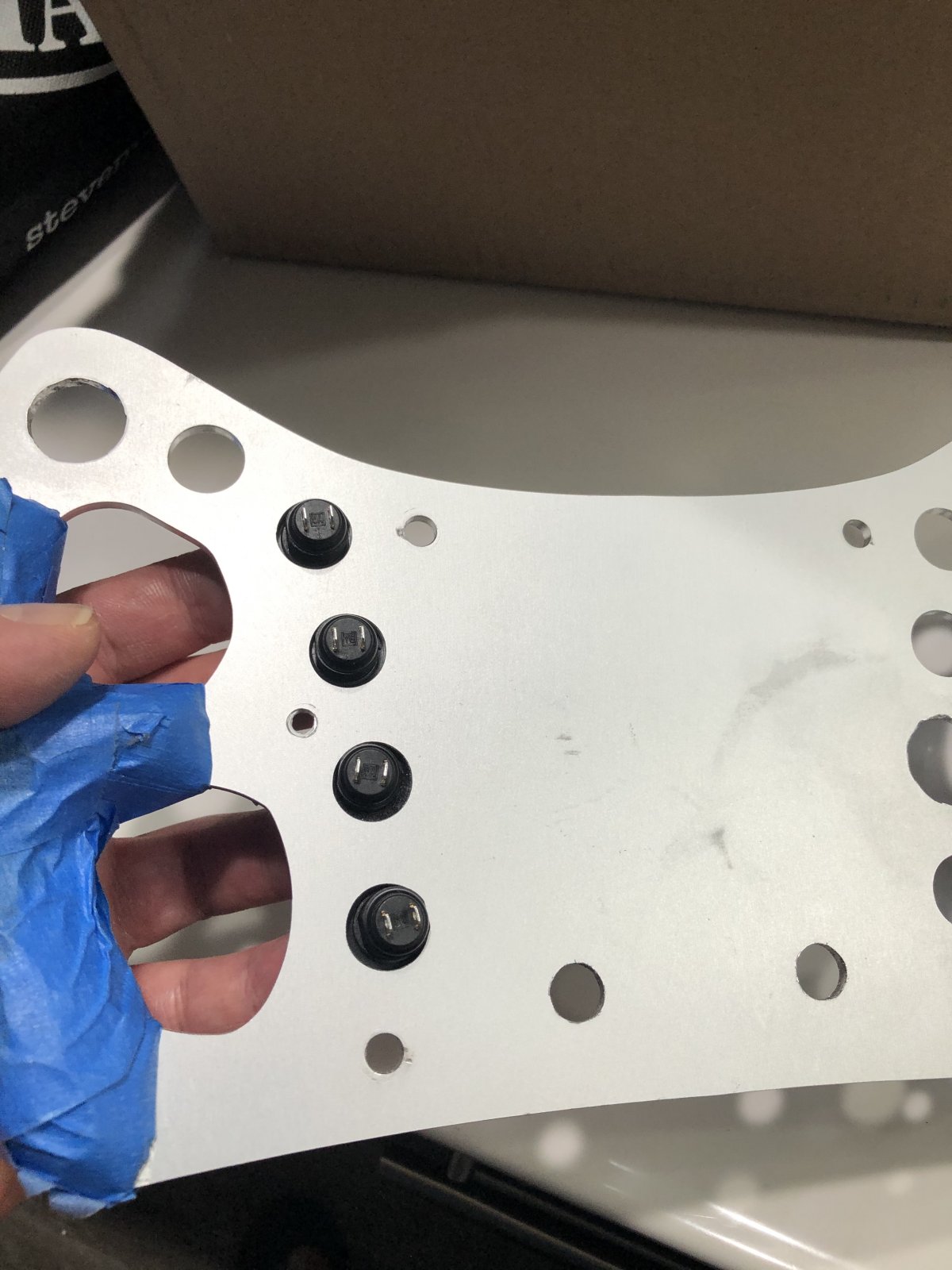

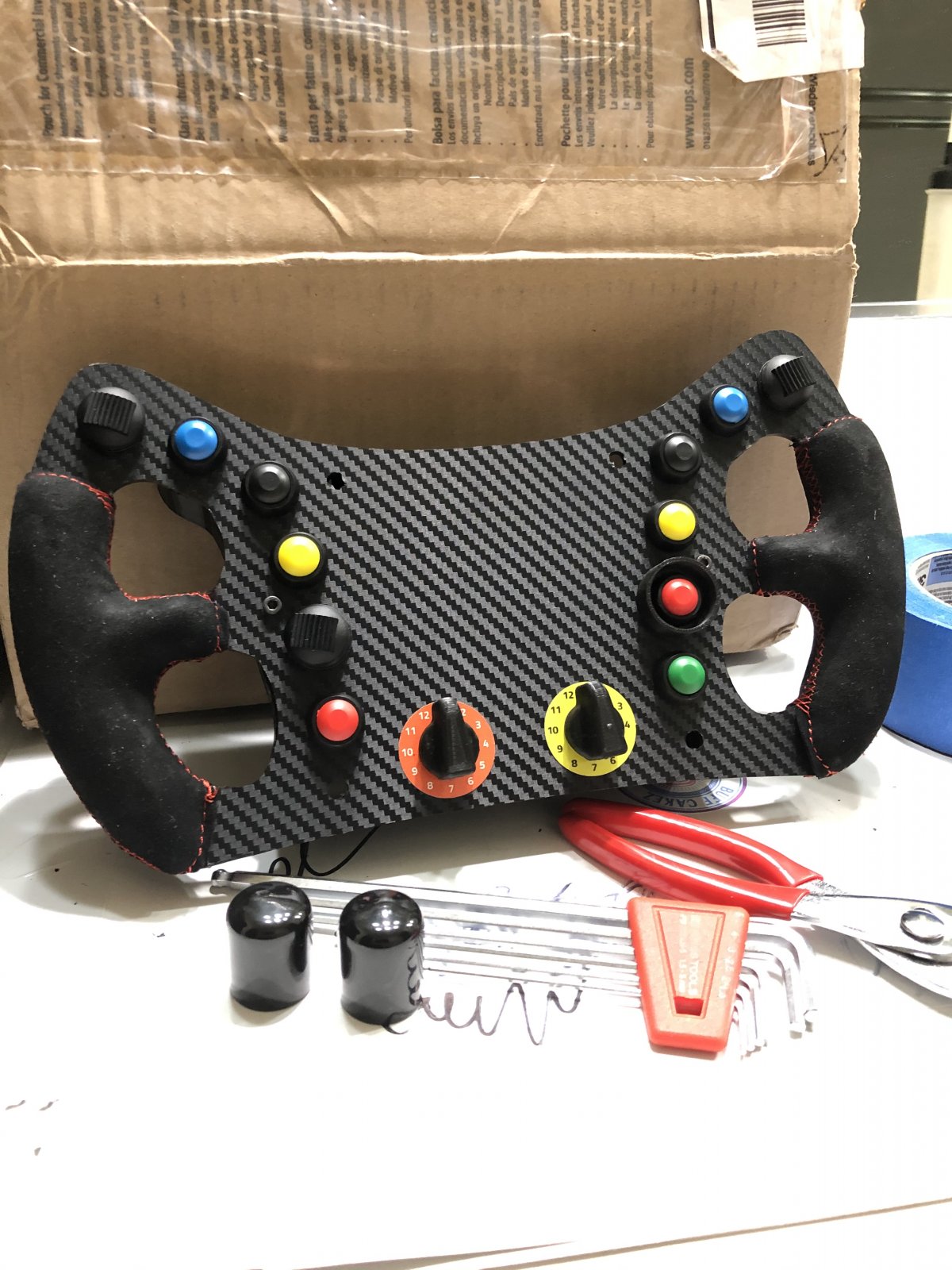

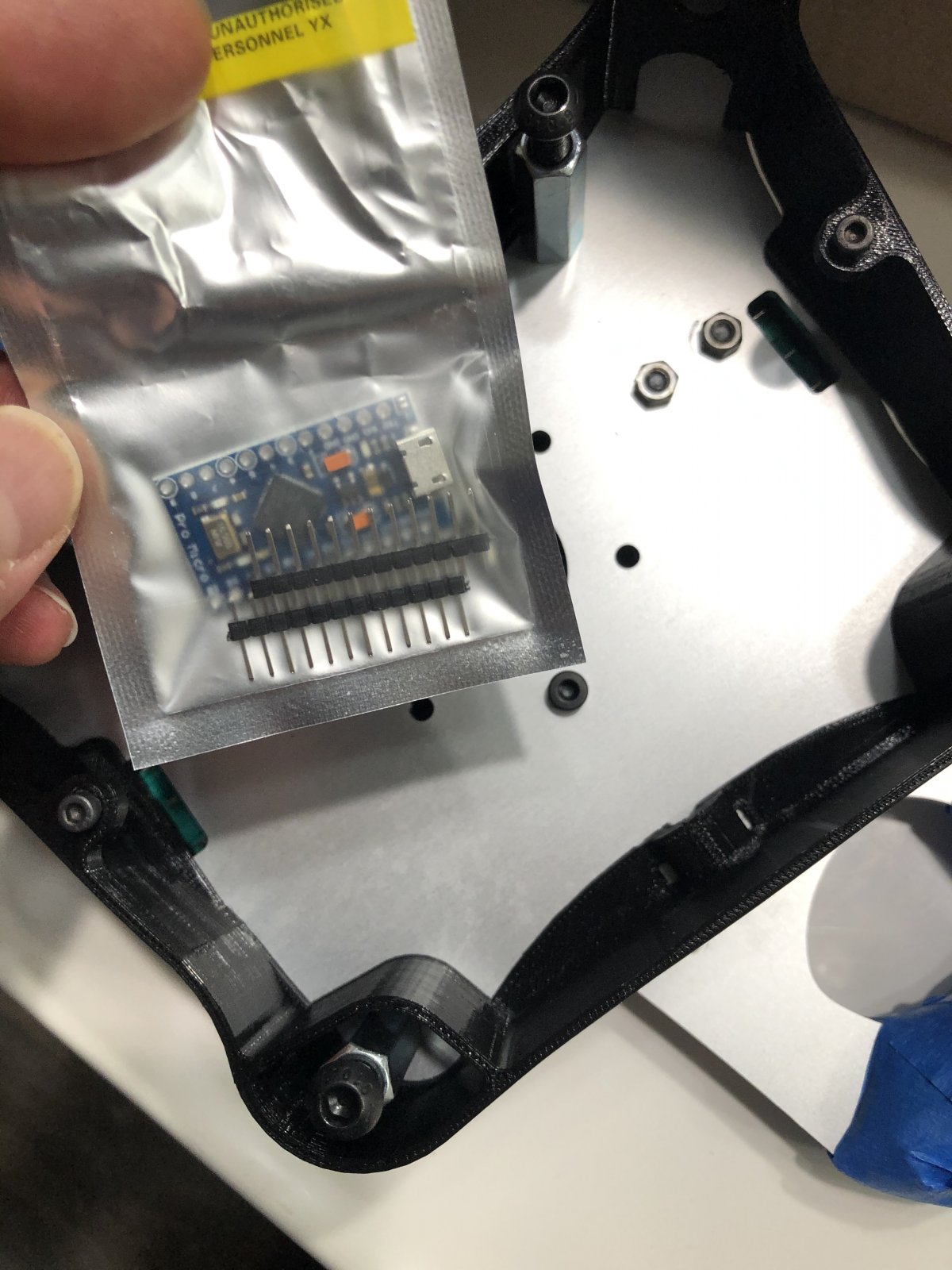

    Also built a custom Ferrari 488 replica.
    C8F1F160-0736-4FF5-BD8F-8A6820C19CC8.jpeg 91F62A6B-FF00-4A60-BD14-6F44F54B7C9B.jpeg 76EA4BD1-07E1-4069-A1D8-7E410893ABD4.jpeg 15C699B7-E336-4E20-93DE-38309AA38A0B.jpeg
    D977A38C-5196-475D-8801-0F42584AE25A.jpeg 54ABE727-513B-410E-A6F6-3CD40B6F4DF7.jpeg DCA5BBCE-4B75-4B85-8C82-CA93E1EB6DA6.jpeg 9E4D1802-92F1-4699-8751-AAF27F3A6A58.jpeg 3E439E12-B279-4AF4-B89B-252B93A283B1.jpeg F653B0BC-6987-4BD9-8384-BB26F5B9EA0D.jpeg 60CFFAA3-C1BA-4B86-850D-EE174701768C.jpeg
    • Like Like x 2
    Last edited: Nov 17, 2020
  12. Watchumacallit

    Watchumacallit BMET- Lead

    Joined:
    Oct 16, 2018
    Messages:
    64
    Occupation:
    Biomedical Engineer
    Location:
    Las Vegas, NV
    Balance:
    - 54Coins
    Ratings:
    +67 / 2 / -0
    My Motion Simulator:
    2DOF, JRK

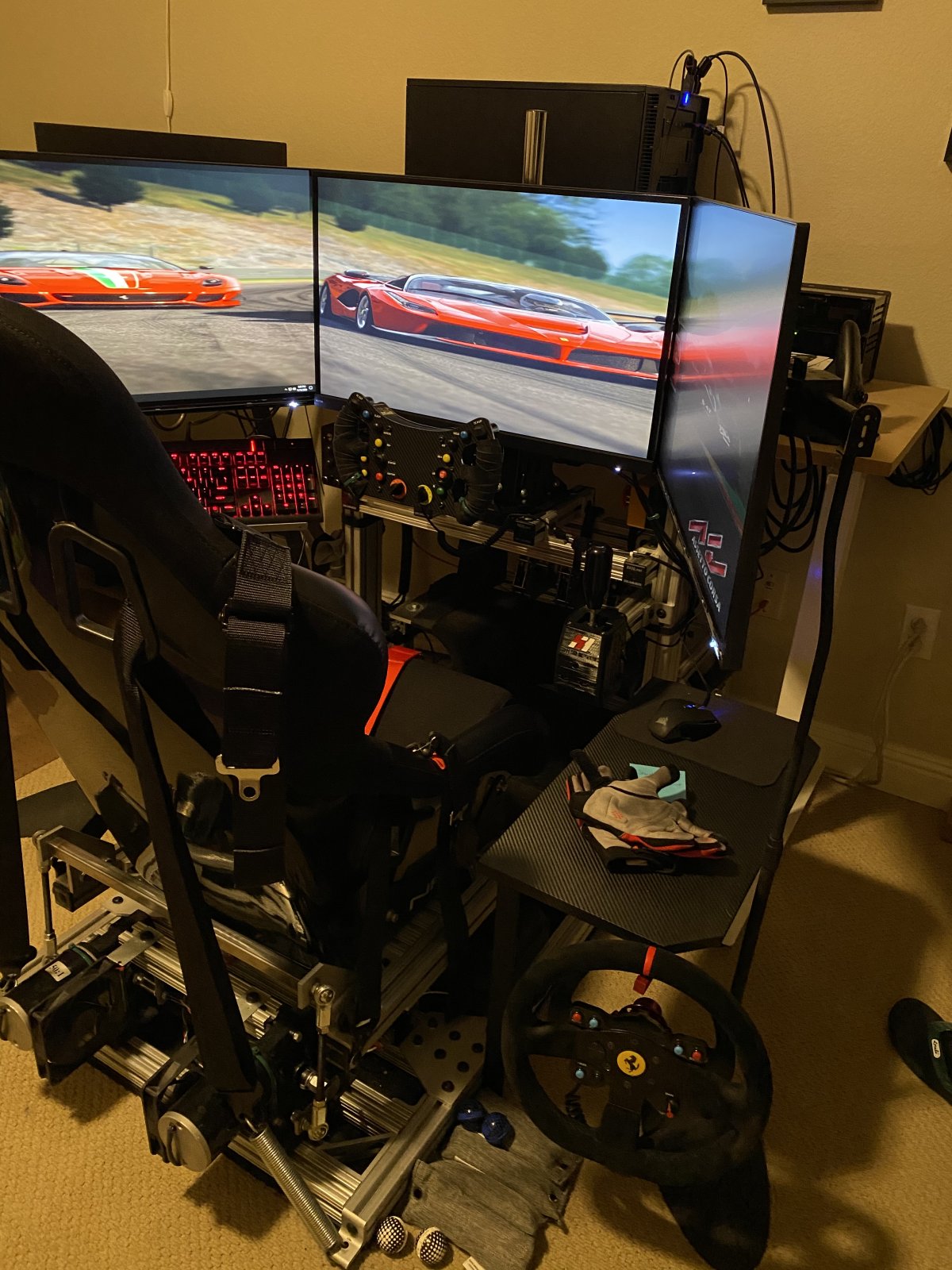

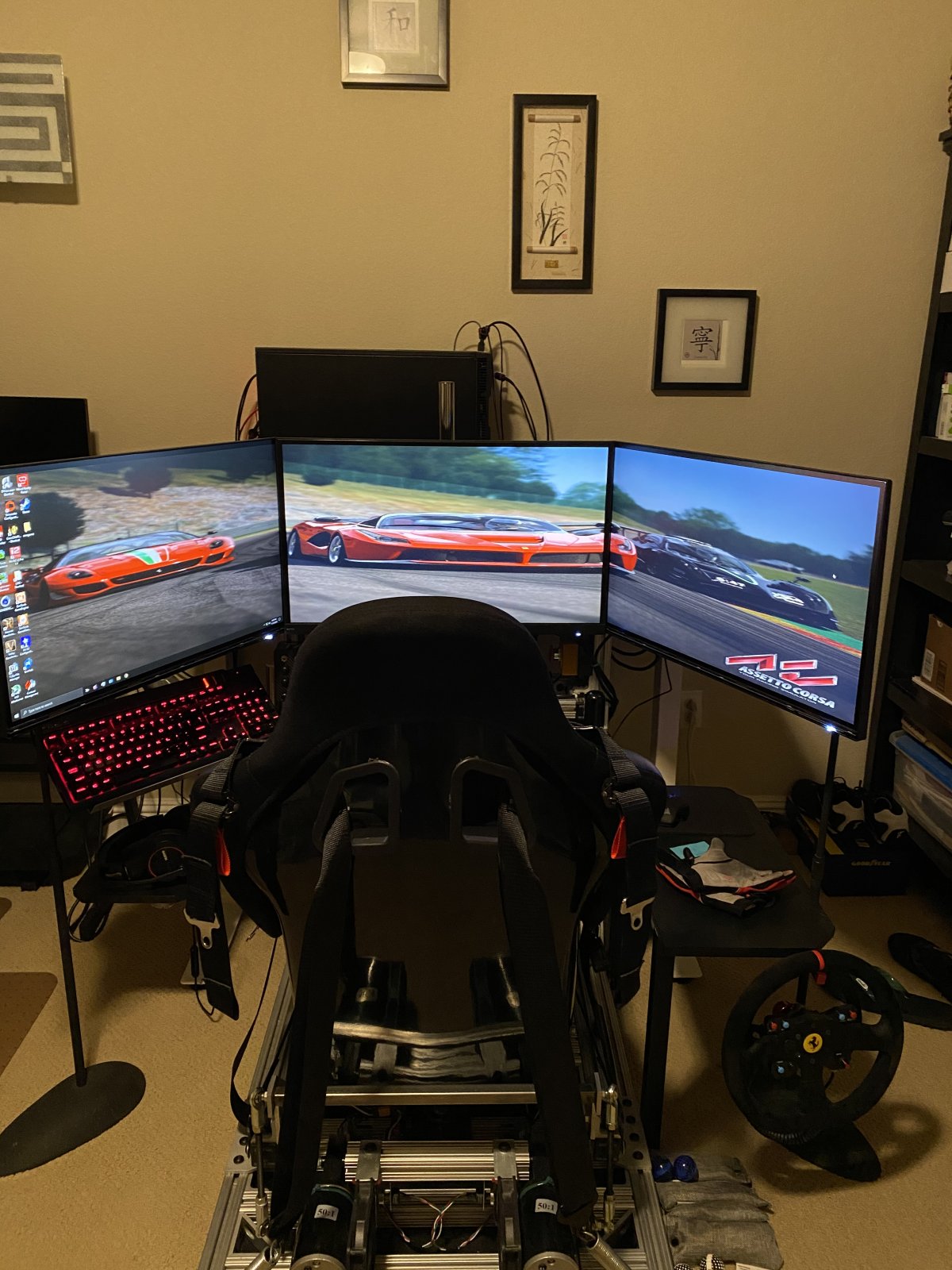

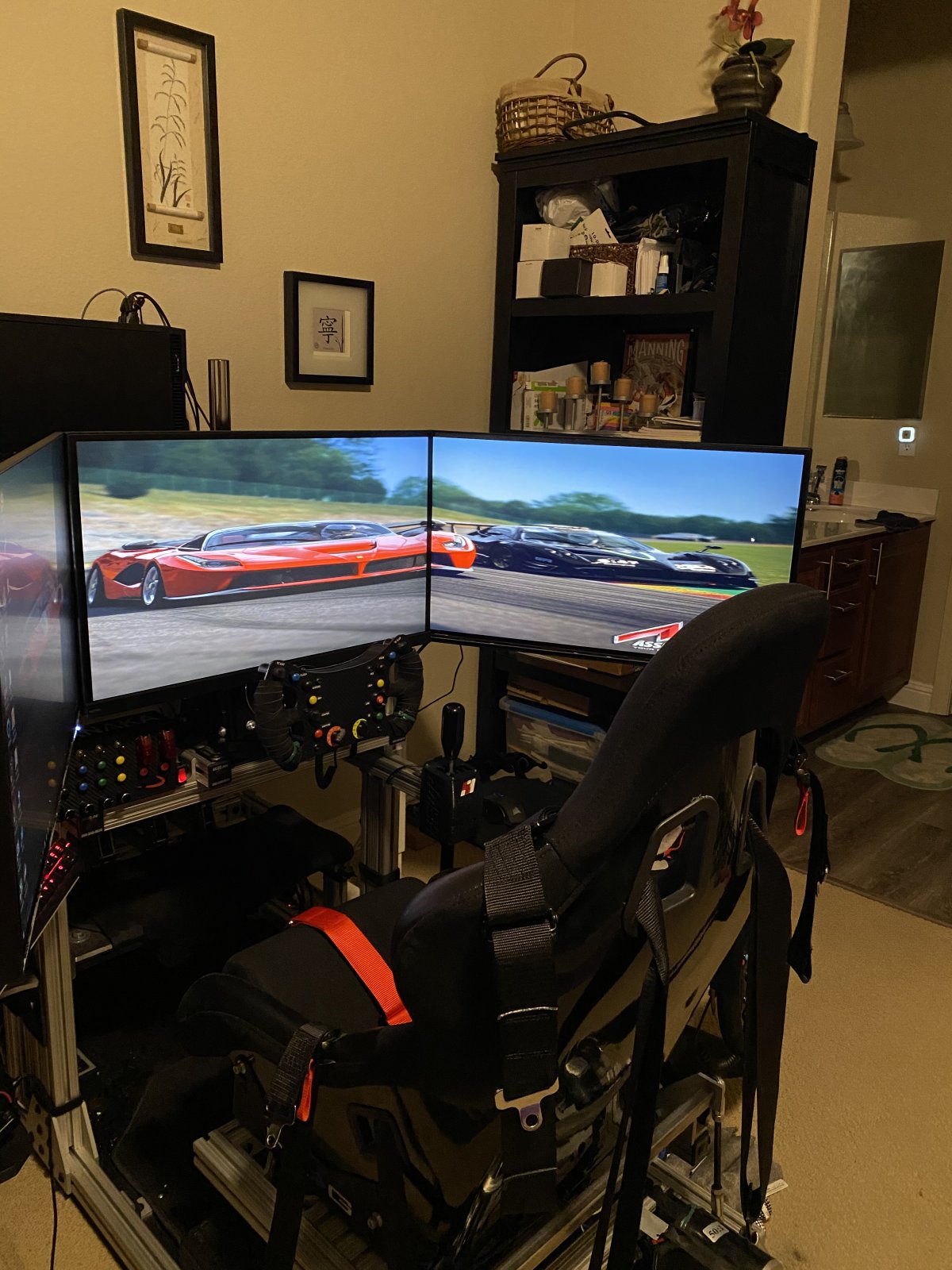

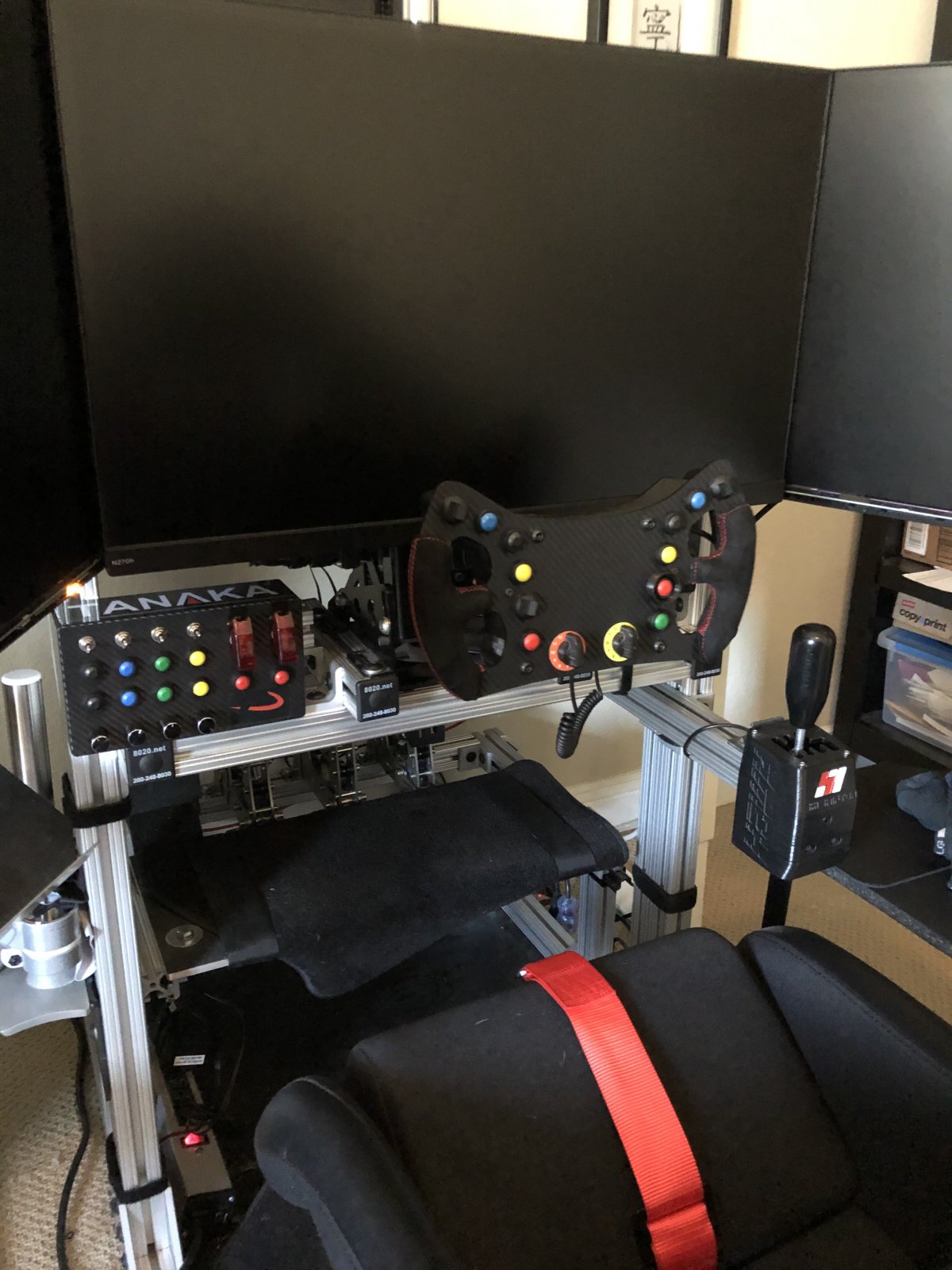

    Finally, triple monitor set up. It took a while but I think she’s finally done!
    486D64C4-ACDE-46E8-9E33-5B9724DAA697.jpeg AE375EC2-6457-4924-9312-1527FD58DBCA.jpeg
    • Winner Winner x 1
