80/20 Aluminum profile 2DoF build.

Discussion in 'DIY Motion Simulator Projects' started by Watchumacallit, Dec 12, 2018.

  1. Kranky Pantz

    Kranky Pantz Active Member

    Joined:
    Sep 9, 2018
    Messages:
    267
    Balance:
    1,920Coins
    Ratings:
    +200 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, JRK, Motion platform
    Just popped in here to wish you a Merry Xmas, and noticed how far your rig has come along.

    Wow!!

    I think this may be a record build time from the point when you finally received all of the parts to completion.

    Congrats, and glad to see that you also managed to sort out your minor hiccups and are now enjoying your rig.

    It seems like you've got a handle on how things go together, excellent job!

    Very nice and sleek looking.

    Makes me wish I'd done the same and built mine from aluminum extrusion as well...maybe next time!

    If I do that, then I may add a 3rd degree and step-up to traction loss, but fear that it may negatively affect how well VR works once side-to side movement is added.

    Cheers, Merry Xmas + Happy New Year!!!
    • Friendly Friendly x 1
  2. Watchumacallit

    Watchumacallit Member

    Joined:
    Oct 16, 2018
    Messages:
    60
    Balance:
    132Coins
    Ratings:
    +62 / 1 / -0
    Thanks Kranky,

    You do the same! Have a Merry Christmas and a Safe and Happy Ney Years!
    • Like Like x 1
  3. Watchumacallit

    Watchumacallit Member

    Joined:
    Oct 16, 2018
    Messages:
    60
    Balance:
    132Coins
    Ratings:
    +62 / 1 / -0

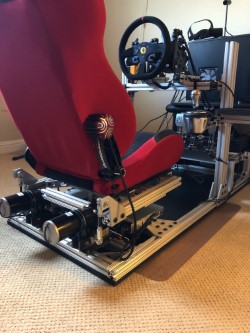

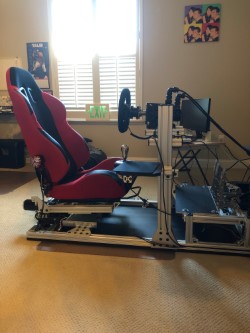

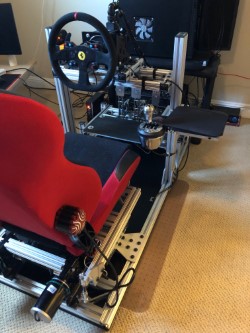

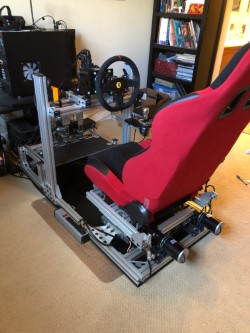

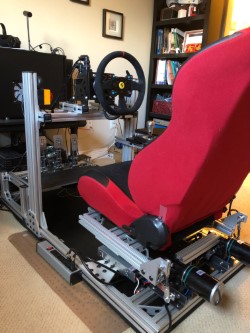

    Finally got the rig put back together. Time to download some plug ins for more testing with different games.
    thumbnail_IMG_2253.jpg thumbnail_IMG_2252.jpg thumbnail_IMG_2254.jpg thumbnail_IMG_2255.jpg thumbnail_IMG_2257.jpg thumbnail_IMG_2256.jpg
    • Like Like x 3
    Last edited: Dec 28, 2018
  4. Kranky Pantz

    Kranky Pantz Active Member

    Joined:
    Sep 9, 2018
    Messages:
    267
    Balance:
    1,920Coins
    Ratings:
    +200 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, JRK, Motion platform
    Lookin' Good!!!!!!!!!!!!

    I don't see a monitor being used (aside from the one behind your PC).

    Are you now 100% VR???
    • Like Like x 1
  5. Watchumacallit

    Watchumacallit Member

    Joined:
    Oct 16, 2018
    Messages:
    60
    Balance:
    132Coins
    Ratings:
    +62 / 1 / -0
    Yes!!! No VR no buy, LOL!
    • Agree Agree x 2
    Last edited: Dec 29, 2018
  6. Watchumacallit

    Watchumacallit Member

    Joined:
    Oct 16, 2018
    Messages:
    60
    Balance:
    132Coins
    Ratings:
    +62 / 1 / -0
    AC test. Ferarri 458 S3 @Imola


    Turned off motion and went around a few laps and WoW, what a difference! It’s so satisfying to drive now. I haven’t even messed with the tuning yet. Its all just basic right now.
    • Like Like x 1
    • Winner Winner x 1
    • Friendly Friendly x 1
    Last edited: Dec 29, 2018
  7. Kranky Pantz

    Kranky Pantz Active Member

    Joined:
    Sep 9, 2018
    Messages:
    267
    Balance:
    1,920Coins
    Ratings:
    +200 / 0 / -0
    My Motion Simulator:
    2DOF, DC motor, JRK, Motion platform
    Yup!
    Once ya go motion, it's VERY difficult to have that same satisfaction with a static rig.
    The only saving grace is if you have enough Buttkickers to help shake it around a bit.
    Even then....meh......
    :D
    • Like Like x 2
  8. Watchumacallit

    Watchumacallit Member

    Joined:
    Oct 16, 2018
    Messages:
    60
    Balance:
    132Coins
    Ratings:
    +62 / 1 / -0

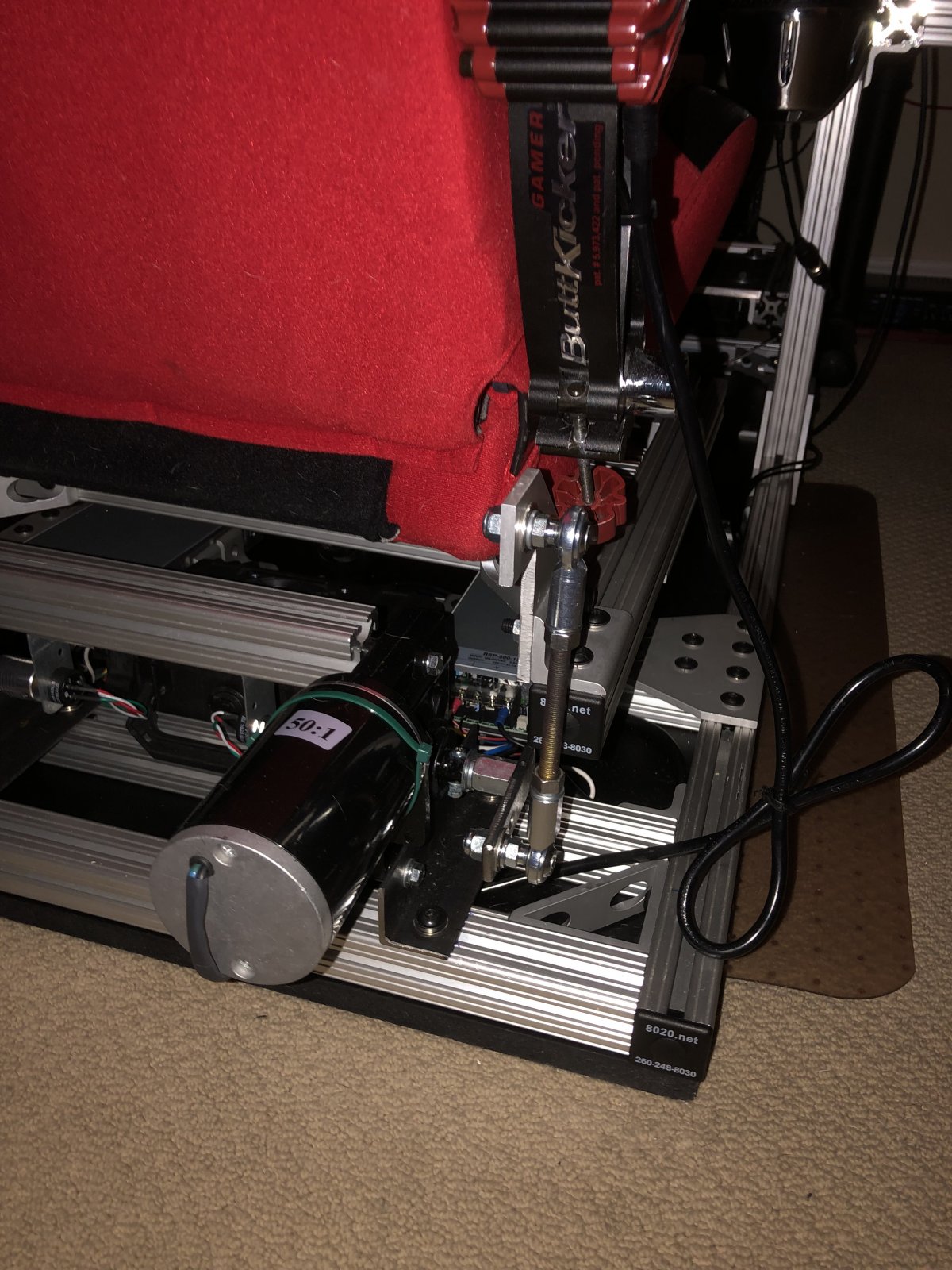

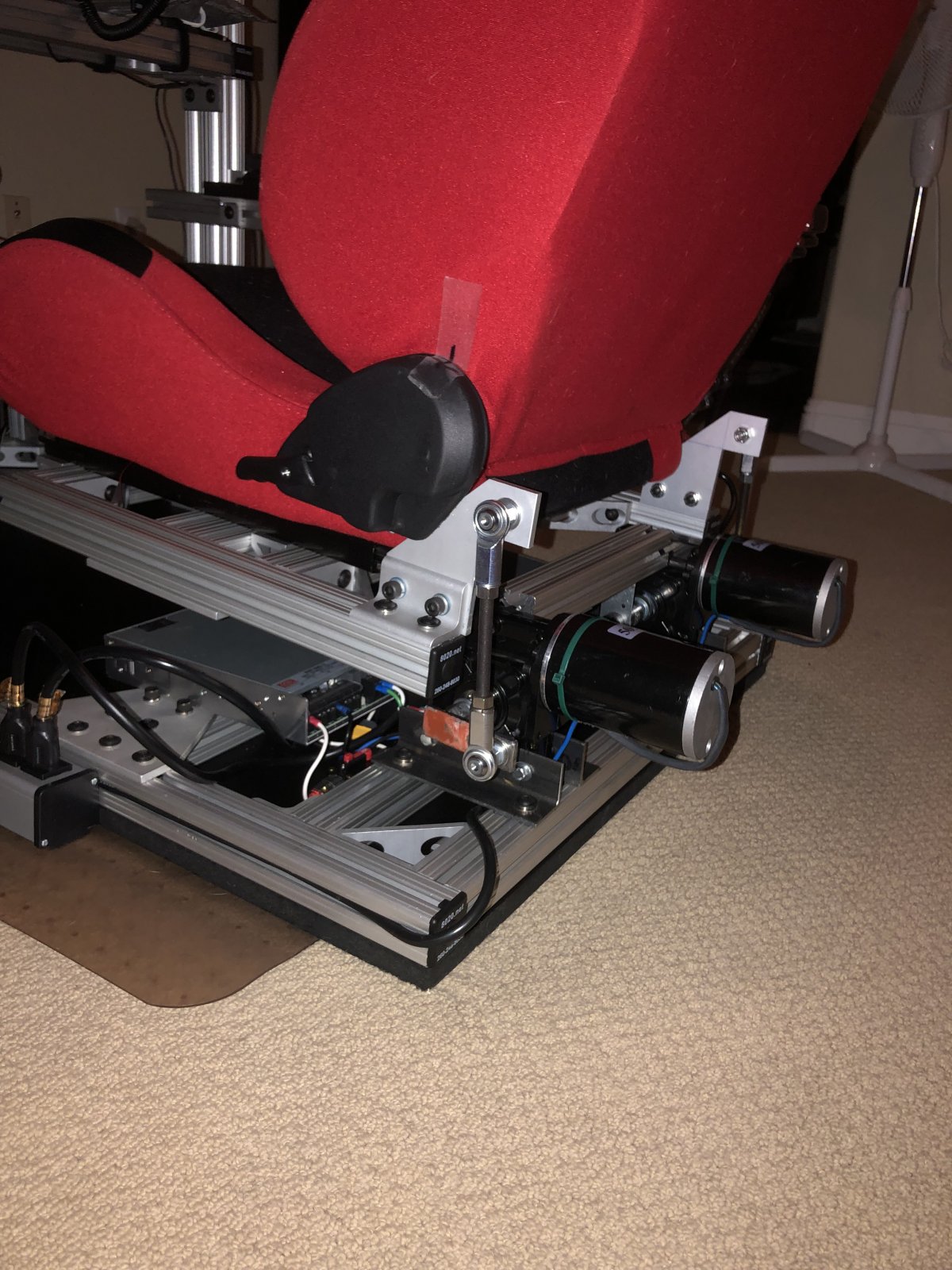

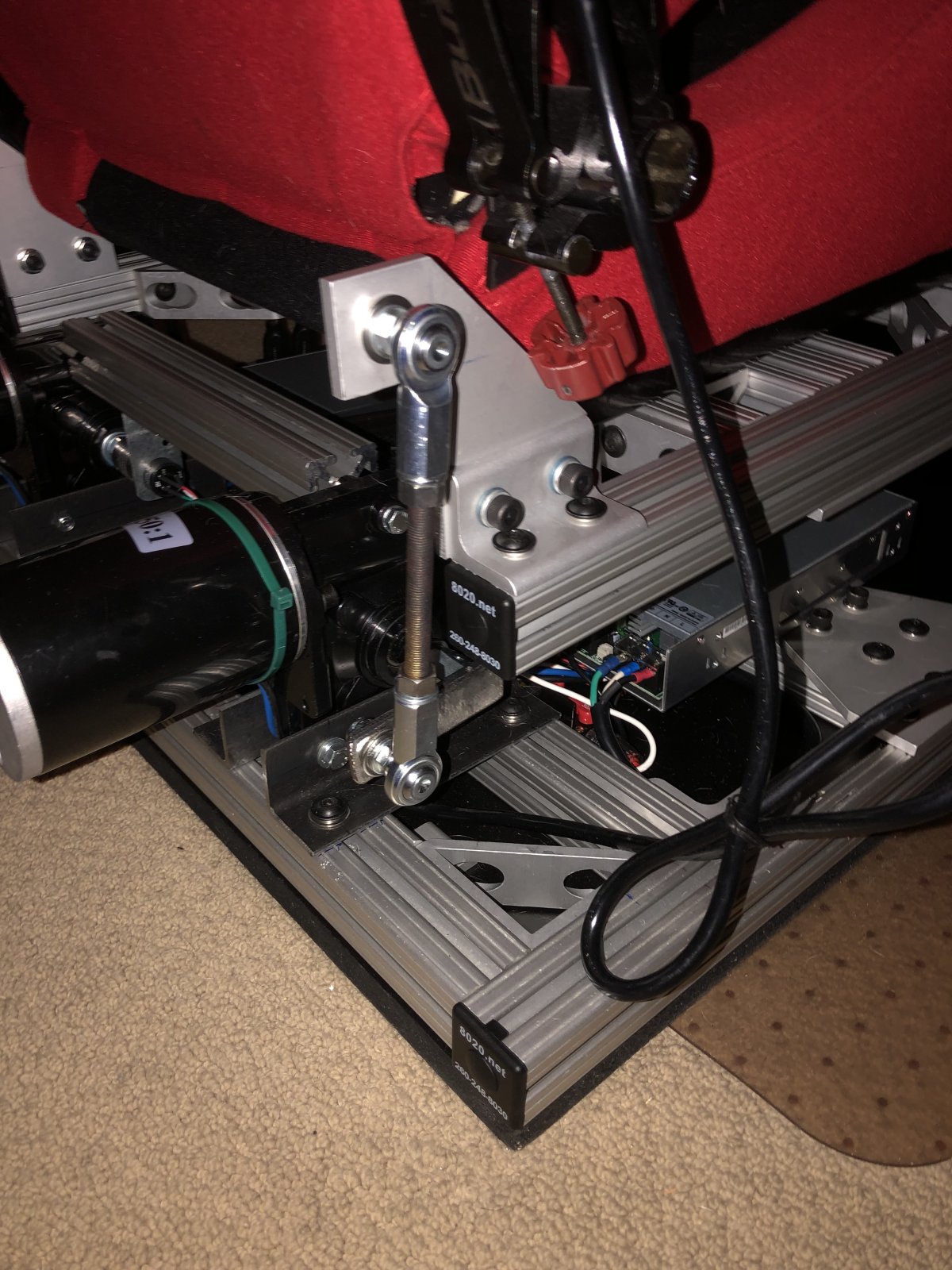

    Playing around with the push rod placement. Lengthen and moved it in and up closer to the hips for better leverage.


    • Like Like x 2
  9. stevemontuno

    stevemontuno Active Member

    Joined:
    Apr 24, 2015
    Messages:
    309
    Location:
    UK
    Balance:
    2,089Coins
    Ratings:
    +329 / 0 / -0
    My Motion Simulator:
    2DOF
    Nice rig Mate ,,,Quite a similar design to mine ,,,if i get time later i'll dig out my AC simtools settings for you to try.
    • Like Like x 1
    • Friendly Friendly x 1
  10. stevemontuno

    stevemontuno Active Member

    Joined:
    Apr 24, 2015
    Messages:
    309
    Location:
    UK
    Balance:
    2,089Coins
    Ratings:
    +329 / 0 / -0
    My Motion Simulator:
    2DOF

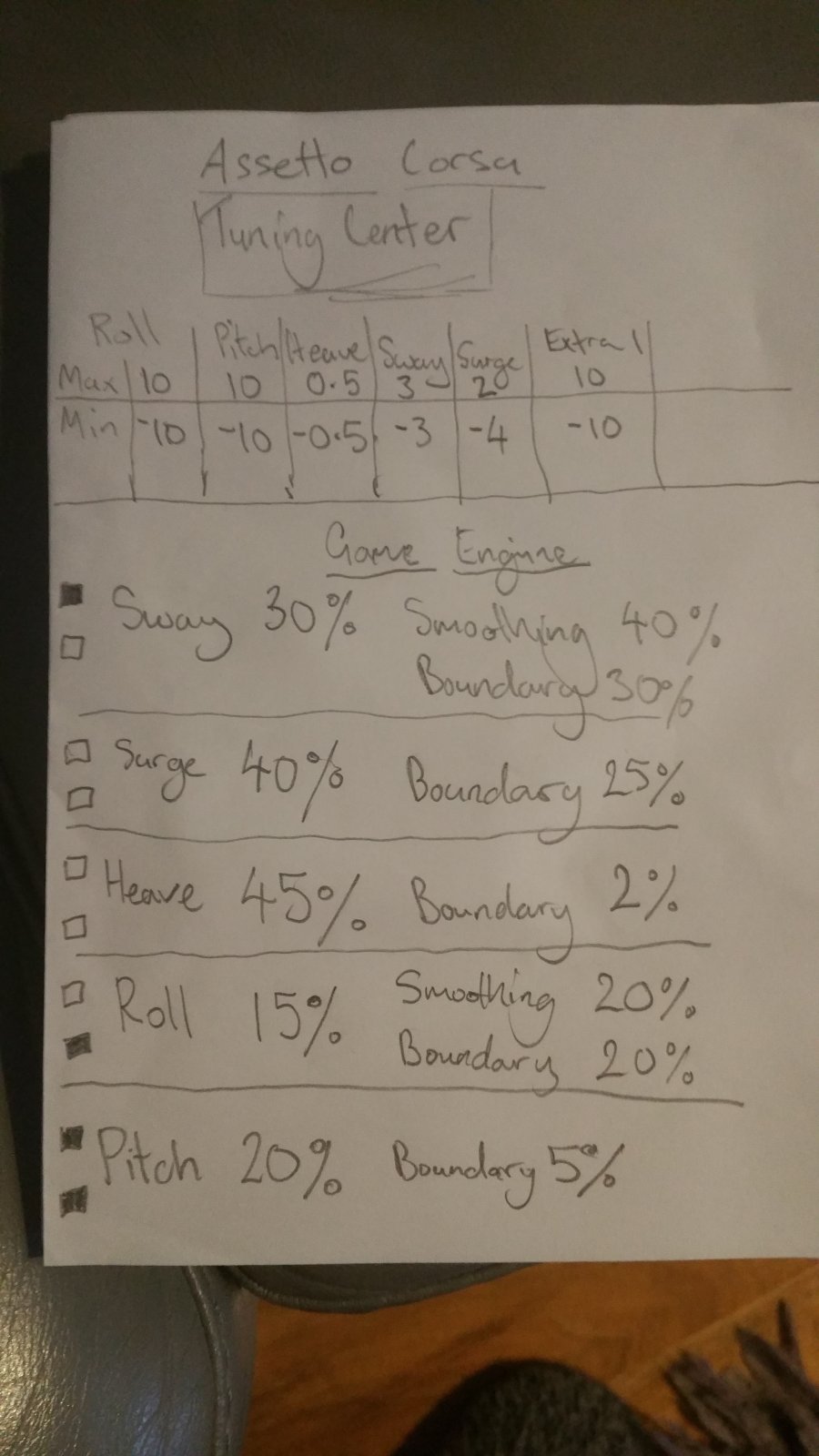

    Here you go mate give these a try,,, AC tuning.jpg
    • Like Like x 1
  11. Watchumacallit

    Watchumacallit Member

    Joined:
    Oct 16, 2018
    Messages:
    60
    Balance:
    132Coins
    Ratings:
    +62 / 1 / -0
    Will try, thanks!
  12. Watchumacallit

    Watchumacallit Member

    Joined:
    Oct 16, 2018
    Messages:
    60
    Balance:
    132Coins
    Ratings:
    +62 / 1 / -0

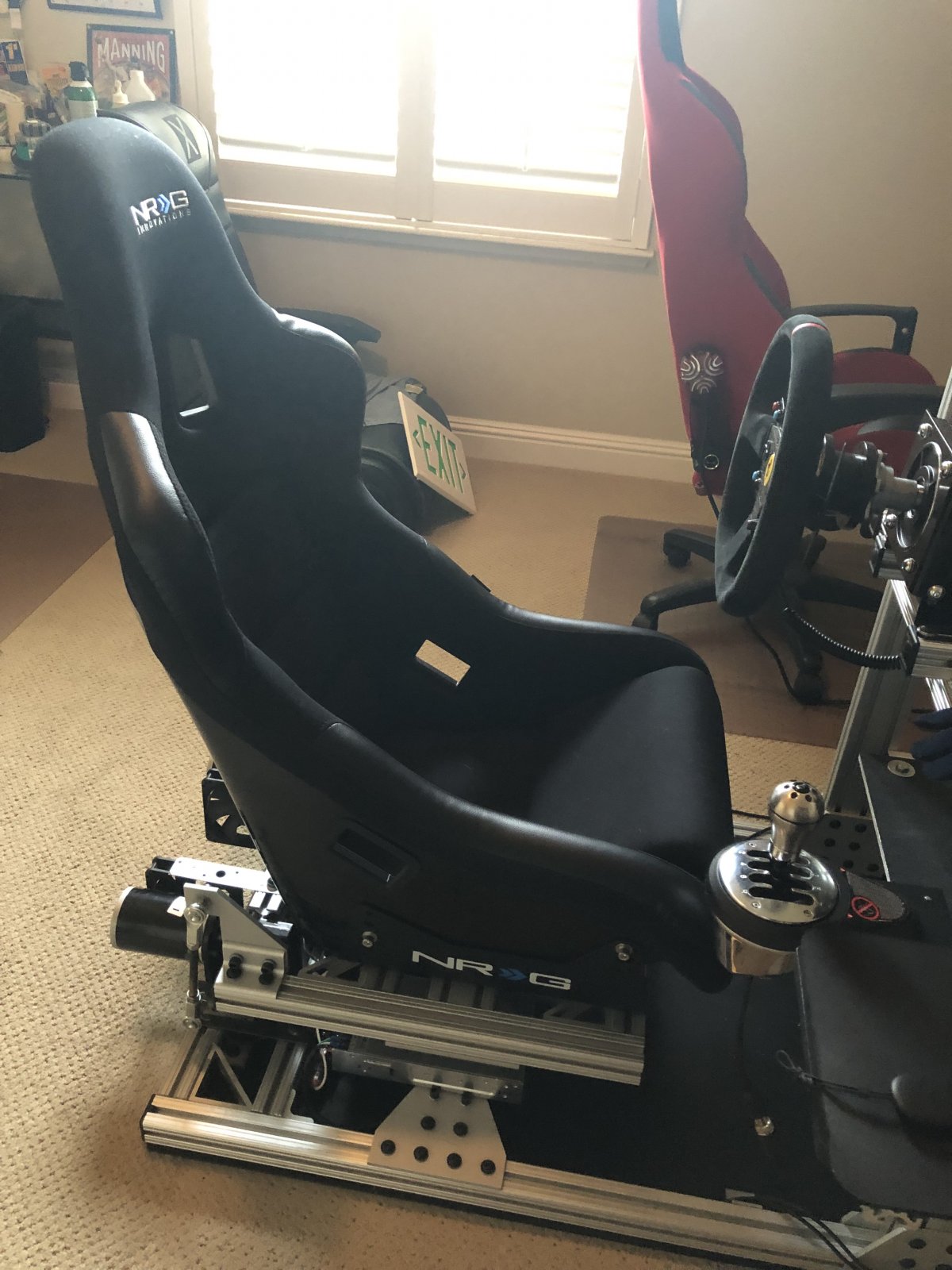

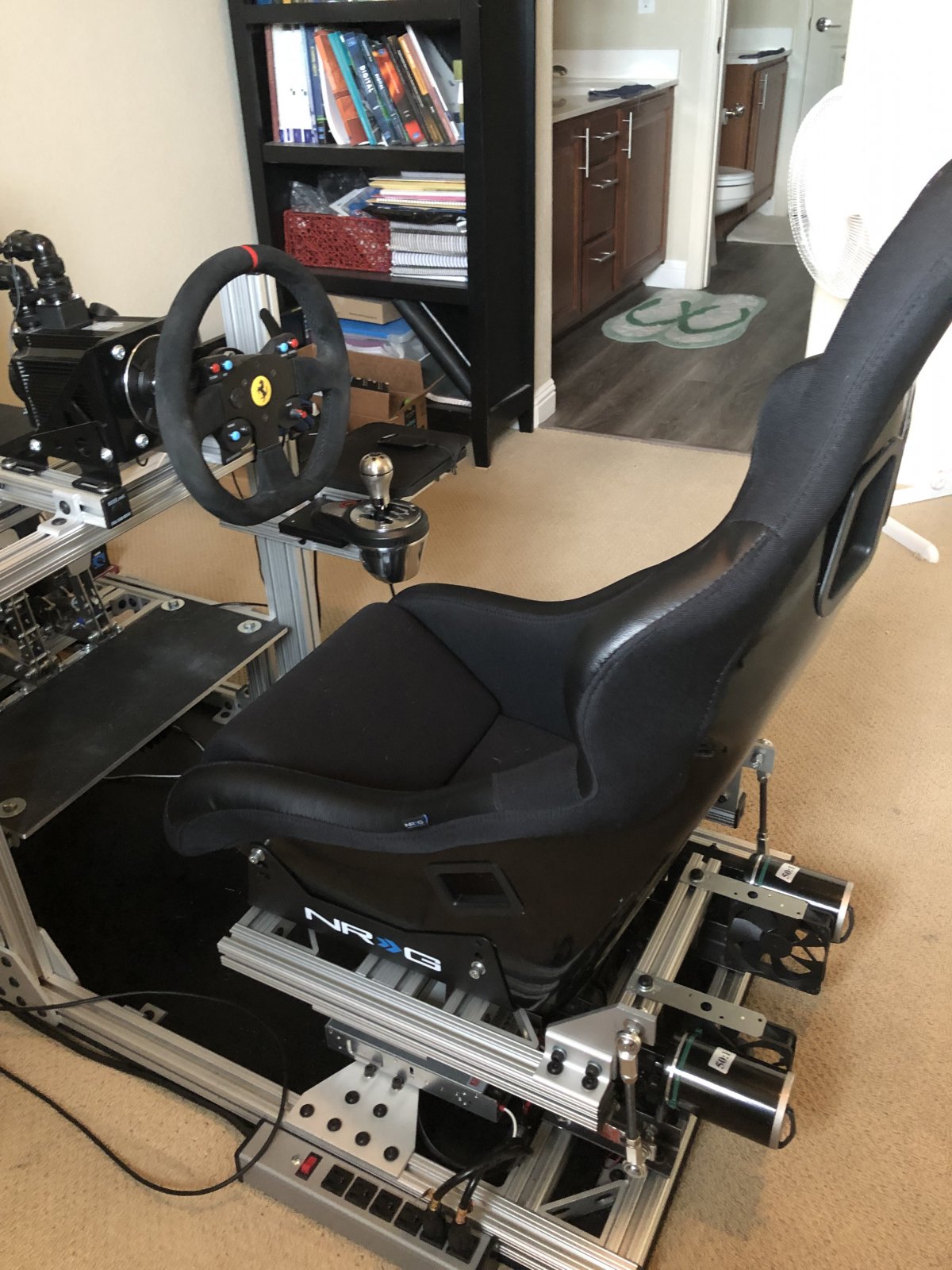

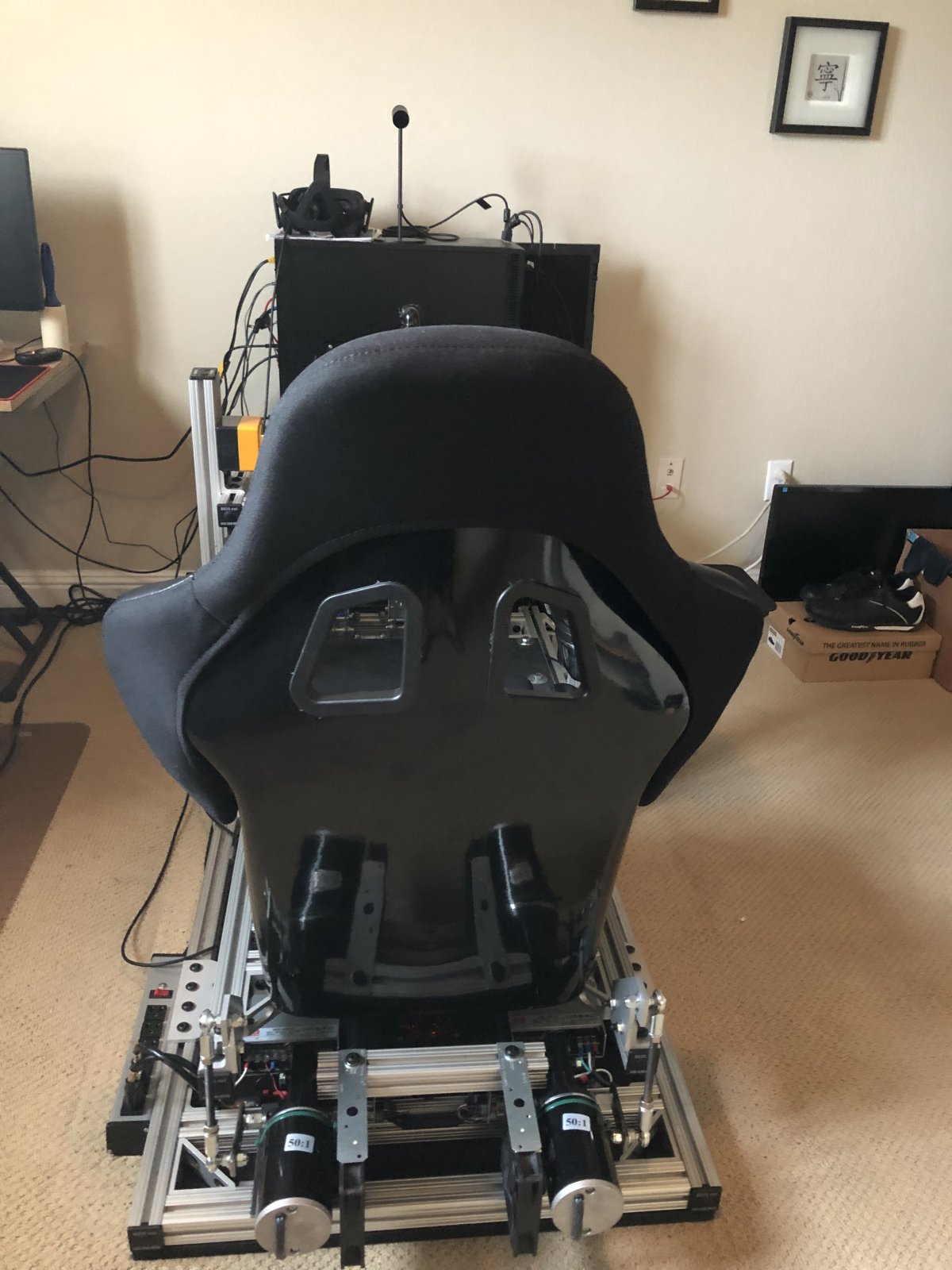

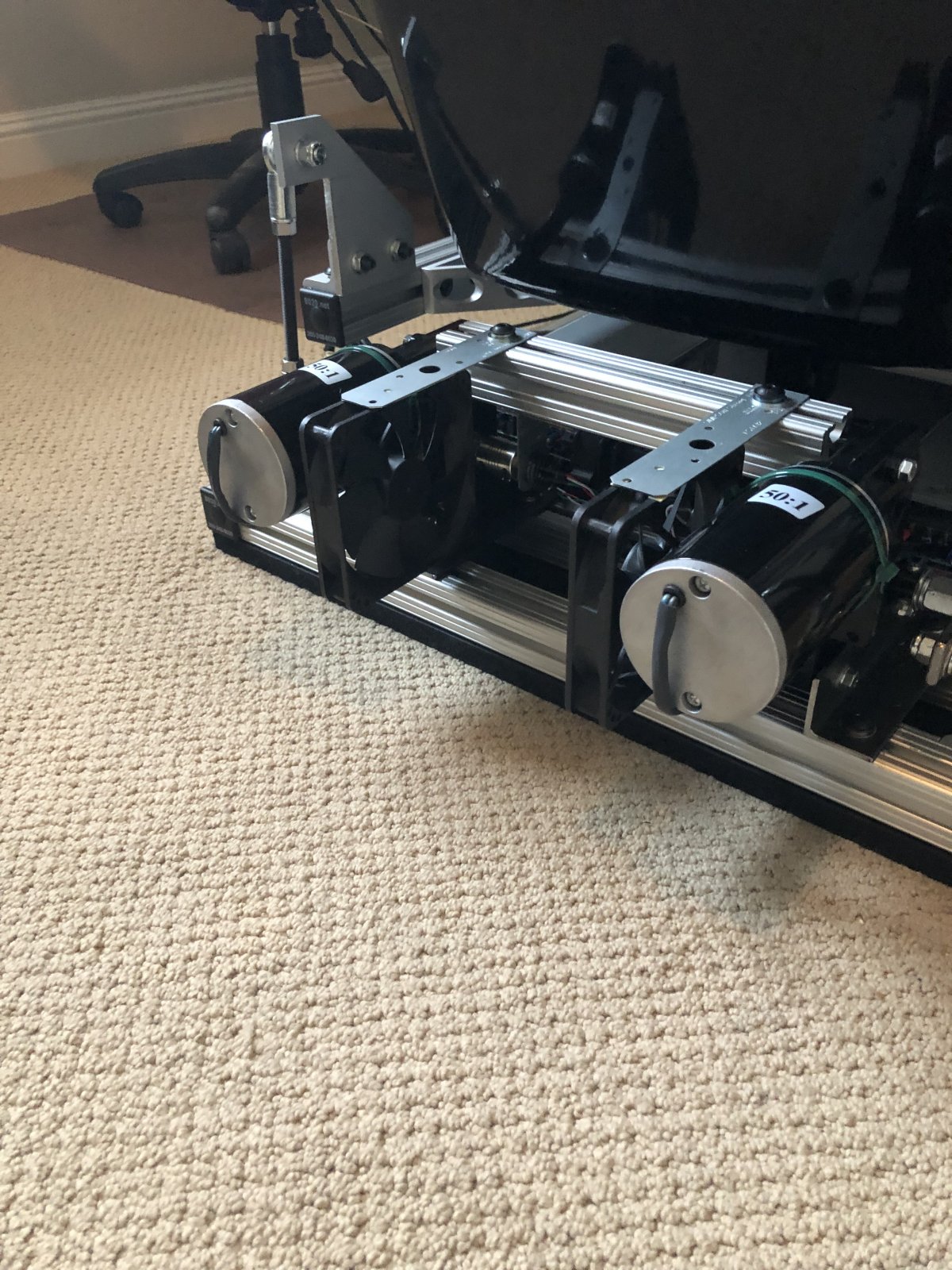

    Upgraded to proper bucket seats and added fans on motor for cooling.





    • Like Like x 3
  13. cover4x4

    cover4x4 I love simracing

    Joined:
    May 1, 2018
    Messages:
    61
    Occupation:
    Car Mechanic
    Location:
    Spain
    Balance:
    41Coins
    Ratings:
    +21 / 0 / -0
    My Motion Simulator:
    2DOF, SCN5
    Hi. Congratulations, I really liked your simulator, beautiful and very compact to be with movement. A greeting.


    Hola. Enhorabuena, me ha gustado mucho tu simulador, bonito y muy compacto para ser con movimiento. Un saludo.
    • Friendly Friendly x 1
  14. Watchumacallit

    Watchumacallit Member

    Joined:
    Oct 16, 2018
    Messages:
    60
    Balance:
    132Coins
    Ratings:
    +62 / 1 / -0
    Thank You!

    Gracias!
  15. sulfail

    sulfail Member Gold Contributor

    Joined:
    Aug 31, 2018
    Messages:
    47
    Occupation:
    AISLAMIENTOS Y PLADUR.
    Location:
    vigo(pontevedra) SPAIN
    Balance:
    254Coins
    Ratings:
    +14 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    [QUOTE = "Watchumacallit, post: 168699, miembro: 31412"] Hoy pude terminar la electrónica. Salió bastante bien. Agradable y compacto.
    57615
  16. Watchumacallit

    Watchumacallit Member

    Joined:
    Oct 16, 2018
    Messages:
    60
    Balance:
    132Coins
    Ratings:
    +62 / 1 / -0
    Sorry, I dont understand. English please.
  17. sulfail

    sulfail Member Gold Contributor

    Joined:
    Aug 31, 2018
    Messages:
    47
    Occupation:
    AISLAMIENTOS Y PLADUR.
    Location:
    vigo(pontevedra) SPAIN
    Balance:
    254Coins
    Ratings:
    +14 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    The ideal is to use the "simcal" tool to calculate the force and angles, the very powerful power supplies, the bad of putting the motors underneath. The closer to the shoulders this support the less effort for your engines.
  18. Watchumacallit

    Watchumacallit Member

    Joined:
    Oct 16, 2018
    Messages:
    60
    Balance:
    132Coins
    Ratings:
    +62 / 1 / -0
    I know that but i wanted a compact design and this works for me. Motors are strong enough. I have to tone it down because it was throwing me around too much.
  19. sulfail

    sulfail Member Gold Contributor

    Joined:
    Aug 31, 2018
    Messages:
    47
    Occupation:
    AISLAMIENTOS Y PLADUR.
    Location:
    vigo(pontevedra) SPAIN
    Balance:
    254Coins
    Ratings:
    +14 / 0 / -0
    My Motion Simulator:
    2DOF, Arduino
    If it's very compact, and it looks nice, The engines are new, did you buy them on ebay, are they a car? How much did they cost you? I use some of scrapping and they go well too. I use the translator's apology.
    • Like Like x 1
  20. Watchumacallit

    Watchumacallit Member

    Joined:
    Oct 16, 2018
    Messages:
    60
    Balance:
    132Coins
    Ratings:
    +62 / 1 / -0
    Yes they are new from ebay. I got them from PGsaw ebay store. Very powerful motors geared 50:1 for more torque.

    https://www.ebay.com/i/371596157992...=13&mehot=pp&sd=351066992384&itm=371596157992
