6-dof BLACKBOX - Real Life data recorder

Discussion in 'Ready, set, go - Start your engines' started by hexpod, Jul 29, 2019.

  1. hexpod

    hexpod http://heXpod.xyz

    Joined:
    Apr 18, 2016
    Messages:
    1,093
    Location:
    berlin
    Balance:
    7,091Coins
    Ratings:
    +336 / 5 / -0
    My Motion Simulator:
    DC motor, 6DOF
    It seams we have a perfect free tool in our hands to record real life experiences.

    I am opening this thread so we can collect real life 6-dof database library for comparison, small studies, cross reference real motion with motion simulator.

    With this app you can record and export accelerometer and gyroscope data in one file for further analysis, telemetry playback using SimTools' "Video Ride Creator" or simply video capture 6-dof motion graphs by using your screen recorder feature with external sound for easier synchronization with an additional external video.

    1)
    Download Phyphox for iOS or Android here:

    https://phyphox.org/

    2)
    Open the app and add a new experience from this QR code:


    3)
    Put your phone horizontally in your vehicle/aircraft ("anti gravity" phone case recommended) - For a few $ you can buy an “anti - gravity” phone case if you want to do some phyphox measurements. This sticky silicone-like surface maintain the phone steady wherever you leave it.

    4)
    Launch the video recording using another camera or the smartphone of your girlfriend at the same time as your screen recorder and record your Phyphox data.

    Happy Experiences !
    • Like Like x 4
    • Useful Useful x 2
    Last edited: Aug 11, 2019
  2. hexpod

    hexpod http://heXpod.xyz

    Joined:
    Apr 18, 2016
    Messages:
    1,093
    Location:
    berlin
    Balance:
    7,091Coins
    Ratings:
    +336 / 5 / -0
    My Motion Simulator:
    DC motor, 6DOF
    droping here B-737 taxi and take-off telemetry:

    Last edited: Jul 30, 2019
  3. hexpod

    hexpod http://heXpod.xyz

    Joined:
    Apr 18, 2016
    Messages:
    1,093
    Location:
    berlin
    Balance:
    7,091Coins
    Ratings:
    +336 / 5 / -0
    My Motion Simulator:
    DC motor, 6DOF
    Audi A4 rumble
  4. hexpod

    hexpod http://heXpod.xyz

    Joined:
    Apr 18, 2016
    Messages:
    1,093
    Location:
    berlin
    Balance:
    7,091Coins
    Ratings:
    +336 / 5 / -0
    My Motion Simulator:
    DC motor, 6DOF
    Land Rover Discovery 1
  5. Tags..(VR)

    Tags..(VR) Member

    Joined:
    Aug 28, 2017
    Messages:
    237
    Location:
    indiana
    Balance:
    - 6Coins
    Ratings:
    +29 / 2 / -0
    My Motion Simulator:
    2DOF, DC motor, Arduino, Motion platform
    very nice , i hope to have the rig you have
  6. hexpod

    hexpod http://heXpod.xyz

    Joined:
    Apr 18, 2016
    Messages:
    1,093
    Location:
    berlin
    Balance:
    7,091Coins
    Ratings:
    +336 / 5 / -0
    My Motion Simulator:
    DC motor, 6DOF
    Trying to tune the simulator response:
  7. hexpod

    hexpod http://heXpod.xyz

    Joined:
    Apr 18, 2016
    Messages:
    1,093
    Location:
    berlin
    Balance:
    7,091Coins
    Ratings:
    +336 / 5 / -0
    My Motion Simulator:
    DC motor, 6DOF
    Some graphs from a quiet routine flight on A320.
    Recorded on the floor at the wing level.

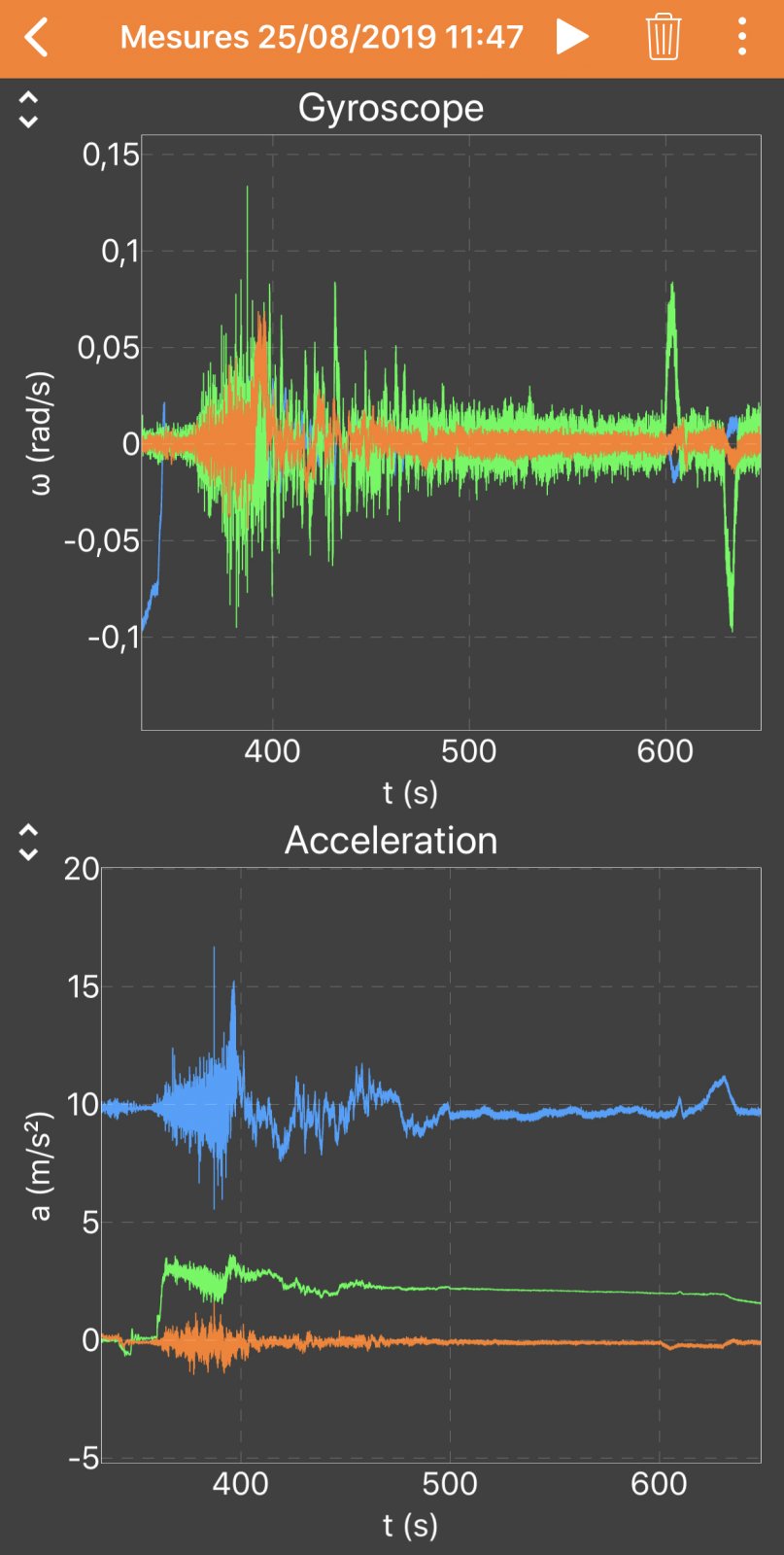

    Berlin Tegel departure from runway alignment to the first turn. ca. 5min :

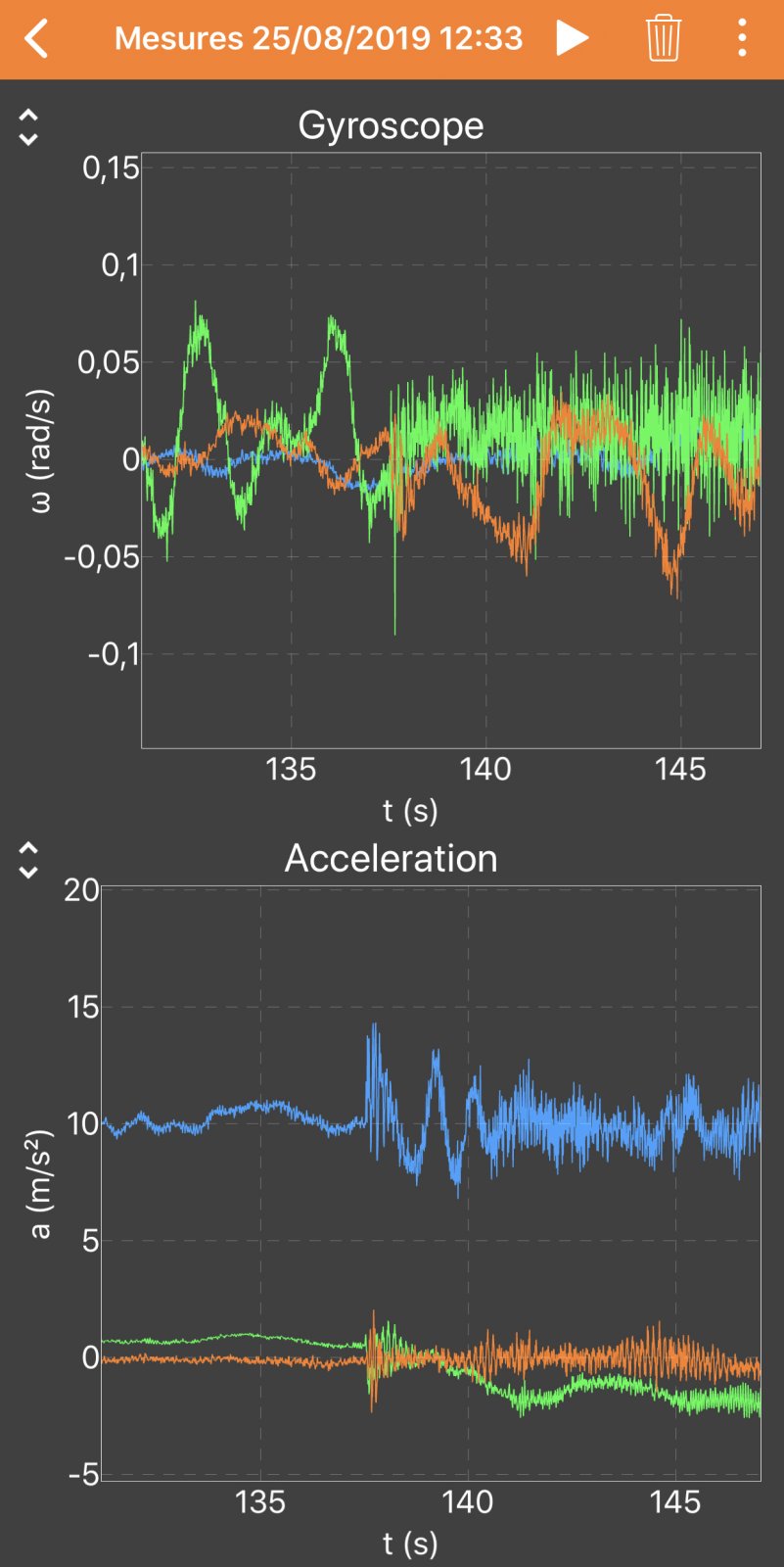

    Salzburg arrival from flare to runway exit. ca. 1 min :

    Now some details...

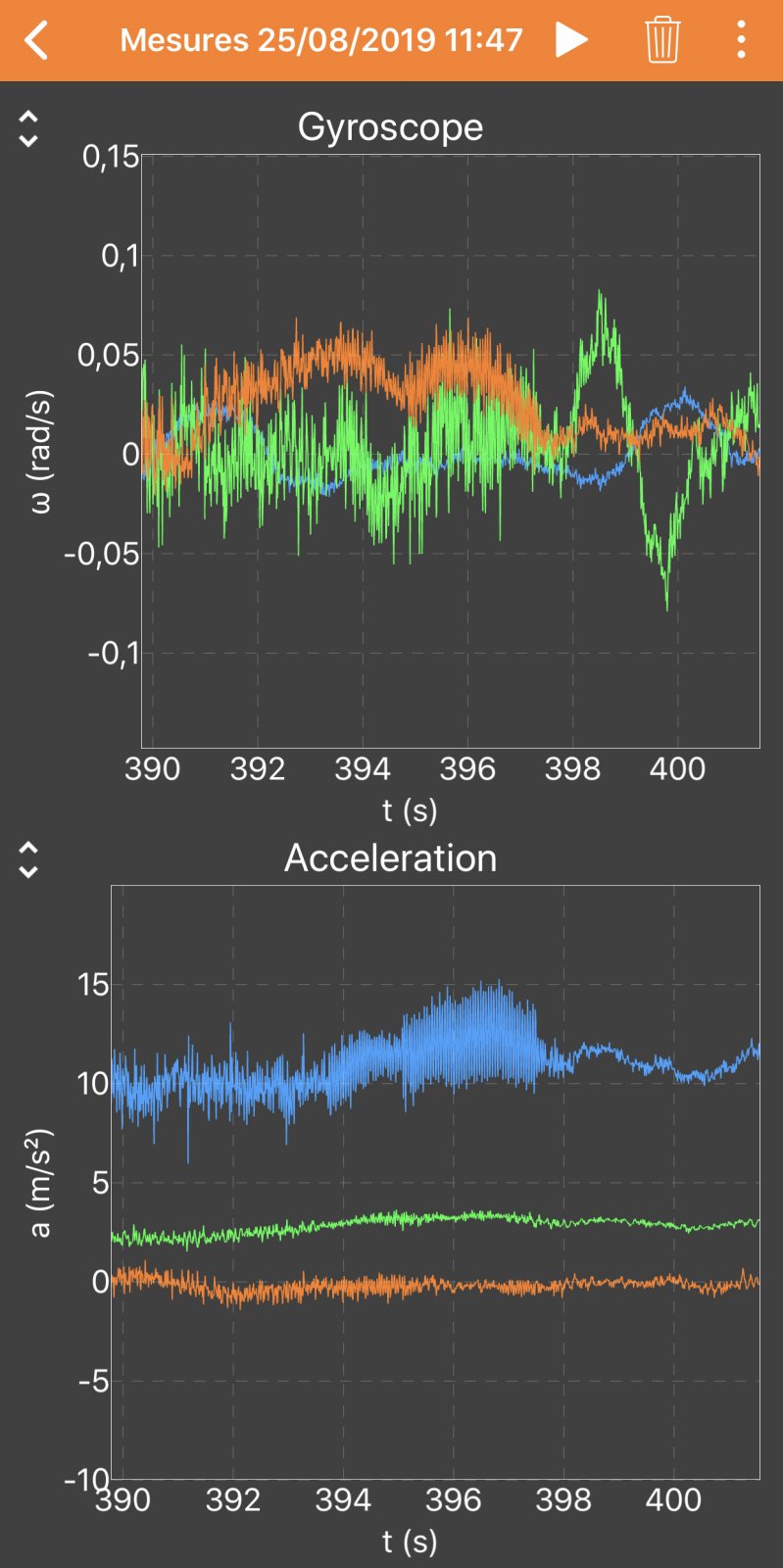

    Lift-off moment:

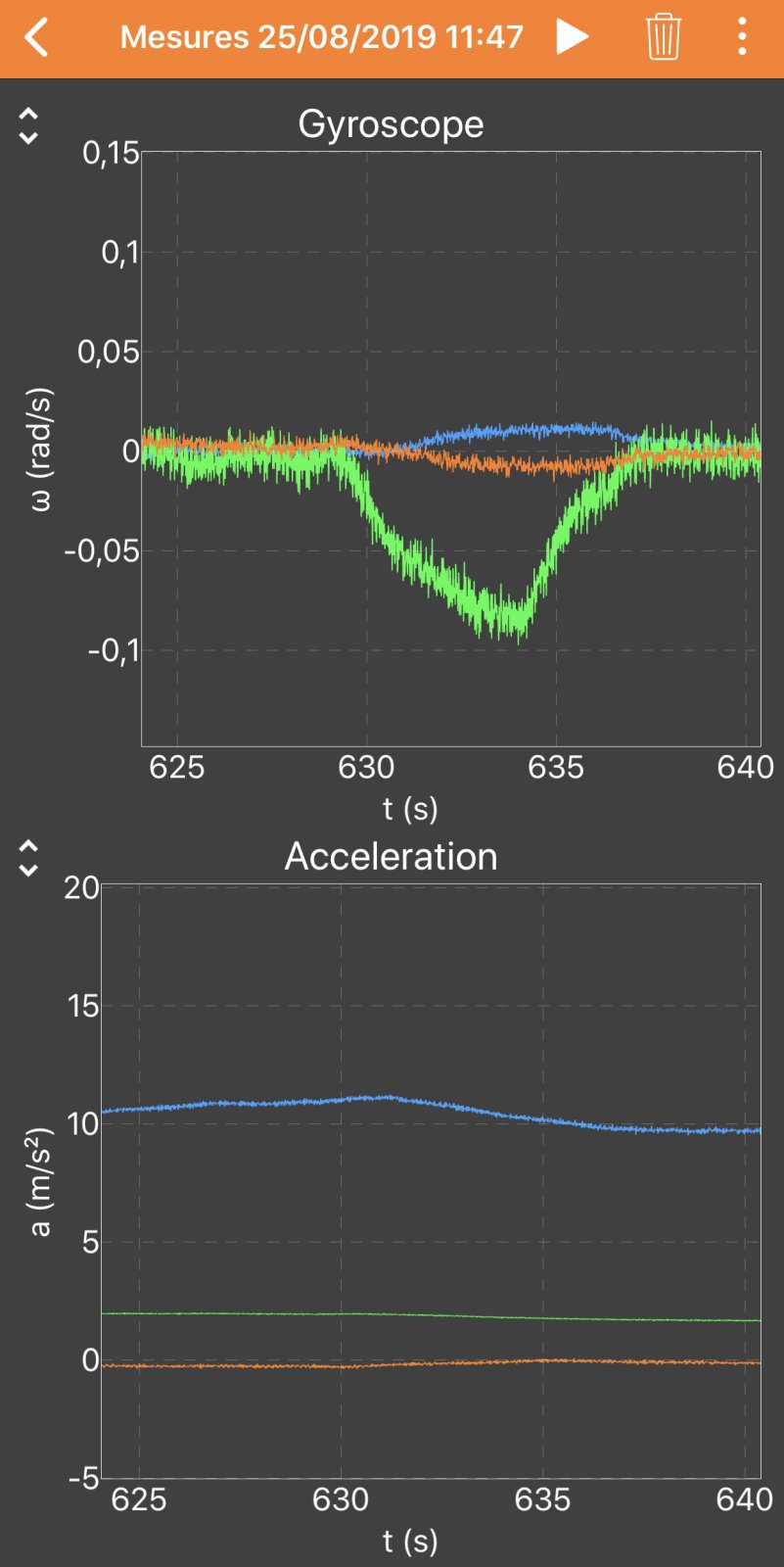

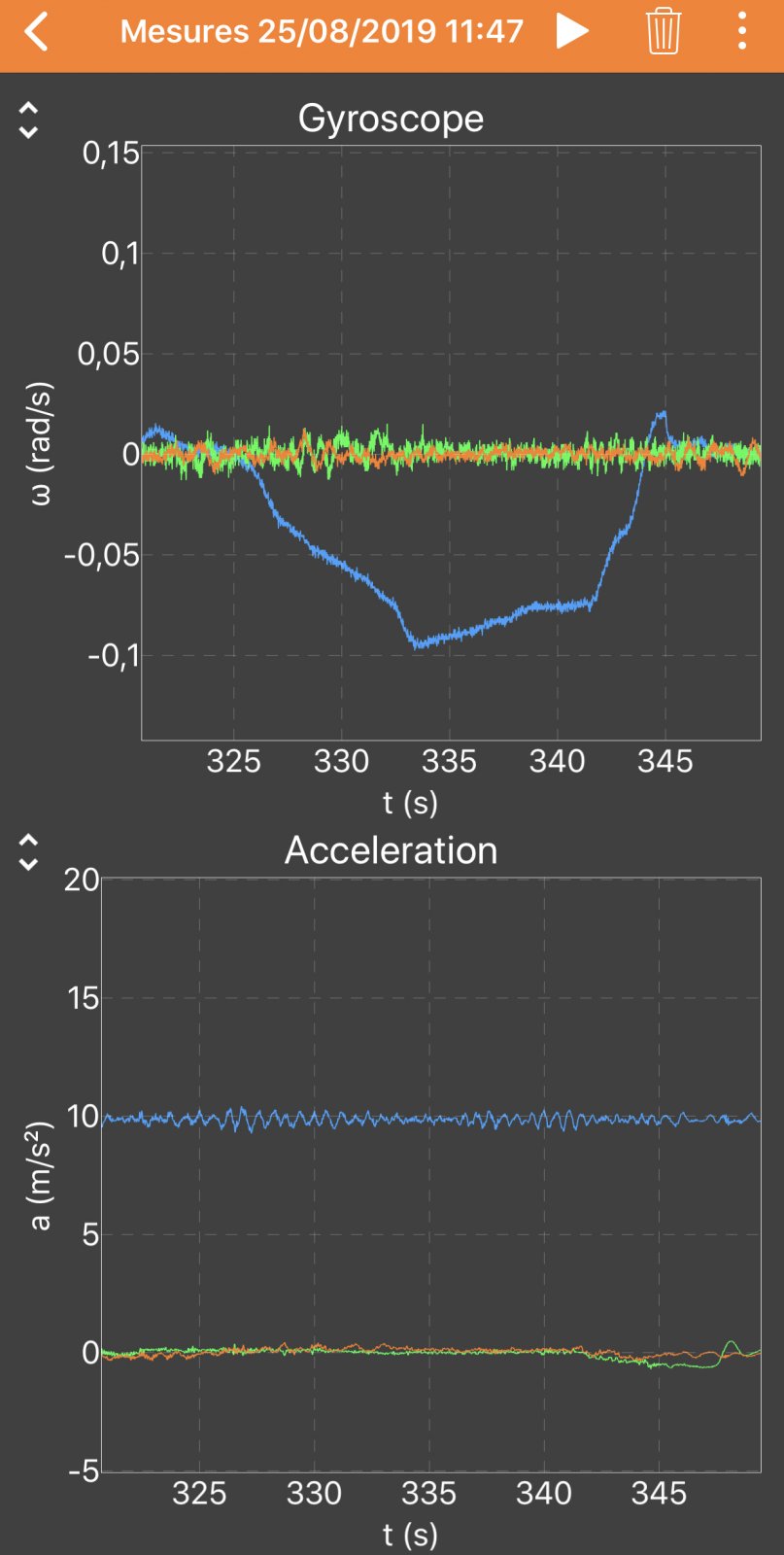

    Turn (I guess autopilot standard) moment:

    Before take- off runway alignment and full stop moment:

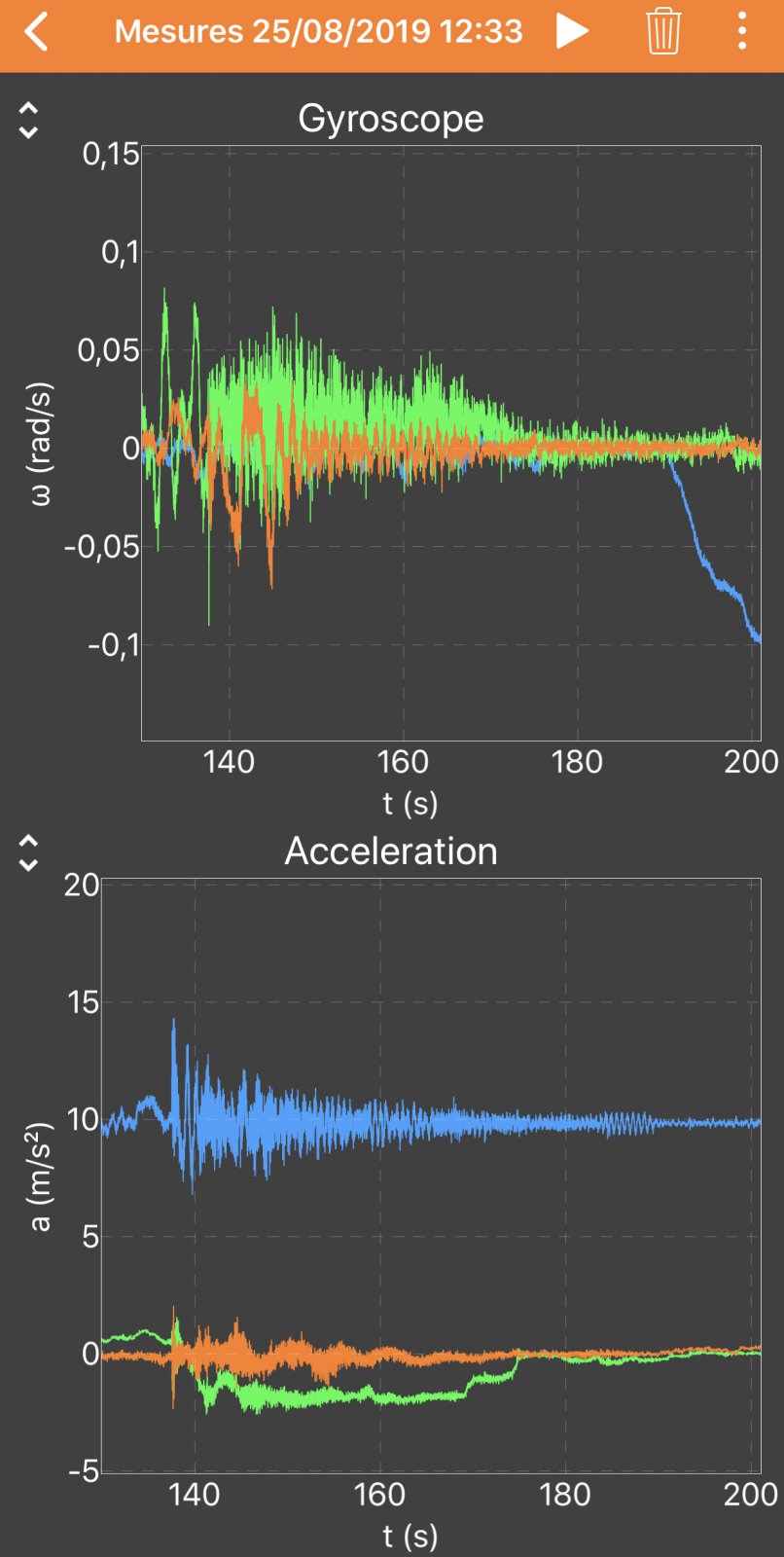

    Flare and touch-down moment :

    Feel free to comment.

    If someone by chance has to train on a 6-dof professional simulator and could record similar graphs I would be grateful.

    Thanx
    Last edited: Aug 25, 2019
  8. apointner

    apointner Siddhartha

    Joined:
    Aug 16, 2014
    Messages:
    63
    Location:
    N 48° 9'0.88" E 12° 5'45.84"
    Balance:
    764Coins
    Ratings:
    +17 / 3 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino, Motion platform
    Installed! thx!
  9. hexpod

    hexpod http://heXpod.xyz

    Joined:
    Apr 18, 2016
    Messages:
    1,093
    Location:
    berlin
    Balance:
    7,091Coins
    Ratings:
    +336 / 5 / -0
    My Motion Simulator:
    DC motor, 6DOF

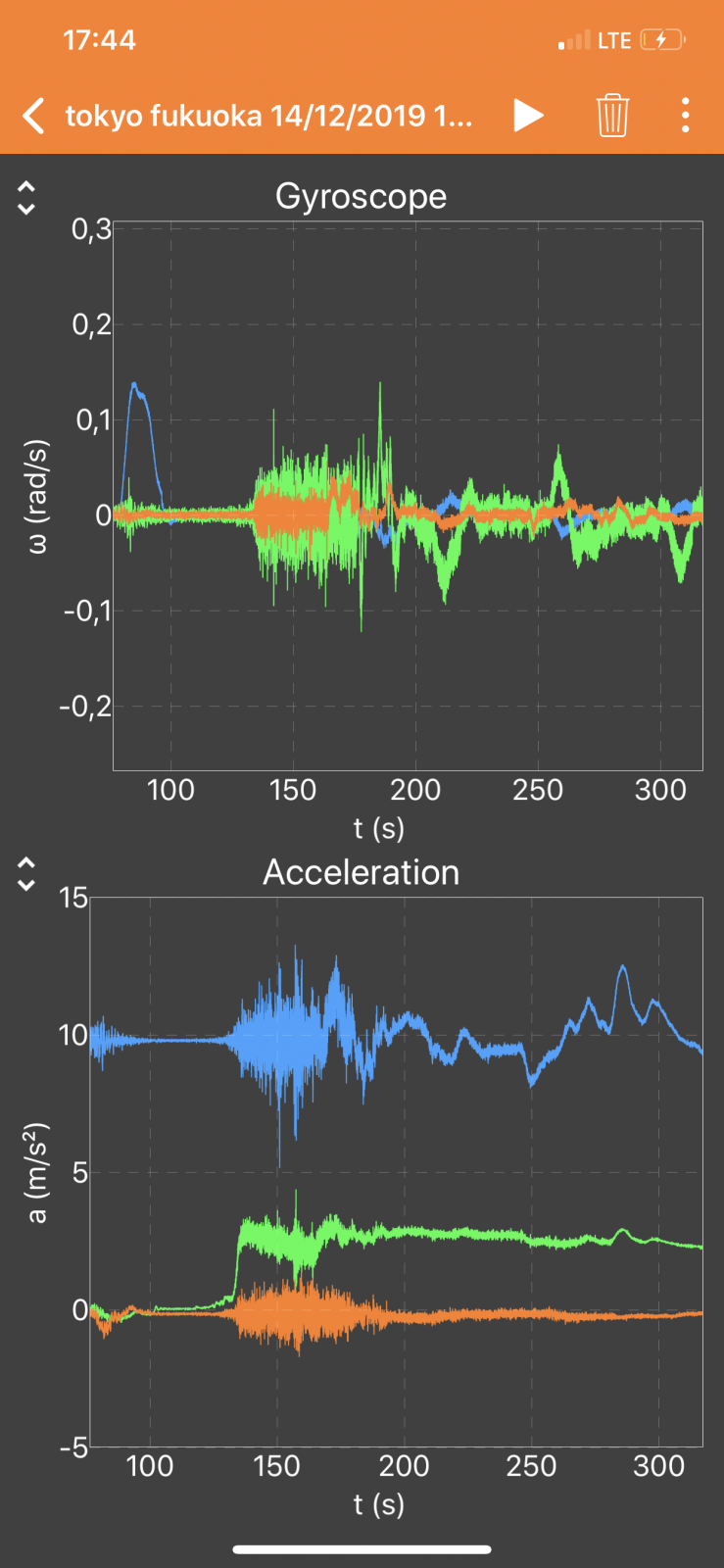

    Last edited: Dec 24, 2019
  10. apointner

    apointner Siddhartha

    Joined:
    Aug 16, 2014
    Messages:
    63
    Location:
    N 48° 9'0.88" E 12° 5'45.84"
    Balance:
    764Coins
    Ratings:
    +17 / 3 / -0
    My Motion Simulator:
    3DOF, DC motor, Arduino, Motion platform

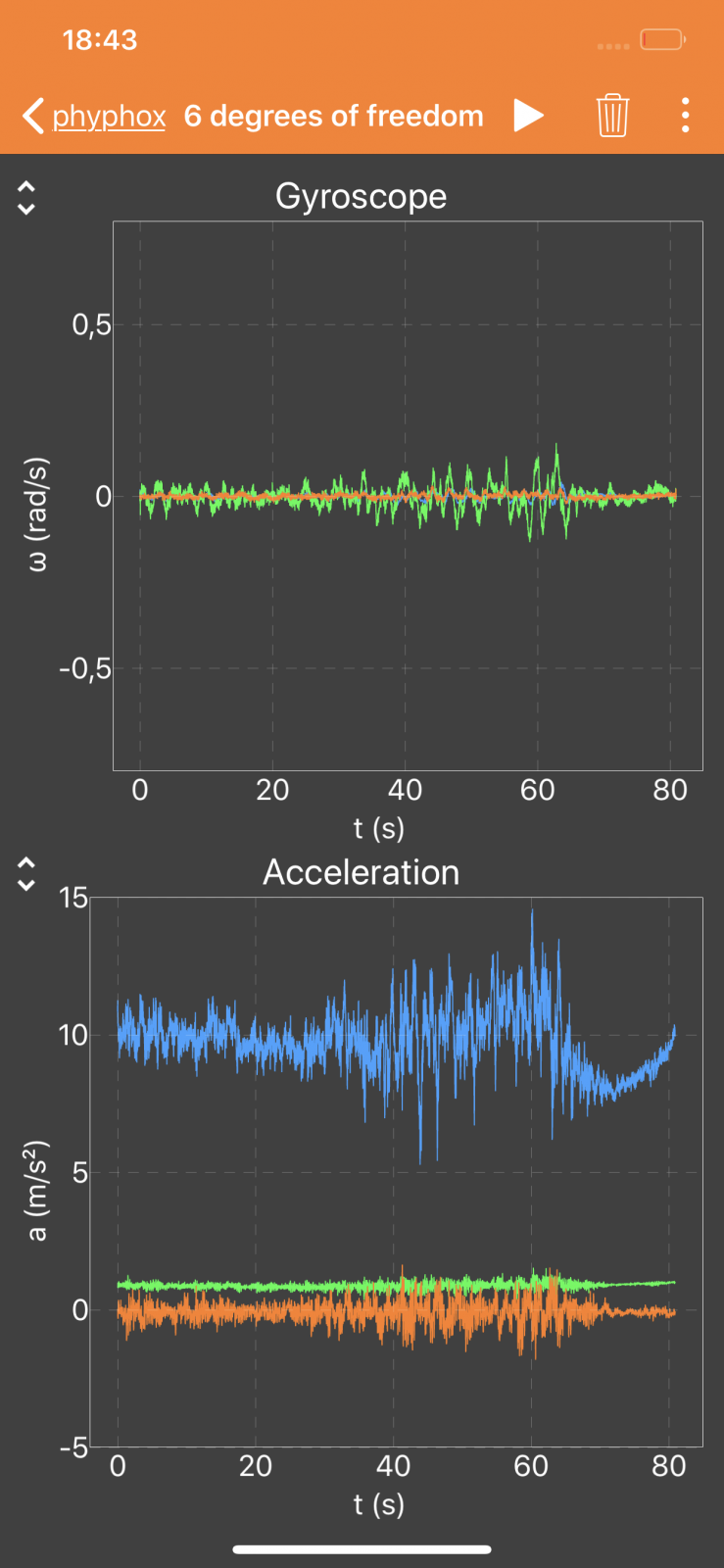

  11. hexpod

    hexpod http://heXpod.xyz

    Joined:
    Apr 18, 2016
    Messages:
    1,093
    Location:
    berlin
    Balance:
    7,091Coins
    Ratings:
    +336 / 5 / -0
    My Motion Simulator:
    DC motor, 6DOF

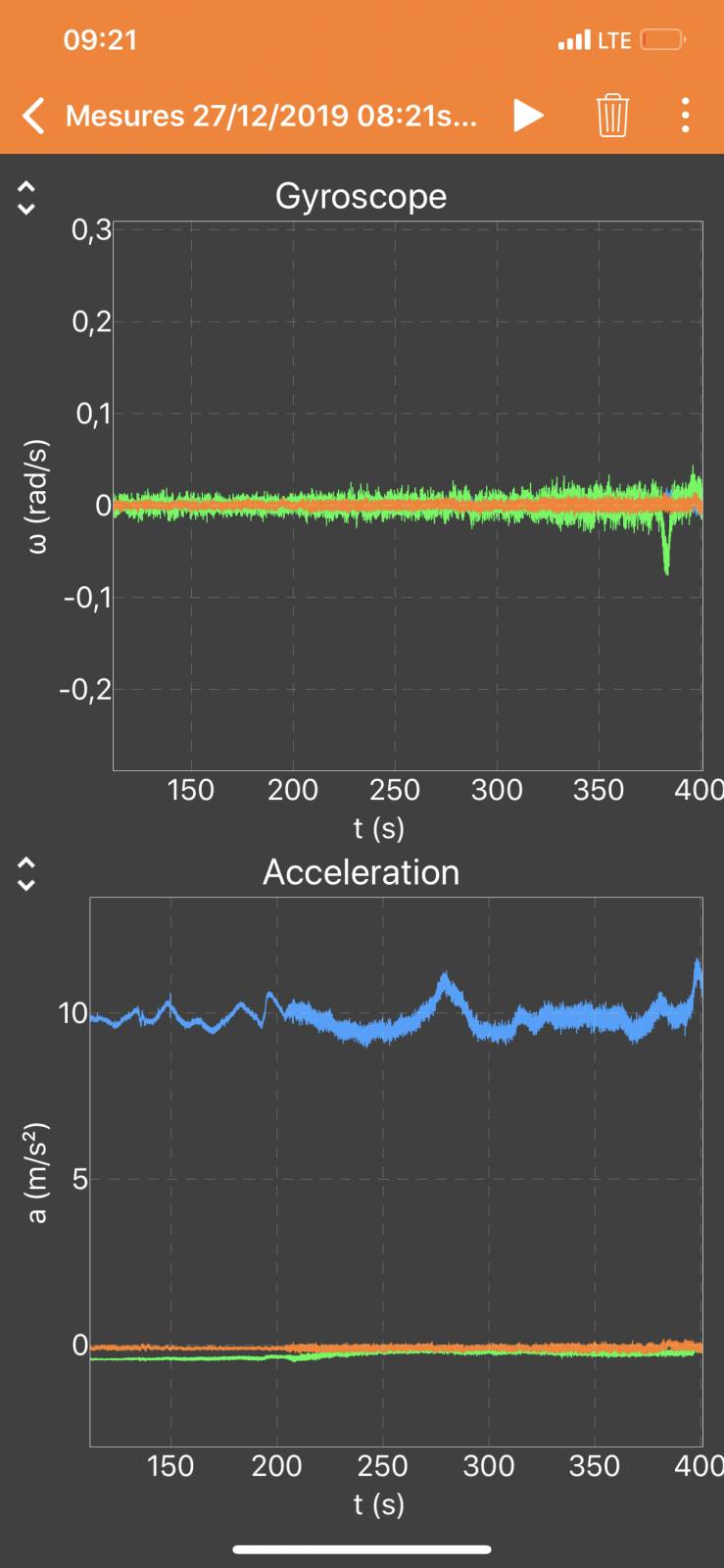

    737-800 Take-Off

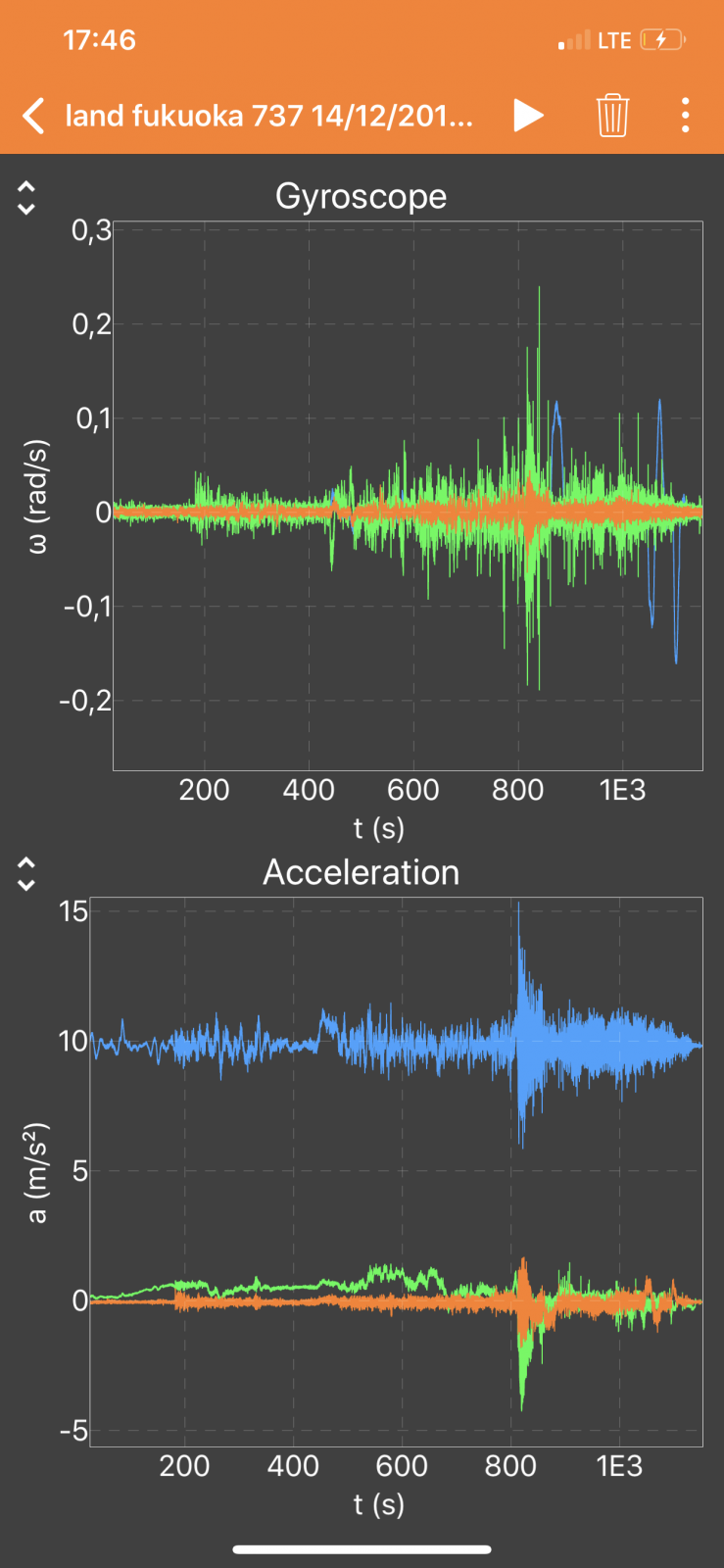

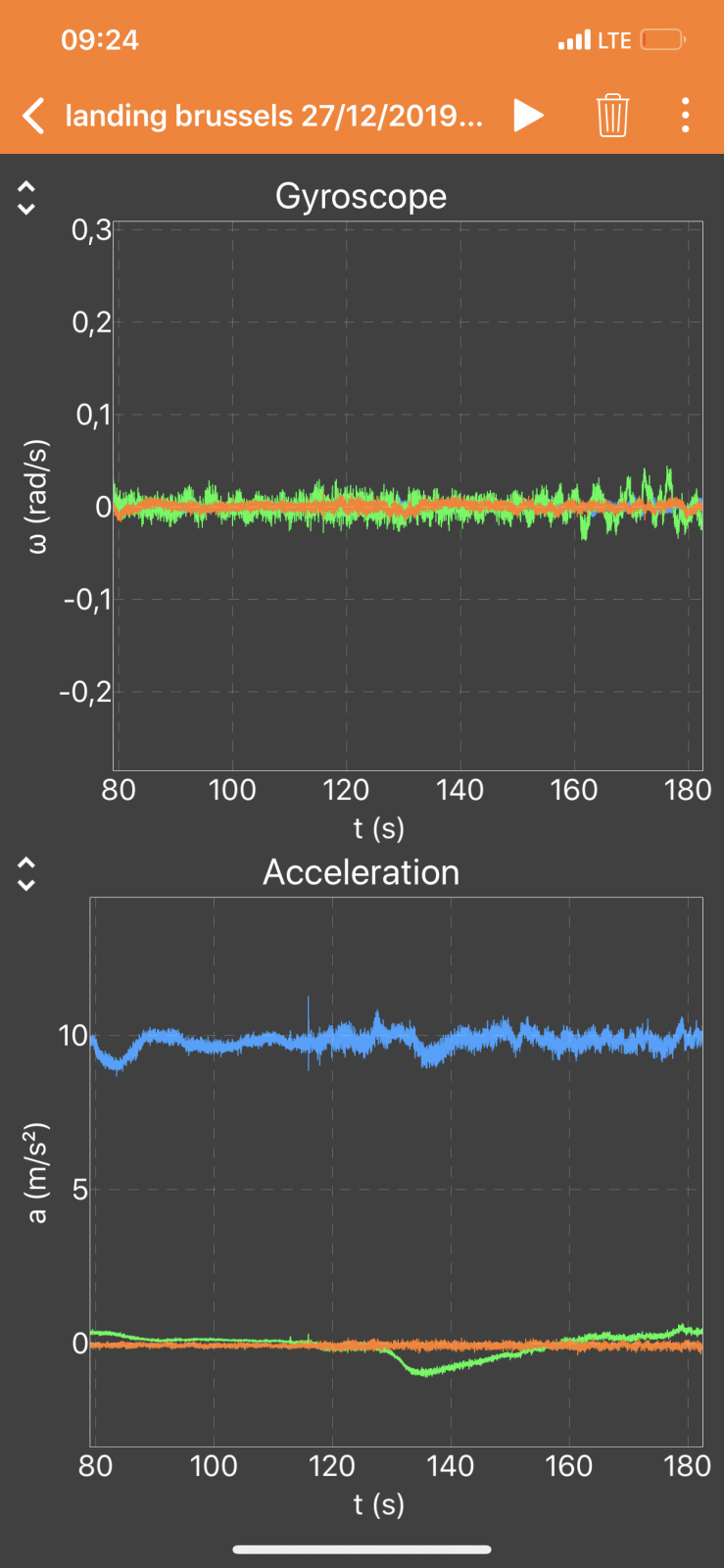

    737-800 Landing
