4 DOF (PITCH-ROLL-TRACTION LOSS-SURGE)

Discussion in 'DIY Motion Simulator Projects' started by Enrico, Mar 11, 2018.

  1. Enrico

    Enrico Member

    Joined:
    Feb 5, 2018
    Messages:
    123
    Location:
    Italy
    Balance:
    417Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    4DOF
    Hi every body, I'm starting with my first simulator.
    I will start with pitch and roll at first, traction loss and surge movments will be locked at the moment but I build a rig ready for that.
    ill follow some pictures fo wht I'm doing ...
  2. Enrico

    Enrico Member

    Joined:
    Feb 5, 2018
    Messages:
    123
    Location:
    Italy
    Balance:
    417Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    4DOF

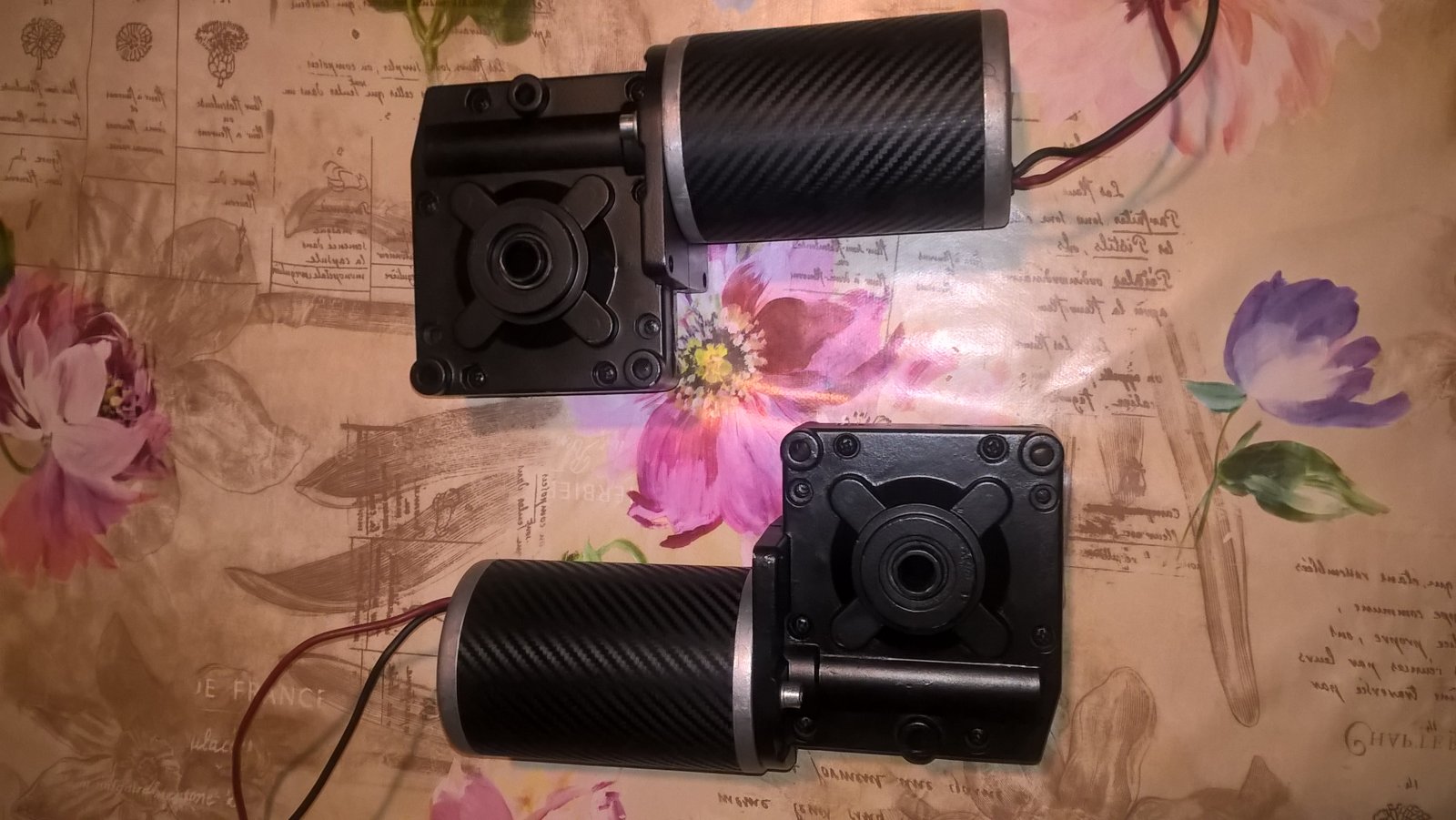

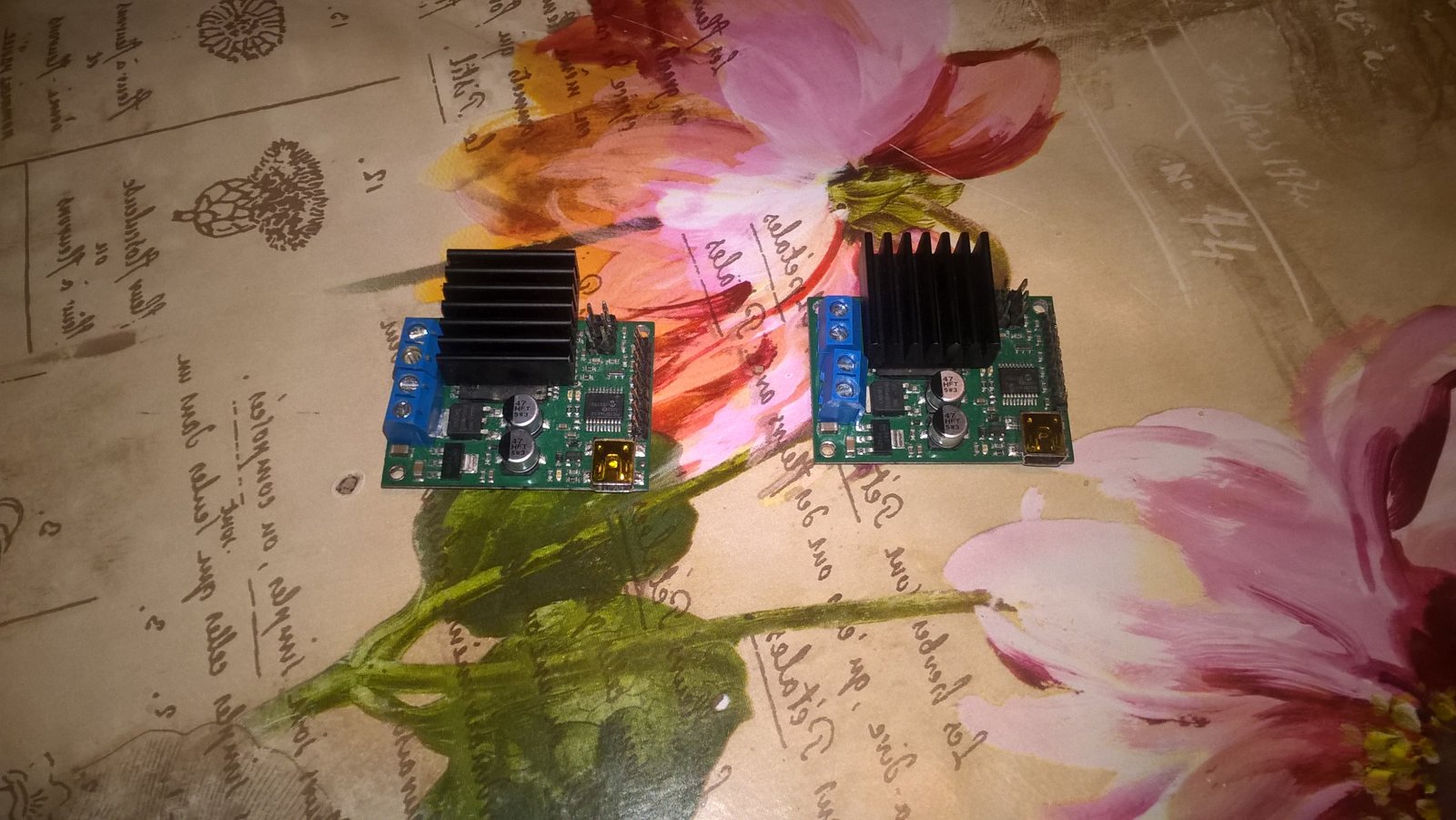

    I will use 2 12V motors with jrk

    WP_20180225_18_24_16_Pro.jpg WP_20180225_18_24_28_Pro.jpg
    • Like Like x 1
  3. Enrico

    Enrico Member

    Joined:
    Feb 5, 2018
    Messages:
    123
    Location:
    Italy
    Balance:
    417Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    4DOF

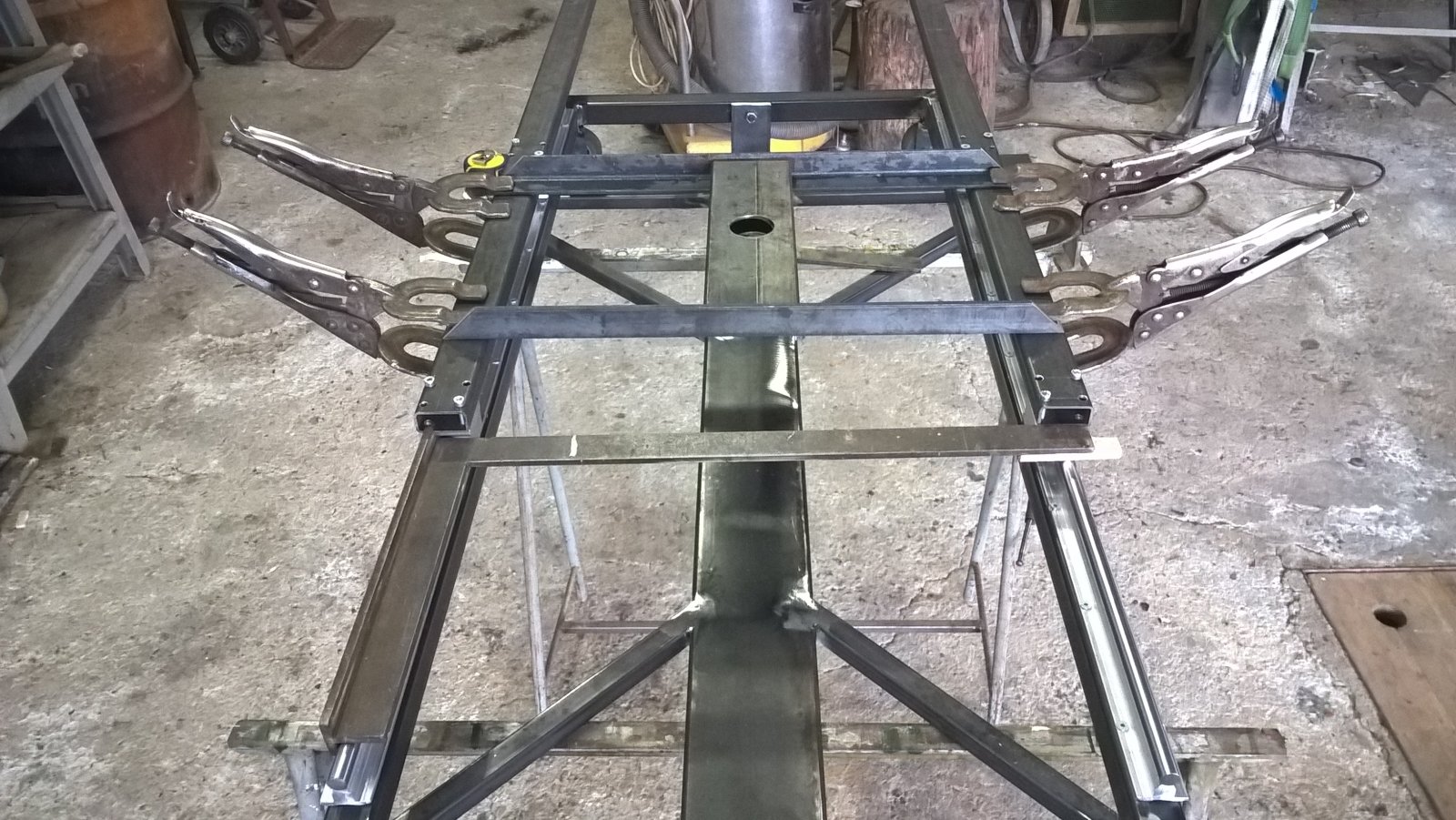

    here the base frame with the frame for traction loss movement
    and a support with ball bearings.
    Is visible the locking sytem to prevent the movment for the moment
  4. Enrico

    Enrico Member

    Joined:
    Feb 5, 2018
    Messages:
    123
    Location:
    Italy
    Balance:
    417Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    4DOF

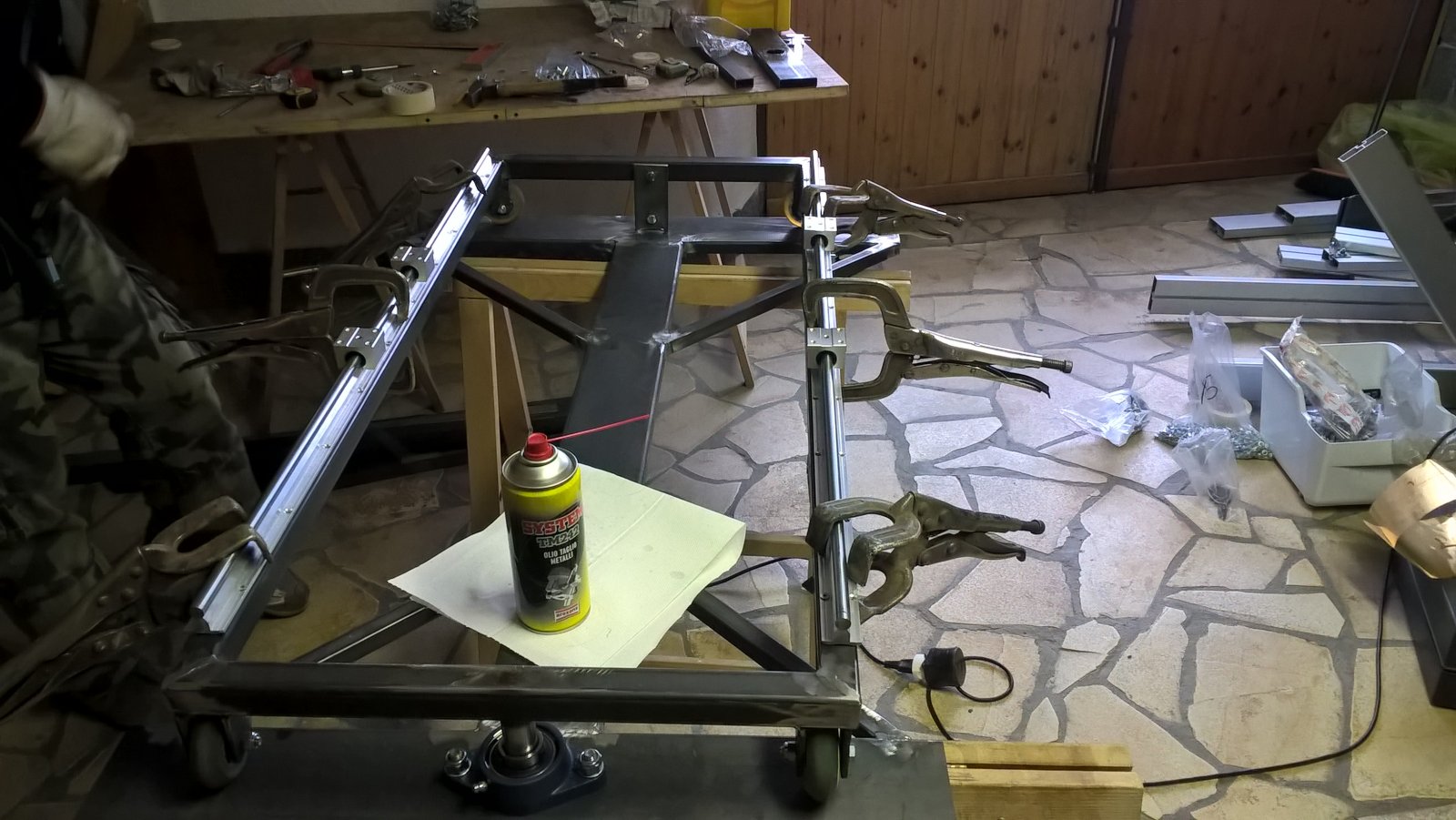

    then the 2 sliding guide with trolleys
    • Like Like x 1
  5. Enrico

    Enrico Member

    Joined:
    Feb 5, 2018
    Messages:
    123
    Location:
    Italy
    Balance:
    417Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    4DOF

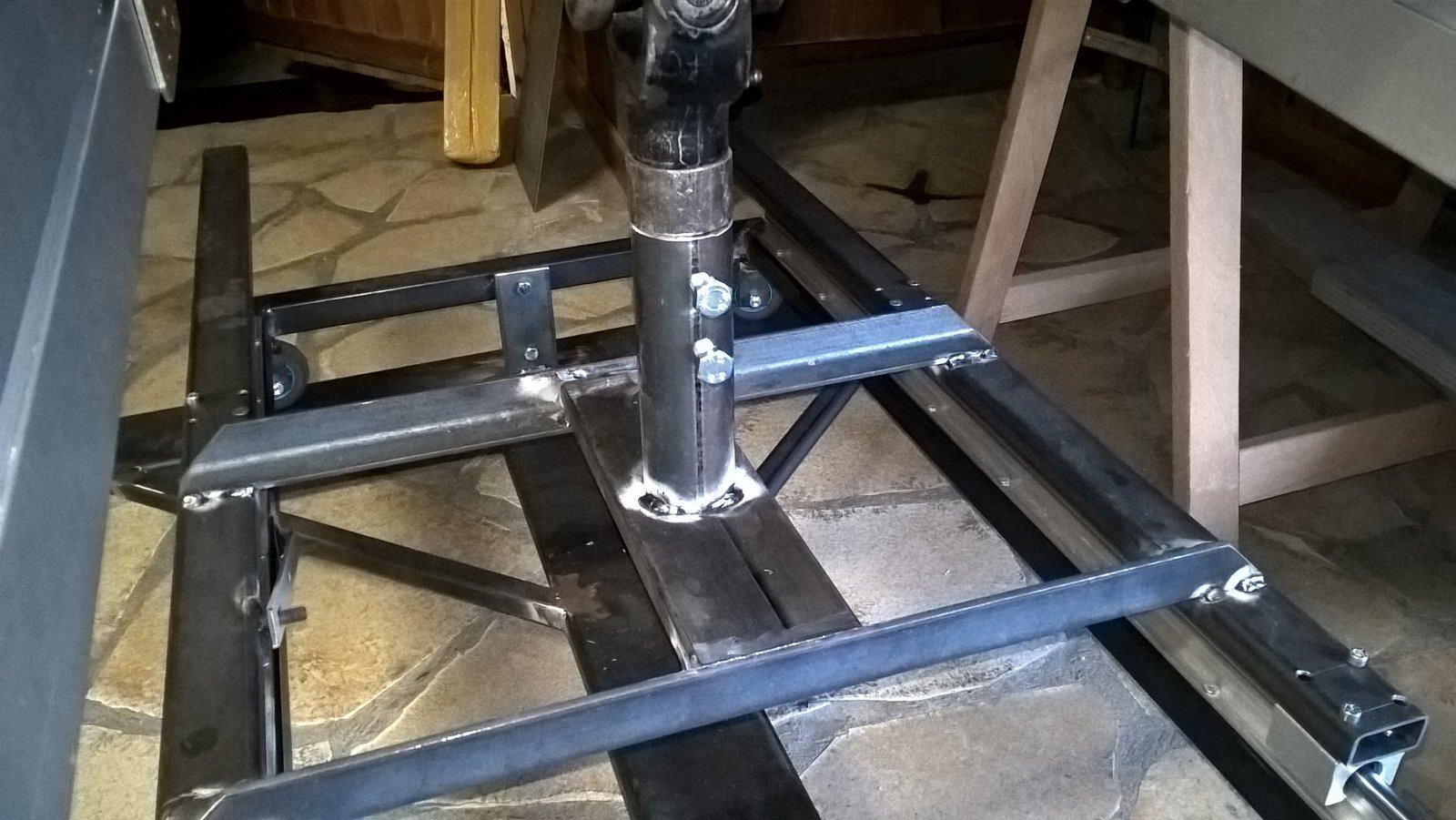

    ...and then the frame where will be installed the universal joint
  6. Enrico

    Enrico Member

    Joined:
    Feb 5, 2018
    Messages:
    123
    Location:
    Italy
    Balance:
    417Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    4DOF
    At the moment that's all.
    I will sharing the progress...
  7. Enrico

    Enrico Member

    Joined:
    Feb 5, 2018
    Messages:
    123
    Location:
    Italy
    Balance:
    417Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    4DOF

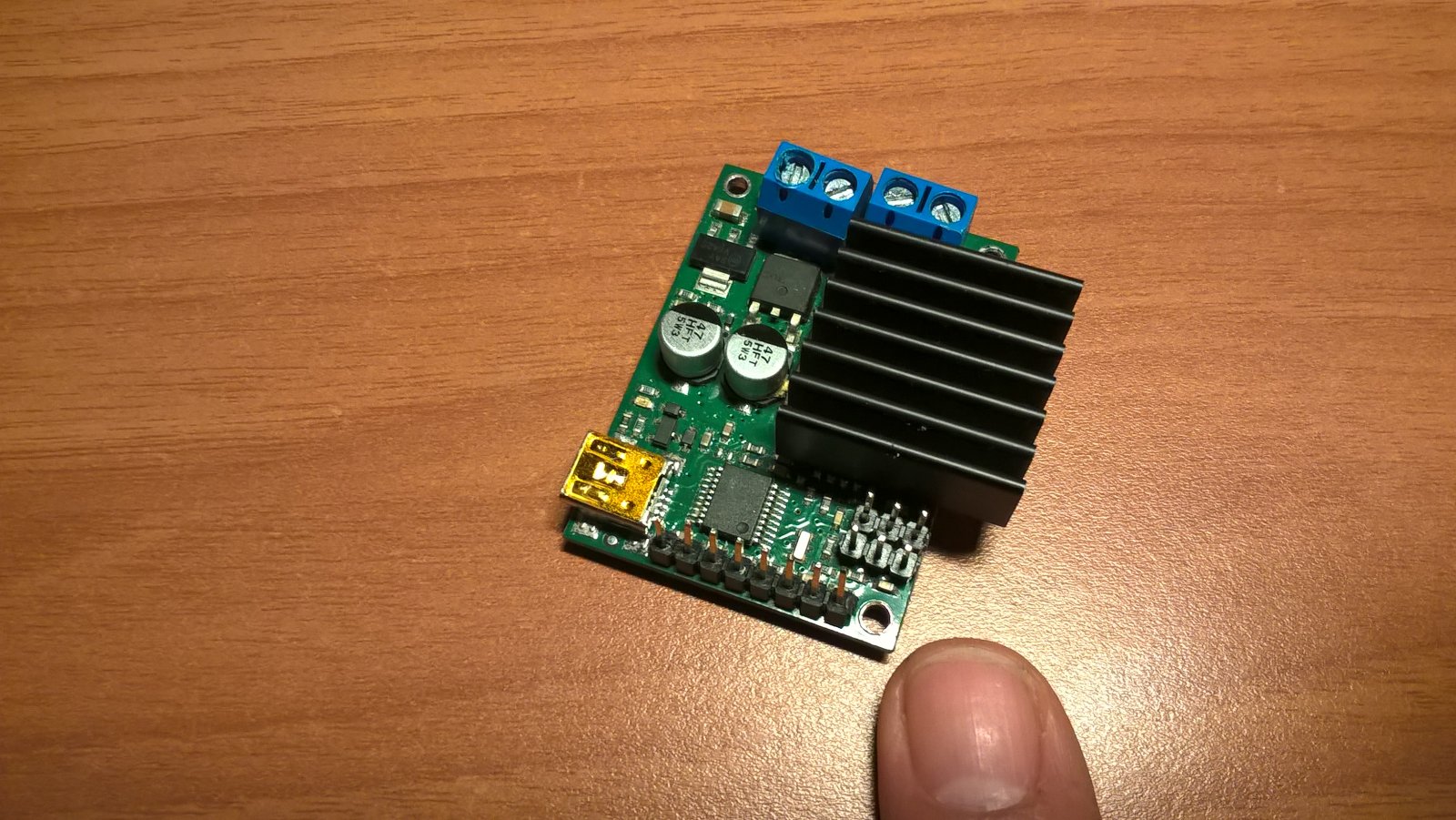

    Because the jrk cards have really small holes to install in some bix, I find this solution (I haven't the original screws for that cards) ......
  8. Enrico

    Enrico Member

    Joined:
    Feb 5, 2018
    Messages:
    123
    Location:
    Italy
    Balance:
    417Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    4DOF

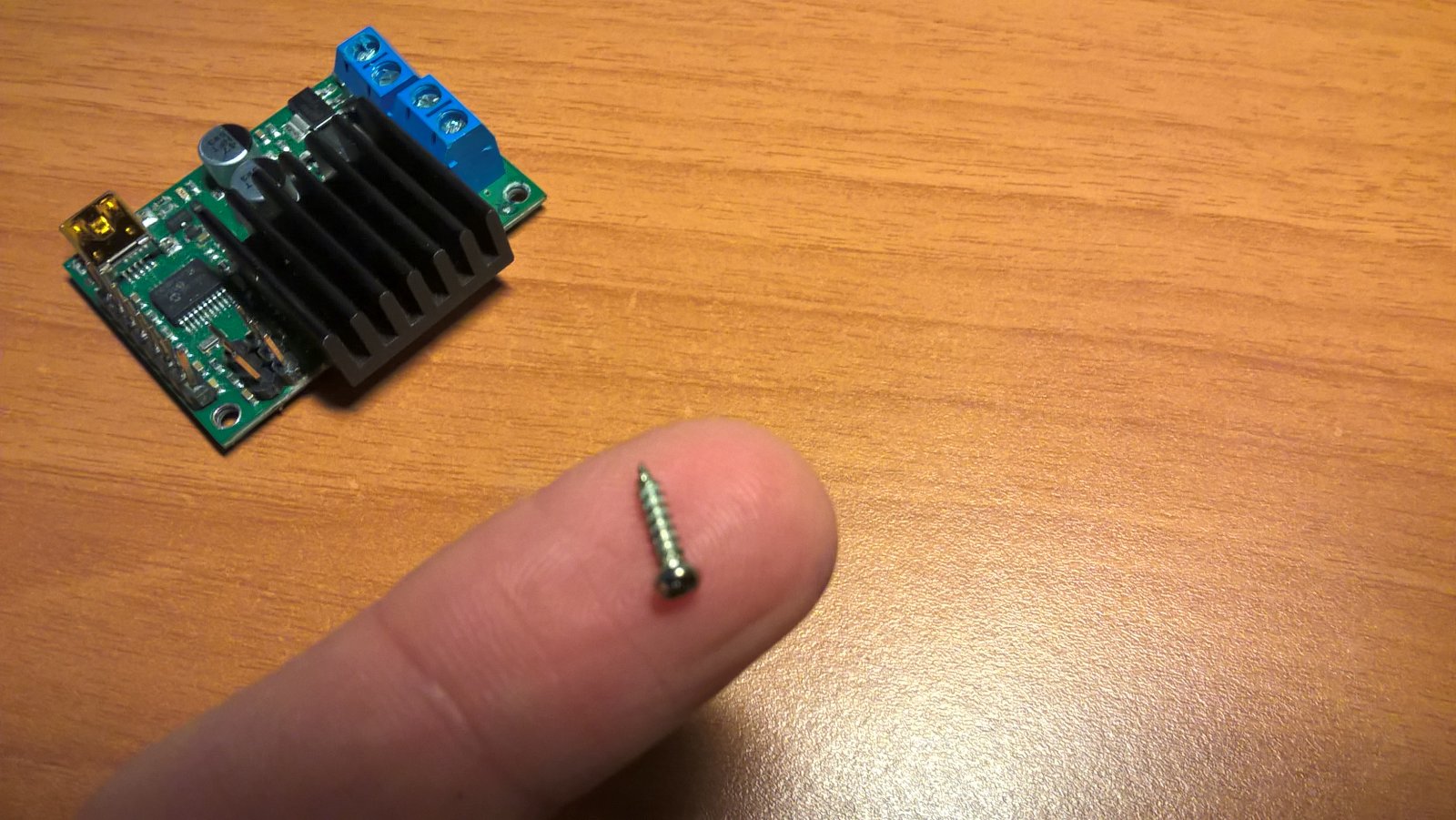

    Really really small holes. I find some screws in the cordles phones at home and remove 2 of them for each :eek:

    Attached Files:

  9. Enrico

    Enrico Member

    Joined:
    Feb 5, 2018
    Messages:
    123
    Location:
    Italy
    Balance:
    417Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    4DOF

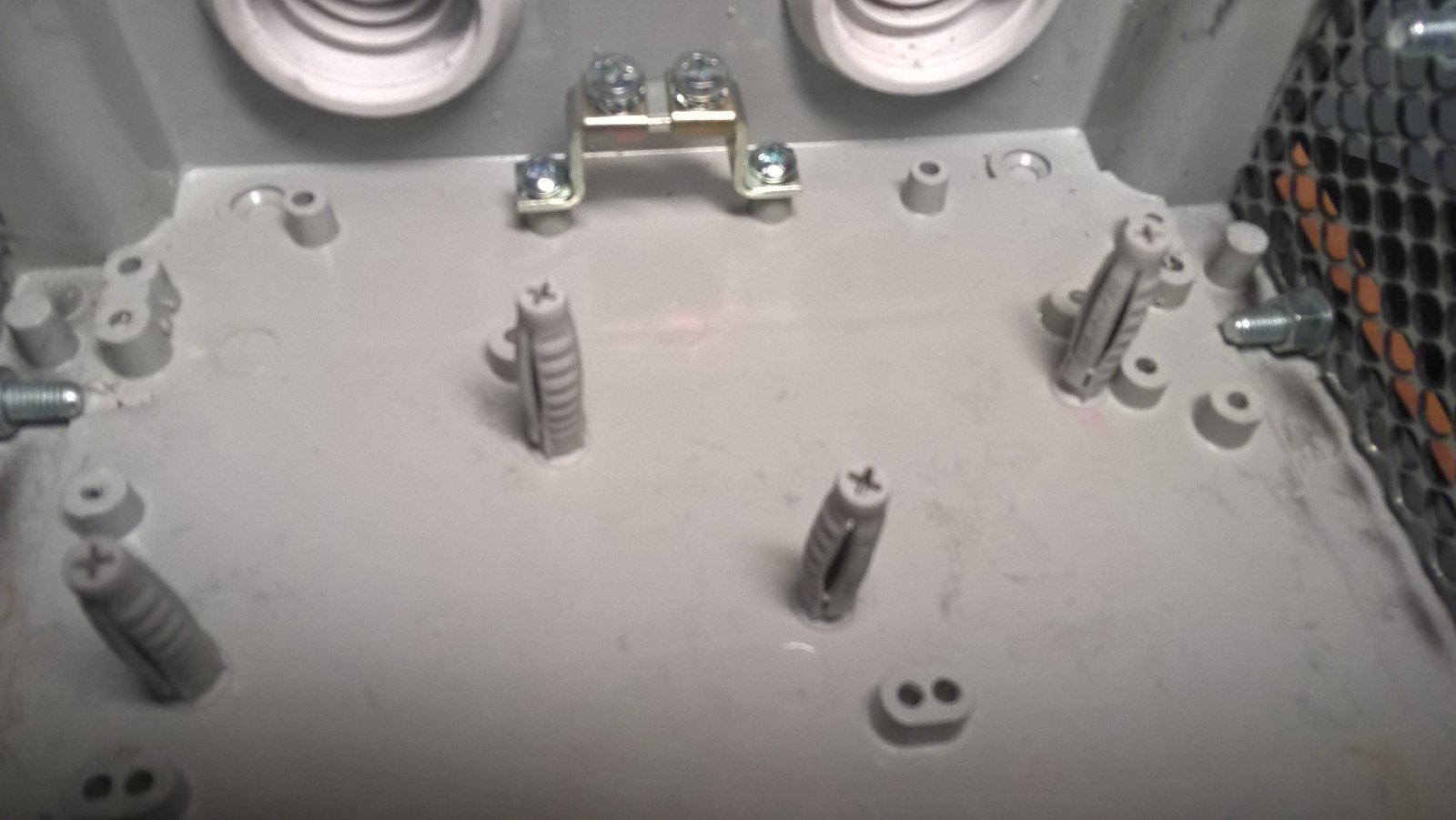

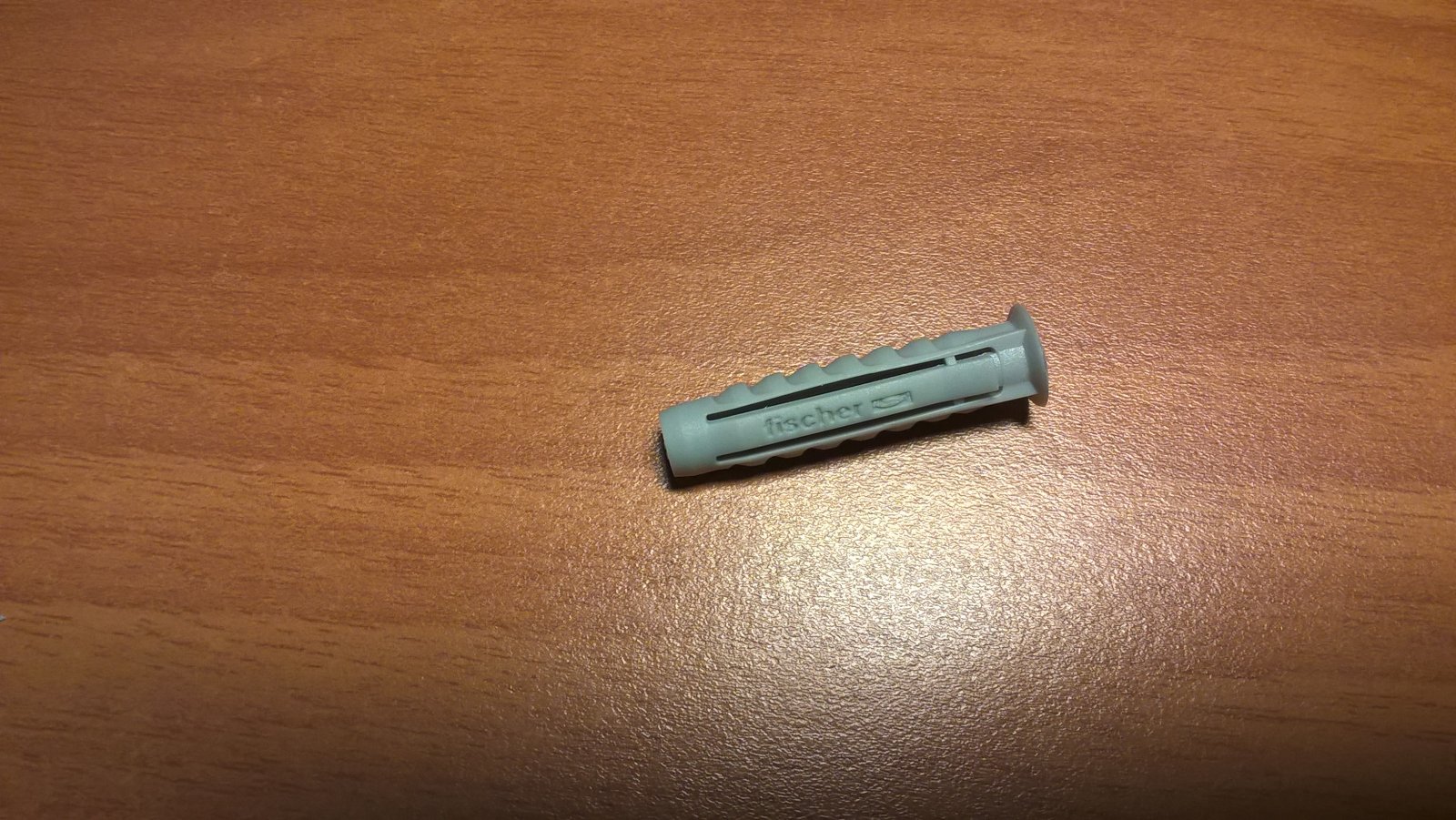

    then using a Fischer wall plug ...
  10. Enrico

    Enrico Member

    Joined:
    Feb 5, 2018
    Messages:
    123
    Location:
    Italy
    Balance:
    417Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    4DOF

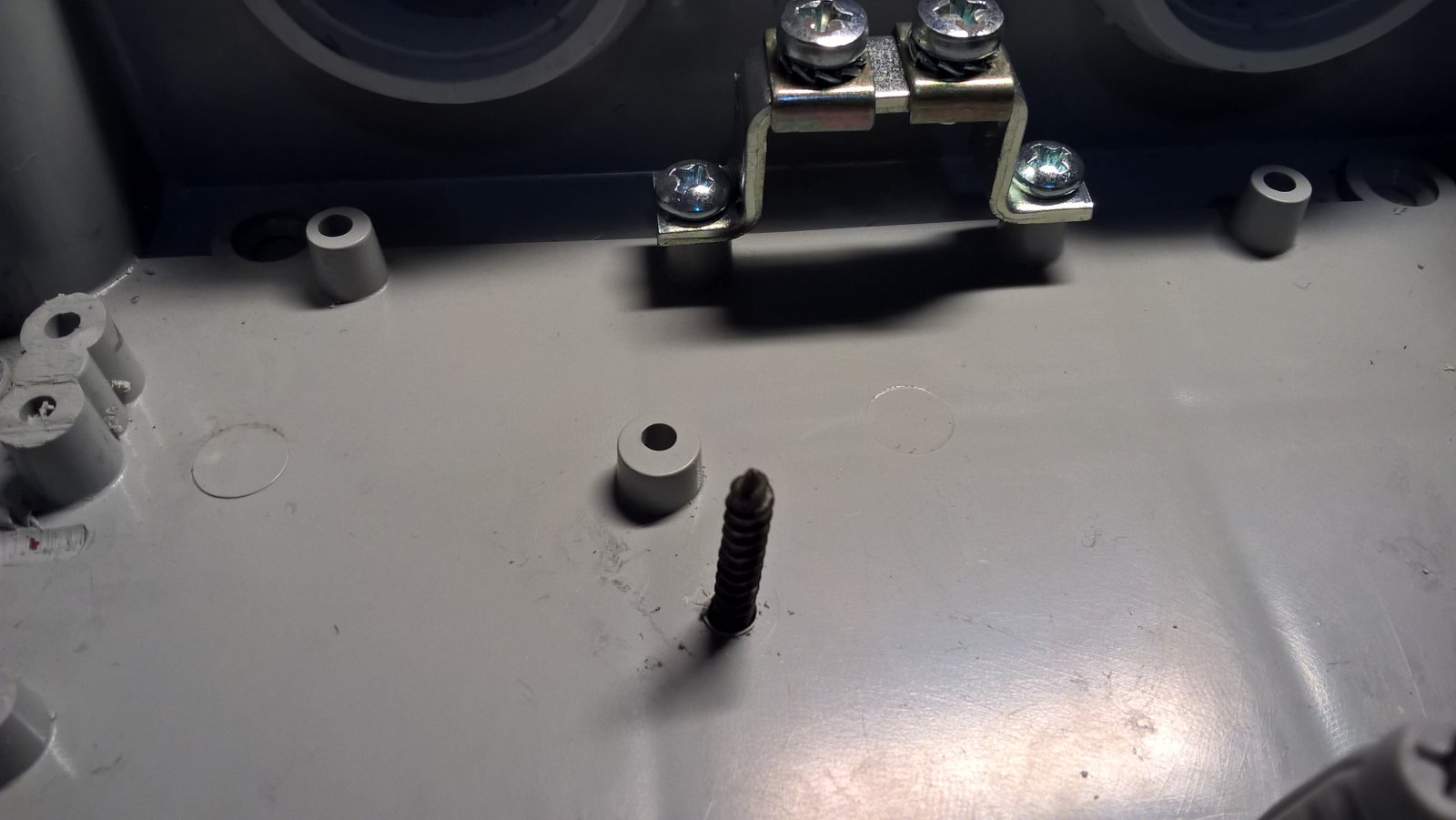

    and his own screw in the electrical box...
  11. Enrico

    Enrico Member

    Joined:
    Feb 5, 2018
    Messages:
    123
    Location:
    Italy
    Balance:
    417Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    4DOF
  12. Enrico

    Enrico Member

    Joined:
    Feb 5, 2018
    Messages:
    123
    Location:
    Italy
    Balance:
    417Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    4DOF

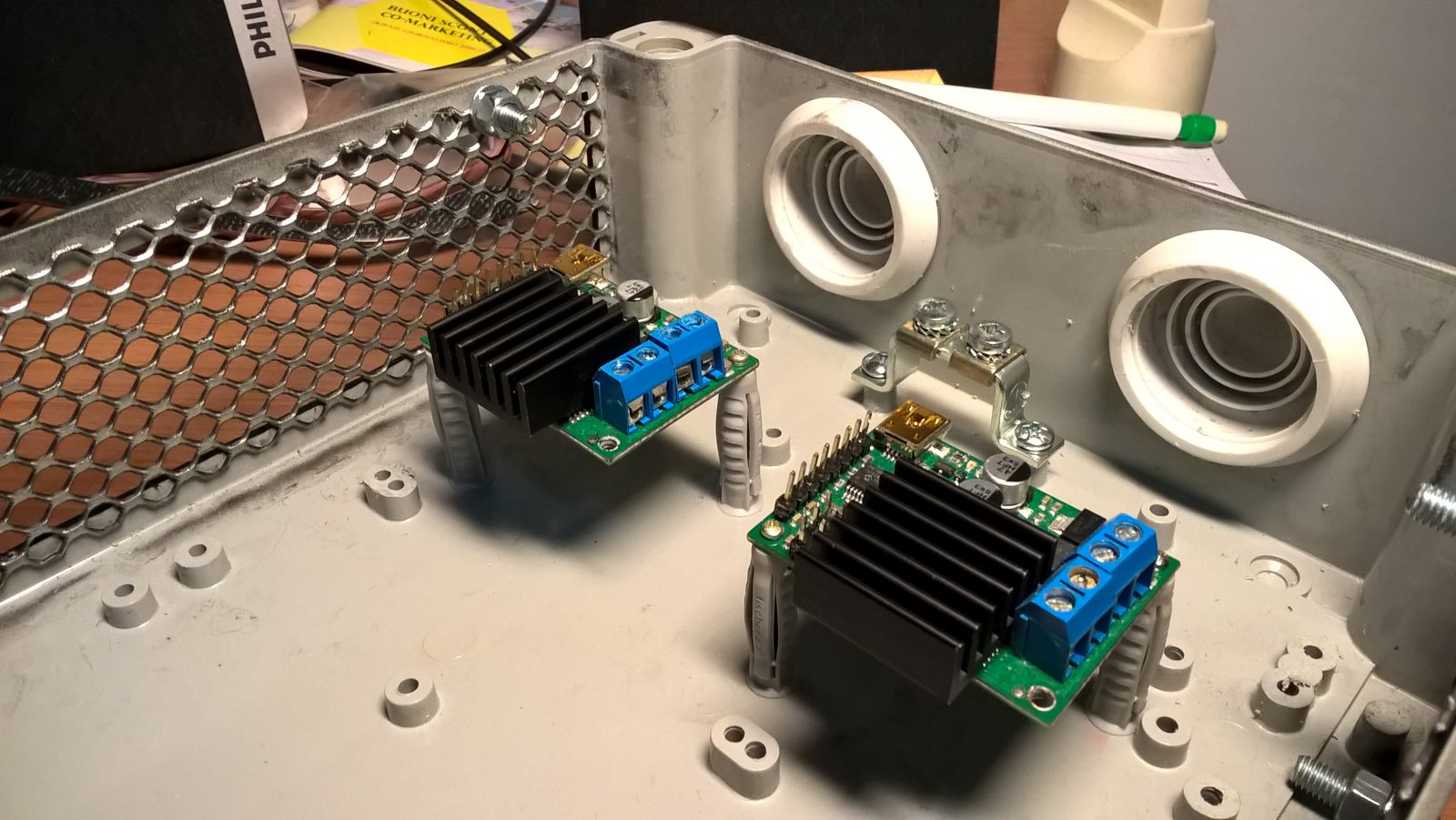

    maybe this solution can help somone with the same problem ie to allow a good cooling air flow also under the cards inside the elecrtical box
  13. dualclick76

    dualclick76 Active Member

    Joined:
    Mar 23, 2015
    Messages:
    163
    Location:
    italia
    Balance:
    10Coins
    Ratings:
    +40 / 0 / -2
    My Motion Simulator:
    2DOF, DC motor, Arduino
    I like the fixing system very interesting
  14. dualclick76

    dualclick76 Active Member

    Joined:
    Mar 23, 2015
    Messages:
    163
    Location:
    italia
    Balance:
    10Coins
    Ratings:
    +40 / 0 / -2
    My Motion Simulator:
    2DOF, DC motor, Arduino
    I like the fixing system very interesting
  15. Enrico

    Enrico Member

    Joined:
    Feb 5, 2018
    Messages:
    123
    Location:
    Italy
    Balance:
    417Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    4DOF
    Hi everybody I add some new progresses of my rig
  16. Enrico

    Enrico Member

    Joined:
    Feb 5, 2018
    Messages:
    123
    Location:
    Italy
    Balance:
    417Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    4DOF

    here the adjusting system for the height of the universal joint. Mybe when I find the right height I weldit
  17. Enrico

    Enrico Member

    Joined:
    Feb 5, 2018
    Messages:
    123
    Location:
    Italy
    Balance:
    417Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    4DOF
  18. Enrico

    Enrico Member

    Joined:
    Feb 5, 2018
    Messages:
    123
    Location:
    Italy
    Balance:
    417Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    4DOF

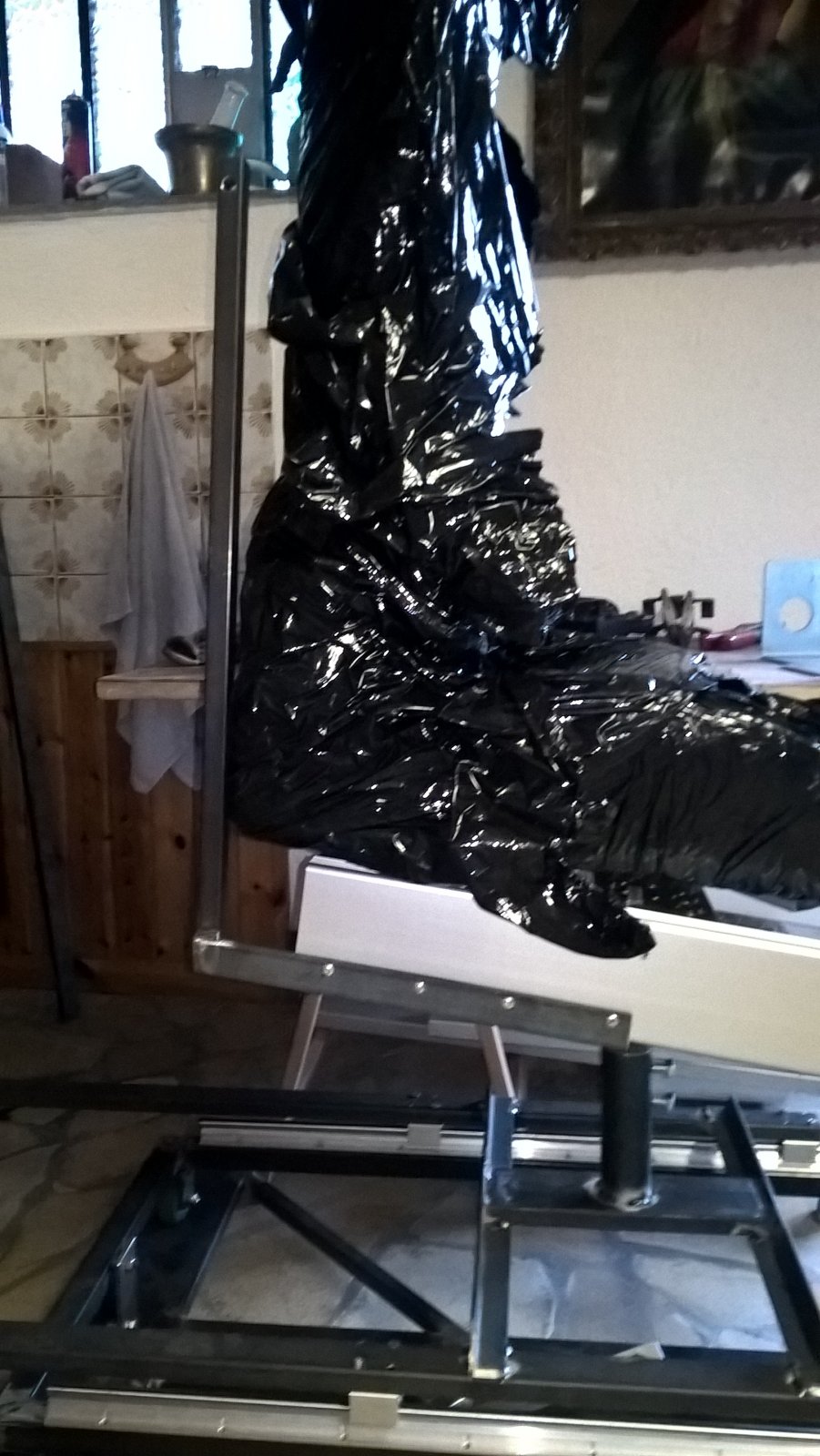

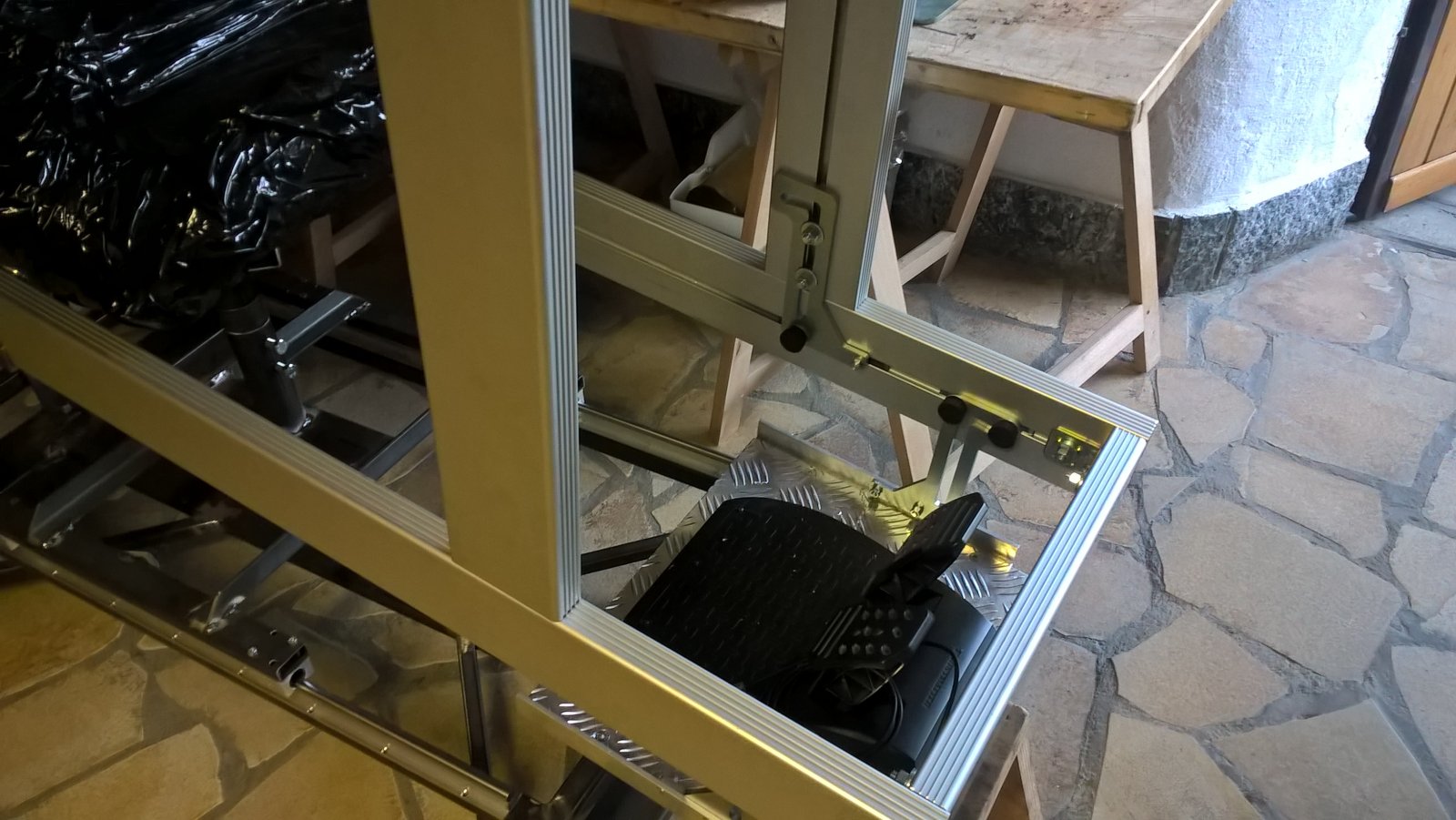

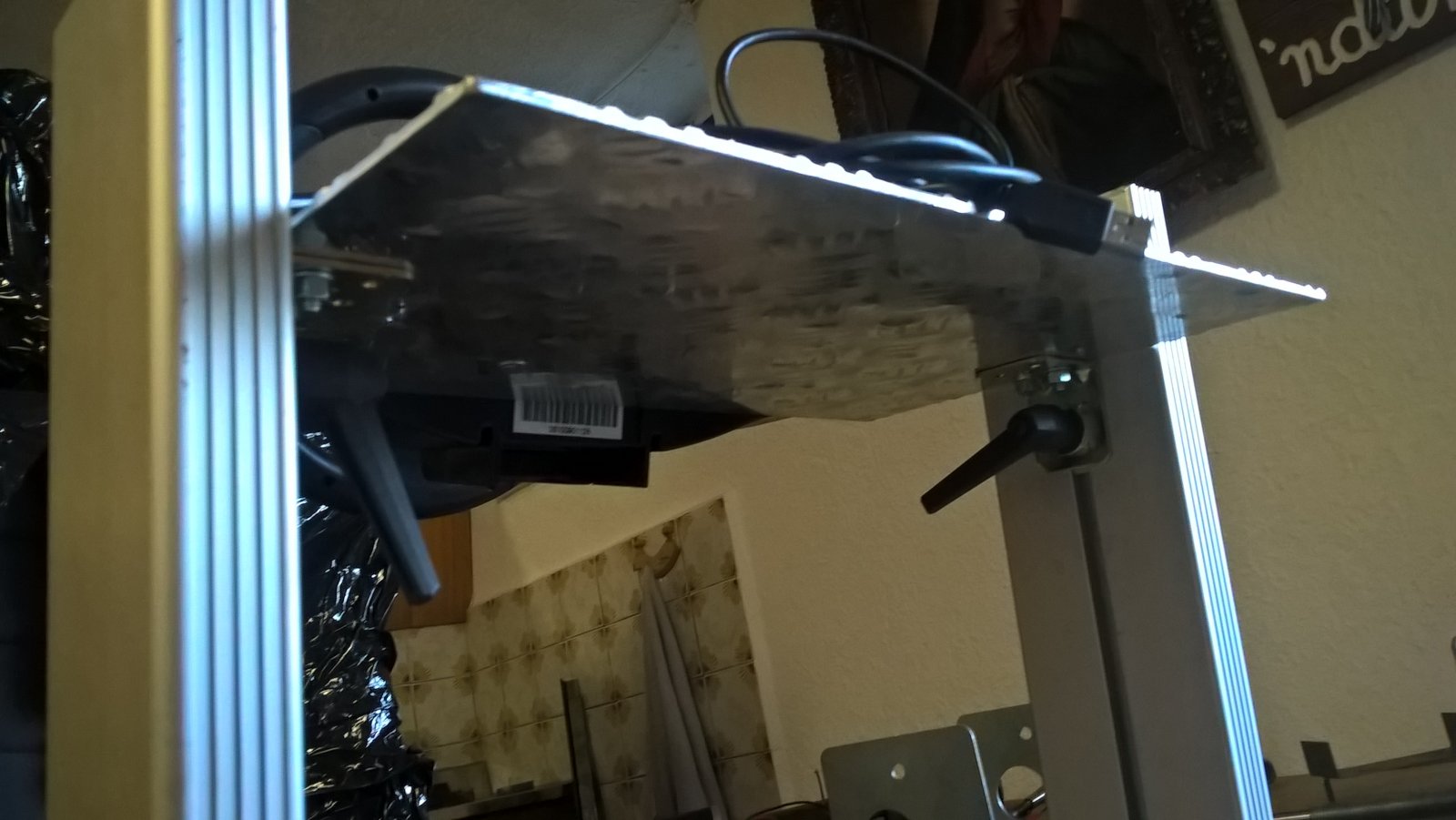

    the system to adjust height and inclination of the wheel
    • Like Like x 1
  19. Enrico

    Enrico Member

    Joined:
    Feb 5, 2018
    Messages:
    123
    Location:
    Italy
    Balance:
    417Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    4DOF
  20. Enrico

    Enrico Member

    Joined:
    Feb 5, 2018
    Messages:
    123
    Location:
    Italy
    Balance:
    417Coins
    Ratings:
    +28 / 0 / -0
    My Motion Simulator:
    4DOF

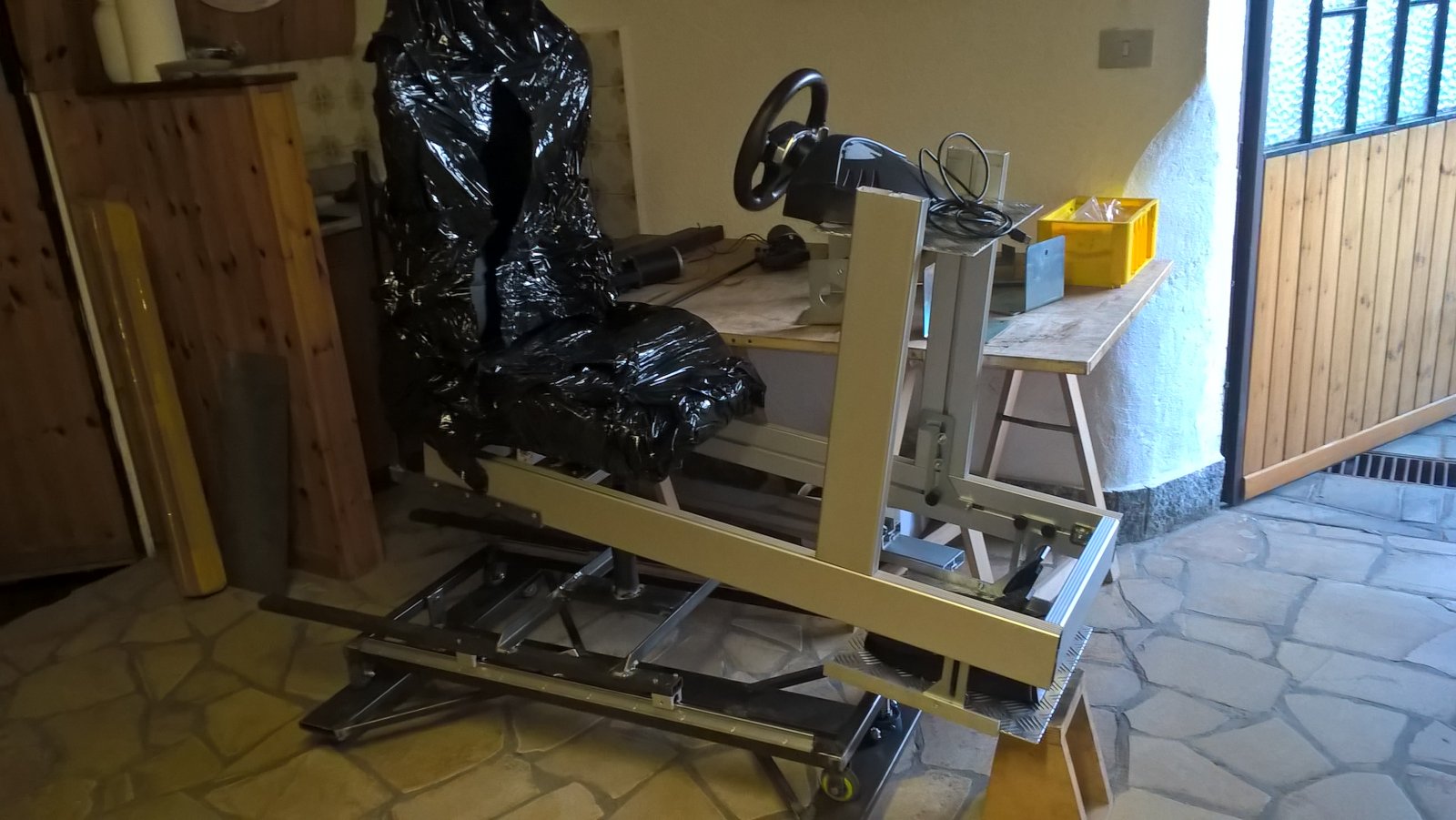

    almost finish. Still to add motors ...:D
    • Like Like x 2
